Honda GXV50-VA_A Parts Diagram Engine (Serial GJAG-1100001 to 1199999)
Diagrams:
Diagram:

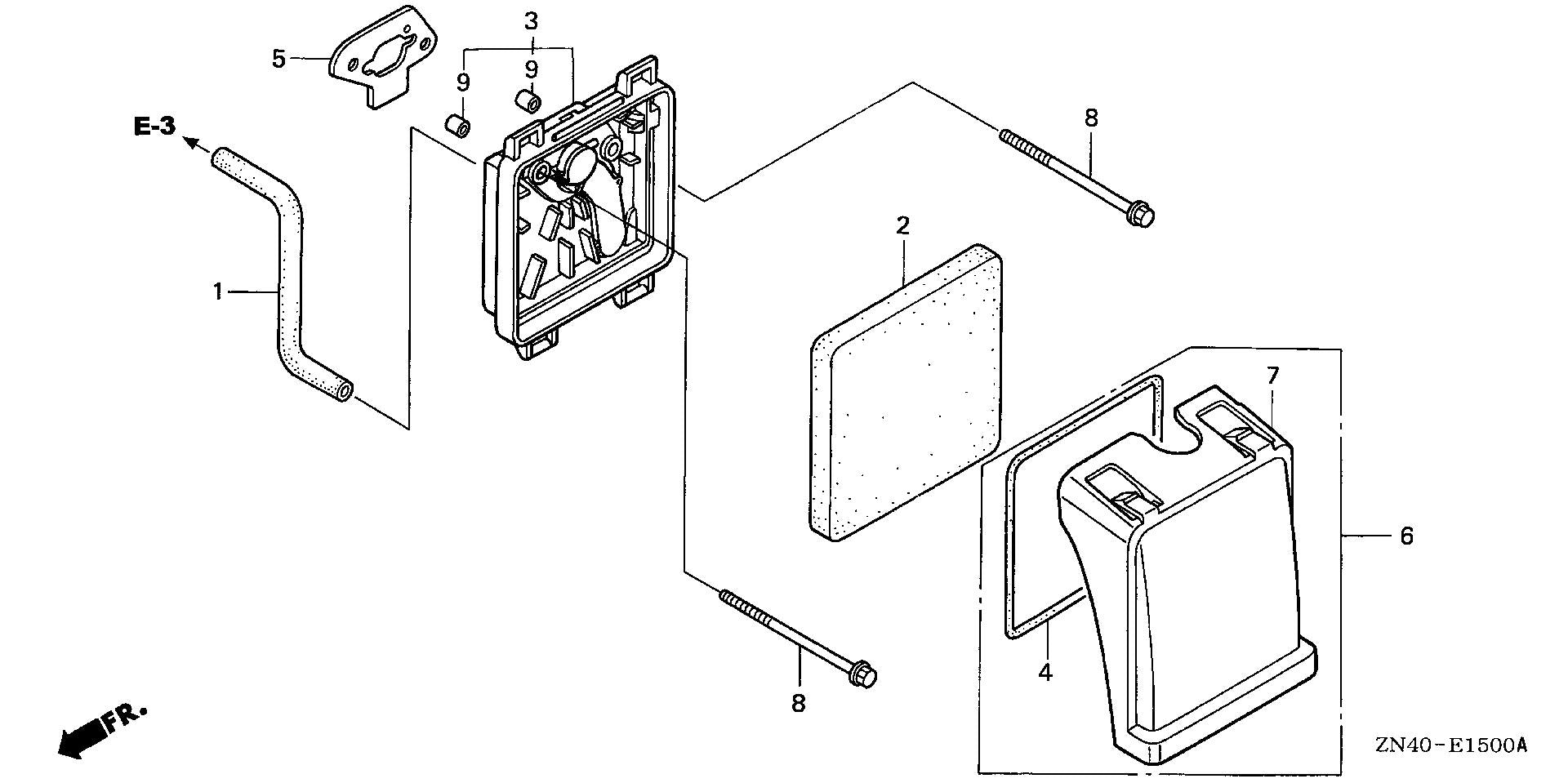

AIR CLEANER
AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
15721-zn4-000
15721-zn4-000
|
|||
|
|
17220-zm7-010
17220-zm7-010
|
|||
|
|
17227-zm7-000
17227-zm7-000
|
|||
|
|
17228-zm7-000
17228-zm7-000
|
|||
|
|
17230-zm7-010
17230-zm7-010
|
|||
|
|
17231-zm7-010
17231-zm7-010
|
|||
|
|
90004-zn4-000
90004-zn4-000
|
|||
|
|
91503-zm7-000
91503-zm7-000
|

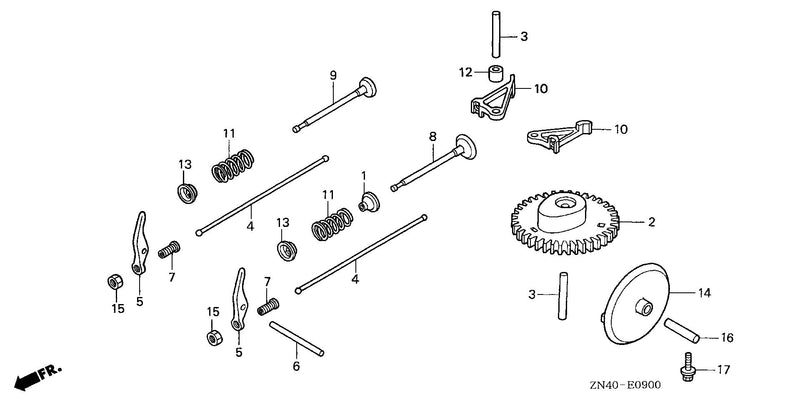

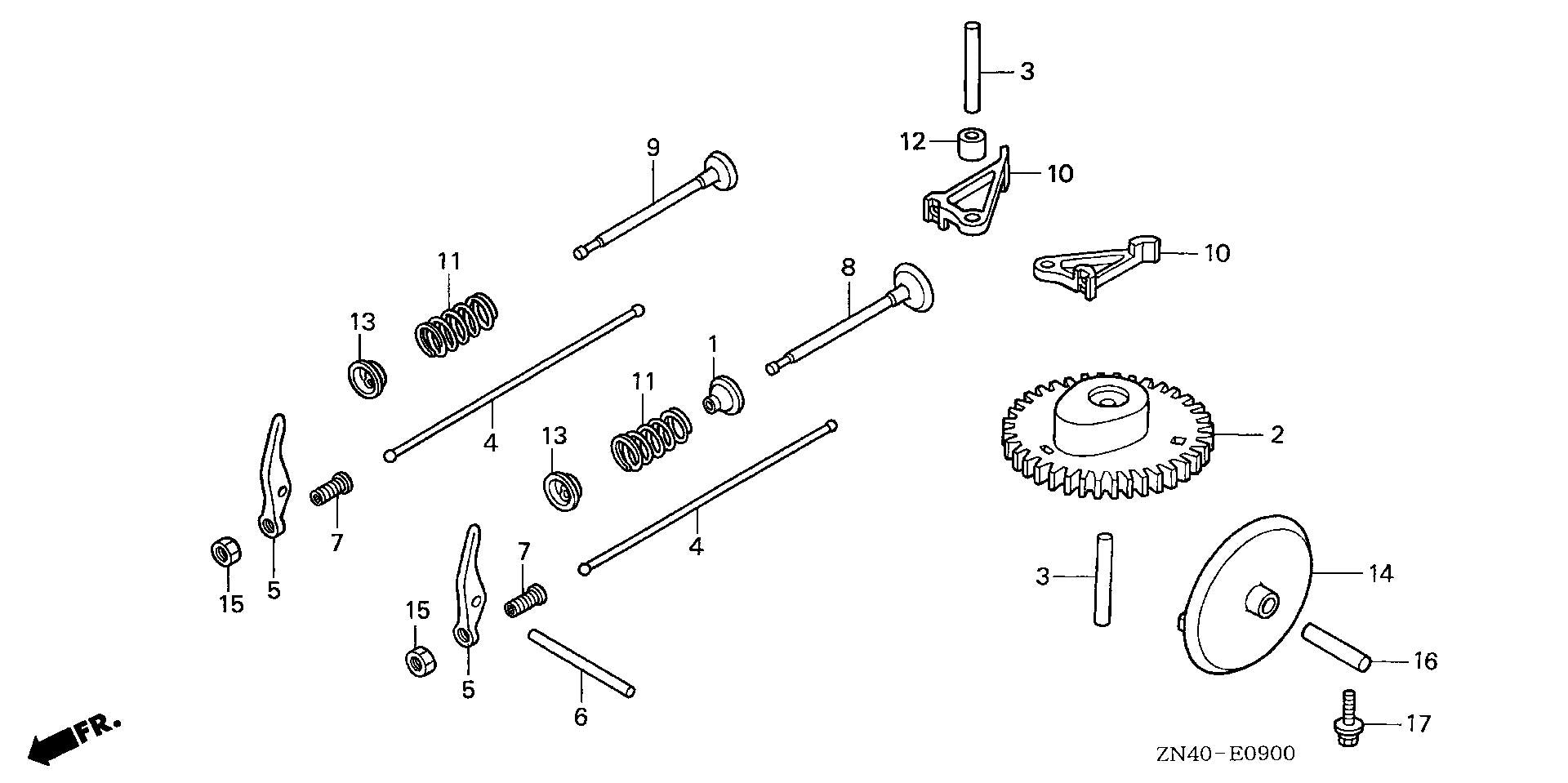

CAMSHAFT
CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12209-zm7-003
12209-zm7-003
|
|||
|
|
14100-zm7-010
14100-zm7-010
|
|||
|
|
14126-z0g-003
14126-z0g-003
|
|||
|
|
90702-p6r-008
90702-p6r-008
|
|||
|
|
14410-zm7-000
14410-zm7-000
|
|||
|
|
14431-zm7-000
14431-zm7-000
|
|||
|
|
14435-zm7-003
14435-zm7-003
|
|||
|
|
14451-zm7-000
14451-zm7-000
|
|||
|
|
14711-zm7-010
14711-zm7-010
|
|||
|
|
14731-zm7-013
14731-zm7-013
|
|||
|
|
14751-zm7-000
14751-zm7-000
|
|||
|
|
14754-zm7-000
14754-zm7-000
|
|||
|
|
14771-zdf-000
14771-zdf-000
|
|||
|
|
14771-zm3-000
14771-zm3-000
|
|||
|
|
15361-zn4-000
15361-zn4-000
|
|||
|
|
90206-km3-000
90206-km3-000
|
|||
|
|
91151-vb5-800
91151-vb5-800
|
|||
|
|
93404-05016-08
93404-05016-08
|

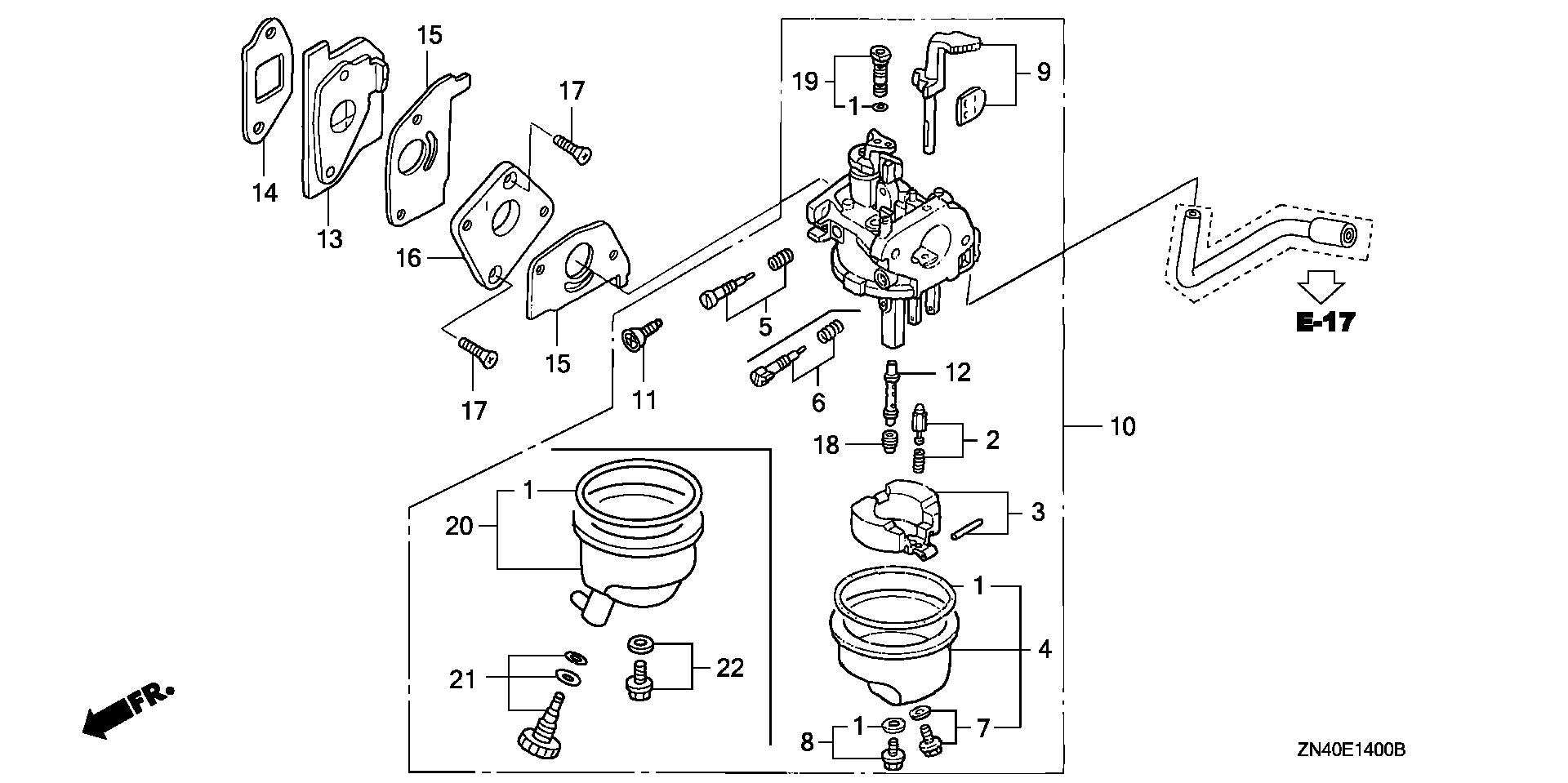

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-zg1-015
16010-zg1-015
|
|||
|
|
16010-zg2-d10
16010-zg2-d10
|
|||
|
|
16011-ze0-005
16011-ze0-005
|
|||
|
|
16013-zdj-801
16013-zdj-801
|
|||
|
|
16015-zg0-811
16015-zg0-811
|
|||
|
|
16016-zh7-w01
16016-zh7-w01
|
|||
|
|
16024-ze1-811
16024-ze1-811
|
|||
|
|
16028-zw6-611
16028-zw6-611
|
|||
|
|
16044-zm7-003
16044-zm7-003
|
|||
|
|
16100-zn4-802
16100-zn4-802
|
|||
|
|
16100-zn4-804
16100-zn4-804
|
|||
|
|
16124-ze0-005
16124-ze0-005
|
|||
|
|
16166-zm7-003
16166-zm7-003
|
|||
|
|
16166-zn4-801
16166-zn4-801
|
|||
|
|
16211-zn4-000
16211-zn4-000
|
|||
|
|
16212-zm7-000
16212-zm7-000
|
|||
|
|
16225-zn4-000
16225-zn4-000
|
|||
|
|
93600-05020-0a
93600-05020-0a
|
|||
|
|
99101-zg0-0480
99101-zg0-0480
|
|||
|
|
99101-zg0-0500
99101-zg0-0500
|
|||
|
|
99101-zg0-0520
99101-zg0-0520
|
|||
|
|
99101-zg0-0550
99101-zg0-0550
|
|||
|
|
99204-ze2-0350
99204-ze2-0350
|

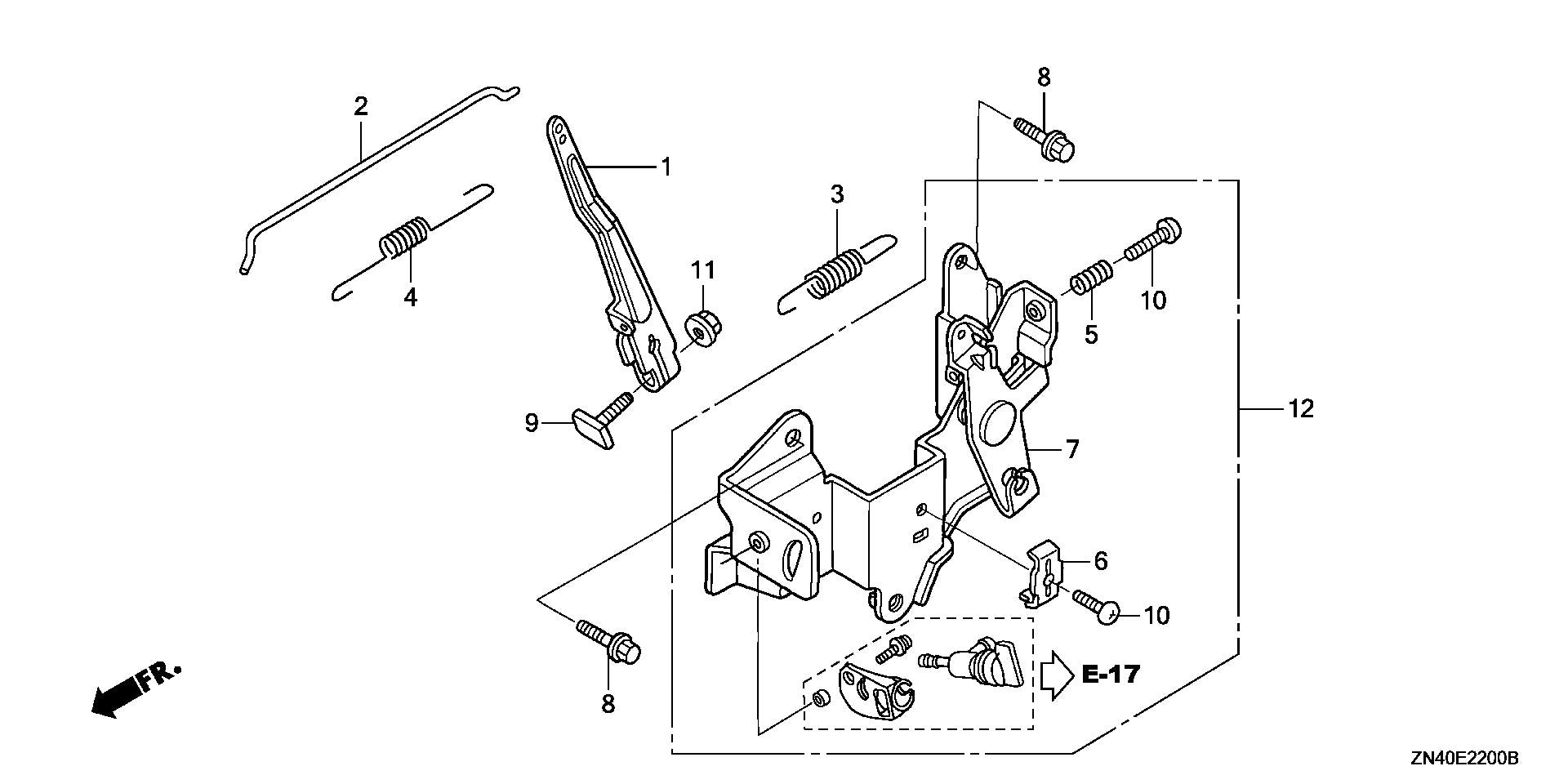

CONTROL
CONTROL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16551-zn4-000
16551-zn4-000
|
|||
|
|
16555-zn4-000
16555-zn4-000
|
|||
|
|
16561-zn4-000
16561-zn4-000
|
|||
|
|
16562-zn4-801
16562-zn4-801
|
|||
|
|
16571-892-000
16571-892-000
|
|||
|
|
16576-891-000
16576-891-000
|
|||
|
|
16580-zn4-000
16580-zn4-000
|
|||
|
|
90003-892-000
90003-892-000
|
|||
|
|
90015-ze5-010
90015-ze5-010
|
|||
|
|
93500-05020-0h
93500-05020-0h
|

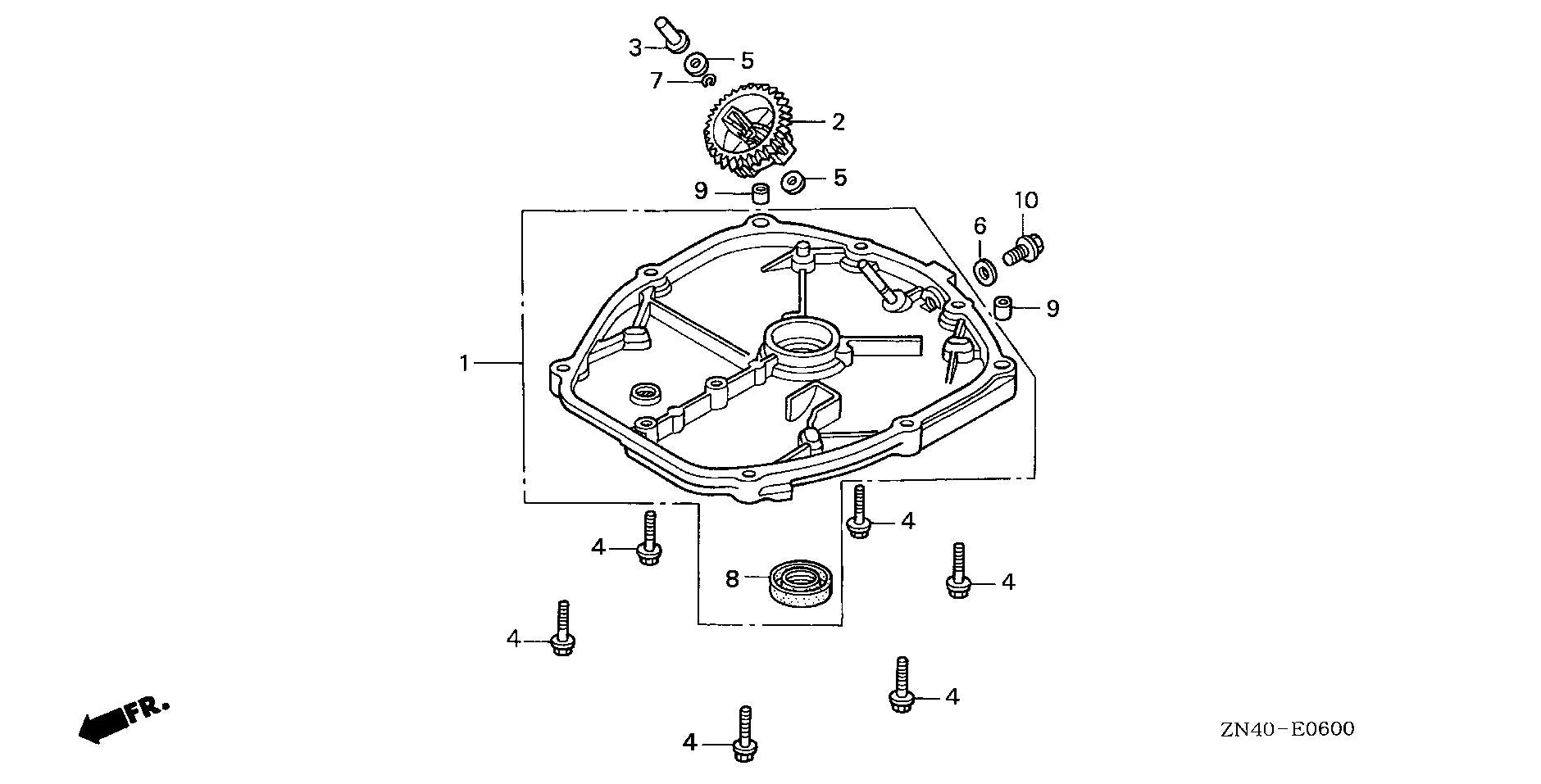

CRANKCASE SIDE COVER
CRANKCASE SIDE COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11340-zn4-020
11340-zn4-020
|
|||
|
|
11340-zn4-801
11340-zn4-801
|
|||
|
|
11340-zn4-802
11340-zn4-802
|
|||
|
|
16510-zm7-000
16510-zm7-000
|
|||
|
|
16531-zm7-000
16531-zm7-000
|
|||
|
|
90006-zm7-000
90006-zm7-000
|
|||
|
|
90441-zm7-000
90441-zm7-000
|
|||
|
|
90602-zm7-000
90602-zm7-000
|
|||
|
|
91202-hc5-005
91202-hc5-005
|
|||
|
|
94301-06100
94301-06100
|
|||
|
|
95701-08012-08
95701-08012-08
|

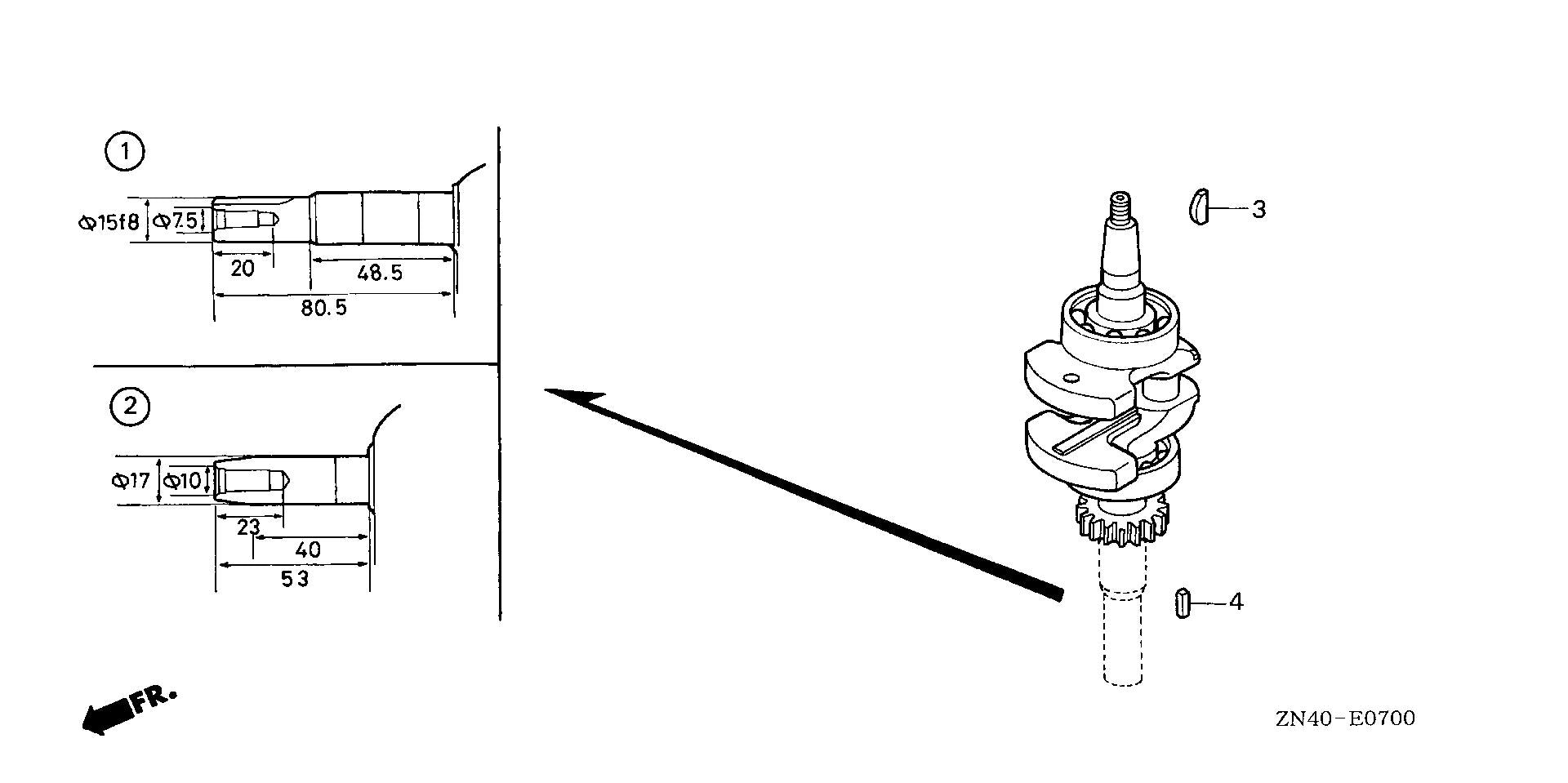

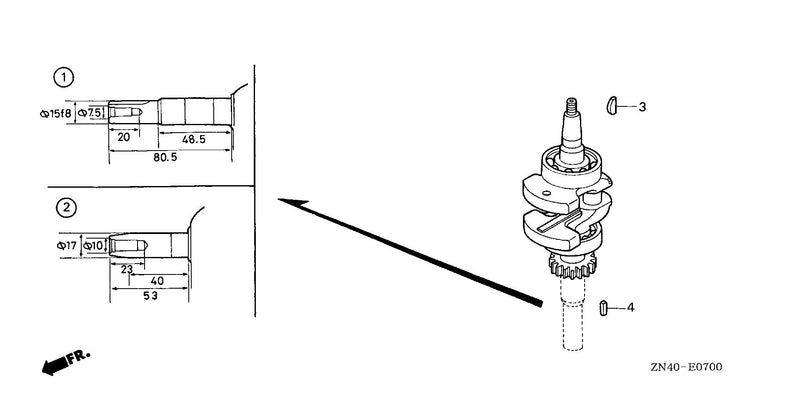

CRANKSHAFT
CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13310-zm7-020
13310-zm7-020
|
|||
|
|
13310-zn4-020
13310-zn4-020
|
|||
|
|
13331-zm7-000
13331-zm7-000
|
|||
|
|
90741-959-000
90741-959-000
|

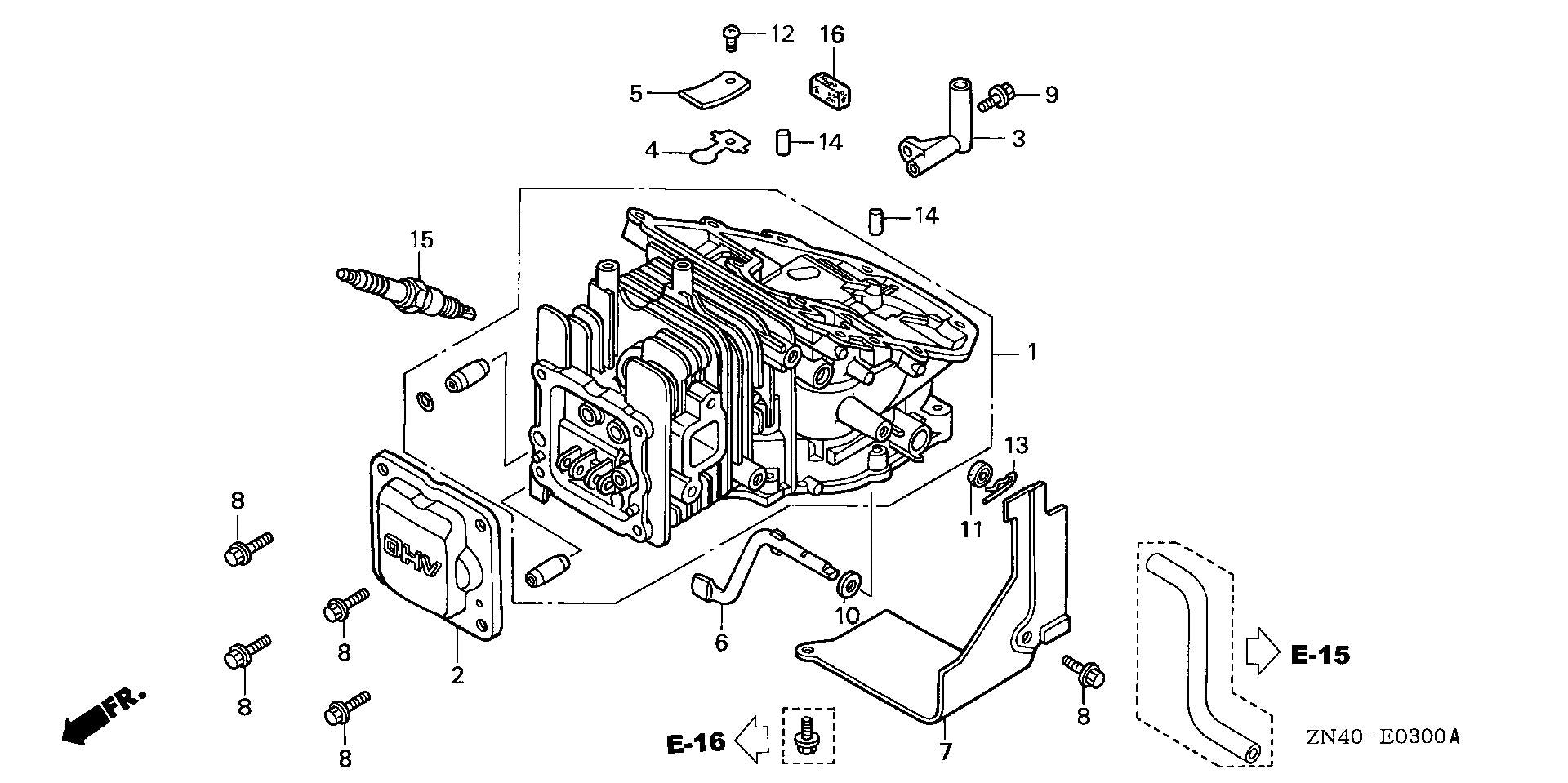

CYLINDER BARREL
CYLINDER BARREL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12100-zm7-417
12100-zm7-417
|
|||
|
|
12311-zm7-000
12311-zm7-000
|
|||
|
|
12311-zm7-010
12311-zm7-010
|
|||
|
|
15171-zn4-000
15171-zn4-000
|
|||
|
|
15571-zm7-003
15571-zm7-003
|
|||
|
|
15572-zm7-000
15572-zm7-000
|
|||
|
|
16541-zm7-000
16541-zm7-000
|
|||
|
|
19631-zm7-000
19631-zm7-000
|
|||
|
|
90003-892-000
90003-892-000
|
|||
|
|
90008-zm7-000
90008-zm7-000
|
|||
|
|
90443-zc3-000
90443-zc3-000
|
|||
|
|
91231-zc3-003
91231-zc3-003
|
|||
|
|
93500-03005-0a
93500-03005-0a
|
|||
|
|
94251-06000
94251-06000
|
|||
|
|
96220-60150
96220-60150
|
|||
|
|
98056-54757
98056-54757
|
|||
|
|
98056-55777
98056-55777
|
|||
|
|
12367-ze6-010
12367-ze6-010
|

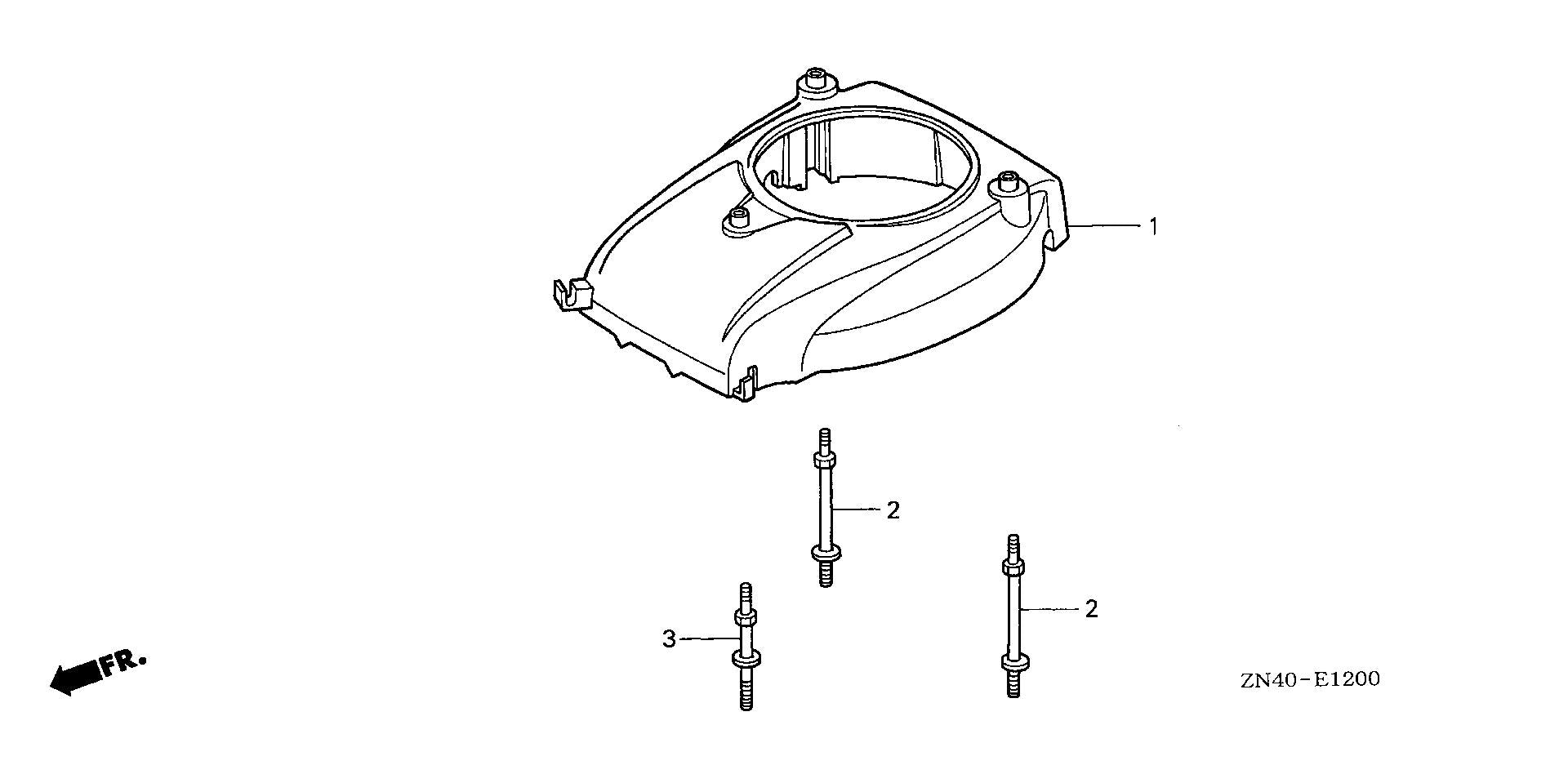

FAN COVER
FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19610-zm7-000zc
19610-zm7-000zc
|
|||
|
|
90042-zm7-000
90042-zm7-000
|
|||
|
|
90043-zm7-000
90043-zm7-000
|

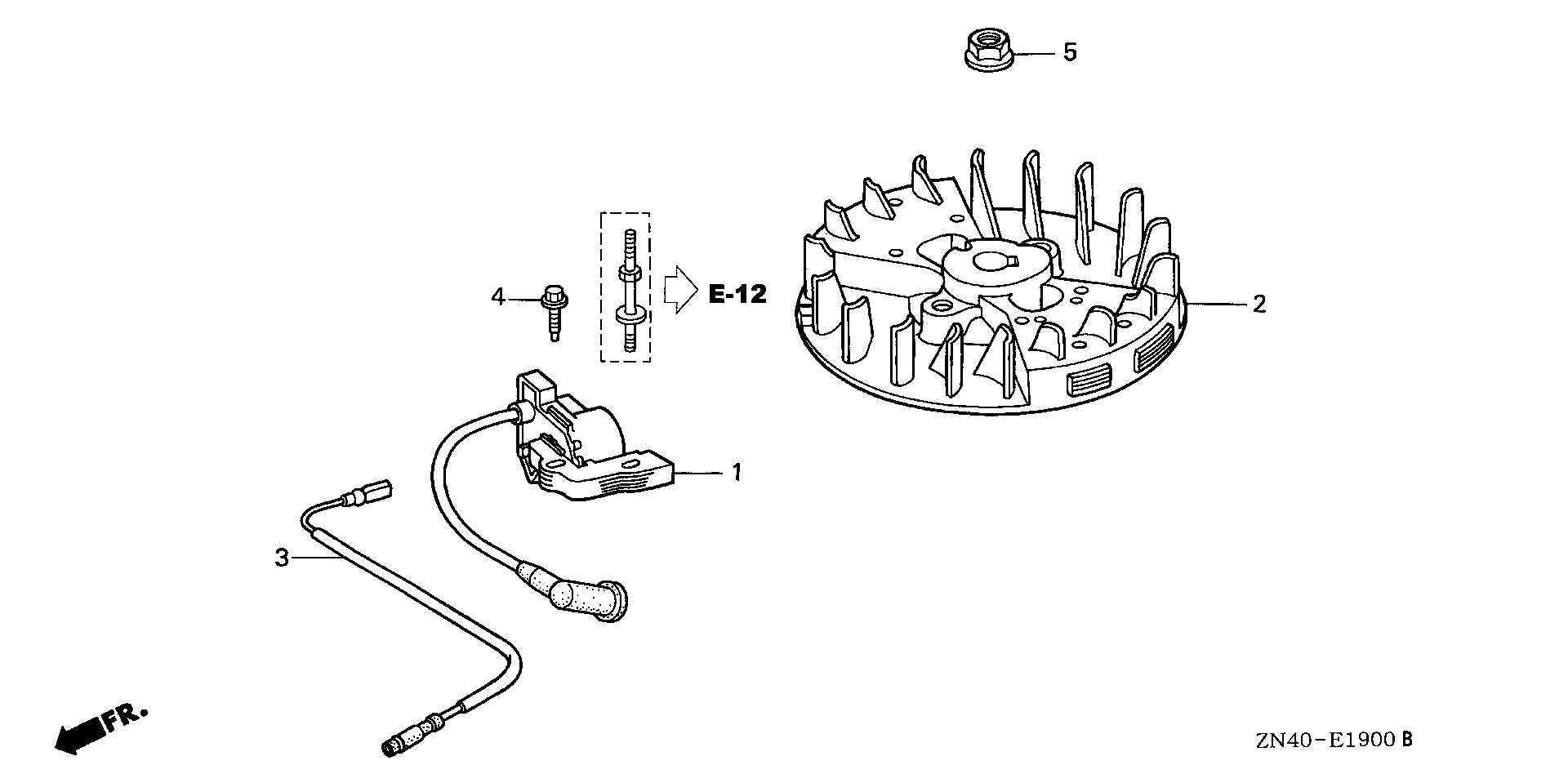

FLYWHEEL@IGNITION COIL
FLYWHEEL@IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30500-zm7-014
30500-zm7-014
|
|||
|
|
31110-zm7-004
31110-zm7-004
|
|||
|
|
32195-zn4-000
32195-zn4-000
|
|||
|
|
90004-zc3-000
90004-zc3-000
|

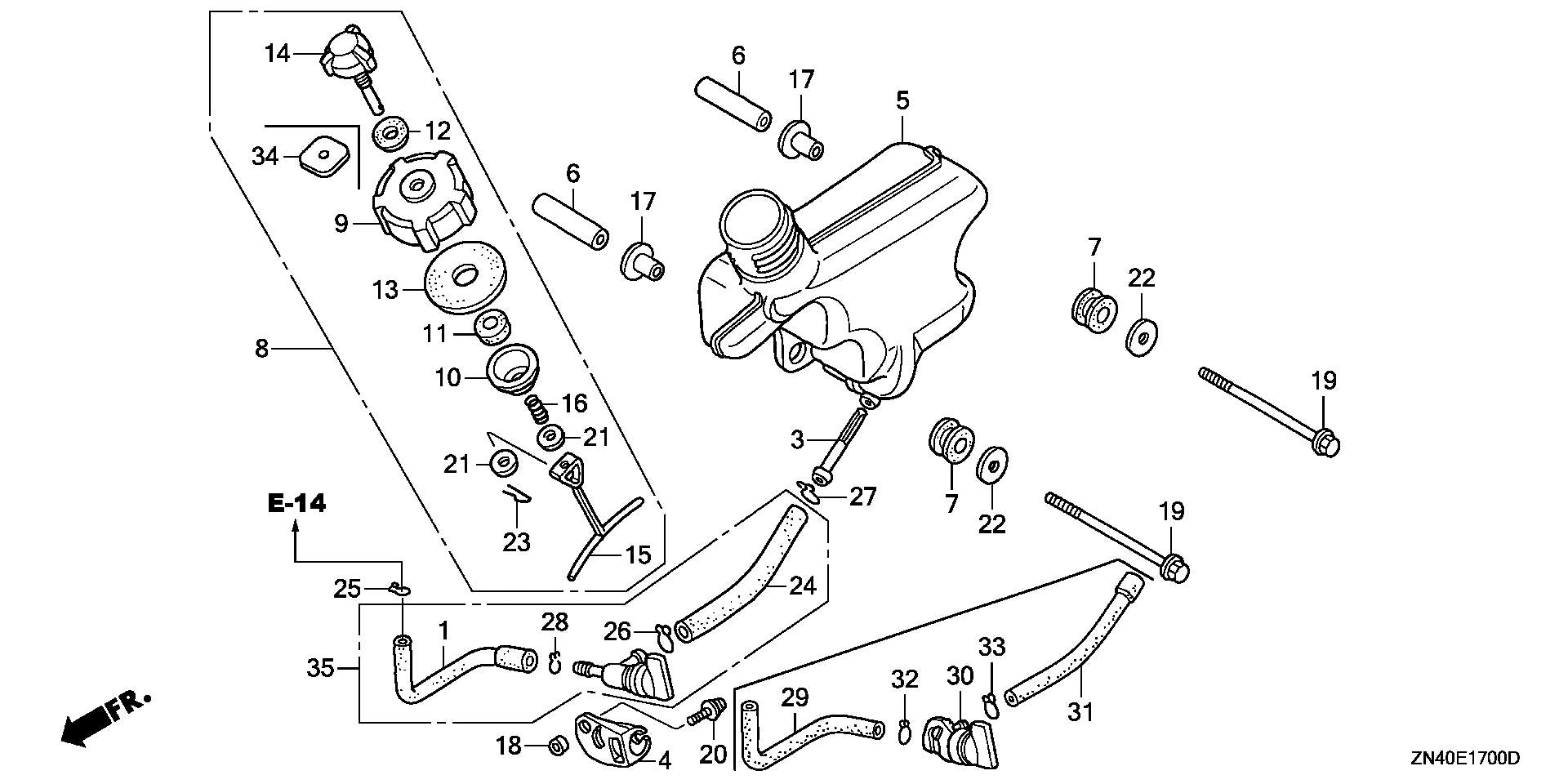

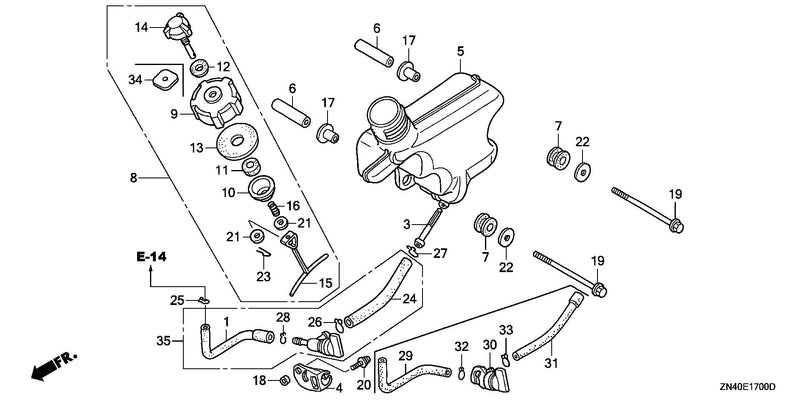

FUEL TANK
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
04103-z0l-000
04103-z0l-000
|
|||
|
|
16952-ze6-000
16952-ze6-000
|
|||
|
|
16956-zm0-000
16956-zm0-000
|
|||
|
|
17510-zn4-000
17510-zn4-000
|
|||
|
|
17517-zn4-000
17517-zn4-000
|
|||
|
|
17532-zm7-000
17532-zm7-000
|
|||
|
|
17620-zv0-050
17620-zv0-050
|
|||
|
|
17621-zv0-020
17621-zv0-020
|
|||
|
|
17621-zv0-030
17621-zv0-030
|
|||
|
|
17622-zv0-000
17622-zv0-000
|
|||
|
|
17623-zv0-000
17623-zv0-000
|
|||
|
|
17624-zv0-000
17624-zv0-000
|
|||
|
|
17625-zv0-000
17625-zv0-000
|
|||
|
|
17626-zv0-010
17626-zv0-010
|
|||
|
|
17628-zv0-000
17628-zv0-000
|
|||
|
|
17629-zv0-000
17629-zv0-000
|
|||
|
|
19052-mb4-880
19052-mb4-880
|
|||
|
|
33609-gk4-620
33609-gk4-620
|
|||
|
|
90015-zg0-801
90015-zg0-801
|
|||
|
|
93891-05010-08
93891-05010-08
|
|||
|
|
94101-04200
94101-04200
|
|||
|
|
94103-06800
94103-06800
|
|||
|
|
94251-04000
94251-04000
|
|||
|
|
95001-75008-60m
95001-75008-60m
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95002-02120
95002-02120
|
|||
|
|
95002-02130
95002-02130
|
|||
|
|
95002-50000
95002-50000
|
|||
|
|
16861-zn4-800
16861-zn4-800
|
|||
|
|
16950-zm0-003
16950-zm0-003
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95002-02100
95002-02100
|
|||
|
|
04103-zn4-000
04103-zn4-000
|

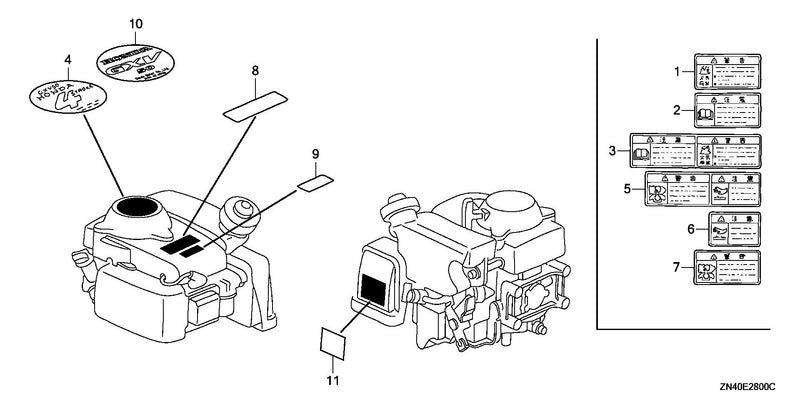

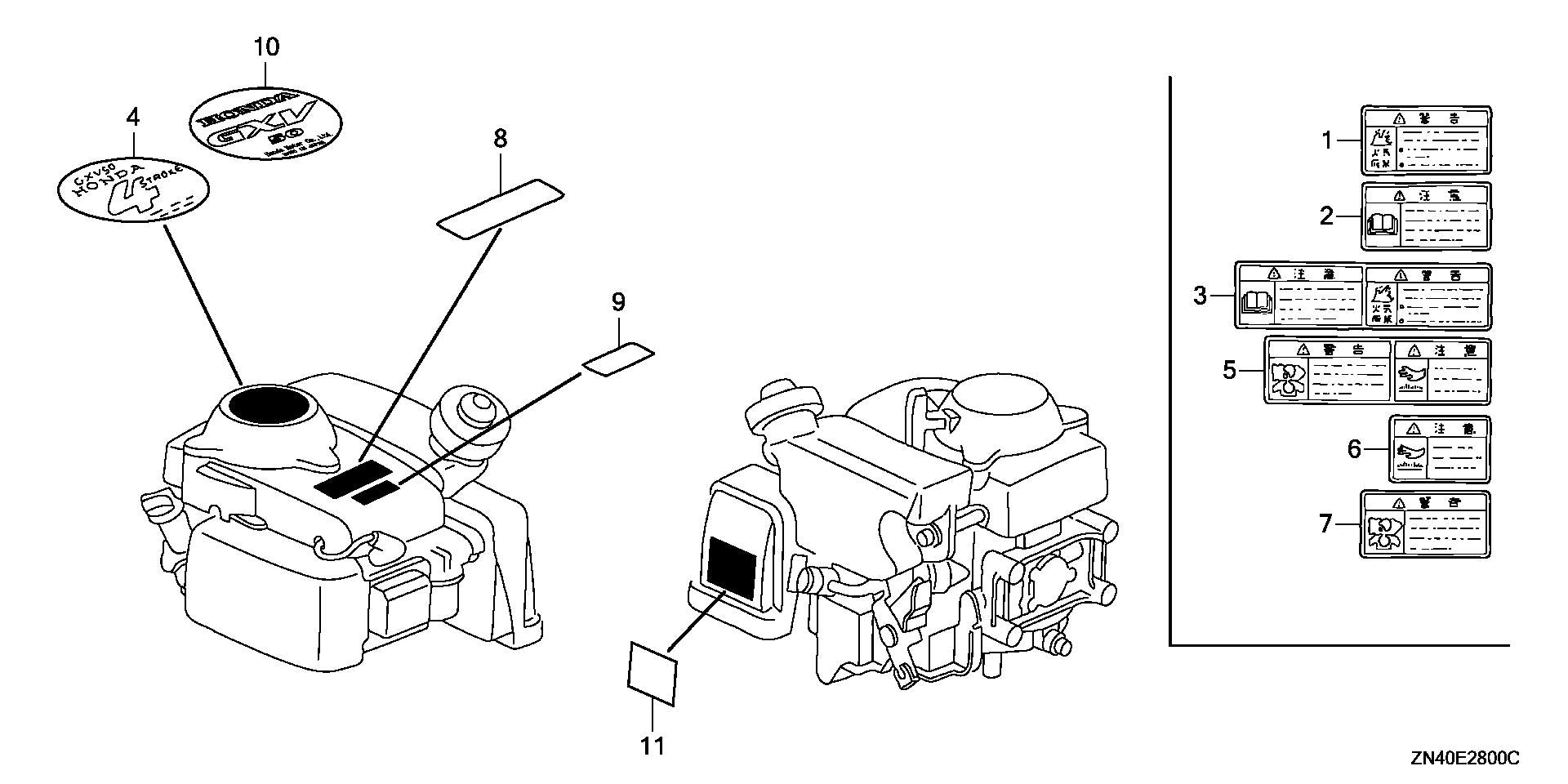

LABEL
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87521-zn4-020
87521-zn4-020
|

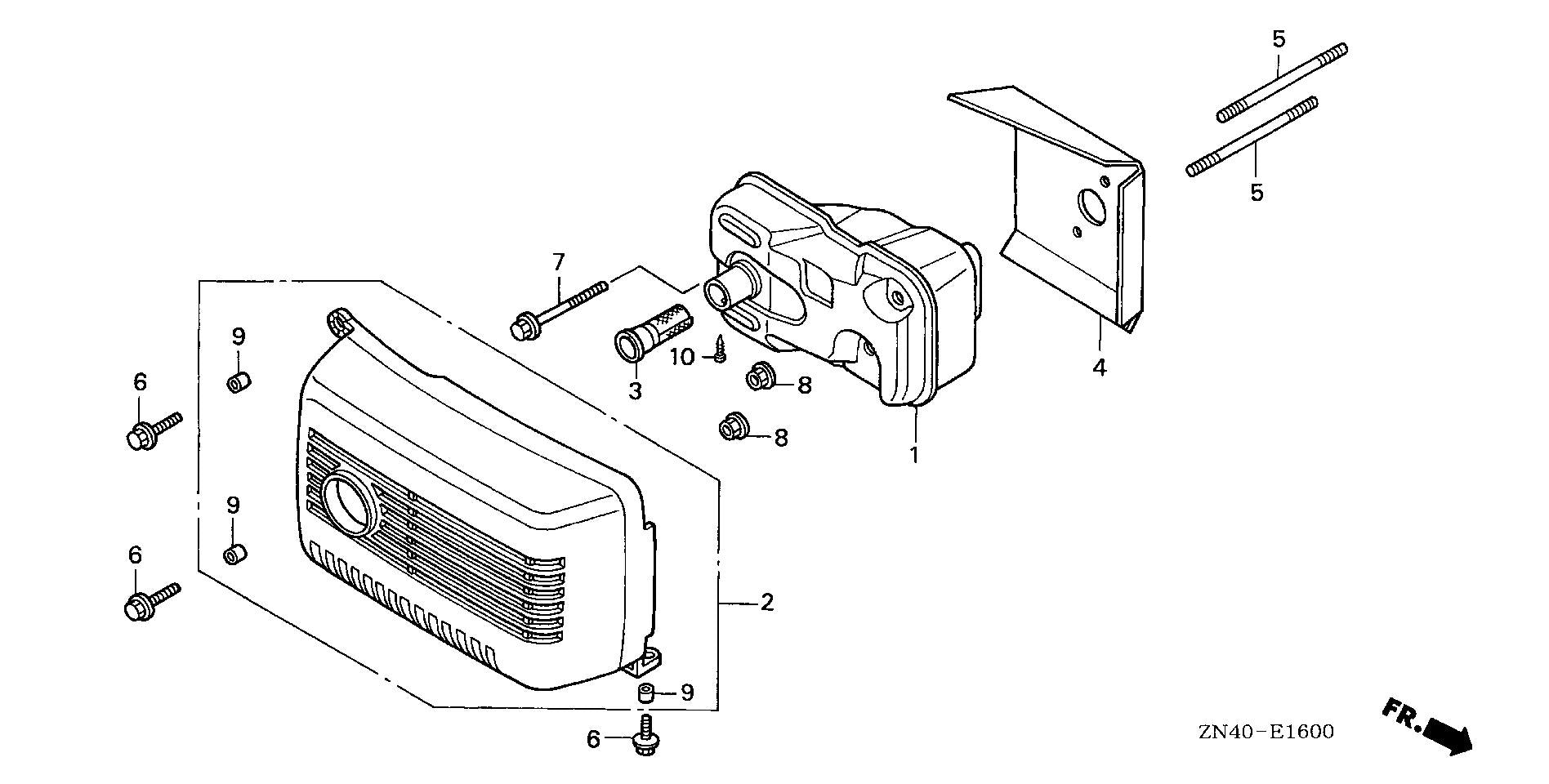

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18310-zm7-801
18310-zm7-801
|
|||
|
|
18320-zm7-000
18320-zm7-000
|
|||
|
|
18350-zm7-801
18350-zm7-801
|
|||
|
|
18515-zm7-000
18515-zm7-000
|
|||
|
|
90002-zm7-000
90002-zm7-000
|
|||
|
|
90012-892-000
90012-892-000
|
|||
|
|
90103-p4v-010
90103-p4v-010
|
|||
|
|
90136-sm4-901
90136-sm4-901
|
|||
|
|
91502-zm3-000
91502-zm3-000
|
|||
|
|
93903-24110
93903-24110
|

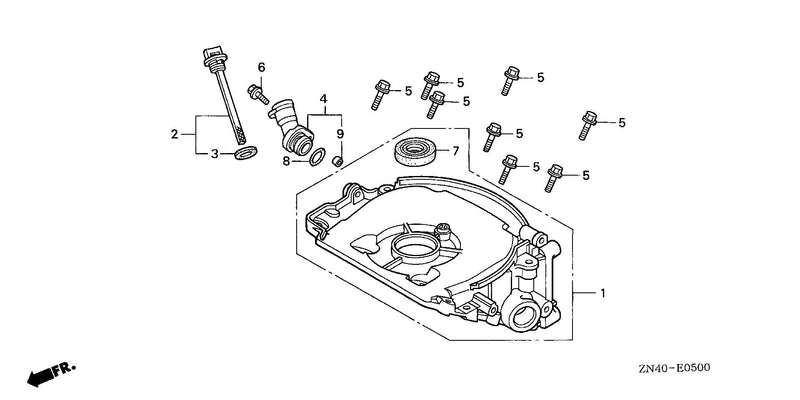

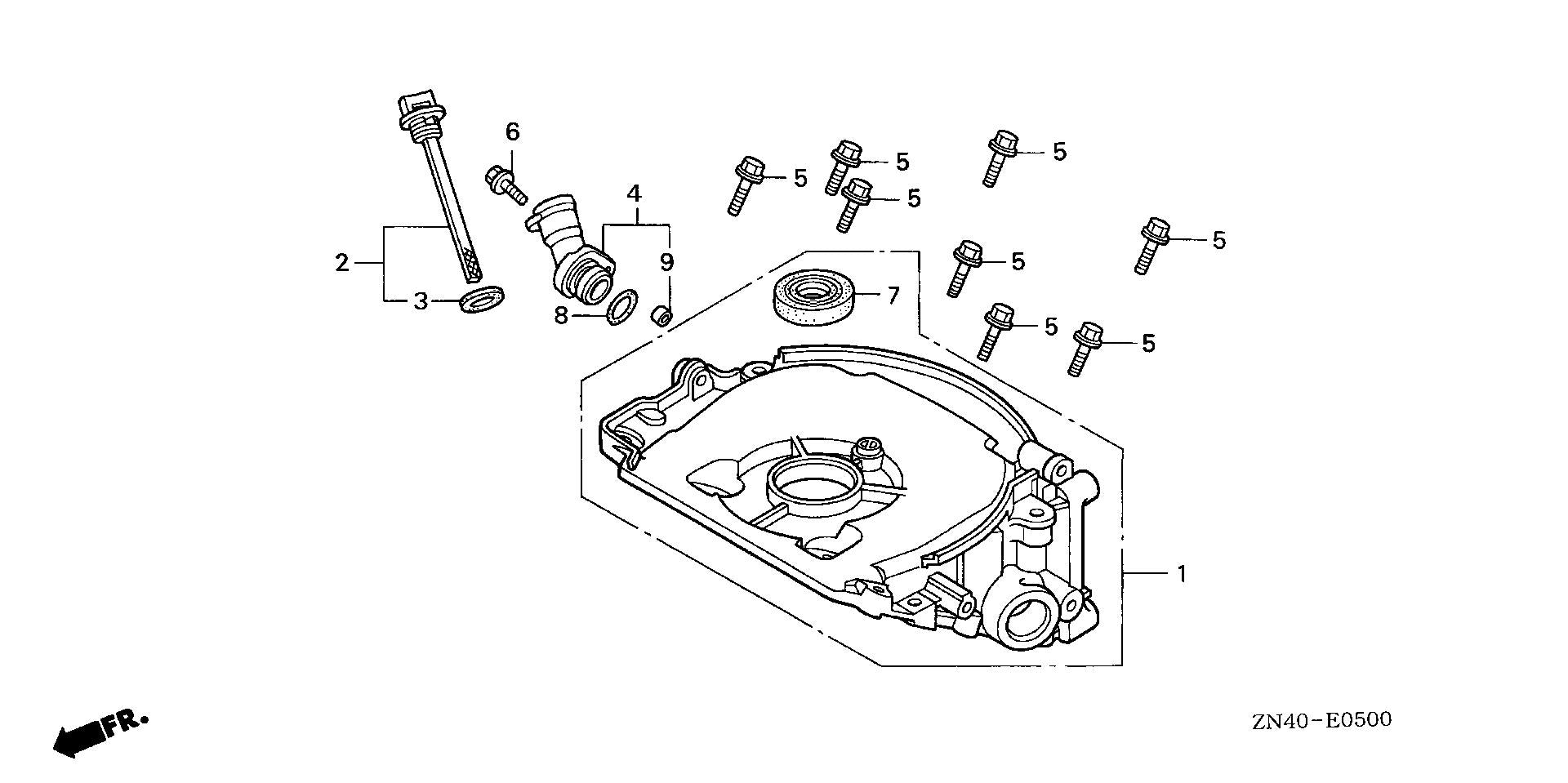

OIL CASE
OIL CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11300-zn4-405
11300-zn4-405
|
|||
|
|
15600-zn4-003
15600-zn4-003
|
|||
|
|
15625-ze1-003
15625-ze1-003
|
|||
|
|
15631-zn4-000
15631-zn4-000
|
|||
|
|
90006-zm7-000
90006-zm7-000
|
|||
|
|
90012-896-750
90012-896-750
|
|||
|
|
91202-hc5-005
91202-hc5-005
|
|||
|
|
91502-zm3-000
91502-zm3-000
|

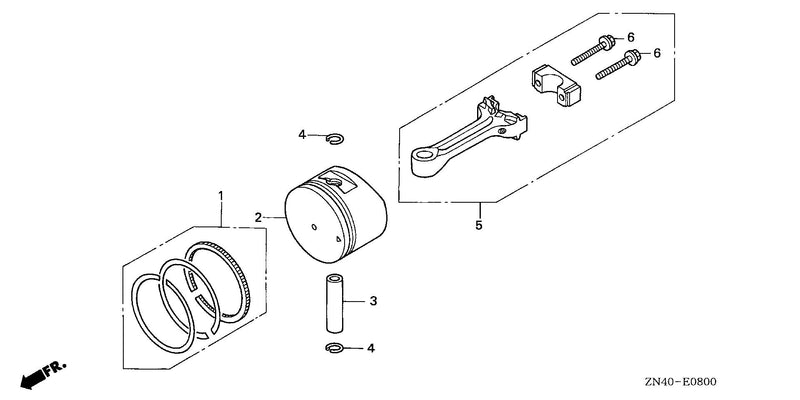

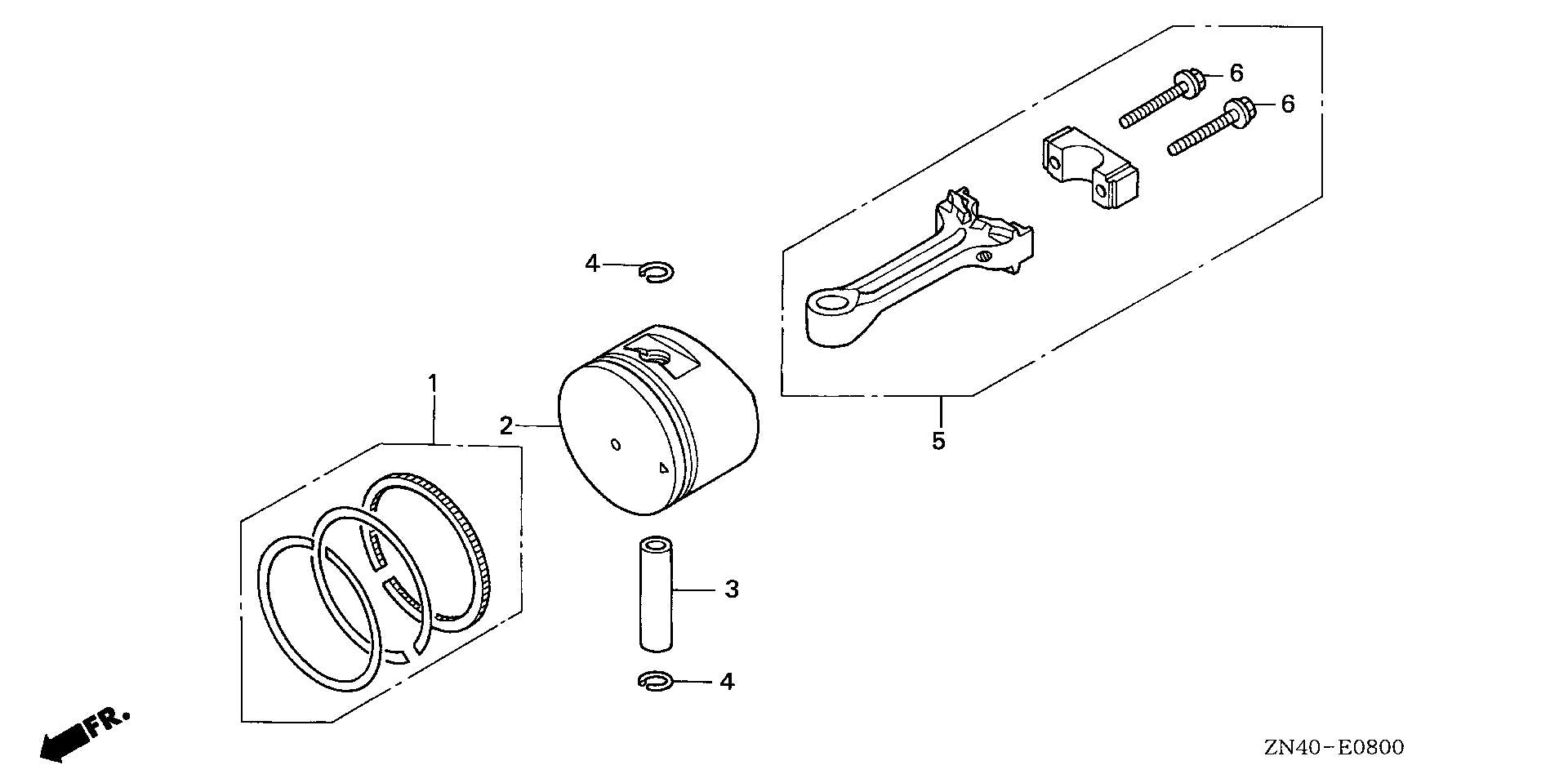

PISTON@CONNECTING ROD
PISTON@CONNECTING ROD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-zm7-000
13010-zm7-000
|
|||
|
|
13101-zdf-000
13101-zdf-000
|
|||
|
|
13111-gs7-000
13111-gs7-000
|
|||
|
|
13200-zn4-010
13200-zn4-010
|
|||
|
|
90001-zm7-000
90001-zm7-000
|

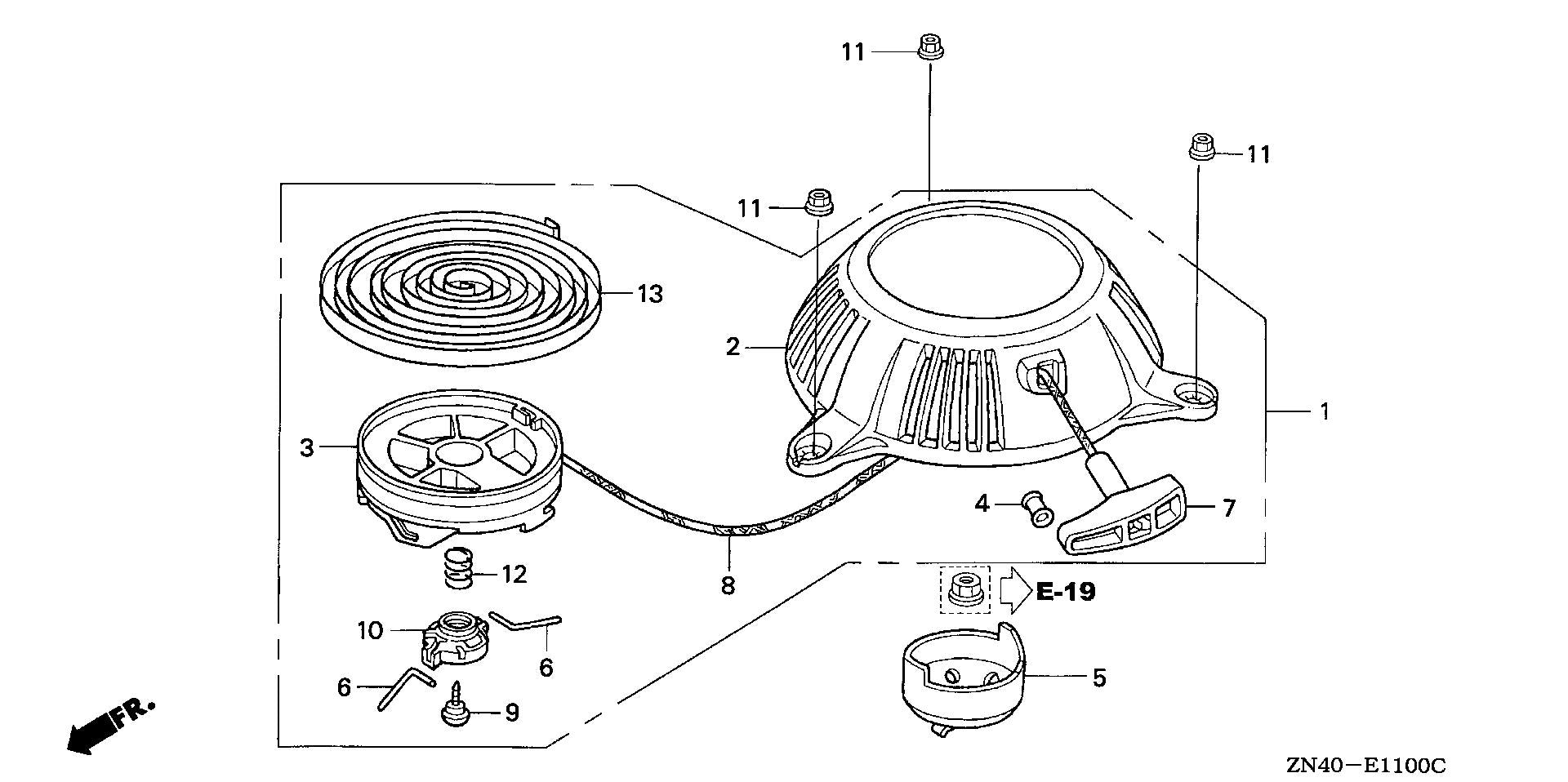

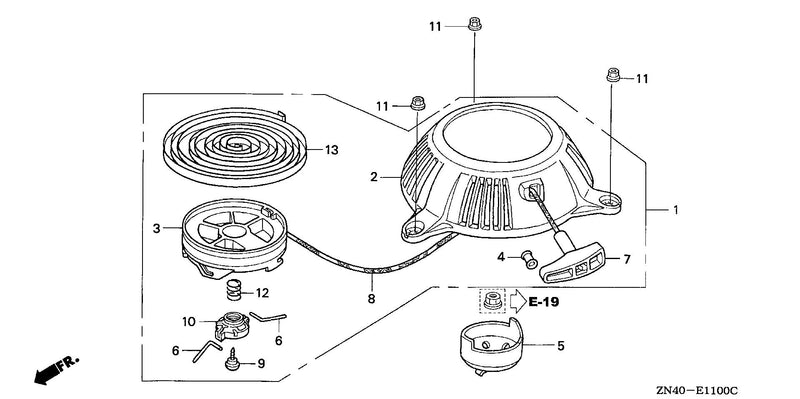

RECOIL STARTER
RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28414-zm7-003
28414-zm7-003
|
|||
|
|
28421-zm7-003
28421-zm7-003
|
|||
|
|
28433-zm3-003
28433-zm3-003
|
|||
|
|
28451-zm7-003
28451-zm7-003
|
|||
|
|
28459-zm7-003
28459-zm7-003
|
|||
|
|
28461-zm3-003
28461-zm3-003
|
|||
|
|
28462-zm7-003
28462-zm7-003
|
|||
|
|
90012-zm3-003
90012-zm3-003
|
|||
|
|
91504-zm7-003
91504-zm7-003
|
|||
|
|
94050-05000
94050-05000
|
|||
|
|
28404-968-004
28404-968-004
|
|||
|
|
28442-zl8-003
28442-zl8-003
|

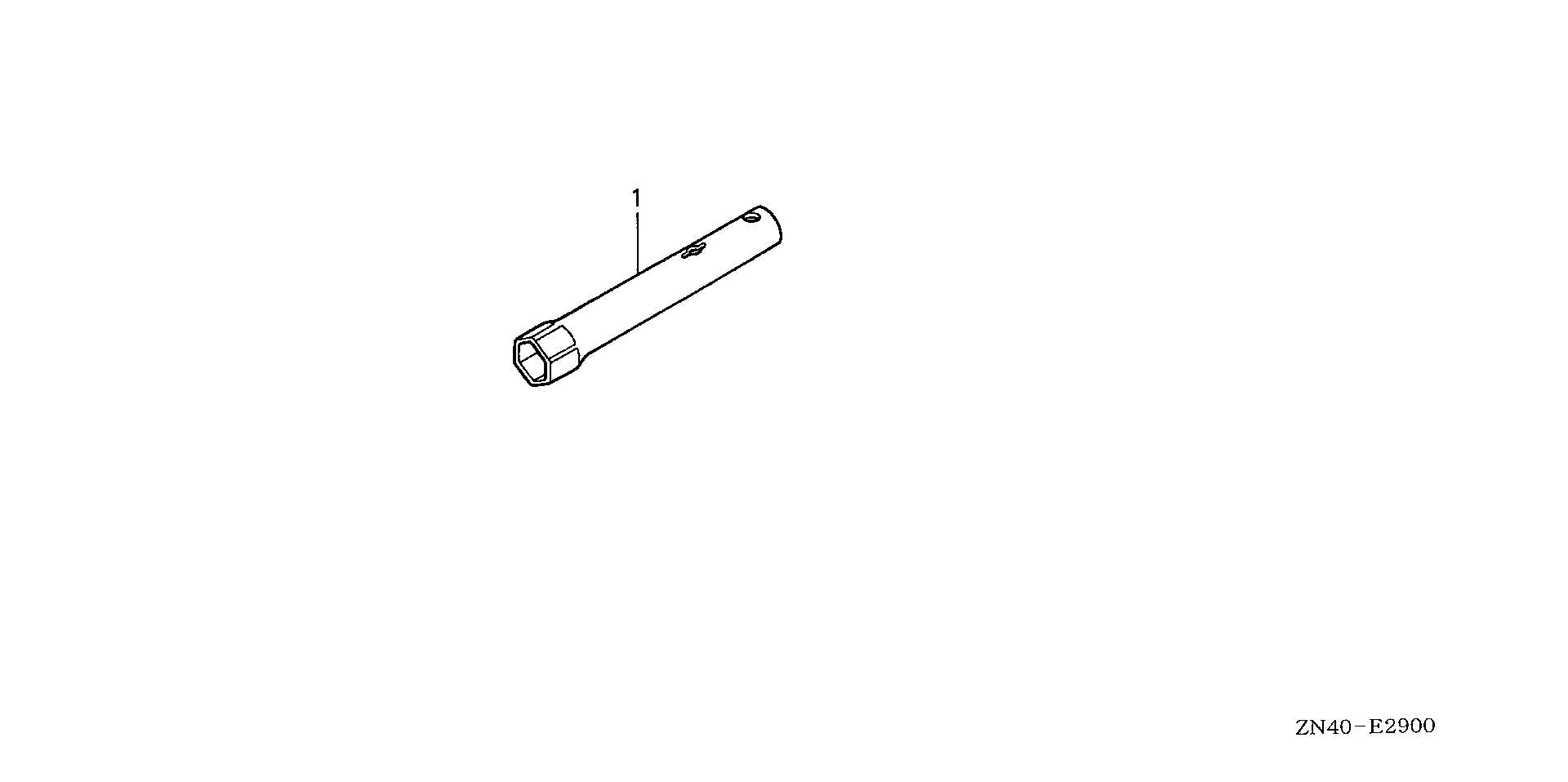

TOOLS
TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
89216-130-690
89216-130-690
|
