Honda HP250-CA Parts Diagram Utility Vehicle (Serial NA1-2000001 to 2599999)
Diagrams:
Diagram:

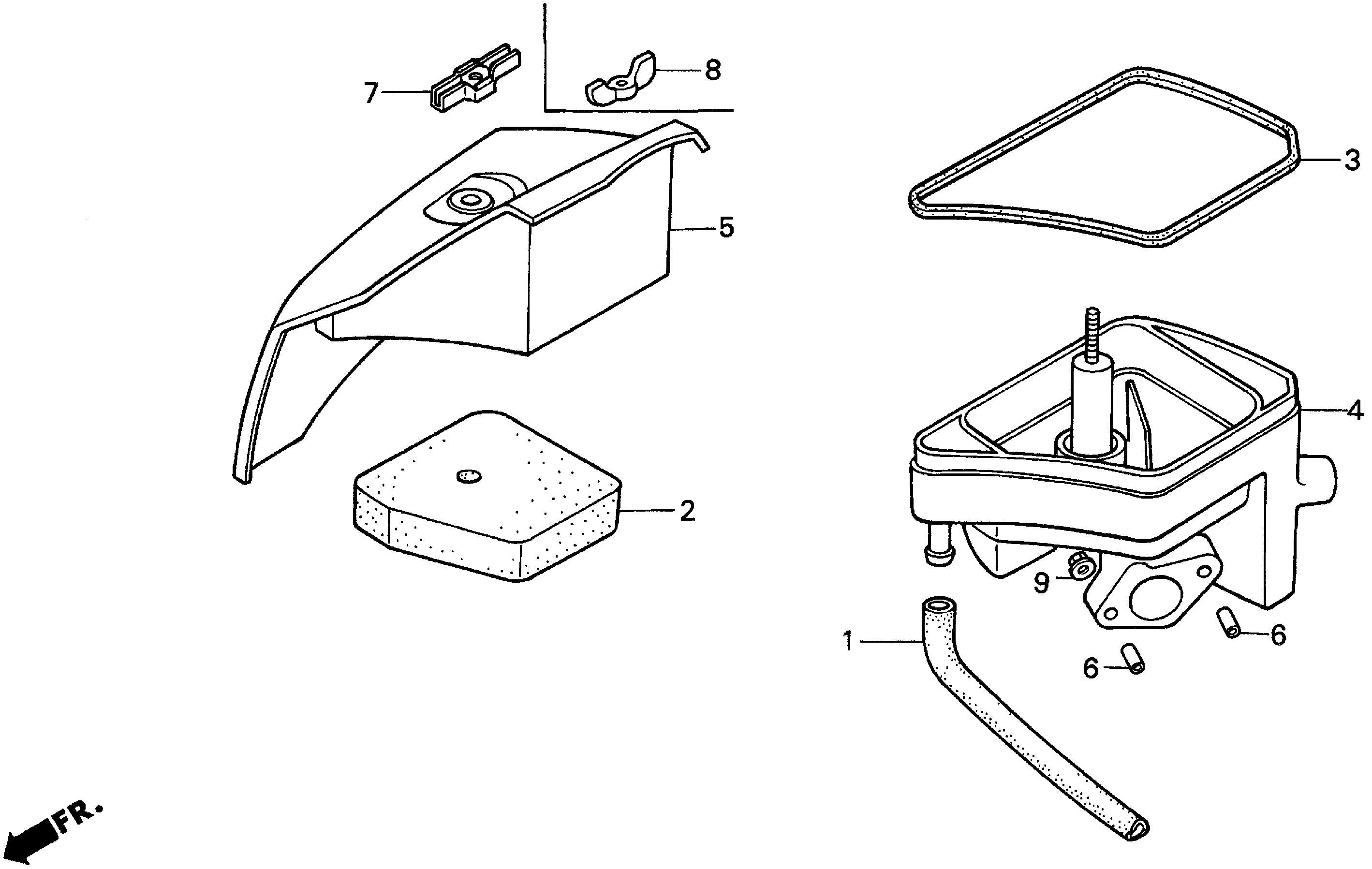

AIR CLEANER
AIR CLEANER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17233-896-701
17233-896-701
|
|||
|
|
90203-pb2-000
90203-pb2-000
|
|||
|
|
90203-za0-800
90203-za0-800
|
|||
|
|
90325-044-000
90325-044-000
|
|||
|
|
94050-05000
94050-05000
|

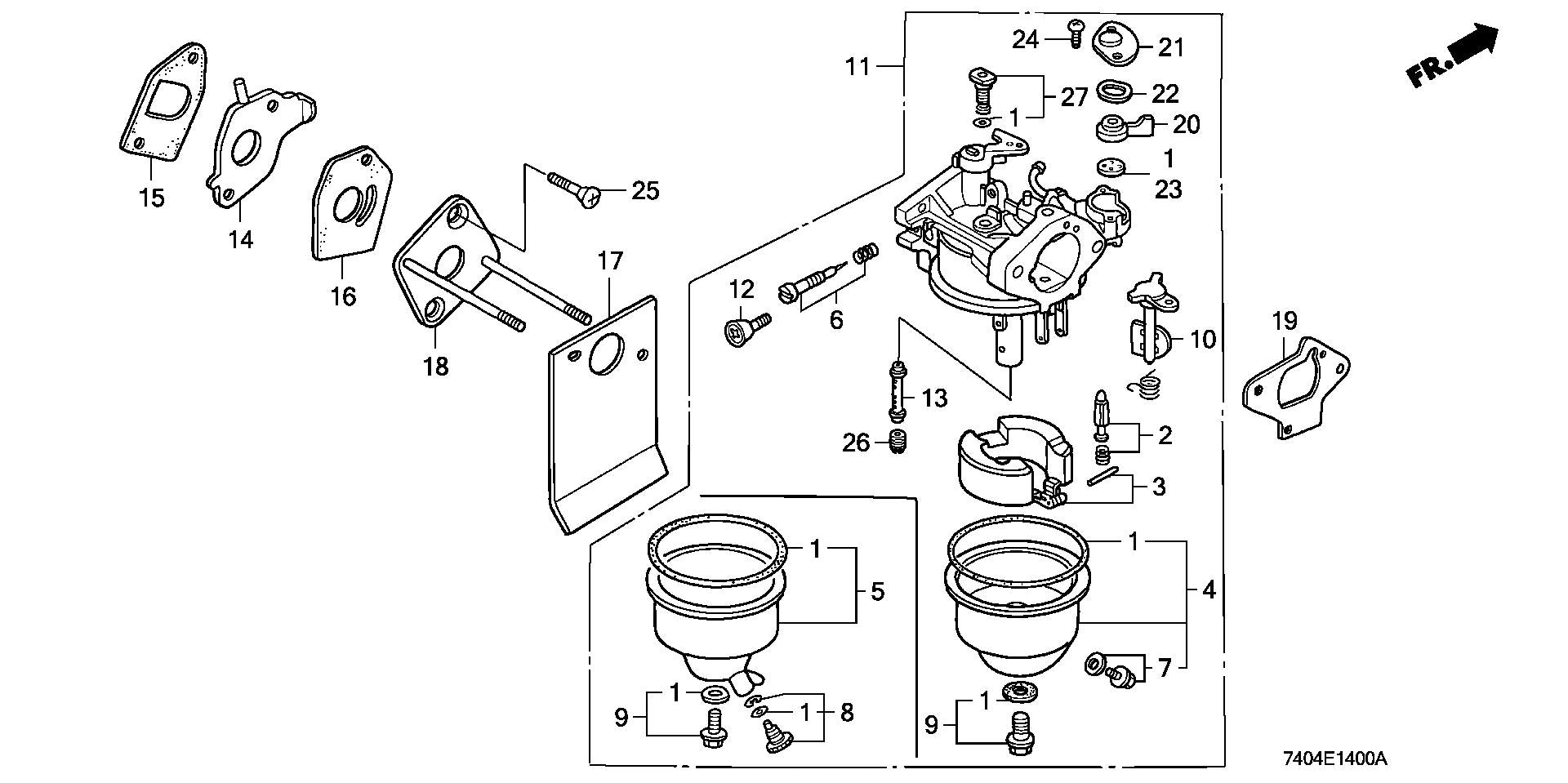

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-zg1-d20
16010-zg1-d20
|
|||
|
|
16010-zg1-015
16010-zg1-015
|
|||
|
|
16011-ze0-005
16011-ze0-005
|
|||
|
|
16013-zdj-801
16013-zdj-801
|
|||
|
|
16015-zg0-811
16015-zg0-811
|
|||
|
|
16015-zg1-d20
16015-zg1-d20
|
|||
|
|
16016-ze0-005
16016-ze0-005
|
|||
|
|
16024-ze1-811
16024-ze1-811
|
|||
|
|
16024-zh7-a20
16024-zh7-a20
|
|||
|
|
16028-zw6-611
16028-zw6-611
|
|||
|
|
16100-zg1-772
16100-zg1-772
|
|||
|
|
16100-zg1-773
16100-zg1-773
|
|||
|
|
16124-ze0-005
16124-ze0-005
|
|||
|
|
16211-zg0-000
16211-zg0-000
|
|||
|
|
16211-zg0-010
16211-zg0-010
|
|||
|
|
16211-zg0-020
16211-zg0-020
|
|||
|
|
16212-zg0-800
16212-zg0-800
|
|||
|
|
16954-ze1-811
16954-ze1-811
|
|||
|
|
16956-ze1-811
16956-ze1-811
|
|||
|
|
16957-ze1-812
16957-ze1-812
|
|||
|
|
93600-05020-0h
93600-05020-0h
|
|||
|
|
99101-zg0-0620
99101-zg0-0620
|
|||
|
|
99101-187-0580
99101-187-0580
|
|||
|
|
99101-187-0600
99101-187-0600
|
|||
|
|
99204-ze0-0350
99204-ze0-0350
|
CARRIER
CARRIER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
52417-740-000
52417-740-000
|
|||
|
|
90101-963-000
90101-963-000
|
|||
|
|
94102-12000
94102-12000
|
|||
|
|
94201-25220
94201-25220
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
95701-12070-00
95701-12070-00
|

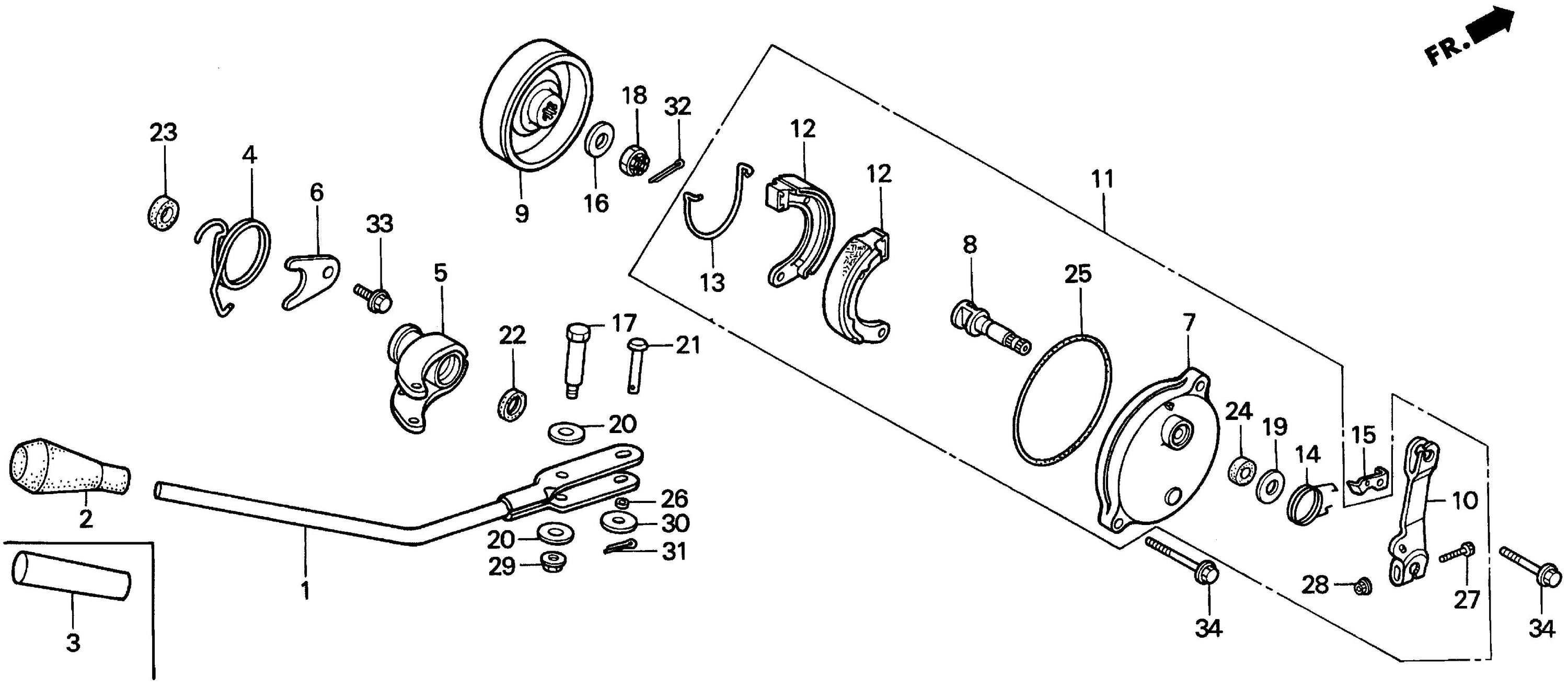

CHANGE LEVER
CHANGE LEVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24461-740-000
24461-740-000
|
|||
|
|
24463-740-010
24463-740-010
|
|||
|
|
43210-740-003
43210-740-003
|
|||
|
|
45000-740-305
45000-740-305
|
|||
|
|
45133-044-000
45133-044-000
|
|||
|
|
45134-740-000
45134-740-000
|
|||
|
|
90017-pe0-000
90017-pe0-000
|
|||
|
|
90102-740-010
90102-740-010
|
|||
|
|
90301-740-003
90301-740-003
|
|||
|
|
90529-126-770
90529-126-770
|
|||
|
|
90534-011-000
90534-011-000
|
|||
|
|
90753-740-000
90753-740-000
|
|||
|
|
91201-246-005
91201-246-005
|
|||
|
|
91262-740-003
91262-740-003
|
|||
|
|
91352-740-003
91352-740-003
|
|||
|
|
91551-732-000
91551-732-000
|
|||
|
|
92101-05028-0a
92101-05028-0a
|
|||
|
|
94050-05000
94050-05000
|
|||
|
|
90343-ze6-000
90343-ze6-000
|
|||
|
|
94103-06800
94103-06800
|
|||
|
|
94201-16250
94201-16250
|
|||
|
|
94201-20220
94201-20220
|
|||
|
|
94201-20350
94201-20350
|
|||
|
|
95701-08014-00
95701-08014-00
|
|||
|
|
95801-06028-00
95801-06028-00
|

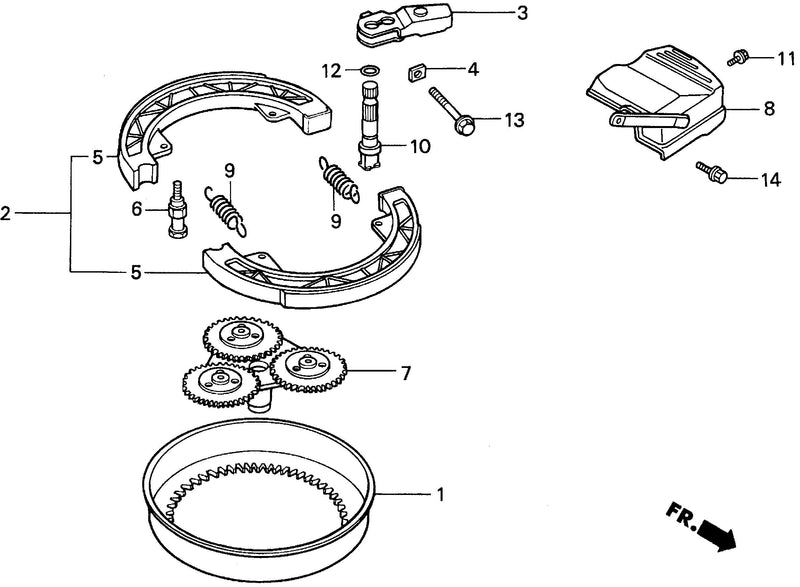

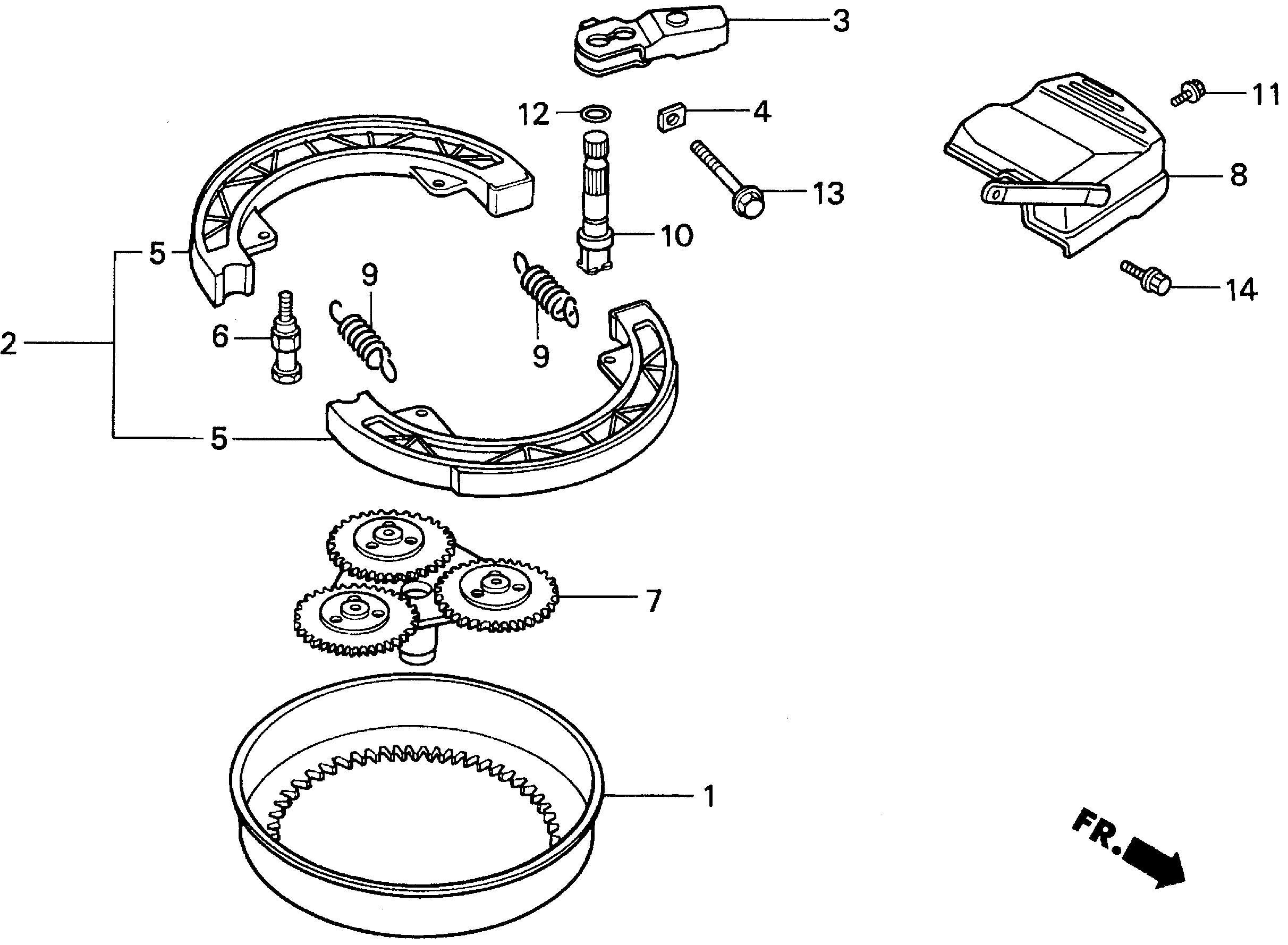

CLUTCH OUTER
CLUTCH OUTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
22101-729-720
22101-729-720
|
|||
|
|
22533-729-000
22533-729-000
|
|||
|
|
91302-ge0-000
91302-ge0-000
|
|||
|
|
95701-06032-00
95701-06032-00
|
|||
|
|
95701-08016-08
95701-08016-08
|

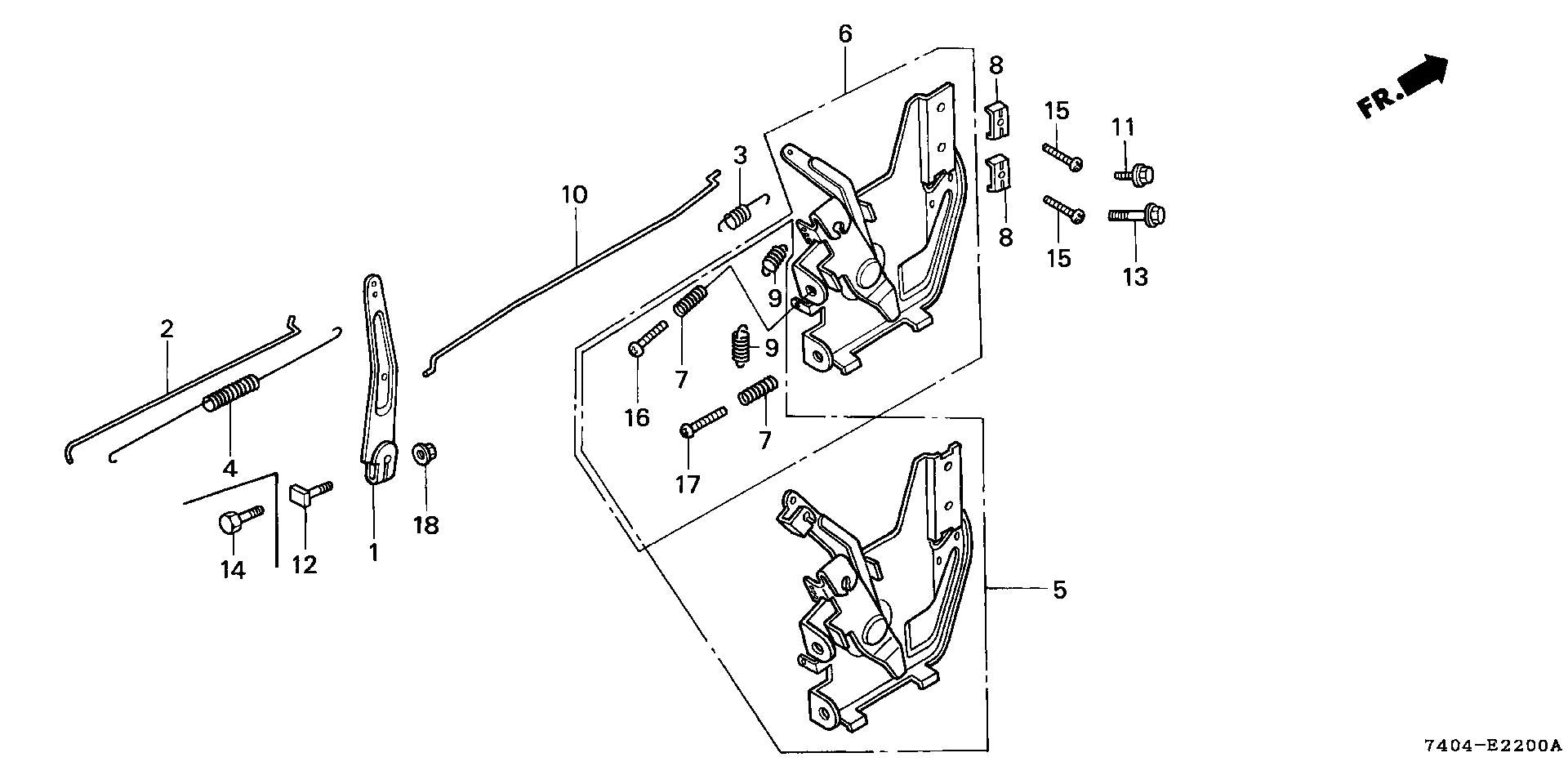

CONTROL
CONTROL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16562-zg1-750
16562-zg1-750
|
|||
|
|
16571-892-000
16571-892-000
|
|||
|
|
16576-891-000
16576-891-000
|
|||
|
|
16592-ze1-810
16592-ze1-810
|
|||
|
|
90121-952-000
90121-952-000
|
|||
|
|
92101-06018-0a
92101-06018-0a
|
|||
|
|
93500-05016-0a
93500-05016-0a
|
|||
|
|
93500-05018-0a
93500-05018-0a
|
|||
|
|
93500-05022-0a
93500-05022-0a
|

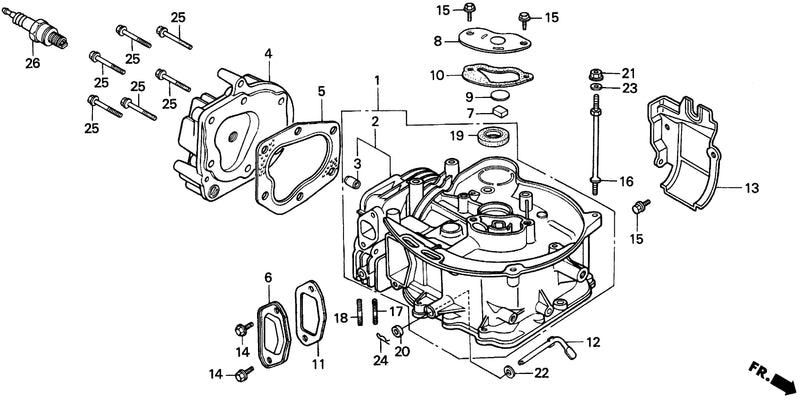

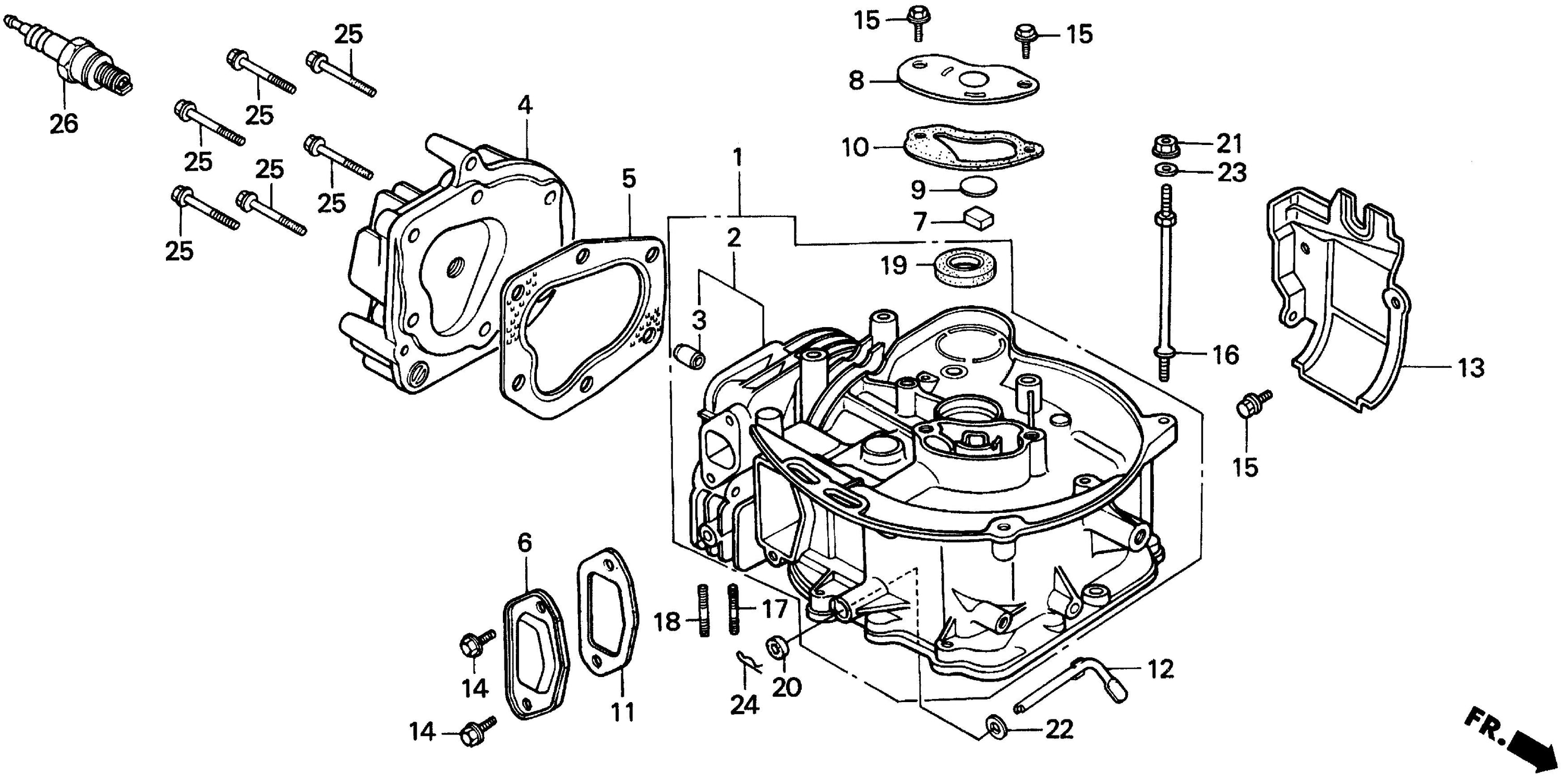

CYLINDER HEAD
CYLINDER HEAD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12133-896-306
12133-896-306
|
|||
|
|
12363-zg1-000
12363-zg1-000
|
|||
|
|
12367-zg1-013
12367-zg1-013
|
|||
|
|
12370-zg1-010
12370-zg1-010
|
|||
|
|
12370-zg1-020
12370-zg1-020
|
|||
|
|
12372-879-000
12372-879-000
|
|||
|
|
12375-zg1-000
12375-zg1-000
|
|||
|
|
16541-896-000
16541-896-000
|
|||
|
|
90002-892-000
90002-892-000
|
|||
|
|
90042-zg1-750
90042-zg1-750
|
|||
|
|
90045-zg1-750
90045-zg1-750
|
|||
|
|
90045-zg1-770
90045-zg1-770
|
|||
|
|
91202-892-004
91202-892-004
|
|||
|
|
94050-05000
94050-05000
|
|||
|
|
94101-05000
94101-05000
|
|||
|
|
94103-05000
94103-05000
|
|||
|
|
94251-08000
94251-08000
|
|||
|
|
95801-06035-00
95801-06035-00
|
|||
|
|
98073-54744
98073-54744
|

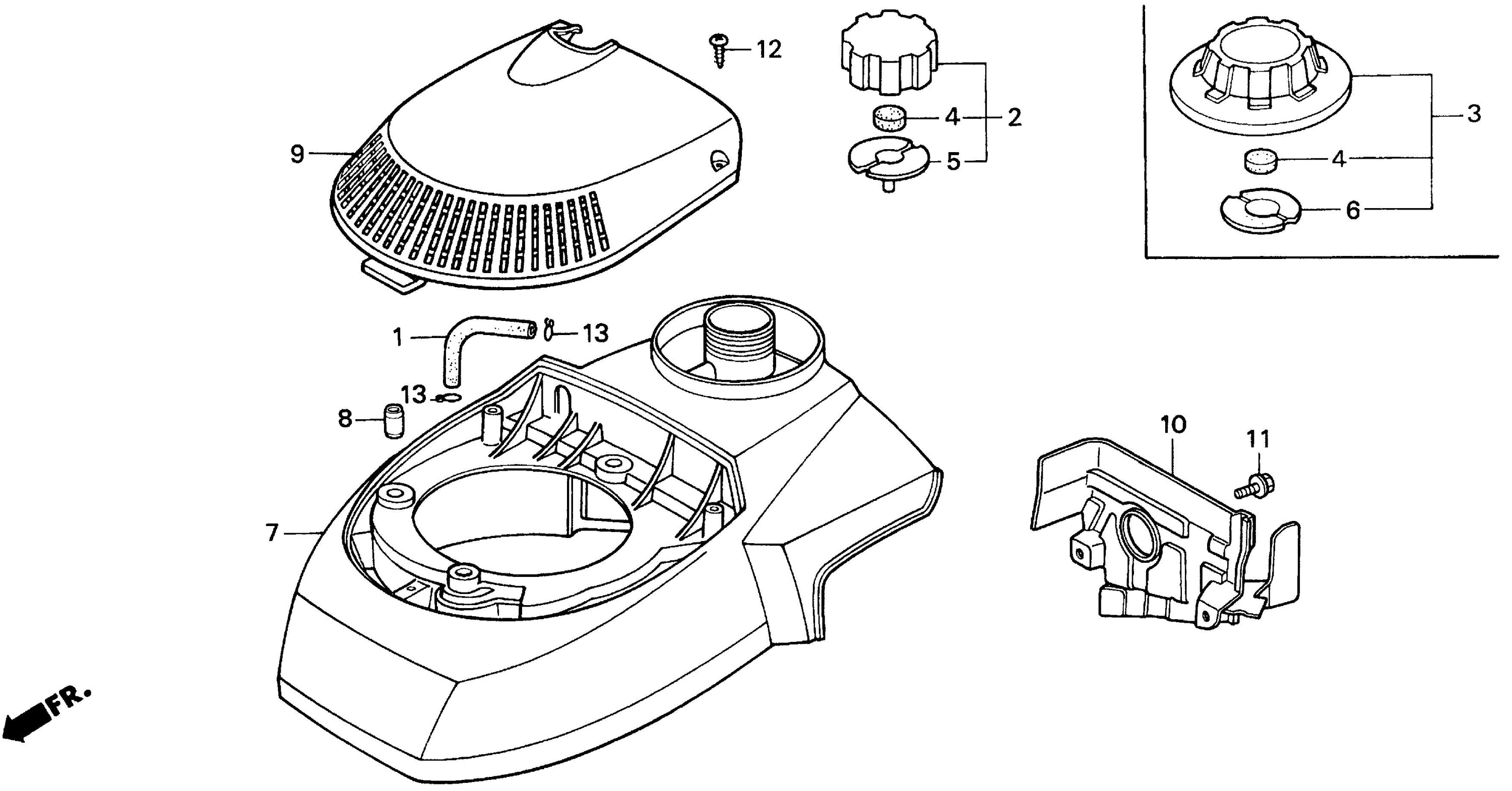

FAN COVER
FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17622-888-010
17622-888-010
|
|||
|
|
17624-ze7-000
17624-ze7-000
|
|||
|
|
95002-02080
95002-02080
|

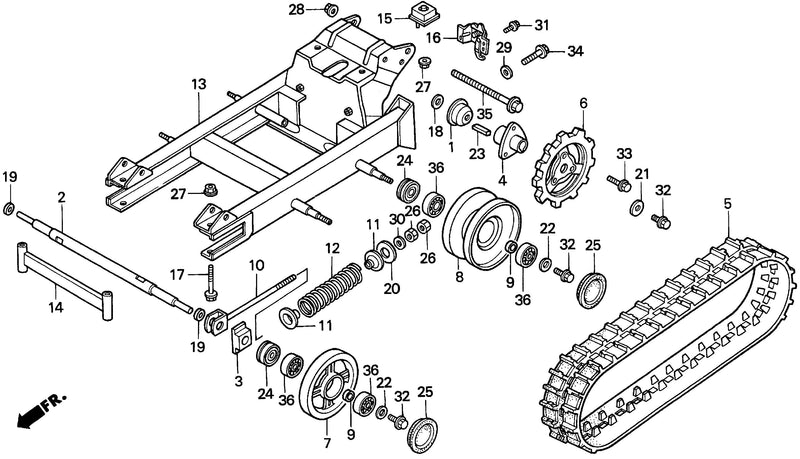

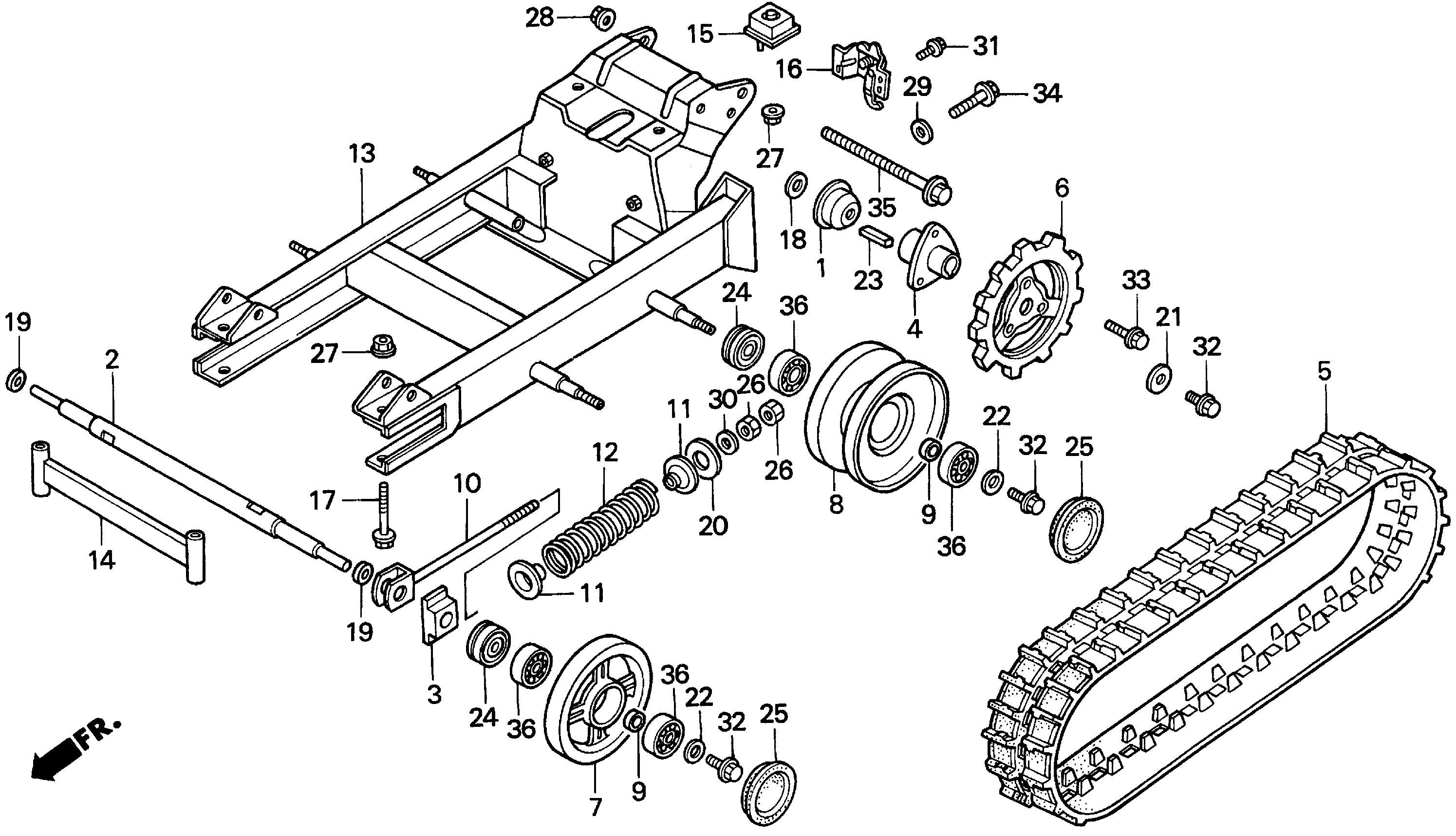

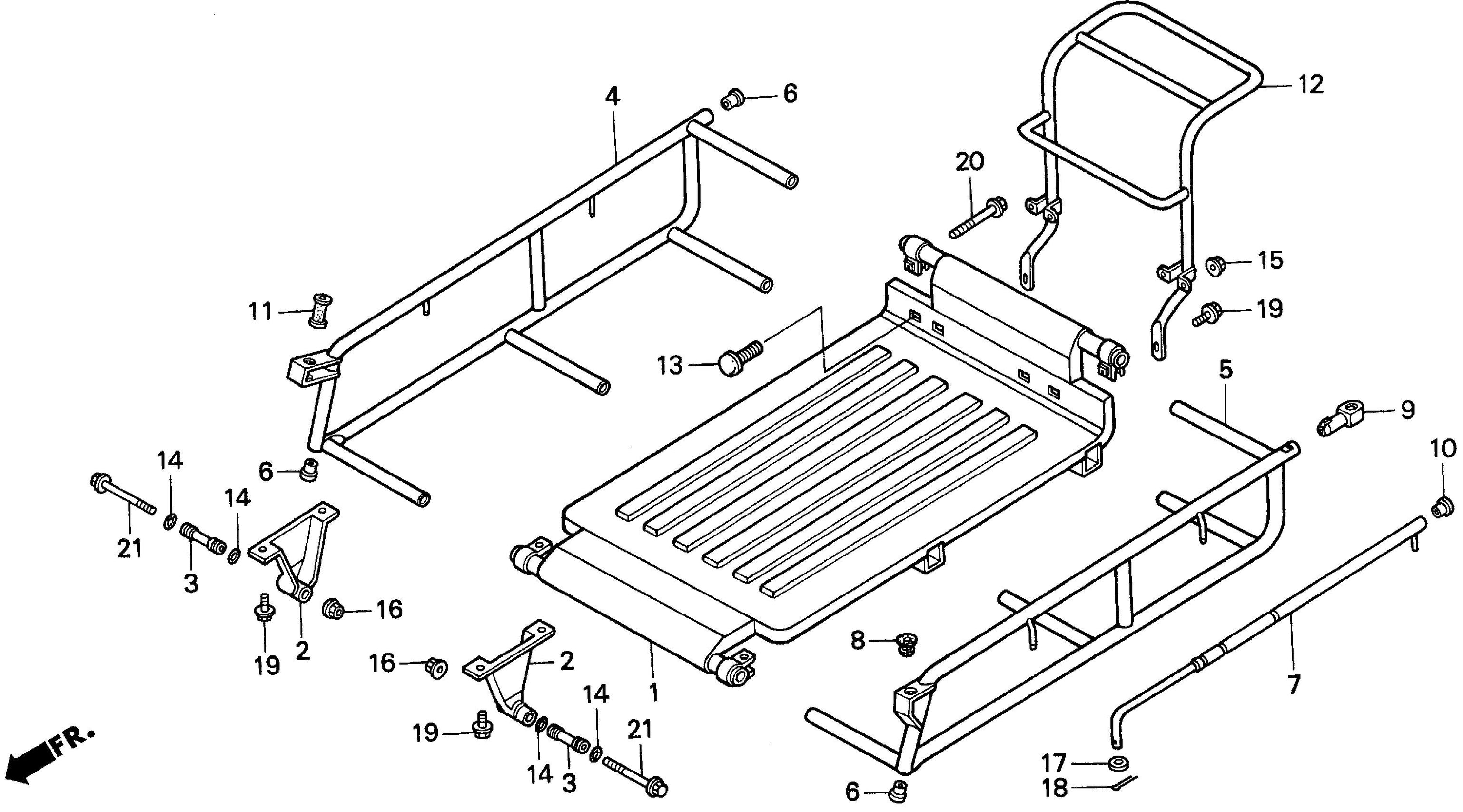

FRAME
FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42756-740-010
42756-740-010
|
|||
|
|
42757-740-000za
42757-740-000za
|
|||
|
|
42758-740-010
42758-740-010
|
|||
|
|
42759-740-000
42759-740-000
|
|||
|
|
42772-740-000
42772-740-000
|
|||
|
|
42773-740-000za
42773-740-000za
|
|||
|
|
52111-740-000za
52111-740-000za
|
|||
|
|
90451-kg4-000
90451-kg4-000
|
|||
|
|
90504-za0-000
90504-za0-000
|
|||
|
|
90760-740-010
90760-740-010
|
|||
|
|
91256-740-003
91256-740-003
|
|||
|
|
91261-740-003
91261-740-003
|
|||
|
|
94030-12200
94030-12200
|
|||
|
|
94101-10000
94101-10000
|
|||
|
|
94101-12000
94101-12000
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
95701-10025-00
95701-10025-00
|
|||
|
|
95701-10032-00
95701-10032-00
|
|||
|
|
95801-10160-00
95801-10160-00
|
|||
|
|
96100-62040-00
96100-62040-00
|

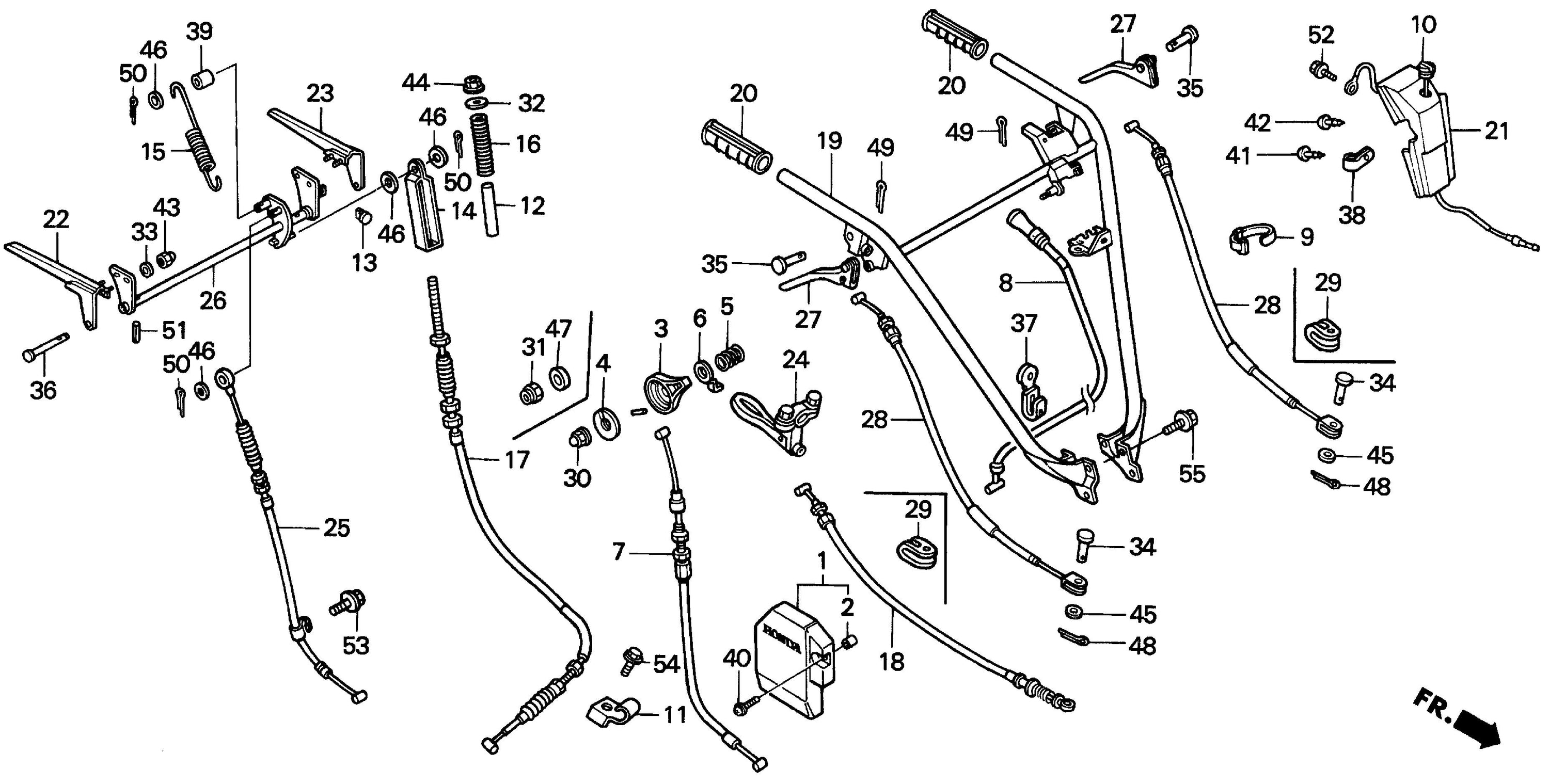

HANDLEBAR
HANDLEBAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16598-zg1-750
16598-zg1-750
|
|||
|
|
17851-va2-000
17851-va2-000
|
|||
|
|
17857-va4-000
17857-va4-000
|
|||
|
|
17858-va4-000
17858-va4-000
|
|||
|
|
17859-va4-000
17859-va4-000
|
|||
|
|
32161-438-000
32161-438-000
|
|||
|
|
45111-740-000
45111-740-000
|
|||
|
|
47117-196-000
47117-196-000
|
|||
|
|
47252-740-611
47252-740-611
|
|||
|
|
47273-740-610
47273-740-610
|
|||
|
|
52510-740-631
52510-740-631
|
|||
|
|
53110-740-c40
53110-740-c40
|
|||
|
|
53321-708-000
53321-708-000
|
|||
|
|
54415-740-611
54415-740-611
|
|||
|
|
54415-740-612
54415-740-612
|
|||
|
|
54415-740-613
54415-740-613
|
|||
|
|
54416-740-612
54416-740-612
|
|||
|
|
54416-740-613
54416-740-613
|
|||
|
|
54420-740-003
54420-740-003
|
|||
|
|
54611-740-010
54611-740-010
|
|||
|
|
90434-sa0-000
90434-sa0-000
|
|||
|
|
90539-836-000
90539-836-000
|
|||
|
|
90754-740-010
90754-740-010
|
|||
|
|
90755-740-000
90755-740-000
|
|||
|
|
90755-740-610
90755-740-610
|
|||
|
|
91475-sb6-000
91475-sb6-000
|
|||
|
|
93891-05014-07
93891-05014-07
|
|||
|
|
93903-34110
93903-34110
|
|||
|
|
93903-35210
93903-35210
|
|||
|
|
94021-06020
94021-06020
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94102-10000
94102-10000
|
|||
|
|
94201-20120
94201-20120
|
|||
|
|
94201-20220
94201-20220
|
|||
|
|
94201-20350
94201-20350
|
|||
|
|
94201-25220
94201-25220
|
|||
|
|
94305-50183
94305-50183
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-06014-00
95701-06014-00
|
|||
|
|
95701-08016-00
95701-08016-00
|

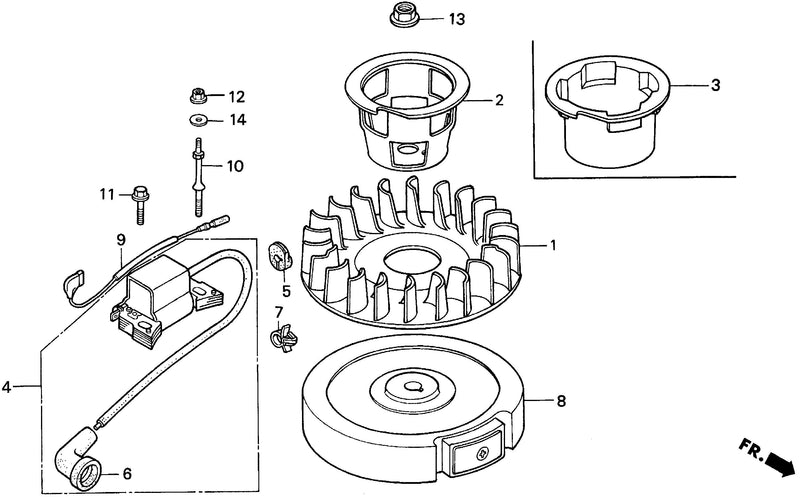

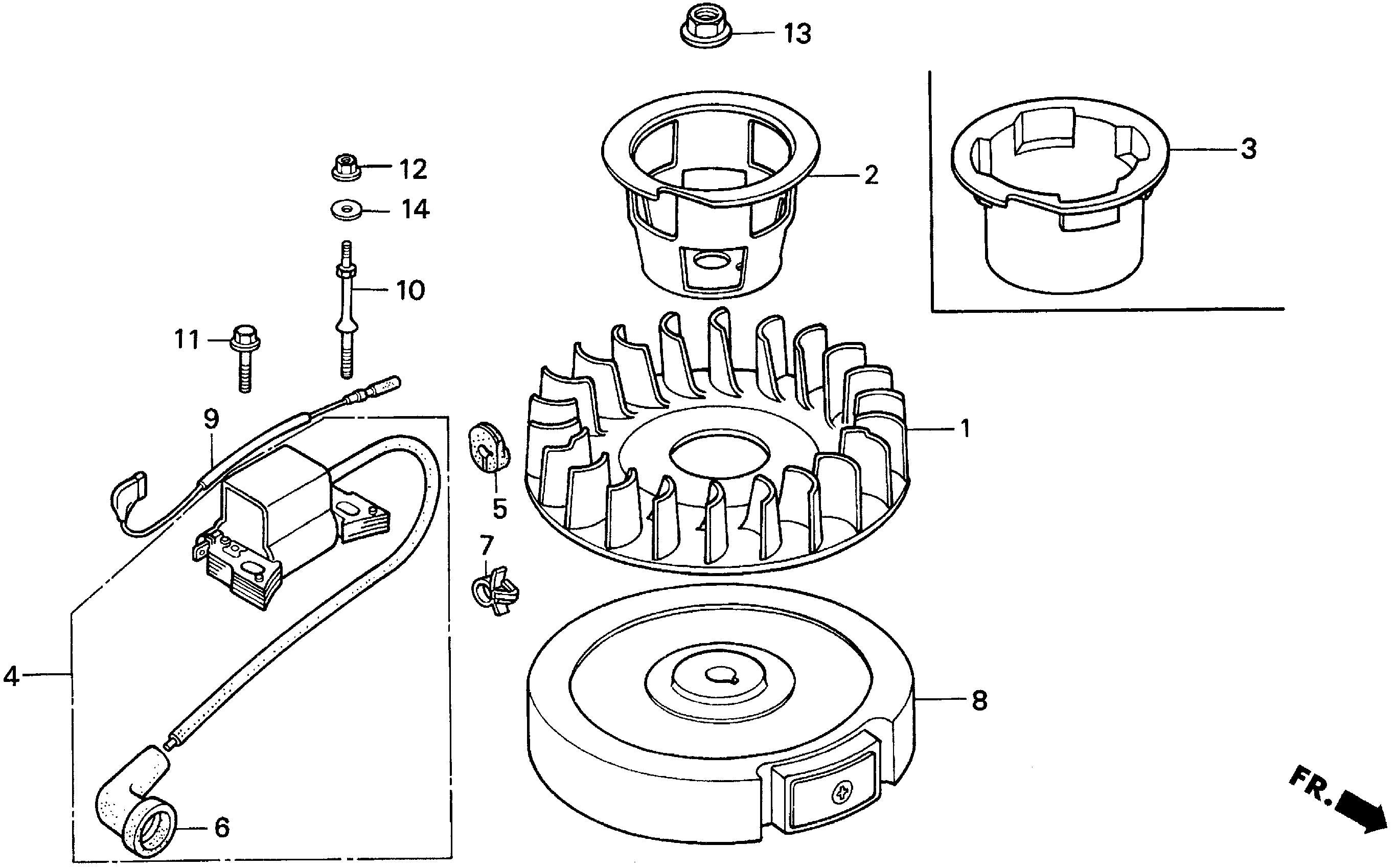

IGNITION COIL
IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
30563-zg0-000
30563-zg0-000
|
|||
|
|
30700-896-702
30700-896-702
|
|||
|
|
30701-883-000
30701-883-000
|
|||
|
|
36101-zg0-000
36101-zg0-000
|
|||
|
|
90121-952-000
90121-952-000
|
|||
|
|
94050-05000
94050-05000
|
|||
|
|
94103-05000
94103-05000
|

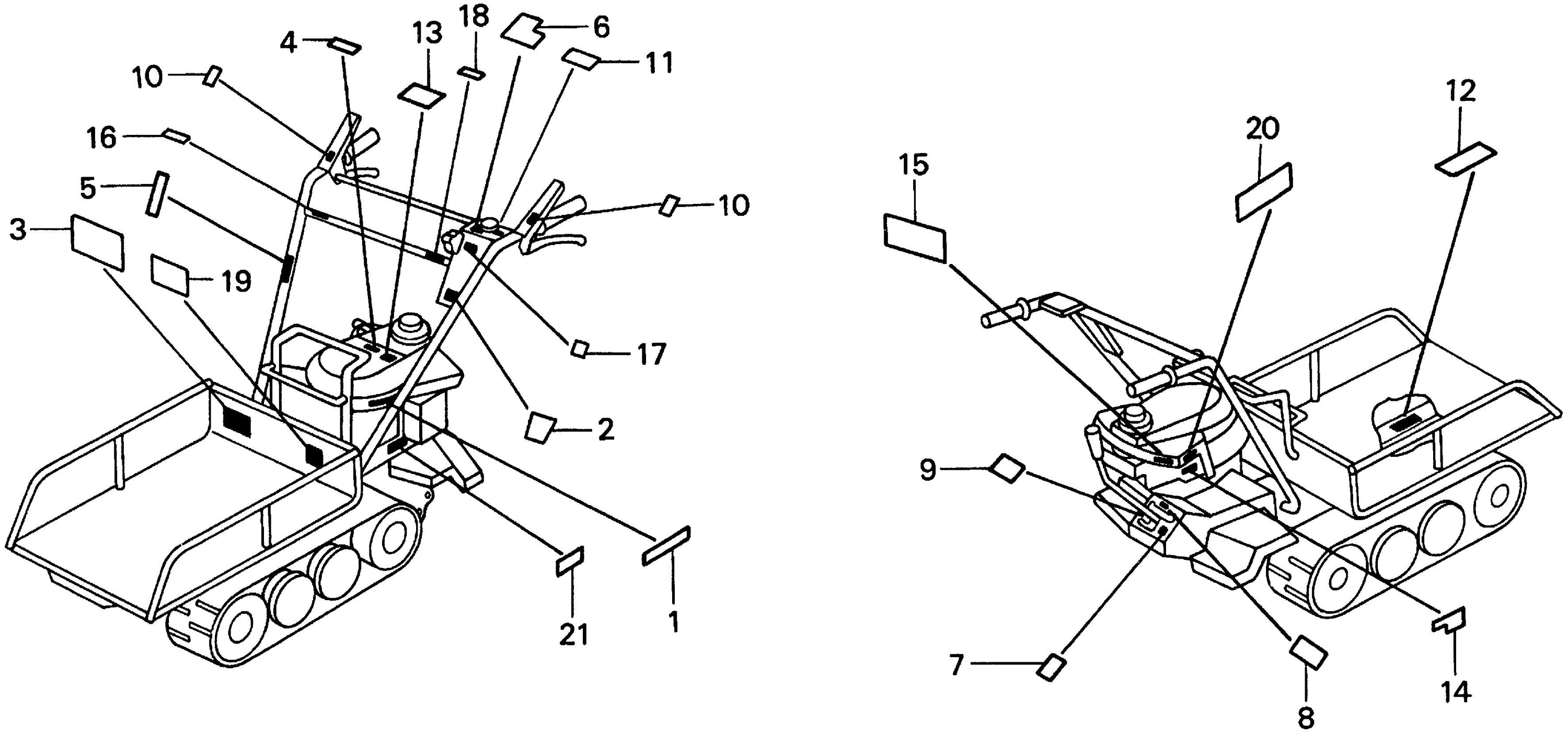

LABELS
LABELS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87102-740-610
87102-740-610
|
|||
|
|
87104-740-610
87104-740-610
|
|||
|
|
87512-740-610
87512-740-610
|
|||
|
|
87516-740-611
87516-740-611
|
|||
|
|
87531-740-610
87531-740-610
|
|||
|
|
87535-740-610
87535-740-610
|

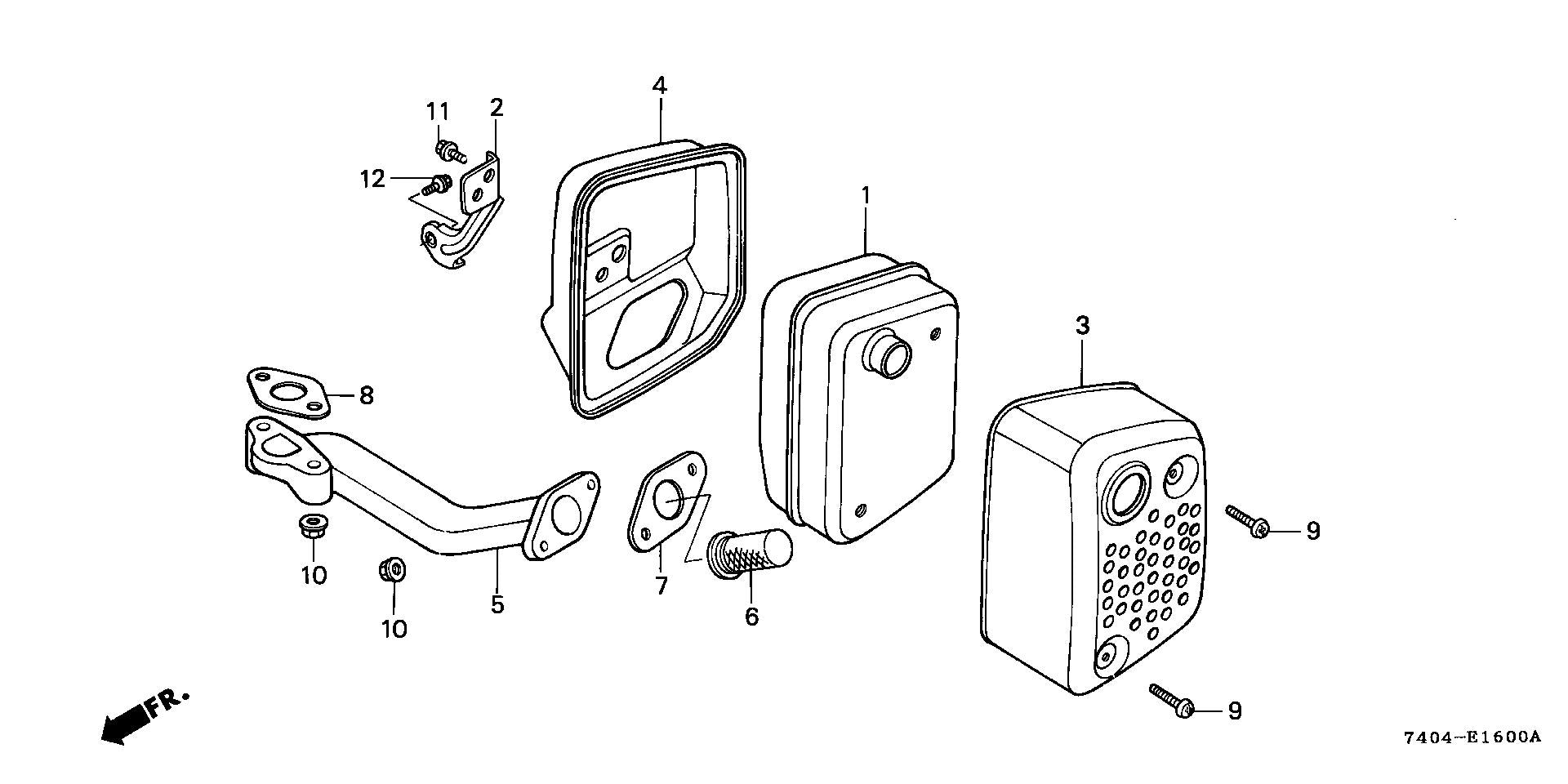

MUFFLER
MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
18381-zg0-800
18381-zg0-800
|
|||
|
|
93500-06006-0b
93500-06006-0b
|
|||
|
|
95701-06010-00
95701-06010-00
|

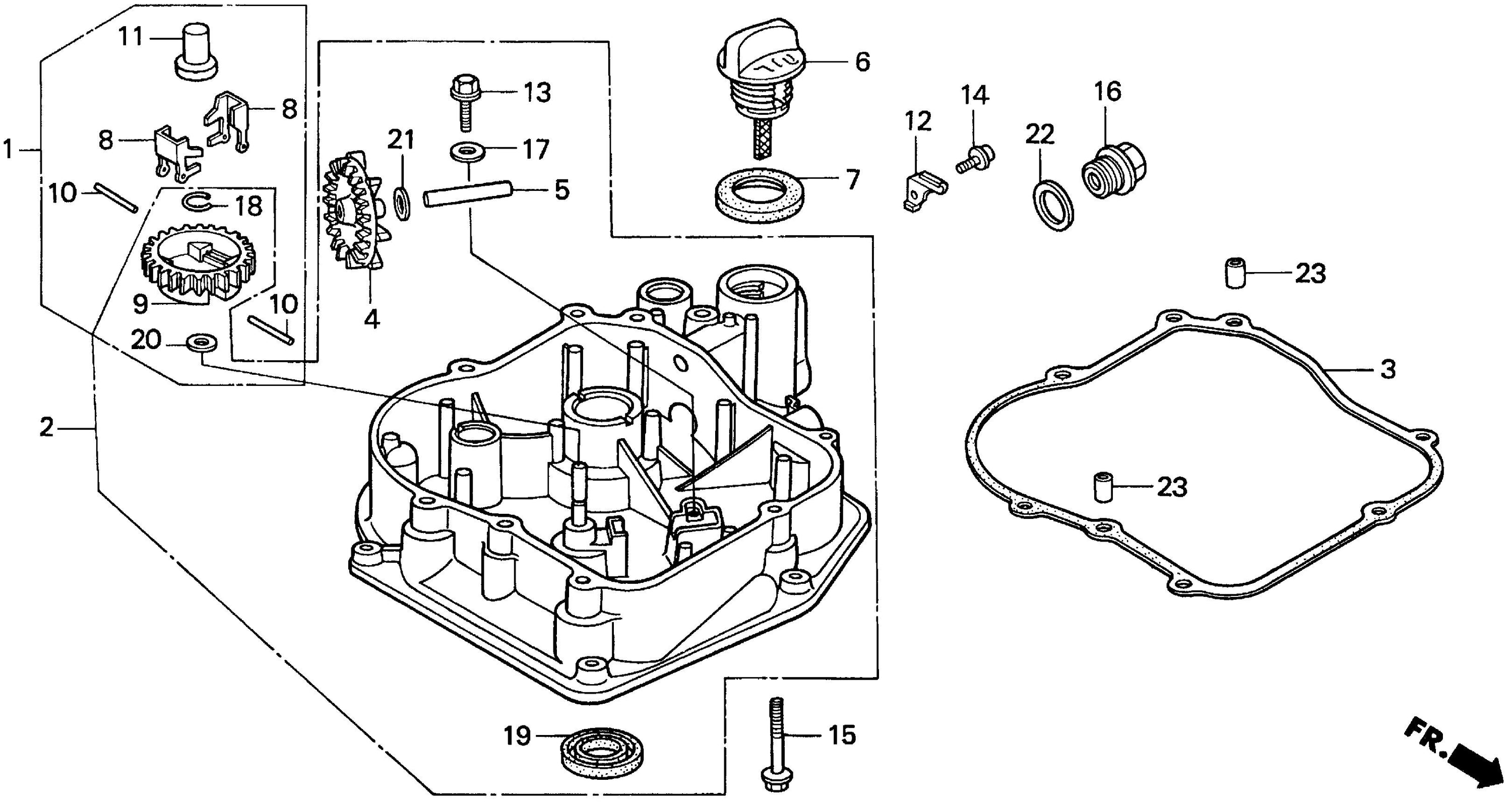

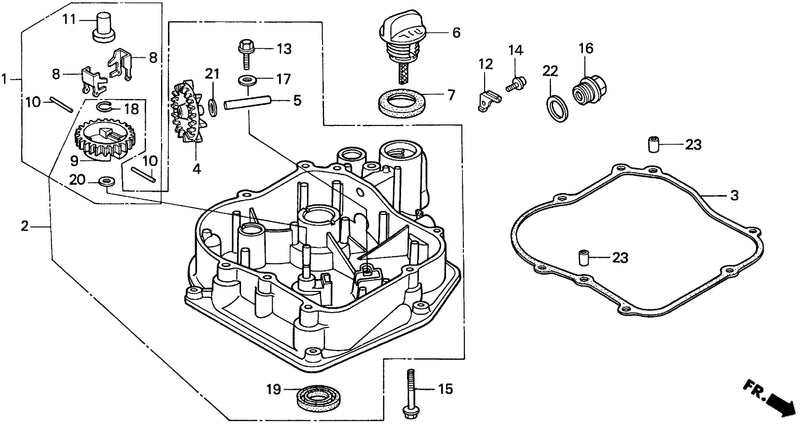

OIL PAN
OIL PAN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11381-zg0-800
11381-zg0-800
|
|||
|
|
15331-896-701
15331-896-701
|
|||
|
|
15625-ze6-000
15625-ze6-000
|
|||
|
|
16511-896-000
16511-896-000
|
|||
|
|
16513-ze1-000
16513-ze1-000
|
|||
|
|
16531-zg0-000
16531-zg0-000
|
|||
|
|
90005-896-000
90005-896-000
|
|||
|
|
90015-883-000
90015-883-000
|
|||
|
|
92800-20000
92800-20000
|
|||
|
|
90539-836-000
90539-836-000
|
|||
|
|
90602-ze1-000
90602-ze1-000
|
|||
|
|
90602-896-000
90602-896-000
|
|||
|
|
91201-896-701
91201-896-701
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94103-05000
94103-05000
|
|||
|
|
94109-20000
94109-20000
|
|||
|
|
94301-08140
94301-08140
|

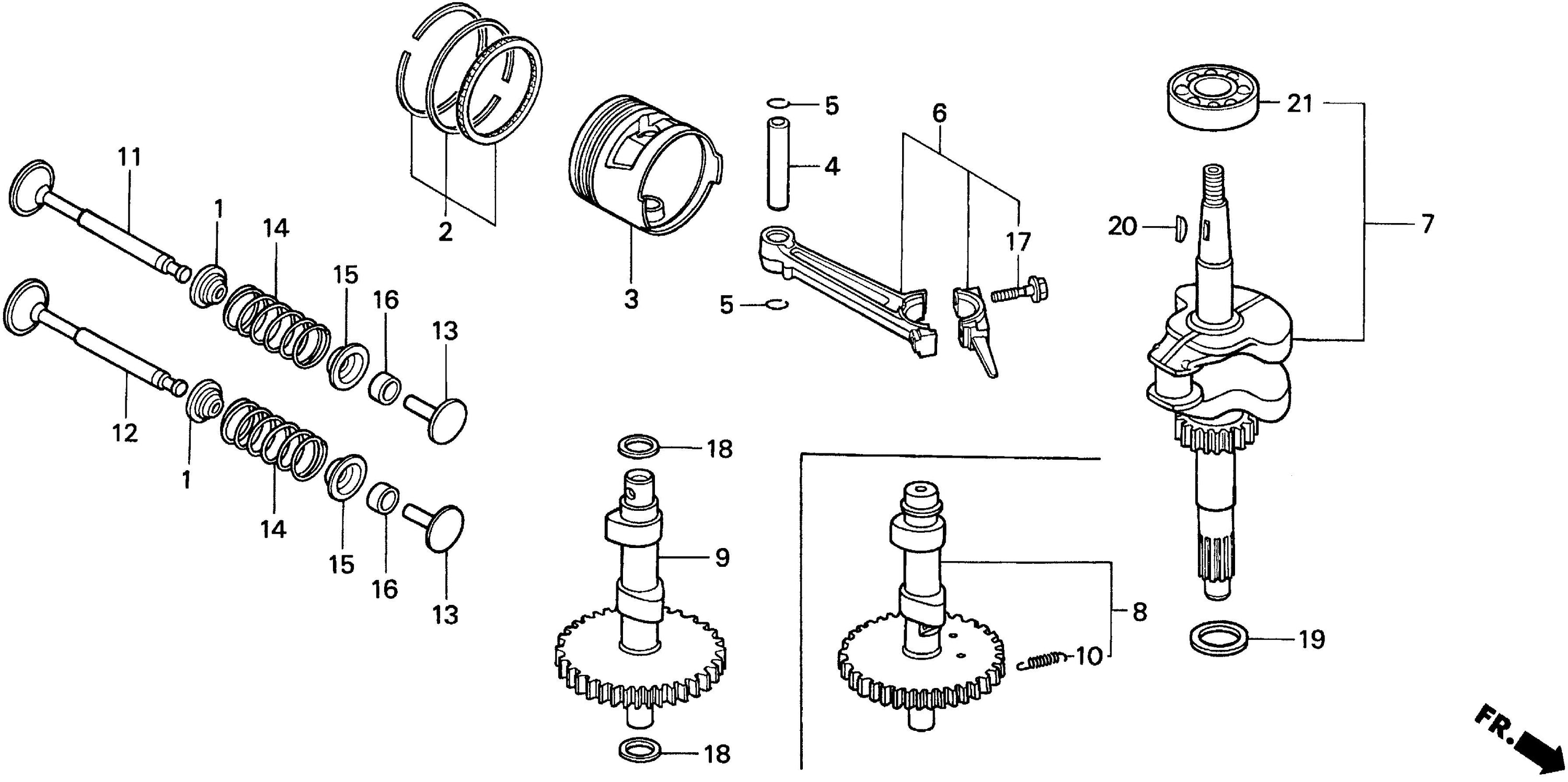

PISTON
PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13011-zg1-004
13011-zg1-004
|
|||
|
|
13102-zg1-003
13102-zg1-003
|
|||
|
|
13111-892-000
13111-892-000
|
|||
|
|
13200-zg0-000
13200-zg0-000
|
|||
|
|
13200-zg0-305
13200-zg0-305
|
|||
|
|
14111-zg0-000
14111-zg0-000
|
|||
|
|
14711-zg1-h10
14711-zg1-h10
|
|||
|
|
14711-zg1-000
14711-zg1-000
|
|||
|
|
14721-zg1-h10
14721-zg1-h10
|
|||
|
|
14721-zg1-000
14721-zg1-000
|
|||
|
|
14732-za8-000
14732-za8-000
|
|||
|
|
14732-zc0-000
14732-zc0-000
|
|||
|
|
14751-896-000
14751-896-000
|
|||
|
|
14771-zg0-000
14771-zg0-000
|
|||
|
|
14801-892-000
14801-892-000
|
|||
|
|
14803-892-000
14803-892-000
|
|||
|
|
14806-892-000
14806-892-000
|
|||
|
|
14809-892-000
14809-892-000
|
|||
|
|
14812-892-000
14812-892-000
|
|||
|
|
14815-892-000
14815-892-000
|
|||
|
|
14818-892-000
14818-892-000
|
|||
|
|
14820-892-000
14820-892-000
|
|||
|
|
90001-zg0-000
90001-zg0-000
|
|||
|
|
90452-zg0-000
90452-zg0-000
|
|||
|
|
90454-428-000
90454-428-000
|

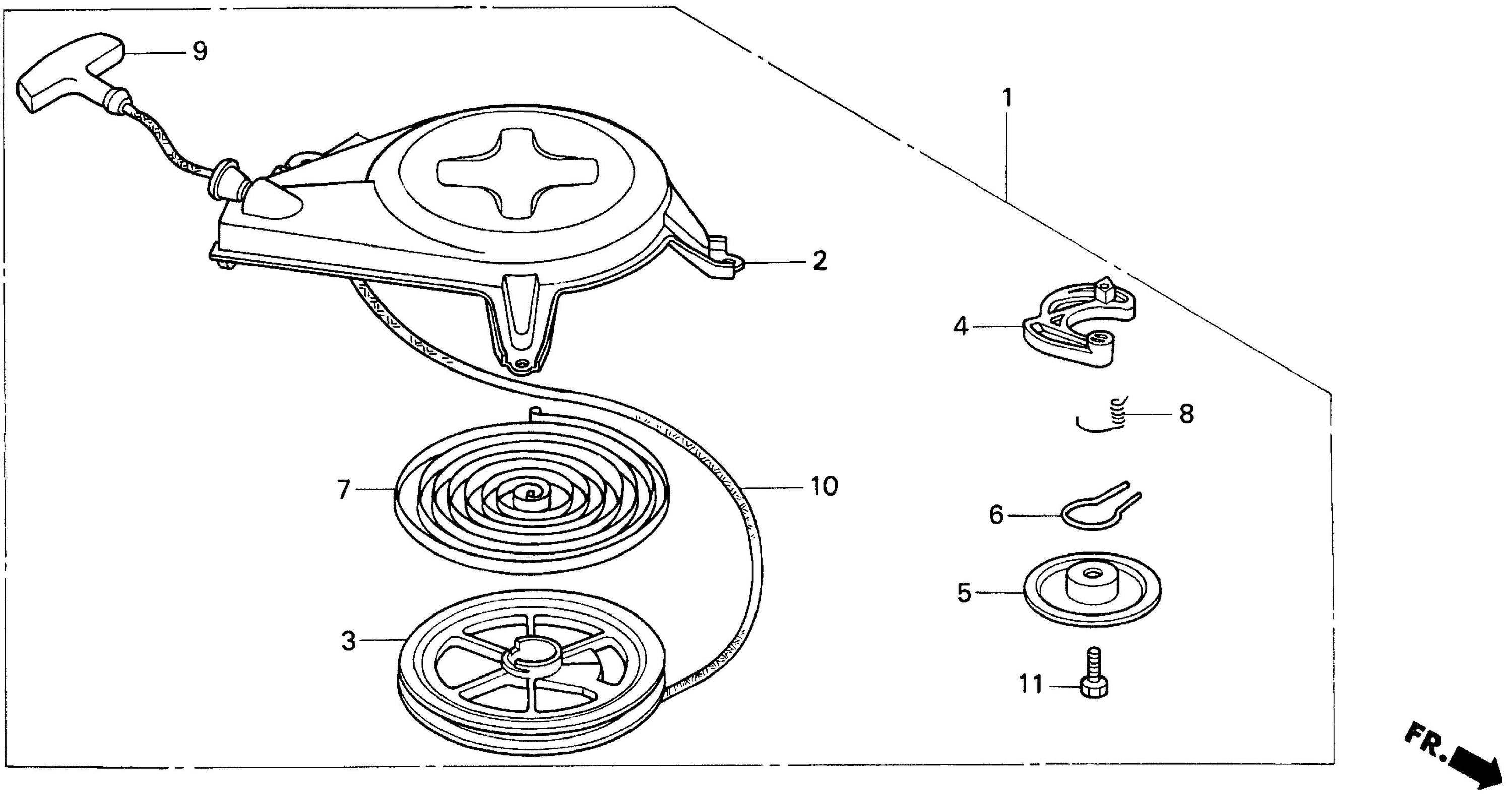

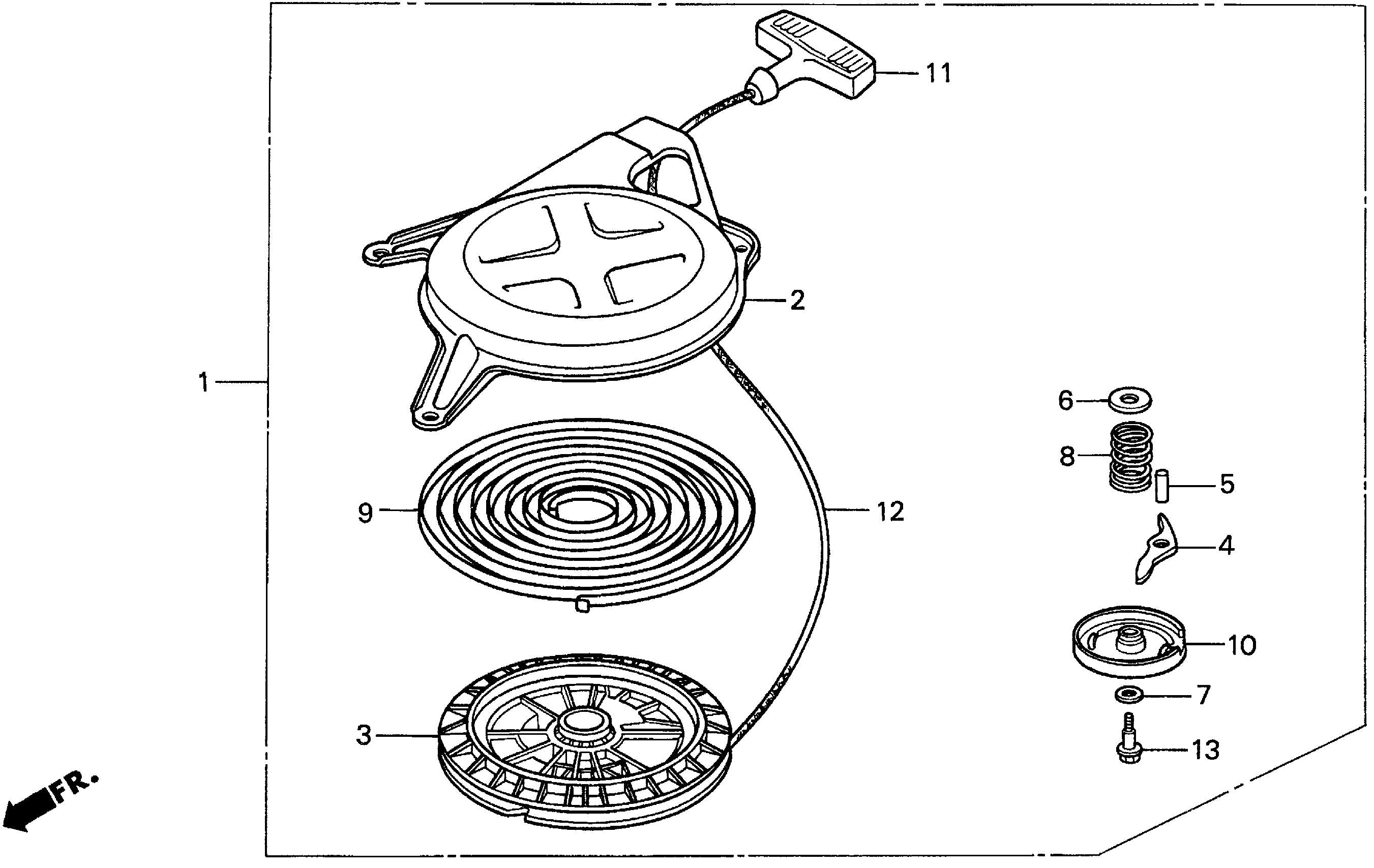

RECOIL STARTER (-2541991)
RECOIL STARTER (-2541991)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28421-z1b-d10
28421-z1b-d10
|
|||
|
|
28423-z1b-d10
28423-z1b-d10
|
|||
|
|
28431-z1b-d10
28431-z1b-d10
|
|||
|
|
28432-zg0-003
28432-zg0-003
|
|||
|
|
28432-883-t20
28432-883-t20
|
|||
|
|
28441-883-t20
28441-883-t20
|
|||
|
|
28443-z1b-d10
28443-z1b-d10
|
|||
|
|
28474-z1b-d10
28474-z1b-d10
|

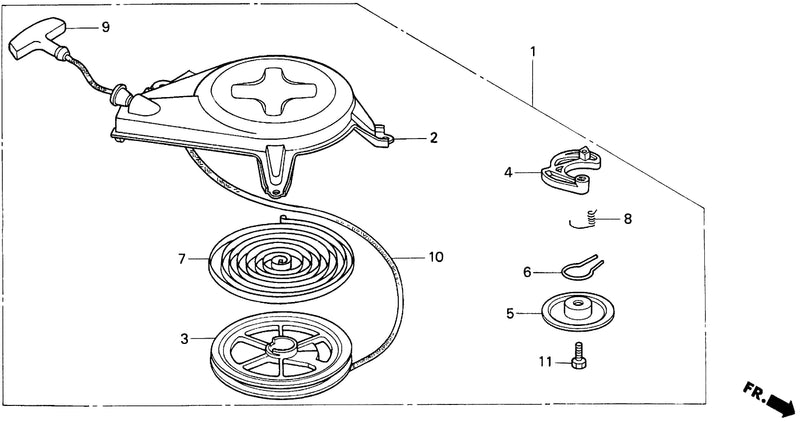

RECOIL STARTER (2541992-)
RECOIL STARTER (2541992-)
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28422-896-010
28422-896-010
|
|||
|
|
28431-896-000
28431-896-000
|
|||
|
|
28441-896-000
28441-896-000
|
|||
|
|
28442-ze6-003
28442-ze6-003
|
|||
|
|
28443-896-000
28443-896-000
|
|||
|
|
28461-zg0-004
28461-zg0-004
|
|||
|
|
92101-06012-0h
92101-06012-0h
|

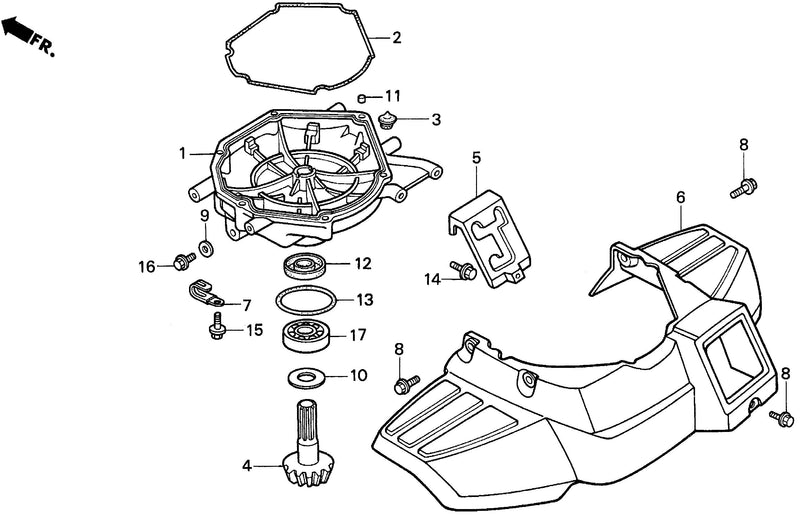

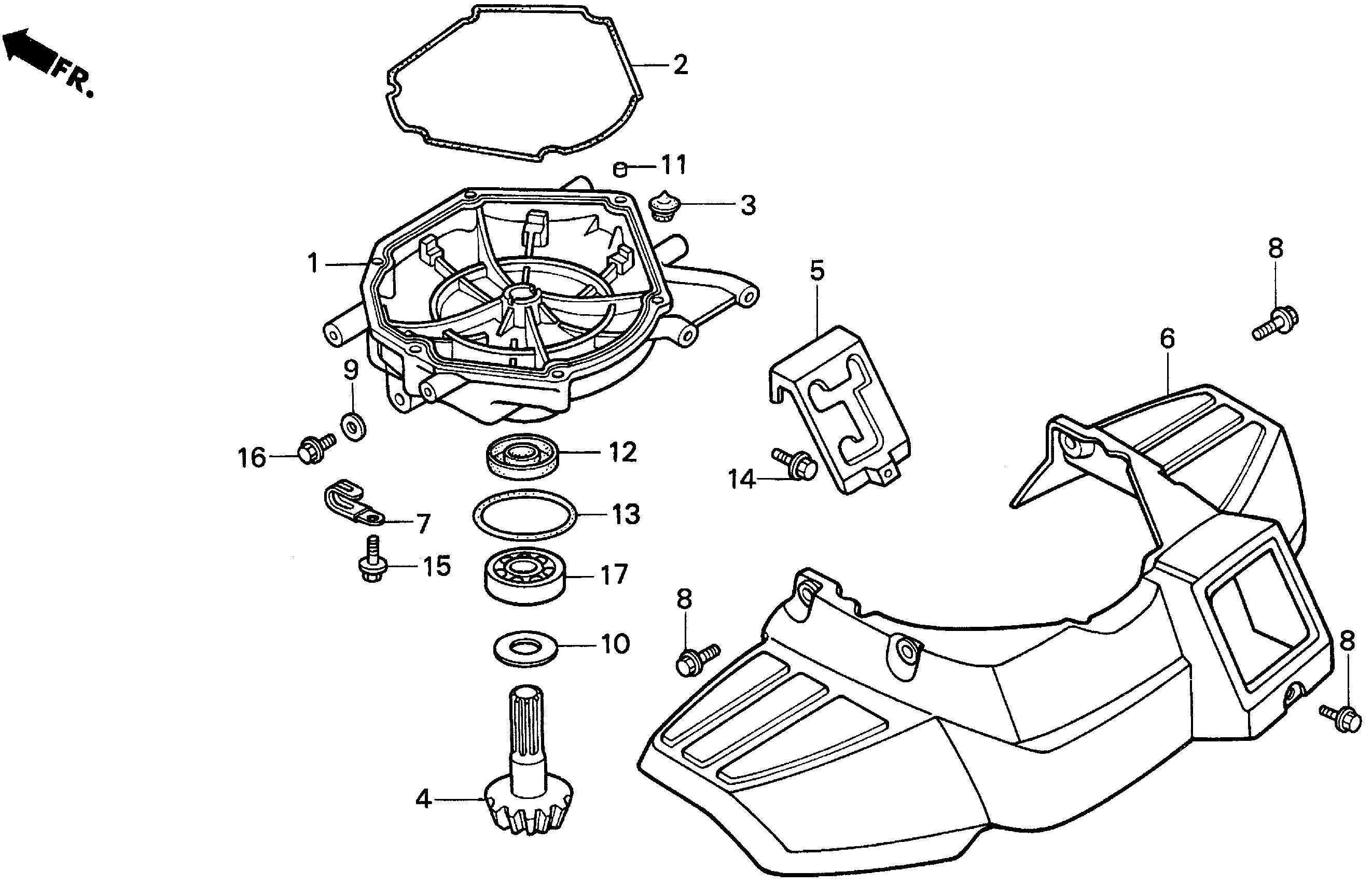

REDUCTION CASE
REDUCTION CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21271-729-000
21271-729-000
|
|||
|
|
25611-729-010
25611-729-010
|
|||
|
|
41131-740-000
41131-740-000
|
|||
|
|
50131-740-000
50131-740-000
|
|||
|
|
90010-ge0-710
90010-ge0-710
|
|||
|
|
90111-162-000
90111-162-000
|
|||
|
|
90481-705-000
90481-705-000
|
|||
|
|
90701-hc4-000
90701-hc4-000
|
|||
|
|
95701-06014-00
95701-06014-00
|
|||
|
|
95701-06045-07
95701-06045-07
|
|||
|
|
95701-10016-08
95701-10016-08
|

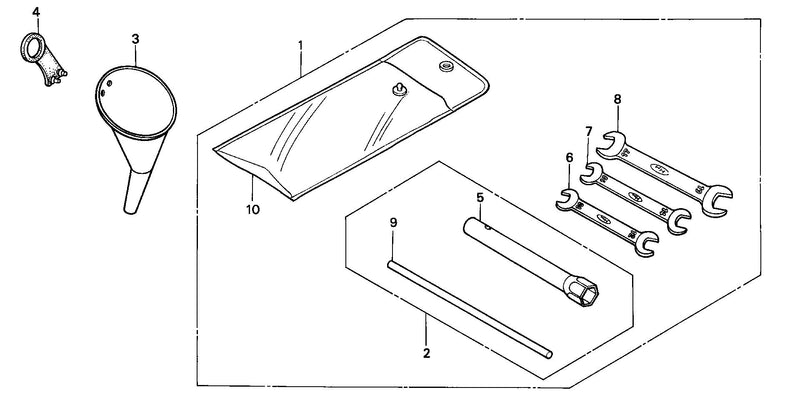

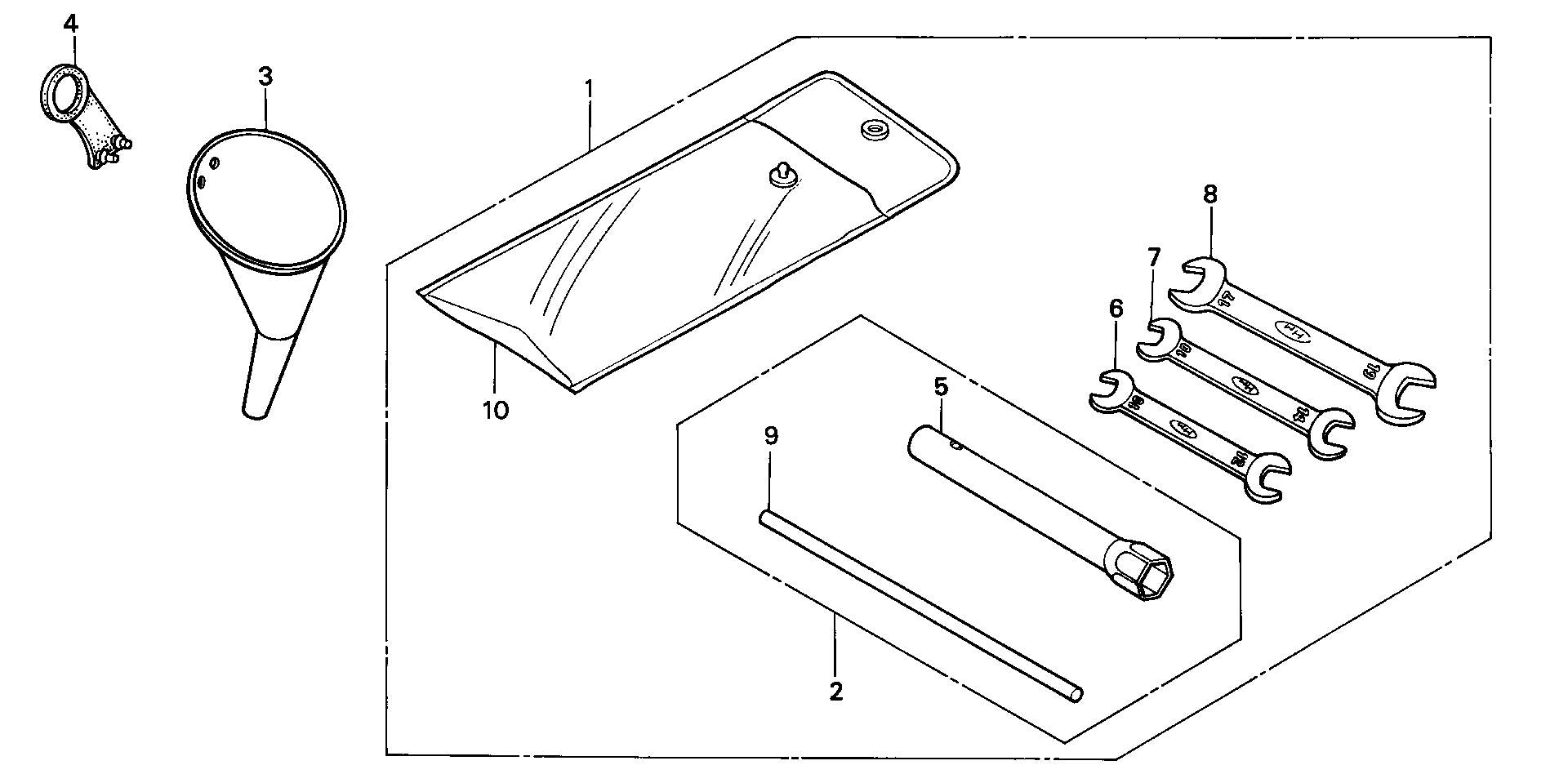

TOOLS
TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
99001-10120
99001-10120
|
|||
|
|
99001-10140
99001-10140
|
|||
|
|
99001-17190
99001-17190
|
|||
|
|
99005-01000
99005-01000
|

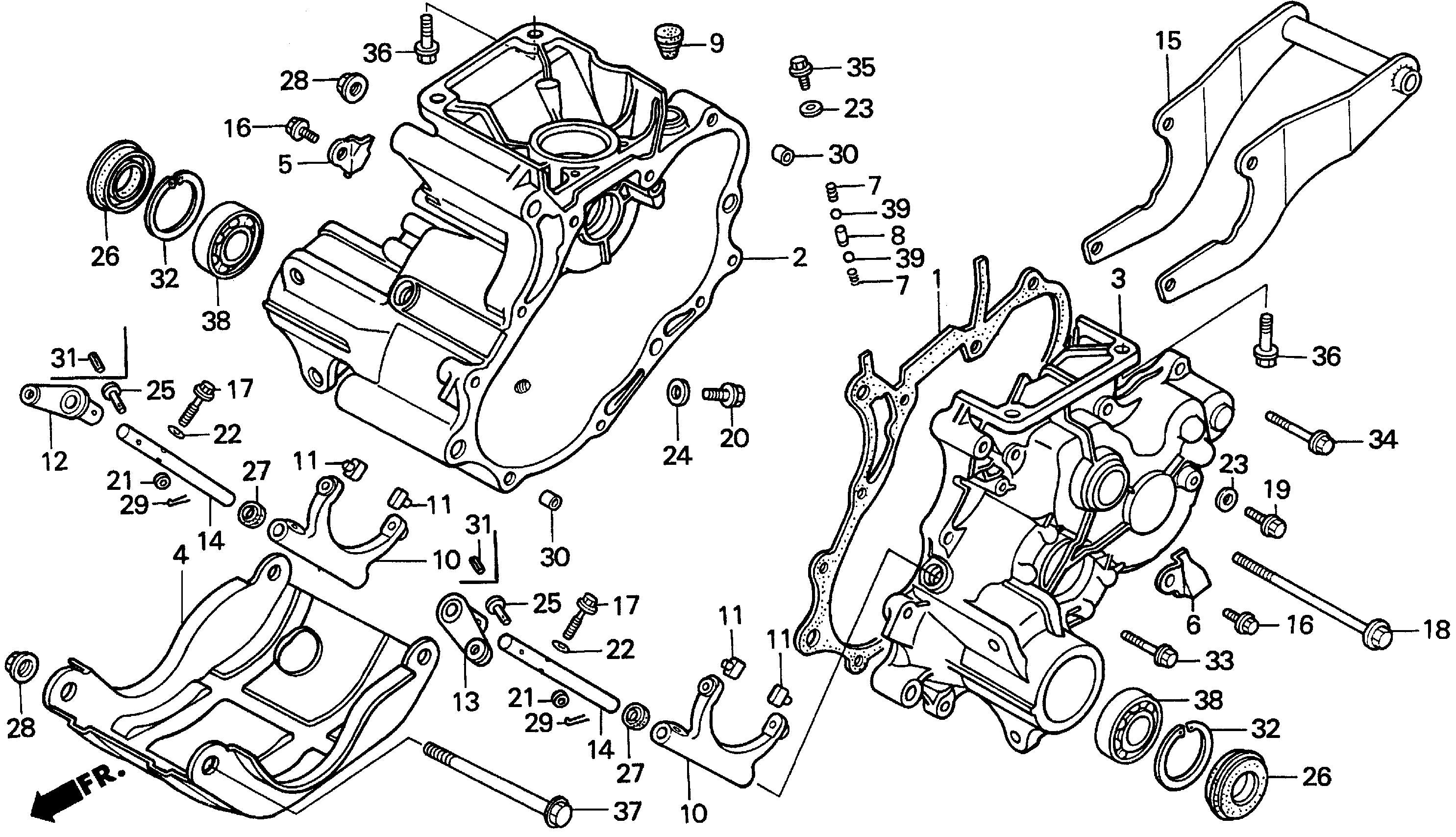

TRANSMISSION CASE
TRANSMISSION CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21611-740-000
21611-740-000
|
|||
|
|
21911-740-000
21911-740-000
|
|||
|
|
21914-740-000
21914-740-000
|
|||
|
|
24271-765-000
24271-765-000
|
|||
|
|
24481-740-000
24481-740-000
|
|||
|
|
25611-729-010
25611-729-010
|
|||
|
|
40112-740-003
40112-740-003
|
|||
|
|
40320-740-010
40320-740-010
|
|||
|
|
90028-634-000
90028-634-000
|
|||
|
|
90057-671-000
90057-671-000
|
|||
|
|
90131-ze1-000
90131-ze1-000
|
|||
|
|
90411-744-000
90411-744-000
|
|||
|
|
91206-733-014
91206-733-014
|
|||
|
|
91206-733-024
91206-733-024
|
|||
|
|
91251-740-003
91251-740-003
|
|||
|
|
94301-08140
94301-08140
|
|||
|
|
94305-50221
94305-50221
|
|||
|
|
94520-52000
94520-52000
|
|||
|
|
95701-06032-00
95701-06032-00
|
|||
|
|
95701-06040-00
95701-06040-00
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
95701-08028-00
95701-08028-00
|
|||
|
|
95701-10125-00
95701-10125-00
|
|||
|
|
96211-08000
96211-08000
|

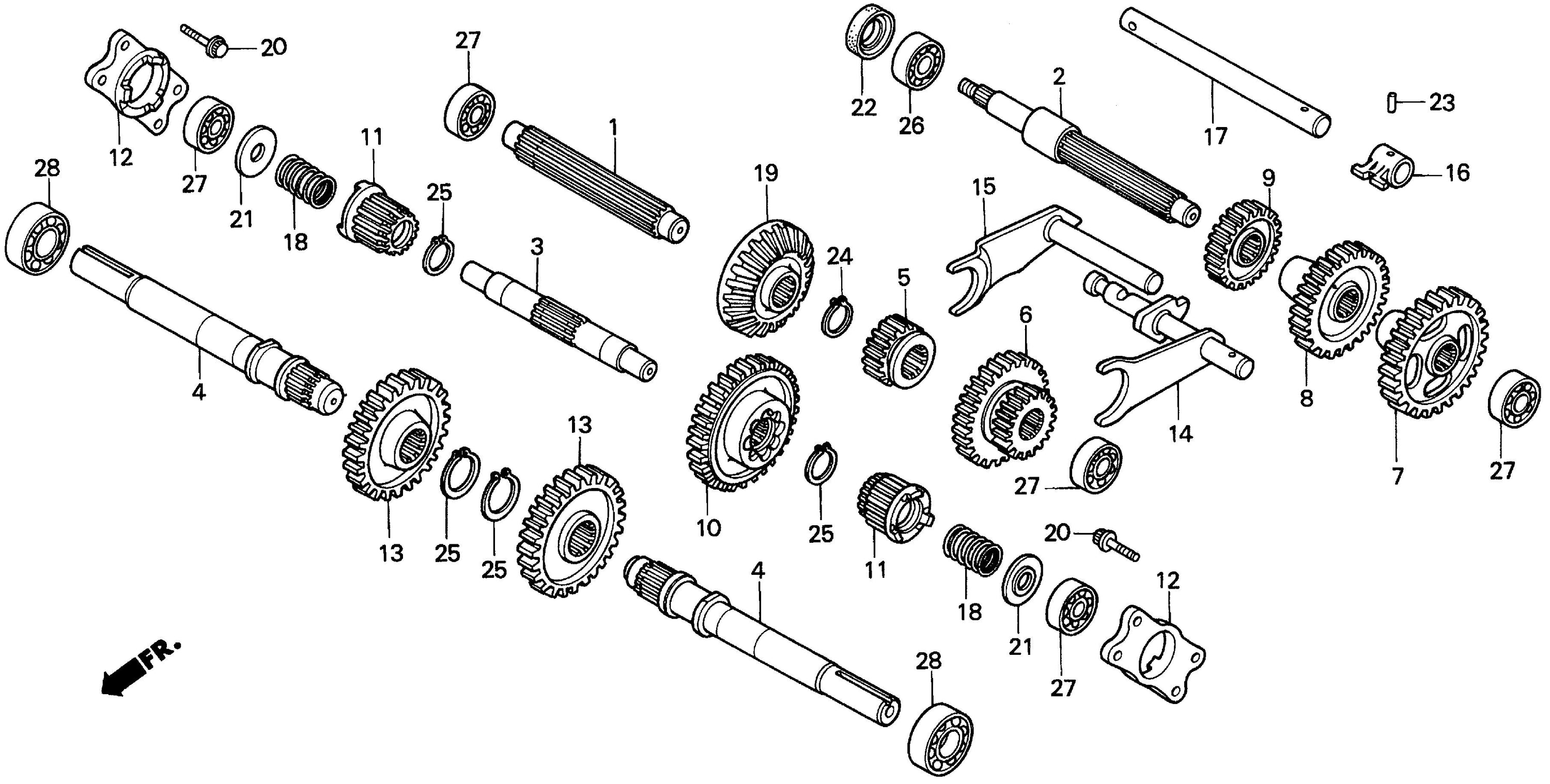

TRANSMISSION GEAR
TRANSMISSION GEAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
23411-740-010
23411-740-010
|
|||
|
|
23415-740-010
23415-740-010
|
|||
|
|
23416-740-010
23416-740-010
|
|||
|
|
23461-740-010
23461-740-010
|
|||
|
|
23521-740-000
23521-740-000
|
|||
|
|
24110-740-900
24110-740-900
|
|||
|
|
24120-740-010
24120-740-010
|
|||
|
|
24123-740-000
24123-740-000
|
|||
|
|
24311-740-000
24311-740-000
|
|||
|
|
90030-pc8-000
90030-pc8-000
|
|||
|
|
91202-740-003
91202-740-003
|
|||
|
|
94305-50221
94305-50221
|
|||
|
|
94510-22000
94510-22000
|
|||
|
|
94510-25000
94510-25000
|
|||
|
|
96100-60040-00
96100-60040-00
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
