Honda HR17EPA-EPA Parts Diagram Lawn Mower (Serial MAER-6000001 to 9999999)
Diagrams:
Diagram:

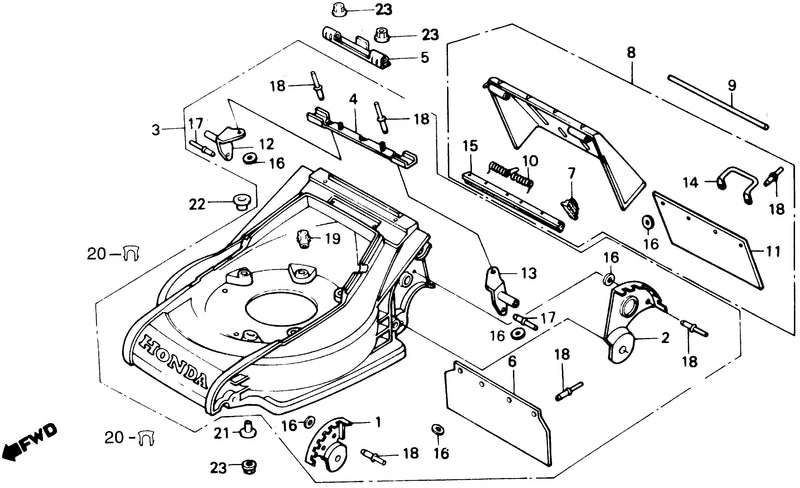

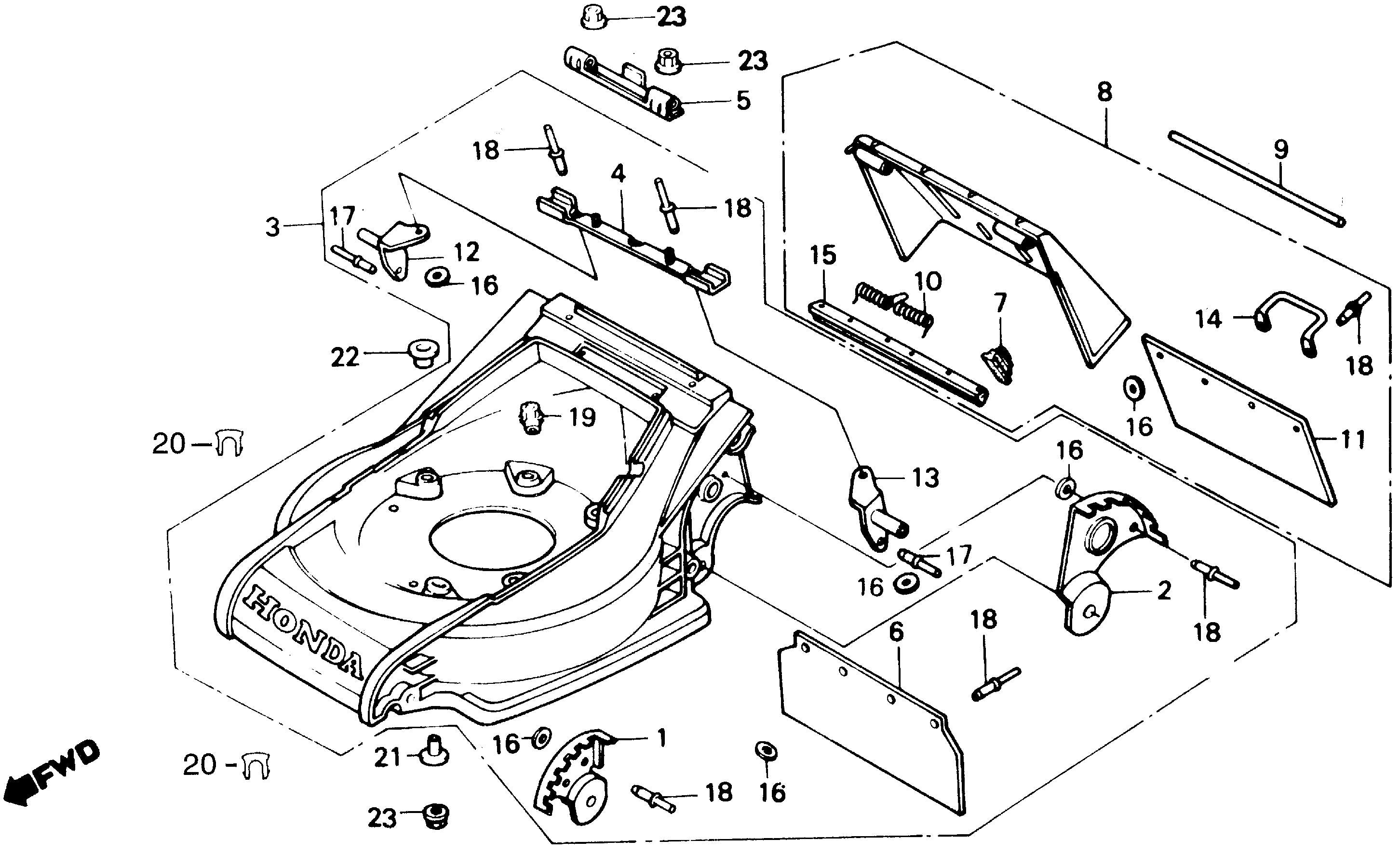

CUTTER HOUSING@DISCHARGE GUARD
CUTTER HOUSING@DISCHARGE GUARD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42981-va9-000
42981-va9-000
|
|||
|
|
76110-vd4-g00za
76110-vd4-g00za
|
|||
|
|
76118-va9-000
76118-va9-000
|
|||
|
|
76122-va4-000
76122-va4-000
|
|||
|
|
76312-va9-000
76312-va9-000
|
|||
|
|
76314-va5-010
76314-va5-010
|
|||
|
|
90483-041-000
90483-041-000
|
|||
|
|
90851-va9-000
90851-va9-000
|
|||
|
|
91601-vd4-g00
91601-vd4-g00
|
|||
|
|
91602-vd4-g00
91602-vd4-g00
|

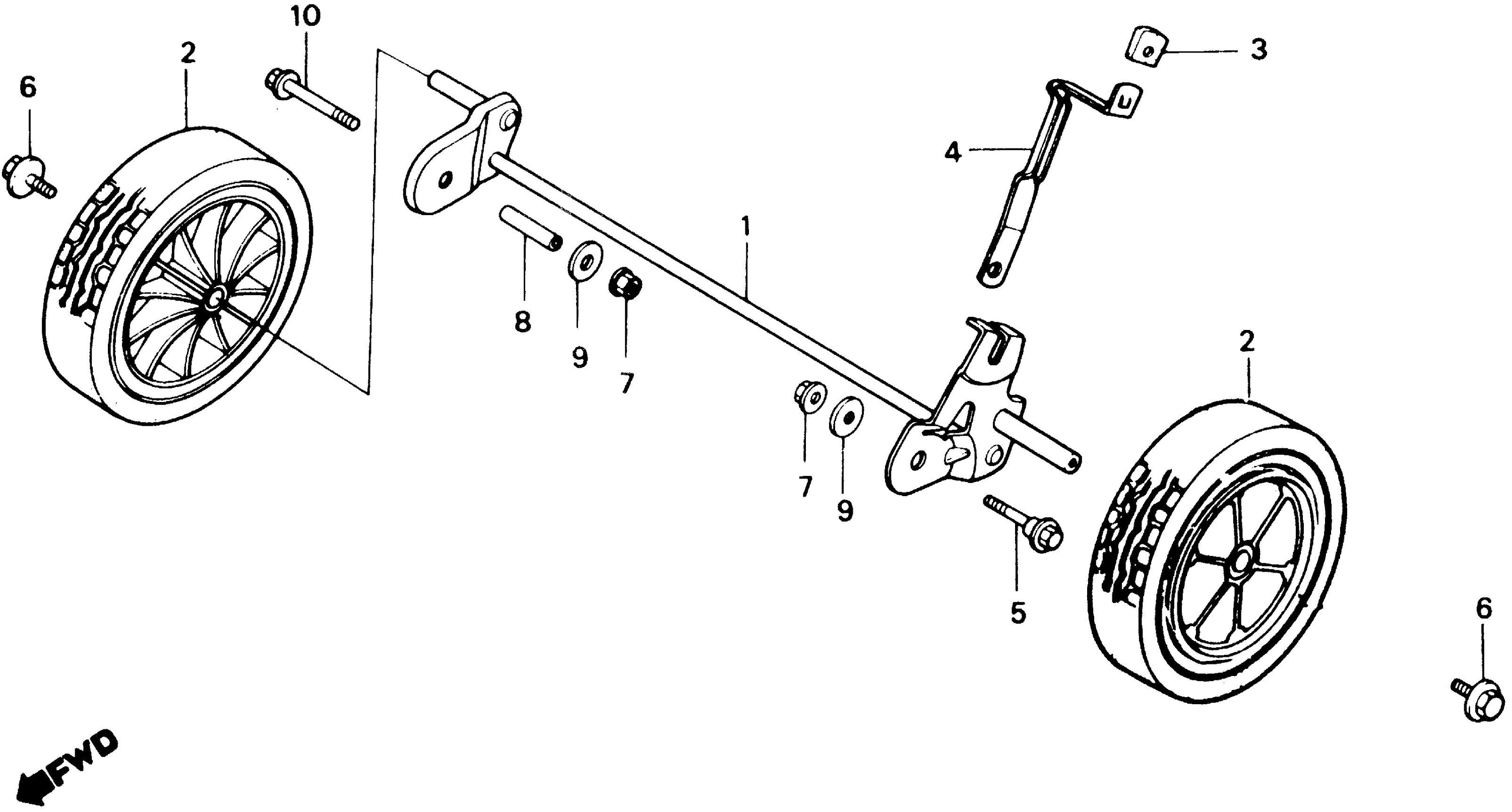

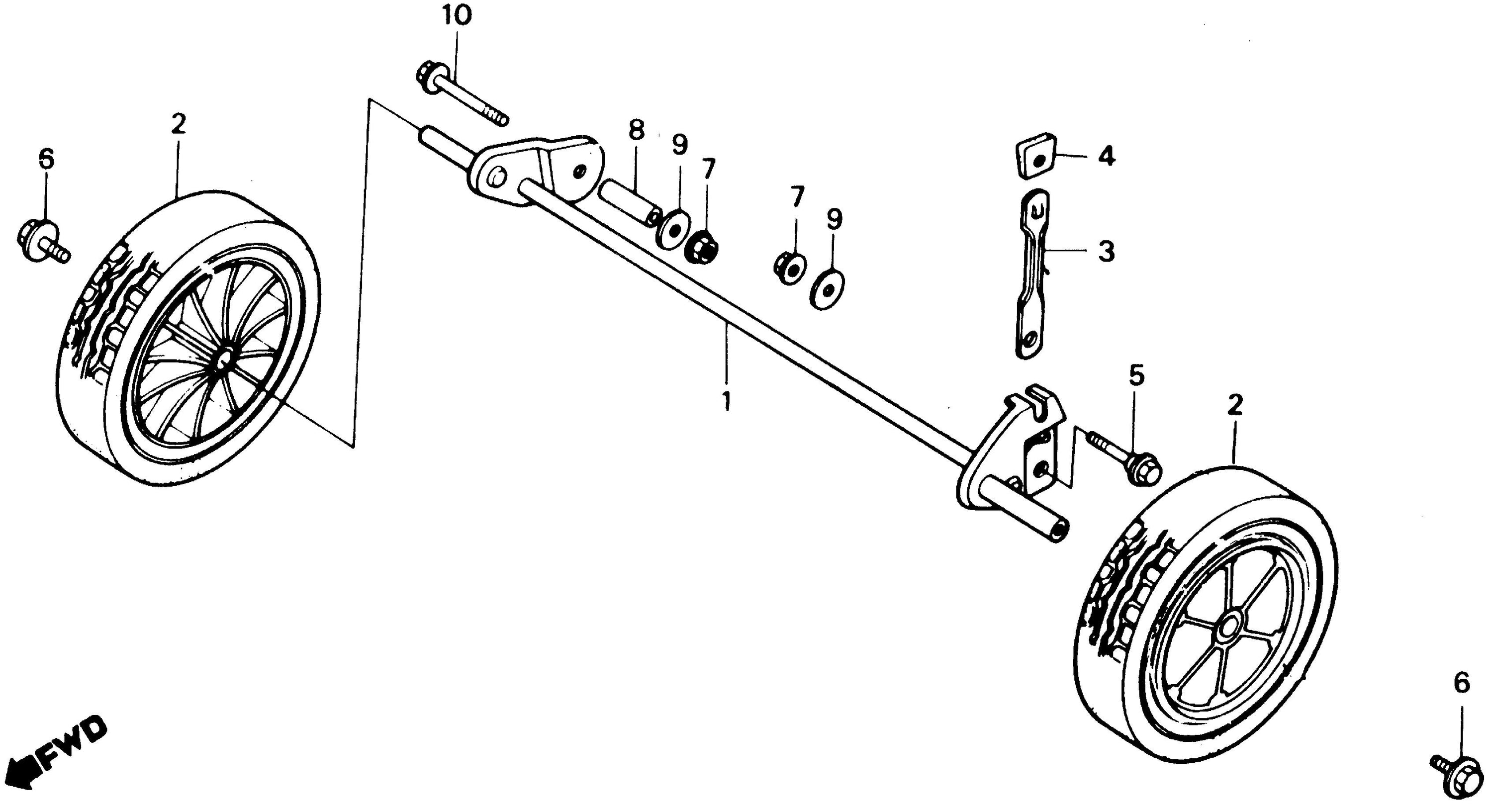

FRONT WHEEL
FRONT WHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42710-vd4-305
42710-vd4-305
|
|||
|
|
42952-va4-000
42952-va4-000
|
|||
|
|
90110-va4-000
90110-va4-000
|
|||
|
|
90309-428-731
90309-428-731
|
|||
|
|
91905-va9-000
91905-va9-000
|
|||
|
|
94103-05000
94103-05000
|
|||
|
|
95801-08050-00
95801-08050-00
|

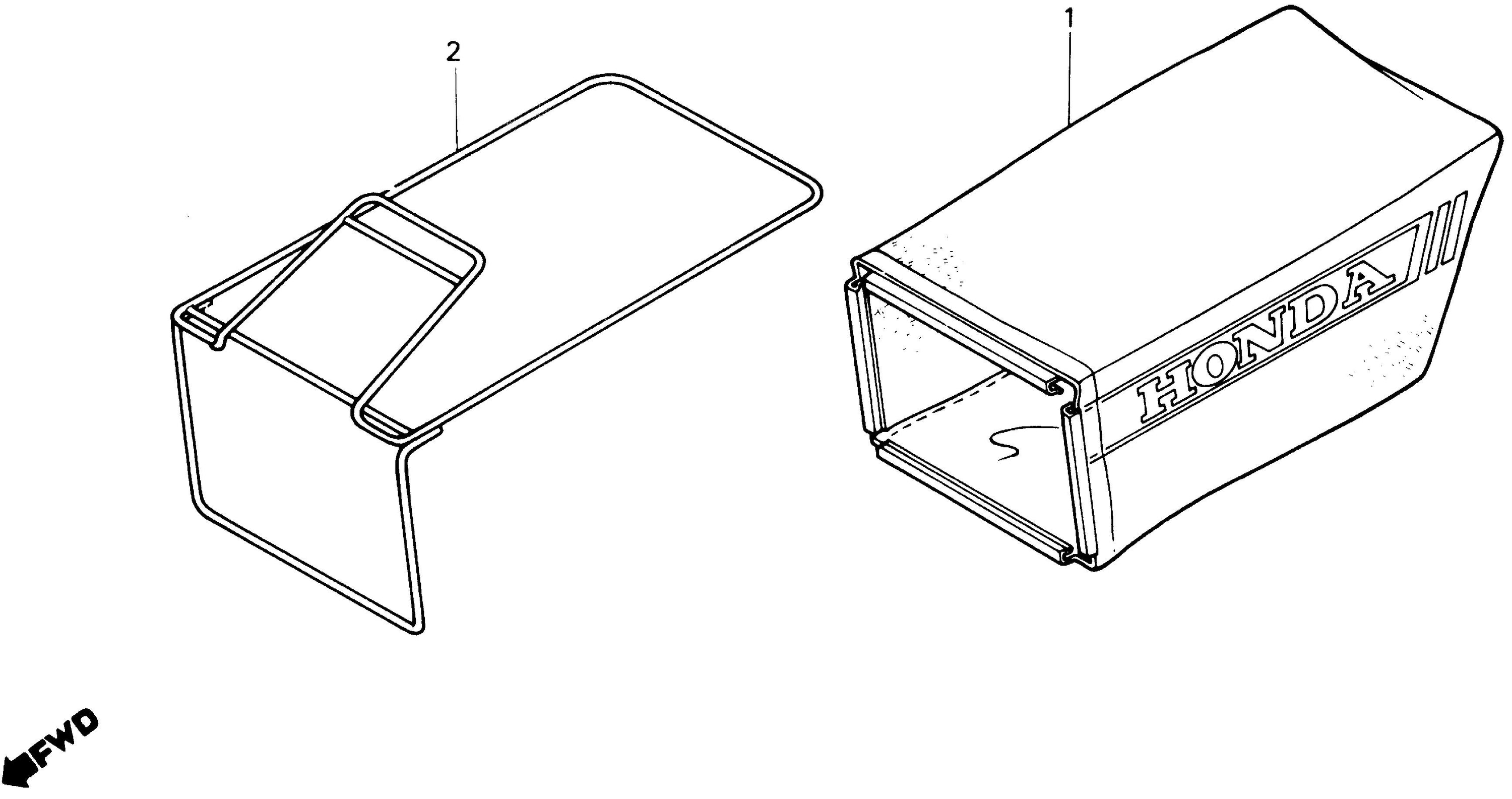

GRASS BAG
GRASS BAG
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
81157-va9-000
81157-va9-000
|
|||
|
|
81158-va9-000
81158-va9-000
|

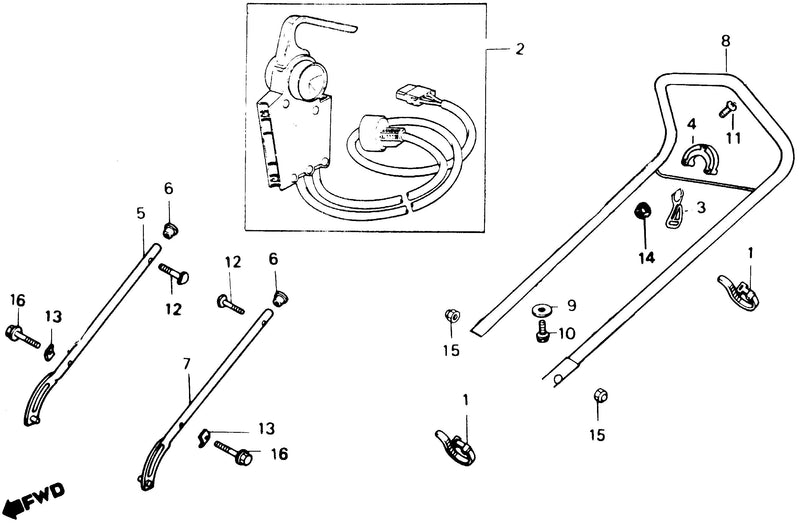

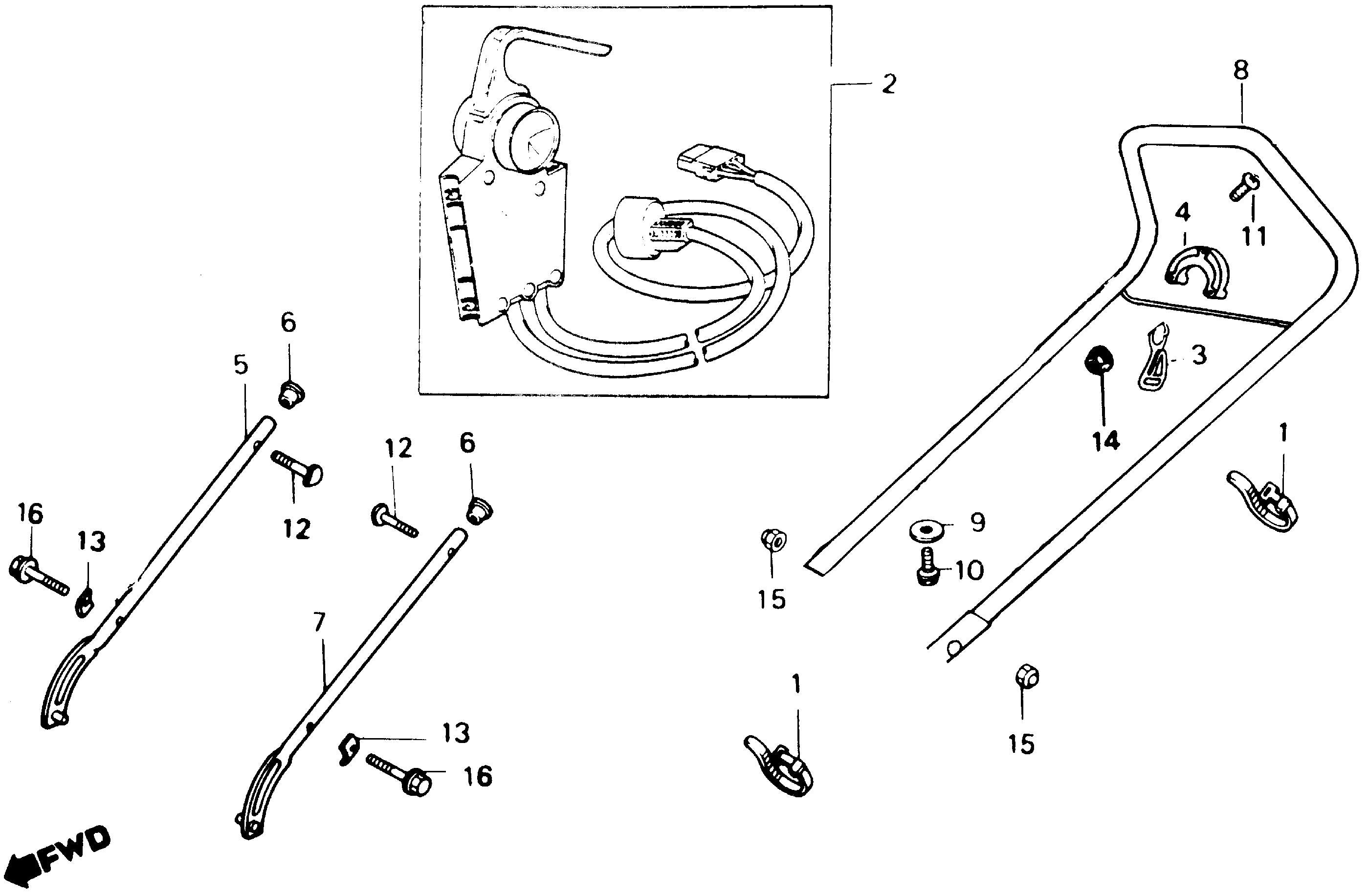

HANDLEBAR
HANDLEBAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32901-vb5-800
32901-vb5-800
|
|||
|
|
38611-vd3-h40
38611-vd3-h40
|
|||
|
|
53110-vd4-g00
53110-vd4-g00
|
|||
|
|
53156-vd4-g01
53156-vd4-g01
|
|||
|
|
90101-vd4-g00
90101-vd4-g00
|
|||
|
|
90501-898-000
90501-898-000
|
|||
|
|
94001-04070-0s
94001-04070-0s
|
|||
|
|
94021-08000-0s
94021-08000-0s
|
|||
|
|
95801-08040-00
95801-08040-00
|

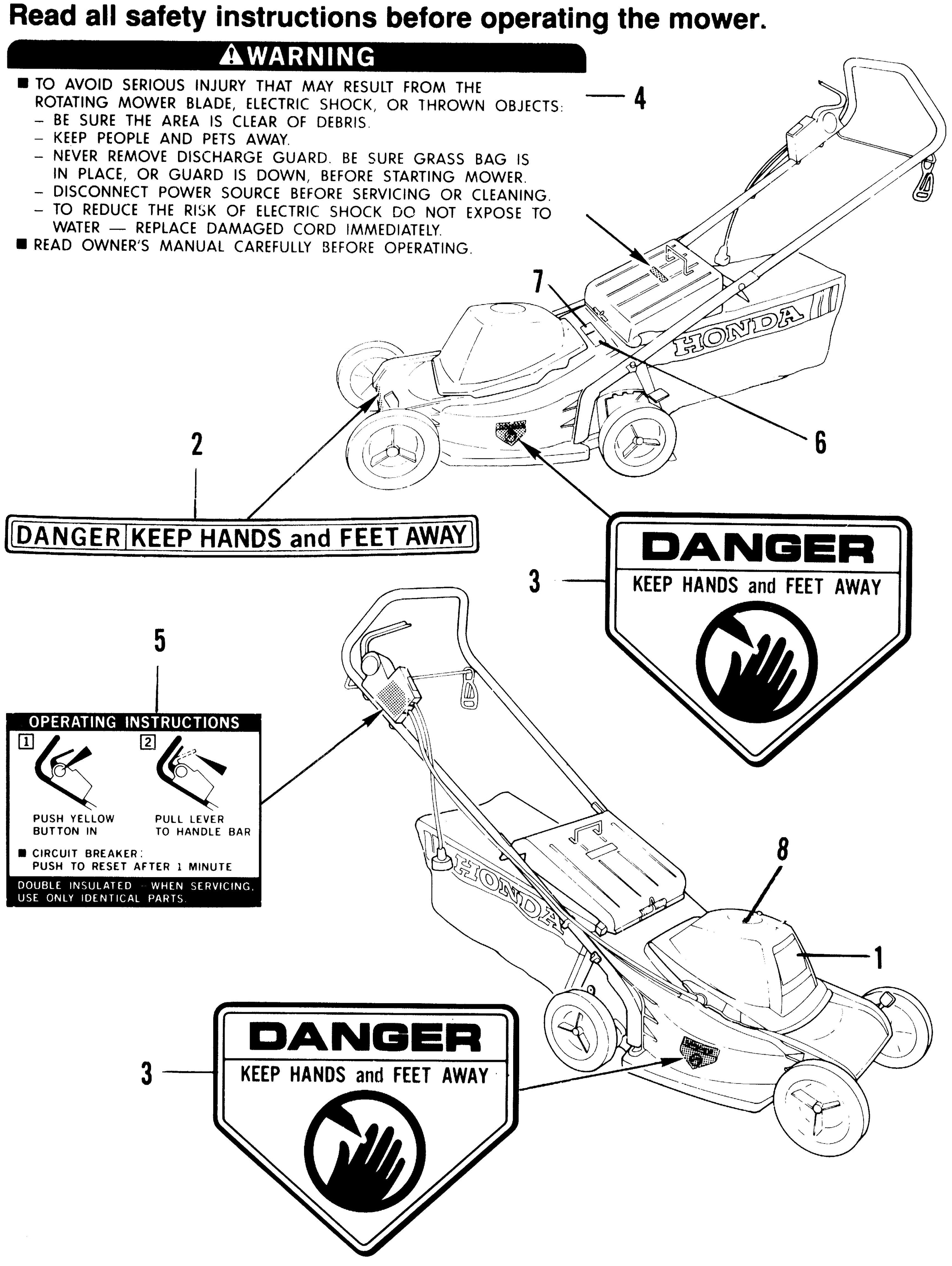

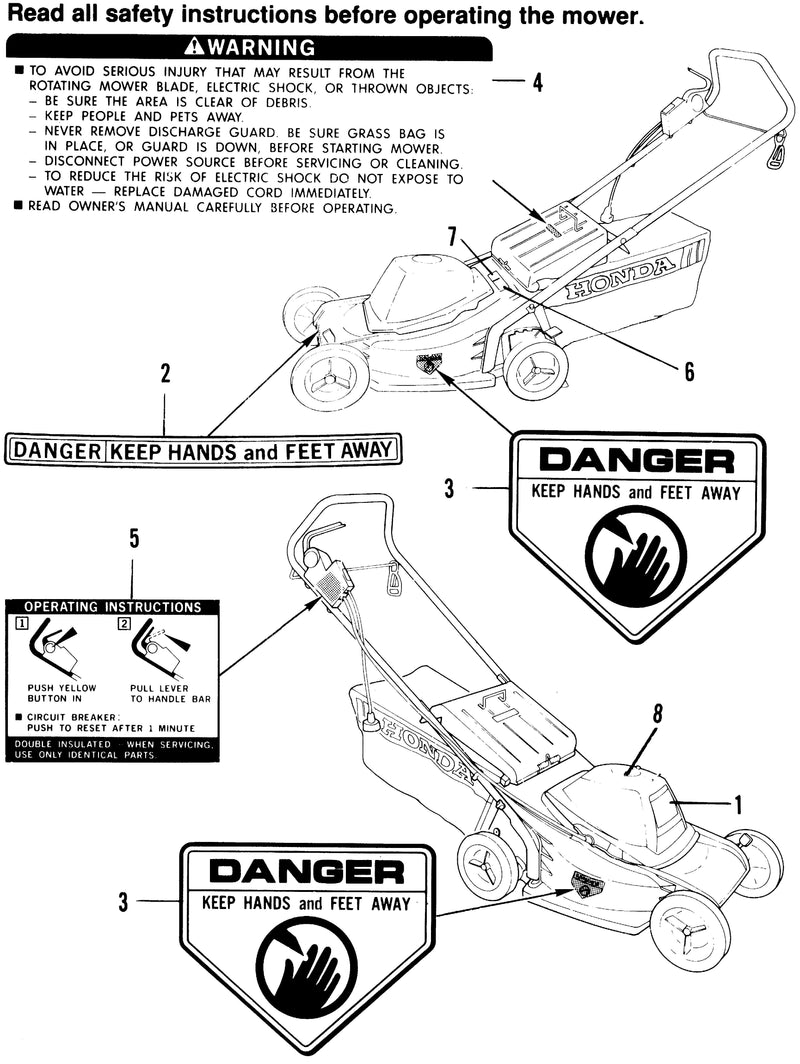

LABELS
LABELS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87101-vd4-g00
87101-vd4-g00
|
|||
|
|
87102-vd4-g00
87102-vd4-g00
|
|||
|
|
87104-va2-000
87104-va2-000
|
|||
|
|
87107-vd4-g01
87107-vd4-g01
|
|||
|
|
87501-vd4-g00
87501-vd4-g00
|
|||
|
|
87602-vd4-g00
87602-vd4-g00
|

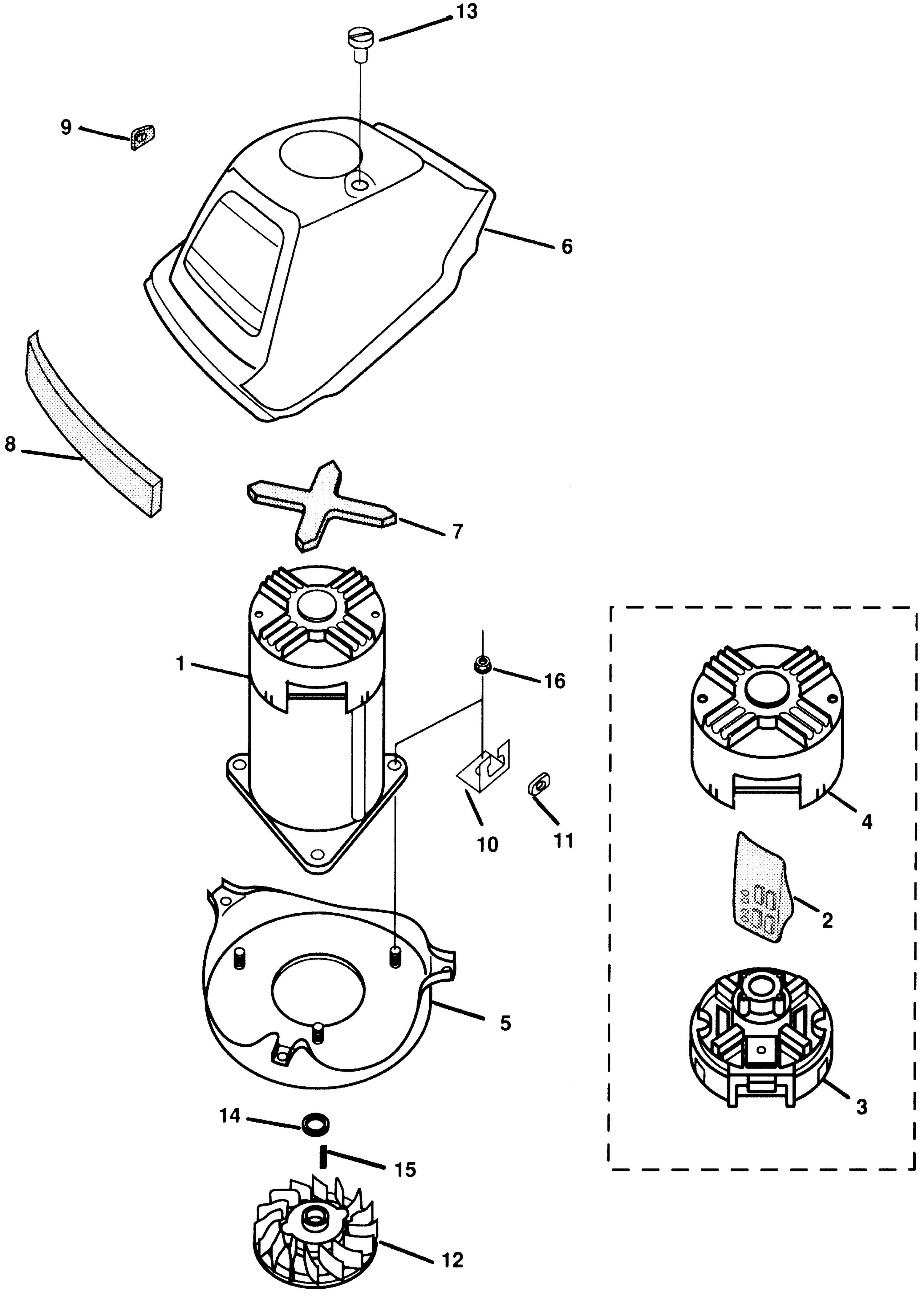

MOTOR
MOTOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
39160-vd4-g00
39160-vd4-g00
|
|||
|
|
51131-vd4-g00
51131-vd4-g00
|
|||
|
|
61151-vd4-g00za
61151-vd4-g00za
|
|||
|
|
61154-vd4-g00
61154-vd4-g00
|
|||
|
|
61155-vd4-g00
61155-vd4-g00
|
|||
|
|
61157-vd4-g02
61157-vd4-g02
|
|||
|
|
90503-751-000
90503-751-000
|
|||
|
|
90746-vd4-g01
90746-vd4-g01
|
REAR WHEEL
REAR WHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
42710-vd4-305
42710-vd4-305
|
|||
|
|
42952-va4-000
42952-va4-000
|
|||
|
|
90110-va4-000
90110-va4-000
|
|||
|
|
90309-428-731
90309-428-731
|
|||
|
|
91905-va9-000
91905-va9-000
|
|||
|
|
94103-05000
94103-05000
|
|||
|
|
95801-08050-00
95801-08050-00
|

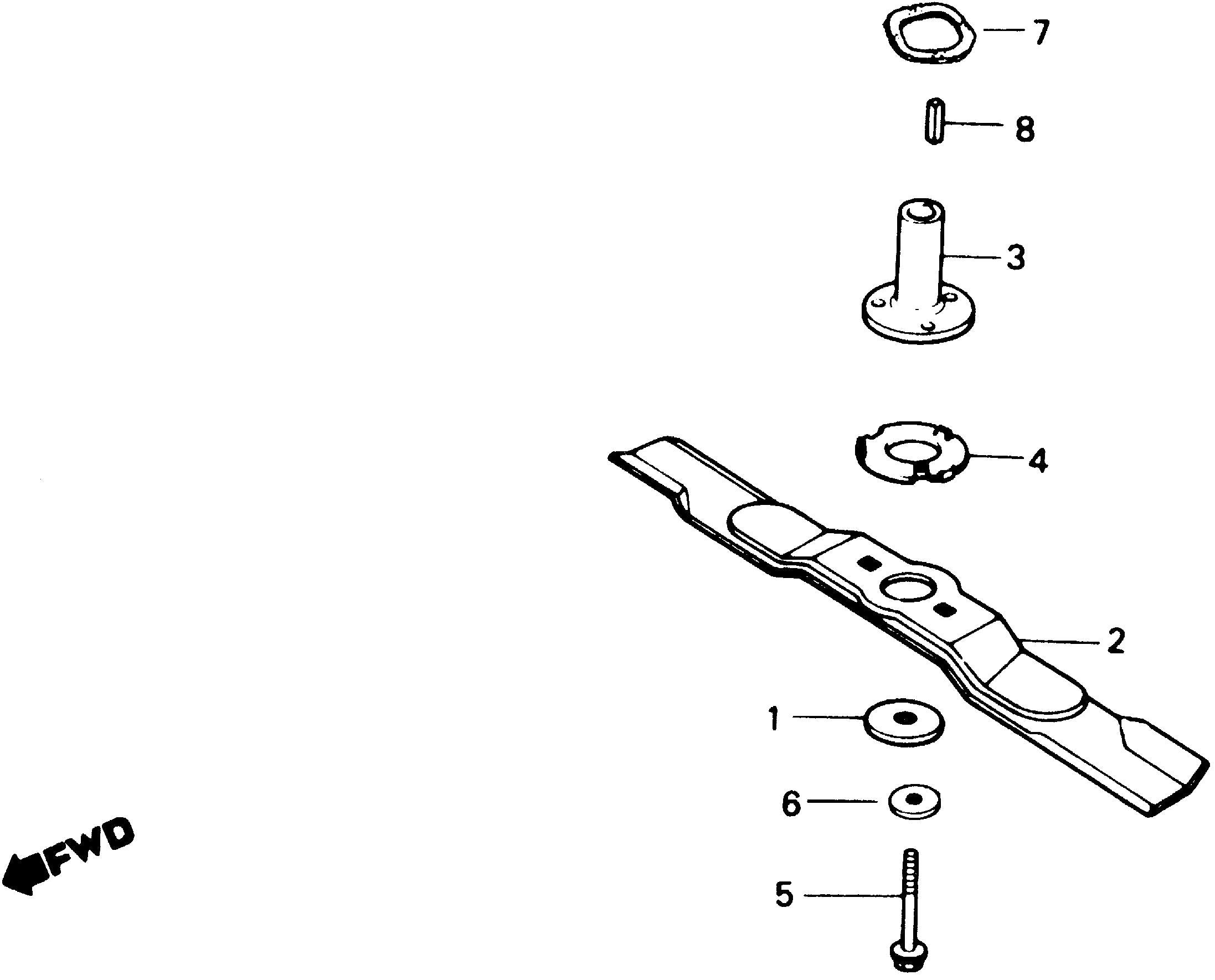

ROTARY BLADE
ROTARY BLADE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
72511-va9-g00
72511-va9-g00
|
|||
|
|
72612-va9-000
72612-va9-000
|
|||
|
|
90436-va3-000
90436-va3-000
|
|||
|
|
90503-vd4-g01
90503-vd4-g01
|
