Honda HS50-WA Parts Diagram Snow Blower (Serial HS50-1000784 to 9999999)
Diagrams:
Diagram:

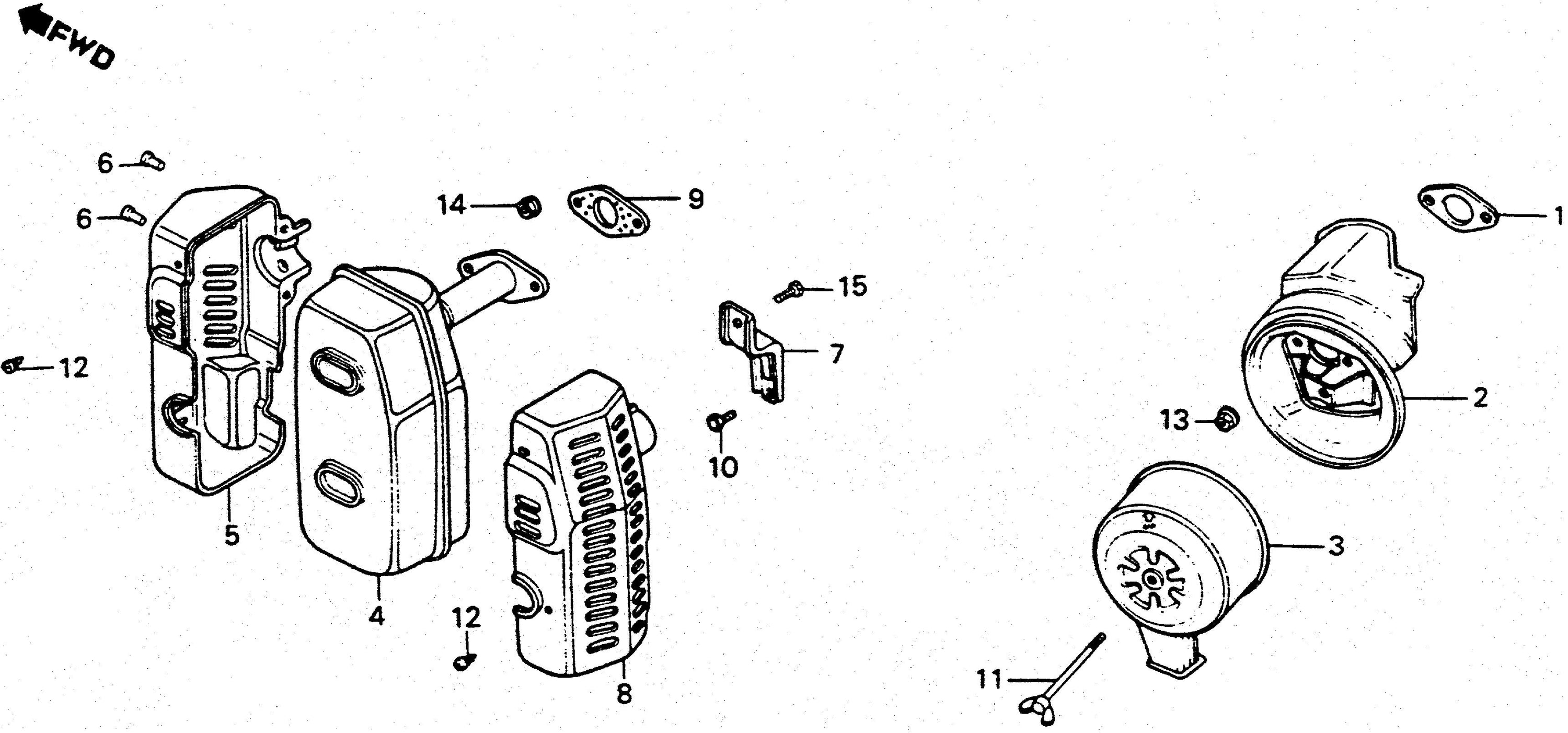

AIR CLEANER@MUFFLER
AIR CLEANER@MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16269-883-800
16269-883-800
|
|||
|
|
18321-883-300
18321-883-300
|
|||
|
|
18381-883-800
18381-883-800
|
|||
|
|
90143-300-020
90143-300-020
|
|||
|
|
94050-08080
94050-08080
|
|||
|
|
95700-06010-08
95700-06010-08
|
|||
|
|
95701-06010-08
95701-06010-08
|

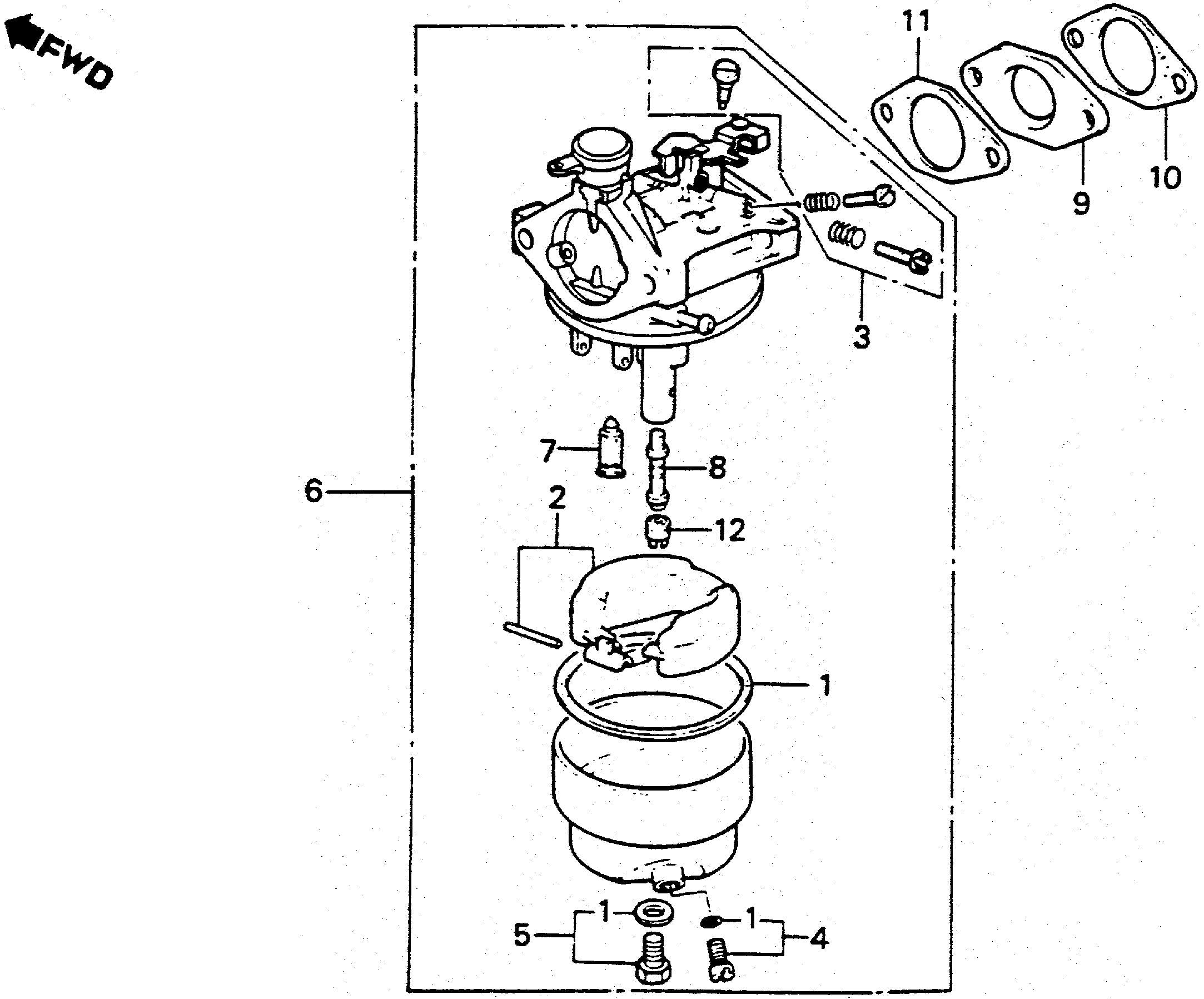

CARBURETOR
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16010-ya0-801
16010-ya0-801
|
|||
|
|
16013-883-005
16013-883-005
|
|||
|
|
16016-ya0-801
16016-ya0-801
|
|||
|
|
16016-730-005
16016-730-005
|
|||
|
|
16028-zk7-s91
16028-zk7-s91
|
|||
|
|
16166-883-005
16166-883-005
|
|||
|
|
16211-883-000
16211-883-000
|
|||
|
|
16212-883-800
16212-883-800
|
|||
|
|
16221-887-800
16221-887-800
|
|||
|
|
99101-124-0720
99101-124-0720
|

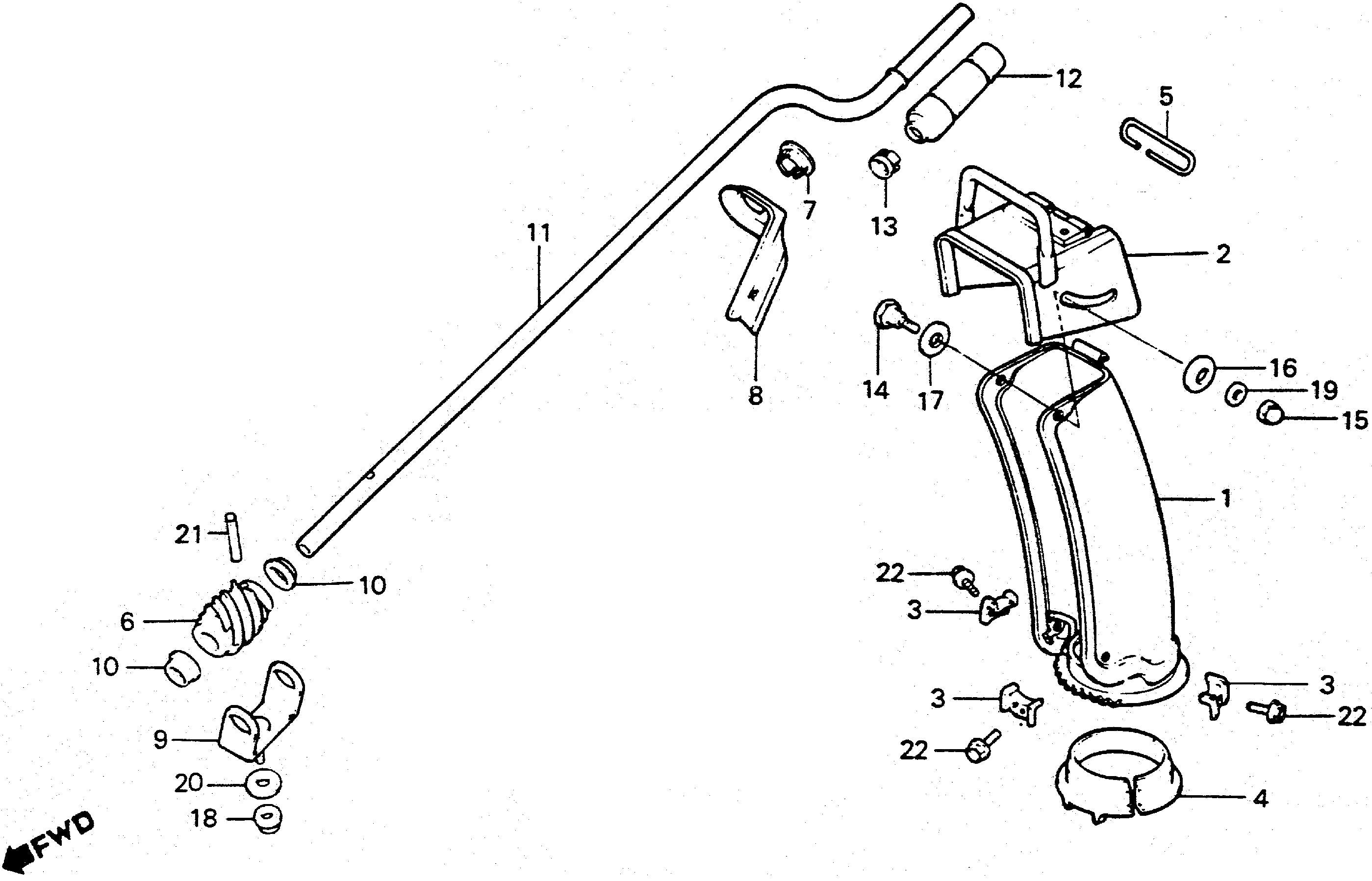

CHUTER@CHUTER HANDLE
CHUTER@CHUTER HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
76331-730-000
76331-730-000
|
|||
|
|
76336-730-000
76336-730-000
|
|||
|
|
76343-732-000
76343-732-000
|
|||
|
|
76351-730-000
76351-730-000
|
|||
|
|
76352-730-000
76352-730-000
|
|||
|
|
90455-881-000
90455-881-000
|
|||
|
|
94103-06000
94103-06000
|
|||
|
|
94305-40322
94305-40322
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
95701-06012-00
95701-06012-00
|

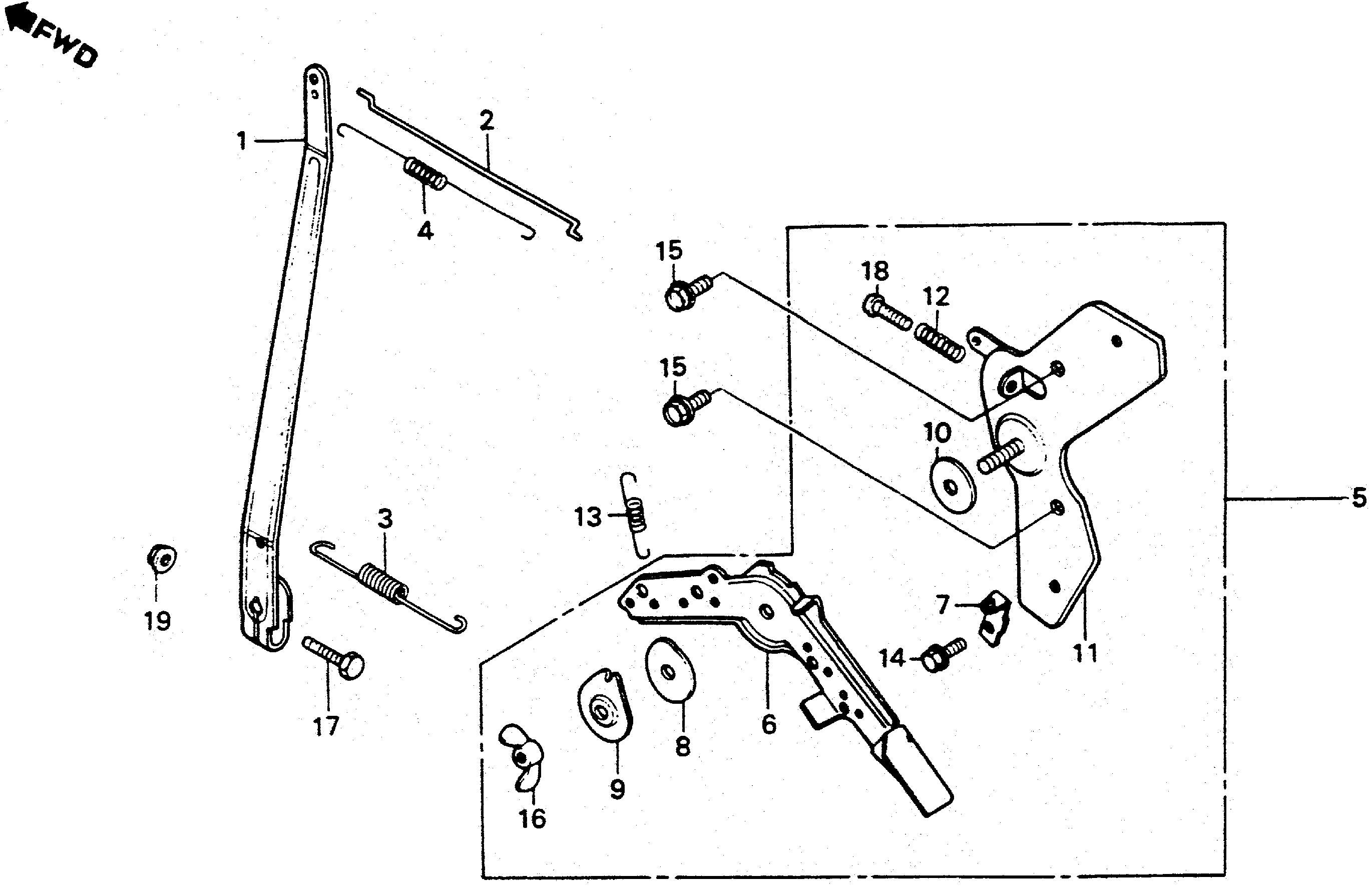

CONTROL
CONTROL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16561-883-010
16561-883-010
|
|||
|
|
16562-883-010
16562-883-010
|
|||
|
|
16574-883-300
16574-883-300
|
|||
|
|
16575-883-300
16575-883-300
|
|||
|
|
16576-883-300
16576-883-300
|
|||
|
|
16584-883-300
16584-883-300
|
|||
|
|
16592-883-310
16592-883-310
|
|||
|
|
90002-892-000
90002-892-000
|
|||
|
|
93500-05022-0a
93500-05022-0a
|

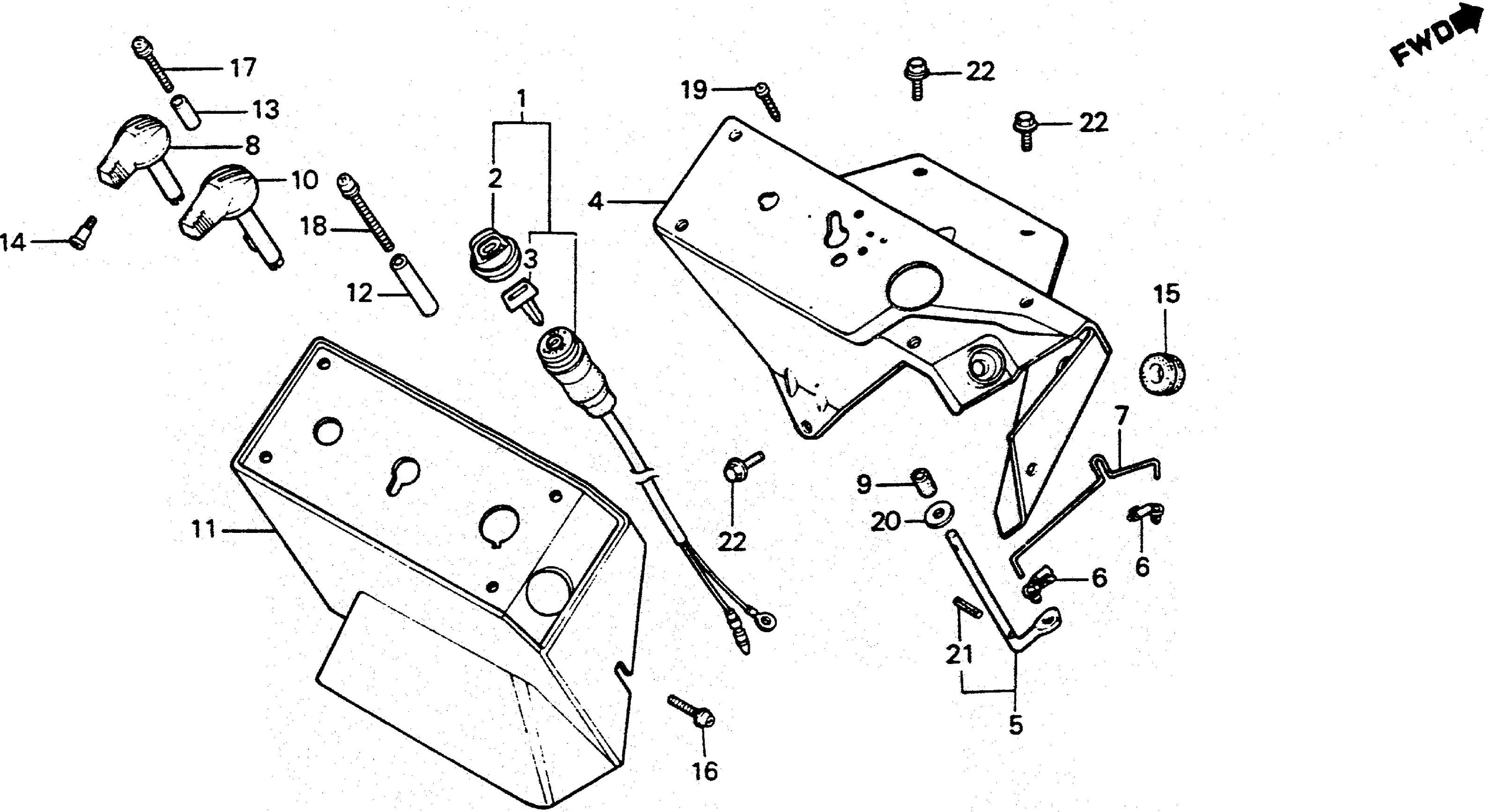

CONTROL PANEL
CONTROL PANEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
35121-gw0-731
35121-gw0-731
|
|||
|
|
90852-898-000
90852-898-000
|
|||
|
|
93891-05016-07
93891-05016-07
|
|||
|
|
93891-05028-07
93891-05028-07
|
|||
|
|
93891-05045-07
93891-05045-07
|
|||
|
|
93901-12320
93901-12320
|
|||
|
|
94101-06700
94101-06700
|
|||
|
|
95701-06010-00
95701-06010-00
|

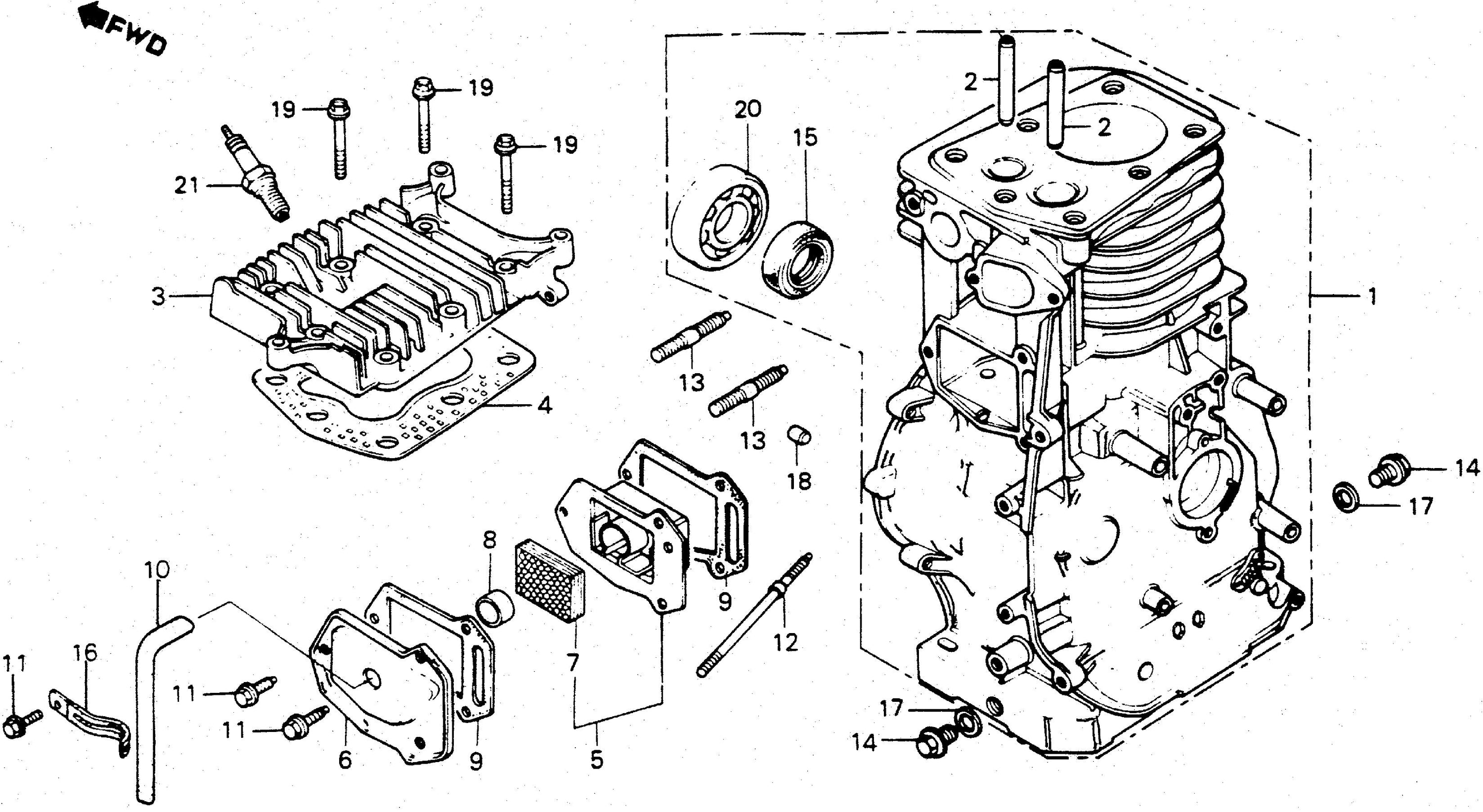

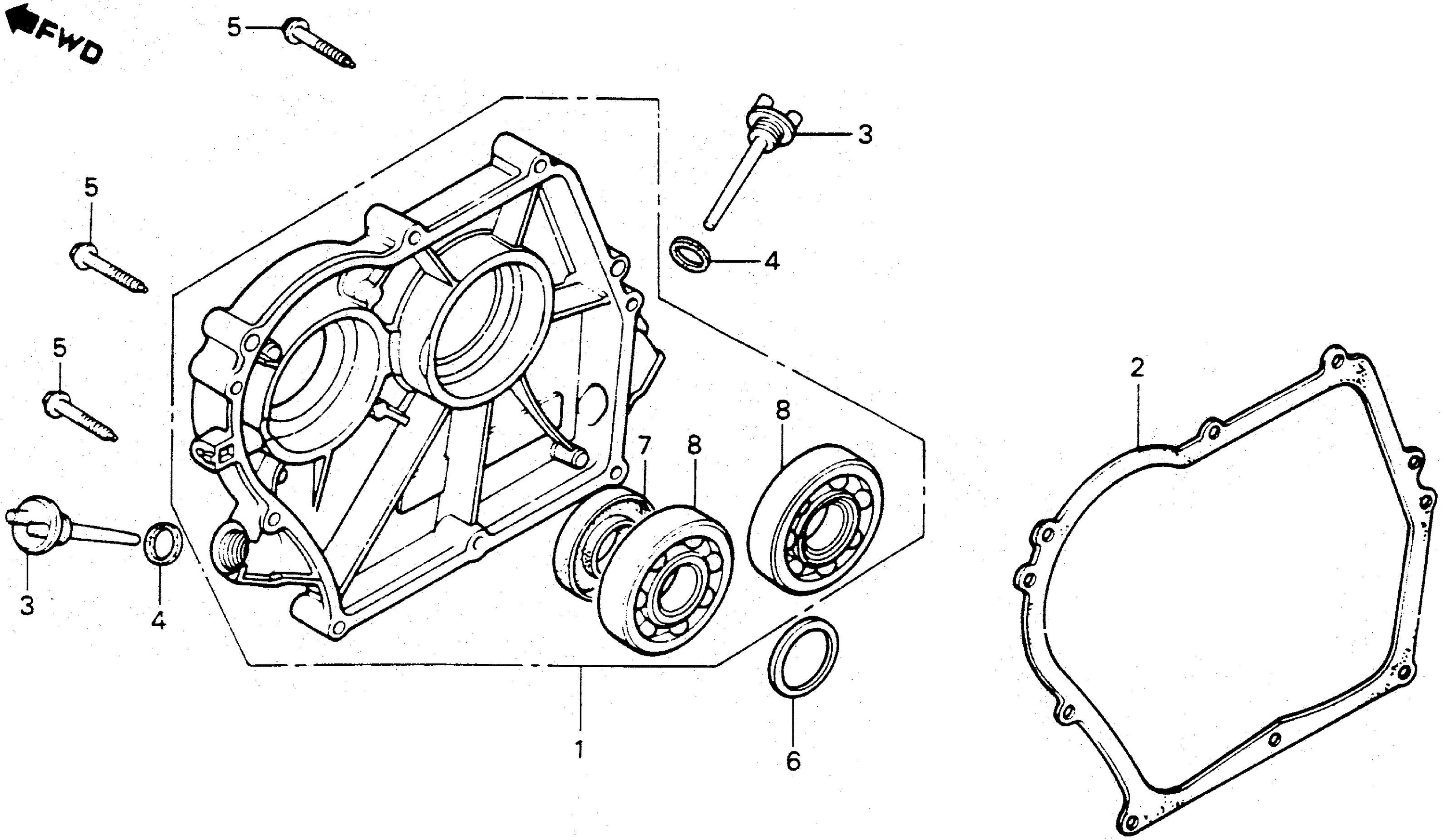

CRANKCASE
CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11381-883-800
11381-883-800
|
|||
|
|
15620-883-010
15620-883-010
|
|||
|
|
15621-896-010
15621-896-010
|
|||
|
|
90017-883-000
90017-883-000
|
|||
|
|
90456-883-000
90456-883-000
|
CYLINDER HEAD@BARREL
CYLINDER HEAD@BARREL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12133-883-306
12133-883-306
|
|||
|
|
12134-883-305
12134-883-305
|
|||
|
|
12281-883-801
12281-883-801
|
|||
|
|
12361-883-000
12361-883-000
|
|||
|
|
12367-883-003
12367-883-003
|
|||
|
|
12369-883-000
12369-883-000
|
|||
|
|
12375-883-000
12375-883-000
|
|||
|
|
90043-883-681
90043-883-681
|
|||
|
|
90047-883-000
90047-883-000
|
|||
|
|
91405-671-000
91405-671-000
|
|||
|
|
94109-12000
94109-12000
|
|||
|
|
94301-08140
94301-08140
|
|||
|
|
95701-08045-08
95701-08045-08
|
|||
|
|
98076-54720
98076-54720
|
|||
|
|
98076-54757
98076-54757
|
|||
|
|
98076-54911
98076-54911
|
|||
|
|
98076-54919
98076-54919
|
|||
|
|
98076-54921
98076-54921
|
|||
|
|
98076-54954
98076-54954
|
|||
|
|
98076-56724
98076-56724
|
|||
|
|
98076-56728
98076-56728
|
|||
|
|
98076-56927
98076-56927
|

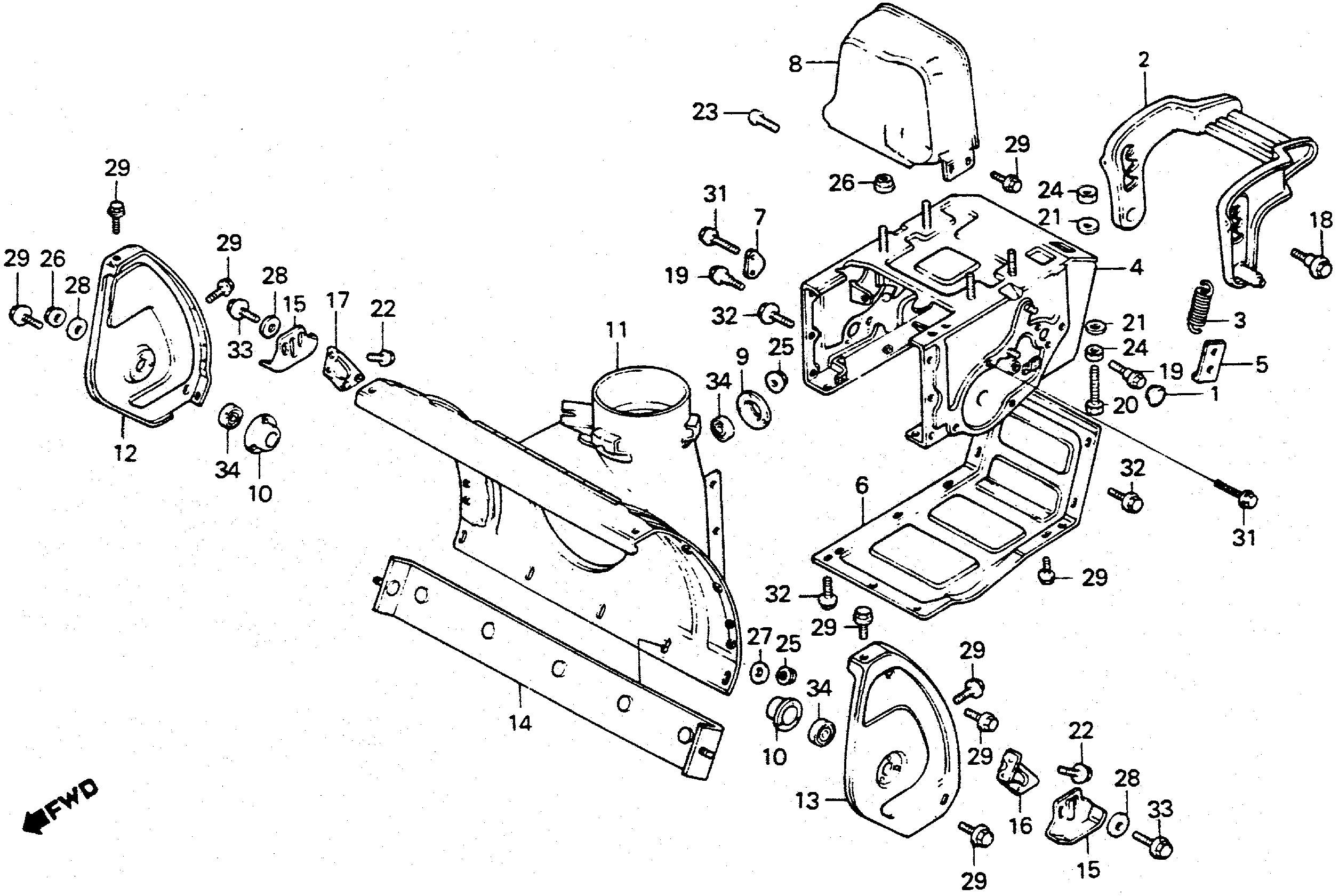

ENGINE BED@AUGER HOUSING
ENGINE BED@AUGER HOUSING
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
72611-730-000
72611-730-000
|
|||
|
|
73256-732-000
73256-732-000
|
|||
|
|
76153-736-010
76153-736-010
|
|||
|
|
76154-732-900
76154-732-900
|
|||
|
|
76155-732-900
76155-732-900
|
|||
|
|
90003-732-900
90003-732-900
|
|||
|
|
90004-732-000
90004-732-000
|
|||
|
|
90514-921-000
90514-921-000
|
|||
|
|
93404-06012-00
93404-06012-00
|
|||
|
|
93500-06018-0a
93500-06018-0a
|
|||
|
|
94002-08000-0s
94002-08000-0s
|
|||
|
|
94103-06000
94103-06000
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
95701-06010-00
95701-06010-00
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-06018-00
95701-06018-00
|
|||
|
|
95701-08014-00
95701-08014-00
|
|||
|
|
95701-08014-00
95701-08014-00
|
|||
|
|
95701-08016-00
95701-08016-00
|
|||
|
|
96150-62030-10
96150-62030-10
|

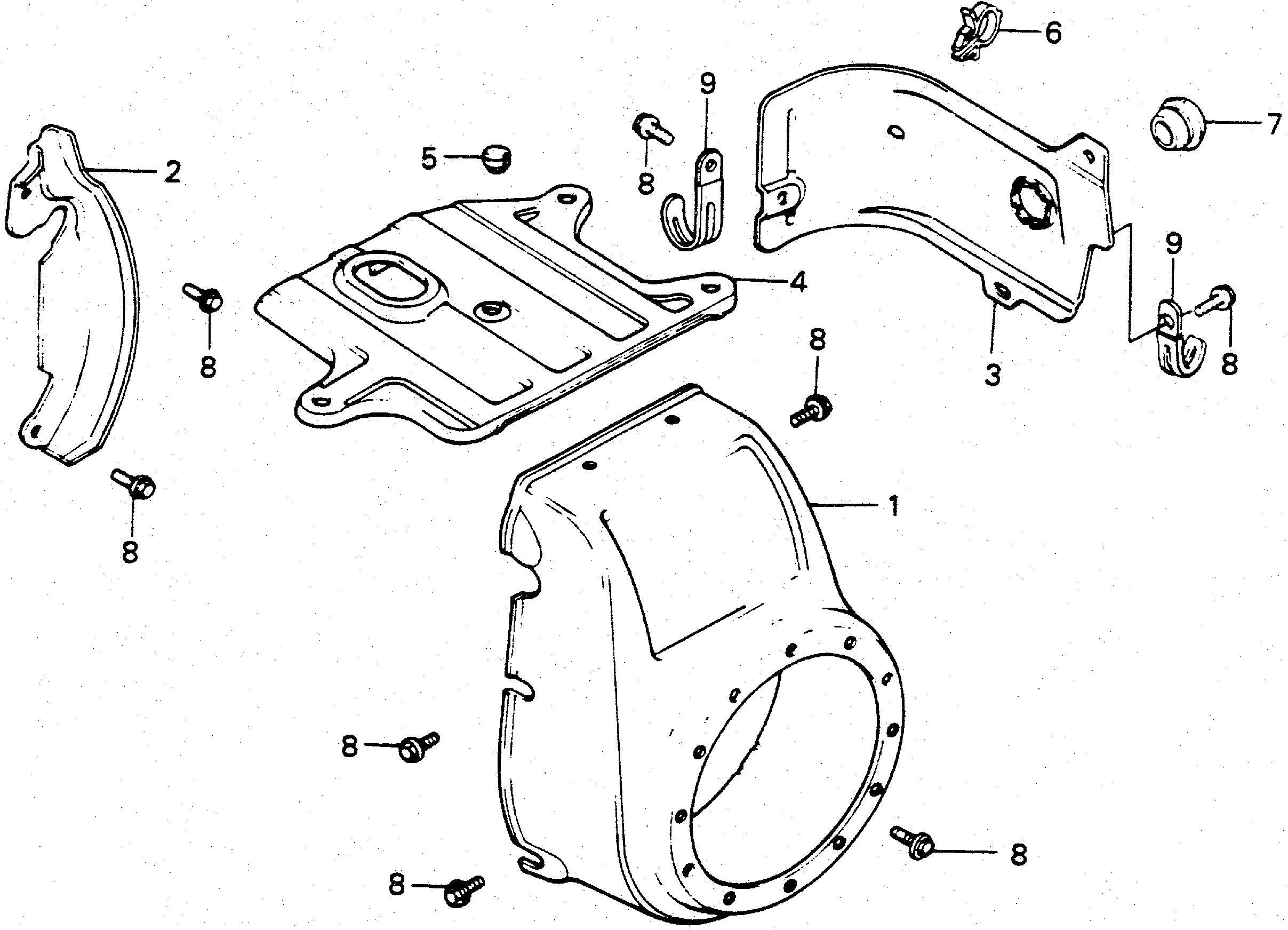

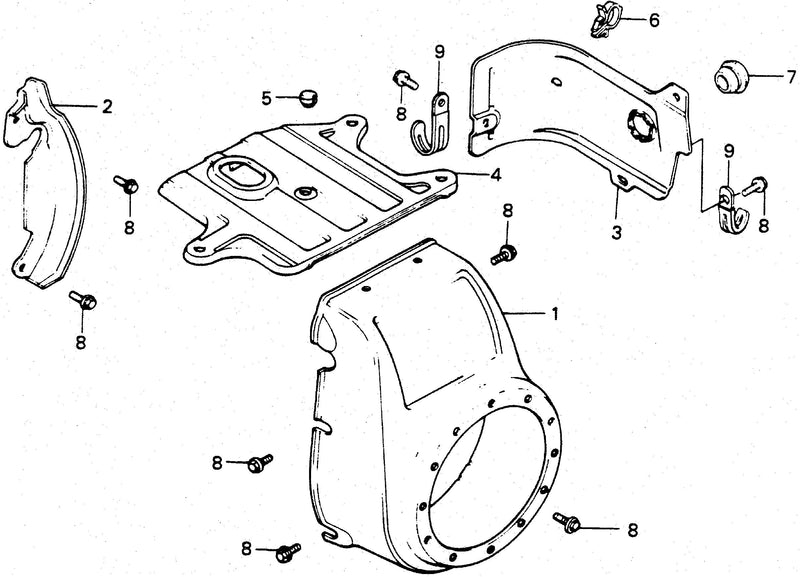

FAN COVER
FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19611-883-000
19611-883-000
|
|||
|
|
19641-883-010
19641-883-010
|
|||
|
|
19643-883-010
19643-883-010
|
|||
|
|
30701-883-000
30701-883-000
|
|||
|
|
81329-567-020
81329-567-020
|
|||
|
|
91405-671-000
91405-671-000
|

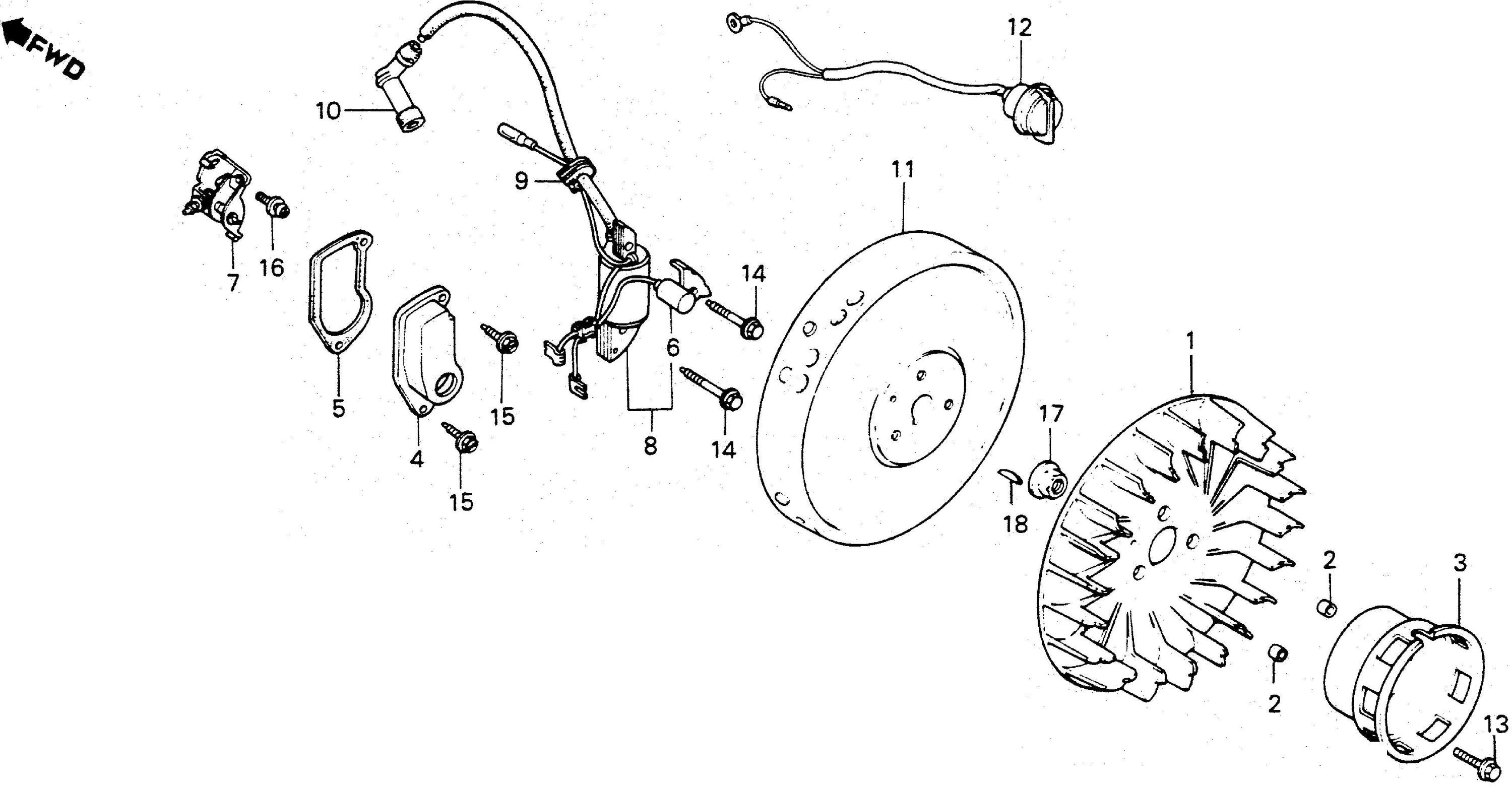

FLYWHEEL
FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
19511-883-020
19511-883-020
|
|||
|
|
19512-883-000
19512-883-000
|
|||
|
|
30251-883-003
30251-883-003
|
|||
|
|
30280-883-005
30280-883-005
|
|||
|
|
30560-883-015
30560-883-015
|
|||
|
|
31100-883-050
31100-883-050
|
|||
|
|
95701-06016-08
95701-06016-08
|
|||
|
|
90017-883-000
90017-883-000
|
|||
|
|
90019-883-000
90019-883-000
|
|||
|
|
90051-883-000
90051-883-000
|
|||
|
|
90201-878-003
90201-878-003
|
|||
|
|
94401-25180
94401-25180
|

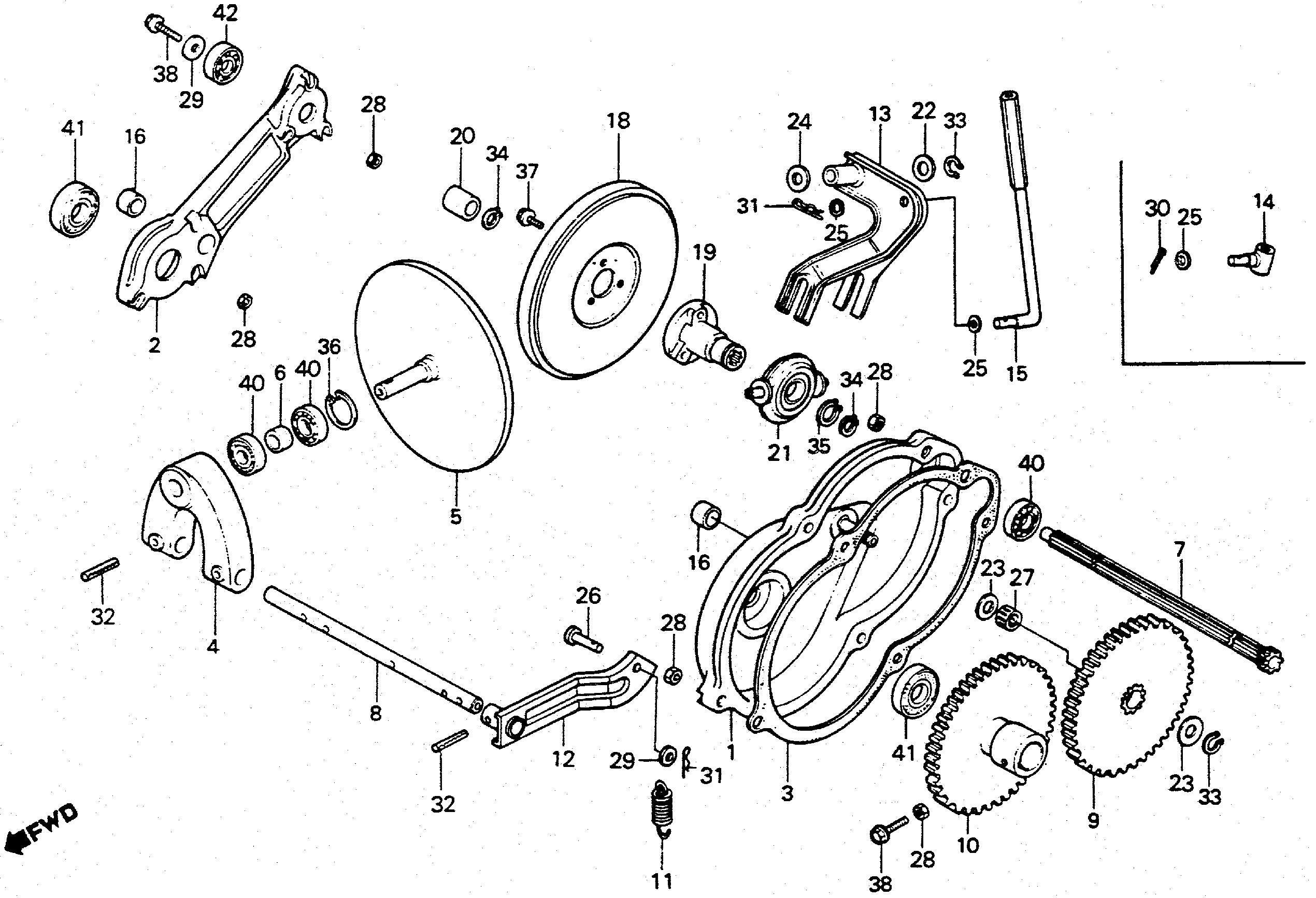

FRICTION DISK
FRICTION DISK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
40311-732-010
40311-732-010
|
|||
|
|
75010-732-003
75010-732-003
|
|||
|
|
90456-729-300
90456-729-300
|
|||
|
|
90459-107-000
90459-107-000
|
|||
|
|
90502-155-000
90502-155-000
|
|||
|
|
91551-732-000
91551-732-000
|
|||
|
|
90752-732-000
90752-732-000
|
|||
|
|
94001-06200-0s
94001-06200-0s
|
|||
|
|
94103-06000
94103-06000
|
|||
|
|
94201-30180
94201-30180
|
|||
|
|
94251-06000
94251-06000
|
|||
|
|
94305-60252
94305-60252
|
|||
|
|
94510-12000
94510-12000
|
|||
|
|
94510-15000
94510-15000
|
|||
|
|
94510-22000
94510-22000
|
|||
|
|
94520-32000
94520-32000
|
|||
|
|
95701-06012-00
95701-06012-00
|
|||
|
|
95701-06016-00
95701-06016-00
|
|||
|
|
95701-06016-08
95701-06016-08
|
|||
|
|
96140-60020-10
96140-60020-10
|
|||
|
|
96150-60040-10
96150-60040-10
|
|||
|
|
96150-62010-10
96150-62010-10
|

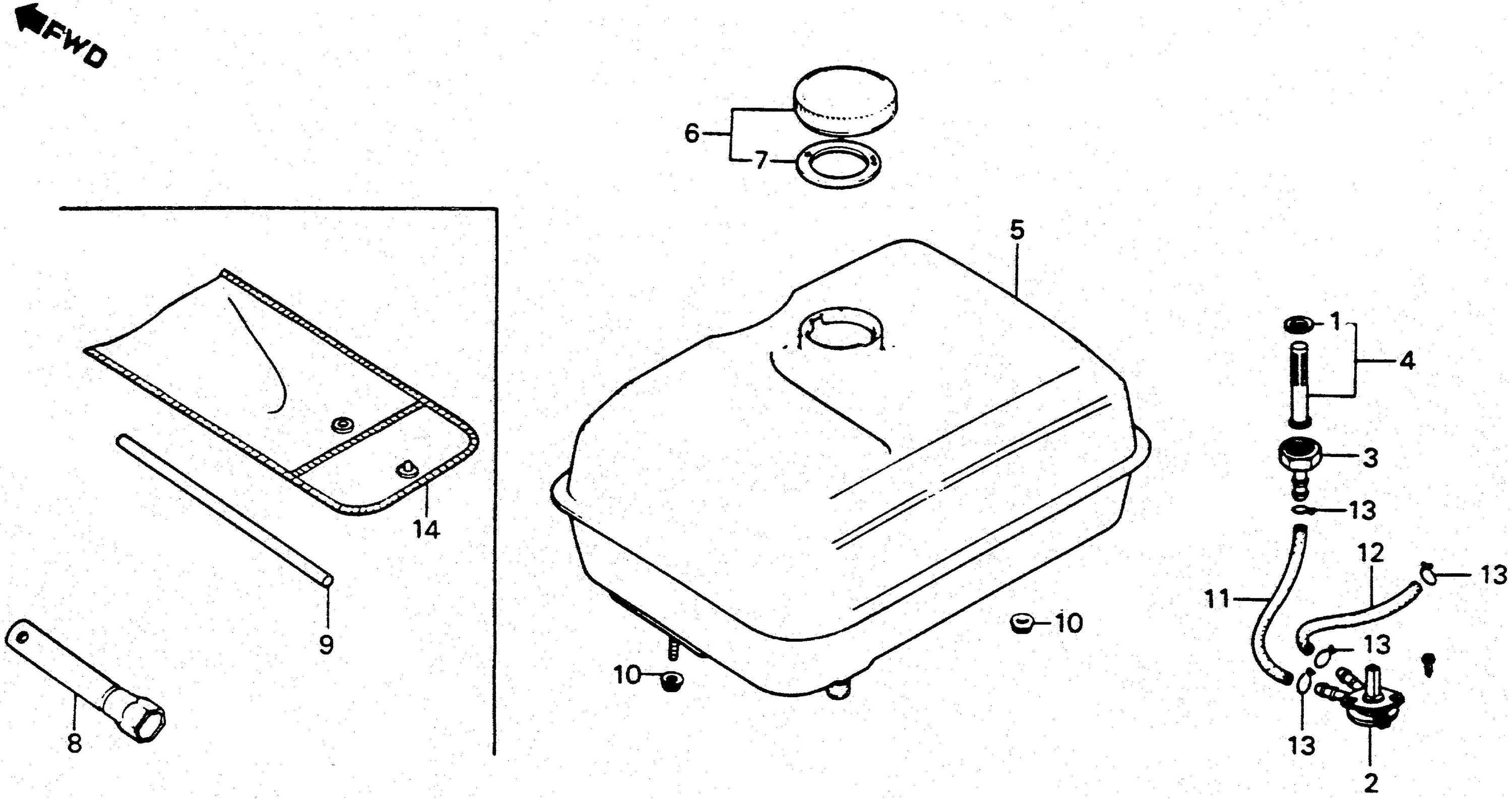

FUEL TANK@TOOLS
FUEL TANK@TOOLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16080-883-005
16080-883-005
|
|||
|
|
17510-883-050xc
17510-883-050xc
|
|||
|
|
17620-z0t-315
17620-z0t-315
|
|||
|
|
89216-809-000
89216-809-000
|
|||
|
|
89219-805-000
89219-805-000
|
|||
|
|
95001-45003-60m
95001-45003-60m
|
|||
|
|
95001-45003-60m
95001-45003-60m
|
|||
|
|
95002-02080
95002-02080
|

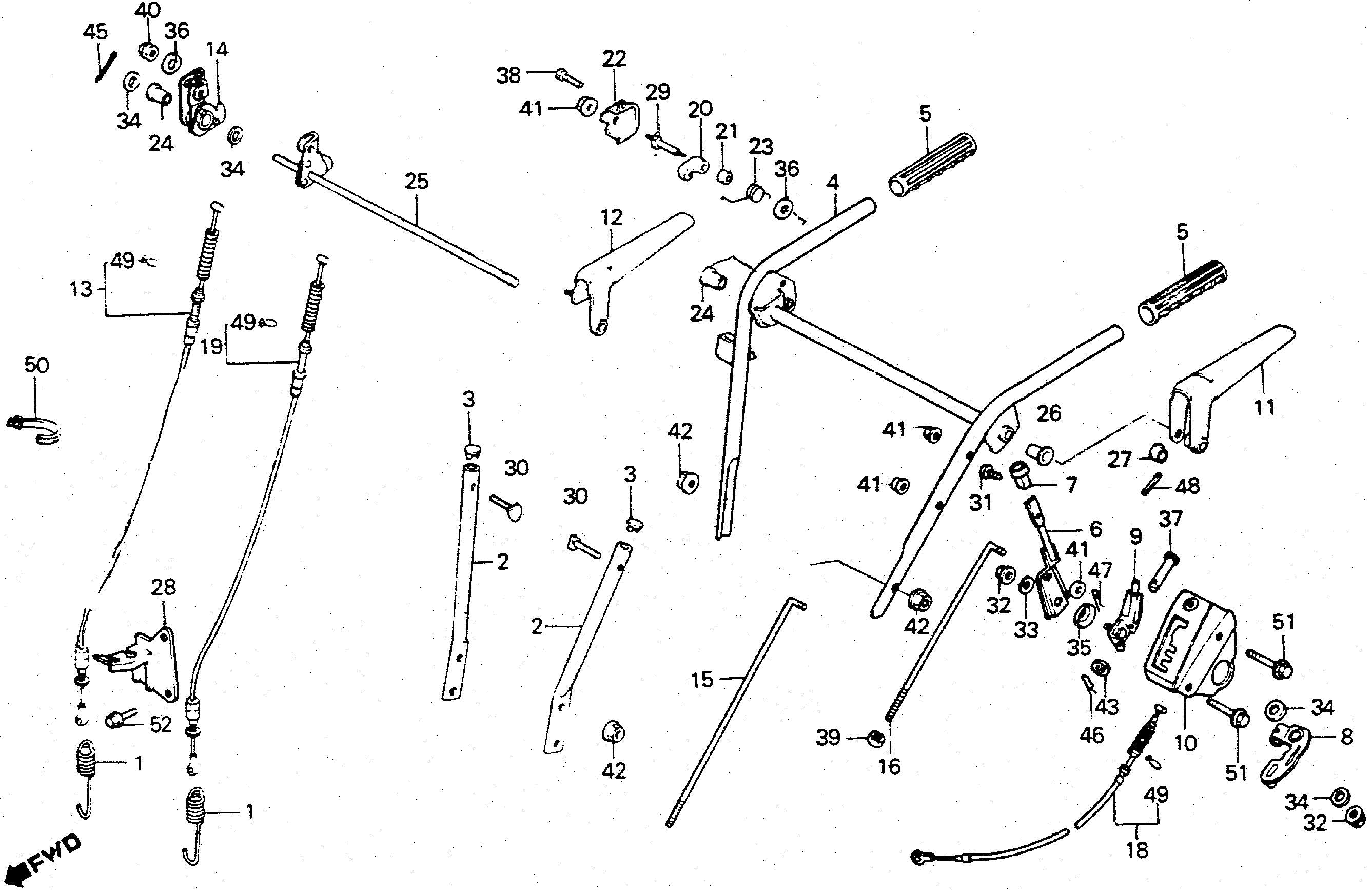

HANDLEBAR
HANDLEBAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
53115-732-000
53115-732-000
|
|||
|
|
53321-708-000
53321-708-000
|
|||
|
|
54225-952-770
54225-952-770
|
|||
|
|
54531-732-003
54531-732-003
|
|||
|
|
54533-732-000
54533-732-000
|
|||
|
|
54536-732-000
54536-732-000
|
|||
|
|
54536-736-a00
54536-736-a00
|
|||
|
|
54554-732-000
54554-732-000
|
|||
|
|
90105-732-000
90105-732-000
|
|||
|
|
90109-va4-000
90109-va4-000
|
|||
|
|
90110-732-000
90110-732-000
|
|||
|
|
90115-659-003
90115-659-003
|
|||
|
|
90412-kzl-840
90412-kzl-840
|
|||
|
|
90455-881-000
90455-881-000
|
|||
|
|
90539-836-000
90539-836-000
|
|||
|
|
94030-08000
94030-08000
|
|||
|
|
94021-06020
94021-06020
|
|||
|
|
94101-06800
94101-06800
|
|||
|
|
94101-08000
94101-08000
|
|||
|
|
94201-30180
94201-30180
|
|||
|
|
94251-06000
94251-06000
|
|||
|
|
94251-08000
94251-08000
|
|||
|
|
94305-30162
94305-30162
|
|||
|
|
95002-02080
95002-02080
|
|||
|
|
95701-06035-00
95701-06035-00
|
|||
|
|
95701-08016-00
95701-08016-00
|

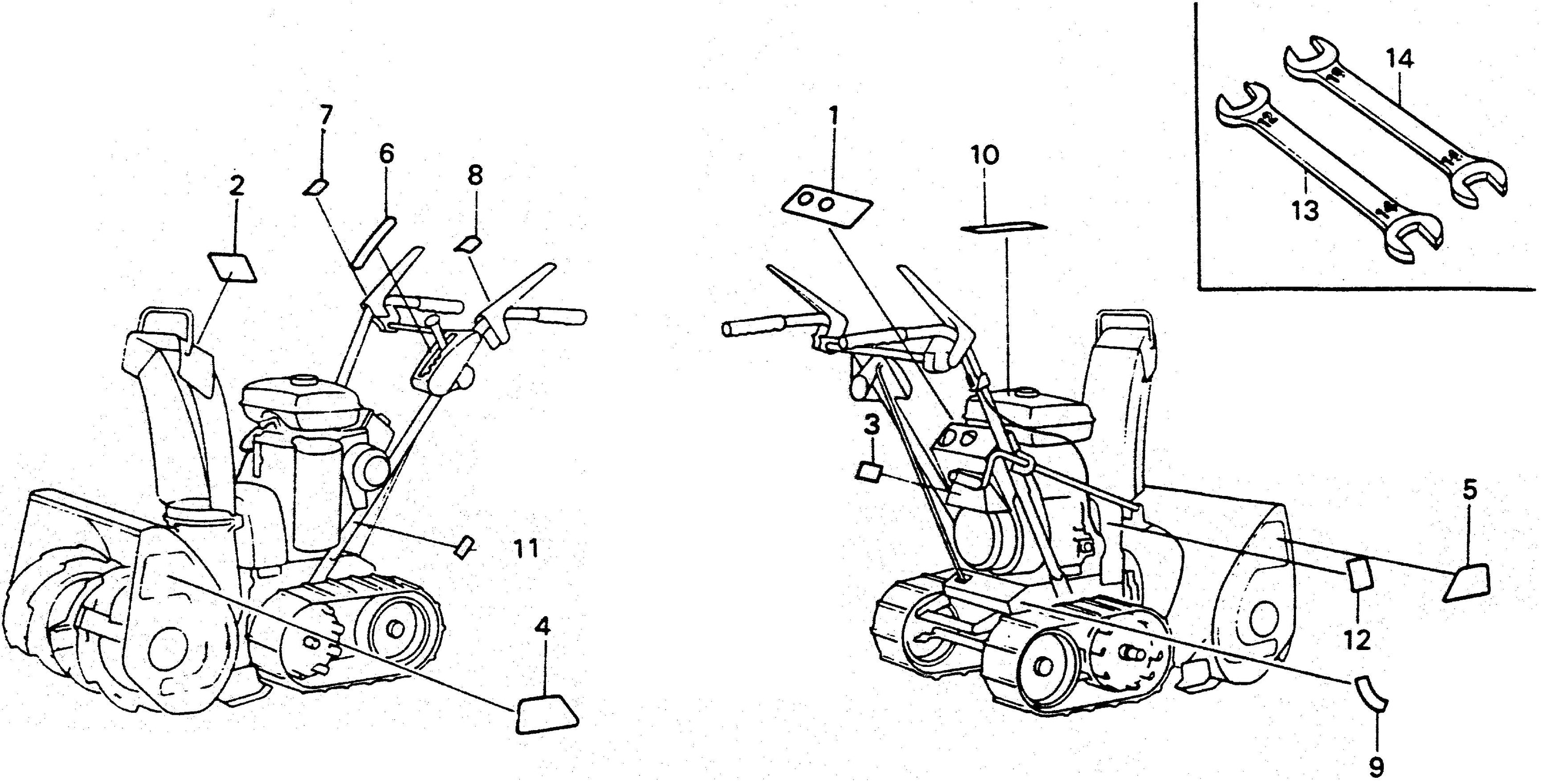

LABELS
LABELS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
87204-732-670
87204-732-670
|
|||
|
|
87522-883-660
87522-883-660
|
|||
|
|
89216-kb7-000
89216-kb7-000
|
|||
|
|
99001-10140
99001-10140
|

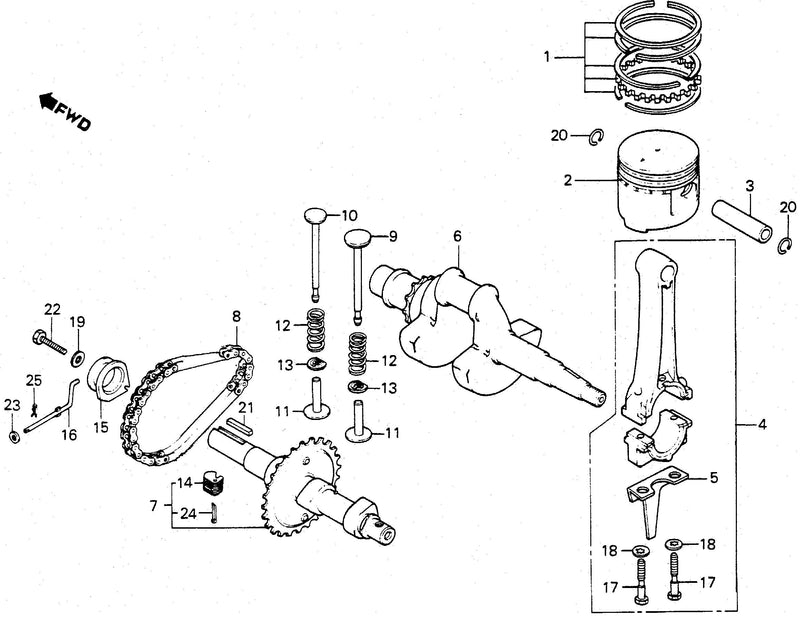

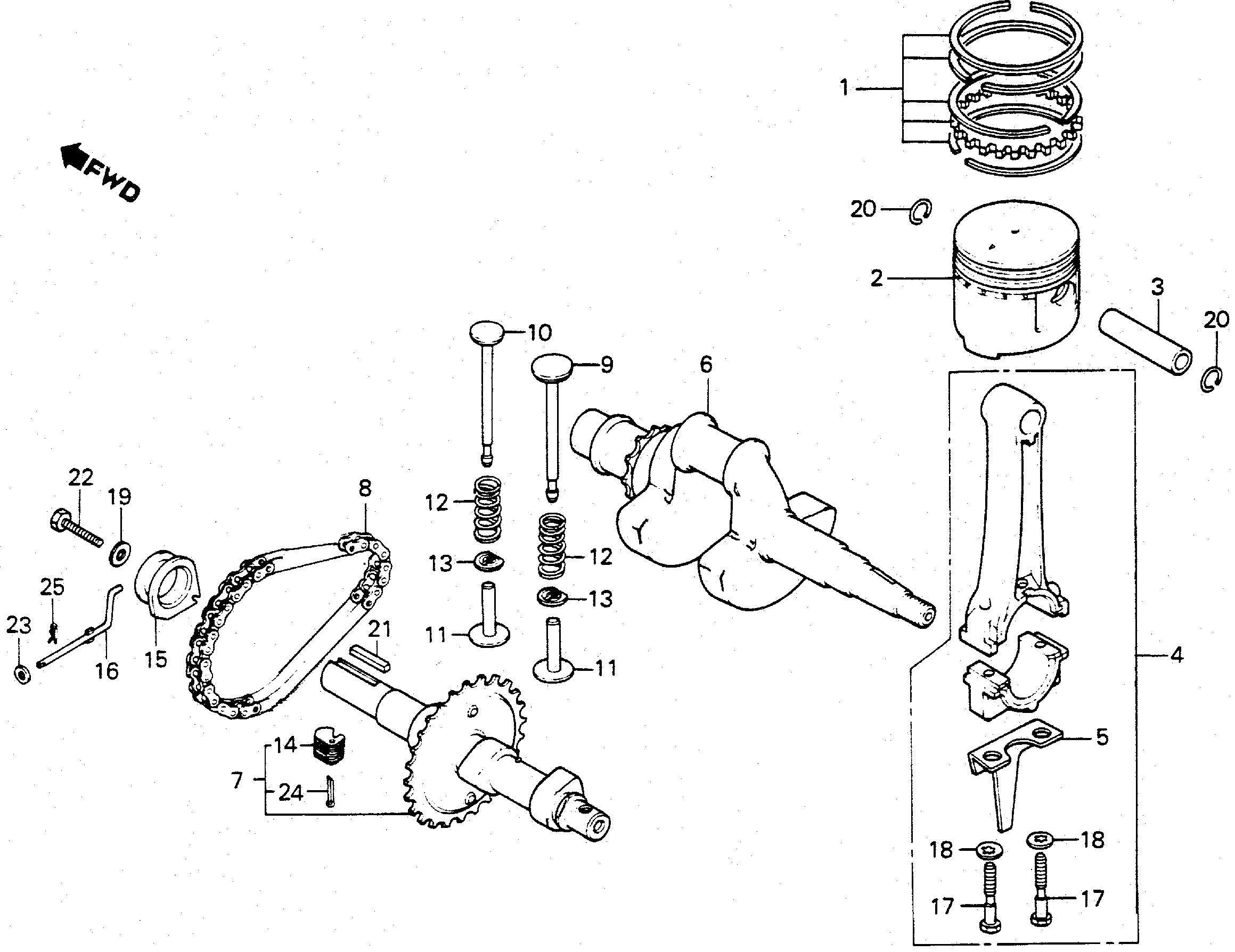

PISTON@CRANKSHAFT
PISTON@CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13010-ya0-004
13010-ya0-004
|
|||
|
|
13010-894-003
13010-894-003
|
|||
|
|
13011-ya0-004
13011-ya0-004
|
|||
|
|
13011-894-003
13011-894-003
|
|||
|
|
13012-ya0-004
13012-ya0-004
|
|||
|
|
13013-ya0-004
13013-ya0-004
|
|||
|
|
13013-894-003
13013-894-003
|
|||
|
|
13101-883-003
13101-883-003
|
|||
|
|
13104-883-003
13104-883-003
|
|||
|
|
13111-883-000
13111-883-000
|
|||
|
|
13200-883-040
13200-883-040
|
|||
|
|
13281-883-030
13281-883-030
|
|||
|
|
14411-ze1-611
14411-ze1-611
|
|||
|
|
14711-883-000
14711-883-000
|
|||
|
|
14721-883-000
14721-883-000
|
|||
|
|
14736-883-010
14736-883-010
|
|||
|
|
14746-883-010
14746-883-010
|
|||
|
|
14751-883-000
14751-883-000
|
|||
|
|
14771-883-305
14771-883-305
|
|||
|
|
16511-883-300
16511-883-300
|
|||
|
|
90001-883-020
90001-883-020
|
|||
|
|
90432-889-003
90432-889-003
|
|||
|
|
90473-842-000
90473-842-000
|
|||
|
|
94601-15000
94601-15000
|
|||
|
|
90746-835-000
90746-835-000
|
|||
|
|
92101-08025-0a
92101-08025-0a
|
|||
|
|
94101-05000
94101-05000
|
|||
|
|
94201-30450
94201-30450
|
|||
|
|
94251-08000
94251-08000
|

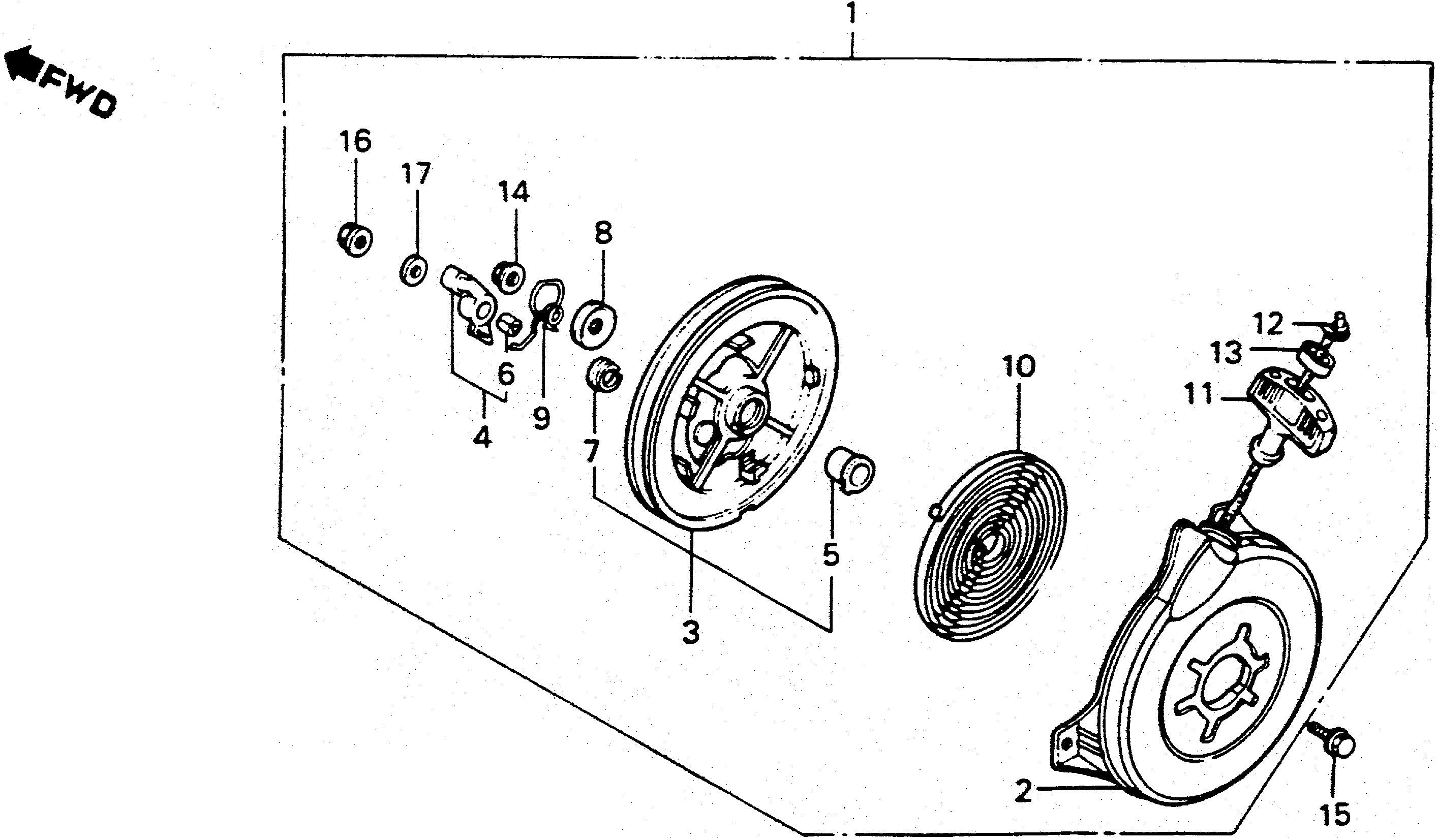

RECOIL STARTER
RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28410-883-030zb
28410-883-030zb
|
|||
|
|
28422-883-020
28422-883-020
|
|||
|
|
28424-883-000
28424-883-000
|
|||
|
|
28425-889-300
28425-889-300
|
|||
|
|
28432-883-000
28432-883-000
|
|||
|
|
28441-883-020
28441-883-020
|
|||
|
|
28442-883-000
28442-883-000
|
|||
|
|
28461-883-000
28461-883-000
|
|||
|
|
28462-ze1-003
28462-ze1-003
|
|||
|
|
90115-659-003
90115-659-003
|
|||
|
|
93401-06010-08
93401-06010-08
|
|||
|
|
94050-05000
94050-05000
|
|||
|
|
94101-05000
94101-05000
|
