Husqvarna 1200 Parts Diagram
Diagrams:
Diagram:

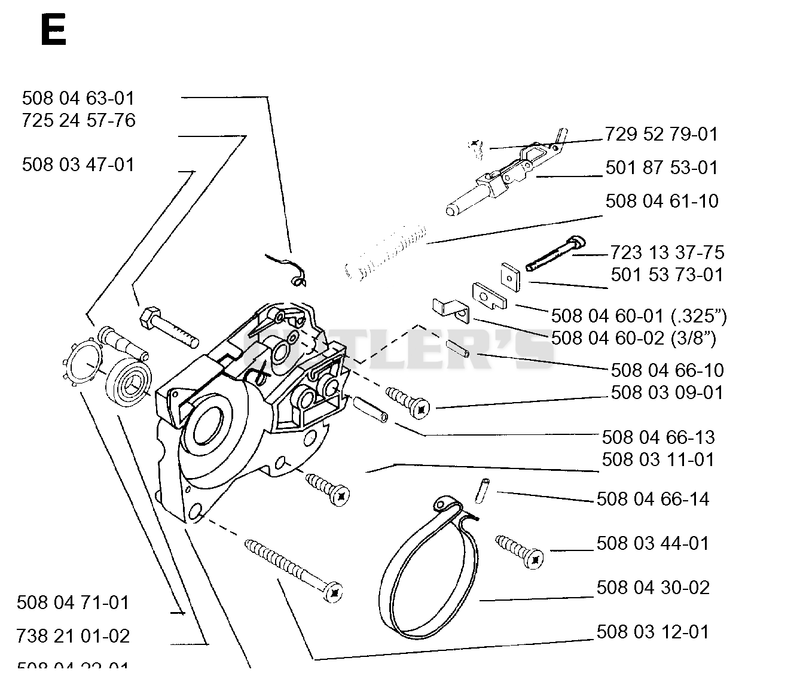

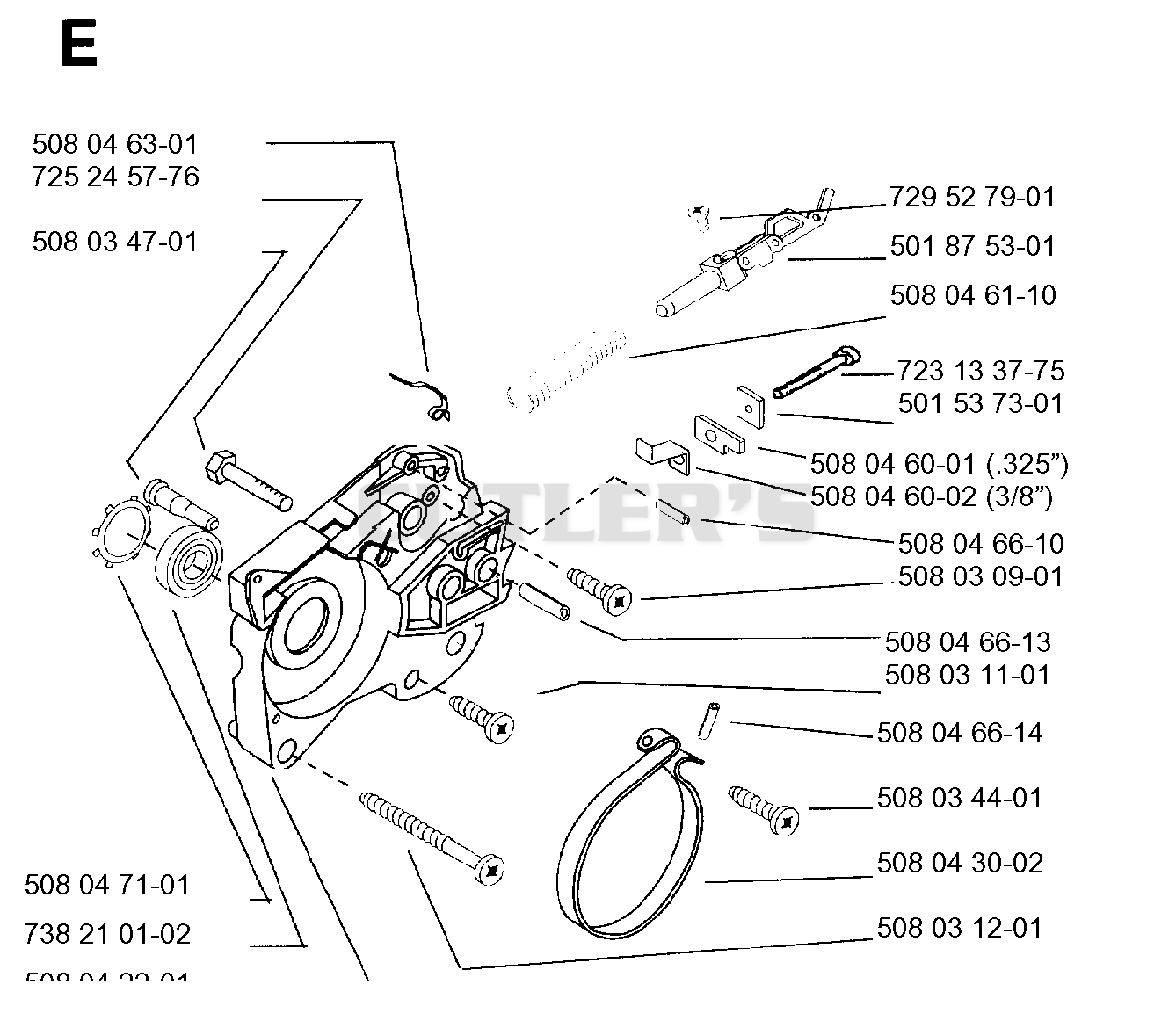

CHAIN BRAKE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501537301
501537301
|
|||
|
|
501875301
501875301
|
|||
|
|
508030901
508030901
|
|||
|
|
508031101
508031101
|
|||
|
|
508031201
508031201
|
|||
|
|
508034401
508034401
|
|||
|
|
508034701
508034701
|
|||
|
|
508042201
508042201
|
|||
|
|
508043002
508043002
|
|||
|
|
508046001
508046001
|
|||
|
|
508046002
508046002
|
|||
|
|
508046110
508046110
|
|||
|
|
508046301
508046301
|
|||
|
|
508046610
508046610
|
|||
|
|
508046613
508046613
|
|||
|
|
508046614
508046614
|
|||
|
|
508047101
508047101
|
|||
|
|
723133775
723133775
|
|||
|
|
725245776
725245776
|
|||
|
|
729527901
729527901
|
|||
|
|
738210102
738210102
|
CHASSIS / FRAME
CHASSIS / FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
508030901
508030901
|
|||
|
|
508031201
508031201
|
|||
|
|
508033602
508033602
|
|||
|
|
508038603
508038603
|
|||
|
|
508038604
508038604
|
|||
|
|
508043104
508043104
|
|||
|
|
508044220
508044220
|
|||
|
|
508044310
508044310
|
|||
|
|
508044401
508044401
|
|||
|
|
508044506
508044506
|
|||
|
|
508044614
508044614
|
|||
|
|
508046202
508046202
|
|||
|
|
731231851
731231851
|
|||
|
|
734116301
734116301
|
CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
508043702
508043702
|
CLUTCH 2
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
508038002
508038002
|
|||
|
|
508042706
508042706
|
|||
|
|
508045105
508045105
|
|||
|
|
508045501
508045501
|
|||
|
|
508045601
508045601
|
|||
|
|
508045800
508045800
|
|||
|
|
508046401
508046401
|
|||
|
|
725632901
725632901
|
ELECTRICAL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
508033801
508033801
|
|||
|
|
508033901
508033901
|
|||
|
|
508034003
508034003
|
|||
|
|
508034007
508034007
|
|||
|
|
508034101
508034101
|
|||
|
|
508034204
508034204
|
|||
|
|
508034301
508034301
|
|||
|
|
508034401
508034401
|
|||
|
|
508043612
508043612
|
|||
|
|
508043613
508043613
|
|||
|
|
508043804
508043804
|
|||
|
|
508043814
508043814
|
|||
|
|
508043815
508043815
|
|||
|
|
508043817
508043817
|
|||
|
|
508043818
508043818
|
|||
|
|
508043819
508043819
|
|||
|
|
508046910
508046910
|
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
508031810
508031810
|
|||
|
|
508031910
508031910
|
|||
|
|
508032302
508032302
|
|||
|
|
508037601
508037601
|
|||
|
|
508043301
508043301
|
|||
|
|
508043502
508043502
|
|||
|
|
508043503
508043503
|
HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501768001
501768001
|
|||
|
|
501768101
501768101
|
|||
|
|
501874901
501874901
|
|||
|
|
508042301
508042301
|
|||
|
|
508045401
508045401
|
|||
|
|
725529356
725529356
|
|||
|
|
735310820
735310820
|
