Husqvarna 150BT Parts Diagram
Diagrams:
Diagram:

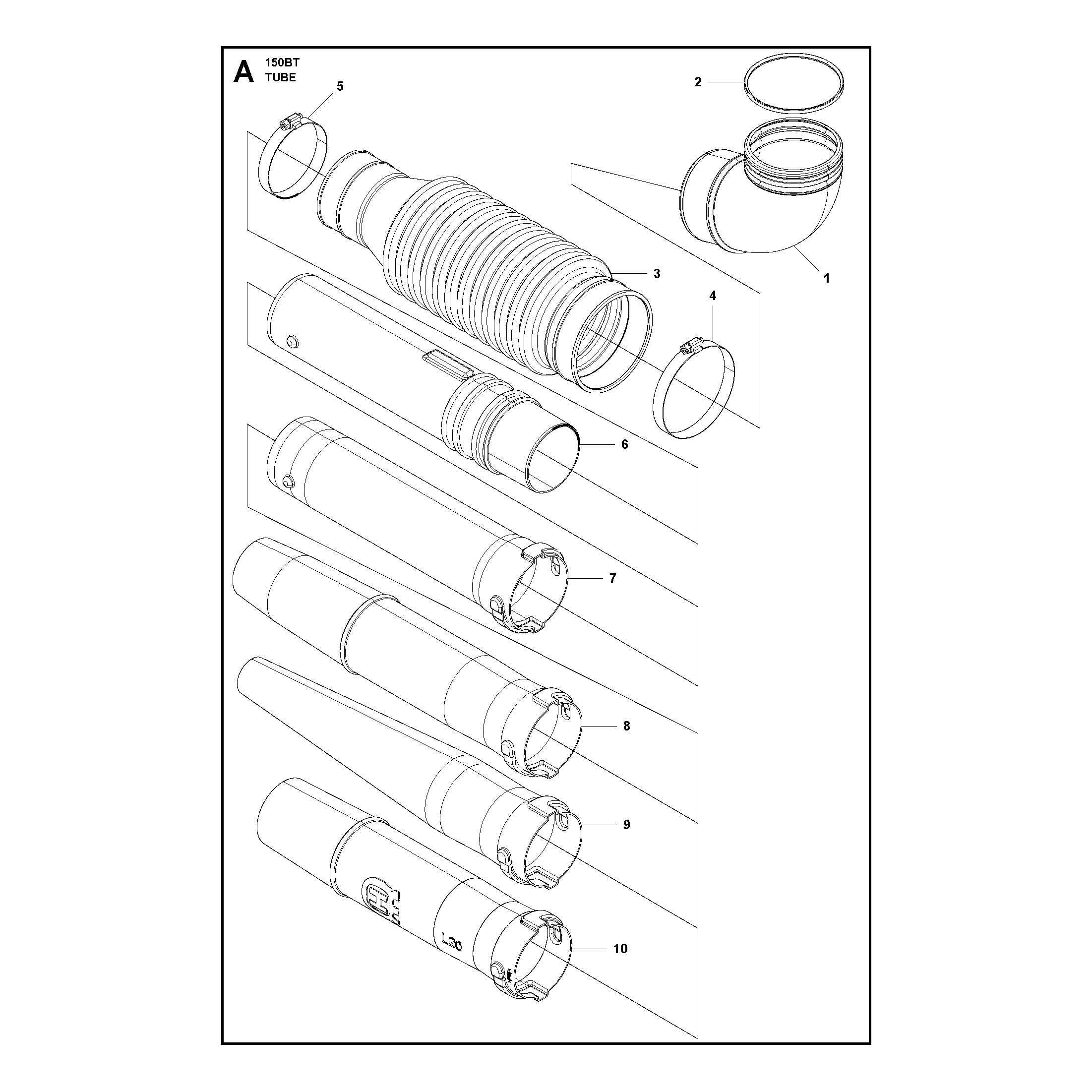

TUBE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
577078702
577078702
|
|||
|
|
516135401
516135401
|
|||
|
|
577078801
577078801
|
|||
|
|
544274101
544274101
|
|||
|
|
504064901
504064901
|
|||
|
|
577078902
577078902
|
|||
|
|
577079302
577079302
|
|||
|
|
577079502
577079502
|
|||
|
|
577079602
577079602
|
|||
|
|
504064601
504064601
|

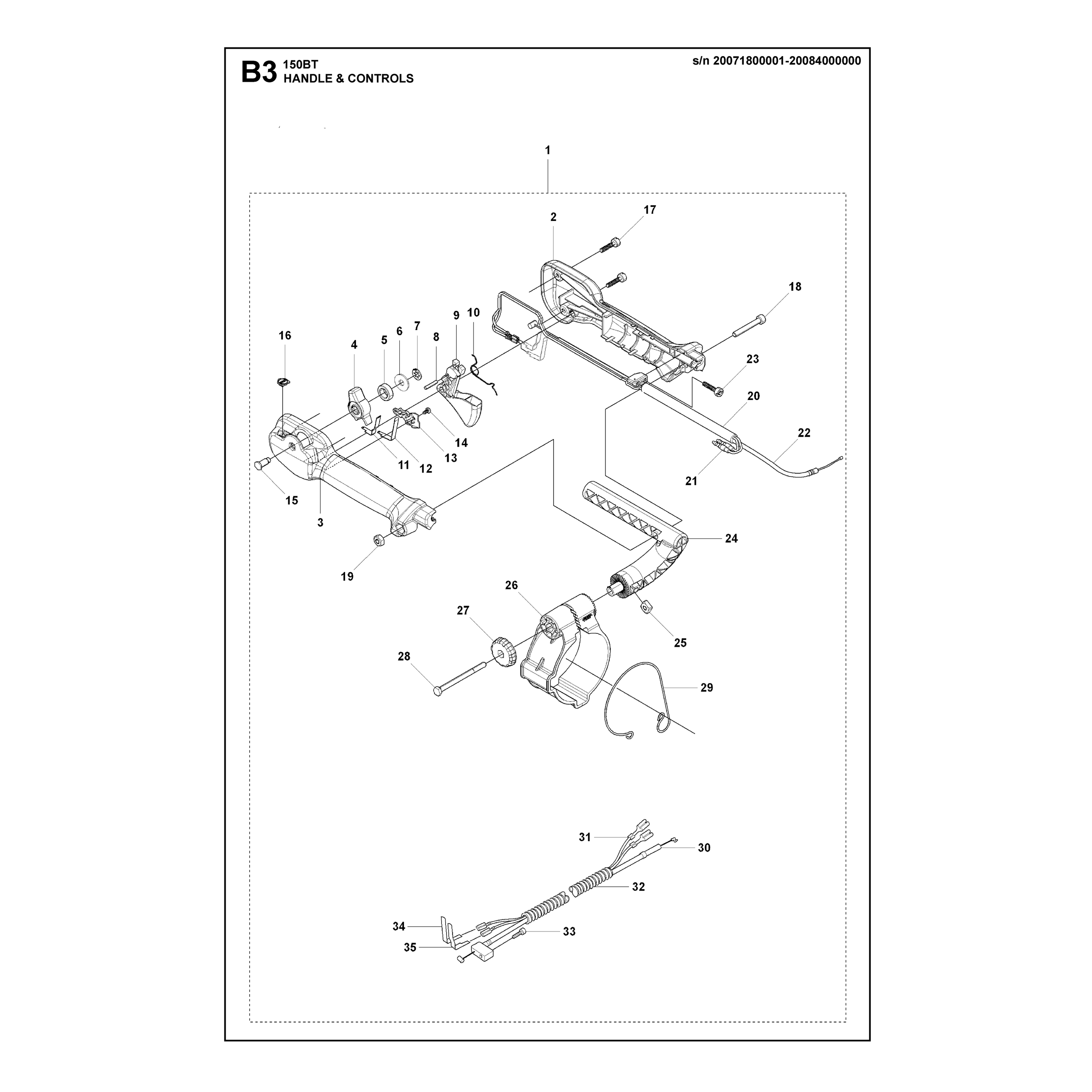

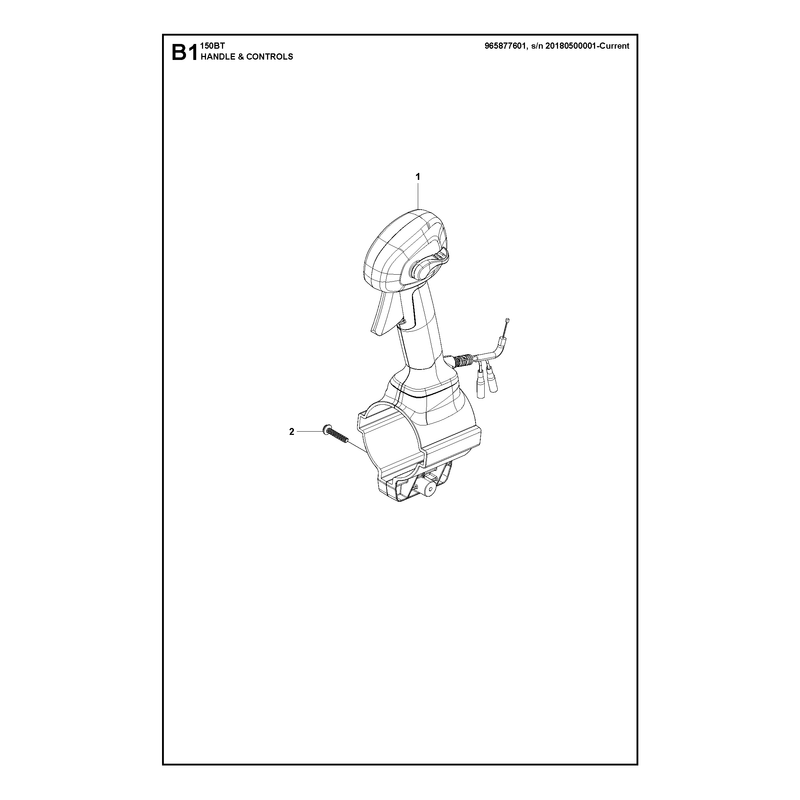

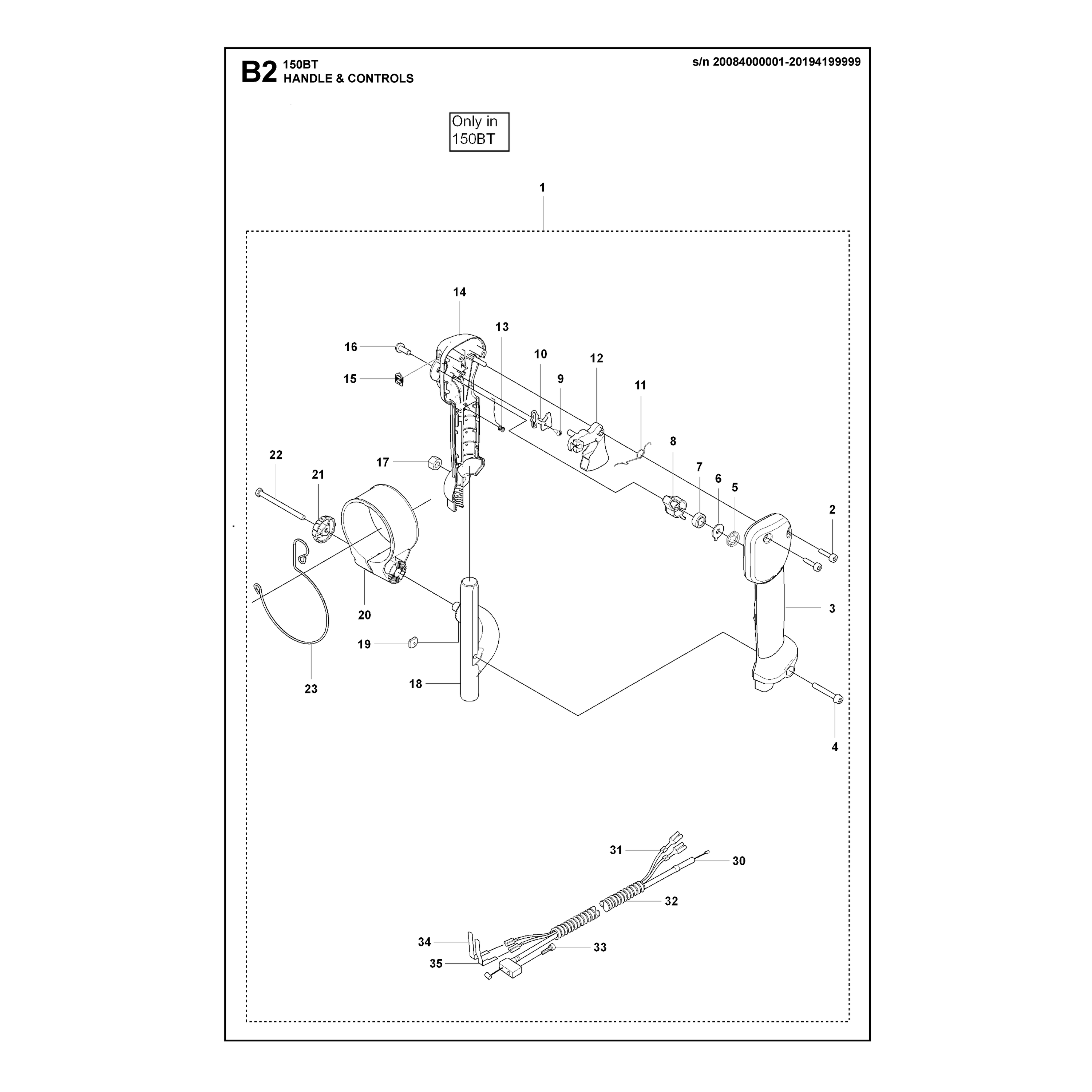

HANDLE AND CONTROLS
HANDLE AND CONTROLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
584242102
584242102
|
|||
|
|
512847901
512847901
|

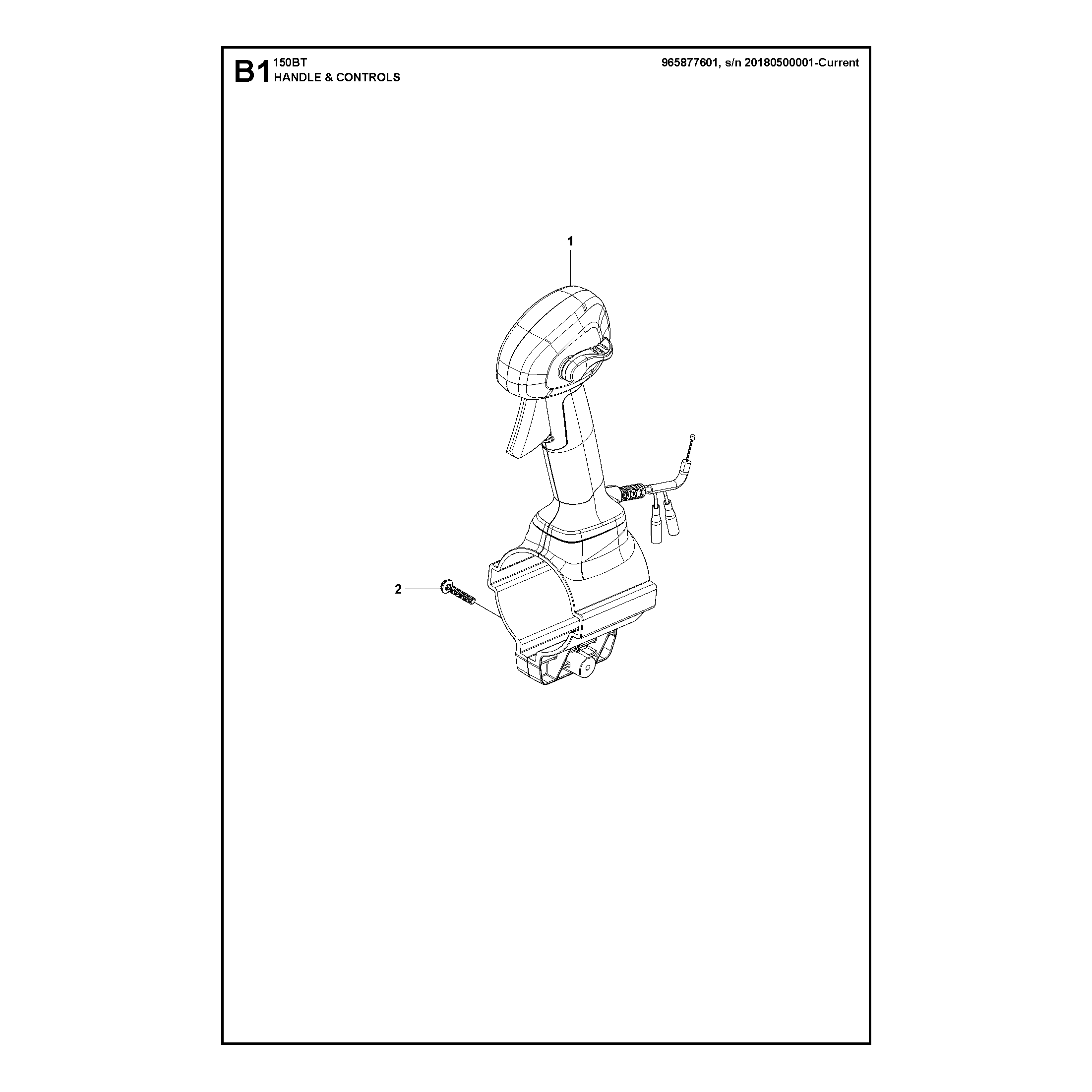

HANDLE AND CONTROLS
HANDLE AND CONTROLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
522519101
522519101
|
|||
|
|
503216618
503216618
|
|||
|
|
502244901
502244901
|
|||
|
|
503200735
503200735
|
|||
|
|
735583501
735583501
|
|||
|
|
505181501
505181501
|
|||
|
|
537373901
537373901
|
|||
|
|
502245501
502245501
|
|||
|
|
503212906
503212906
|
|||
|
|
502246001
502246001
|
|||
|
|
537174201
537174201
|
|||
|
|
502245401
502245401
|
|||
|
|
505567901
505567901
|
|||
|
|
502244801
502244801
|
|||
|
|
502641701
502641701
|
|||
|
|
537141203
537141203
|
|||
|
|
503221013
503221013
|
|||
|
|
502245301
502245301
|
|||
|
|
503226504
503226504
|
|||
|
|
544275901
544275901
|
|||
|
|
504800301
504800301
|
|||
|
|
725234451
725234451
|
|||
|
|
502842801
502842801
|
|||
|
|
522483101
522483101
|
|||
|
|
522483001
522483001
|
|||
|
|
522483401
522483401
|
|||
|
|
544275101
544275101
|
|||
|
|
537226301
537226301
|
|||
|
|
537226201
537226201
|

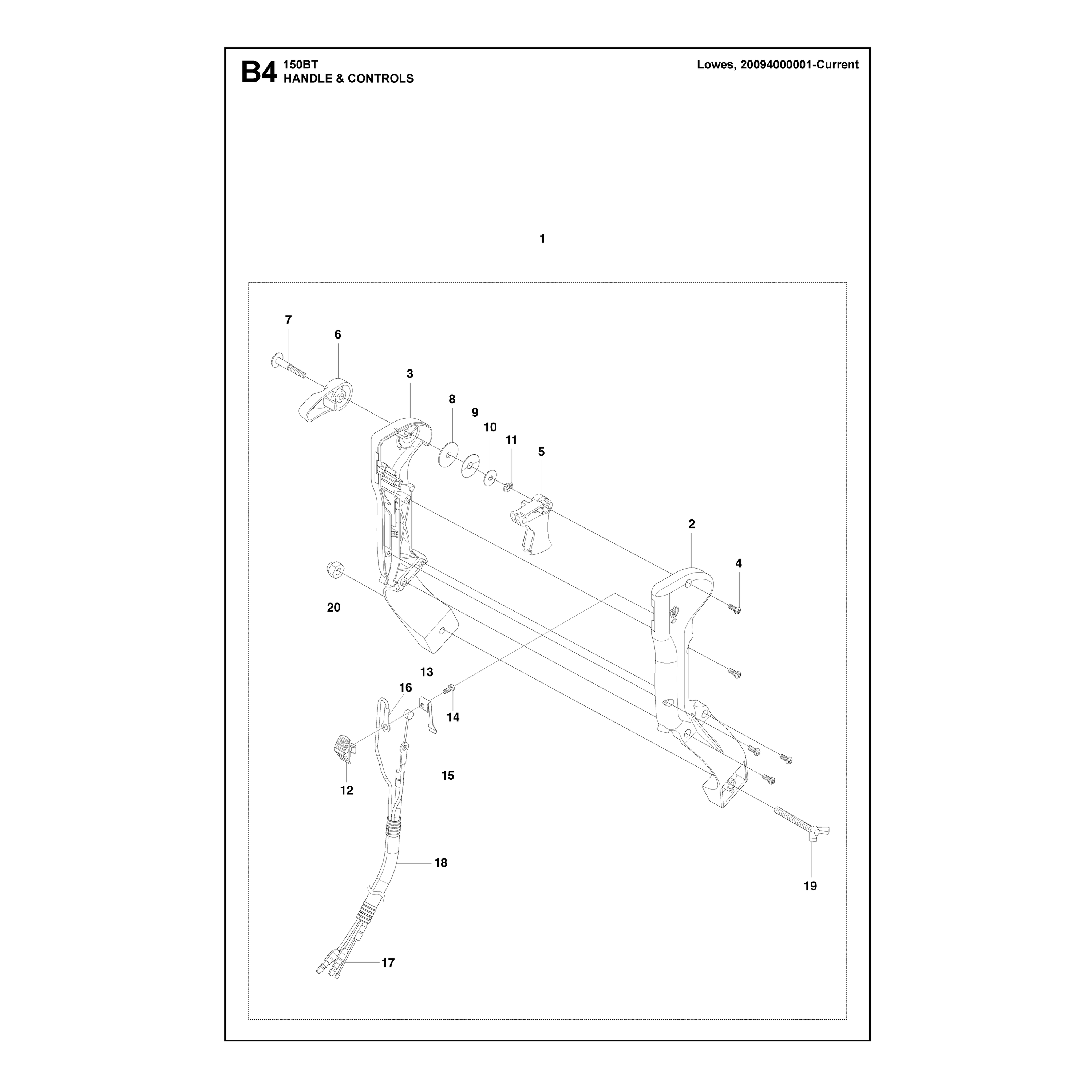

HANDLE AND CONTROLS
HANDLE AND CONTROLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502842701
502842701
|
|||
|
|
537142501
537142501
|
|||
|
|
537142001
537142001
|
|||
|
|
537141001
537141001
|
|||
|
|
537373901
537373901
|
|||
|
|
734114741
734114741
|
|||
|
|
735583501
735583501
|
|||
|
|
720123620
720123620
|
|||
|
|
537160801
537160801
|
|||
|
|
537174201
537174201
|
|||
|
|
537226201
537226201
|
|||
|
|
537226301
537226301
|
|||
|
|
537216401
537216401
|
|||
|
|
503212906
503212906
|
|||
|
|
537141201
537141201
|
|||
|
|
537277701
537277701
|
|||
|
|
503216618
503216618
|
|||
|
|
503200735
503200735
|
|||
|
|
503221013
503221013
|
|||
|
|
502237401
502237401
|
|||
|
|
544275301
544275301
|
|||
|
|
502237501
502237501
|
|||
|
|
544275101
544275101
|
|||
|
|
537260201
537260201
|
|||
|
|
503226504
503226504
|
|||
|
|
544275902
544275902
|
|||
|
|
502204001
502204001
|
|||
|
|
725234451
725234451
|
|||
|
|
502842801
502842801
|
|||
|
|
544275401
544275401
|
|||
|
|
544275301
544275301
|
|||
|
|
544275501
544275501
|
|||
|
|
544275101
544275101
|
|||
|
|
537226301
537226301
|
|||
|
|
537226201
537226201
|

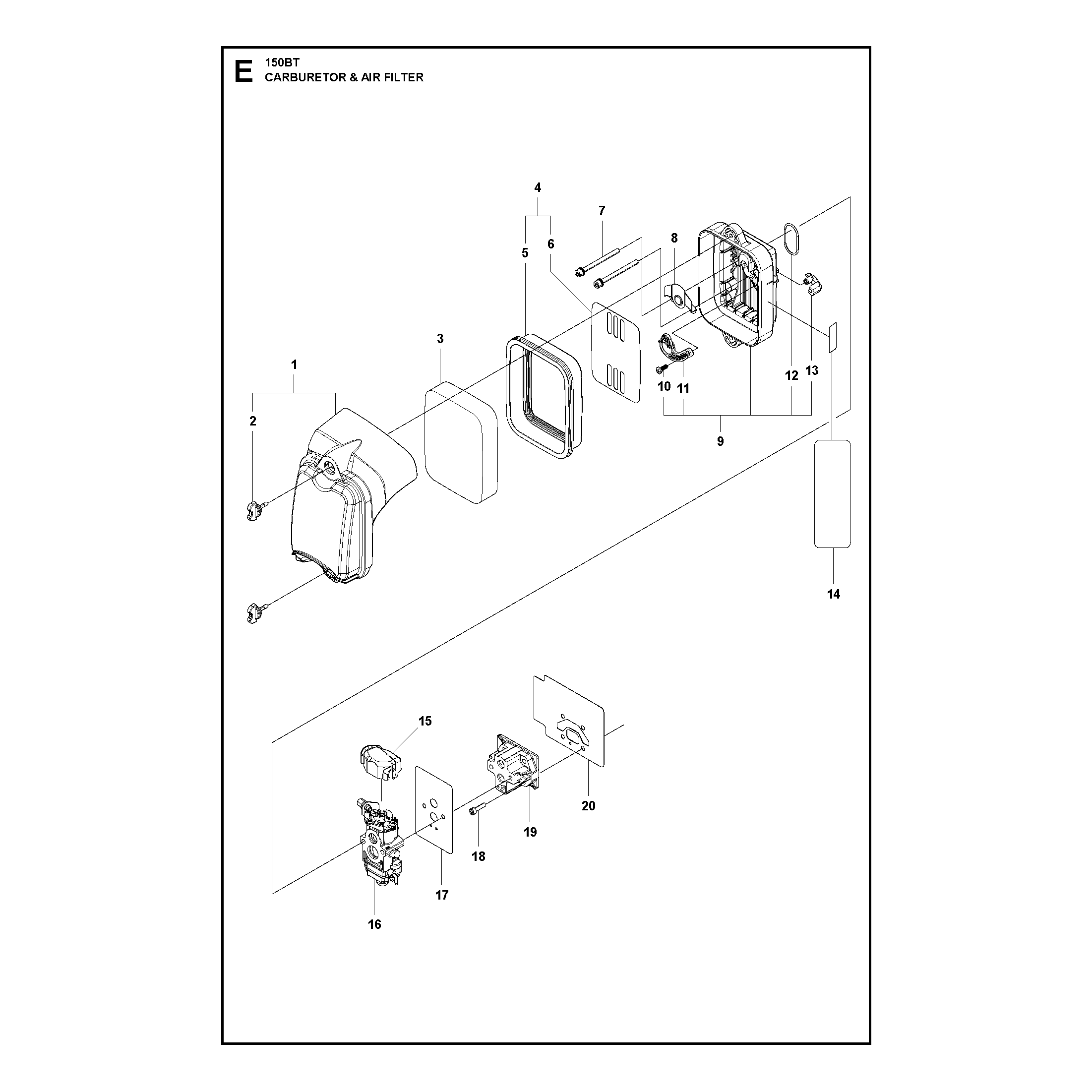

CARBURETOR AND AIR FILTER
CARBURETOR AND AIR FILTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502844201
502844201
|
|||
|
|
502844301
502844301
|
|||
|
|
502844402
502844402
|
|||
|
|
502844401
502844401
|
|||
|
|
502844501
502844501
|
|||
|
|
502844601
502844601
|
|||
|
|
502844701
502844701
|
|||
|
|
502844902
502844902
|
|||
|
|
581736201
581736201
|
|||
|
|
512259601
512259601
|
|||
|
|
512260001
512260001
|
|||
|
|
521740501
521740501
|
|||
|
|
521740201
521740201
|
|||
|
|
506744201
506744201
|
|||
|
|
502845001
502845001
|
|||
|
|
581155001
581155001
|
|||
|
|
502845301
502845301
|
|||
|
|
521516501
521516501
|
|||
|
|
586496001
586496001
|
|||
|
|
502845401
502845401
|
|||
|
|
502845501
502845501
|

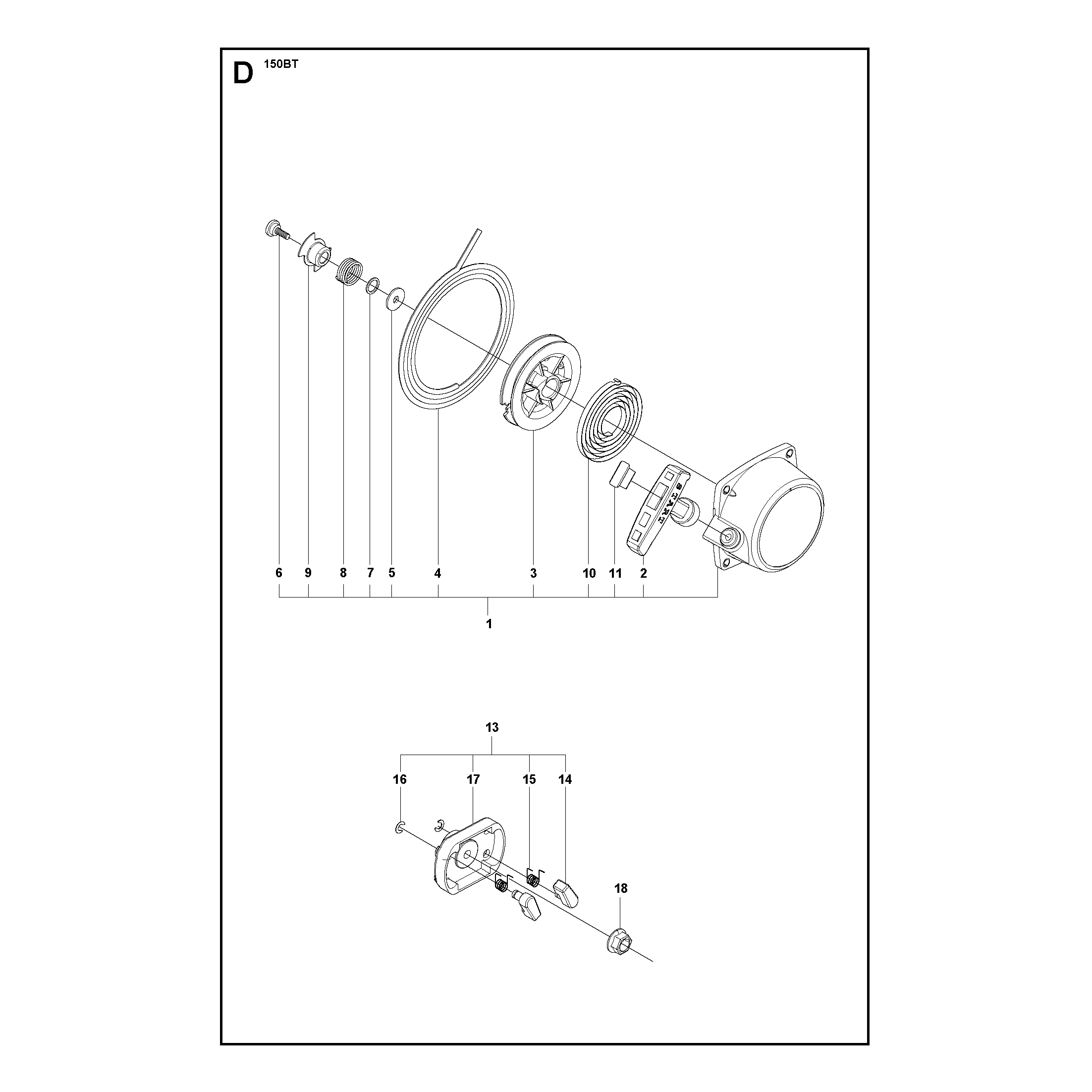

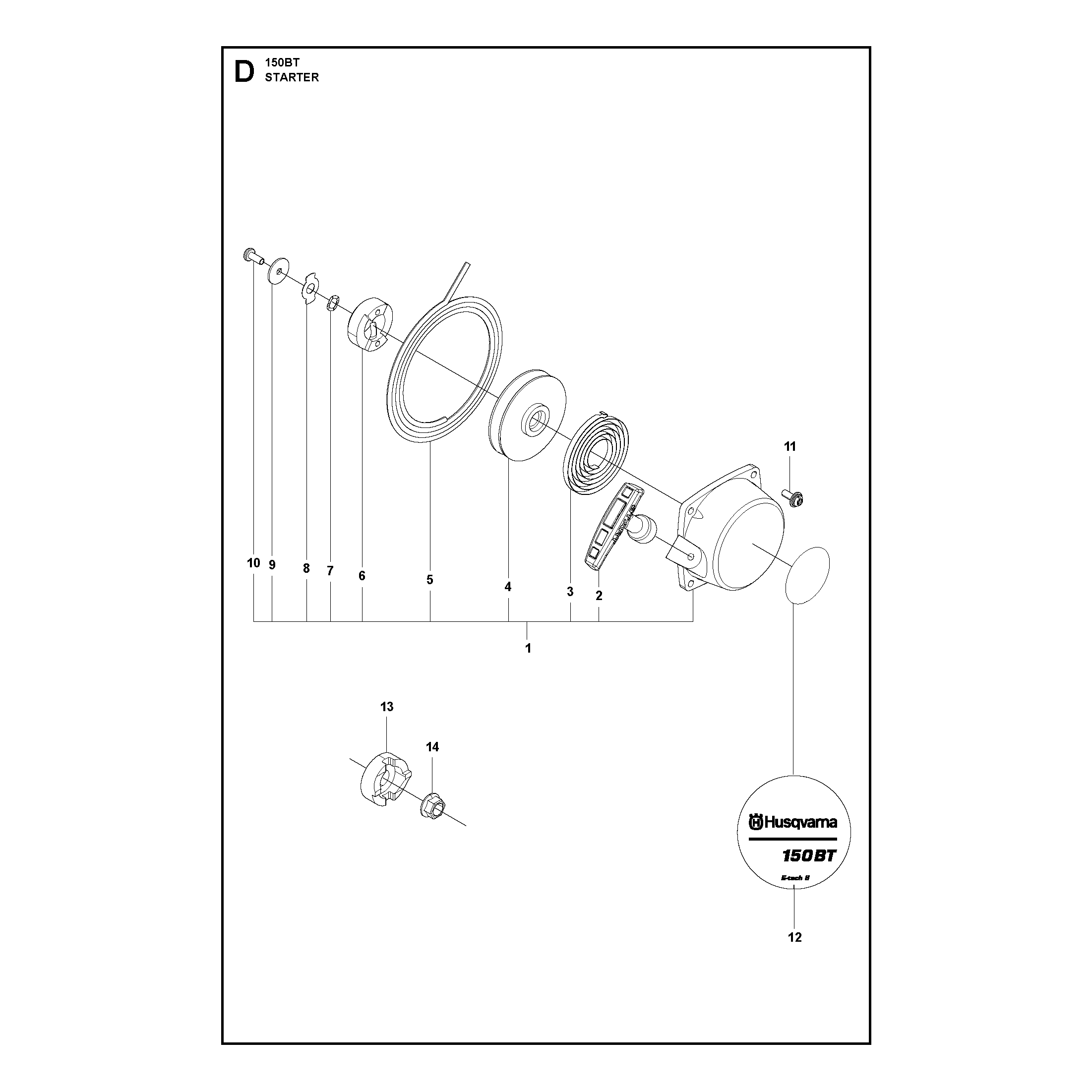

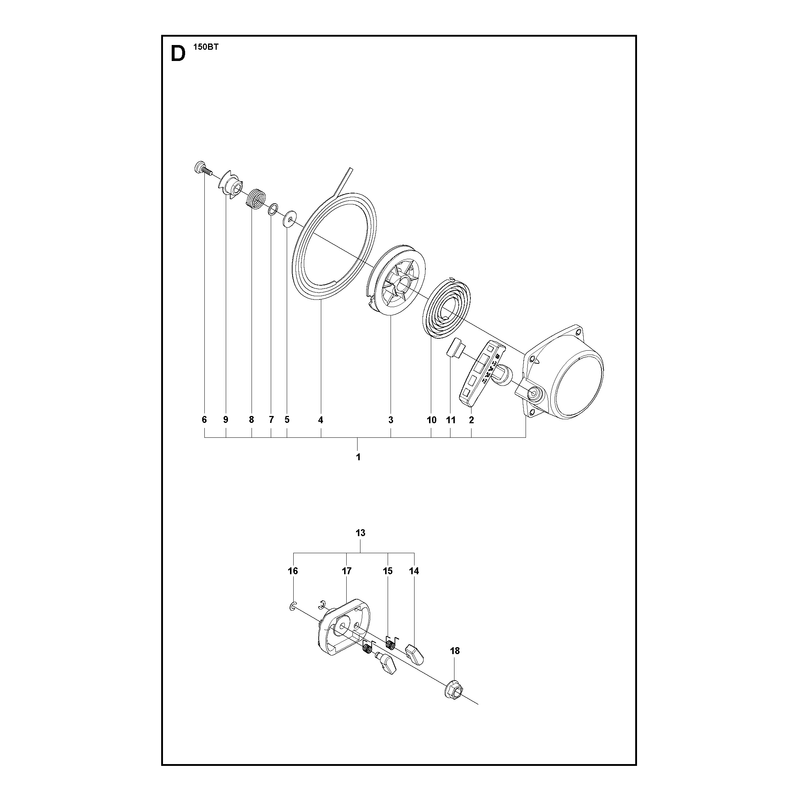

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502843101
502843101
|
|||
|
|
502843201
502843201
|
|||
|
|
502843301
502843301
|
|||
|
|
502843401
502843401
|
|||
|
|
502843501
502843501
|
|||
|
|
504554801
504554801
|
|||
|
|
502843601
502843601
|
|||
|
|
504554901
504554901
|
|||
|
|
502843701
502843701
|
|||
|
|
502843801
502843801
|
|||
|
|
586496501
586496501
|
|||
|
|
529295701
529295701
|
|||
|
|
513288801
513288801
|
|||
|
|
513241901
513241901
|

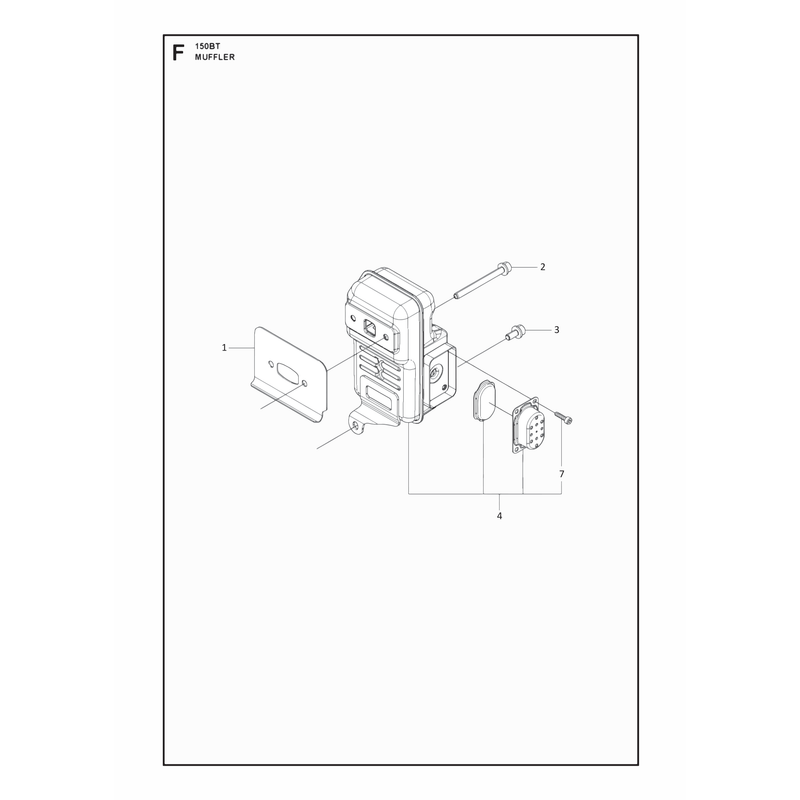

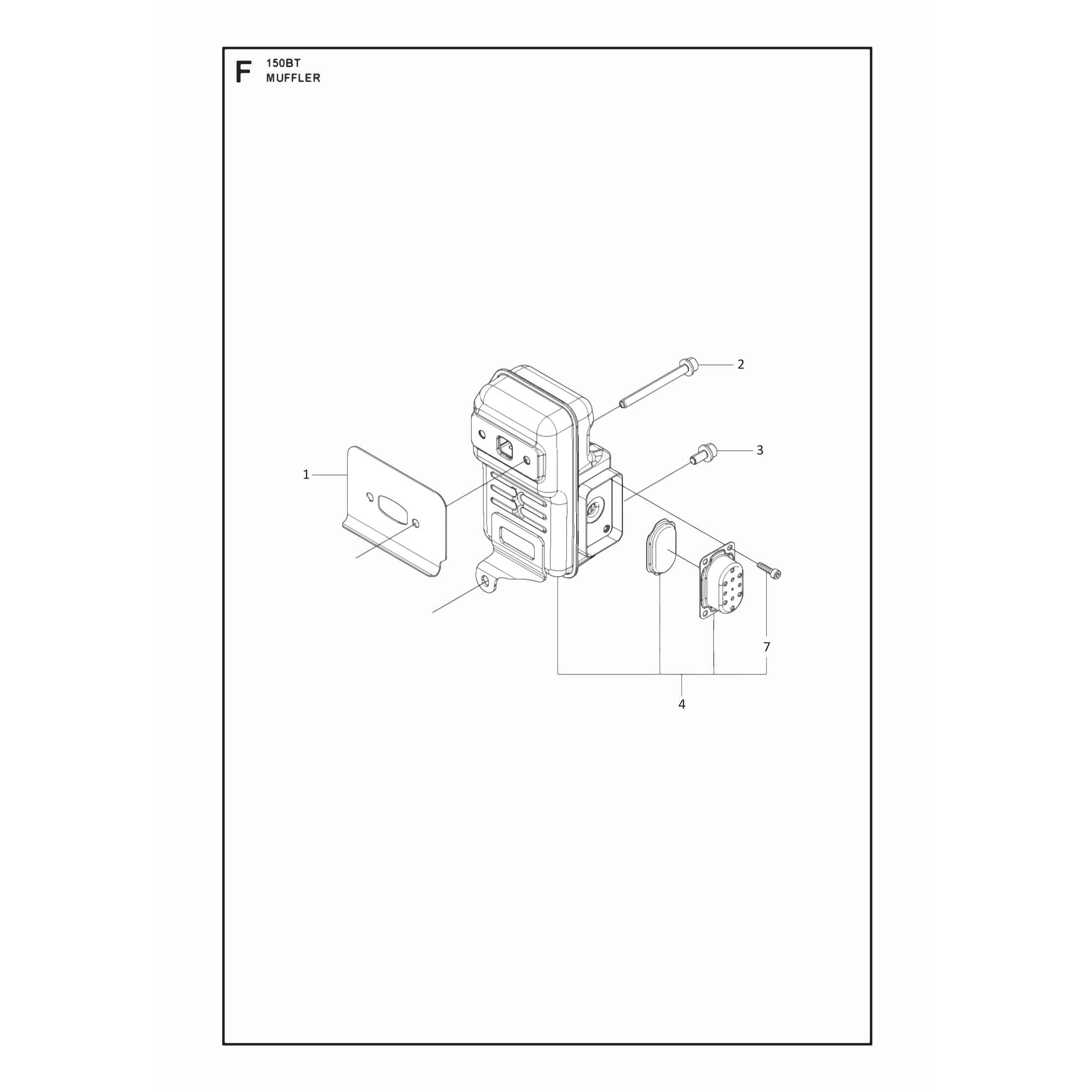

MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502845601
502845601
|
|||
|
|
511494201
511494201
|
|||
|
|
584633901
584633901
|
|||
|
|
586496101
586496101
|
|||
|
|
502845701
502845701
|
|||
|
|
502845901
502845901
|
|||
|
|
584273601
584273601
|

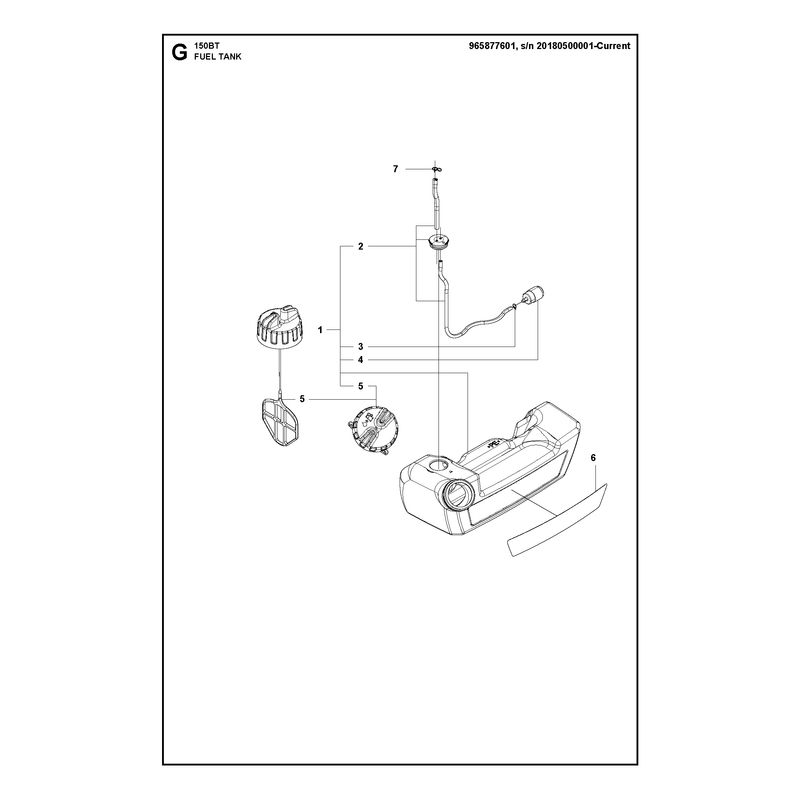

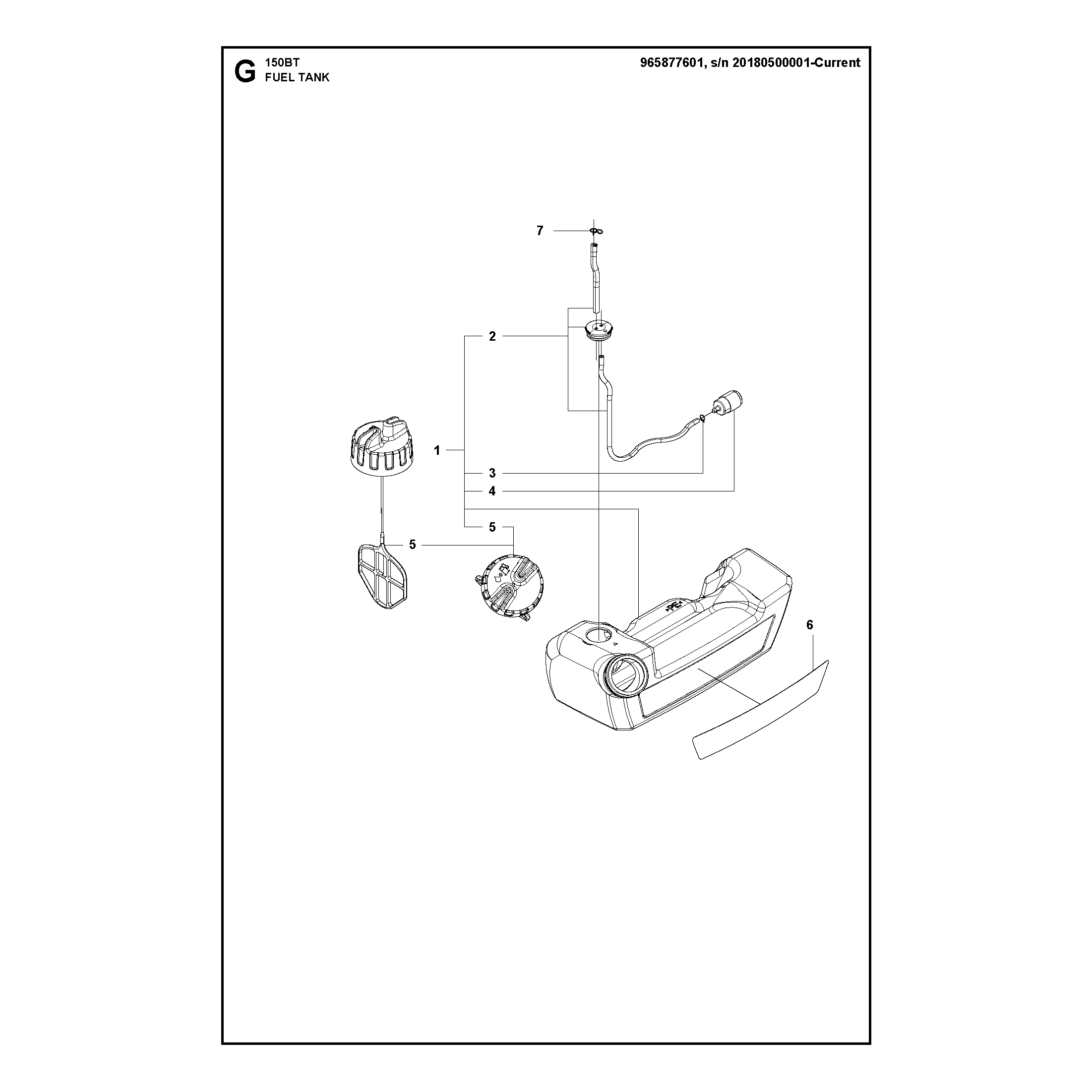

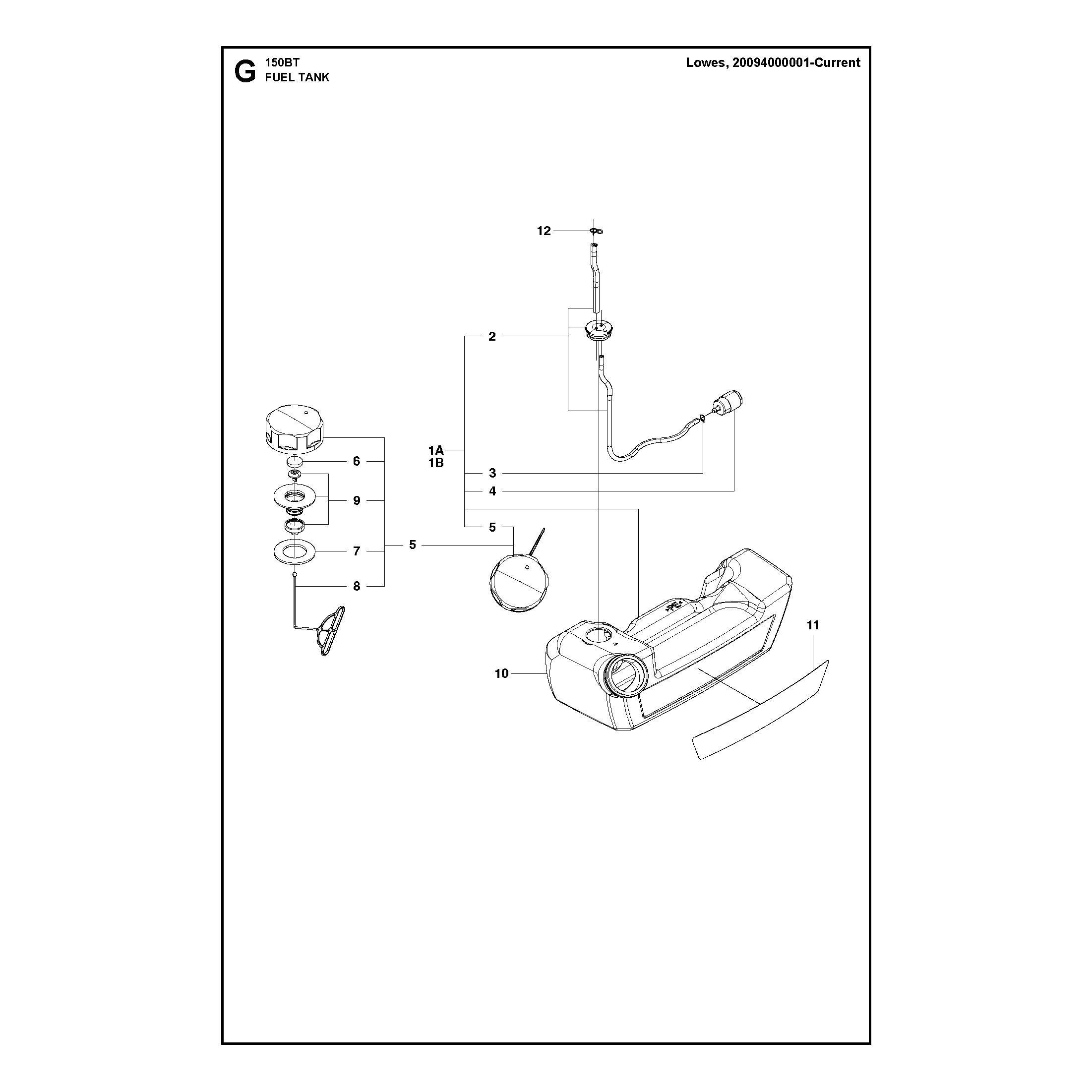

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
581192601
581192601
|
|||
|
|
597967303
597967303
|
|||
|
|
506707001
506707001
|
|||
|
|
503443201
503443201
|
|||
|
|
578931503
578931503
|
|||
|
|
502846202
502846202
|
|||
|
|
506741501
506741501
|

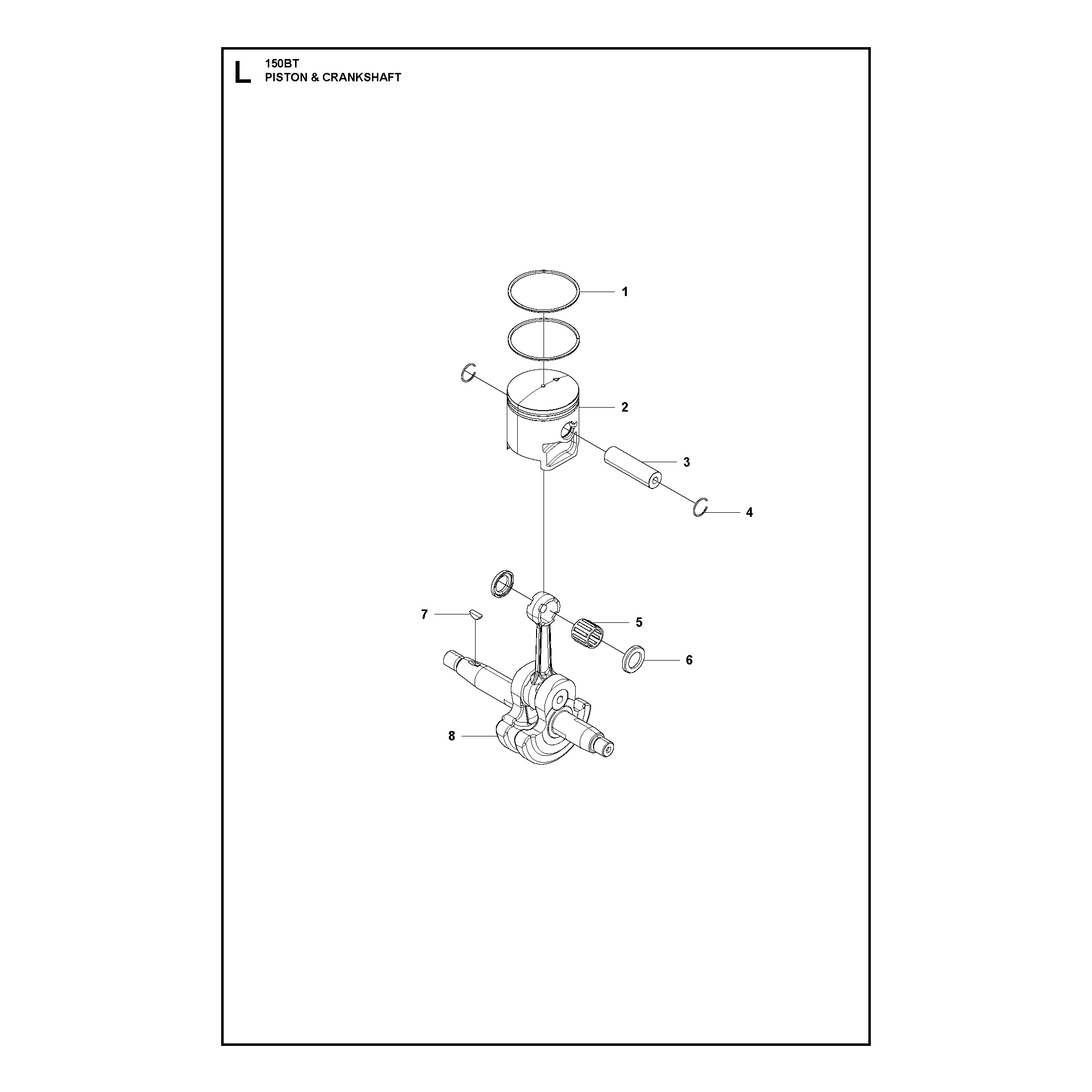

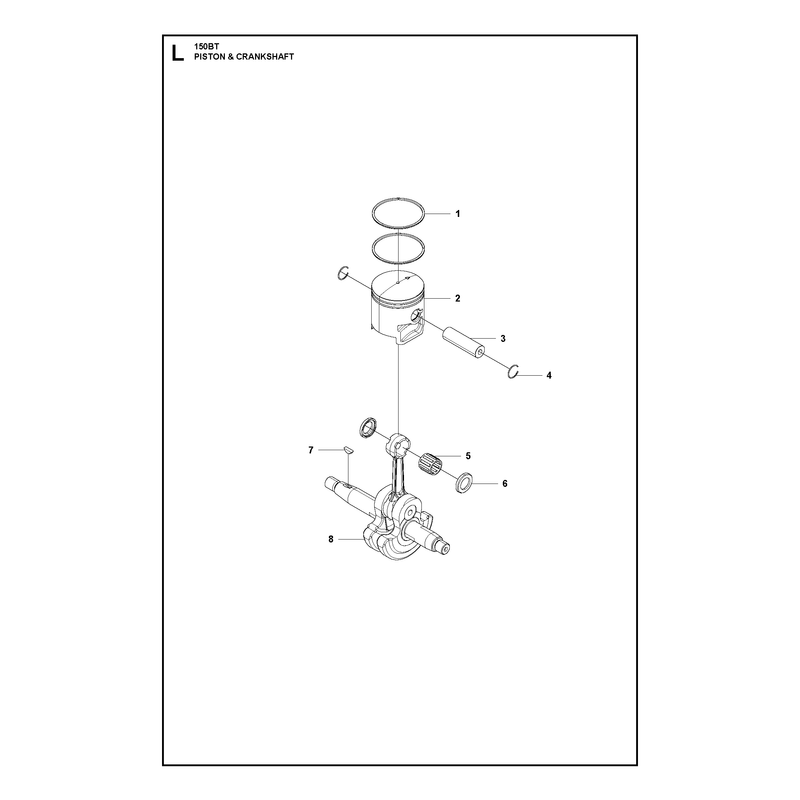

PISTON AND CRANKSHAFT
PISTON AND CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502849501
502849501
|
|||
|
|
502849601
502849601
|
|||
|
|
510916901
510916901
|
|||
|
|
502849801
502849801
|
|||
|
|
502849901
502849901
|
|||
|
|
502850001
502850001
|
|||
|
|
506689401
506689401
|
|||
|
|
502850101
502850101
|

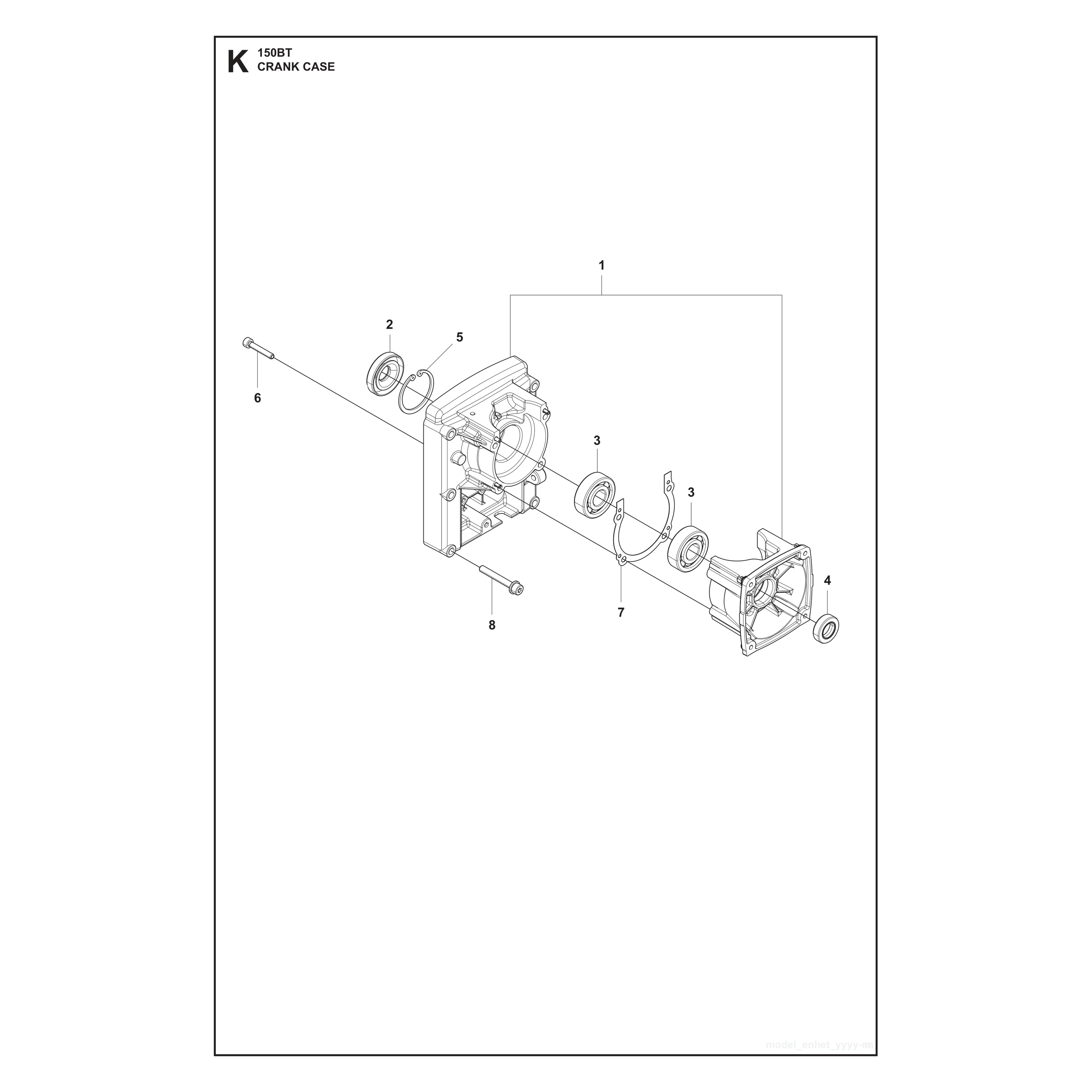

CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502848901
502848901
|
|||
|
|
502849001
502849001
|
|||
|
|
502849101
502849101
|
|||
|
|
502849201
502849201
|
|||
|
|
502849301
502849301
|
|||
|
|
515388101
515388101
|
|||
|
|
502849401
502849401
|
|||
|
|
544259101
544259101
|

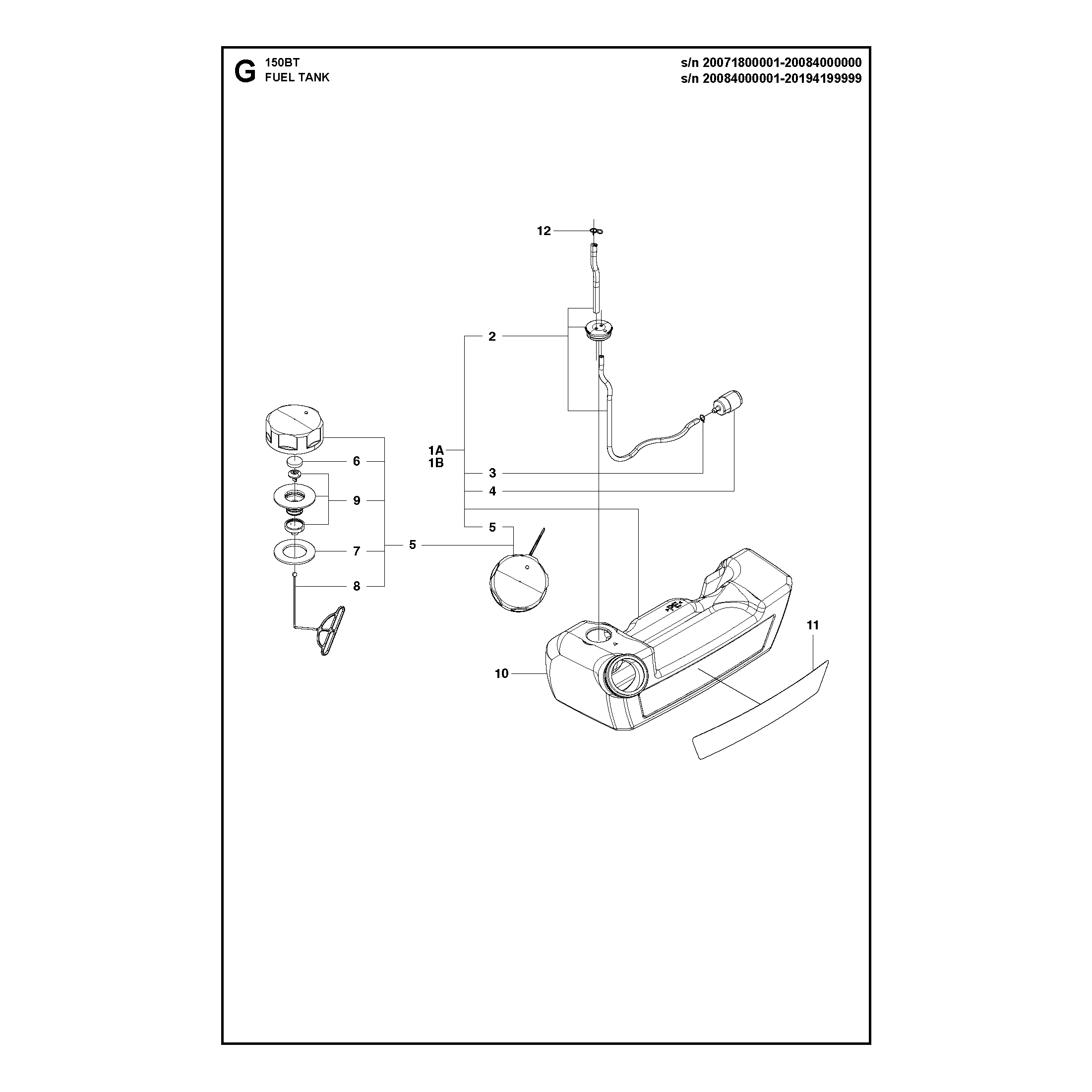

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
581192601
581192601
|
|||
|
|
579138303
579138303
|
|||
|
|
506707001
506707001
|
|||
|
|
506742601
506742601
|
|||
|
|
504117701
504117701
|
|||
|
|
506746801
506746801
|
|||
|
|
506744301
506744301
|
|||
|
|
504117901
504117901
|
|||
|
|
515369401
515369401
|
|||
|
|
502846201
502846201
|
|||
|
|
506741501
506741501
|
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502846101
502846101
|
|||
|
|
502846001
502846001
|
|||
|
|
544272801
544272801
|
|||
|
|
544273001
544273001
|
|||
|
|
544272901
544272901
|
|||
|
|
504117701
504117701
|
|||
|
|
544272601
544272601
|
|||
|
|
544272501
544272501
|
|||
|
|
504117901
504117901
|
|||
|
|
544272401
544272401
|
|||
|
|
502846201
502846201
|
|||
|
|
544273201
544273201
|

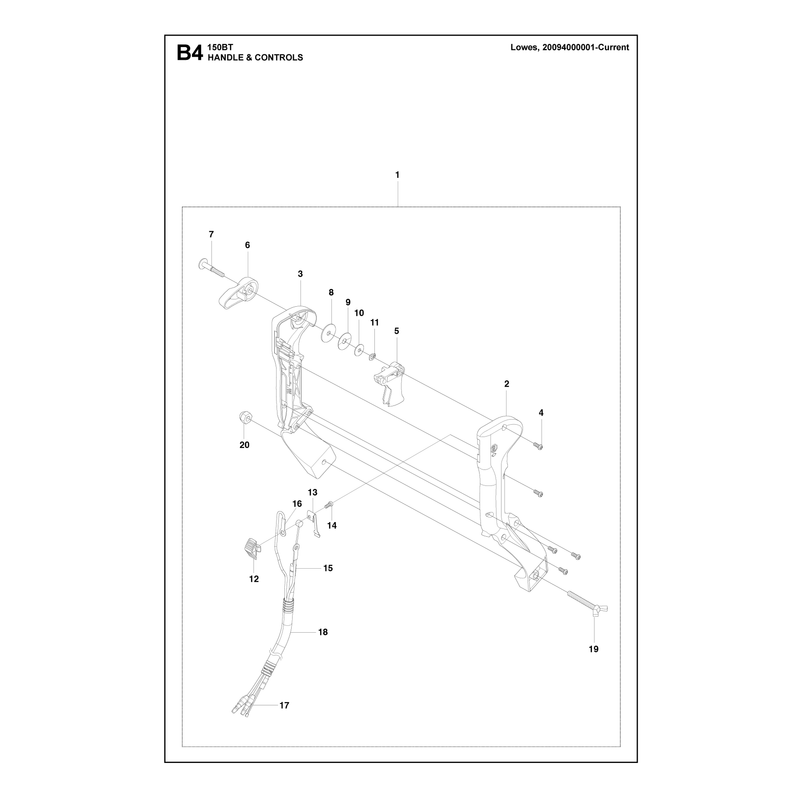

HANDLE AND CONTROLS
HANDLE AND CONTROLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
573931401
573931401
|
|||
|
|
512690801
512690801
|
|||
|
|
511746901
511746901
|
|||
|
|
521840701
521840701
|
|||
|
|
512694901
512694901
|
|||
|
|
521673501
521673501
|
|||
|
|
512695601
512695601
|
|||
|
|
521841101
521841101
|
|||
|
|
521841201
521841201
|
|||
|
|
514154401
514154401
|
|||
|
|
521841301
521841301
|
|||
|
|
512698001
512698001
|
|||
|
|
521841601
521841601
|
|||
|
|
521841701
521841701
|
|||
|
|
521841801
521841801
|
|||
|
|
521841901
521841901
|
|||
|
|
512699701
512699701
|
|||
|
|
521524301
521524301
|
|||
|
|
514338401
514338401
|
|||
|
|
513671401
513671401
|

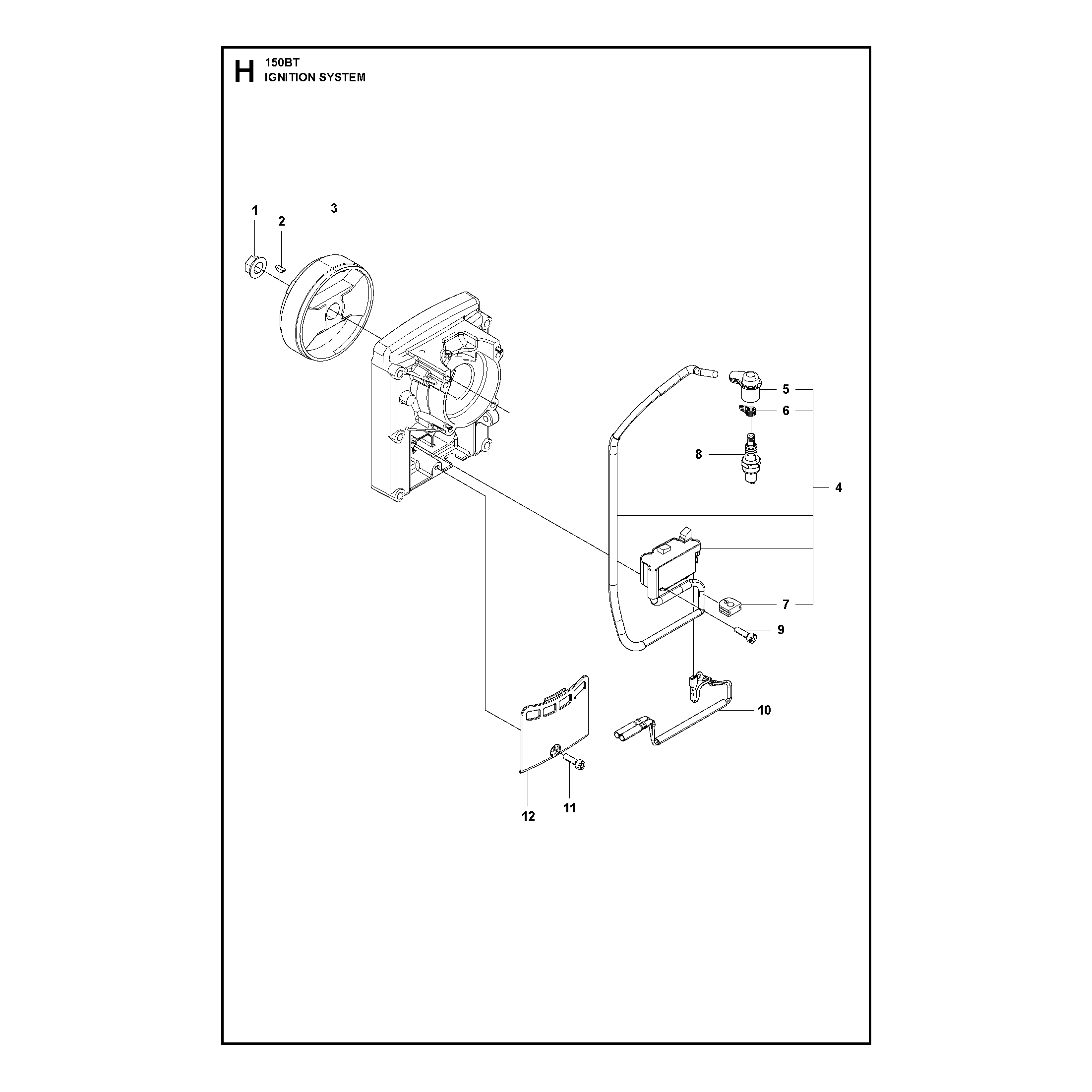

IGNITION SYSTEM
IGNITION SYSTEM
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
586496401
586496401
|
|||
|
|
513241901
513241901
|
|||
|
|
506689401
506689401
|
|||
|
|
502846301
502846301
|
|||
|
|
581177701
581177701
|
|||
|
|
502846401
502846401
|
|||
|
|
512444001
512444001
|
|||
|
|
504118201
504118201
|
|||
|
|
515415301
515415301
|
|||
|
|
506615101
506615101
|
|||
|
|
581362301
581362301
|
|||
|
|
581378801
581378801
|
|||
|
|
505183701
505183701
|
|||
|
|
581378801
581378801
|
|||
|
|
513663901
513663901
|

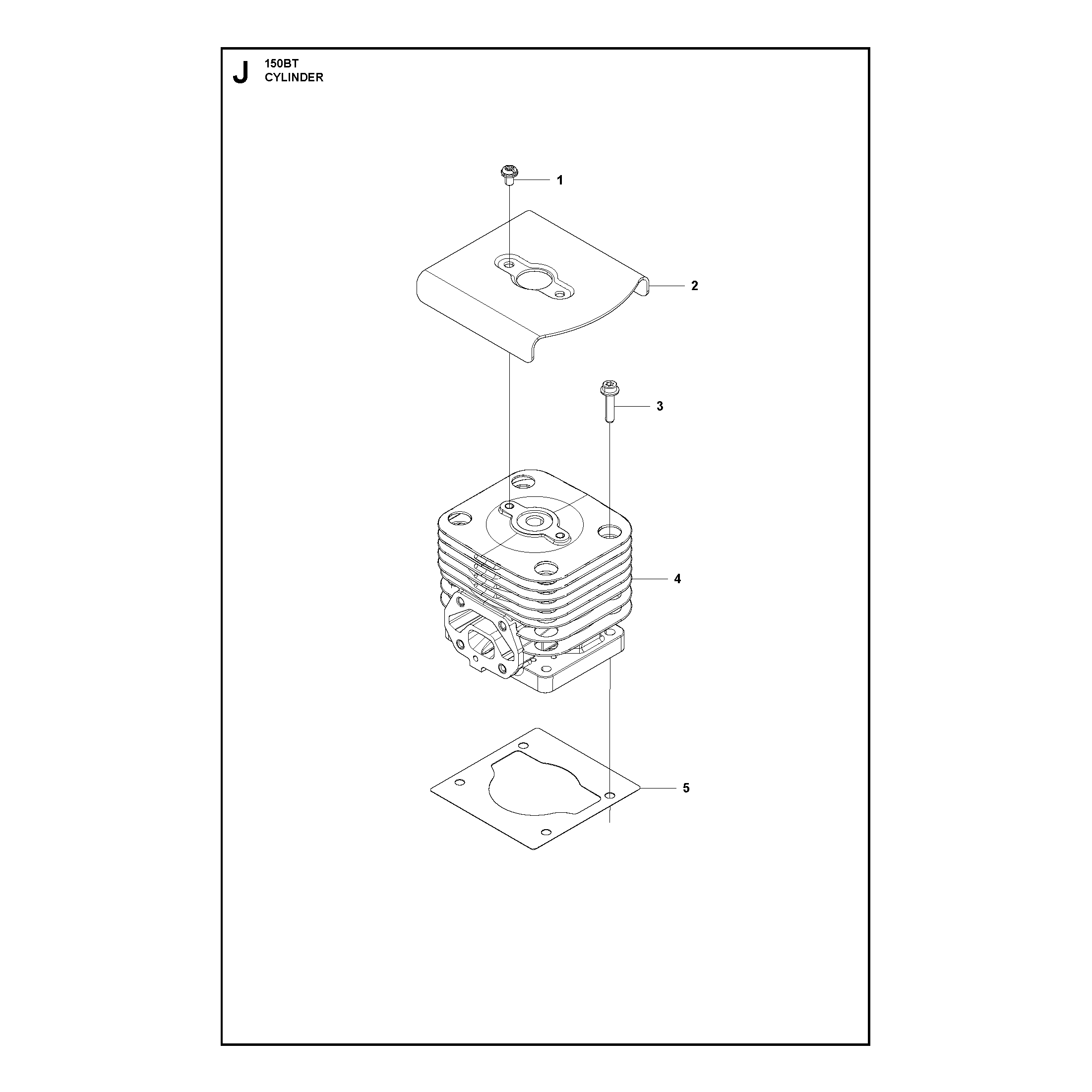

CYLINDER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
544256801
544256801
|
|||
|
|
502846501
502846501
|
|||
|
|
506745201
506745201
|
|||
|
|
502848701
502848701
|
|||
|
|
502848801
502848801
|

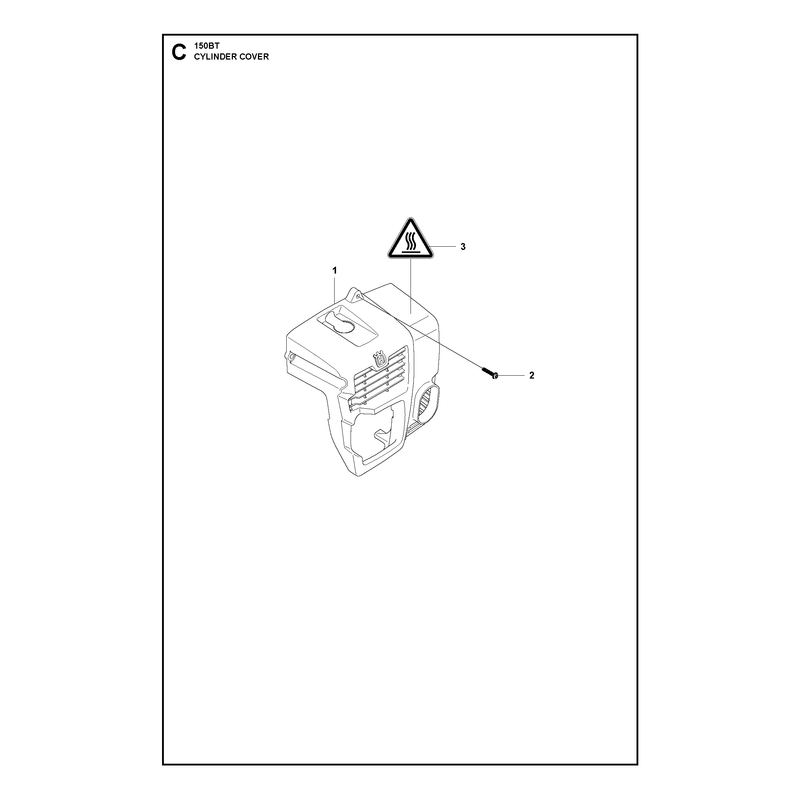

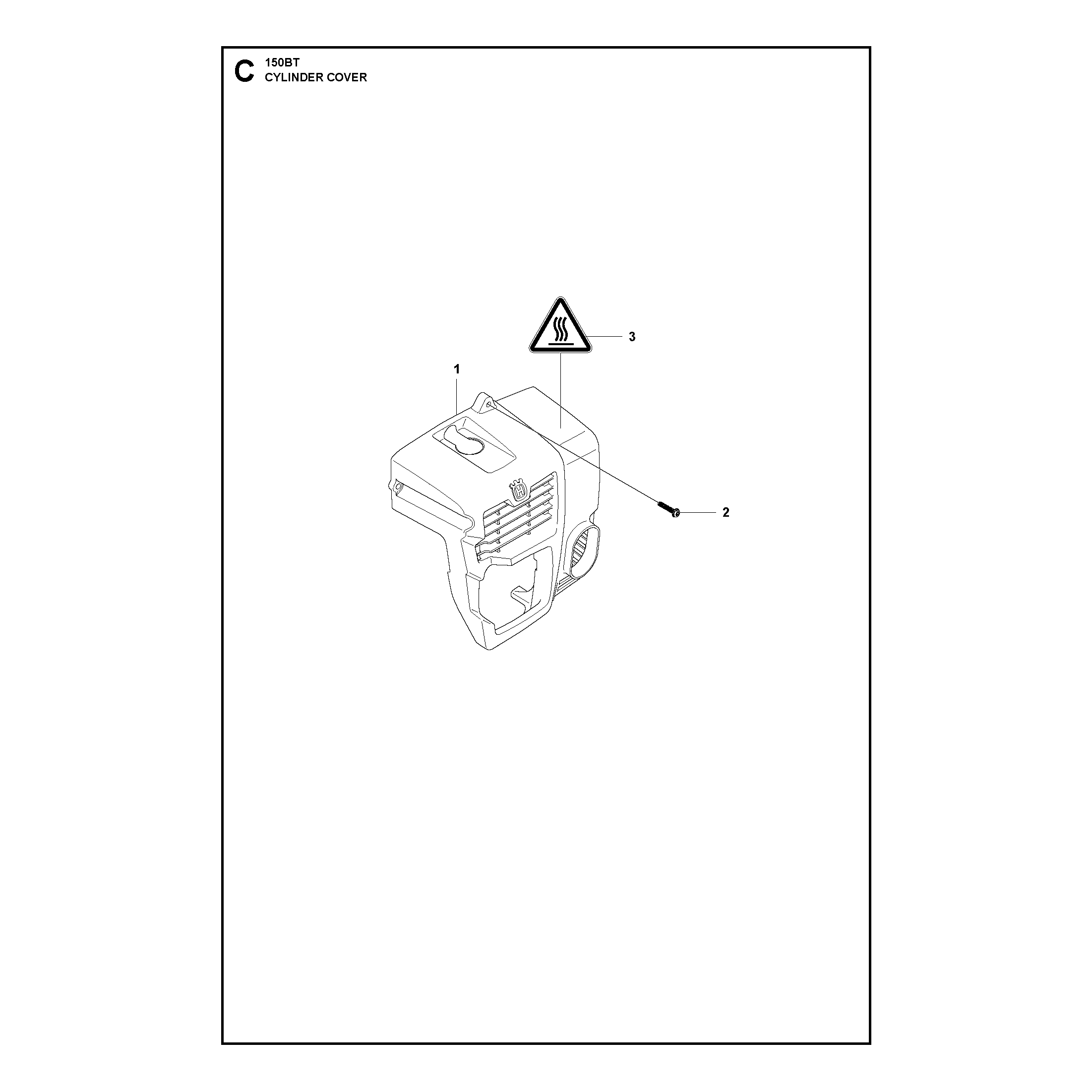

CYLINDER COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502843001
502843001
|
|||
|
|
512848101
512848101
|
|||
|
|
521553601
521553601
|

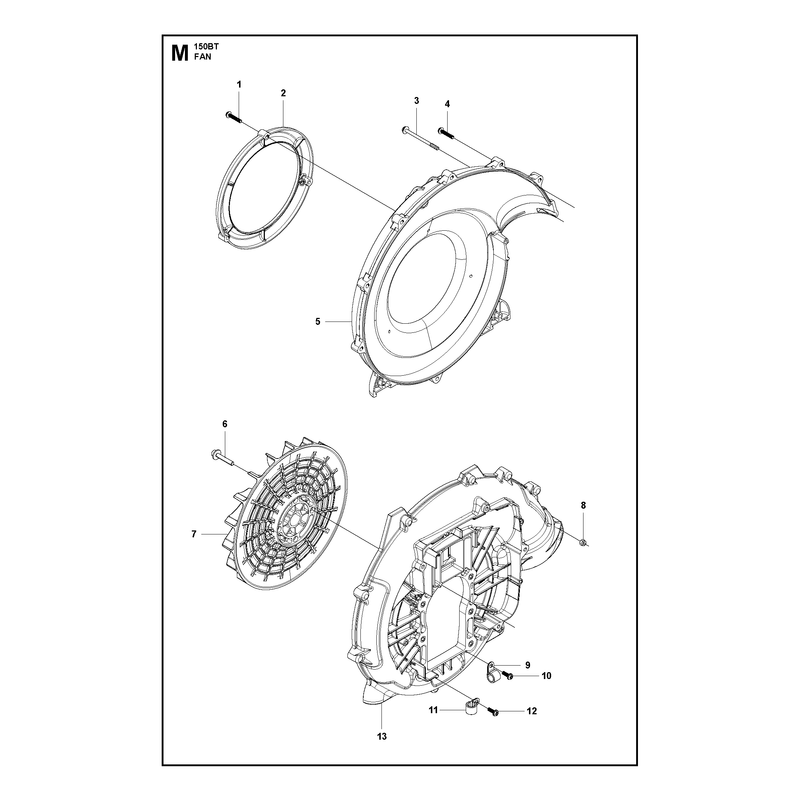

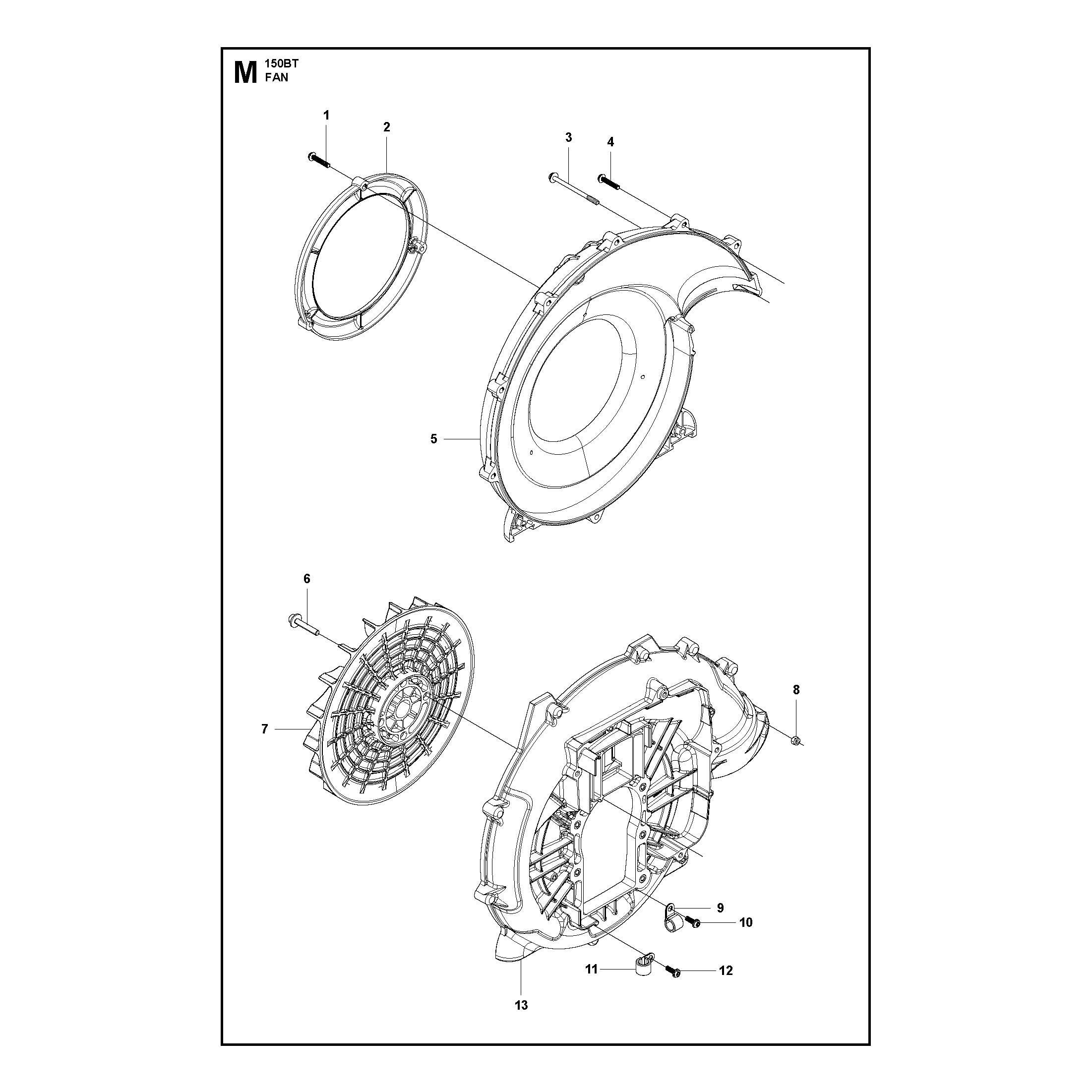

FAN
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
512848101
512848101
|
|||
|
|
511805201
511805201
|
|||
|
|
544264601
544264601
|
|||
|
|
512848101
512848101
|
|||
|
|
511805001
511805001
|
|||
|
|
510906101
510906101
|
|||
|
|
502850201
502850201
|
|||
|
|
514183901
514183901
|
|||
|
|
504122301
504122301
|
|||
|
|
512847901
512847901
|
|||
|
|
544264901
544264901
|
|||
|
|
512847901
512847901
|
|||
|
|
502850301
502850301
|

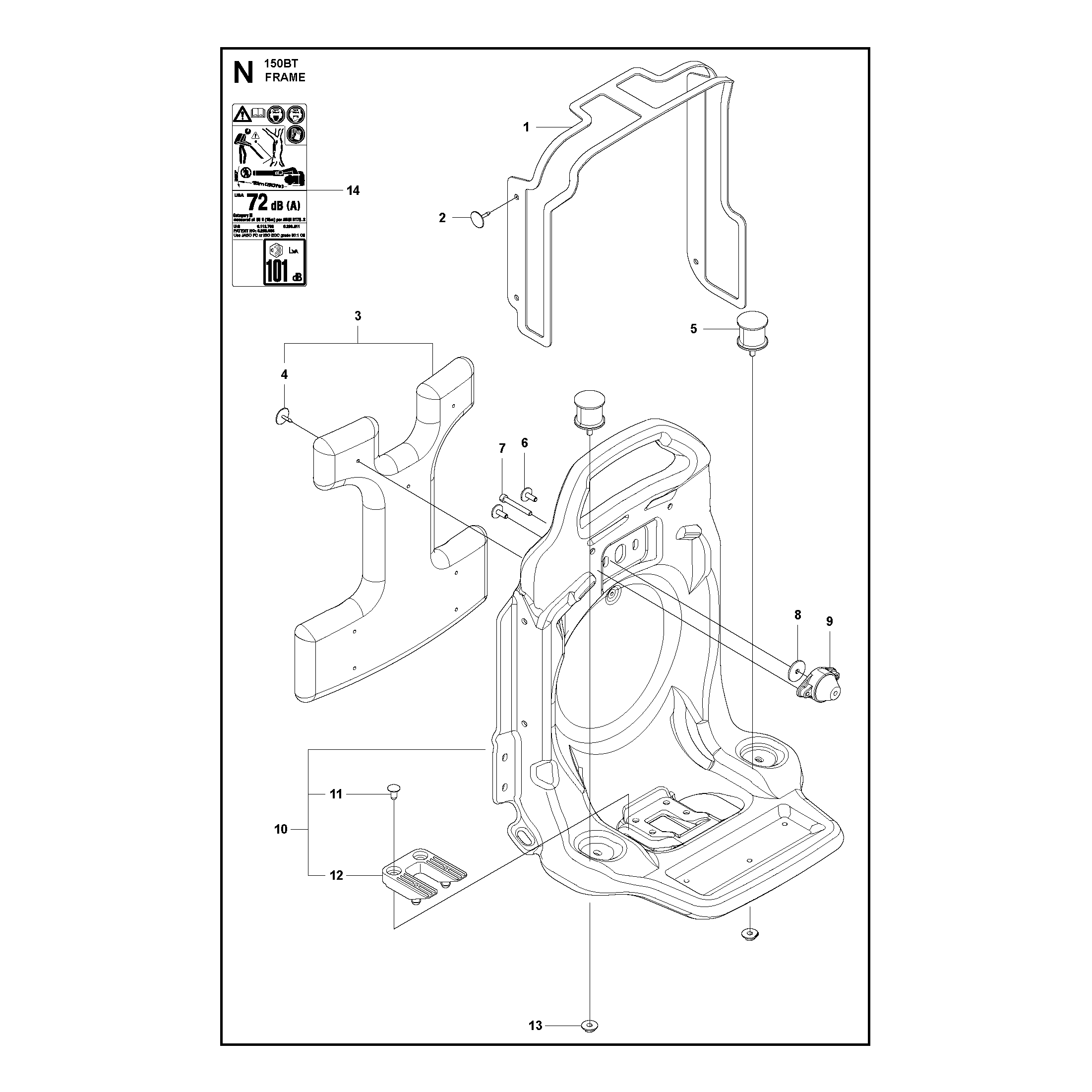

FRAME
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
544270301
544270301
|
|||
|
|
511800901
511800901
|
|||
|
|
544270401
544270401
|
|||
|
|
544270101
544270101
|
|||
|
|
544270202
544270202
|
|||
|
|
513667301
513667301
|
|||
|
|
544270801
544270801
|
|||
|
|
521517201
521517201
|
|||
|
|
502850501
502850501
|
|||
|
|
513666701
513666701
|
|||
|
|
502850601
502850601
|
|||
|
|
544270401
544270401
|
|||
|
|
544363201
544363201
|
|||
|
|
511802001
511802001
|
|||
|
|
513667501
513667501
|
|||
|
|
502850401
502850401
|
|||
|
|
529295801
529295801
|

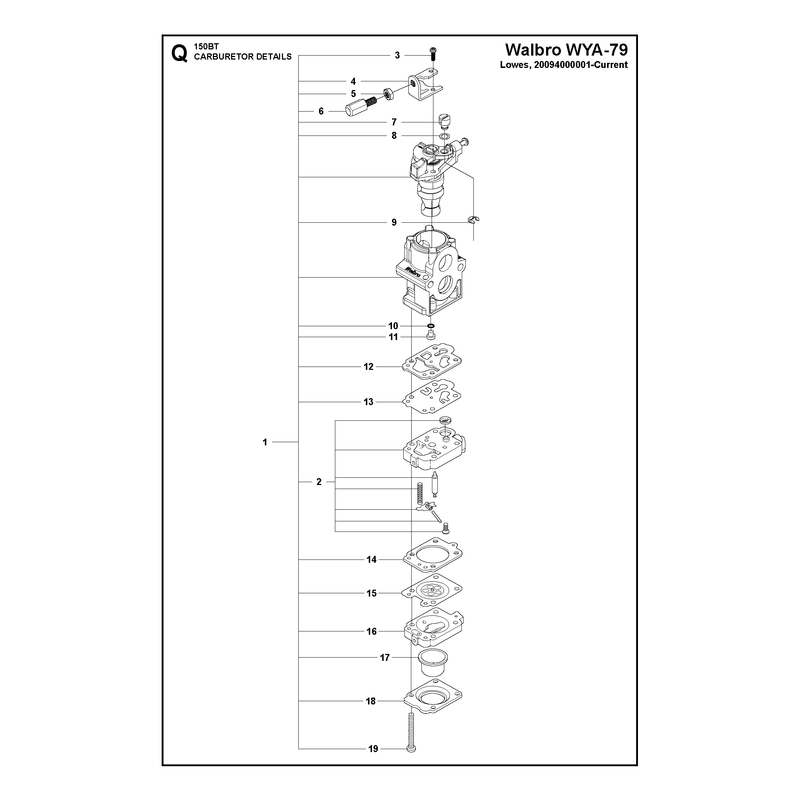

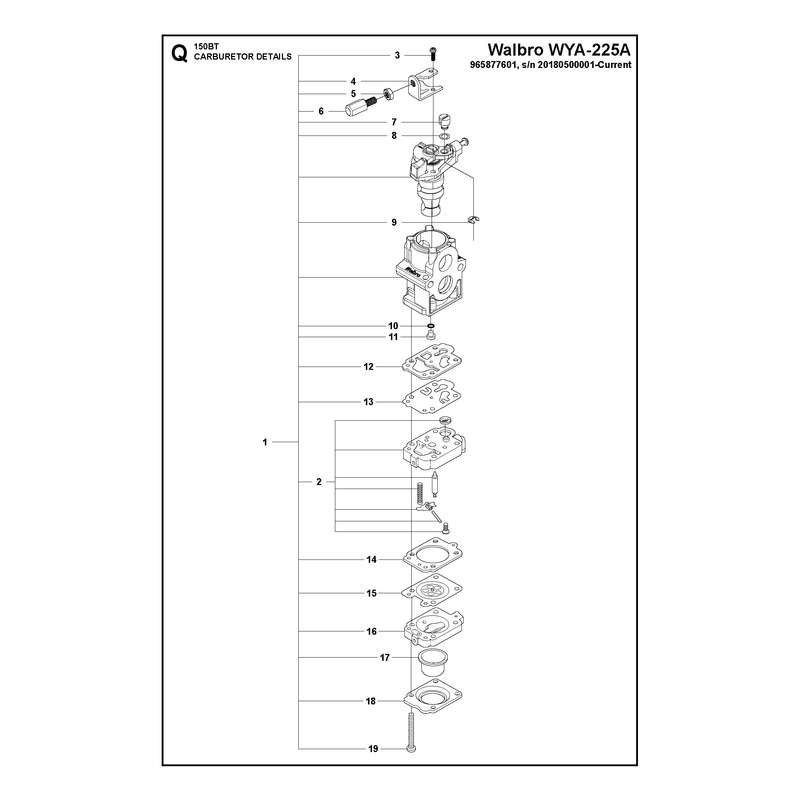

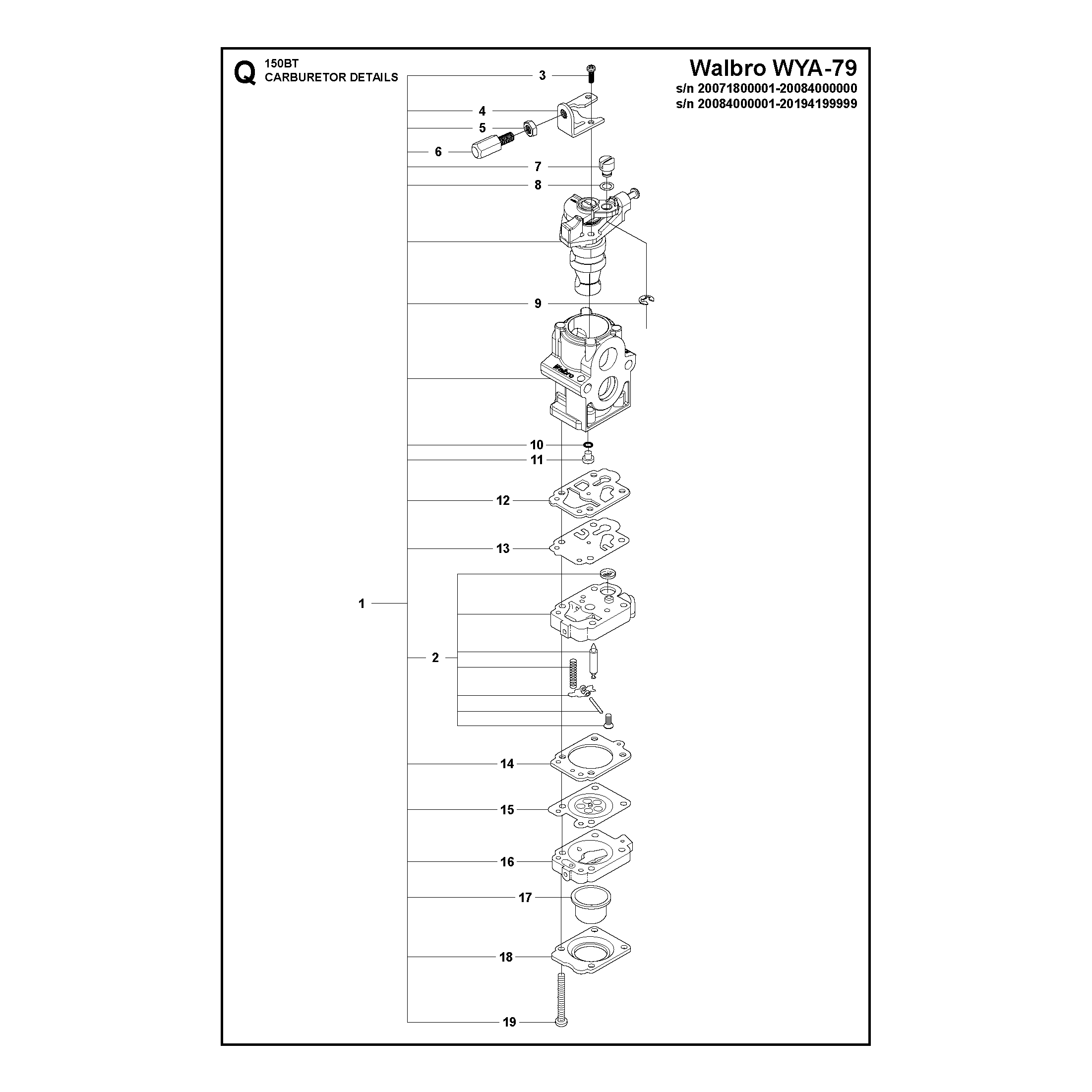

CARBURETOR DETAILS
CARBURETOR DETAILS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
581155001
581155001
|
|||
|
|
544363501
544363501
|
|||
|
|
505307901
505307901
|
|||
|
|
506746001
506746001
|
|||
|
|
506612601
506612601
|
|||
|
|
506741301
506741301
|
|||
|
|
506741201
506741201
|
|||
|
|
506746101
506746101
|
|||
|
|
506738601
506738601
|
|||
|
|
505307501
505307501
|
|||
|
|
505307401
505307401
|
|||
|
|
506745101
506745101
|
|||
|
|
506689801
506689801
|
|||
|
|
506740801
506740801
|
|||
|
|
505306801
505306801
|
|||
|
|
506740901
506740901
|
|||
|
|
505306701
505306701
|
|||
|
|
506741001
506741001
|
|||
|
|
506741101
506741101
|

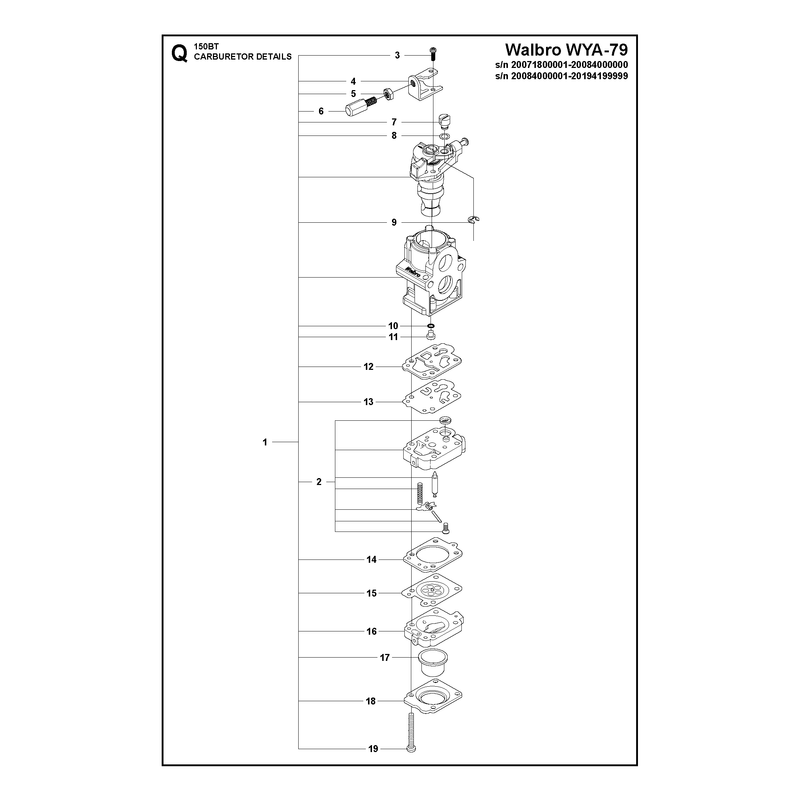

CARBURETOR DETAILS
CARBURETOR DETAILS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502845001
502845001
|
|||
|
|
544363501
544363501
|
|||
|
|
505307901
505307901
|
|||
|
|
506746001
506746001
|
|||
|
|
506612601
506612601
|
|||
|
|
506741301
506741301
|
|||
|
|
506741201
506741201
|
|||
|
|
506746101
506746101
|
|||
|
|
506738601
506738601
|
|||
|
|
505307501
505307501
|
|||
|
|
504643201
504643201
|
|||
|
|
506745101
506745101
|
|||
|
|
506689801
506689801
|
|||
|
|
506740801
506740801
|
|||
|
|
505306801
505306801
|
|||
|
|
506740901
506740901
|
|||
|
|
505306701
505306701
|
|||
|
|
506741001
506741001
|
|||
|
|
506741101
506741101
|

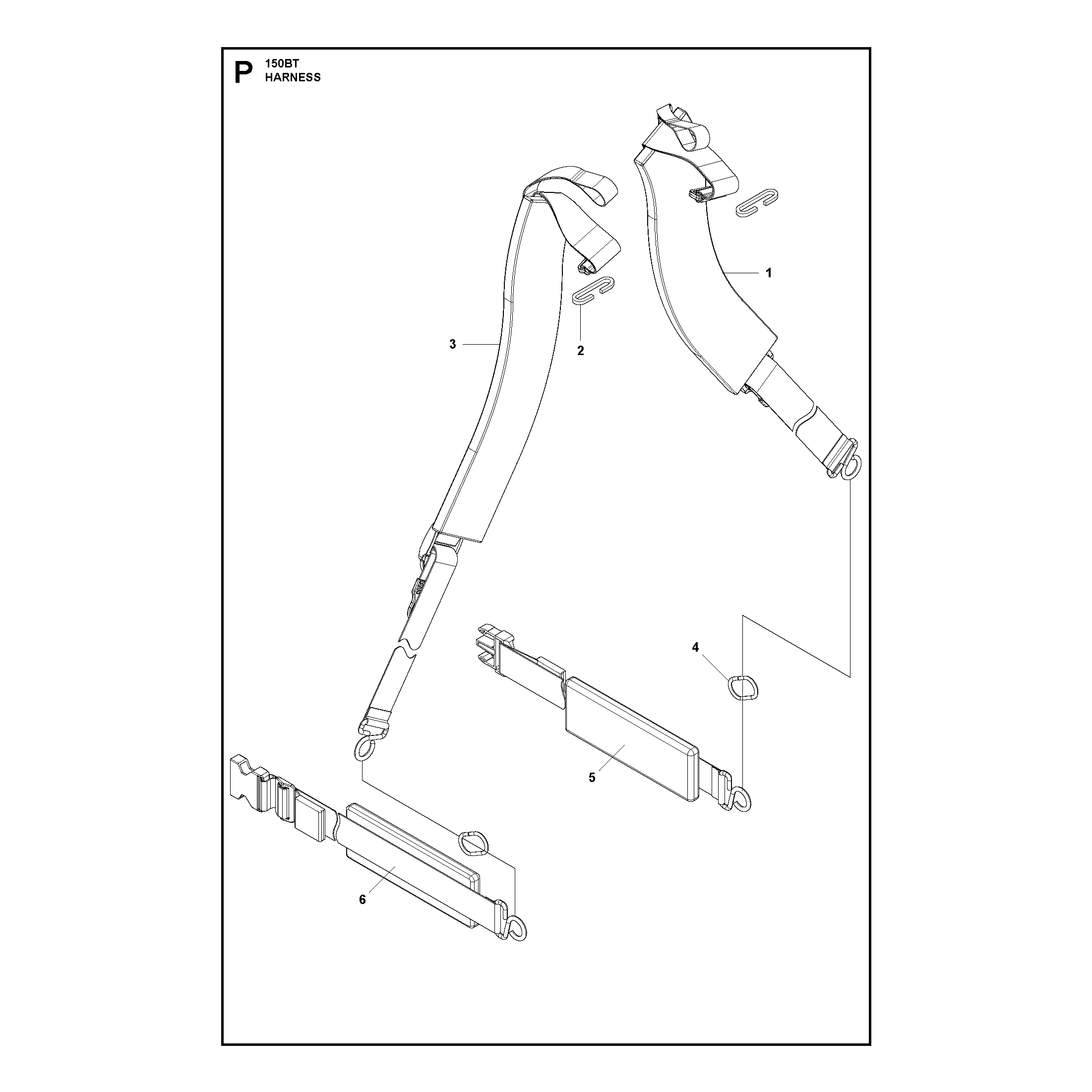

HARNESS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
511802901
511802901
|
|||
|
|
544270001
544270001
|
|||
|
|
511803001
511803001
|
|||
|
|
514331601
514331601
|
|||
|
|
511803601
511803601
|
|||
|
|
511803801
511803801
|

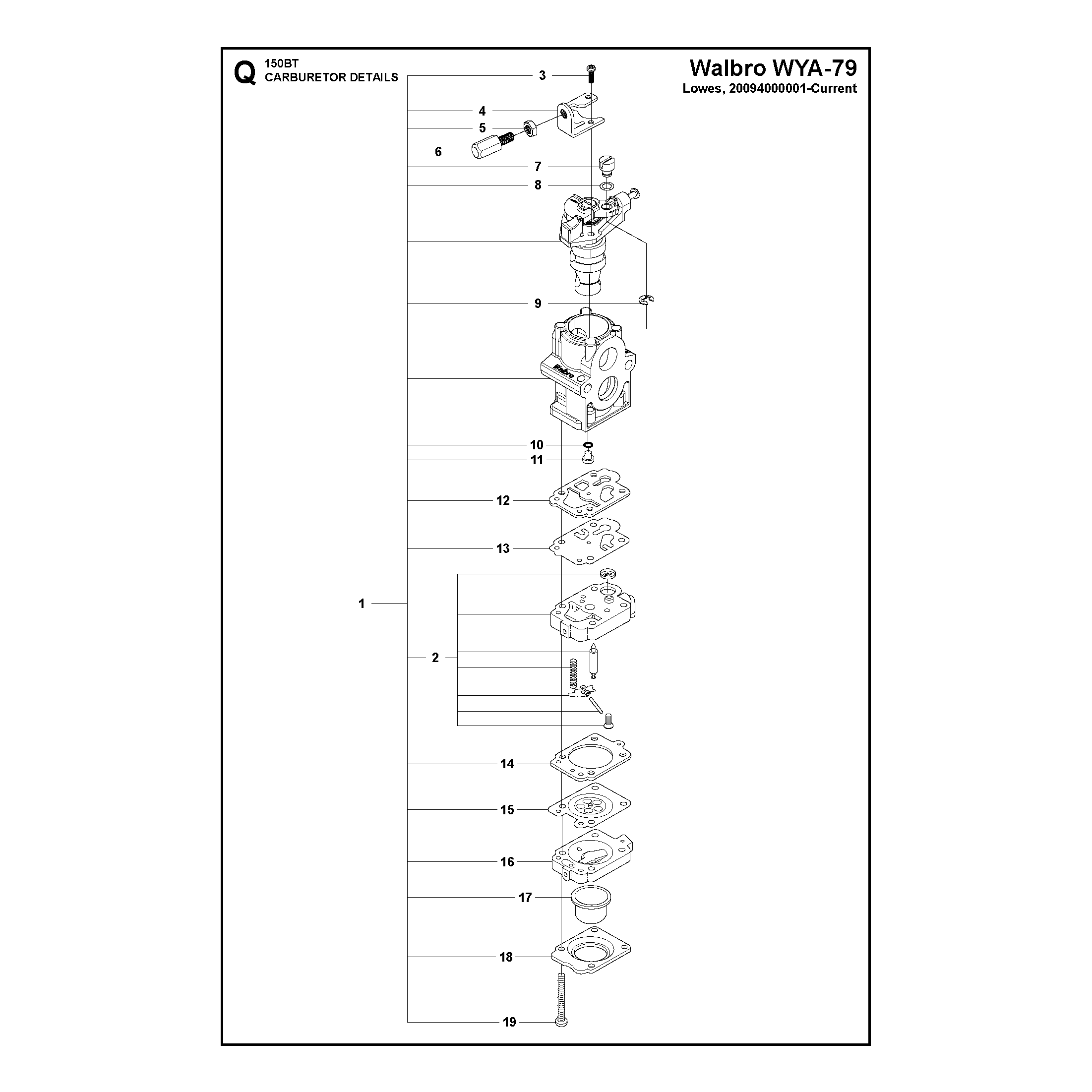

CARBURETOR DETAILS
CARBURETOR DETAILS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502845001
502845001
|
|||
|
|
544363501
544363501
|
|||
|
|
544364701
544364701
|
|||
|
|
544364801
544364801
|
|||
|
|
544364901
544364901
|
|||
|
|
544365001
544365001
|
|||
|
|
544364101
544364101
|
|||
|
|
544364001
544364001
|
|||
|
|
544364201
544364201
|
|||
|
|
544365401
544365401
|
|||
|
|
504643201
504643201
|
|||
|
|
544364301
544364301
|
|||
|
|
544364401
544364401
|
|||
|
|
544364501
544364501
|
|||
|
|
504643101
504643101
|
|||
|
|
544363601
544363601
|
|||
|
|
544363901
544363901
|
|||
|
|
544363801
544363801
|
|||
|
|
544365201
544365201
|

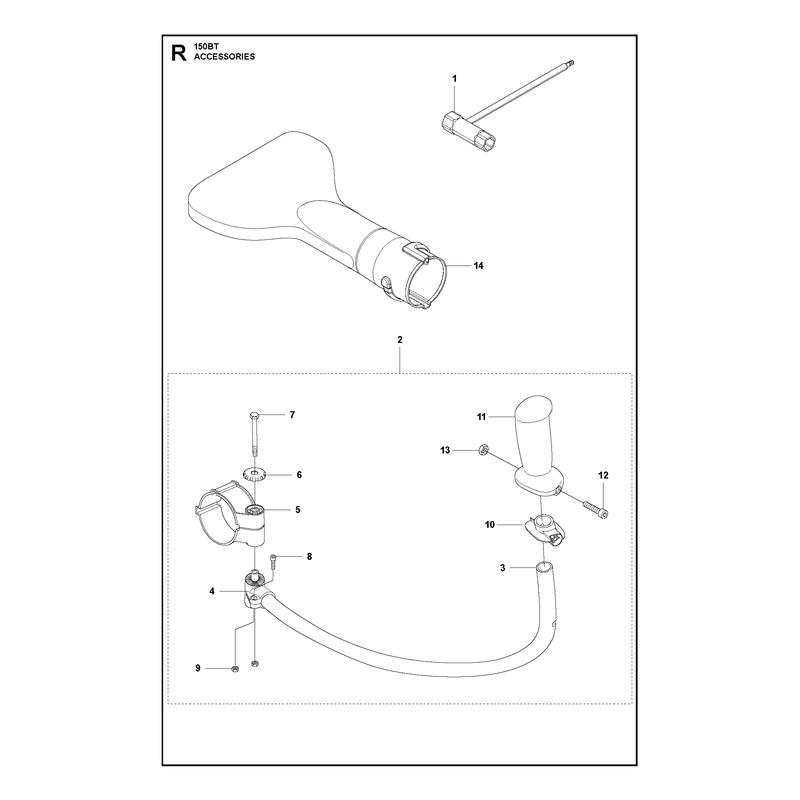

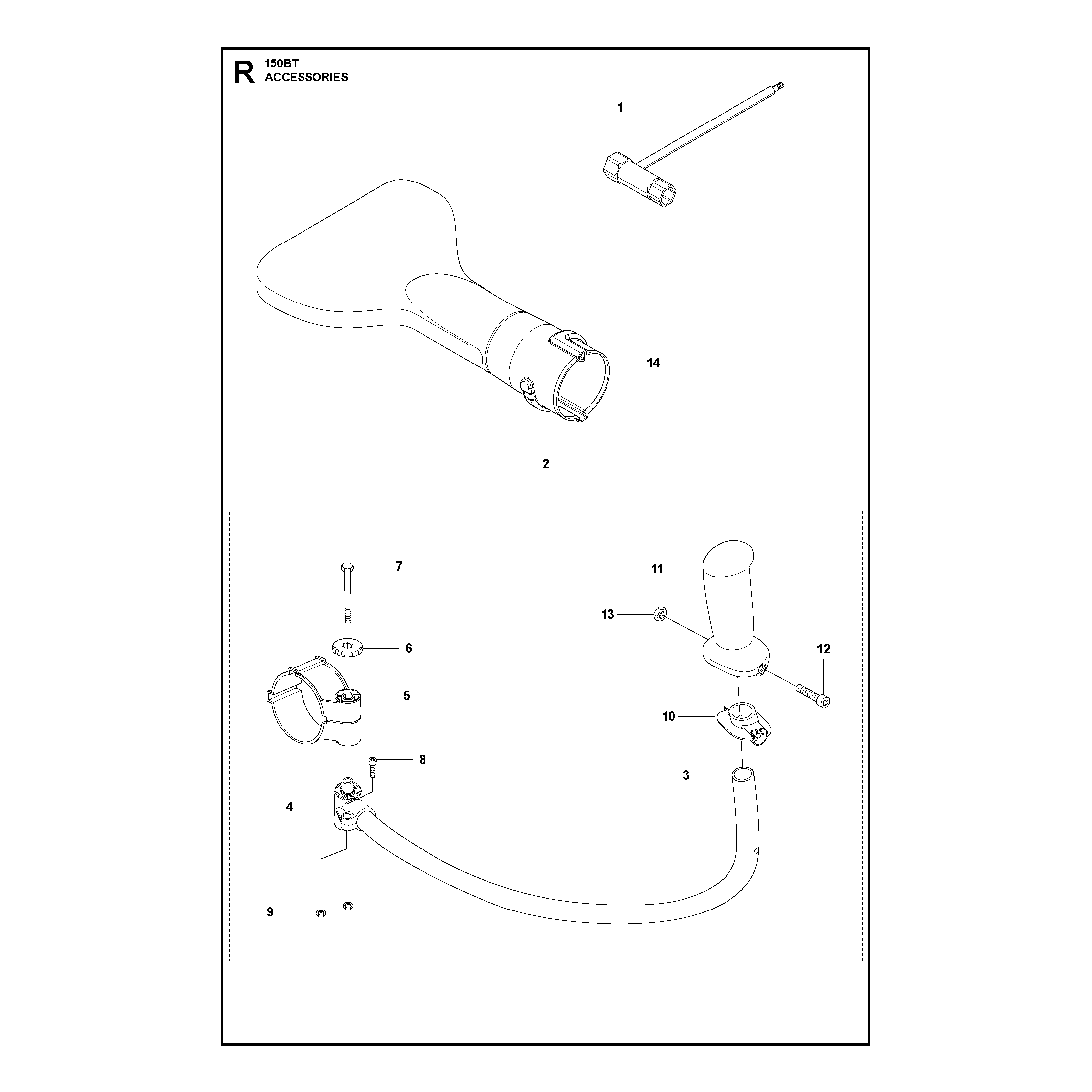

ACCESSORIES
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
521533001
521533001
|
|||
|
|
544400002
544400002
|
|||
|
|
537241301
537241301
|
|||
|
|
537292901
537292901
|
|||
|
|
511675001
511675001
|
|||
|
|
502204001
502204001
|
|||
|
|
725234751
725234751
|
|||
|
|
725532555
725532555
|
|||
|
|
731231401
731231401
|
|||
|
|
537172901
537172901
|
|||
|
|
537172801
537172801
|
|||
|
|
503200245
503200245
|
|||
|
|
731231401
731231401
|
|||
|
|
502444001
502444001
|
STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
579813601
579813601
|
|||
|
|
501929201
501929201
|
|||
|
|
598651601
598651601
|
|||
|
|
579814101
579814101
|
|||
|
|
501931701
501931701
|
|||
|
|
598740101
598740101
|
|||
|
|
598745401
598745401
|
|||
|
|
598656301
598656301
|
|||
|
|
598656401
598656401
|
|||
|
|
501935201
501935201
|
|||
|
|
501938701
501938701
|
|||
|
|
579814201
579814201
|
|||
|
|
598656501
598656501
|
|||
|
|
501938901
501938901
|
|||
|
|
501939001
501939001
|
|||
|
|
579814401
579814401
|
|||
|
|
513241901
513241901
|

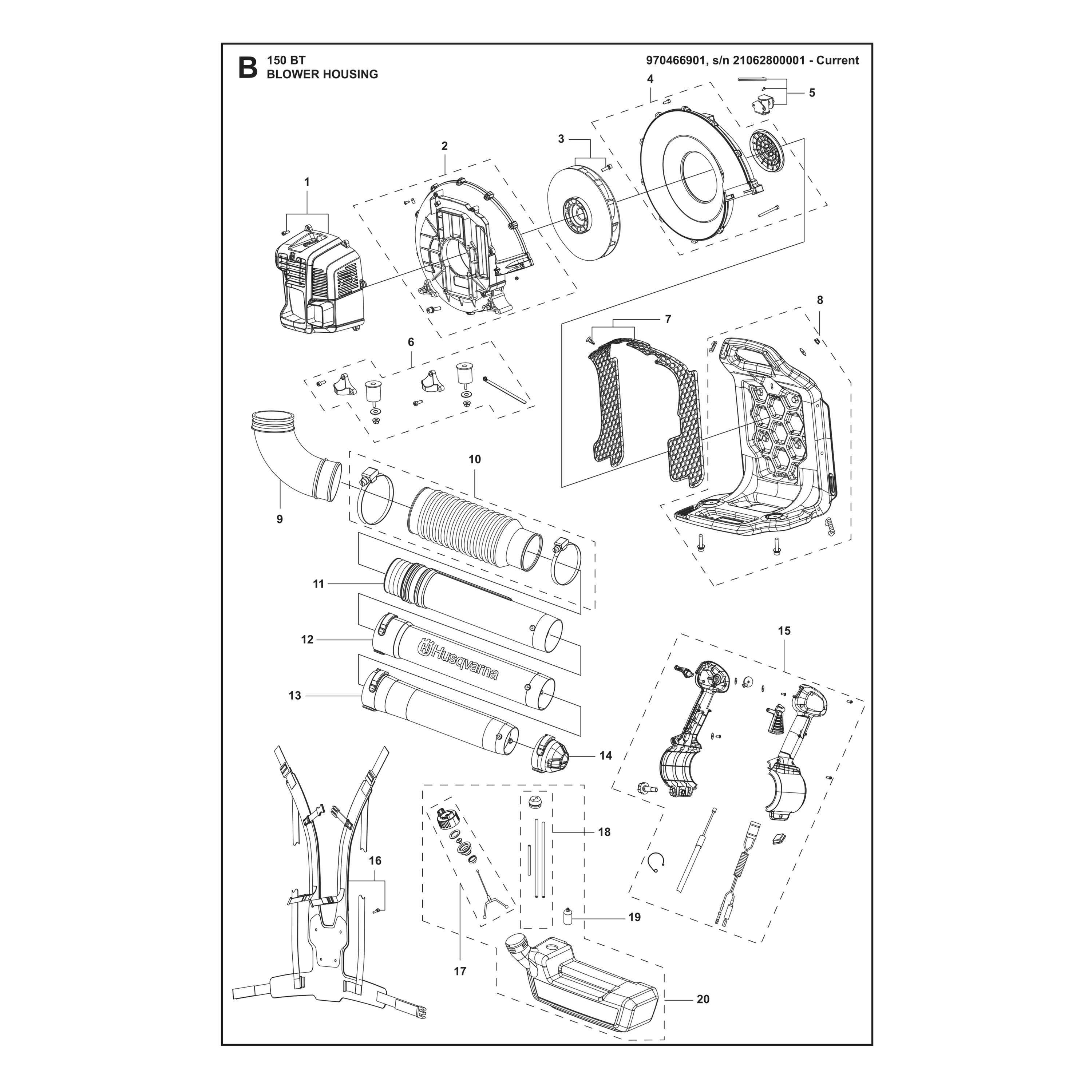

BLOWER HOUSING
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531147166
531147166
|
|||
|
|
531147167
531147167
|
|||
|
|
531147168
531147168
|
|||
|
|
531147169
531147169
|
|||
|
|
531147170
531147170
|
|||
|
|
501424333
501424333
|
|||
|
|
531147171
531147171
|
|||
|
|
531147172
531147172
|
|||
|
|
531147174
531147174
|
|||
|
|
501424346
501424346
|
|||
|
|
531147165
531147165
|
|||
|
|
531147164
531147164
|
|||
|
|
531147163
531147163
|
|||
|
|
531147162
531147162
|
|||
|
|
531147175
531147175
|
|||
|
|
531147173
531147173
|
|||
|
|
531147177
531147177
|
|||
|
|
531147178
531147178
|
|||
|
|
531147179
531147179
|
|||
|
|
531147176
531147176
|

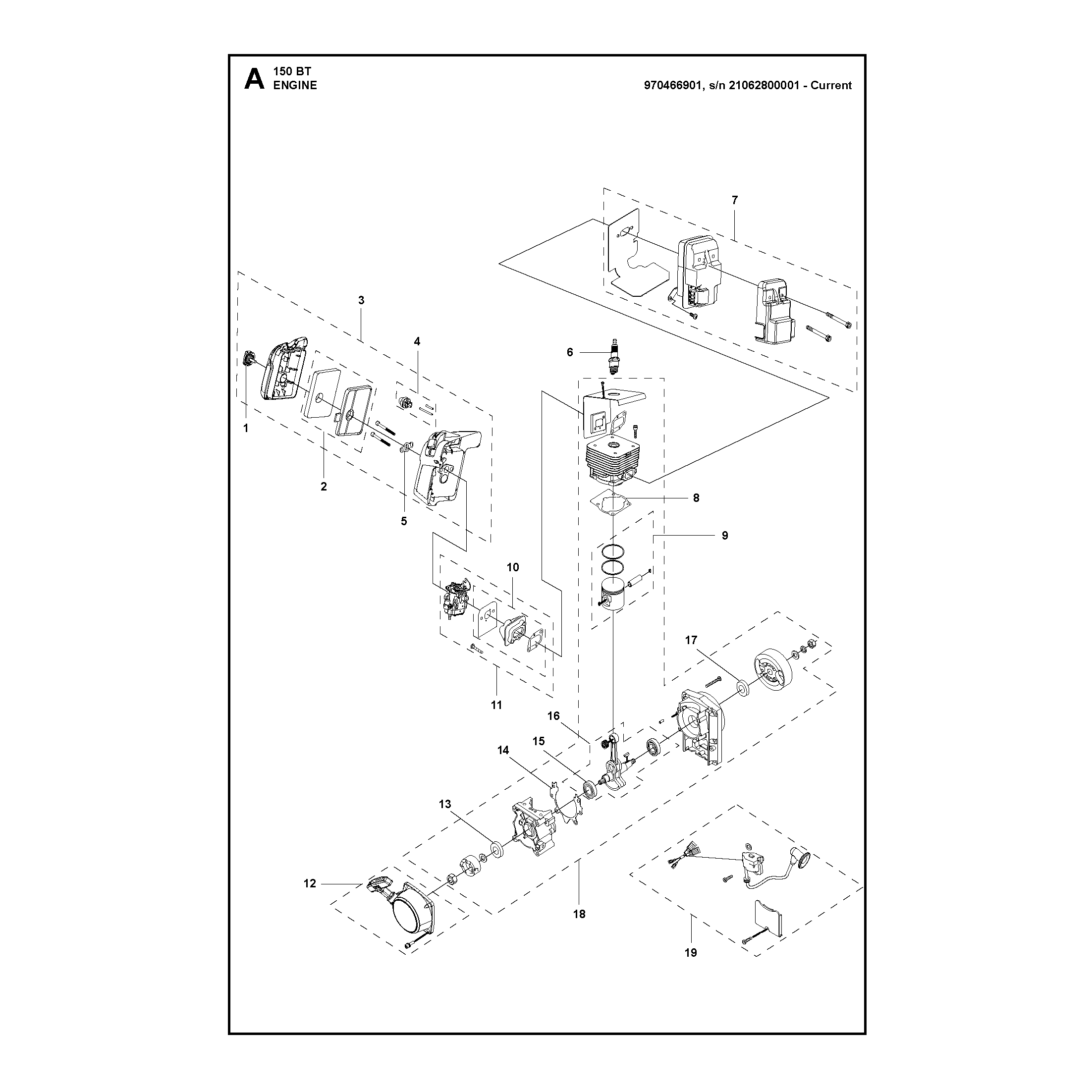

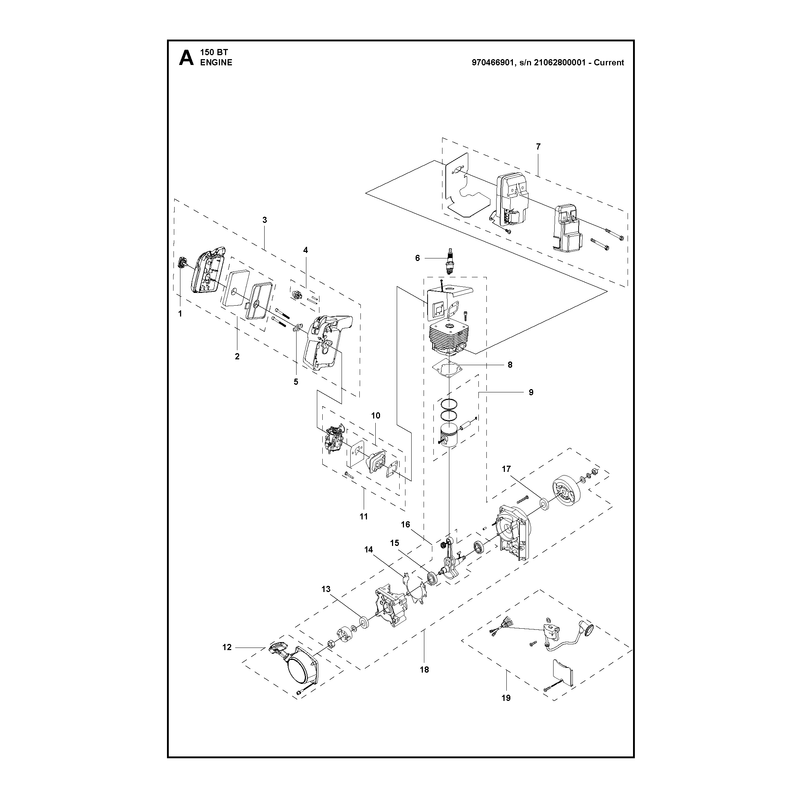

ENGINE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
535316001
535316001
|
|||
|
|
535316301
535316301
|
|||
|
|
535542601
535542601
|
|||
|
|
535316601
535316601
|
|||
|
|
535316501
535316501
|
|||
|
|
503235111
503235111
|
|||
|
|
531147160
531147160
|
|||
|
|
535316801
535316801
|
|||
|
|
531147153
531147153
|
|||
|
|
535316701
535316701
|
|||
|
|
531147180
531147180
|
|||
|
|
531147159
531147159
|
|||
|
|
531147157
531147157
|
|||
|
|
531147156
531147156
|
|||
|
|
531147154
531147154
|
|||
|
|
531147155
531147155
|
|||
|
|
531147158
531147158
|
|||
|
|
501424373
501424373
|
|||
|
|
531147161
531147161
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
