Husqvarna 455 e Rancher Parts Diagram
Diagrams:
Diagram:

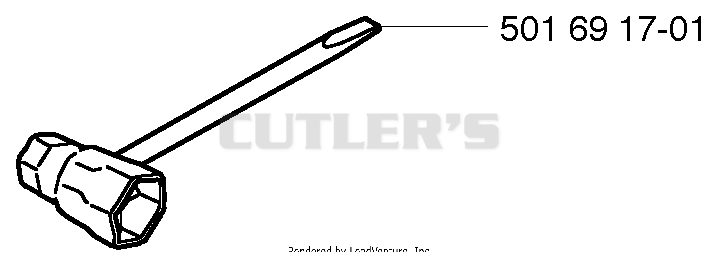

*Accessories
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501691701
501691701
|

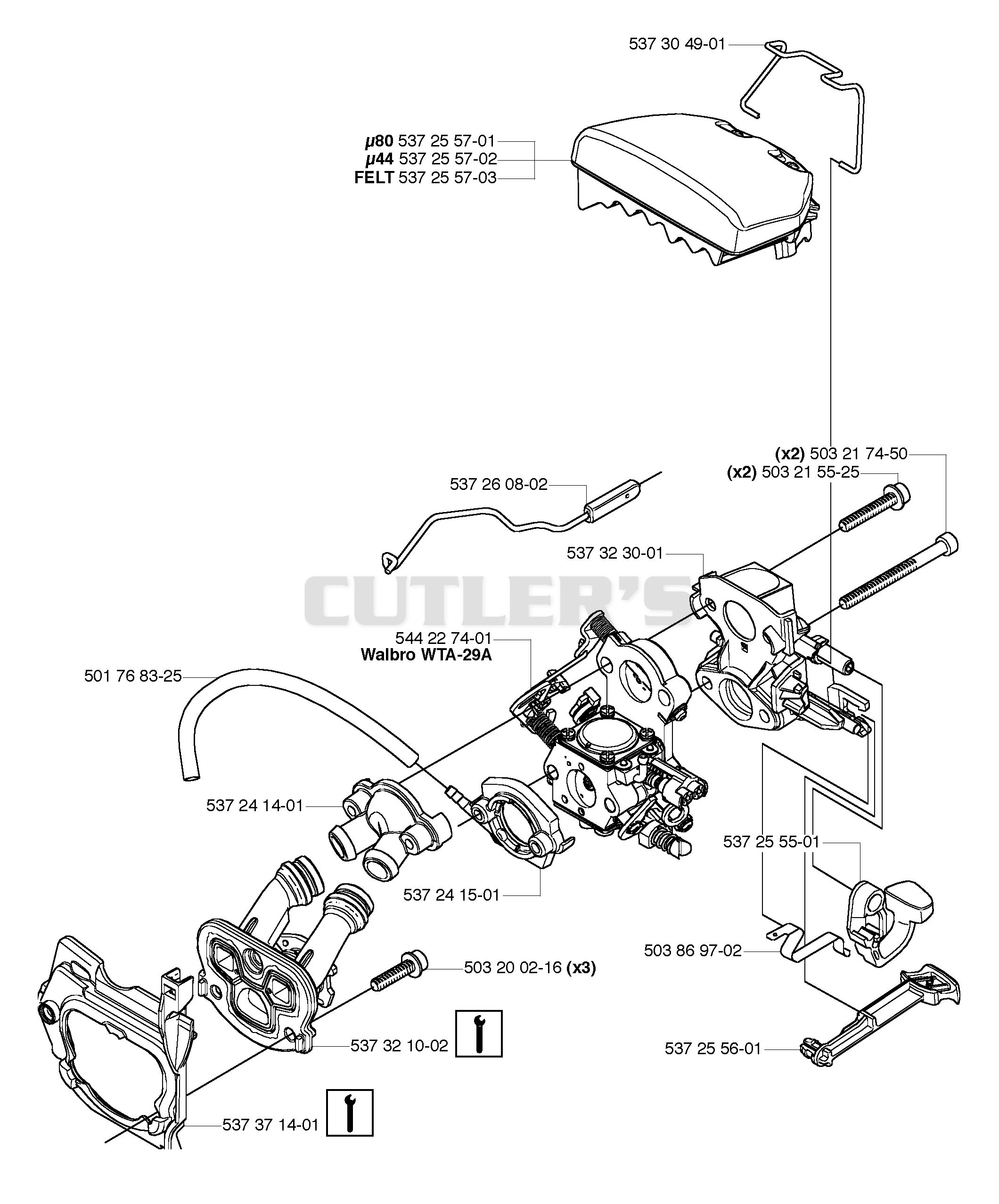

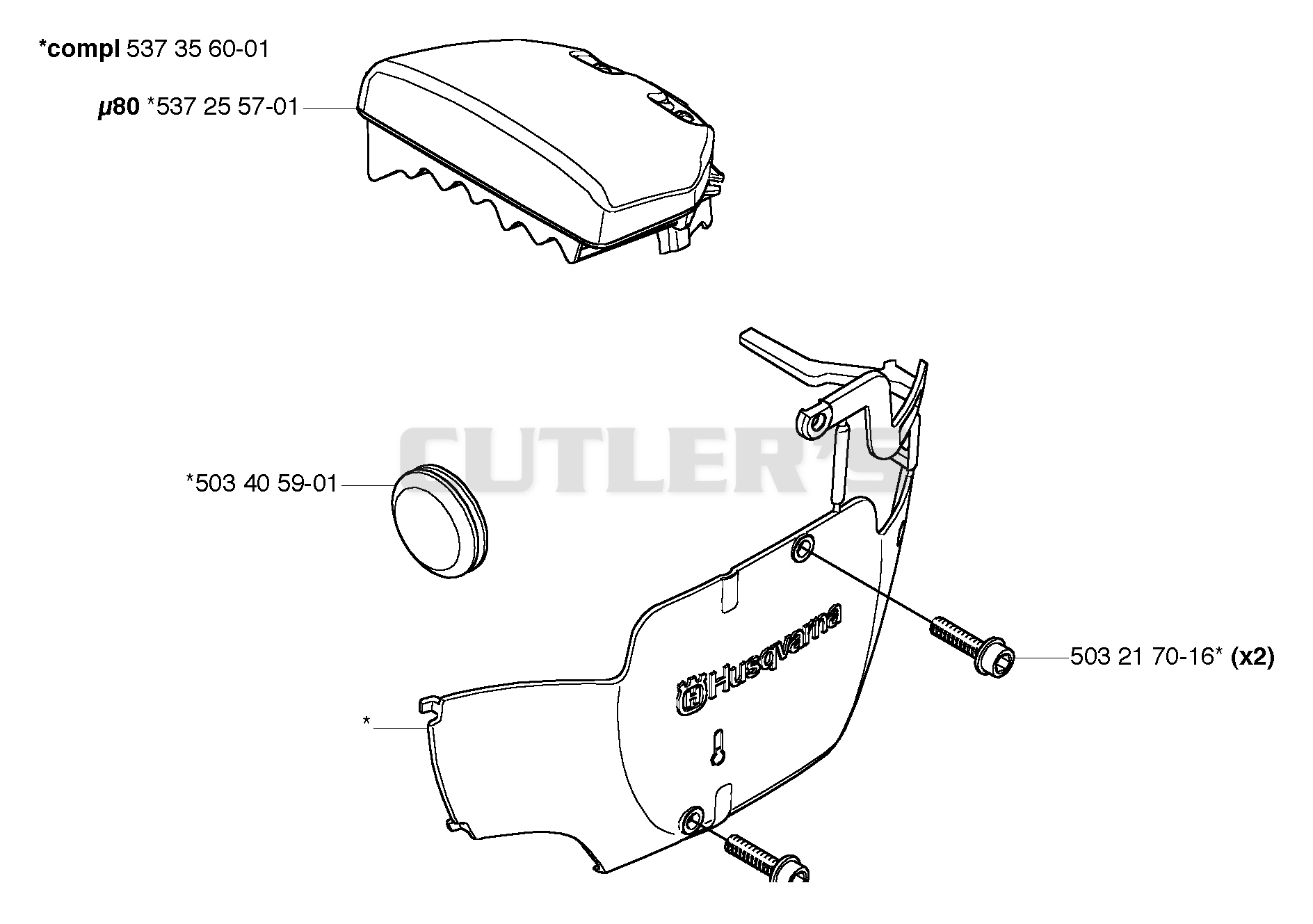

Air Filter / Carburetor
Air Filter / Carburetor
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501768325
501768325
|
|||
|
|
503200216
503200216
|
|||
|
|
503215525
503215525
|
|||
|
|
503217450
503217450
|
|||
|
|
503869702
503869702
|
|||
|
|
537241401
537241401
|
|||
|
|
537241501
537241501
|
|||
|
|
537255501
537255501
|
|||
|
|
537255601
537255601
|
|||
|
|
537255701
537255701
|
|||
|
|
537255702
537255702
|
|||
|
|
537255703
537255703
|
|||
|
|
537260802
537260802
|
|||
|
|
537304901
537304901
|
|||
|
|
537321002
537321002
|
|||
|
|
537323001
537323001
|
|||
|
|
537371401
537371401
|
|||
|
|
544227401
544227401
|
Carburetor Parts
Carburetor Parts
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501466901
501466901
|
|||
|
|
501468401
501468401
|
|||
|
|
501468501
501468501
|
|||
|
|
501468701
501468701
|
|||
|
|
501666101
501666101
|
|||
|
|
502119801
502119801
|
|||
|
|
502213601
502213601
|
|||
|
|
503563401
503563401
|
|||
|
|
503564201
503564201
|
|||
|
|
503574201
503574201
|
|||
|
|
503584601
503584601
|
|||
|
|
503800401
503800401
|
|||
|
|
503896701
503896701
|
|||
|
|
503913901
503913901
|
|||
|
|
503914001
503914001
|
|||
|
|
503915401
503915401
|
|||
|
|
504130906
504130906
|
|||
|
|
504210049
504210049
|
|||
|
|
504210050
504210050
|
|||
|
|
504350906
504350906
|
|||
|
|
505316717
505316717
|
|||
|
|
505316754
505316754
|
|||
|
|
505520127
505520127
|
|||
|
|
530035015
530035015
|
|||
|
|
537306201
537306201
|
|||
|
|
537406601
537406601
|
|||
|
|
537406701
537406701
|
|||
|
|
537406801
537406801
|
|||
|
|
537406901
537406901
|
|||
|
|
537407001
537407001
|
|||
|
|
537407101
537407101
|
|||
|
|
537407201
537407201
|
|||
|
|
537407301
537407301
|
|||
|
|
537407401
537407401
|
|||
|
|
537407501
537407501
|
|||
|
|
537407601
537407601
|
|||
|
|
537407701
537407701
|
|||
|
|
537408001
537408001
|
|||
|
|
537408101
537408101
|
|||
|
|
537408201
537408201
|
|||
|
|
537408301
537408301
|
|||
|
|
537408401
537408401
|
|||
|
|
537408501
537408501
|
|||
|
|
537408601
537408601
|
|||
|
|
537408701
537408701
|
|||
|
|
537408801
537408801
|
|||
|
|
537409001
537409001
|
|||
|
|
537409101
537409101
|
|||
|
|
537409201
537409201
|
|||
|
|
537412601
537412601
|
|||
|
|
544227401
544227401
|

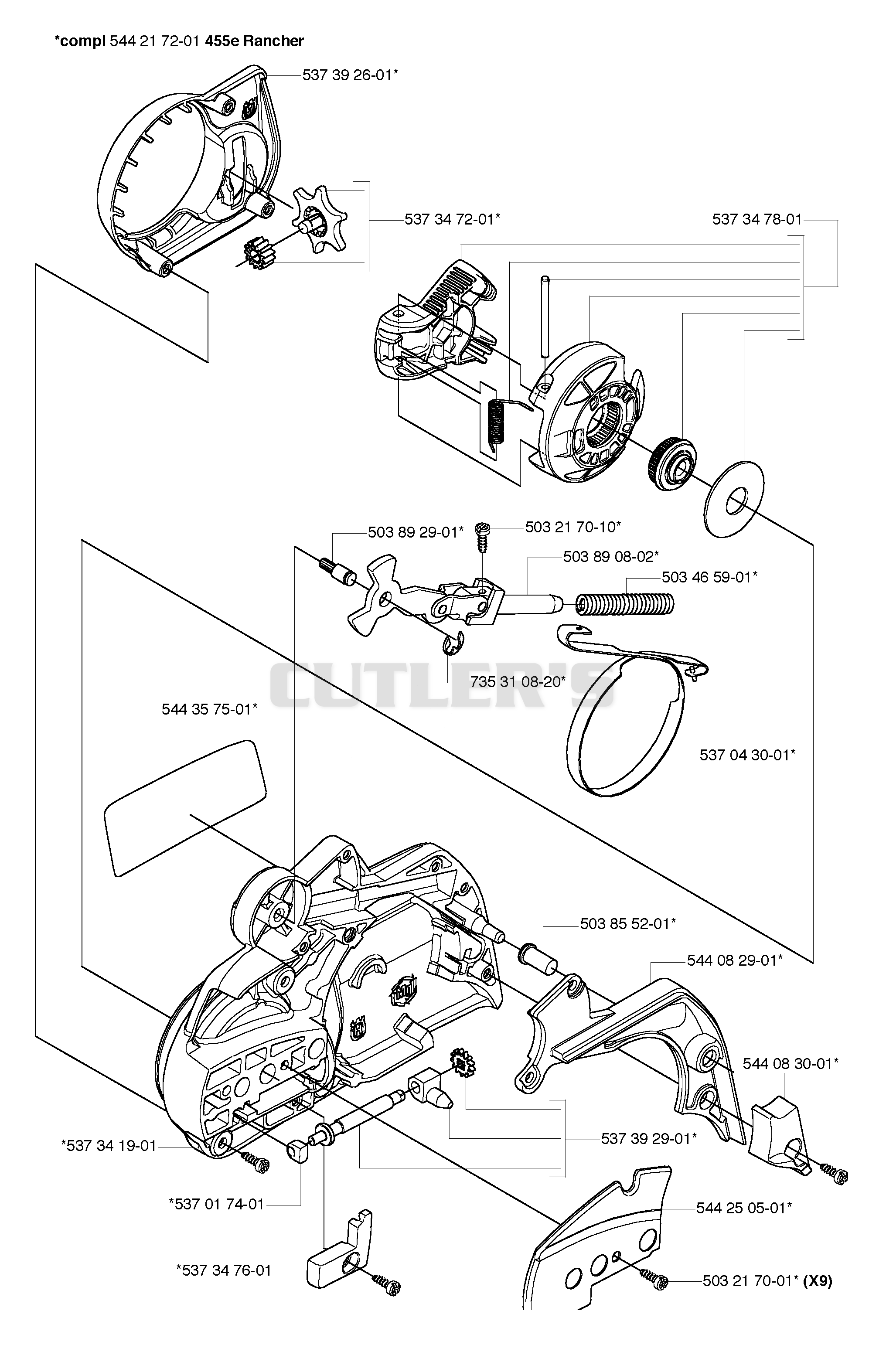

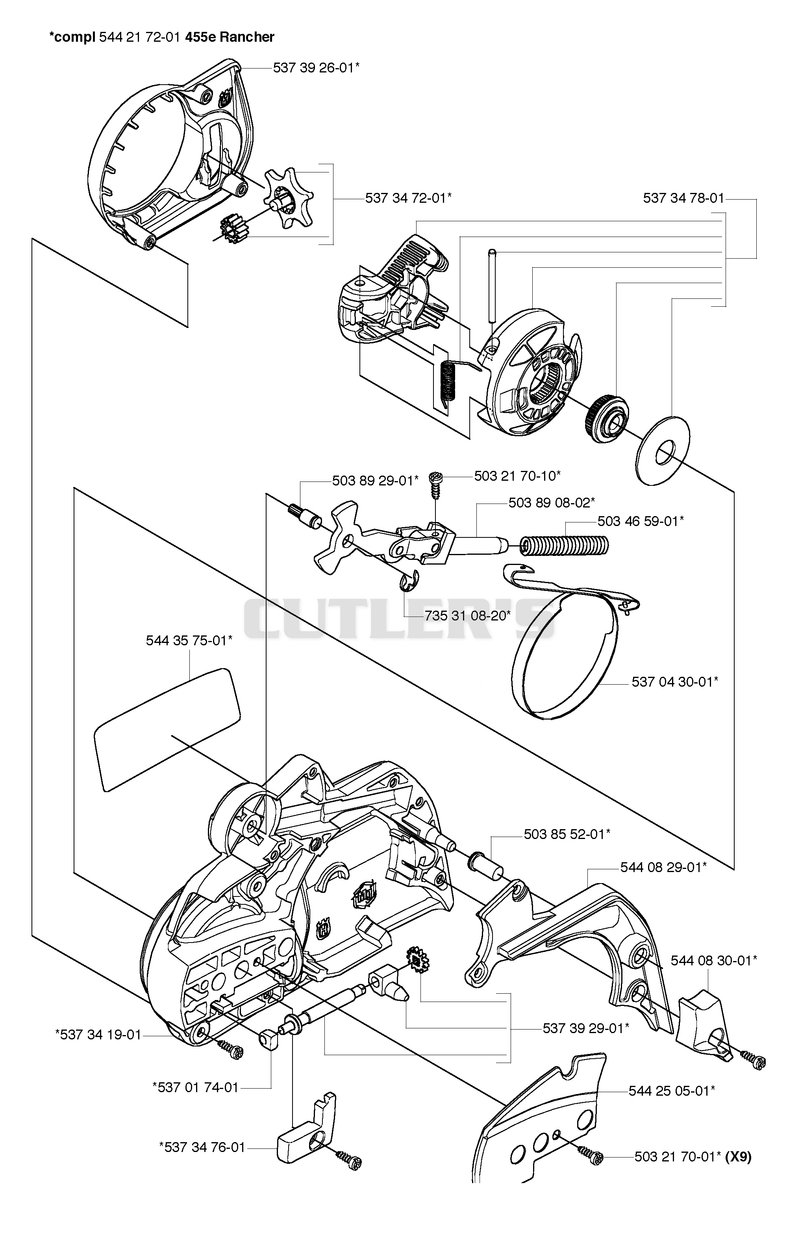

Chain Brake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503217001
503217001
|
|||
|
|
503217010
503217010
|
|||
|
|
503465901
503465901
|
|||
|
|
503855201
503855201
|
|||
|
|
503890802
503890802
|
|||
|
|
503892901
503892901
|
|||
|
|
537017401
537017401
|
|||
|
|
537043001
537043001
|
|||
|
|
537341901
537341901
|
|||
|
|
537347201
537347201
|
|||
|
|
537347601
537347601
|
|||
|
|
537347801
537347801
|
|||
|
|
537392601
537392601
|
|||
|
|
537392901
537392901
|
|||
|
|
544082901
544082901
|
|||
|
|
544083001
544083001
|
|||
|
|
544217201
544217201
|
|||
|
|
544250501
544250501
|
|||
|
|
544357501
544357501
|
|||
|
|
735310820
735310820
|
Clutch / Drum & Oil Pump
Clutch / Drum & Oil Pump
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503217416
503217416
|
|||
|
|
503230060
503230060
|
|||
|
|
503240909
503240909
|
|||
|
|
503255201
503255201
|
|||
|
|
503891501
503891501
|
|||
|
|
503891601
503891601
|
|||
|
|
537027101
537027101
|
|||
|
|
537069301
537069301
|
|||
|
|
537105502
537105502
|
|||
|
|
537105504
537105504
|
|||
|
|
537110503
537110503
|
|||
|
|
537228401
537228401
|
|||
|
|
537252601
537252601
|
|||
|
|
537261401
537261401
|
|||
|
|
537261501
537261501
|
|||
|
|
537291602
537291602
|
|||
|
|
537291702
537291702
|
|||
|
|
537332101
537332101
|
|||
|
|
537359101
537359101
|
|||
|
|
721116430
721116430
|

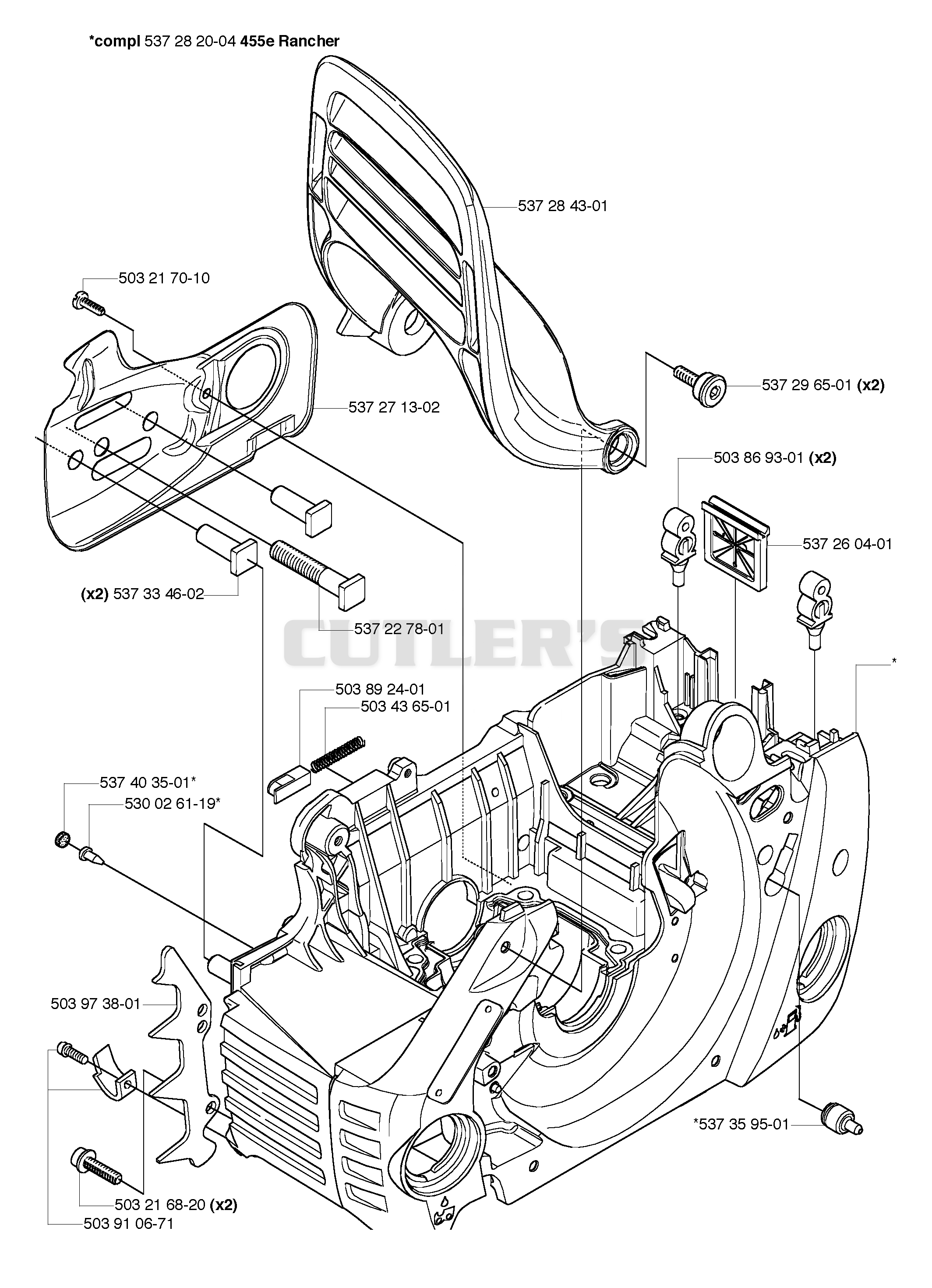

Crankcase
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503216820
503216820
|
|||
|
|
503217010
503217010
|
|||
|
|
503436501
503436501
|
|||
|
|
503869301
503869301
|
|||
|
|
503892401
503892401
|
|||
|
|
503910671
503910671
|
|||
|
|
503973801
503973801
|
|||
|
|
530026119
530026119
|
|||
|
|
537227801
537227801
|
|||
|
|
537260401
537260401
|
|||
|
|
537271302
537271302
|
|||
|
|
537282004
537282004
|
|||
|
|
537284301
537284301
|
|||
|
|
537296501
537296501
|
|||
|
|
537334602
537334602
|
|||
|
|
537359501
537359501
|
|||
|
|
537403501
537403501
|
Crankshaft
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501861801
501861801
|
|||
|
|
503251601
503251601
|
|||
|
|
503251602
503251602
|
|||
|
|
503261901
503261901
|
|||
|
|
537314002
537314002
|
Fuel System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503217412
503217412
|
|||
|
|
503226902
503226902
|
|||
|
|
503443201
503443201
|
|||
|
|
503577602
503577602
|
|||
|
|
503578901
503578901
|
|||
|
|
503735801
503735801
|
|||
|
|
503936601
503936601
|
|||
|
|
537042402
537042402
|
|||
|
|
537042408
537042408
|
|||
|
|
537215001
537215001
|
|||
|
|
537215202
537215202
|
|||
|
|
537240801
537240801
|
|||
|
|
537278001
537278001
|
|||
|
|
537317901
537317901
|

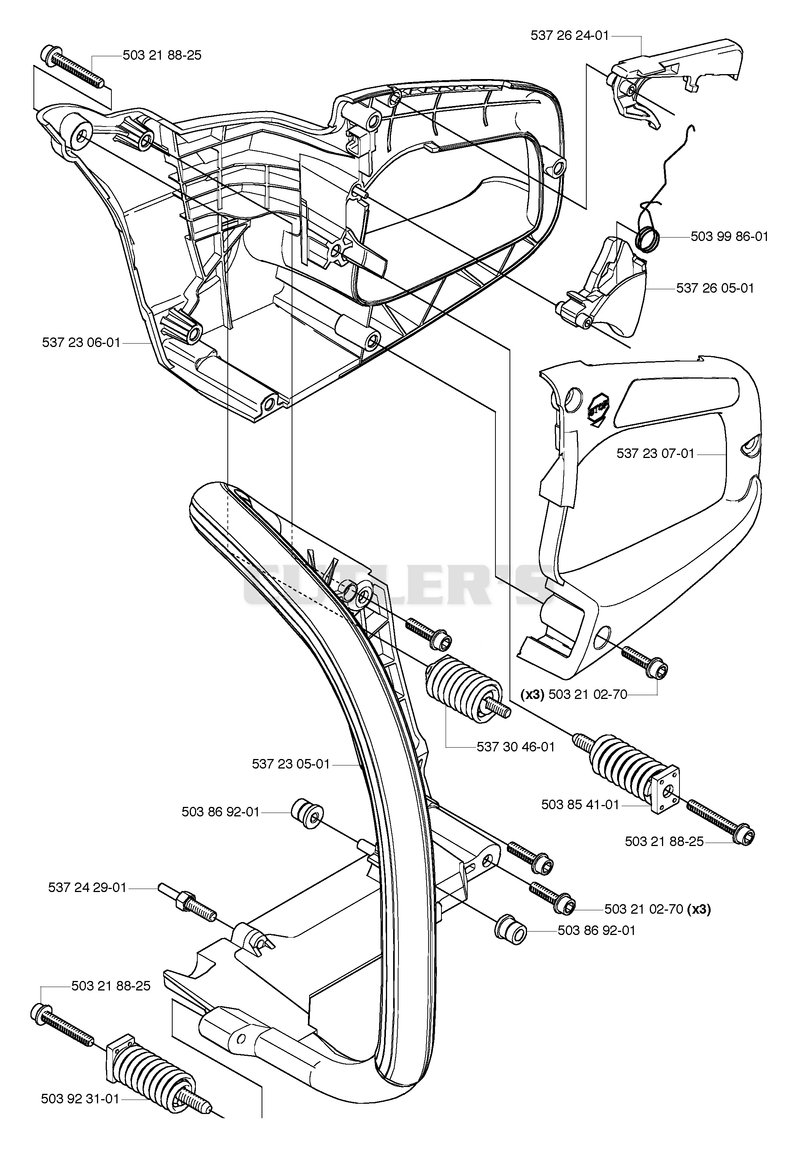

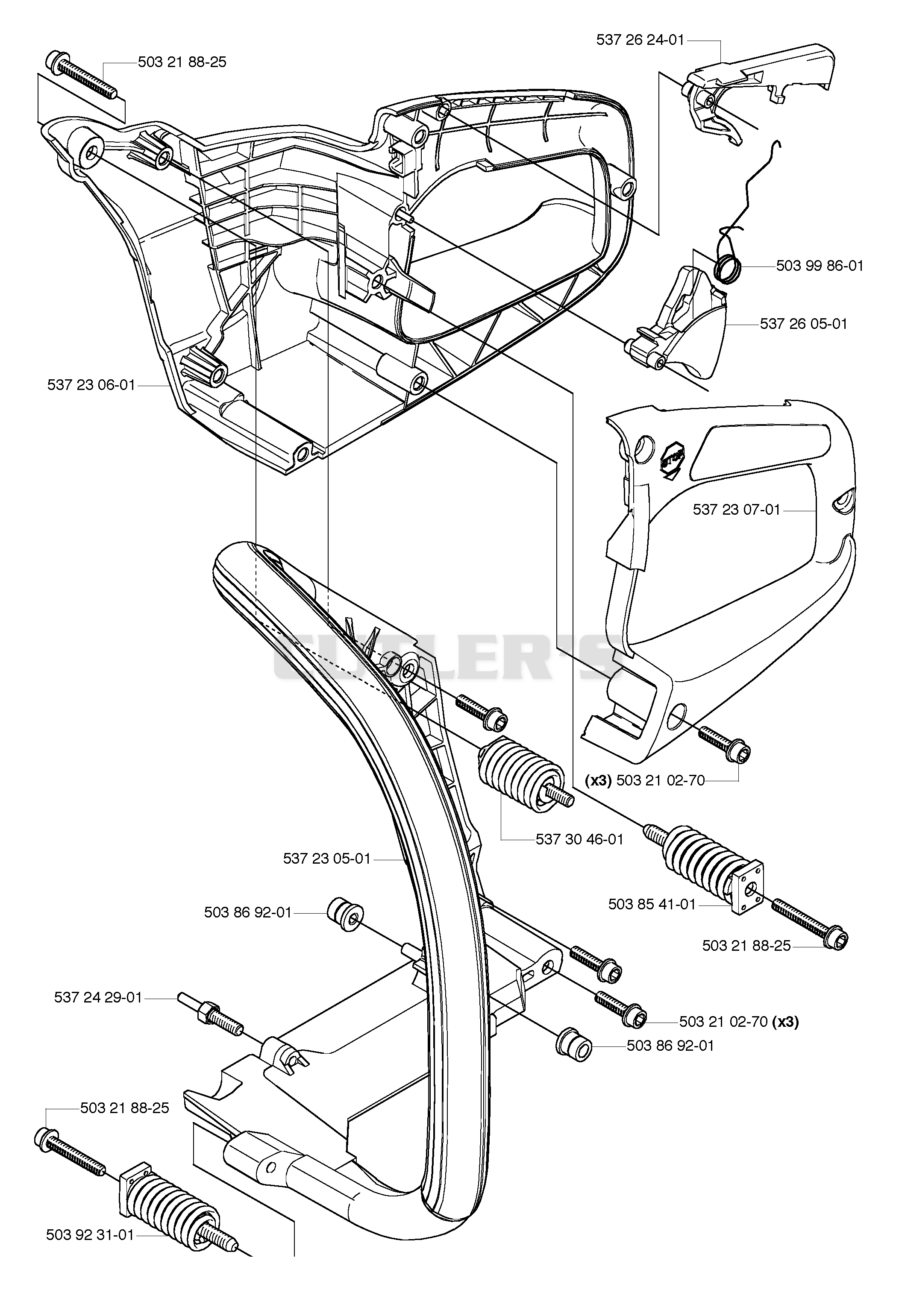

Handles / Throttle
Handles / Throttle
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503210270
503210270
|
|||
|
|
503218825
503218825
|
|||
|
|
503854101
503854101
|
|||
|
|
503869201
503869201
|
|||
|
|
503923101
503923101
|
|||
|
|
503998601
503998601
|
|||
|
|
537230501
537230501
|
|||
|
|
537230601
537230601
|
|||
|
|
537230701
537230701
|
|||
|
|
537242901
537242901
|
|||
|
|
537260501
537260501
|
|||
|
|
537262401
537262401
|
|||
|
|
537304601
537304601
|

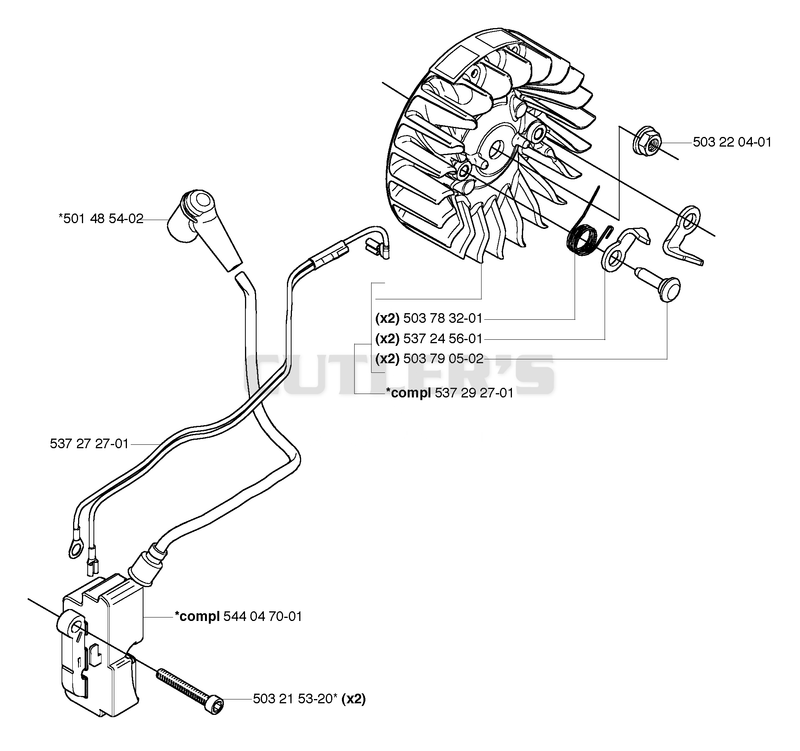

Ignition / Flywheel
Ignition / Flywheel
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501485402
501485402
|
|||
|
|
503215320
503215320
|
|||
|
|
503220401
503220401
|
|||
|
|
503783201
503783201
|
|||
|
|
503790502
503790502
|
|||
|
|
537245601
537245601
|
|||
|
|
537272701
537272701
|
|||
|
|
537292701
537292701
|
|||
|
|
544047001
544047001
|
Muffler
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
537251502
537251502
|
|||
|
|
537252301
537252301
|
|||
|
|
537287601
537287601
|
|||
|
|
537287701
537287701
|
|||
|
|
725536855
725536855
|

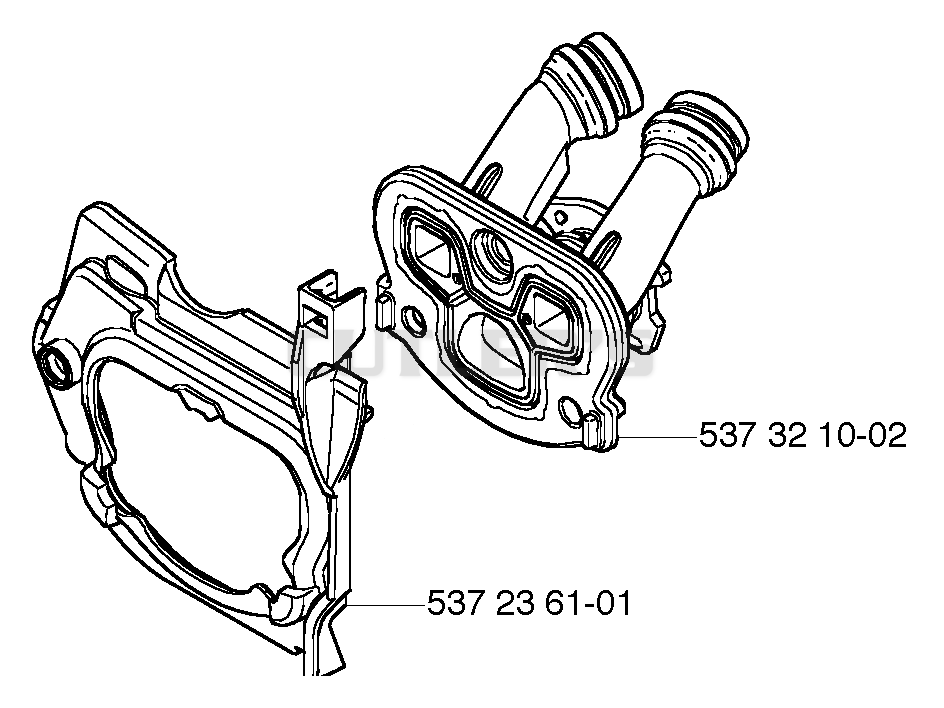

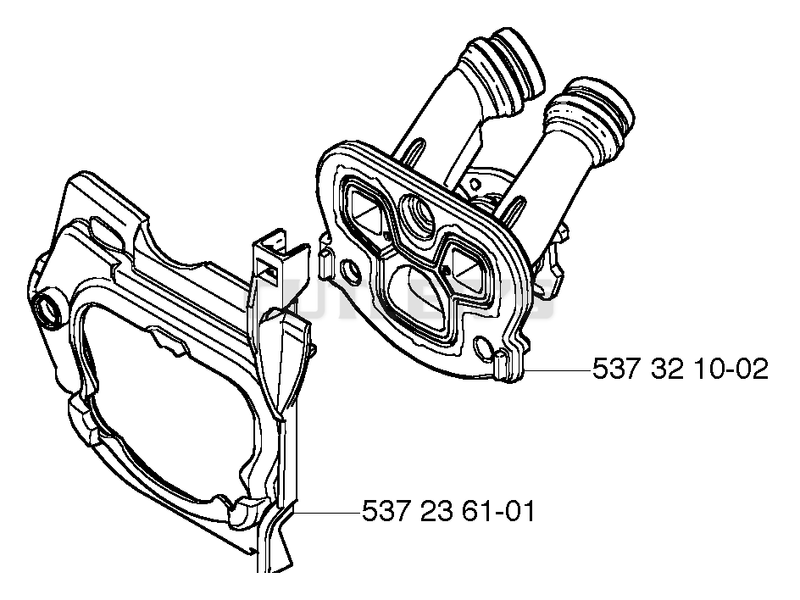

Service Variations
Service Variations
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
537236101
537236101
|
|||
|
|
537321002
537321002
|

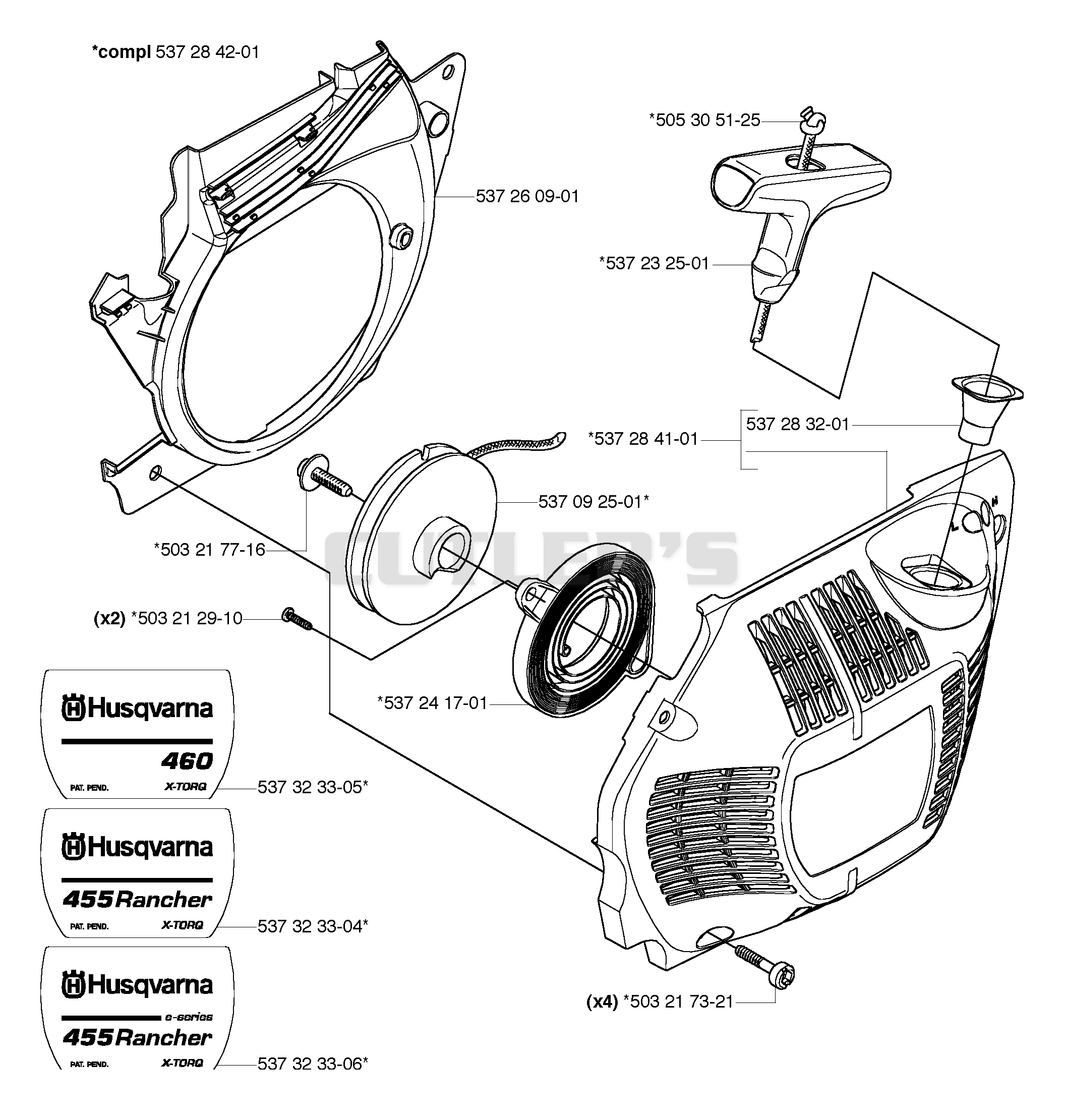

Starter
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503212910
503212910
|
|||
|
|
503217321
503217321
|
|||
|
|
503217716
503217716
|
|||
|
|
505305125
505305125
|
|||
|
|
537092501
537092501
|
|||
|
|
537232501
537232501
|
|||
|
|
537241701
537241701
|
|||
|
|
537260901
537260901
|
|||
|
|
537283201
537283201
|
|||
|
|
537284101
537284101
|
|||
|
|
537284201
537284201
|
|||
|
|
537323304
537323304
|
|||
|
|
537323305
537323305
|
|||
|
|
537323306
537323306
|
Top Cover
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503203430
503203430
|
|||
|
|
503987401
503987401
|
|||
|
|
537308901
537308901
|
Winter Kit
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503217016
503217016
|
|||
|
|
503405901
503405901
|
|||
|
|
537255701
537255701
|
|||
|
|
537356001
537356001
|
