HUSQVARNA 524LK Parts Diagram
Diagrams:
Diagram:

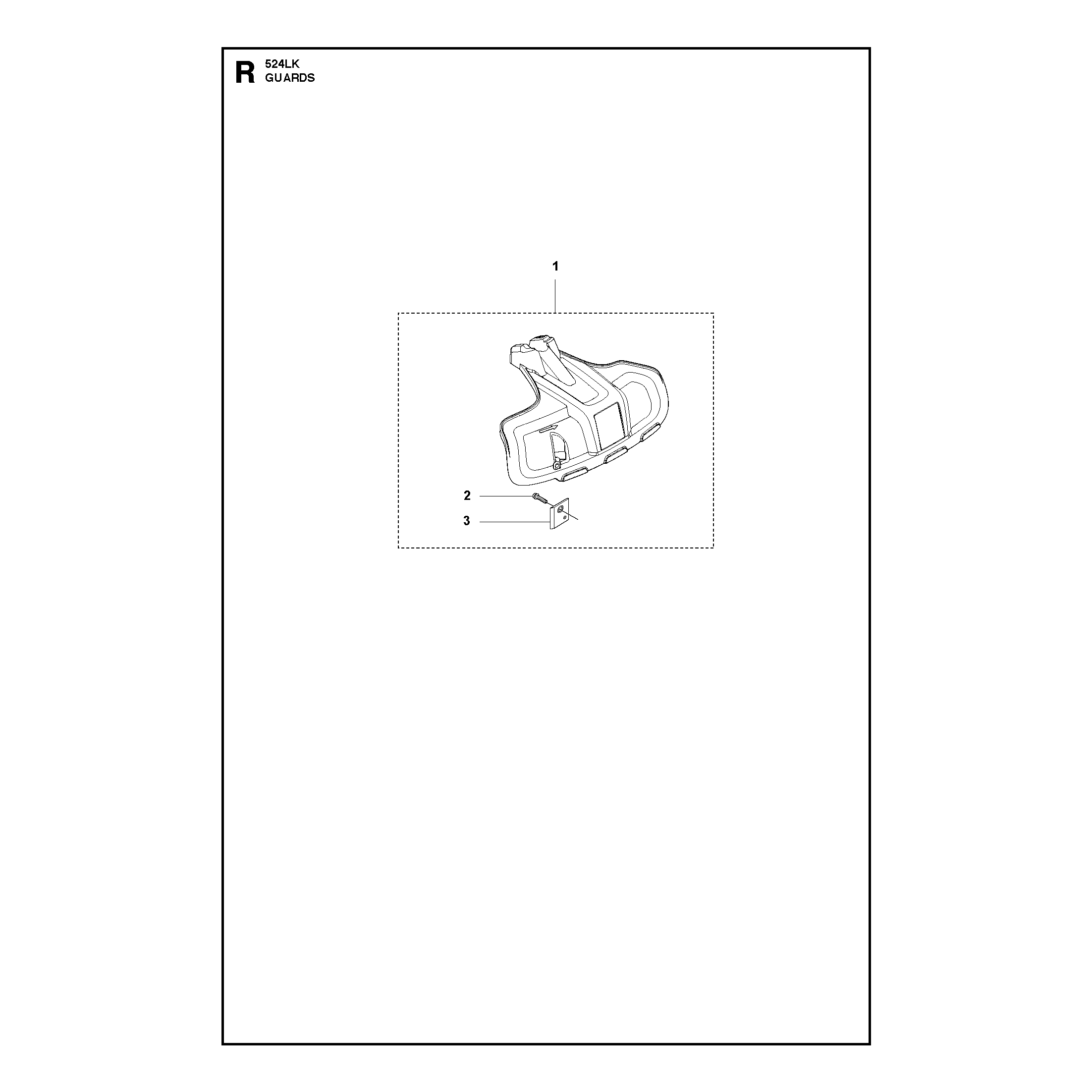

GUARDS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
588543701
588543701
|
|||
|
|
503210716
503210716
|
|||
|
|
503798802
503798802
|

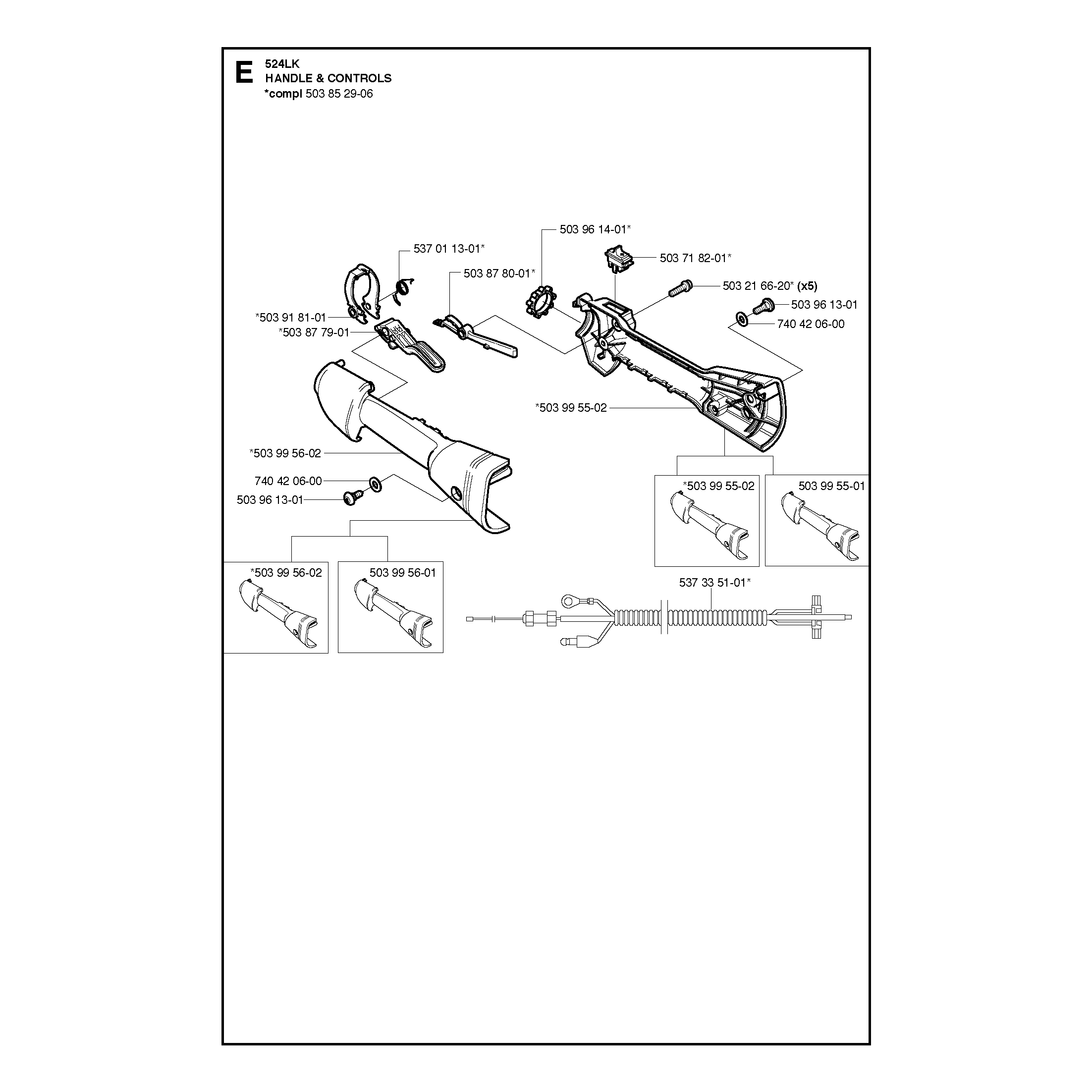

HANDLE AND CONTROLS
HANDLE AND CONTROLS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503852906
503852906
|
|||
|
|
537011301
537011301
|
|||
|
|
503878001
503878001
|
|||
|
|
503918101
503918101
|
|||
|
|
503877901
503877901
|
|||
|
|
503995602
503995602
|
|||
|
|
740420600
740420600
|
|||
|
|
503961301
503961301
|
|||
|
|
503995601
503995601
|
|||
|
|
503961401
503961401
|
|||
|
|
503718201
503718201
|
|||
|
|
503216620
503216620
|
|||
|
|
503995502
503995502
|
|||
|
|
503995501
503995501
|
|||
|
|
537335101
537335101
|

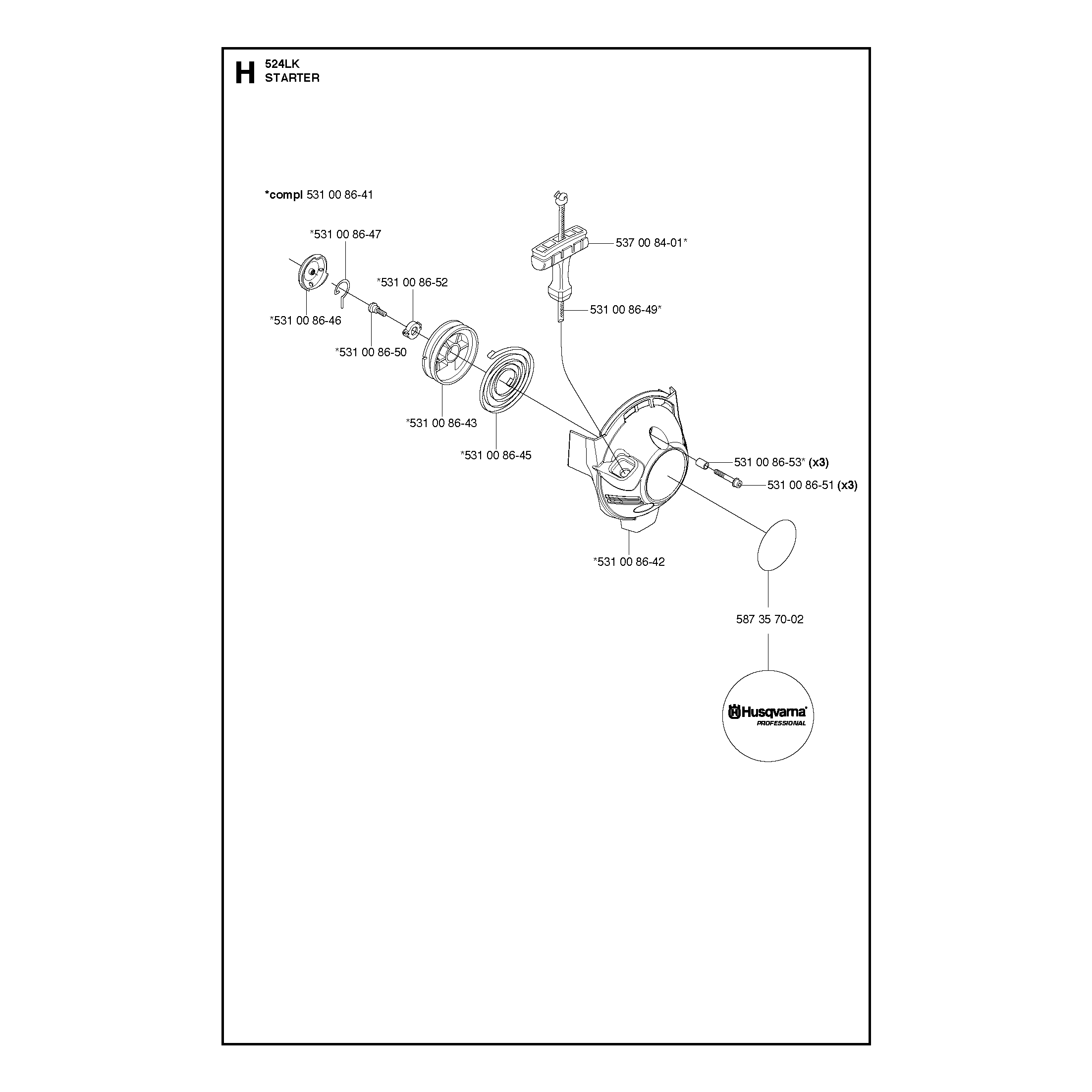

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008641
531008641
|
|||
|
|
531008647
531008647
|
|||
|
|
531008652
531008652
|
|||
|
|
531008646
531008646
|
|||
|
|
531008650
531008650
|
|||
|
|
531008643
531008643
|
|||
|
|
531008645
531008645
|
|||
|
|
537008401
537008401
|
|||
|
|
531008649
531008649
|
|||
|
|
531008653
531008653
|
|||
|
|
531008651
531008651
|
|||
|
|
531008642
531008642
|
|||
|
|
587357002
587357002
|

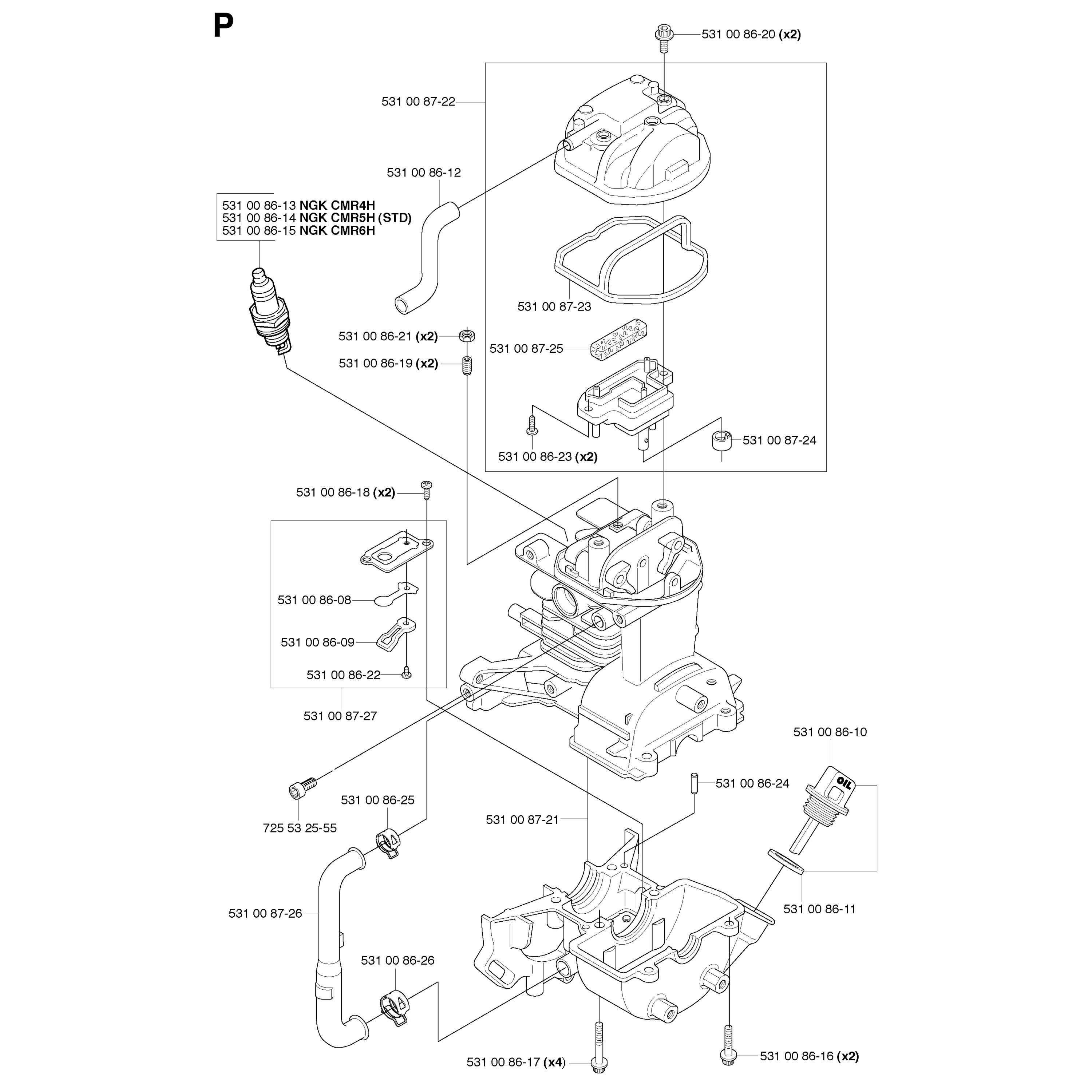

CYLINDER AND CRANKCASE
CYLINDER AND CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008620
531008620
|
|||
|
|
531008722
531008722
|
|||
|
|
531008612
531008612
|
|||
|
|
531008613
531008613
|
|||
|
|
531008614
531008614
|
|||
|
|
531008615
531008615
|
|||
|
|
531008723
531008723
|
|||
|
|
531008621
531008621
|
|||
|
|
531008619
531008619
|
|||
|
|
531008725
531008725
|
|||
|
|
531008724
531008724
|
|||
|
|
531008623
531008623
|
|||
|
|
531008618
531008618
|
|||
|
|
531008608
531008608
|
|||
|
|
531008609
531008609
|
|||
|
|
531008622
531008622
|
|||
|
|
531008727
531008727
|
|||
|
|
531008610
531008610
|
|||
|
|
531008624
531008624
|
|||
|
|
531008625
531008625
|
|||
|
|
725532555
725532555
|
|||
|
|
531008726
531008726
|
|||
|
|
531008626
531008626
|
|||
|
|
531008617
531008617
|
|||
|
|
531008721
531008721
|
|||
|
|
531008611
531008611
|
|||
|
|
531008616
531008616
|

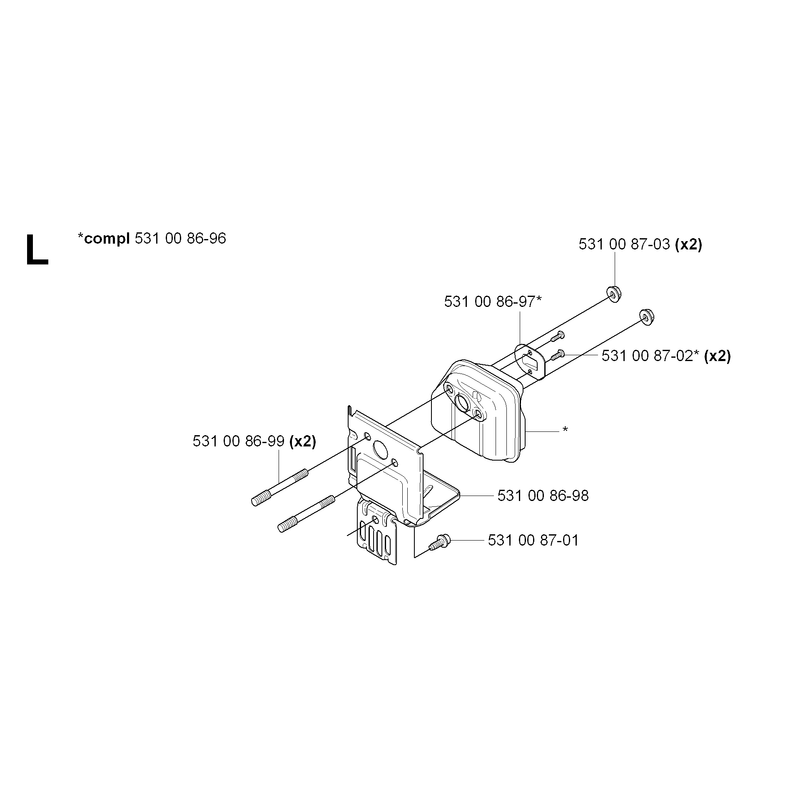

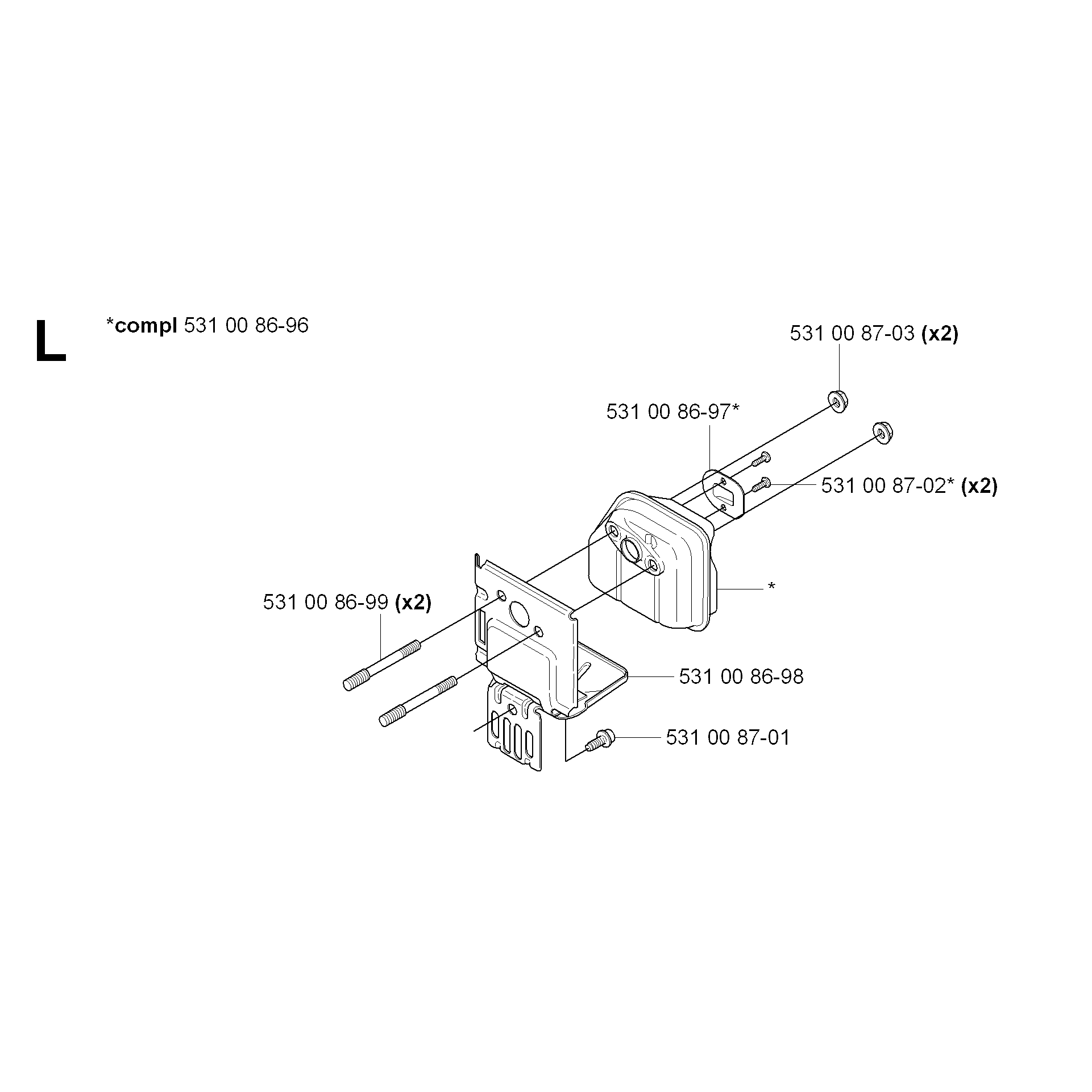

MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008696
531008696
|
|||
|
|
531008699
531008699
|
|||
|
|
531008703
531008703
|
|||
|
|
531008697
531008697
|
|||
|
|
531008702
531008702
|
|||
|
|
531008698
531008698
|
|||
|
|
531008701
531008701
|

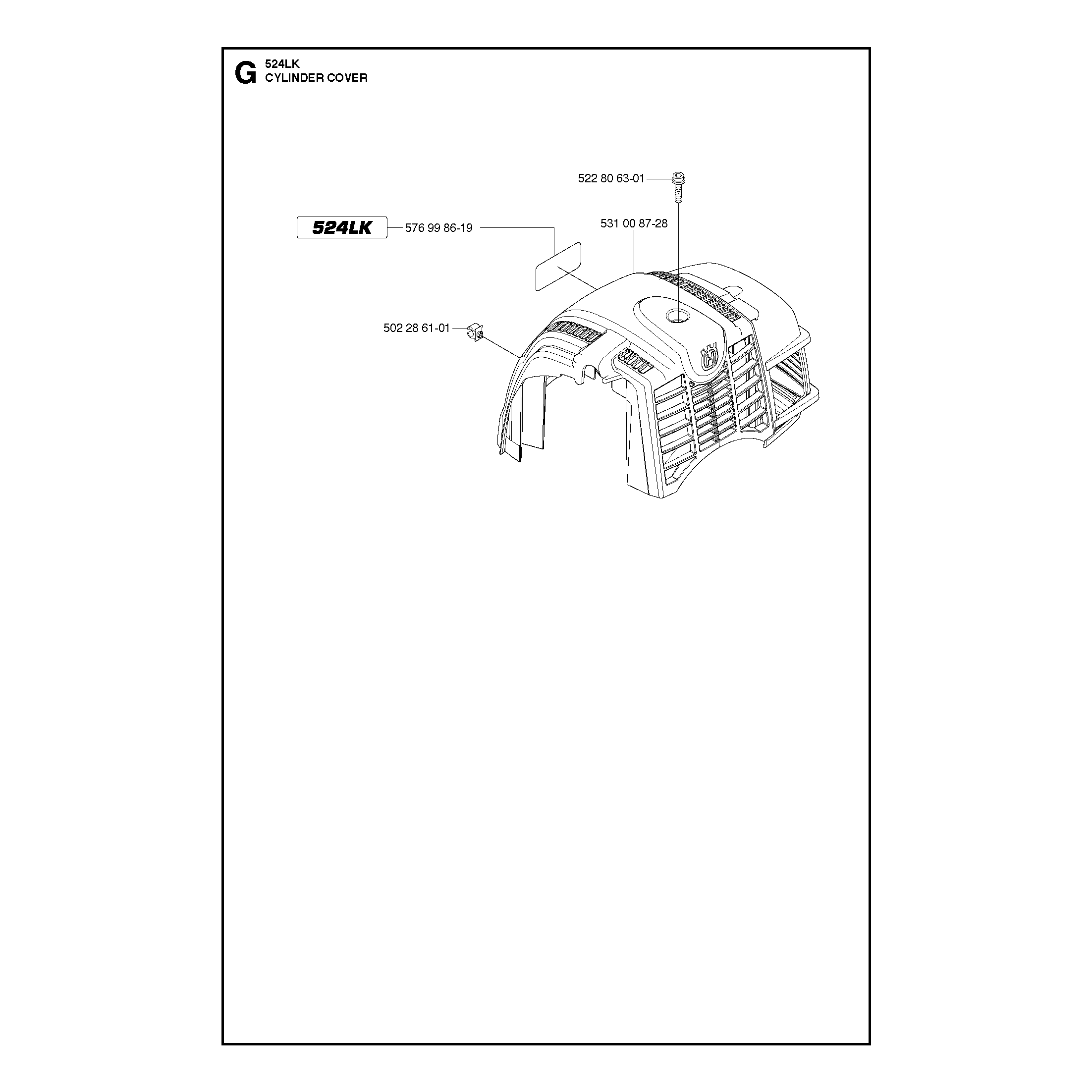

CYLINDER COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
522806301
522806301
|
|||
|
|
531008728
531008728
|
|||
|
|
502286101
502286101
|
|||
|
|
576998619
576998619
|

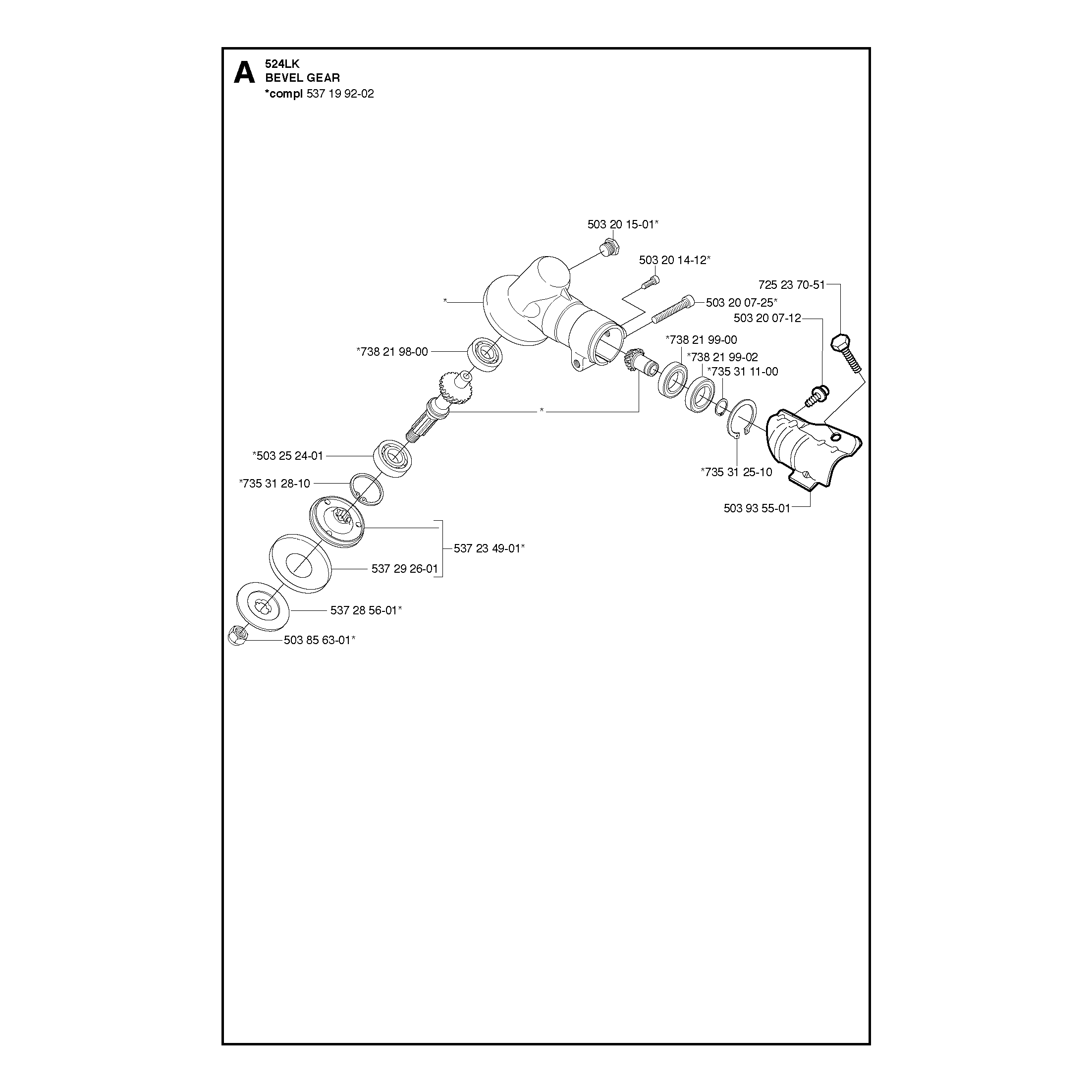

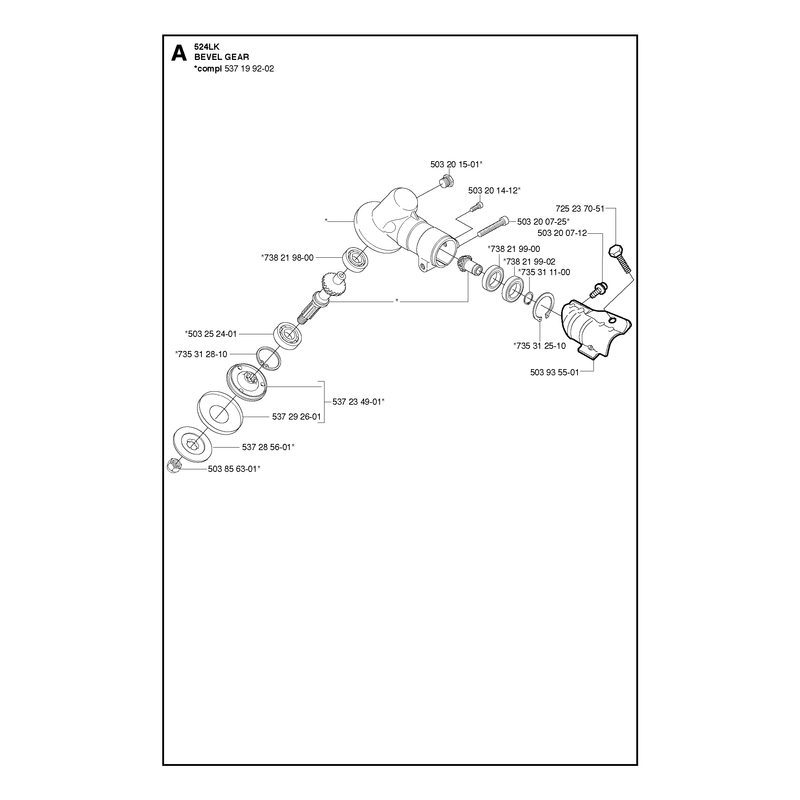

BEVEL GEAR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
537199202
537199202
|
|||
|
|
738219800
738219800
|
|||
|
|
503252401
503252401
|
|||
|
|
735312810
735312810
|
|||
|
|
537234901
537234901
|
|||
|
|
537292601
537292601
|
|||
|
|
537285601
537285601
|
|||
|
|
503856301
503856301
|
|||
|
|
503201501
503201501
|
|||
|
|
503201412
503201412
|
|||
|
|
725237051
725237051
|
|||
|
|
503200725
503200725
|
|||
|
|
503200712
503200712
|
|||
|
|
738219900
738219900
|
|||
|
|
738219902
738219902
|
|||
|
|
735311100
735311100
|
|||
|
|
735312510
735312510
|
|||
|
|
503935501
503935501
|

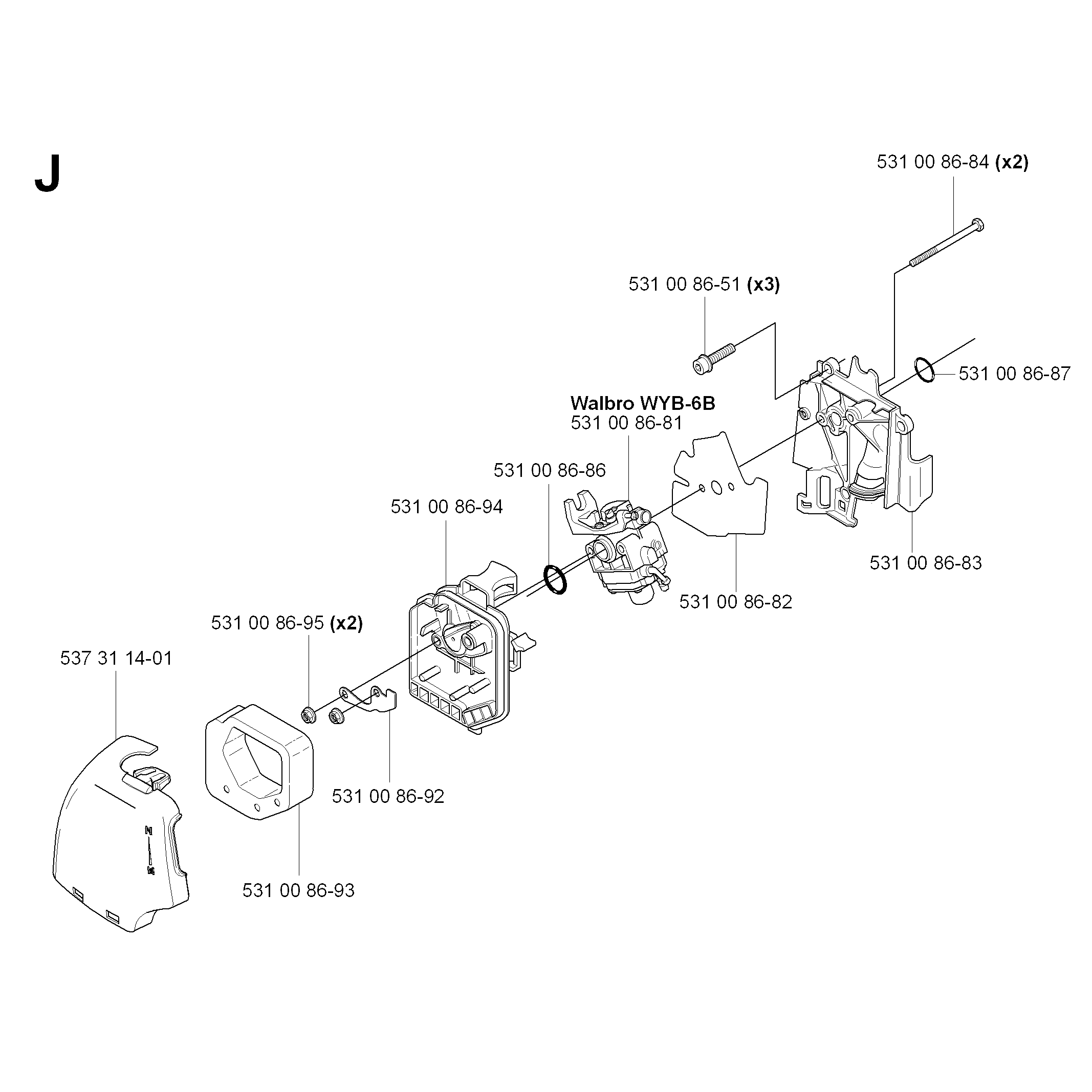

CARBURETOR AND AIR FILTER
CARBURETOR AND AIR FILTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008684
531008684
|
|||
|
|
531008651
531008651
|
|||
|
|
531008687
531008687
|
|||
|
|
531008681
531008681
|
|||
|
|
531008686
531008686
|
|||
|
|
531008694
531008694
|
|||
|
|
531008695
531008695
|
|||
|
|
537311401
537311401
|
|||
|
|
531008692
531008692
|
|||
|
|
531008693
531008693
|
|||
|
|
531008682
531008682
|
|||
|
|
531008683
531008683
|

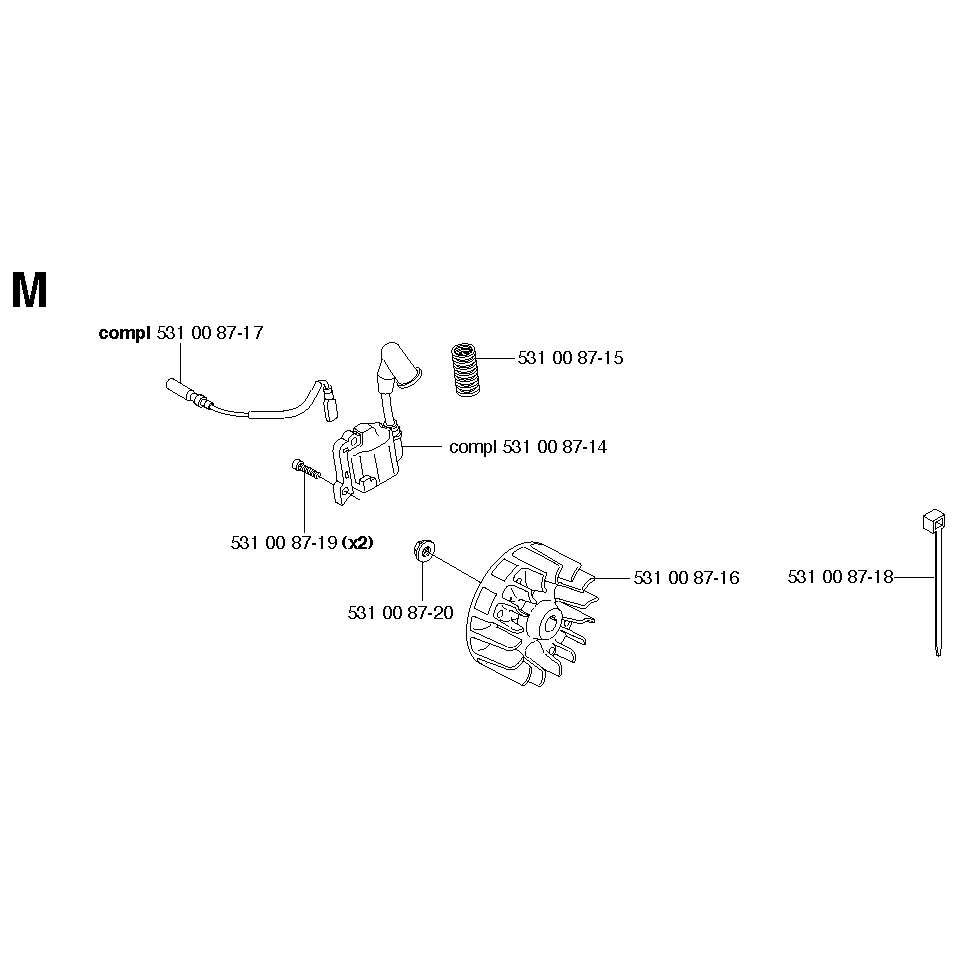

IGNITION SYSTEM
IGNITION SYSTEM
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008717
531008717
|
|||
|
|
531008715
531008715
|
|||
|
|
531008714
531008714
|
|||
|
|
531008719
531008719
|
|||
|
|
531008720
531008720
|
|||
|
|
531008716
531008716
|
|||
|
|
531008718
531008718
|

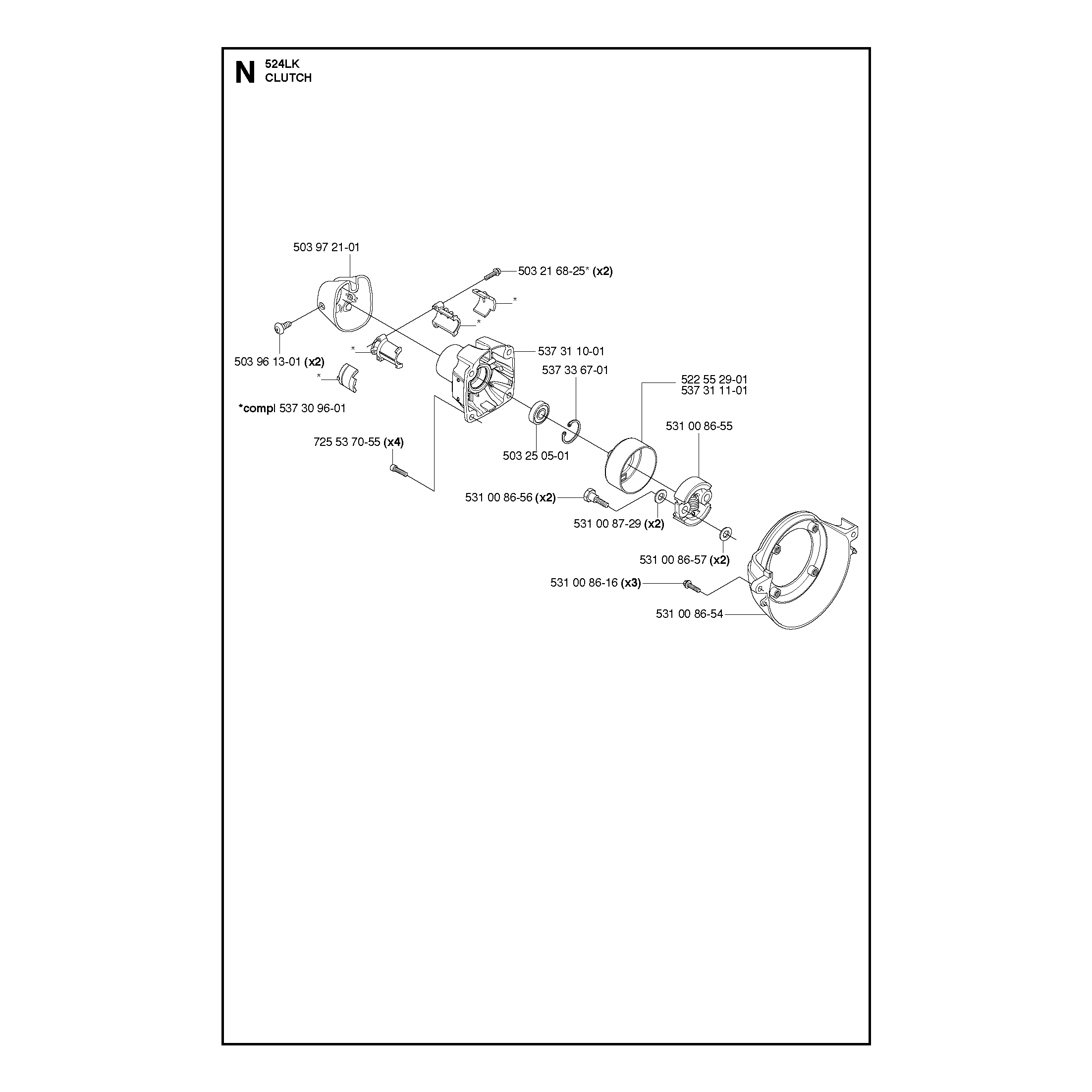

CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503972101
503972101
|
|||
|
|
503961301
503961301
|
|||
|
|
537309601
537309601
|
|||
|
|
725537055
725537055
|
|||
|
|
503216825
503216825
|
|||
|
|
537311001
537311001
|
|||
|
|
537336701
537336701
|
|||
|
|
503250501
503250501
|
|||
|
|
531008656
531008656
|
|||
|
|
531008729
531008729
|
|||
|
|
531008657
531008657
|
|||
|
|
531008616
531008616
|
|||
|
|
531008654
531008654
|
|||
|
|
522552901
522552901
|
|||
|
|
537311101
537311101
|
|||
|
|
531008655
531008655
|

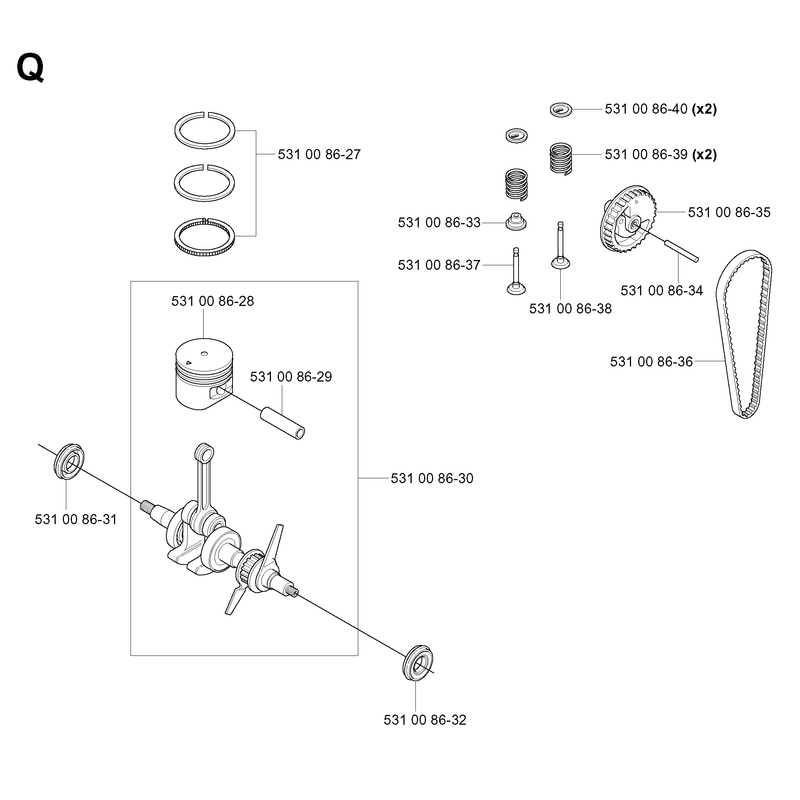

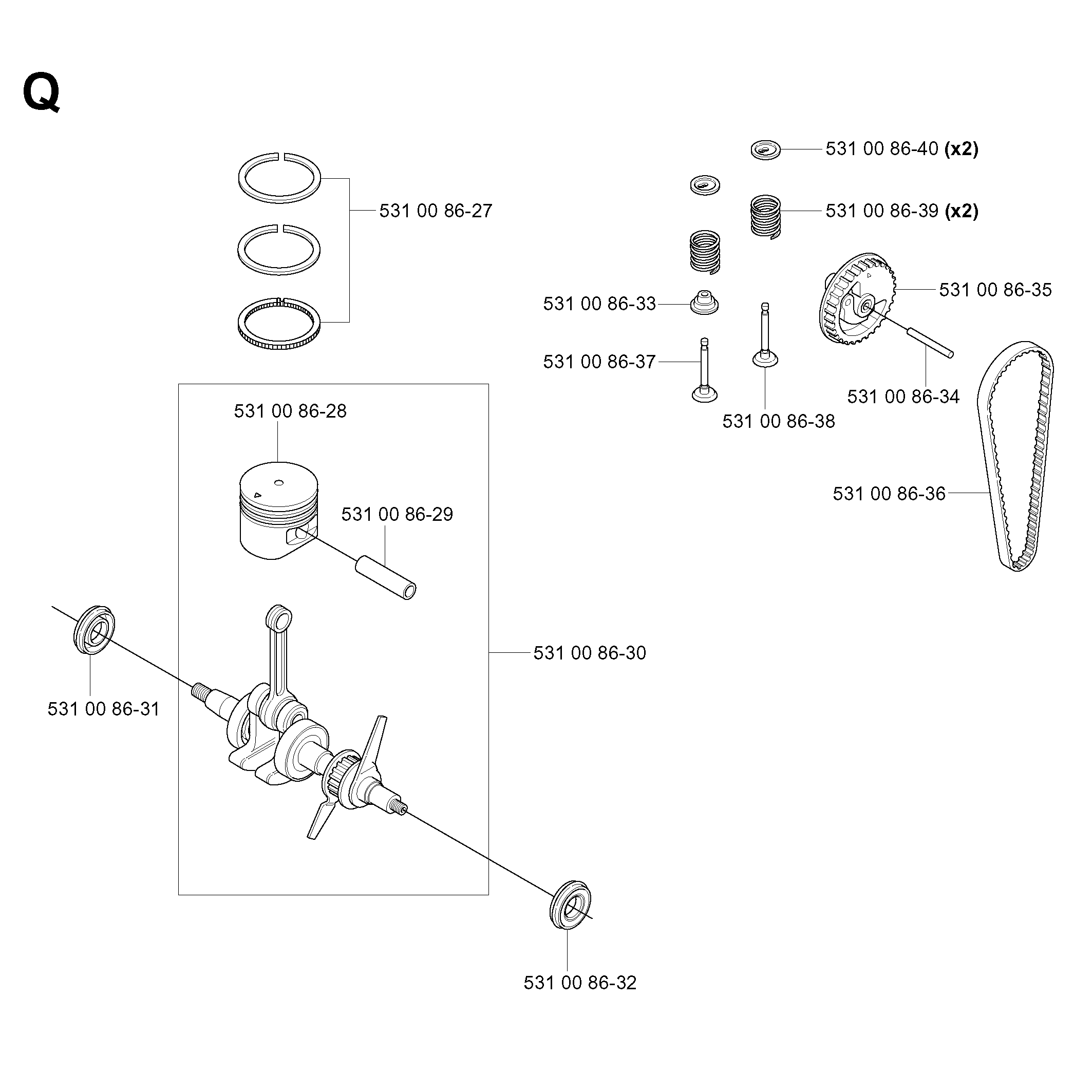

PISTON AND CRANKSHAFT
PISTON AND CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008627
531008627
|
|||
|
|
531008628
531008628
|
|||
|
|
531008629
531008629
|
|||
|
|
531008631
531008631
|
|||
|
|
531008630
531008630
|
|||
|
|
531008632
531008632
|
|||
|
|
531008633
531008633
|
|||
|
|
531008637
531008637
|
|||
|
|
531008638
531008638
|
|||
|
|
531008640
531008640
|
|||
|
|
531008639
531008639
|
|||
|
|
531008635
531008635
|
|||
|
|
531008634
531008634
|
|||
|
|
531008636
531008636
|

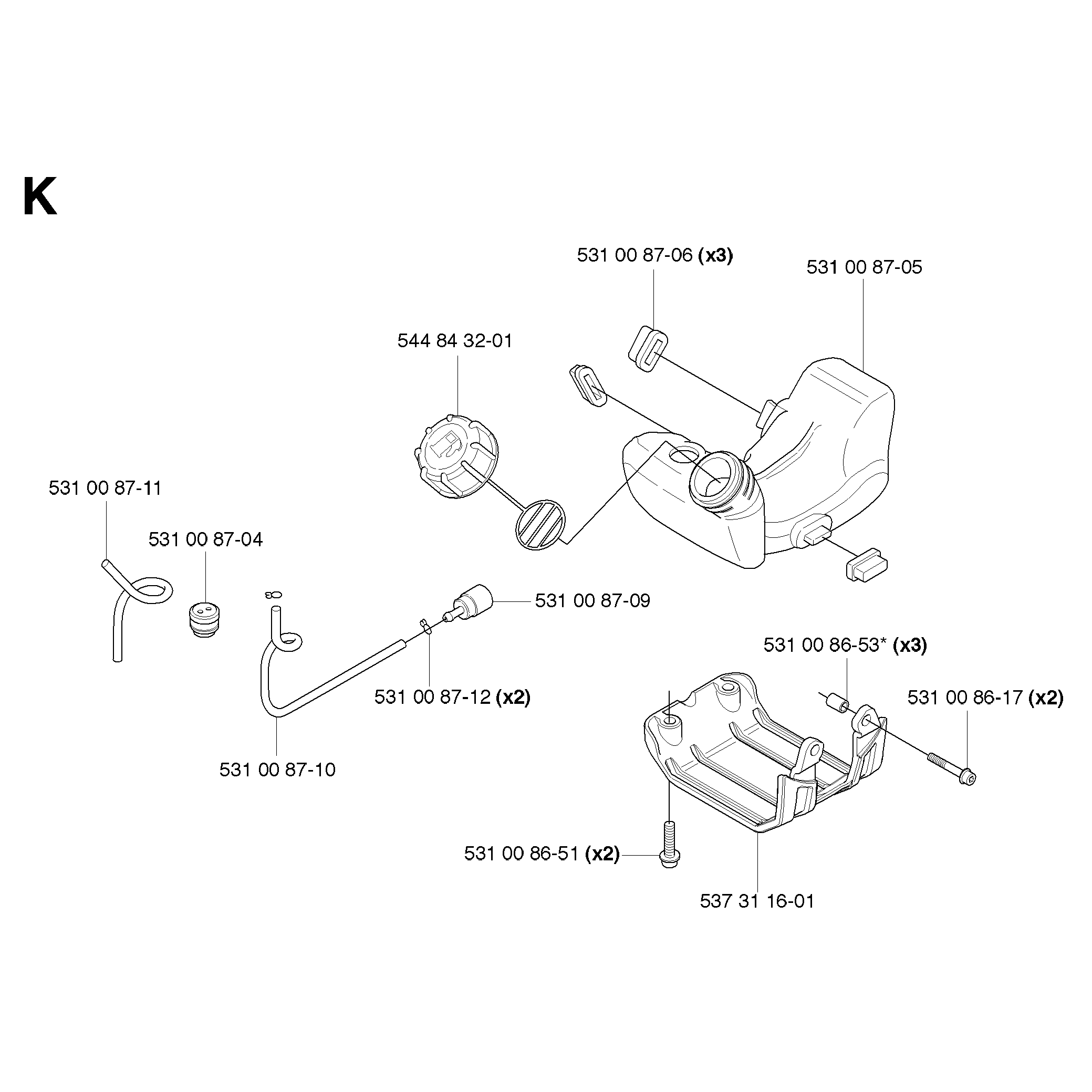

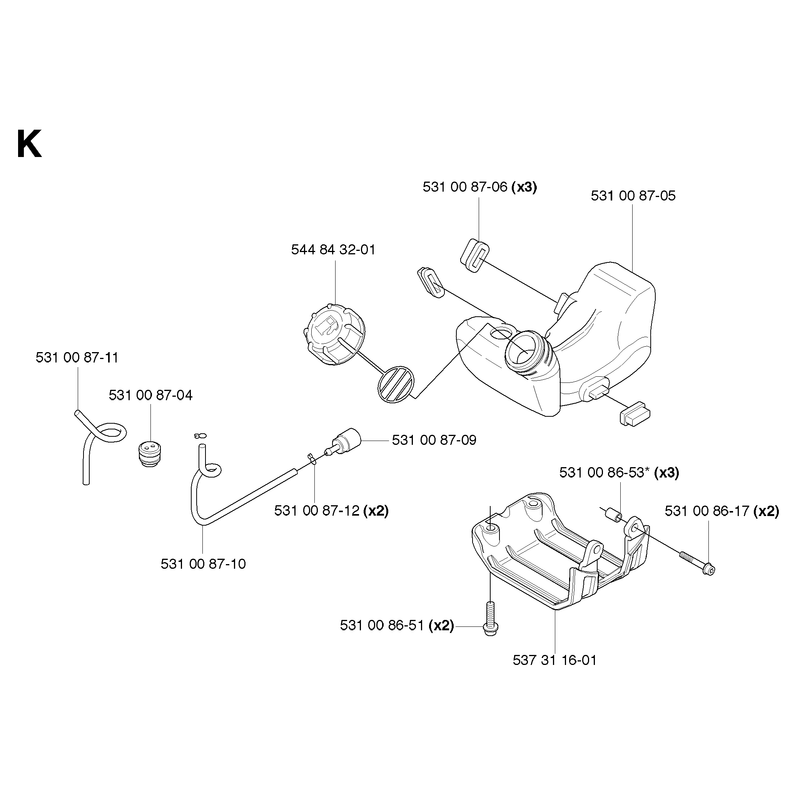

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008706
531008706
|
|||
|
|
544843201
544843201
|
|||
|
|
531008705
531008705
|
|||
|
|
531008711
531008711
|
|||
|
|
531008704
531008704
|
|||
|
|
531008709
531008709
|
|||
|
|
531008653
531008653
|
|||
|
|
531008712
531008712
|
|||
|
|
531008710
531008710
|
|||
|
|
531008651
531008651
|
|||
|
|
537311601
537311601
|
|||
|
|
531008617
531008617
|

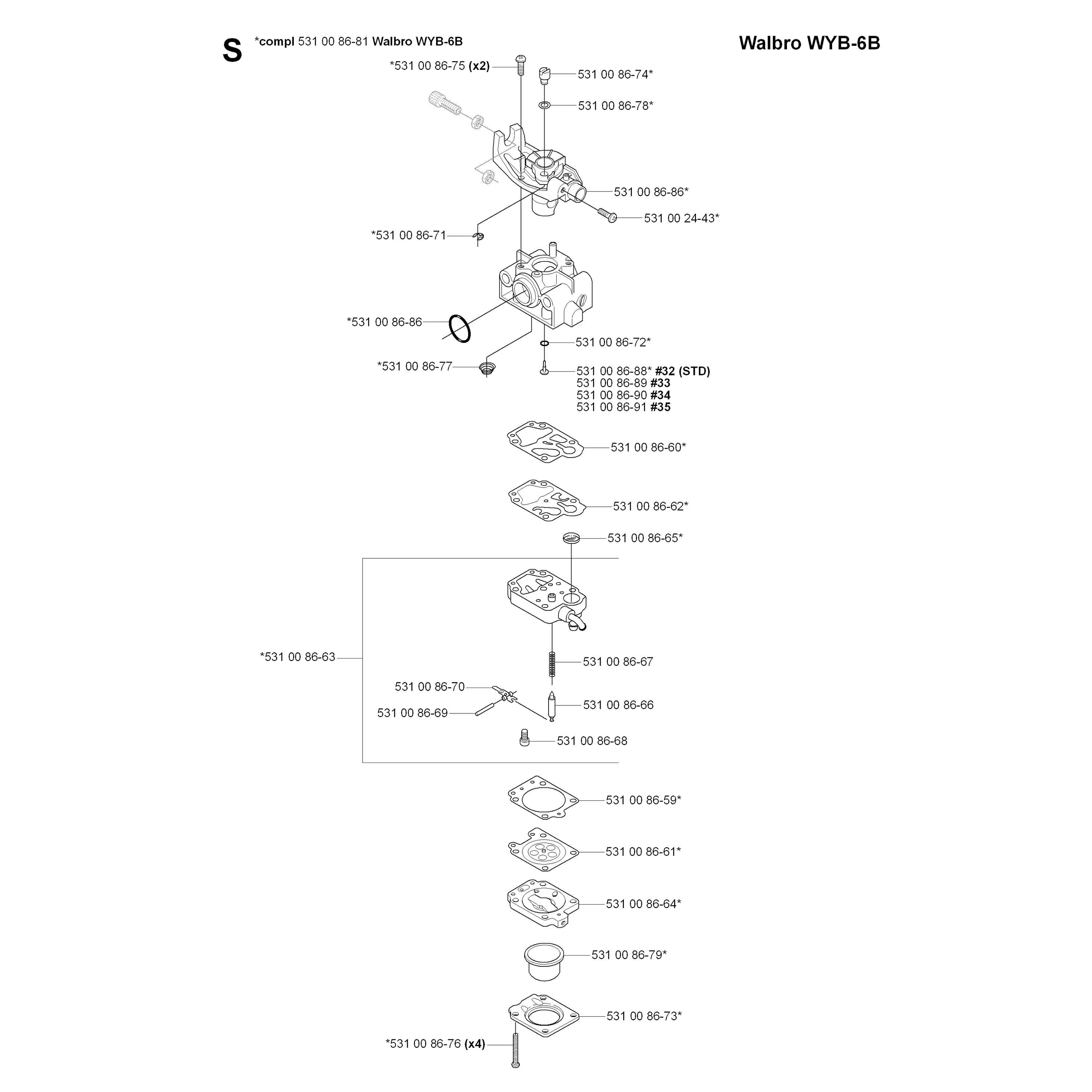

CARBURETOR DETAILS
CARBURETOR DETAILS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
531008681
531008681
|
|||
|
|
544193301
544193301
|
|||
|
|
531008675
531008675
|
|||
|
|
531008674
531008674
|
|||
|
|
531008678
531008678
|
|||
|
|
531008671
531008671
|
|||
|
|
531002443
531002443
|
|||
|
|
531008686
531008686
|
|||
|
|
531008677
531008677
|
|||
|
|
531008672
531008672
|
|||
|
|
531008688
531008688
|
|||
|
|
531008689
531008689
|
|||
|
|
531008690
531008690
|
|||
|
|
531008691
531008691
|
|||
|
|
531008660
531008660
|
|||
|
|
531008662
531008662
|
|||
|
|
531008665
531008665
|
|||
|
|
531008663
531008663
|
|||
|
|
531008670
531008670
|
|||
|
|
531008669
531008669
|
|||
|
|
531008667
531008667
|
|||
|
|
531008666
531008666
|
|||
|
|
531008668
531008668
|
|||
|
|
531008659
531008659
|
|||
|
|
531008661
531008661
|
|||
|
|
531008664
531008664
|
|||
|
|
531008679
531008679
|
|||
|
|
531008673
531008673
|
|||
|
|
531008676
531008676
|

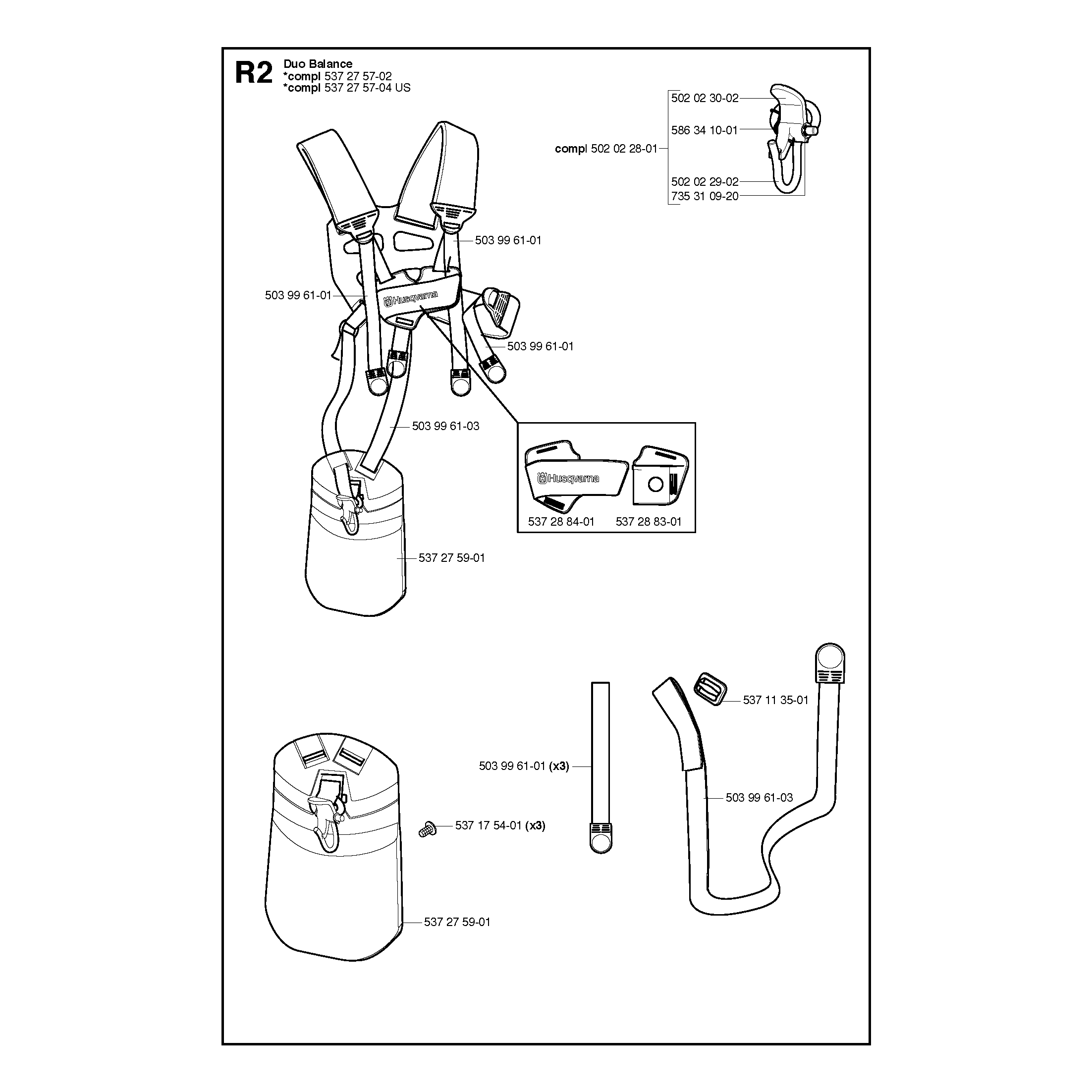

HARNESS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503996103
503996103
|
|||
|
|
537275901
537275901
|
|||
|
|
537288401
537288401
|
|||
|
|
537288301
537288301
|
|||
|
|
502022801
502022801
|
|||
|
|
502023002
502023002
|
|||
|
|
586341001
586341001
|
|||
|
|
502022902
502022902
|
|||
|
|
735310920
735310920
|
|||
|
|
503996101
503996101
|
|||
|
|
537175401
537175401
|
|||
|
|
537275901
537275901
|
|||
|
|
537113501
537113501
|
|||
|
|
503996103
503996103
|

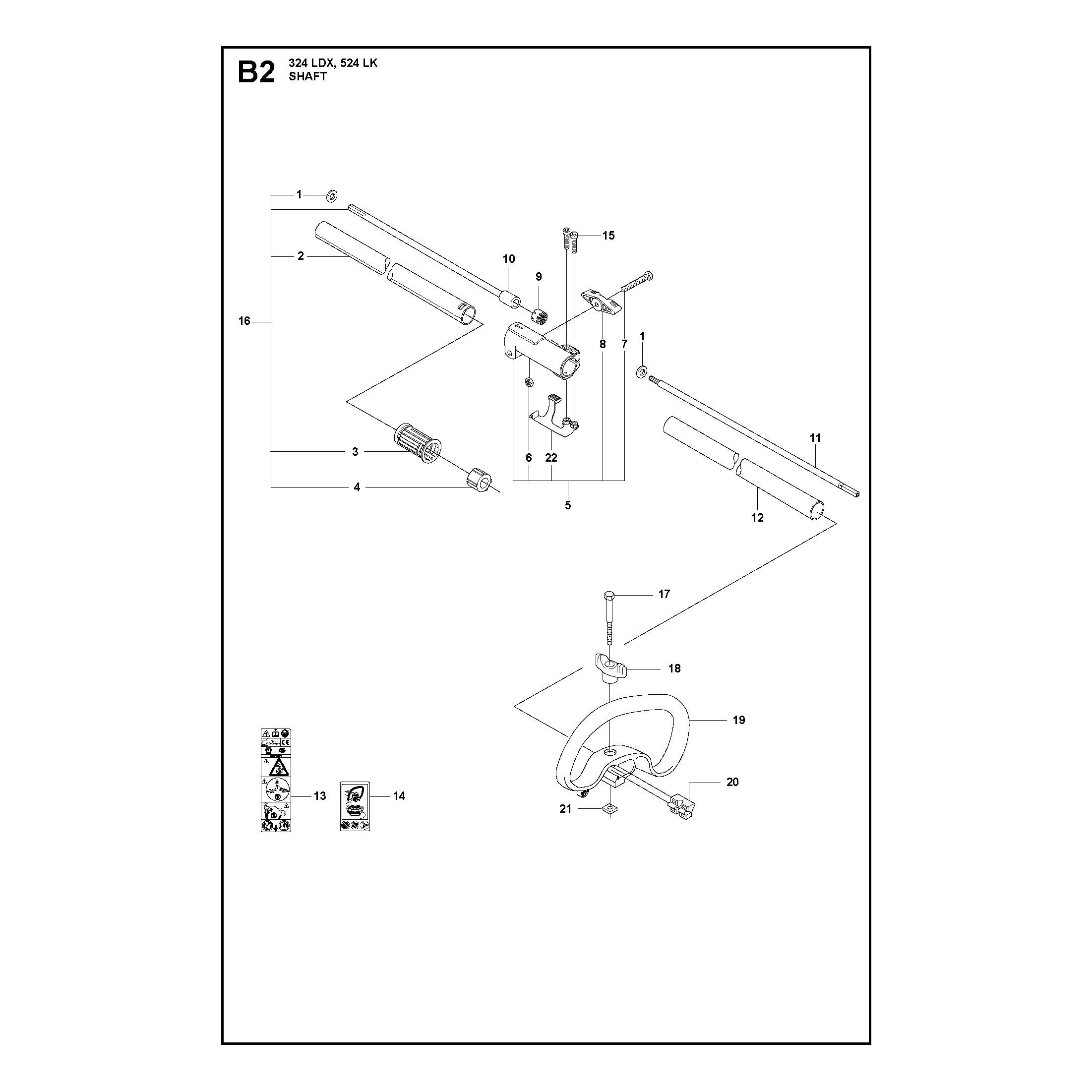

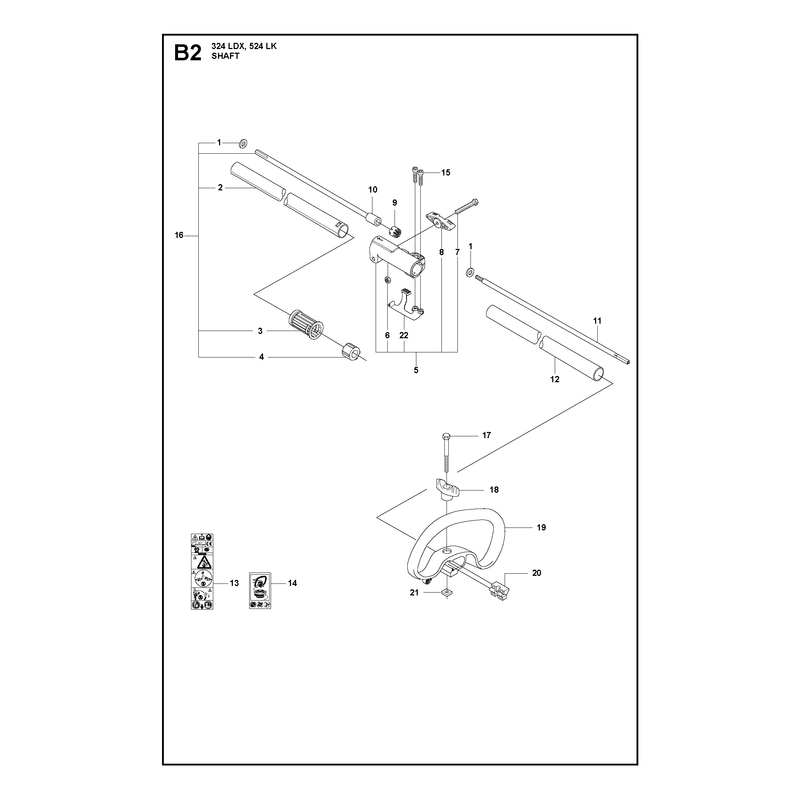

SHAFT AND HANDLE
SHAFT AND HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
735580810
735580810
|
|||
|
|
537082701
537082701
|
|||
|
|
587414601
587414601
|
|||
|
|
503785202
503785202
|
|||
|
|
576282602
576282602
|
|||
|
|
731231601
731231601
|
|||
|
|
725237601
725237601
|
|||
|
|
576282401
576282401
|
|||
|
|
583938301
583938301
|
|||
|
|
587411701
587411701
|
|||
|
|
537083001
537083001
|
|||
|
|
537234805
537234805
|
|||
|
|
587987901
587987901
|
|||
|
|
589295101
589295101
|
|||
|
|
503795601
503795601
|
|||
|
|
503200725
503200725
|
|||
|
|
587988101
587988101
|
|||
|
|
725238051
725238051
|
|||
|
|
503879001
503879001
|
|||
|
|
503871903
503871903
|
|||
|
|
503940301
503940301
|
|||
|
|
502197101
502197101
|
|||
|
|
576282301
576282301
|

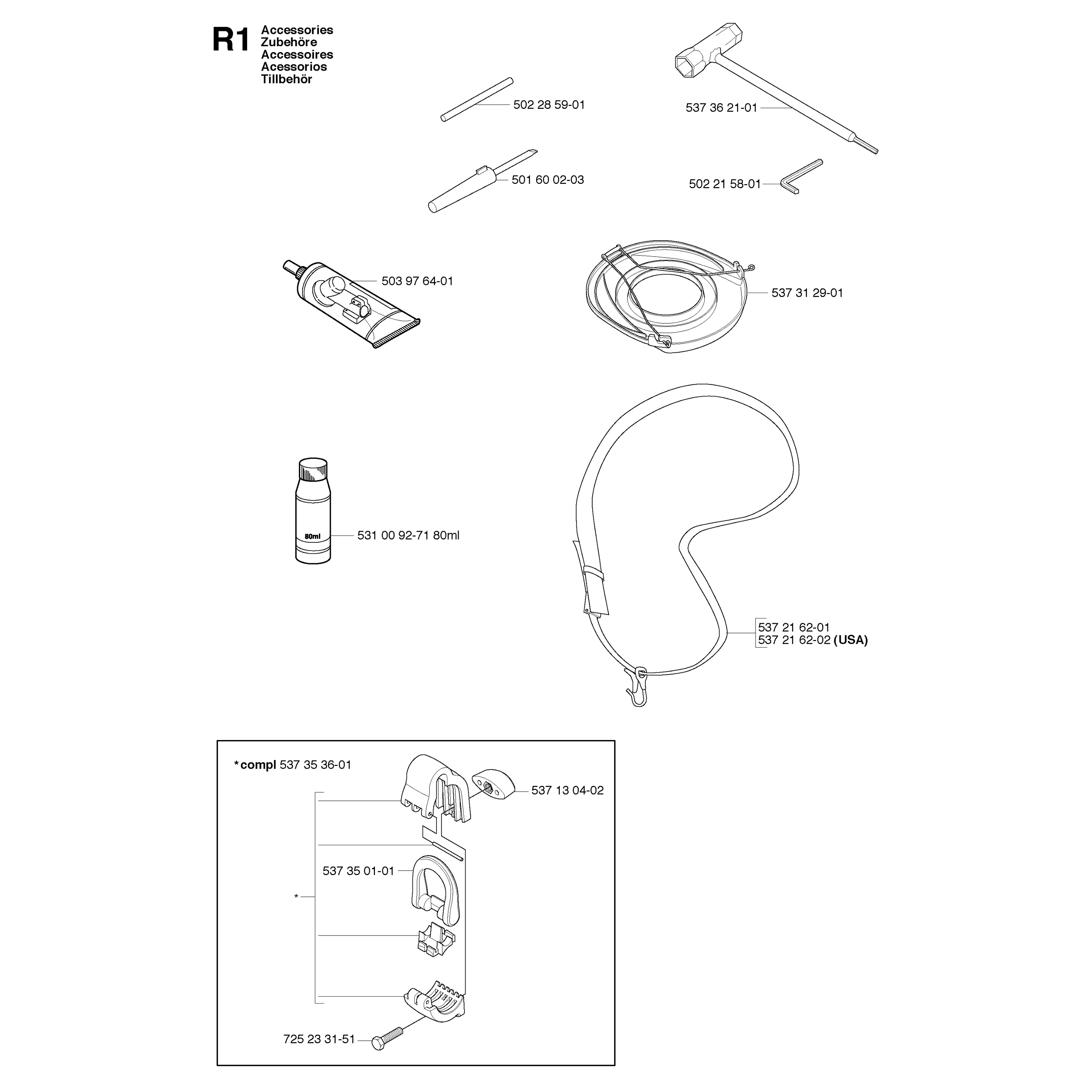

ACCESSORIES
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
502285901
502285901
|
|||
|
|
501600203
501600203
|
|||
|
|
537362101
537362101
|
|||
|
|
502215801
502215801
|
|||
|
|
537312901
537312901
|
|||
|
|
537353601
537353601
|
|||
|
|
537130402
537130402
|
|||
|
|
537350101
537350101
|
|||
|
|
725233151
725233151
|
