HUSQVARNA 540 XP® Mark III Parts Diagram
Diagrams:
Diagram:

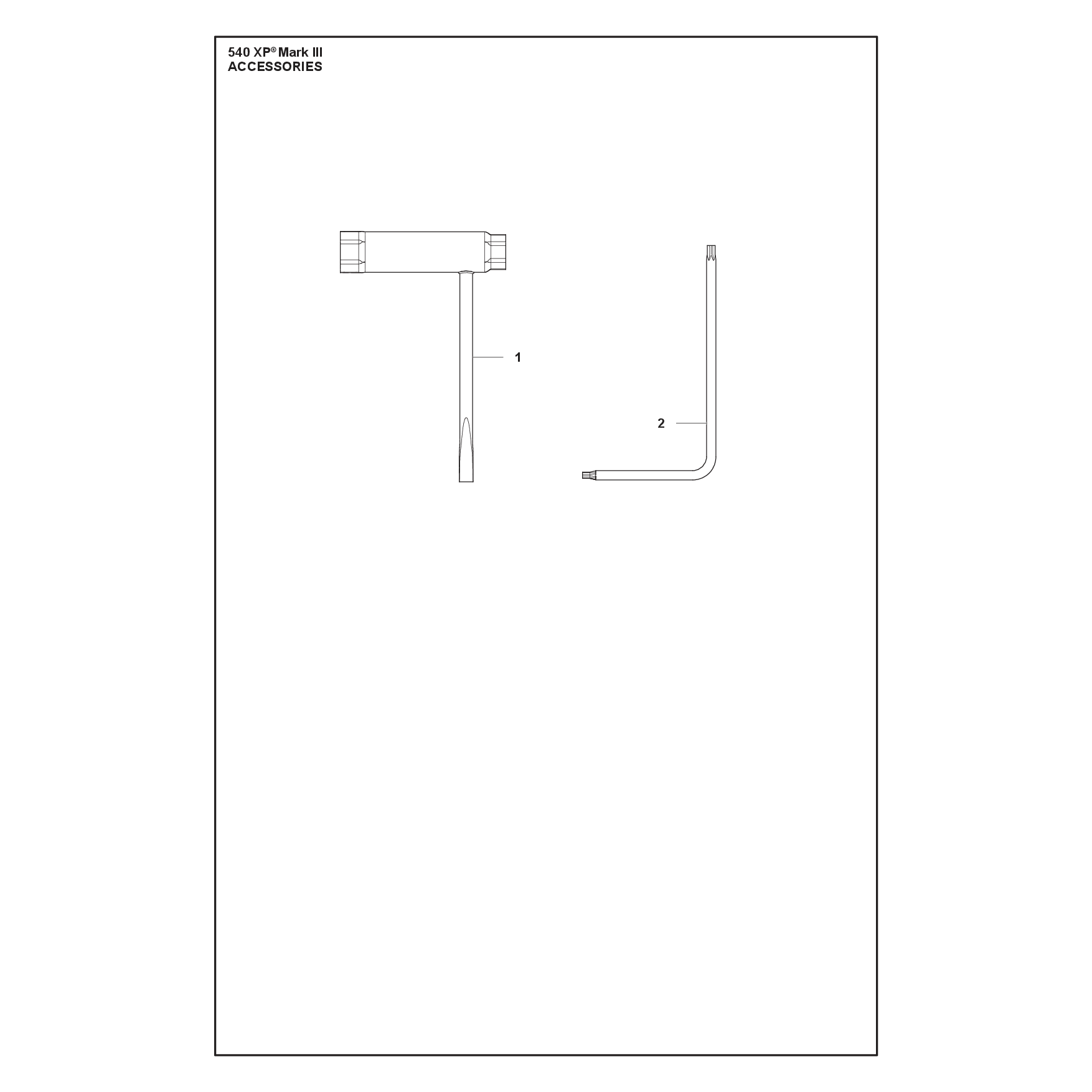

ACCESSORIES
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
522521102
522521102
|
|||
|
|
575880701
575880701
|

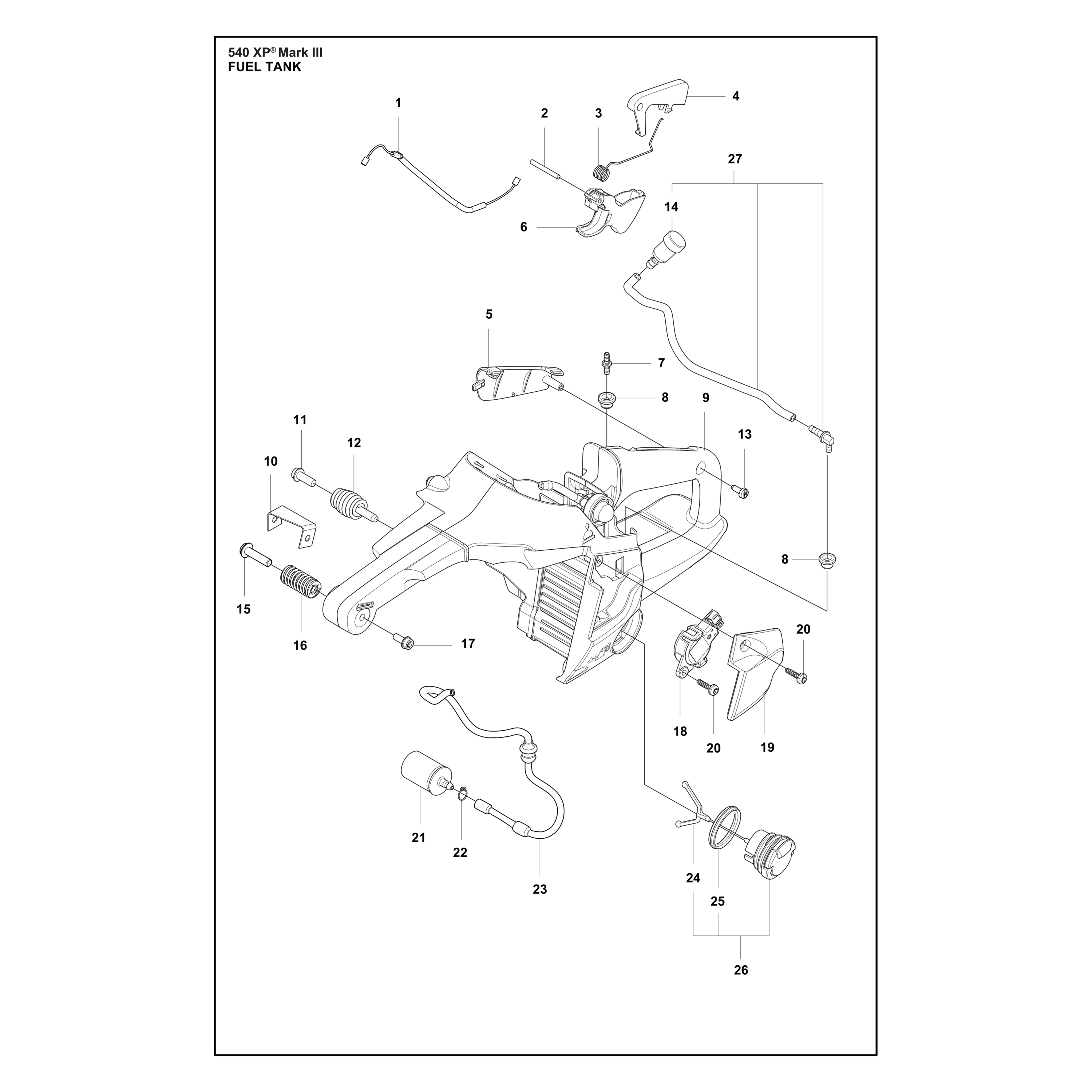

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
599820601
599820601
|
|||
|
|
720182520
720182520
|
|||
|
|
544099901
544099901
|
|||
|
|
544099801
544099801
|
|||
|
|
504106301
504106301
|
|||
|
|
505157701
505157701
|
|||
|
|
516950301
516950301
|
|||
|
|
514201402
514201402
|
|||
|
|
599823101
599823101
|
|||
|
|
576949601
576949601
|
|||
|
|
522751901
522751901
|
|||
|
|
534989001
534989001
|
|||
|
|
525887402
525887402
|
|||
|
|
597866301
597866301
|
|||
|
|
529268201
529268201
|
|||
|
|
534989201
534989201
|
|||
|
|
525755105
525755105
|
|||
|
|
529646701
529646701
|
|||
|
|
599823801
599823801
|
|||
|
|
521517701
521517701
|
|||
|
|
503443203
503443203
|
|||
|
|
503443205
503443205
|
|||
|
|
506707001
506707001
|
|||
|
|
537594301
537594301
|
|||
|
|
537594302
537594302
|
|||
|
|
503578901
503578901
|
|||
|
|
589241101
589241101
|
|||
|
|
522620003
522620003
|
|||
|
|
546544001
546544001
|

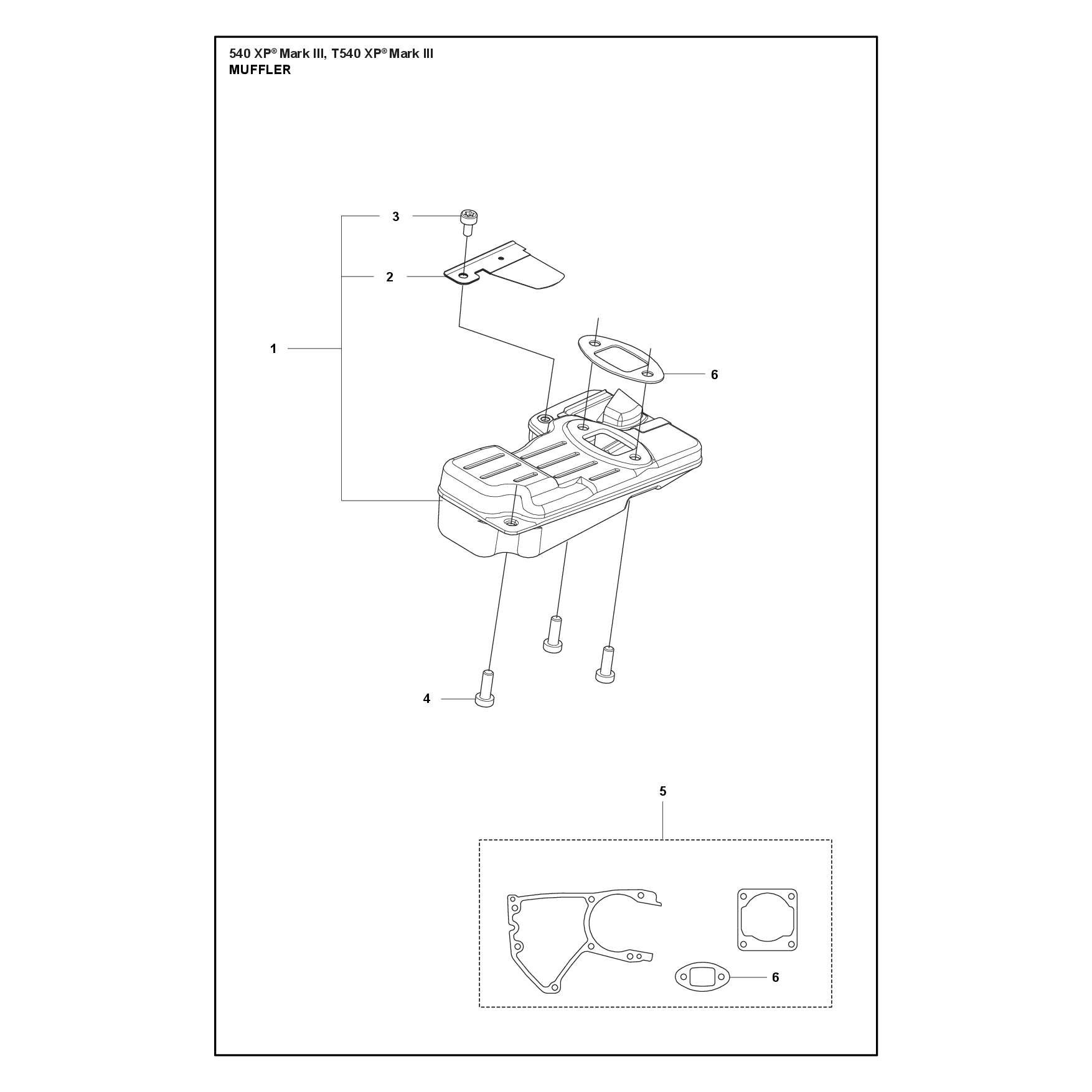

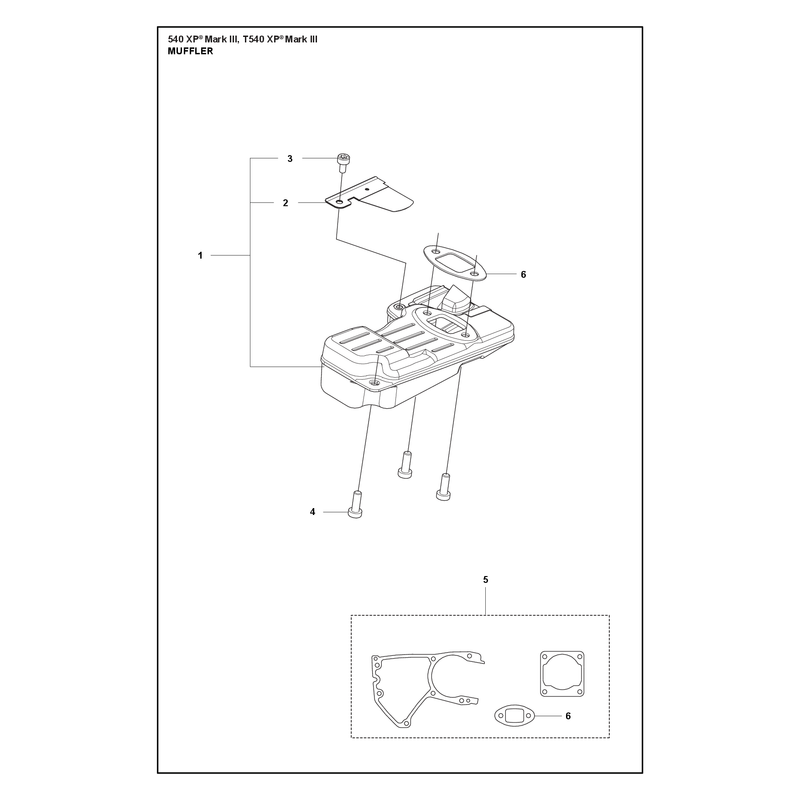

MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
599802801
599802801
|
|||
|
|
599803701
599803701
|
|||
|
|
544362701
544362701
|
|||
|
|
529268201
529268201
|
|||
|
|
536660201
536660201
|
|||
|
|
599803802
599803802
|

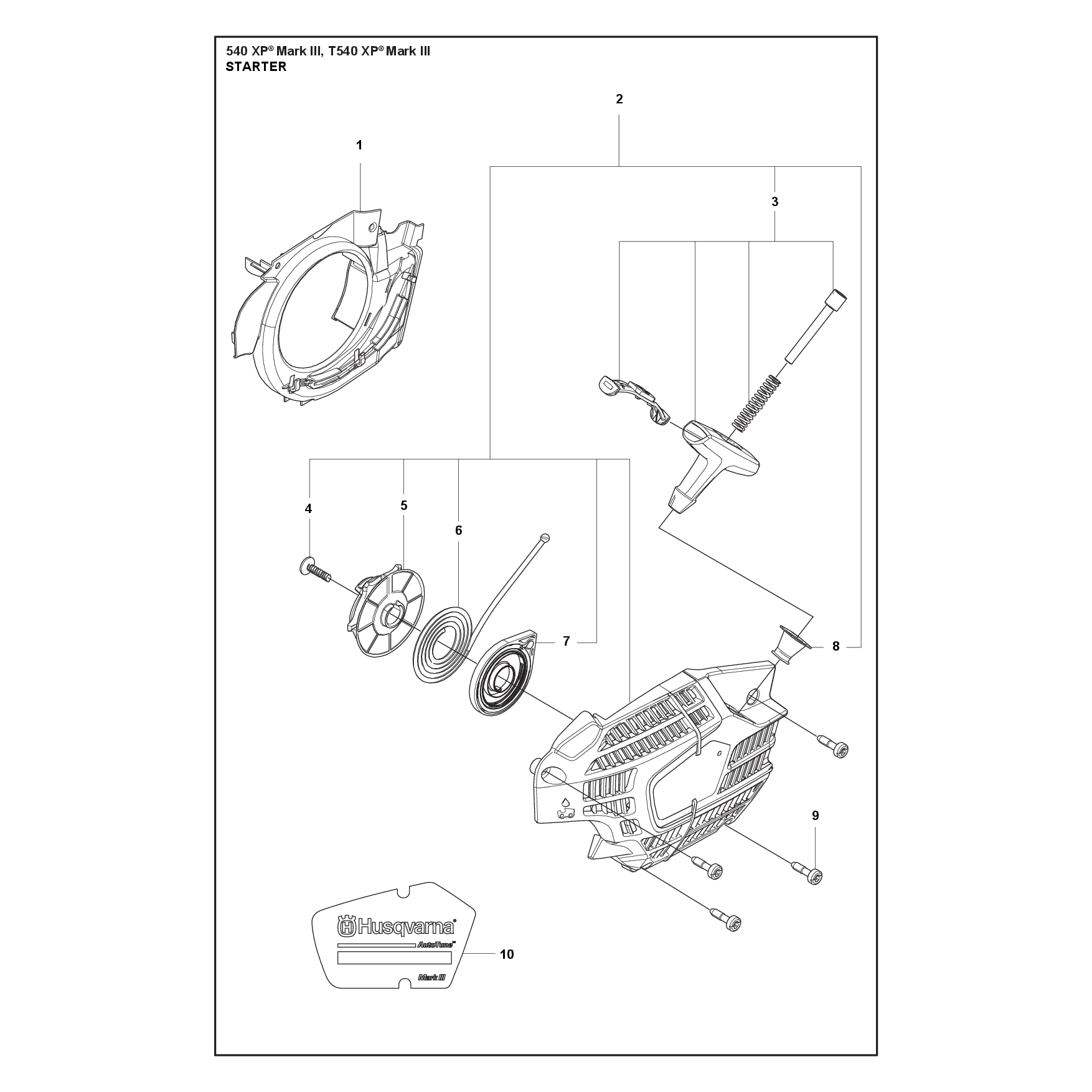

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
599818001
599818001
|
|||
|
|
599818301
599818301
|
|||
|
|
584156201
584156201
|
|||
|
|
529503002
529503002
|
|||
|
|
599818701
599818701
|
|||
|
|
599819301
599819301
|
|||
|
|
529645301
529645301
|
|||
|
|
537283201
537283201
|
|||
|
|
534995901
534995901
|
|||
|
|
599821401
599821401
|
|||
|
|
599821402
599821402
|

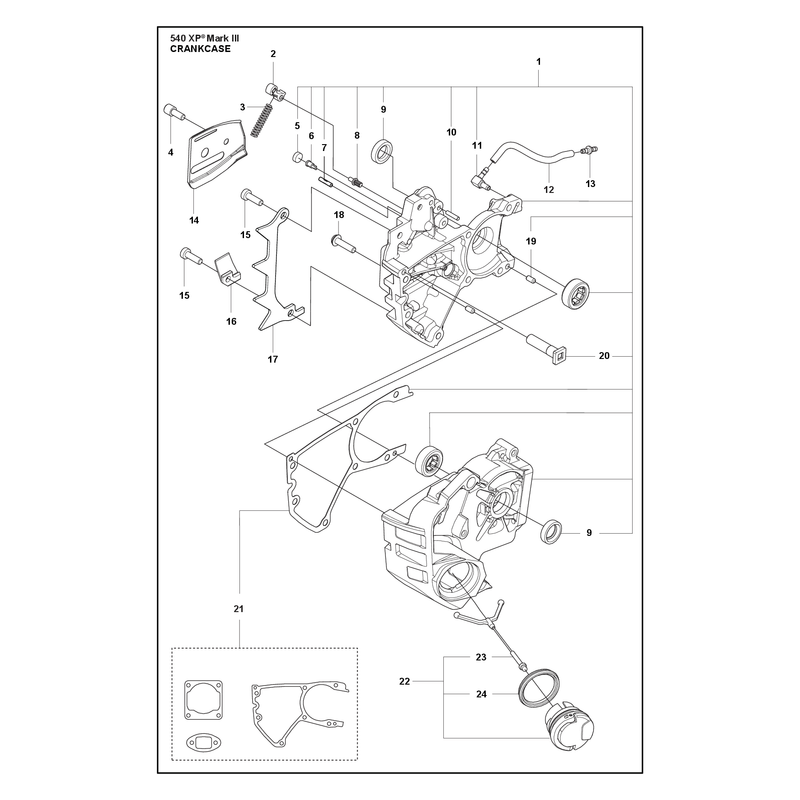

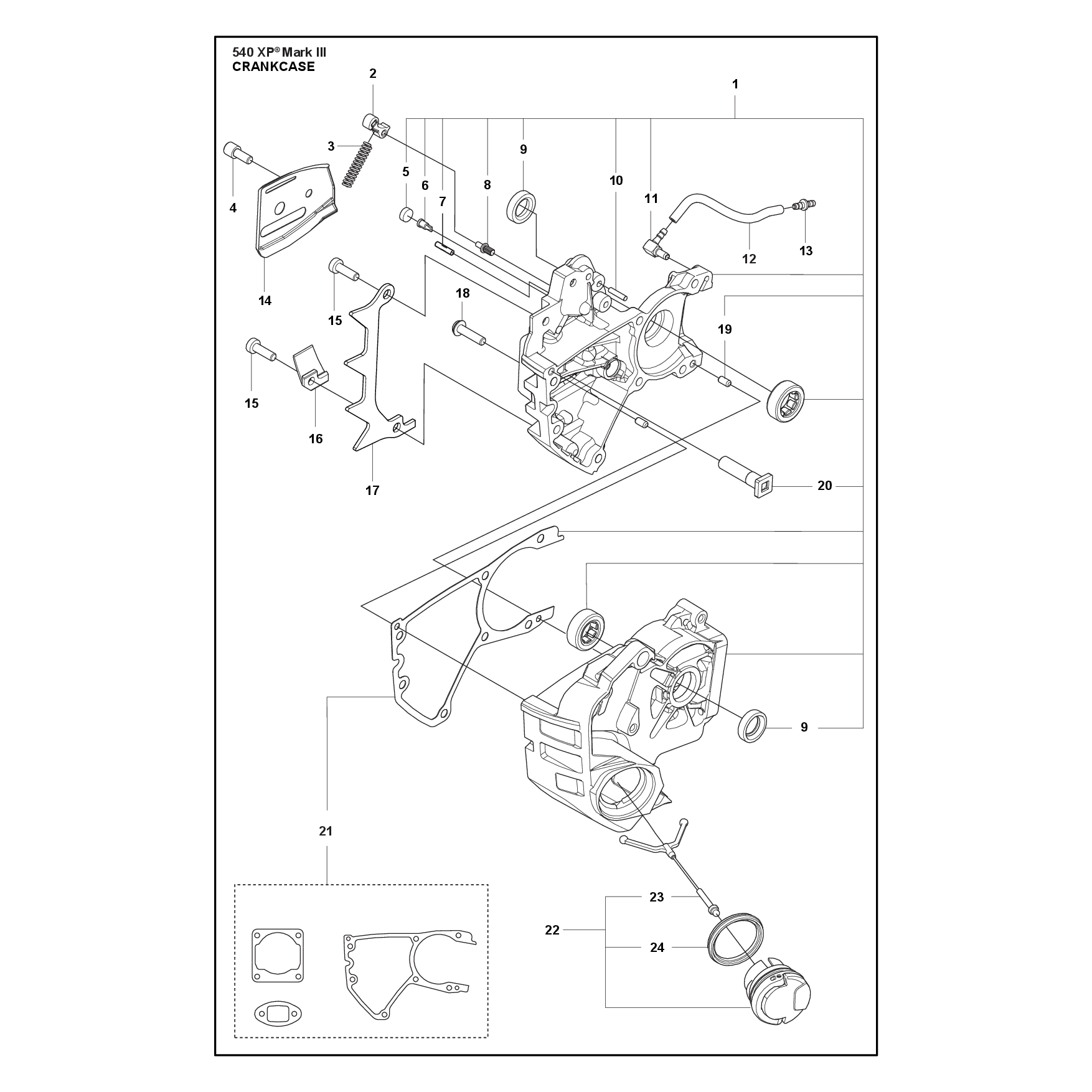

CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
599809301
599809301
|
|||
|
|
505201201
505201201
|
|||
|
|
503436501
503436501
|
|||
|
|
521799901
521799901
|
|||
|
|
513746401
513746401
|
|||
|
|
516961901
516961901
|
|||
|
|
721120730
721120730
|
|||
|
|
503751801
503751801
|
|||
|
|
588139701
588139701
|
|||
|
|
537578501
537578501
|
|||
|
|
590508001
590508001
|
|||
|
|
599810901
599810901
|
|||
|
|
516950301
516950301
|
|||
|
|
599816901
599816901
|
|||
|
|
529268201
529268201
|
|||
|
|
505288501
505288501
|
|||
|
|
534089001
534089001
|
|||
|
|
590266501
590266501
|
|||
|
|
577167401
577167401
|
|||
|
|
537579101
537579101
|
|||
|
|
536660201
536660201
|
|||
|
|
522620003
522620003
|
|||
|
|
503578901
503578901
|
|||
|
|
589241101
589241101
|

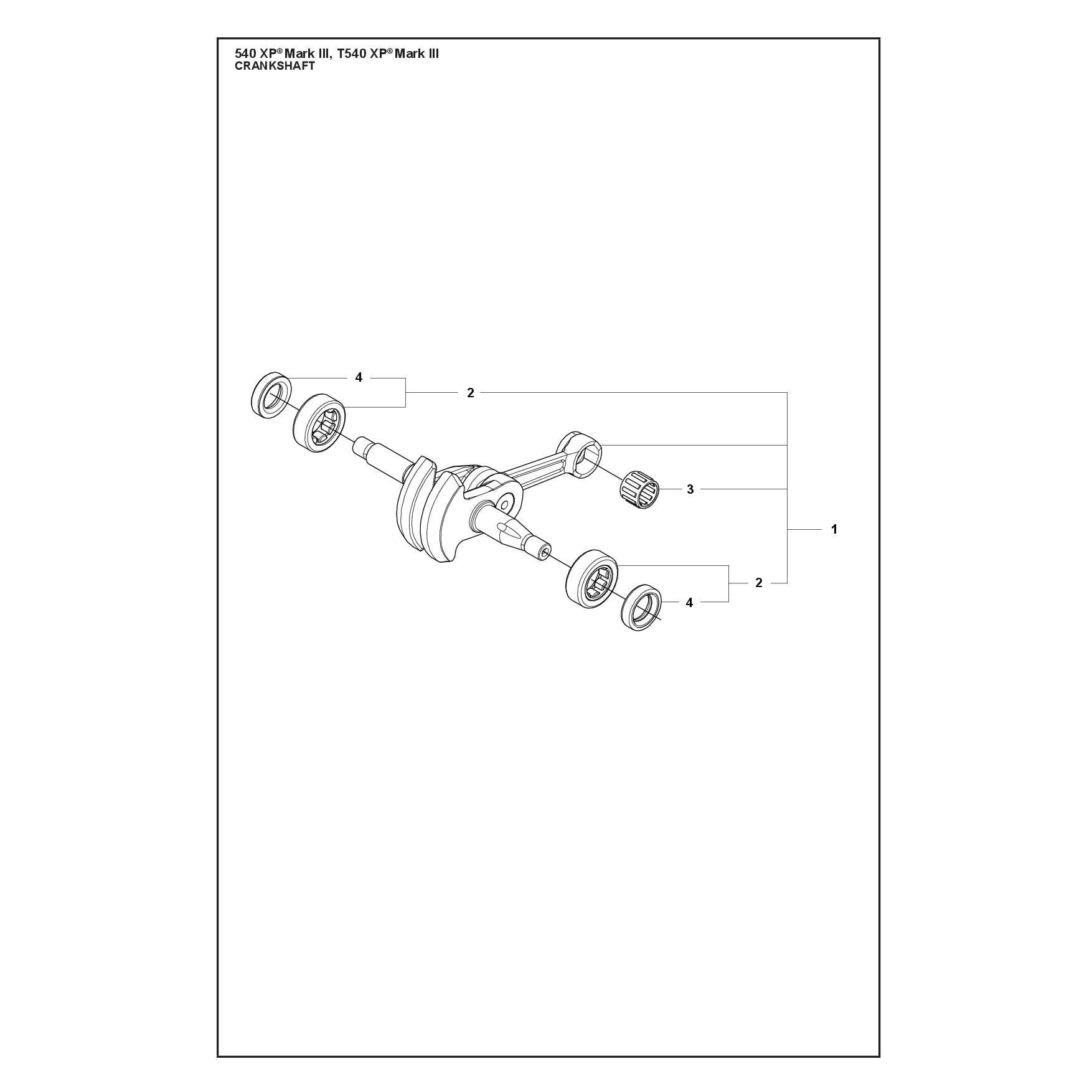

CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
536662801
536662801
|
|||
|
|
536673801
536673801
|
|||
|
|
579029801
579029801
|
|||
|
|
588139701
588139701
|

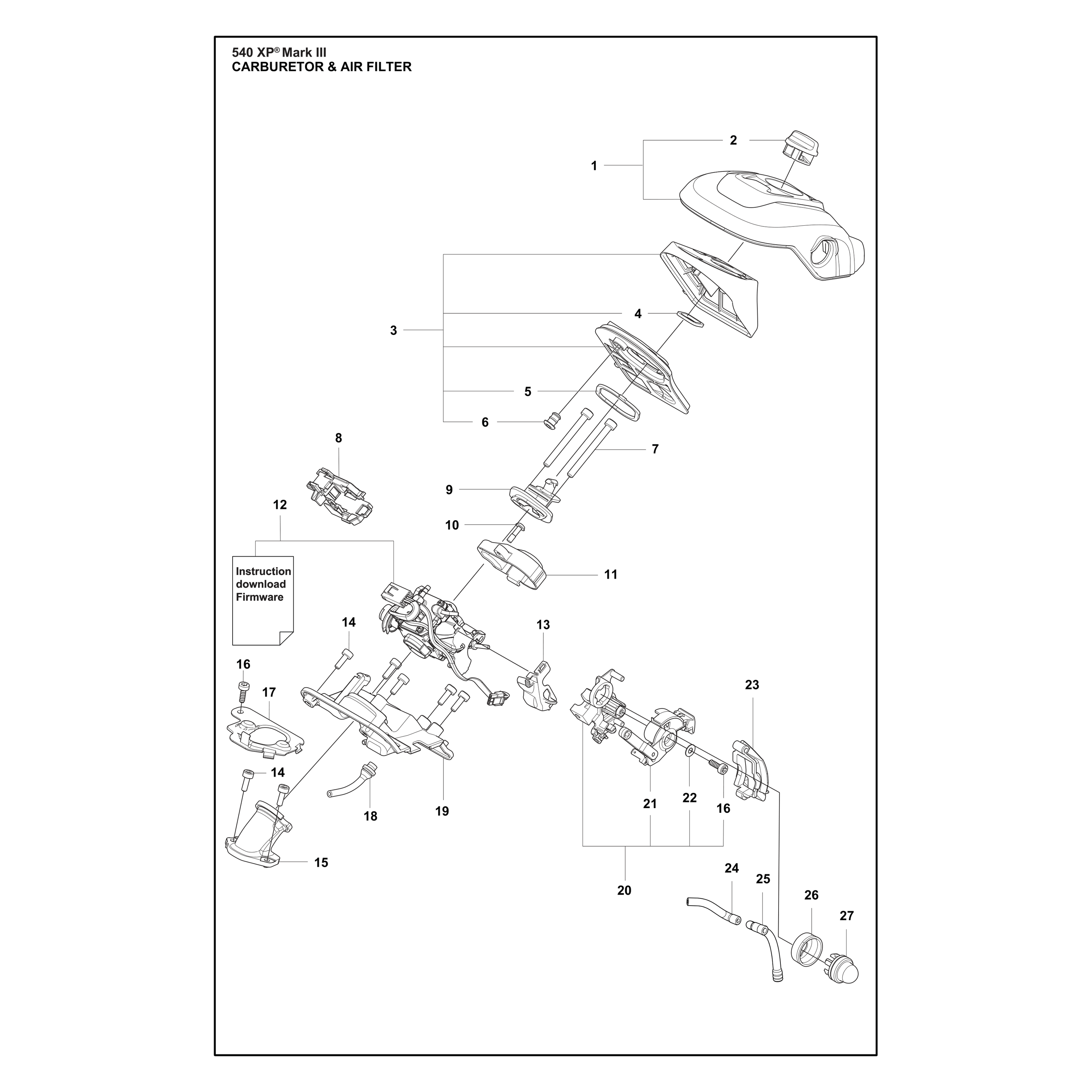

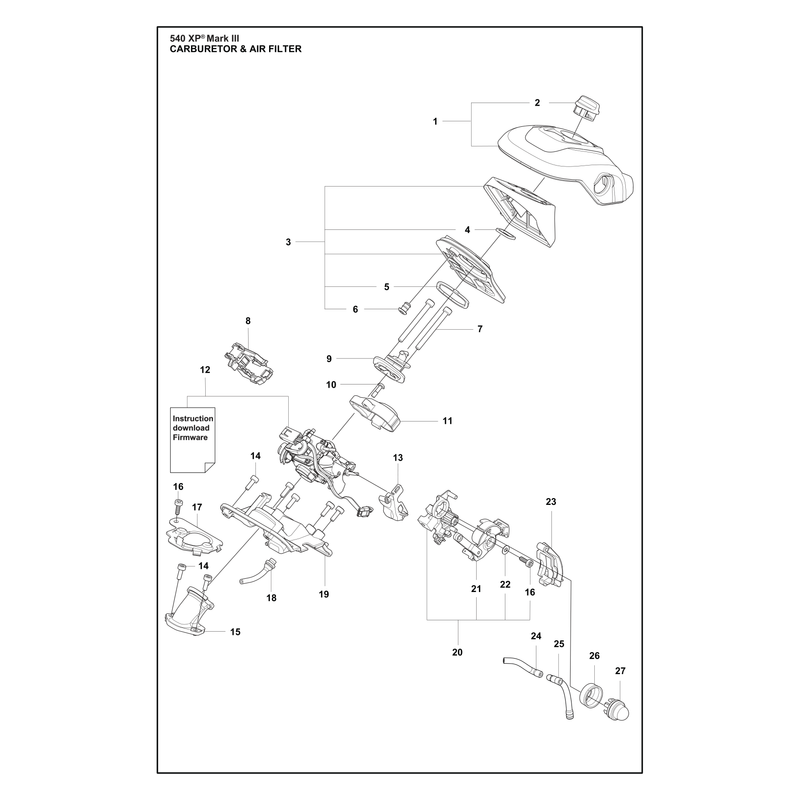

CARBURETOR AND AIR FILTER
CARBURETOR AND AIR FILTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
599815501
599815501
|
|||
|
|
599815601
599815601
|
|||
|
|
536703501
536703501
|
|||
|
|
536703502
536703502
|
|||
|
|
536703503
536703503
|
|||
|
|
529549601
529549601
|
|||
|
|
599815001
599815001
|
|||
|
|
521625602
521625602
|
|||
|
|
587870902
587870902
|
|||
|
|
529549401
529549401
|
|||
|
|
599814901
599814901
|
|||
|
|
590266401
590266401
|
|||
|
|
599814601
599814601
|
|||
|
|
536703402
536703402
|
|||
|
|
536148601
536148601
|
|||
|
|
521515701
521515701
|
|||
|
|
536148401
536148401
|
|||
|
|
576984001
576984001
|
|||
|
|
599814401
599814401
|
|||
|
|
589204904
589204904
|
|||
|
|
599814501
599814501
|
|||
|
|
599822301
599822301
|
|||
|
|
599822401
599822401
|
|||
|
|
534208701
534208701
|
|||
|
|
529617701
529617701
|
|||
|
|
529411201
529411201
|
|||
|
|
529411101
529411101
|
|||
|
|
599815401
599815401
|
|||
|
|
503936601
503936601
|

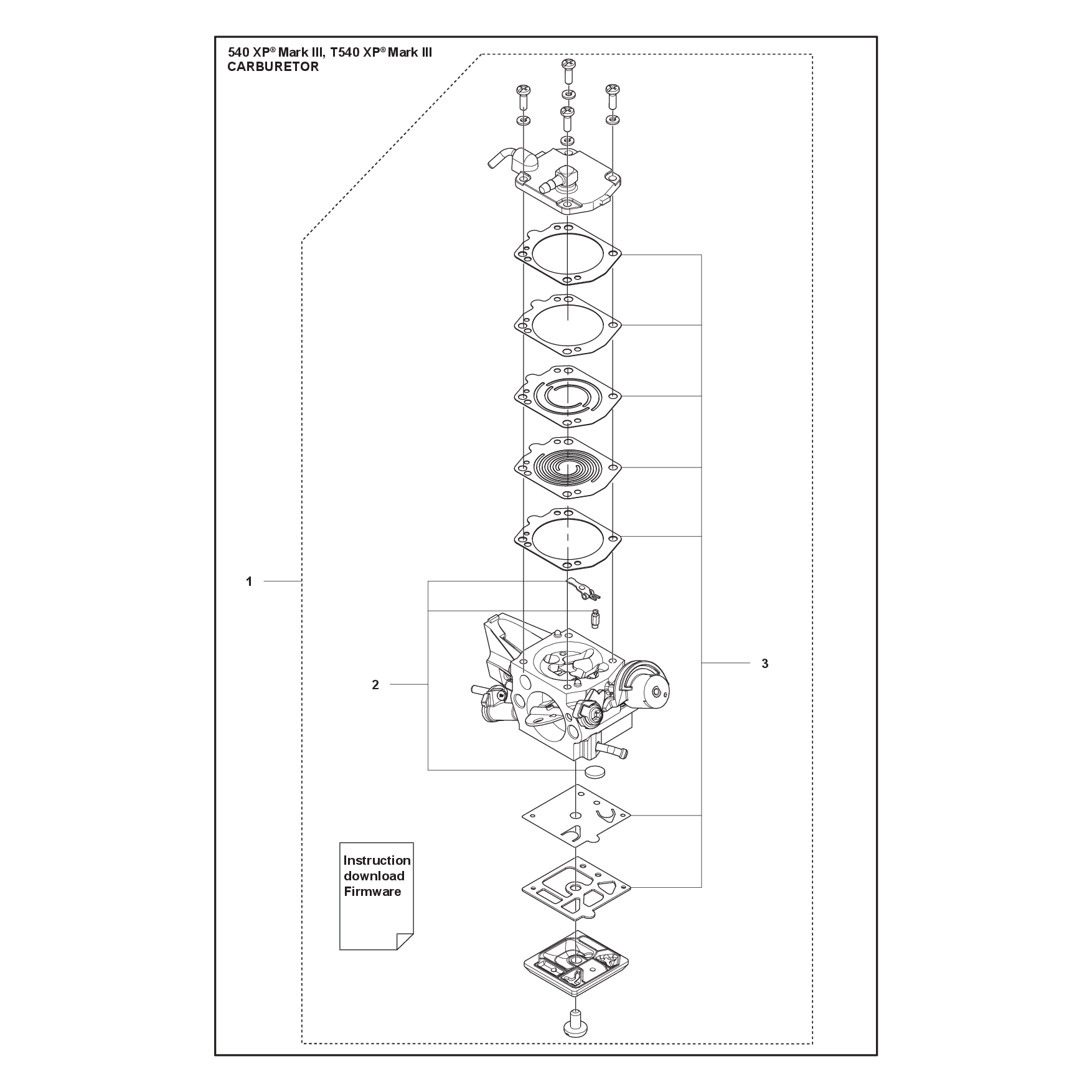

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
536703402
536703402
|
|||
|
|
536660401
536660401
|
|||
|
|
546543601
546543601
|

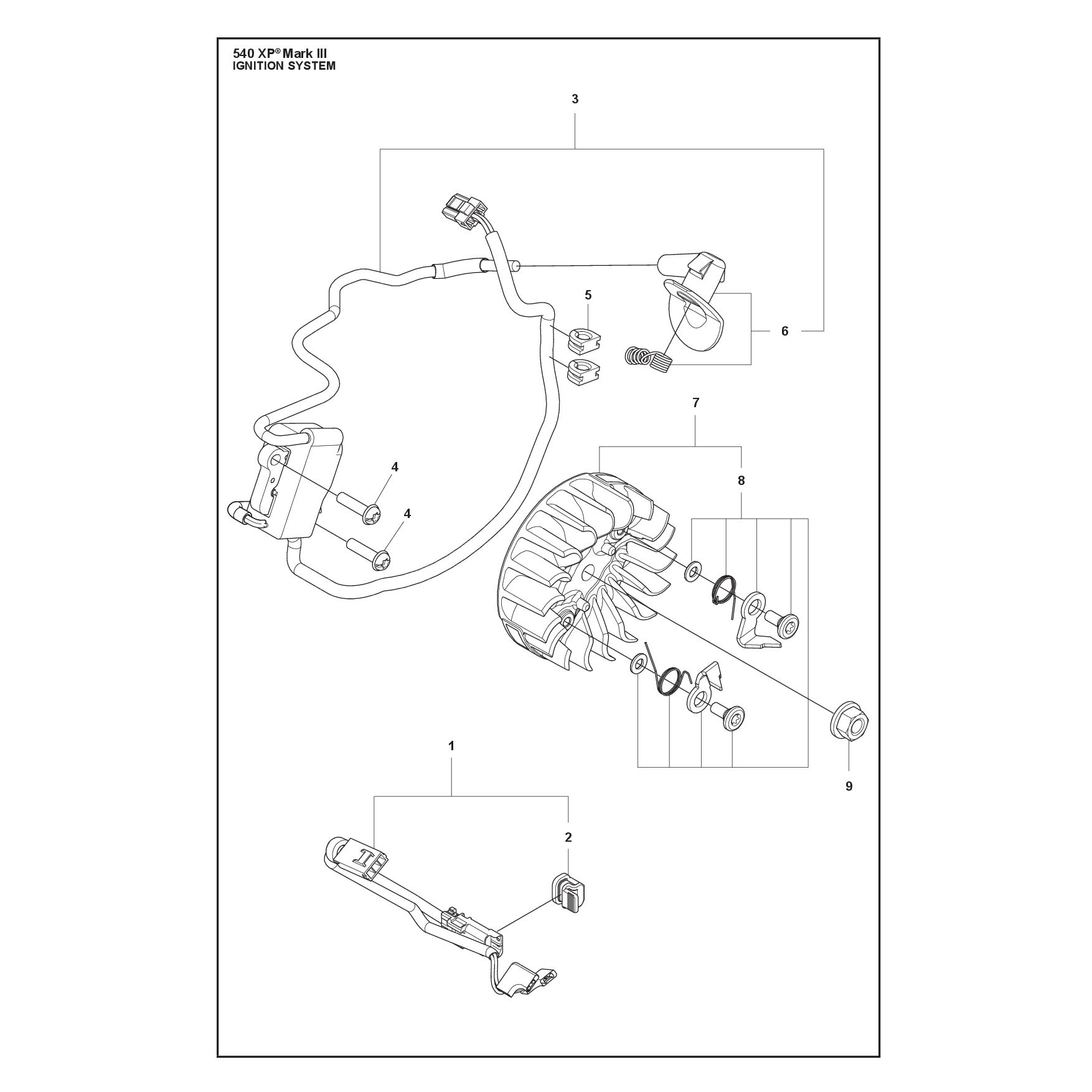

IGNITION SYSTEM
IGNITION SYSTEM
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
535529101
535529101
|
|||
|
|
531067601
531067601
|
|||
|
|
548058601
548058601
|
|||
|
|
590266501
590266501
|
|||
|
|
529600201
529600201
|
|||
|
|
536660501
536660501
|
|||
|
|
510169802
510169802
|
|||
|
|
536660601
536660601
|
|||
|
|
504118001
504118001
|

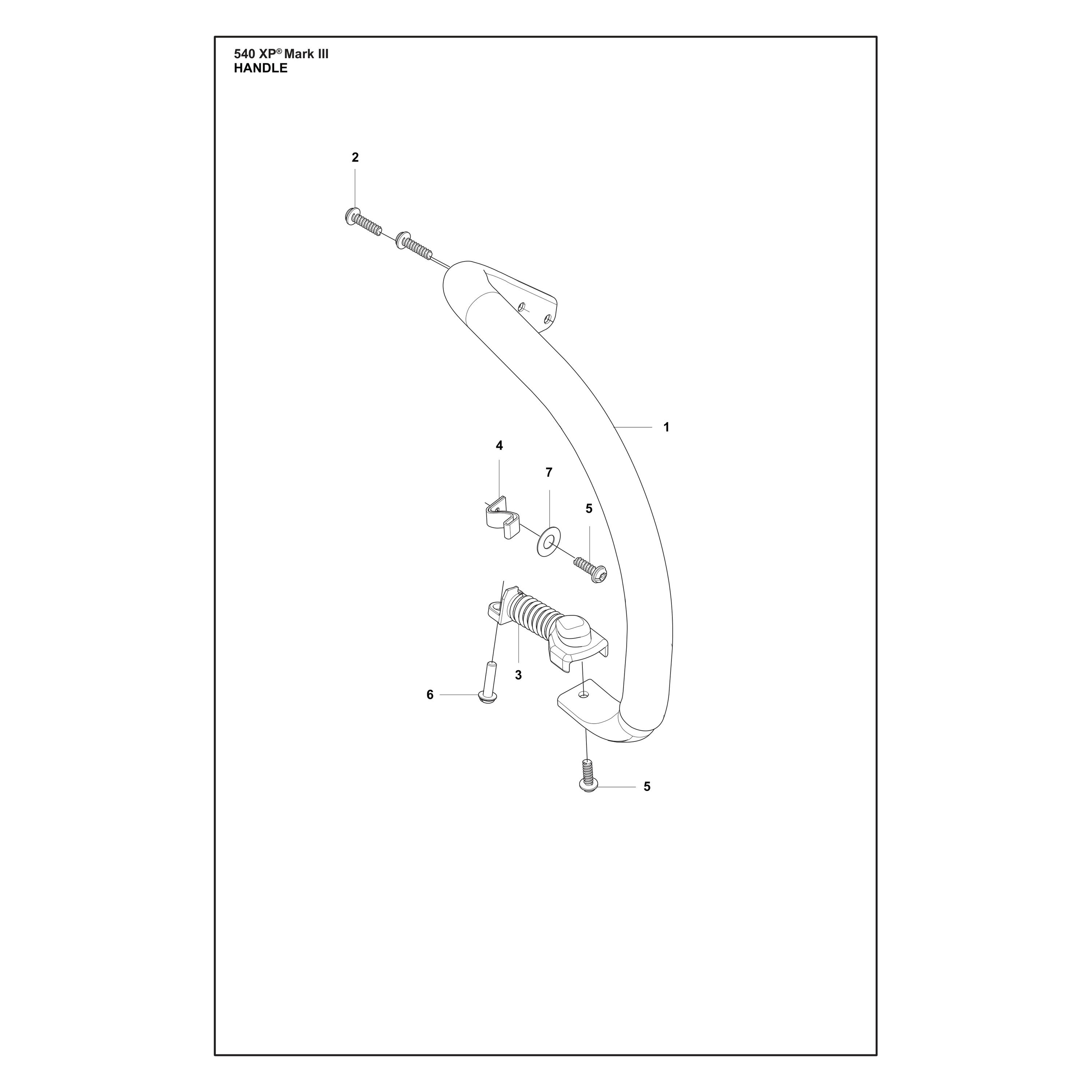

HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
599821001
599821001
|
|||
|
|
525798102
525798102
|
|||
|
|
599823901
599823901
|
|||
|
|
599824201
599824201
|
|||
|
|
529268601
529268601
|
|||
|
|
590266701
590266701
|
|||
|
|
516076901
516076901
|

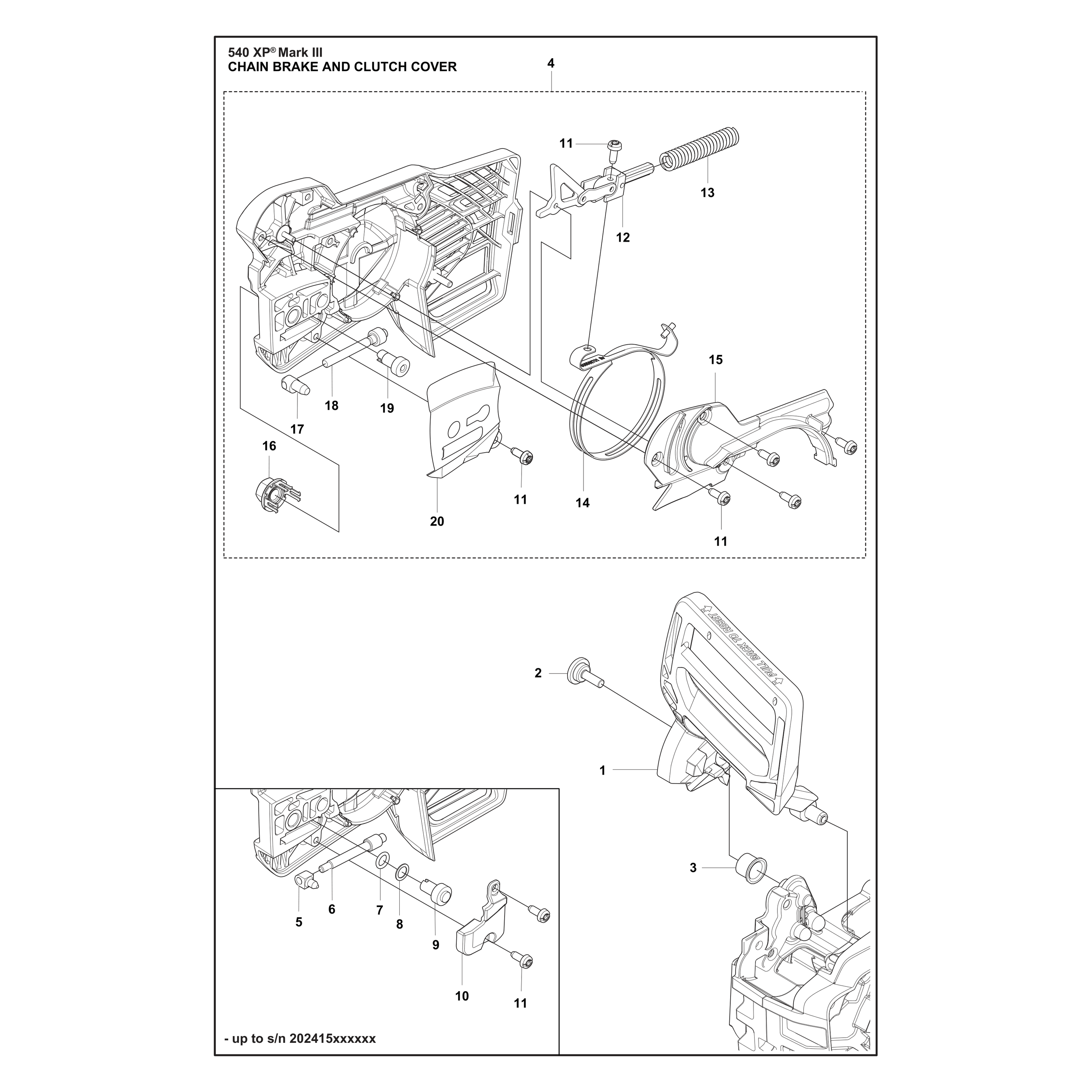

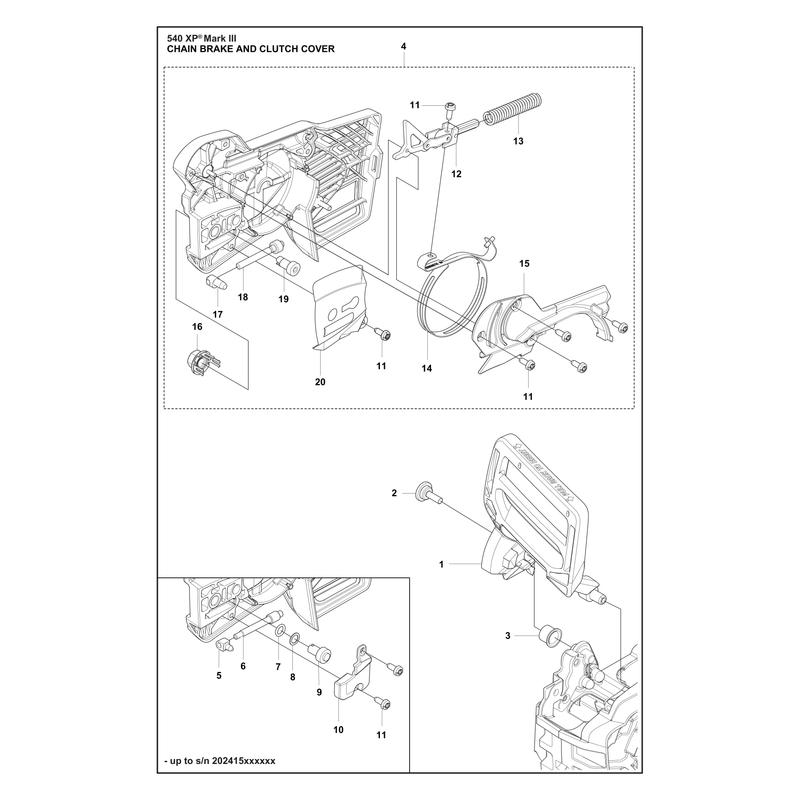

CHAIN BRAKE AND CLUTCH COVER
CHAIN BRAKE AND CLUTCH COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
599822201
599822201
|
|||
|
|
526834501
526834501
|
|||
|
|
537202801
537202801
|
|||
|
|
599820302
599820302
|
|||
|
|
588850301
588850301
|
|||
|
|
537397001
537397001
|
|||
|
|
740480702
740480702
|
|||
|
|
503230063
503230063
|
|||
|
|
599724101
599724101
|
|||
|
|
505214501
505214501
|
|||
|
|
526222001
526222001
|
|||
|
|
526222001
526222001
|
|||
|
|
505199301
505199301
|
|||
|
|
536859501
536859501
|
|||
|
|
505566701
505566701
|
|||
|
|
505543302
505543302
|
|||
|
|
505197301
505197301
|
|||
|
|
513701401
513701401
|
|||
|
|
513730701
513730701
|
|||
|
|
513637901
513637901
|
|||
|
|
546234301
546234301
|

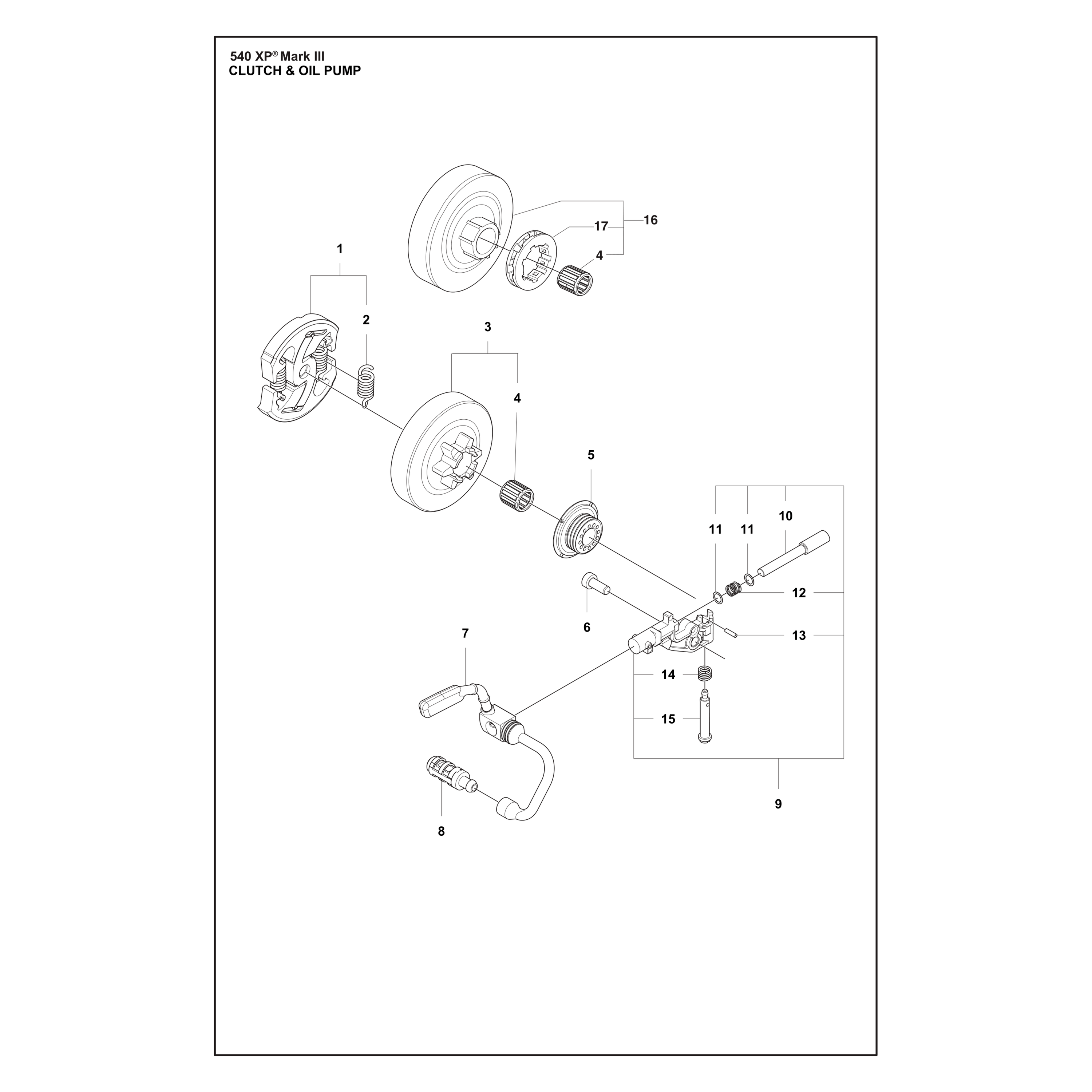

CLUTCH AND OIL PUMP
CLUTCH AND OIL PUMP
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
586864001
586864001
|
|||
|
|
574718801
574718801
|
|||
|
|
577389701
577389701
|
|||
|
|
577389702
577389702
|
|||
|
|
503254601
503254601
|
|||
|
|
504786001
504786001
|
|||
|
|
522638501
522638501
|
|||
|
|
599817001
599817001
|
|||
|
|
536147901
536147901
|
|||
|
|
544180103
544180103
|
|||
|
|
537069102
537069102
|
|||
|
|
503230060
503230060
|
|||
|
|
503891601
503891601
|
|||
|
|
721116430
721116430
|
|||
|
|
503891501
503891501
|
|||
|
|
537027101
537027101
|
|||
|
|
577389704
577389704
|
|||
|
|
501457402
501457402
|

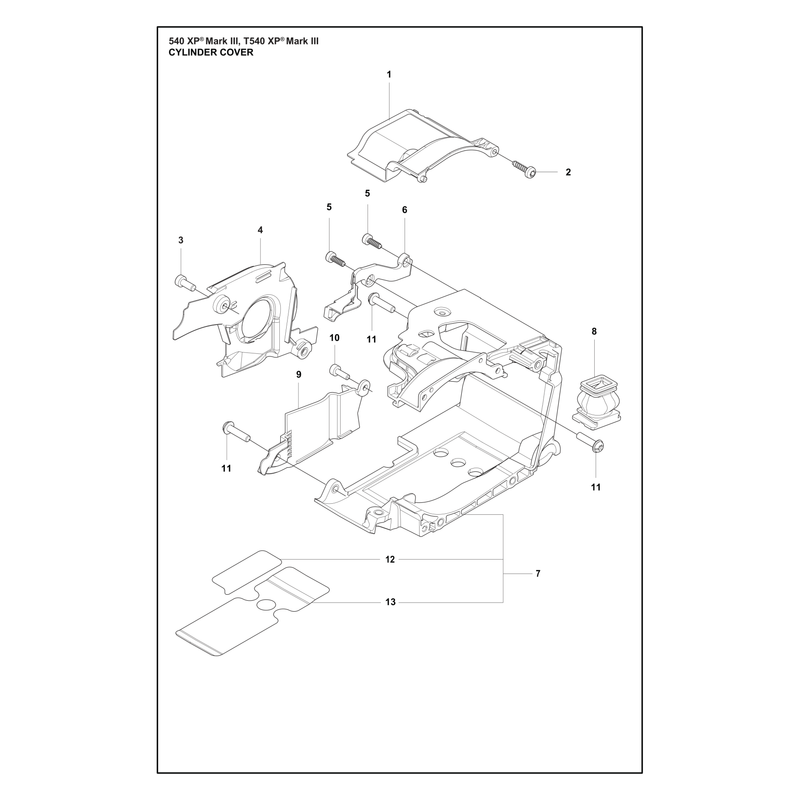

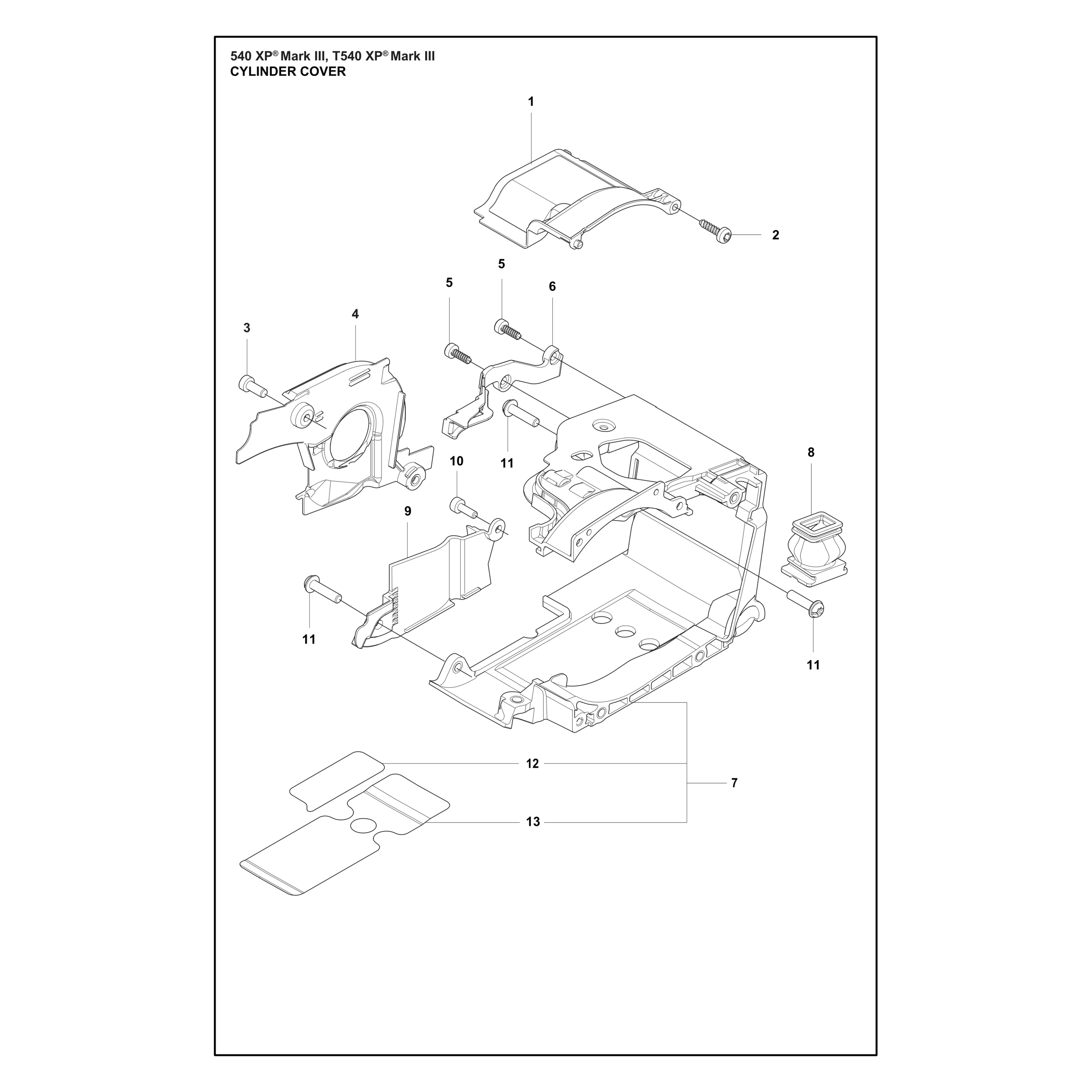

CYLINDER COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
529413101
529413101
|
|||
|
|
521517701
521517701
|
|||
|
|
522638501
522638501
|
|||
|
|
599816801
599816801
|
|||
|
|
576984001
576984001
|
|||
|
|
531435201
531435201
|
|||
|
|
599815701
599815701
|
|||
|
|
599816101
599816101
|
|||
|
|
599816001
599816001
|
|||
|
|
521515701
521515701
|
|||
|
|
590266701
590266701
|
|||
|
|
531409901
531409901
|
|||
|
|
599815901
599815901
|

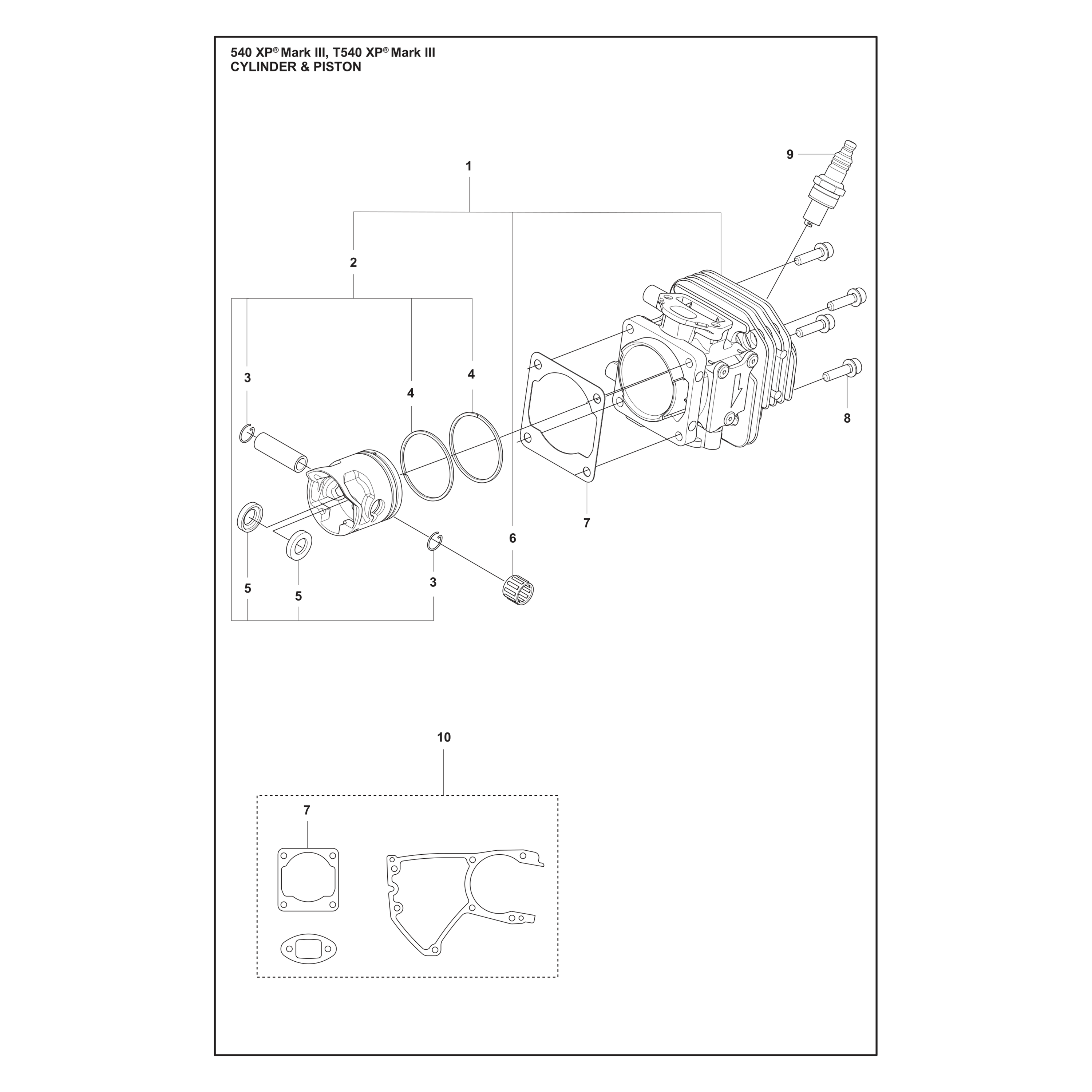

CYLINDER PISTON
CYLINDER PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
536659802
536659802
|
|||
|
|
536660102
536660102
|
|||
|
|
737441000
737441000
|
|||
|
|
513284901
513284901
|
|||
|
|
513752401
513752401
|
|||
|
|
579029801
579029801
|
|||
|
|
599809201
599809201
|
|||
|
|
590266701
590266701
|
|||
|
|
521233401
521233401
|
|||
|
|
536660201
536660201
|
