Husqvarna K 1250 Parts Diagram
Diagrams:
Diagram:

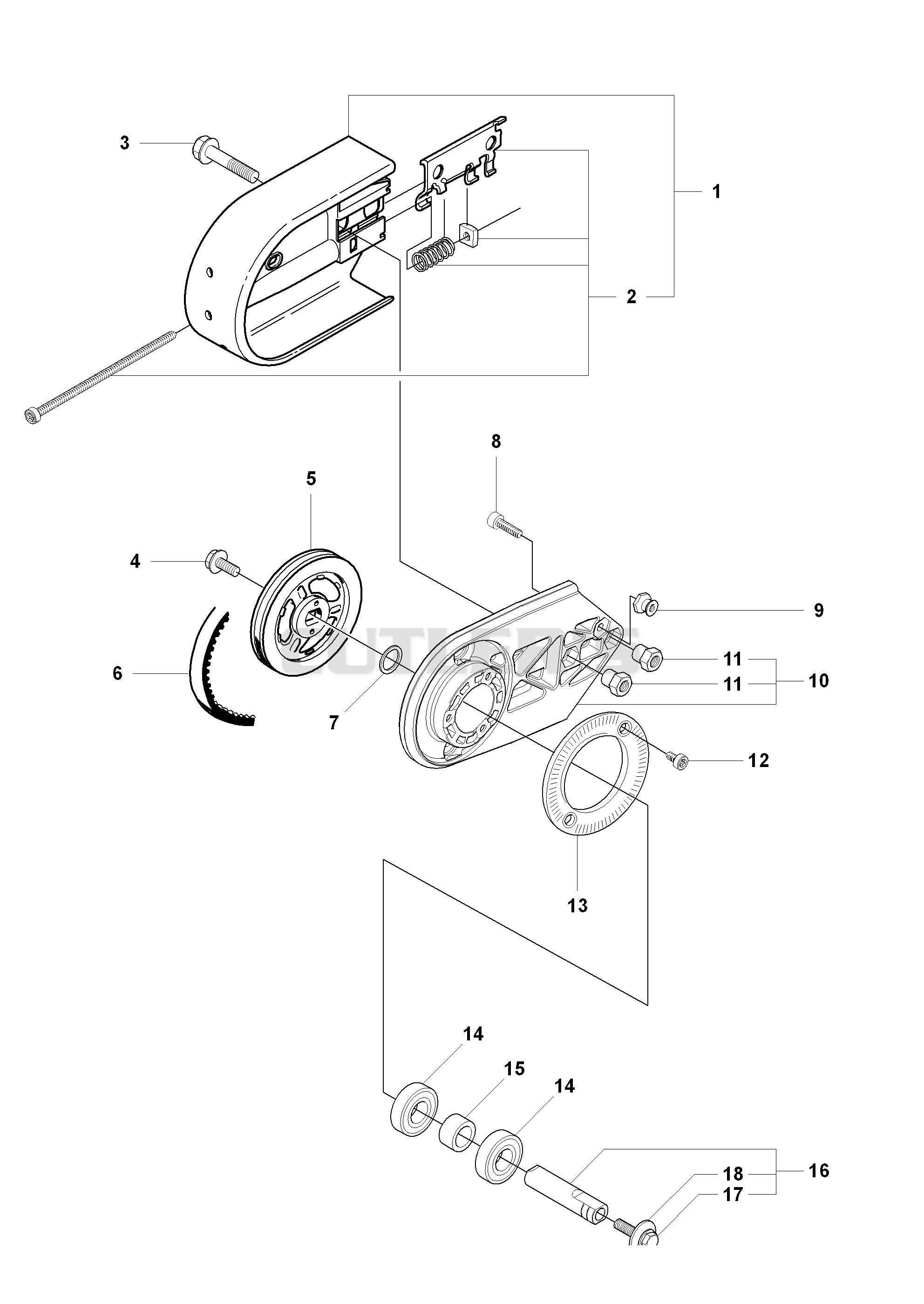

Belt Guard and Bearing Housing
Belt Guard and Bearing Housing
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
506279202
506279202
|
|||
|
|
506266603
506266603
|
|||
|
|
506284401
506284401
|
|||
|
|
503200045
503200045
|
|||
|
|
506071802
506071802
|
|||
|
|
506372707
506372707
|
|||
|
|
503230104
503230104
|
|||
|
|
725532955
725532955
|
|||
|
|
506143201
506143201
|
|||
|
|
506263513
506263513
|
|||
|
|
506287301
506287301
|
|||
|
|
503200712
503200712
|
|||
|
|
506288401
506288401
|
|||
|
|
503252101
503252101
|
|||
|
|
506070801
506070801
|
|||
|
|
506298363
506298363
|
|||
|
|
506139601
506139601
|
|||
|
|
506139511
506139511
|
Belt Guard and Clutch Assy
Belt Guard and Clutch Assy
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
506271703
506271703
|
|||
|
|
544873601
544873601
|
|||
|
|
506268401
506268401
|
|||
|
|
503220001
503220001
|
|||
|
|
503144901
503144901
|
|||
|
|
503145101
503145101
|
|||
|
|
506254903
506254903
|
|||
|
|
506254901
506254901
|
|||
|
|
506254902
506254902
|
|||
|
|
503253801
503253801
|
|||
|
|
506285901
506285901
|

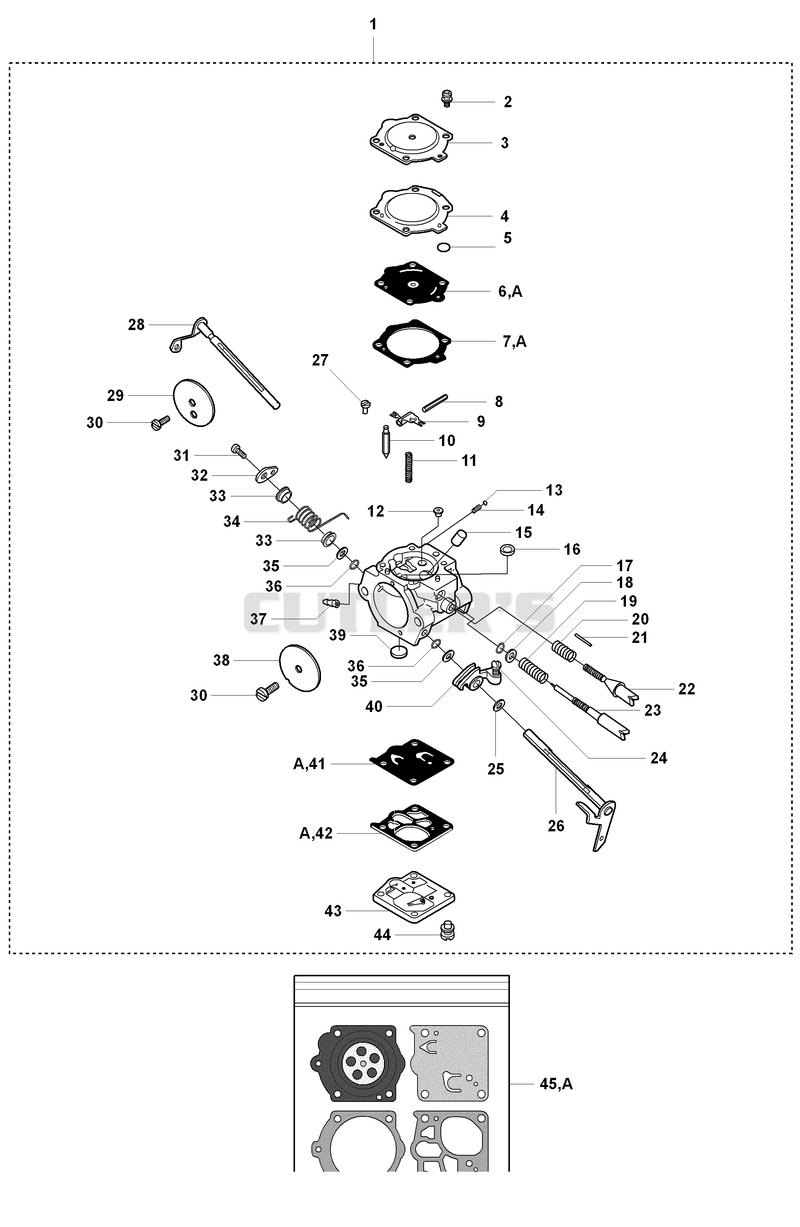

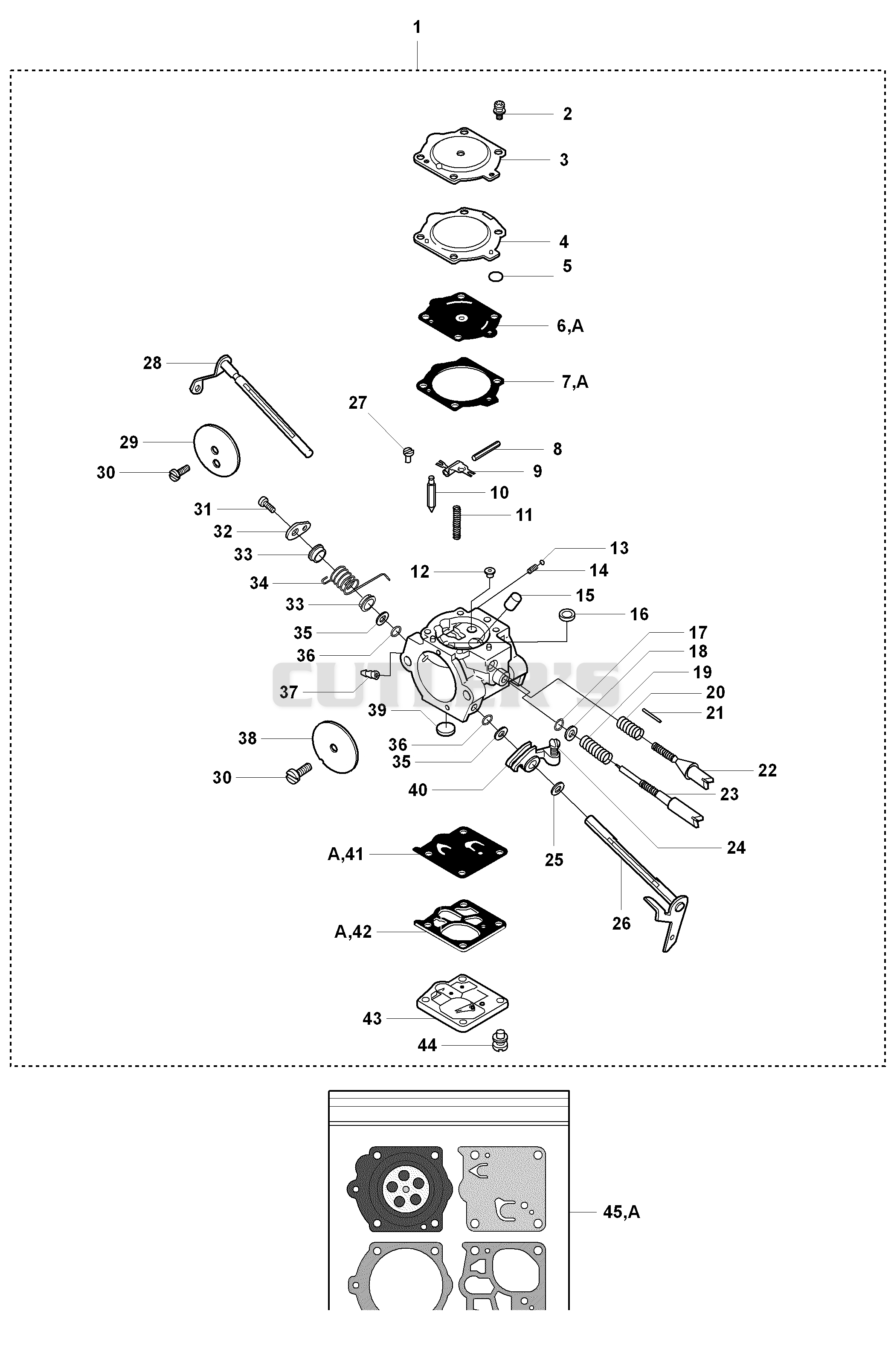

Carburettor and Gasket Kit
Carburettor and Gasket Kit
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503281217
503281217
|
|||
|
|
537003101
537003101
|
|||
|
|
501692801
501692801
|
|||
|
|
537002901
537002901
|
|||
|
|
537002801
537002801
|
|||
|
|
503632801
503632801
|
|||
|
|
501467501
501467501
|
|||
|
|
505316731
505316731
|
|||
|
|
505316734
505316734
|
|||
|
|
503563401
503563401
|
|||
|
|
505316723
505316723
|
|||
|
|
537153401
537153401
|
|||
|
|
501468501
501468501
|
|||
|
|
501468401
501468401
|
|||
|
|
503976601
503976601
|
|||
|
|
503574201
503574201
|
|||
|
|
503595501
503595501
|
|||
|
|
503597201
503597201
|
|||
|
|
505316737
505316737
|
|||
|
|
503633101
503633101
|
|||
|
|
503526001
503526001
|
|||
|
|
503632901
503632901
|
|||
|
|
503633201
503633201
|
|||
|
|
503596501
503596501
|
|||
|
|
506028301
506028301
|
|||
|
|
503595901
503595901
|
|||
|
|
505316717
505316717
|
|||
|
|
537003001
537003001
|
|||
|
|
503525801
503525801
|
|||
|
|
530035015
530035015
|
|||
|
|
503192201
503192201
|
|||
|
|
503595601
503595601
|
|||
|
|
502103101
502103101
|
|||
|
|
503525901
503525901
|
|||
|
|
505316748
505316748
|
|||
|
|
503564501
503564501
|
|||
|
|
503598401
503598401
|
|||
|
|
503632401
503632401
|
|||
|
|
501666101
501666101
|
|||
|
|
503595701
503595701
|
|||
|
|
503117301
503117301
|
|||
|
|
503117201
503117201
|
|||
|
|
503595801
503595801
|
|||
|
|
503117501
503117501
|
|||
|
|
503597402
503597402
|

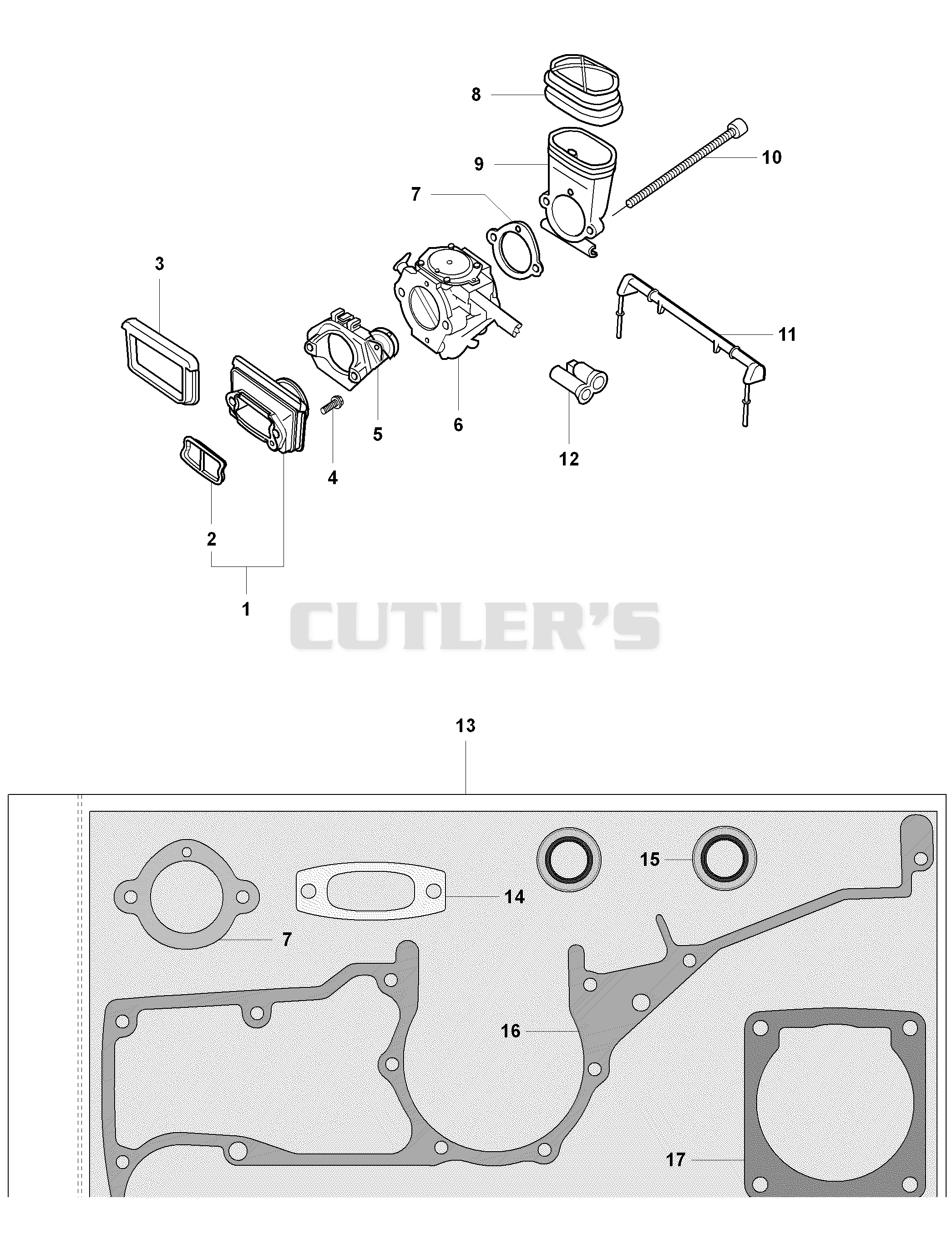

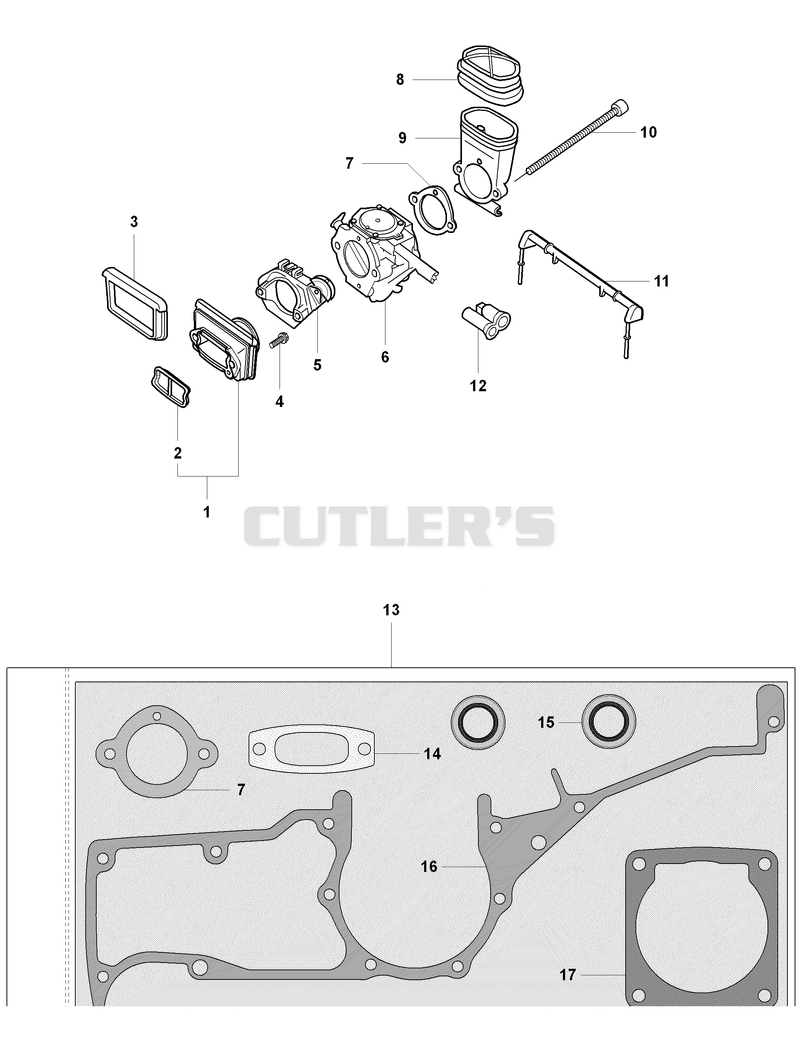

Carburettor and Gasket Kit and Intake System
Carburettor and Gasket Kit and Intake System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
506241071
506241071
|
|||
|
|
506313801
506313801
|
|||
|
|
503143701
503143701
|
|||
|
|
503200220
503200220
|
|||
|
|
506289701
506289701
|
|||
|
|
503281217
503281217
|
|||
|
|
506274301
506274301
|
|||
|
|
506250201
506250201
|
|||
|
|
506241301
506241301
|
|||
|
|
503217565
503217565
|
|||
|
|
506250401
506250401
|
|||
|
|
506254601
506254601
|
|||
|
|
506292402
506292402
|
|||
|
|
503131304
503131304
|
|||
|
|
503260205
503260205
|
|||
|
|
503134501
503134501
|
|||
|
|
503134601
503134601
|

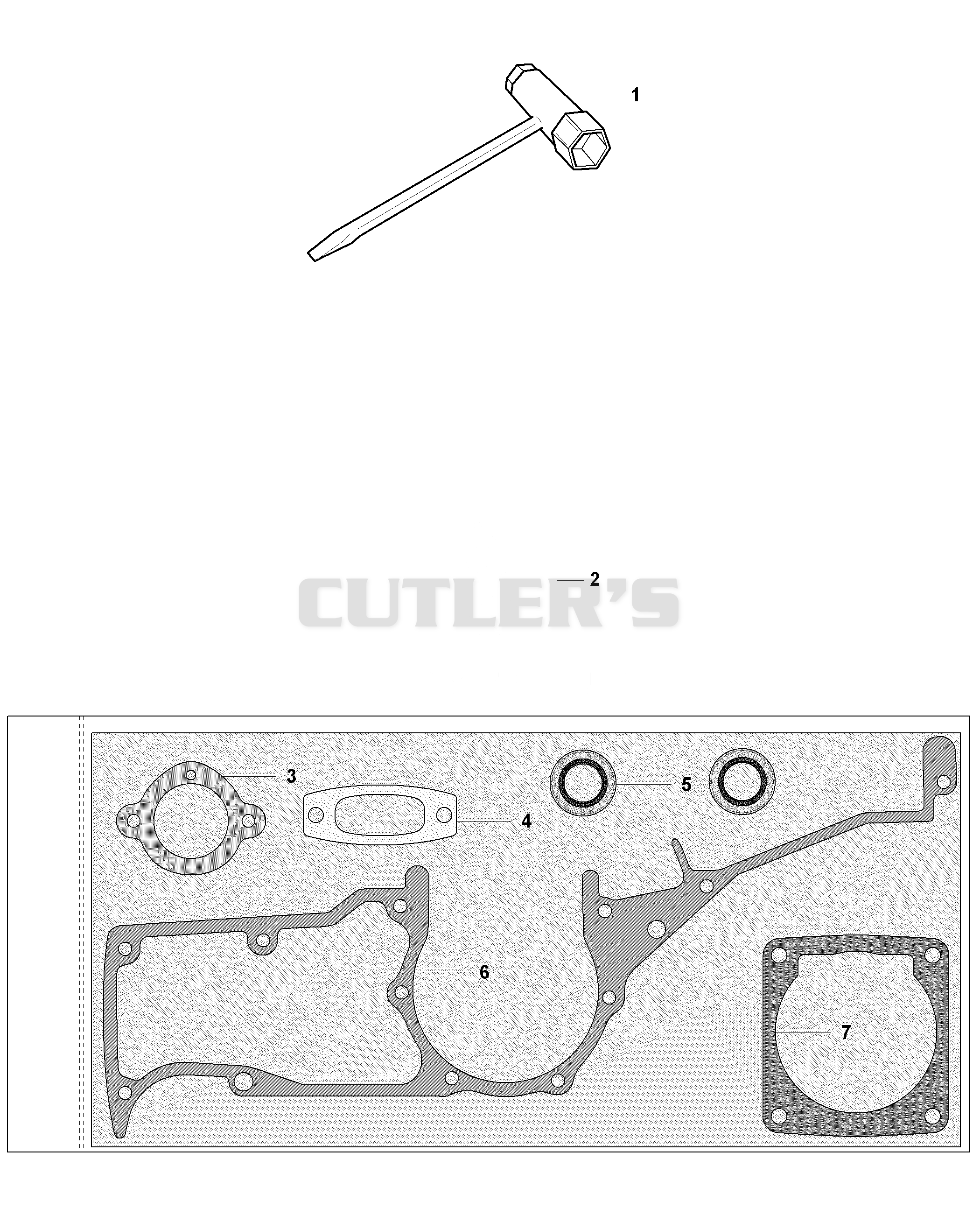

Combination Tool and Gasket Kit
Combination Tool and Gasket Kit
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501691702
501691702
|
|||
|
|
506292402
506292402
|
|||
|
|
506274301
506274301
|
|||
|
|
503131304
503131304
|
|||
|
|
503260205
503260205
|
|||
|
|
503134501
503134501
|
|||
|
|
503134601
503134601
|

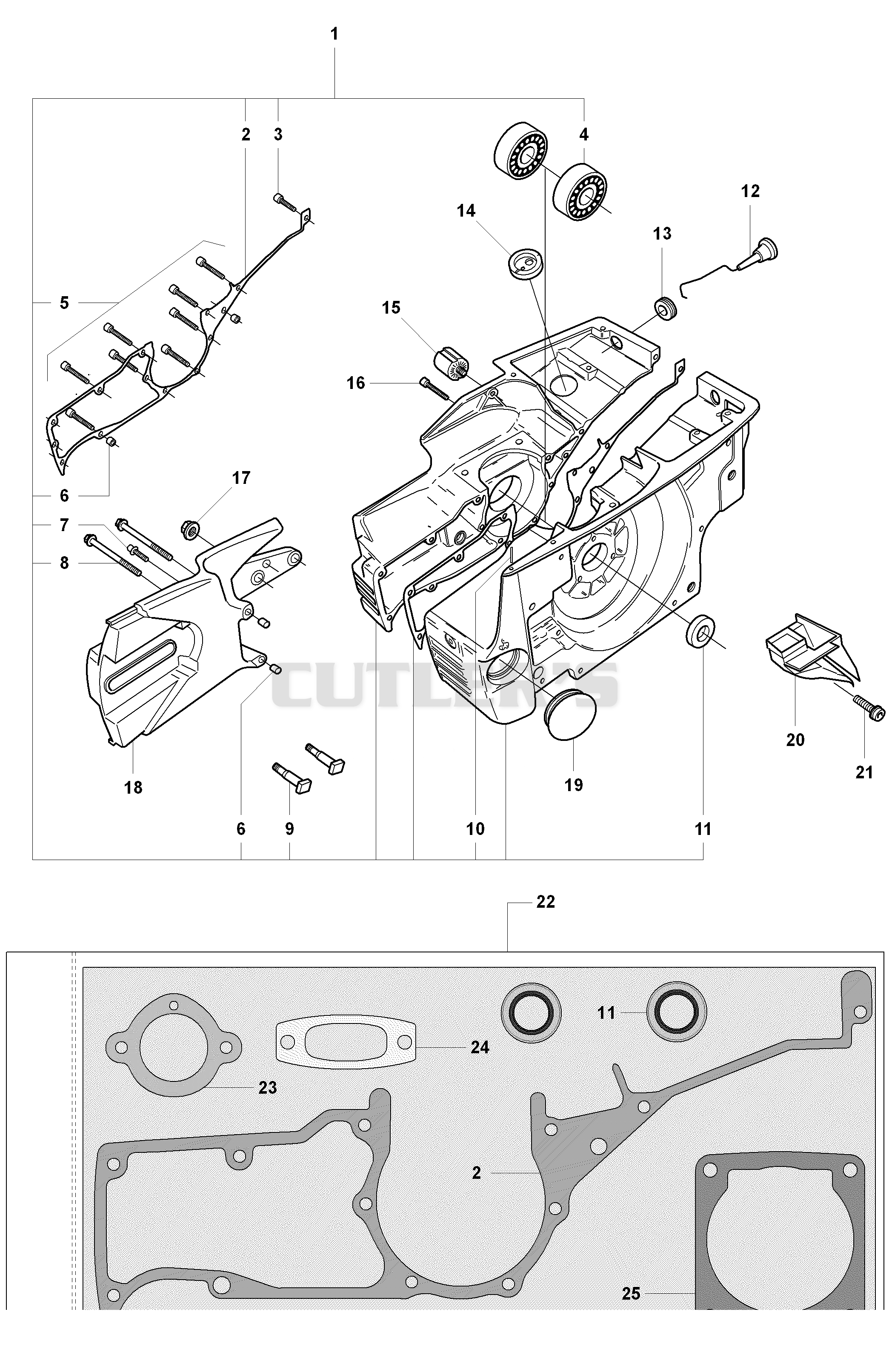

Crankcase Gasket Kit and Cutter Arm
Crankcase Gasket Kit and Cutter Arm
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
501892572
501892572
|
|||
|
|
503134501
503134501
|
|||
|
|
725533155
725533155
|
|||
|
|
503250002
503250002
|
|||
|
|
725533955
725533955
|
|||
|
|
501270801
501270801
|
|||
|
|
503200220
503200220
|
|||
|
|
503200265
503200265
|
|||
|
|
501815701
501815701
|
|||
|
|
721420600
721420600
|
|||
|
|
503260205
503260205
|
|||
|
|
506254301
506254301
|
|||
|
|
503145402
503145402
|
|||
|
|
503132001
503132001
|
|||
|
|
501269704
501269704
|
|||
|
|
725537055
725537055
|
|||
|
|
503220001
503220001
|
|||
|
|
506241402
506241402
|
|||
|
|
506269702
506269702
|
|||
|
|
506237001
506237001
|
|||
|
|
503200212
503200212
|
|||
|
|
506292402
506292402
|
|||
|
|
506274301
506274301
|
|||
|
|
503131304
503131304
|
|||
|
|
503134601
503134601
|

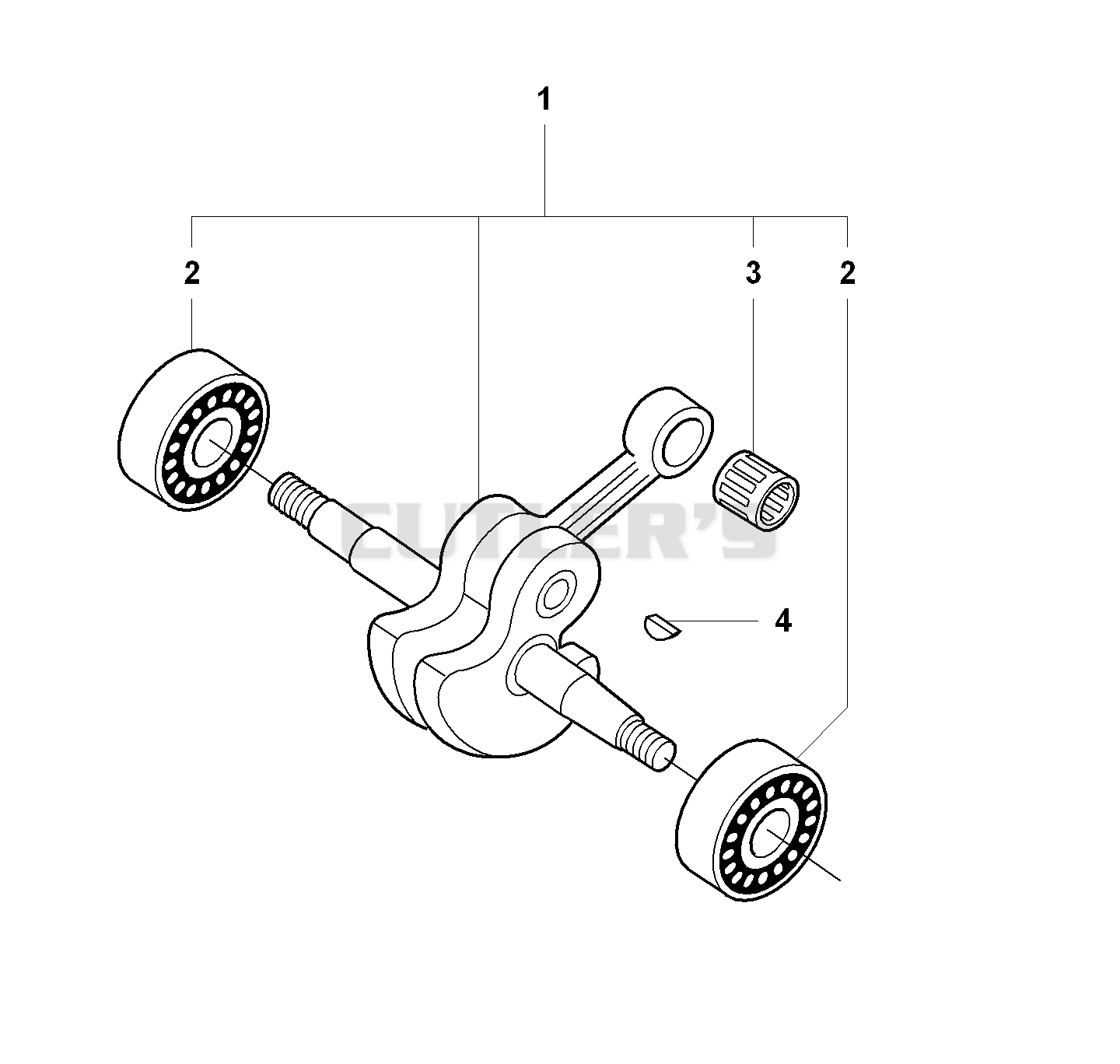

Crankshaft Assy
Crankshaft Assy
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503142073
503142073
|
|||
|
|
503250002
503250002
|
|||
|
|
503132901
503132901
|
|||
|
|
735880600
735880600
|

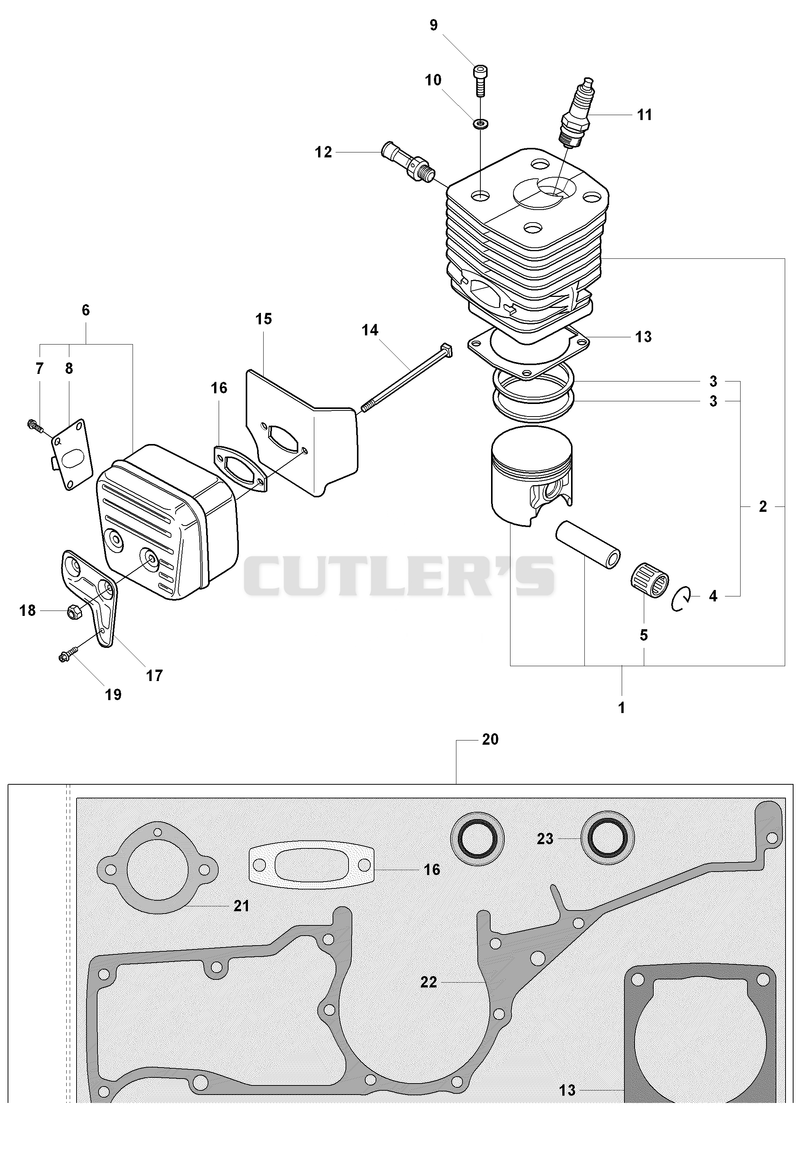

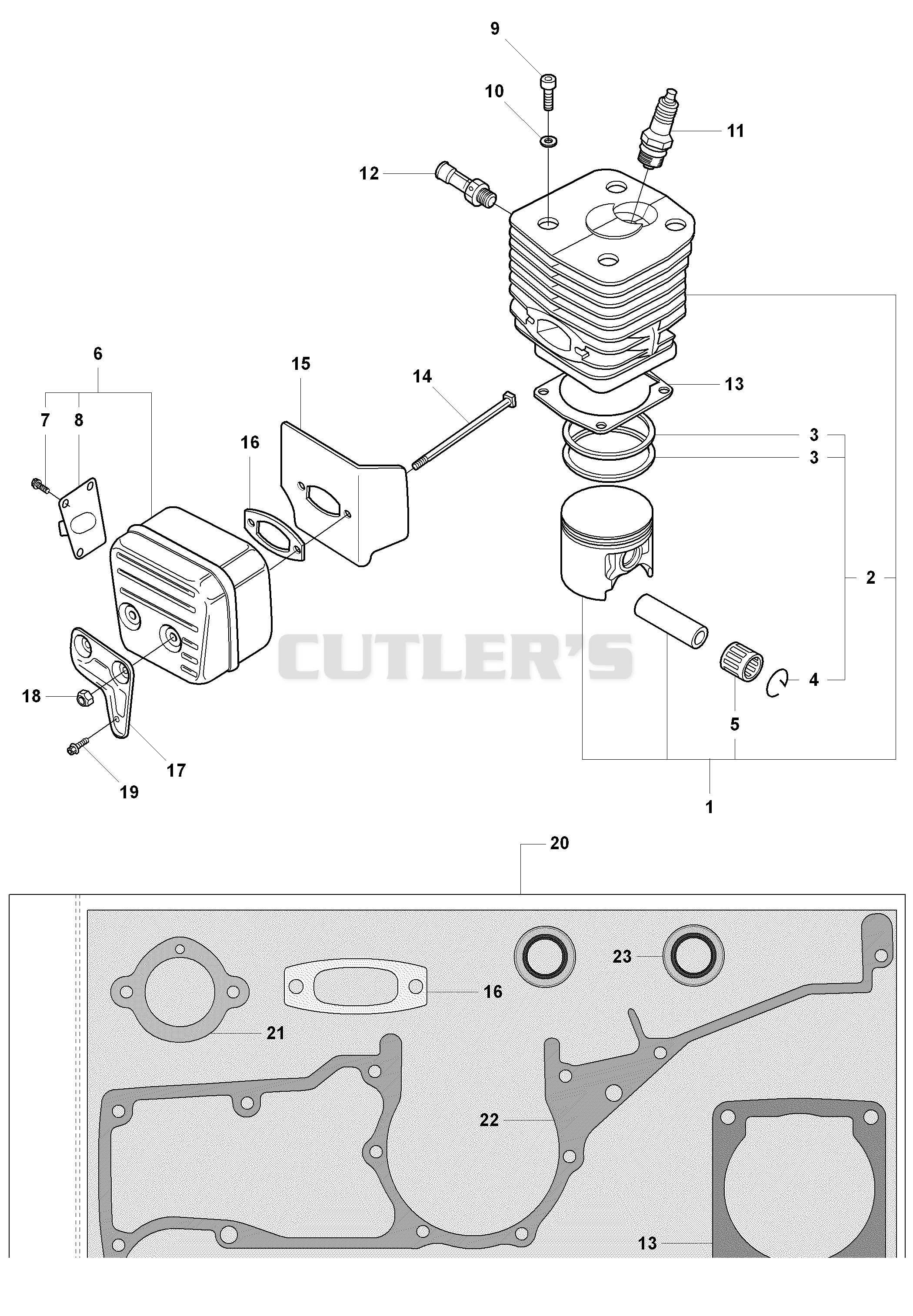

Cylinder and Gasket Kit and Muffler
Cylinder and Gasket Kit and Muffler
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
506294271
506294271
|
|||
|
|
501894103
501894103
|
|||
|
|
503289026
503289026
|
|||
|
|
737441300
737441300
|
|||
|
|
503132901
503132901
|
|||
|
|
503130004
503130004
|
|||
|
|
729534001
729534001
|
|||
|
|
506274901
506274901
|
|||
|
|
503216025
503216025
|
|||
|
|
503230005
503230005
|
|||
|
|
503235109
503235109
|
|||
|
|
503665601
503665601
|
|||
|
|
503134601
503134601
|
|||
|
|
503216401
503216401
|
|||
|
|
506341401
506341401
|
|||
|
|
503131304
503131304
|
|||
|
|
506278701
506278701
|
|||
|
|
503222007
503222007
|
|||
|
|
725536855
725536855
|
|||
|
|
506292402
506292402
|
|||
|
|
506274301
506274301
|
|||
|
|
503134501
503134501
|
|||
|
|
503260205
503260205
|

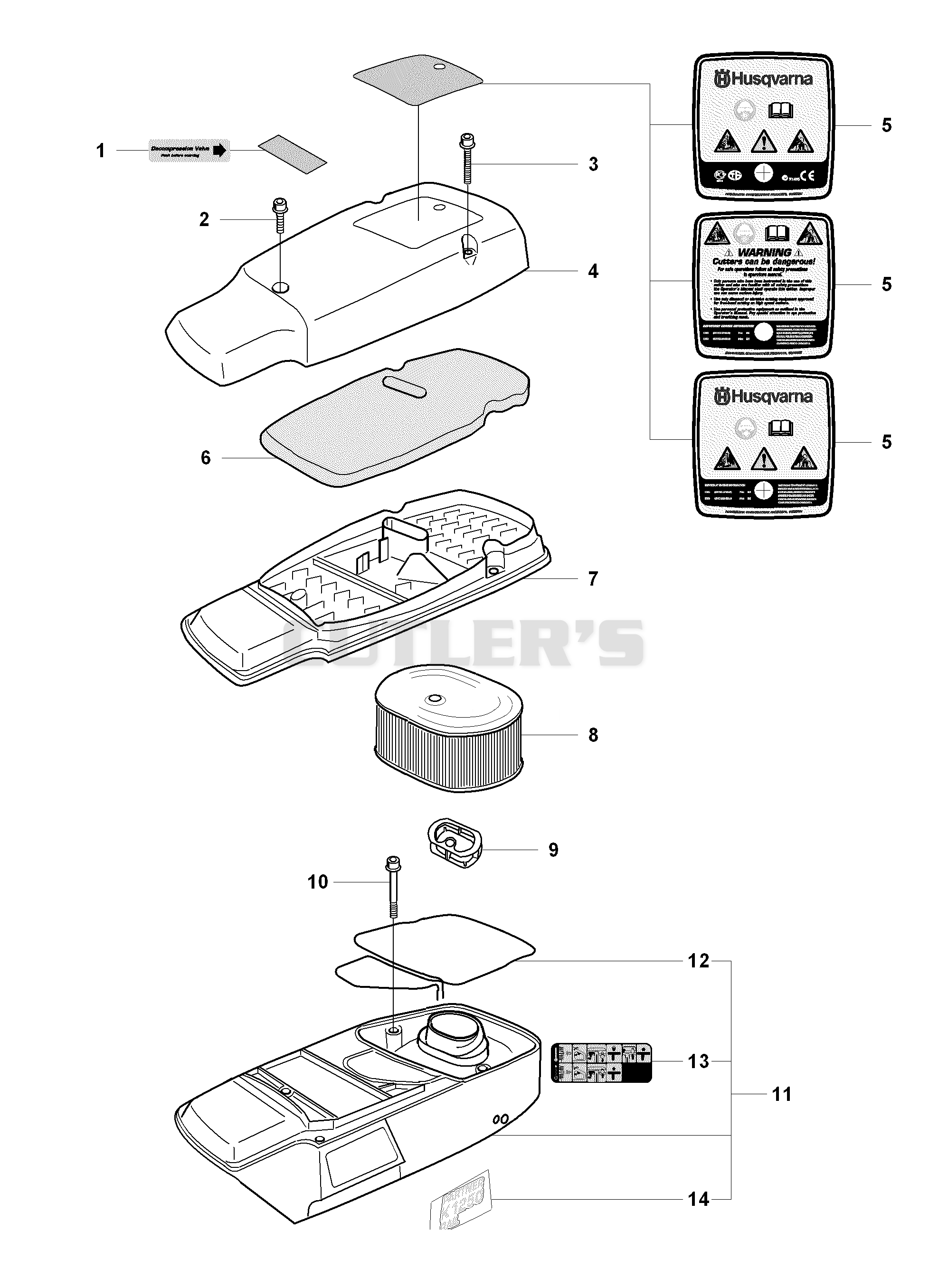

Filter Cover and Prefilter and Air Filter and Cylinder Cover
Filter Cover and Prefilter and Air Filter and Cylinder Cover
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
544874602
544874602
|
|||
|
|
503203425
503203425
|
|||
|
|
503203455
503203455
|
|||
|
|
506255602
506255602
|
|||
|
|
544874402
544874402
|
|||
|
|
544874403
544874403
|
|||
|
|
544874404
544874404
|
|||
|
|
506268701
506268701
|
|||
|
|
506255702
506255702
|
|||
|
|
506231803
506231803
|
|||
|
|
506250301
506250301
|
|||
|
|
503200230
503200230
|
|||
|
|
506275402
506275402
|
|||
|
|
506283930
506283930
|
|||
|
|
544873801
544873801
|
|||
|
|
544873901
544873901
|
|||
|
|
544873902
544873902
|

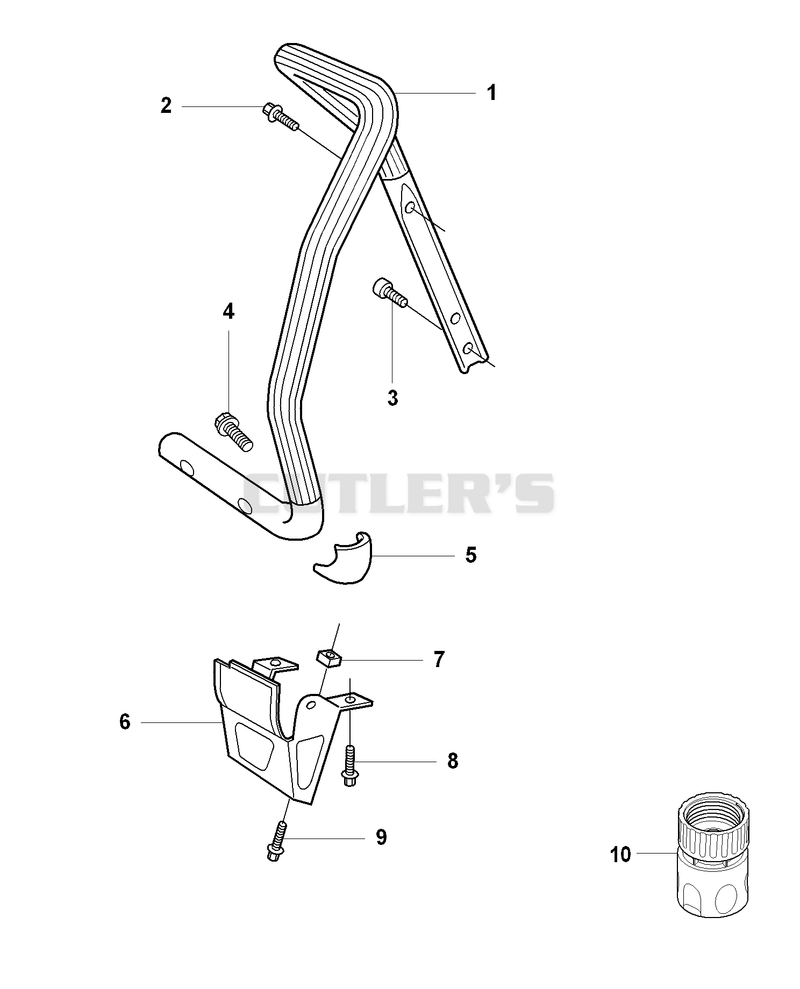

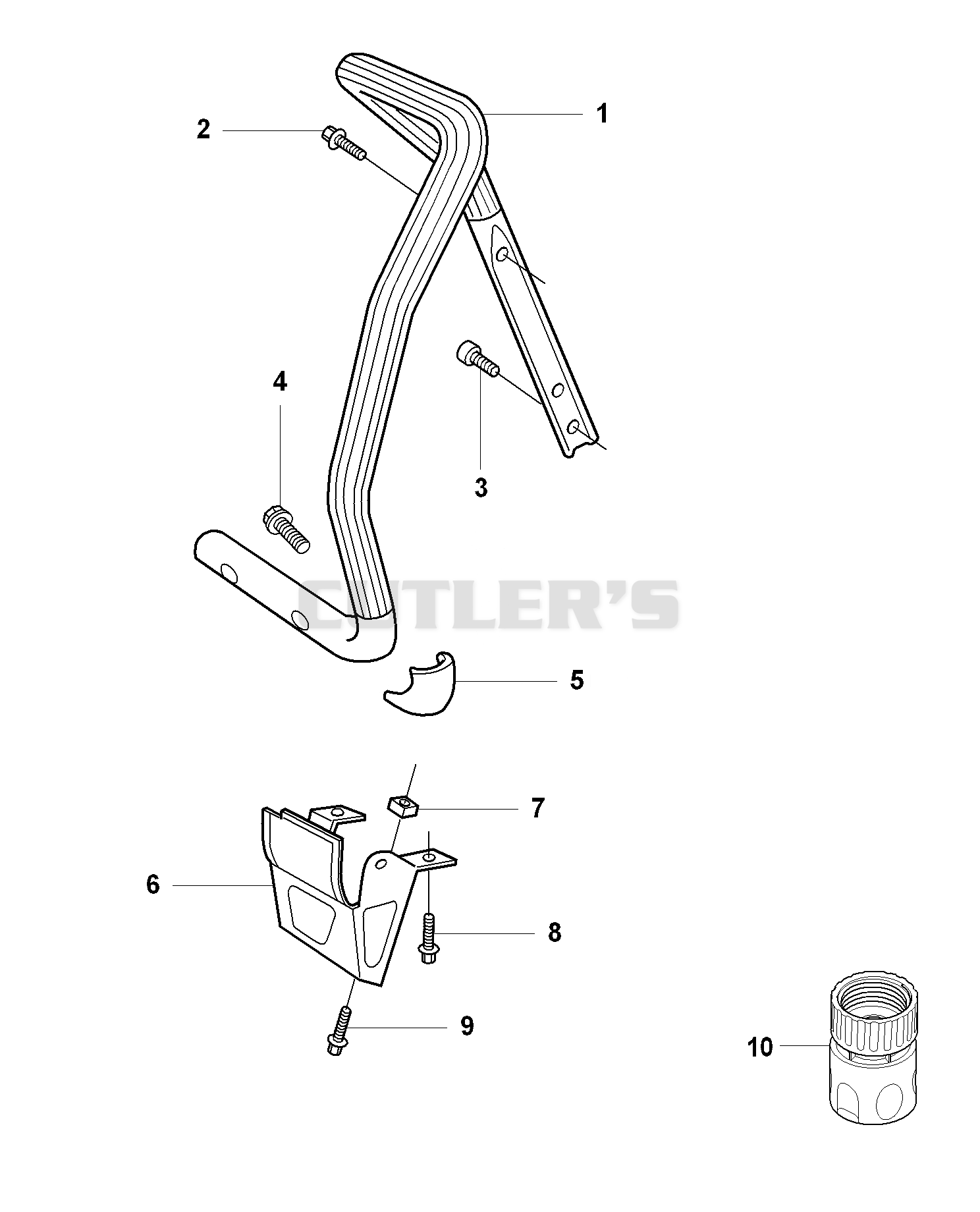

Handle
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
506255302
506255302
|
|||
|
|
503200210
503200210
|
|||
|
|
503210525
503210525
|
|||
|
|
503210632
503210632
|
|||
|
|
506149001
506149001
|
|||
|
|
506250101
506250101
|
|||
|
|
503226504
503226504
|
|||
|
|
725537055
725537055
|
|||
|
|
503200312
503200312
|
|||
|
|
503266002
503266002
|

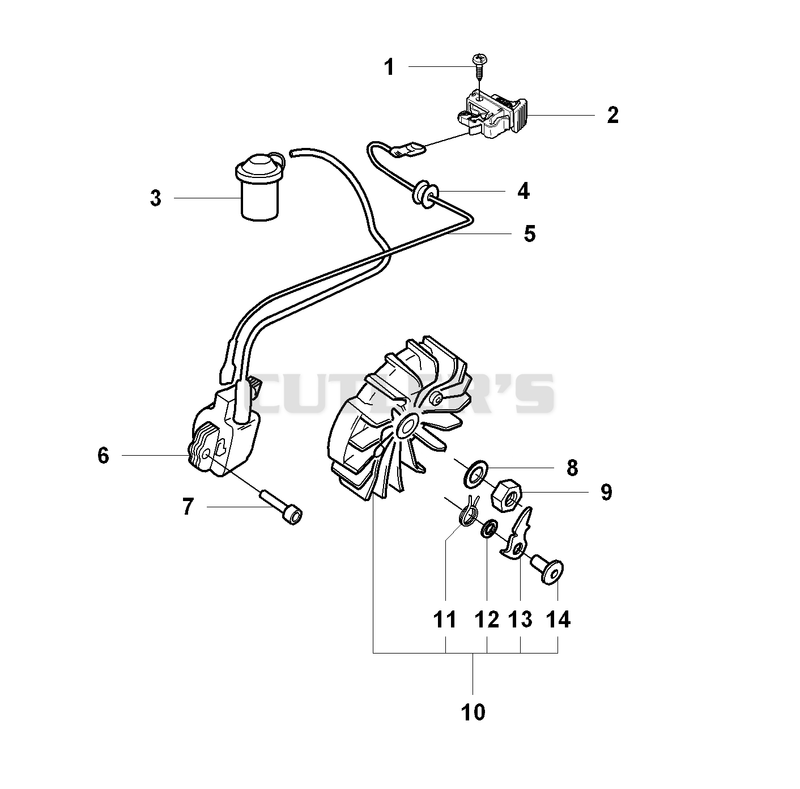

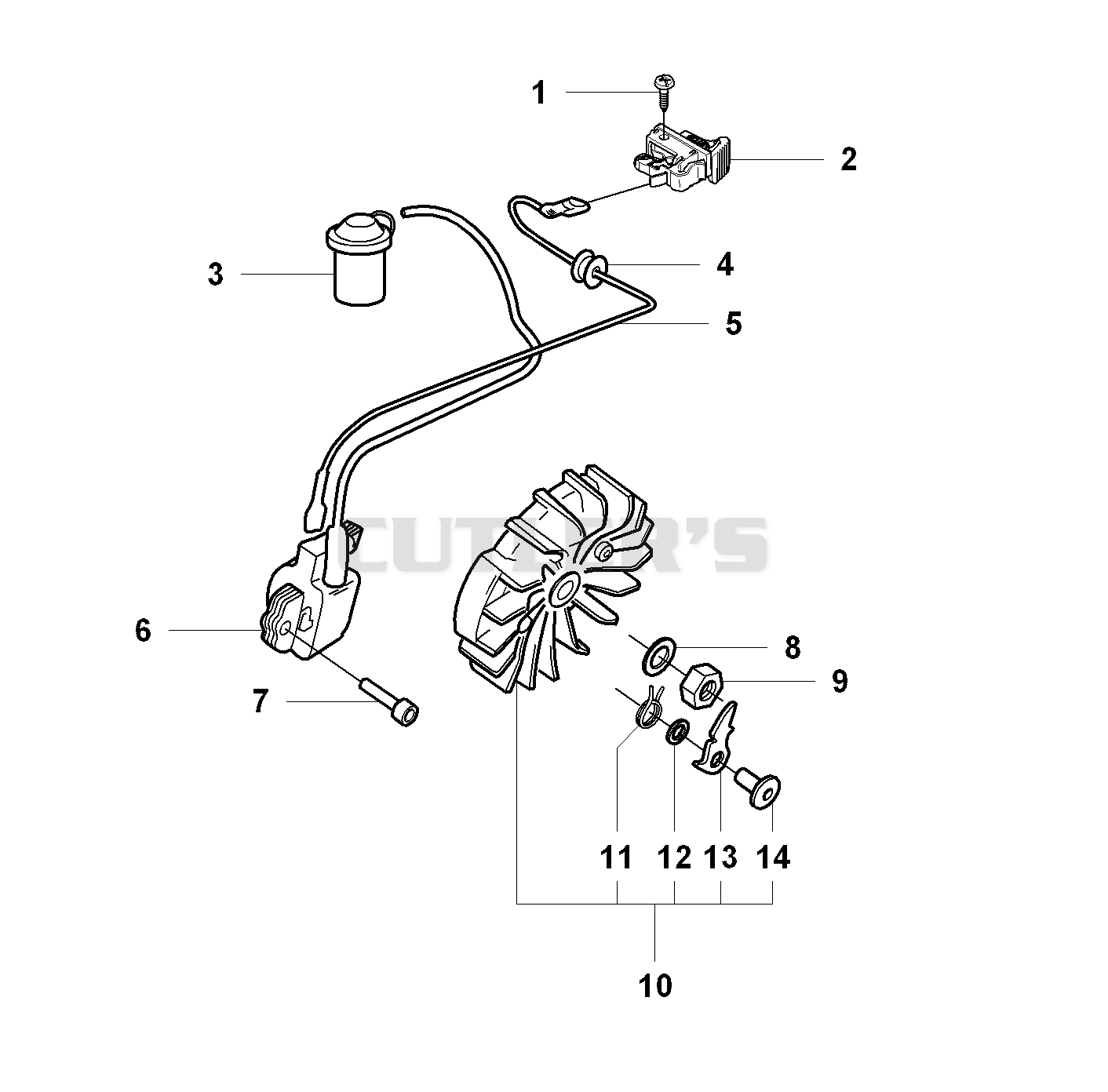

Ignition System and Flywheel Assy
Ignition System and Flywheel Assy
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
503219008
503219008
|
|||
|
|
506318602
506318602
|
|||
|
|
501485402
501485402
|
|||
|
|
503132401
503132401
|
|||
|
|
501839803
501839803
|
|||
|
|
544018801
544018801
|
|||
|
|
503202520
503202520
|
|||
|
|
735117350
735117350
|
|||
|
|
503221003
503221003
|
|||
|
|
501895003
501895003
|
|||
|
|
501634801
501634801
|
|||
|
|
503230042
503230042
|
|||
|
|
501673203
501673203
|
|||
|
|
501819901
501819901
|
Starter
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
506275502
506275502
|
|||
|
|
503210616
503210616
|
|||
|
|
503234302
503234302
|
|||
|
|
501896701
501896701
|
|||
|
|
506335625
506335625
|
|||
|
|
503127901
503127901
|
|||
|
|
503743601
503743601
|
|||
|
|
503135001
503135001
|
|||
|
|
506255802
506255802
|
|||
|
|
503203425
503203425
|
|||
|
|
544873501
544873501
|
|||
|
|
501895902
501895902
|
|||
|
|
501895903
501895903
|

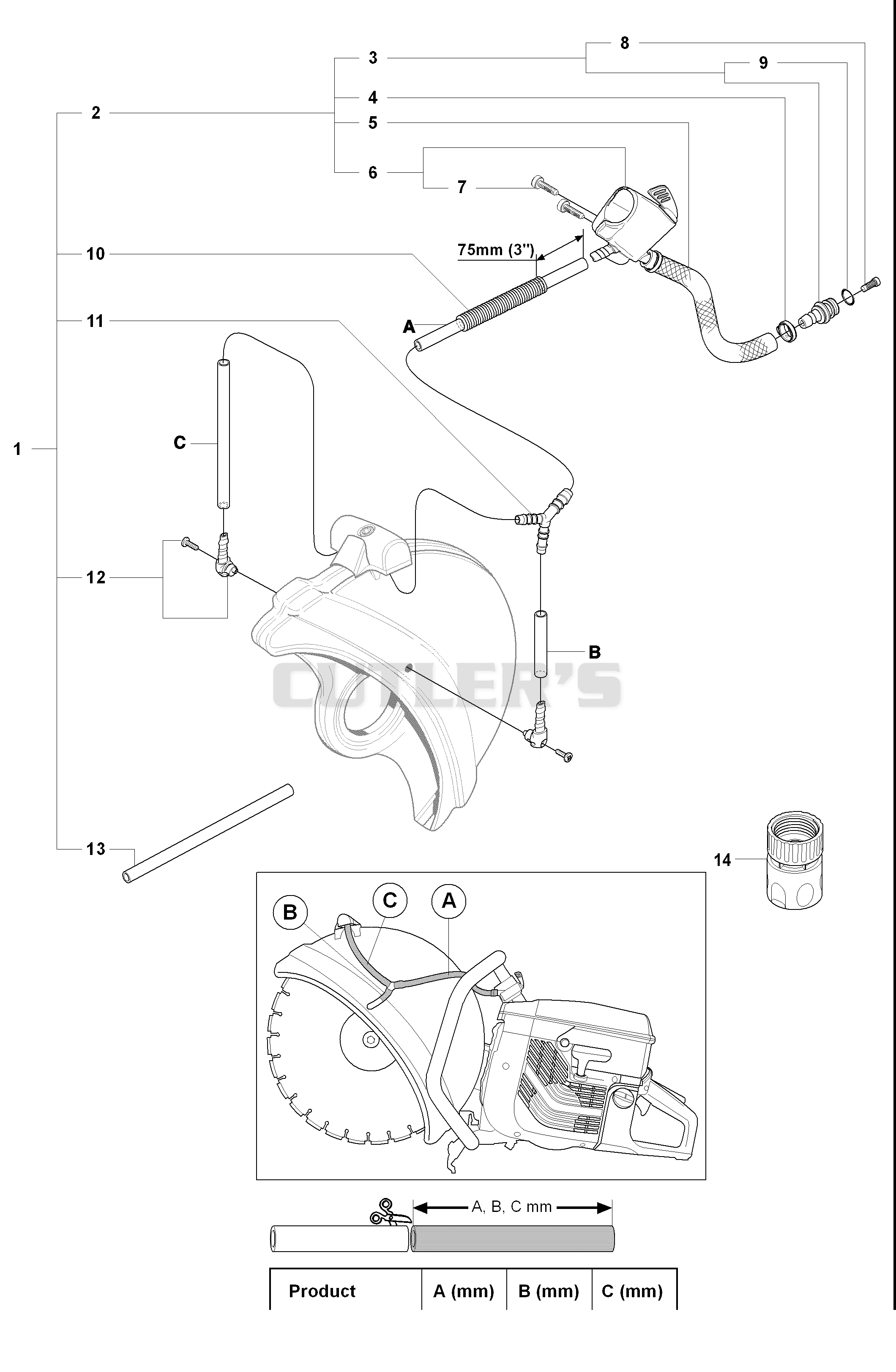

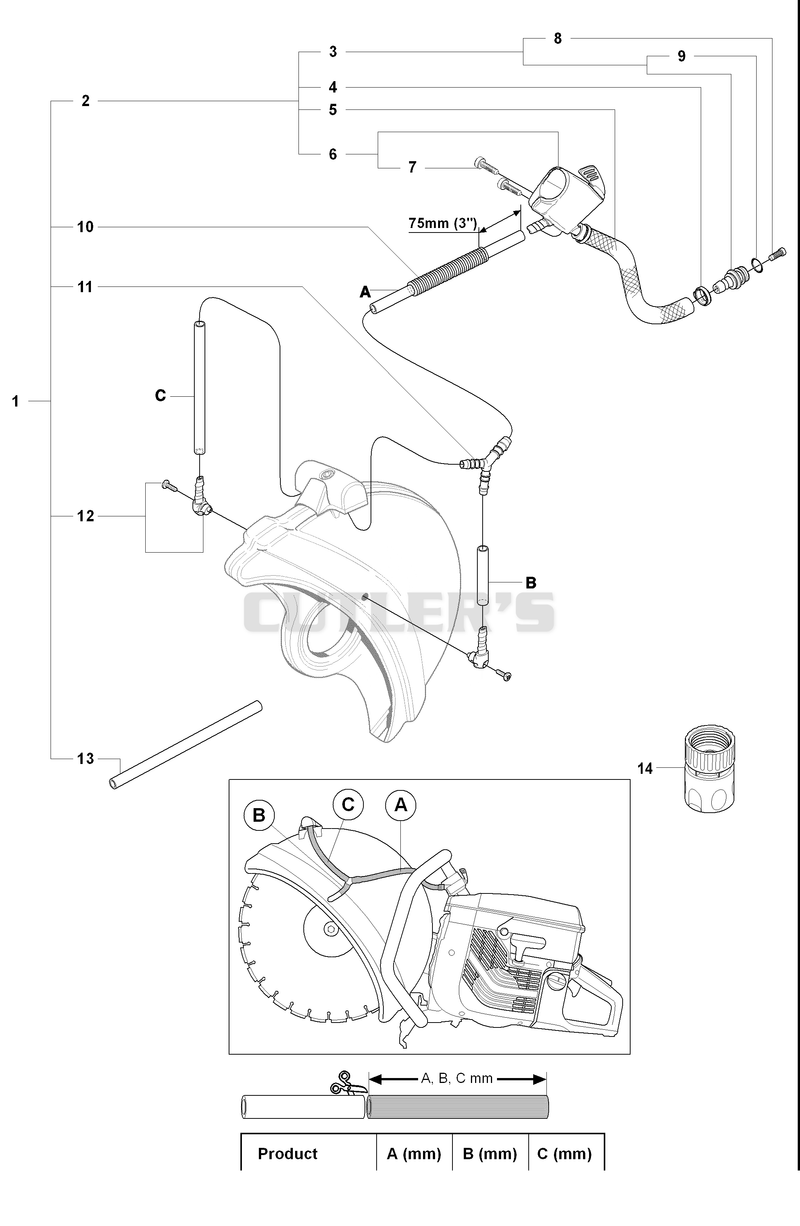

Water Hose Kit
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
544003103
544003103
|
|||
|
|
506329021
506329021
|
|||
|
|
506295702
506295702
|
|||
|
|
506095602
506095602
|
|||
|
|
506097502
506097502
|
|||
|
|
506317731
506317731
|
|||
|
|
503210619
503210619
|
|||
|
|
506298801
506298801
|
|||
|
|
503263021
503263021
|
|||
|
|
506352701
506352701
|
|||
|
|
506328701
506328701
|
|||
|
|
506295601
506295601
|
|||
|
|
506095824
506095824
|
|||
|
|
503266002
503266002
|

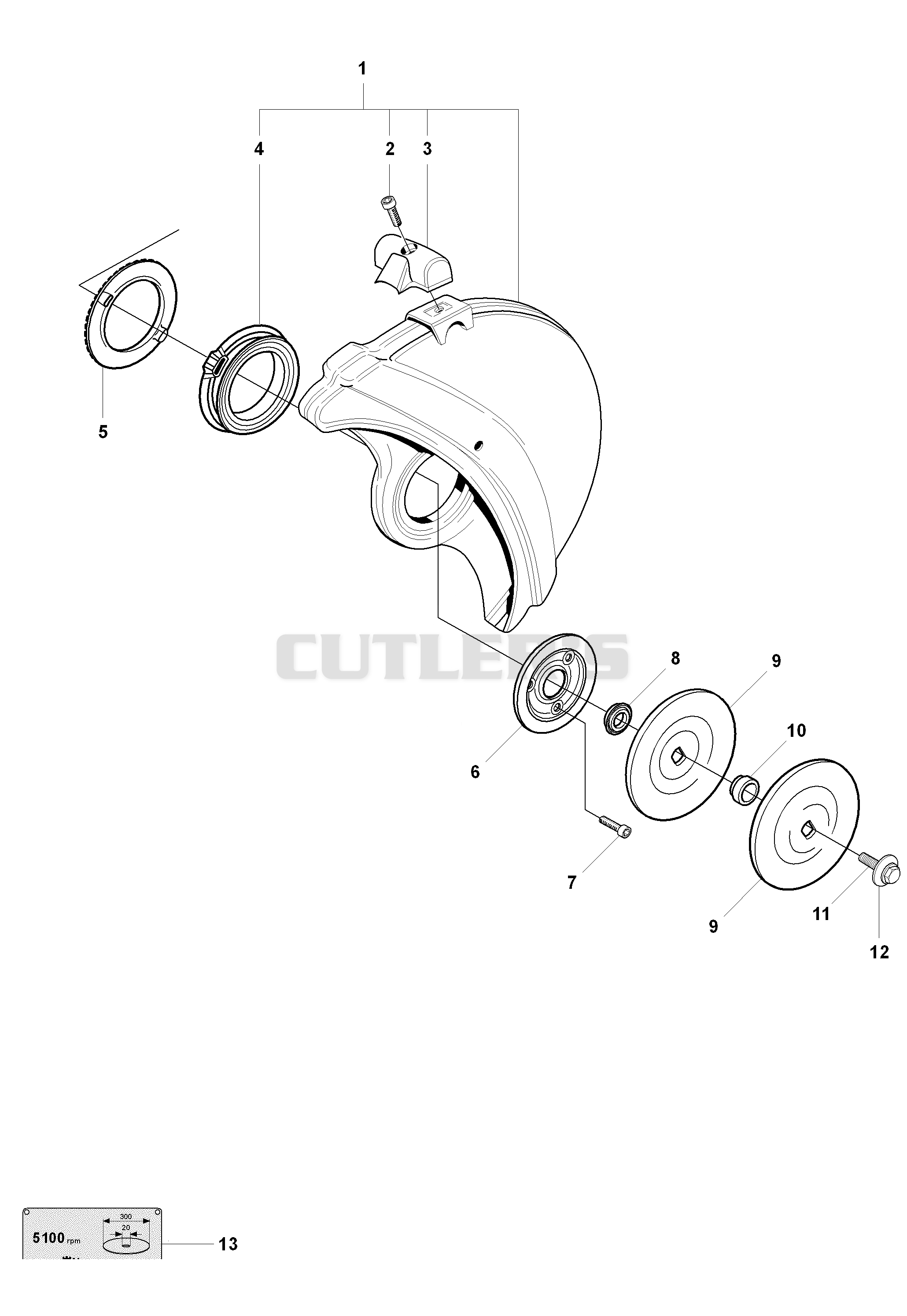

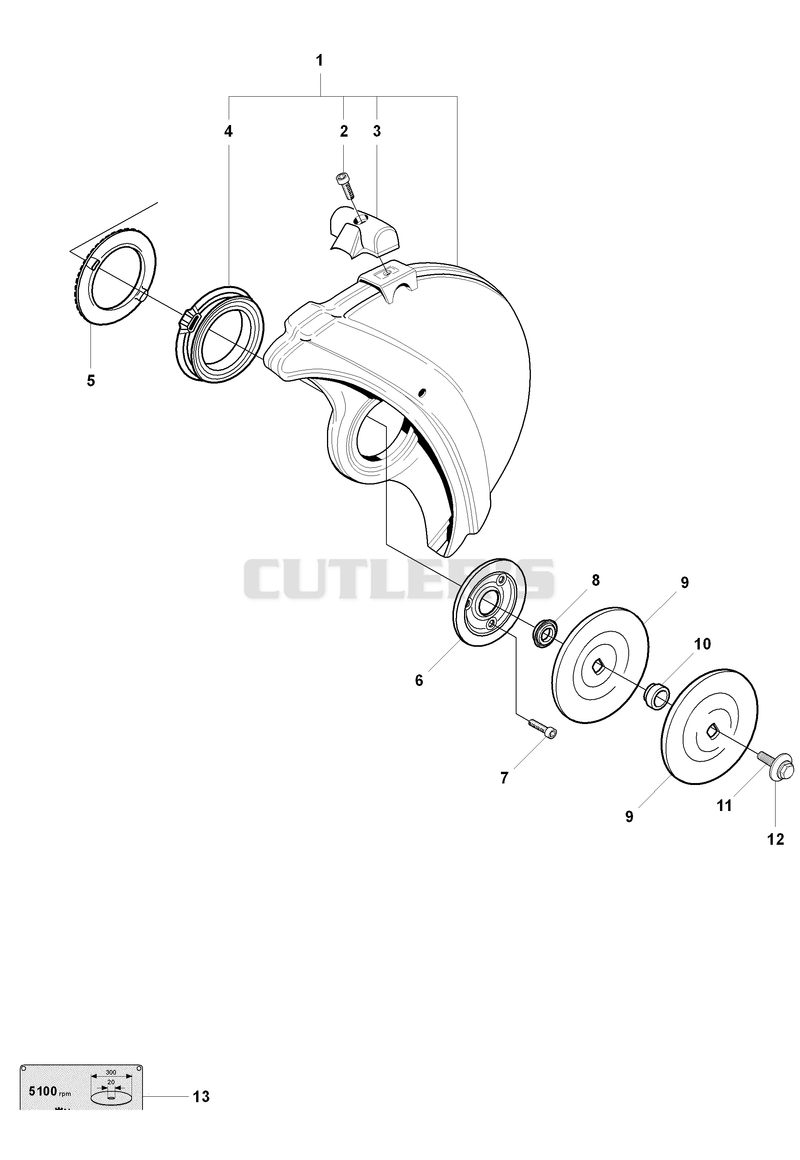

Wheel Guard Assy
Wheel Guard Assy
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
506340504
506340504
|
|||
|
|
506340506
506340506
|
|||
|
|
725533155
725533155
|
|||
|
|
506344602
506344602
|
|||
|
|
506266302
506266302
|
|||
|
|
506266401
506266401
|
|||
|
|
506266501
506266501
|
|||
|
|
725532955
725532955
|
|||
|
|
506324801
506324801
|
|||
|
|
506267101
506267101
|
|||
|
|
506028701
506028701
|
|||
|
|
506070901
506070901
|
|||
|
|
506379620
506379620
|
|||
|
|
506379622
506379622
|
|||
|
|
506379625
506379625
|
|||
|
|
506028830
506028830
|
|||
|
|
506139511
506139511
|
|||
|
|
506139601
506139601
|
|||
|
|
506284112
506284112
|
|||
|
|
506284111
506284111
|
|||
|
|
506284114
506284114
|
|||
|
|
506284122
506284122
|
|||
|
|
506284121
506284121
|
|||
|
|
506284124
506284124
|
