Kawasaki FC290V-FS05 Engine Parts Diagram
Diagrams:
Diagram:

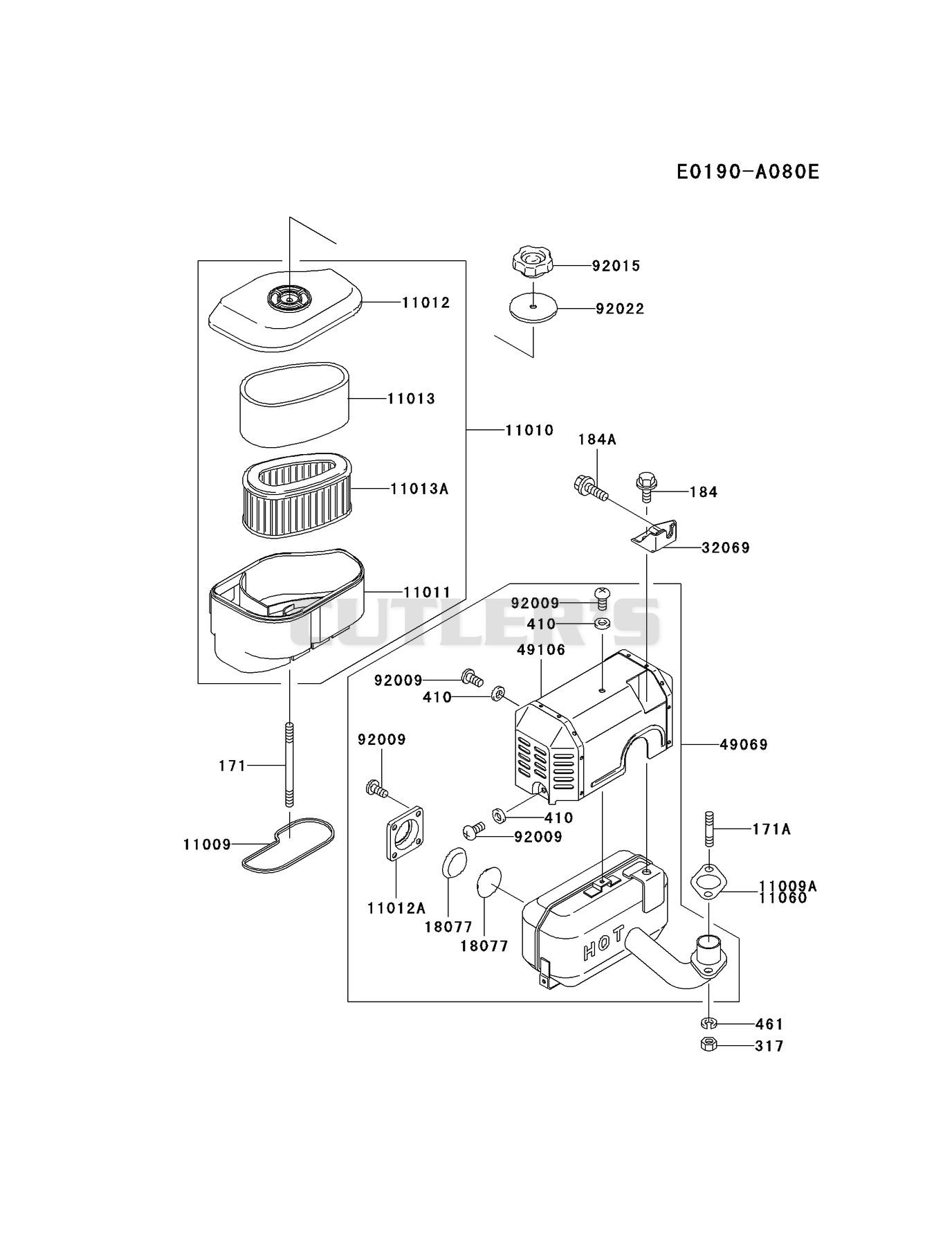

AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2422
11009-2422
|
|||
|
|
11010-2248
11010-2248
|
|||
|
|
11011-2152
11011-2152
|
|||
|
|
11012-2183
11012-2183
|
|||
|
|
11012-2232-9Y
11012-2232-9Y
|
|||
|
|
11013-2092
11013-2092
|
|||
|
|
11013-2093
11013-2093
|
|||
|
|
11060-2381
11060-2381
|
|||
|
|
18077-2087
18077-2087
|
|||
|
|
32069-2063-9Y
32069-2063-9Y
|
|||
|
|
49069-2161-9Y
49069-2161-9Y
|
|||
|
|
49106-2387-9Y
49106-2387-9Y
|
|||
|
|
92009-2166
92009-2166
|
|||
|
|
92015-2138
92015-2138
|
|||
|
|
92022-2204
92022-2204
|
|||
|
|
171BA0690
171BA0690
|
|||
|
|
171G0820
171G0820
|
|||
|
|
184B0814
184B0814
|
|||
|
|
184B0818
184B0818
|
|||
|
|
317R0800
317R0800
|
|||
|
|
410B0500
410B0500
|
|||
|
|
461DA0800
461DA0800
|

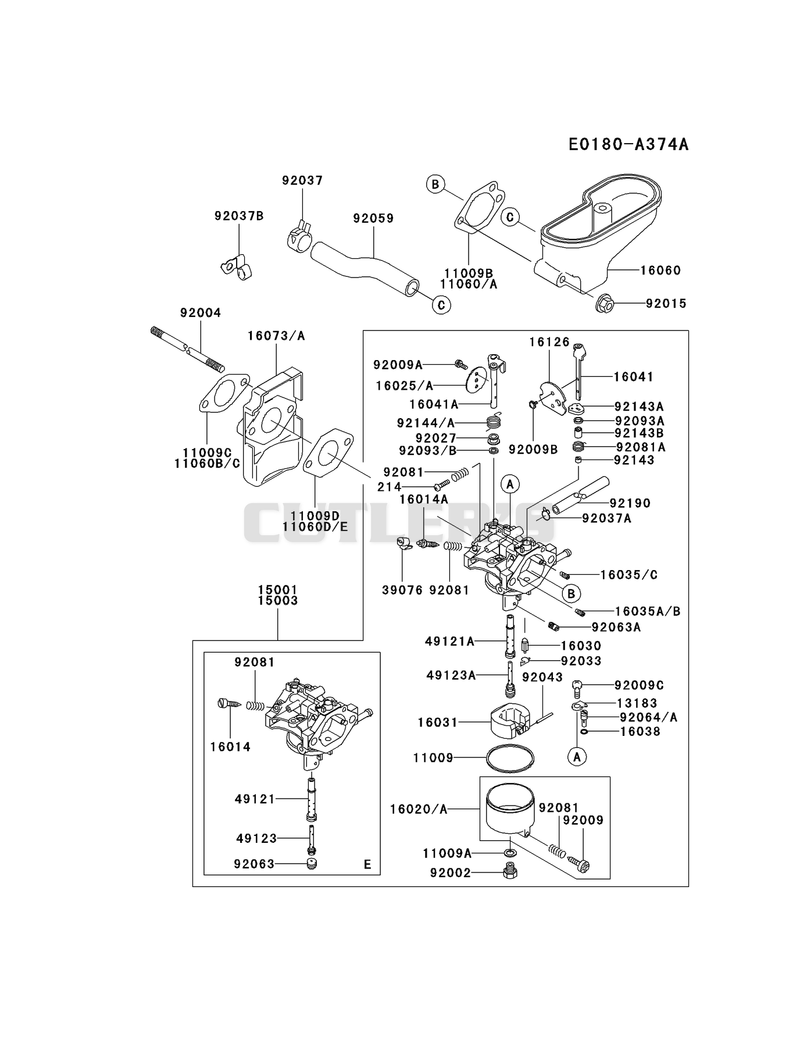

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2024
11009-2024
|
|||
|
|
11009-2025
11009-2025
|
|||
|
|
11060-2334
11060-2334
|
|||
|
|
11060-2335
11060-2335
|
|||
|
|
11060-2336
11060-2336
|
|||
|
|
13183-2252
13183-2252
|
|||
|
|
15003-2452
15003-2452
|
|||
|
|
16014-2074
16014-2074
|
|||
|
|
16020-2109
16020-2109
|
|||
|
|
16025-2184
16025-2184
|
|||
|
|
16030-2067
16030-2067
|
|||
|
|
16031-2066
16031-2066
|
|||
|
|
16035-2053
16035-2053
|
|||
|
|
16035-2055
16035-2055
|
|||
|
|
16038-024
16038-024
|
|||
|
|
16041-2129
16041-2129
|
|||
|
|
16041-2130
16041-2130
|
|||
|
|
16060-2113
16060-2113
|
|||
|
|
16073-2183
16073-2183
|
|||
|
|
16126-2112
16126-2112
|
|||
|
|
39076-2053
39076-2053
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
49121-2200
49121-2200
|
|||
|
|
49123-2076
49123-2076
|
|||
|
|
92002-2009
92002-2009
|
|||
|
|
92004-2093
92004-2093
|
|||
|
|
92009-2015
92009-2015
|
|||
|
|
92009-2080
92009-2080
|
|||
|
|
92009-2081
92009-2081
|
|||
|
|
92009-2244
92009-2244
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92027-2025
92027-2025
|
|||
|
|
92033-2067
92033-2067
|
|||
|
|
92037-1104
92037-1104
|
|||
|
|
92037-1610
92037-1610
|
|||
|
|
92037-2085
92037-2085
|
|||
|
|
92043-2006
92043-2006
|
|||
|
|
92059-2170
92059-2170
|
|||
|
|
92063-2278
92063-2278
|
|||
|
|
92064-2105
92064-2105
|
|||
|
|
92081-2009
92081-2009
|
|||
|
|
92081-2303
92081-2303
|
|||
|
|
92093-2081
92093-2081
|
|||
|
|
92093-2082
92093-2082
|
|||
|
|
92143-2132
92143-2132
|
|||
|
|
92143-2133
92143-2133
|
|||
|
|
92143-2134
92143-2134
|
|||
|
|
92144-2377
92144-2377
|
|||
|
|
92190-2011
92190-2011
|
|||
|
|
214B0412
214B0412
|
CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
16169-2127
16169-2127
|
|||
|
|
16171-2081
16171-2081
|
|||
|
|
21187-2051
21187-2051
|
|||
|
|
39003-2073
39003-2073
|
|||
|
|
42036-2060
42036-2060
|
|||
|
|
49110-2085
49110-2085
|
|||
|
|
49113-2065
49113-2065
|
|||
|
|
92002-2269
92002-2269
|
|||
|
|
92009-2113
92009-2113
|
|||
|
|
92022-2222
92022-2222
|
|||
|
|
92200-2036
92200-2036
|
|||
|
|
92027-2088
92027-2088
|
|||
|
|
92027-2089
92027-2089
|
|||
|
|
92037-2020
92037-2020
|
|||
|
|
92081-2299
92081-2299
|
|||
|
|
92081-2300
92081-2300
|
|||
|
|
92081-2316
92081-2316
|
|||
|
|
92144-2266
92144-2266
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92200-2029
92200-2029
|
|||
|
|
92022-2374
92022-2374
|
|||
|
|
180B0630
180B0630
|
|||
|
|
180B0655
180B0655
|
|||
|
|
214B0425
214B0425
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
411B0600
411B0600
|
|||
|
|
554A0600
554A0600
|

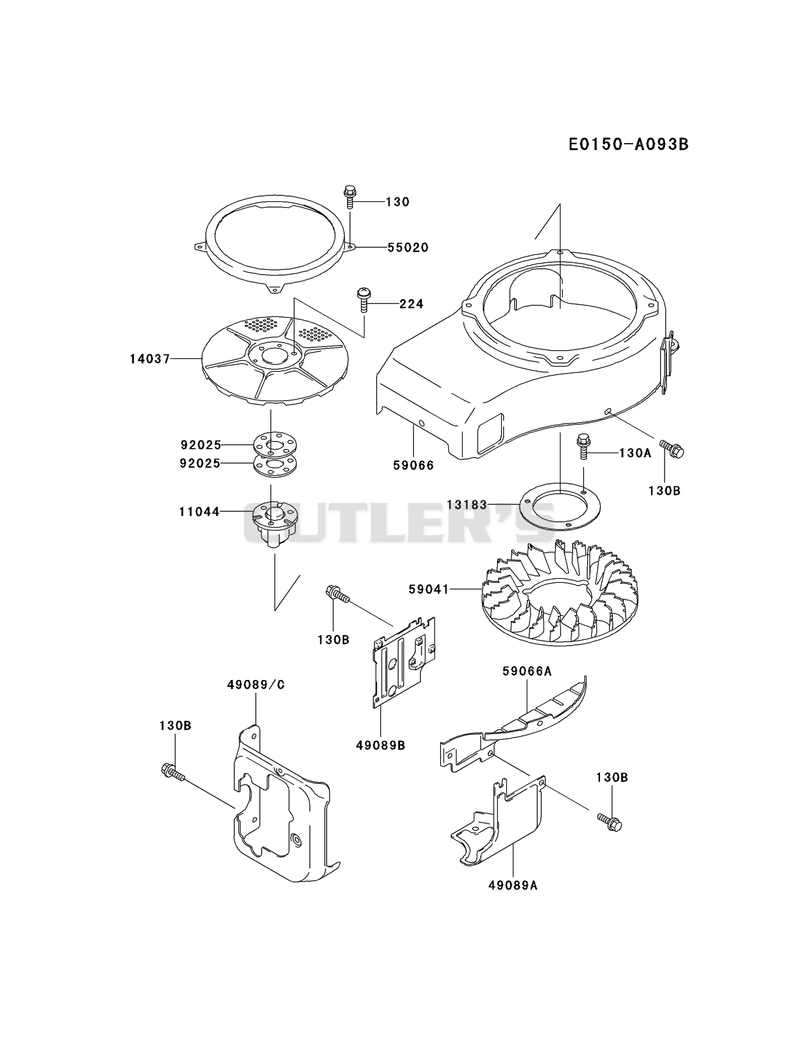

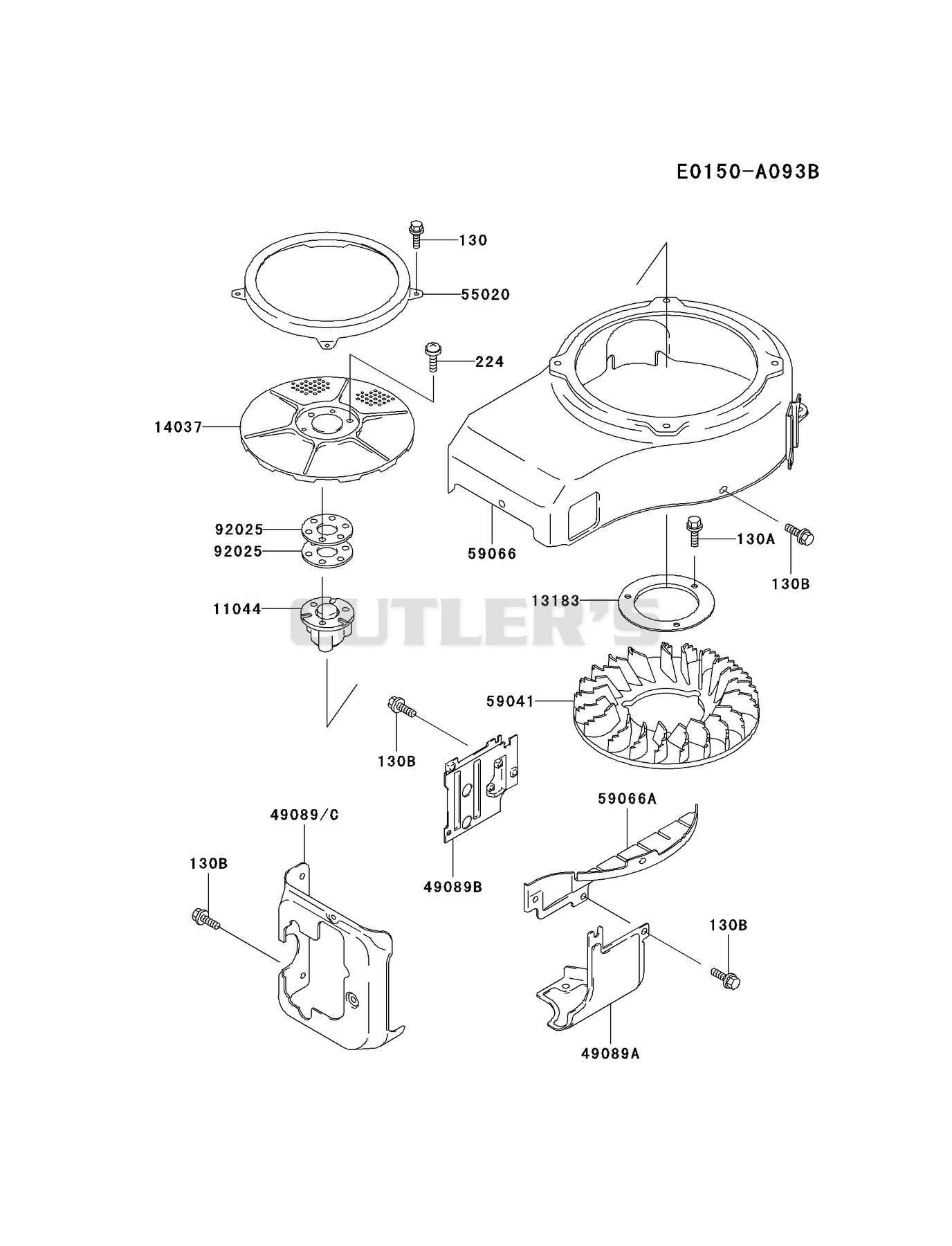

COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11044-2073
11044-2073
|
|||
|
|
13183-2407
13183-2407
|
|||
|
|
14037-2090-9H
14037-2090-9H
|
|||
|
|
49089-2189-9H
49089-2189-9H
|
|||
|
|
49089-2246-9H
49089-2246-9H
|
|||
|
|
49089-2431-9H
49089-2431-9H
|
|||
|
|
55020-2070-9H
55020-2070-9H
|
|||
|
|
59041-2082
59041-2082
|
|||
|
|
59066-2277-9H
59066-2277-9H
|
|||
|
|
59066-2278-9H
59066-2278-9H
|
|||
|
|
92025-2176
92025-2176
|
|||
|
|
130B0610
130B0610
|
|||
|
|
130G0610
130G0610
|
|||
|
|
130BA0612
130BA0612
|
|||
|
|
235AA0645
235AA0645
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-2086
11004-2086
|
|||
|
|
11008-6027
11008-6027
|
|||
|
|
11009-2421
11009-2421
|
|||
|
|
11022-2054
11022-2054
|
|||
|
|
11060-2013
11060-2013
|
|||
|
|
13107-2089
13107-2089
|
|||
|
|
13169-2414
13169-2414
|
|||
|
|
16126-2107
16126-2107
|
|||
|
|
18020-2053
18020-2053
|
|||
|
|
49002-2076
49002-2076
|
|||
|
|
49002-2101
49002-2101
|
|||
|
|
49015-6173
49015-6173
|
|||
|
|
49073-2053
49073-2053
|
|||
|
|
49120-6105
49120-6105
|
|||
|
|
92004-2083
92004-2083
|
|||
|
|
92009-2308
92009-2308
|
|||
|
|
92036-023
92036-023
|
|||
|
|
92043-1037
92043-1037
|
|||
|
|
92043-1263
92043-1263
|
|||
|
|
92049-2097
92049-2097
|
|||
|
|
92049-2199
92049-2199
|
|||
|
|
92049-2230
92049-2230
|
|||
|
|
92141-2091
92141-2091
|
|||
|
|
92200-2033
92200-2033
|
|||
|
|
92200-2034
92200-2034
|
|||
|
|
112B0510
112B0510
|
|||
|
|
130B0614
130B0614
|
|||
|
|
130G0825
130G0825
|
|||
|
|
130T0845
130T0845
|
|||
|
|
130T0845
130T0845
|
|||
|
|
187AA0512
187AA0512
|
|||
|
|
461DA0500
461DA0500
|
|||
|
|
601A6306
601A6306
|

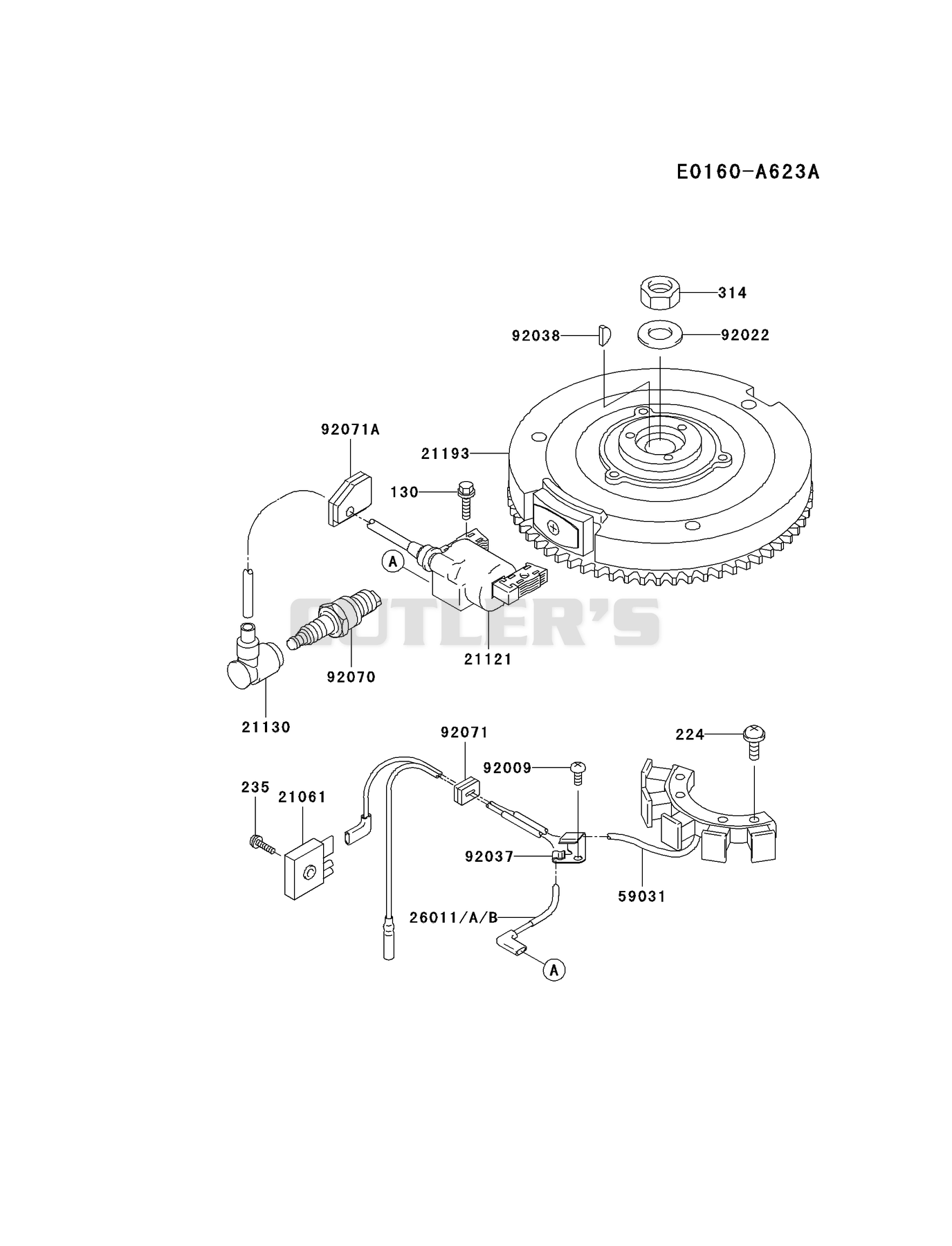

ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21061-2059
21061-2059
|
|||
|
|
21121-2084
21121-2084
|
|||
|
|
21130-2060
21130-2060
|
|||
|
|
21193-2152
21193-2152
|
|||
|
|
26011-2325
26011-2325
|
|||
|
|
59031-2066
59031-2066
|
|||
|
|
92009-2308
92009-2308
|
|||
|
|
92022-2205
92022-2205
|
|||
|
|
92037-2177
92037-2177
|
|||
|
|
92038-2094
92038-2094
|
|||
|
|
4006
4006
|
|||
|
|
92071-2099
92071-2099
|
|||
|
|
92071-2112
92071-2112
|
|||
|
|
130B0520
130B0520
|
|||
|
|
224B0620
224B0620
|
|||
|
|
235B0416
235B0416
|
|||
|
|
314G1600
314G1600
|

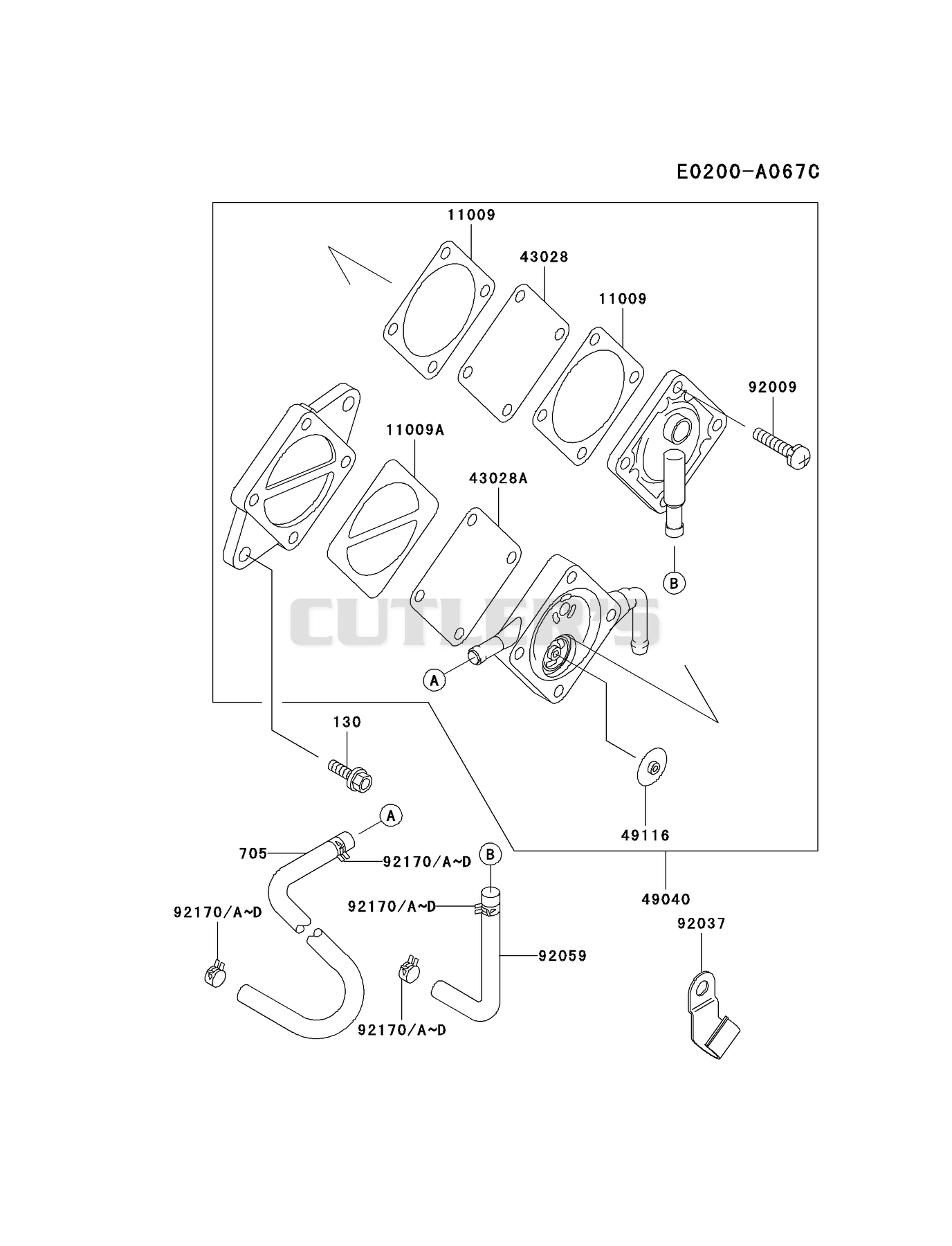

FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2763
11009-2763
|
|||
|
|
11009-2764
11009-2764
|
|||
|
|
43028-2068
43028-2068
|
|||
|
|
43028-2069
43028-2069
|
|||
|
|
49040-2066
49040-2066
|
|||
|
|
49116-2055
49116-2055
|
|||
|
|
92009-2212
92009-2212
|
|||
|
|
92037-2176
92037-2176
|
|||
|
|
92059-2169
92059-2169
|
|||
|
|
92170-2088
92170-2088
|
|||
|
|
130B0610
130B0610
|
|||
|
|
705A061000
705A061000
|

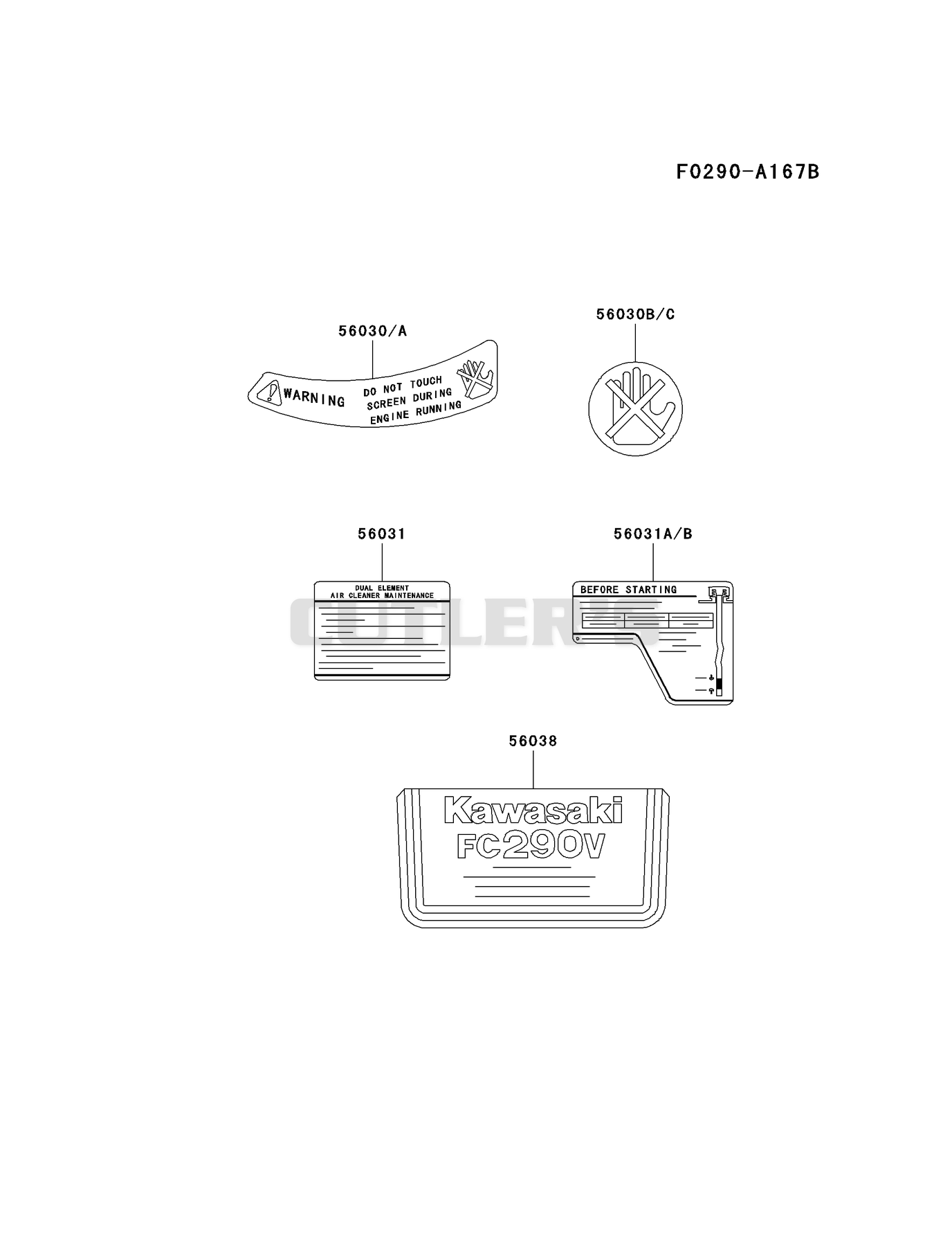

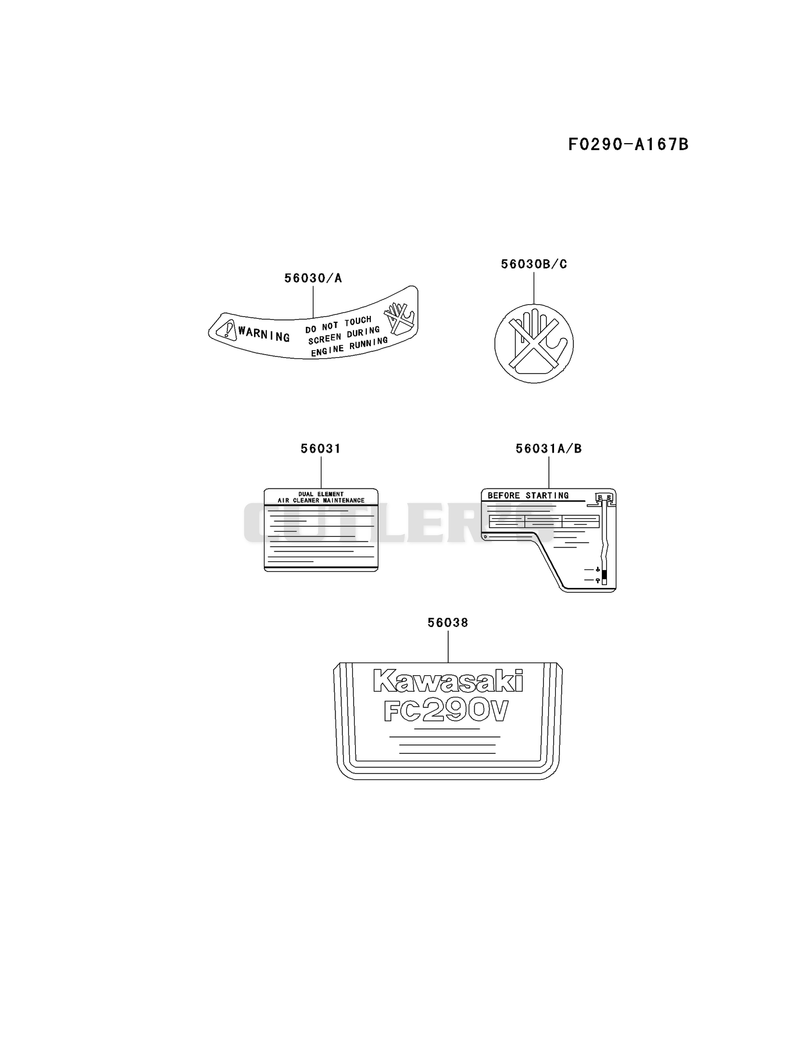

LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56070-2006
56070-2006
|
|||
|
|
56030-2205
56030-2205
|
|||
|
|
56031-2429
56031-2429
|
|||
|
|
56031-2479
56031-2479
|
|||
|
|
56038-2455
56038-2455
|

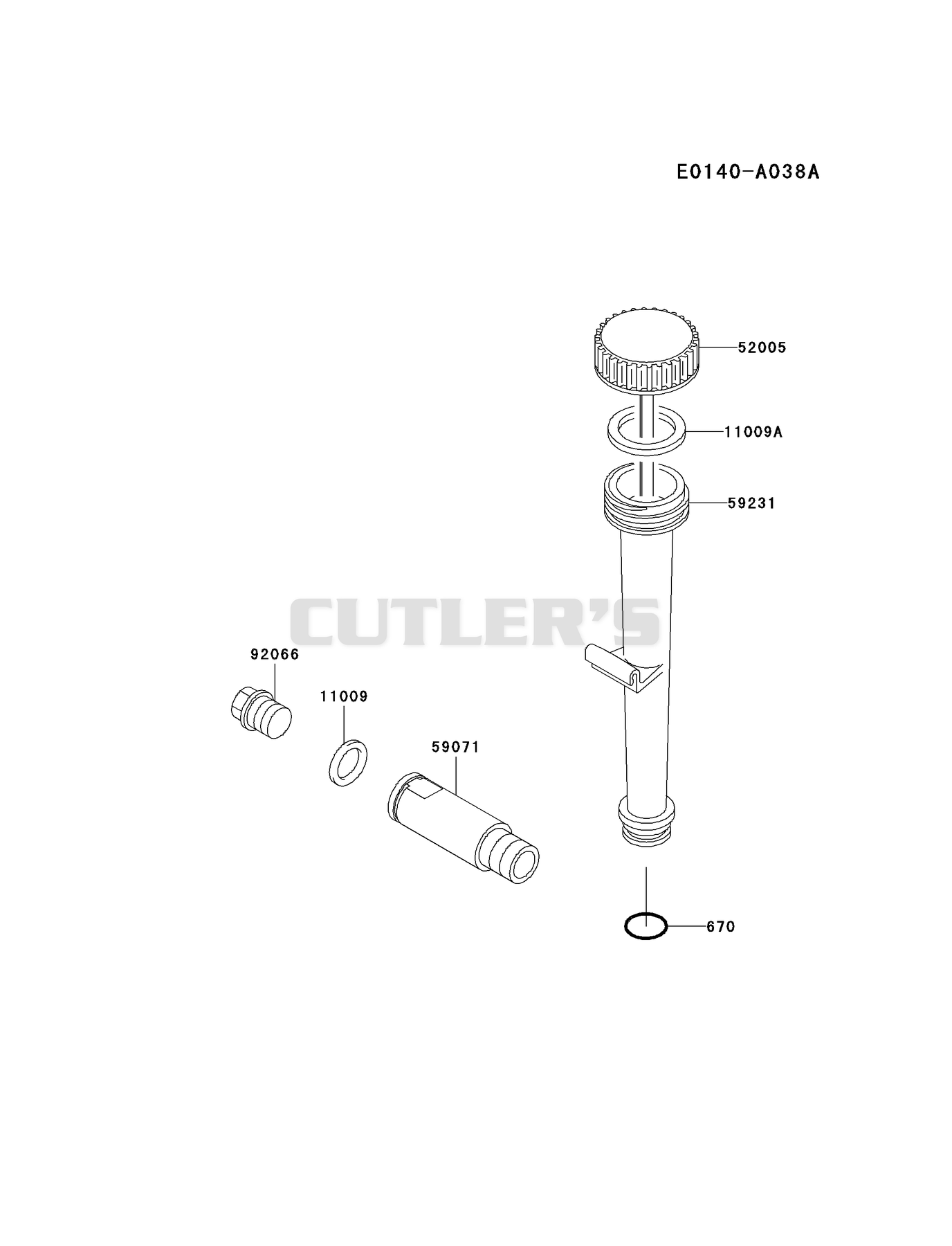

LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11009-2175
11009-2175
|
|||
|
|
11009-2346
11009-2346
|
|||
|
|
52005-2064
52005-2064
|
|||
|
|
59071-2070
59071-2070
|
|||
|
|
59231-2061
59231-2061
|
|||
|
|
92066-2253
92066-2253
|
|||
|
|
670D2016
670D2016
|

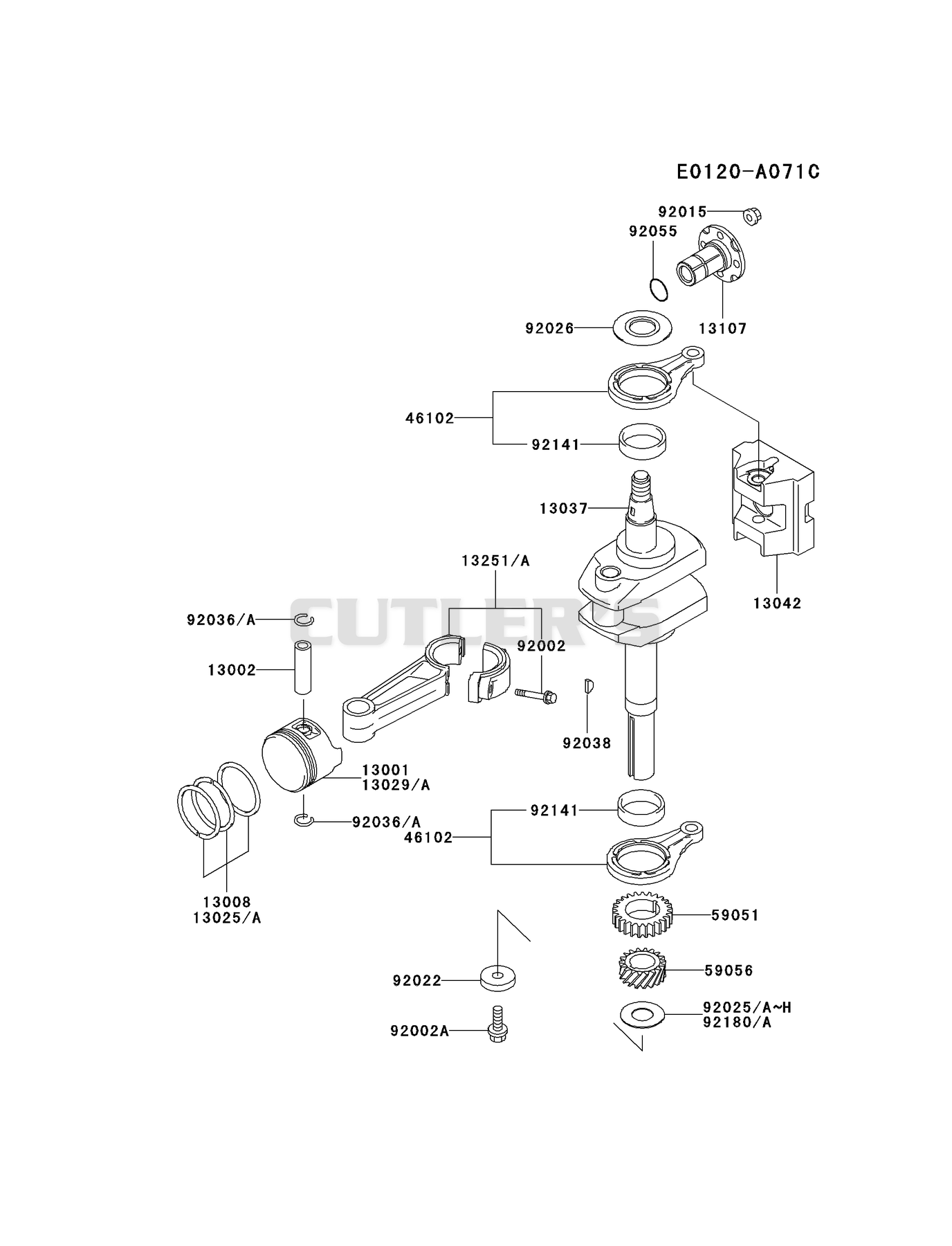

PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-2089
13001-2089
|
|||
|
|
13002-2069
13002-2069
|
|||
|
|
13008-6007
13008-6007
|
|||
|
|
13025-2073
13025-2073
|
|||
|
|
13025-2074
13025-2074
|
|||
|
|
13029-2080
13029-2080
|
|||
|
|
13029-2081
13029-2081
|
|||
|
|
13037-2490
13037-2490
|
|||
|
|
13042-6003
13042-6003
|
|||
|
|
13107-2088
13107-2088
|
|||
|
|
13251-6009
13251-6009
|
|||
|
|
13251-6016
13251-6016
|
|||
|
|
46102-6004
46102-6004
|
|||
|
|
59051-2097
59051-2097
|
|||
|
|
59056-2088
59056-2088
|
|||
|
|
92002-2053
92002-2053
|
|||
|
|
92002-2263
92002-2263
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92022-2194
92022-2194
|
|||
|
|
92025-2168
92025-2168
|
|||
|
|
92025-2169
92025-2169
|
|||
|
|
92025-2170
92025-2170
|
|||
|
|
92025-2171
92025-2171
|
|||
|
|
92025-2172
92025-2172
|
|||
|
|
92025-2173
92025-2173
|
|||
|
|
92025-2174
92025-2174
|
|||
|
|
92025-2175
92025-2175
|
|||
|
|
92025-2207
92025-2207
|
|||
|
|
92026-2052
92026-2052
|
|||
|
|
92036-008
92036-008
|
|||
|
|
92038-2074
92038-2074
|
|||
|
|
92055-2072
92055-2072
|
|||
|
|
92141-2090
92141-2090
|
|||
|
|
92180-2027
92180-2027
|
|||
|
|
92180-2028
92180-2028
|

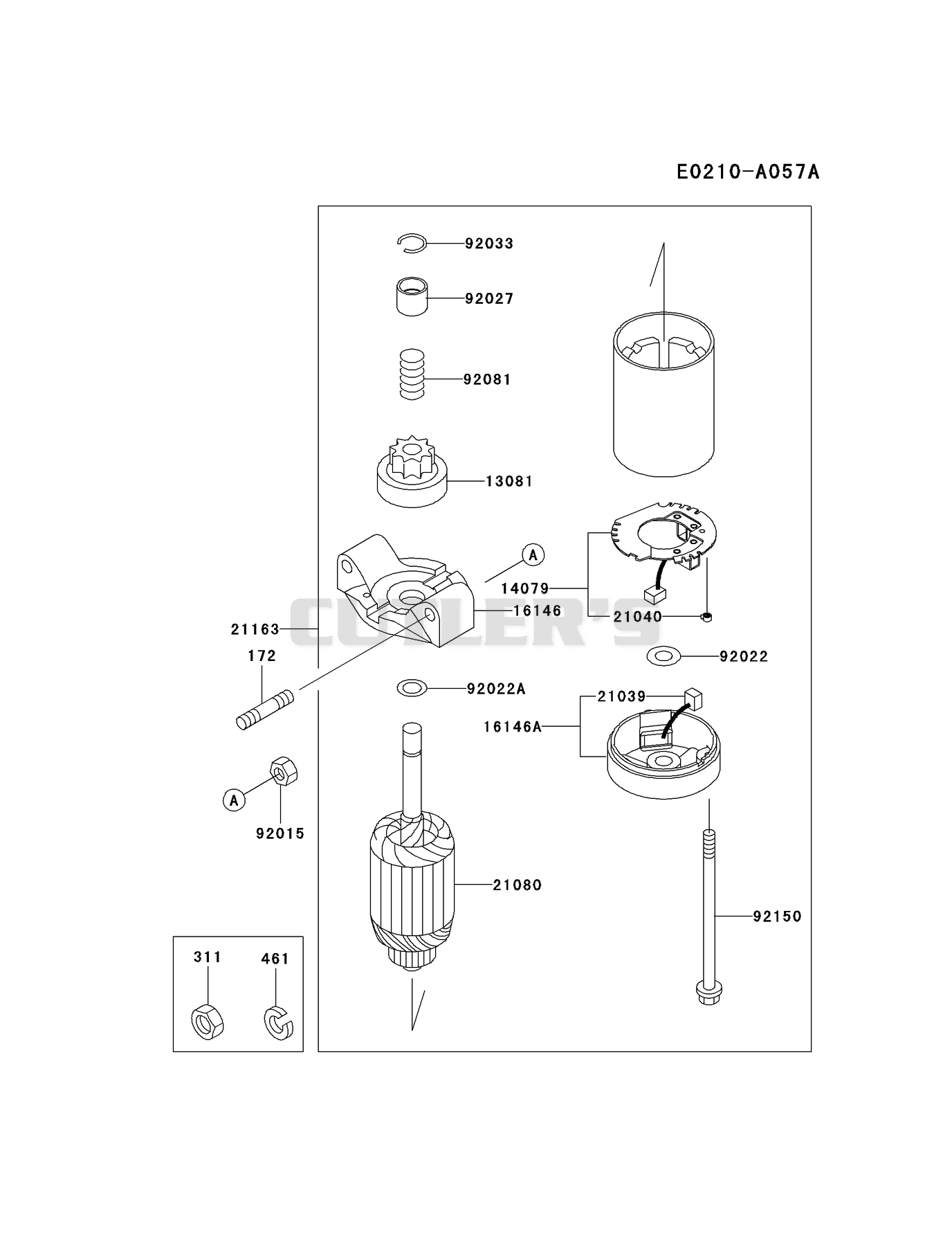

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13081-2086
13081-2086
|
|||
|
|
14079-2055
14079-2055
|
|||
|
|
16146-2079
16146-2079
|
|||
|
|
16146-2080
16146-2080
|
|||
|
|
21039-2057
21039-2057
|
|||
|
|
21040-0001
21040-0001
|
|||
|
|
21080-2061
21080-2061
|
|||
|
|
21163-2068
21163-2068
|
|||
|
|
92015-1143
92015-1143
|
|||
|
|
92022-2200
92022-2200
|
|||
|
|
92022-2201
92022-2201
|
|||
|
|
92027-2085
92027-2085
|
|||
|
|
92033-2076
92033-2076
|
|||
|
|
92081-2327
92081-2327
|
|||
|
|
92150-1237
92150-1237
|
|||
|
|
172G0840
172G0840
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
461DA0600
461DA0600
|

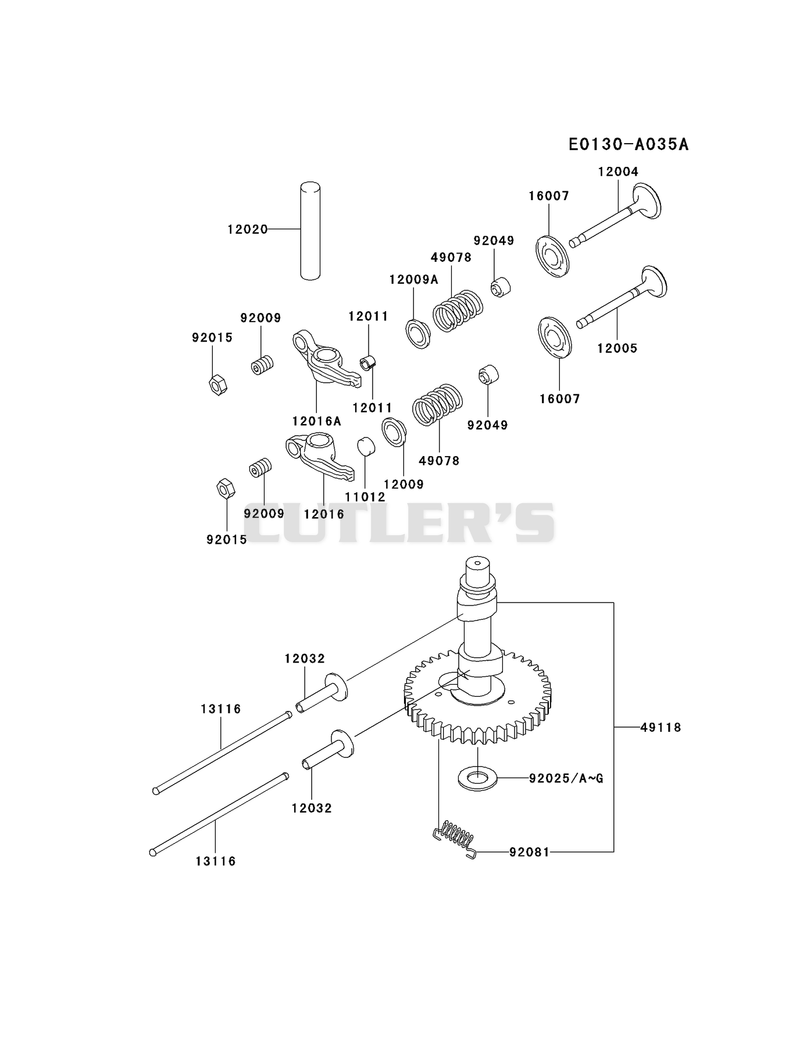

VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11012-2189
11012-2189
|
|||
|
|
12004-2084
12004-2084
|
|||
|
|
12005-2068
12005-2068
|
|||
|
|
12009-2058
12009-2058
|
|||
|
|
12009-2060
12009-2060
|
|||
|
|
12011-2052
12011-2052
|
|||
|
|
12016-2054
12016-2054
|
|||
|
|
12016-2055
12016-2055
|
|||
|
|
12020-2057
12020-2057
|
|||
|
|
12032-2060
12032-2060
|
|||
|
|
13116-0044
13116-0044
|
|||
|
|
16007-2052
16007-2052
|
|||
|
|
49078-2060
49078-2060
|
|||
|
|
49118-2130
49118-2130
|
|||
|
|
92009-2182
92009-2182
|
|||
|
|
92015-2139
92015-2139
|
|||
|
|
92025-2162
92025-2162
|
|||
|
|
92025-2163
92025-2163
|
|||
|
|
92025-2164
92025-2164
|
|||
|
|
92025-2165
92025-2165
|
|||
|
|
92025-2166
92025-2166
|
|||
|
|
92025-2167
92025-2167
|
|||
|
|
92025-2208
92025-2208
|
|||
|
|
92025-2209
92025-2209
|
|||
|
|
92049-2100
92049-2100
|
|||
|
|
92081-2297
92081-2297
|
