Kawasaki FH430V-FS21 Engine Parts Diagram
Diagrams:
Diagram:

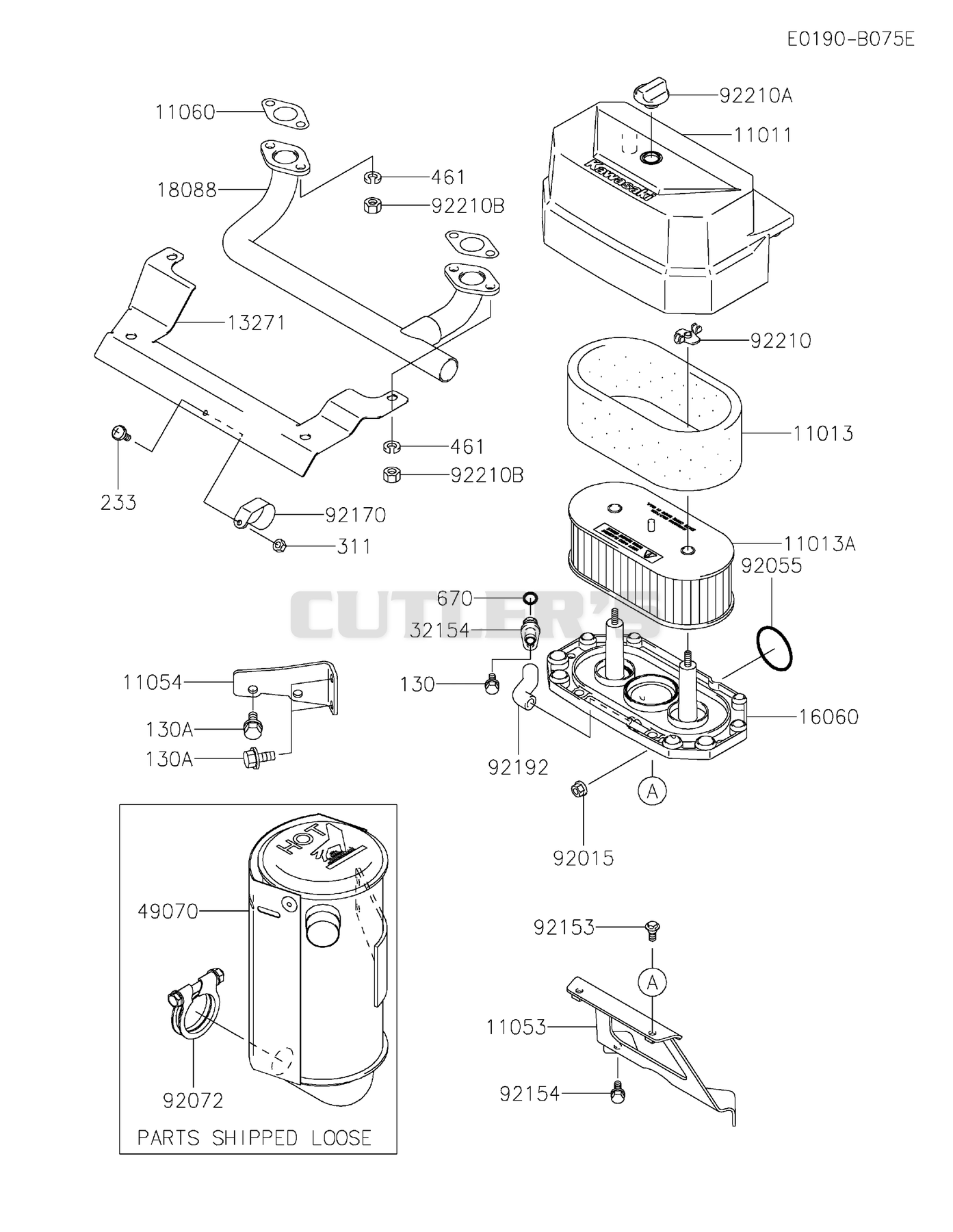

AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11011-7045
11011-7045
|
|||
|
|
11013-7025
11013-7025
|
|||
|
|
11013-7031
11013-7031
|
|||
|
|
11053-7022
11053-7022
|
|||
|
|
11054-7002-9H
11054-7002-9H
|
|||
|
|
11060-7021
11060-7021
|
|||
|
|
13271-7022
13271-7022
|
|||
|
|
16060-7016
16060-7016
|
|||
|
|
18088-7008
18088-7008
|
|||
|
|
32154-7006
32154-7006
|
|||
|
|
49070-0932
49070-0932
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92055-7015
92055-7015
|
|||
|
|
92072-7012
92072-7012
|
|||
|
|
92153-7038
92153-7038
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92170-7002
92170-7002
|
|||
|
|
92192-7010
92192-7010
|
|||
|
|
92210-7004
92210-7004
|
|||
|
|
92210-7019
92210-7019
|
|||
|
|
92210-7027
92210-7027
|
|||
|
|
130BA0610
130BA0610
|
|||
|
|
130BA-0816
130BA-0816
|
|||
|
|
233B0416
233B0416
|
|||
|
|
311AA0400
311AA0400
|
|||
|
|
461DA0800
461DA0800
|
|||
|
|
670B2010
670B2010
|

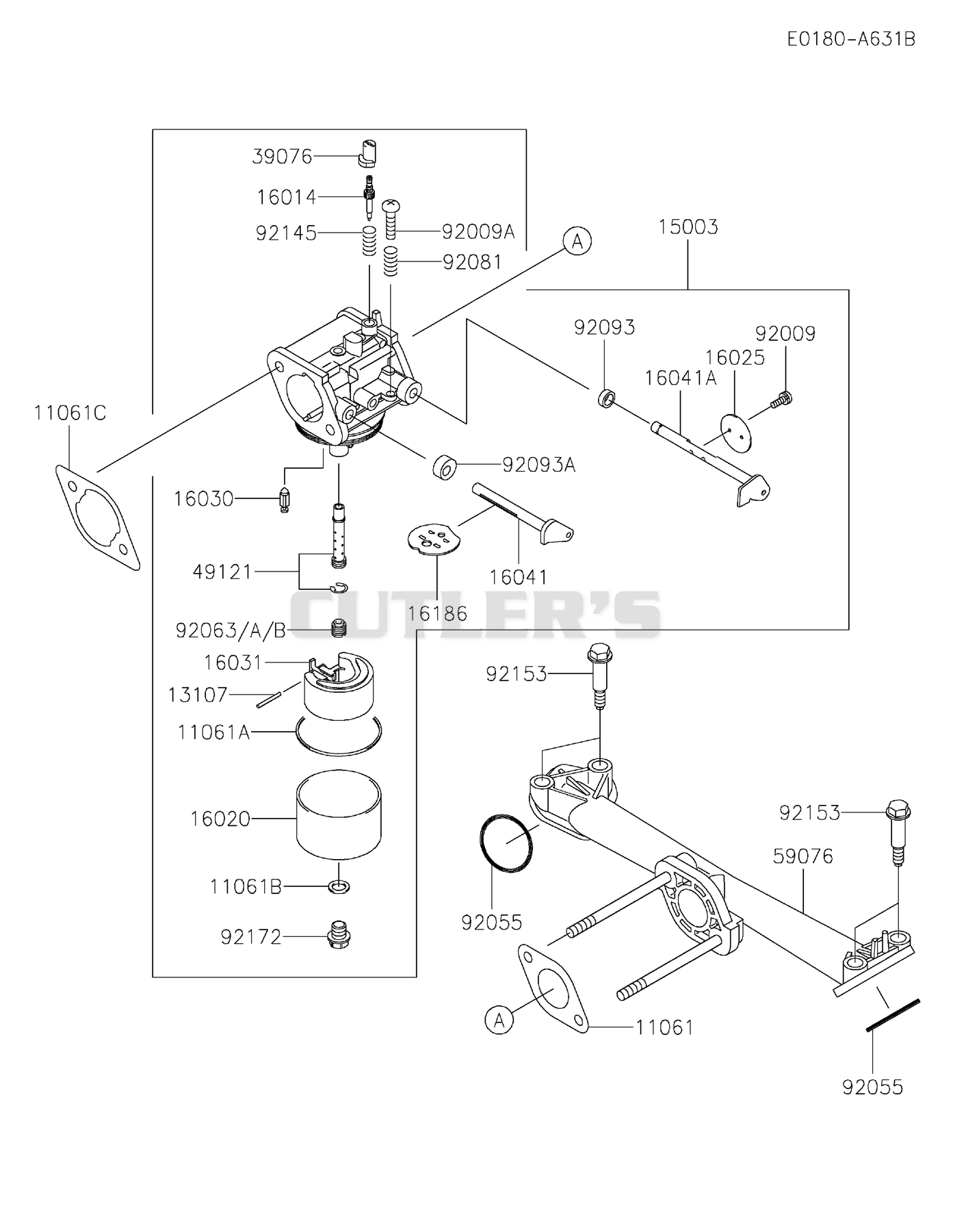

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11061-7004
11061-7004
|
|||
|
|
11061-7009
11061-7009
|
|||
|
|
11061-7010
11061-7010
|
|||
|
|
11061-7018
11061-7018
|
|||
|
|
13107-7018
13107-7018
|
|||
|
|
15003-7061
15003-7061
|
|||
|
|
16014-7005
16014-7005
|
|||
|
|
16020-7003
16020-7003
|
|||
|
|
16025-7006
16025-7006
|
|||
|
|
16030-7003
16030-7003
|
|||
|
|
16031-7002
16031-7002
|
|||
|
|
16041-7016
16041-7016
|
|||
|
|
16041-7018
16041-7018
|
|||
|
|
16186-7002
16186-7002
|
|||
|
|
39076-7001
39076-7001
|
|||
|
|
49121-7001
49121-7001
|
|||
|
|
59076-7005
59076-7005
|
|||
|
|
92009-2083
92009-2083
|
|||
|
|
92009-2349
92009-2349
|
|||
|
|
92055-7007
92055-7007
|
|||
|
|
92063-7026
92063-7026
|
|||
|
|
92063-7028
92063-7028
|
|||
|
|
92063-7029
92063-7029
|
|||
|
|
92081-2234
92081-2234
|
|||
|
|
92093-2100
92093-2100
|
|||
|
|
92093-7003
92093-7003
|
|||
|
|
92145-7015
92145-7015
|
|||
|
|
92153-7009
92153-7009
|
|||
|
|
92172-7002
92172-7002
|

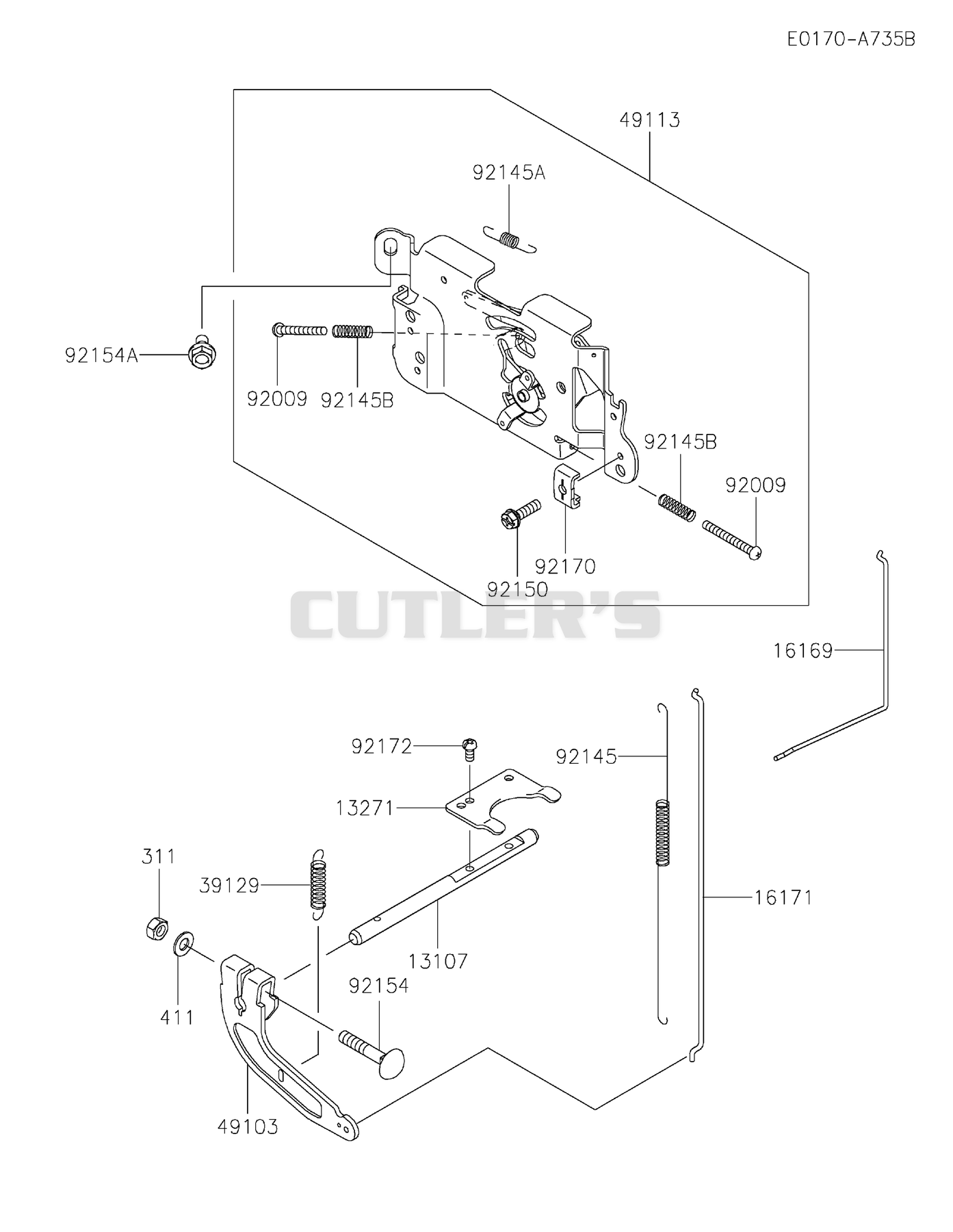

CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13107-0750
13107-0750
|
|||
|
|
13271-7032
13271-7032
|
|||
|
|
16169-7012
16169-7012
|
|||
|
|
16171-7007
16171-7007
|
|||
|
|
39129-7003
39129-7003
|
|||
|
|
49103-7004
49103-7004
|
|||
|
|
49113-7056
49113-7056
|
|||
|
|
92009-7007
92009-7007
|
|||
|
|
92145-7003
92145-7003
|
|||
|
|
92145-7004
92145-7004
|
|||
|
|
92145-7005
92145-7005
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92154-2697
92154-2697
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
92170-7001
92170-7001
|
|||
|
|
92172-0870
92172-0870
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
411AA0600
411AA0600
|

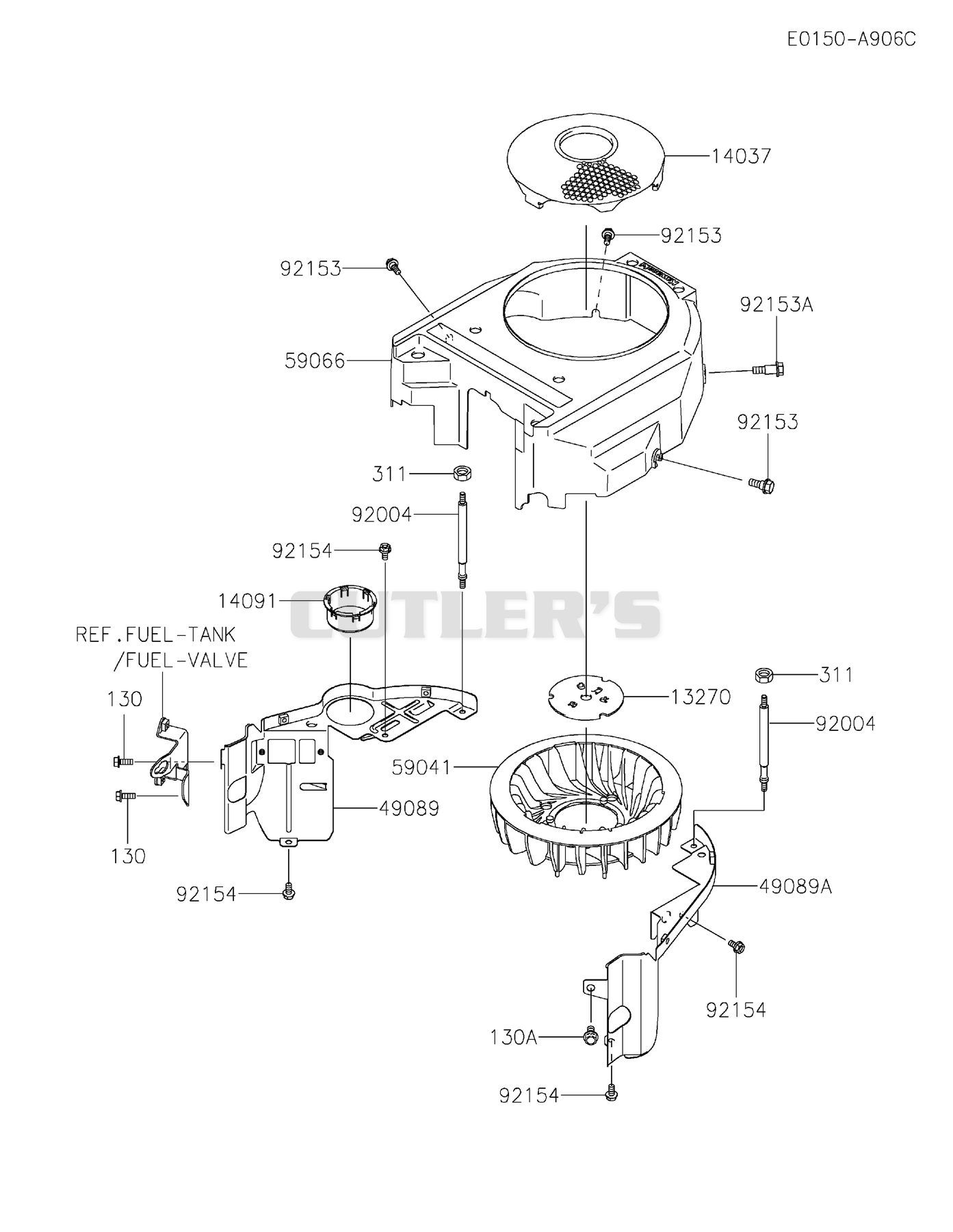

COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13270-7007
13270-7007
|
|||
|
|
14037-7025-9H
14037-7025-9H
|
|||
|
|
14091-7009
14091-7009
|
|||
|
|
49089-7071
49089-7071
|
|||
|
|
49089-7044
49089-7044
|
|||
|
|
59041-0020
59041-0020
|
|||
|
|
59066-7036
59066-7036
|
|||
|
|
92004-7007
92004-7007
|
|||
|
|
92153-7007
92153-7007
|
|||
|
|
92153-7008
92153-7008
|
|||
|
|
92154-2938
92154-2938
|
|||
|
|
130BA0616
130BA0616
|
|||
|
|
130BA-0816
130BA-0816
|
|||
|
|
311C0600
311C0600
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-7018
11004-7018
|
|||
|
|
11008-7021
11008-7021
|
|||
|
|
11008-7022
11008-7022
|
|||
|
|
11022-7028
11022-7028
|
|||
|
|
11060-7001
11060-7001
|
|||
|
|
11061-7007
11061-7007
|
|||
|
|
11061-7102
11061-7102
|
|||
|
|
14092-7004
14092-7004
|
|||
|
|
49015-7080
49015-7080
|
|||
|
|
49120-7015
49120-7015
|
|||
|
|
59071-2079
59071-2079
|
|||
|
|
92043-7001
92043-7001
|
|||
|
|
92049-7001
92049-7001
|
|||
|
|
92049-7015
92049-7015
|
|||
|
|
92049-7016
92049-7016
|
|||
|
|
92049-7019
92049-7019
|
|||
|
|
92139-7008
92139-7008
|
|||
|
|
92153-7054
92153-7054
|
|||
|
|
99996-6099
99996-6099
|
|||
|
|
130AA0640
130AA0640
|
|||
|
|
130BA0614
130BA0614
|
|||
|
|
130CA0875
130CA0875
|
|||
|
|
172BA0822
172BA0822
|

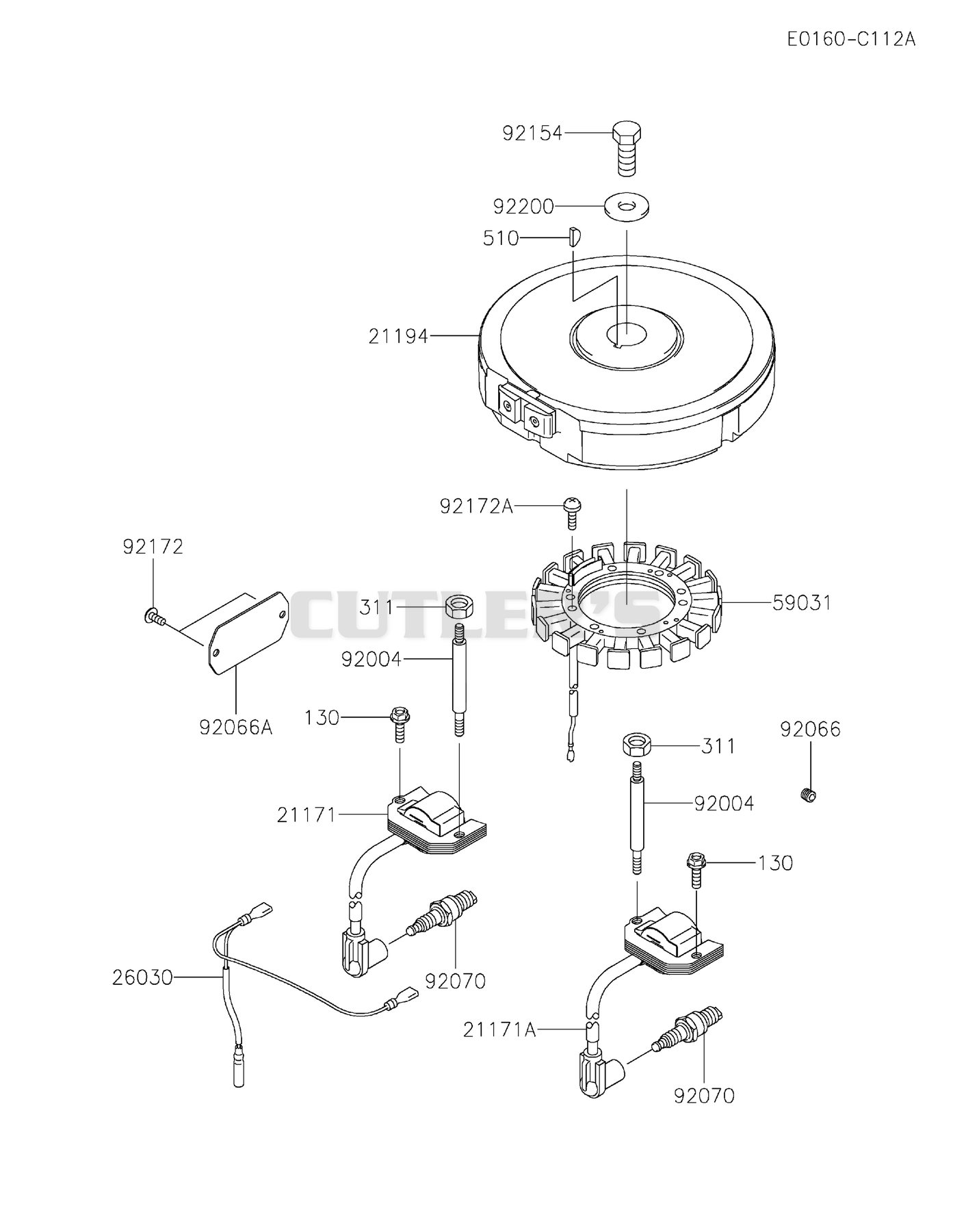

ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21171-7034
21171-7034
|
|||
|
|
21171-7035
21171-7035
|
|||
|
|
21194-0043
21194-0043
|
|||
|
|
26030-7001
26030-7001
|
|||
|
|
59031-7002
59031-7002
|
|||
|
|
92004-7008
92004-7008
|
|||
|
|
92066-0881
92066-0881
|
|||
|
|
92066-7005
92066-7005
|
|||
|
|
BPMR6A
BPMR6A
|
|||
|
|
92154-7003
92154-7003
|
|||
|
|
92172-1091
92172-1091
|
|||
|
|
92172-7018
92172-7018
|
|||
|
|
92200-7002
92200-7002
|
|||
|
|
130BA0620
130BA0620
|
|||
|
|
311F0600
311F0600
|
|||
|
|
510A5100
510A5100
|

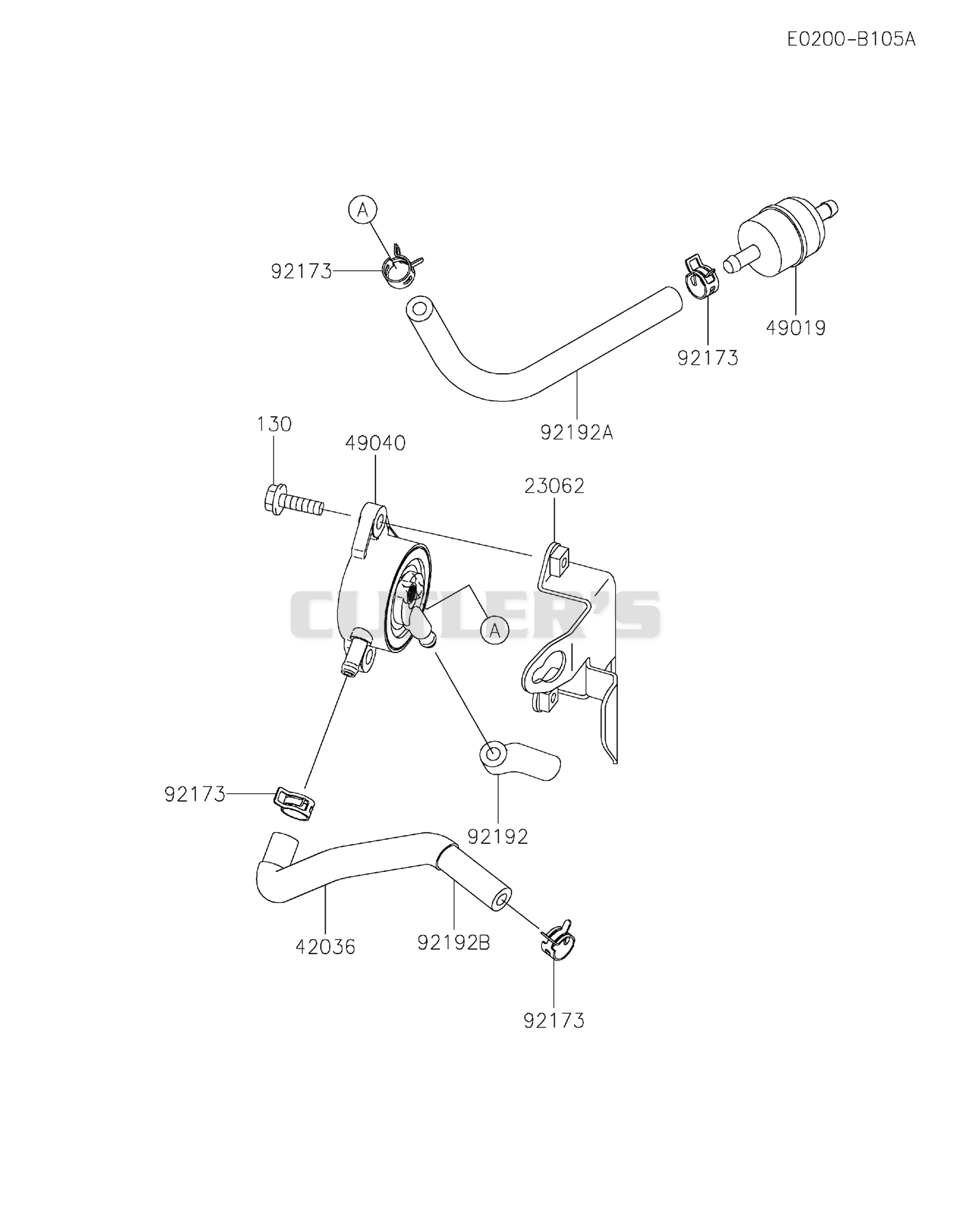

FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
23062-7019-9H
23062-7019-9H
|
|||
|
|
42036-7012
42036-7012
|
|||
|
|
49019-0031
49019-0031
|
|||
|
|
49040-0801
49040-0801
|
|||
|
|
92173-1582
92173-1582
|
|||
|
|
92192-2332
92192-2332
|
|||
|
|
92192-2386
92192-2386
|
|||
|
|
92192-2387
92192-2387
|
|||
|
|
130BA0620
130BA0620
|

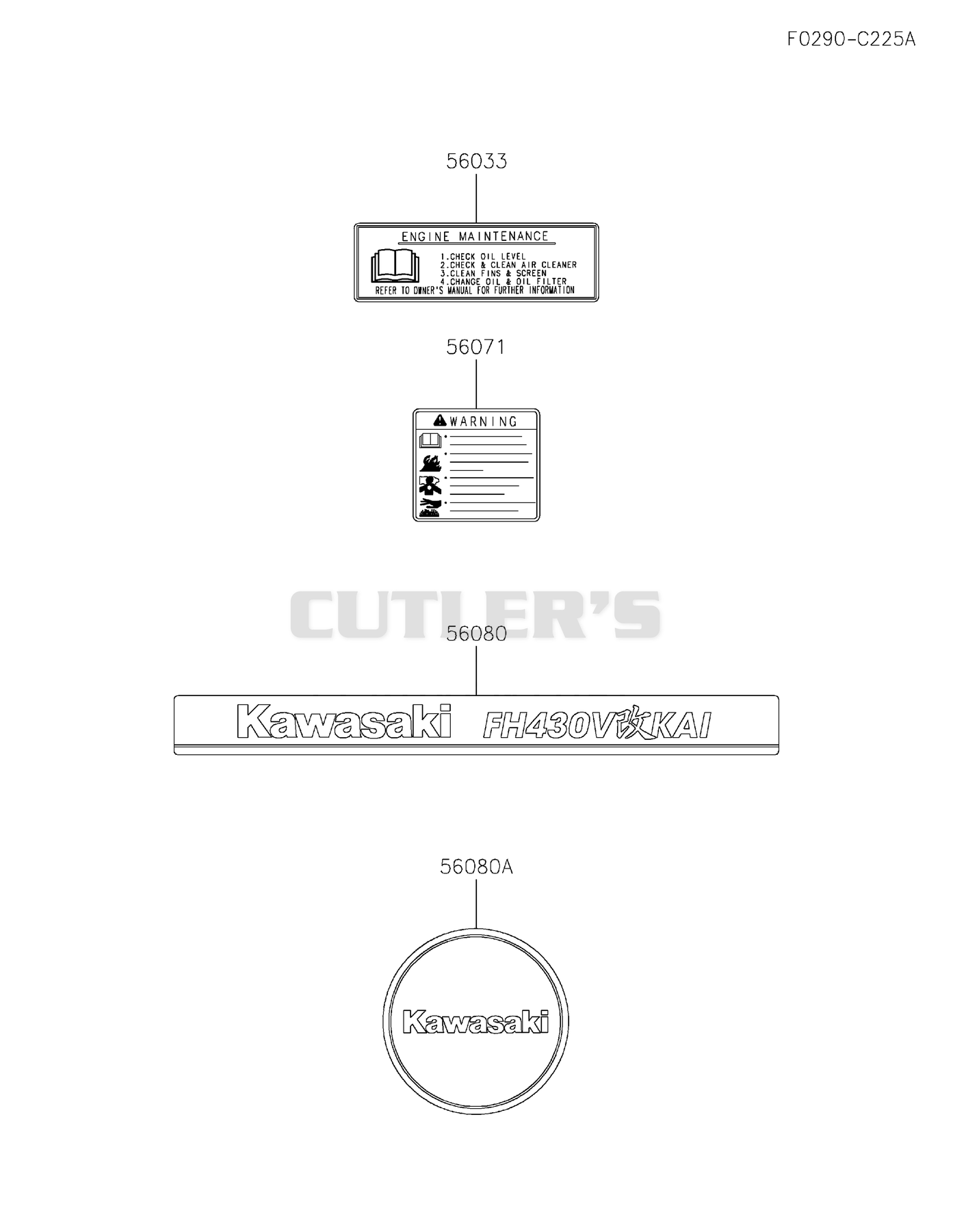

LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56033-7001
56033-7001
|
|||
|
|
56071-0216
56071-0216
|
|||
|
|
56080-0759
56080-0759
|
|||
|
|
56080-0771
56080-0771
|

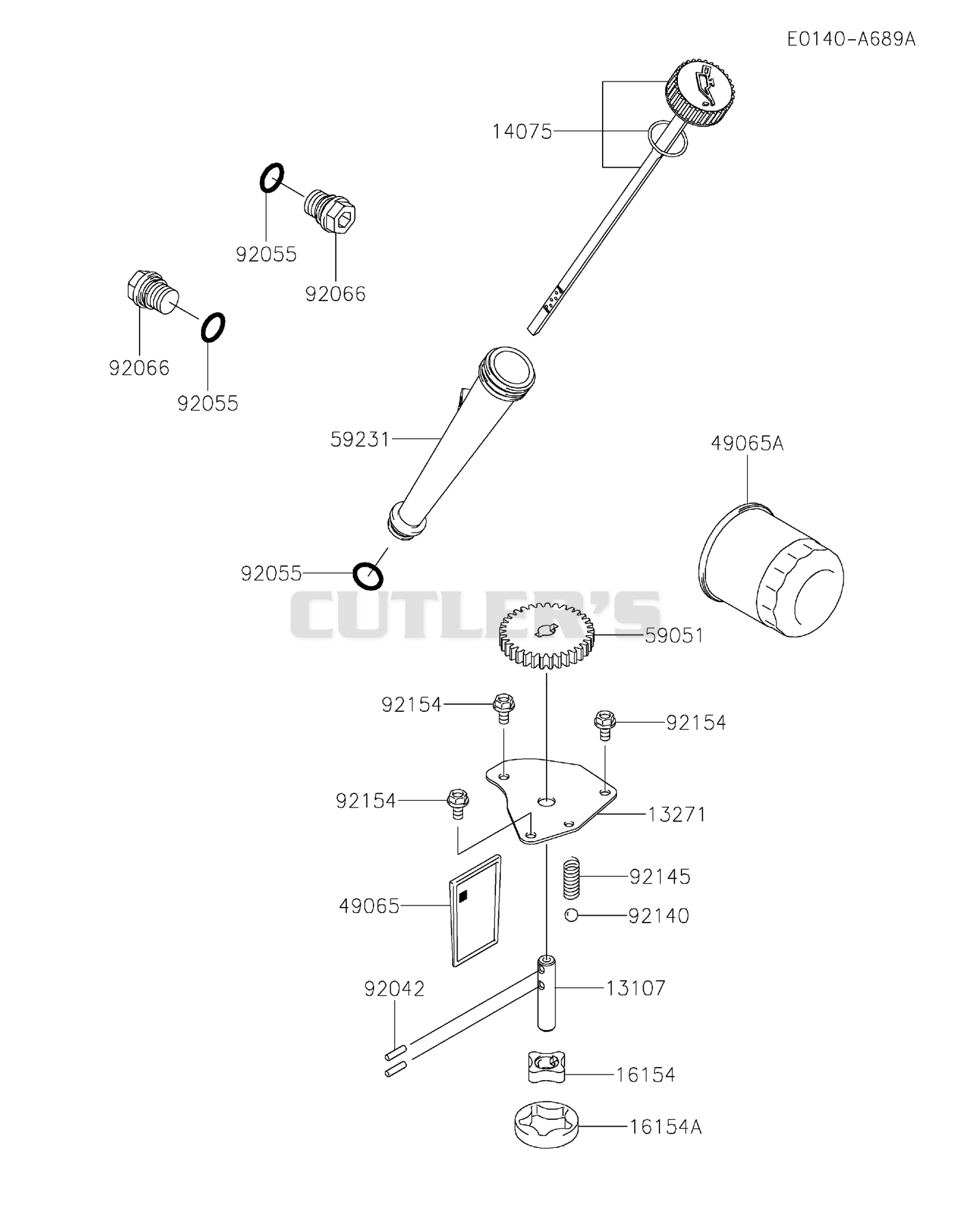

LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13107-0858
13107-0858
|
|||
|
|
13271-7017
13271-7017
|
|||
|
|
14075-0708
14075-0708
|
|||
|
|
16154-2053
16154-2053
|
|||
|
|
16154-2054
16154-2054
|
|||
|
|
49065-0718
49065-0718
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
59051-7011
59051-7011
|
|||
|
|
59231-7003
59231-7003
|
|||
|
|
92042-014
92042-014
|
|||
|
|
92055-0892
92055-0892
|
|||
|
|
92066-0774
92066-0774
|
|||
|
|
92140-7003
92140-7003
|
|||
|
|
92145-1809
92145-1809
|
|||
|
|
92154-2938
92154-2938
|

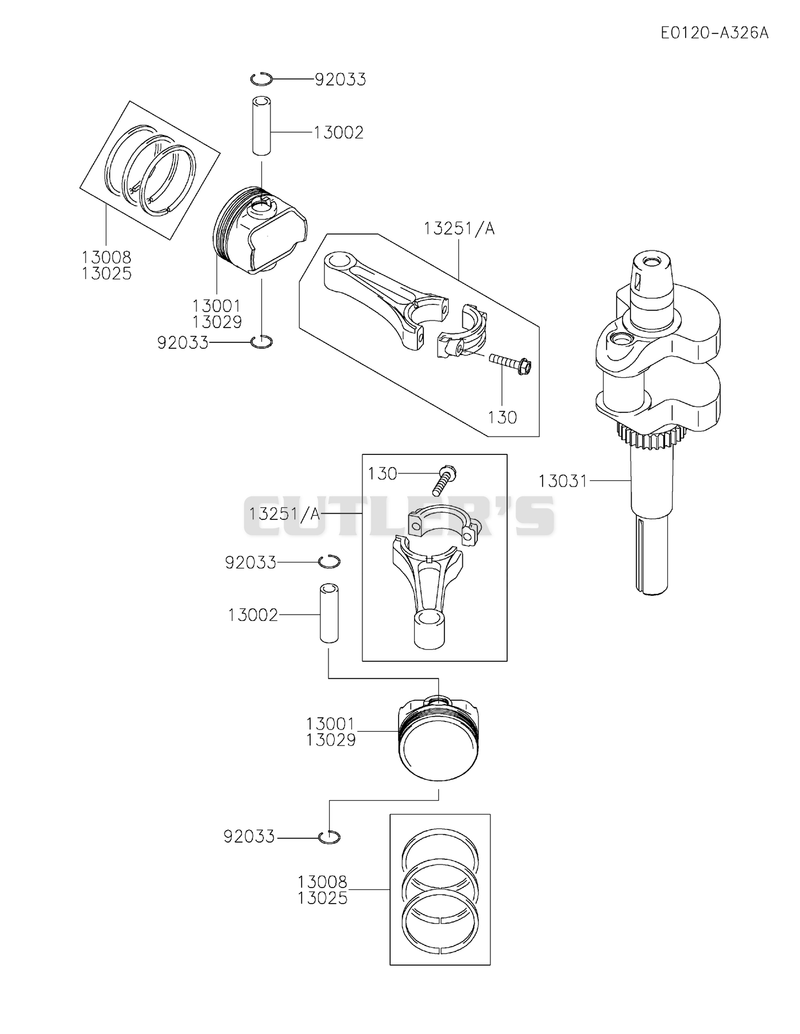

PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-7022
13001-7022
|
|||
|
|
13002-7001
13002-7001
|
|||
|
|
13008-7001
13008-7001
|
|||
|
|
13025-7003
13025-7003
|
|||
|
|
13029-7005
13029-7005
|
|||
|
|
13031-7033
13031-7033
|
|||
|
|
13251-0723
13251-0723
|
|||
|
|
13251-7008
13251-7008
|
|||
|
|
92033-0780
92033-0780
|
|||
|
|
130BA0630
130BA0630
|

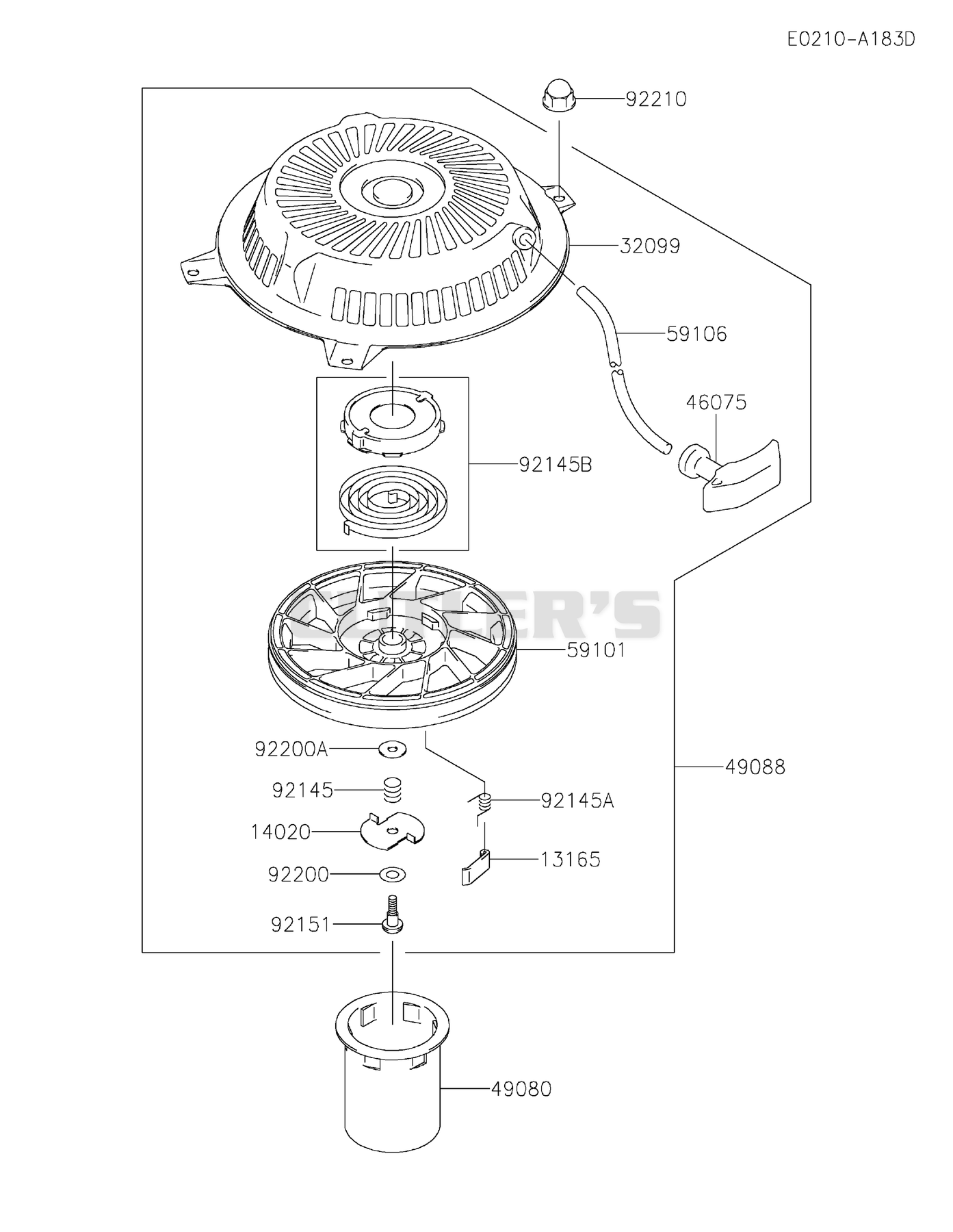

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13165-7001
13165-7001
|
|||
|
|
14020-7001
14020-7001
|
|||
|
|
32099-7001
32099-7001
|
|||
|
|
46075-7001
46075-7001
|
|||
|
|
49080-0006
49080-0006
|
|||
|
|
49088-0014
49088-0014
|
|||
|
|
59101-7001
59101-7001
|
|||
|
|
59106-7005
59106-7005
|
|||
|
|
92145-7006
92145-7006
|
|||
|
|
92145-7007
92145-7007
|
|||
|
|
92145-7008
92145-7008
|
|||
|
|
92151-7008
92151-7008
|
|||
|
|
92200-7004
92200-7004
|
|||
|
|
92200-7005
92200-7005
|
|||
|
|
92210-0003
92210-0003
|

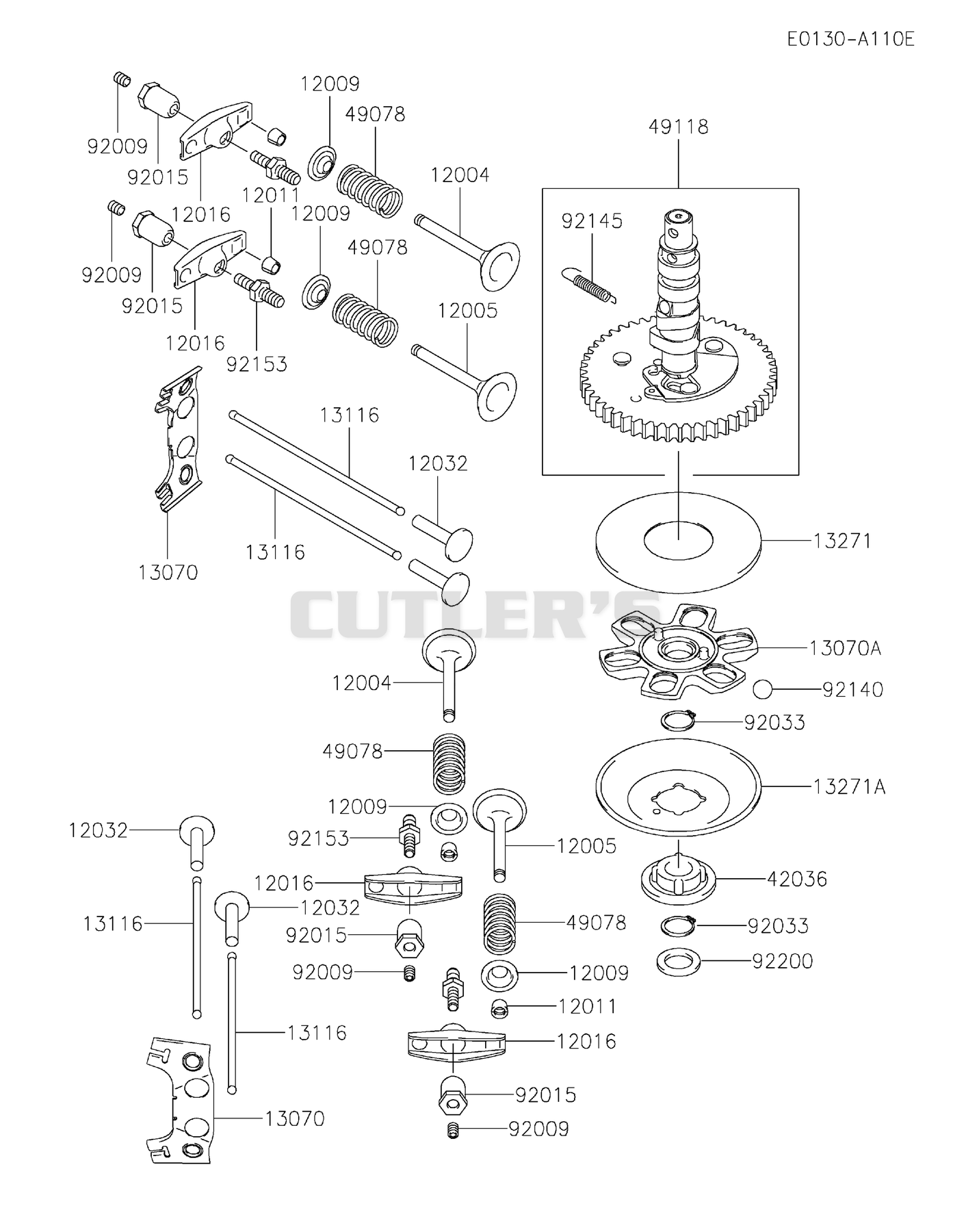

VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-7005
12004-7005
|
|||
|
|
12005-7006
12005-7006
|
|||
|
|
12009-7001
12009-7001
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-7008
12016-7008
|
|||
|
|
12032-7001
12032-7001
|
|||
|
|
13070-7001
13070-7001
|
|||
|
|
13070-7004
13070-7004
|
|||
|
|
13116-2057
13116-2057
|
|||
|
|
13271-7007
13271-7007
|
|||
|
|
13271-7021
13271-7021
|
|||
|
|
42036-7010
42036-7010
|
|||
|
|
49078-7001
49078-7001
|
|||
|
|
49118-7009
49118-7009
|
|||
|
|
92009-2341
92009-2341
|
|||
|
|
92015-2253
92015-2253
|
|||
|
|
92033-0778
92033-0778
|
|||
|
|
92140-0026
92140-0026
|
|||
|
|
92145-1653
92145-1653
|
|||
|
|
92153-7019
92153-7019
|
|||
|
|
92200-7001
92200-7001
|
