Kawasaki FH480V-CS20 Engine Parts Diagram
Diagrams:
Diagram:
MAINTENANCE PARTS
MAINTENANCE PARTS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11013-7025
11013-7025
|
|||
|
|
11013-7031
11013-7031
|
|||
|
|
92070-7003
92070-7003
|
|||
|
|
999696533A
999696533A
|
|||
|
|
999696534A
999696534A
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
51044-0902
51044-0902
|
|||
|
|
49019-0027
49019-0027
|
|||
|
|
99969-6281
99969-6281
|
|||
|
|
99969-6273
99969-6273
|
|||
|
|
99969-6500
99969-6500
|
|||
|
|
99969-6578
99969-6578
|
|||
|
|
99969-6081
99969-6081
|
|||
|
|
99969-6274
99969-6274
|
|||
|
|
99969-6296
99969-6296
|
|||
|
|
99969-6297
99969-6297
|
|||
|
|
99969-6298
99969-6298
|
|||
|
|
99969-6504
99969-6504
|
|||
|
|
99969-6299
99969-6299
|
|||
|
|
99969-6501
99969-6501
|
|||
|
|
99969-6502
99969-6502
|
|||
|
|
99969-6568
99969-6568
|
AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11011-7045
11011-7045
|
|||
|
|
11013-7025
11013-7025
|
|||
|
|
11013-7031
11013-7031
|
|||
|
|
11053-7022
11053-7022
|
|||
|
|
11054-7002-9H
11054-7002-9H
|
|||
|
|
11060-7021
11060-7021
|
|||
|
|
13271-7022
13271-7022
|
|||
|
|
16060-7016
16060-7016
|
|||
|
|
18088-7001
18088-7001
|
|||
|
|
18088-7008
18088-7008
|
|||
|
|
32154-7006
32154-7006
|
|||
|
|
49070-7021
49070-7021
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92055-7015
92055-7015
|
|||
|
|
92072-7012
92072-7012
|
|||
|
|
92153-7038
92153-7038
|
|||
|
|
92153-7043
92153-7043
|
|||
|
|
92170-7002
92170-7002
|
|||
|
|
92192-7010
92192-7010
|
|||
|
|
92210-7004
92210-7004
|
|||
|
|
92210-7019
92210-7019
|
|||
|
|
92210-7027
92210-7027
|
|||
|
|
130B0610
130B0610
|
|||
|
|
130AA0816
130AA0816
|
|||
|
|
233B0416
233B0416
|
|||
|
|
311AA0400
311AA0400
|
|||
|
|
461DA0800
461DA0800
|
|||
|
|
670B2010
670B2010
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11061-7004
11061-7004
|
|||
|
|
11061-7009
11061-7009
|
|||
|
|
11061-7010
11061-7010
|
|||
|
|
11061-7018
11061-7018
|
|||
|
|
13107-7018
13107-7018
|
|||
|
|
15003-7128
15003-7128
|
|||
|
|
16014-7009
16014-7009
|
|||
|
|
16020-7003
16020-7003
|
|||
|
|
16025-7006
16025-7006
|
|||
|
|
16030-7003
16030-7003
|
|||
|
|
16031-7002
16031-7002
|
|||
|
|
16041-7016
16041-7016
|
|||
|
|
16041-7018
16041-7018
|
|||
|
|
16186-7004
16186-7004
|
|||
|
|
39076-7001
39076-7001
|
|||
|
|
49121-7004
49121-7004
|
|||
|
|
59076-7005
59076-7005
|
|||
|
|
92009-2083
92009-2083
|
|||
|
|
92009-2349
92009-2349
|
|||
|
|
92055-7007
92055-7007
|
|||
|
|
92063-7062
92063-7062
|
|||
|
|
92063-7066
92063-7066
|
|||
|
|
92063-7090
92063-7090
|
|||
|
|
92081-2234
92081-2234
|
|||
|
|
92093-2100
92093-2100
|
|||
|
|
92093-7003
92093-7003
|
|||
|
|
92145-7015
92145-7015
|
|||
|
|
92153-7009
92153-7009
|
|||
|
|
92172-7002
92172-7002
|
CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13107-0750
13107-0750
|
|||
|
|
13271-7032
13271-7032
|
|||
|
|
16169-7012
16169-7012
|
|||
|
|
16171-7007
16171-7007
|
|||
|
|
39129-7003
39129-7003
|
|||
|
|
49103-7004
49103-7004
|
|||
|
|
49113-7052
49113-7052
|
|||
|
|
49113-7052
49113-7052
|
|||
|
|
92009-7007
92009-7007
|
|||
|
|
92145-7003
92145-7003
|
|||
|
|
92145-7004
92145-7004
|
|||
|
|
92145-7005
92145-7005
|
|||
|
|
92145-7044
92145-7044
|
|||
|
|
92145-7045
92145-7045
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92153-7033
92153-7033
|
|||
|
|
92153-7043
92153-7043
|
|||
|
|
92170-7001
92170-7001
|
|||
|
|
92171-7018
92171-7018
|
|||
|
|
92172-7022
92172-7022
|
|||
|
|
214AA0408
214AA0408
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
411AA0600
411AA0600
|
COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13270-7007
13270-7007
|
|||
|
|
14037-7020
14037-7020
|
|||
|
|
14091-7008
14091-7008
|
|||
|
|
23062-7010
23062-7010
|
|||
|
|
49089-7071
49089-7071
|
|||
|
|
49089-7073
49089-7073
|
|||
|
|
55020-7004
55020-7004
|
|||
|
|
59041-0014
59041-0014
|
|||
|
|
59066-7036
59066-7036
|
|||
|
|
92004-7007
92004-7007
|
|||
|
|
92026-7007
92026-7007
|
|||
|
|
92151-7012
92151-7012
|
|||
|
|
92153-7007
92153-7007
|
|||
|
|
92153-7008
92153-7008
|
|||
|
|
92153-7043
92153-7043
|
|||
|
|
92210-0003
92210-0003
|
|||
|
|
130AA0616
130AA0616
|
|||
|
|
130AA0816
130AA0816
|
|||
|
|
311C0600
311C0600
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-7018
11004-7018
|
|||
|
|
11008-7021
11008-7021
|
|||
|
|
11008-7022
11008-7022
|
|||
|
|
11022-7028
11022-7028
|
|||
|
|
11060-7001
11060-7001
|
|||
|
|
11061-7007
11061-7007
|
|||
|
|
99996-6099
99996-6099
|
|||
|
|
14091-7007
14091-7007
|
|||
|
|
49015-7080
49015-7080
|
|||
|
|
49120-7065
49120-7065
|
|||
|
|
59071-2079
59071-2079
|
|||
|
|
92043-7001
92043-7001
|
|||
|
|
92049-7001
92049-7001
|
|||
|
|
92049-7015
92049-7015
|
|||
|
|
92049-7016
92049-7016
|
|||
|
|
92049-7019
92049-7019
|
|||
|
|
92153-7043
92153-7043
|
|||
|
|
92153-7054
92153-7054
|
|||
|
|
130AA0640
130AA0640
|
|||
|
|
130CA0875
130CA0875
|
|||
|
|
172BA0818
172BA0818
|
ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21066-7011
21066-7011
|
|||
|
|
21171-7034
21171-7034
|
|||
|
|
21171-7035
21171-7035
|
|||
|
|
21193-0024
21193-0024
|
|||
|
|
26030-7001
26030-7001
|
|||
|
|
59031-7009
59031-7009
|
|||
|
|
59031-7009
59031-7009
|
|||
|
|
92004-7008
92004-7008
|
|||
|
|
92009-2249
92009-2249
|
|||
|
|
92066-7026
92066-7026
|
|||
|
|
92070-7003
92070-7003
|
|||
|
|
92151-2097
92151-2097
|
|||
|
|
92153-7029
92153-7029
|
|||
|
|
92200-7002
92200-7002
|
|||
|
|
130AA0620
130AA0620
|
|||
|
|
311C0600
311C0600
|
|||
|
|
510A5100
510A5100
|
FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
23062-7019-9H
23062-7019-9H
|
|||
|
|
42036-7012
42036-7012
|
|||
|
|
49019-0027
49019-0027
|
|||
|
|
49040-7003
49040-7003
|
|||
|
|
92170-2009
92170-2009
|
|||
|
|
92191-7002
92191-7002
|
|||
|
|
92192-1549
92192-1549
|
|||
|
|
92192-1550
92192-1550
|
|||
|
|
130AA0620
130AA0620
|
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56033-7001
56033-7001
|
|||
|
|
56070-7001
56070-7001
|
|||
|
|
56071-7002
56071-7002
|
|||
|
|
56080-0760
56080-0760
|
LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13107-0749
13107-0749
|
|||
|
|
13271-7017
13271-7017
|
|||
|
|
14075-7009
14075-7009
|
|||
|
|
16154-2053
16154-2053
|
|||
|
|
16154-2054
16154-2054
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
49065-7004
49065-7004
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
59051-7011
59051-7011
|
|||
|
|
59231-7003
59231-7003
|
|||
|
|
92043-7003
92043-7003
|
|||
|
|
92066-7003
92066-7003
|
|||
|
|
92140-7003
92140-7003
|
|||
|
|
92145-7002
92145-7002
|
|||
|
|
92153-7043
92153-7043
|
|||
|
|
670D2016
670D2016
|

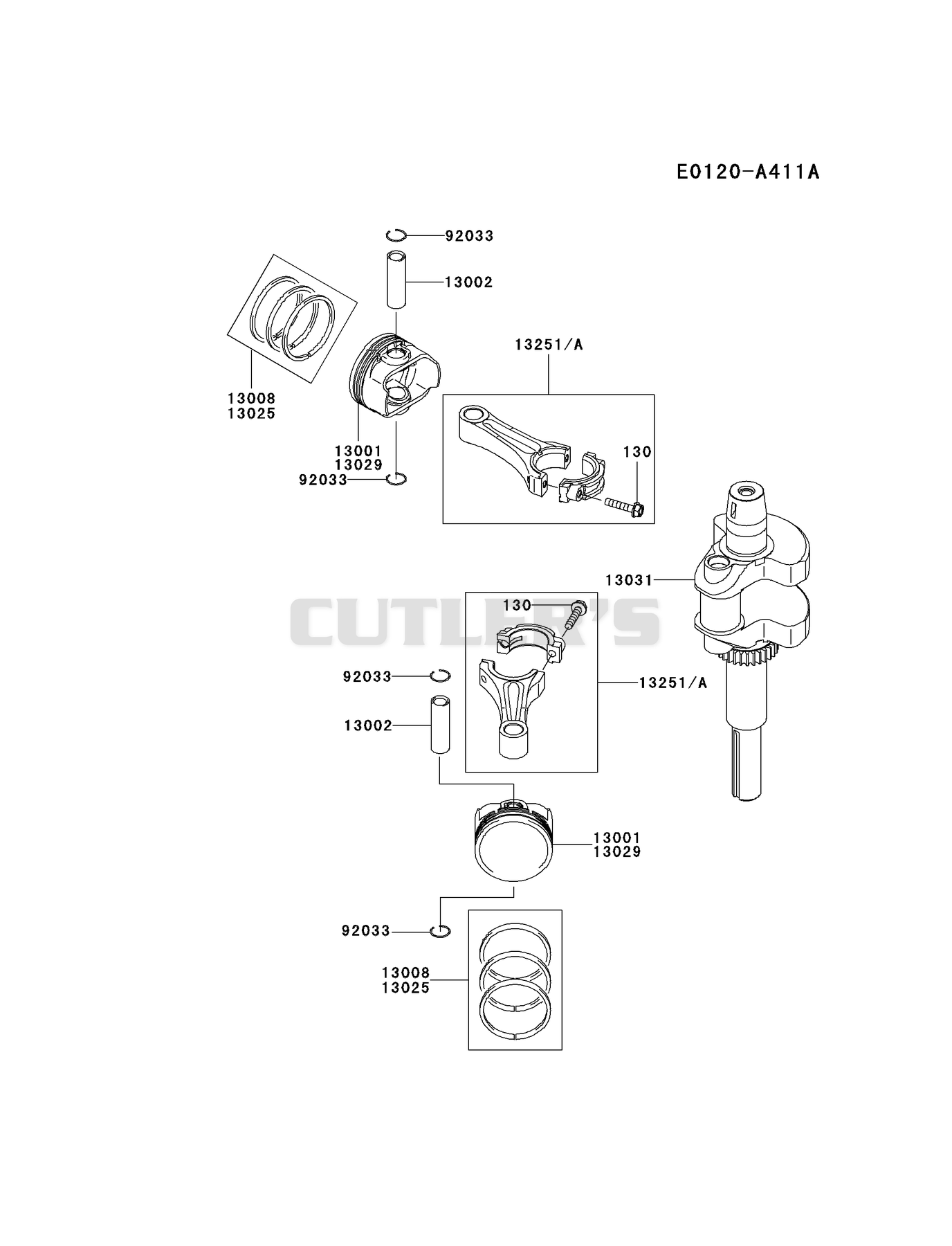

PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13001-7015
13001-7015
|
|||
|
|
13002-7001
13002-7001
|
|||
|
|
13008-6055
13008-6055
|
|||
|
|
13025-7001
13025-7001
|
|||
|
|
13029-7007
13029-7007
|
|||
|
|
13031-7067
13031-7067
|
|||
|
|
13251-7028
13251-7028
|
|||
|
|
13251-7015
13251-7015
|
|||
|
|
92033-7002
92033-7002
|
|||
|
|
130BA0630
130BA0630
|

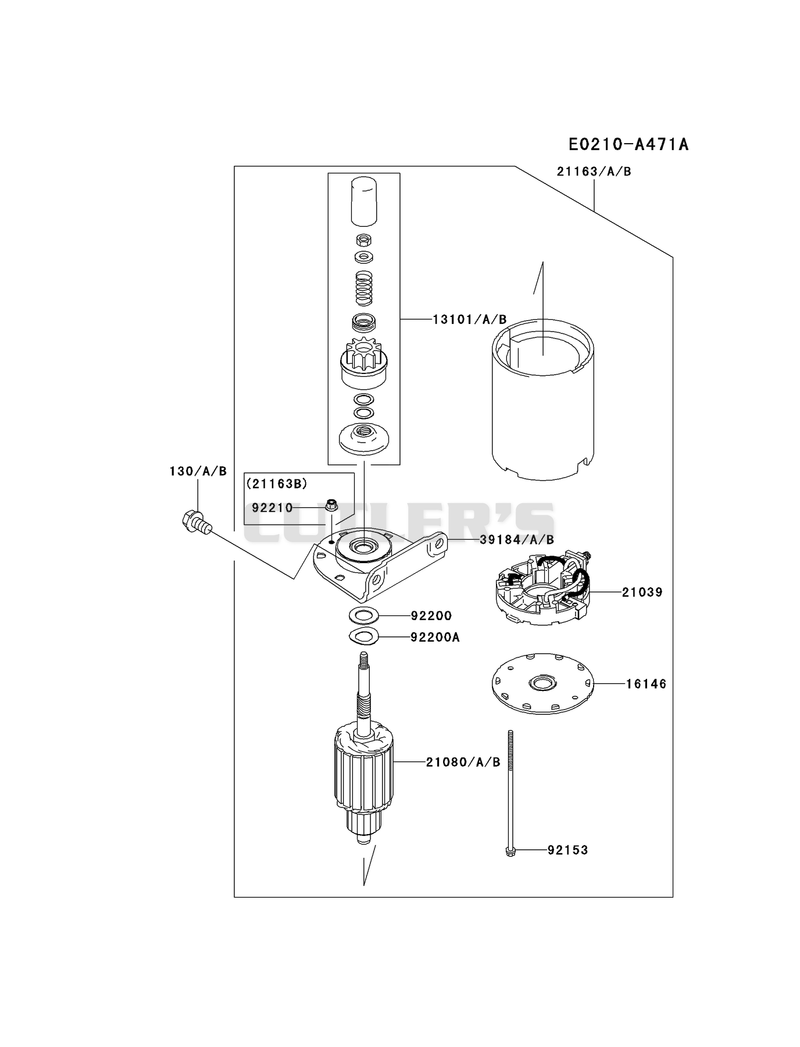

STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13101-7002
13101-7002
|
|||
|
|
16146-7013
16146-7013
|
|||
|
|
21039-7002
21039-7002
|
|||
|
|
99999-7080
99999-7080
|
|||
|
|
99999-7080
99999-7080
|
|||
|
|
39184-7008
39184-7008
|
|||
|
|
92153-7034
92153-7034
|
|||
|
|
92200-7023
92200-7023
|
|||
|
|
92200-7024
92200-7024
|
|||
|
|
130AA0816
130AA0816
|

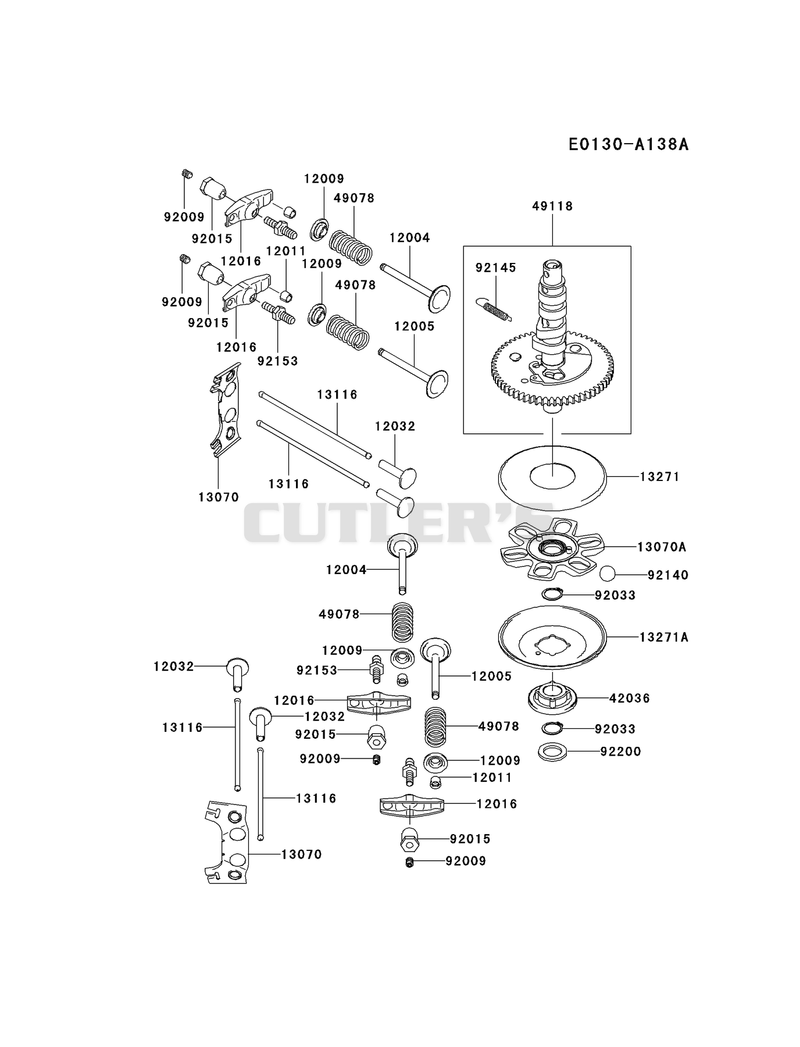

VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-7005
12004-7005
|
|||
|
|
12005-7006
12005-7006
|
|||
|
|
12009-7001
12009-7001
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-7008
12016-7008
|
|||
|
|
12032-7001
12032-7001
|
|||
|
|
13070-7001
13070-7001
|
|||
|
|
13070-7004
13070-7004
|
|||
|
|
13116-2057
13116-2057
|
|||
|
|
13271-7007
13271-7007
|
|||
|
|
13271-7021
13271-7021
|
|||
|
|
42036-7010
42036-7010
|
|||
|
|
49078-7001
49078-7001
|
|||
|
|
49118-7014
49118-7014
|
|||
|
|
92009-2341
92009-2341
|
|||
|
|
92015-2253
92015-2253
|
|||
|
|
92033-7001
92033-7001
|
|||
|
|
92140-7005
92140-7005
|
|||
|
|
92145-7001
92145-7001
|
|||
|
|
92153-7019
92153-7019
|
|||
|
|
92200-7001
92200-7001
|
