Kawasaki FH500V-AS15 Engine Parts Diagram
Diagrams:
Diagram:
MAINTENANCE PARTS
MAINTENANCE PARTS
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11013-7033
11013-7033
|
|||
|
|
11013-7002
11013-7002
|
|||
|
|
92070-7003
92070-7003
|
|||
|
|
99969-6535
99969-6535
|
|||
|
|
99969-6536
99969-6536
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
49019-0027
49019-0027
|
|||
|
|
51044-0902
51044-0902
|
|||
|
|
99969-6281
99969-6281
|
|||
|
|
99969-6273
99969-6273
|
|||
|
|
99969-6500
99969-6500
|
|||
|
|
99969-6578
99969-6578
|
|||
|
|
99969-6081
99969-6081
|
|||
|
|
99969-6274
99969-6274
|
|||
|
|
99969-6296
99969-6296
|
|||
|
|
99969-6297
99969-6297
|
|||
|
|
99969-6298
99969-6298
|
|||
|
|
99969-6504
99969-6504
|
|||
|
|
99969-6299
99969-6299
|
|||
|
|
99969-6501
99969-6501
|
|||
|
|
99969-6502
99969-6502
|
|||
|
|
99969-6568
99969-6568
|
AIR-FILTER/MUFFLER
AIR-FILTER/MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11010-7013
11010-7013
|
|||
|
|
11010-7013
11010-7013
|
|||
|
|
11010-7013
11010-7013
|
|||
|
|
11010-7013
11010-7013
|
|||
|
|
11013-7033
11013-7033
|
|||
|
|
11013-7002
11013-7002
|
|||
|
|
11013-7033
11013-7033
|
|||
|
|
11038-7013
11038-7013
|
|||
|
|
11038-7006
11038-7006
|
|||
|
|
11038-7009
11038-7009
|
|||
|
|
11038-7013
11038-7013
|
|||
|
|
49070-6001
49070-6001
|
|||
|
|
11050-7006
11050-7006
|
|||
|
|
49070-6001
49070-6001
|
|||
|
|
11060-7021
11060-7021
|
|||
|
|
11060-7021
11060-7021
|
|||
|
|
13270-7001
13270-7001
|
|||
|
|
13270-7008
13270-7008
|
|||
|
|
18049-7001
18049-7001
|
|||
|
|
27012-6003
27012-6003
|
|||
|
|
49070-6001
49070-6001
|
|||
|
|
49070-6001
49070-6001
|
|||
|
|
27012-6003
27012-6003
|
|||
|
|
27012-6003
27012-6003
|
|||
|
|
27012-6003
27012-6003
|
|||
|
|
92015-1367
92015-1367
|
|||
|
|
92072-7012
92072-7012
|
|||
|
|
92072-7012
92072-7012
|
|||
|
|
92072-7012
92072-7012
|
|||
|
|
92170-7002
92170-7002
|
|||
|
|
92191-7001
92191-7001
|
|||
|
|
92210-7004
92210-7004
|
|||
|
|
130B0612
130B0612
|
|||
|
|
130B0816
130B0816
|
|||
|
|
232B0514
232B0514
|
|||
|
|
233B0416
233B0416
|
|||
|
|
311AA0400
311AA0400
|
|||
|
|
317R0800
317R0800
|
|||
|
|
461DA0800
461DA0800
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11003-2105
11003-2105
|
|||
|
|
11060-2406
11060-2406
|
|||
|
|
16031-2066
16031-2066
|
|||
|
|
16035-2060
16035-2060
|
|||
|
|
16035-2061
16035-2061
|
|||
|
|
16035-2077
16035-2077
|
|||
|
|
16035-2081
16035-2081
|
|||
|
|
16041-2253
16041-2253
|
|||
|
|
16041-7006
16041-7006
|
|||
|
|
16073-7007
16073-7007
|
|||
|
|
16073-7007
16073-7007
|
|||
|
|
16126-7006
16126-7006
|
|||
|
|
16126-7008
16126-7008
|
|||
|
|
21188-2011
21188-2011
|
|||
|
|
26011-2281
26011-2281
|
|||
|
|
11061-7004
11061-7004
|
|||
|
|
11061-7018
11061-7018
|
|||
|
|
11061-7019
11061-7019
|
|||
|
|
11061-7004
11061-7004
|
|||
|
|
11061-7018
11061-7018
|
|||
|
|
11061-7019
11061-7019
|
|||
|
|
11065-2061
11065-2061
|
|||
|
|
99996-6055
99996-6055
|
|||
|
|
15003-7037
15003-7037
|
|||
|
|
16014-2080
16014-2080
|
|||
|
|
16020-2141
16020-2141
|
|||
|
|
16021-2060
16021-2060
|
|||
|
|
16025-2193
16025-2193
|
|||
|
|
16025-2195
16025-2195
|
|||
|
|
16030-2067
16030-2067
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
39076-2053
39076-2053
|
|||
|
|
43058-3716
43058-3716
|
|||
|
|
49121-2222
49121-2222
|
|||
|
|
49121-2231
49121-2231
|
|||
|
|
59076-7017
59076-7017
|
|||
|
|
92009-2015
92009-2015
|
|||
|
|
92009-2024
92009-2024
|
|||
|
|
92009-2081
92009-2081
|
|||
|
|
92009-2400
92009-2400
|
|||
|
|
92022-2231
92022-2231
|
|||
|
|
92022-2239
92022-2239
|
|||
|
|
92027-2025
92027-2025
|
|||
|
|
92033-2067
92033-2067
|
|||
|
|
92043-2226
92043-2226
|
|||
|
|
92063-2358
92063-2358
|
|||
|
|
92063-2380
92063-2380
|
|||
|
|
92064-2125
92064-2125
|
|||
|
|
92064-2127
92064-2127
|
|||
|
|
92081-2009
92081-2009
|
|||
|
|
92081-2256
92081-2256
|
|||
|
|
92093-2002
92093-2002
|
|||
|
|
92145-2061
92145-2061
|
|||
|
|
92191-7008
92191-7008
|
|||
|
|
92191-7016
92191-7016
|
|||
|
|
130B0635
130B0635
|
|||
|
|
172G0685
172G0685
|
|||
|
|
214B0510
214B0510
|
|||
|
|
482L4000
482L4000
|
CONTROL-EQUIPMENT
CONTROL-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11051-7008
11051-7008
|
|||
|
|
99996-6102
99996-6102
|
|||
|
|
13107-0750
13107-0750
|
|||
|
|
13107-0750
13107-0750
|
|||
|
|
13271-7032
13271-7032
|
|||
|
|
13271-7032
13271-7032
|
|||
|
|
16169-7010
16169-7010
|
|||
|
|
16169-7010
16169-7010
|
|||
|
|
16171-0039
16171-0039
|
|||
|
|
39129-7003
39129-7003
|
|||
|
|
49103-7004
49103-7004
|
|||
|
|
49103-7004
49103-7004
|
|||
|
|
49113-7056
49113-7056
|
|||
|
|
49113-7056
49113-7056
|
|||
|
|
92009-7007
92009-7007
|
|||
|
|
92145-7003
92145-7003
|
|||
|
|
92145-7004
92145-7004
|
|||
|
|
92145-7005
92145-7005
|
|||
|
|
92150-2182
92150-2182
|
|||
|
|
92154-2697
92154-2697
|
|||
|
|
92153-7033
92153-7033
|
|||
|
|
92153-7033
92153-7033
|
|||
|
|
92170-7001
92170-7001
|
|||
|
|
130B0612
130B0612
|
|||
|
|
214B0408
214B0408
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
411B0600
411B0600
|
COOLING-EQUIPMENT
COOLING-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13270-7007
13270-7007
|
|||
|
|
14037-7003-9H
14037-7003-9H
|
|||
|
|
14037-7020-9H
14037-7020-9H
|
|||
|
|
14037-7020-9H
14037-7020-9H
|
|||
|
|
23062-7002
23062-7002
|
|||
|
|
23062-7010
23062-7010
|
|||
|
|
23062-7010
23062-7010
|
|||
|
|
49089-7002
49089-7002
|
|||
|
|
49089-7032
49089-7032
|
|||
|
|
49089-7032
49089-7032
|
|||
|
|
49089-7034
49089-7034
|
|||
|
|
55020-7004
55020-7004
|
|||
|
|
55020-7004
55020-7004
|
|||
|
|
59041-0014
59041-0014
|
|||
|
|
59041-0014
59041-0014
|
|||
|
|
59066-7002
59066-7002
|
|||
|
|
92004-7025
92004-7025
|
|||
|
|
130BA0612
130BA0612
|
|||
|
|
92210-0003
92210-0003
|
|||
|
|
92153-7007
92153-7007
|
|||
|
|
92026-7003
92026-7003
|
|||
|
|
92026-7007
92026-7007
|
|||
|
|
92200-2078
92200-2078
|
|||
|
|
92210-0003
92210-0003
|
|||
|
|
130B0612
130B0612
|
|||
|
|
130B0616
130B0616
|
|||
|
|
130B0620
130B0620
|
|||
|
|
130B0625
130B0625
|
|||
|
|
130B0816
130B0816
|
|||
|
|
311AA0600
311AA0600
|
CYLINDER/CRANKCASE
CYLINDER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11004-7015
11004-7015
|
|||
|
|
11004-7015
11004-7015
|
|||
|
|
11008-6043
11008-6043
|
|||
|
|
11008-6043
11008-6043
|
|||
|
|
11008-7020
11008-7020
|
|||
|
|
11008-7020
11008-7020
|
|||
|
|
11022-7028
11022-7028
|
|||
|
|
11060-7001
11060-7001
|
|||
|
|
11060-7008
11060-7008
|
|||
|
|
99996-6104
99996-6104
|
|||
|
|
13271-7016
13271-7016
|
|||
|
|
99996-6104
99996-6104
|
|||
|
|
49015-6253
49015-6253
|
|||
|
|
49015-6253
49015-6253
|
|||
|
|
99996-6104
99996-6104
|
|||
|
|
49120-7021
49120-7021
|
|||
|
|
49120-7021
49120-7021
|
|||
|
|
49120-7021
49120-7021
|
|||
|
|
59071-2079
59071-2079
|
|||
|
|
92033-7003
92033-7003
|
|||
|
|
92043-7001
92043-7001
|
|||
|
|
92049-7001
92049-7001
|
|||
|
|
92049-7010
92049-7010
|
|||
|
|
92049-7011
92049-7011
|
|||
|
|
92049-7005
92049-7005
|
|||
|
|
92049-7001
92049-7001
|
|||
|
|
92049-7010
92049-7010
|
|||
|
|
92049-7011
92049-7011
|
|||
|
|
92139-7008
92139-7008
|
|||
|
|
130B0612
130B0612
|
|||
|
|
130B0640
130B0640
|
|||
|
|
130T0850
130T0850
|
|||
|
|
130T0875
130T0875
|
|||
|
|
172BA0818
172BA0818
|

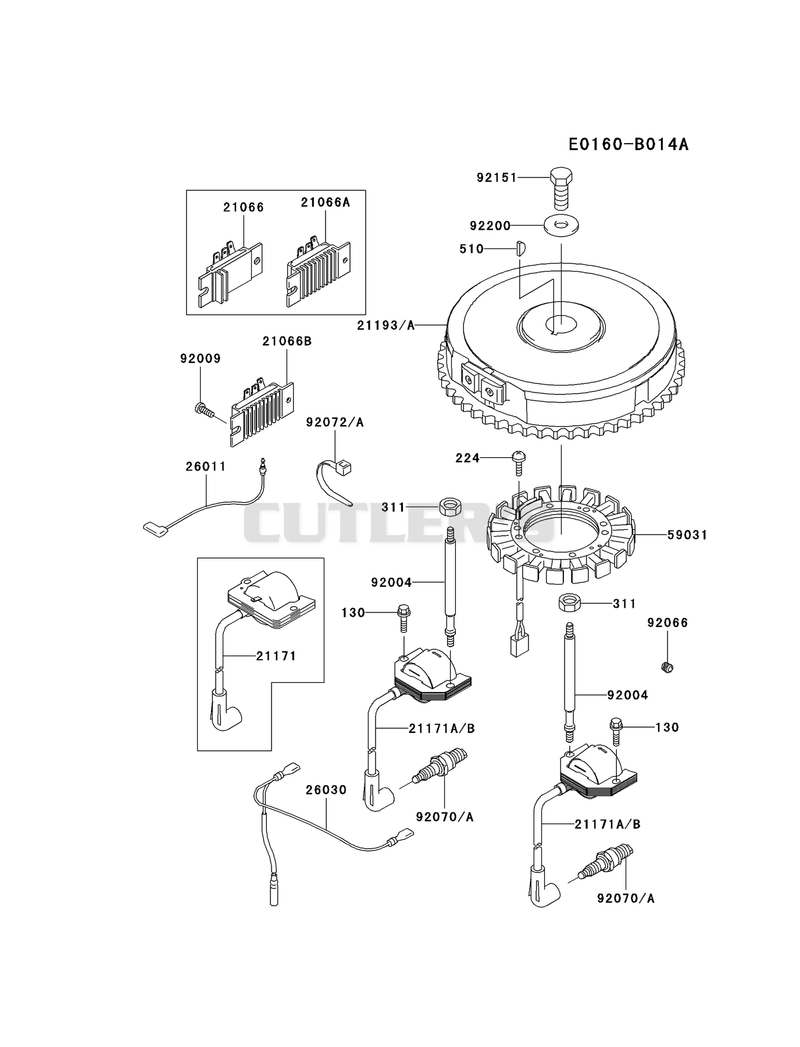

ELECTRIC-EQUIPMENT
ELECTRIC-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
21066-7011
21066-7011
|
|||
|
|
21066-7011
21066-7011
|
|||
|
|
21066-7011
21066-7011
|
|||
|
|
21171-7034
21171-7034
|
|||
|
|
21171-7034
21171-7034
|
|||
|
|
21171-7034
21171-7034
|
|||
|
|
21193-0023
21193-0023
|
|||
|
|
21193-0023
21193-0023
|
|||
|
|
26011-7001
26011-7001
|
|||
|
|
26030-7001
26030-7001
|
|||
|
|
59031-7009
59031-7009
|
|||
|
|
92004-7026
92004-7026
|
|||
|
|
92009-2308
92009-2308
|
|||
|
|
92066-0881
92066-0881
|
|||
|
|
92070-7003
92070-7003
|
|||
|
|
92070-7003
92070-7003
|
|||
|
|
92072-7003
92072-7003
|
|||
|
|
92072-7003
92072-7003
|
|||
|
|
92151-2097
92151-2097
|
|||
|
|
92200-7002
92200-7002
|
|||
|
|
130B0620
130B0620
|
|||
|
|
224B0520
224B0520
|
|||
|
|
311AA0600
311AA0600
|
|||
|
|
510A5100
510A5100
|
FUEL-TANK/FUEL-VALVE
FUEL-TANK/FUEL-VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
23062-7019-9H
23062-7019-9H
|
|||
|
|
23062-7019-9H
23062-7019-9H
|
|||
|
|
49019-0027
49019-0027
|
|||
|
|
49040-7001
49040-7001
|
|||
|
|
49040-7001
49040-7001
|
|||
|
|
92170-2088
92170-2088
|
|||
|
|
92191-7002
92191-7002
|
|||
|
|
92191-7003
92191-7003
|
|||
|
|
92191-7004
92191-7004
|
|||
|
|
130B0620
130B0620
|
LABEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56033-7001
56033-7001
|
|||
|
|
56070-7001
56070-7001
|
|||
|
|
56080-0016
56080-0016
|
|||
|
|
56080-0016
56080-0016
|
LUBRICATION-EQUIPMENT
LUBRICATION-EQUIPMENT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13107-0749
13107-0749
|
|||
|
|
13271-7017
13271-7017
|
|||
|
|
14075-7009
14075-7009
|
|||
|
|
14075-7009
14075-7009
|
|||
|
|
16154-2053
16154-2053
|
|||
|
|
16154-2054
16154-2054
|
|||
|
|
49065-0724
49065-0724
|
|||
|
|
49065-7004
49065-7004
|
|||
|
|
59051-6001
59051-6001
|
|||
|
|
59051-7011
59051-7011
|
|||
|
|
59231-7005
59231-7005
|
|||
|
|
92043-7003
92043-7003
|
|||
|
|
92066-7003
92066-7003
|
|||
|
|
92140-7003
92140-7003
|
|||
|
|
92145-7002
92145-7002
|
|||
|
|
130B0612
130B0612
|
|||
|
|
670D2016
670D2016
|
PISTON/CRANKSHAFT
PISTON/CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13031-7001
13031-7001
|
|||
|
|
13251-7004
13251-7004
|
|||
|
|
13251-7003
13251-7003
|
|||
|
|
13251-7004
13251-7004
|
|||
|
|
92022-1982
92022-1982
|
|||
|
|
92033-7002
92033-7002
|
|||
|
|
92038-2101
92038-2101
|
|||
|
|
92151-7010
92151-7010
|
|||
|
|
130G0630
130G0630
|
|||
|
|
13001-7008
13001-7008
|
|||
|
|
13002-7001
13002-7001
|
|||
|
|
13008-6055
13008-6055
|
|||
|
|
13025-7001
13025-7001
|
|||
|
|
13029-7004
13029-7004
|
STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
13101-7003
13101-7003
|
|||
|
|
99999-7080
99999-7080
|
|||
|
|
21080-7005
21080-7005
|
|||
|
|
99999-7080
99999-7080
|
|||
|
|
39184-7004
39184-7004
|
|||
|
|
92151-7013
92151-7013
|
|||
|
|
130B0816
130B0816
|
VALVE/CAMSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12004-7001
12004-7001
|
|||
|
|
12004-7001
12004-7001
|
|||
|
|
12005-7001
12005-7001
|
|||
|
|
12005-7001
12005-7001
|
|||
|
|
12009-7001
12009-7001
|
|||
|
|
12011-2056
12011-2056
|
|||
|
|
12016-7008
12016-7008
|
|||
|
|
12032-7001
12032-7001
|
|||
|
|
13070-7001
13070-7001
|
|||
|
|
13070-7004
13070-7004
|
|||
|
|
13070-7004
13070-7004
|
|||
|
|
13116-2057
13116-2057
|
|||
|
|
13271-7021
13271-7021
|
|||
|
|
13271-7007
13271-7007
|
|||
|
|
13271-7007
13271-7007
|
|||
|
|
13271-7021
13271-7021
|
|||
|
|
42036-7010
42036-7010
|
|||
|
|
42036-7010
42036-7010
|
|||
|
|
49078-7001
49078-7001
|
|||
|
|
49118-7002
49118-7002
|
|||
|
|
92009-2341
92009-2341
|
|||
|
|
92015-2253
92015-2253
|
|||
|
|
92033-7001
92033-7001
|
|||
|
|
92140-7005
92140-7005
|
|||
|
|
92145-7001
92145-7001
|
|||
|
|
92153-7019
92153-7019
|
|||
|
|
92153-7019
92153-7019
|
|||
|
|
92153-7019
92153-7019
|
|||
|
|
92200-7001
92200-7001
|
