Kohler CH270-3213 Command PRO 7 HP Parts Diagram
Diagrams:
Diagram:

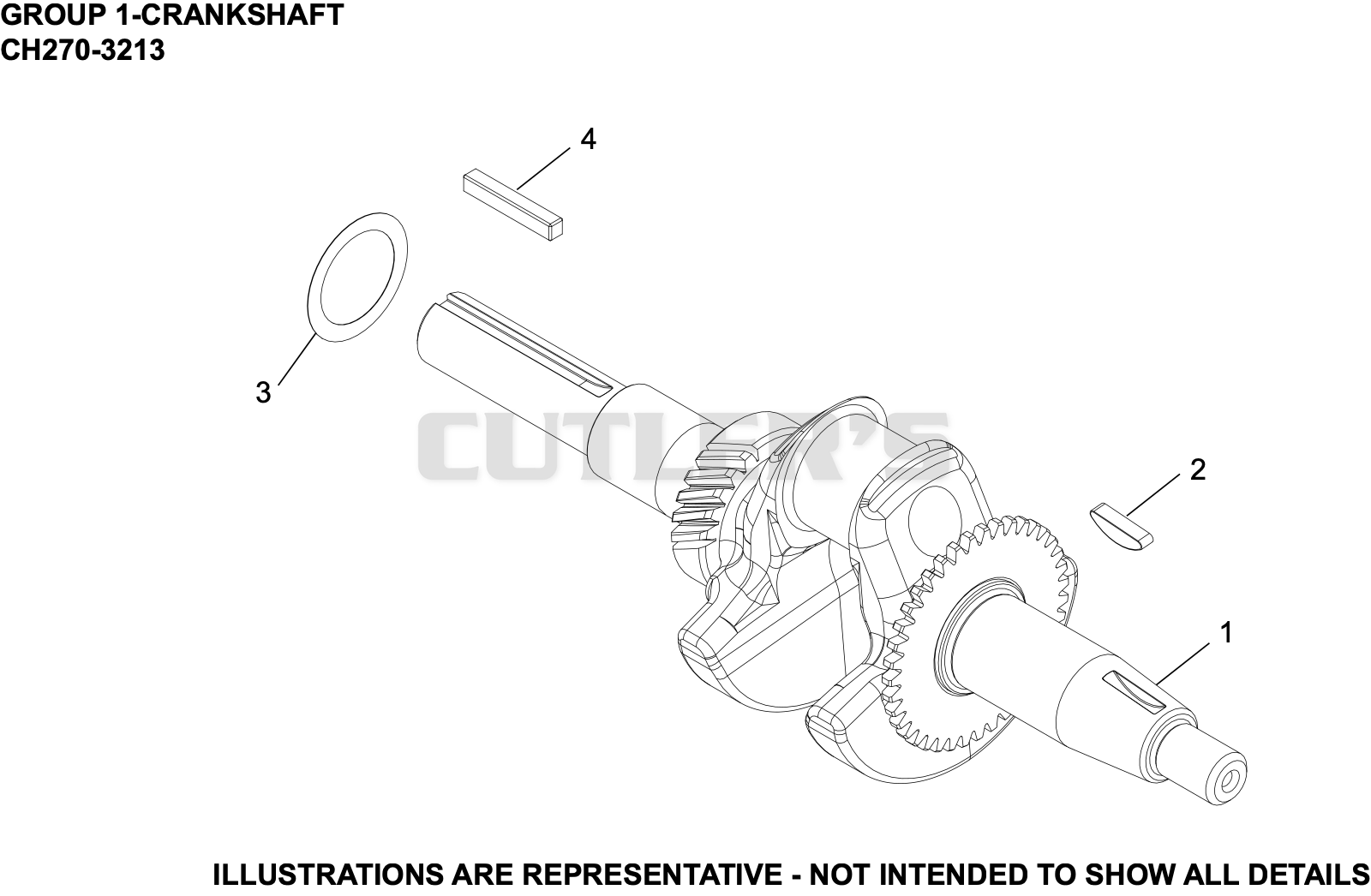

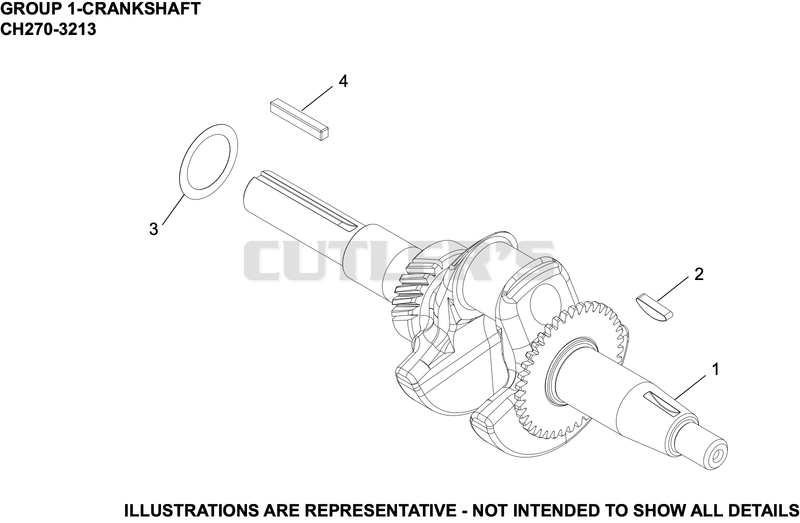

CrankShaft
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 014 97-S
17 014 97-S
|
|||
|
|
14 340 01-S
14 340 01-S
|
|||
|
|
17 422 06-S
17 422 06-S
|
|||
|
|
25 340 05-S
25 340 05-S
|

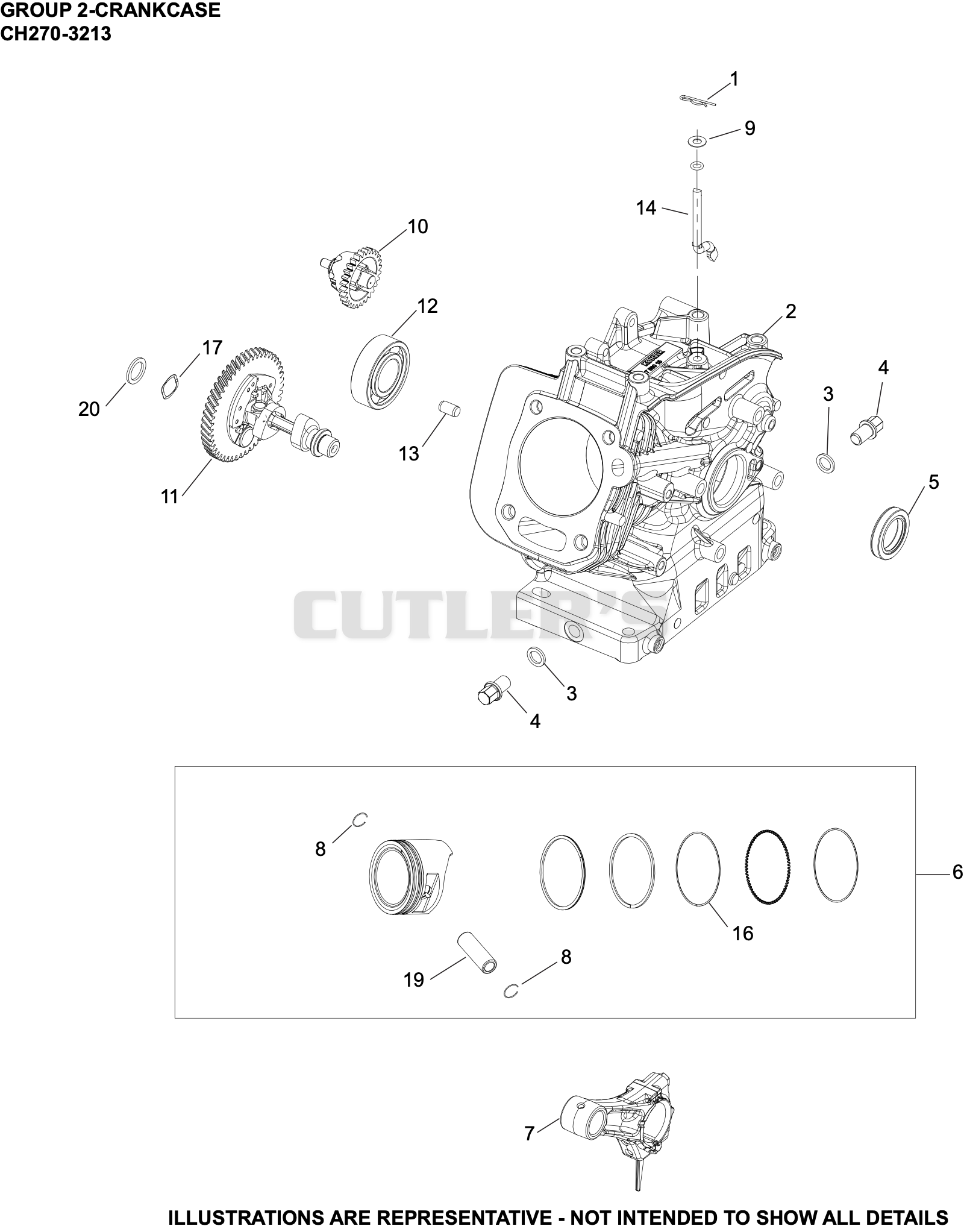

CrankCase
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 154 19-S
17 154 19-S
|
|||
|
|
17 260 08-S
17 260 08-S
|
|||
|
|
17 468 01-S
17 468 01-S
|
|||
|
|
17 139 01-S
17 139 01-S
|
|||
|
|
17 032 30-S
17 032 30-S
|
|||
|
|
17 874 10-S
17 874 10-S
|
|||
|
|
17 067 01-S
17 067 01-S
|
|||
|
|
14 018 03-S
14 018 03-S
|
|||
|
|
17 468 21-S
17 468 21-S
|
|||
|
|
17 310 08-S
17 310 08-S
|
|||
|
|
17 010 18-S
17 010 18-S
|
|||
|
|
17 030 12-S
17 030 12-S
|
|||
|
|
17 380 21-S
17 380 21-S
|
|||
|
|
17 144 02-S
17 144 02-S
|
|||
|
|
14 108 02-S
14 108 02-S
|
|||
|
|
17 089 60-S
17 089 60-S
|
|||
|
|
14 380 04-S
14 380 04-S
|
|||
|
|
25 468 20-S
25 468 20-S
|

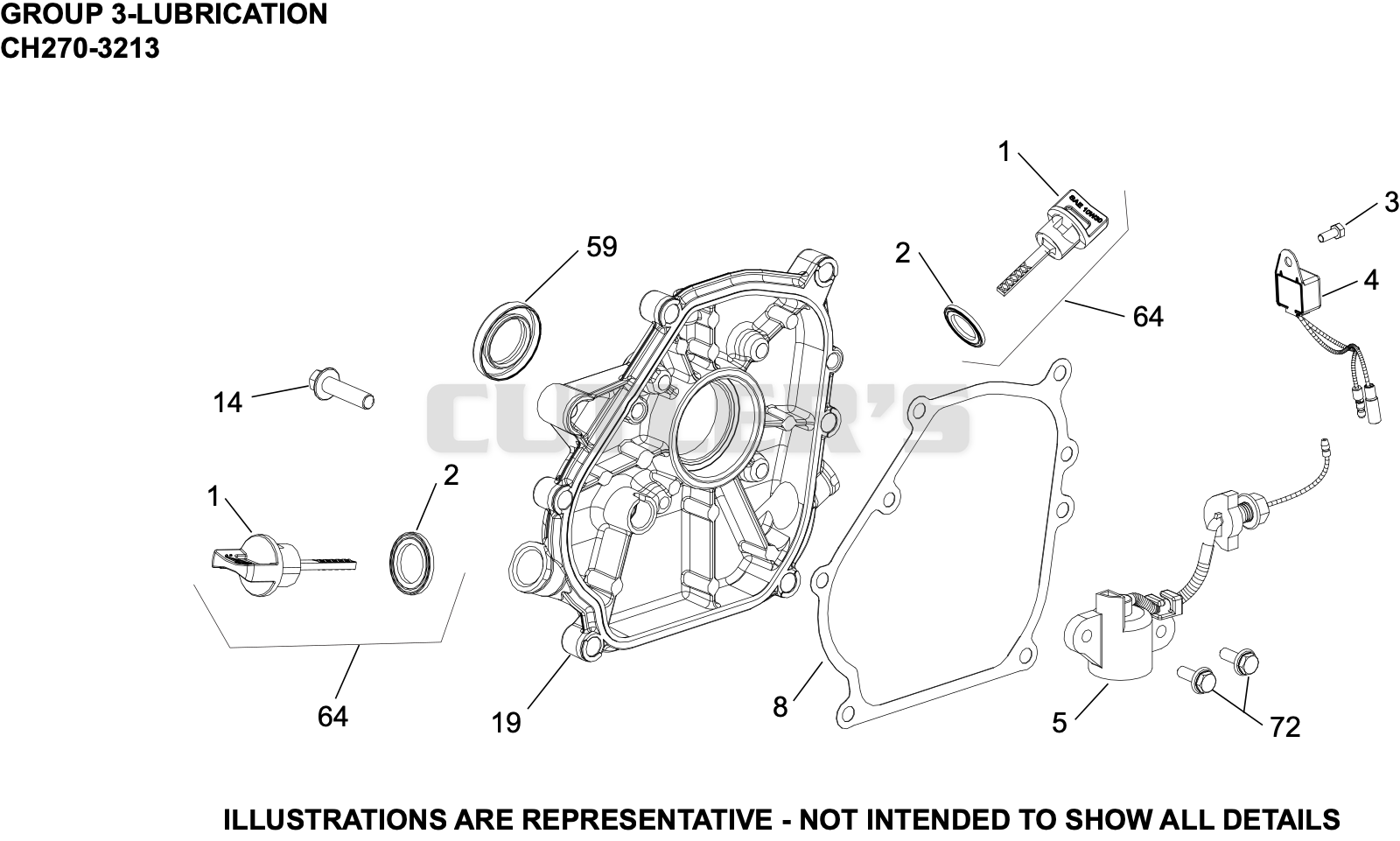

Lubrication
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 038 01-S
17 038 01-S
|
|||
|
|
17 032 05-S
17 032 05-S
|
|||
|
|
25 086 244-S
25 086 244-S
|
|||
|
|
17 526 04-S
17 526 04-S
|
|||
|
|
17 099 09-S
17 099 09-S
|
|||
|
|
17 041 01-S
17 041 01-S
|
|||
|
|
25 086 171-S
25 086 171-S
|
|||
|
|
17 009 51-S
17 009 51-S
|
|||
|
|
17 032 29-S
17 032 29-S
|
|||
|
|
17 038 08-S
17 038 08-S
|
|||
|
|
25 086 337-S
25 086 337-S
|

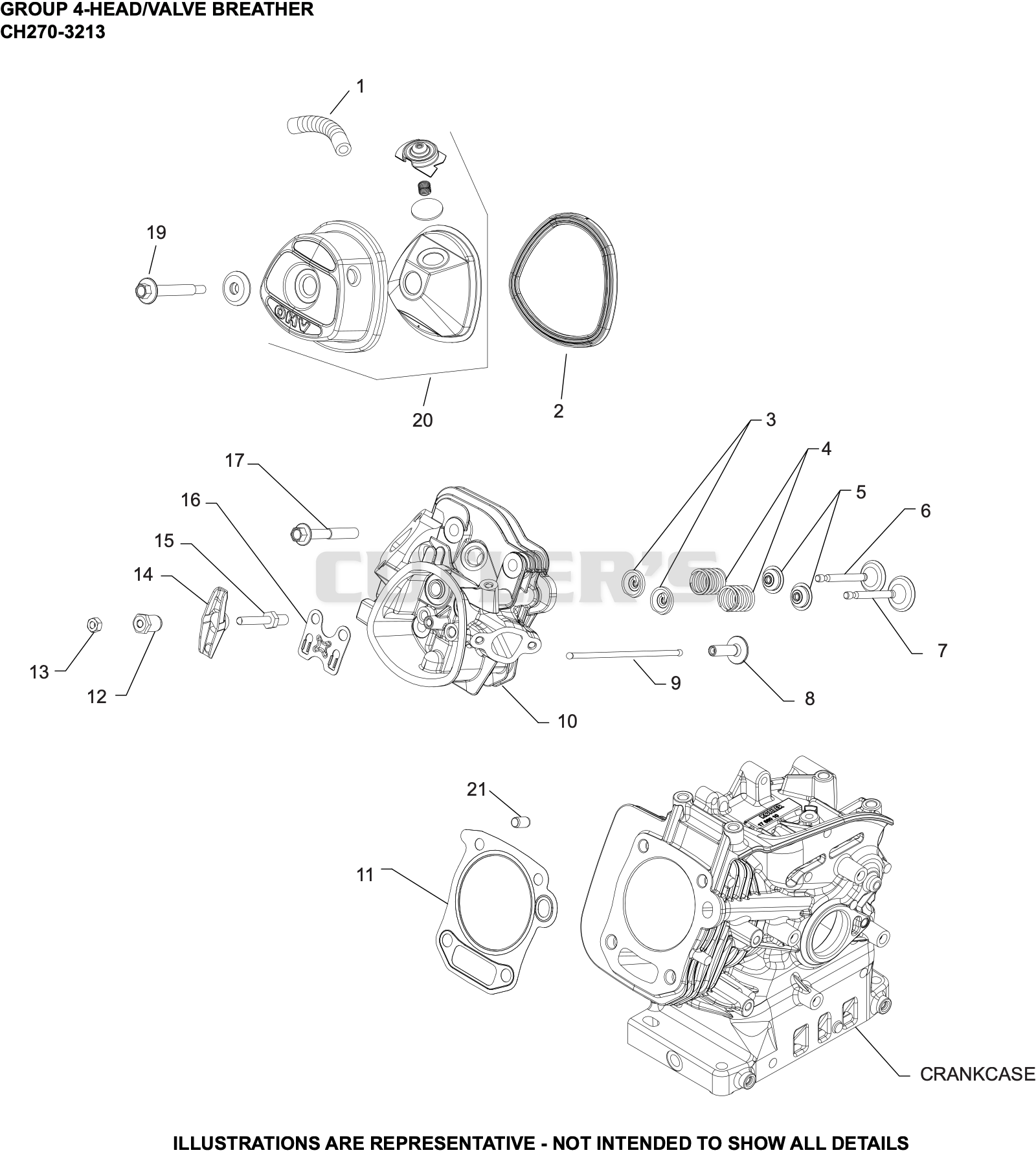

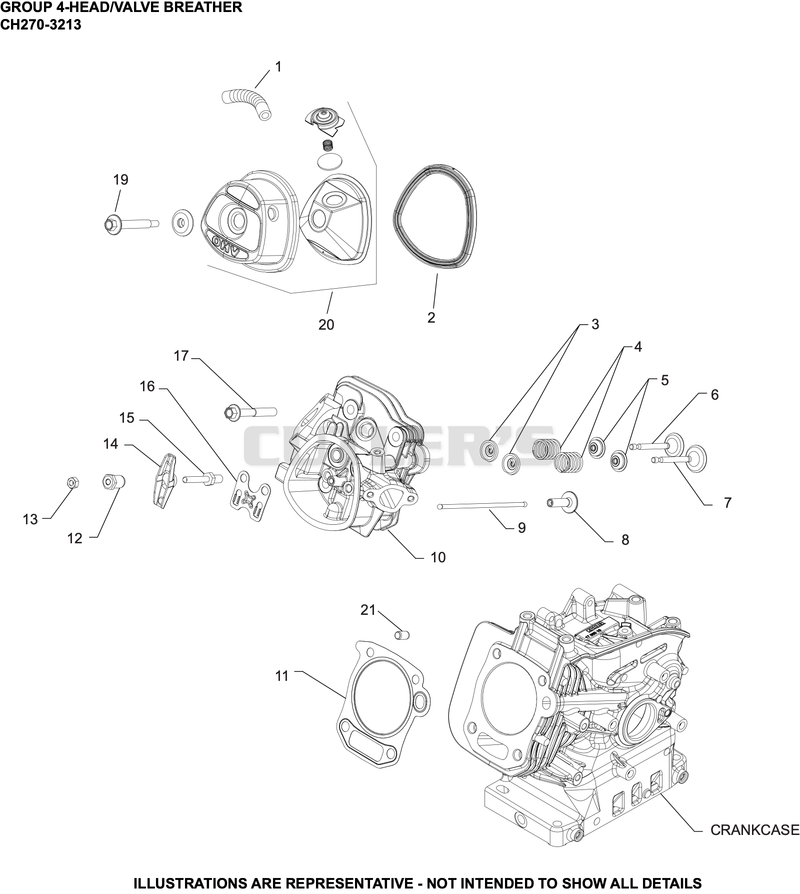

CylinderHead/Breather
CylinderHead/Breather
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 123 89-S
17 123 89-S
|
|||
|
|
17 041 47-S
17 041 47-S
|
|||
|
|
14 018 02-S
14 018 02-S
|
|||
|
|
17 089 04-S
17 089 04-S
|
|||
|
|
18 032 04-S
18 032 04-S
|
|||
|
|
17 016 10-S
17 016 10-S
|
|||
|
|
17 017 08-S
17 017 08-S
|
|||
|
|
14 351 01-S
14 351 01-S
|
|||
|
|
14 411 01-S
14 411 01-S
|
|||
|
|
17 318 04-S
17 318 04-S
|
|||
|
|
17 841 01-S
17 841 01-S
|
|||
|
|
14 599 01-S
14 599 01-S
|
|||
|
|
14 100 01-S
14 100 01-S
|
|||
|
|
14 186 02-S
14 186 02-S
|
|||
|
|
14 072 02-S
14 072 02-S
|
|||
|
|
17 146 01-S
17 146 01-S
|
|||
|
|
25 086 215-S
25 086 215-S
|
|||
|
|
25 086 310-S
25 086 310-S
|
|||
|
|
17 096 08-S
17 096 08-S
|
|||
|
|
14 380 13-S
14 380 13-S
|

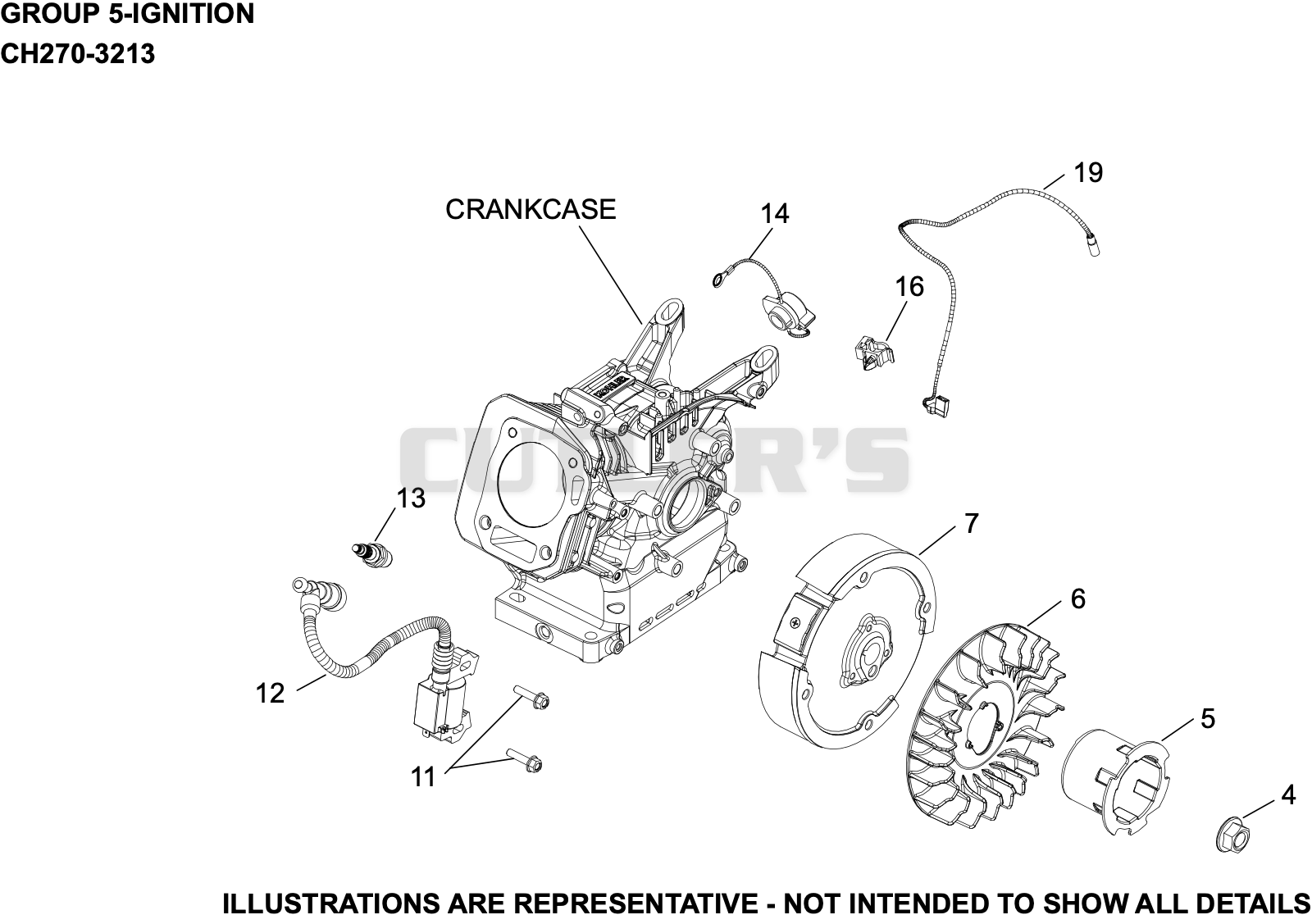

Ignition/Charging
Ignition/Charging
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 100 48-S
17 100 48-S
|
|||
|
|
17 109 01-S
17 109 01-S
|
|||
|
|
17 157 06-S
17 157 06-S
|
|||
|
|
17 025 01-S
17 025 01-S
|
|||
|
|
25 086 186-S
25 086 186-S
|
|||
|
|
17 584 01-S
17 584 01-S
|
|||
|
|
25 132 19-S
25 132 19-S
|
|||
|
|
17 099 26-S
17 099 26-S
|
|||
|
|
17 154 09-S
17 154 09-S
|
|||
|
|
17 518 04-S
17 518 04-S
|

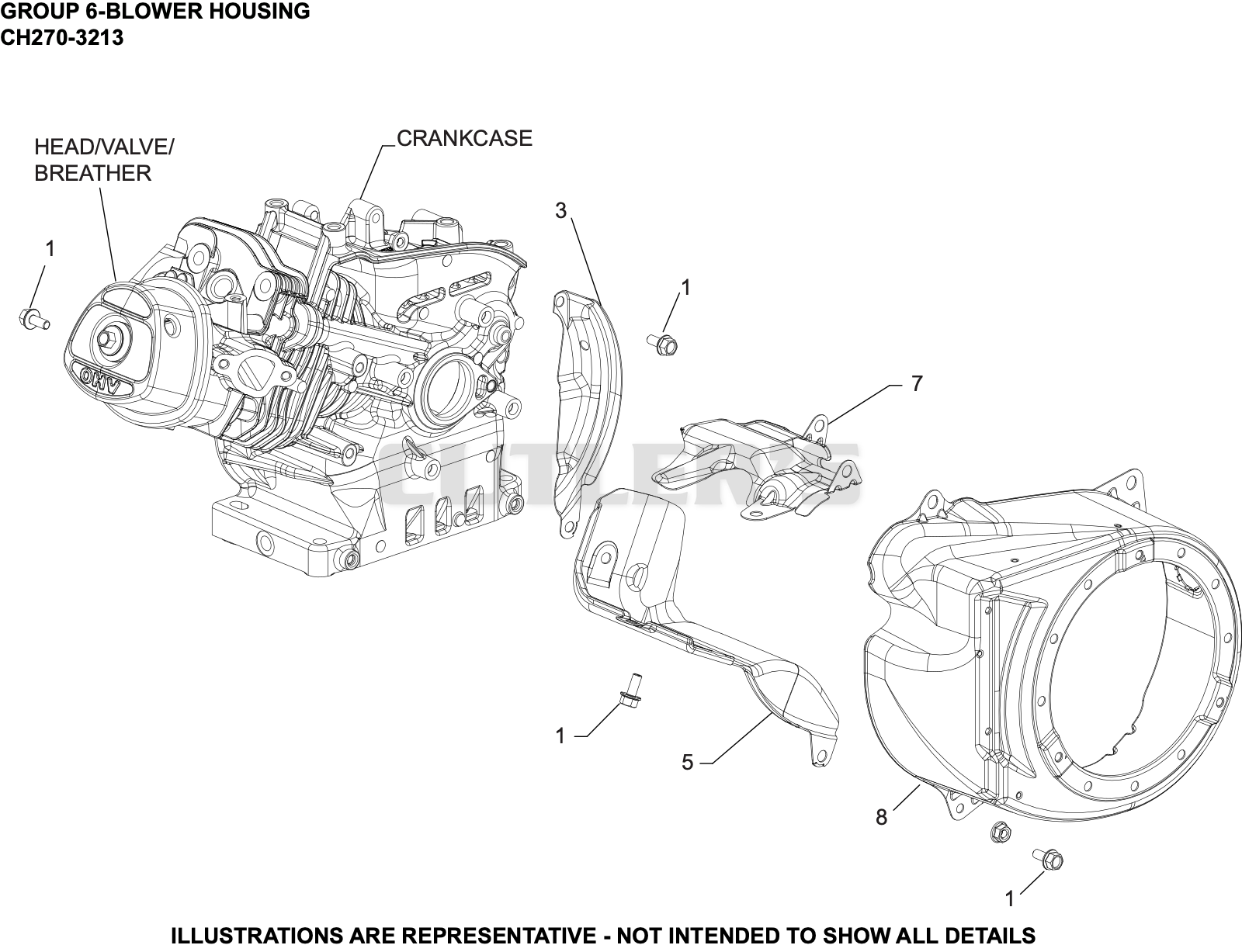

Blower Housing
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 086 159-S
25 086 159-S
|
|||
|
|
17 314 02-S
17 314 02-S
|
|||
|
|
17 314 92-S
17 314 92-S
|
|||
|
|
17 314 08-S
17 314 08-S
|
|||
|
|
17 027 09-S
17 027 09-S
|

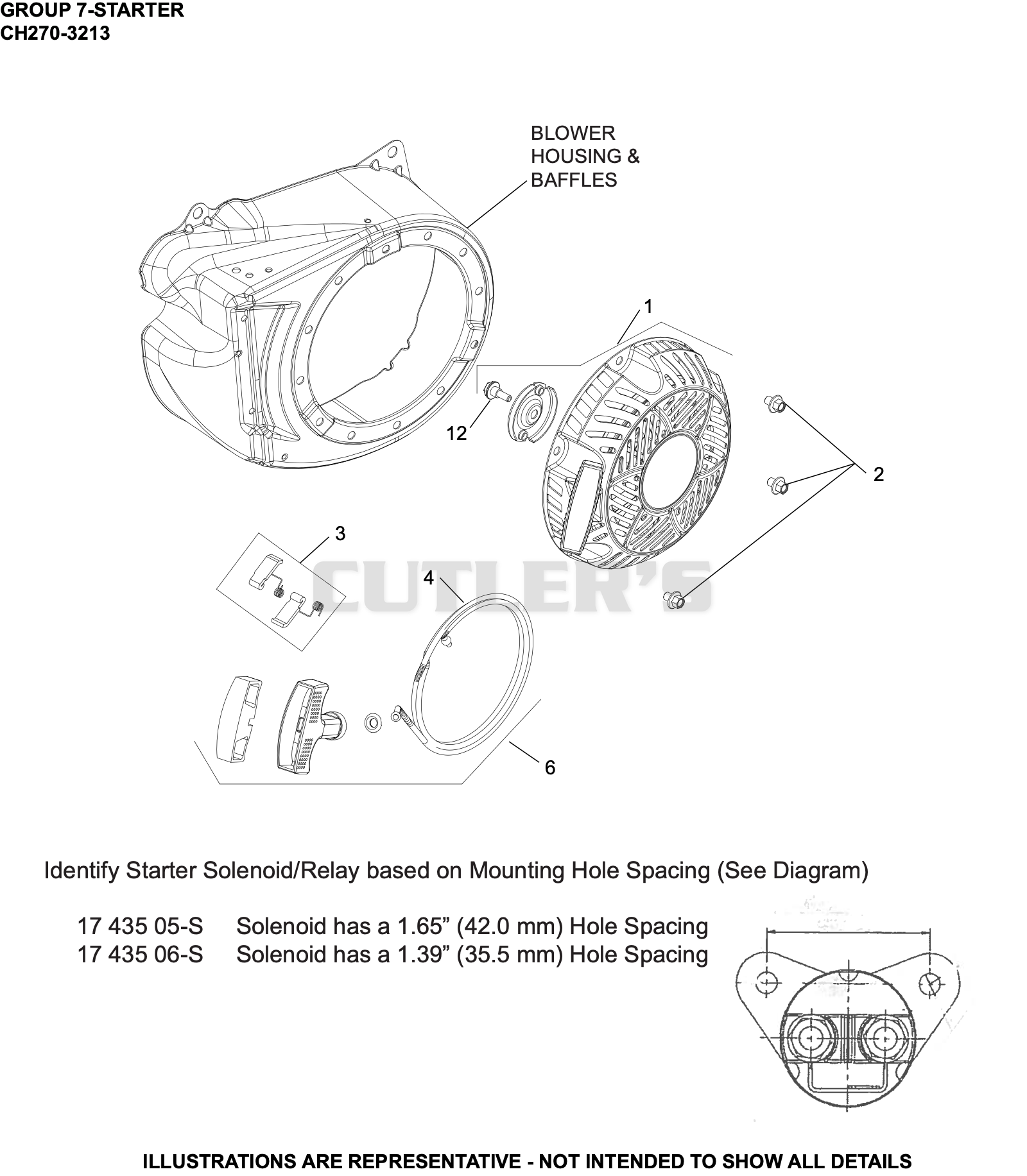

Starting
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 165 02-S
17 165 02-S
|
|||
|
|
25 086 648-S
25 086 648-S
|
|||
|
|
14 379 01-S
14 379 01-S
|
|||
|
|
17 160 01-S
17 160 01-S
|
|||
|
|
14 160 01-S
14 160 01-S
|
|||
|
|
17 160 07-S
17 160 07-S
|
|||
|
|
25 086 139-S
25 086 139-S
|

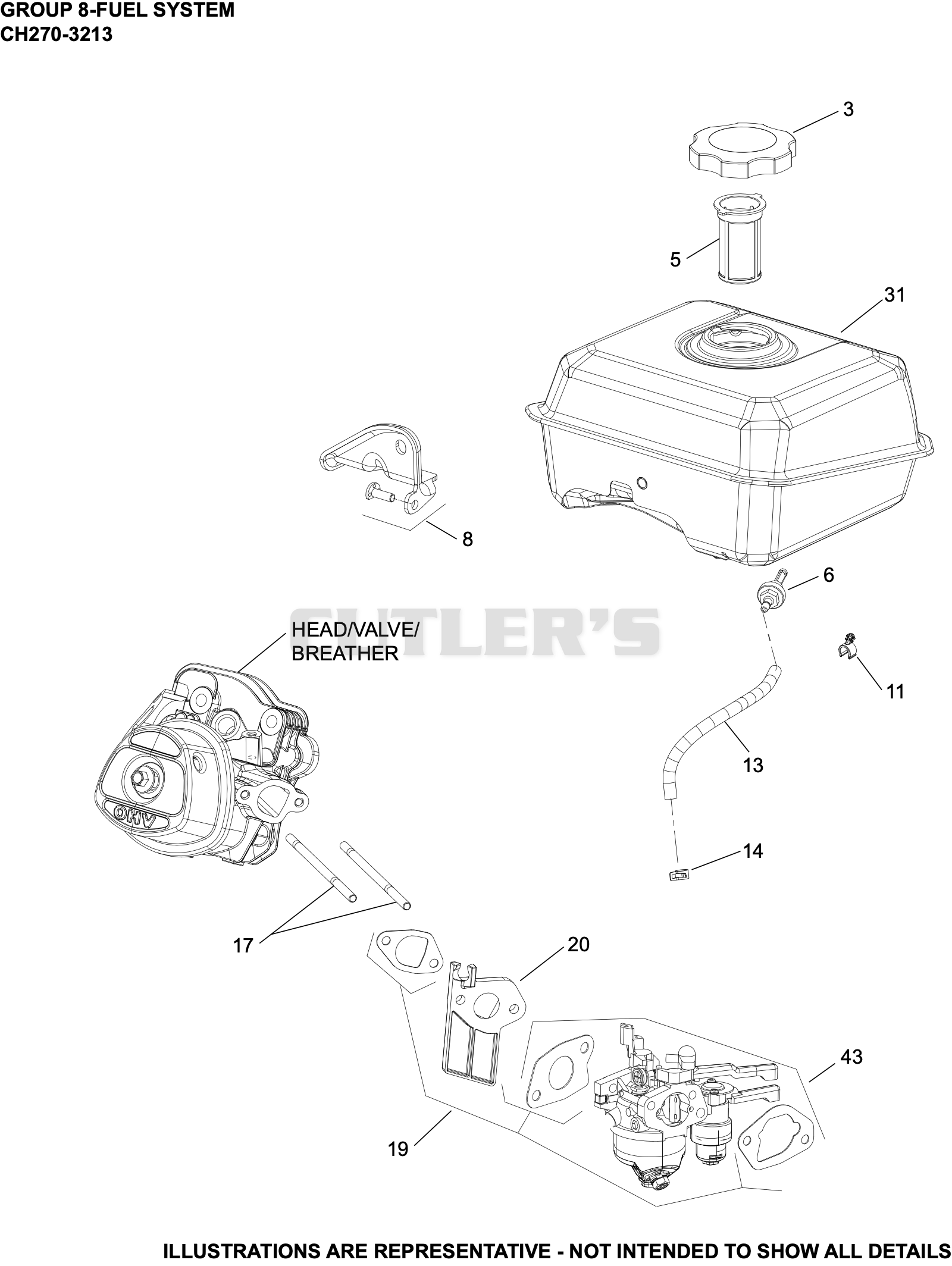

Fuel System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 173 46-S
17 173 46-S
|
|||
|
|
17 050 20-S
17 050 20-S
|
|||
|
|
17 294 05-S
17 294 05-S
|
|||
|
|
17 294 19-S
17 294 19-S
|
|||
|
|
17 126 38-S
17 126 38-S
|
|||
|
|
17 154 08-S
17 154 08-S
|
|||
|
|
25 111 40-S
25 111 40-S
|
|||
|
|
14 237 01-S
14 237 01-S
|
|||
|
|
17 072 09-S
17 072 09-S
|
|||
|
|
17 041 03-S
17 041 03-S
|
|||
|
|
17 168 05-S
17 168 05-S
|
|||
|
|
17 065 88-S
17 065 88-S
|
|||
|
|
17 853 158-S
17 853 158-S
|
|||
|
|
14 757 03-S
14 757 03-S
|
|||
|
|
17 755 40-S
17 755 40-S
|
|||
|
|
17 755 41-S
17 755 41-S
|

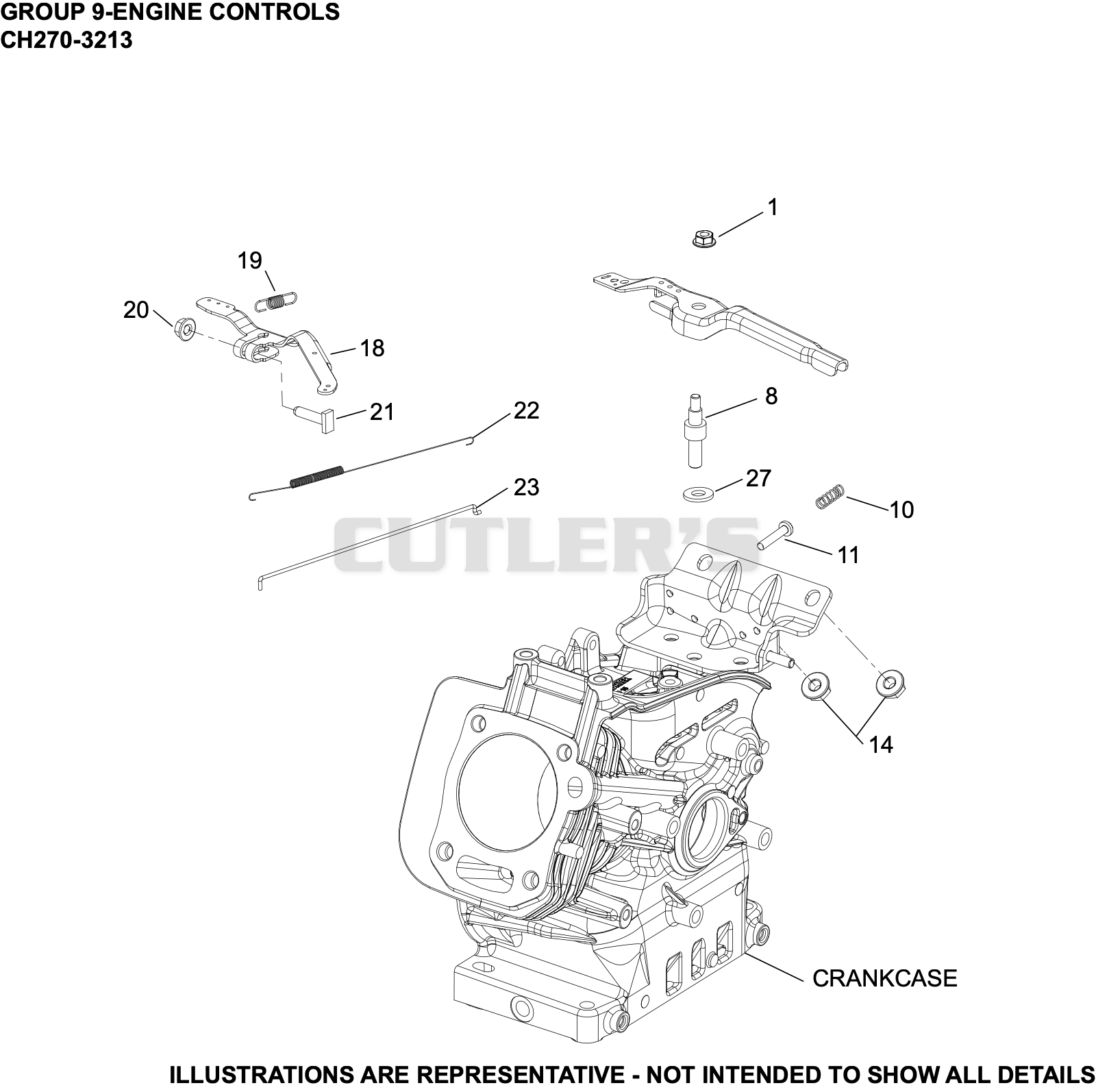

Engine Controls
Engine Controls
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14 100 09-S
14 100 09-S
|
|||
|
|
17 072 42-S
17 072 42-S
|
|||
|
|
17 089 36-S
17 089 36-S
|
|||
|
|
25 086 242-S
25 086 242-S
|
|||
|
|
M-841080-S
M-841080-S
|
|||
|
|
17 090 15-S
17 090 15-S
|
|||
|
|
17 089 77-S
17 089 77-S
|
|||
|
|
14 100 08-S
14 100 08-S
|
|||
|
|
25 086 166-S
25 086 166-S
|
|||
|
|
17 089 97-S
17 089 97-S
|
|||
|
|
17 079 01-S
17 079 01-S
|
|||
|
|
25 468 36-S
25 468 36-S
|

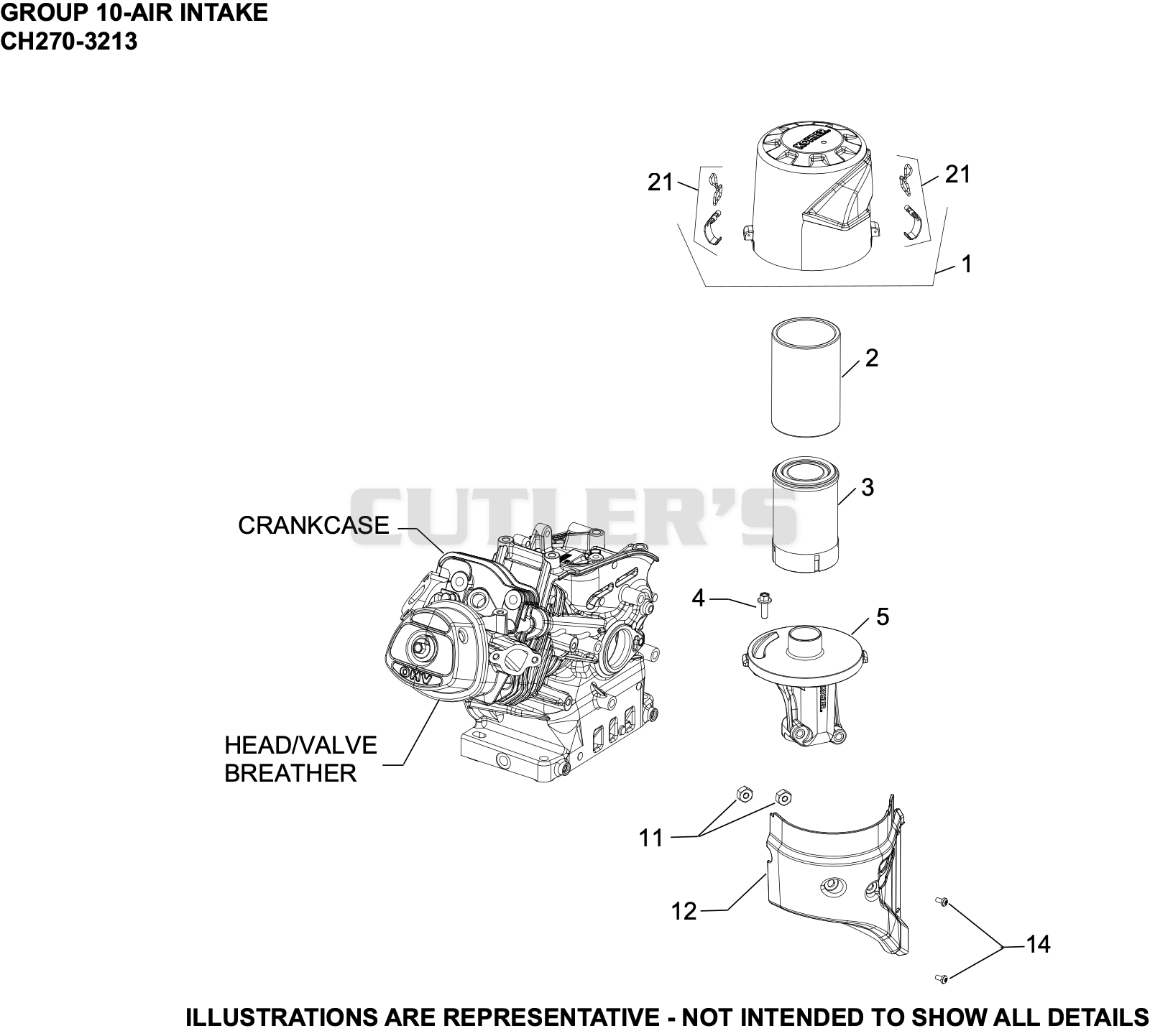

Air Intake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 096 41-S
17 096 41-S
|
|||
|
|
17 083 06-S
17 083 06-S
|
|||
|
|
17 083 23-S
17 083 23-S
|
|||
|
|
25 086 223-S
25 086 223-S
|
|||
|
|
17 094 24-S
17 094 24-S
|
|||
|
|
17 100 43-S
17 100 43-S
|
|||
|
|
17 096 04-S
17 096 04-S
|
|||
|
|
25 086 217-S
25 086 217-S
|
|||
|
|
17 344 01-S
17 344 01-S
|

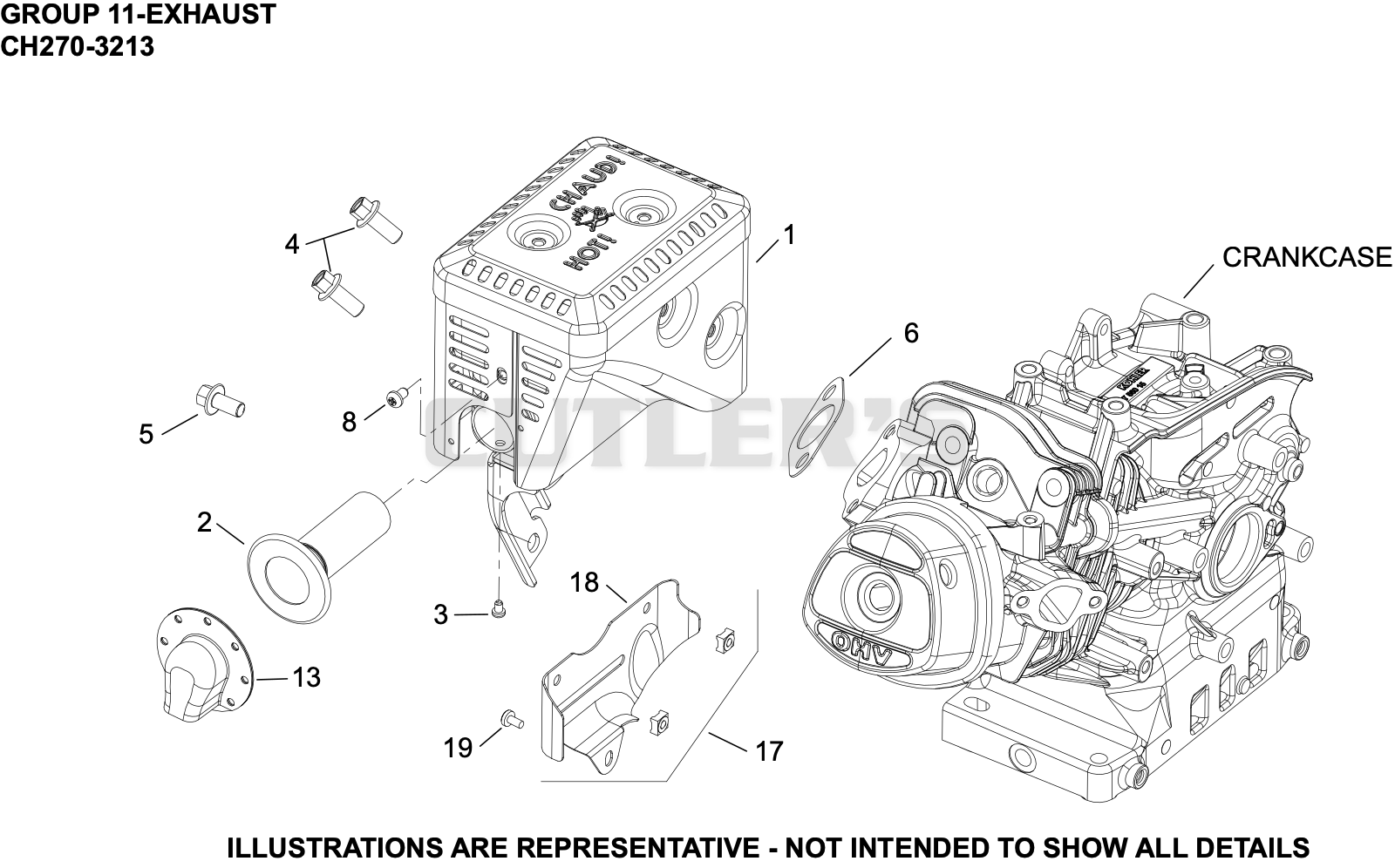

Exhaust
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 068 55-S
17 068 55-S
|
|||
|
|
17 533 09-S
17 533 09-S
|
|||
|
|
25 086 190-S
25 086 190-S
|
|||
|
|
25 086 224-S
25 086 224-S
|
|||
|
|
M-851016-S
M-851016-S
|
|||
|
|
17 041 09-S
17 041 09-S
|
|||
|
|
25 086 564-S
25 086 564-S
|
|||
|
|
17 265 08-S
17 265 08-S
|
|||
|
|
17 314 42-S
17 314 42-S
|
|||
|
|
17 314 41-S
17 314 41-S
|
|||
|
|
25 086 300-S
25 086 300-S
|

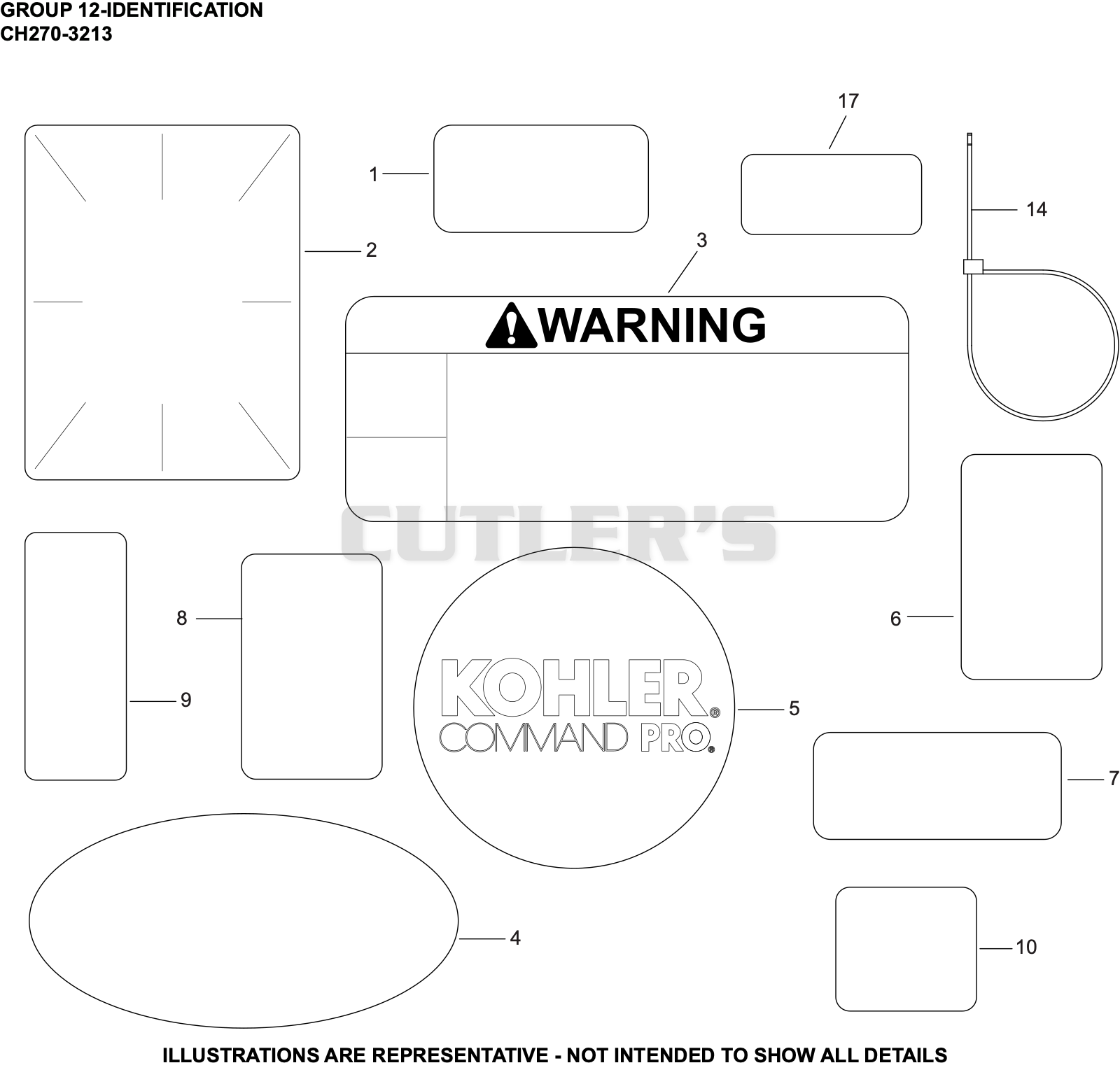

Identification
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 113 75-S
25 113 75-S
|
|||
|
|
25 113 79-S
25 113 79-S
|
|||
|
|
17 113 16-S
17 113 16-S
|
|||
|
|
17 113 75-S
17 113 75-S
|
|||
|
|
17 113 123-S
17 113 123-S
|
|||
|
|
17 113 24-S
17 113 24-S
|
|||
|
|
25 113 74-S
25 113 74-S
|
|||
|
|
17 113 23-S
17 113 23-S
|
|||
|
|
25 113 84-S
25 113 84-S
|
|||
|
|
17 113 25-S
17 113 25-S
|
|||
|
|
25 454 05-S
25 454 05-S
|
|||
|
|
25 113 76-S
25 113 76-S
|
Blocks,Gasket Set,Replacement
Blocks,Gasket Set,Replacement
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 755 06-S
17 755 06-S
|
Carb Repair Kits
Carb Repair Kits
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14 757 03-S
14 757 03-S
|
Maintenance-Fast Moving Parts
Maintenance-Fast Moving Parts
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 050 20-S
17 050 20-S
|
|||
|
|
17 083 06-S
17 083 06-S
|
|||
|
|
17 083 23-S
17 083 23-S
|
|||
|
|
25 132 19-S
25 132 19-S
|
|||
|
|
25 357 72-S
25 357 72-S
|
Owners/Service Manual
Owners/Service Manual
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 590 28
17 590 28
|
|||
|
|
17 590 30
17 590 30
|
|||
|
|
17 690 01
17 690 01
|
|||
|
|
17 690 03
17 690 03
|
|||
|
|
17 690 04
17 690 04
|
|||
|
|
17 690 05
17 690 05
|
|||
|
|
17 690 06
17 690 06
|
|||
|
|
17 690 07
17 690 07
|
|||
|
|
17 690 08
17 690 08
|
|||
|
|
17 690 09
17 690 09
|
|||
|
|
17 690 10
17 690 10
|
|||
|
|
17 690 11
17 690 11
|
|||
|
|
17 690 12
17 690 12
|
|||
|
|
17 690 13
17 690 13
|
|||
|
|
25 590 44
25 590 44
|
Sensors
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 099 09-S
17 099 09-S
|
Sealant,Thread Lock, Lubricate
Sealant,Thread Lock, Lubricate
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 357 03-S
25 357 03-S
|
|||
|
|
25 357 06-S
25 357 06-S
|
|||
|
|
25 357 12-S
25 357 12-S
|
|||
|
|
25 357 14-S
25 357 14-S
|
|||
|
|
25 357 41-S
25 357 41-S
|
|||
|
|
25 357 72-S
25 357 72-S
|
|||
|
|
25 357 75-S
25 357 75-S
|
|||
|
|
25 597 05-S
25 597 05-S
|
|||
|
|
25 597 06-S
25 597 06-S
|
|||
|
|
25 597 07-S
25 597 07-S
|
|||
|
|
52 357 01-S
52 357 01-S
|
