Kohler CH395-3268 Command PRO 9.5 HP Parts Diagram
Diagrams:
Diagram:

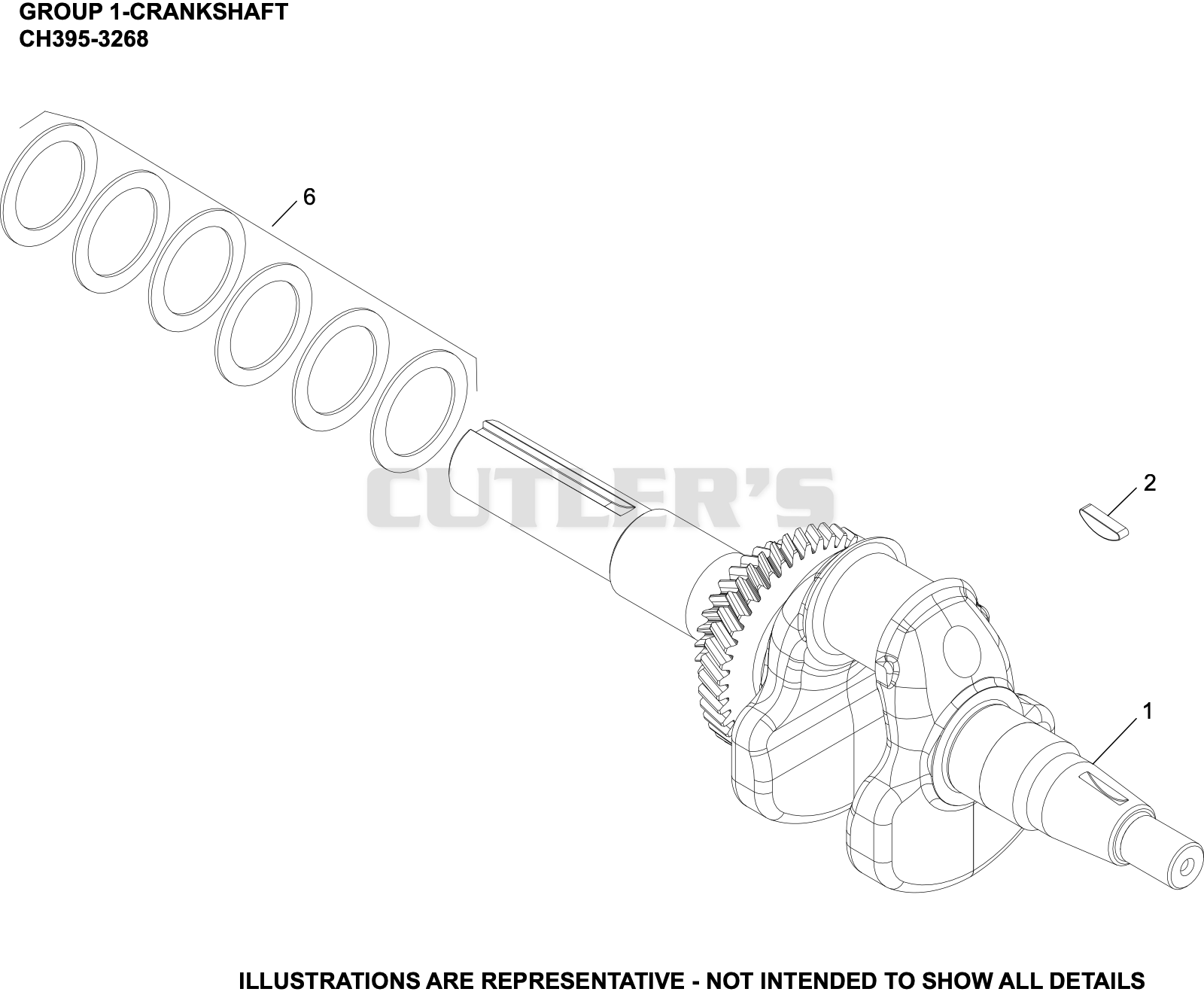

CrankShaft
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 014 75-S
17 014 75-S
|
|||
|
|
14 340 01-S
14 340 01-S
|
|||
|
|
17 755 12-S
17 755 12-S
|

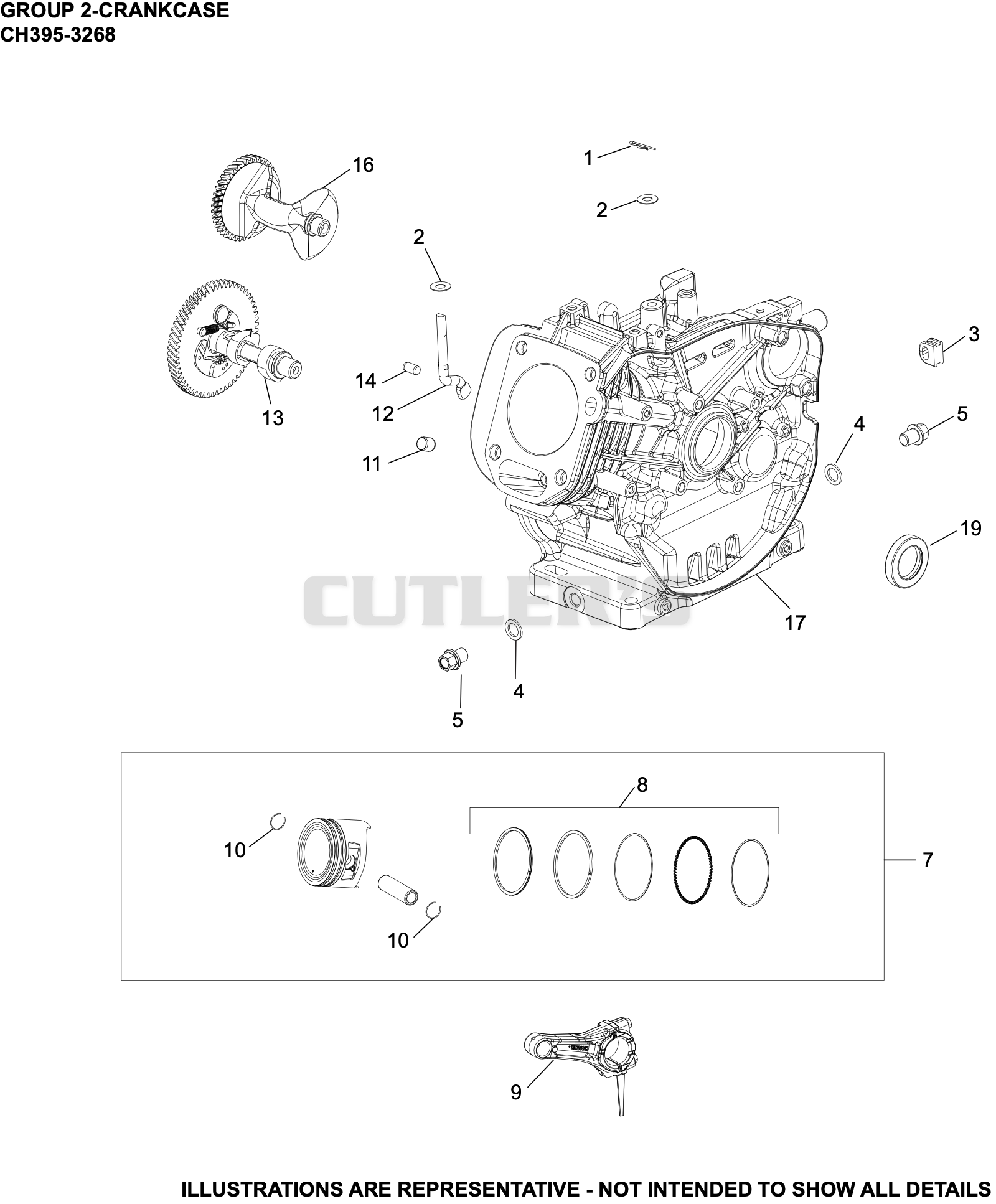

CrankCase
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
14 154 01-S
14 154 01-S
|
|||
|
|
17 468 36-S
17 468 36-S
|
|||
|
|
17 313 13-S
17 313 13-S
|
|||
|
|
17 468 17-S
17 468 17-S
|
|||
|
|
17 139 05-S
17 139 05-S
|
|||
|
|
17 874 14-S
17 874 14-S
|
|||
|
|
17 108 02-S
17 108 02-S
|
|||
|
|
17 108 05-S
17 108 05-S
|
|||
|
|
17 067 06-S
17 067 06-S
|
|||
|
|
14 018 03-S
14 018 03-S
|
|||
|
|
17 380 16-S
17 380 16-S
|
|||
|
|
17 144 07-S
17 144 07-S
|
|||
|
|
17 010 19-S
17 010 19-S
|
|||
|
|
17 380 21-S
17 380 21-S
|
|||
|
|
17 144 13-S
17 144 13-S
|
|||
|
|
17 561 59-S
17 561 59-S
|
|||
|
|
17 032 16-S
17 032 16-S
|

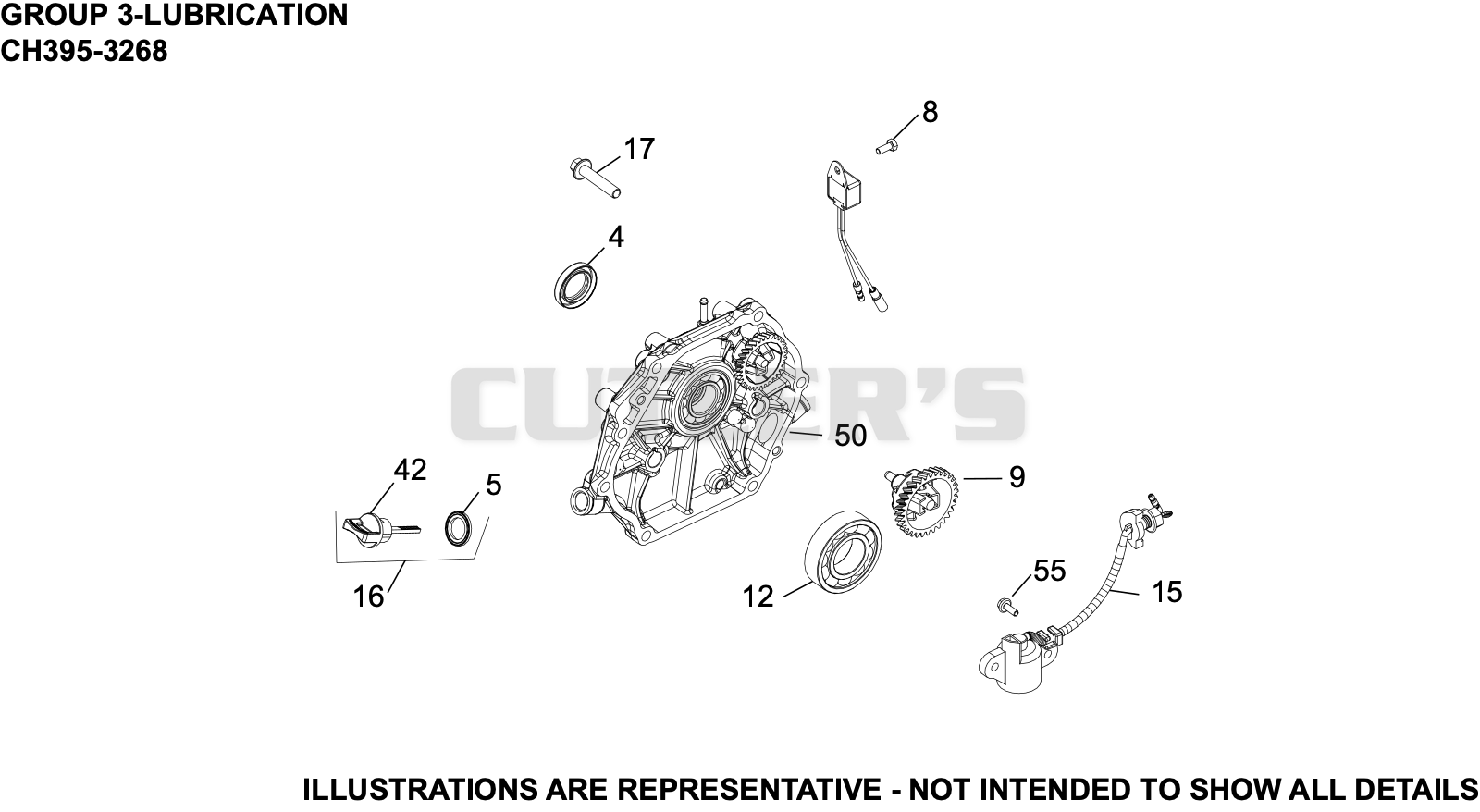

Lubrication
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 032 16-S
17 032 16-S
|
|||
|
|
17 032 05-S
17 032 05-S
|
|||
|
|
25 086 244-S
25 086 244-S
|
|||
|
|
17 310 05-S
17 310 05-S
|
|||
|
|
17 030 33-S
17 030 33-S
|
|||
|
|
17 099 05-S
17 099 05-S
|
|||
|
|
17 038 08-S
17 038 08-S
|
|||
|
|
25 086 230-S
25 086 230-S
|
|||
|
|
17 038 01-S
17 038 01-S
|
|||
|
|
17 009 124-S
17 009 124-S
|
|||
|
|
25 086 337-S
25 086 337-S
|

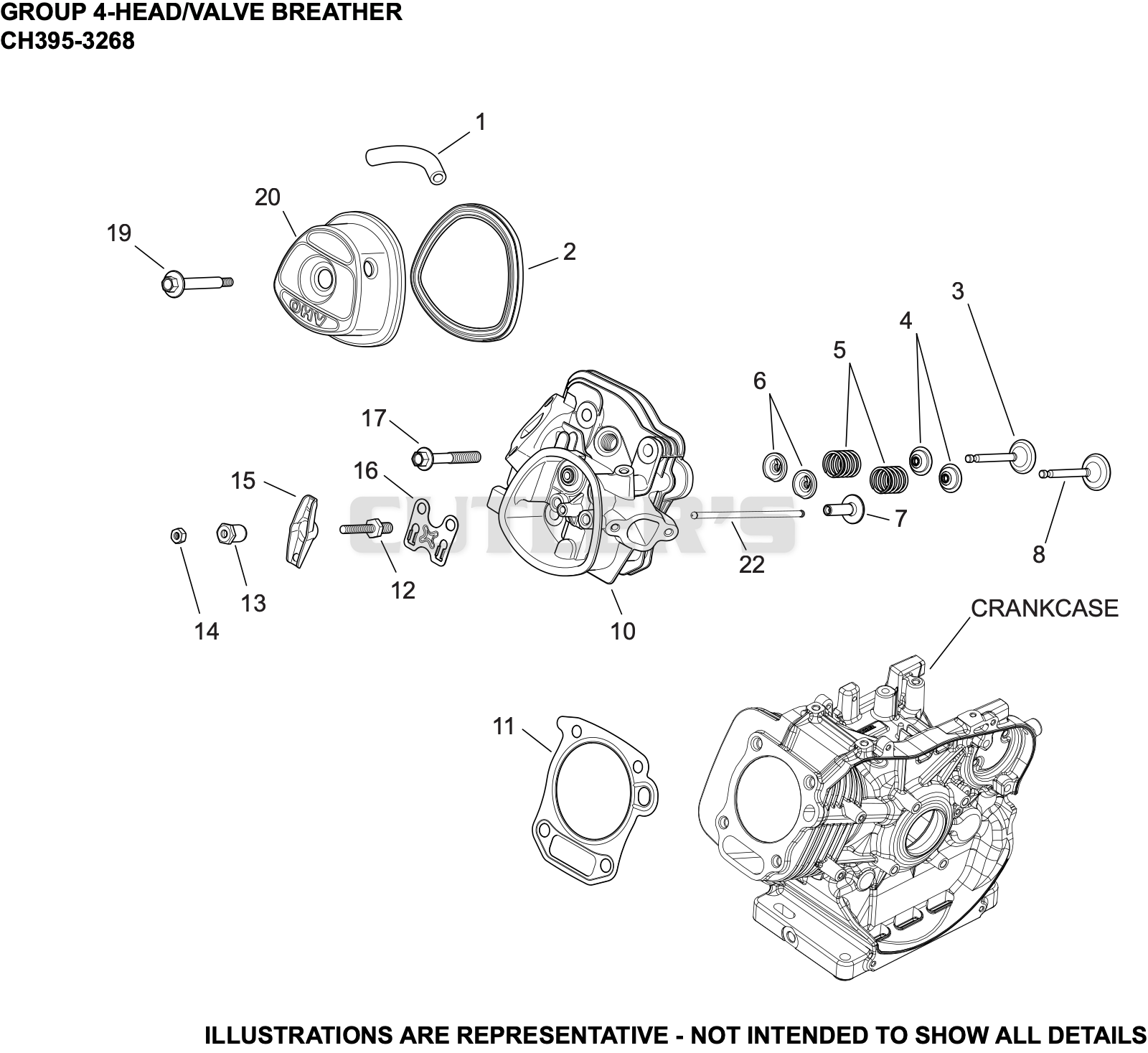

CylinderHead/Breather
CylinderHead/Breather
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 123 90-S
17 123 90-S
|
|||
|
|
17 041 52-S
17 041 52-S
|
|||
|
|
17 016 03-S
17 016 03-S
|
|||
|
|
17 032 25-S
17 032 25-S
|
|||
|
|
17 089 52-S
17 089 52-S
|
|||
|
|
17 018 08-S
17 018 08-S
|
|||
|
|
17 351 03-S
17 351 03-S
|
|||
|
|
17 017 06-S
17 017 06-S
|
|||
|
|
17 318 02-S
17 318 02-S
|
|||
|
|
17 841 22-S
17 841 22-S
|
|||
|
|
14 072 02-S
14 072 02-S
|
|||
|
|
14 599 01-S
14 599 01-S
|
|||
|
|
14 100 01-S
14 100 01-S
|
|||
|
|
17 186 05-S
17 186 05-S
|
|||
|
|
17 146 09-S
17 146 09-S
|
|||
|
|
25 086 234-S
25 086 234-S
|
|||
|
|
25 086 310-S
25 086 310-S
|
|||
|
|
17 096 15-S
17 096 15-S
|
|||
|
|
17 411 09-S
17 411 09-S
|

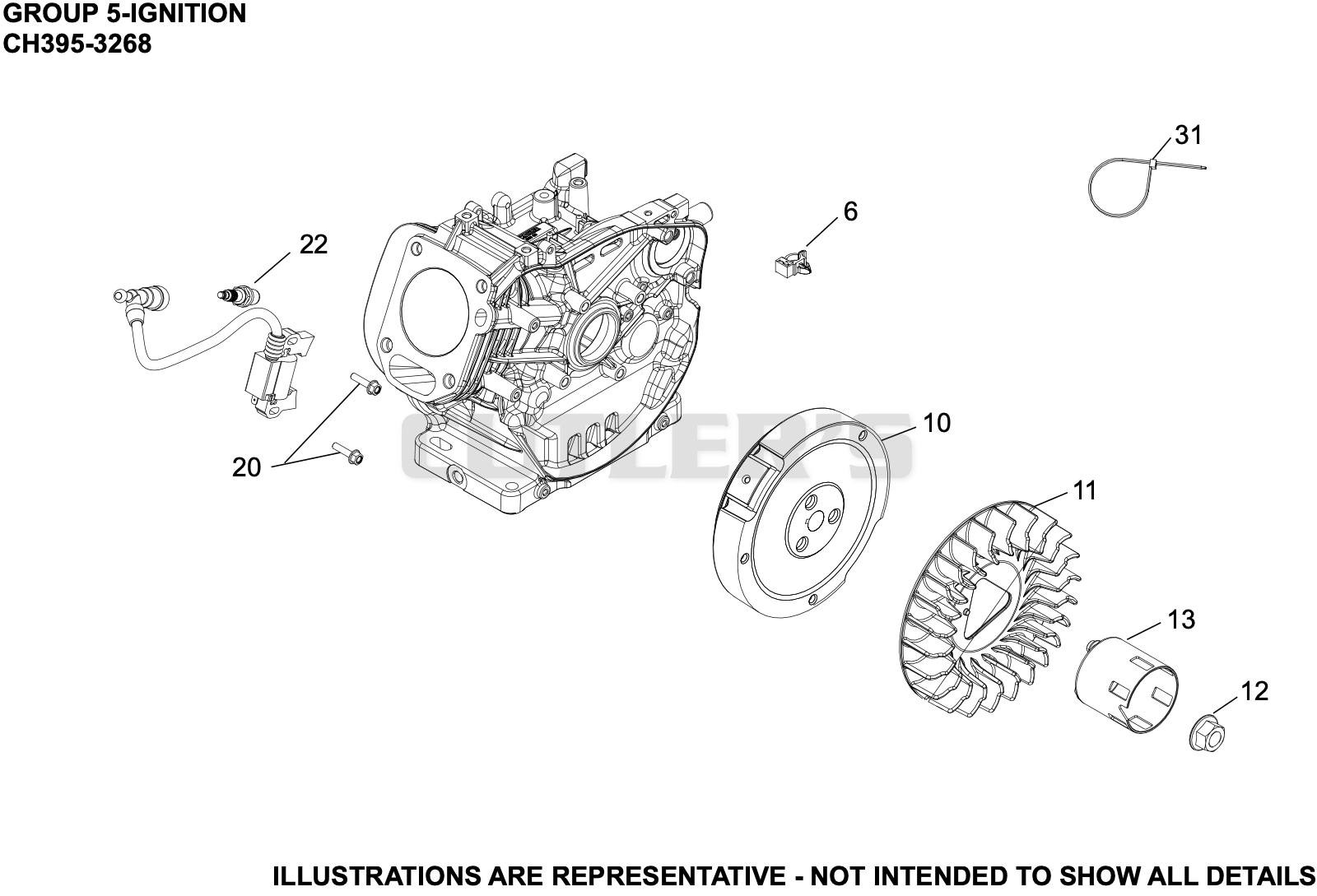

Ignition/Charging
Ignition/Charging
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 154 09-S
17 154 09-S
|
|||
|
|
17 025 03-S
17 025 03-S
|
|||
|
|
17 157 03-S
17 157 03-S
|
|||
|
|
17 100 24-S
17 100 24-S
|
|||
|
|
17 109 07-S
17 109 07-S
|
|||
|
|
25 086 186-S
25 086 186-S
|
|||
|
|
25 132 19-S
25 132 19-S
|
|||
|
|
25 454 05-S
25 454 05-S
|
|||
|
|
17 584 38-S
17 584 38-S
|

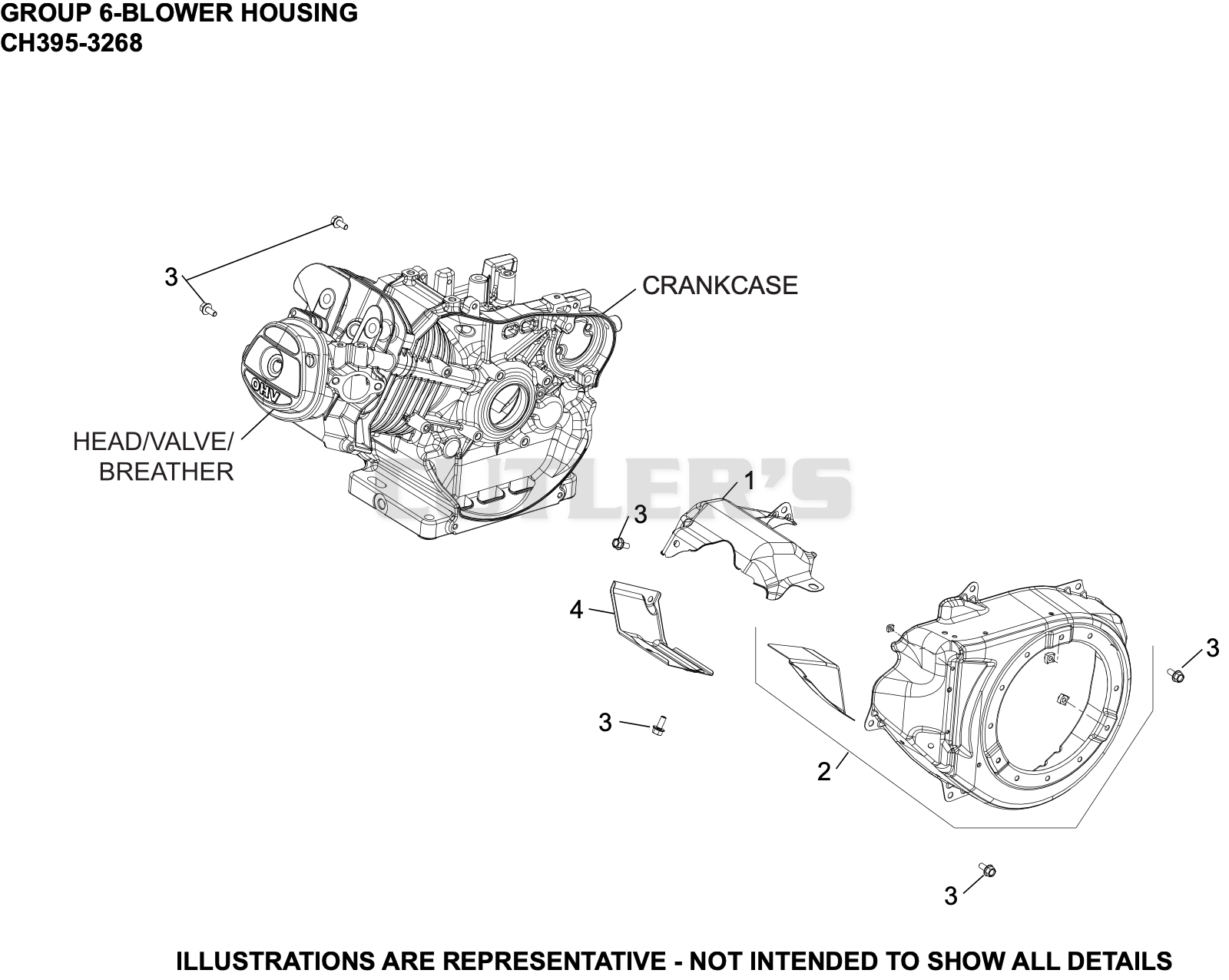

Blower Housing
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 314 11-S
17 314 11-S
|
|||
|
|
17 027 52-S
17 027 52-S
|
|||
|
|
25 086 159-S
25 086 159-S
|
|||
|
|
17 314 27-S
17 314 27-S
|

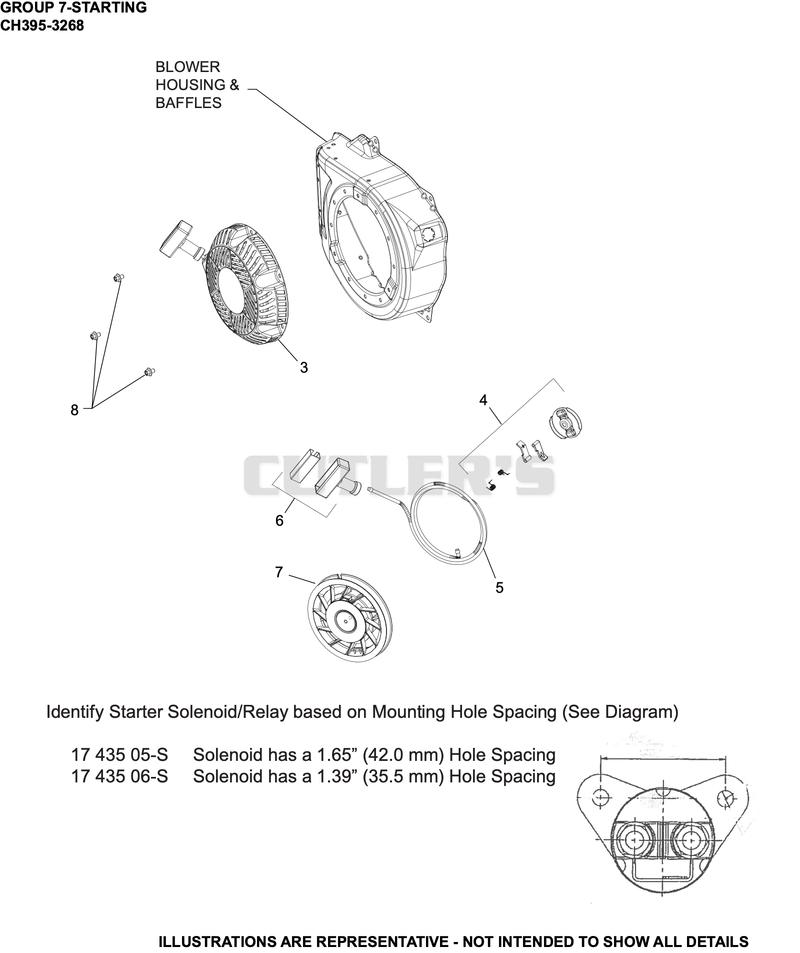

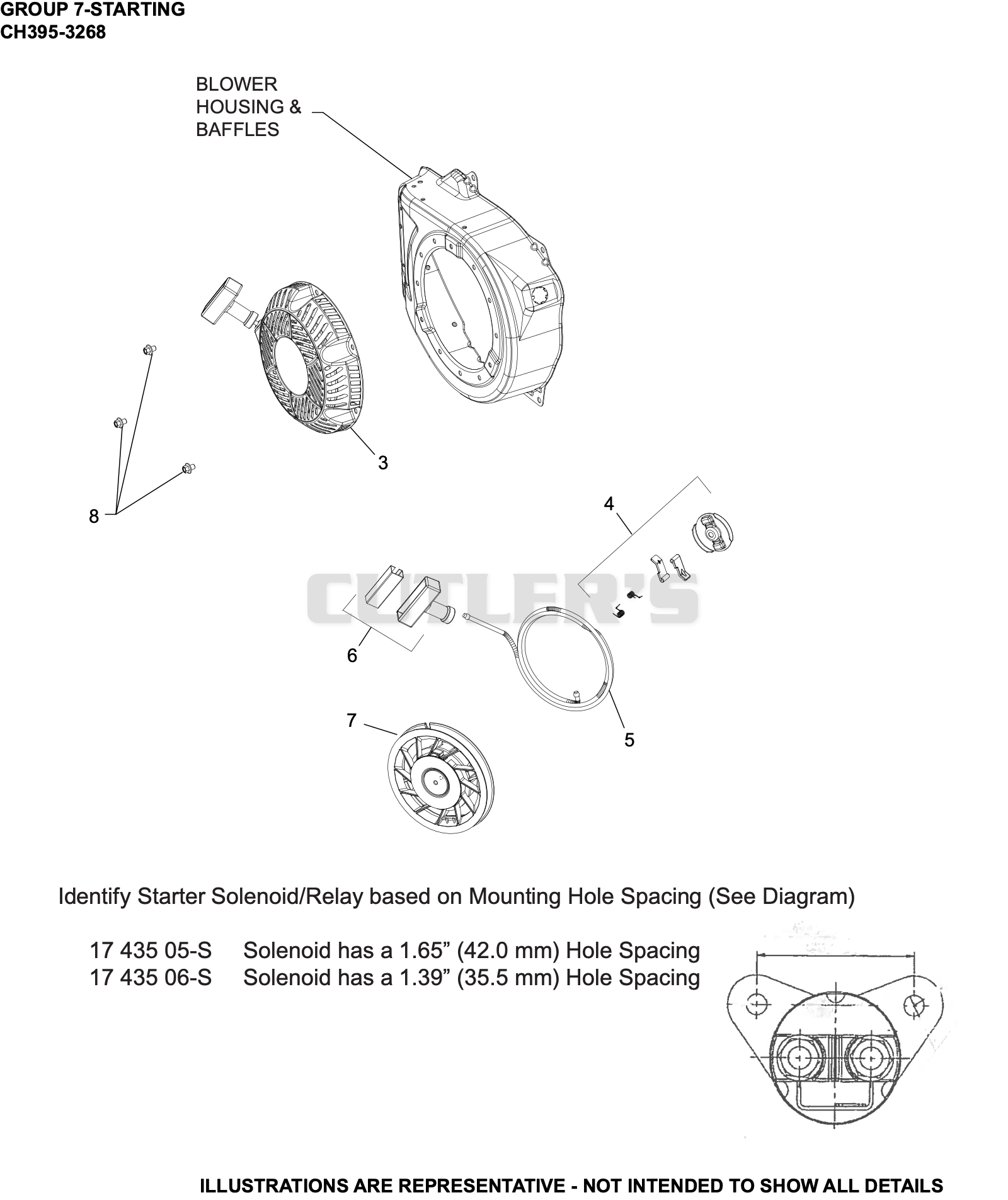

Starting
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 165 12-S
17 165 12-S
|
|||
|
|
17 379 03-S
17 379 03-S
|
|||
|
|
17 160 02-S
17 160 02-S
|
|||
|
|
17 166 06-S
17 166 06-S
|
|||
|
|
17 093 03-S
17 093 03-S
|
|||
|
|
25 086 648-S
25 086 648-S
|

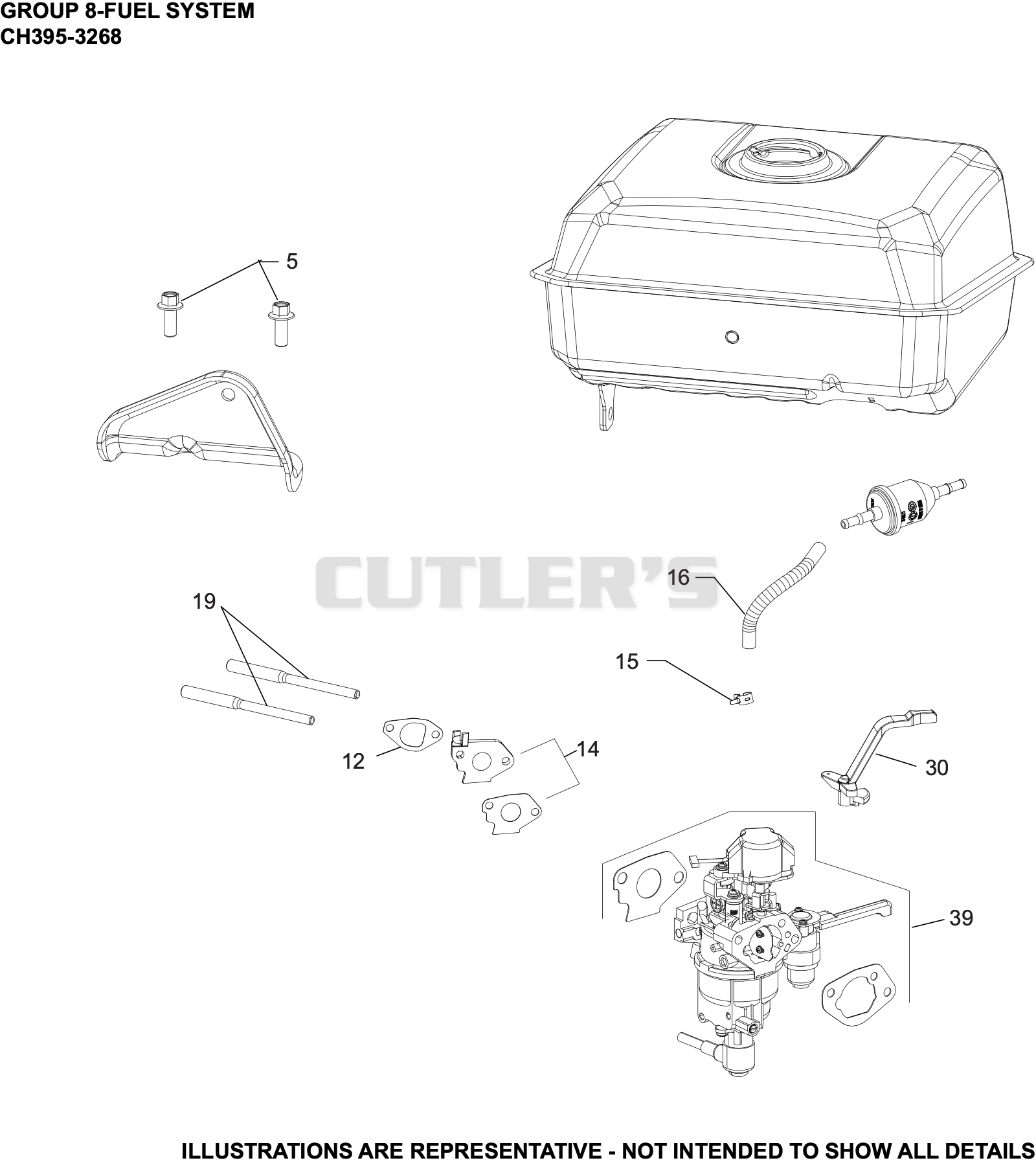

Fuel System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 086 224-S
25 086 224-S
|
|||
|
|
17 041 24-S
17 041 24-S
|
|||
|
|
17 168 03-S
17 168 03-S
|
|||
|
|
14 237 01-S
14 237 01-S
|
|||
|
|
25 111 40-S
25 111 40-S
|
|||
|
|
17 072 31-S
17 072 31-S
|
|||
|
|
17 090 52-S
17 090 52-S
|
|||
|
|
17 853 95-S
17 853 95-S
|
|||
|
|
17 755 07-S
17 755 07-S
|
|||
|
|
17 755 21-S
17 755 21-S
|
|||
|
|
17 757 03-S
17 757 03-S
|
|||
|
|
25 086 774-S
25 086 774-S
|

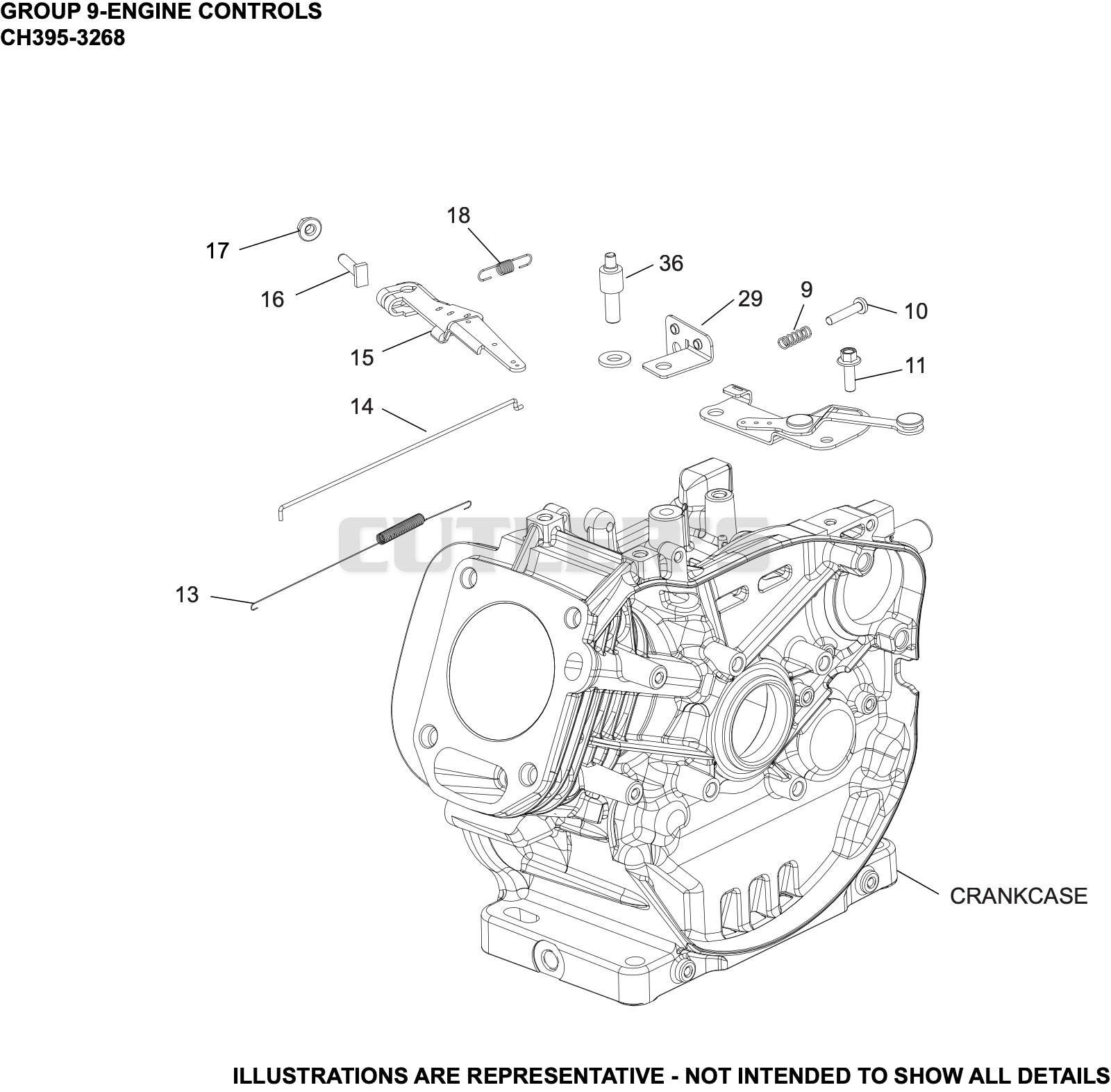

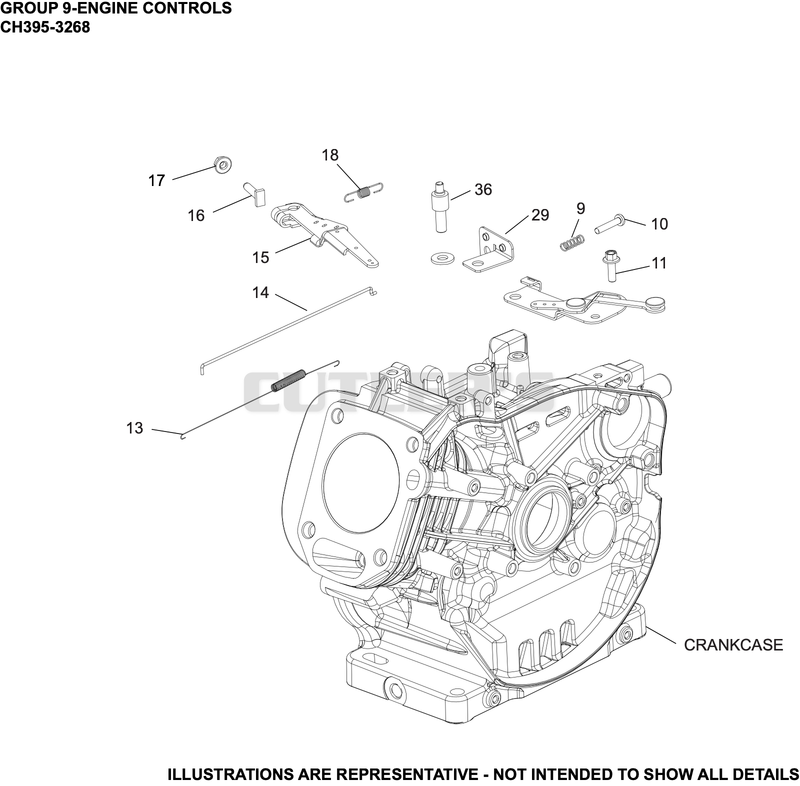

Engine Controls
Engine Controls
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 089 36-S
17 089 36-S
|
|||
|
|
25 086 242-S
25 086 242-S
|
|||
|
|
25 086 223-S
25 086 223-S
|
|||
|
|
17 089 59-S
17 089 59-S
|
|||
|
|
17 079 02-S
17 079 02-S
|
|||
|
|
17 090 54-S
17 090 54-S
|
|||
|
|
25 086 166-S
25 086 166-S
|
|||
|
|
14 100 08-S
14 100 08-S
|
|||
|
|
17 089 54-S
17 089 54-S
|
|||
|
|
17 126 209-S
17 126 209-S
|
|||
|
|
17 072 42-S
17 072 42-S
|

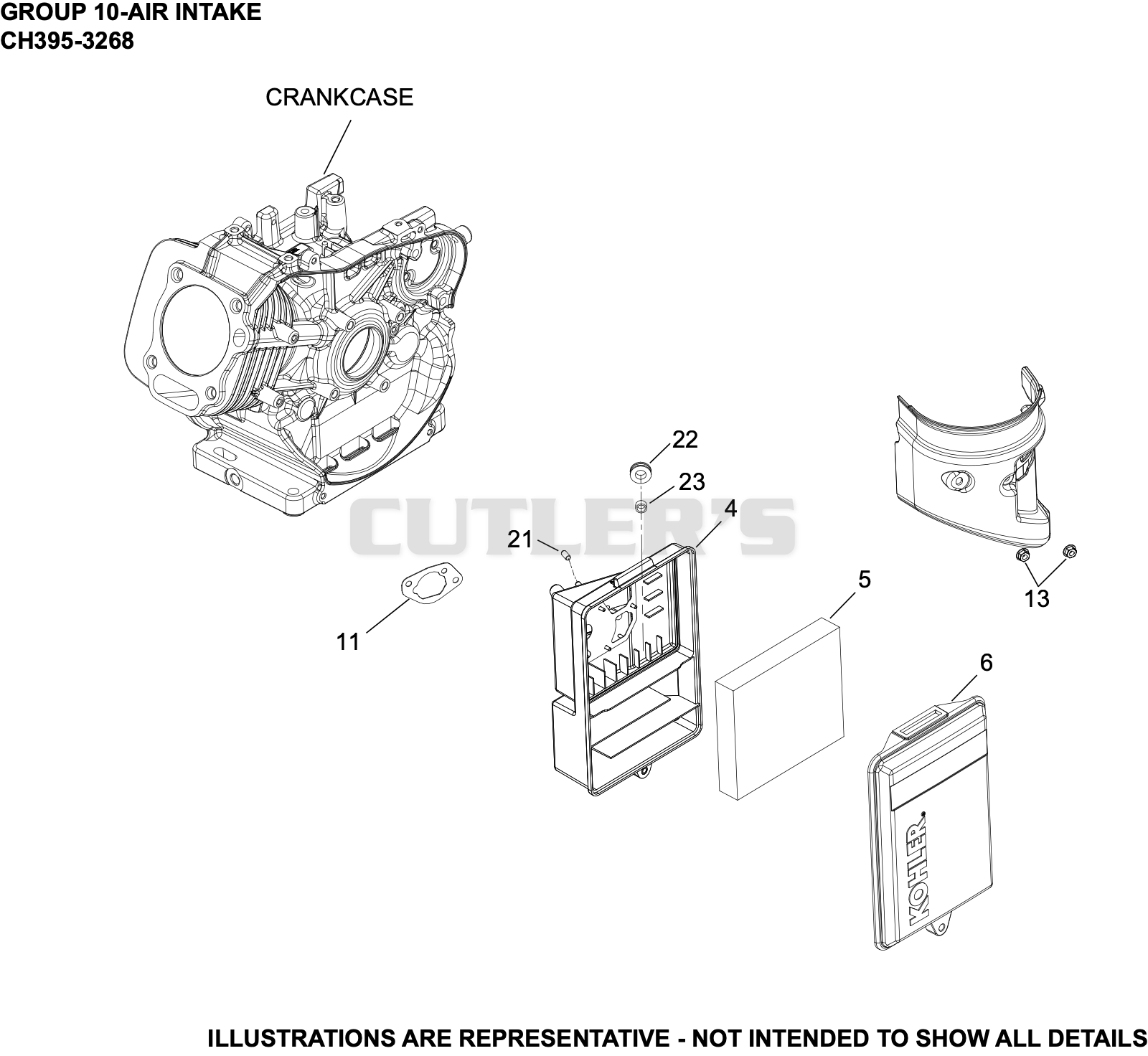

Air Intake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 094 67-S
17 094 67-S
|
|||
|
|
17 083 18-S
17 083 18-S
|
|||
|
|
17 096 75-S
17 096 75-S
|
|||
|
|
17 041 37-S
17 041 37-S
|
|||
|
|
14 100 09-S
14 100 09-S
|
|||
|
|
25 173 35-S
25 173 35-S
|
|||
|
|
17 384 01-S
17 384 01-S
|
|||
|
|
17 112 12-S
17 112 12-S
|
Exhaust
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 041 29-S
17 041 29-S
|
|||
|
|
25 086 240-S
25 086 240-S
|

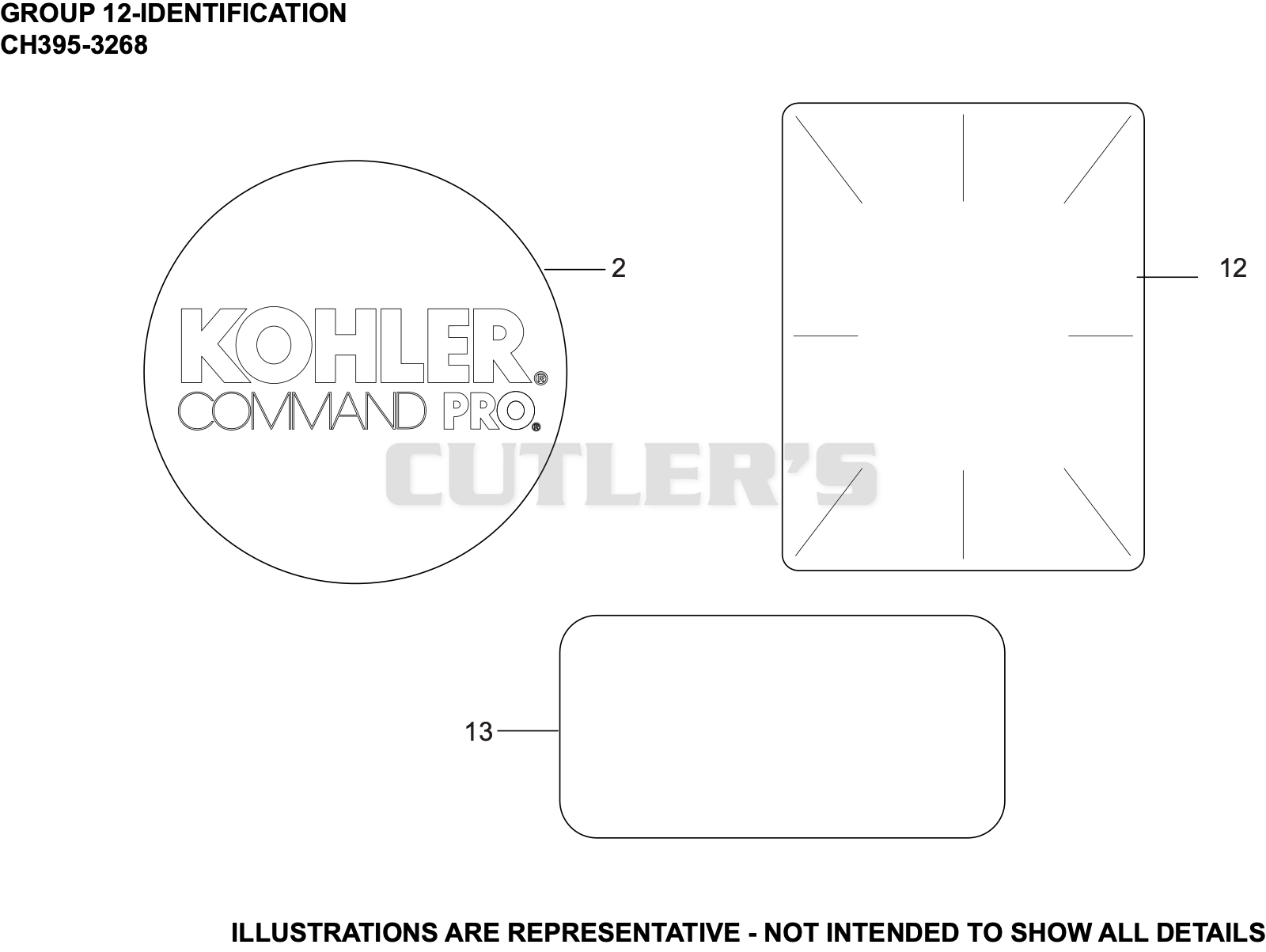

Identification
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 113 124-S
17 113 124-S
|
|||
|
|
25 113 79-S
25 113 79-S
|
|||
|
|
25 113 75-S
25 113 75-S
|
Blocks,Gasket Set,Replacement
Blocks,Gasket Set,Replacement
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 755 43-S
17 755 43-S
|
Maintenance-Fast Moving Parts
Maintenance-Fast Moving Parts
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 083 18-S
17 083 18-S
|
|||
|
|
25 132 19-S
25 132 19-S
|
Sensors
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
17 099 05-S
17 099 05-S
|
Sealant,Thread Lock, Lubricate
Sealant,Thread Lock, Lubricate
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 357 03-S
25 357 03-S
|
|||
|
|
25 357 06-S
25 357 06-S
|
|||
|
|
25 357 12-S
25 357 12-S
|
|||
|
|
25 357 14-S
25 357 14-S
|
|||
|
|
25 357 41-S
25 357 41-S
|
|||
|
|
25 597 05-S
25 597 05-S
|
|||
|
|
25 597 06-S
25 597 06-S
|
|||
|
|
25 597 07-S
25 597 07-S
|
|||
|
|
52 357 01-S
52 357 01-S
|
