Kohler CV745-0004 Command Pro EFI Engine Made For Great Dane 28 HP 20.9 kW Parts Diagram
Diagrams:
Diagram:
CrankShaft
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 014 345-S
24 014 345-S
|
|||
|
|
52 139 09-S
52 139 09-S
|

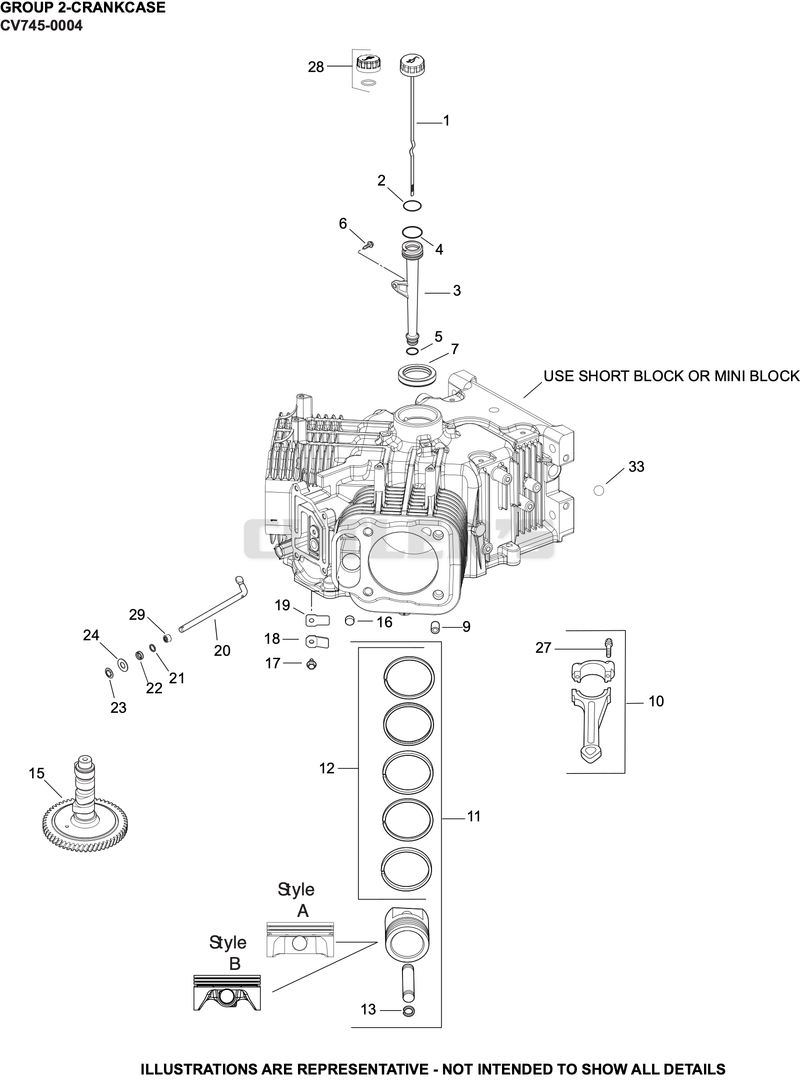

CrankCase
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 038 04-S
24 038 04-S
|
|||
|
|
25 153 02-S
25 153 02-S
|
|||
|
|
25 123 07-S
25 123 07-S
|
|||
|
|
12 153 02-S
12 153 02-S
|
|||
|
|
12 153 01-S
12 153 01-S
|
|||
|
|
M-545013-S
M-545013-S
|
|||
|
|
24 032 19-S
24 032 19-S
|
|||
|
|
24 380 16-S
24 380 16-S
|
|||
|
|
24 067 34-S
24 067 34-S
|
|||
|
|
25 874 13-S
25 874 13-S
|
|||
|
|
25 874 15-S
25 874 15-S
|
|||
|
|
25 874 16-S
25 874 16-S
|
|||
|
|
25 874 17-S
25 874 17-S
|
|||
|
|
25 108 01-S
25 108 01-S
|
|||
|
|
25 108 02-S
25 108 02-S
|
|||
|
|
25 108 03-S
25 108 03-S
|
|||
|
|
25 108 04-S
25 108 04-S
|
|||
|
|
24 018 01-S
24 018 01-S
|
|||
|
|
24 012 18-S
24 012 18-S
|
|||
|
|
52 139 09-S
52 139 09-S
|
|||
|
|
M-545010-S
M-545010-S
|
|||
|
|
24 018 04-S
24 018 04-S
|
|||
|
|
24 402 05-S
24 402 05-S
|
|||
|
|
24 144 38-S
24 144 38-S
|
|||
|
|
24 468 15-S
24 468 15-S
|
|||
|
|
28 032 09-S
28 032 09-S
|
|||
|
|
24 018 09-S
24 018 09-S
|
|||
|
|
M-931010-S
M-931010-S
|
|||
|
|
25 755 13-S
25 755 13-S
|
|||
|
|
28 030 05-S
28 030 05-S
|
|||
|
|
24 194 05-S
24 194 05-S
|
|||
|
|
24 126 257-S
24 126 257-S
|
|||
|
|
25 086 677-S
25 086 677-S
|
Lubrication
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 199 21-S
24 199 21-S
|
|||
|
|
M-645030-S
M-645030-S
|
|||
|
|
X-25-53-S
X-25-53-S
|
|||
|
|
24 393 51-S
24 393 51-S
|
|||
|
|
24 153 01-S
24 153 01-S
|
|||
|
|
24 381 11-S
24 381 11-S
|
|||
|
|
24 162 26-S
24 162 26-S
|
|||
|
|
24 043 12-S
24 043 12-S
|
|||
|
|
12 380 01-S
12 380 01-S
|
|||
|
|
24 448 02-S
24 448 02-S
|
|||
|
|
12 144 02-S
12 144 02-S
|
|||
|
|
24 041 54-S
24 041 54-S
|
|||
|
|
25 032 06-S
25 032 06-S
|
|||
|
|
25 139 62-S
25 139 62-S
|
|||
|
|
24 422 05-S
24 422 05-S
|
|||
|
|
24 086 12-S
24 086 12-S
|
|||
|
|
25 100 37-S
25 100 37-S
|
|||
|
|
24 594 37-S
24 594 37-S
|
|||
|
|
24 153 21-S
24 153 21-S
|
|||
|
|
24 136 05-S
24 136 05-S
|
|||
|
|
52 050 02-S
52 050 02-S
|
|||
|
|
12 153 04-S
12 153 04-S
|
|||
|
|
24 418 12-S
24 418 12-S
|
|||
|
|
25 086 317-S
25 086 317-S
|
|||
|
|
24 086 17-S
24 086 17-S
|
|||
|
|
25 139 57-S
25 139 57-S
|
|||
|
|
25 139 60-S
25 139 60-S
|
CylinderHead/Breather
CylinderHead/Breather
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 041 67-S
24 041 67-S
|
|||
|
|
24 033 03-S
24 033 03-S
|
|||
|
|
M-645020-S
M-645020-S
|
|||
|
|
25 351 07-S
25 351 07-S
|
|||
|
|
24 755 66-S
24 755 66-S
|
|||
|
|
24 411 05-S
24 411 05-S
|
|||
|
|
24 841 03-S
24 841 03-S
|
|||
|
|
32 841 01-S
32 841 01-S
|
|||
|
|
24 318 116-S
24 318 116-S
|
|||
|
|
25 186 01-S
25 186 01-S
|
|||
|
|
24 599 02-S
24 599 02-S
|
|||
|
|
M-640034-S
M-640034-S
|
|||
|
|
24 072 09-S
24 072 09-S
|
|||
|
|
24 468 16-S
24 468 16-S
|
|||
|
|
24 100 10-S
24 100 10-S
|
|||
|
|
24 755 141-S
24 755 141-S
|
|||
|
|
24 153 30-S
24 153 30-S
|
|||
|
|
M-651030-S
M-651030-S
|
|||
|
|
25 445 01-S
25 445 01-S
|
|||
|
|
24 016 01-S
24 016 01-S
|
|||
|
|
24 016 02-S
24 016 02-S
|
|||
|
|
24 017 01-S
24 017 01-S
|
|||
|
|
24 017 02-S
24 017 02-S
|
|||
|
|
66 032 05-S
66 032 05-S
|
|||
|
|
235011-S
235011-S
|
|||
|
|
24 089 02-S
24 089 02-S
|
|||
|
|
12 755 03-S
12 755 03-S
|
|||
|
|
25 173 28-S
25 173 28-S
|
|||
|
|
24 318 108-S
24 318 108-S
|
|||
|
|
24 755 142-S
24 755 142-S
|
|||
|
|
25 313 05-S
25 313 05-S
|
|||
|
|
24 755 57-S
24 755 57-S
|
|||
|
|
25 237 14-S
25 237 14-S
|
|||
|
|
24 326 63-S
24 326 63-S
|
|||
|
|
24 018 05-S
24 018 05-S
|
|||
|
|
M-645025-S
M-645025-S
|
Ignition/Charging
Ignition/Charging
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
M-603100-S
M-603100-S
|
|||
|
|
X-25-53-S
X-25-53-S
|
|||
|
|
24 162 41-S
24 162 41-S
|
|||
|
|
25 086 43-S
25 086 43-S
|
|||
|
|
24 141 06-S
24 141 06-S
|
|||
|
|
M-545016-S
M-545016-S
|
|||
|
|
24 112 14-S
24 112 14-S
|
|||
|
|
24 468 11-S
24 468 11-S
|
|||
|
|
12 086 14-S
12 086 14-S
|
|||
|
|
12 468 03-S
12 468 03-S
|
|||
|
|
X-42-15-S
X-42-15-S
|
|||
|
|
24 025 09-S
24 025 09-S
|
|||
|
|
28 085 02-S
28 085 02-S
|
|||
|
|
54 755 03-S
54 755 03-S
|
|||
|
|
M-545030-S
M-545030-S
|
|||
|
|
12 132 02-S
12 132 02-S
|
|||
|
|
25 086 157-S
25 086 157-S
|
|||
|
|
25 155 41-S
25 155 41-S
|
|||
|
|
25 403 21-S
25 403 21-S
|
|||
|
|
24 126 137-S
24 126 137-S
|
|||
|
|
X-25-79-S
X-25-79-S
|
|||
|
|
X-22-9-S
X-22-9-S
|
|||
|
|
24 584 58-S
24 584 58-S
|
|||
|
|
24 176 122-S
24 176 122-S
|
|||
|
|
24 126 131-S
24 126 131-S
|
|||
|
|
24 157 04-S
24 157 04-S
|
|||
|
|
24 519 02-S
24 519 02-S
|
|||
|
|
24 131 02-S
24 131 02-S
|
|||
|
|
25 237 06-S
25 237 06-S
|
|||
|
|
24 112 16-S
24 112 16-S
|
|||
|
|
24 086 48-S
24 086 48-S
|
|||
|
|
24 025 23-S
24 025 23-S
|
|||
|
|
24 418 03-S
24 418 03-S
|
Blower Housing
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 086 160-S
25 086 160-S
|
|||
|
|
24 112 09-S
24 112 09-S
|
|||
|
|
25 112 15-S
25 112 15-S
|
|||
|
|
24 332 01-S
24 332 01-S
|
|||
|
|
25 086 406-S
25 086 406-S
|
|||
|
|
24 027 127-S
24 027 127-S
|
|||
|
|
25 086 398-S
25 086 398-S
|
|||
|
|
25 086 426-S
25 086 426-S
|
|||
|
|
25 086 399-S
25 086 399-S
|
|||
|
|
M-551020-S
M-551020-S
|
|||
|
|
24 146 59-S
24 146 59-S
|
|||
|
|
24 063 88-S
24 063 88-S
|
|||
|
|
25 086 397-S
25 086 397-S
|
|||
|
|
24 063 94-S
24 063 94-S
|
|||
|
|
25 086 400-S
25 086 400-S
|
|||
|
|
24 063 93-S
24 063 93-S
|
|||
|
|
24 063 85-S
24 063 85-S
|
|||
|
|
X-22-11-S
X-22-11-S
|
|||
|
|
25 086 396-S
25 086 396-S
|
|||
|
|
24 063 37-S
24 063 37-S
|
|||
|
|
25 314 04-S
25 314 04-S
|
Starting
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
M-841080-S
M-841080-S
|
|||
|
|
25 098 21-S
25 098 21-S
|
|||
|
|
M-851080-S
M-851080-S
|
|||
|
|
20 404 01-S
20 404 01-S
|
|||
|
|
24 404 02-S
24 404 02-S
|

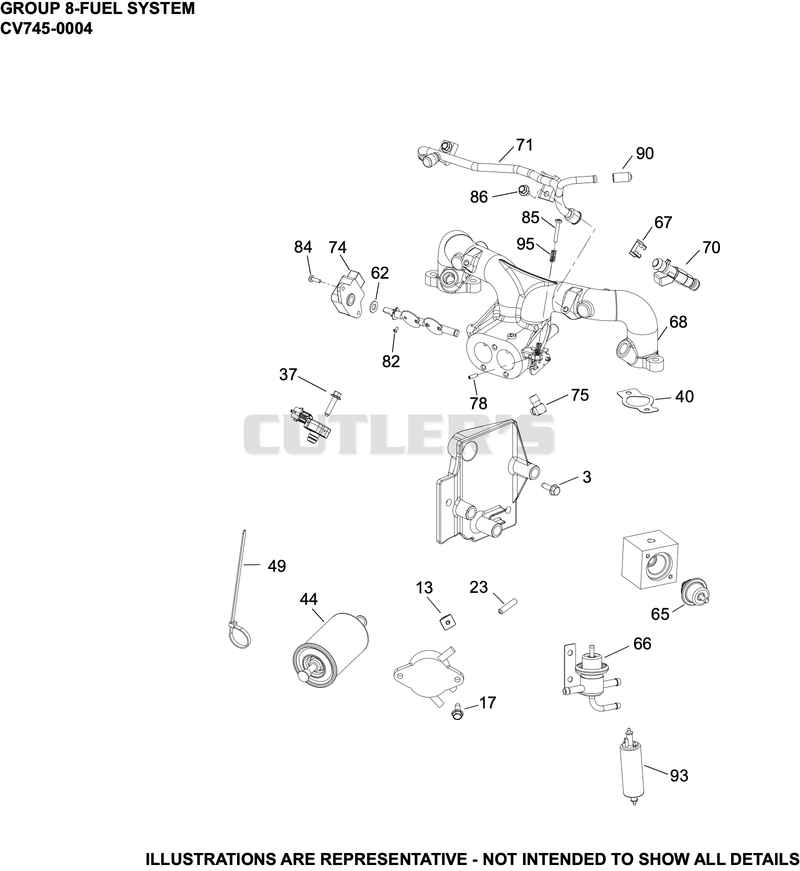

Fuel System
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 100 37-S
25 100 37-S
|
|||
|
|
25 086 397-S
25 086 397-S
|
|||
|
|
25 173 34-S
25 173 34-S
|
|||
|
|
25 086 124-S
25 086 124-S
|
|||
|
|
24 041 01-S
24 041 01-S
|
|||
|
|
24 050 03-S
24 050 03-S
|
|||
|
|
25 454 04-S
25 454 04-S
|
|||
|
|
25 454 05-S
25 454 05-S
|
|||
|
|
24 032 16-S
24 032 16-S
|
|||
|
|
24 403 02-S
24 403 02-S
|
|||
|
|
24 403 16-S
24 403 16-S
|
|||
|
|
24 154 05-S
24 154 05-S
|
|||
|
|
24 164 84-S
24 164 84-S
|
|||
|
|
24 331 02-S
24 331 02-S
|
|||
|
|
24 399 09-S
24 399 09-S
|
|||
|
|
24 418 06-S
24 418 06-S
|
|||
|
|
25 155 38-S
25 155 38-S
|
|||
|
|
24 086 49-S
24 086 49-S
|
|||
|
|
46 086 04-S
46 086 04-S
|
|||
|
|
M-442012-S
M-442012-S
|
|||
|
|
M-442025-S
M-442025-S
|
|||
|
|
M-639010-S
M-639010-S
|
|||
|
|
25 173 18-S
25 173 18-S
|
|||
|
|
24 393 52-S
24 393 52-S
|
|||
|
|
12 089 11-S
12 089 11-S
|
Engine Controls
Engine Controls
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 086 06-S
24 086 06-S
|
|||
|
|
M-446030-S
M-446030-S
|
|||
|
|
M-647060-S
M-647060-S
|
|||
|
|
24 090 09-S
24 090 09-S
|
|||
|
|
M-401030-S
M-401030-S
|
|||
|
|
X-25-72-S
X-25-72-S
|
|||
|
|
24 089 20-S
24 089 20-S
|
|||
|
|
25 086 398-S
25 086 398-S
|
|||
|
|
M-545016-S
M-545016-S
|
|||
|
|
12 237 01-S
12 237 01-S
|
|||
|
|
24 126 111-S
24 126 111-S
|
|||
|
|
24 126 162-S
24 126 162-S
|
|||
|
|
24 090 12-S
24 090 12-S
|
|||
|
|
24 112 10-S
24 112 10-S
|
|||
|
|
24 089 49-S
24 089 49-S
|
|||
|
|
25 158 11-S
25 158 11-S
|
|||
|
|
24 211 03-S
24 211 03-S
|
|||
|
|
24 090 51-S
24 090 51-S
|
|||
|
|
M-641060-S
M-641060-S
|
|||
|
|
12 454 03-S
12 454 03-S
|
|||
|
|
210281-S
210281-S
|
|||
|
|
24 144 37-S
24 144 37-S
|
|||
|
|
24 079 13-S
24 079 13-S
|
|||
|
|
24 089 32-S
24 089 32-S
|
|||
|
|
25 158 08-S
25 158 08-S
|
Air Intake
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 126 118-S
24 126 118-S
|
|||
|
|
25 468 01-S
25 468 01-S
|
|||
|
|
X-25-73-S
X-25-73-S
|
|||
|
|
24 126 191-S
24 126 191-S
|
|||
|
|
M-647060-S
M-647060-S
|
|||
|
|
M-639016-S
M-639016-S
|
|||
|
|
X-25-52-S
X-25-52-S
|
|||
|
|
24 126 184-S
24 126 184-S
|
|||
|
|
25 083 01-S
25 083 01-S
|
|||
|
|
M-641060-S
M-641060-S
|
|||
|
|
25 454 04-S
25 454 04-S
|
|||
|
|
25 237 21-S
25 237 21-S
|
|||
|
|
24 326 53-S
24 326 53-S
|
|||
|
|
25 081 01-S
25 081 01-S
|
|||
|
|
25 139 20-S
25 139 20-S
|
|||
|
|
25 324 04-S
25 324 04-S
|
|||
|
|
25 083 04-S
25 083 04-S
|
|||
|
|
24 041 36-S
24 041 36-S
|
|||
|
|
24 089 73-S
24 089 73-S
|
|||
|
|
24 029 89-S
24 029 89-S
|
|||
|
|
25 048 11-S
25 048 11-S
|
|||
|
|
25 154 05-S
25 154 05-S
|
|||
|
|
25 096 06-S
25 096 06-S
|
|||
|
|
24 462 07-S
24 462 07-S
|
|||
|
|
24 126 186-S
24 126 186-S
|
|||
|
|
M-629122-S
M-629122-S
|
|||
|
|
M-644025-S
M-644025-S
|
Exhaust
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 072 08-S
24 072 08-S
|
|||
|
|
25 072 24-S
25 072 24-S
|
|||
|
|
24 041 49-S
24 041 49-S
|
|||
|
|
24 418 05-S
24 418 05-S
|
|||
|
|
M-841080-S
M-841080-S
|
|||
|
|
25 086 40-S
25 086 40-S
|
|||
|
|
24 281 17-S
24 281 17-S
|
|||
|
|
24 068 47-S
24 068 47-S
|
|||
|
|
24 265 09-S
24 265 09-S
|
|||
|
|
M-641060-S
M-641060-S
|
|||
|
|
24 605 07-S
24 605 07-S
|
|||
|
|
24 265 08-S
24 265 08-S
|
|||
|
|
24 786 29-S
24 786 29-S
|
Identification
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 113 39-S
25 113 39-S
|
|||
|
|
24 113 25-S
24 113 25-S
|
|||
|
|
25 113 27-S
25 113 27-S
|
|||
|
|
24 113 125-S
24 113 125-S
|
|||
|
|
24 113 78-S
24 113 78-S
|
Blocks,Gasket Set,Replacement
Blocks,Gasket Set,Replacement
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 522 343
24 522 343
|
|||
|
|
24 755 207-S
24 755 207-S
|
|||
|
|
24 782 31
24 782 31
|
Parts Shipped Uninstalled
Parts Shipped Uninstalled
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 050 03-S
24 050 03-S
|
|||
|
|
24 113 78-S
24 113 78-S
|
|||
|
|
24 393 52-S
24 393 52-S
|
|||
|
|
24 403 16-S
24 403 16-S
|
|||
|
|
25 086 40-S
25 086 40-S
|
Maintenance-Fast Moving Parts
Maintenance-Fast Moving Parts
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12 132 02-S
12 132 02-S
|
|||
|
|
24 050 03-S
24 050 03-S
|
|||
|
|
25 083 01-S
25 083 01-S
|
|||
|
|
25 083 04-S
25 083 04-S
|
|||
|
|
25 789 01-S
25 789 01-S
|
|||
|
|
25 850 02-S
25 850 02-S
|
|||
|
|
52 050 02-S
52 050 02-S
|
Owners/Service Manual
Owners/Service Manual
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 590 49
24 590 49
|
|||
|
|
24 590 50
24 590 50
|
|||
|
|
24 590 51
24 590 51
|
|||
|
|
24 590 58
24 590 58
|
|||
|
|
24 690 02
24 690 02
|
|||
|
|
24 690 23
24 690 23
|
|||
|
|
24 690 24
24 690 24
|
|||
|
|
24 690 25
24 690 25
|
|||
|
|
24 690 27
24 690 27
|
|||
|
|
24 690 28
24 690 28
|
|||
|
|
24 690 29
24 690 29
|
|||
|
|
25 590 43
25 590 43
|
Sensors
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
24 126 131-S
24 126 131-S
|
|||
|
|
24 418 03-S
24 418 03-S
|
|||
|
|
24 418 05-S
24 418 05-S
|
|||
|
|
24 418 06-S
24 418 06-S
|
|||
|
|
24 418 12-S
24 418 12-S
|
Sealant,Thread Lock, Lubricate
Sealant,Thread Lock, Lubricate
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
25 357 03-S
25 357 03-S
|
|||
|
|
25 357 06-S
25 357 06-S
|
|||
|
|
25 357 12-S
25 357 12-S
|
|||
|
|
25 357 14-S
25 357 14-S
|
|||
|
|
25 357 41-S
25 357 41-S
|
|||
|
|
25 357 72-S
25 357 72-S
|
|||
|
|
25 357 75-S
25 357 75-S
|
|||
|
|
25 597 05-S
25 597 05-S
|
|||
|
|
25 597 06-S
25 597 06-S
|
|||
|
|
25 597 07-S
25 597 07-S
|
|||
|
|
52 357 01-S
52 357 01-S
|
