Shindaiwa 502s Chain Saw Parts Diagram
Diagrams:
Diagram:

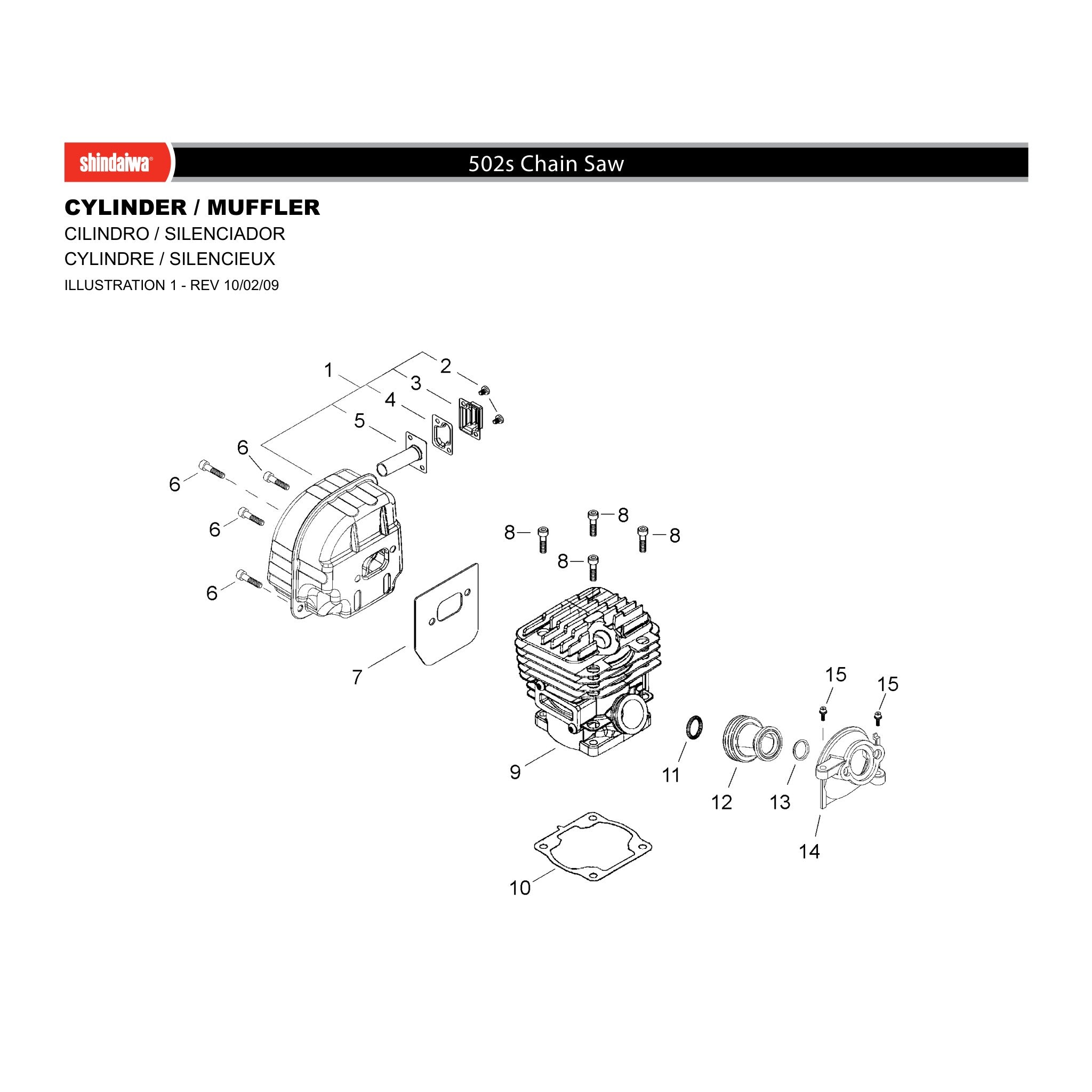

CYLINDER / MUFFLER
CYLINDER / MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69028-15311
69028-15311
|
|||
|
|
11203-04060
11203-04060
|
|||
|
|
69028-15320
69028-15320
|
|||
|
|
72311-15190
72311-15190
|
|||
|
|
22197-15130
22197-15130
|
|||
|
|
11060-05183
11060-05183
|
|||
|
|
39311-15210
39311-15210
|
|||
|
|
11060-05183
11060-05183
|
|||
|
|
69033-12010
69033-12010
|
|||
|
|
69033-12120
69033-12120
|
|||
|
|
22160-12160
22160-12160
|
|||
|
|
39311-12210
39311-12210
|
|||
|
|
22156-14140
22156-14140
|
|||
|
|
39311-12220
39311-12220
|
|||
|
|
11060-04163
11060-04163
|

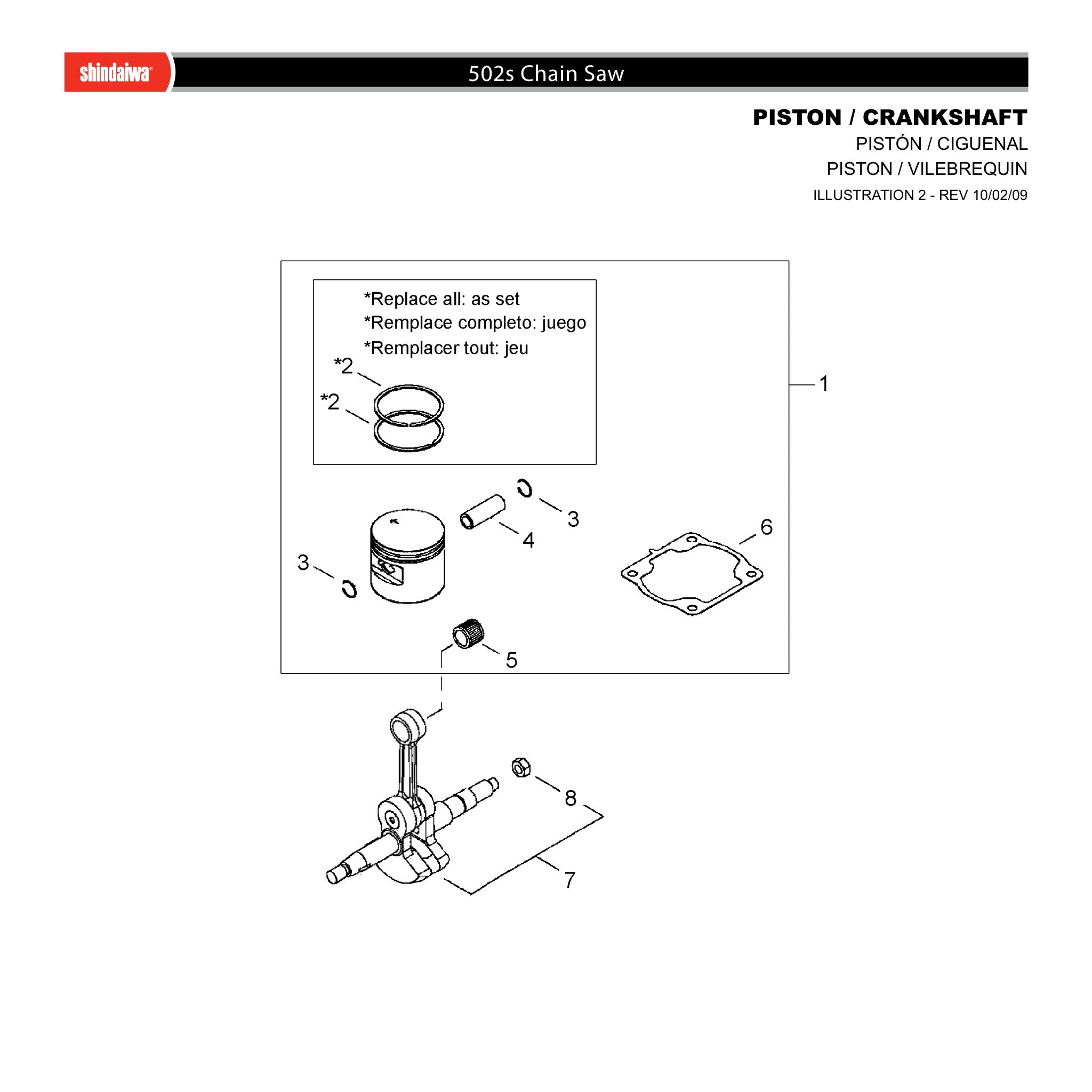

PISTON / CRANKSHAFT
PISTON / CRANKSHAFT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69033-98320
69033-98320
|
|||
|
|
69033-41120
69033-41120
|
|||
|
|
22100-41230
22100-41230
|
|||
|
|
22157-41220
22157-41220
|
|||
|
|
22160-41240
22160-41240
|
|||
|
|
69033-12120
69033-12120
|
|||
|
|
39223-98391
39223-98391
|
|||
|
|
11500-08001
11500-08001
|

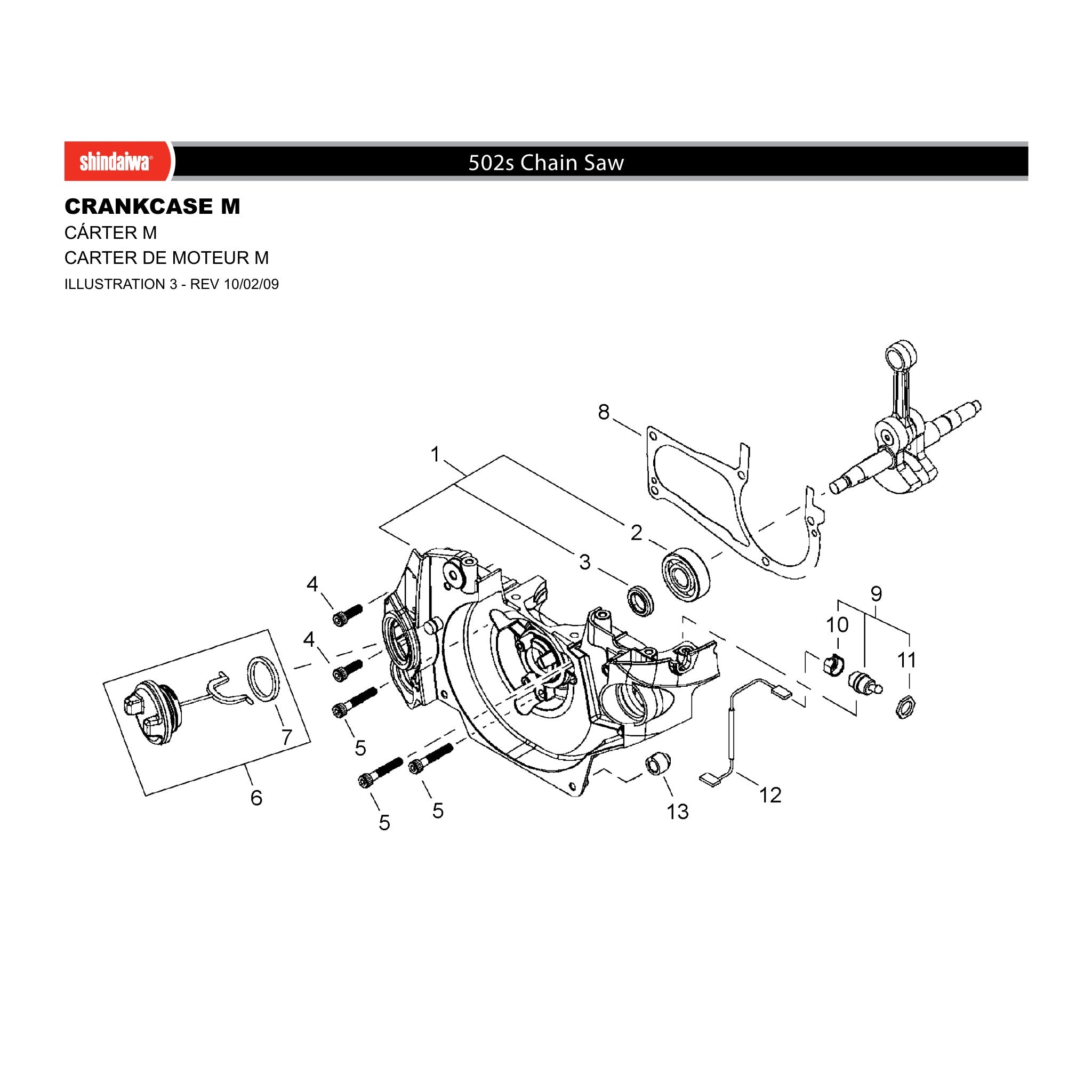

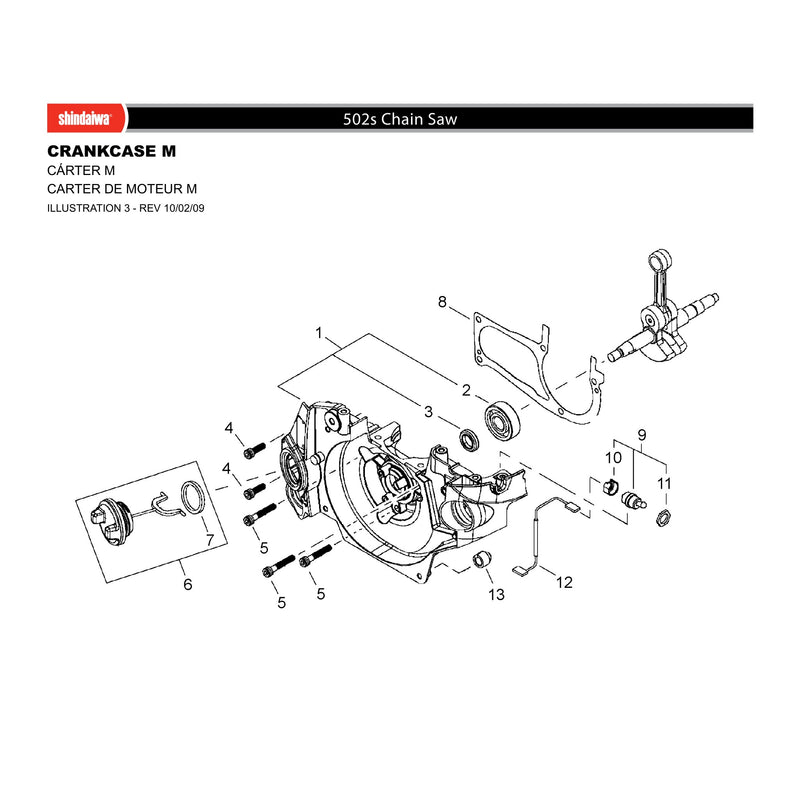

CRANKCASE M
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69033-21011
69033-21011
|
|||
|
|
12900-62010
12900-62010
|
|||
|
|
37013-21120
37013-21120
|
|||
|
|
11060-05183
11060-05183
|
|||
|
|
22169-21910
22169-21910
|
|||
|
|
39311-21030
39311-21030
|
|||
|
|
38010-32271
38010-32271
|
|||
|
|
69033-21320
69033-21320
|
|||
|
|
39311-21370
39311-21370
|
|||
|
|
39311-21380
39311-21380
|
|||
|
|
22154-22130
22154-22130
|
|||
|
|
14352-01300
14352-01300
|
|||
|
|
39311-33330
39311-33330
|

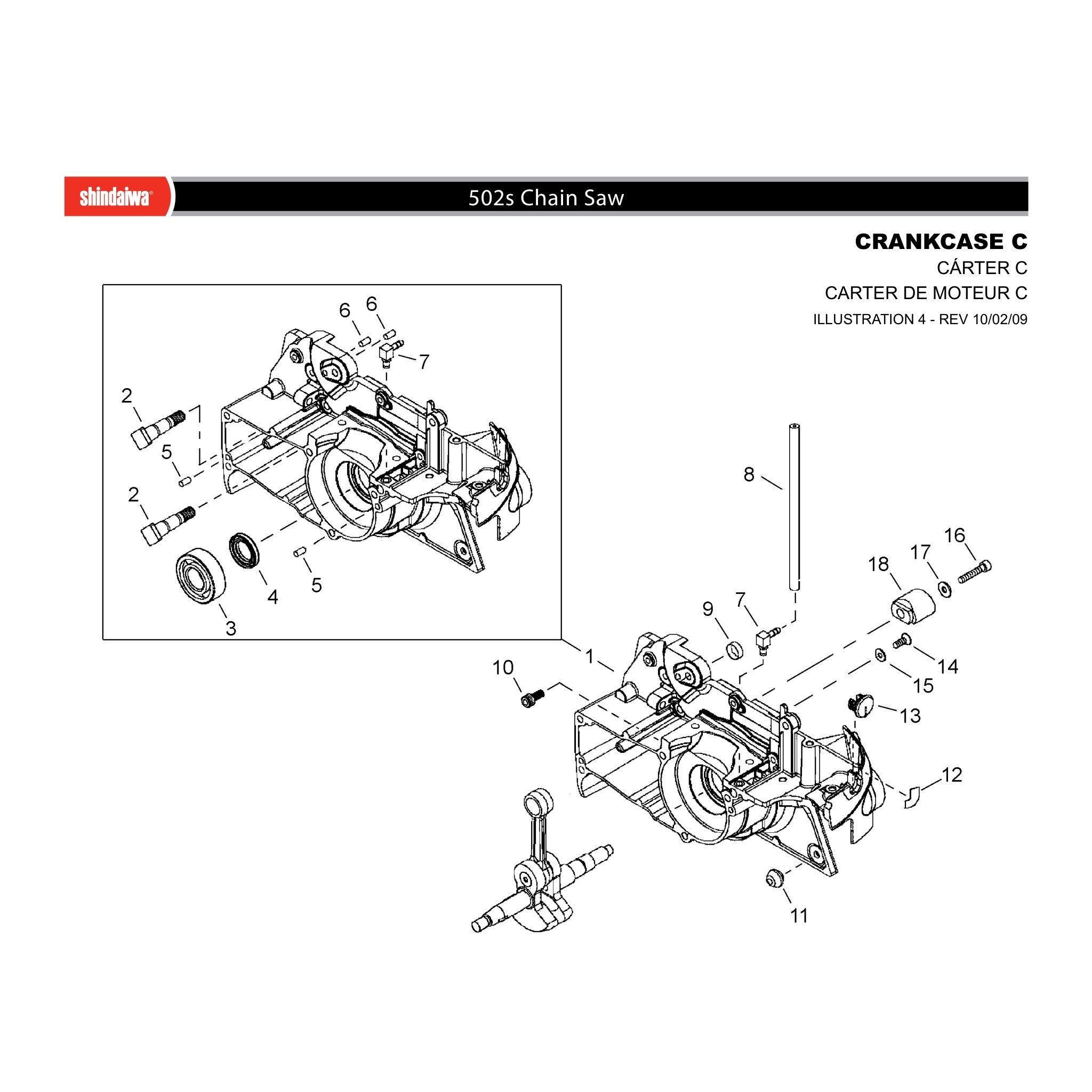

CRANKCASE C
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69033-21020
69033-21020
|
|||
|
|
22160-21520
22160-21520
|
|||
|
|
12900-62020
12900-62020
|
|||
|
|
12310-12003
12310-12003
|
|||
|
|
12492-40080
12492-40080
|
|||
|
|
12492-40110
12492-40110
|
|||
|
|
39010-11020
39010-11020
|
|||
|
|
39010-11050
39010-11050
|
|||
|
|
39311-21360
39311-21360
|
|||
|
|
11060-05124
11060-05124
|
|||
|
|
22182-21621
22182-21621
|
|||
|
|
39054-83310
39054-83310
|
|||
|
|
39054-21320
39054-21320
|
|||
|
|
01201-04080
01201-04080
|
|||
|
|
01613-04080
01613-04080
|
|||
|
|
22155-12190
22155-12190
|
|||
|
|
01610-05080
01610-05080
|
|||
|
|
22160-52511
22160-52511
|

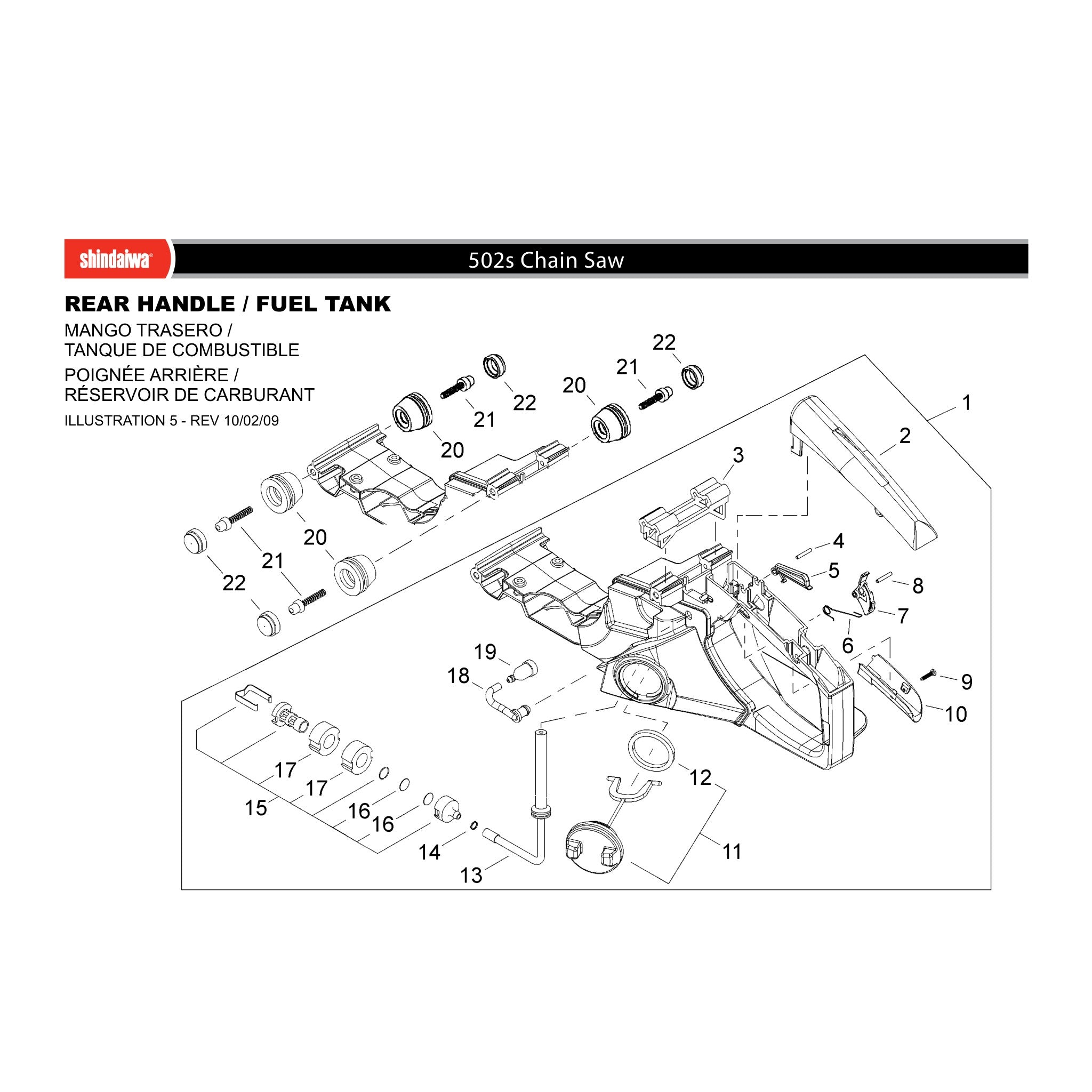

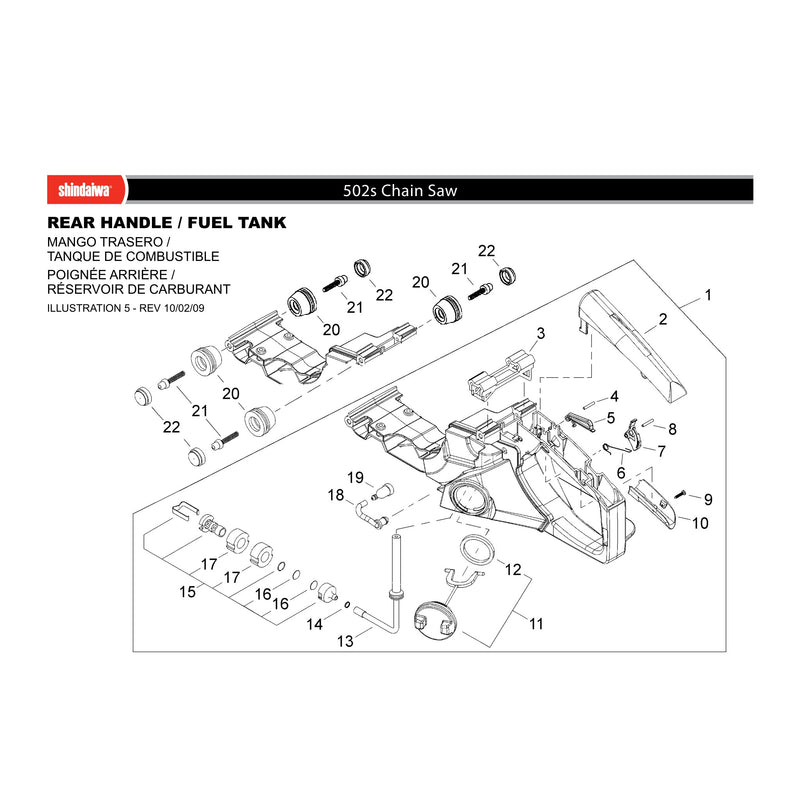

REAR HANDLE / FUEL TANK
REAR HANDLE / FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
39311-32024
39311-32024
|
|||
|
|
39311-32330
39311-32330
|
|||
|
|
39311-32370
39311-32370
|
|||
|
|
02427-40225
02427-40225
|
|||
|
|
22182-33332
22182-33332
|
|||
|
|
22182-33340
22182-33340
|
|||
|
|
22182-33326
22182-33326
|
|||
|
|
12420-40255
12420-40255
|
|||
|
|
01280-04222
01280-04222
|
|||
|
|
22182-33230
22182-33230
|
|||
|
|
39309-32040
39309-32040
|
|||
|
|
39309-32270
39309-32270
|
|||
|
|
39309-32340
39309-32340
|
|||
|
|
20020-85540
20020-85540
|
|||
|
|
22115-85401
22115-85401
|
|||
|
|
22118-85460
22118-85460
|
|||
|
|
22128-85421
22128-85421
|
|||
|
|
39311-32341
39311-32341
|
|||
|
|
22197-33960
22197-33960
|
|||
|
|
39311-33310
39311-33310
|
|||
|
|
22160-33770
22160-33770
|
|||
|
|
39311-33320
39311-33320
|

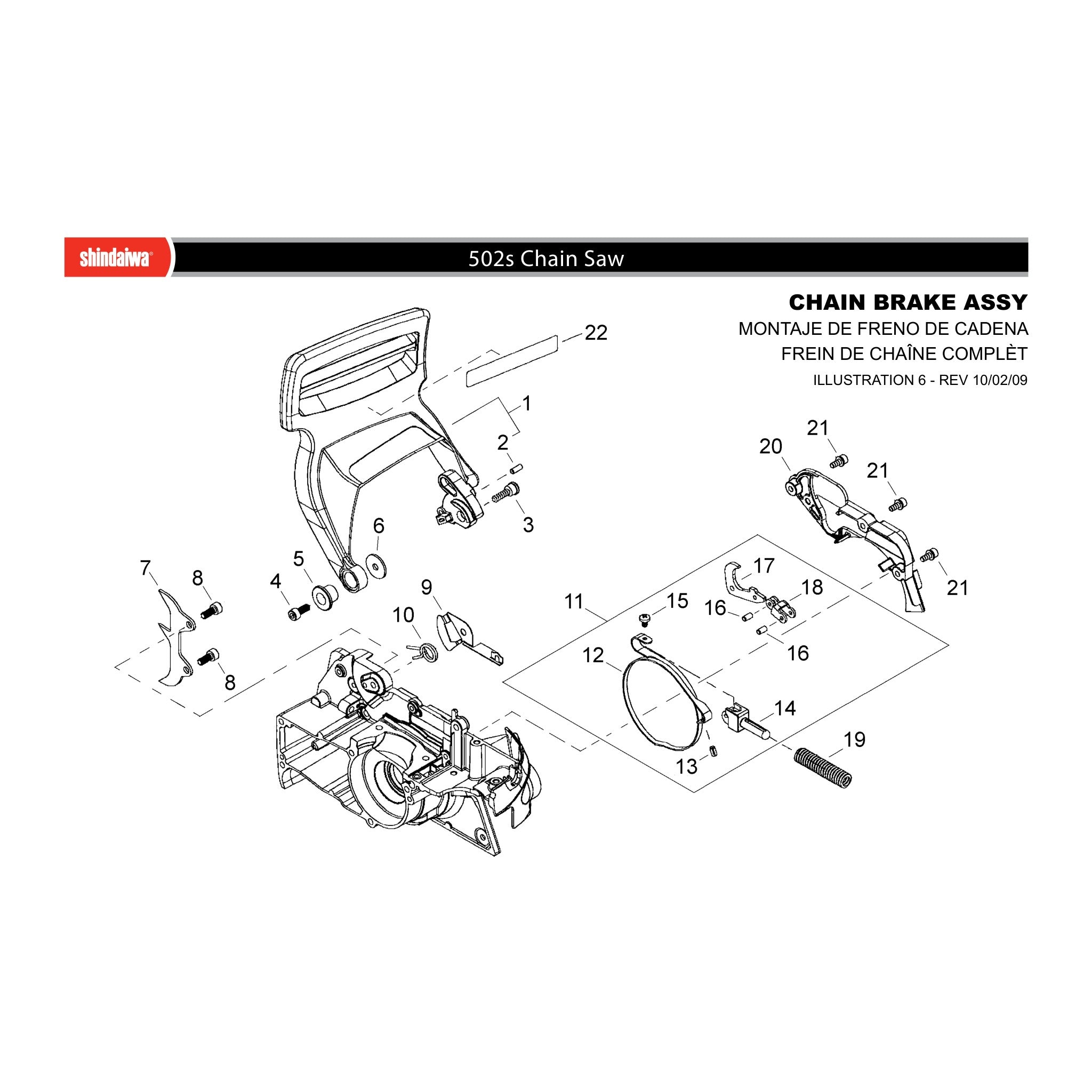

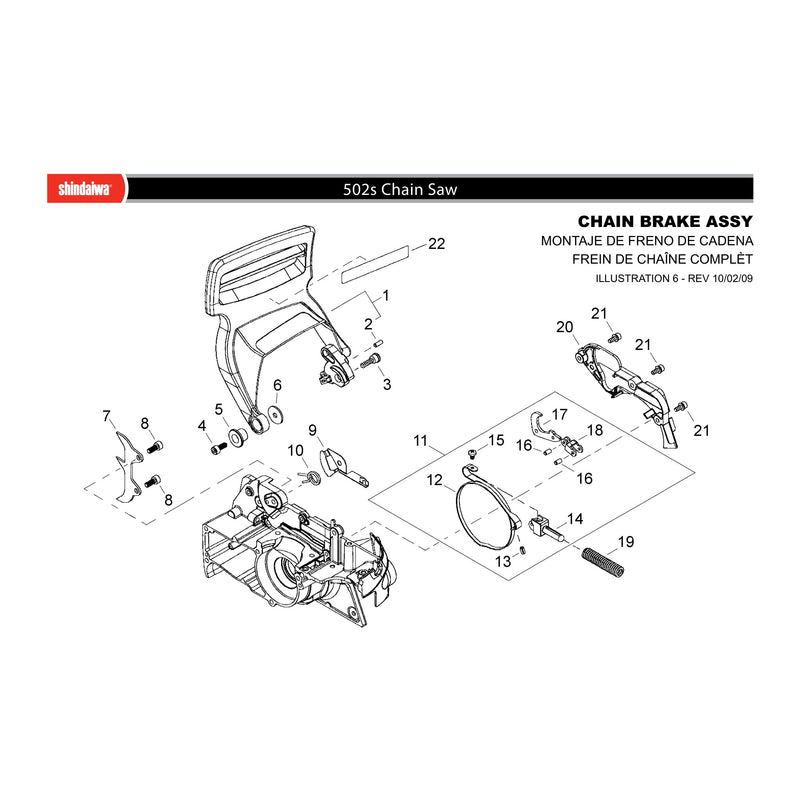

CHAIN BRAKE ASSY
CHAIN BRAKE ASSY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
39311-54364
39311-54364
|
|||
|
|
12492-40080
12492-40080
|
|||
|
|
39311-54381
39311-54381
|
|||
|
|
11060-05183
11060-05183
|
|||
|
|
15401-10121
15401-10121
|
|||
|
|
22169-54670
22169-54670
|
|||
|
|
39311-52140
39311-52140
|
|||
|
|
01020-05120
01020-05120
|
|||
|
|
39311-54350
39311-54350
|
|||
|
|
17520-15400
17520-15400
|
|||
|
|
39311-54310
39311-54310
|
|||
|
|
39311-54110
39311-54110
|
|||
|
|
02427-40105
02427-40105
|
|||
|
|
39311-54320
39311-54320
|
|||
|
|
01270-04103
01270-04103
|
|||
|
|
12492-30110
12492-30110
|
|||
|
|
39311-54330
39311-54330
|
|||
|
|
39311-54340
39311-54340
|
|||
|
|
17500-12300
17500-12300
|
|||
|
|
39311-54130
39311-54130
|
|||
|
|
11060-04100
11060-04100
|
|||
|
|
19402-00347
19402-00347
|

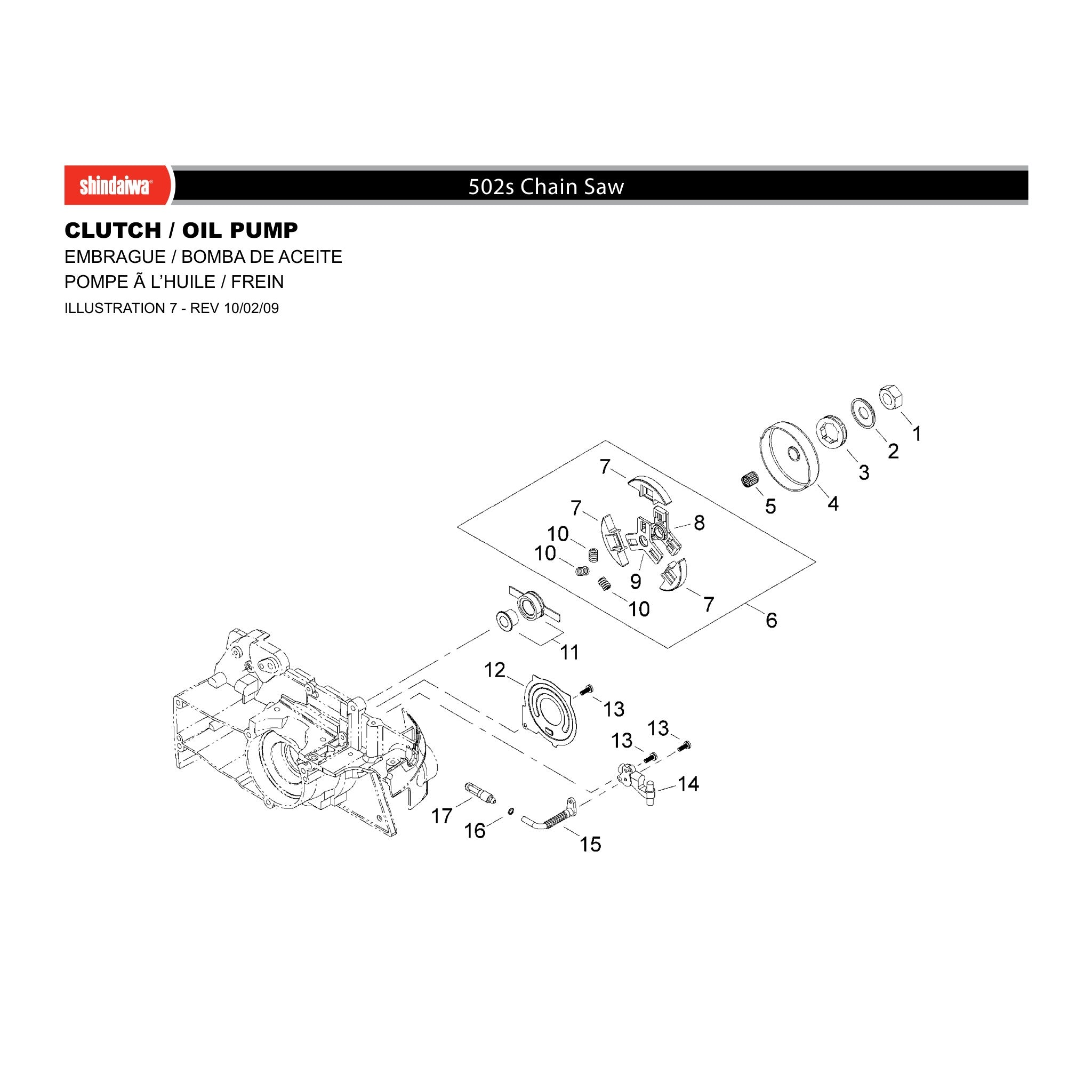

CLUTCH / OIL PUMP
CLUTCH / OIL PUMP
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11500-08001
11500-08001
|
|||
|
|
39311-51320
39311-51320
|
|||
|
|
22131-98120
22131-98120
|
|||
|
|
39311-51110
39311-51110
|
|||
|
|
22100-51310
22100-51310
|
|||
|
|
39311-51020
39311-51020
|
|||
|
|
39311-51120
39311-51120
|
|||
|
|
22182-51241
22182-51241
|
|||
|
|
39311-51130
39311-51130
|
|||
|
|
22197-51230
22197-51230
|
|||
|
|
22197-55111
22197-55111
|
|||
|
|
39311-55231
39311-55231
|
|||
|
|
11060-04141
11060-04141
|
|||
|
|
22197-55201
22197-55201
|
|||
|
|
22182-55311
22182-55311
|
|||
|
|
20020-85540
20020-85540
|
|||
|
|
22182-55330
22182-55330
|

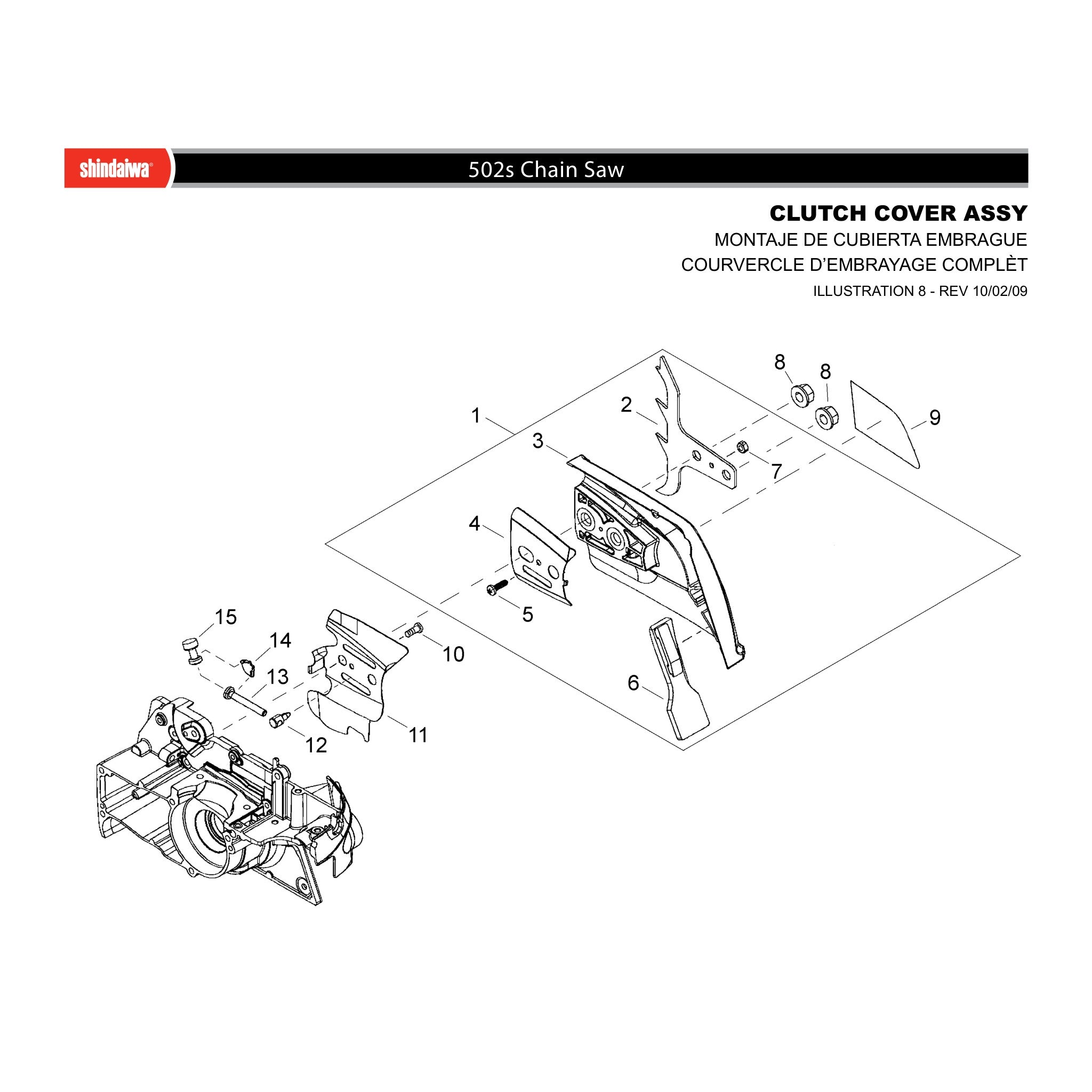

CLUTCH COVER ASSY
CLUTCH COVER ASSY
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69033-53010
69033-53010
|
|||
|
|
69033-53310
69033-53310
|
|||
|
|
39311-53110
39311-53110
|
|||
|
|
39311-53121
39311-53121
|
|||
|
|
01270-04143
01270-04143
|
|||
|
|
39311-53130
39311-53130
|
|||
|
|
11500-04001
11500-04001
|
|||
|
|
22182-52411
22182-52411
|
|||
|
|
69033-91330
69033-91330
|
|||
|
|
22173-56150
22173-56150
|
|||
|
|
39311-52130
39311-52130
|
|||
|
|
22150-52440
22150-52440
|
|||
|
|
22182-52620
22182-52620
|
|||
|
|
22182-52631
22182-52631
|
|||
|
|
22182-52641
22182-52641
|

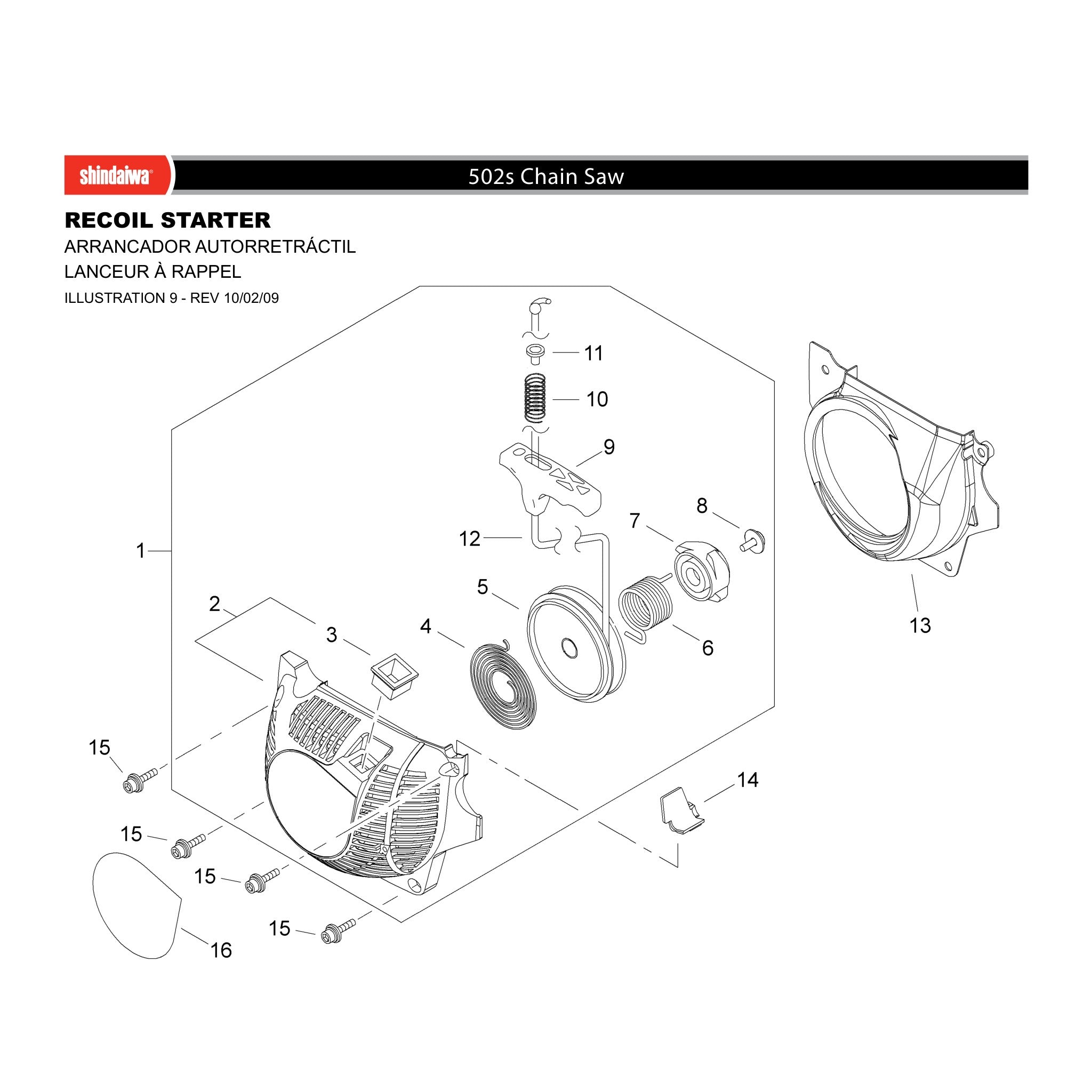

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
39311-75011
39311-75011
|
|||
|
|
39311-75110
39311-75110
|
|||
|
|
22182-75120
22182-75120
|
|||
|
|
39300-75130
39300-75130
|
|||
|
|
39300-75121
39300-75121
|
|||
|
|
39309-75320
39309-75320
|
|||
|
|
39300-75311
39300-75311
|
|||
|
|
39300-75330
39300-75330
|
|||
|
|
39300-75151
39300-75151
|
|||
|
|
39300-75340
39300-75340
|
|||
|
|
39300-75350
39300-75350
|
|||
|
|
39300-75140
39300-75140
|
|||
|
|
69033-75310
69033-75310
|
|||
|
|
69025-75310
69025-75310
|
|||
|
|
11060-04163
11060-04163
|
|||
|
|
69033-91320
69033-91320
|

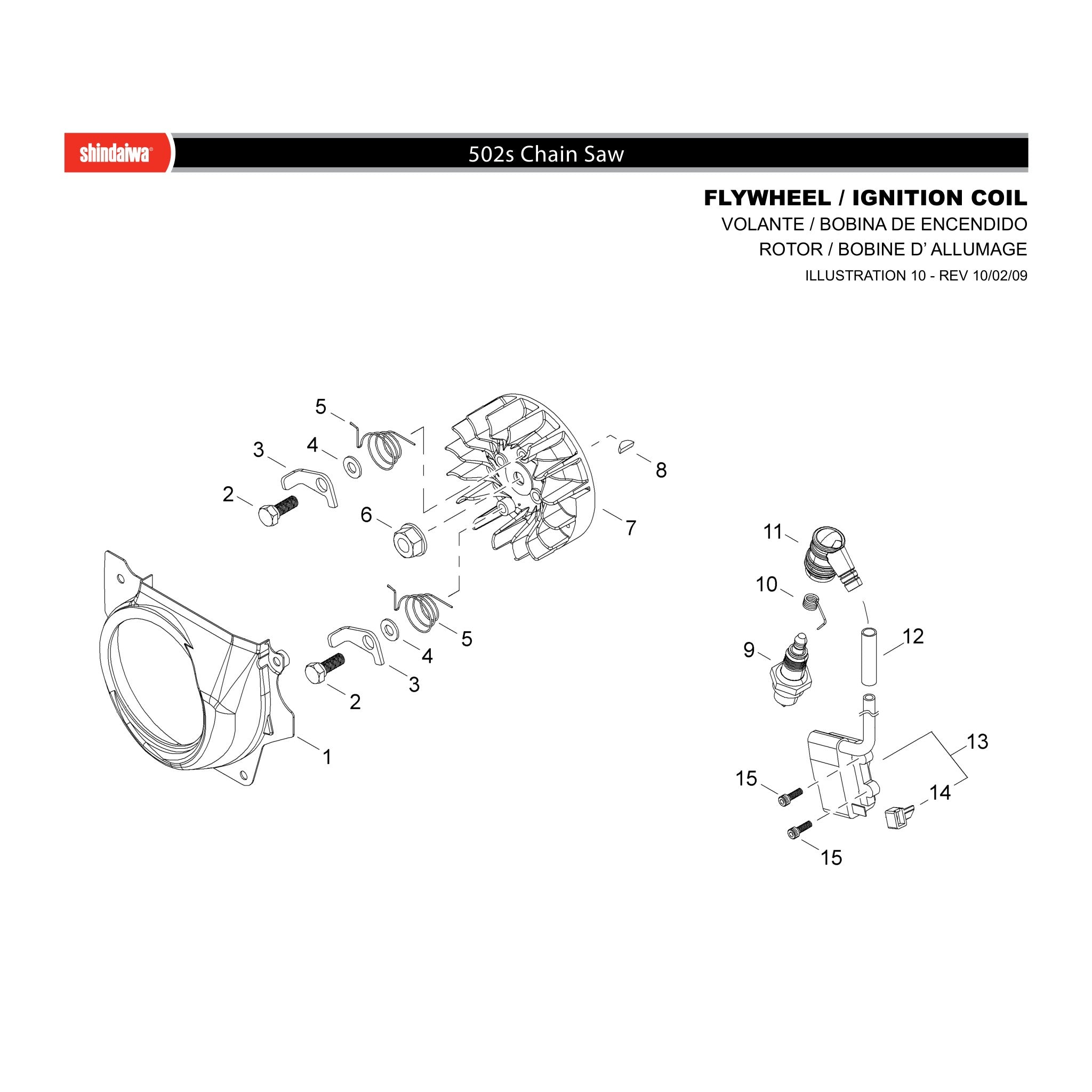

FLYWHEEL / IGNITION COIL
FLYWHEEL / IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69033-75310
69033-75310
|
|||
|
|
22182-71440
22182-71440
|
|||
|
|
22182-71412
22182-71412
|
|||
|
|
22182-71430
22182-71430
|
|||
|
|
22182-71421
22182-71421
|
|||
|
|
22169-71460
22169-71460
|
|||
|
|
39311-71110
39311-71110
|
|||
|
|
02403-03100
02403-03100
|
|||
|
|
13000-03506
13000-03506
|
|||
|
|
22154-72230
22154-72230
|
|||
|
|
38010-71330
38010-71330
|
|||
|
|
39311-71310
39311-71310
|
|||
|
|
39311-71360
39311-71360
|
|||
|
|
39311-71320
39311-71320
|
|||
|
|
11060-04202
11060-04202
|

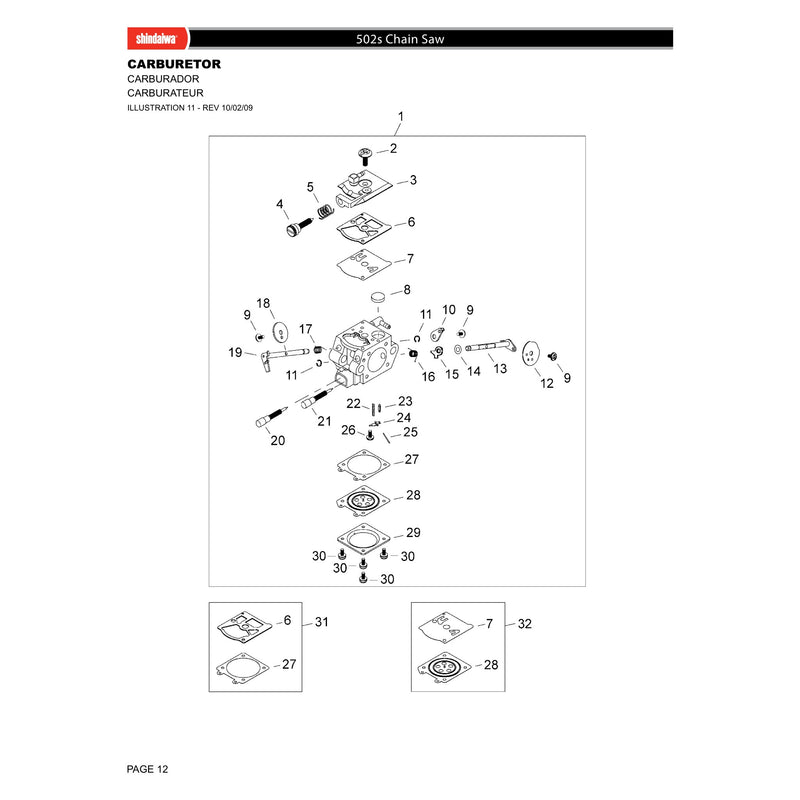

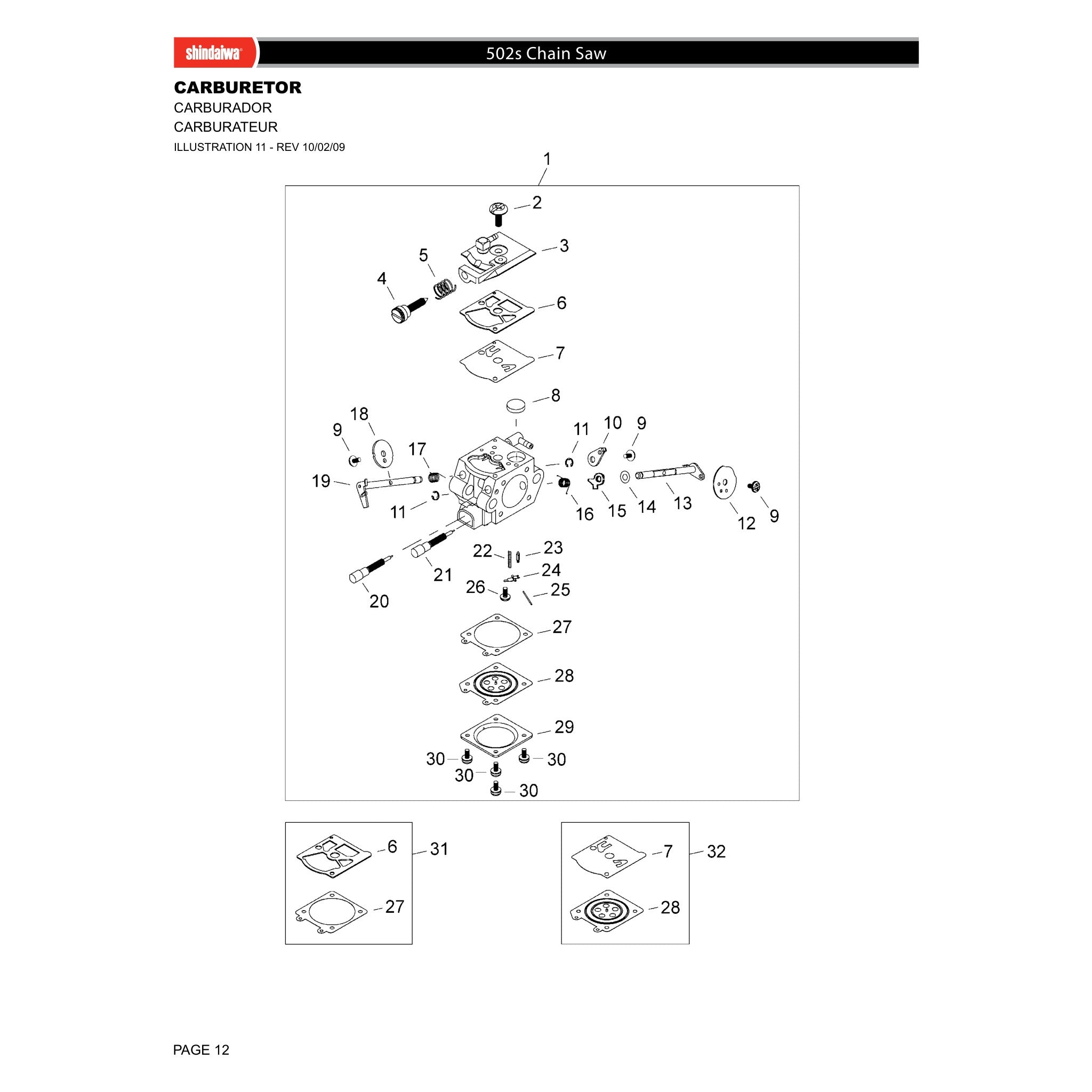

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69033-81010
69033-81010
|
|||
|
|
22100-81130
22100-81130
|
|||
|
|
39010-81320
39010-81320
|
|||
|
|
72320-81410
72320-81410
|
|||
|
|
22156-81420
22156-81420
|
|||
|
|
22128-81140
22128-81140
|
|||
|
|
22128-81150
22128-81150
|
|||
|
|
70030-81380
70030-81380
|
|||
|
|
20803-81150
20803-81150
|
|||
|
|
22180-81380
22180-81380
|
|||
|
|
70030-81390
70030-81390
|
|||
|
|
22156-81710
22156-81710
|
|||
|
|
22180-81740
22180-81740
|
|||
|
|
20036-81185
20036-81185
|
|||
|
|
39067-81410
39067-81410
|
|||
|
|
39067-81390
39067-81390
|
|||
|
|
72320-81420
72320-81420
|
|||
|
|
22197-81340
22197-81340
|
|||
|
|
69018-81310
69018-81310
|
|||
|
|
69024-81320
69024-81320
|
|||
|
|
69024-81330
69024-81330
|
|||
|
|
72342-81270
72342-81270
|
|||
|
|
20036-81440
20036-81440
|
|||
|
|
22100-81230
22100-81230
|
|||
|
|
22100-81250
22100-81250
|
|||
|
|
22100-81240
22100-81240
|
|||
|
|
22100-81290
22100-81290
|
|||
|
|
37145-81320
37145-81320
|
|||
|
|
22100-81280
22100-81280
|
|||
|
|
22100-81351
22100-81351
|
|||
|
|
22128-81920
22128-81920
|
|||
|
|
39067-98340
39067-98340
|

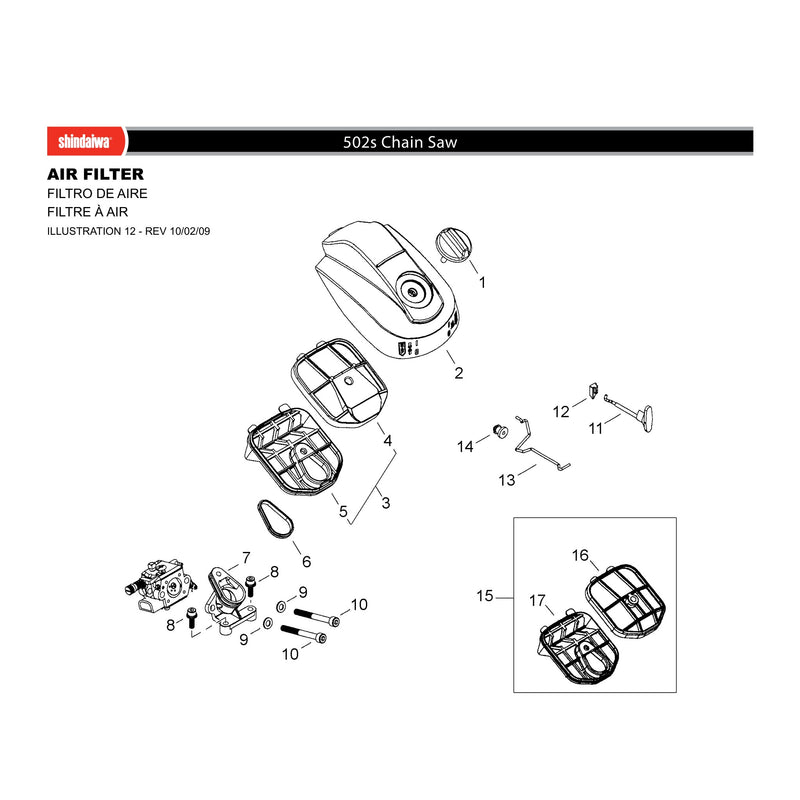

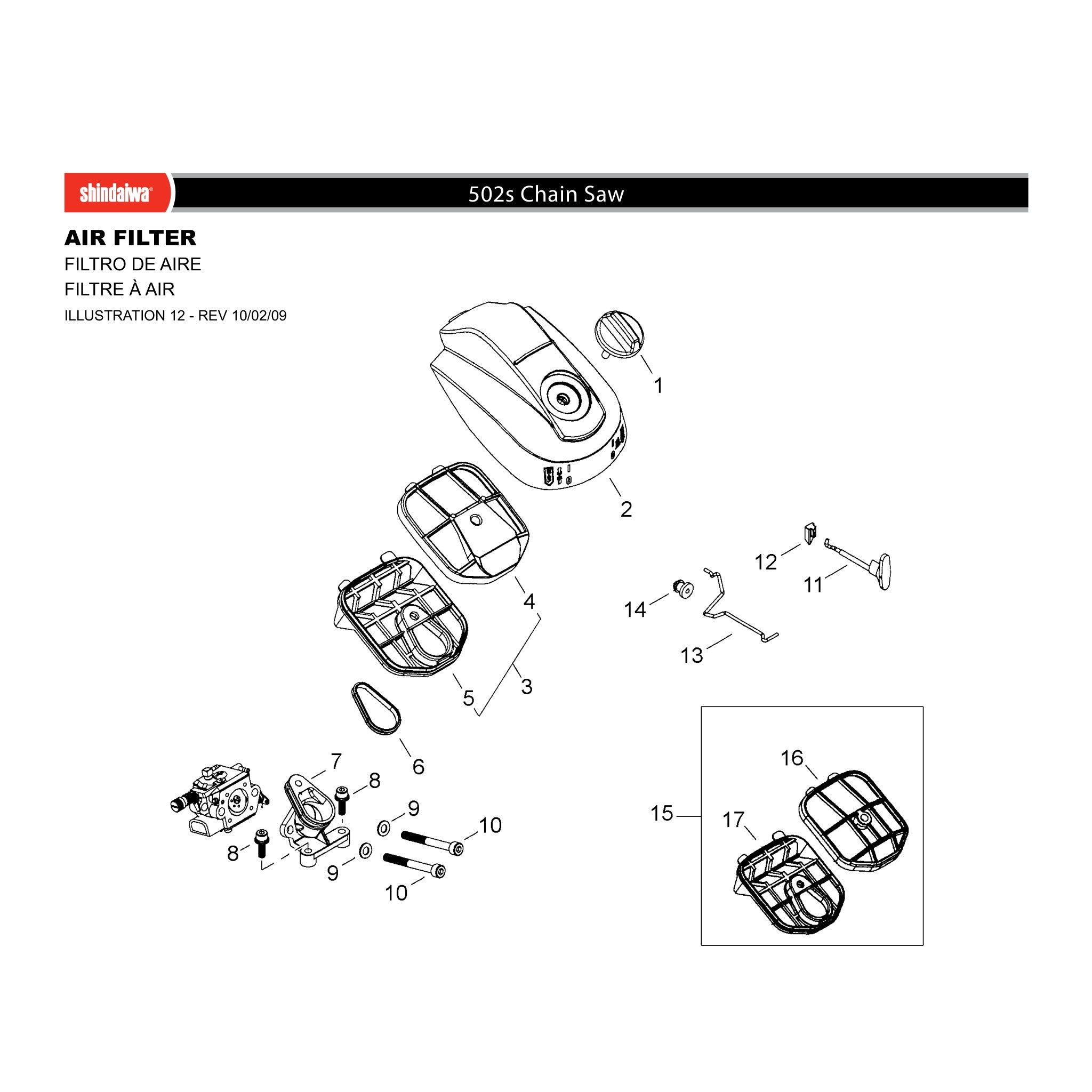

AIR FILTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
22182-31220
22182-31220
|
|||
|
|
39311-82131
39311-82131
|
|||
|
|
39311-82311
39311-82311
|
|||
|
|
39311-82321
39311-82321
|
|||
|
|
39311-82331
39311-82331
|
|||
|
|
39311-82370
39311-82370
|
|||
|
|
39311-82360
39311-82360
|
|||
|
|
11060-04163
11060-04163
|
|||
|
|
01610-05080
01610-05080
|
|||
|
|
01020-05480
01020-05480
|
|||
|
|
39311-83310
39311-83310
|
|||
|
|
39311-83320
39311-83320
|
|||
|
|
39311-83330
39311-83330
|
|||
|
|
38010-83330
38010-83330
|
|||
|
|
39223-98510
39223-98510
|
|||
|
|
39223-98341
39223-98341
|
|||
|
|
39223-98351
39223-98351
|

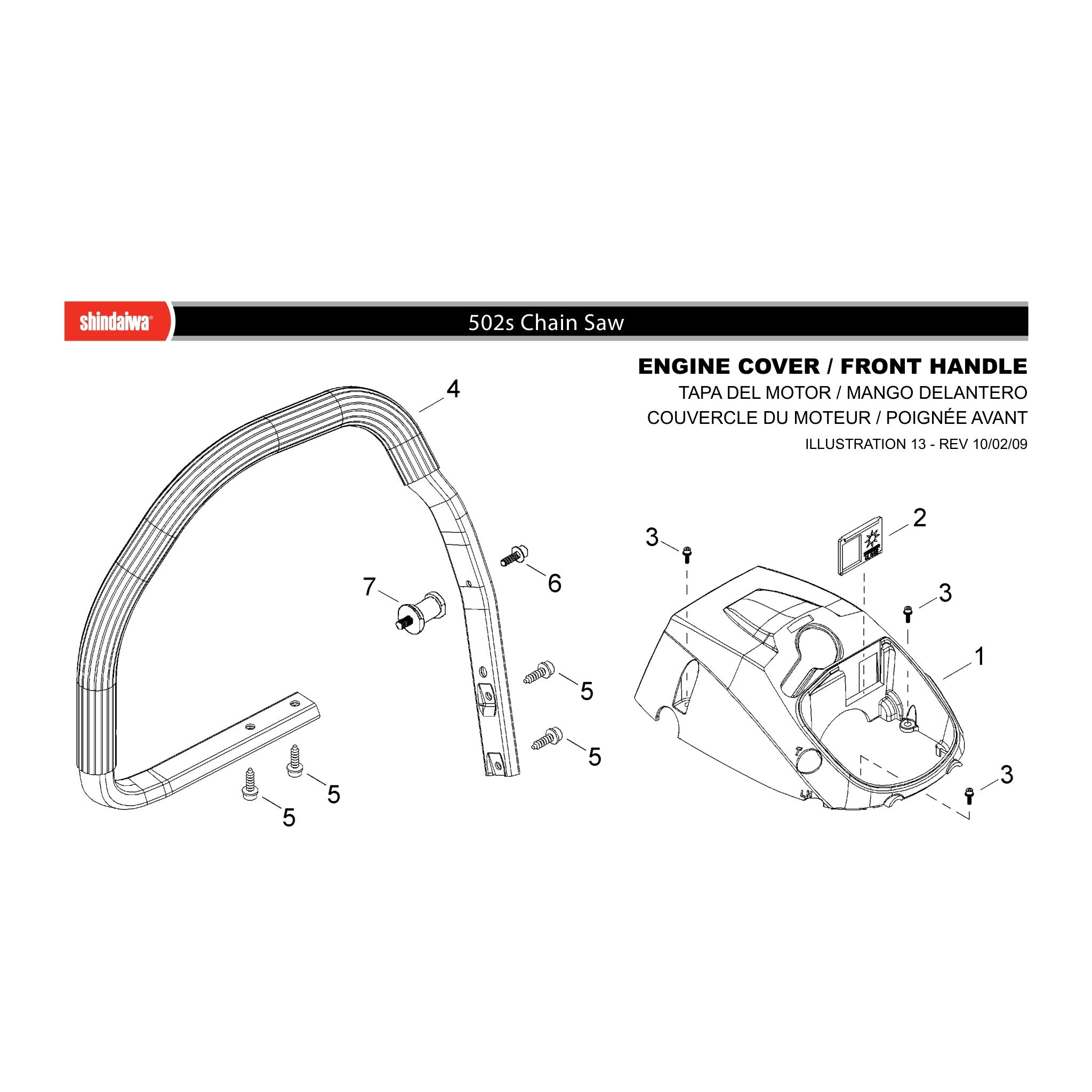

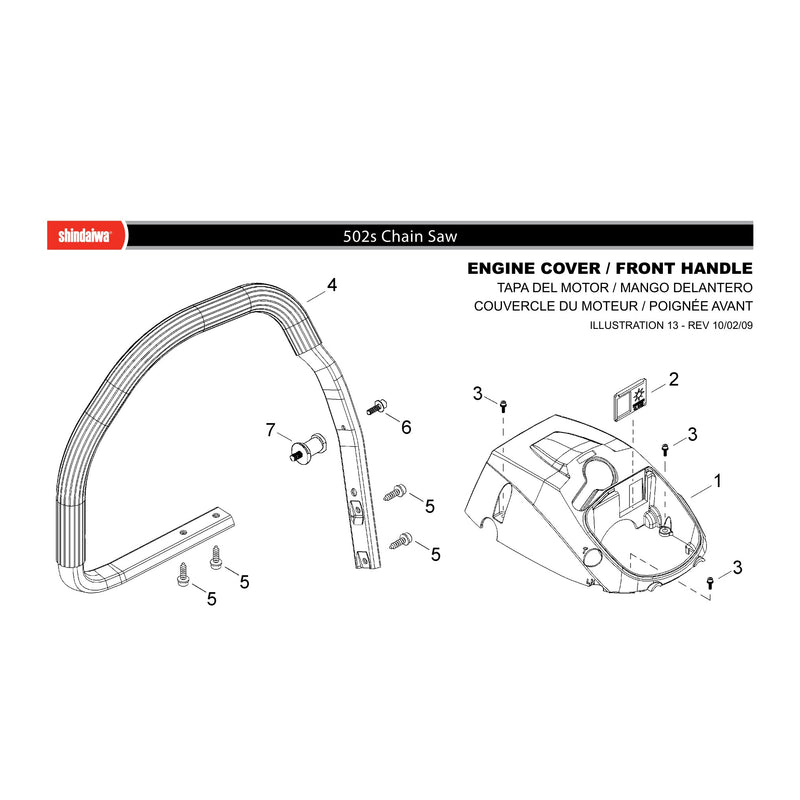

ENGINE COVER / FRONT HANDLE
ENGINE COVER / FRONT HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
69033-31110
69033-31110
|
|||
|
|
39311-31310
39311-31310
|
|||
|
|
11060-04163
11060-04163
|
|||
|
|
69033-32110
69033-32110
|
|||
|
|
11044-05160
11044-05160
|
|||
|
|
11060-04141
11060-04141
|
|||
|
|
22182-33742
22182-33742
|
|||
|
|
69023-92310
69023-92310
|
|||
|
|
09026-03001
09026-03001
|
|||
|
|
09026-04001
09026-04001
|
|||
|
|
22000-91181
22000-91181
|
|||
|
|
19639-01100
19639-01100
|
