Shindaiwa F222 Trimmer Parts Diagram
Diagrams:
Diagram:

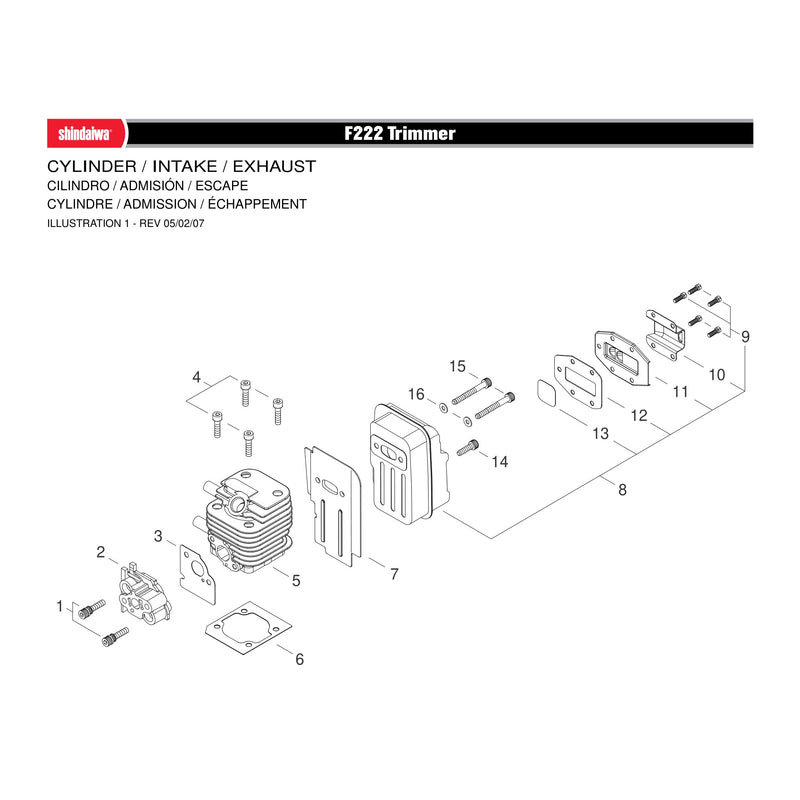

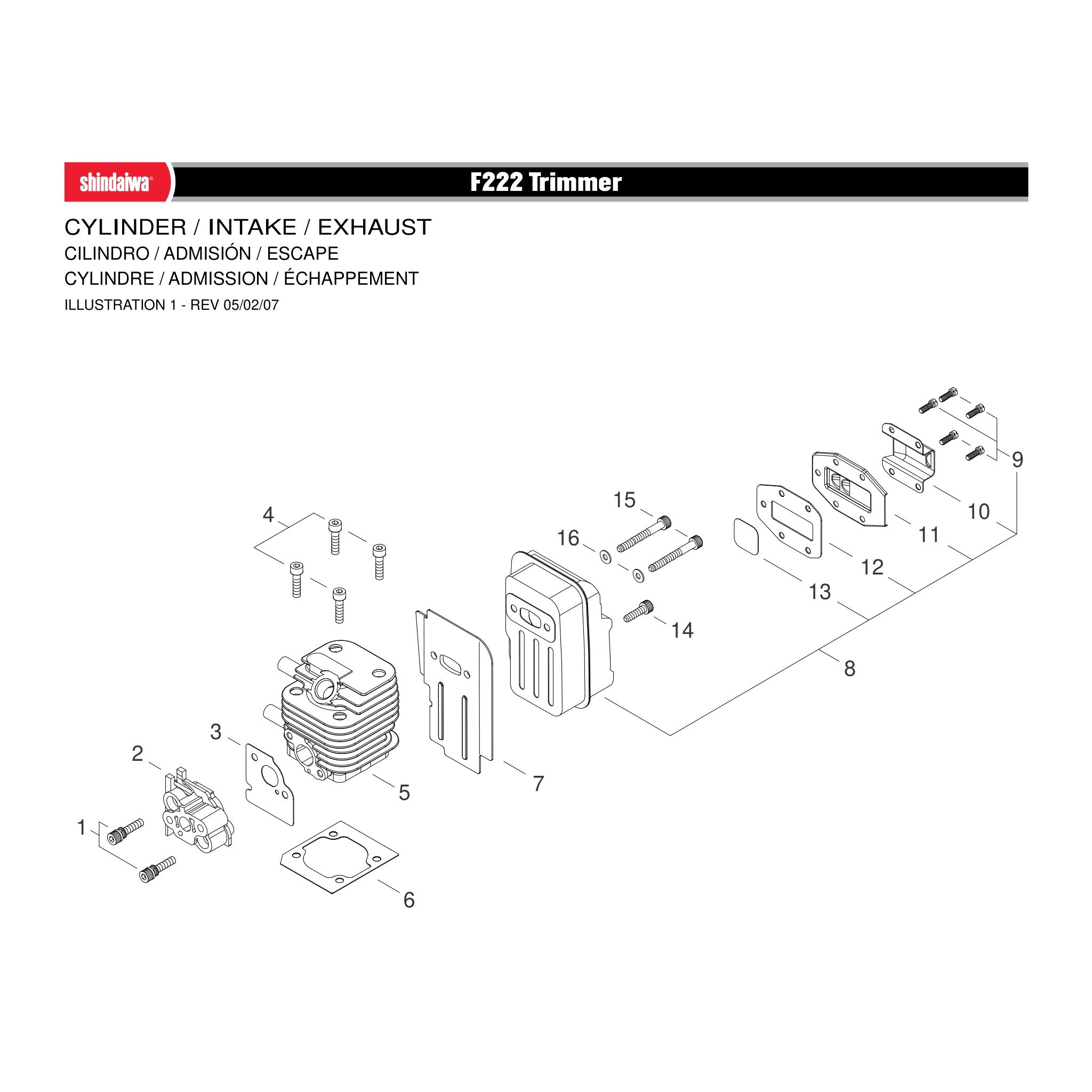

CYLINDER / INTAKE / EXHAUST
CYLINDER / INTAKE / EXHAUST
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
11022-05305
11022-05305
|
|||
|
|
62100-12212
62100-12212
|
|||
|
|
62100-12220
62100-12220
|
|||
|
|
01020-05160
01020-05160
|
|||
|
|
62100-12111
62100-12111
|
|||
|
|
62100-12120
62100-12120
|
|||
|
|
37033-15212
37033-15212
|
|||
|
|
62100-15012
62100-15012
|
|||
|
|
01211-04080
01211-04080
|
|||
|
|
62100-15392
62100-15392
|
|||
|
|
62100-15381
62100-15381
|
|||
|
|
62100-15401
62100-15401
|
|||
|
|
62100-15370
62100-15370
|
|||
|
|
01020-05120
01020-05120
|
|||
|
|
01020-05555
01020-05555
|
|||
|
|
01610-05085
01610-05085
|

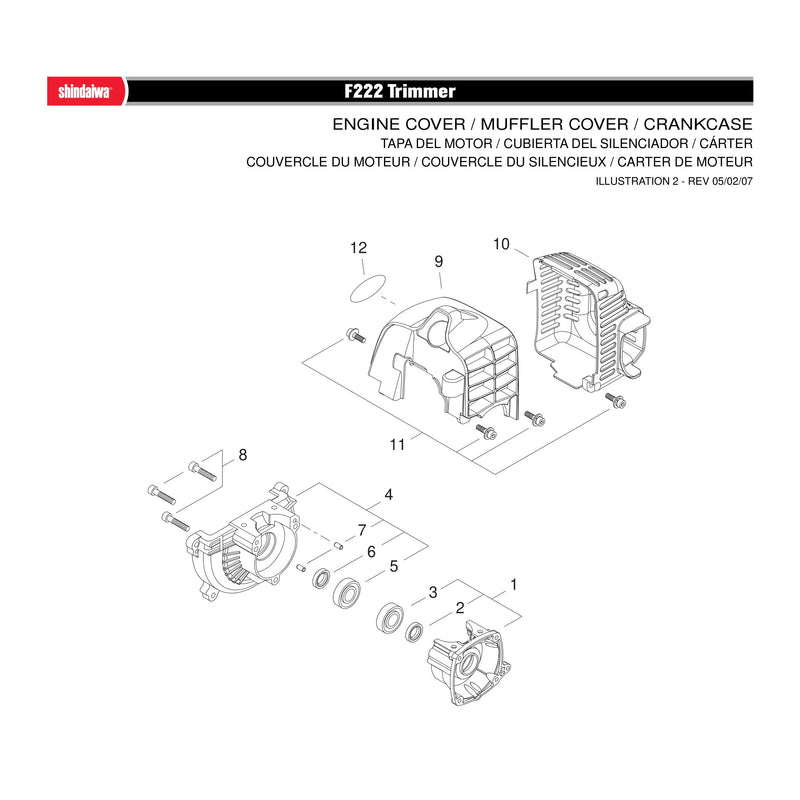

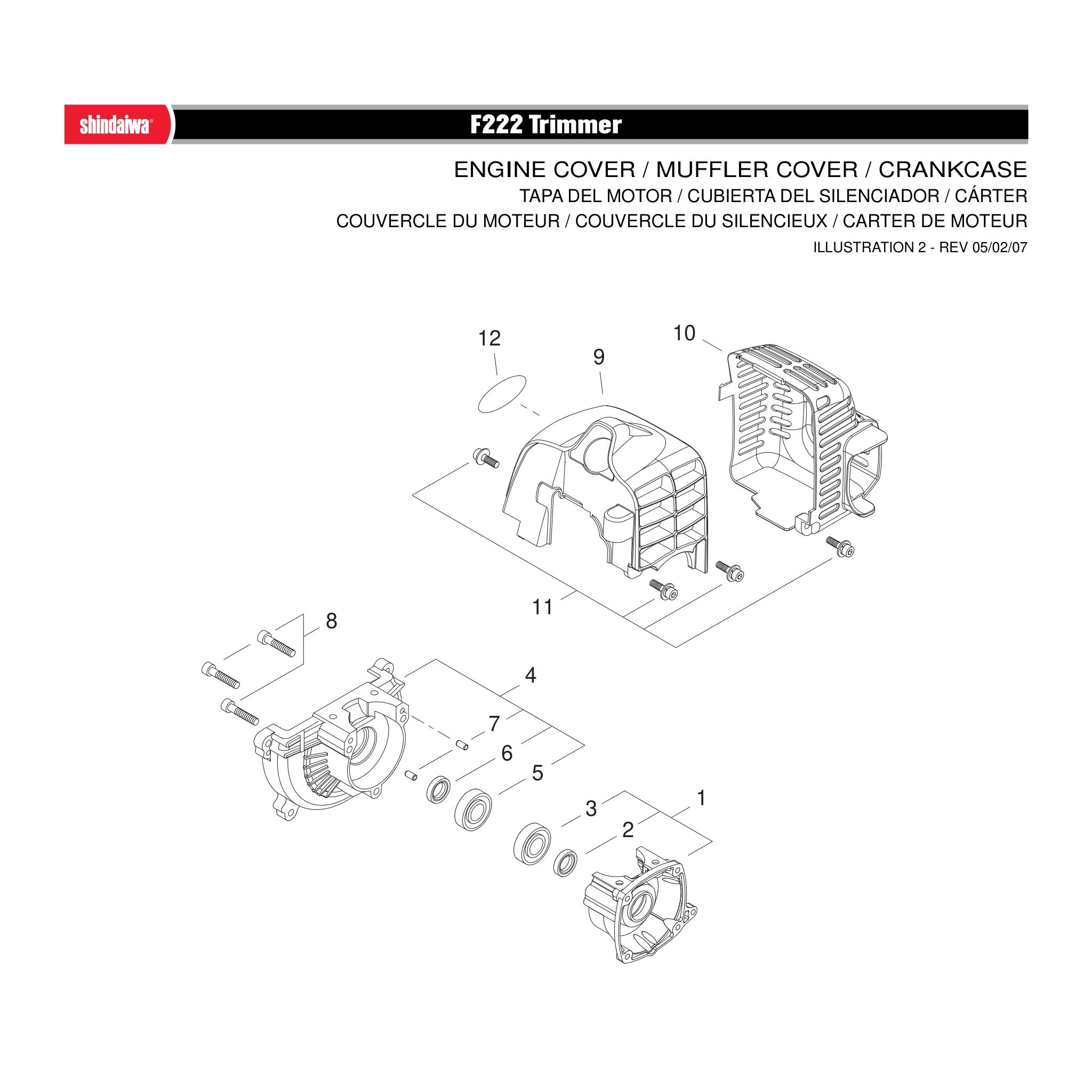

ENGINE COVER / MUFFLER COVER / CRANKCASE
ENGINE COVER / MUFFLER COVER / CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62100-21010
62100-21010
|
|||
|
|
37013-21120
37013-21120
|
|||
|
|
12900-60010
12900-60010
|
|||
|
|
62100-21020
62100-21020
|
|||
|
|
12900-60010
12900-60010
|
|||
|
|
20000-21211
20000-21211
|
|||
|
|
12492-40080
12492-40080
|
|||
|
|
01020-05250
01020-05250
|
|||
|
|
62100-32111
62100-32111
|
|||
|
|
62123-32311
62123-32311
|
|||
|
|
11024-04160
11024-04160
|
|||
|
|
19406-00114
19406-00114
|

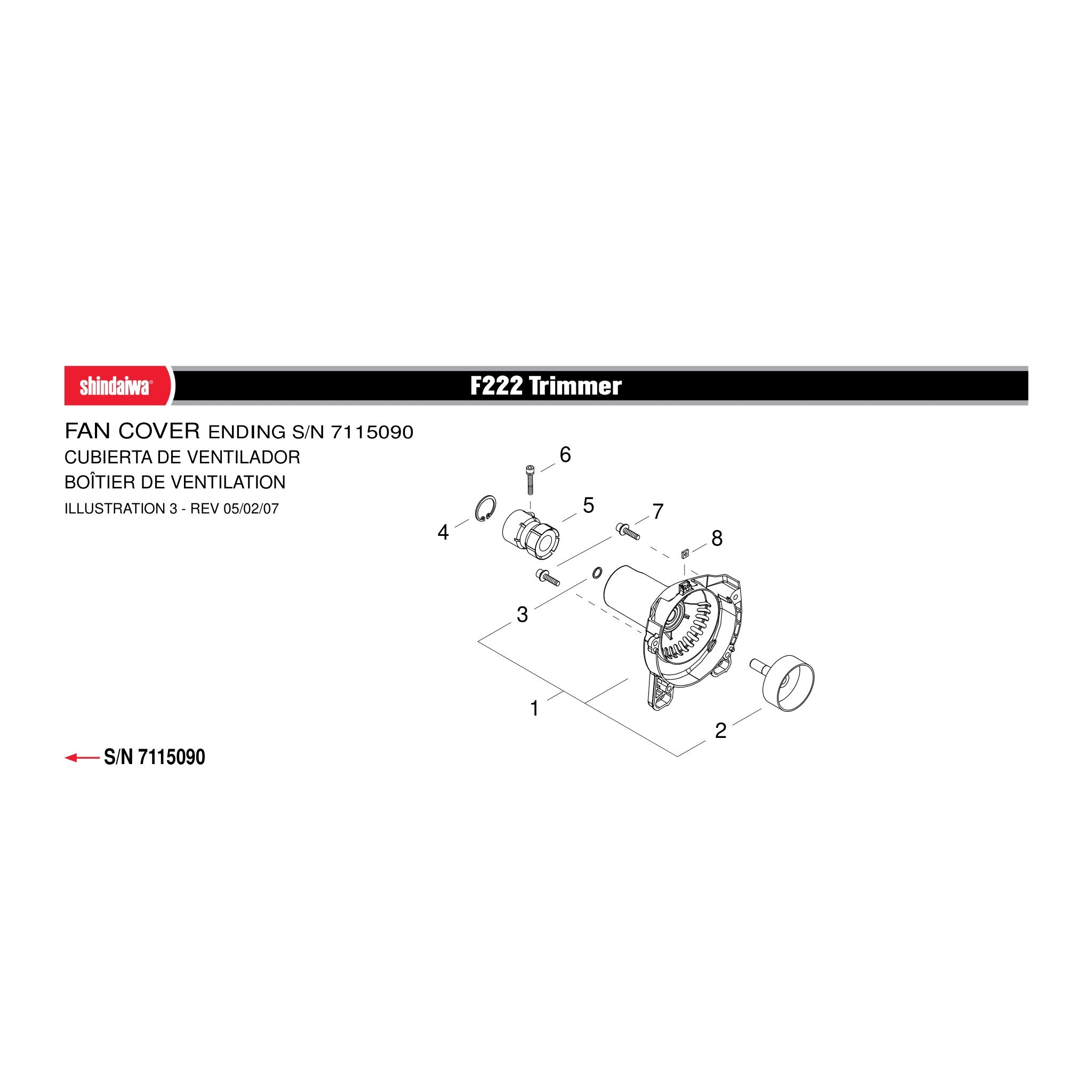

FAN COVER ENDING S/N 7115090
FAN COVER ENDING S/N 7115090
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62123-31013
62123-31013
|
|||
|
|
62123-31211
62123-31211
|
|||
|
|
20000-31140
20000-31140
|
|||
|
|
02432-40170
02432-40170
|
|||
|
|
20087-31411
20087-31411
|
|||
|
|
11020-05220
11020-05220
|
|||
|
|
11024-05180
11024-05180
|
|||
|
|
11500-04000
11500-04000
|
|||
|
|
62123-31013
62123-31013
|
|||
|
|
62123-31211
62123-31211
|
|||
|
|
20000-31140
20000-31140
|
|||
|
|
62123-33310
62123-33310
|
|||
|
|
20087-31411
20087-31411
|
|||
|
|
11020-05220
11020-05220
|
|||
|
|
11024-05180
11024-05180
|

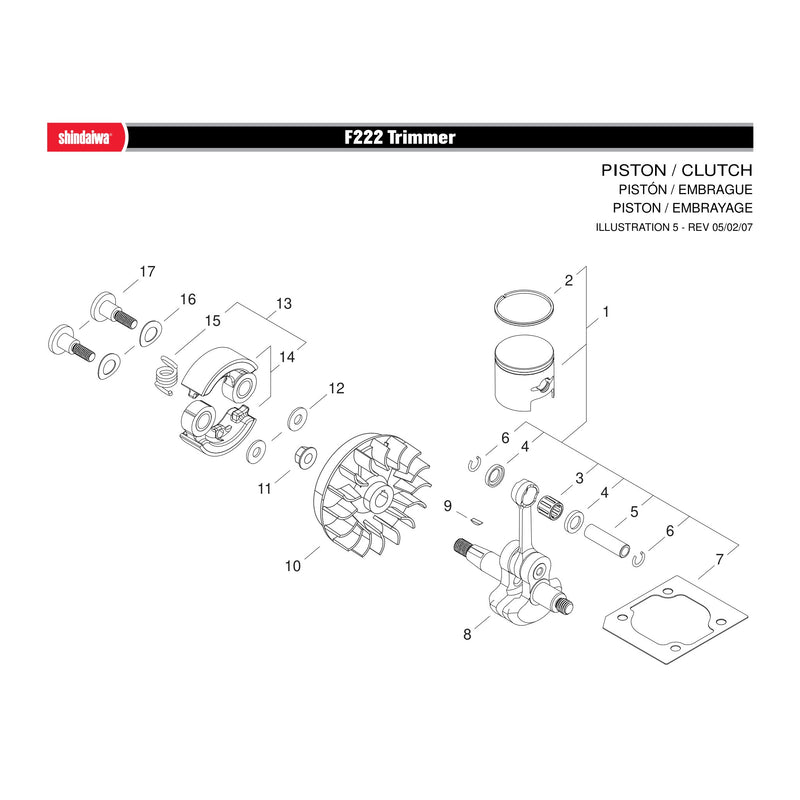

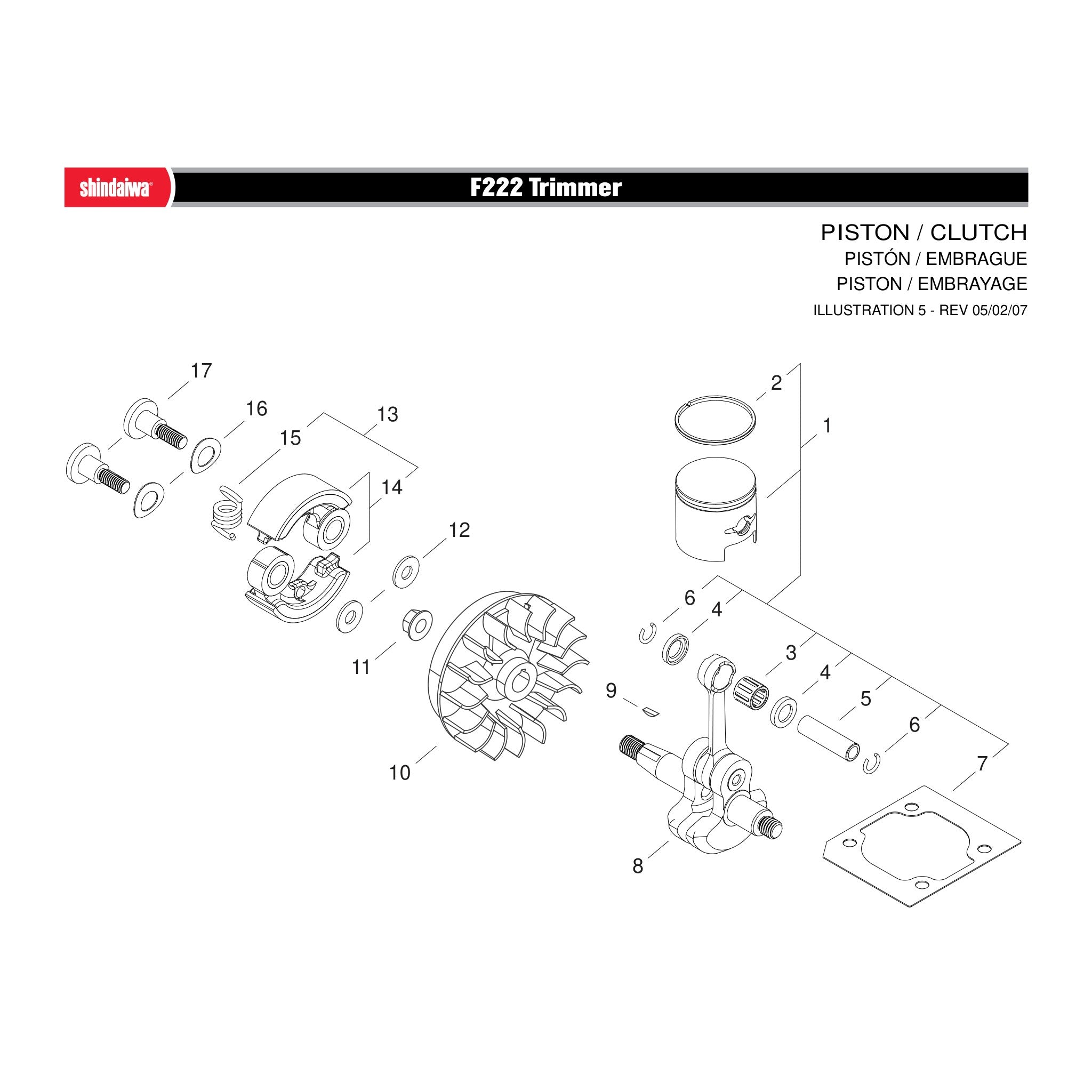

PISTON / CLUTCH
PISTON / CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
60132-98310
60132-98310
|
|||
|
|
72933-41210
72933-41210
|
|||
|
|
37013-41230
37013-41230
|
|||
|
|
37013-41240
37013-41240
|
|||
|
|
72933-41310
72933-41310
|
|||
|
|
70030-41320
70030-41320
|
|||
|
|
62100-12120
62100-12120
|
|||
|
|
62100-42011
62100-42011
|
|||
|
|
02403-03100
02403-03100
|
|||
|
|
37019-71110
37019-71110
|
|||
|
|
20035-71220
20035-71220
|
|||
|
|
22100-71430
22100-71430
|
|||
|
|
67000-51020
67000-51020
|
|||
|
|
20035-51111
20035-51111
|
|||
|
|
20035-51221
20035-51221
|
|||
|
|
20087-51231
20087-51231
|
|||
|
|
20142-51210
20142-51210
|

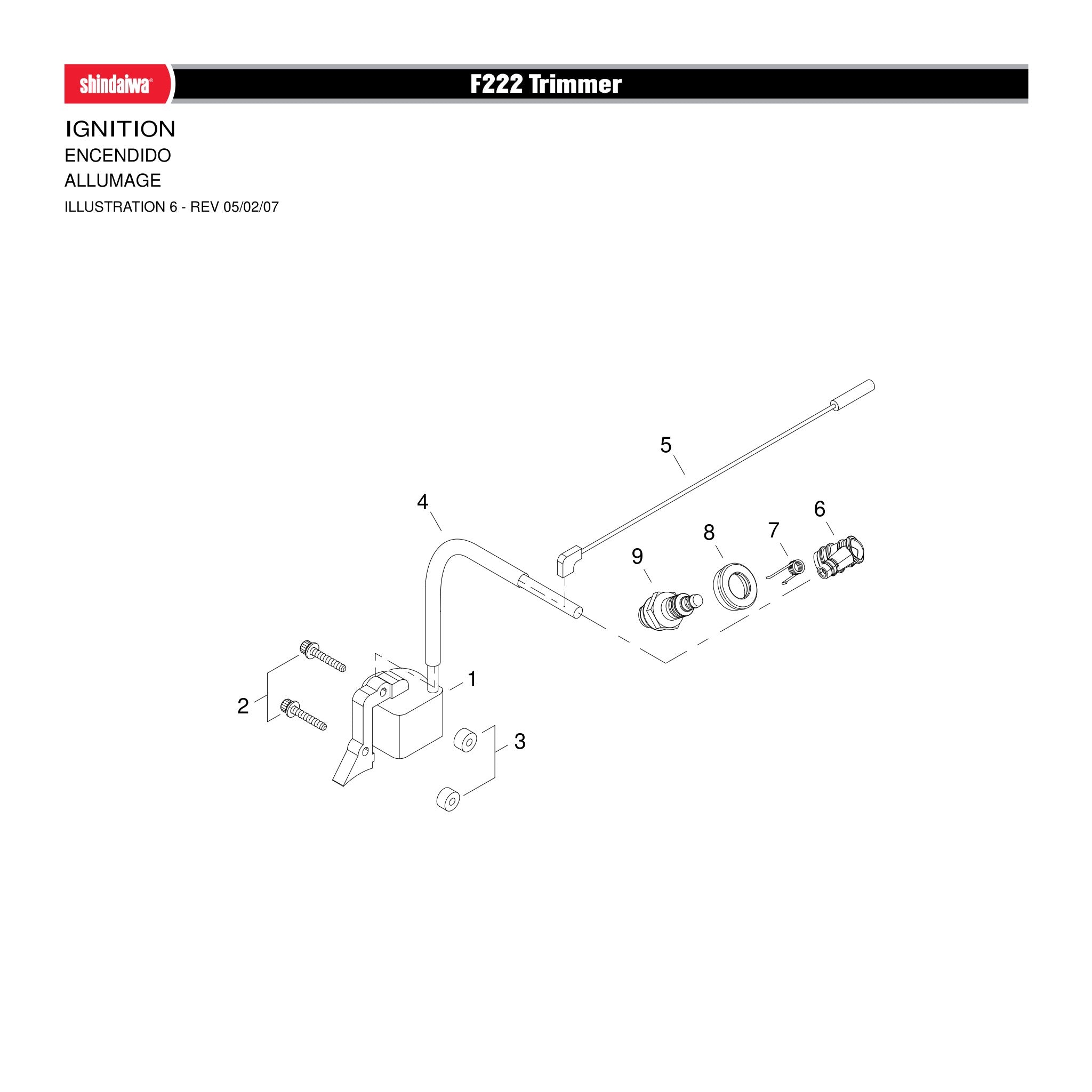

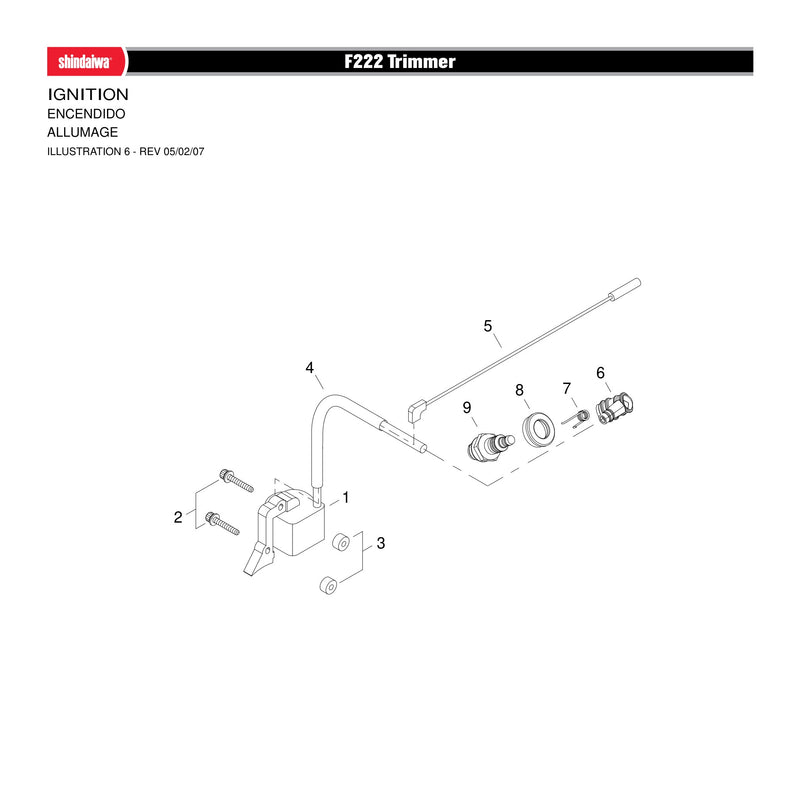

IGNITION
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62100-71021
62100-71021
|
|||
|
|
11060-04204
11060-04204
|
|||
|
|
70030-71620
70030-71620
|
|||
|
|
62100-71310
62100-71310
|
|||
|
|
14352-02100
14352-02100
|
|||
|
|
22160-72220
22160-72220
|
|||
|
|
20000-72230
20000-72230
|
|||
|
|
22160-72260
22160-72260
|
|||
|
|
13000-13506
13000-13506
|

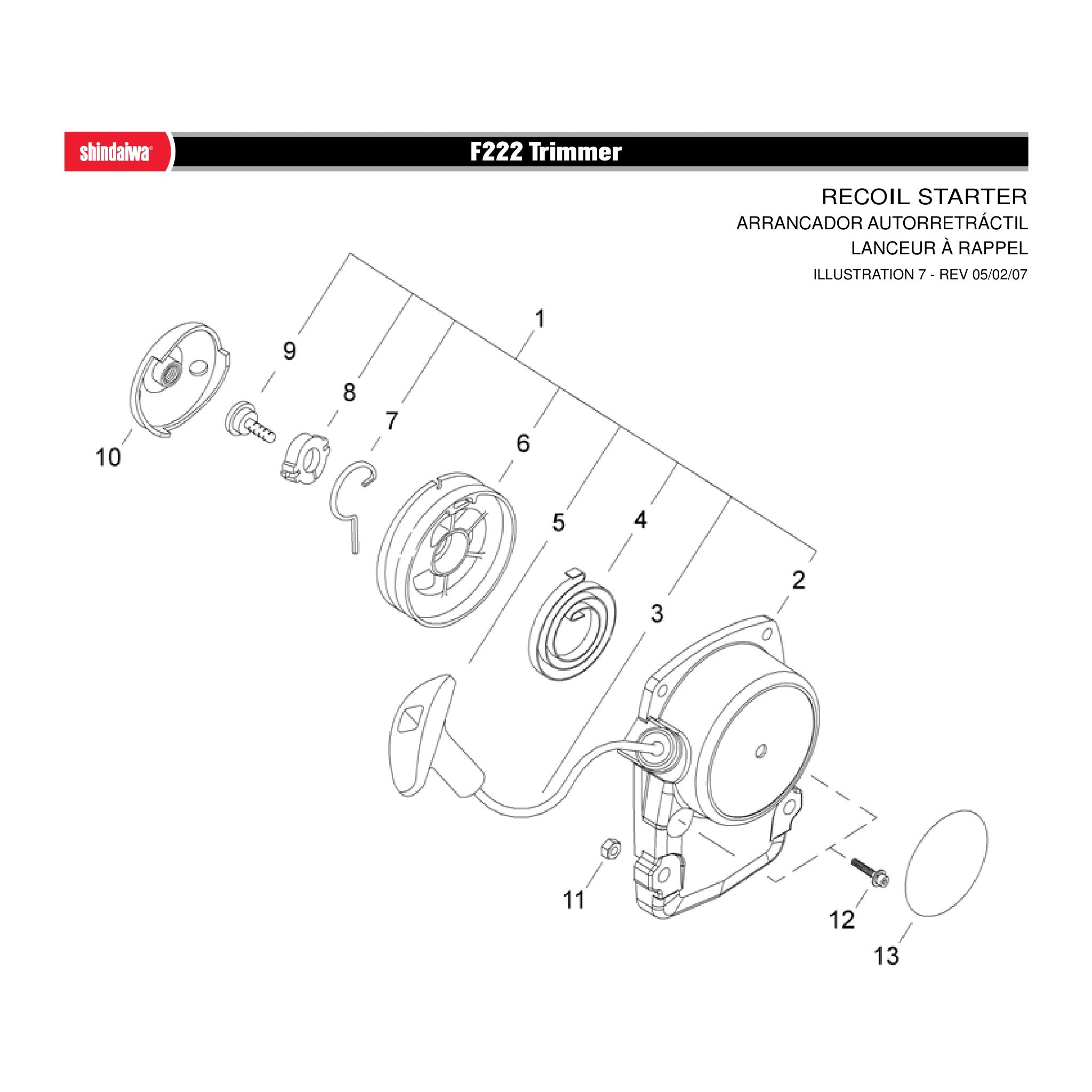

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
37019-75011
37019-75011
|
|||
|
|
37019-75111
37019-75111
|
|||
|
|
37013-75140
37013-75140
|
|||
|
|
37013-75130
37013-75130
|
|||
|
|
20024-75190
20024-75190
|
|||
|
|
37013-75120
37013-75120
|
|||
|
|
37013-75330
37013-75330
|
|||
|
|
37013-75320
37013-75320
|
|||
|
|
37013-75310
37013-75310
|
|||
|
|
37013-75210
37013-75210
|
|||
|
|
01500-05041
01500-05041
|
|||
|
|
11060-04163
11060-04163
|
|||
|
|
64119-91310
64119-91310
|

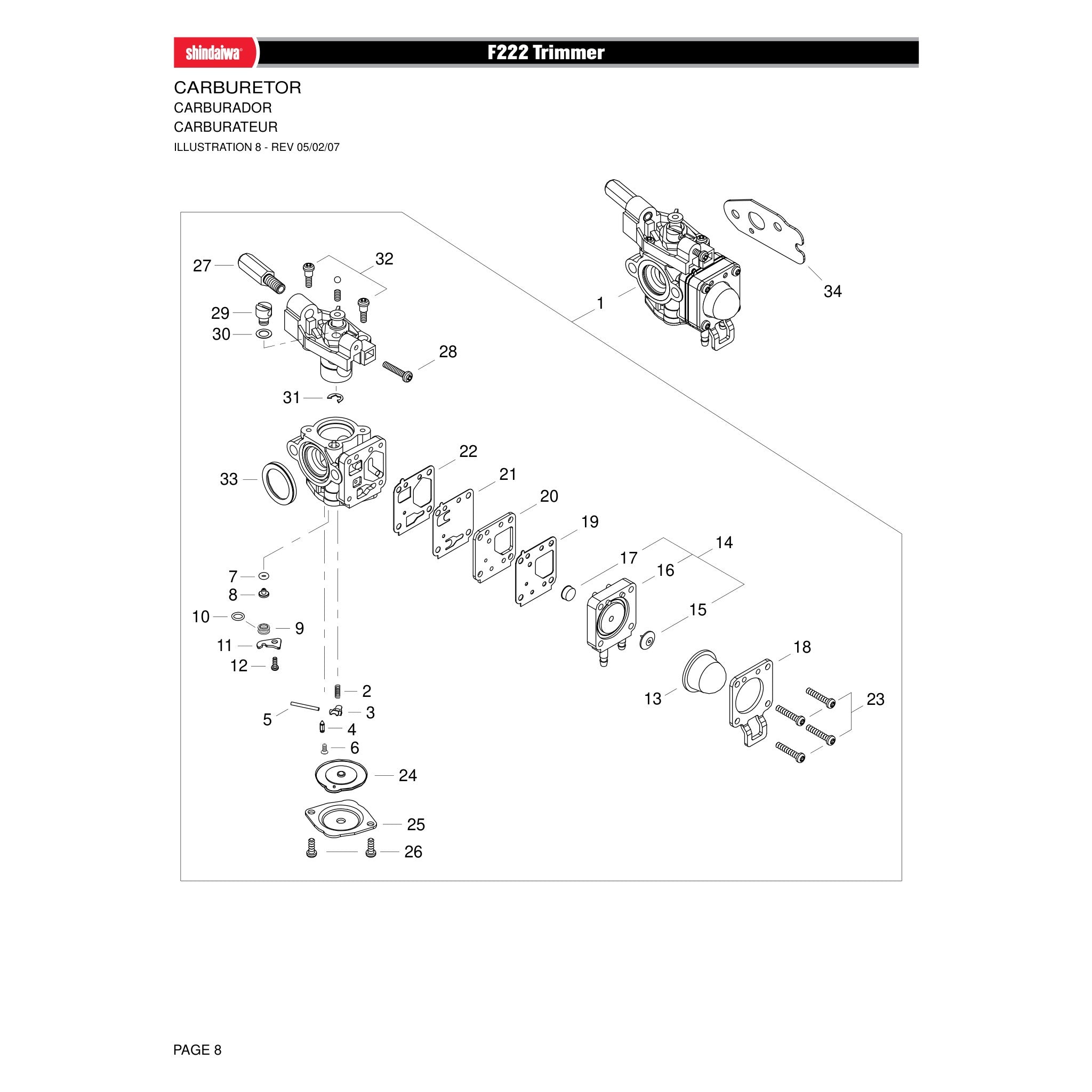

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62123-81010
62123-81010
|
|||
|
|
62123-81570
62123-81570
|
|||
|
|
62123-81560
62123-81560
|
|||
|
|
20019-81440
20019-81440
|
|||
|
|
20011-81460
20011-81460
|
|||
|
|
62123-81550
62123-81550
|
|||
|
|
62123-81540
62123-81540
|
|||
|
|
62123-81530
62123-81530
|
|||
|
|
62123-81520
62123-81520
|
|||
|
|
62123-81510
62123-81510
|
|||
|
|
62123-81500
62123-81500
|
|||
|
|
62123-81490
62123-81490
|
|||
|
|
68501-81460
68501-81460
|
|||
|
|
62123-81480
62123-81480
|
|||
|
|
68501-81340
68501-81340
|
|||
|
|
62123-81470
62123-81470
|
|||
|
|
62123-81460
62123-81460
|
|||
|
|
62123-81450
62123-81450
|
|||
|
|
62123-81440
62123-81440
|
|||
|
|
62123-81430
62123-81430
|
|||
|
|
62123-81420
62123-81420
|
|||
|
|
62123-81410
62123-81410
|
|||
|
|
62123-81400
62123-81400
|
|||
|
|
62123-81390
62123-81390
|
|||
|
|
62123-81380
62123-81380
|
|||
|
|
62123-81370
62123-81370
|
|||
|
|
62123-81360
62123-81360
|
|||
|
|
62123-81350
62123-81350
|
|||
|
|
62123-81340
62123-81340
|
|||
|
|
62123-81330
62123-81330
|
|||
|
|
62123-81320
62123-81320
|
|||
|
|
62123-81310
62123-81310
|
|||
|
|
20019-81280
20019-81280
|
|||
|
|
62100-81210
62100-81210
|

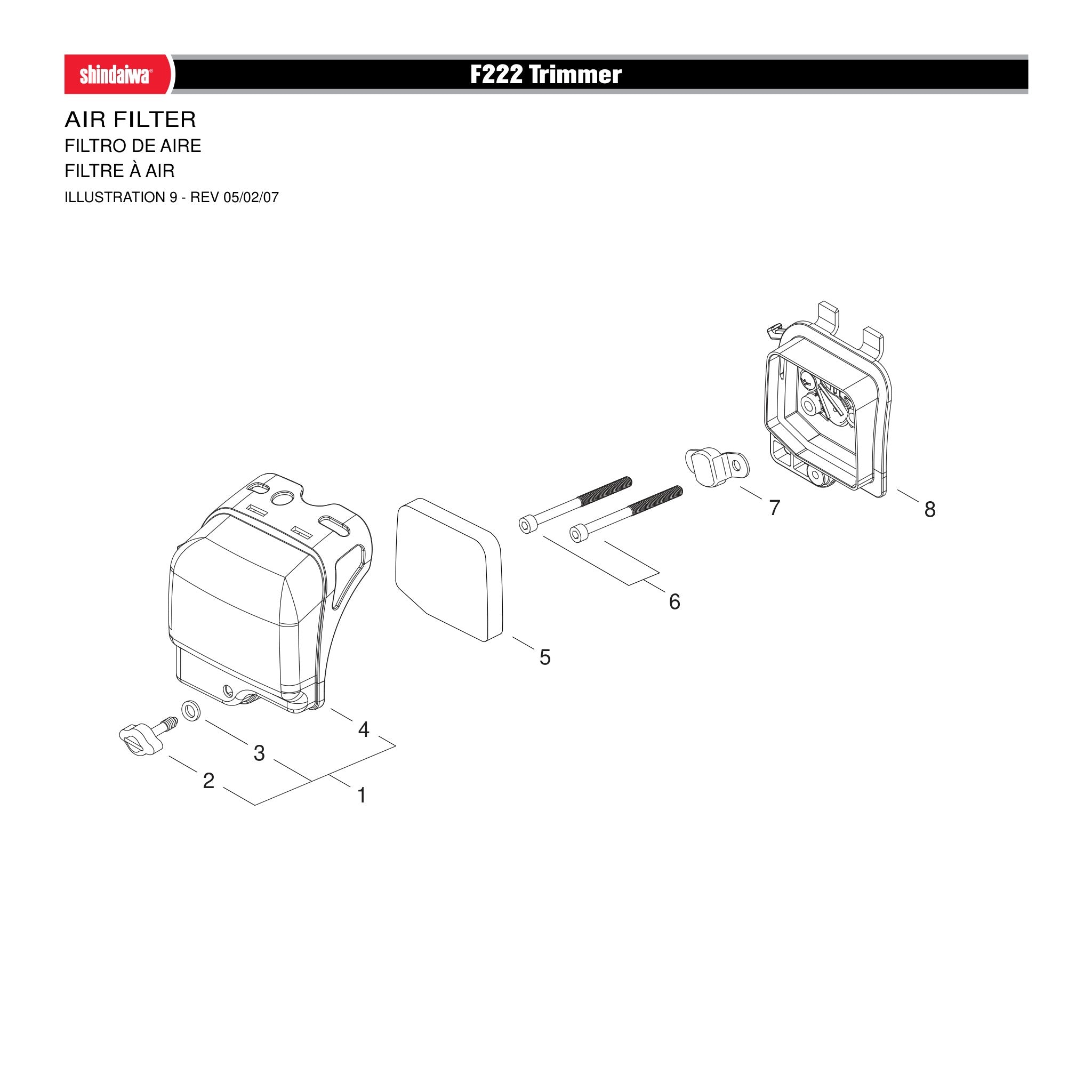

AIR FILTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62123-82030
62123-82030
|
|||
|
|
37033-82320
37033-82320
|
|||
|
|
23627-21220
23627-21220
|
|||
|
|
62123-82130
62123-82130
|
|||
|
|
62100-82120
62100-82120
|
|||
|
|
01020-05605
01020-05605
|
|||
|
|
62100-82310
62100-82310
|
|||
|
|
62100-82013
62100-82013
|
FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62117-85110
62117-85110
|

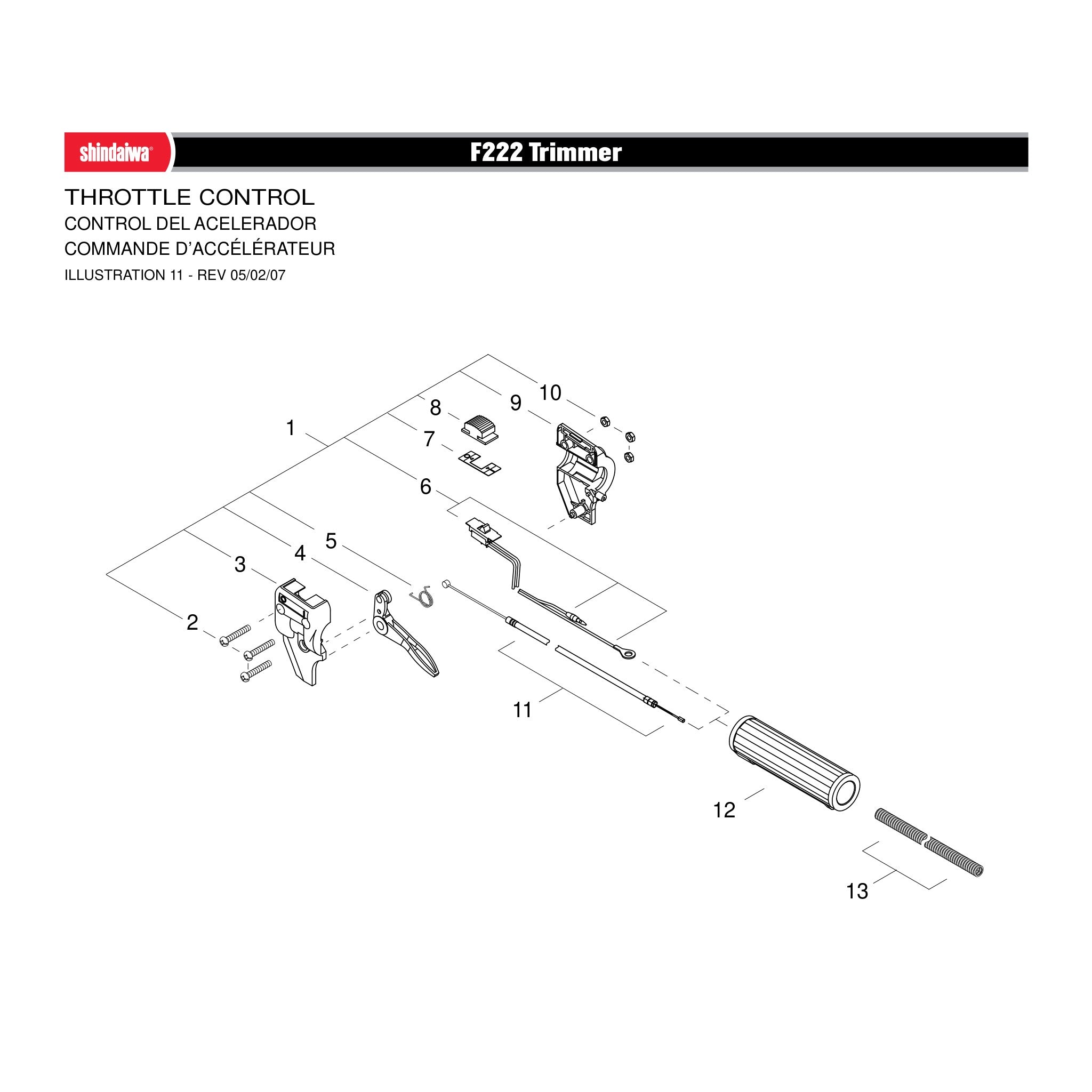

THROTTLE CONTROL
THROTTLE CONTROL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
67001-62160
67001-62160
|
|||
|
|
11206-05300
11206-05300
|
|||
|
|
72414-12641
72414-12641
|
|||
|
|
22410-14321
22410-14321
|
|||
|
|
22410-14331
22410-14331
|
|||
|
|
67000-62310
67000-62310
|
|||
|
|
22420-12940
22420-12940
|
|||
|
|
22420-12930
22420-12930
|
|||
|
|
72414-12612
72414-12612
|
|||
|
|
01501-05031
01501-05031
|
|||
|
|
37015-98010
37015-98010
|
|||
|
|
72414-12130
72414-12130
|
|||
|
|
63901-62440
63901-62440
|

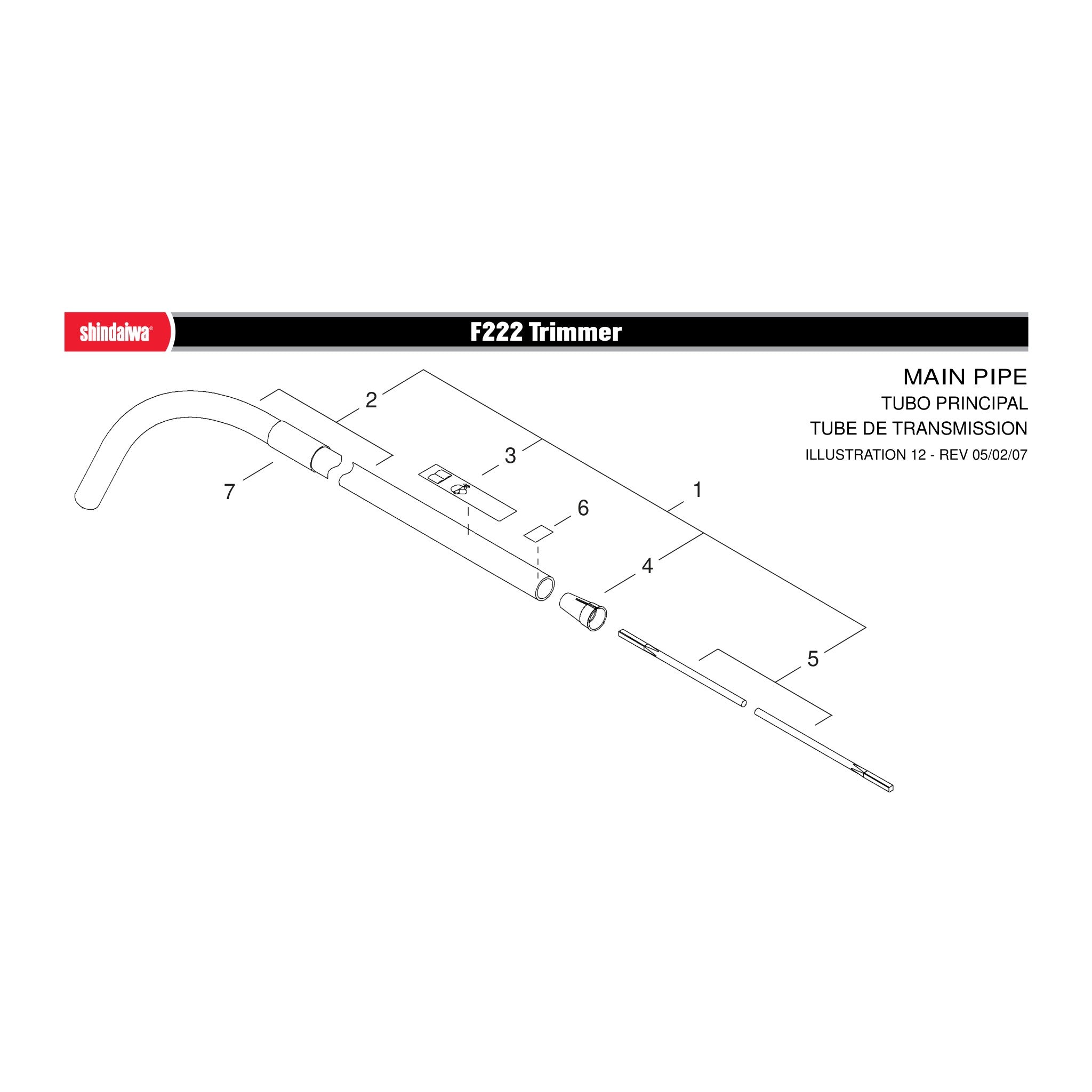

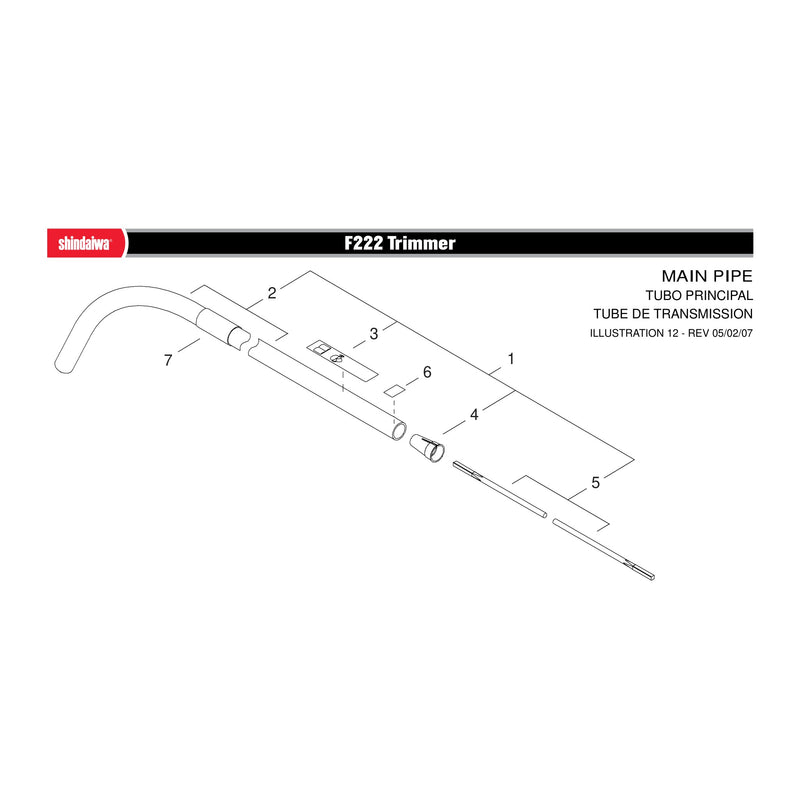

MAIN PIPE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
81356
81356
|
|||
|
|
81357
81357
|
|||
|
|
19422-00028
19422-00028
|
|||
|
|
67001-62320
67001-62320
|
|||
|
|
67001-62211
67001-62211
|
|||
|
|
19401-00269
19401-00269
|
|||
|
|
67001-31310
67001-31310
|
|||
|
|
62039-64011
62039-64011
|
|||
|
|
11022-05250
11022-05250
|
|||
|
|
62901-64322
62901-64322
|
|||
|
|
62901-64120
62901-64120
|

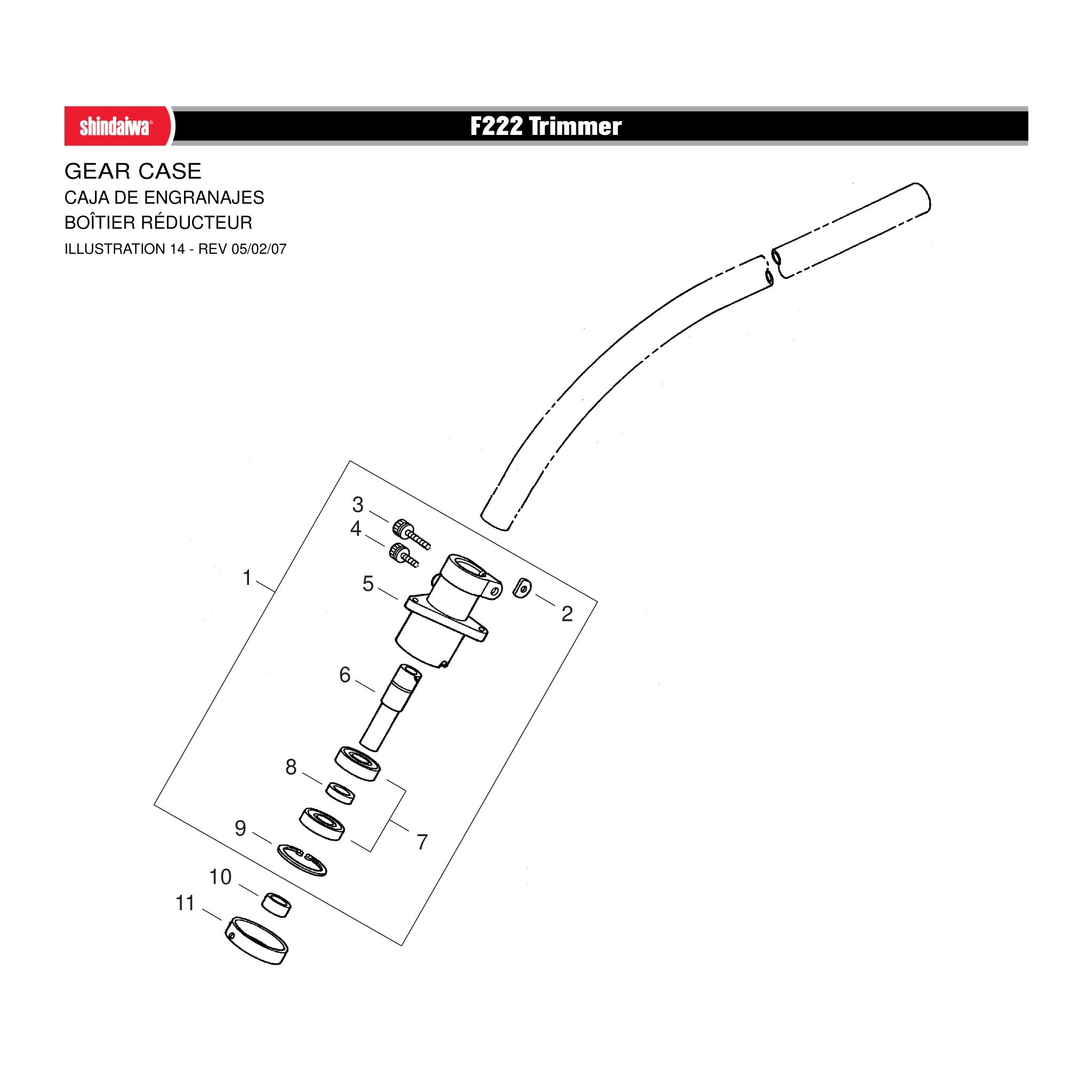

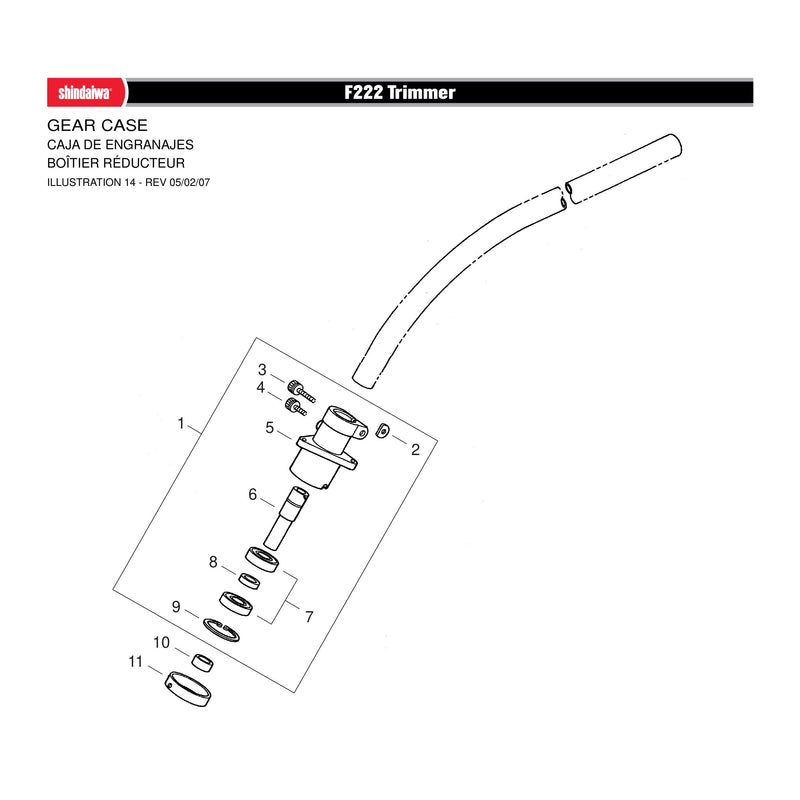

GEAR CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
67001-63010
67001-63010
|
|||
|
|
22000-13420
22000-13420
|
|||
|
|
11022-05250
11022-05250
|
|||
|
|
11022-05100
11022-05100
|
|||
|
|
72097-13110
72097-13110
|
|||
|
|
72414-13120
72414-13120
|
|||
|
|
02006-06001
02006-06001
|
|||
|
|
72030-13130
72030-13130
|
|||
|
|
02432-28120
02432-28120
|
|||
|
|
72030-13140
72030-13140
|
|||
|
|
72030-13151
72030-13151
|

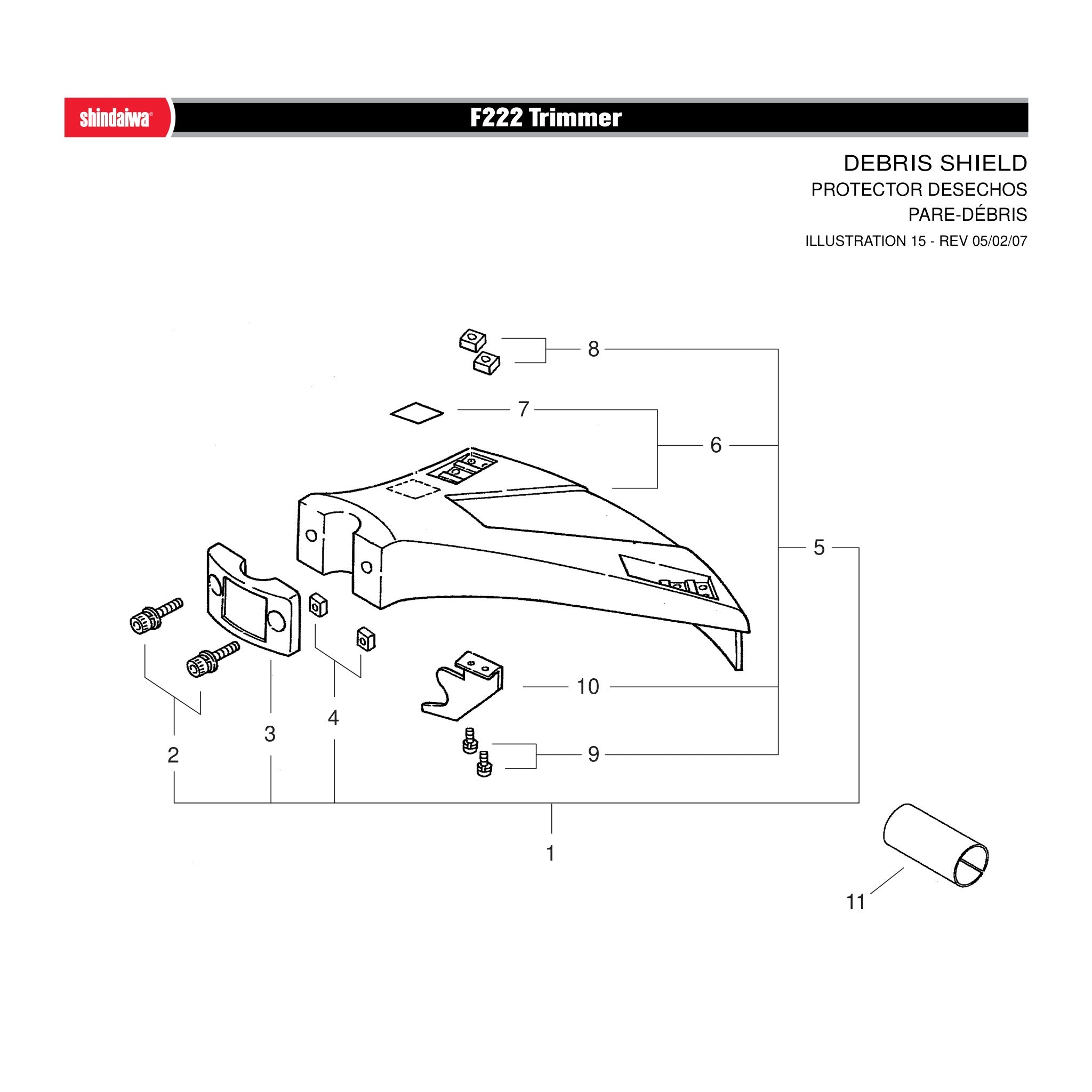

DEBRIS SHIELD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
64112-66311
64112-66311
|
|||
|
|
11022-05250
11022-05250
|
|||
|
|
64112-66330
64112-66330
|
|||
|
|
22420-16120
22420-16120
|
|||
|
|
64112-66341
64112-66341
|
|||
|
|
64112-66351
64112-66351
|
|||
|
|
72030-16140
72030-16140
|
|||
|
|
72030-16151
72030-16151
|
|||
|
|
11204-04160
11204-04160
|
|||
|
|
64112-66320
64112-66320
|
|||
|
|
67001-31310
67001-31310
|

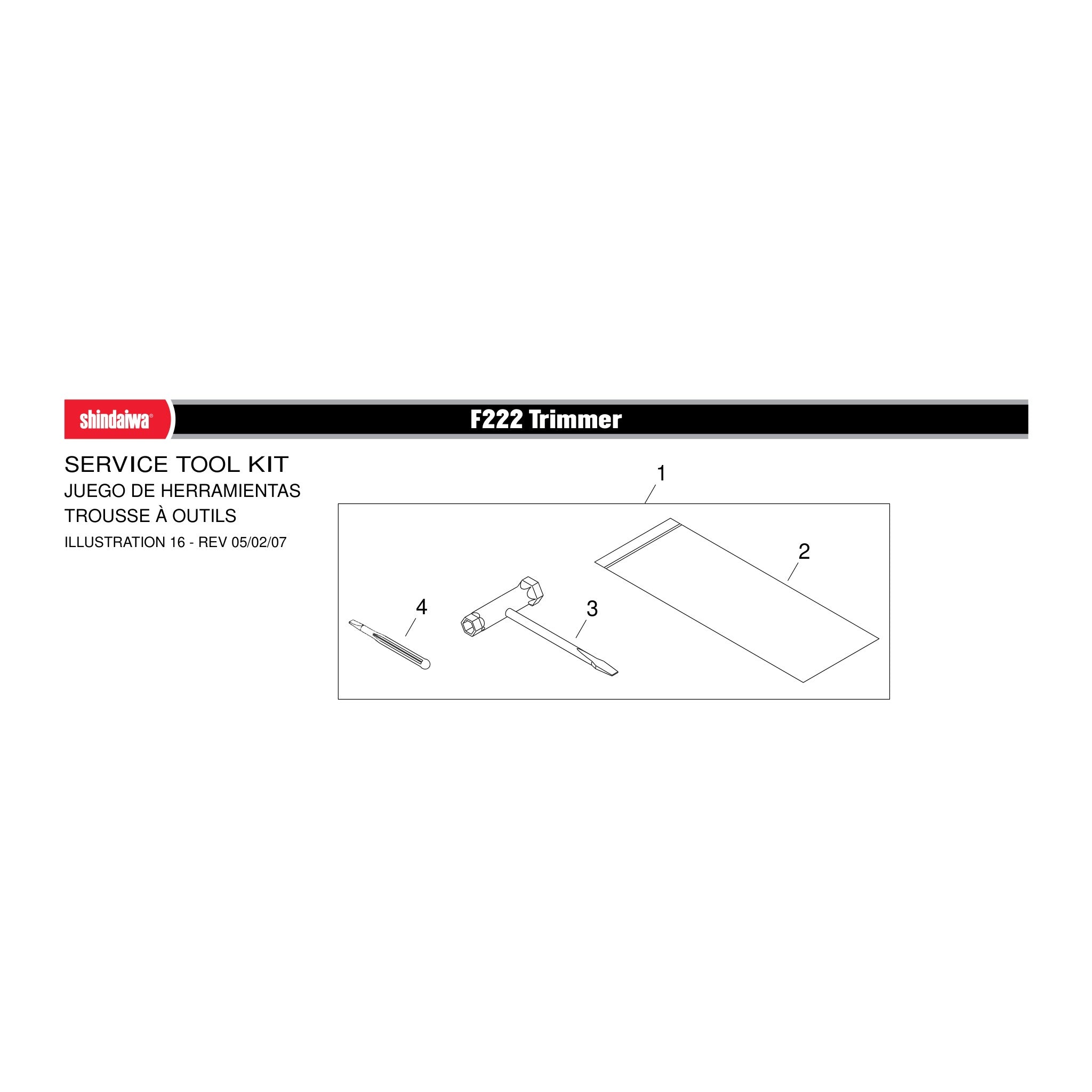

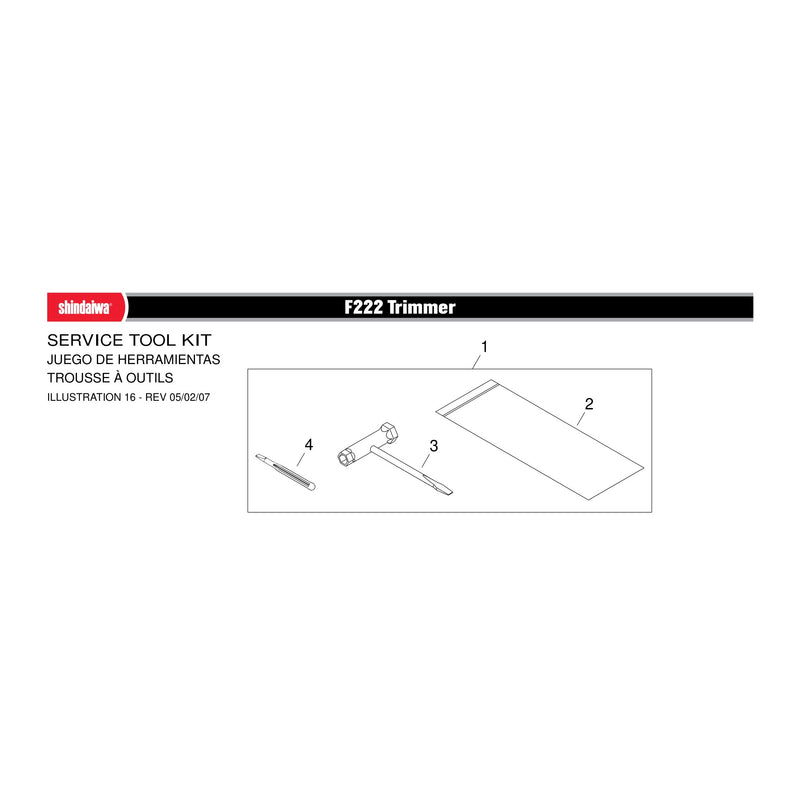

SERVICE TOOL KIT
SERVICE TOOL KIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
64114-92310
64114-92310
|
|||
|
|
19639-01400
19639-01400
|
|||
|
|
72320-91410
72320-91410
|
|||
|
|
62023-92010
62023-92010
|
