Shindaiwa GP450 Water Pump Parts Diagram
Diagrams:
Diagram:

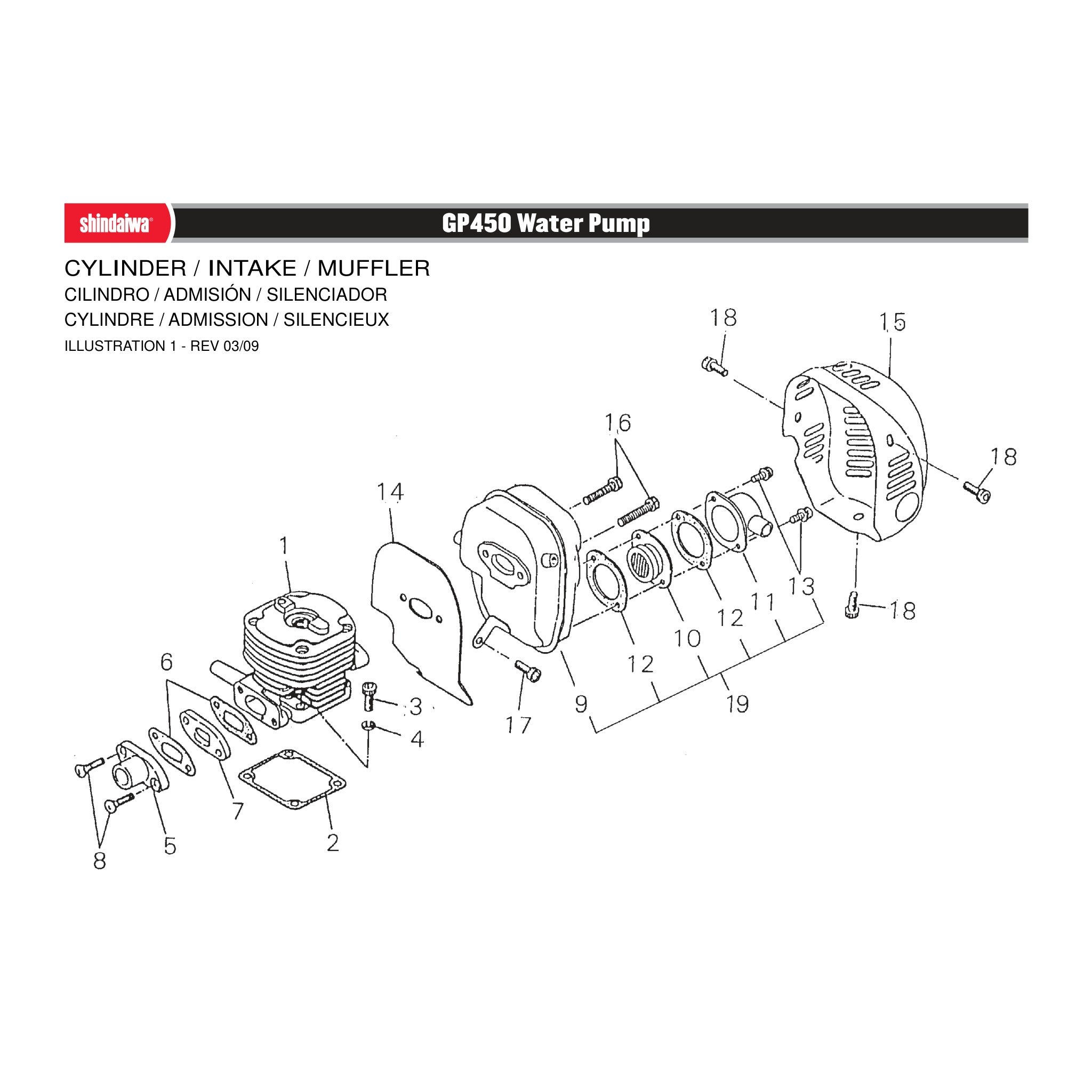

CYLINDER / INTAKE / MUFFLER
CYLINDER / INTAKE / MUFFLER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
70198-12110
70198-12110
|
|||
|
|
20010-12121
20010-12121
|
|||
|
|
01020-05250
01020-05250
|
|||
|
|
01600-05131
01600-05131
|
|||
|
|
72921-12211
72921-12211
|
|||
|
|
20051-12220
20051-12220
|
|||
|
|
20051-12230
20051-12230
|
|||
|
|
01200-05250
01200-05250
|
|||
|
|
72905-15100
72905-15100
|
|||
|
|
70080-15112
70080-15112
|
|||
|
|
72905-15120
72905-15120
|
|||
|
|
70080-15130
70080-15130
|
|||
|
|
70000-15141
70000-15141
|
|||
|
|
11206-04080
11206-04080
|
|||
|
|
20021-15210
20021-15210
|
|||
|
|
70025-15311
70025-15311
|
|||
|
|
01020-06250
01020-06250
|
|||
|
|
11024-05120
11024-05120
|
|||
|
|
11024-05100
11024-05100
|

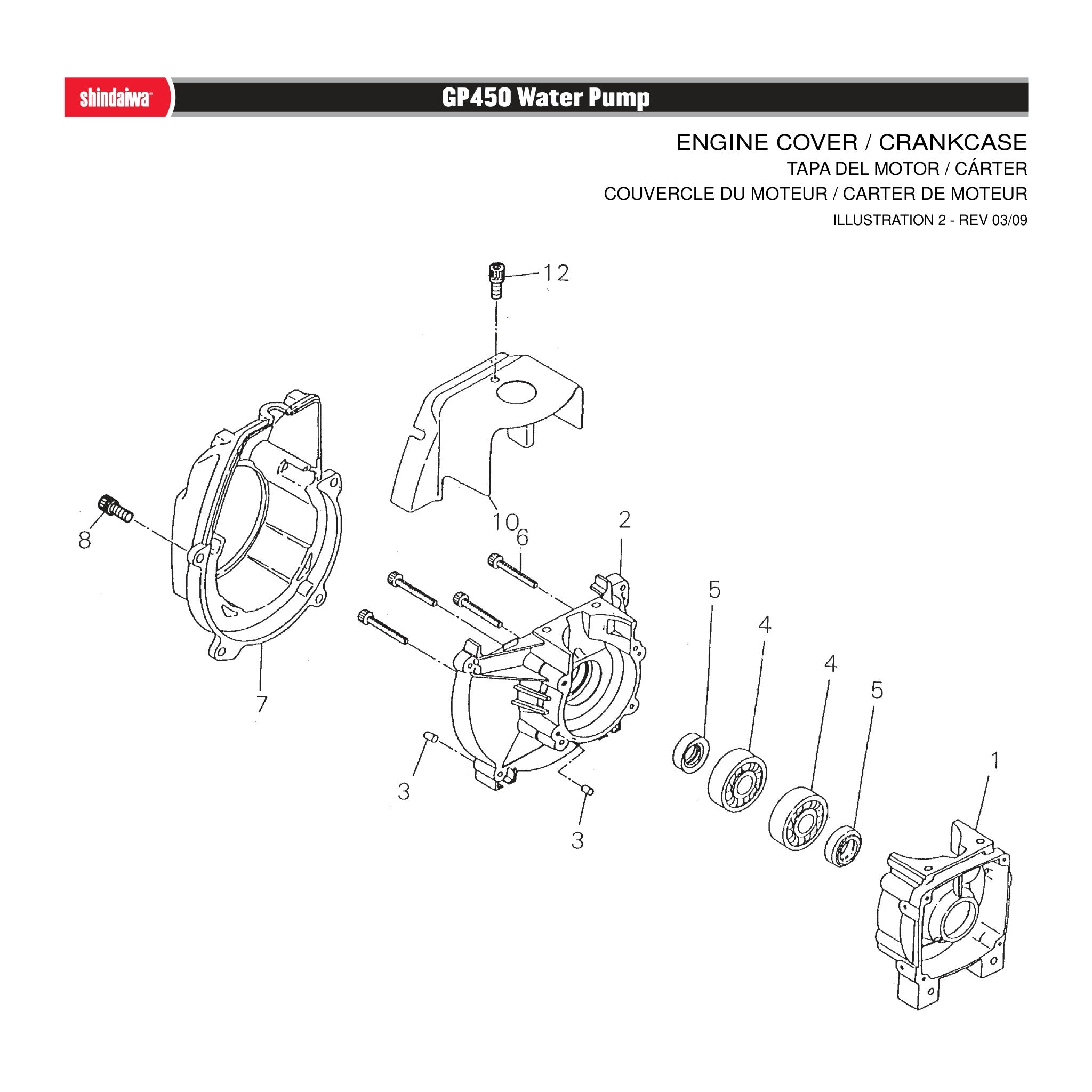

ENGINE COVER / CRANKCASE
ENGINE COVER / CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
72935-21111
72935-21111
|
|||
|
|
72921-21121
72921-21121
|
|||
|
|
12492-50100
12492-50100
|
|||
|
|
12900-62020
12900-62020
|
|||
|
|
20010-21211
20010-21211
|
|||
|
|
01020-05300
01020-05300
|
|||
|
|
20124-31110
20124-31110
|
|||
|
|
11022-05200
11022-05200
|
|||
|
|
20022-32110
20022-32110
|
|||
|
|
11024-05140
11024-05140
|

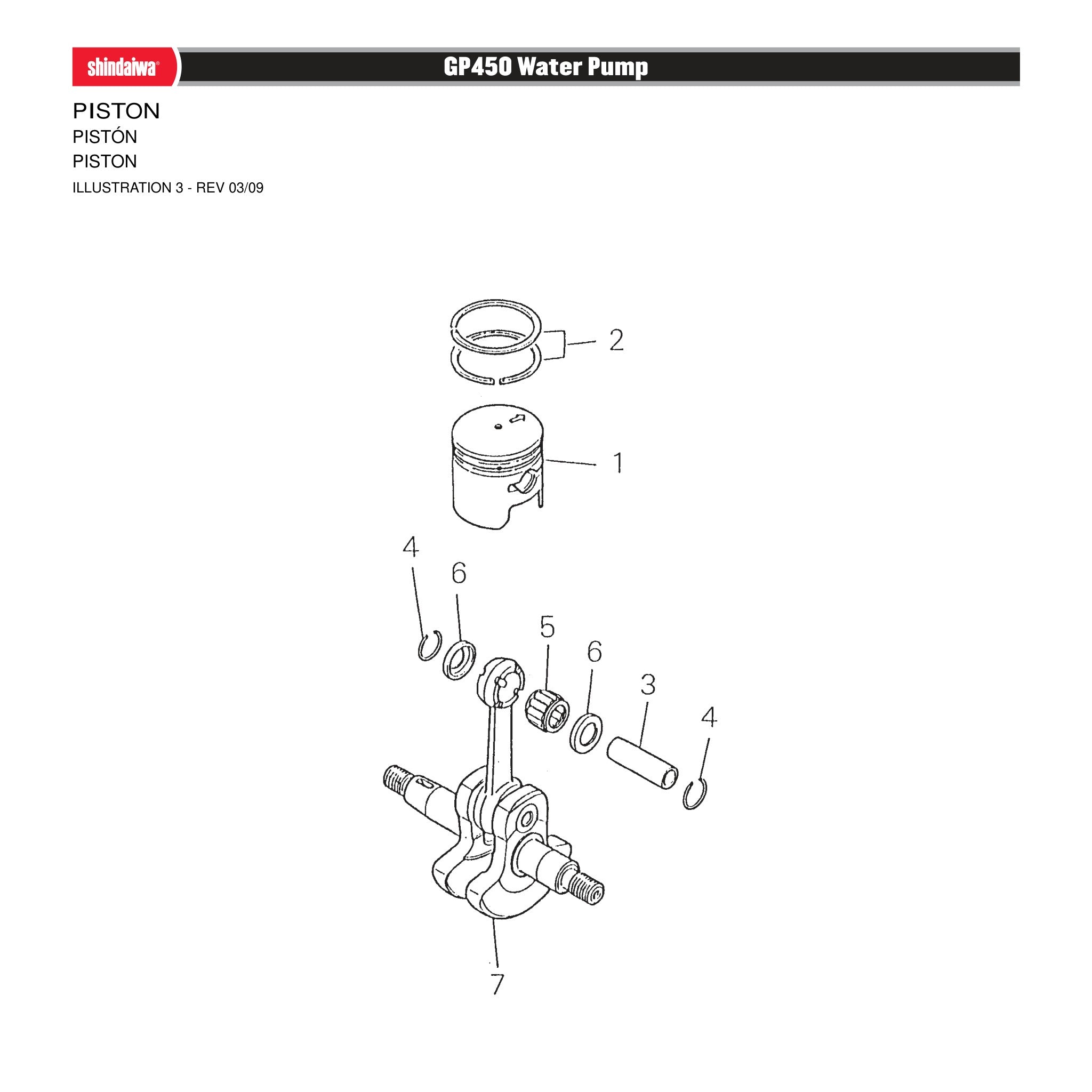

PISTON
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
20021-41113
20021-41113
|
|||
|
|
20021-41210
20021-41210
|
|||
|
|
20021-41311
20021-41311
|
|||
|
|
22152-41231
22152-41231
|
|||
|
|
20021-41330
20021-41330
|
|||
|
|
20021-41342
20021-41342
|
|||
|
|
20021-42002
20021-42002
|

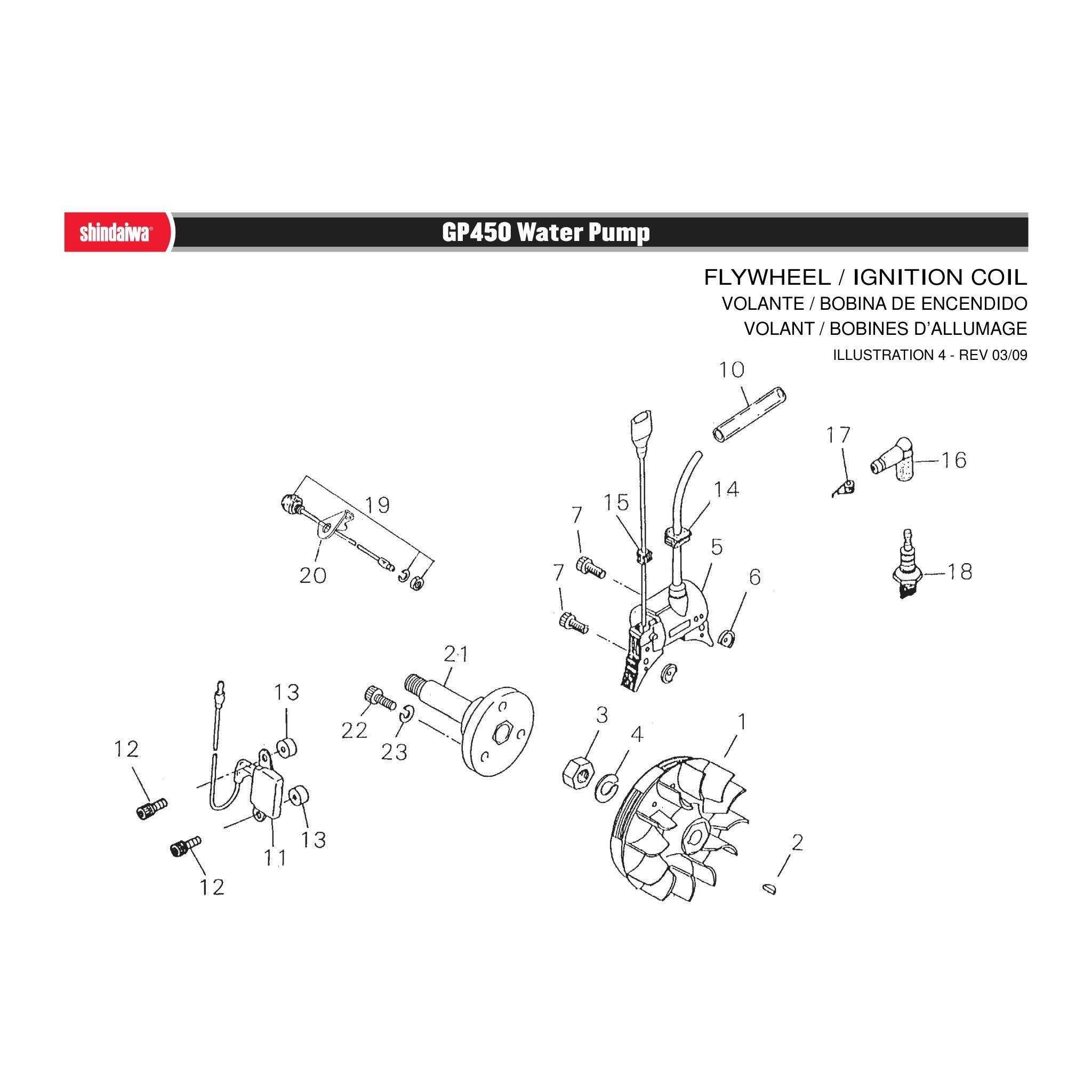

FLYWHEEL / IGNITION COIL
FLYWHEEL / IGNITION COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
20022-71200
20022-71200
|
|||
|
|
02403-03100
02403-03100
|
|||
|
|
01511-10061
01511-10061
|
|||
|
|
01600-10251
01600-10251
|
|||
|
|
NS
NS
|
|||
|
|
20010-71631
20010-71631
|
|||
|
|
11024-04261
11024-04261
|
|||
|
|
20011-71660
20011-71660
|
|||
|
|
20022-71700
20022-71700
|
|||
|
|
11024-04160
11024-04160
|
|||
|
|
70030-71620
70030-71620
|
|||
|
|
20011-72110
20011-72110
|
|||
|
|
20011-72120
20011-72120
|
|||
|
|
20010-72221
20010-72221
|
|||
|
|
20000-72230
20000-72230
|
|||
|
|
CJ8
CJ8
|
|||
|
|
22011-11411
22011-11411
|
|||
|
|
20124-72520
20124-72520
|
|||
|
|
20124-58110
20124-58110
|
|||
|
|
01020-06200
01020-06200
|
|||
|
|
01600-06150
01600-06150
|

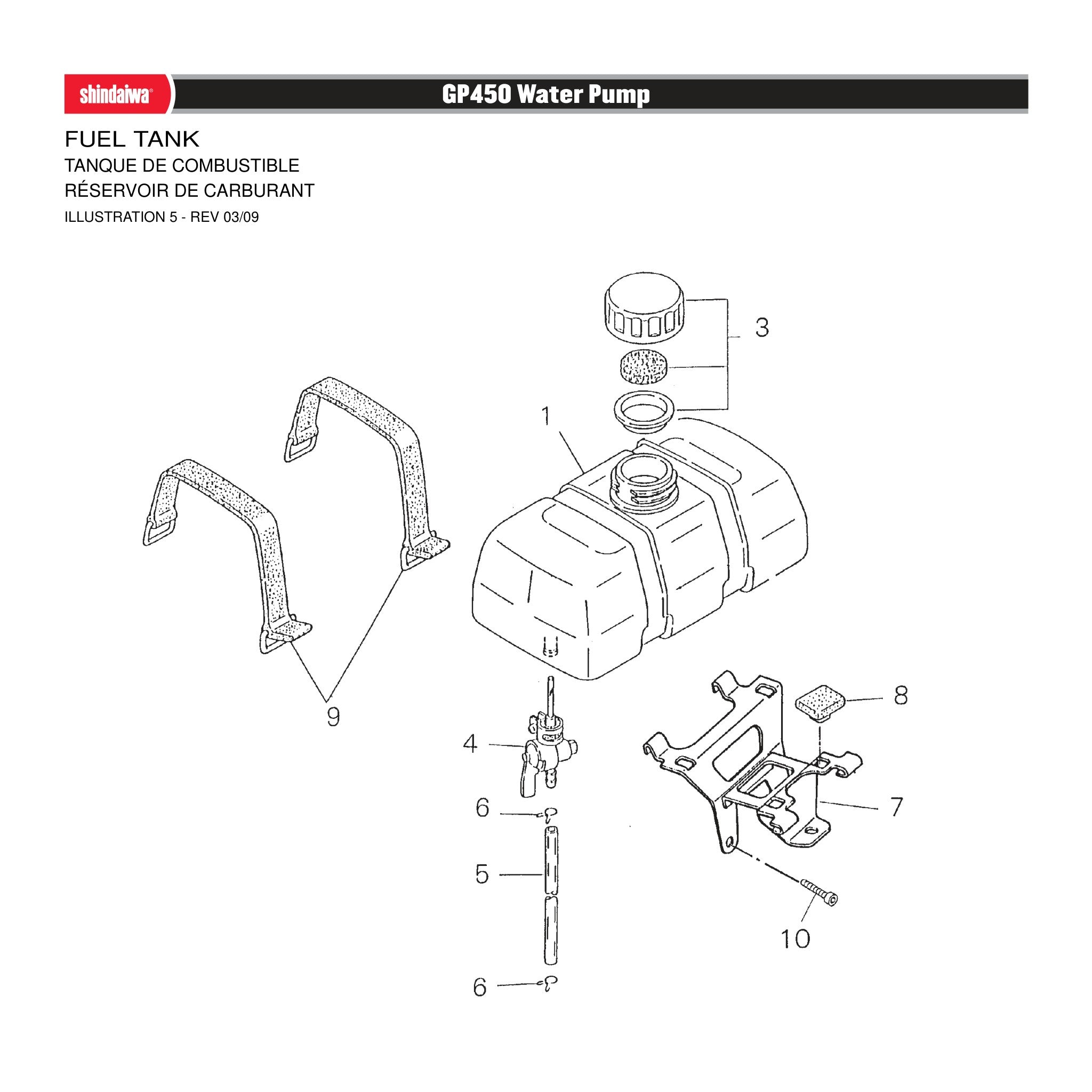

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
20022-85110
20022-85110
|
|||
|
|
20010-85201
20010-85201
|
|||
|
|
20010-85301
20010-85301
|
|||
|
|
20043-85410
20043-85410
|
|||
|
|
20000-85332
20000-85332
|
|||
|
|
20124-86110
20124-86110
|
|||
|
|
20003-86130
20003-86130
|
|||
|
|
20020-86140
20020-86140
|
|||
|
|
11022-05120
11022-05120
|

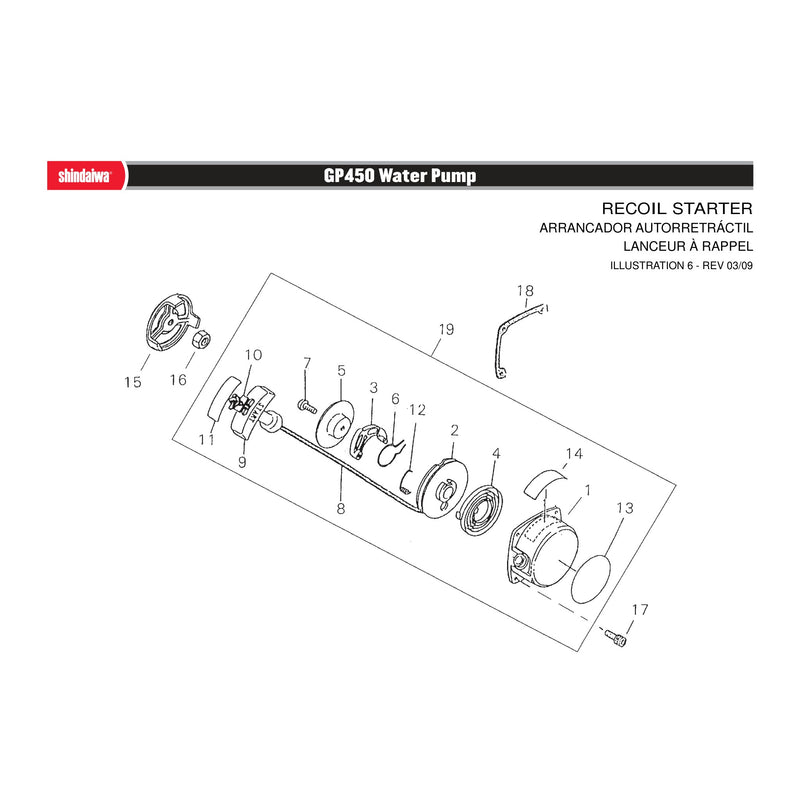

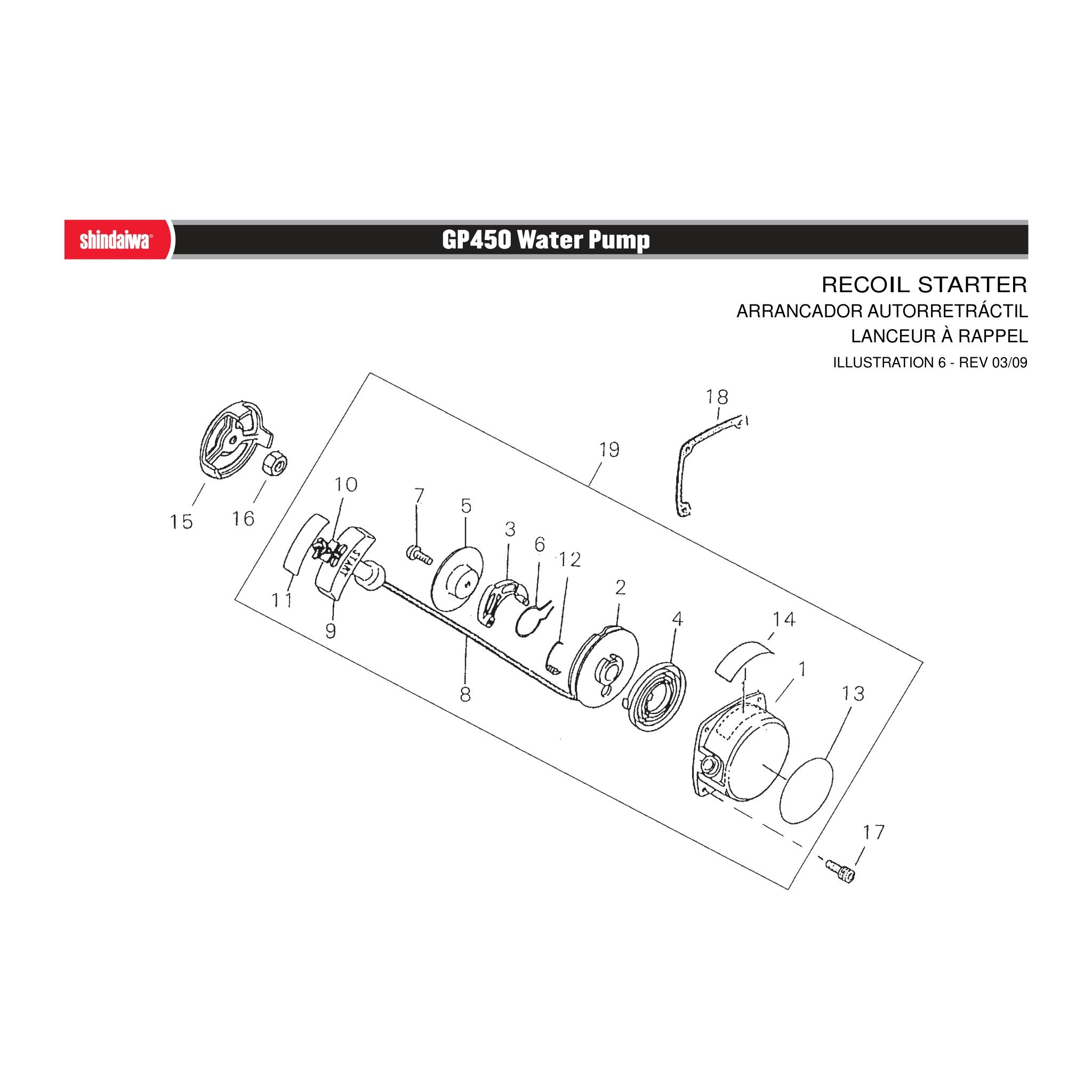

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
70211-75100
70211-75100
|
|||
|
|
70062-75110
70062-75110
|
|||
|
|
20020-75120
20020-75120
|
|||
|
|
20000-75130
20000-75130
|
|||
|
|
20020-75140
20020-75140
|
|||
|
|
20000-75150
20000-75150
|
|||
|
|
20000-75160
20000-75160
|
|||
|
|
20000-75170
20000-75170
|
|||
|
|
20020-75180
20020-75180
|
|||
|
|
20010-75190
20010-75190
|
|||
|
|
20010-75210
20010-75210
|
|||
|
|
20010-75230
20010-75230
|
|||
|
|
20000-75220
20000-75220
|
|||
|
|
70211-75240
70211-75240
|
|||
|
|
20010-75230
20010-75230
|
|||
|
|
70000-75230
70000-75230
|
|||
|
|
20000-76210
20000-76210
|
|||
|
|
11022-04160
11022-04160
|
|||
|
|
20020-76111
20020-76111
|

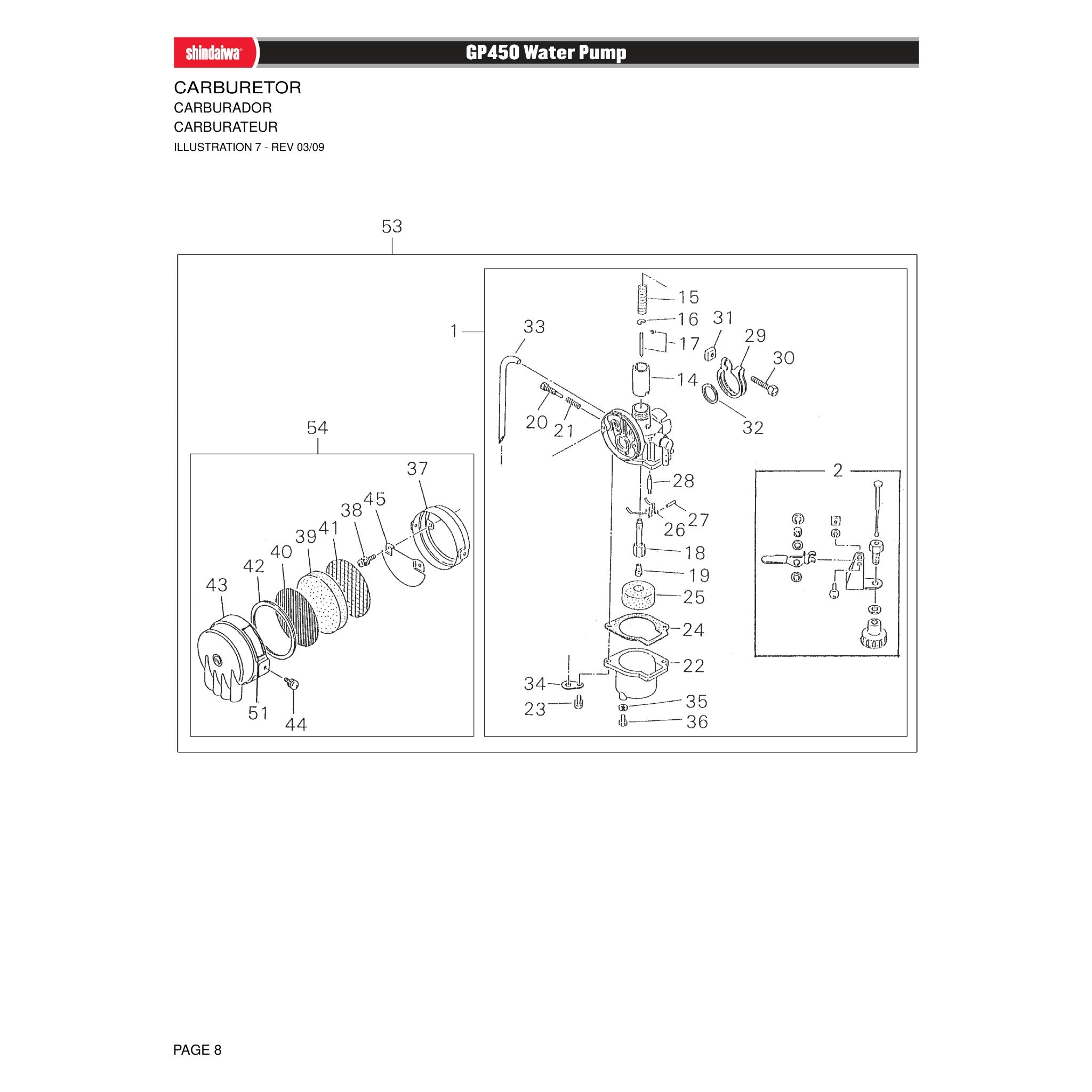

CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
20124-81000
20124-81000
|
|||
|
|
20124-81020
20124-81020
|
|||
|
|
20022-81800
20022-81800
|
|||
|
|
20124-81180
20124-81180
|
|||
|
|
20022-81170
20022-81170
|
|||
|
|
20020-81150
20020-81150
|
|||
|
|
20124-81210
20124-81210
|
|||
|
|
20124-81230
20124-81230
|
|||
|
|
20010-81240
20010-81240
|
|||
|
|
20000-81310
20000-81310
|
|||
|
|
72920-81820
72920-81820
|
|||
|
|
20022-81310
20022-81310
|
|||
|
|
20010-81320
20010-81320
|
|||
|
|
72921-81330
72921-81330
|
|||
|
|
72921-81340
72921-81340
|
|||
|
|
72921-81350
72921-81350
|
|||
|
|
72921-81360
72921-81360
|
|||
|
|
72921-81380
72921-81380
|
|||
|
|
20022-81510
20022-81510
|
|||
|
|
20022-81520
20022-81520
|
|||
|
|
20022-81530
20022-81530
|
|||
|
|
72921-81570
72921-81570
|
|||
|
|
72921-81920
72921-81920
|
|||
|
|
20001-81910
20001-81910
|
|||
|
|
20010-81550
20010-81550
|
|||
|
|
20010-81560
20010-81560
|
|||
|
|
20001-81240
20001-81240
|
|||
|
|
20022-81700
20022-81700
|
|||
|
|
20000-81710
20000-81710
|
|||
|
|
20000-81730
20000-81730
|
|||
|
|
20000-81740
20000-81740
|
|||
|
|
20000-81750
20000-81750
|
|||
|
|
20010-81760
20010-81760
|
|||
|
|
20000-81760
20000-81760
|
|||
|
|
20000-81770
20000-81770
|
|||
|
|
20000-81735
20000-81735
|
|||
|
|
20022-81790
20022-81790
|
|||
|
|
19404-00008
19404-00008
|

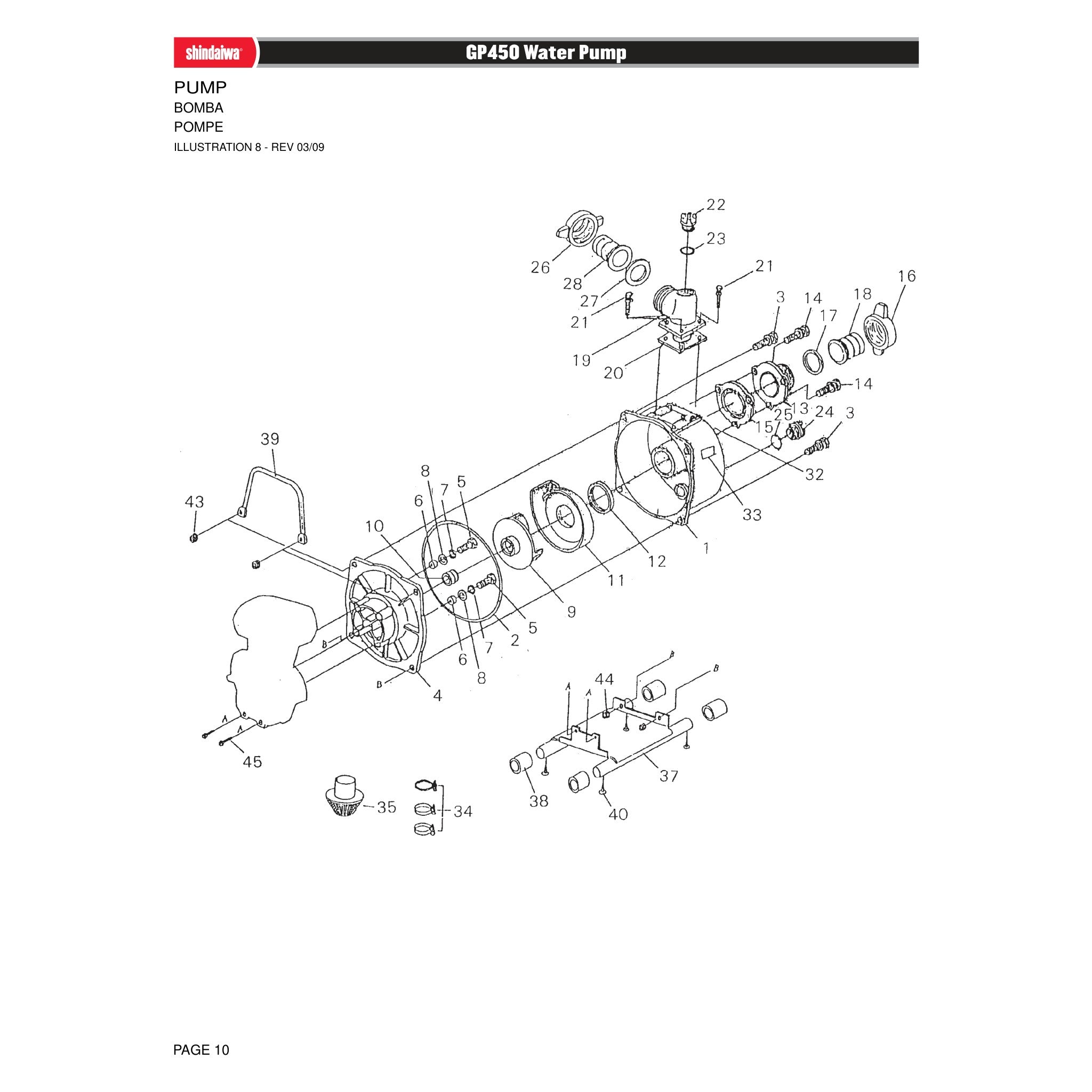

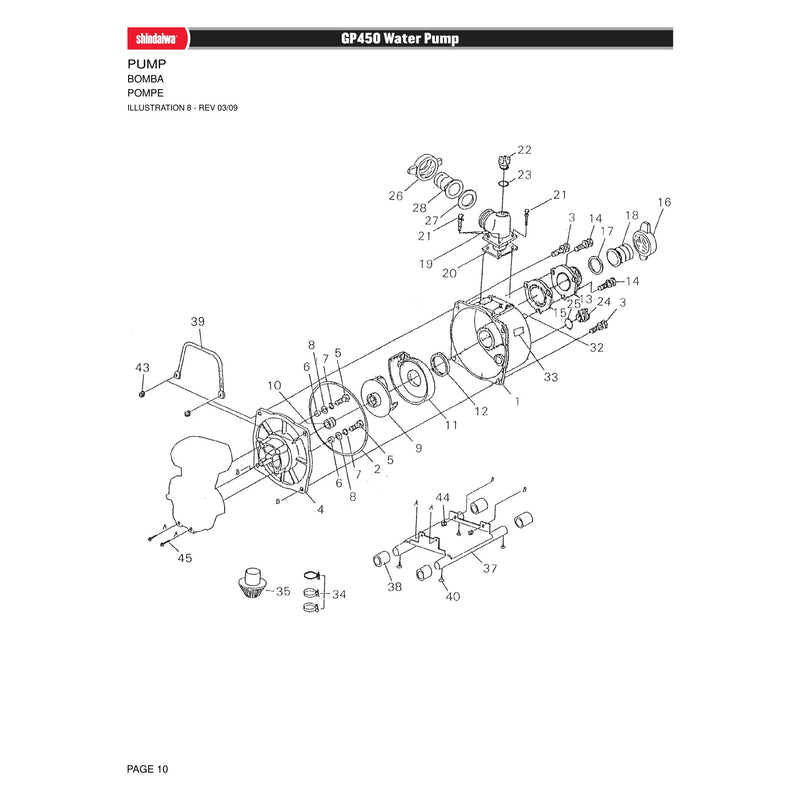

PUMP
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
403-001
403-001
|
|||
|
|
401-002
401-002
|
|||
|
|
501-014
501-014
|
|||
|
|
403-004
403-004
|
|||
|
|
501-005
501-005
|
|||
|
|
501-006
501-006
|
|||
|
|
501-007
501-007
|
|||
|
|
501-008
501-008
|
|||
|
|
405-009
405-009
|
|||
|
|
401-010
401-010
|
|||
|
|
405-011
405-011
|
|||
|
|
403-012
403-012
|
|||
|
|
401-013
401-013
|
|||
|
|
403-014
403-014
|
|||
|
|
401-015
401-015
|
|||
|
|
401-016
401-016
|
|||
|
|
401-017
401-017
|
|||
|
|
401-018
401-018
|
|||
|
|
403-019
403-019
|
|||
|
|
403-020
403-020
|
|||
|
|
403-014
403-014
|
|||
|
|
22906-99010
22906-99010
|
|||
|
|
501-022
501-022
|
|||
|
|
22906-99010
22906-99010
|
|||
|
|
501-022
501-022
|
|||
|
|
401-016
401-016
|
|||
|
|
401-017
401-017
|
|||
|
|
401-018
401-018
|
|||
|
|
401-026
401-026
|
|||
|
|
406-027
406-027
|
|||
|
|
401-032
401-032
|
|||
|
|
405-033
405-033
|
|||
|
|
405-036
405-036
|
|||
|
|
401-038
401-038
|
|||
|
|
405-030
405-030
|
|||
|
|
401-037
401-037
|
|||
|
|
1001-024
1001-024
|
|||
|
|
501-024
501-024
|
|||
|
|
405-034
405-034
|

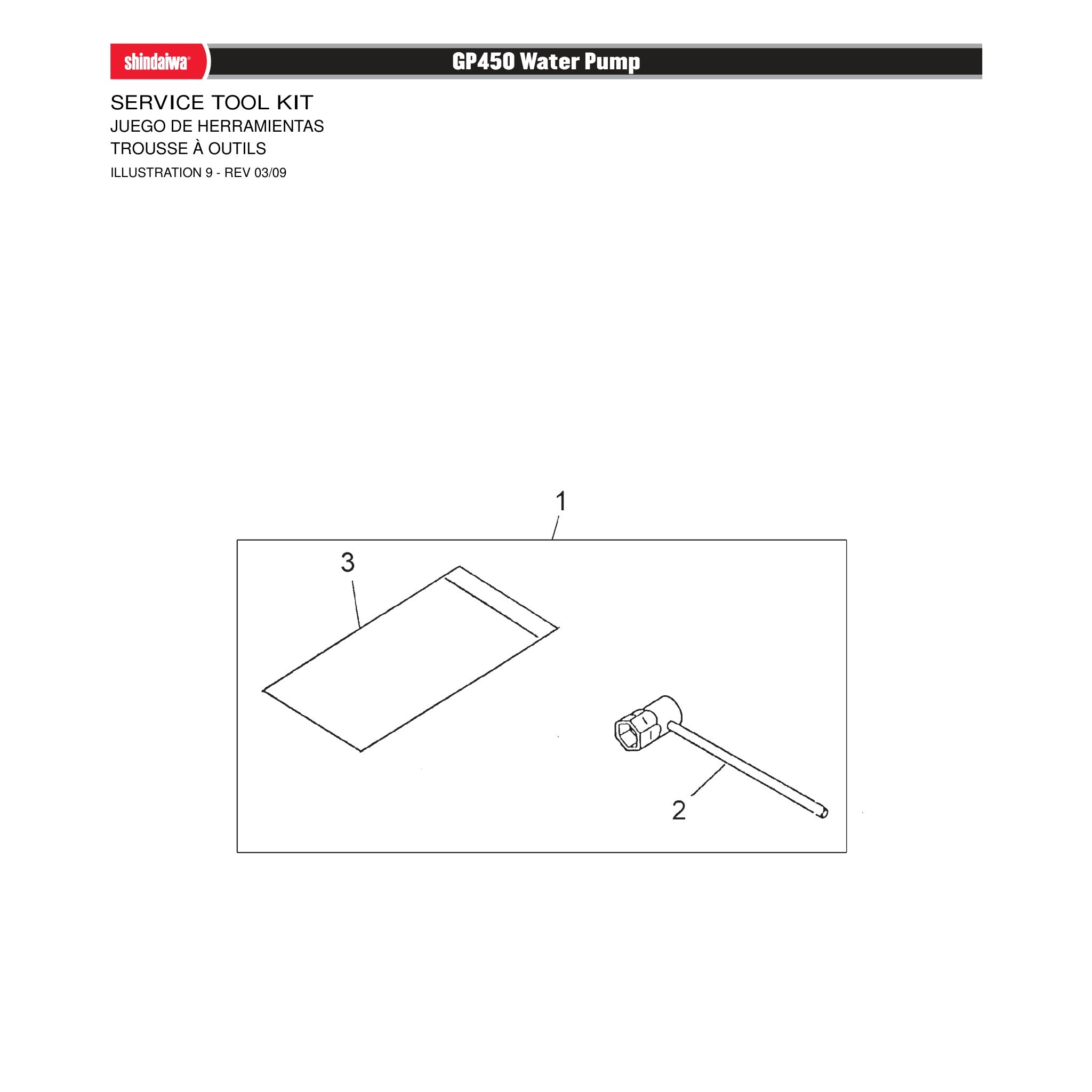

SERVICE TOOL KIT
SERVICE TOOL KIT
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
70110-91100
70110-91100
|
|||
|
|
22900-91180
22900-91180
|
|||
|
|
19639-01100
19639-01100
|
