Shindaiwa P231 Pole Pruner Parts Diagram
Diagrams:
Diagram:

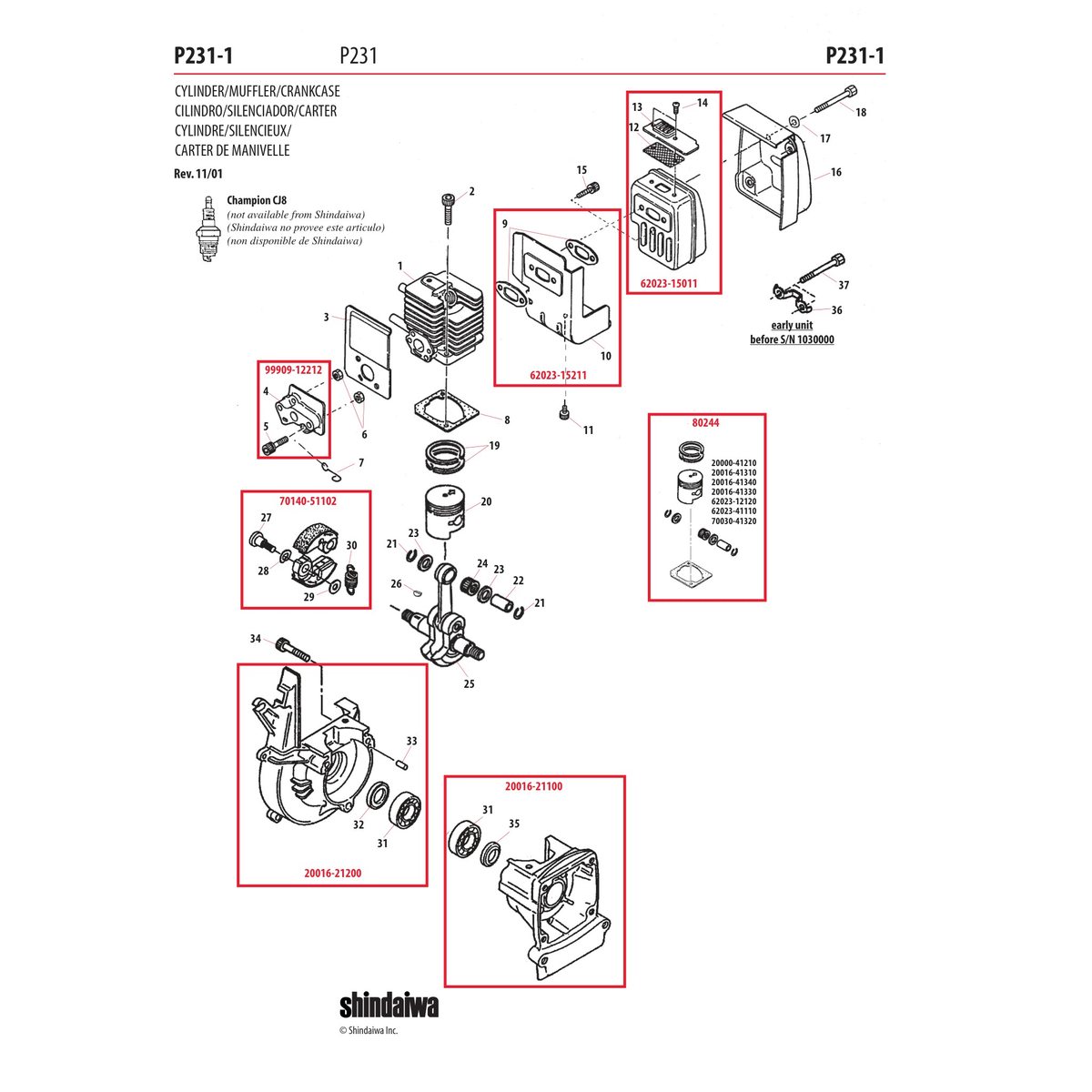

CYLINDER/MUFFLER/CRANKCASE
CYLINDER/MUFFLER/CRANKCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62023-12110 CYLINDER
62023-12110 CYLINDER
|
|||
|
|
01020-05250 BOLT
01020-05250 BOLT
|
|||
|
|
62023-12220 GASKET
62023-12220 GASKET
|
|||
|
|
99909-12212
99909-12212
|
|||
|
|
20016-12212
20016-12212
|
|||
|
|
11022-05300
11022-05300
|
|||
|
|
20011-12260
20011-12260
|
|||
|
|
20016-12310 VALVE HOLDER
20016-12310 VALVE HOLDER
|
|||
|
|
62023-12120 GASKET, CYLINDER
62023-12120 GASKET, CYLINDER
|
|||
|
|
62023-15430 GASKET, MUFFLER
62023-15430 GASKET, MUFFLER
|
|||
|
|
62023-15421 GASKET
62023-15421 GASKET
|
|||
|
|
01020-05080
01020-05080
|
|||
|
|
62023-15011
62023-15011
|
|||
|
|
62023-15130
62023-15130
|
|||
|
|
62023-15160
62023-15160
|
|||
|
|
11203-04060
11203-04060
|
|||
|
|
01020-05200 BOLT
01020-05200 BOLT
|
|||
|
|
62023-15380 MUFFLER, COVER
62023-15380 MUFFLER, COVER
|
|||
|
|
01610-05085 WASHER
01610-05085 WASHER
|
|||
|
|
01020-05605 BOLT
01020-05605 BOLT
|
|||
|
|
80244 (KIT)
80244 (KIT)
|
|||
|
|
20000-41210
20000-41210
|
|||
|
|
62023-41110
62023-41110
|
|||
|
|
70030-41320
70030-41320
|
|||
|
|
20016-41310
20016-41310
|
|||
|
|
20016-41340
20016-41340
|
|||
|
|
20016-41330
20016-41330
|
|||
|
|
62023-12120
62023-12120
|
|||
|
|
20016-42002 CRANKSHAFT ASSY.
20016-42002 CRANKSHAFT ASSY.
|
|||
|
|
02403-03100 KEY
02403-03100 KEY
|
|||
|
|
70140-51102
70140-51102
|
|||
|
|
20087-51210
20087-51210
|
|||
|
|
20087-51231
20087-51231
|
|||
|
|
22100-71430
22100-71430
|
|||
|
|
70140-51220
70140-51220
|
|||
|
|
20016-21200
20016-21200
|
|||
|
|
12900-60010
12900-60010
|
|||
|
|
20000-21211
20000-21211
|
|||
|
|
12492-40080
12492-40080
|
|||
|
|
01020-05250 BOLT
01020-05250 BOLT
|
|||
|
|
20016-21100
20016-21100
|
|||
|
|
12900-60010
12900-60010
|
|||
|
|
22150-21250
22150-21250
|
|||
|
|
62023-15390
62023-15390
|
|||
|
|
62023-15410
62023-15410
|

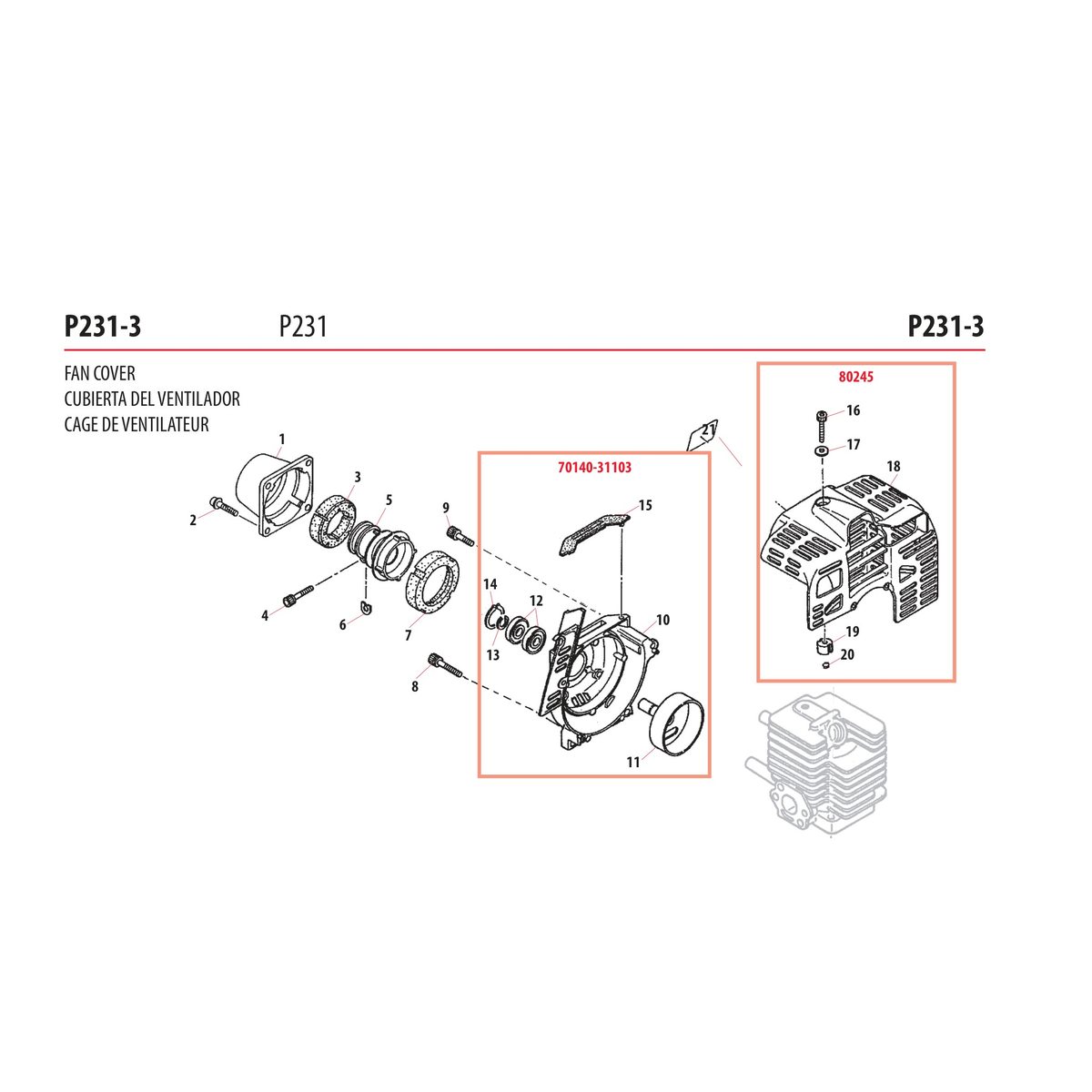

FAN COVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
CAP
CAP
|
|||
|
|
BOLT
BOLT
|
|||
|
|
FRONT CUSHION
FRONT CUSHION
|
|||
|
|
BOLT
BOLT
|
|||
|
|
JOINT
JOINT
|
|||
|
|
SHIM
SHIM
|
|||
|
|
REAR CUSHION
REAR CUSHION
|
|||
|
|
BOLT
BOLT
|
|||
|
|
BOLT
BOLT
|
|||
|
|
FAN COVER ASSY.
FAN COVER ASSY.
|
|||
|
|
FAN COVER
FAN COVER
|
|||
|
|
CLUTCH DRUM
CLUTCH DRUM
|
|||
|
|
BEARING
BEARING
|
|||
|
|
SNAP RING
SNAP RING
|
|||
|
|
SNAP RING
SNAP RING
|
|||
|
|
CUSHION
CUSHION
|
|||
|
|
BOLT
BOLT
|
|||
|
|
WASHER
WASHER
|
|||
|
|
CYLINDER COVER
CYLINDER COVER
|
|||
|
|
INSULATOR
INSULATOR
|
|||
|
|
CLIP
CLIP
|
|||
|
|
LABEL, MODEL
LABEL, MODEL
|

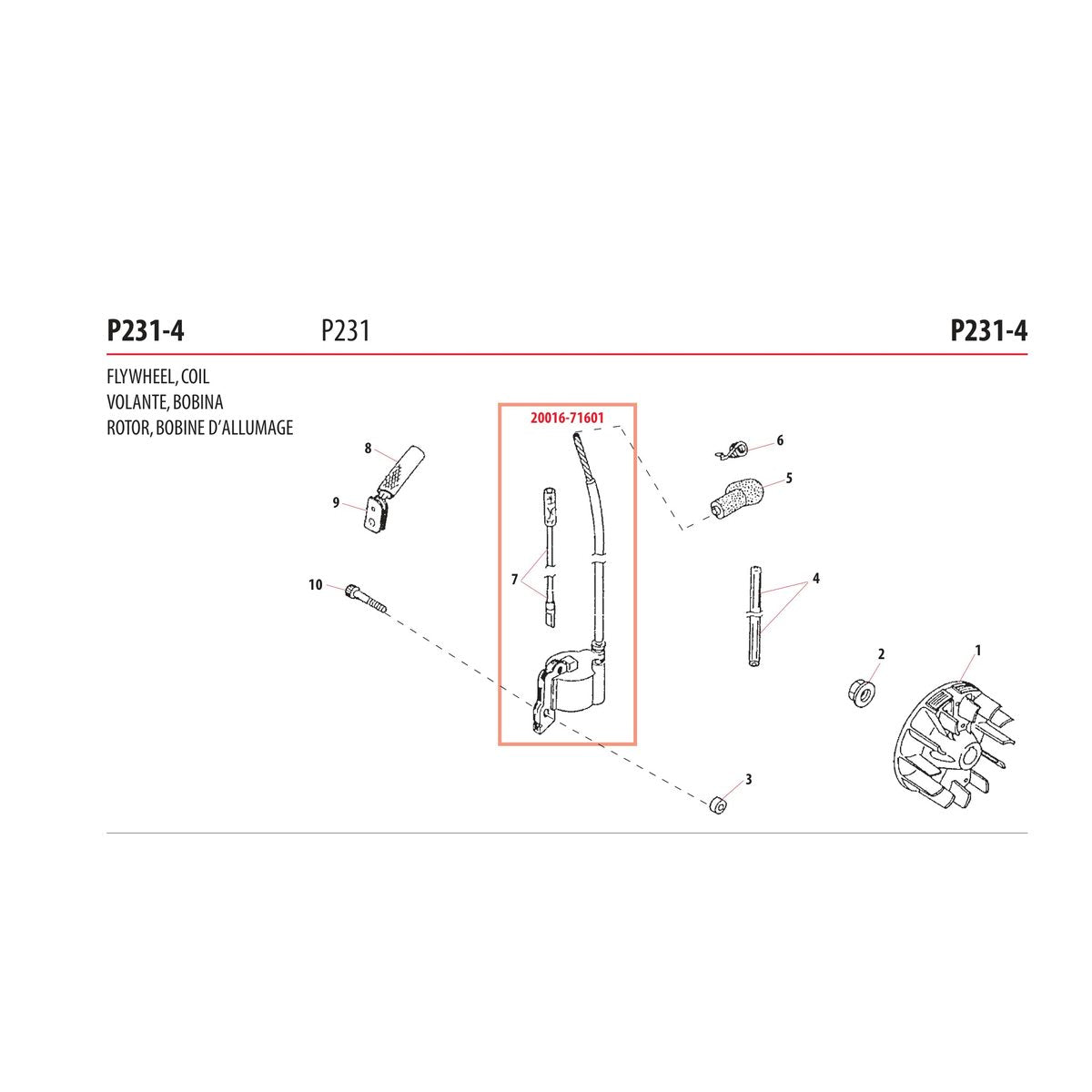

FLYWHEEL, COIL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
20016-71200
20016-71200
|
|||
|
|
20035-71220
20035-71220
|
|||
|
|
70030-71620
70030-71620
|
|||
|
|
20016-71660
20016-71660
|
|||
|
|
22102-72220
22102-72220
|
|||
|
|
20000-72230
20000-72230
|
|||
|
|
20016-71601
20016-71601
|
|||
|
|
20016-71641
20016-71641
|
|||
|
|
20016-71651
20016-71651
|
|||
|
|
20010-72110
20010-72110
|
|||
|
|
11024-04261
11024-04261
|

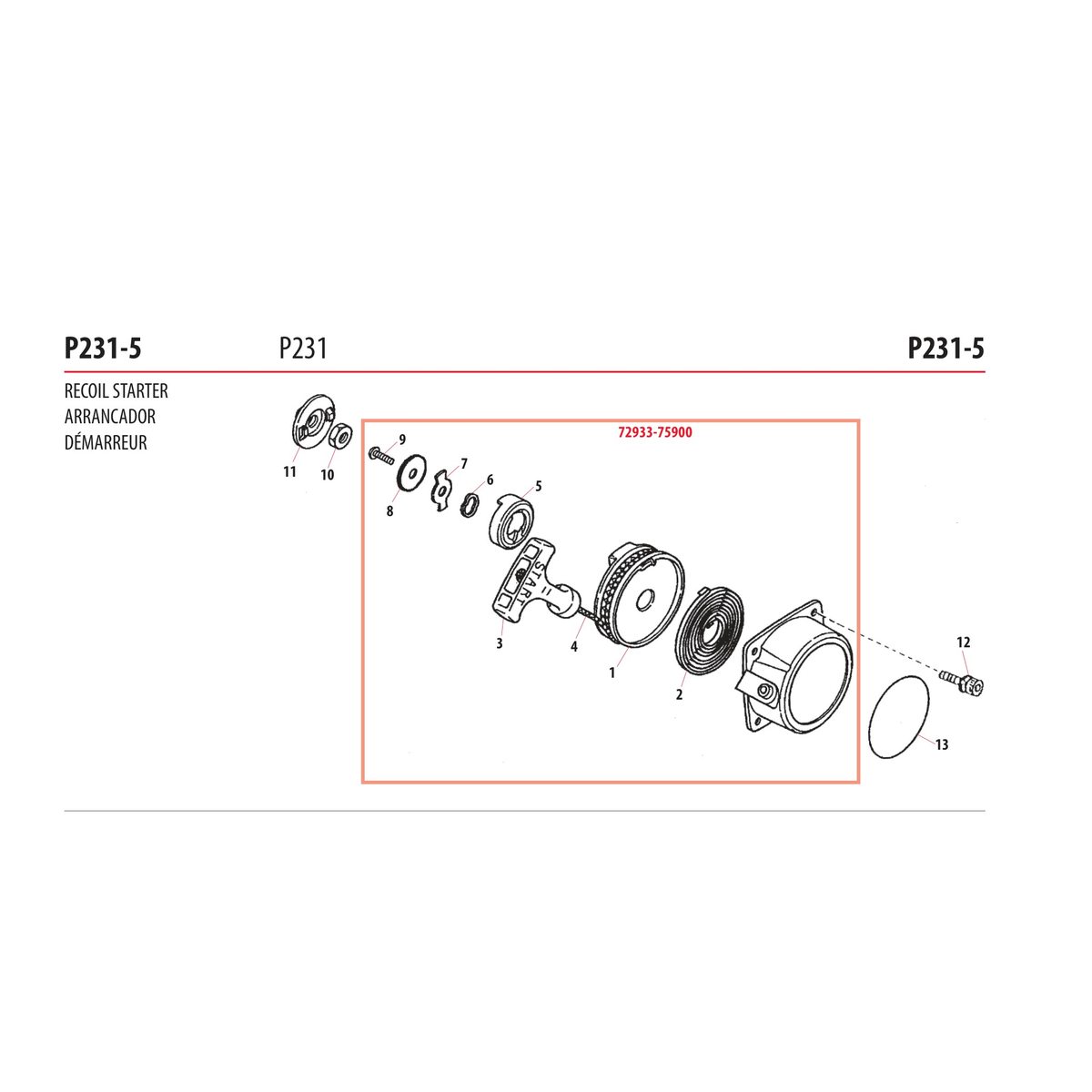

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
RECOIL STARTER ASSY.
RECOIL STARTER ASSY.
|
|||
|
|
REEL
REEL
|
|||
|
|
RECOIL SPRING
RECOIL SPRING
|
|||
|
|
KNOB
KNOB
|
|||
|
|
ROPE
ROPE
|
|||
|
|
RATCHET
RATCHET
|
|||
|
|
WAVE WASHER
WAVE WASHER
|
|||
|
|
RETAINER
RETAINER
|
|||
|
|
WASHER
WASHER
|
|||
|
|
BOLT
BOLT
|
|||
|
|
NUT
NUT
|
|||
|
|
STARTER PULLEY
STARTER PULLEY
|
|||
|
|
BOLT
BOLT
|
|||
|
|
LABEL
LABEL
|

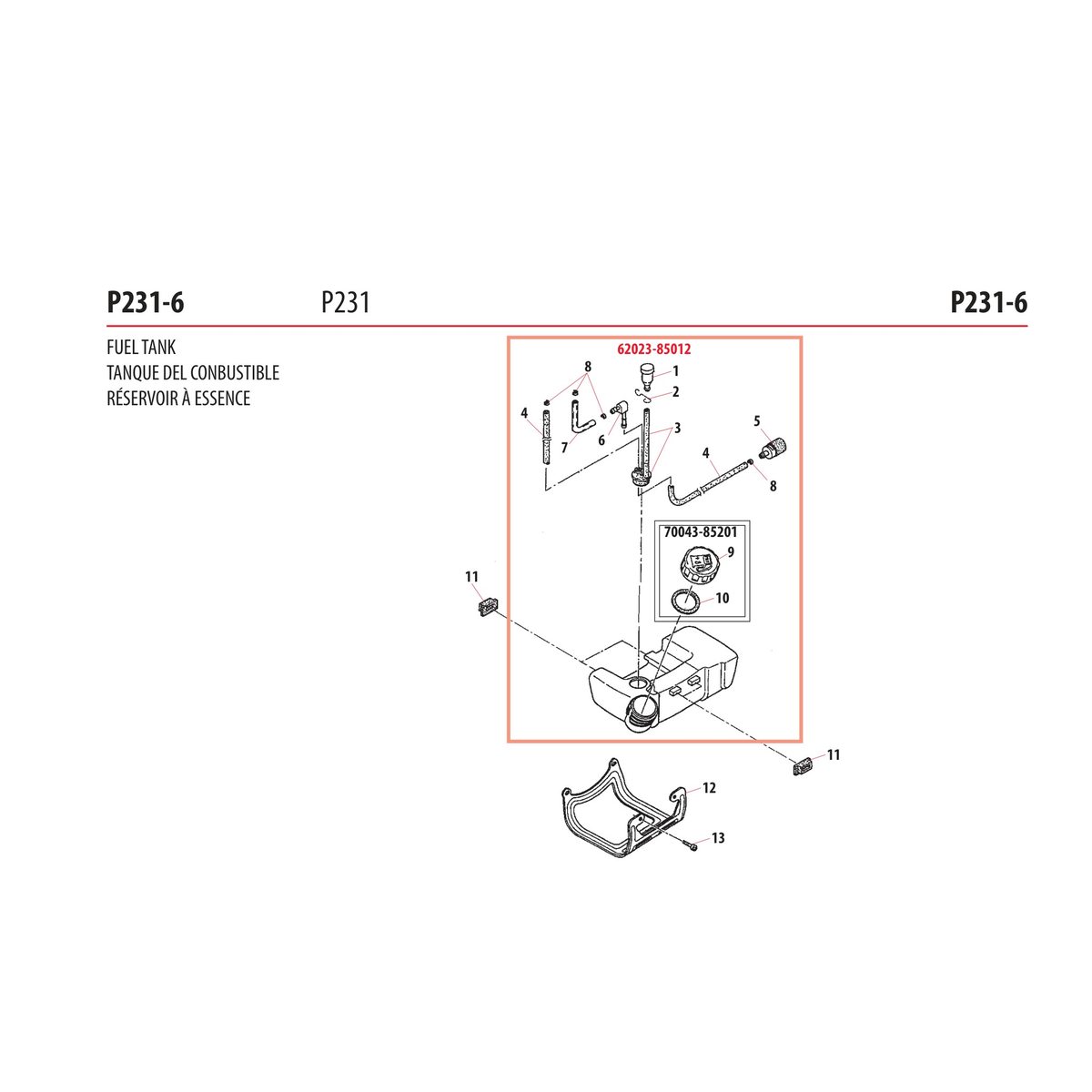

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62023-85012
62023-85012
|
|||
|
|
20035-85522
20035-85522
|
|||
|
|
20016-12310
20016-12310
|
|||
|
|
62023-85320
62023-85320
|
|||
|
|
62023-85310
62023-85310
|
|||
|
|
20016-85400
20016-85400
|
|||
|
|
20087-85340
20087-85340
|
|||
|
|
72933-85611
72933-85611
|
|||
|
|
20020-85540
20020-85540
|
|||
|
|
70043-85201
70043-85201
|
|||
|
|
70168-85210
70168-85210
|
|||
|
|
20000-85221
20000-85221
|
|||
|
|
20024-86120
20024-86120
|
|||
|
|
70135-86130
70135-86130
|
|||
|
|
11022-05120
11022-05120
|

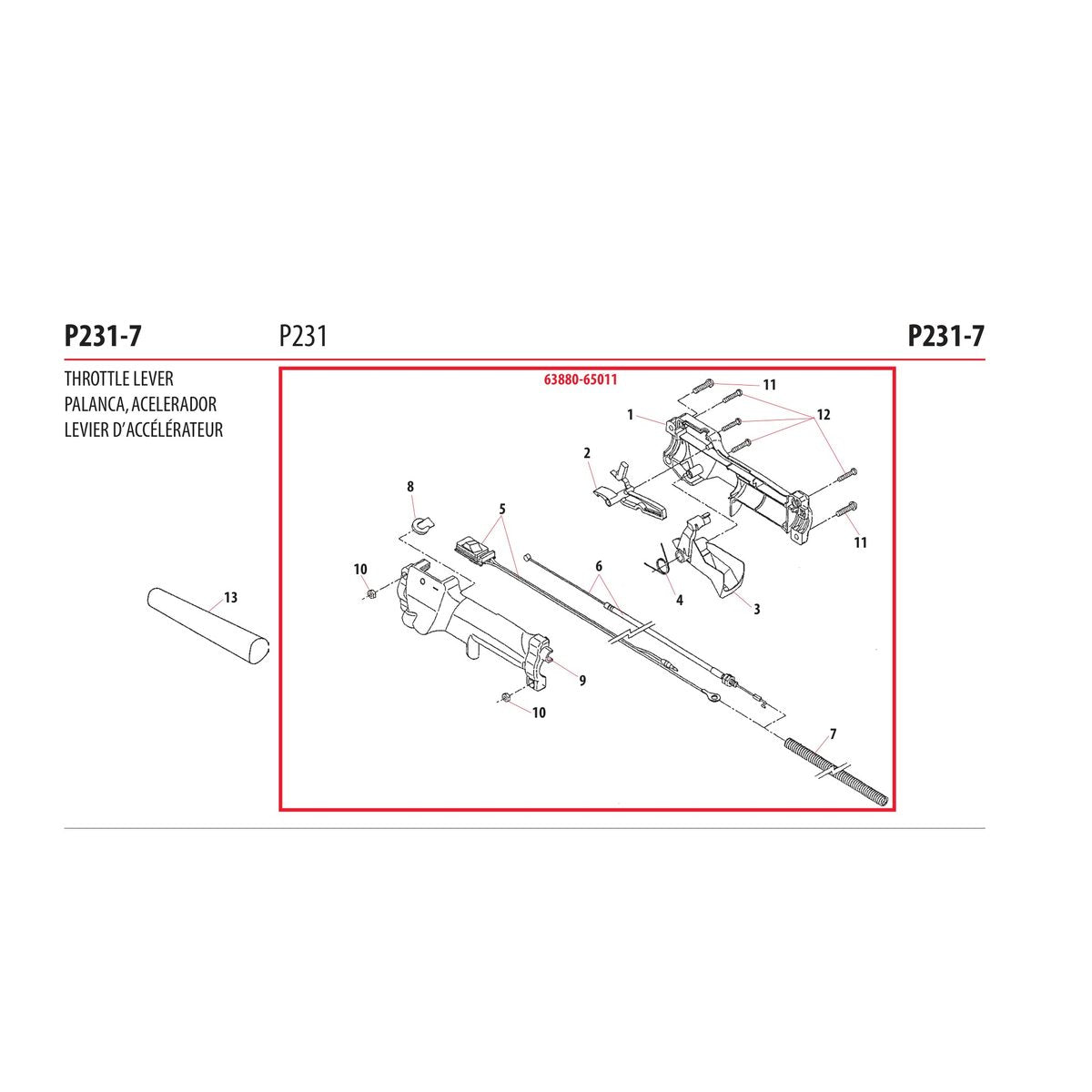

THROTTLE LEVER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
THROTTLE LEVER ASSY.
THROTTLE LEVER ASSY.
|
|||
|
|
BODY, RIGHT
BODY, RIGHT
|
|||
|
|
LOCK LEVER
LOCK LEVER
|
|||
|
|
LEVER
LEVER
|
|||
|
|
SPRING, LEVER
SPRING, LEVER
|
|||
|
|
SWITCH
SWITCH
|
|||
|
|
THROTTLE CABLE
THROTTLE CABLE
|
|||
|
|
TUBE
TUBE
|
|||
|
|
PLUG
PLUG
|
|||
|
|
BODY, LEFT
BODY, LEFT
|
|||
|
|
NUT
NUT
|
|||
|
|
SCREW
SCREW
|
|||
|
|
SCREW
SCREW
|
|||
|
|
COLLAR
COLLAR
|

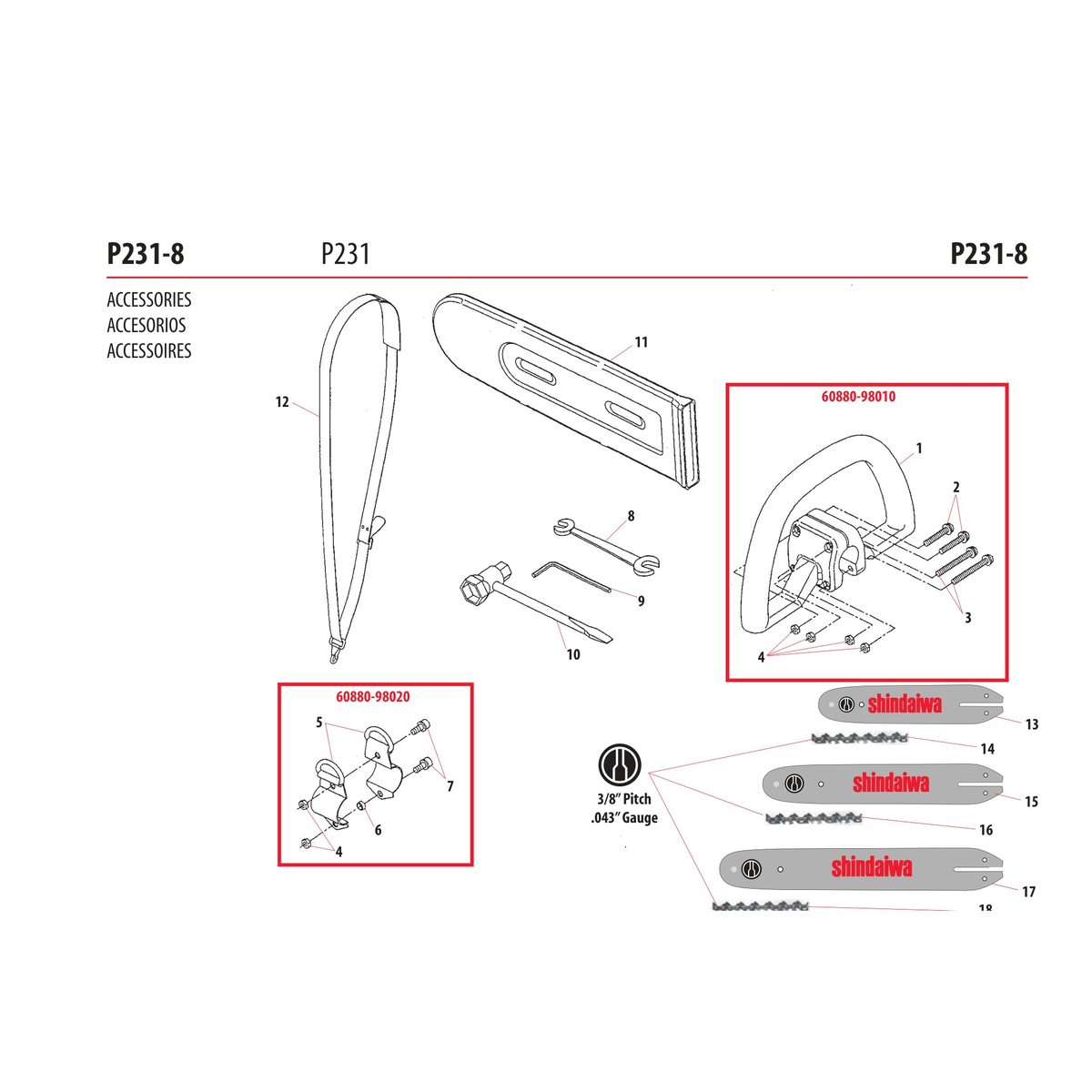

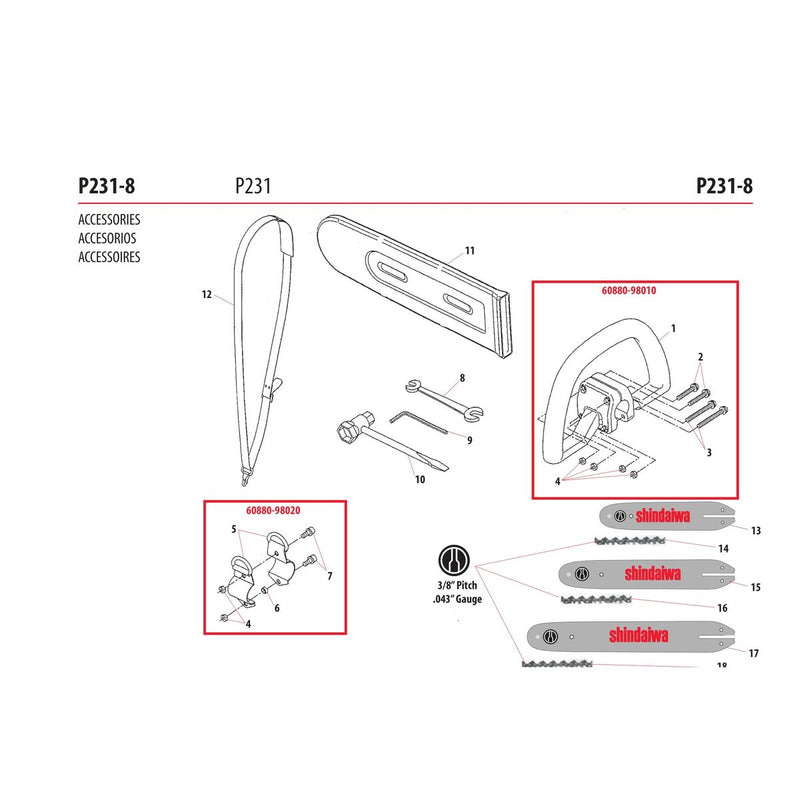

ACCESSORIES
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
60880-98010
60880-98010
|
|||
|
|
72489-14110
72489-14110
|
|||
|
|
11206-05300
11206-05300
|
|||
|
|
11206-05450
11206-05450
|
|||
|
|
01500-05041
01500-05041
|
|||
|
|
60880-98020
60880-98020
|
|||
|
|
01500-05041
01500-05041
|
|||
|
|
22000-12210
22000-12210
|
|||
|
|
17901-06030
17901-06030
|
|||
|
|
11020-05120
11020-05120
|
|||
|
|
22000-91120
22000-91120
|
|||
|
|
09026-04001
09026-04001
|
|||
|
|
22102-91410
22102-91410
|
|||
|
|
19600-24300
19600-24300
|
|||
|
|
22410-17201
22410-17201
|
|||
|
|
105745-8
105745-8
|
|||
|
|
90SG-33X
90SG-33X
|
|||
|
|
105755-10
105755-10
|
|||
|
|
90SG-39X
90SG-39X
|
|||
|
|
106326-12
106326-12
|
|||
|
|
90SG-44X
90SG-44X
|

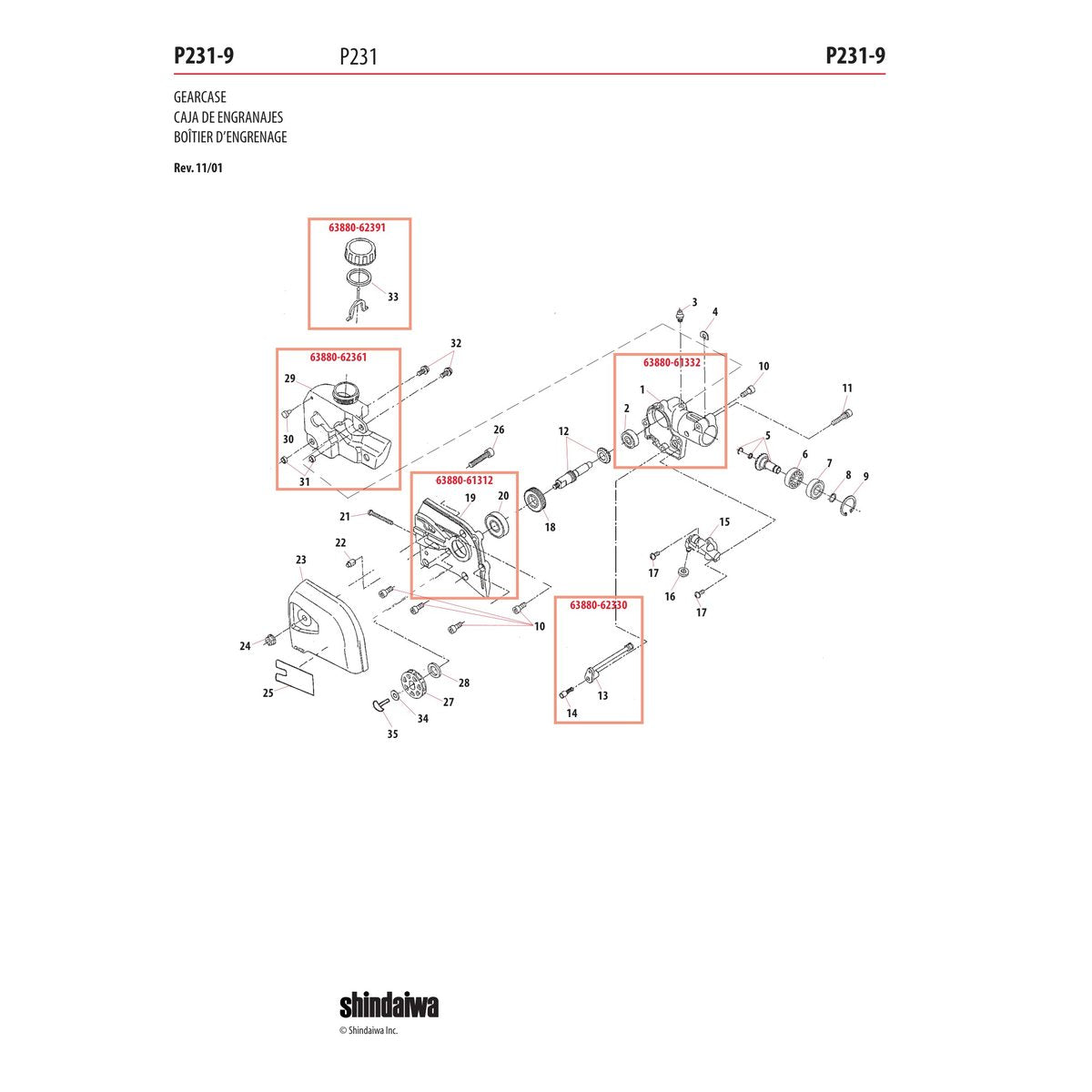

GEARCASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
63880-61332 GEARCASE RIGHT ASSY.
63880-61332 GEARCASE RIGHT ASSY.
|
|||
|
|
63880-61342
63880-61342
|
|||
|
|
02002-00627
02002-00627
|
|||
|
|
20870-61640 GREASE FITTING
20870-61640 GREASE FITTING
|
|||
|
|
22000-13420 SHIM
22000-13420 SHIM
|
|||
|
|
63880-63020 BEVEL GEAR
63880-63020 BEVEL GEAR
|
|||
|
|
02000-00609 BEARING
02000-00609 BEARING
|
|||
|
|
02002-00609 BEARING
02002-00609 BEARING
|
|||
|
|
22420-13350 SNAP RING
22420-13350 SNAP RING
|
|||
|
|
02432-24120 SNAP RING
02432-24120 SNAP RING
|
|||
|
|
01020-05120 BOLT
01020-05120 BOLT
|
|||
|
|
11023-05250 BOLT
11023-05250 BOLT
|
|||
|
|
63880-63011 GEAR SHAFT
63880-63011 GEAR SHAFT
|
|||
|
|
63880-62330 OIL TUBE ASSY.
63880-62330 OIL TUBE ASSY.
|
|||
|
|
63880-62340
63880-62340
|
|||
|
|
63880-62350
63880-62350
|
|||
|
|
22156-55200 OIL PUMP ASSY.
22156-55200 OIL PUMP ASSY.
|
|||
|
|
63880-62320 GASKET, PUMP
63880-62320 GASKET, PUMP
|
|||
|
|
11205-04100 SCREW
11205-04100 SCREW
|
|||
|
|
63880-62310 GEAR
63880-62310 GEAR
|
|||
|
|
63880-61312 GEARCASE LEFT ASSY.
63880-61312 GEARCASE LEFT ASSY.
|
|||
|
|
63880-61322
63880-61322
|
|||
|
|
02006-06001
02006-06001
|
|||
|
|
11260-04351 SCREW
11260-04351 SCREW
|
|||
|
|
17110-04000 SLIDE PIN
17110-04000 SLIDE PIN
|
|||
|
|
63880-61350 COVER
63880-61350 COVER
|
|||
|
|
11526-06100 NUT
11526-06100 NUT
|
|||
|
|
19402-00172 LABEL,CAUTION
19402-00172 LABEL,CAUTION
|
|||
|
|
01020-06300 BOLT
01020-06300 BOLT
|
|||
|
|
12032-07102 SPROCKET
12032-07102 SPROCKET
|
|||
|
|
15401-21020 COLLAR
15401-21020 COLLAR
|
|||
|
|
63880-62361 OIL TANK ASSY.
63880-62361 OIL TANK ASSY.
|
|||
|
|
63880-62381
63880-62381
|
|||
|
|
22115-57120
22115-57120
|
|||
|
|
17901-06030
17901-06030
|
|||
|
|
11207-05120 SCREW
11207-05120 SCREW
|
|||
|
|
63880-62391 OIL CAP ASSY.
63880-62391 OIL CAP ASSY.
|
|||
|
|
70030-85221
70030-85221
|
|||
|
|
20870-62131 WASHER
20870-62131 WASHER
|
|||
|
|
11210-06140 SCREW, BUTTON
11210-06140 SCREW, BUTTON
|

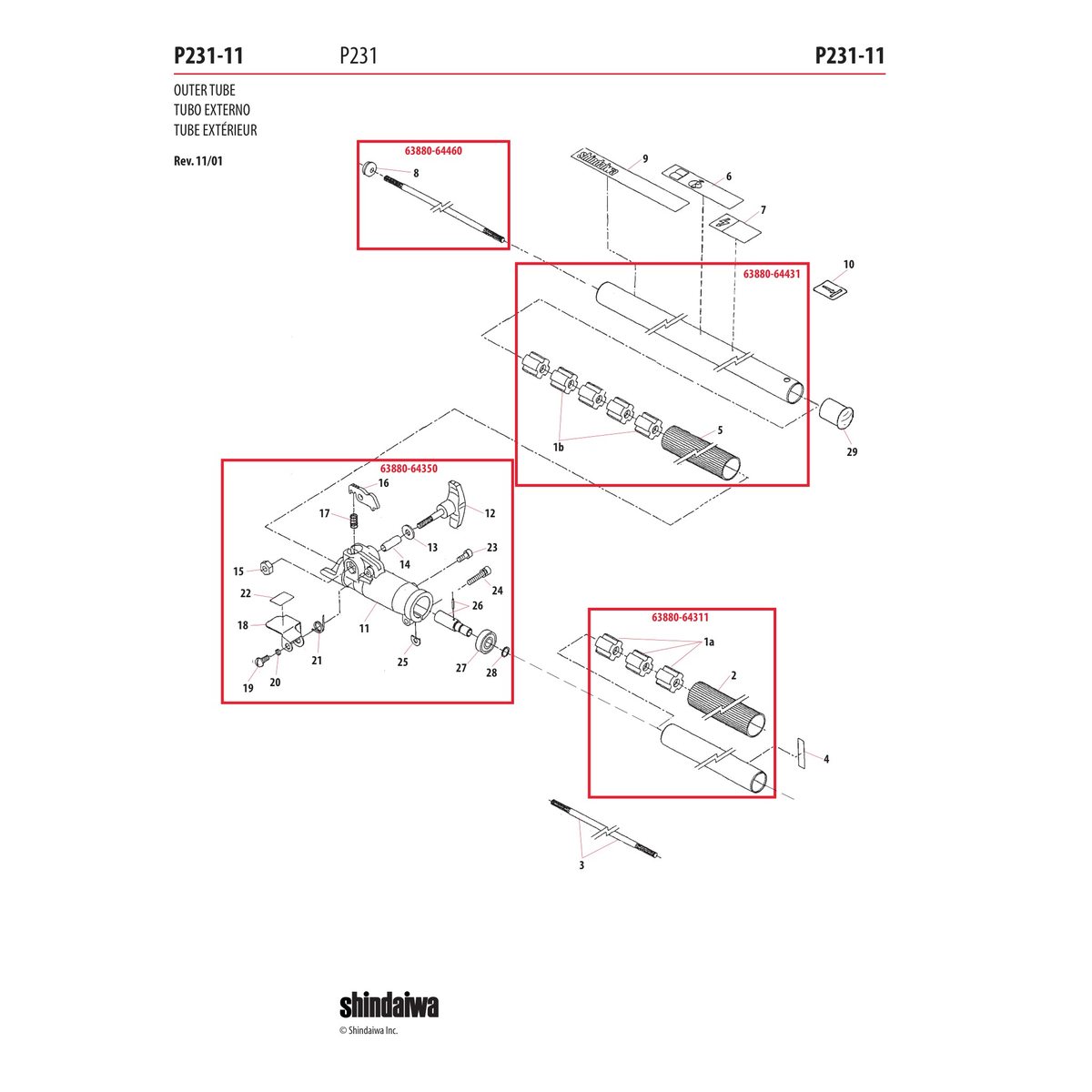

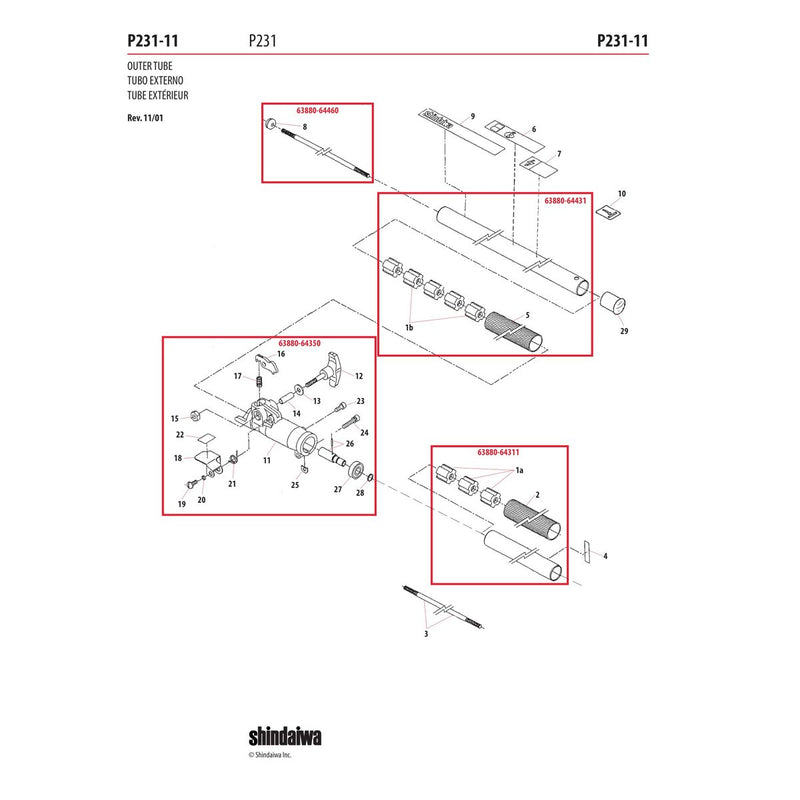

OUTER TUBE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
63880-64311
63880-64311
|
|||
|
|
22035-12120
22035-12120
|
|||
|
|
63880-64330
63880-64330
|
|||
|
|
60880-98050
60880-98050
|
|||
|
|
63880-64340 MAINSHAFT
63880-64340 MAINSHAFT
|
|||
|
|
72005-12140 CAUTION LABEL
72005-12140 CAUTION LABEL
|
|||
|
|
63880-64431
63880-64431
|
|||
|
|
22035-12120
22035-12120
|
|||
|
|
63880-64450
63880-64450
|
|||
|
|
19402-00170 LABEL,CAUTION
19402-00170 LABEL,CAUTION
|
|||
|
|
19402-00171 LABEL,CAUTION
19402-00171 LABEL,CAUTION
|
|||
|
|
63880-64460
63880-64460
|
|||
|
|
15250-10100
15250-10100
|
|||
|
|
19420-00049 LABEL, MODEL
19420-00049 LABEL, MODEL
|
|||
|
|
19402-00173
19402-00173
|
|||
|
|
63880-64350
63880-64350
|
|||
|
|
37000-62220
37000-62220
|
|||
|
|
63880-64380
63880-64380
|
|||
|
|
72030-14130
72030-14130
|
|||
|
|
17901-06220
17901-06220
|
|||
|
|
63880-64410
63880-64410
|
|||
|
|
37000-62310
37000-62310
|
|||
|
|
17500-06001
17500-06001
|
|||
|
|
37000-62340
37000-62340
|
|||
|
|
11207-05120
11207-05120
|
|||
|
|
15401-00004
15401-00004
|
|||
|
|
17520-12400
17520-12400
|
|||
|
|
19401-00168
19401-00168
|
|||
|
|
01020-05120
01020-05120
|
|||
|
|
11023-05250
11023-05250
|
|||
|
|
22000-13420
22000-13420
|
|||
|
|
63880-64360
63880-64360
|
|||
|
|
02002-00609
02002-00609
|
|||
|
|
22420-13350
22420-13350
|
|||
|
|
20891-98180
20891-98180
|
CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62023-81010 CARBURETOR ASSY.
62023-81010 CARBURETOR ASSY.
|
|||
|
|
70064-81290 SCREW
70064-81290 SCREW
|
|||
|
|
70097-81220 O-RING
70097-81220 O-RING
|
|||
|
|
62023-81330 MAIN JET
62023-81330 MAIN JET
|
|||
|
|
70097-81310 GASKET, PUMP
70097-81310 GASKET, PUMP
|
|||
|
|
70097-81320 DIAPHRAGM
70097-81320 DIAPHRAGM
|
|||
|
|
72933-81411 PUMP BODY ASSY.
72933-81411 PUMP BODY ASSY.
|
|||
|
|
70030-81380 SCREEN
70030-81380 SCREEN
|
|||
|
|
20036-81440 NEEDLE VALVE
20036-81440 NEEDLE VALVE
|
|||
|
|
72933-81270 SPRING
72933-81270 SPRING
|
|||
|
|
20016-81450 SCREW
20016-81450 SCREW
|
|||
|
|
22100-81250 PIN
22100-81250 PIN
|
|||
|
|
22100-81230 LEVER
22100-81230 LEVER
|
|||
|
|
22100-81260 DIAPHRAGM
22100-81260 DIAPHRAGM
|
|||
|
|
20016-81280 GASKET
20016-81280 GASKET
|
|||
|
|
20016-81420 PUMP BASE COMP
20016-81420 PUMP BASE COMP
|
|||
|
|
20016-81510 PUMP COVER
20016-81510 PUMP COVER
|
|||
|
|
20036-81670 PRIMER PUMP
20036-81670 PRIMER PUMP
|
|||
|
|
20016-81140 SCREW
20016-81140 SCREW
|
|||
|
|
20016-81250 O-RING
20016-81250 O-RING
|
|||
|
|
20016-81530 GASKET
20016-81530 GASKET
|
|||
|
|
7 0 1 4 8-0 1 7 1 0 ELC
7 0 1 4 8-0 1 7 1 0 ELC
|
|||
|
|
20018-81750 AIR FILTER
20018-81750 AIR FILTER
|
|||
|
|
70140-81760 AIR FILTER COVER
70140-81760 AIR FILTER COVER
|
|||
|
|
20115-81780 KNOB
20115-81780 KNOB
|
|||
|
|
22100-82430 O-RING
22100-82430 O-RING
|
|||
|
|
20024-81790 WASHER
20024-81790 WASHER
|
|||
|
|
20018-81721 BRACKET
20018-81721 BRACKET
|
|||
|
|
01818-04107 ERCS
01818-04107 ERCS
|
|||
|
|
19404-00008 LABEL, CHOKE
19404-00008 LABEL, CHOKE
|
|||
|
|
60023-98020 DEFLECTOR, HEAT
60023-98020 DEFLECTOR, HEAT
|
|||
|
|
99909-159 GASKET/DIAPH. KIT
99909-159 GASKET/DIAPH. KIT
|
|||
|
|
99909-160 KWIK KIT
99909-160 KWIK KIT
|
