Shindaiwa T2510X Trimmer Parts Diagram
Diagrams:
Diagram:

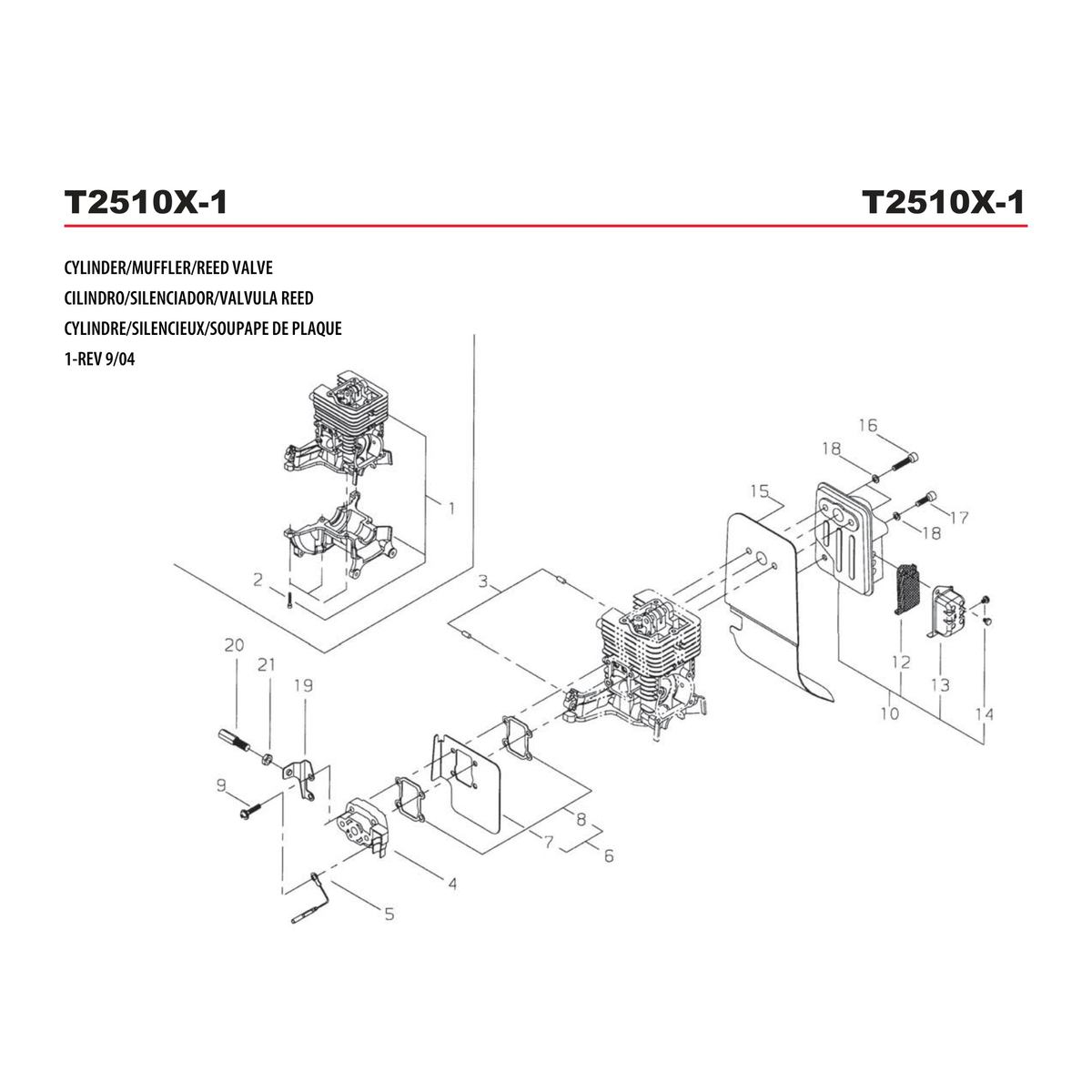

CYLINDER/MUFFLER/REED VALVE
CYLINDER/MUFFLER/REED VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
60908-98330
60908-98330
|
|||
|
|
01020-05160
01020-05160
|
|||
|
|
12492-40080
12492-40080
|
|||
|
|
62902-12310
62902-12310
|
|||
|
|
14350-01101
14350-01101
|
|||
|
|
62902-12320
62902-12320
|
|||
|
|
62901-12320
62901-12320
|
|||
|
|
62901-12220
62901-12220
|
|||
|
|
11206-05225
11206-05225
|
|||
|
|
62907-15011
62907-15011
|
|||
|
|
62902-15131
62902-15131
|
|||
|
|
62907-15161
62907-15161
|
|||
|
|
11204-04060
11204-04060
|
|||
|
|
62901-15210
62901-15210
|
|||
|
|
62901-15310
62901-15310
|
|||
|
|
01020-05160
01020-05160
|
|||
|
|
01610-05080
01610-05080
|
|||
|
|
62901-83310
62901-83310
|
|||
|
|
62902-83310
62902-83310
|
|||
|
|
01501-06048
01501-06048
|

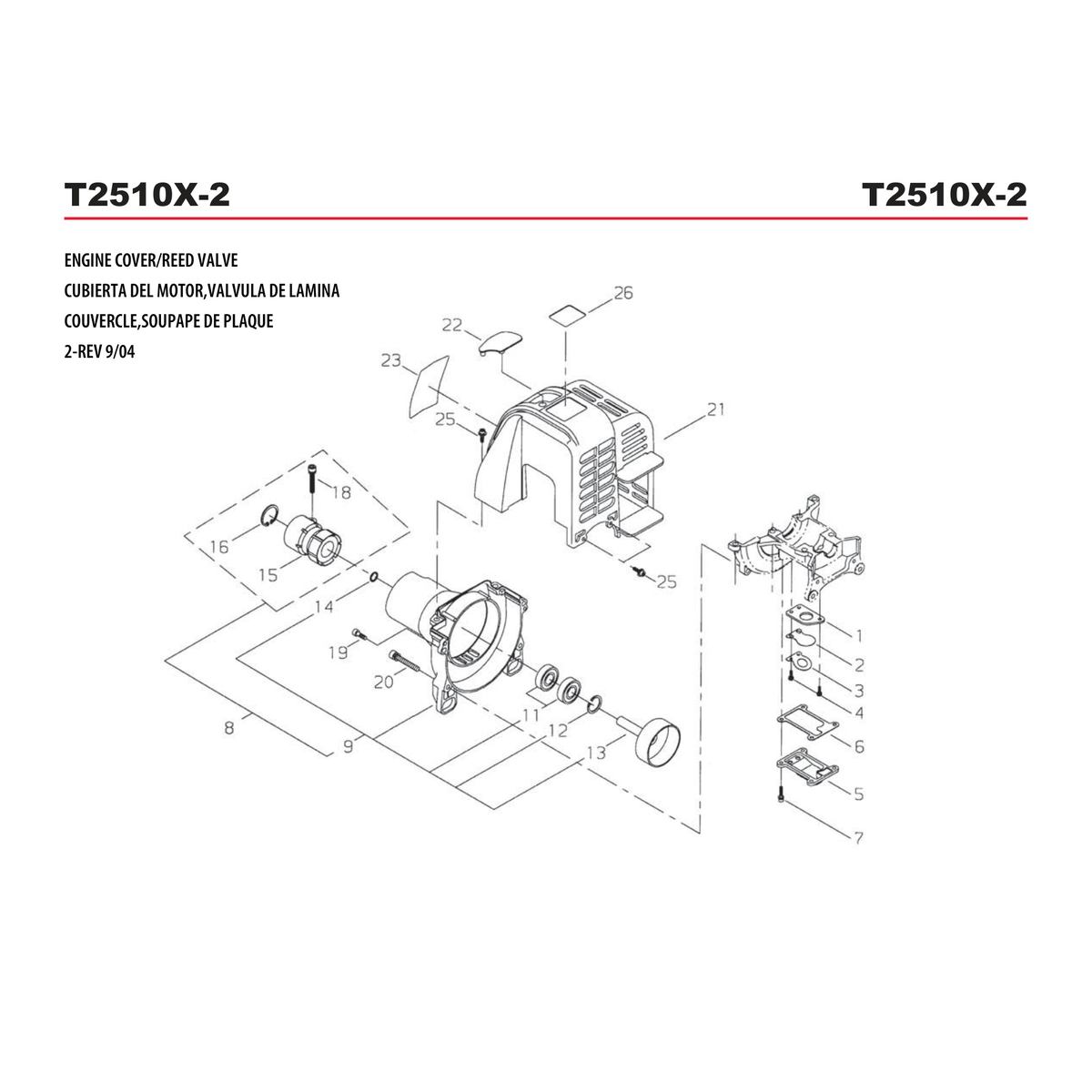

ENGINE COVER/REED VALVE
ENGINE COVER/REED VALVE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62901-21320
62901-21320
|
|||
|
|
72320-83121
72320-83121
|
|||
|
|
72320-83132
72320-83132
|
|||
|
|
01211-03100
01211-03100
|
|||
|
|
62901-21120
62901-21120
|
|||
|
|
62901-21130
62901-21130
|
|||
|
|
11022-04120
11022-04120
|
|||
|
|
60902-98021
60902-98021
|
|||
|
|
62901-31011
62901-31011
|
|||
|
|
02002-06000
02002-06000
|
|||
|
|
02432-26120
02432-26120
|
|||
|
|
20087-31211
20087-31211
|
|||
|
|
22000-13320
22000-13320
|
|||
|
|
20087-31411
20087-31411
|
|||
|
|
02432-40170
02432-40170
|
|||
|
|
11020-05220
11020-05220
|
|||
|
|
01020-05160
01020-05160
|
|||
|
|
11022-05450
11022-05450
|
|||
|
|
62901-32111
62901-32111
|
|||
|
|
62901-32312
62901-32312
|
|||
|
|
19420-00071
19420-00071
|
|||
|
|
11024-04160
11024-04160
|
|||
|
|
80835
80835
|

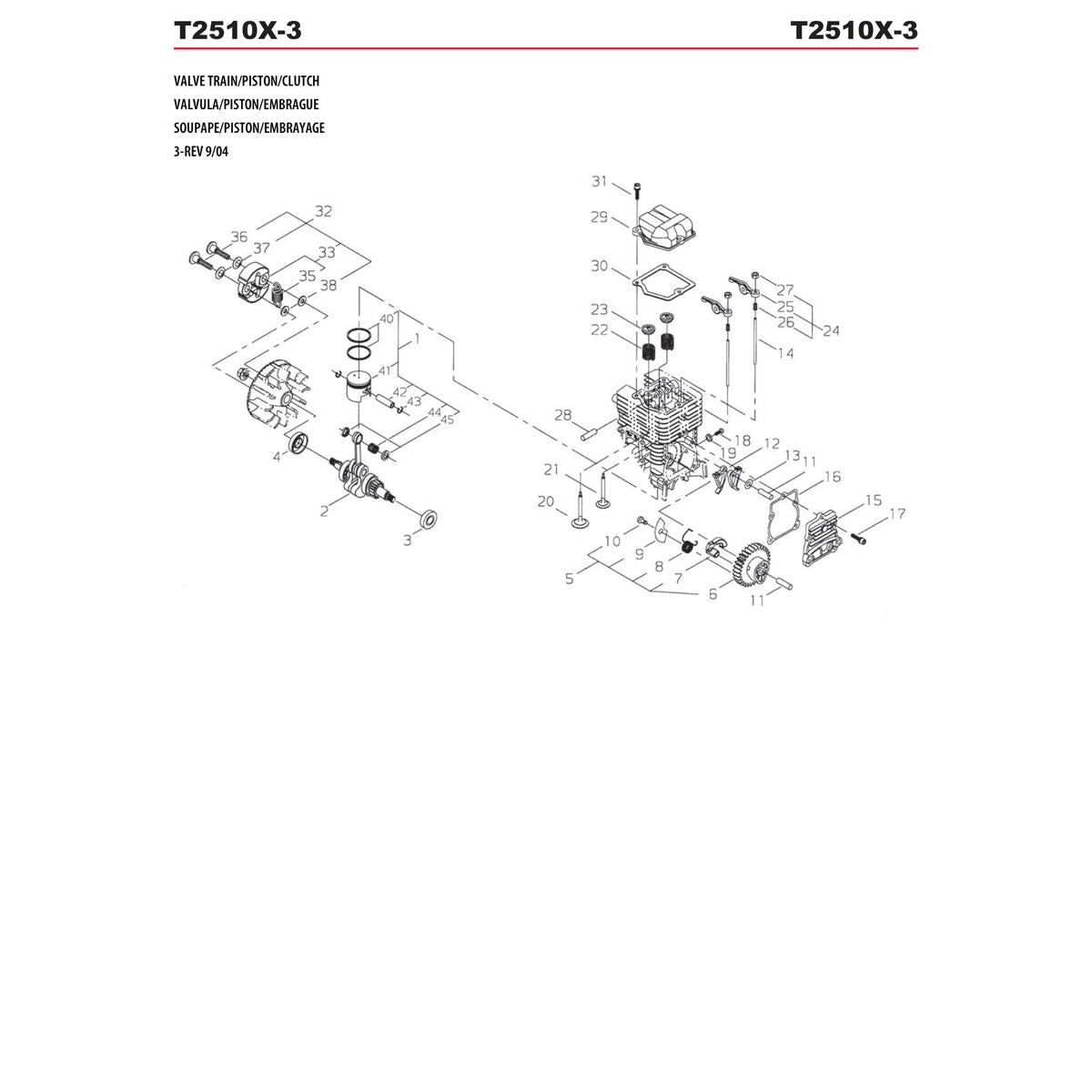

VALVE TRAIN/PISTON/CLUTCH
VALVE TRAIN/PISTON/CLUTCH
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62902-41310
62902-41310
|
|||
|
|
62902-41120
62902-41120
|
|||
|
|
62902-41110
62902-41110
|
|||
|
|
62901-41210
62901-41210
|
|||
|
|
20000-41320
20000-41320
|
|||
|
|
62901-41230
62901-41230
|
|||
|
|
37019-41240
37019-41240
|
|||
|
|
62902-42020
62902-42020
|
|||
|
|
62901-42260
62901-42260
|
|||
|
|
62901-42270
62901-42270
|
|||
|
|
62905-43010
62905-43010
|
|||
|
|
62902-43310
62902-43310
|
|||
|
|
62907-43120
62907-43120
|
|||
|
|
17520-08900
17520-08900
|
|||
|
|
62905-43130
62905-43130
|
|||
|
|
01280-04062
01280-04062
|
|||
|
|
12492-50290
12492-50290
|
|||
|
|
62907-43210
62907-43210
|
|||
|
|
11620-10000
11620-10000
|
|||
|
|
62908-43220
62908-43220
|
|||
|
|
62901-43330
62901-43330
|
|||
|
|
62901-43240
62901-43240
|
|||
|
|
11022-04140
11022-04140
|
|||
|
|
62901-43310
62901-43310
|
|||
|
|
15401-10028
15401-10028
|
|||
|
|
62902-44110
62902-44110
|
|||
|
|
62902-44120
62902-44120
|
|||
|
|
62901-44130
62901-44130
|
|||
|
|
62901-44140
62901-44140
|
|||
|
|
62907-44010
62907-44010
|
|||
|
|
62901-44210
62901-44210
|
|||
|
|
62907-44220
62907-44220
|
|||
|
|
62901-44231
62901-44231
|
|||
|
|
12492-50310
12492-50310
|
|||
|
|
62901-44241
62901-44241
|
|||
|
|
62901-44250
62901-44250
|
|||
|
|
11022-04120
11022-04120
|
|||
|
|
62901-51011
62901-51011
|
|||
|
|
62901-51021
62901-51021
|
|||
|
|
70140-51220
70140-51220
|
|||
|
|
20087-51210
20087-51210
|
|||
|
|
20087-51231
20087-51231
|
|||
|
|
22100-71430
22100-71430
|

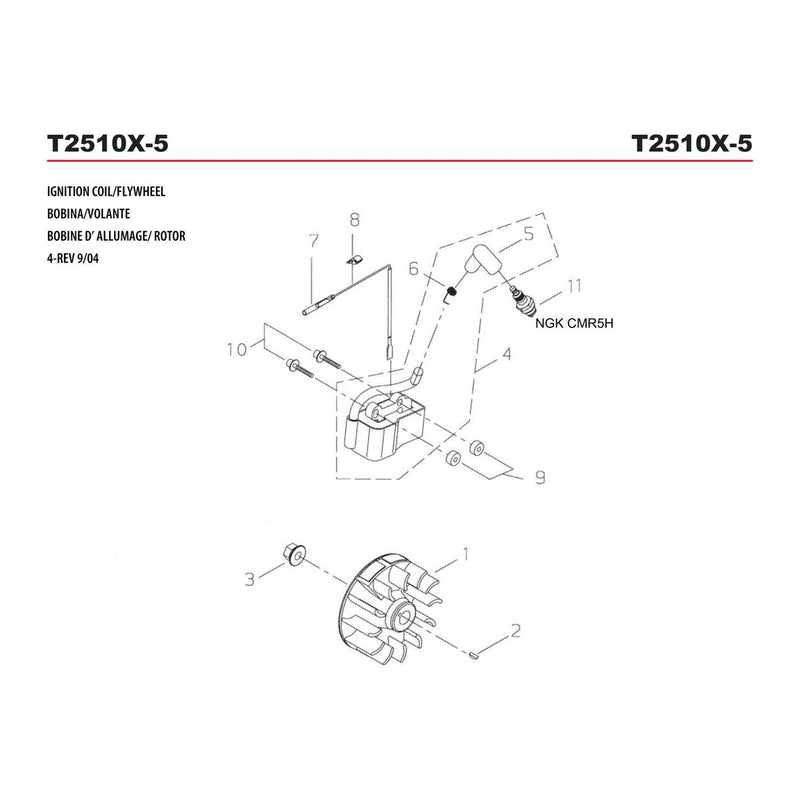

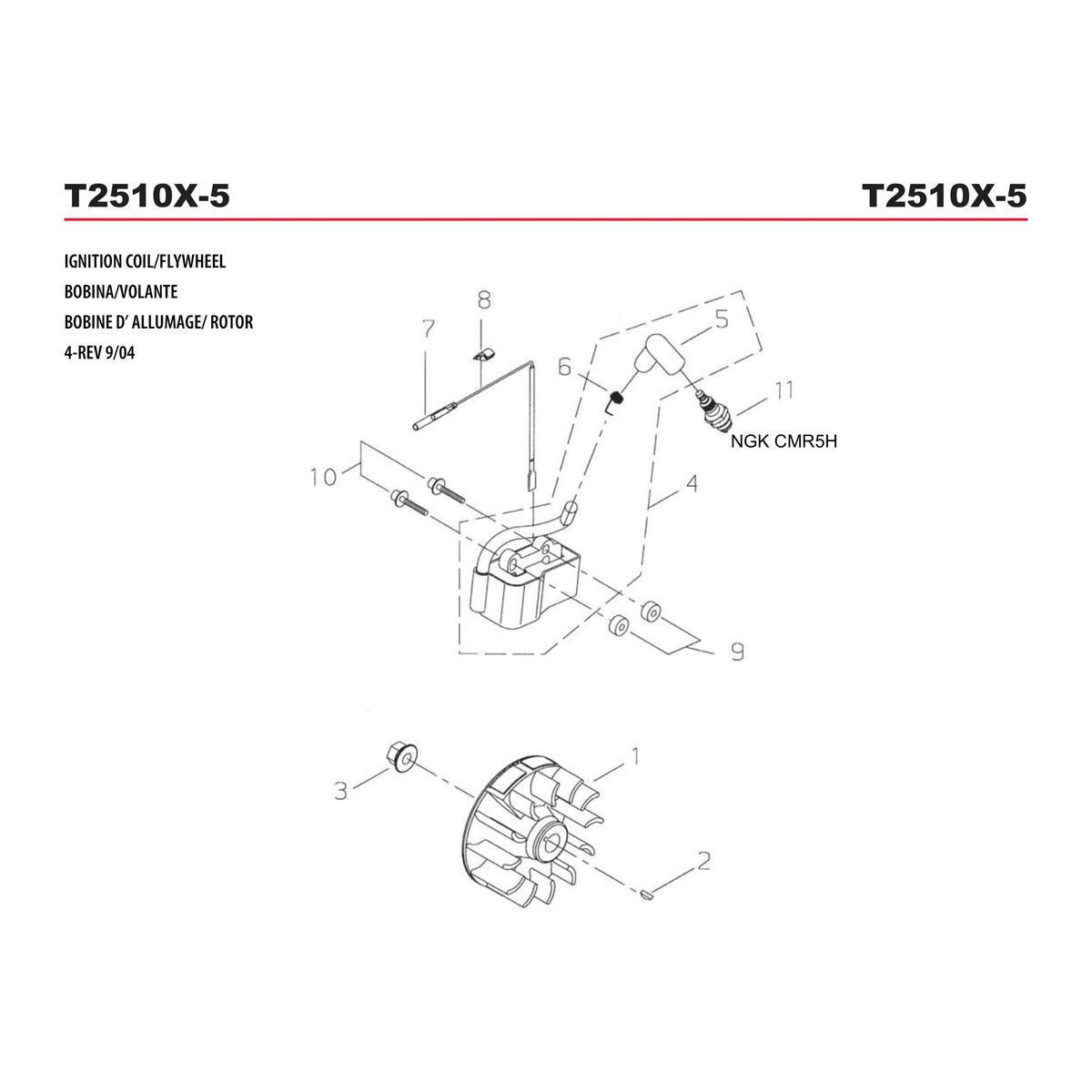

IGNITION COIL/FLYWHEEL
IGNITION COIL/FLYWHEEL
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62905-71110
62905-71110
|
|||
|
|
02403-03100
02403-03100
|
|||
|
|
20035-71220
20035-71220
|
|||
|
|
62905-71310
62905-71310
|
|||
|
|
62905-71310
62905-71310
|
|||
|
|
62905-71320
62905-71320
|
|||
|
|
14350-02001
14350-02001
|
|||
|
|
62901-71310
62901-71310
|
|||
|
|
70030-71620
70030-71620
|
|||
|
|
11024-04265
11024-04265
|
|||
|
|
80966
80966
|

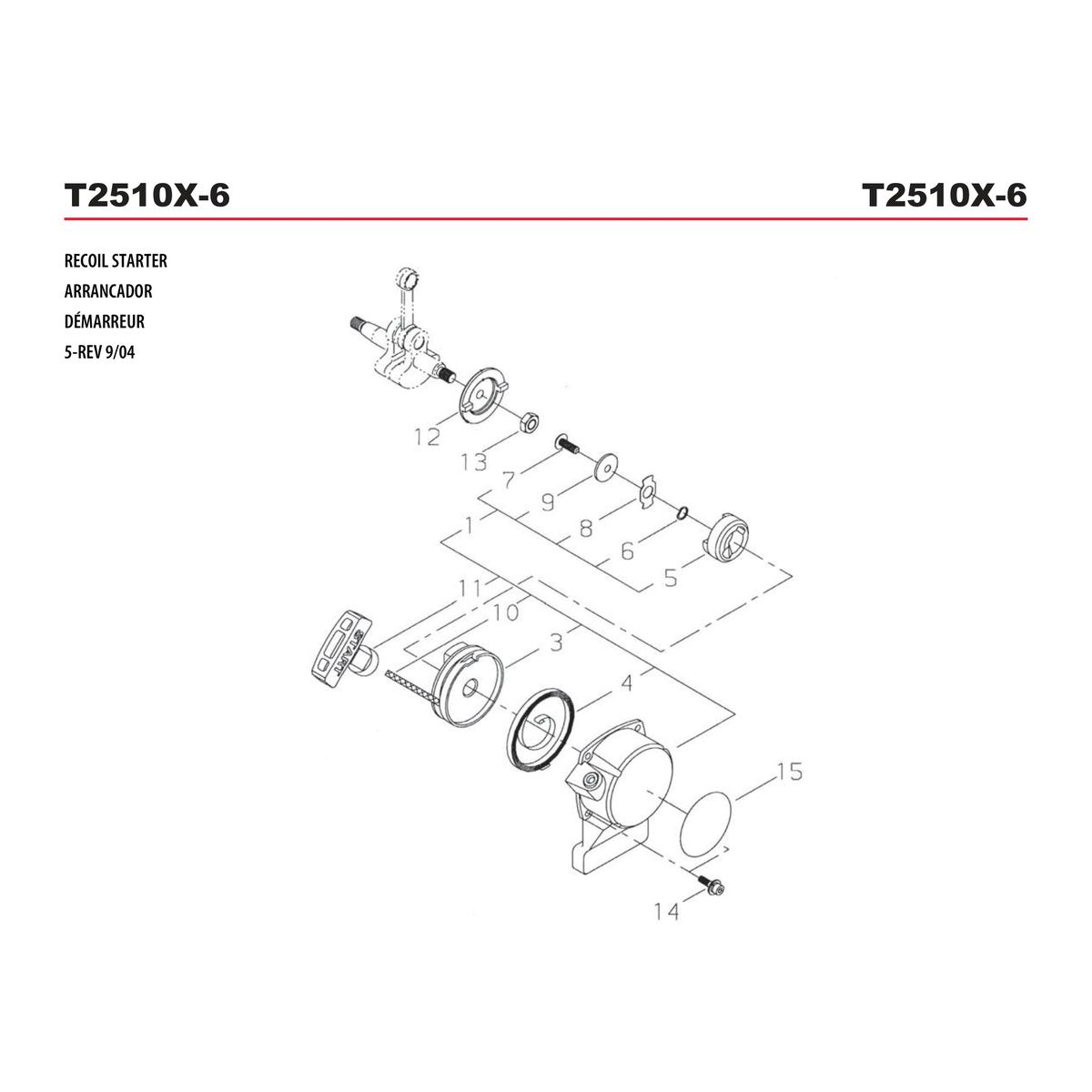

RECOIL STARTER
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62901-75012
62901-75012
|
|||
|
|
62901-75120
62901-75120
|
|||
|
|
70064-75130
70064-75130
|
|||
|
|
62901-75310
62901-75310
|
|||
|
|
70064-75150
70064-75150
|
|||
|
|
72933-75160
72933-75160
|
|||
|
|
72933-75170
72933-75170
|
|||
|
|
72933-75180
72933-75180
|
|||
|
|
32004-75140
32004-75140
|
|||
|
|
32004-75150
32004-75150
|
|||
|
|
70064-75310
70064-75310
|
|||
|
|
01511-08051
01511-08051
|
|||
|
|
11024-04160
11024-04160
|
|||
|
|
19420-00070
19420-00070
|

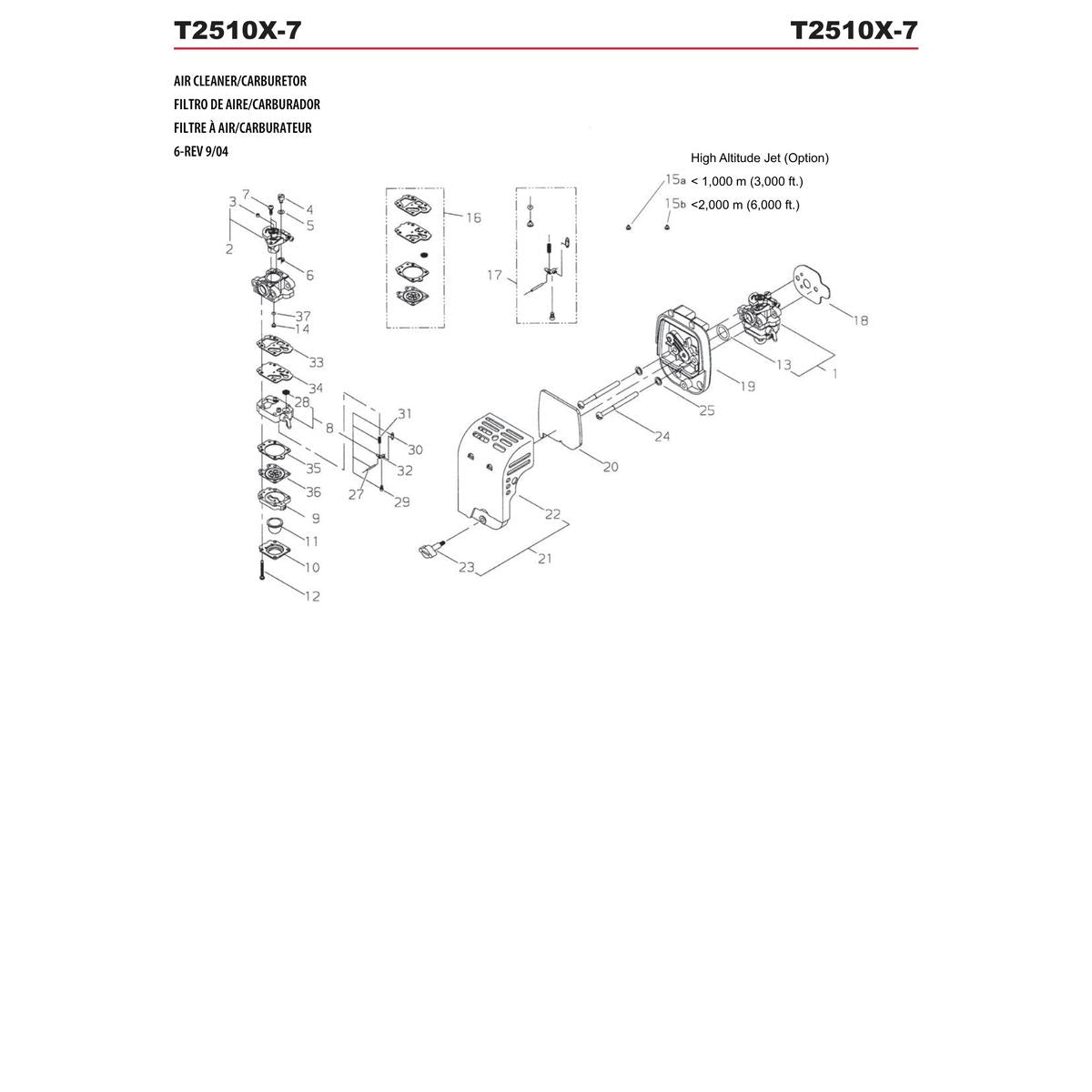

AIR CLEANER/CARBURETOR
AIR CLEANER/CARBURETOR
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
60908-98310
60908-98310
|
|||
|
|
20016-81250
20016-81250
|
|||
|
|
60908-98320
60908-98320
|
|||
|
|
62074-81320
62074-81320
|
|||
|
|
72933-81450
72933-81450
|
|||
|
|
20089-81185
20089-81185
|
|||
|
|
20036-81195
20036-81195
|
|||
|
|
70064-81290
70064-81290
|
|||
|
|
37013-81350
37013-81350
|
|||
|
|
22100-81250
22100-81250
|
|||
|
|
70030-81380
70030-81380
|
|||
|
|
20016-81450
20016-81450
|
|||
|
|
20036-81440
20036-81440
|
|||
|
|
72933-81270
72933-81270
|
|||
|
|
22100-81230
22100-81230
|
|||
|
|
20016-81420
20016-81420
|
|||
|
|
20016-81510
20016-81510
|
|||
|
|
20036-81670
20036-81670
|
|||
|
|
20016-81140
20016-81140
|
|||
|
|
70097-81310
70097-81310
|
|||
|
|
70097-81320
70097-81320
|
|||
|
|
20016-81280
20016-81280
|
|||
|
|
37013-81310
37013-81310
|
|||
|
|
70097-81220
70097-81220
|
|||
|
|
60084-98320
60084-98320
|
|||
|
|
60084-98330
60084-98330
|
|||
|
|
60908-98350
60908-98350
|
|||
|
|
60902-98030
60902-98030
|
|||
|
|
60908-98360
60908-98360
|
|||
|
|
62901-81211
62901-81211
|
|||
|
|
62905-82010
62905-82010
|
|||
|
|
62902-82120
62902-82120
|
|||
|
|
62902-82030
62902-82030
|
|||
|
|
62902-82030
62902-82030
|
|||
|
|
62901-82131
62901-82131
|
|||
|
|
11203-05605
11203-05605
|
|||
|
|
01613-05080
01613-05080
|

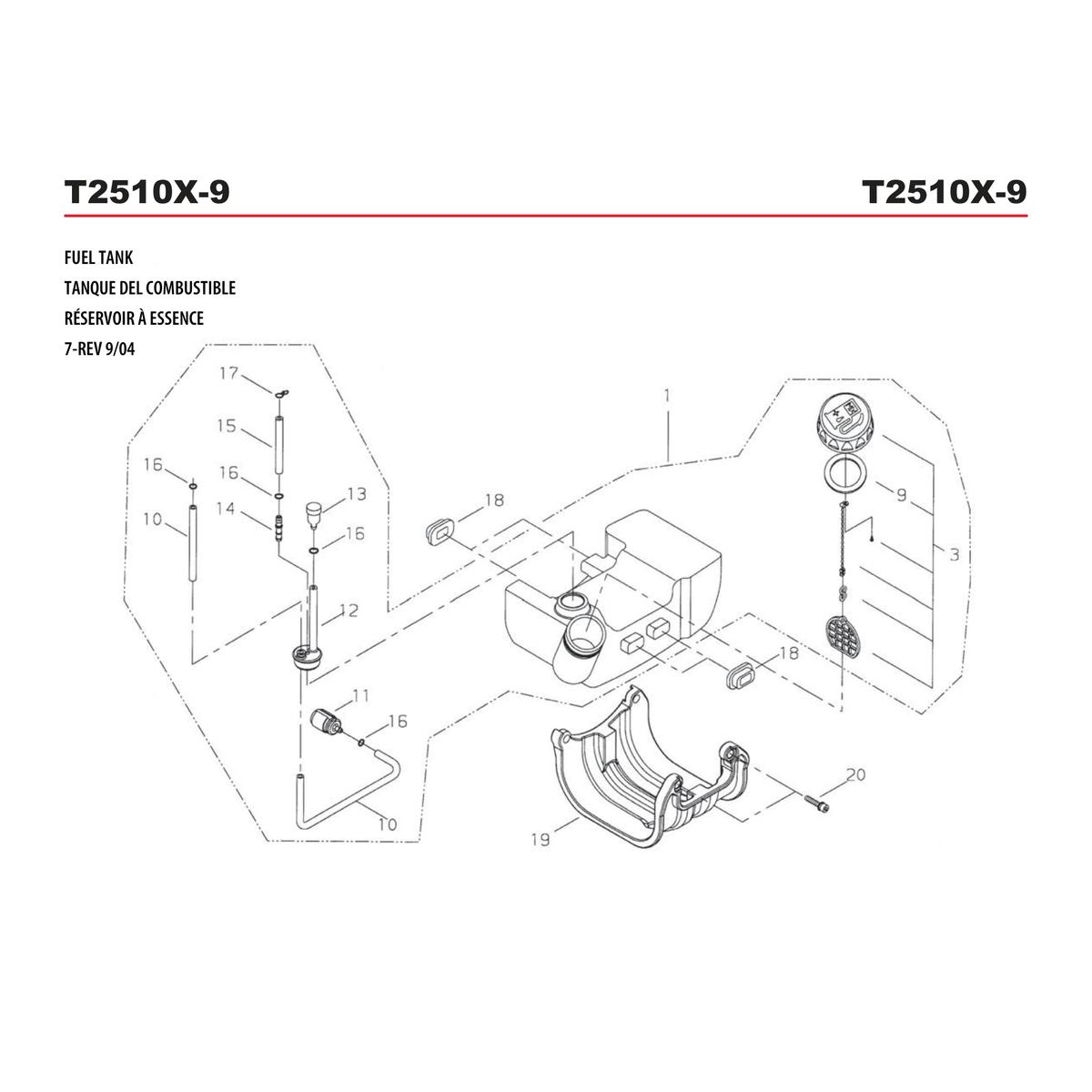

FUEL TANK
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62903-85310
62903-85310
|
|||
|
|
70168-85201
70168-85201
|
|||
|
|
20000-85221
20000-85221
|
|||
|
|
62901-85310
62901-85310
|
|||
|
|
20016-85400
20016-85400
|
|||
|
|
20144-85350
20144-85350
|
|||
|
|
22197-33960
22197-33960
|
|||
|
|
72933-85620
72933-85620
|
|||
|
|
20112-85360
20112-85360
|
|||
|
|
20020-85540
20020-85540
|
|||
|
|
37013-85310
37013-85310
|
|||
|
|
62901-85220
62901-85220
|
|||
|
|
62902-85320
62902-85320
|
|||
|
|
11022-05200
11022-05200
|

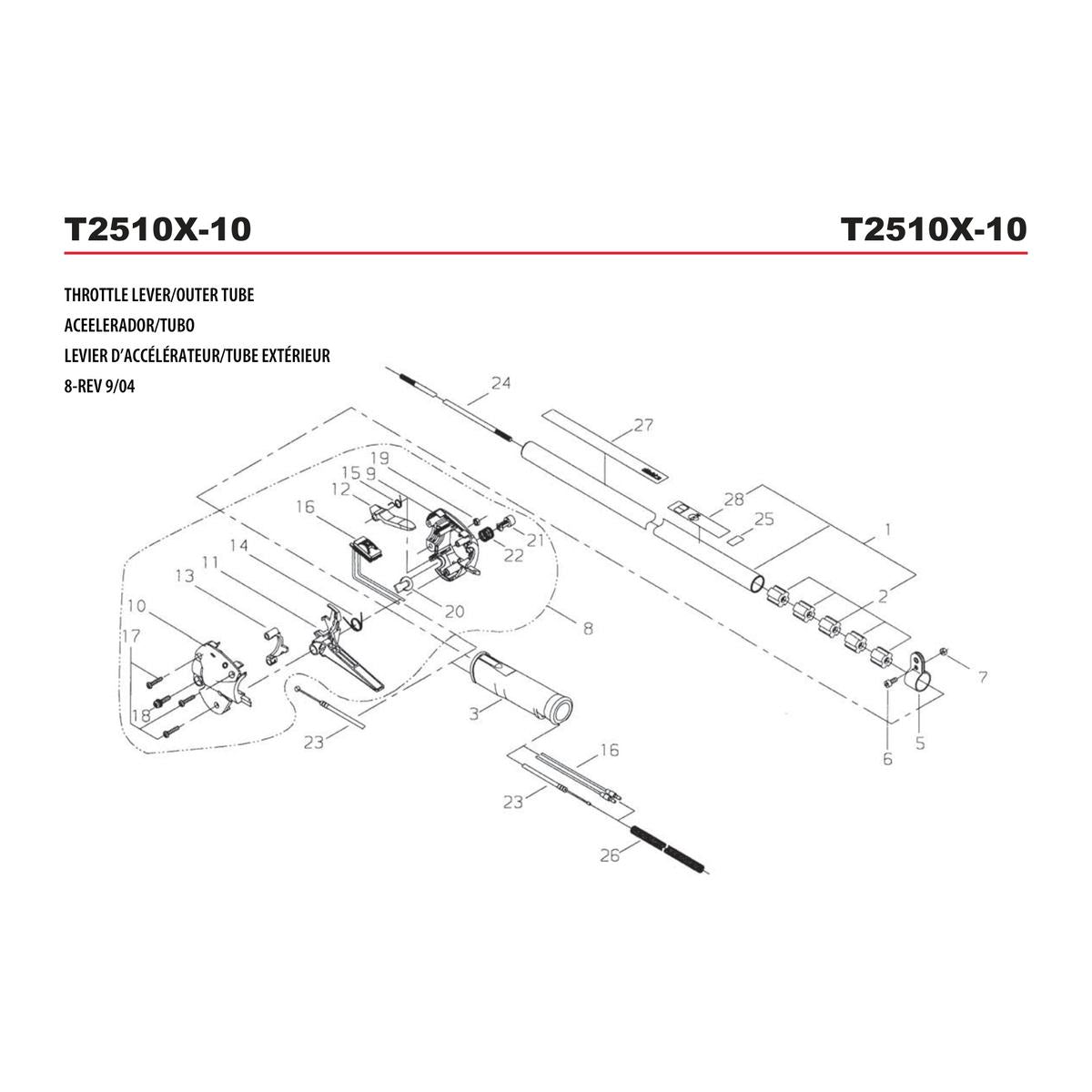

THROTTLE LEVER/OUTER TUBE
THROTTLE LEVER/OUTER TUBE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
63904-62010
63904-62010
|
|||
|
|
22035-12120
22035-12120
|
|||
|
|
19422-00029
19422-00029
|
|||
|
|
63901-62140
63901-62140
|
|||
|
|
22410-12210
22410-12210
|
|||
|
|
01020-05120
01020-05120
|
|||
|
|
01500-05041
01500-05041
|
|||
|
|
63904-62020
63904-62020
|
|||
|
|
72549-62320
72549-62320
|
|||
|
|
63002-62330
63002-62330
|
|||
|
|
63002-62340
63002-62340
|
|||
|
|
63901-62352
63901-62352
|
|||
|
|
63002-62350
63002-62350
|
|||
|
|
63880-65350
63880-65350
|
|||
|
|
63901-62370
63901-62370
|
|||
|
|
63901-62380
63901-62380
|
|||
|
|
63880-65360
63880-65360
|
|||
|
|
11206-05201
11206-05201
|
|||
|
|
01501-05030
01501-05030
|
|||
|
|
63880-65411
63880-65411
|
|||
|
|
70871-65170
70871-65170
|
|||
|
|
70871-65180
70871-65180
|
|||
|
|
63901-62173
63901-62173
|
|||
|
|
22070-12410
22070-12410
|
|||
|
|
19401-00269
19401-00269
|
|||
|
|
63901-62440
63901-62440
|
|||
|
|
19420-00084
19420-00084
|

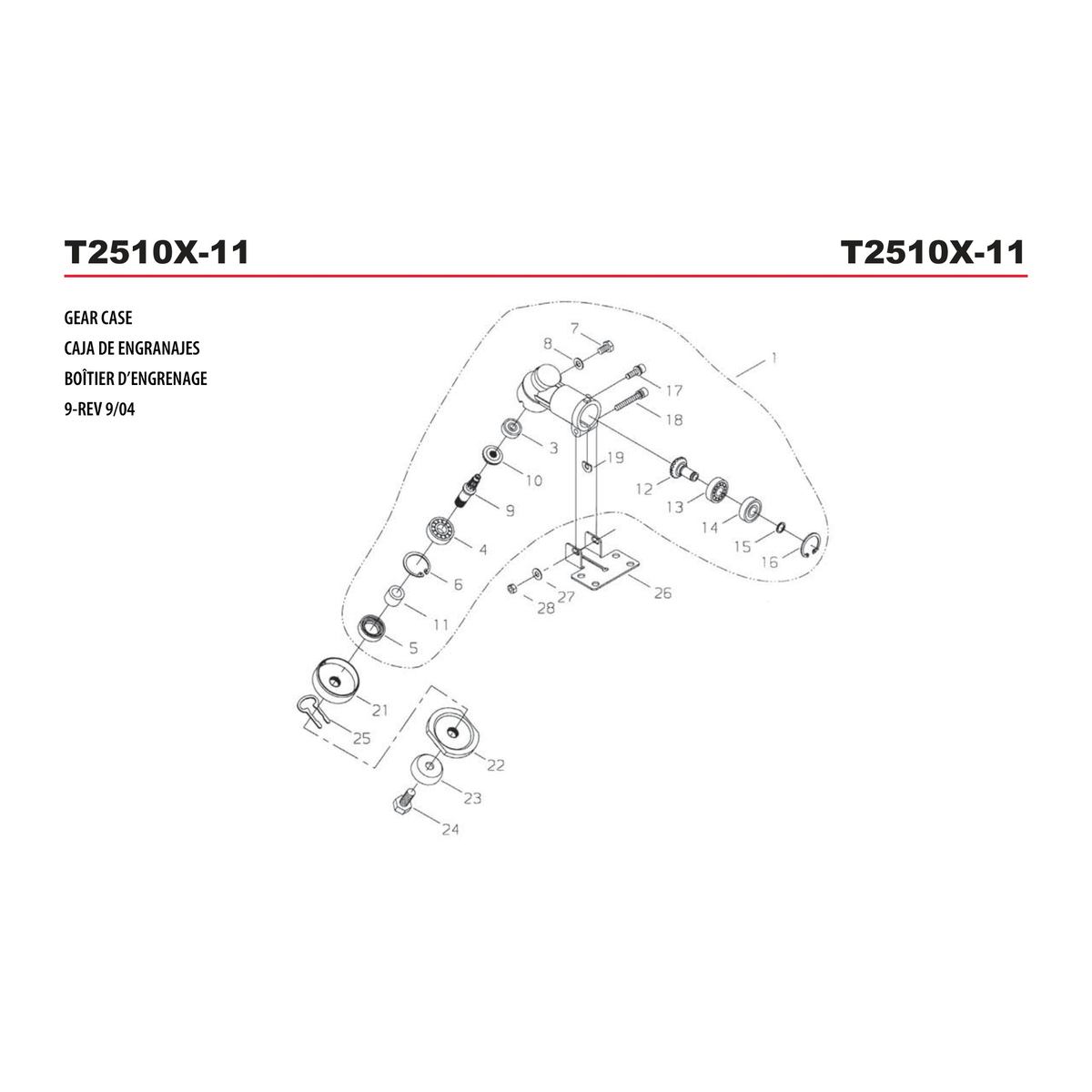

GEAR CASE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
63908-63020
63908-63020
|
|||
|
|
02006-00626
02006-00626
|
|||
|
|
02000-06000
02000-06000
|
|||
|
|
22035-13140
22035-13140
|
|||
|
|
02432-26120
02432-26120
|
|||
|
|
01014-06100
01014-06100
|
|||
|
|
22000-13410
22000-13410
|
|||
|
|
22410-13210
22410-13210
|
|||
|
|
22035-13220
22035-13220
|
|||
|
|
22035-13230
22035-13230
|
|||
|
|
22035-13391
22035-13391
|
|||
|
|
02000-00608
02000-00608
|
|||
|
|
02002-00608
02002-00608
|
|||
|
|
22035-13340
22035-13340
|
|||
|
|
02432-22100
02432-22100
|
|||
|
|
11022-05160
11022-05160
|
|||
|
|
11022-05350
11022-05350
|
|||
|
|
22000-13420
22000-13420
|
|||
|
|
22035-13242
22035-13242
|
|||
|
|
22410-13251
22410-13251
|
|||
|
|
22035-13290
22035-13290
|
|||
|
|
22035-13271
22035-13271
|
|||
|
|
22410-13530
22410-13530
|
|||
|
|
72480-16130
72480-16130
|
|||
|
|
01613-05080
01613-05080
|
|||
|
|
01500-05041
01500-05041
|

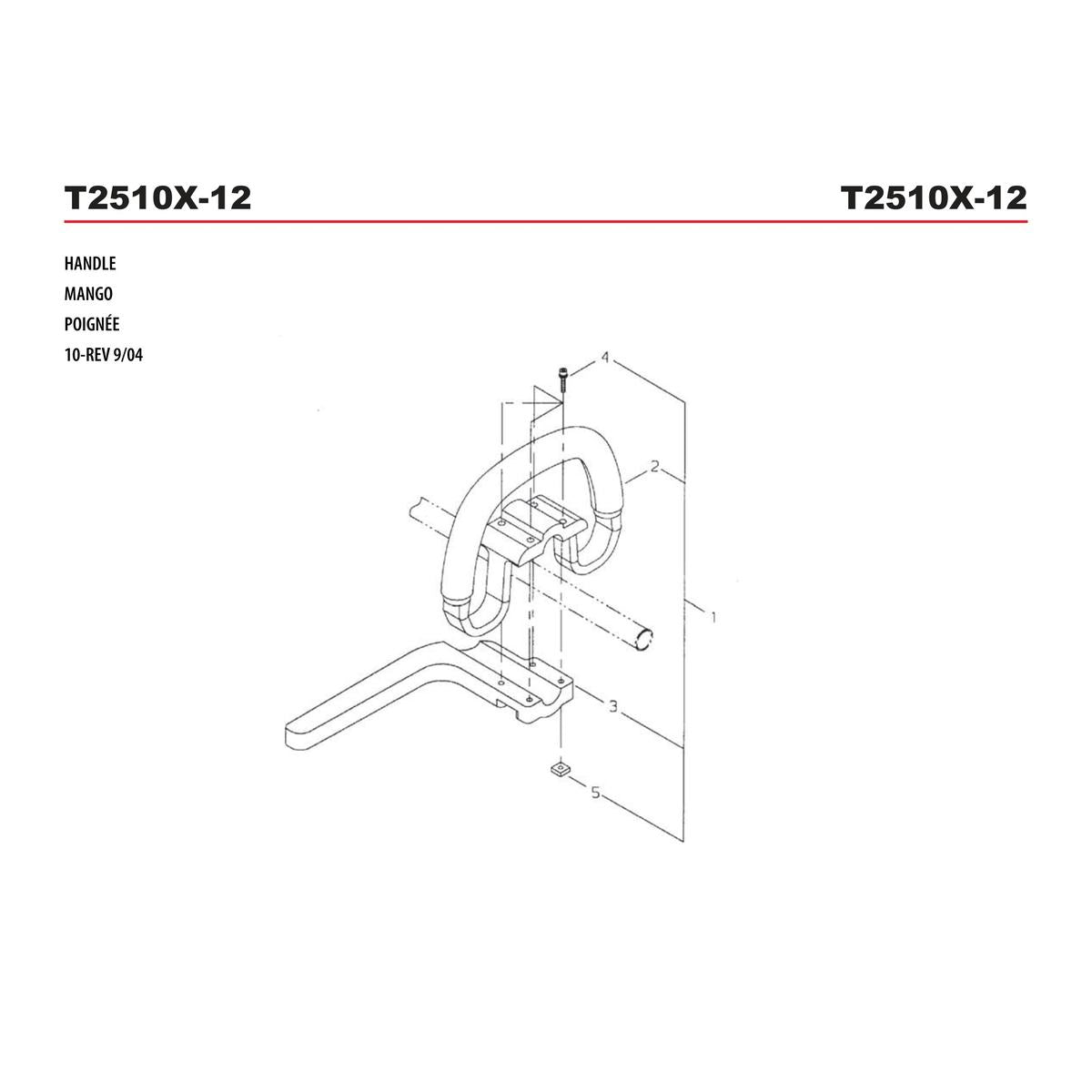

HANDLE
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
60904-98310
60904-98310
|
|||
|
|
62901-64113
62901-64113
|
|||
|
|
65011-64120
65011-64120
|
|||
|
|
11022-05350
11022-05350
|
|||
|
|
22420-16120
22420-16120
|

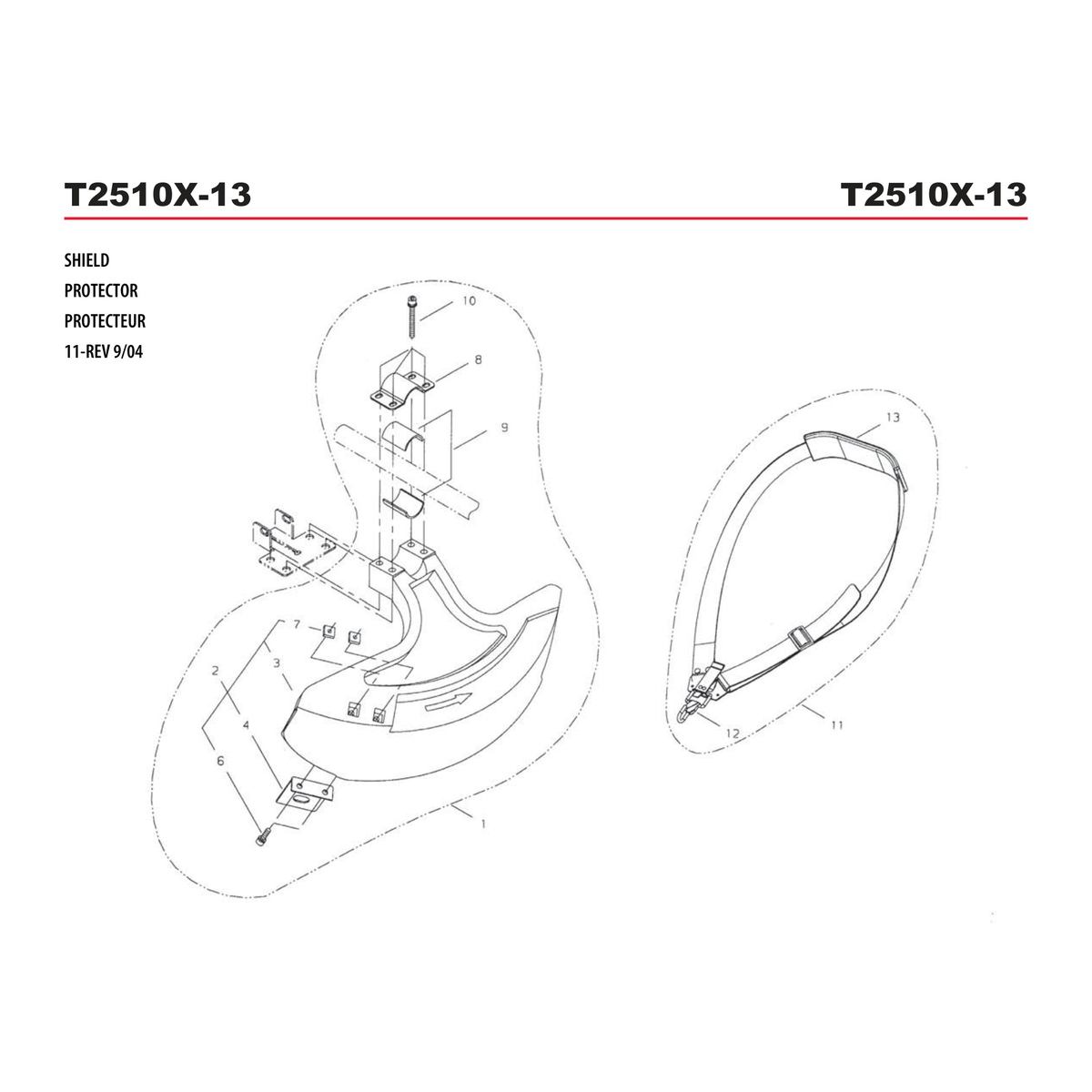

SHIELD
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62042-66320
62042-66320
|
|||
|
|
62042-66310
62042-66310
|
|||
|
|
62042-66110
62042-66110
|
|||
|
|
72480-16121
72480-16121
|
|||
|
|
11020-05220
11020-05220
|
|||
|
|
22420-16120
22420-16120
|
|||
|
|
72480-16210
72480-16210
|
|||
|
|
72480-16220
72480-16220
|
|||
|
|
11022-05450
11022-05450
|
|||
|
|
22421-17202
22421-17202
|
|||
|
|
22421-17130
22421-17130
|
|||
|
|
22007-17220
22007-17220
|

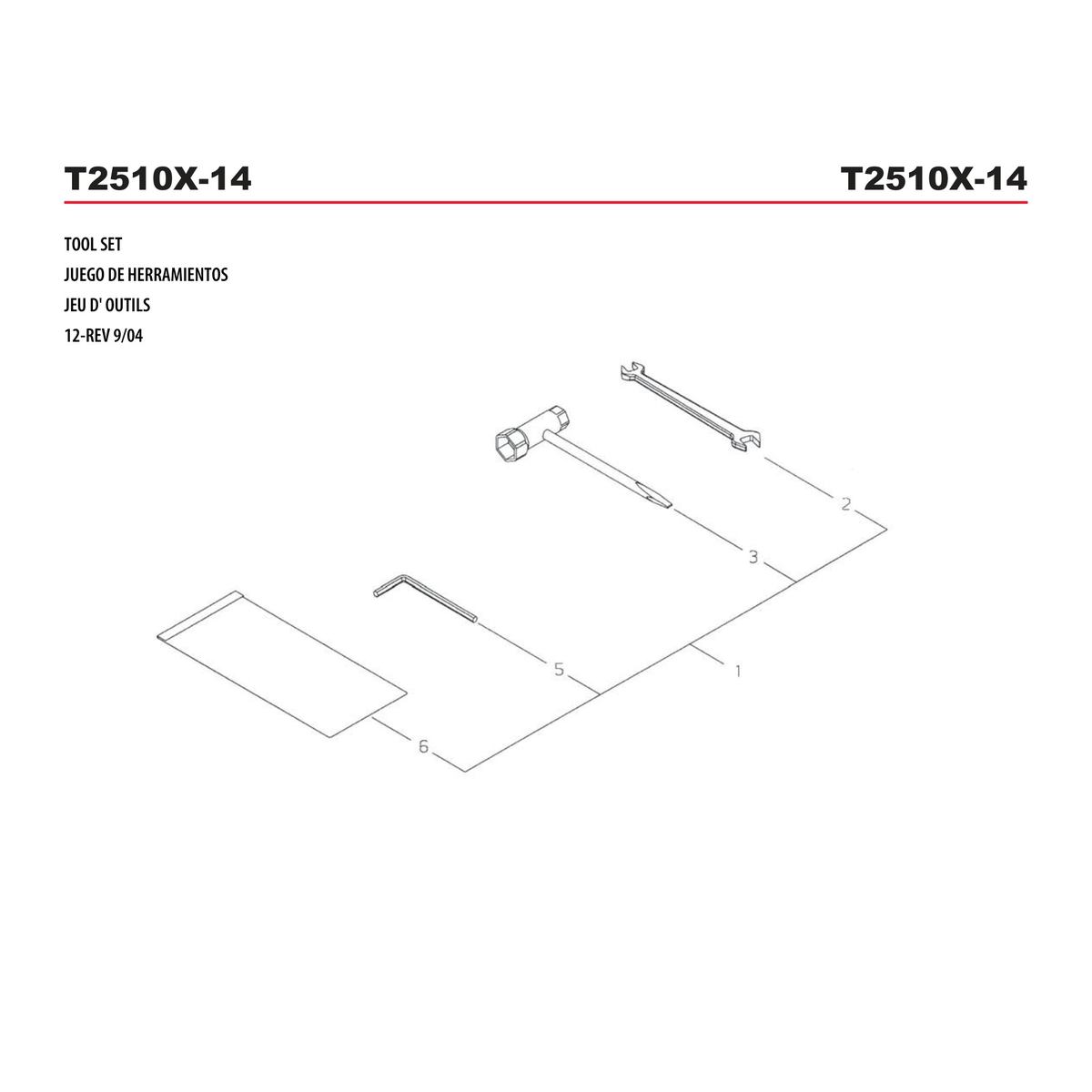

TOOL SET
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
62901-92010
62901-92010
|
|||
|
|
22000-91120
22000-91120
|
|||
|
|
22580-91180
22580-91180
|
|||
|
|
09026-04001
09026-04001
|
|||
|
|
19639-01400
19639-01400
|
