Toro 02720 92CM (36 in.) Attachment Mower (Serial #: 314000001 - 314999999) Parts Diagram
Diagrams:
Diagram:

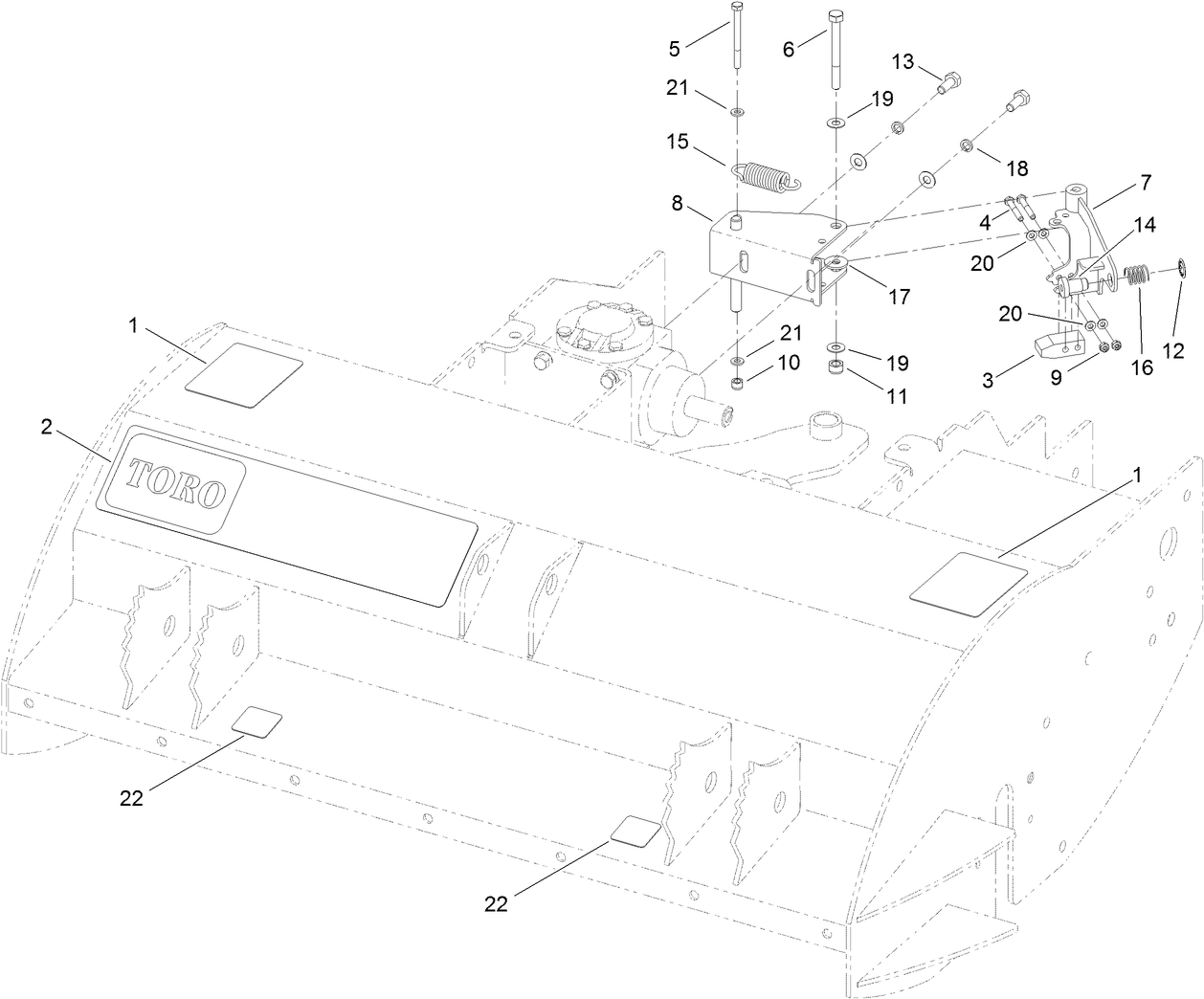

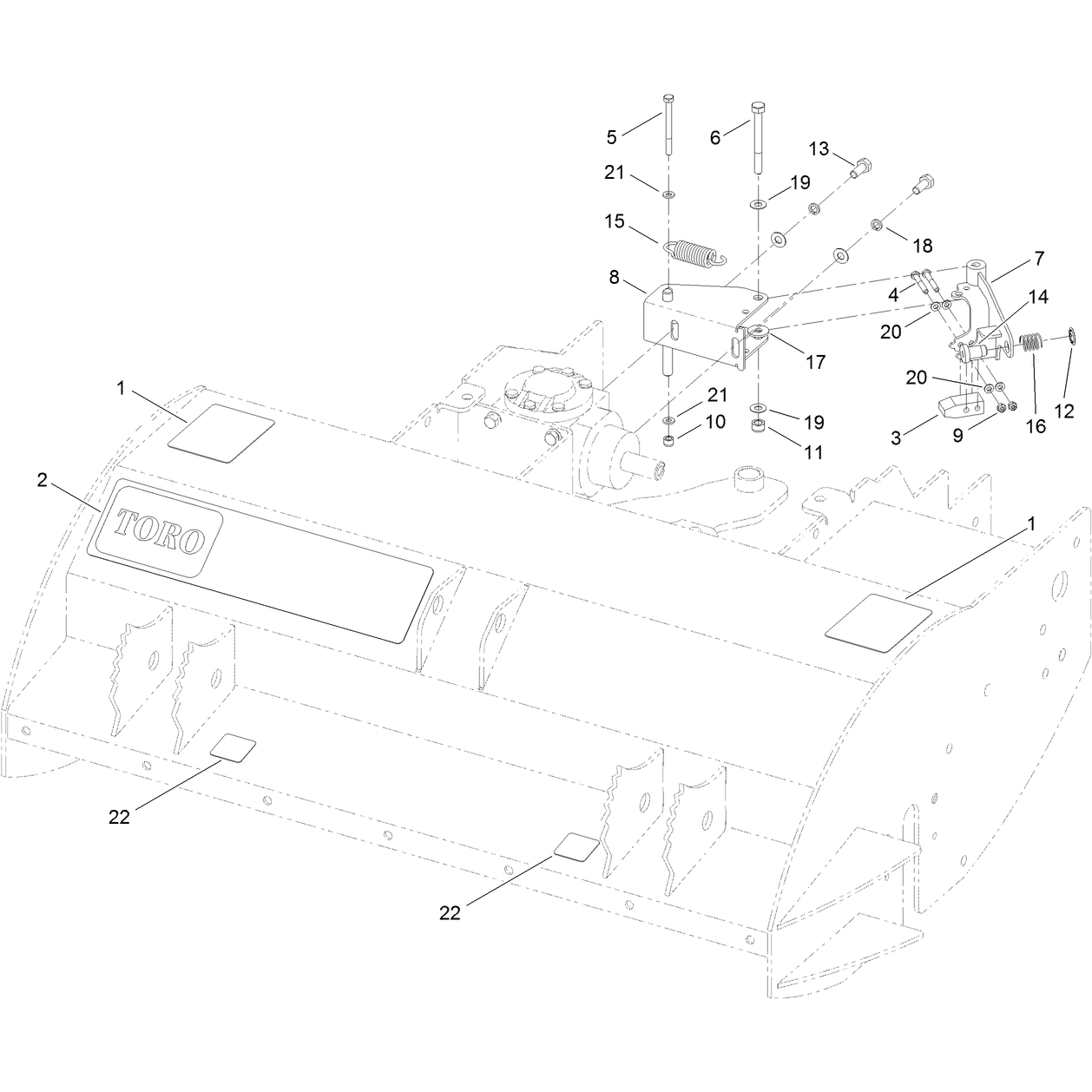

Brake Assembly
Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
40-13-010
40-13-010
|
|||
|
|
111-2992
111-2992
|
|||
|
|
212226
212226
|
|||
|
|
ZBH1E035U
ZBH1E035U
|
|||
|
|
09703
09703
|
|||
|
|
ZBH1H075U
ZBH1H075U
|
|||
|
|
111-2980
111-2980
|
|||
|
|
111-2985
111-2985
|
|||
|
|
09430
09430
|
|||
|
|
09544
09544
|
|||
|
|
09441
09441
|
|||
|
|
1-323748
1-323748
|
|||
|
|
09368
09368
|
|||
|
|
1-323746
1-323746
|
|||
|
|
212227
212227
|
|||
|
|
1-323747
1-323747
|
|||
|
|
09267
09267
|
|||
|
|
03469
03469
|
|||
|
|
09475
09475
|
|||
|
|
09470
09470
|
|||
|
|
09472
09472
|
|||
|
|
320006
320006
|

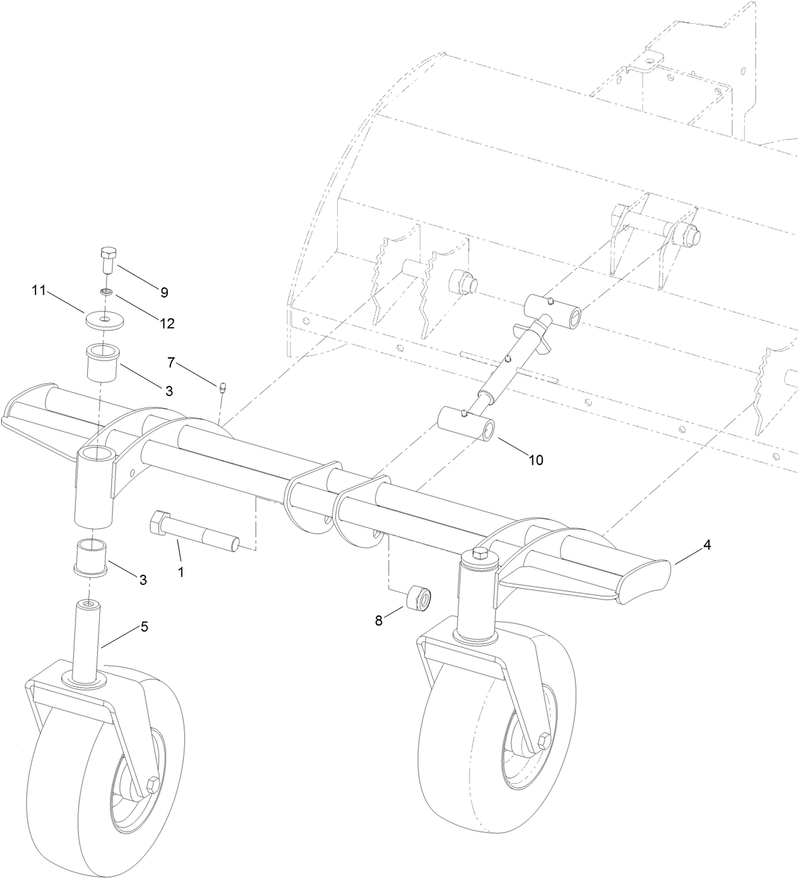

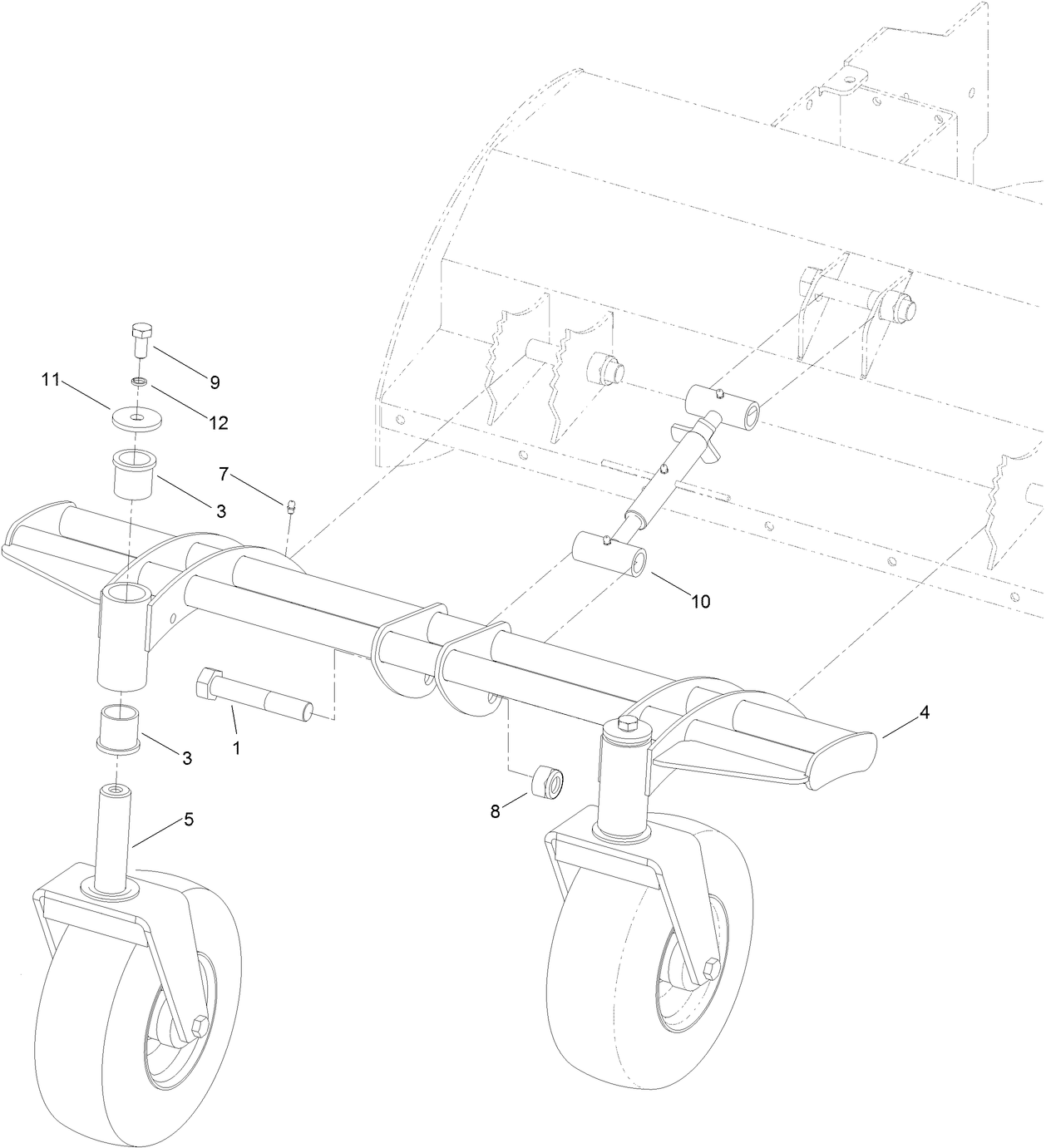

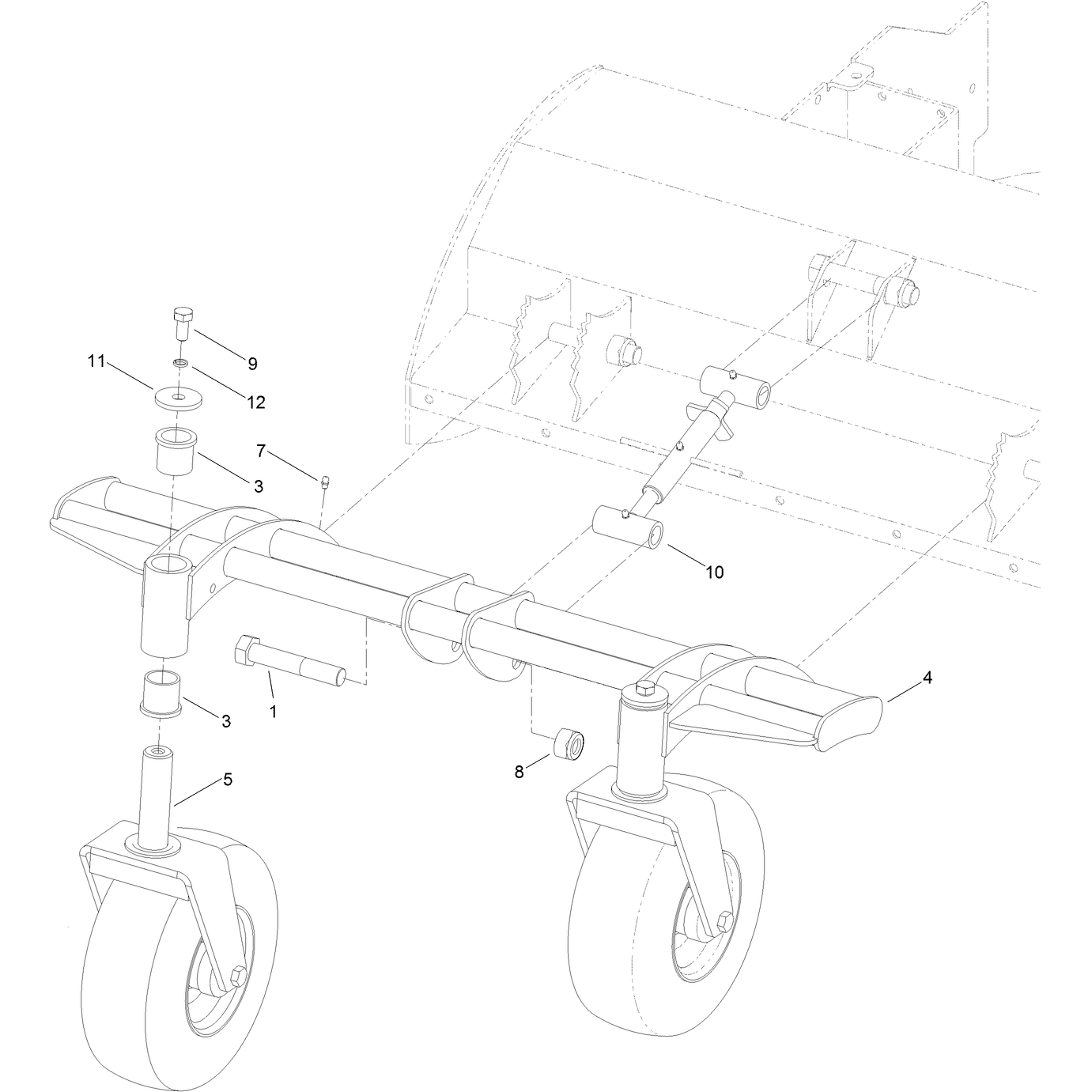

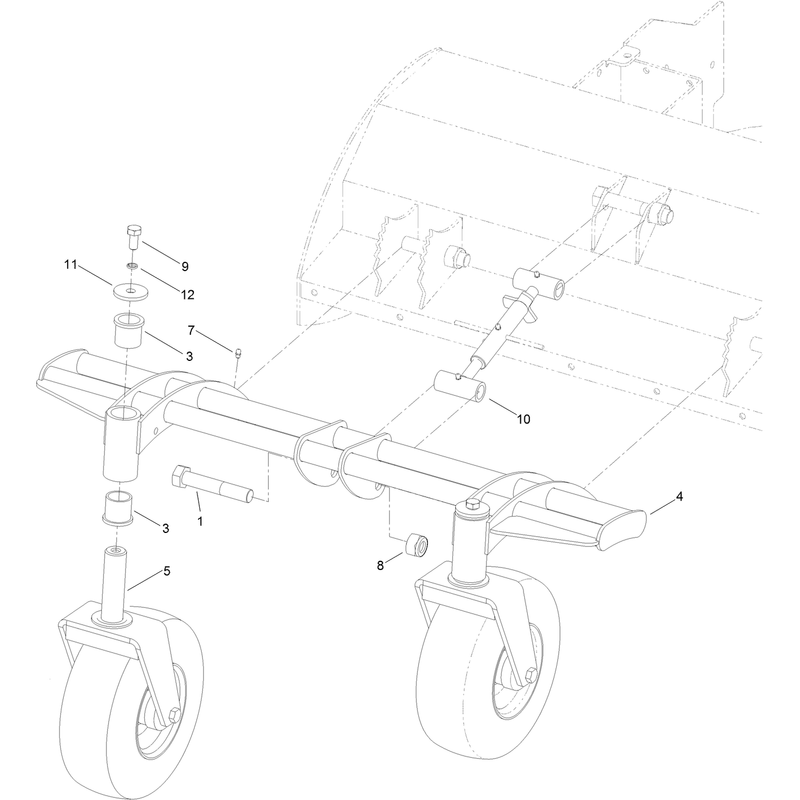

Caster Wheel and Carrier Assembly 36 Inch Flail Attachment
Caster Wheel and Carrier Assembly 36 Inch Flail Attachment
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
111-2383
111-2383
|
|||
|
|
111-2570
111-2570
|
|||
|
|
111-2393-01
111-2393-01
|
|||
|
|
111-3370-01
111-3370-01
|
|||
|
|
111-2561
111-2561
|
|||
|
|
111-2384
111-2384
|
|||
|
|
09571
09571
|
|||
|
|
111-2381
111-2381
|
|||
|
|
111-2571
111-2571
|
|||
|
|
09599
09599
|

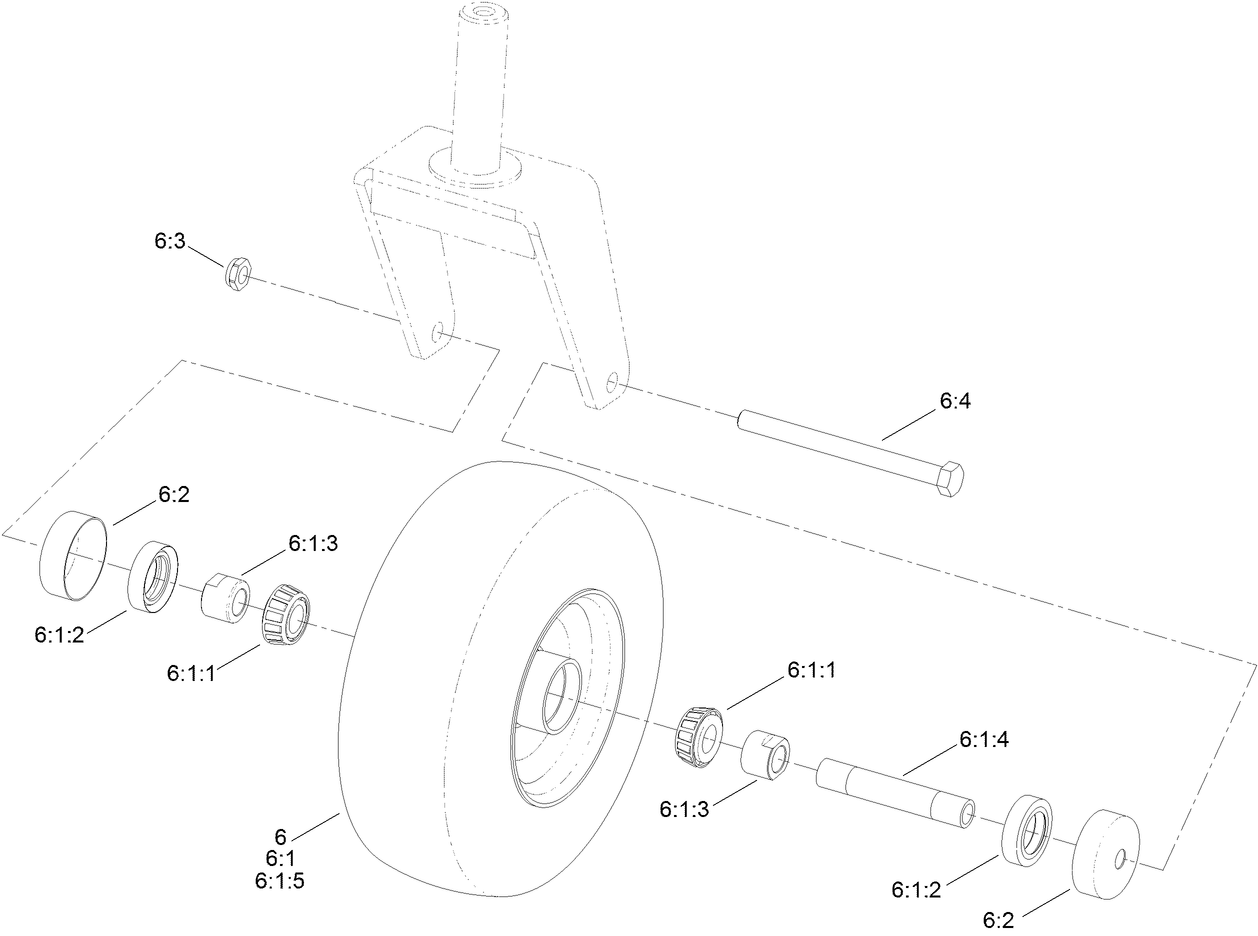

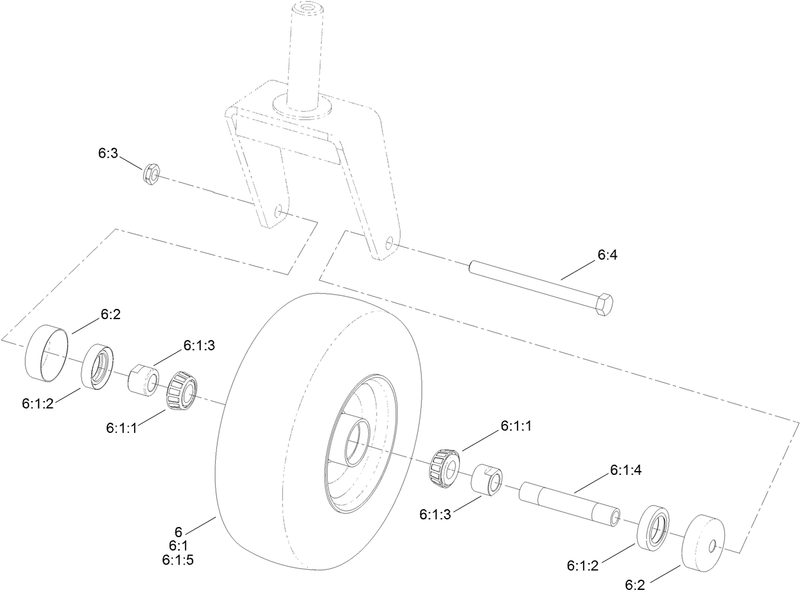

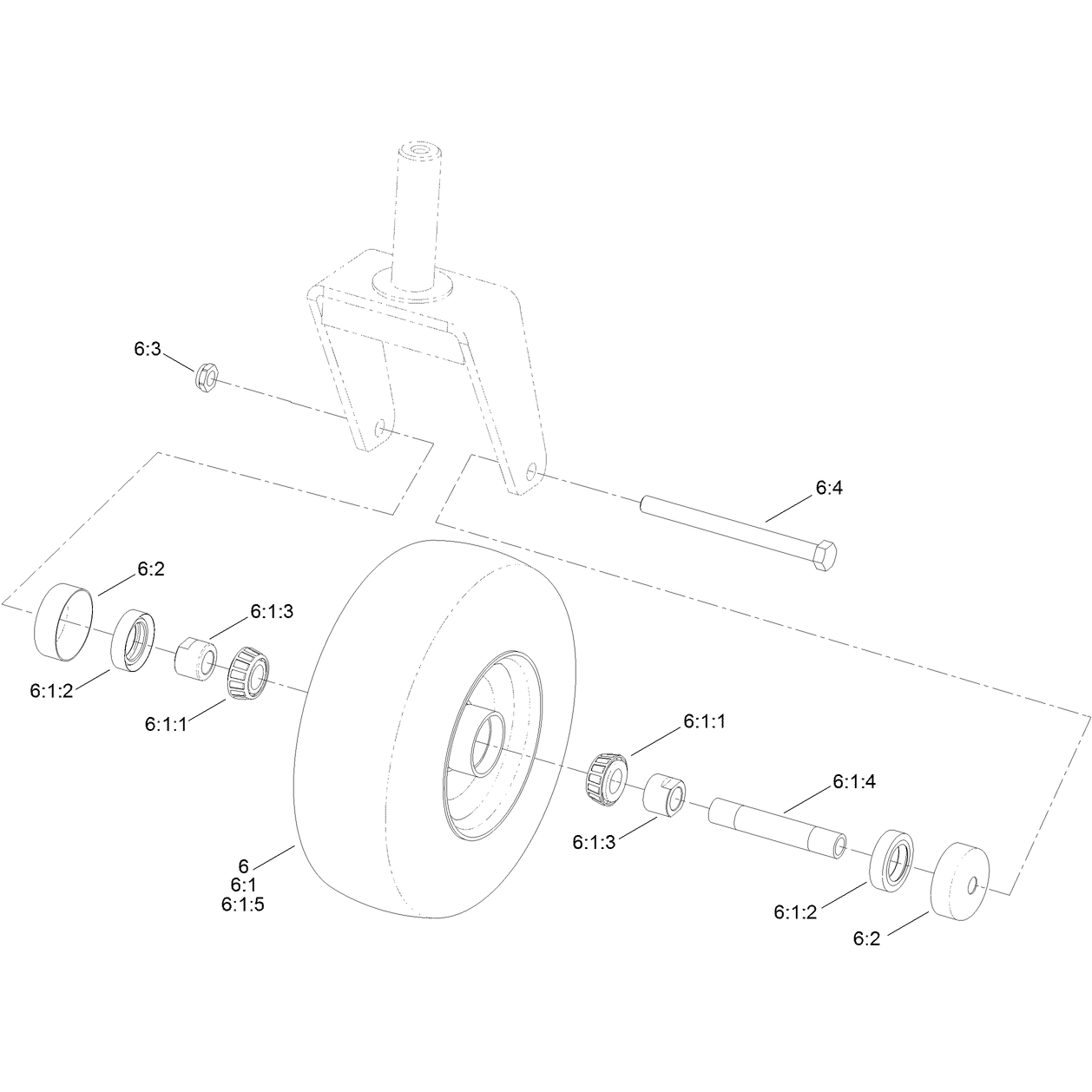

Caster Wheel Assembly
Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
112-3810
112-3810
|
|||
|
|
|
|||
|
|
1-633585
1-633585
|
|||
|
|
103-0063
103-0063
|
|||
|
|
|
|||
|
|
126-5359
126-5359
|
|||
|
|
110-9965
110-9965
|
|||
|
|
103-2768
103-2768
|
|||
|
|
3296-45
3296-45
|
|||
|
|
325-20
325-20
|

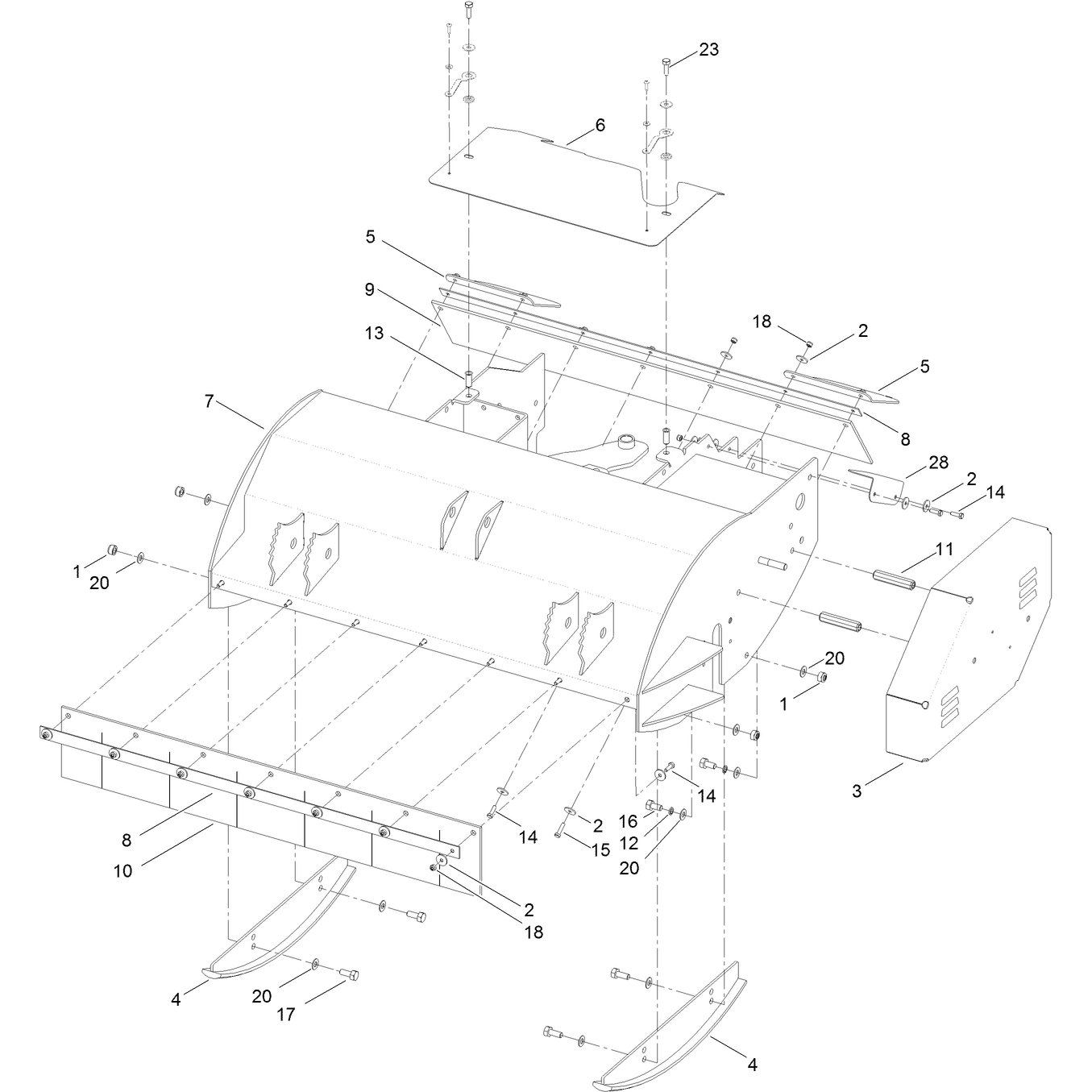

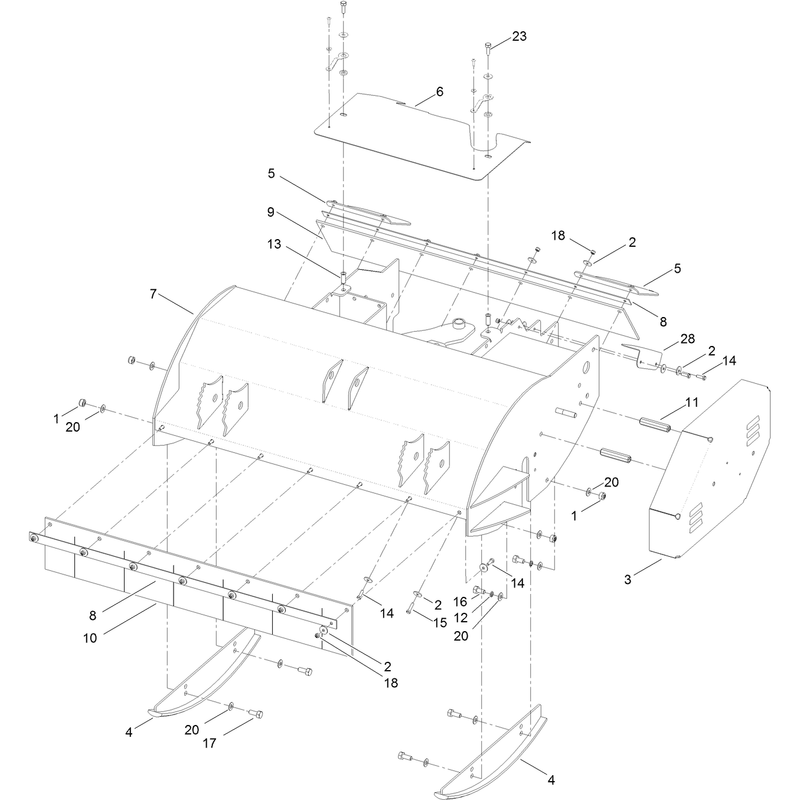

Chassis Cover and Guard Assembly 36 Inch Flail Attachment
Chassis Cover and Guard Assembly 36 Inch Flail Attachment
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
ZNN1J000U
ZNN1J000U
|
|||
|
|
09263
09263
|
|||
|
|
111-2382-01
111-2382-01
|
|||
|
|
111-2385-01
111-2385-01
|
|||
|
|
111-2400-01
111-2400-01
|
|||
|
|
111-4930-01
111-4930-01
|
|||
|
|
111-2415-01
111-2415-01
|
|||
|
|
111-2503
111-2503
|
|||
|
|
111-2504
111-2504
|
|||
|
|
111-2505
111-2505
|
|||
|
|
111-2514
111-2514
|
|||
|
|
09480
09480
|
|||
|
|
924423
924423
|
|||
|
|
09363
09363
|
|||
|
|
09364
09364
|
|||
|
|
09391
09391
|
|||
|
|
09395
09395
|
|||
|
|
09438
09438
|
|||
|
|
09479
09479
|
|||
|
|
03162
03162
|
|||
|
|
111-4937-01
111-4937-01
|

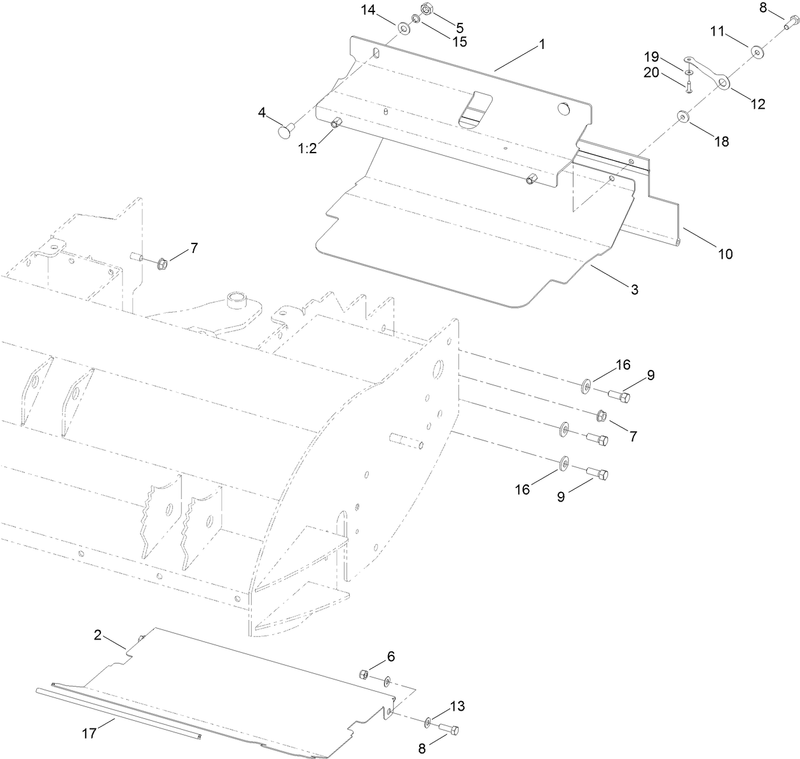

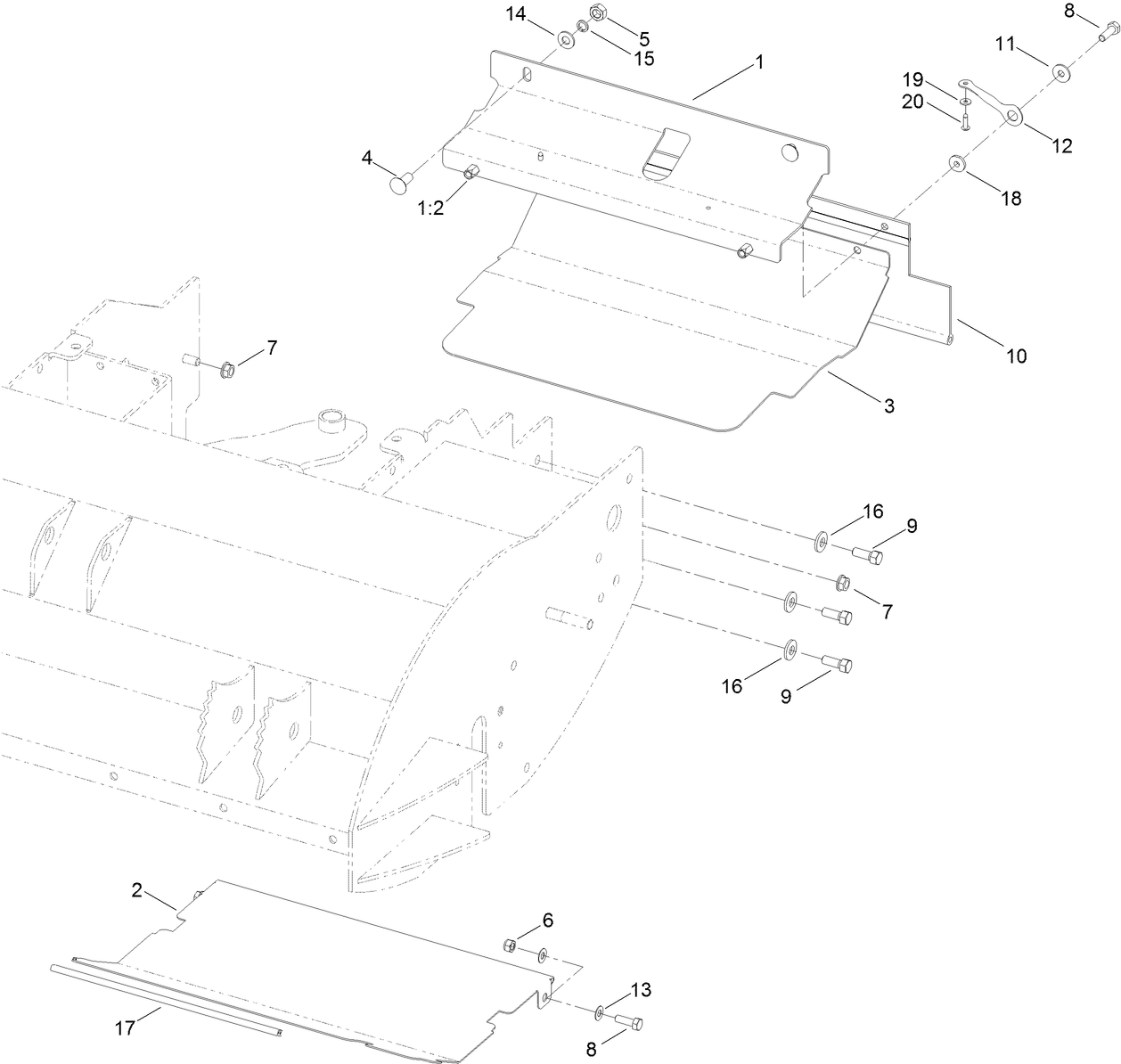

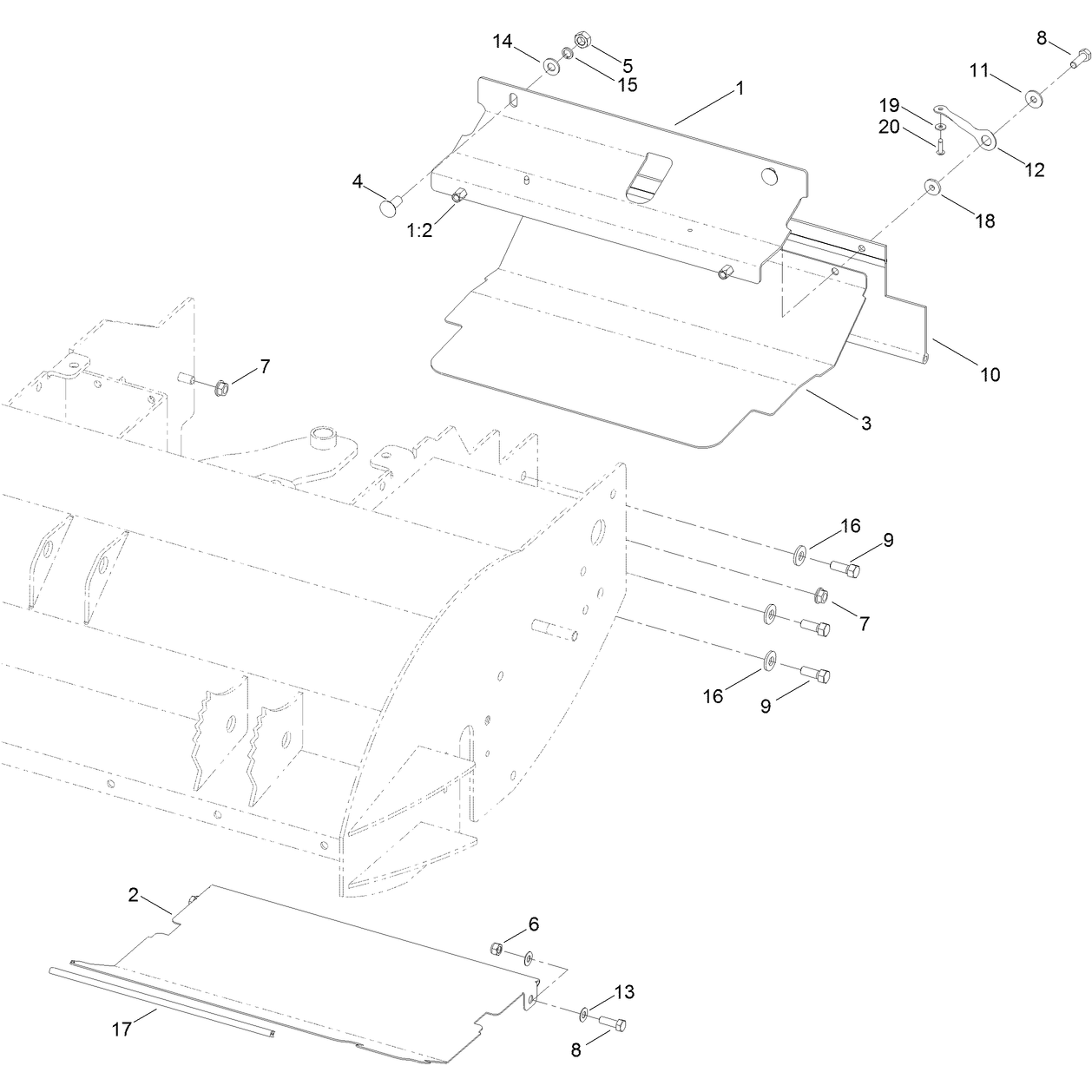

Guard and Drag Shield Assembly
Guard and Drag Shield Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
111-1986
111-1986
|
|||
|
|
111-7683
111-7683
|
|||
|
|
111-2525-01
111-2525-01
|
|||
|
|
111-1655-01
111-1655-01
|
|||
|
|
15-11-003
15-11-003
|
|||
|
|
09449
09449
|
|||
|
|
09441
09441
|
|||
|
|
3290-357
3290-357
|
|||
|
|
03162
03162
|
|||
|
|
HY103653
HY103653
|
|||
|
|
103-2056
103-2056
|
|||
|
|
09267
09267
|
|||
|
|
117-8339
117-8339
|
|||
|
|
09475
09475
|
|||
|
|
ZWQ1J000U
ZWQ1J000U
|
|||
|
|
09480
09480
|
|||
|
|
98-5975
98-5975
|
|||
|
|
305128
305128
|
|||
|
|
111-3697
111-3697
|
|||
|
|
09257
09257
|
|||
|
|
09320
09320
|

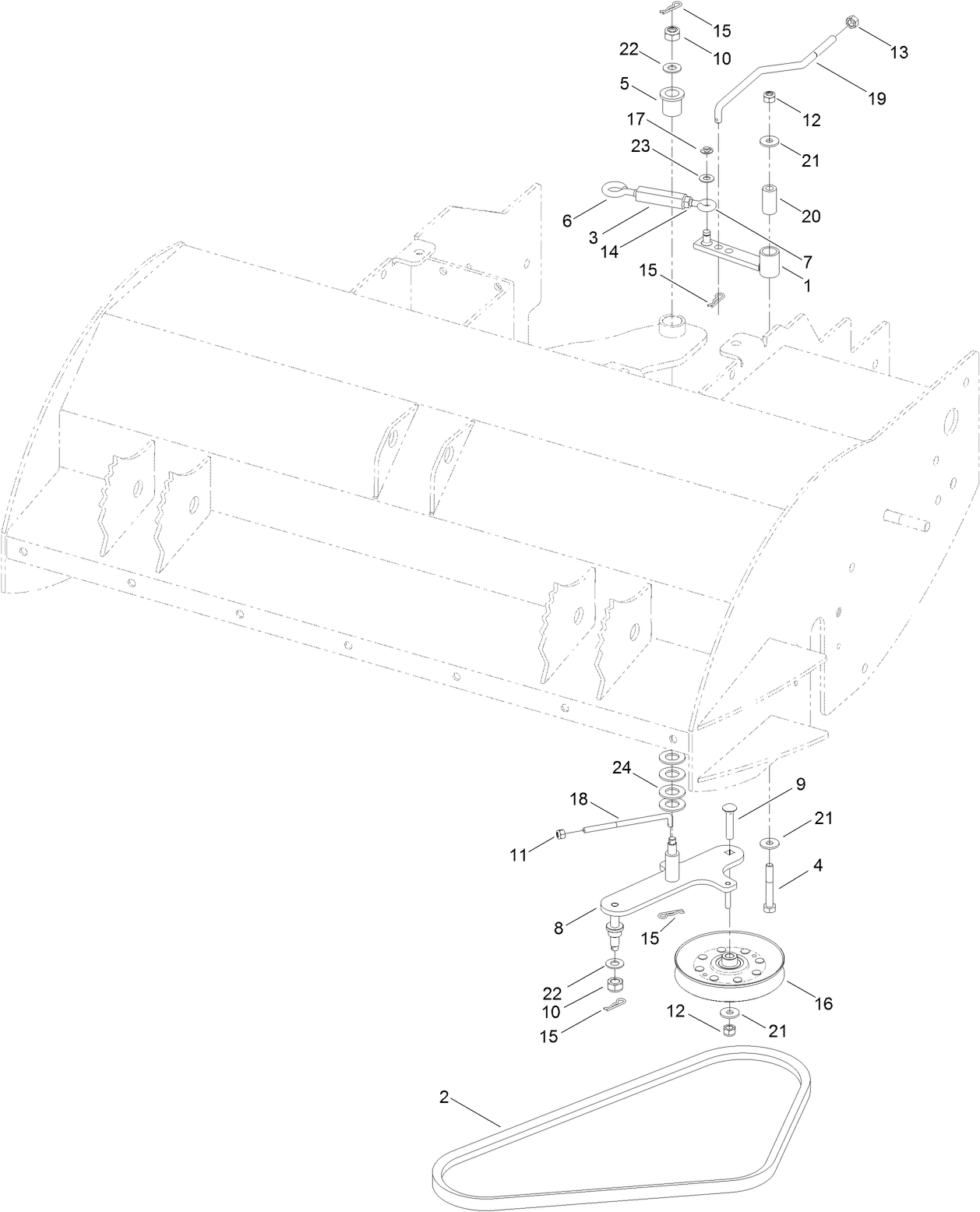

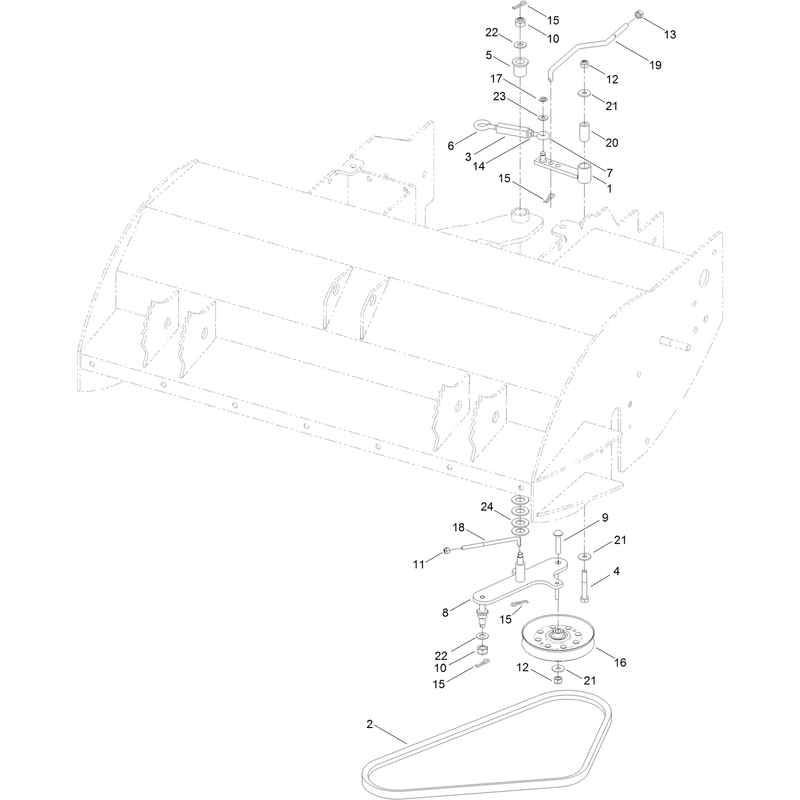

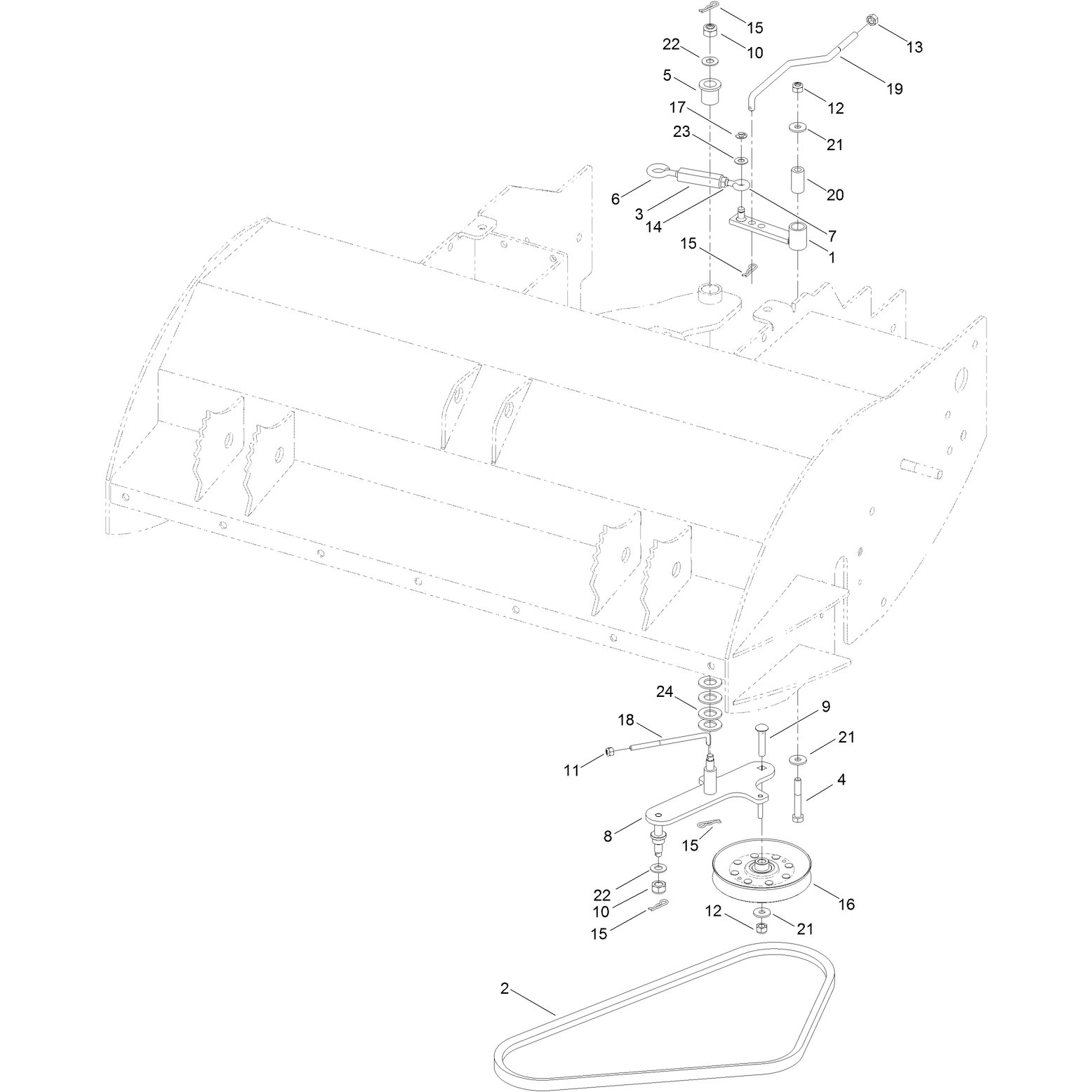

Idler Clutch Assembly
Idler Clutch Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
111-2990
111-2990
|
|||
|
|
111-2655
111-2655
|
|||
|
|
1-303236
1-303236
|
|||
|
|
09565
09565
|
|||
|
|
953868
953868
|
|||
|
|
1-303348
1-303348
|
|||
|
|
1-303238
1-303238
|
|||
|
|
111-2657
111-2657
|
|||
|
|
09379
09379
|
|||
|
|
ZNN1J000U
ZNN1J000U
|
|||
|
|
09544
09544
|
|||
|
|
09441
09441
|
|||
|
|
09207
09207
|
|||
|
|
32128-20
32128-20
|
|||
|
|
1-806003
1-806003
|
|||
|
|
111-2464
111-2464
|
|||
|
|
32120-35
32120-35
|
|||
|
|
111-2977
111-2977
|
|||
|
|
111-2474
111-2474
|
|||
|
|
1-403179
1-403179
|
|||
|
|
09267
09267
|
|||
|
|
09479
09479
|
|||
|
|
09475
09475
|
|||
|
|
ZWP1P000U
ZWP1P000U
|

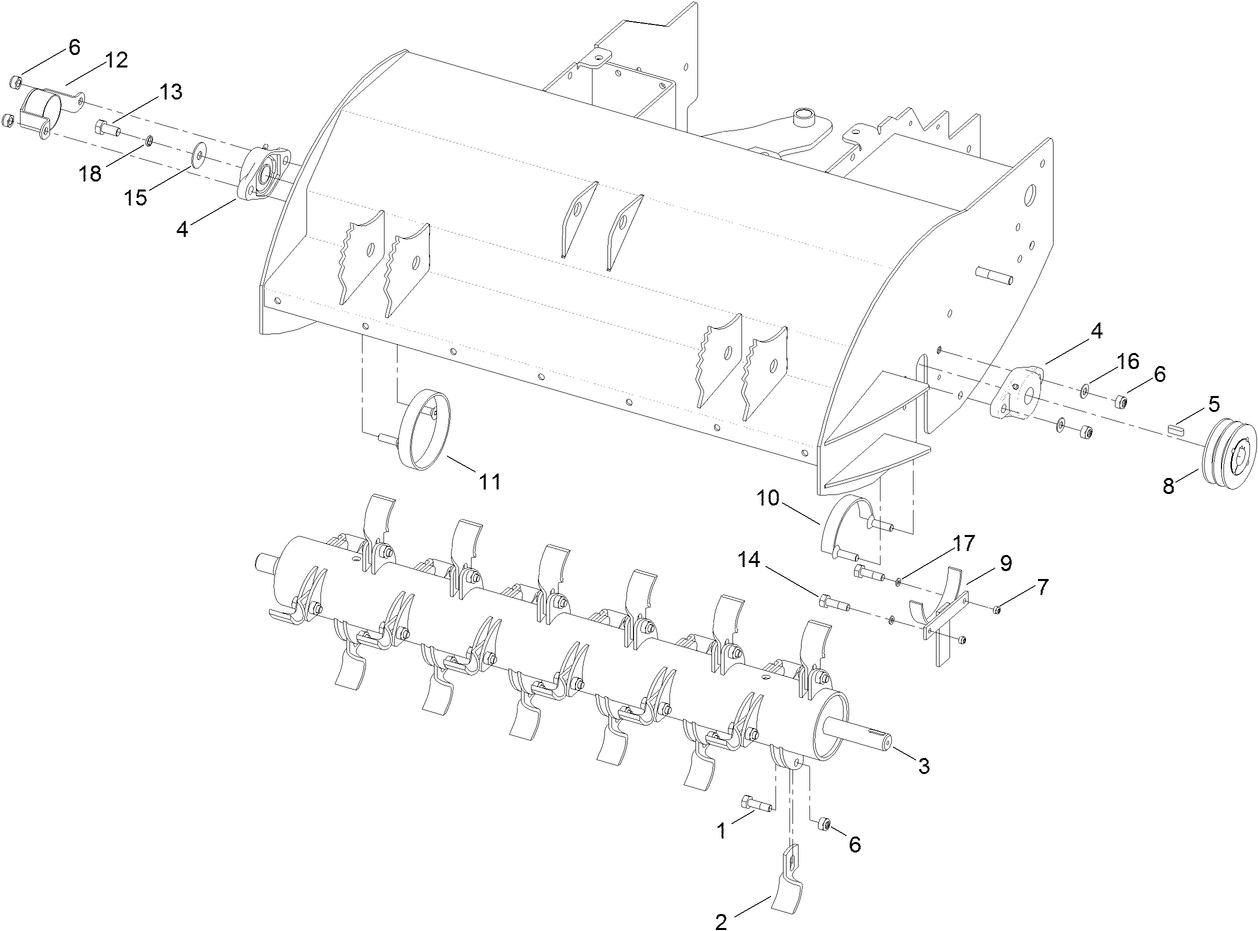

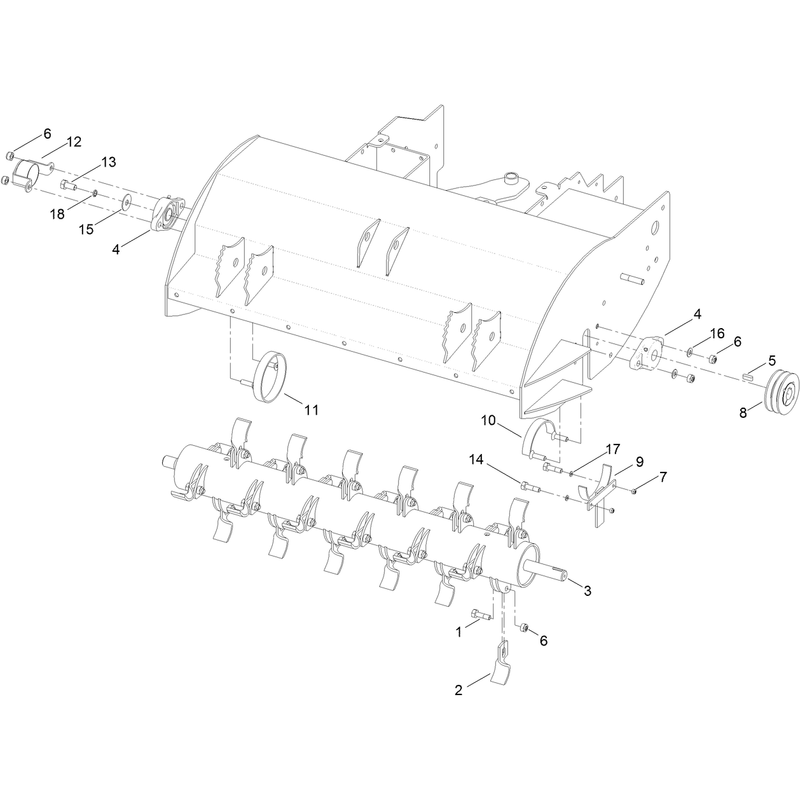

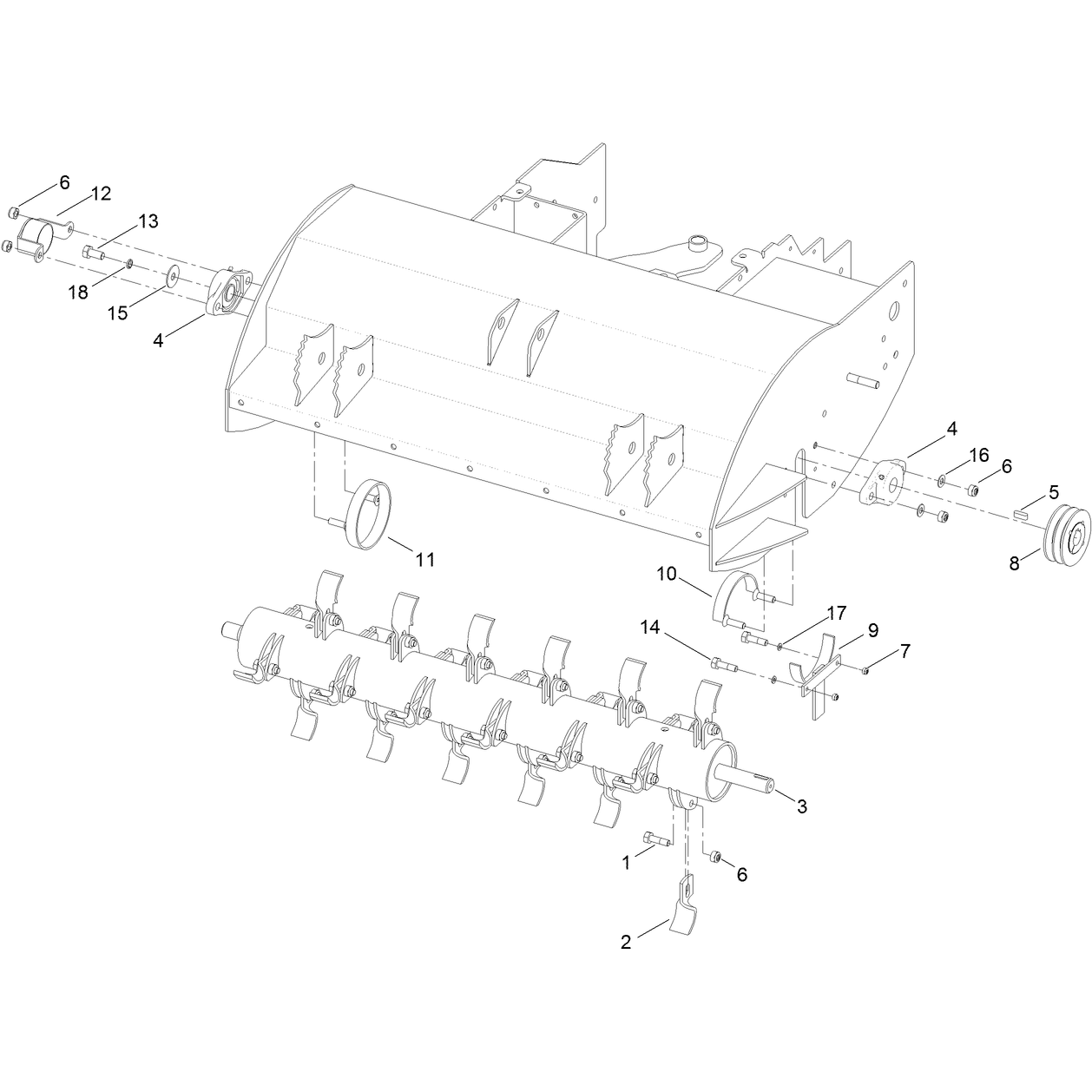

Rotor Assembly 36 Inch Flail Attachment
Rotor Assembly 36 Inch Flail Attachment
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
111-7096
111-7096
|
|||
|
|
111-9287
111-9287
|
|||
|
|
111-2429-03
111-2429-03
|
|||
|
|
111-2444
111-2444
|
|||
|
|
111-2480
111-2480
|
|||
|
|
ZNN1J000U
ZNN1J000U
|
|||
|
|
09438
09438
|
|||
|
|
111-2412
111-2412
|
|||
|
|
111-2447
111-2447
|
|||
|
|
111-2445
111-2445
|
|||
|
|
111-2416
111-2416
|
|||
|
|
111-2419
111-2419
|
|||
|
|
09571
09571
|
|||
|
|
09363
09363
|
|||
|
|
09283
09283
|
|||
|
|
09479
09479
|
|||
|
|
09472
09472
|
|||
|
|
09599
09599
|

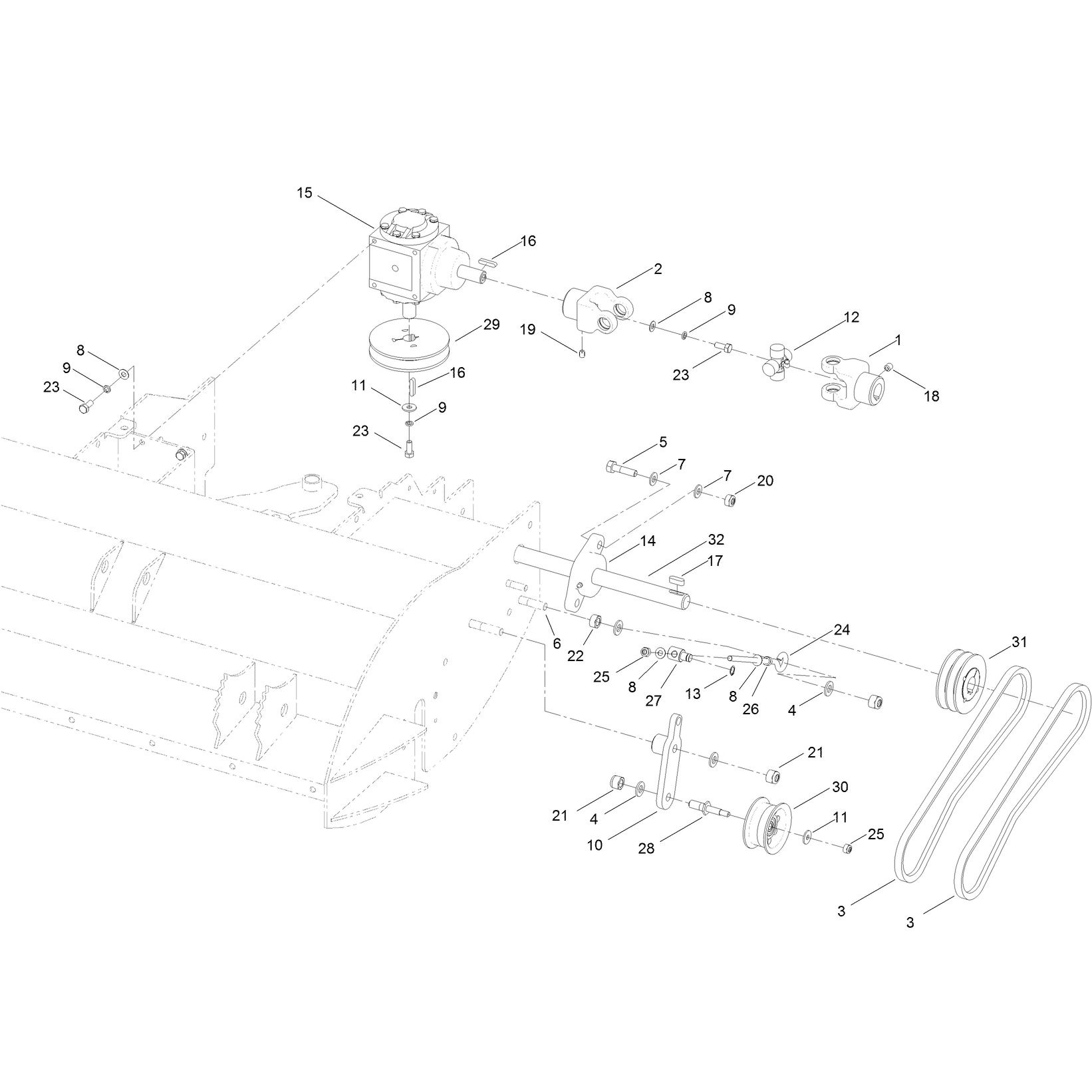

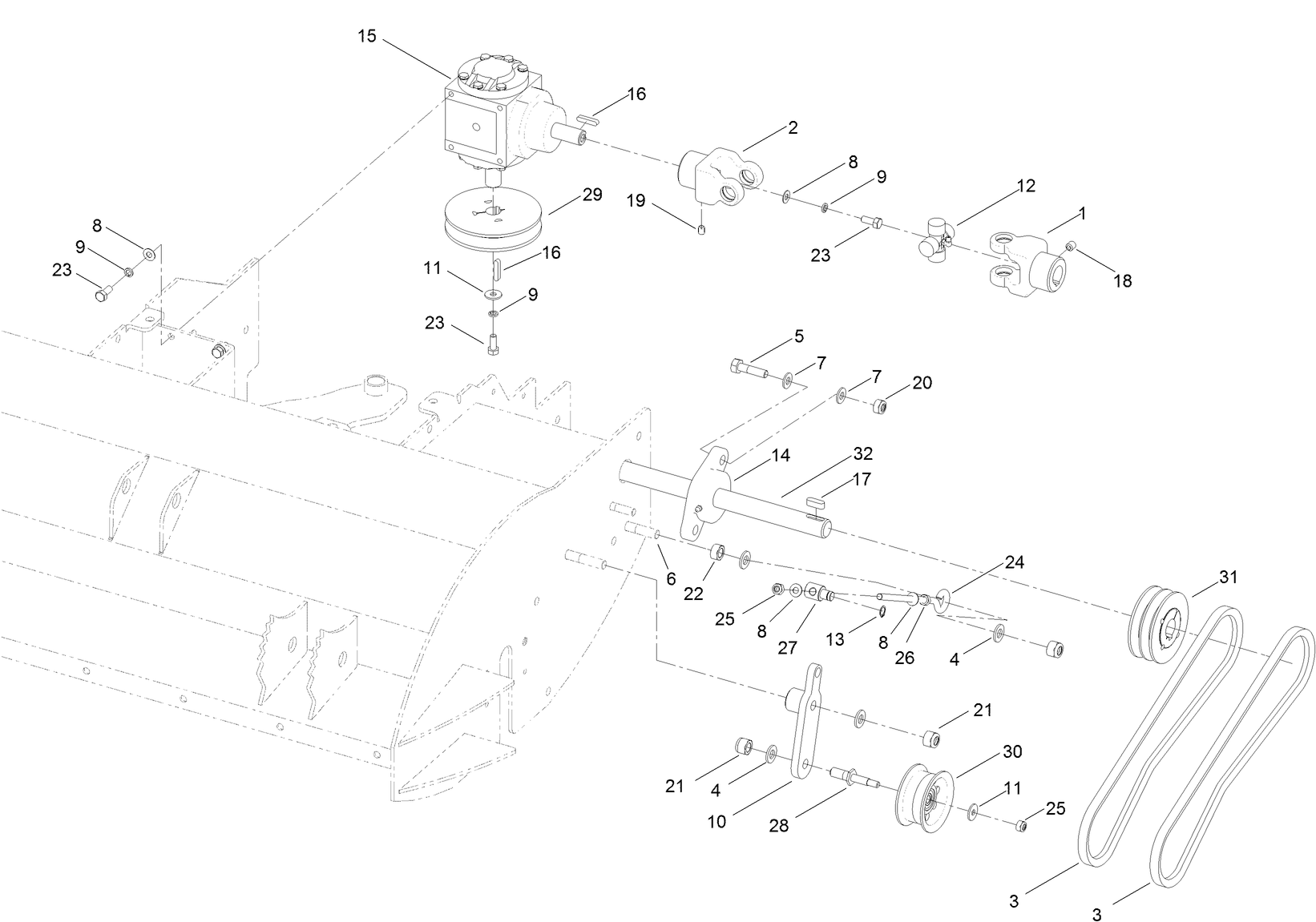

Rotory Drive Assembly
Rotory Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
134-3781
134-3781
|
|||
|
|
111-2433
111-2433
|
|||
|
|
111-2432
111-2432
|
|||
|
|
111-2476
111-2476
|
|||
|
|
HY09485
HY09485
|
|||
|
|
09611
09611
|
|||
|
|
09552
09552
|
|||
|
|
ZWQ1J000U
ZWQ1J000U
|
|||
|
|
09475
09475
|
|||
|
|
03469
03469
|
|||
|
|
111-2456
111-2456
|
|||
|
|
09267
09267
|
|||
|
|
111-2431
111-2431
|
|||
|
|
950940
950940
|
|||
|
|
111-2444
111-2444
|
|||
|
|
111-2411
111-2411
|
|||
|
|
111-2481
111-2481
|
|||
|
|
111-2480
111-2480
|
|||
|
|
111-3085
111-3085
|
|||
|
|
111-3084
111-3084
|
|||
|
|
ZNN1J000U
ZNN1J000U
|
|||
|
|
ZNN1L000U
ZNN1L000U
|
|||
|
|
09454
09454
|
|||
|
|
09368
09368
|
|||
|
|
111-2469
111-2469
|
|||
|
|
09441
09441
|
|||
|
|
ZNH1H000U
ZNH1H000U
|
|||
|
|
111-2460
111-2460
|
|||
|
|
111-2459
111-2459
|
|||
|
|
111-2473
111-2473
|
|||
|
|
111-2455
111-2455
|
|||
|
|
111-2412
111-2412
|
|||
|
|
111-2501-03
111-2501-03
|

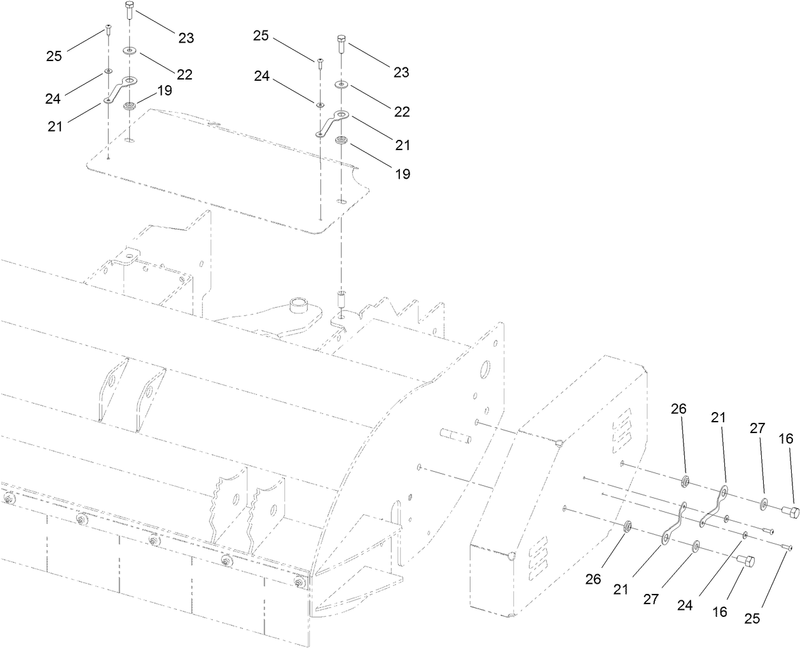

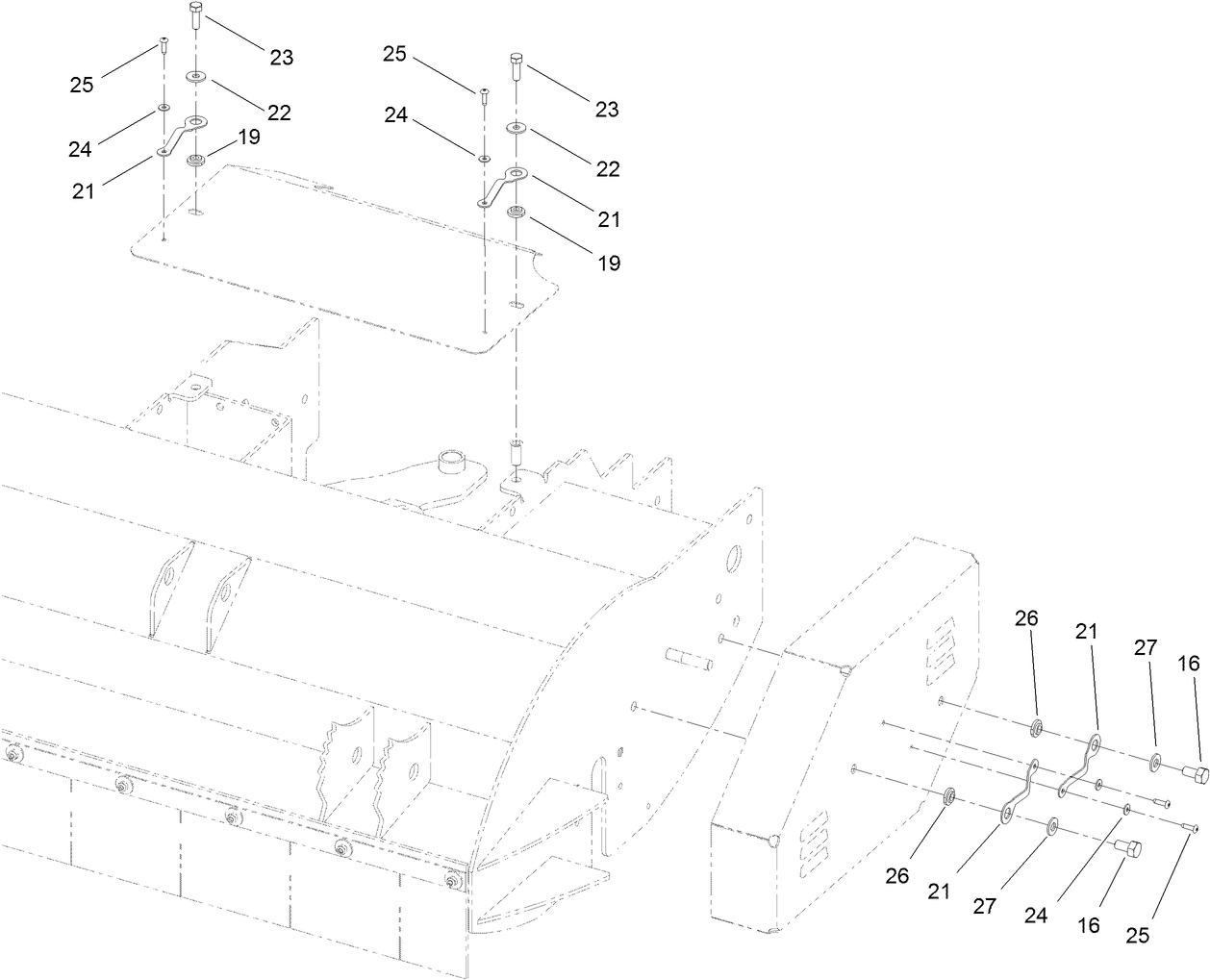

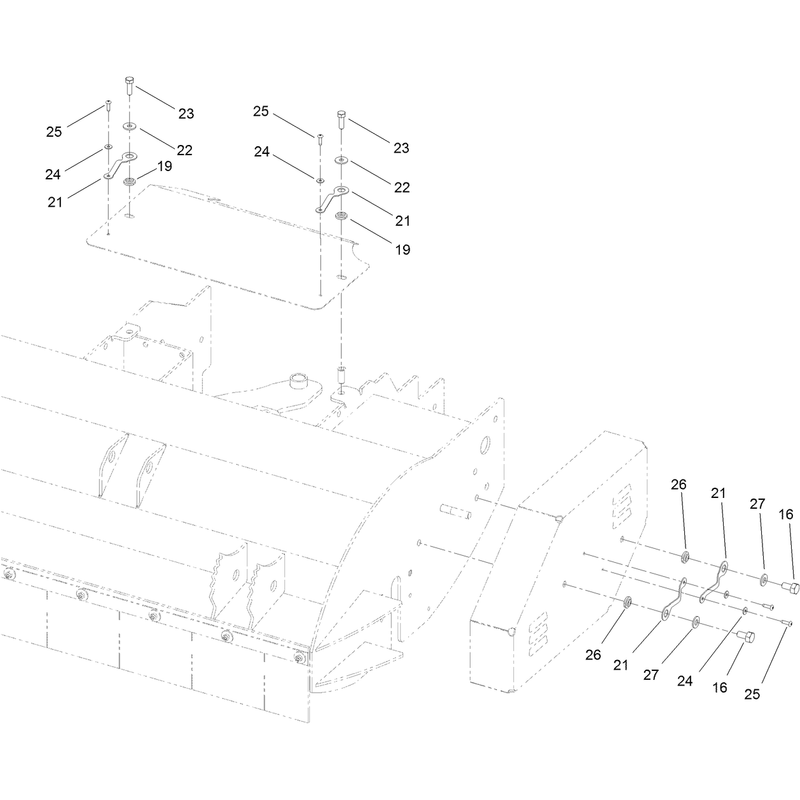

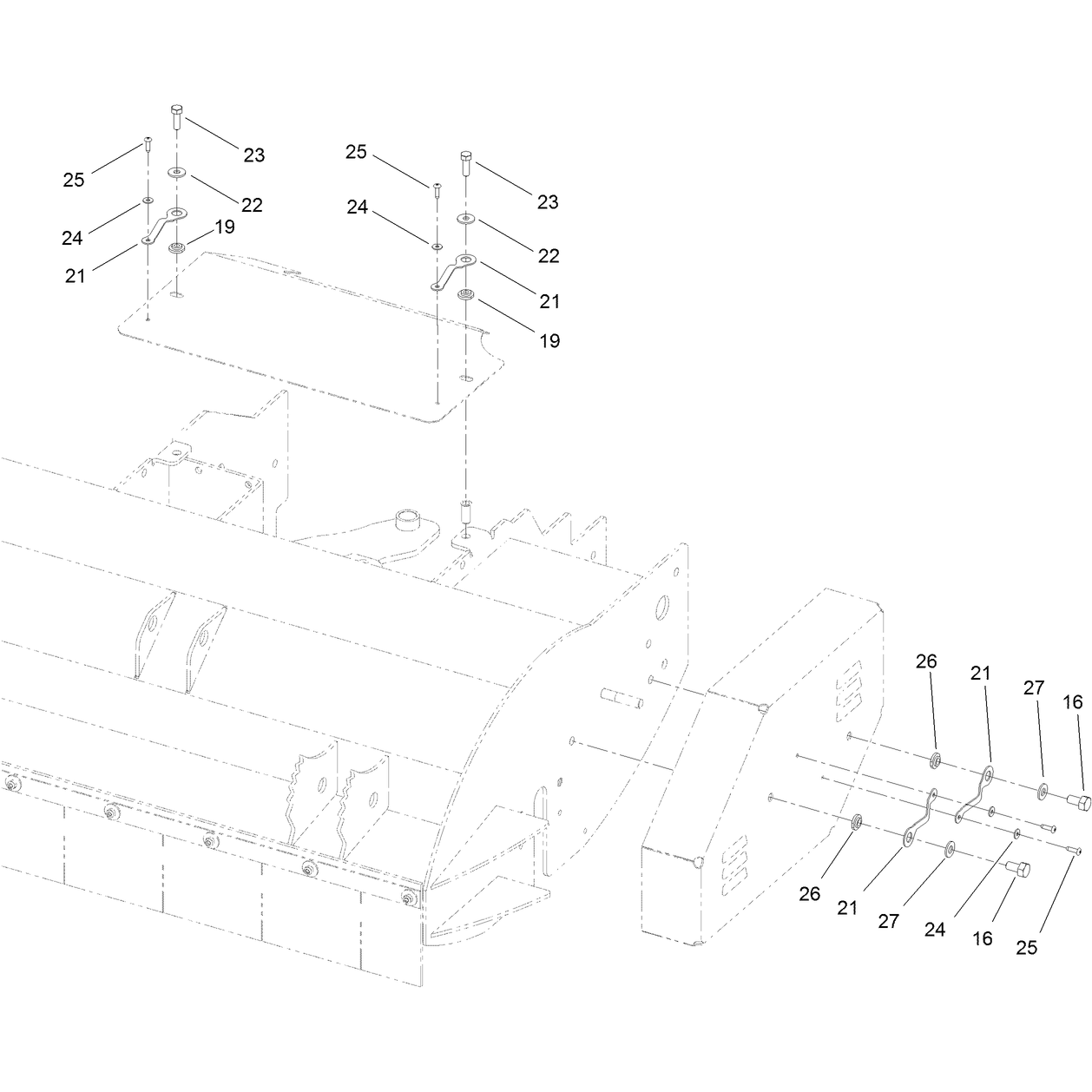

Top Guard and Side Belt Cover Assembly
Top Guard and Side Belt Cover Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
09391
09391
|
|||
|
|
111-3697
111-3697
|
|||
|
|
117-8339
117-8339
|
|||
|
|
09267
09267
|
|||
|
|
03162
03162
|
|||
|
|
09257
09257
|
|||
|
|
09320
09320
|
|||
|
|
111-3720
111-3720
|
|||
|
|
ZWQ1J000U
ZWQ1J000U
|
