Toro 12004TC Twister 1600 Utility Vehicle Vehicle (Serial #: 260000001 - 260999999) Parts Diagram
Diagrams:
Diagram:

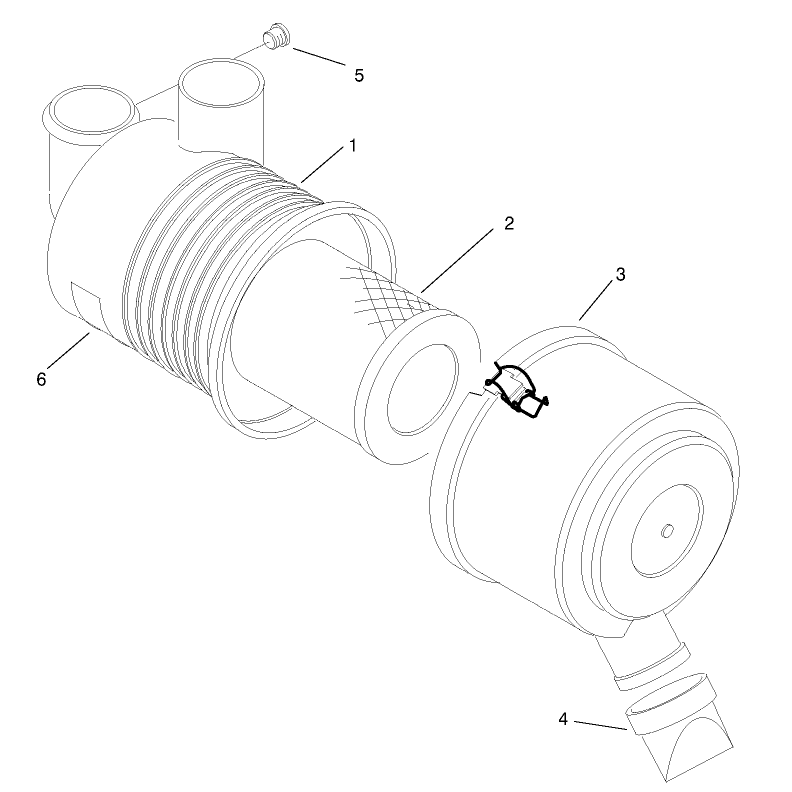

Air Cleaner Assembly No 99-7120
Air Cleaner Assembly No 99-7120
| Sequence Number | Image | Product | Price | Add to cart |
|---|

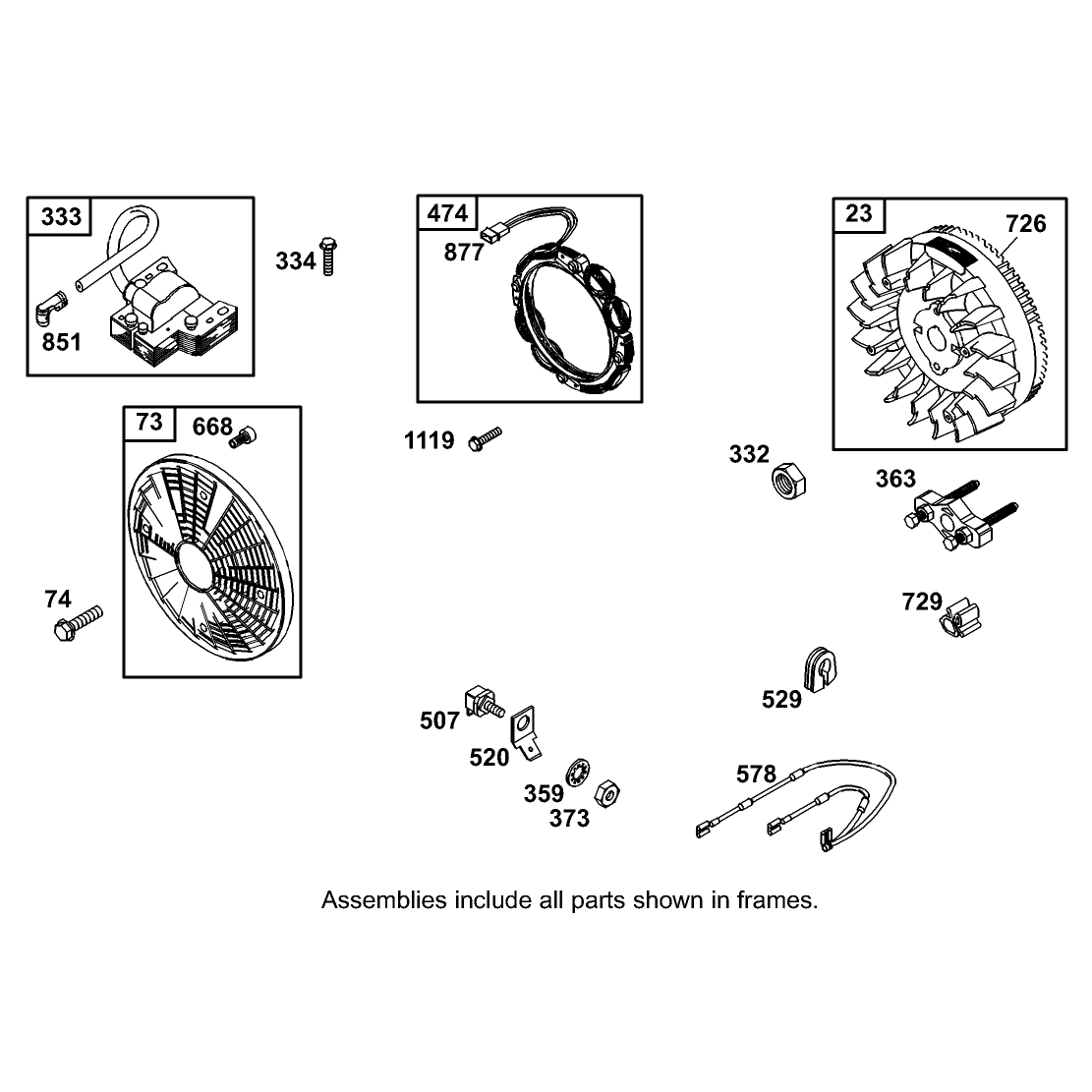

Alternator Assembly Briggs and Stratton 303447-1319-E1
Alternator Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

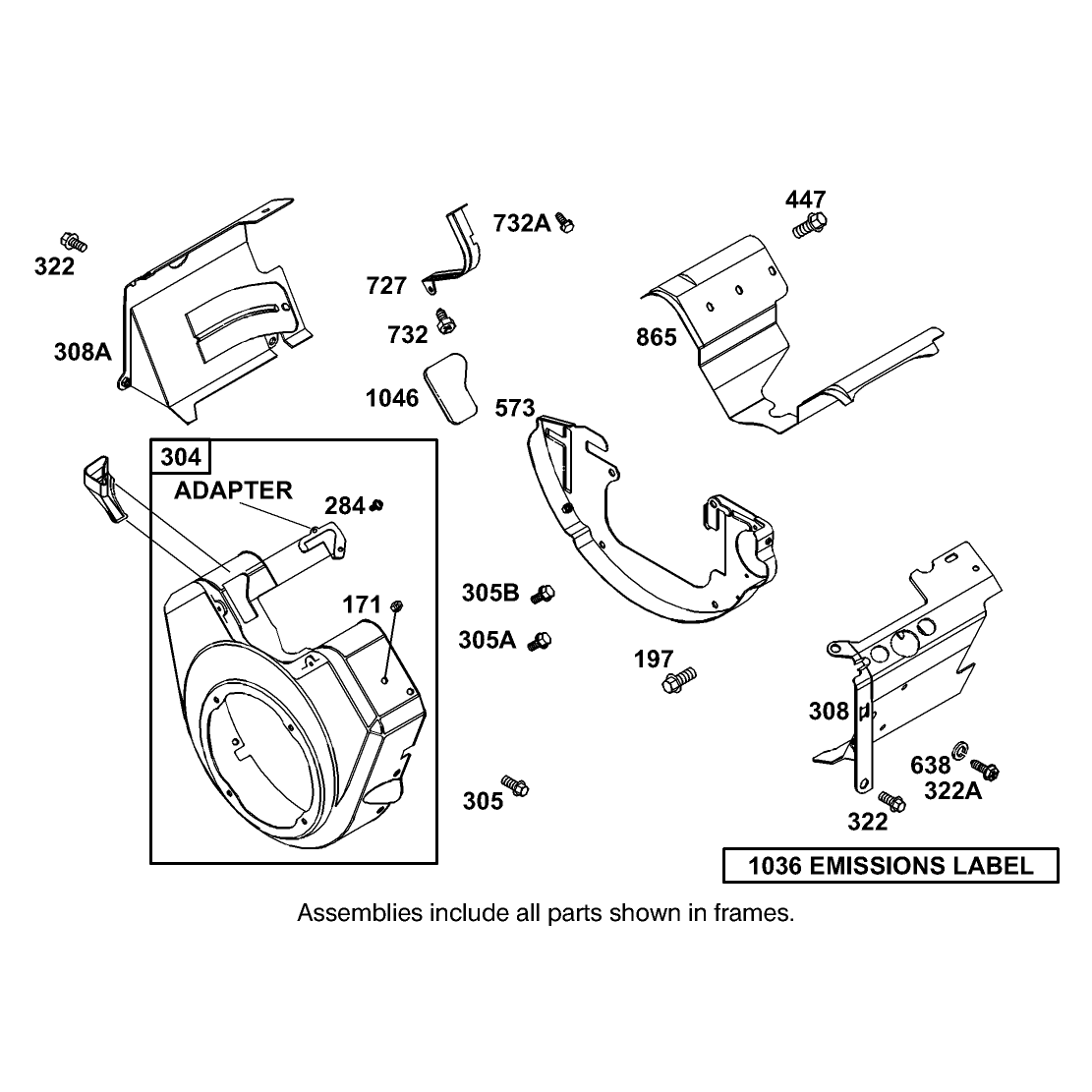

Blower Housing and Cover Assembly Briggs and Stratton 303447-1319-E1
Blower Housing and Cover Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

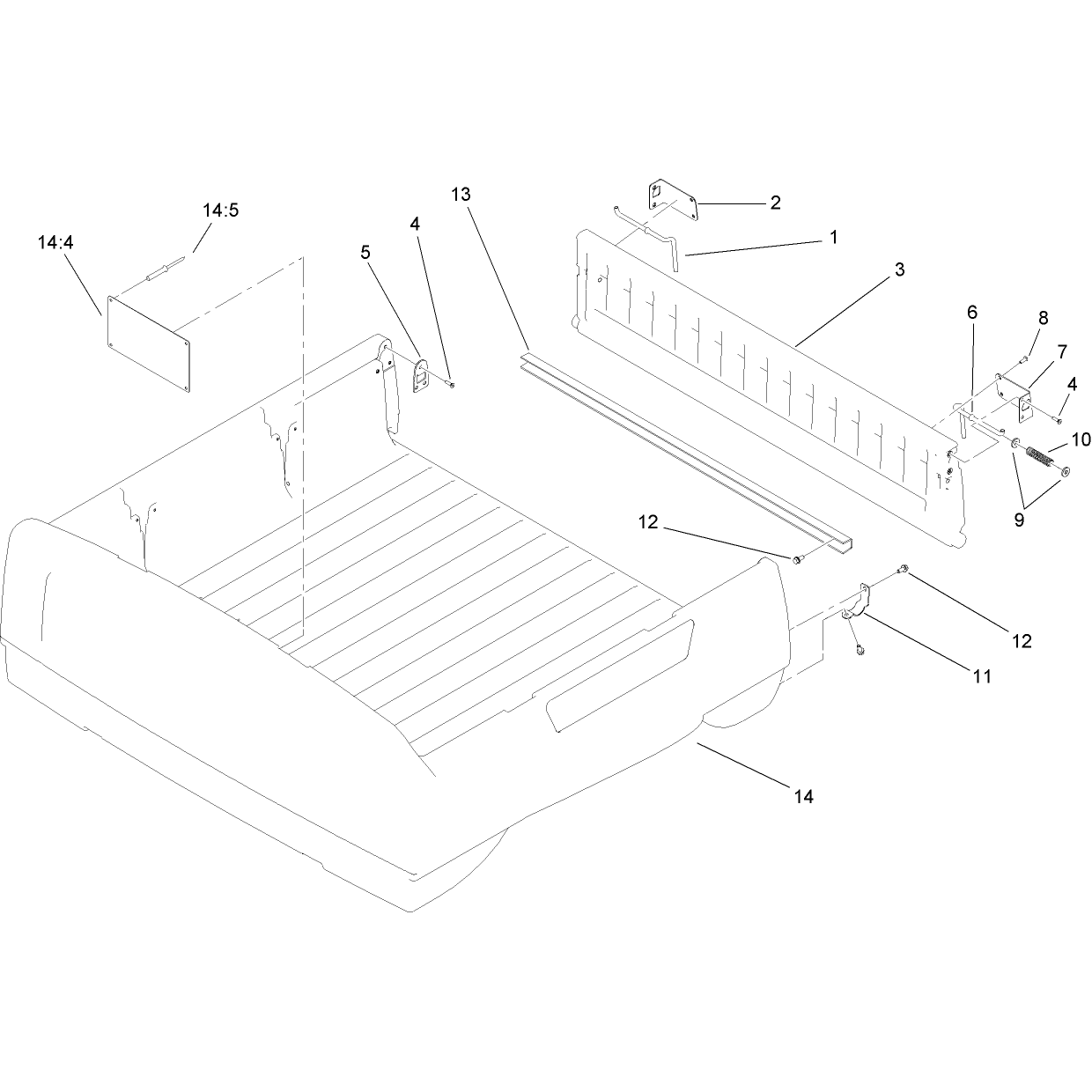

Box and Tailgate Assembly
Box and Tailgate Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

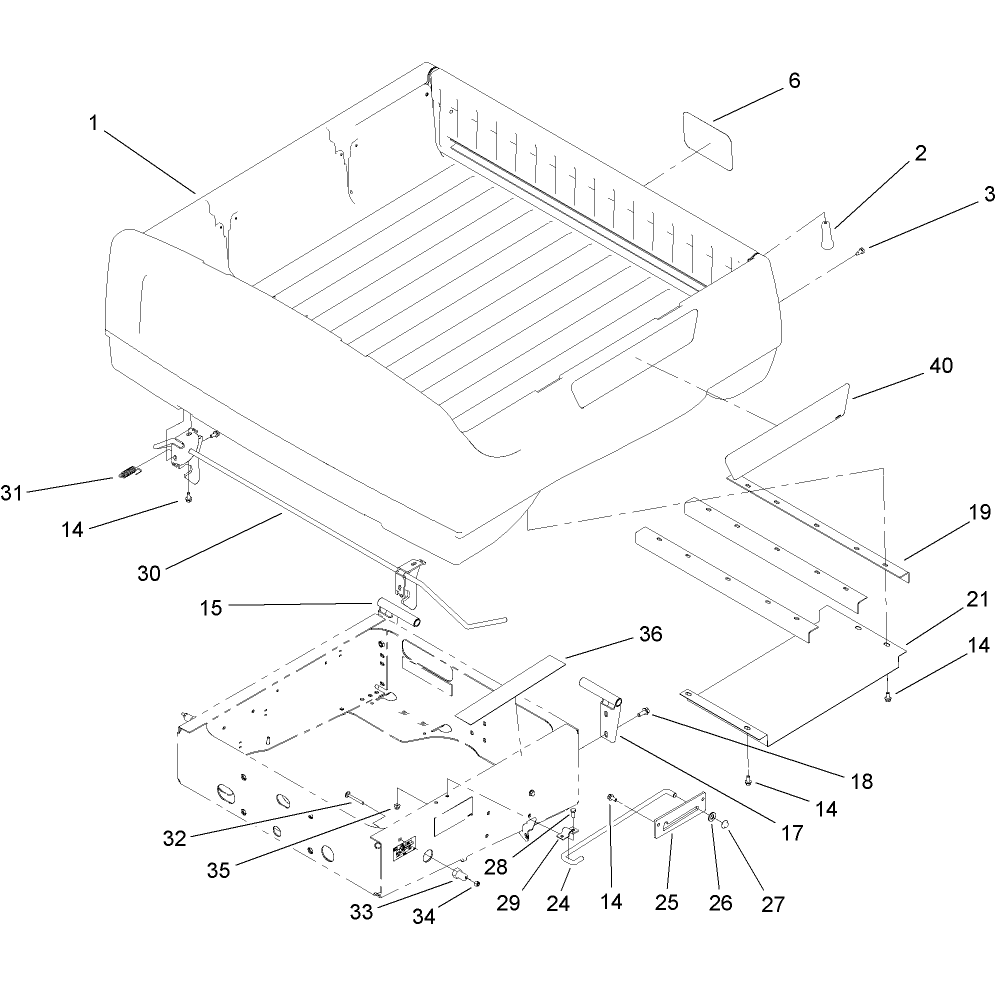

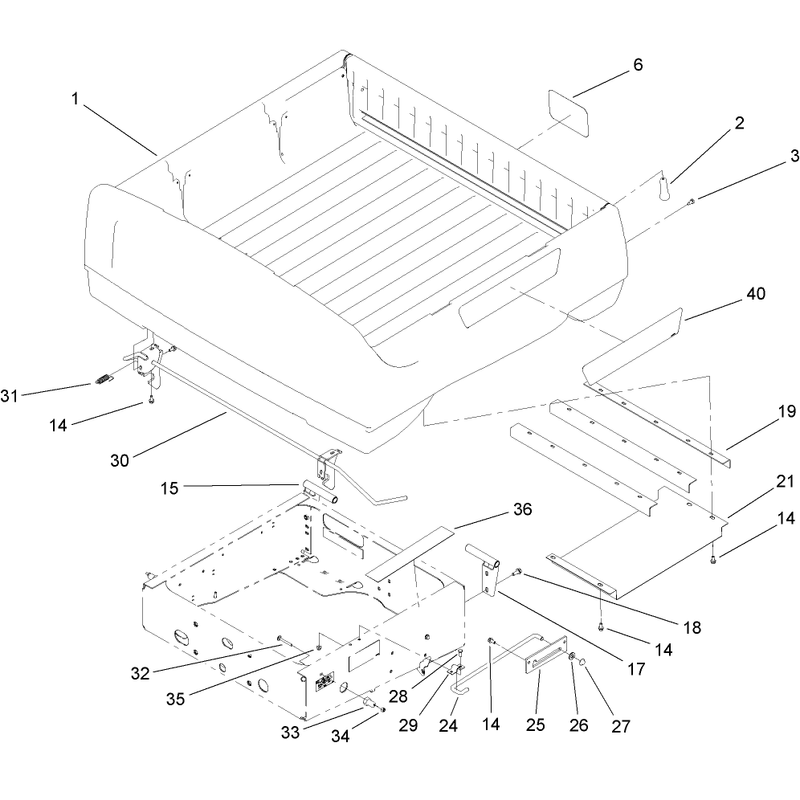

Box and Tailgate Installation Assembly
Box and Tailgate Installation Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

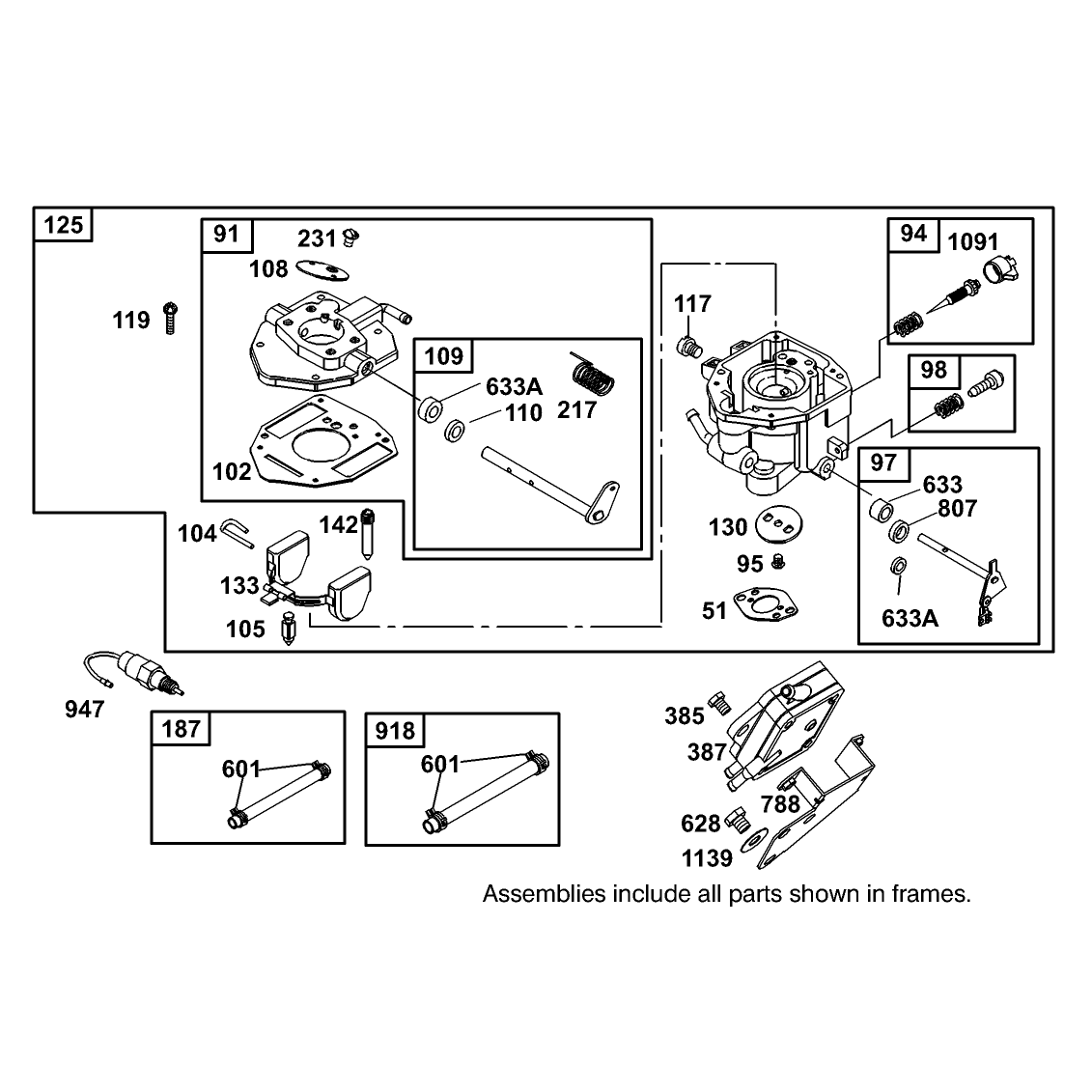

Carburetor and Fuel Pump Assembly Briggs and Stratton 303447-1319-E1
Carburetor and Fuel Pump Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

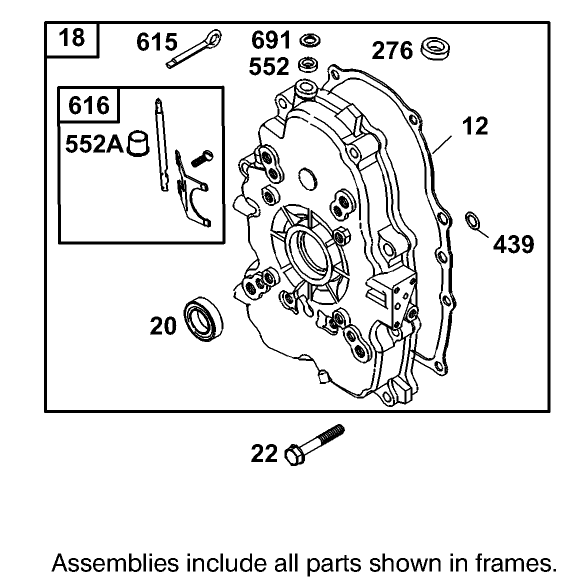

Crankcase Assembly Briggs and Stratton 303447-1319-E1
Crankcase Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

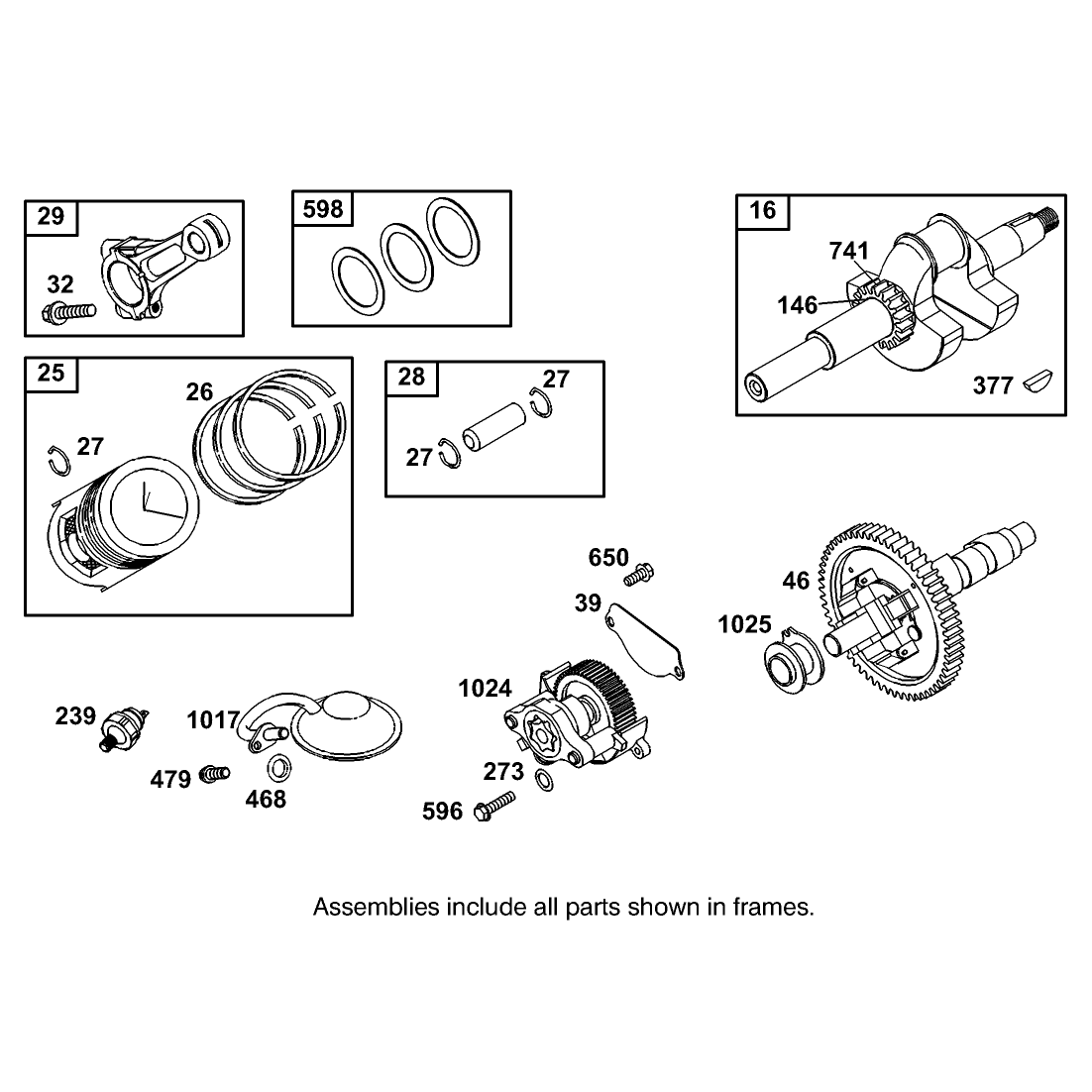

Crankshaft Piston and Oil Pump Assembly Briggs and Stratton 303447-1319-E1
Crankshaft Piston and Oil Pump Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

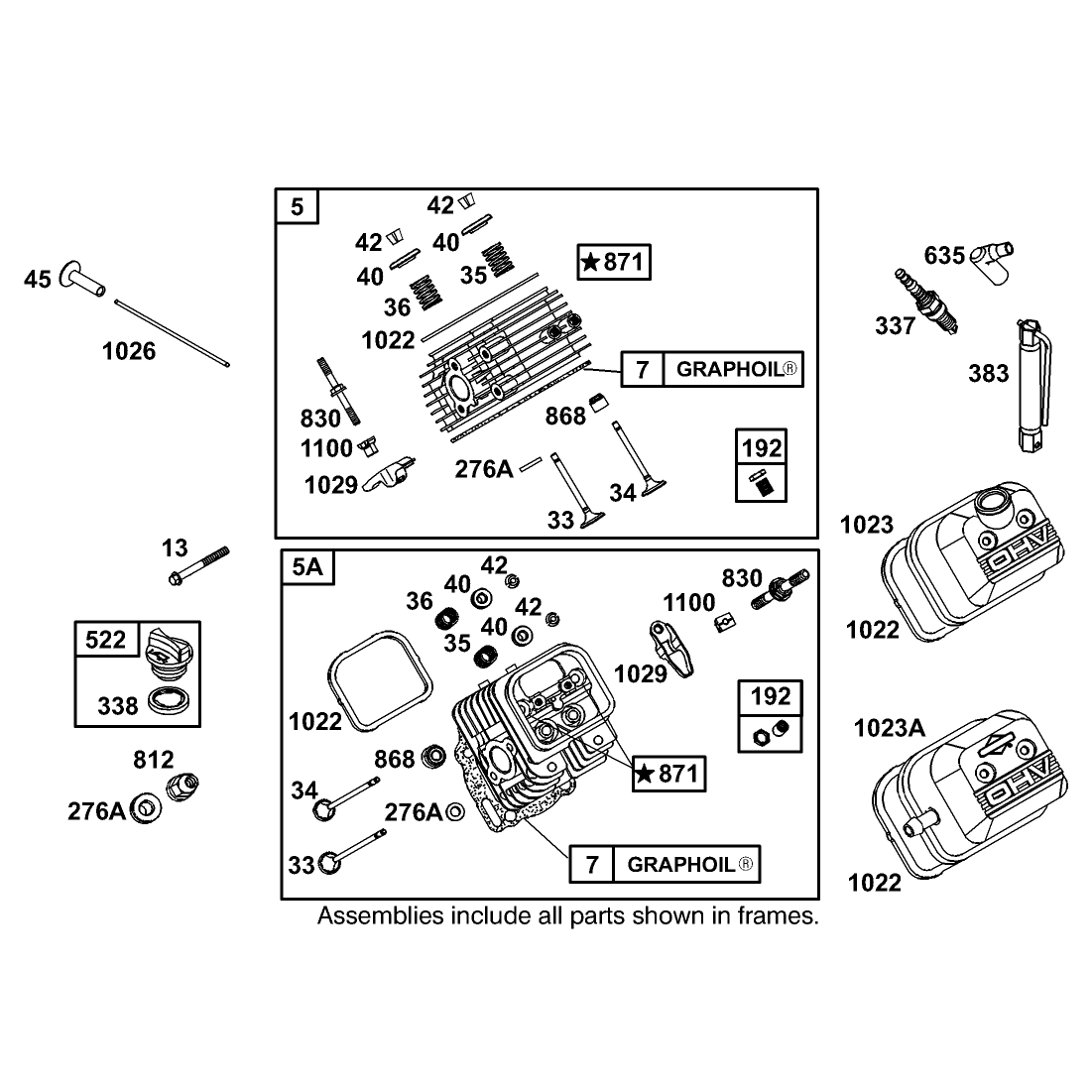

Cylinder Head and Cover Assembly Briggs and Stratton 303447-1319-E1
Cylinder Head and Cover Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

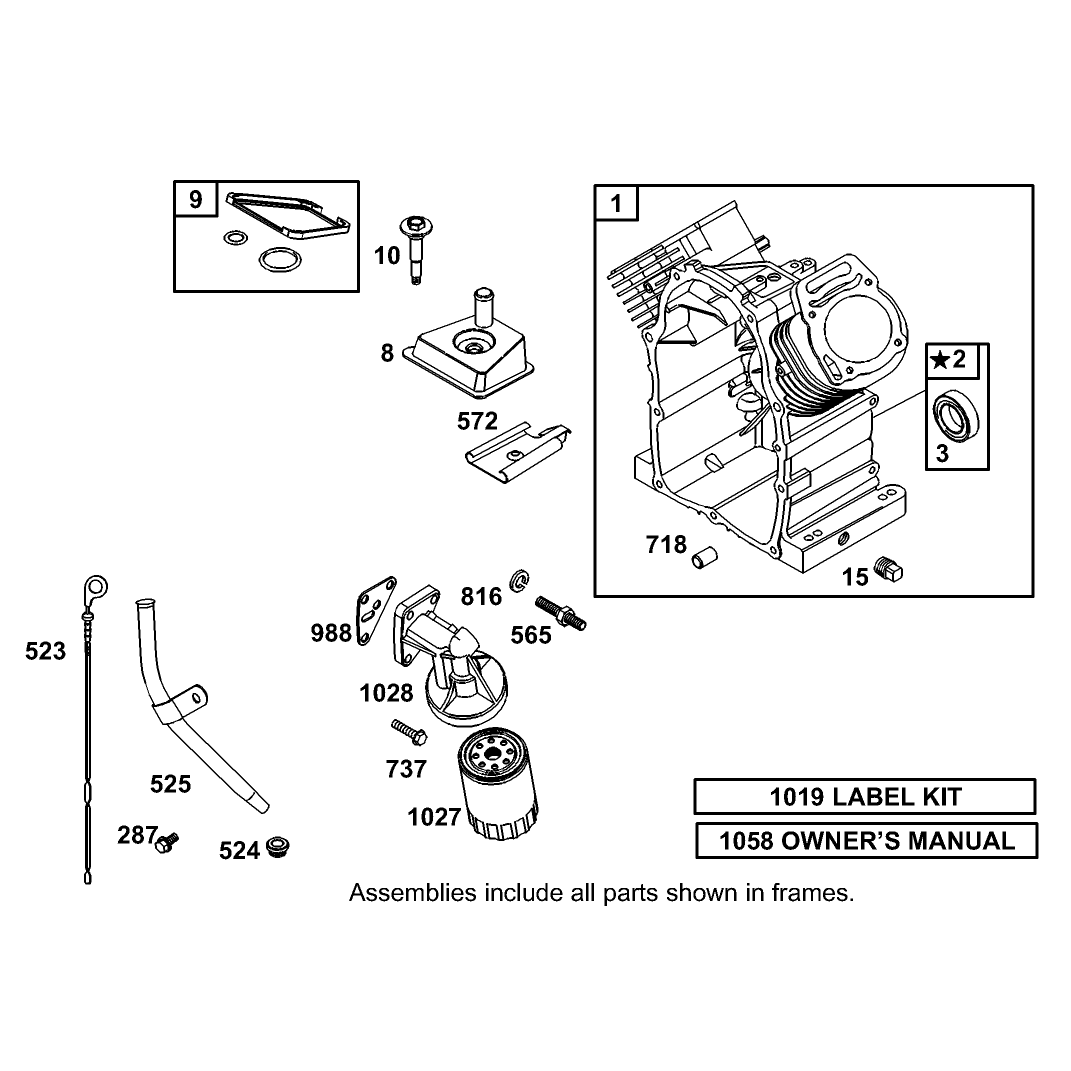

Cylinder Oil Filter and Dipstick Assembly Briggs and Stratton 303447-1319-E1
Cylinder Oil Filter and Dipstick Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

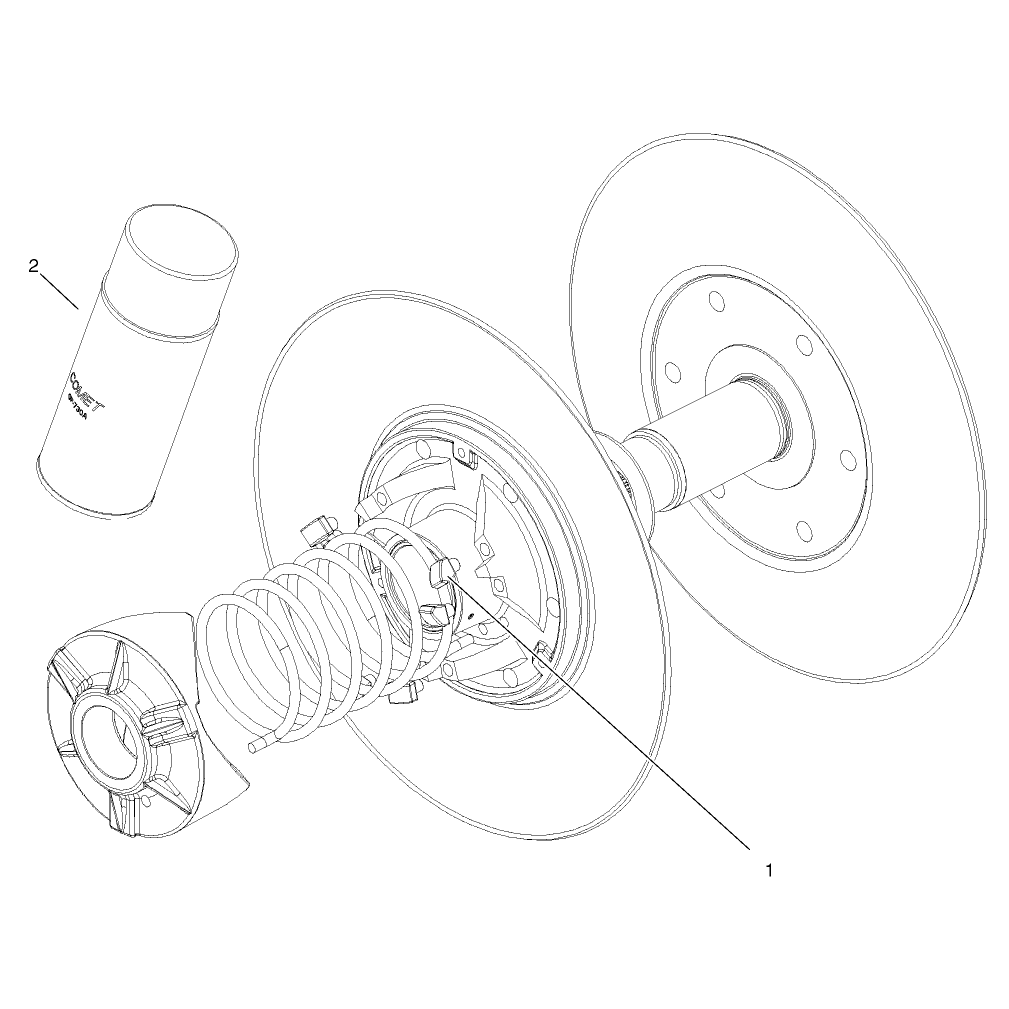

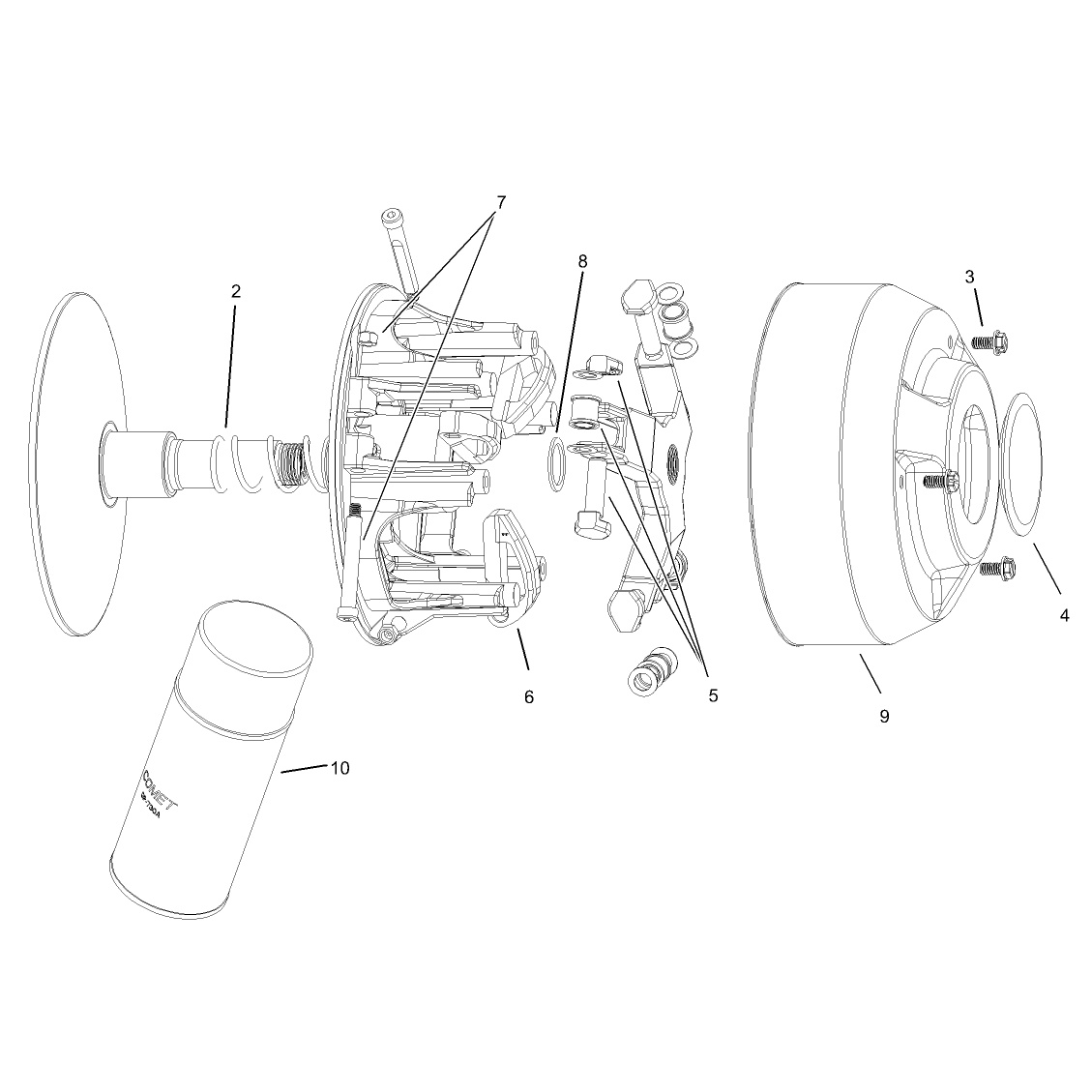

Drive Clutch Assembly No 99-7939
Drive Clutch Assembly No 99-7939
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Driven Clutch Assembly No 99-7104
Driven Clutch Assembly No 99-7104
| Sequence Number | Image | Product | Price | Add to cart |
|---|

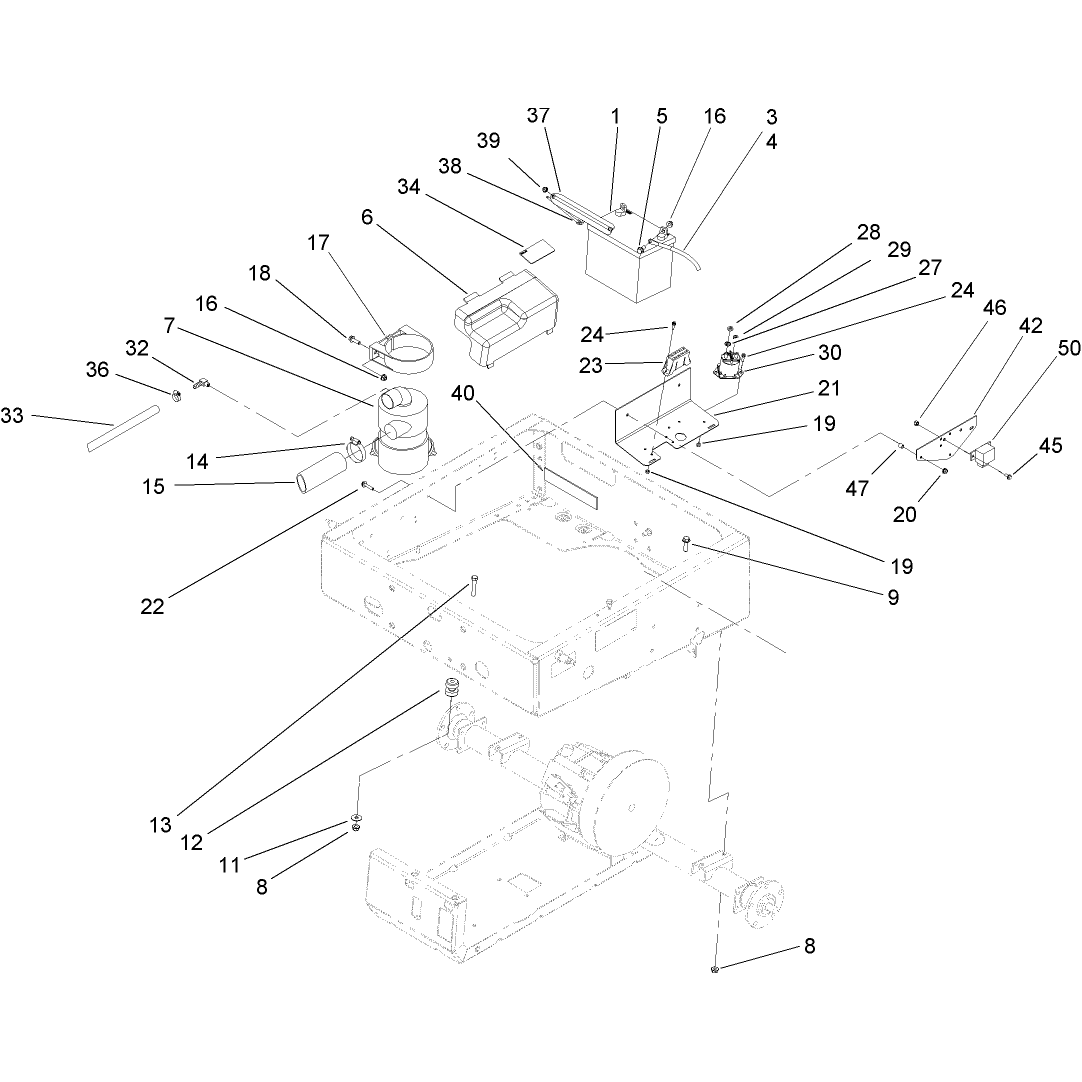

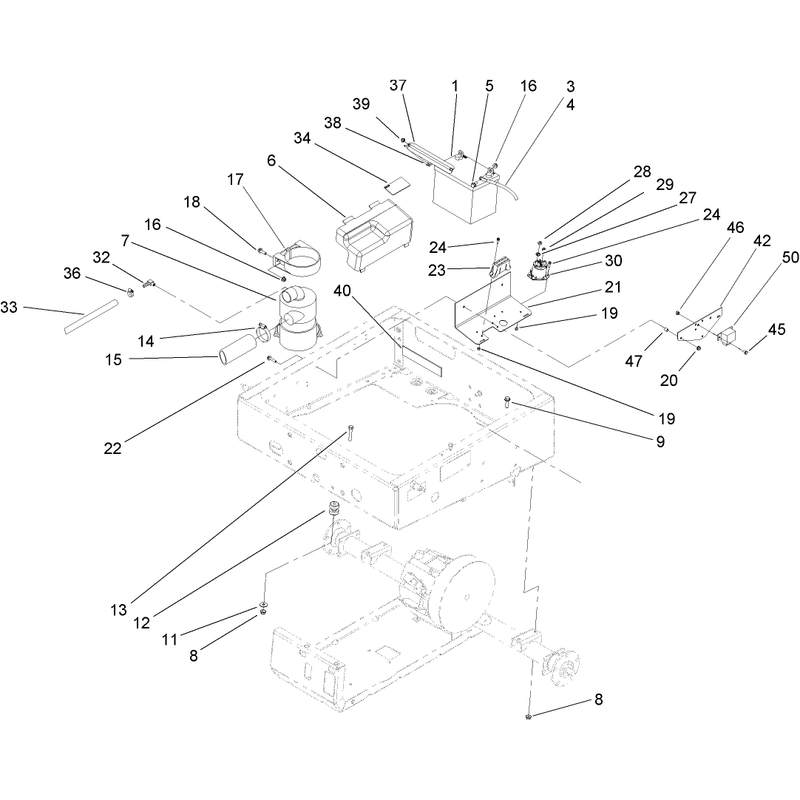

Drivetrain Mounting Battery and Air Cleaner Assembly
Drivetrain Mounting Battery and Air Cleaner Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

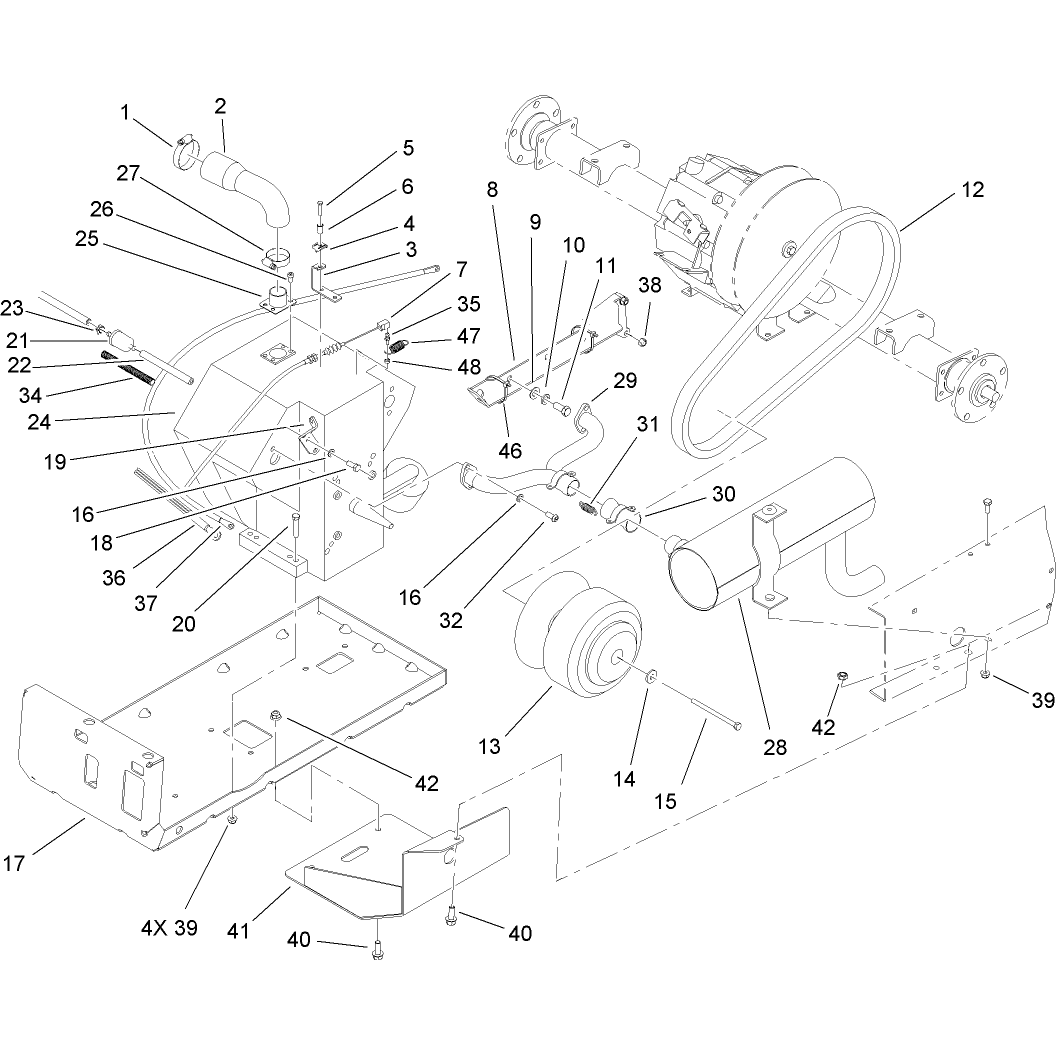

Engine and Clutch Assembly
Engine and Clutch Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

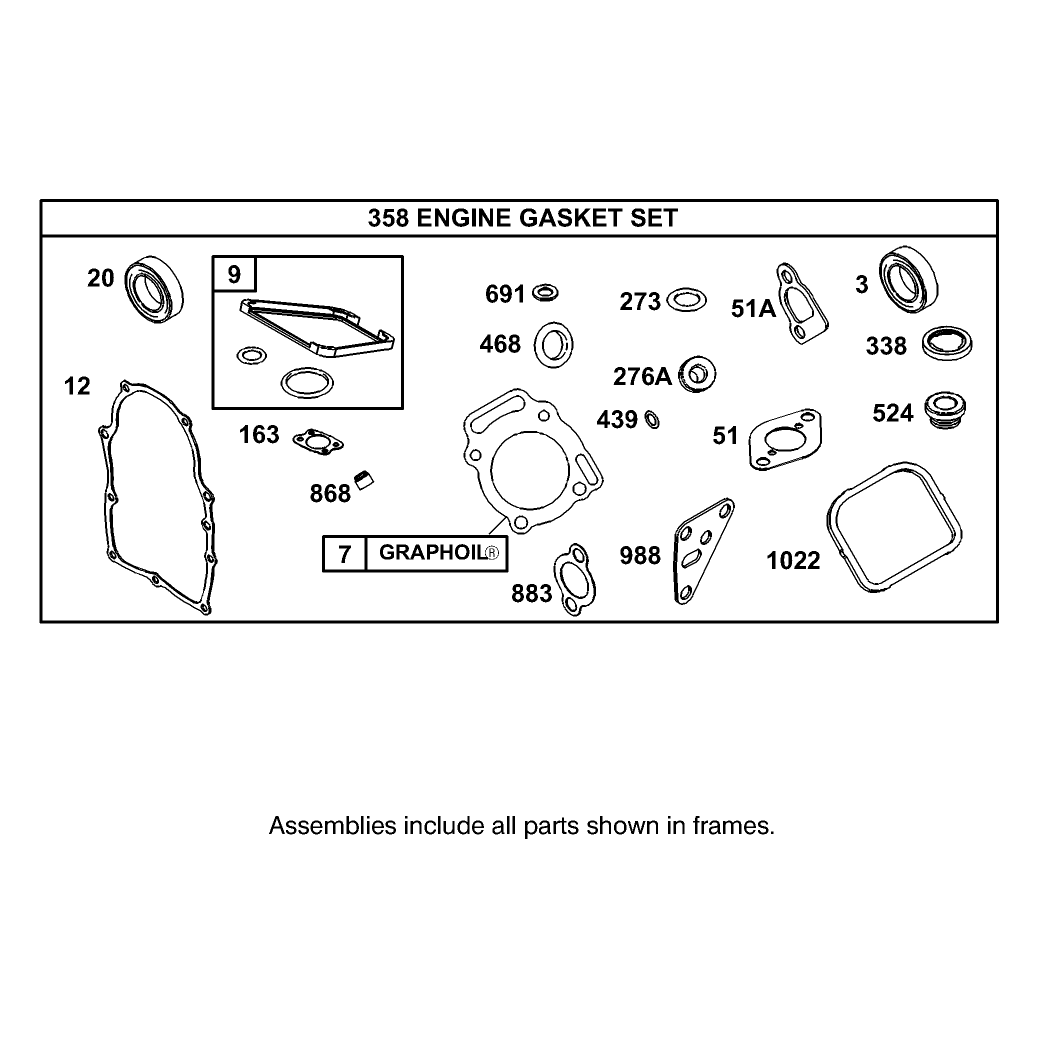

Engine Gasket Set Briggs and Stratton 303447-1319-E1
Engine Gasket Set Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

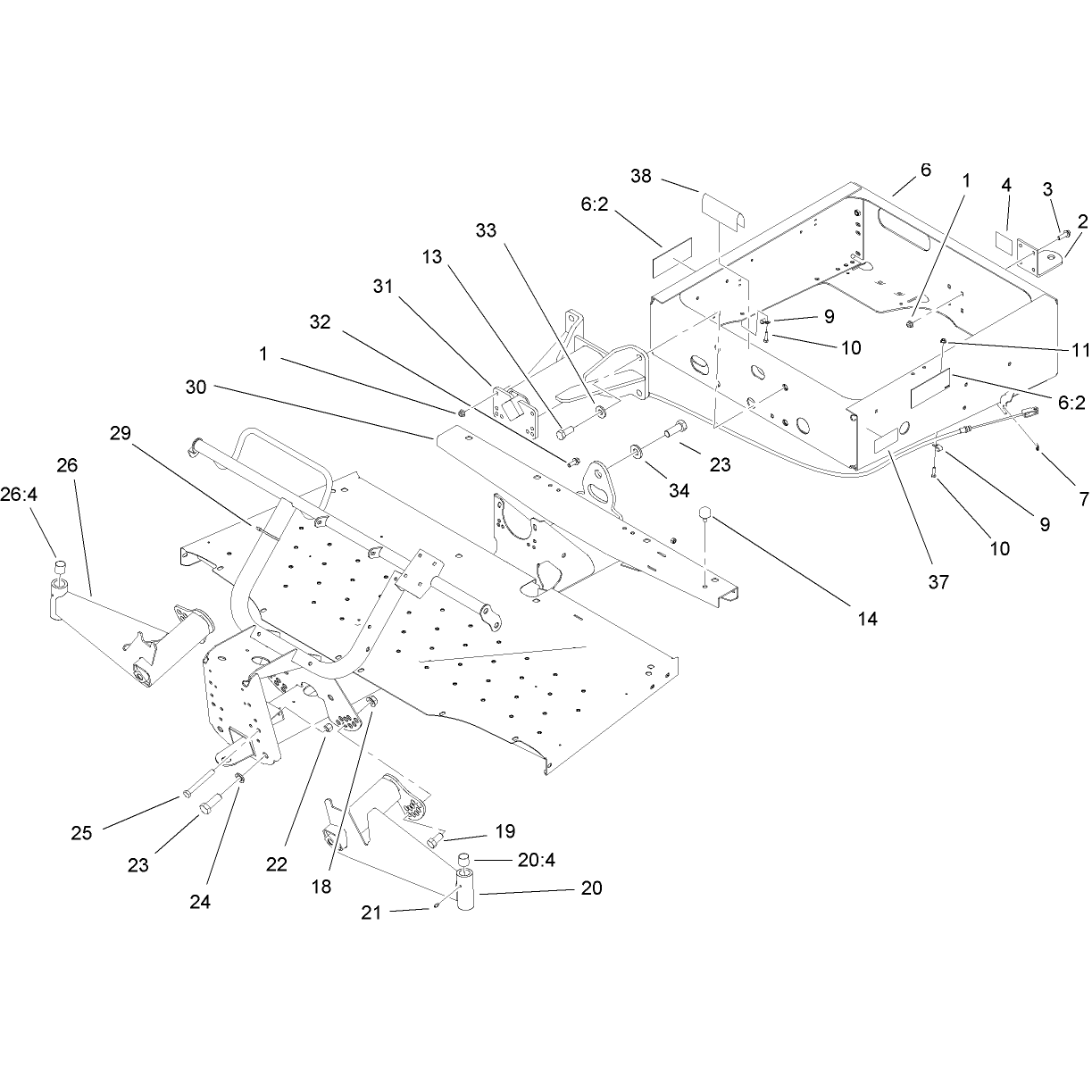

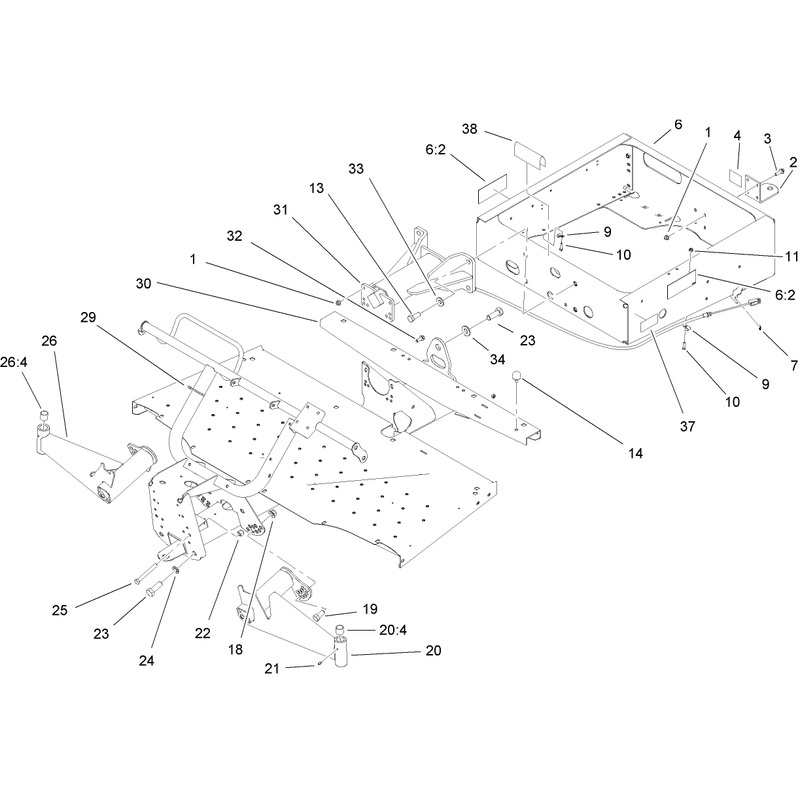

Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

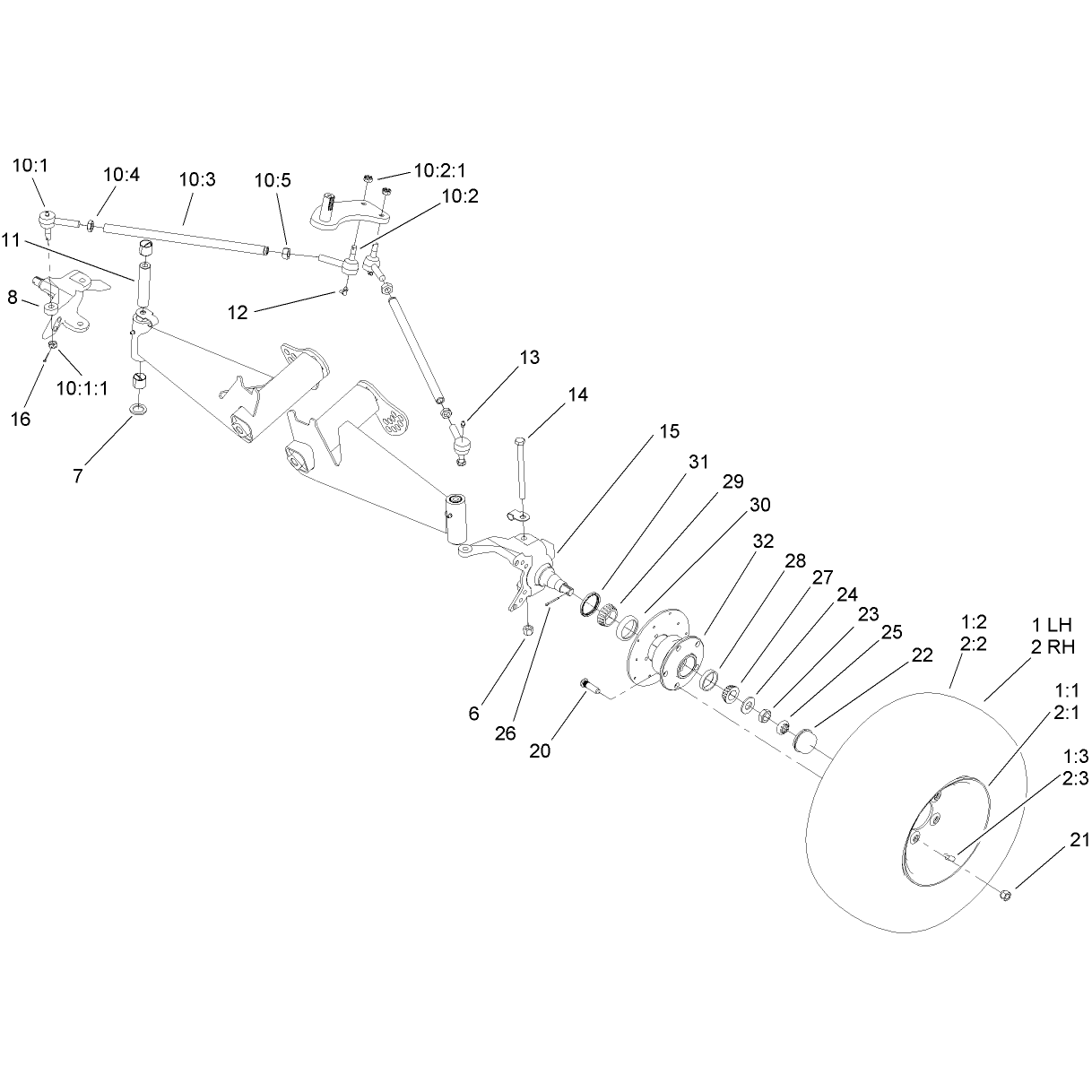

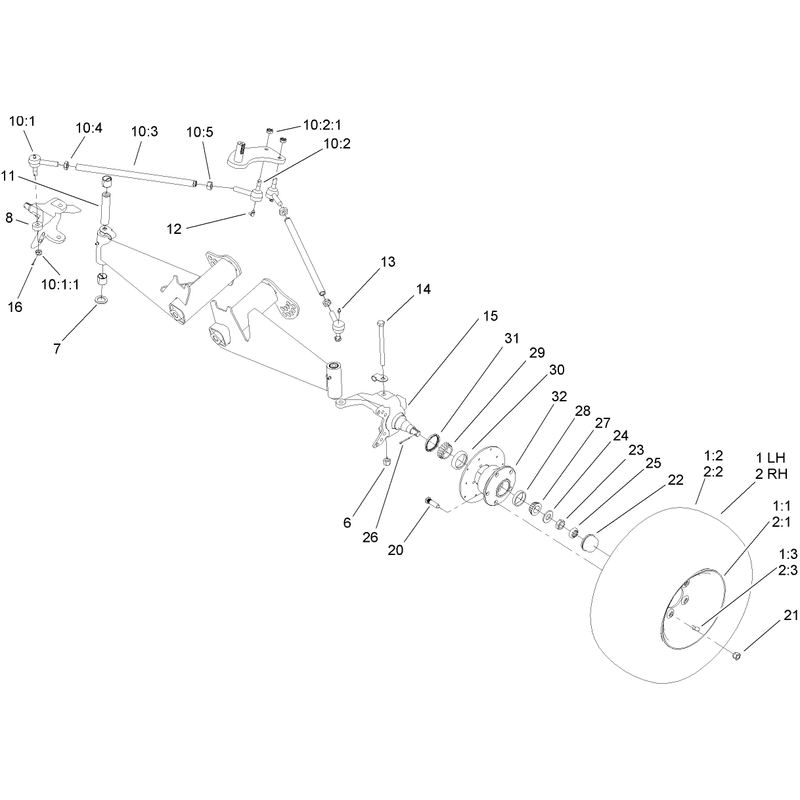

Front Tire and Steering Assembly
Front Tire and Steering Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

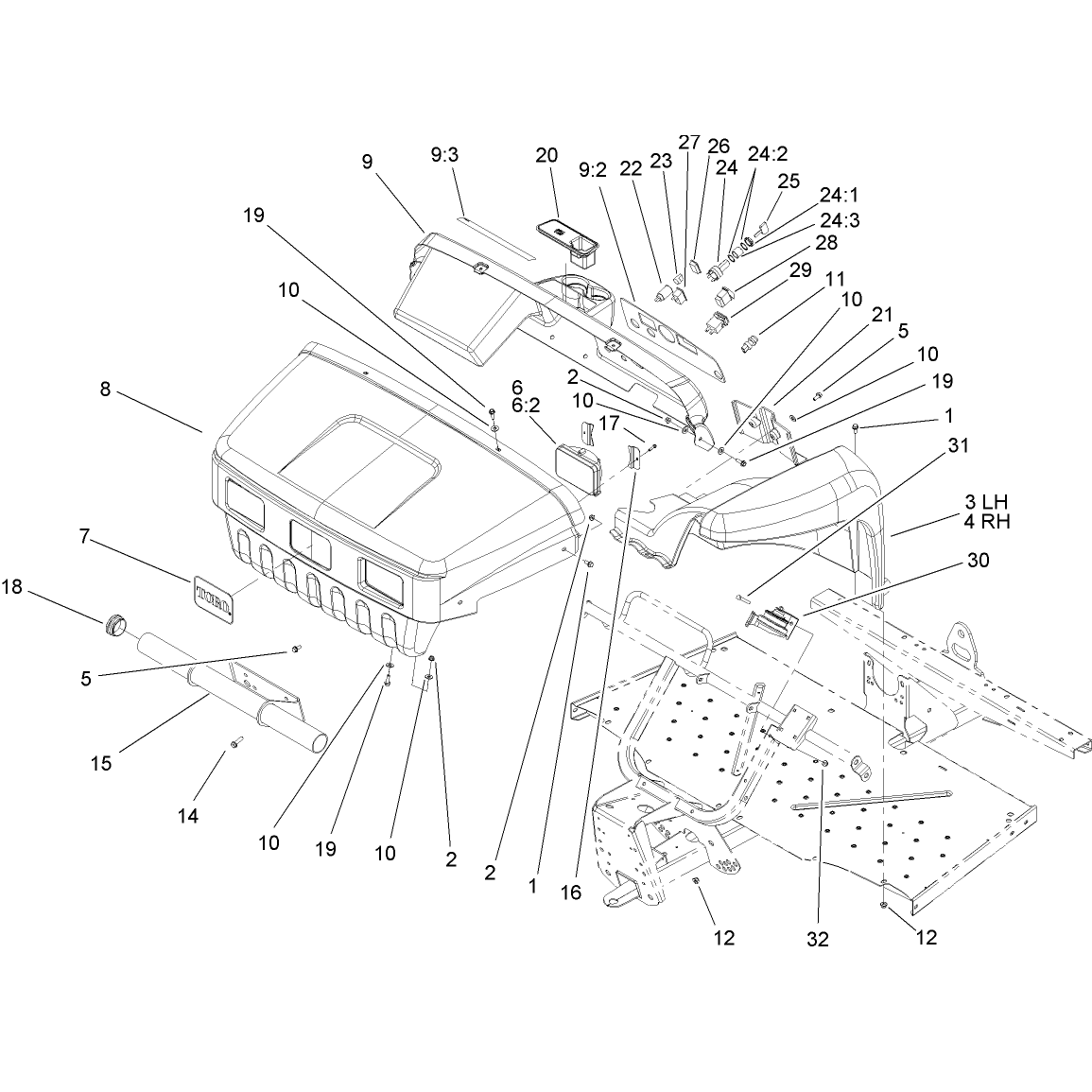

Hood and Fender Assembly
Hood and Fender Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

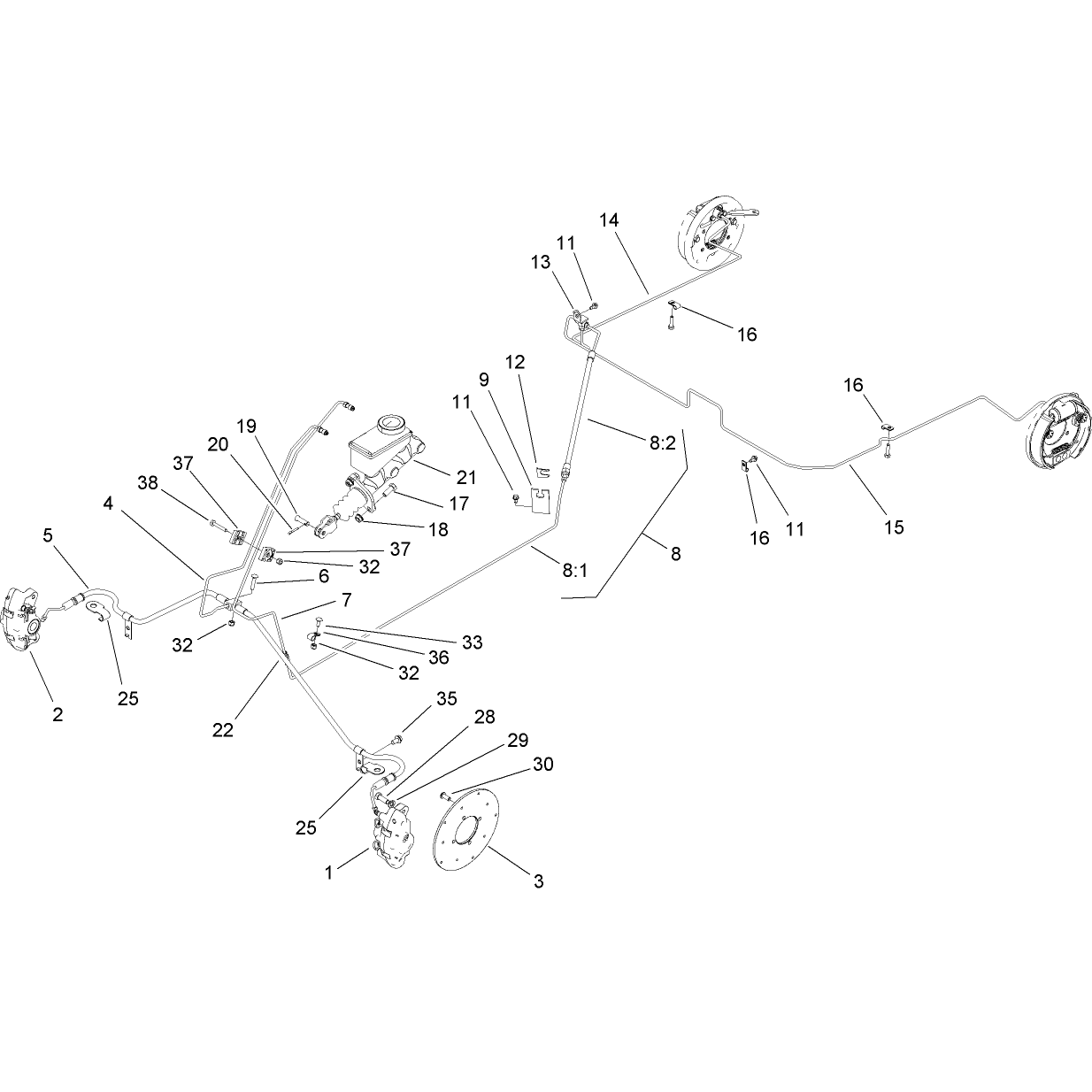

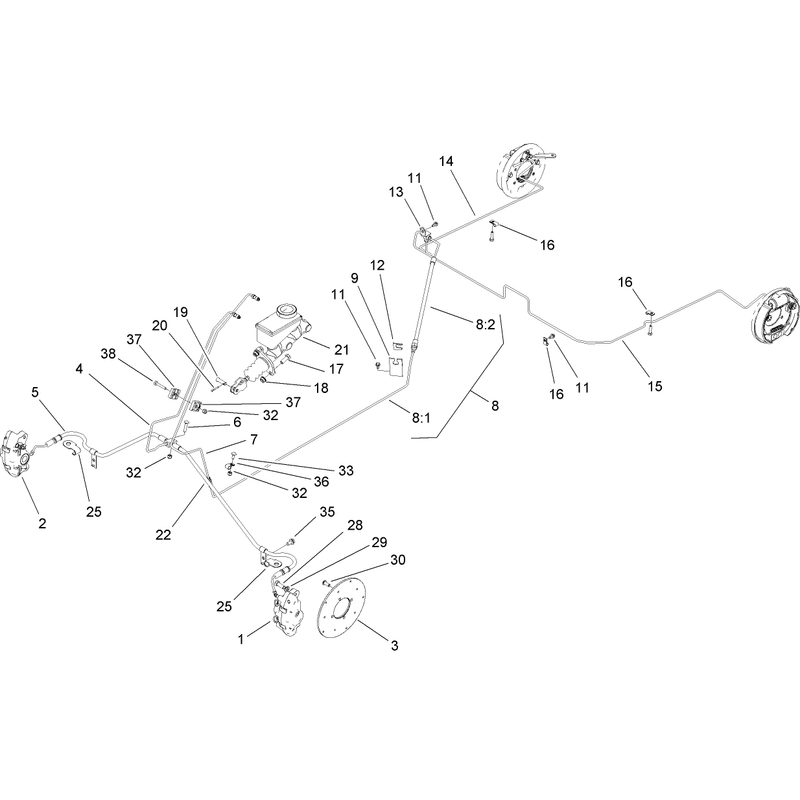

Hydraulic Brake Assembly
Hydraulic Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Left Hand Brake Assembly No 104-6807
Left Hand Brake Assembly No 104-6807
| Sequence Number | Image | Product | Price | Add to cart |
|---|

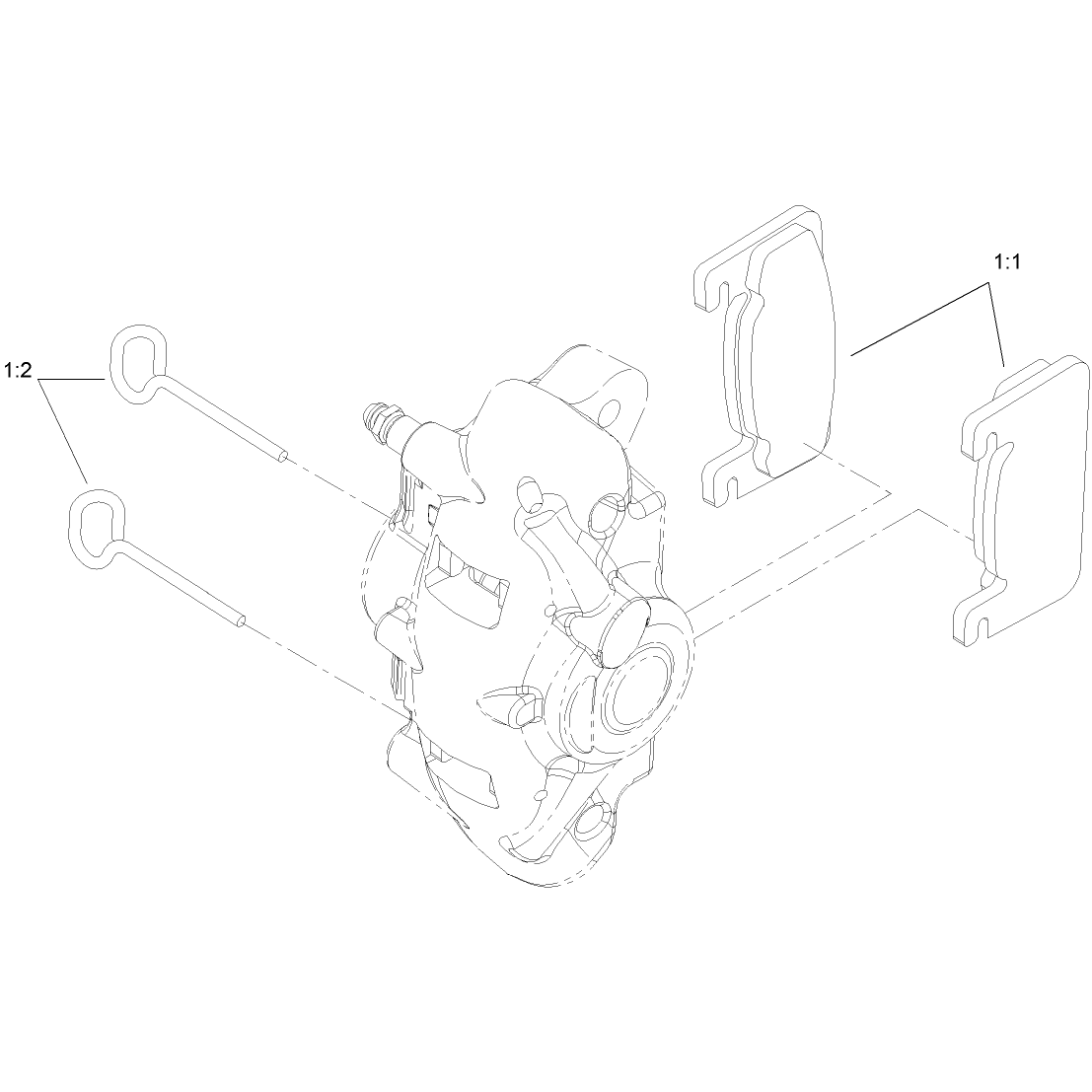

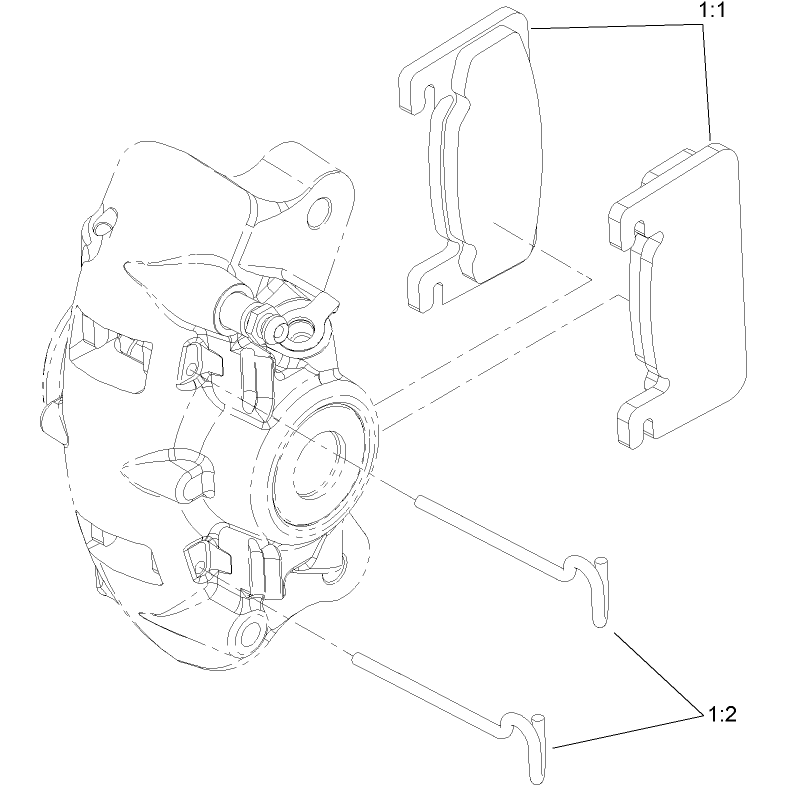

Left Hand Caliper Assembly No 107-0361
Left Hand Caliper Assembly No 107-0361
| Sequence Number | Image | Product | Price | Add to cart |
|---|

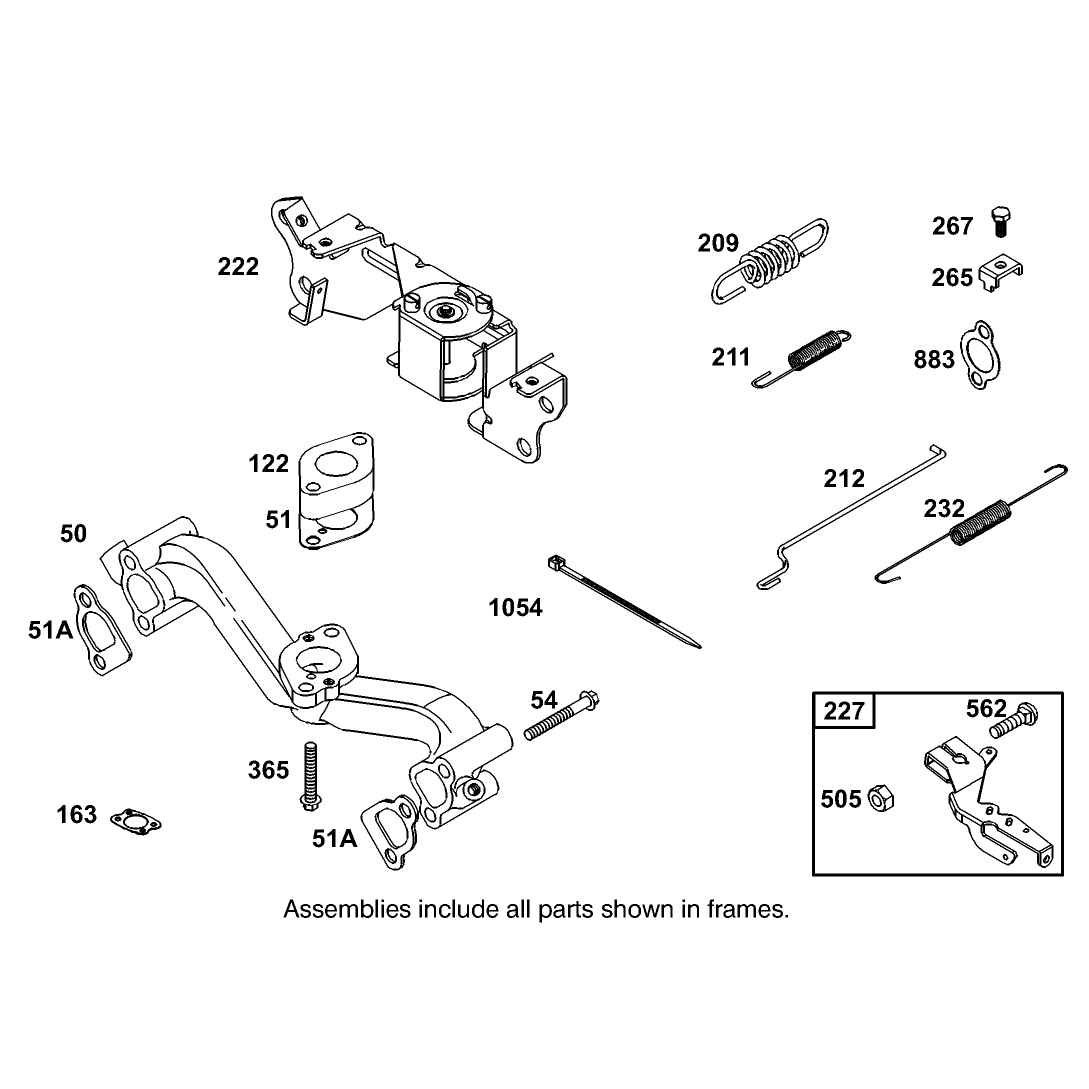

Manifold Intake and Governor Control Assembly Briggs and Stratton 303447-1319-E1
Manifold Intake and Governor Control Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

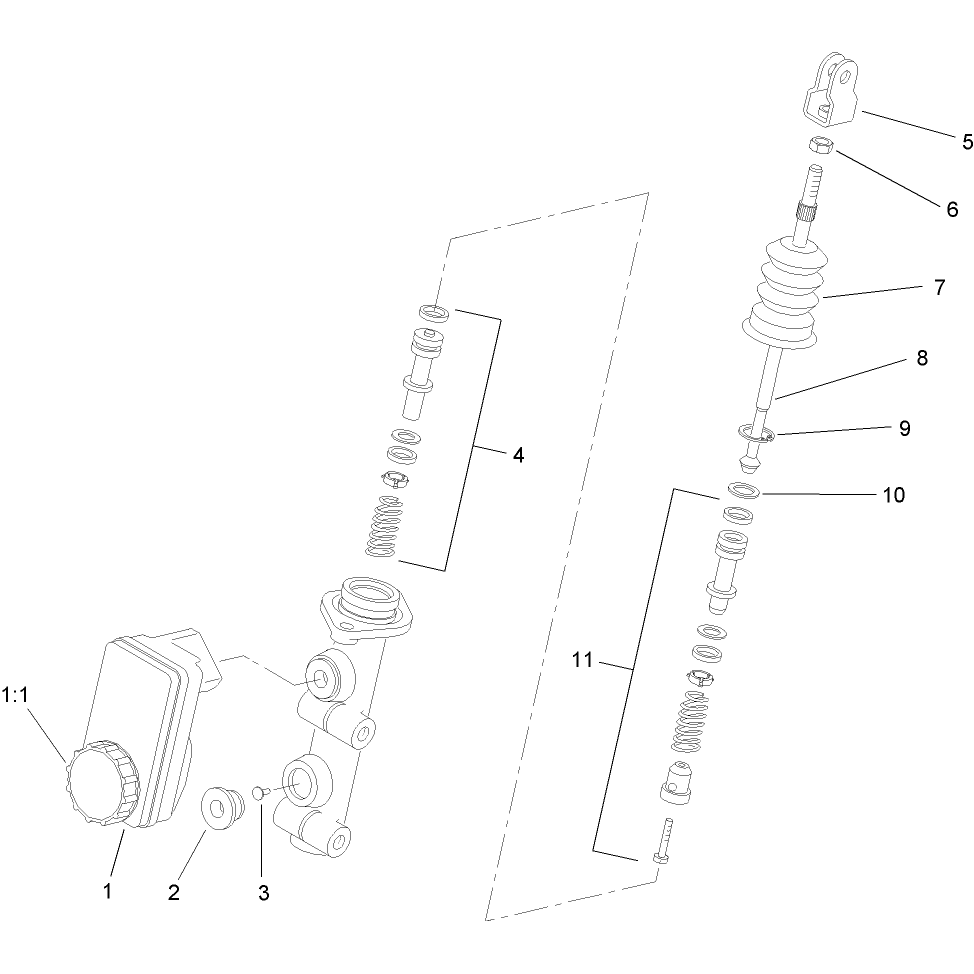

Master Cylinder Assembly No 104-6782
Master Cylinder Assembly No 104-6782
| Sequence Number | Image | Product | Price | Add to cart |
|---|

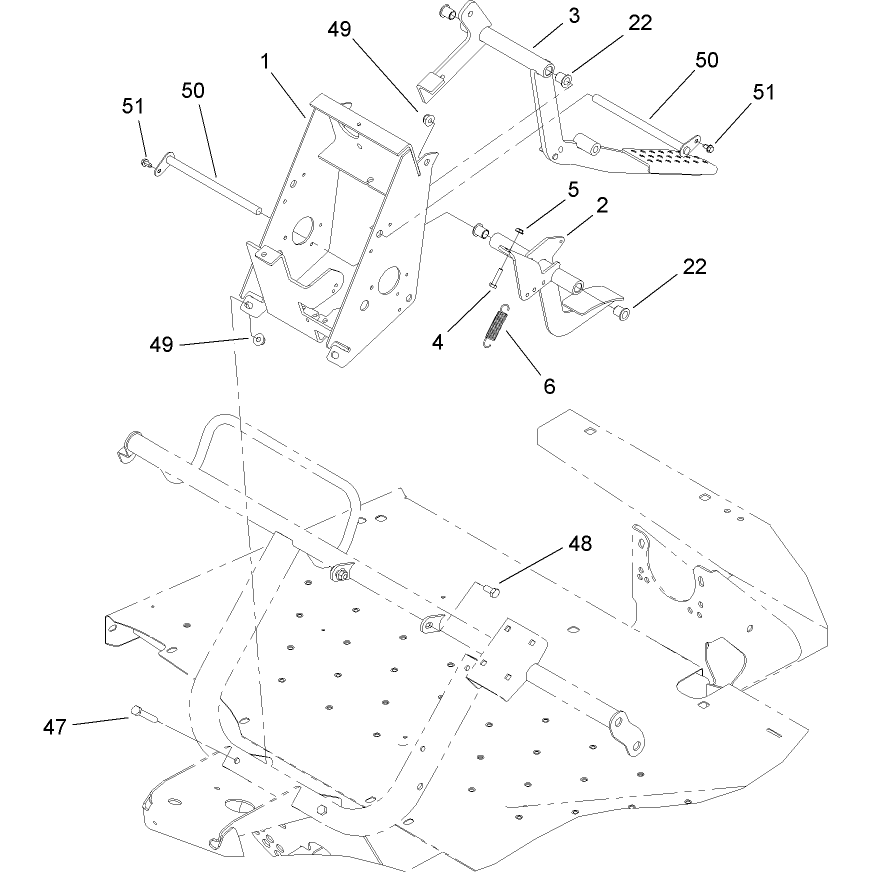

Pedal Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

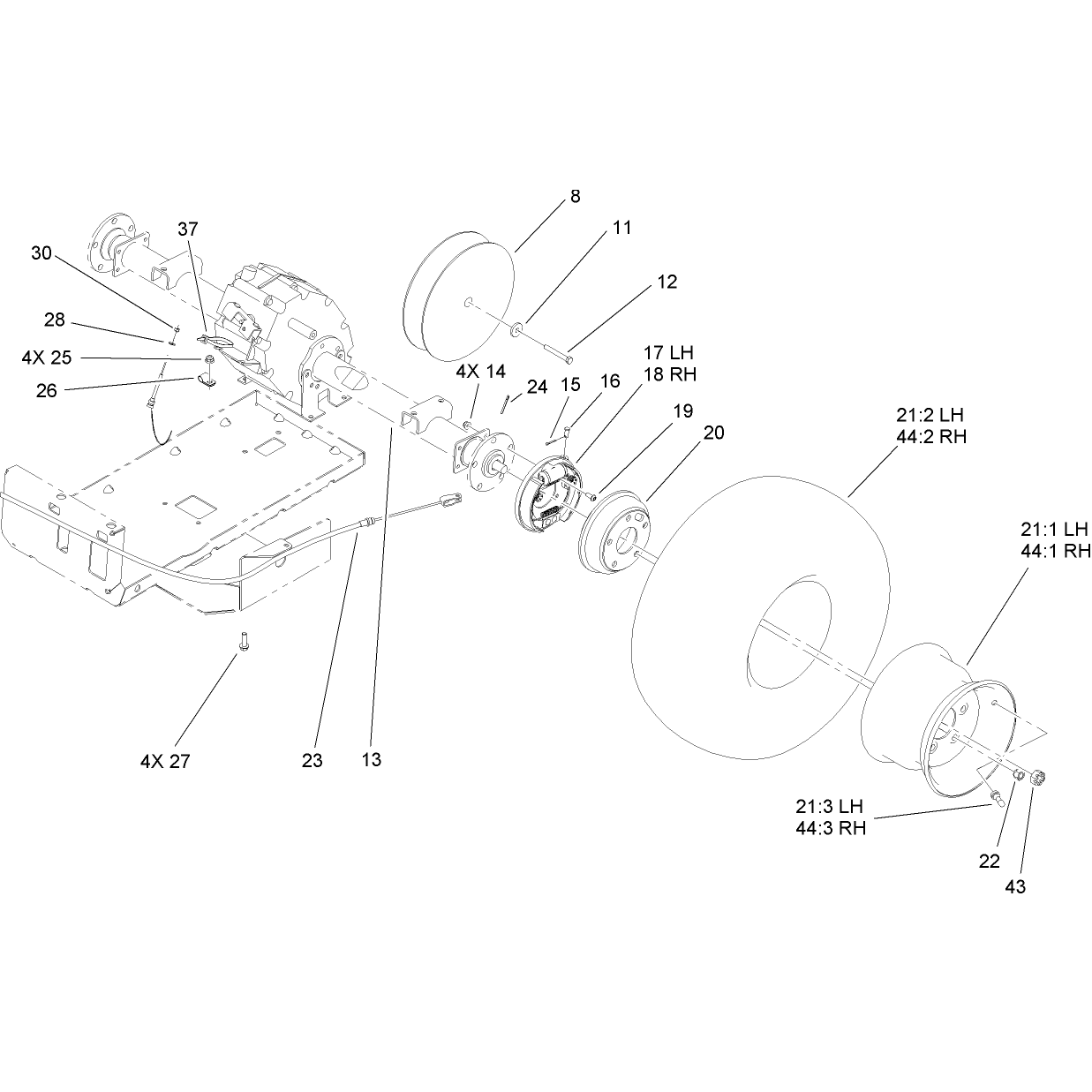

Rear Tire and Transaxle Assembly
Rear Tire and Transaxle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

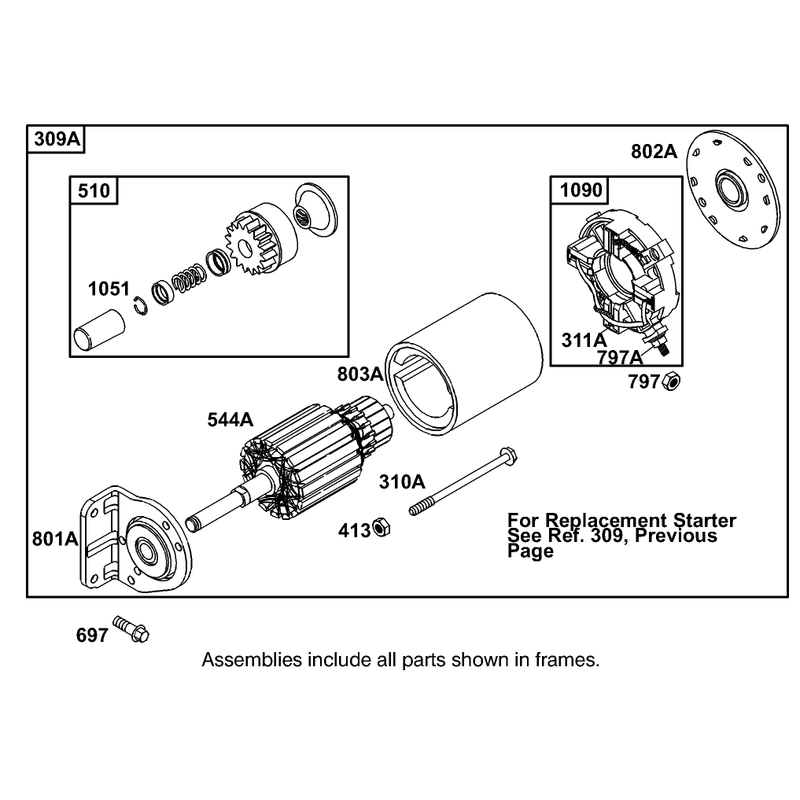

Replacement Starter Motor Assembly Briggs and Stratton 303447-1319-E1
Replacement Starter Motor Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

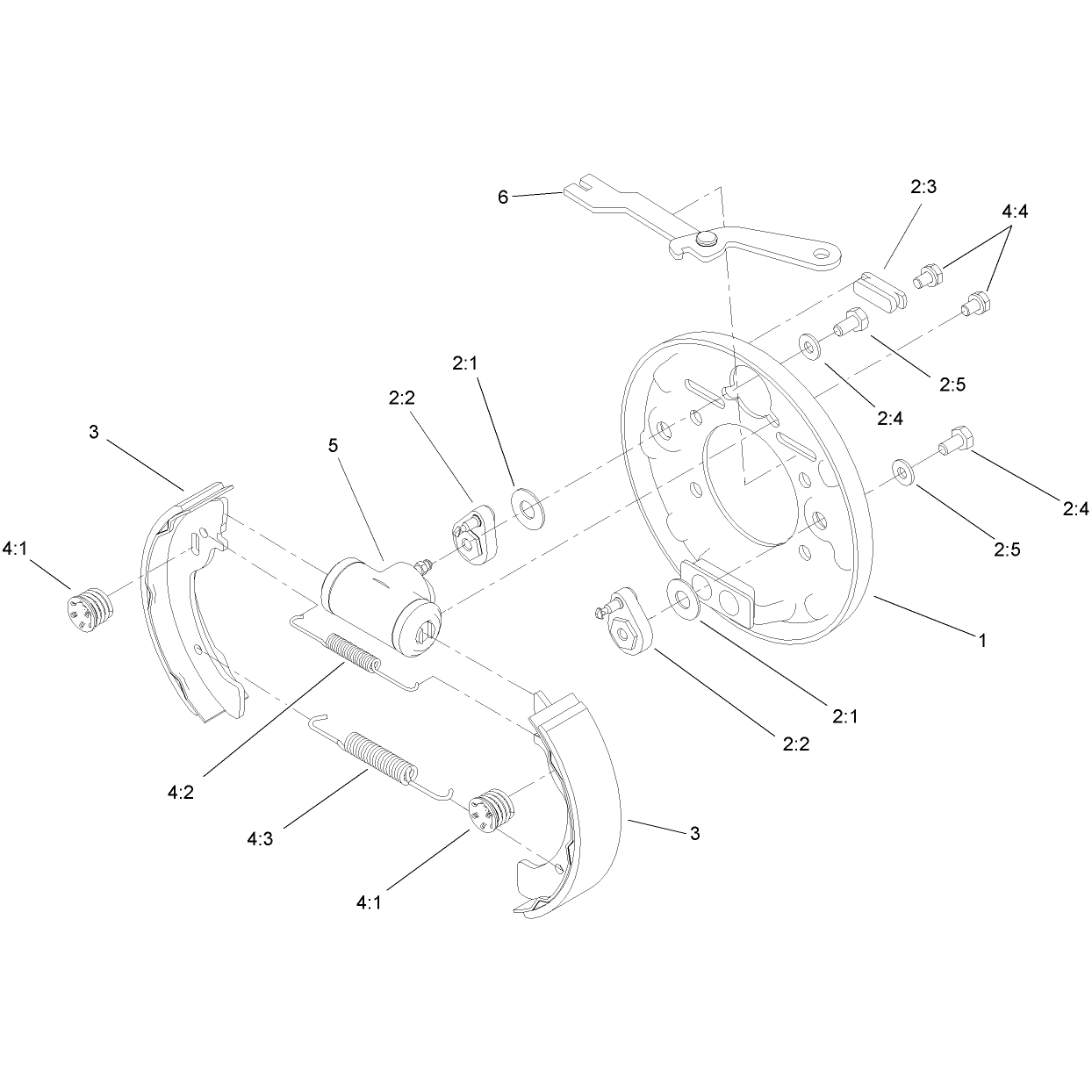

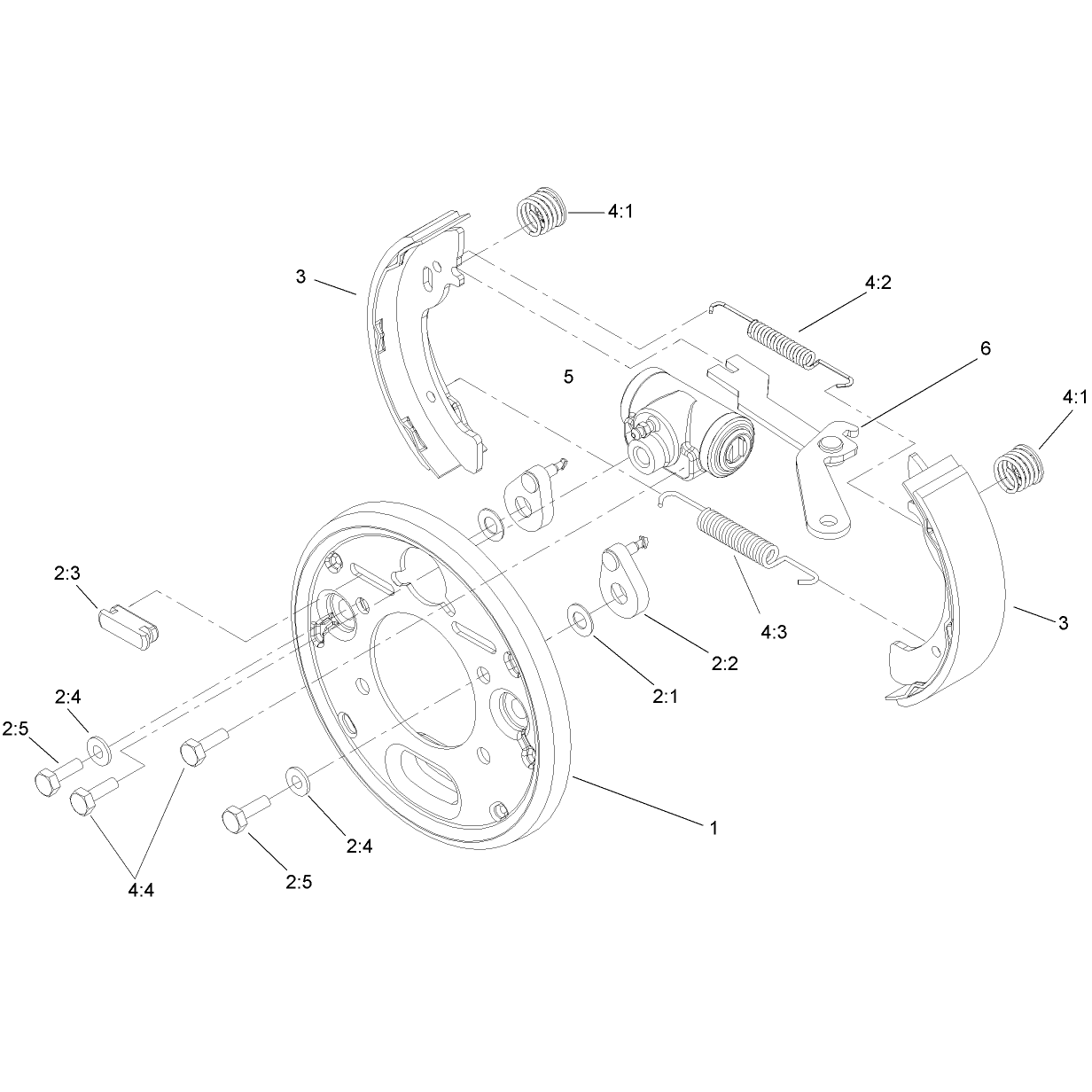

Right Hand Brake Assembly No 104-6806
Right Hand Brake Assembly No 104-6806
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Right Hand Caliper Assembly No 107-0362
Right Hand Caliper Assembly No 107-0362
| Sequence Number | Image | Product | Price | Add to cart |
|---|

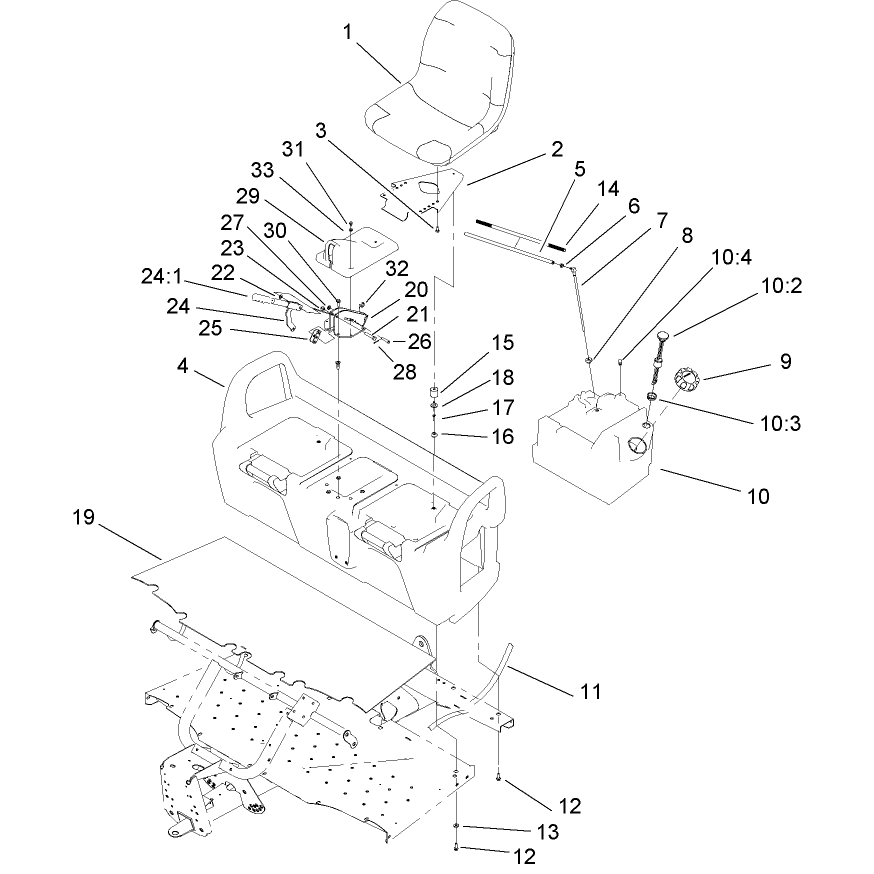

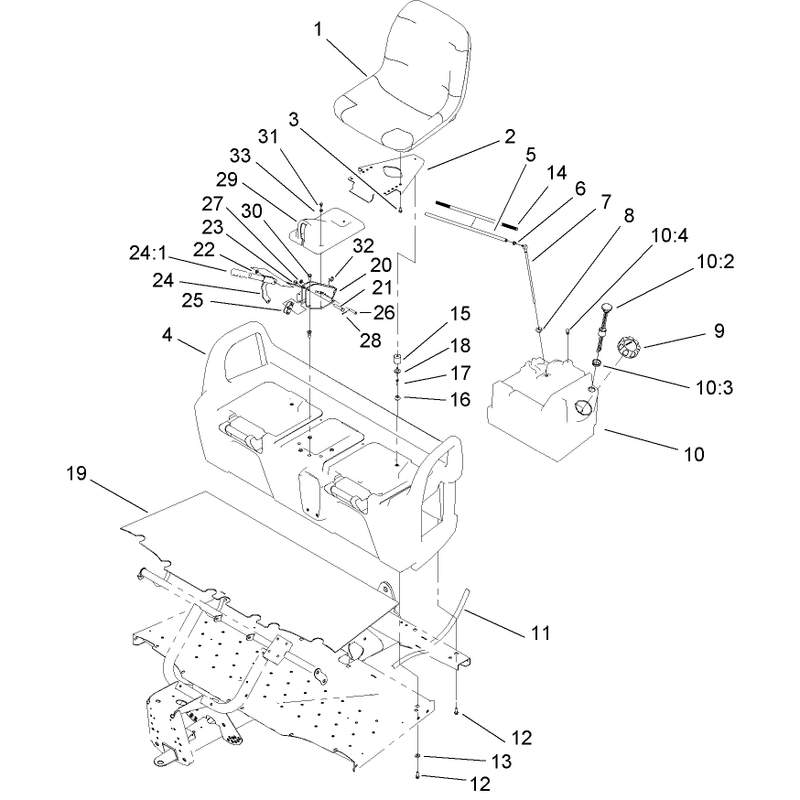

Seat Base Assembly
Seat Base Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

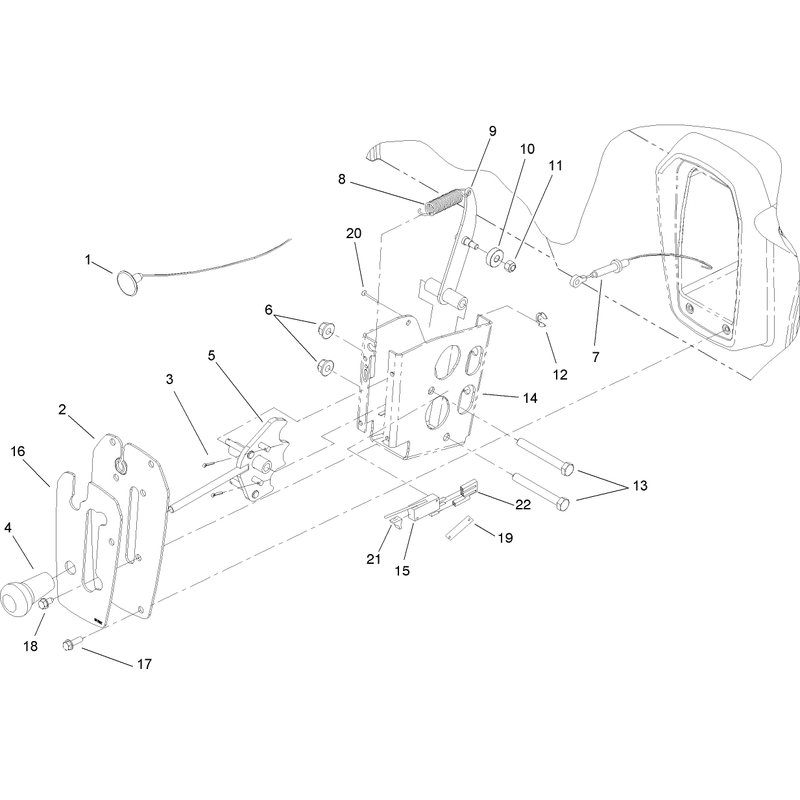

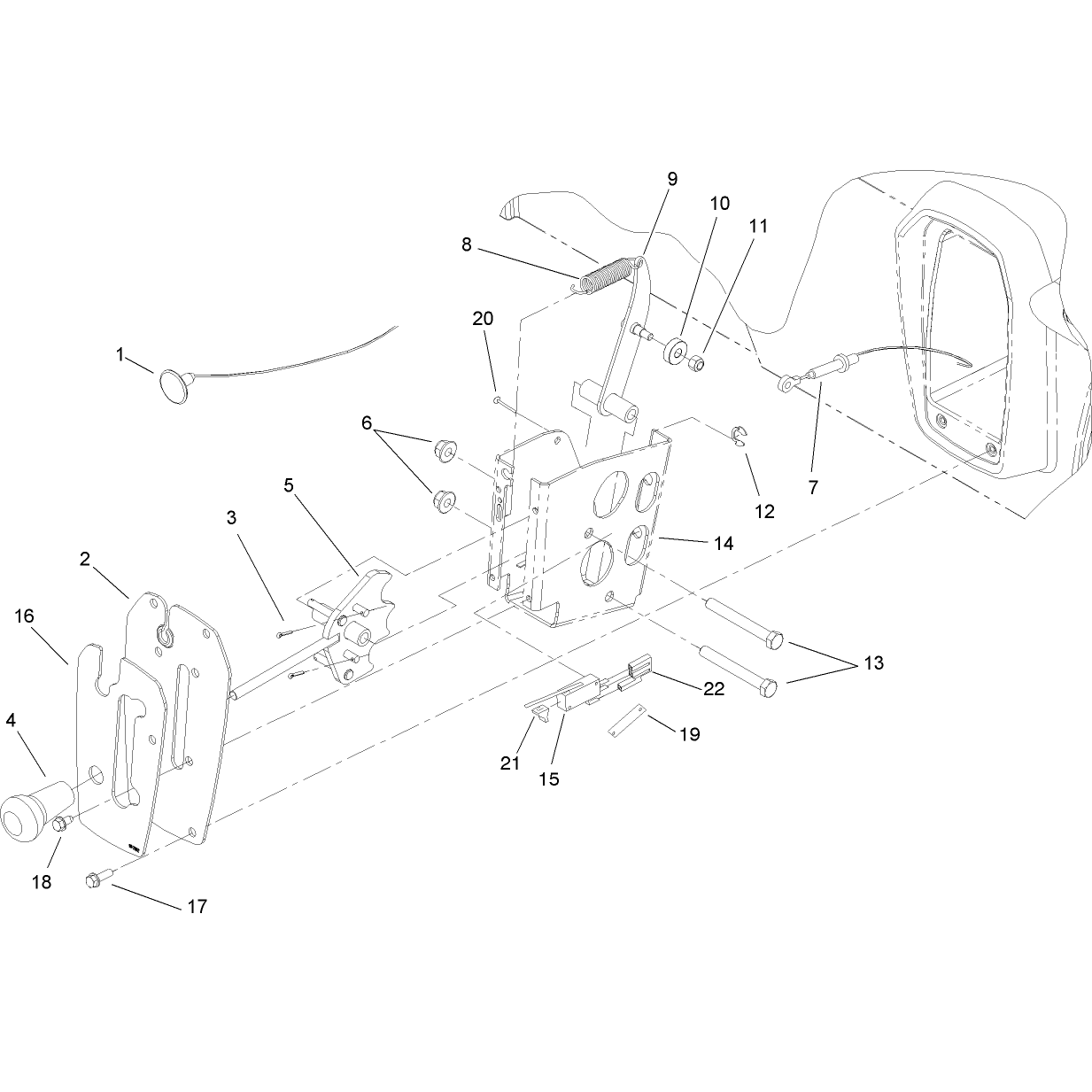

Shifter Assembly
Shifter Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

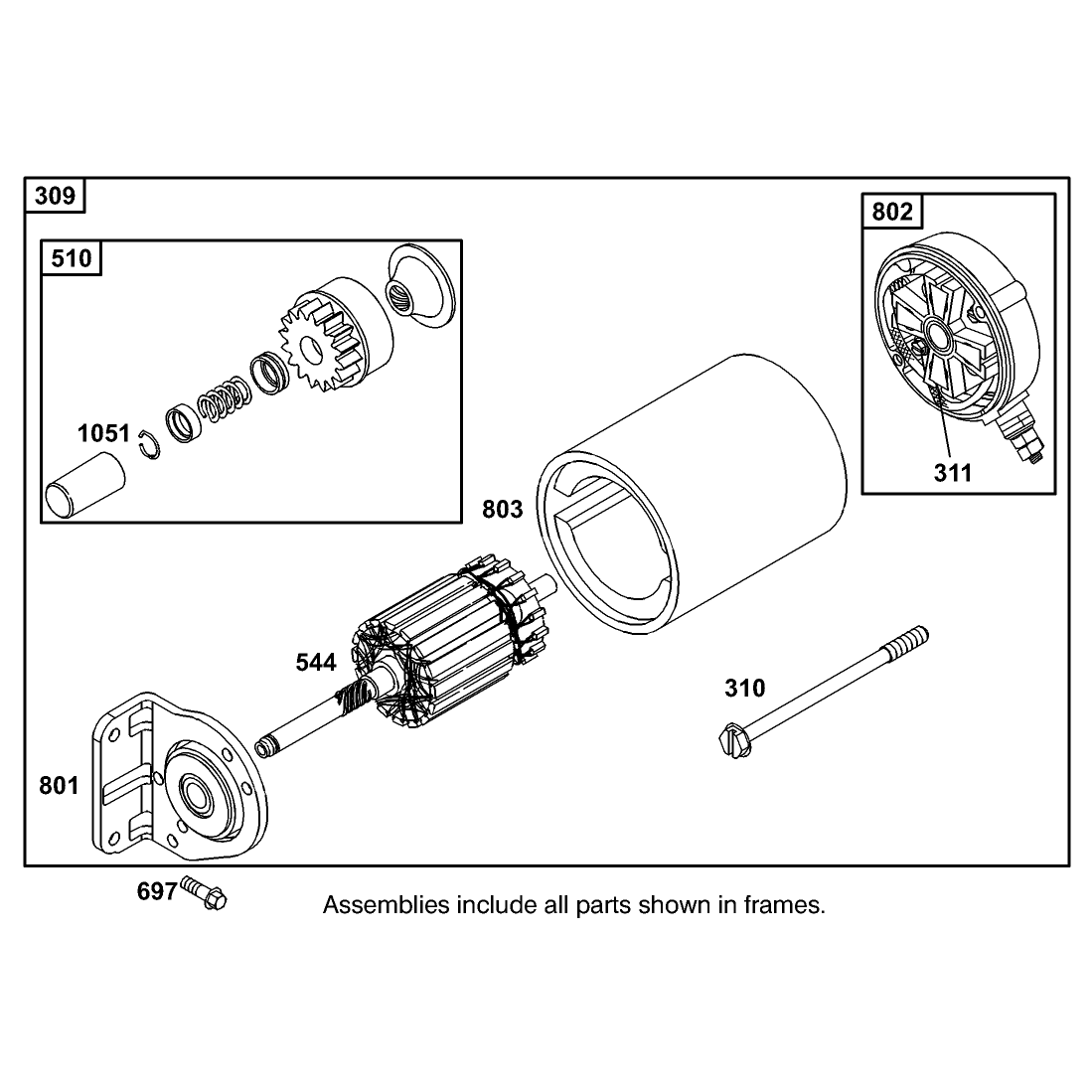

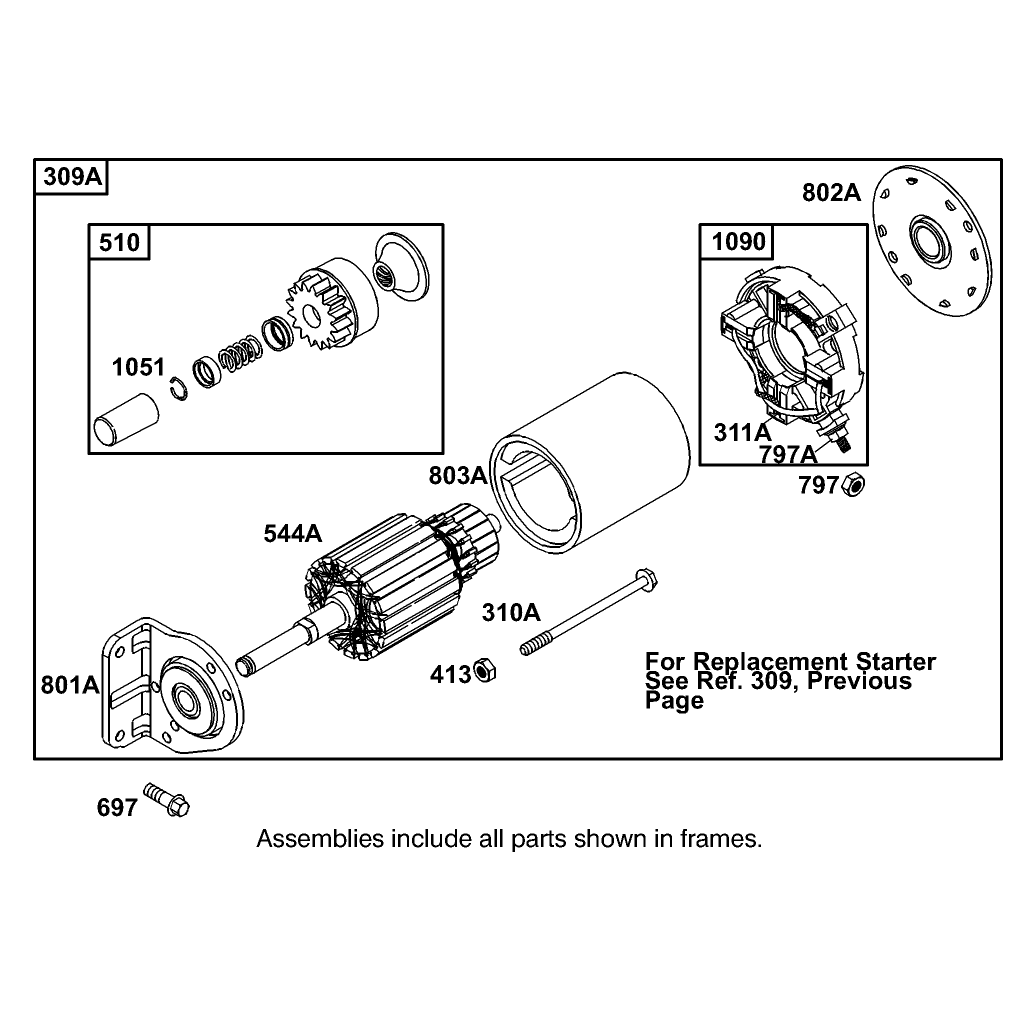

Starter Motor Assembly Briggs and Stratton 303447-1319-E1
Starter Motor Assembly Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|

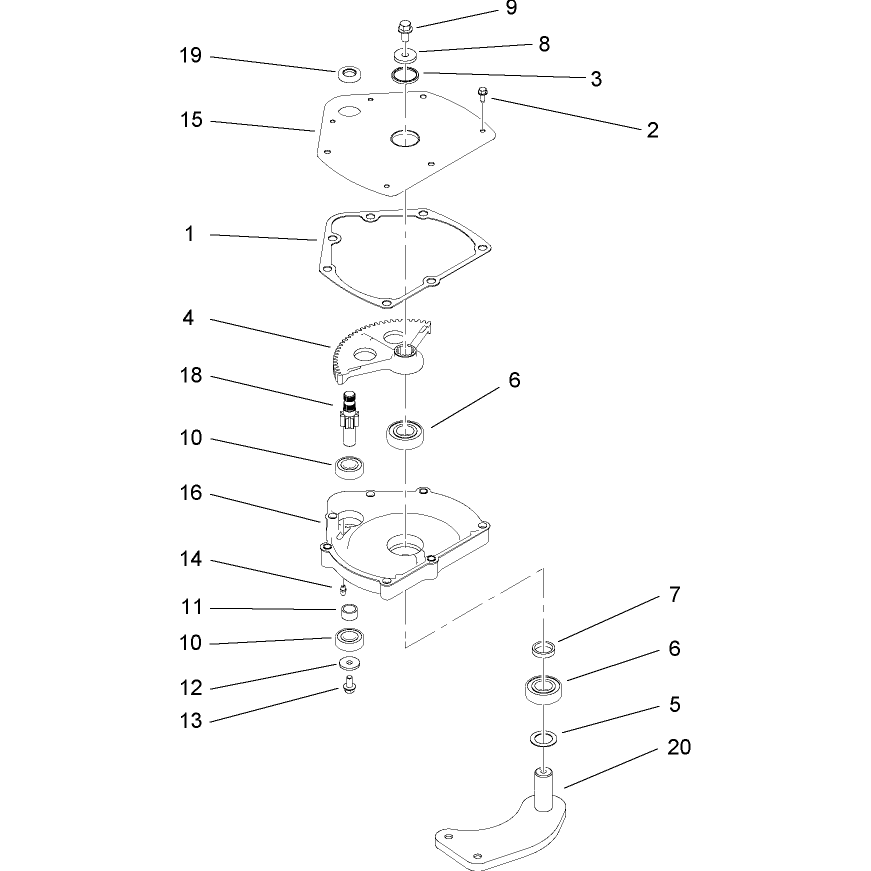

Steering Gearbox Assembly No 99-7660
Steering Gearbox Assembly No 99-7660
| Sequence Number | Image | Product | Price | Add to cart |
|---|

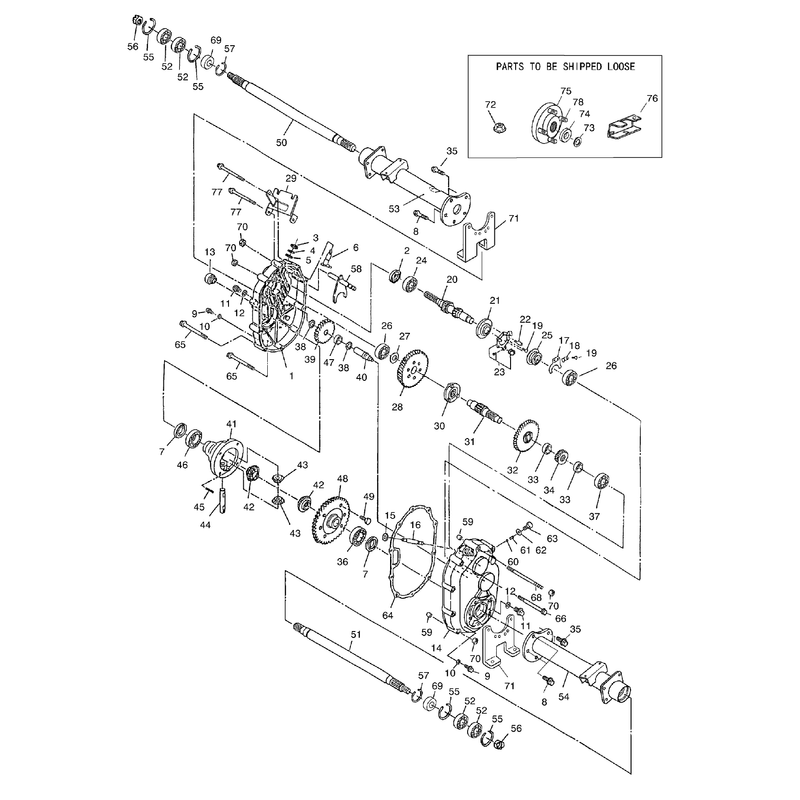

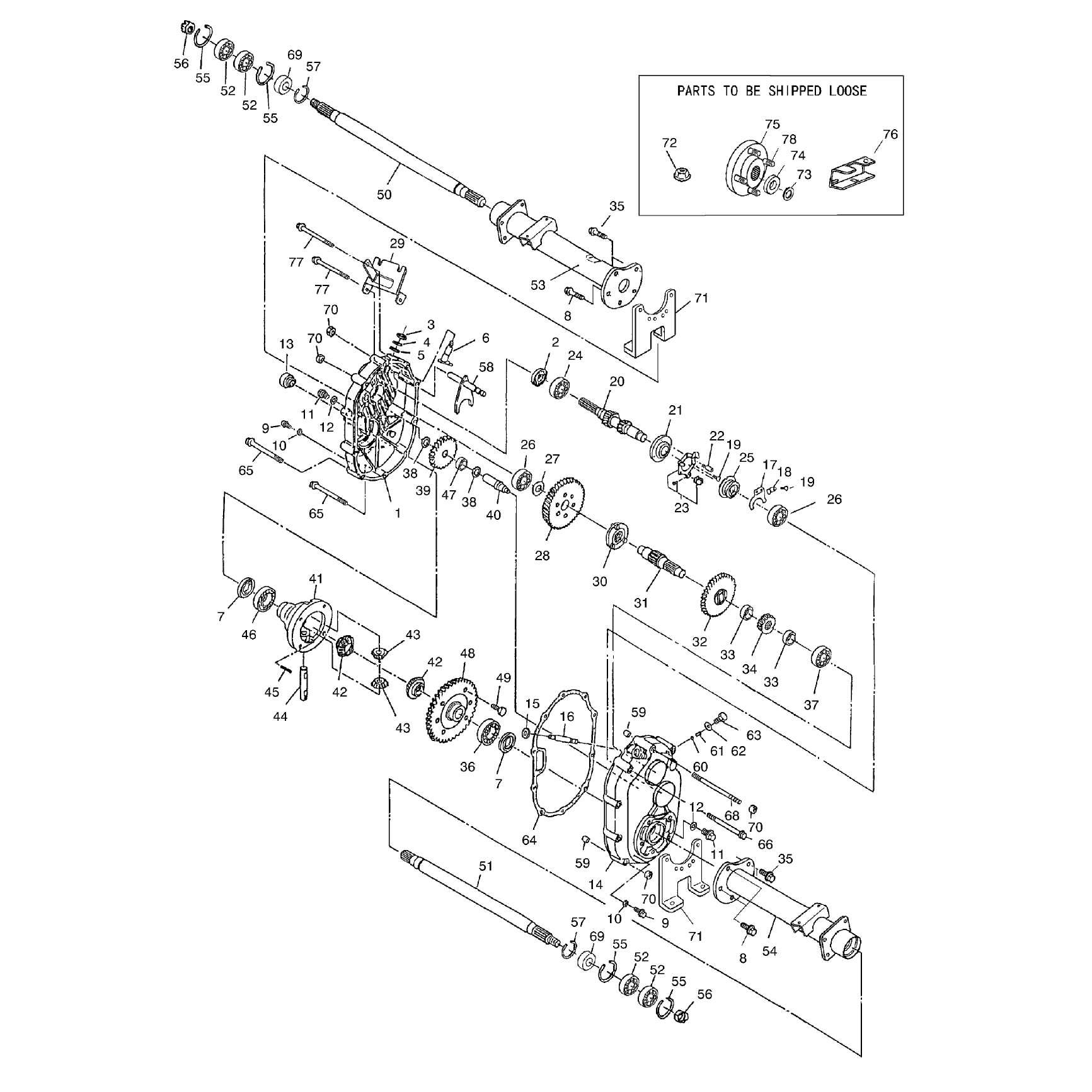

Transaxle Assembly No 107-0360
Transaxle Assembly No 107-0360
| Sequence Number | Image | Product | Price | Add to cart |
|---|

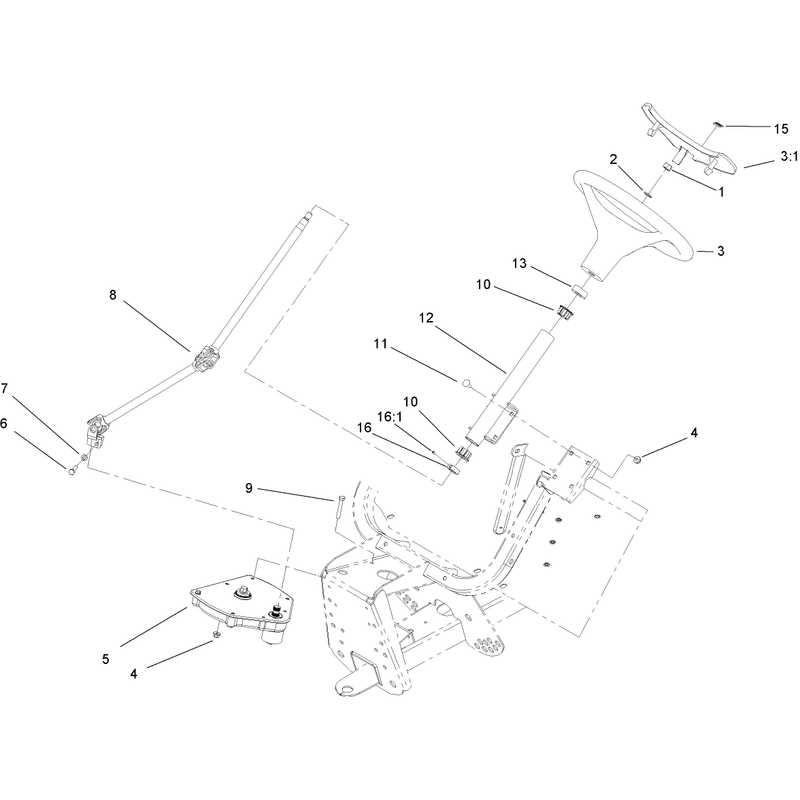

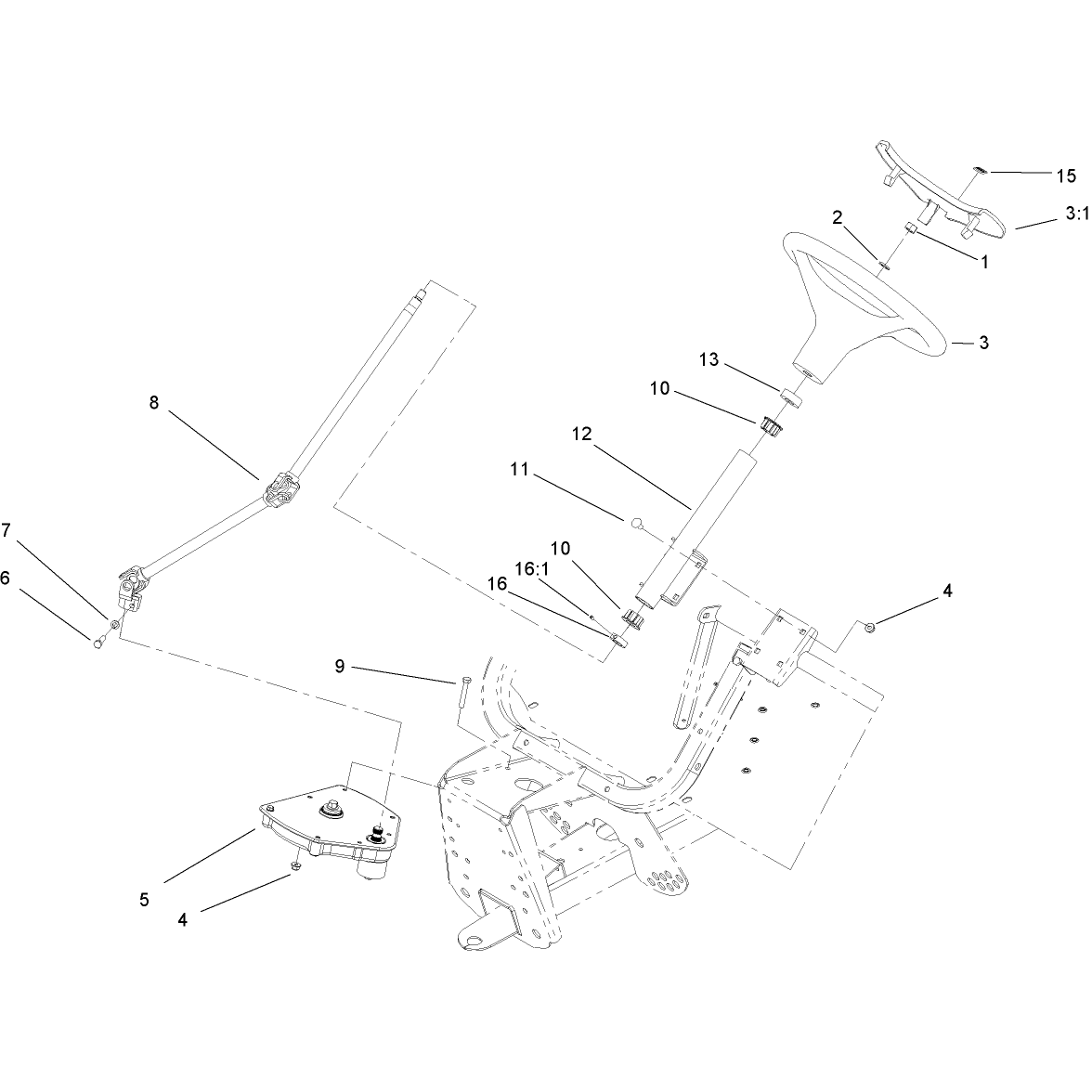

Upper Steering Assembly
Upper Steering Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

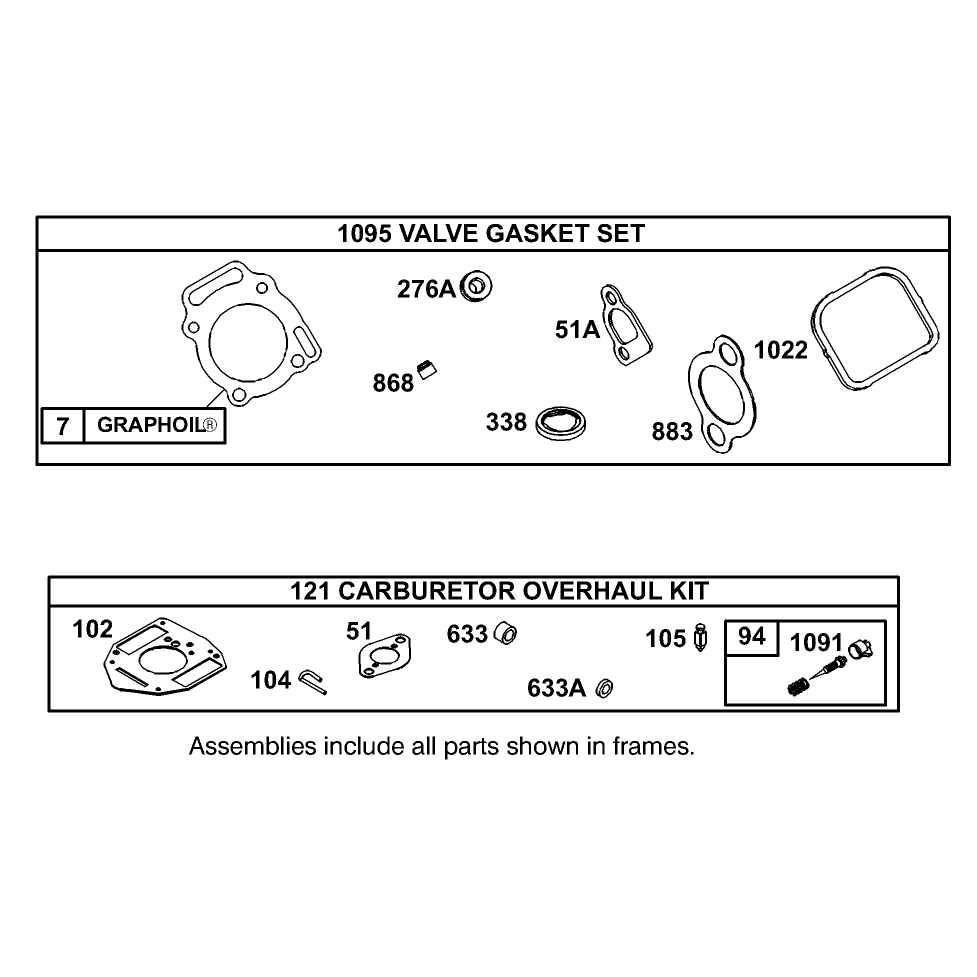

Valve Gasket Set and Carburetor Overhaul Kit Briggs and Stratton 303447-1319-E1
Valve Gasket Set and Carburetor Overhaul Kit Briggs and Stratton 303447-1319-E1
| Sequence Number | Image | Product | Price | Add to cart |
|---|
