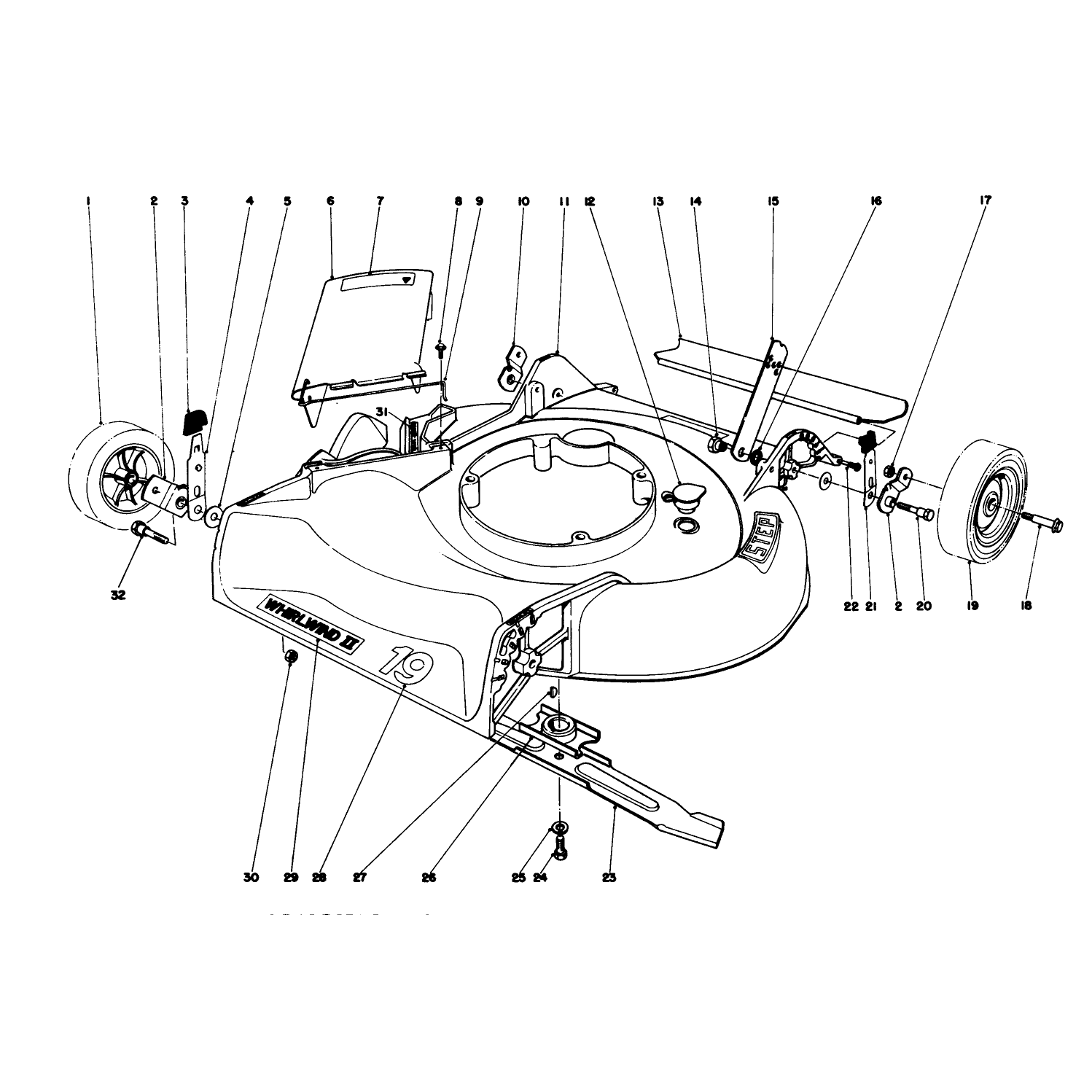

Toro 16113 Whirlwind Ii Mower (Serial #: 7000001 - 7999999) Parts Diagram

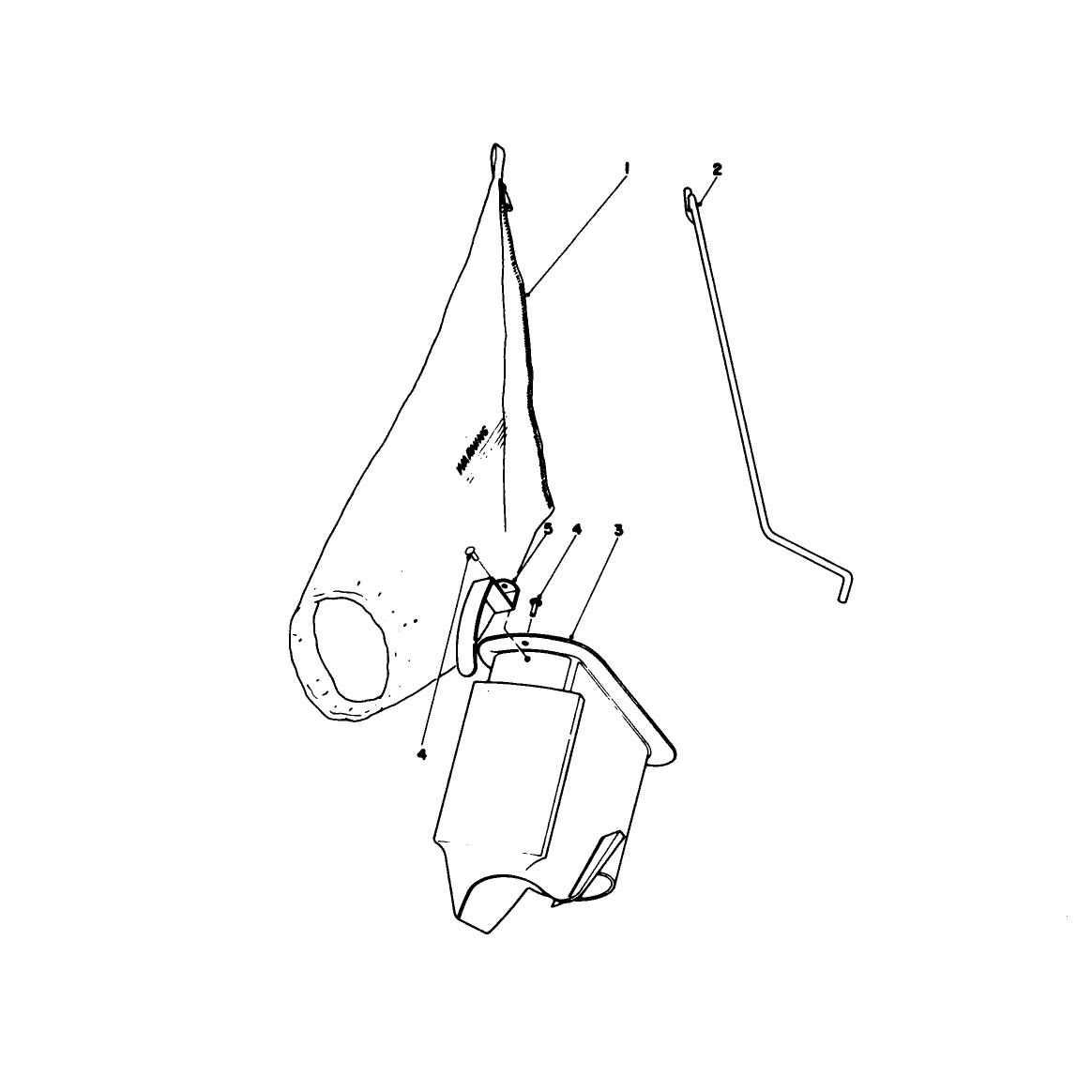

Diagrams:
Diagram:

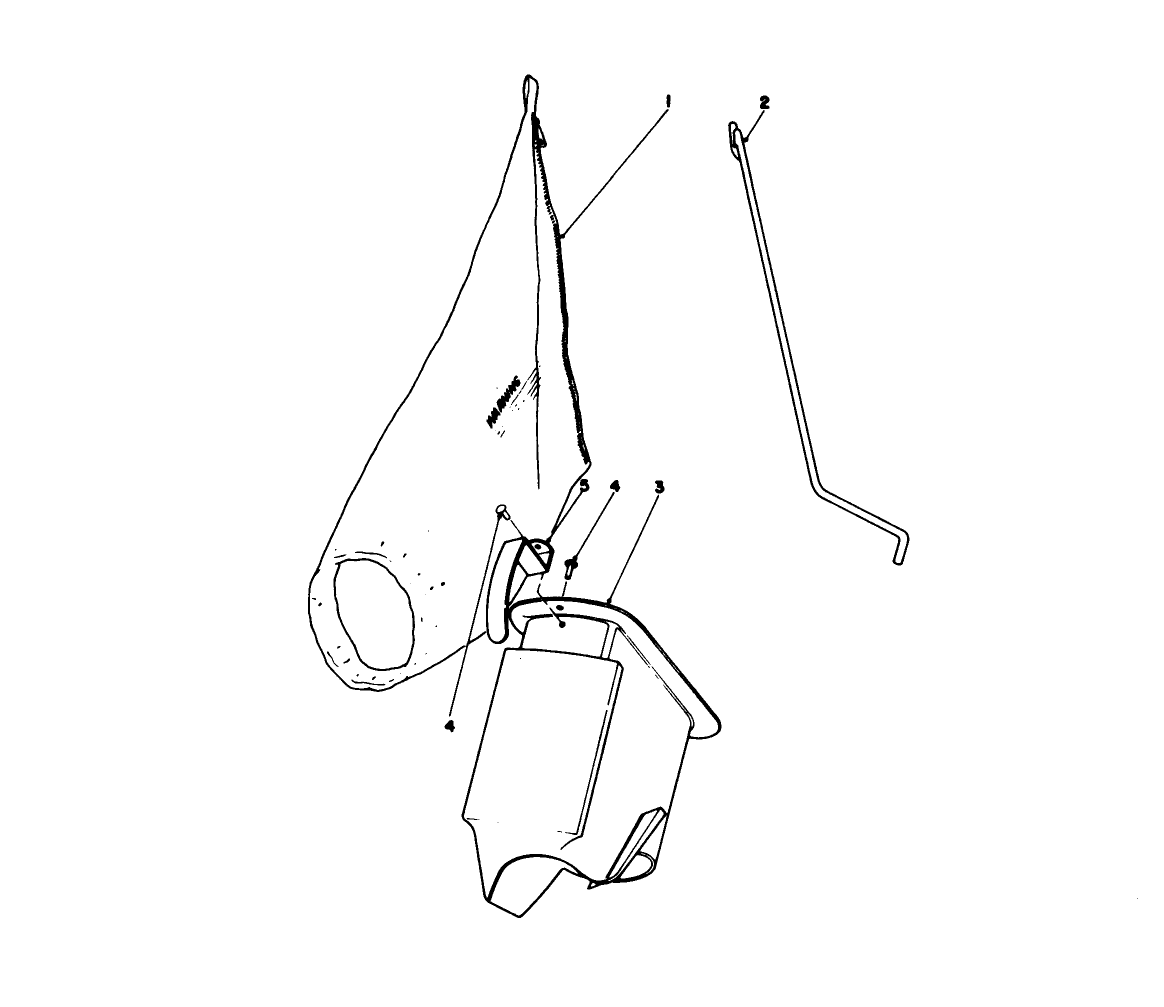

62f95fc5 8f44 4003 9a36 334e00871660.gif
62f95fc5 8f44 4003 9a36 334e00871660.gif
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
44-0540
44-0540
|
|||
|
|
20-4590
20-4590
|
|||
|
|
6-1089
6-1089
|
|||
|
|
3295-26
3295-26
|
|||
|
|
20-4650
20-4650
|

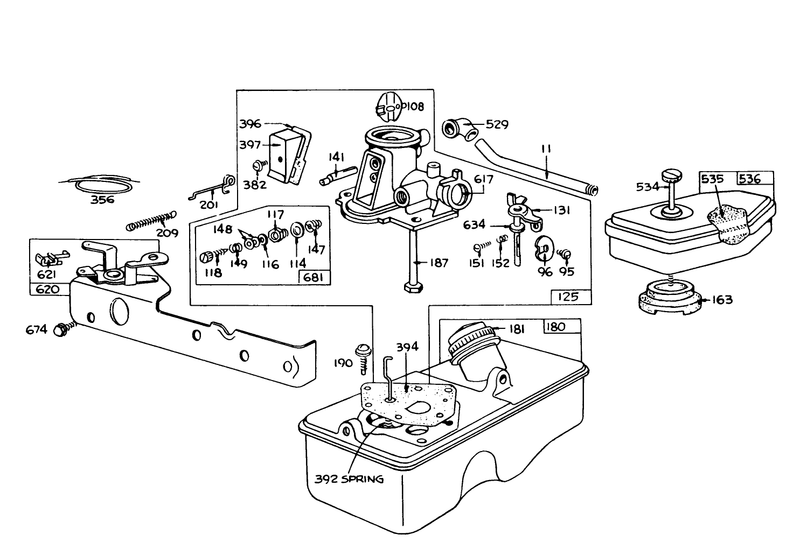

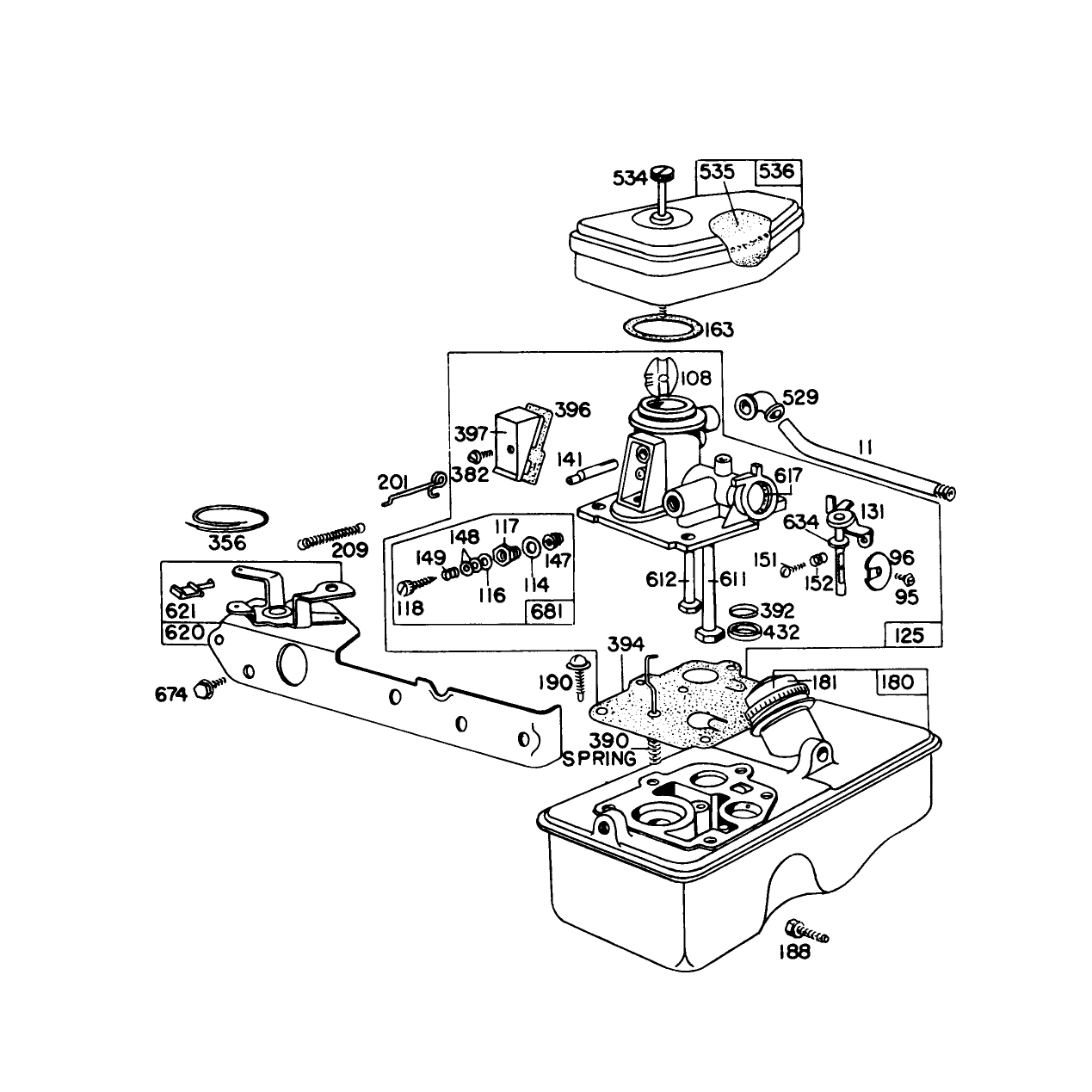

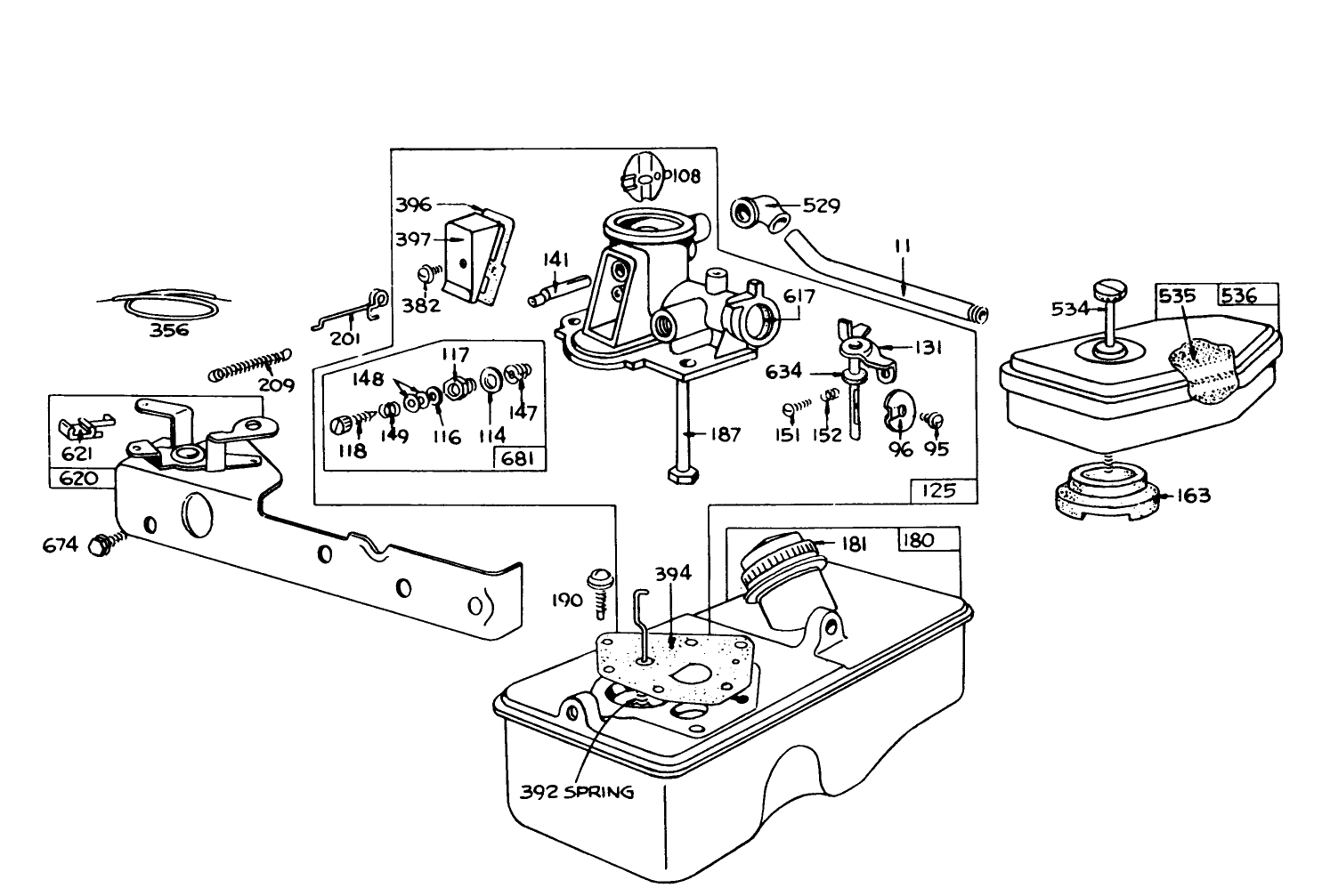

Briggs and Stratton Carburetor Assembly Model 390064 For 19in Hand Propelled Model 16009
Briggs and Stratton Carburetor Assembly Model 390064 For 19in Hand Propelled Model 16009
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
230802
230802
|
|||
|
|
93499
93499
|
|||
|
|
211203
211203
|
|||
|
|
298819
298819
|
|||
|
|
66594
66594
|
|||
|
|
65978
65978
|
|||
|
|
230590
230590
|
|||
|
|
23433
23433
|
|||
|
|
390064
390064
|
|||
|
|
299977
299977
|
|||
|
|
68908
68908
|
|||
|
|
230591
230591
|
|||
|
|
22235
22235
|
|||
|
|
26336
26336
|
|||
|
|
93524
93524
|
|||
|
|
260746
260746
|
|||
|
|
270621
270621
|
|||
|
|
299973
299973
|
|||
|
|
298425
298425
|
|||
|
|
296476
296476
|
|||
|
|
93440
93440
|
|||
|
|
261027
261027
|
|||
|
|
261312
261312
|
|||
|
|
298479
298479
|
|||
|
|
93545
93545
|
|||
|
|
261016
261016
|
|||
|
|
299637
299637
|
|||
|
|
270571
270571
|
|||
|
|
211678
211678
|
|||
|
|
67838
67838
|
|||
|
|
93374
93374
|
|||
|
|
270579
270579
|
|||
|
|
390055
390055
|
|||
|
|
270344
270344
|
|||
|
|
299974
299974
|
|||
|
|
297472
297472
|
|||
|
|
270167
270167
|
|||
|
|
93447
93447
|
|||
|
|
299060
299060
|

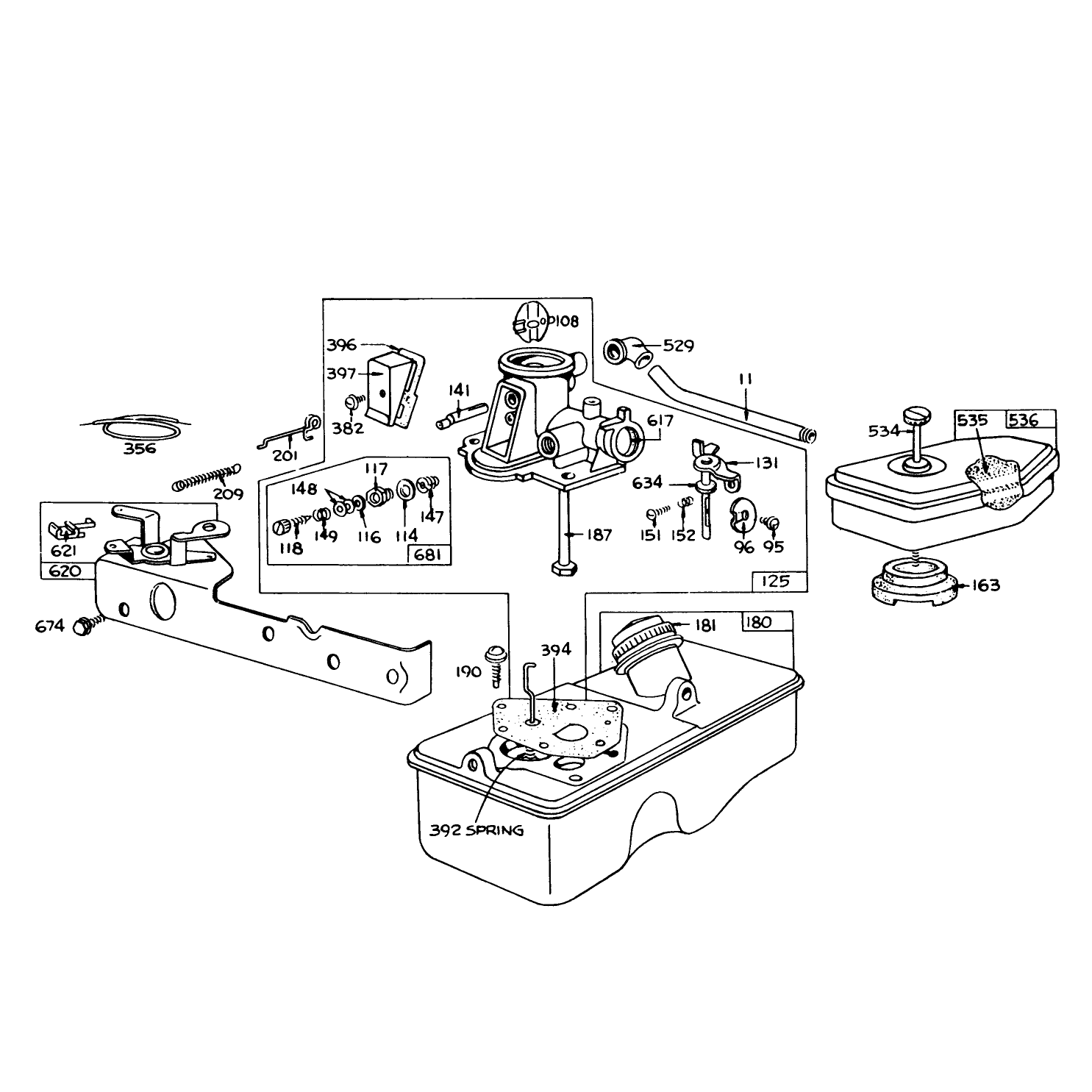

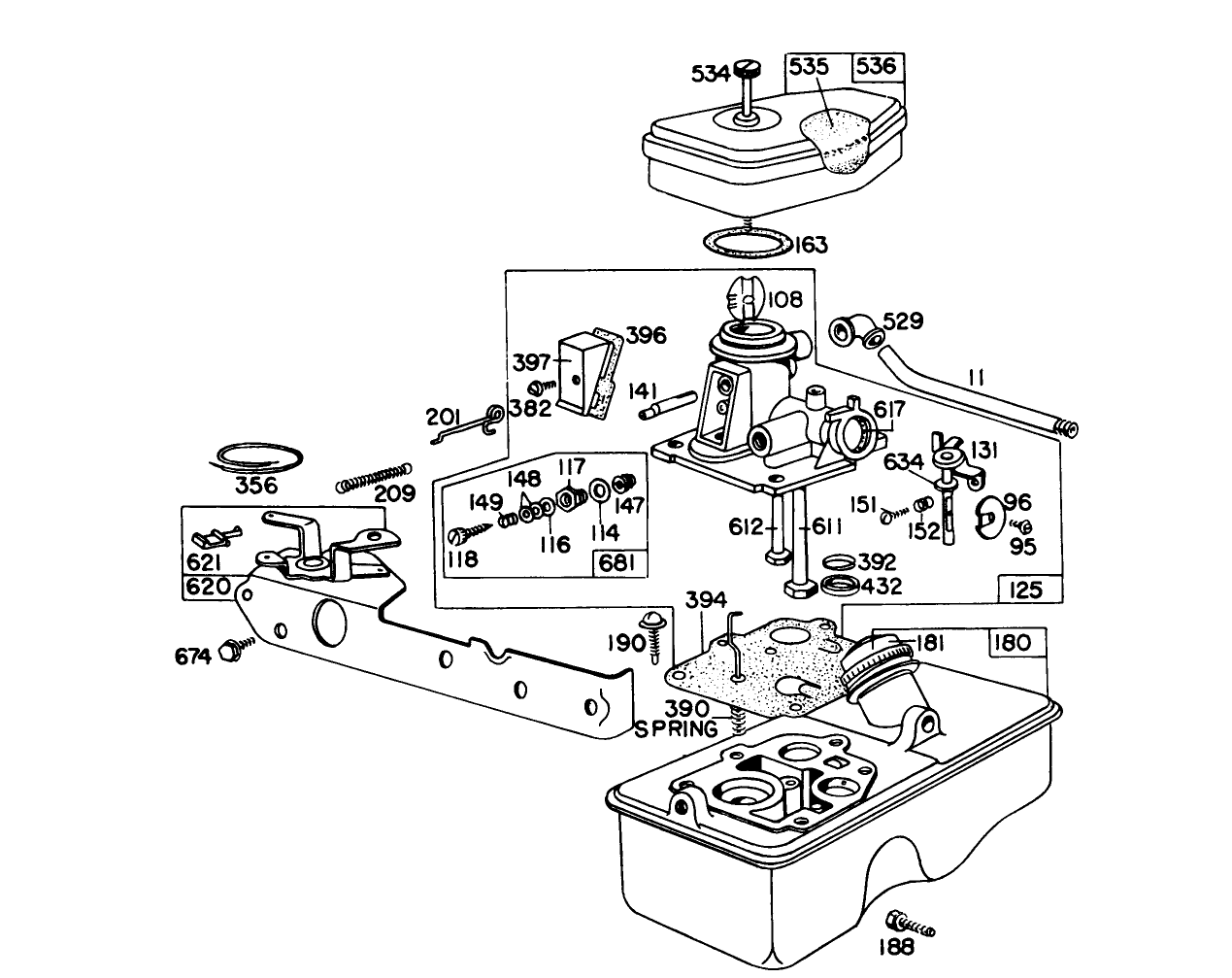

Carburetor Assembly Model 390065 For 21in Hand Propelled Model 16113 For 21in Self Propelled Model 16277
Carburetor Assembly Model 390065 For 21in Hand Propelled Model 16113 For 21in Self Propelled Model 16277
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
230802
230802
|
|||
|
|
93499
93499
|
|||
|
|
211237
211237
|
|||
|
|
280024
280024
|
|||
|
|
66594
66594
|
|||
|
|
65978
65978
|
|||
|
|
230590
230590
|
|||
|
|
23433
23433
|
|||
|
|
390065
390065
|
|||
|
|
299977
299977
|
|||
|
|
68908
68908
|
|||
|
|
230591
230591
|
|||
|
|
22235
22235
|
|||
|
|
26336
26336
|
|||
|
|
93524
93524
|
|||
|
|
260746
260746
|
|||
|
|
270816
270816
|
|||
|
|
391694
391694
|
|||
|
|
298425
298425
|
|||
|
|
93585
93585
|
|||
|
|
93440
93440
|
|||
|
|
261027
261027
|
|||
|
|
261312
261312
|
|||
|
|
298479
298479
|
|||
|
|
93545
93545
|
|||
|
|
261015
261015
|
|||
|
|
260455
260455
|
|||
|
|
391681
391681
|
|||
|
|
270571
270571
|
|||
|
|
211678
211678
|
|||
|
|
221377
221377
|
|||
|
|
67838
67838
|
|||
|
|
93374
93374
|
|||
|
|
270579
270579
|
|||
|
|
390055
390055
|
|||
|
|
297219
297219
|
|||
|
|
296811
296811
|
|||
|
|
270344
270344
|
|||
|
|
299974
299974
|
|||
|
|
297472
297472
|
|||
|
|
270167
270167
|
|||
|
|
93447
93447
|
|||
|
|
299060
299060
|

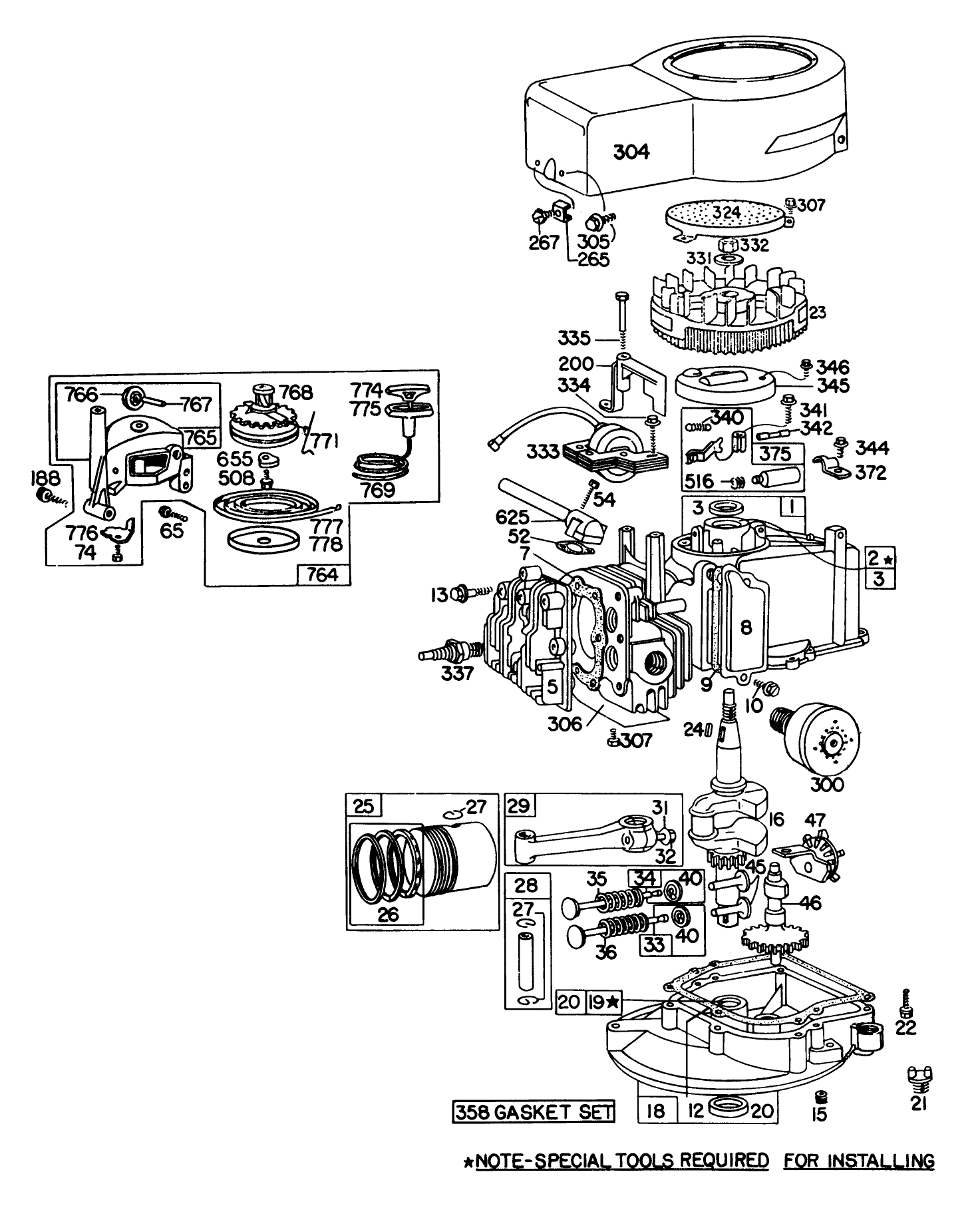

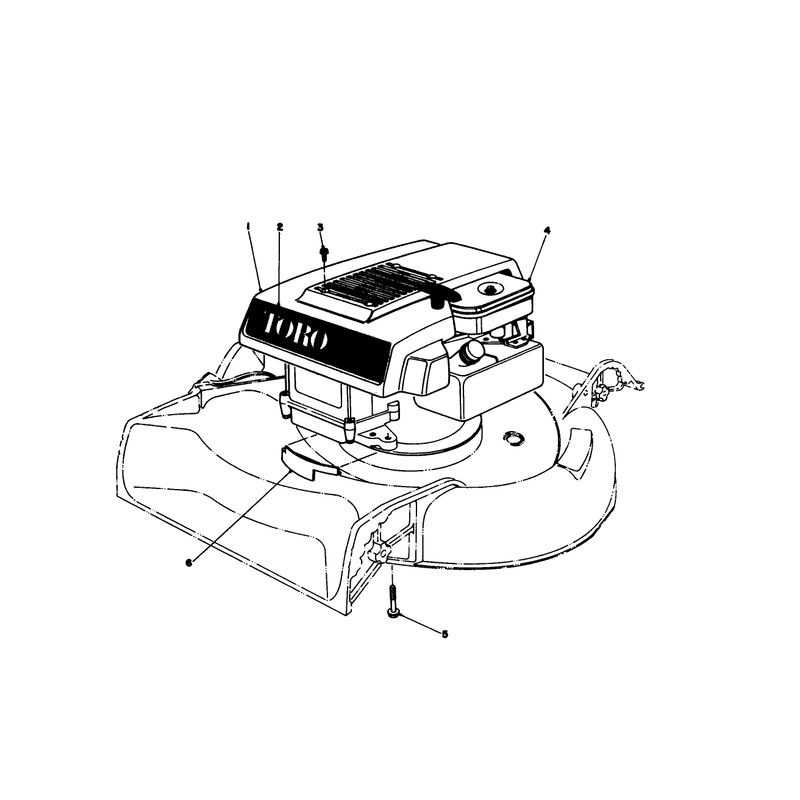

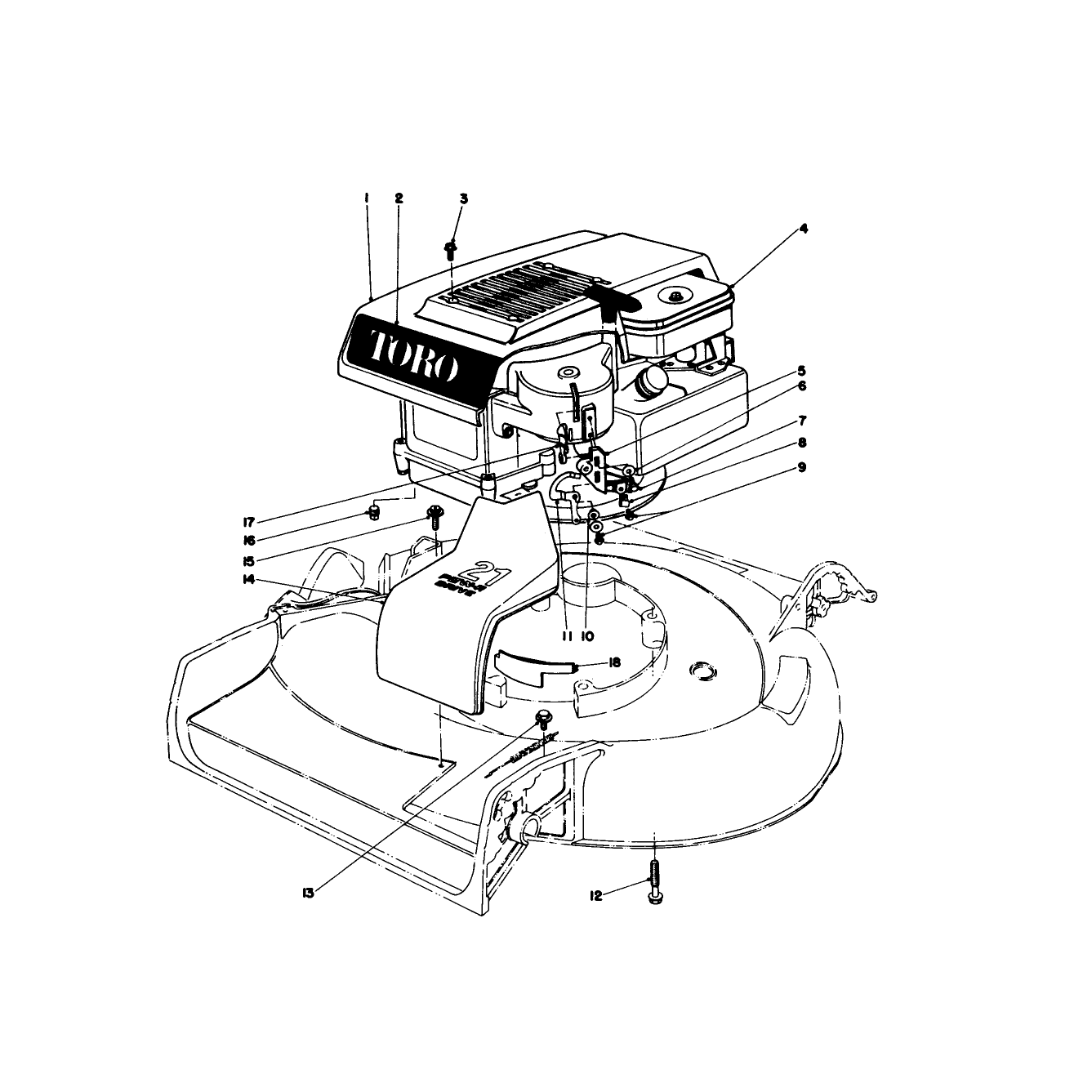

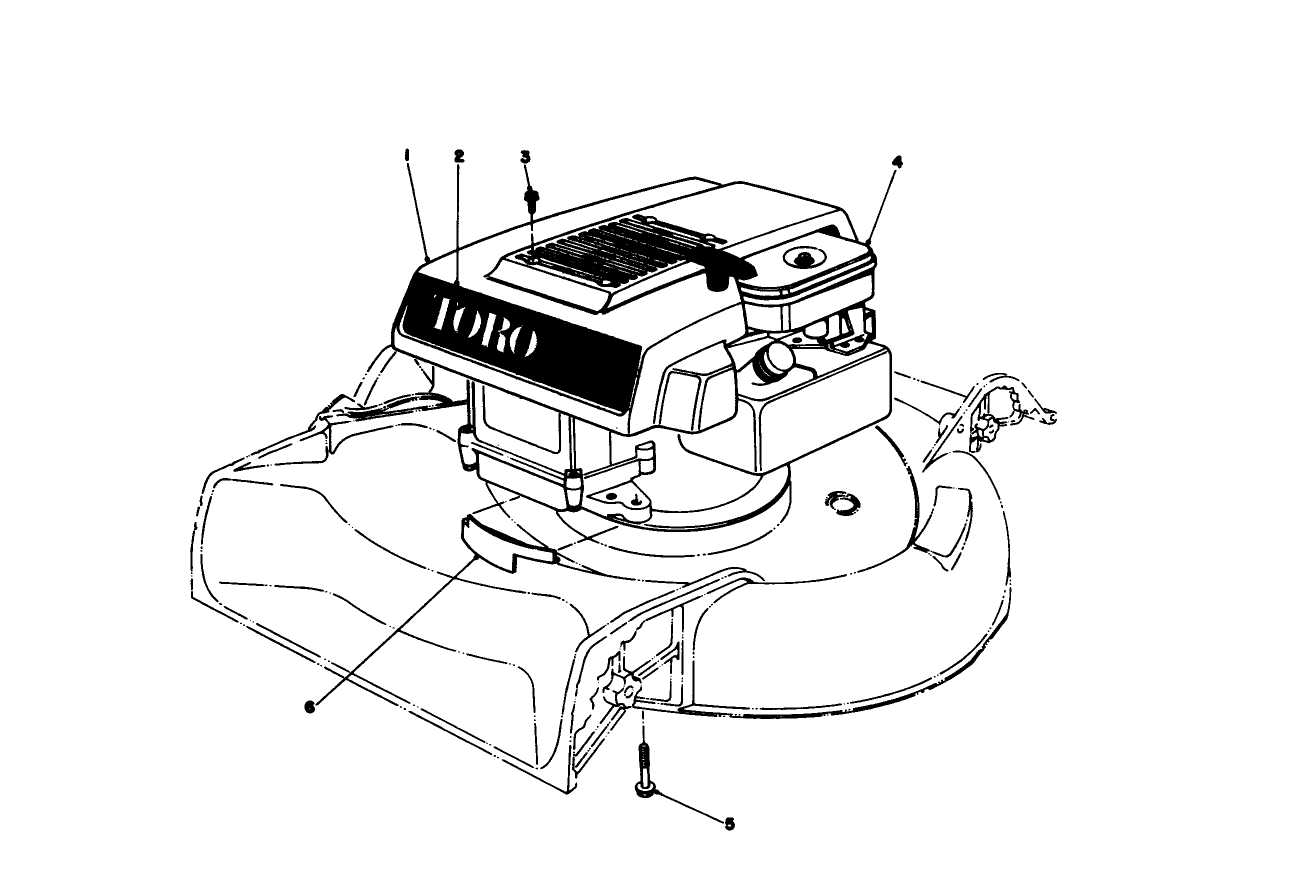

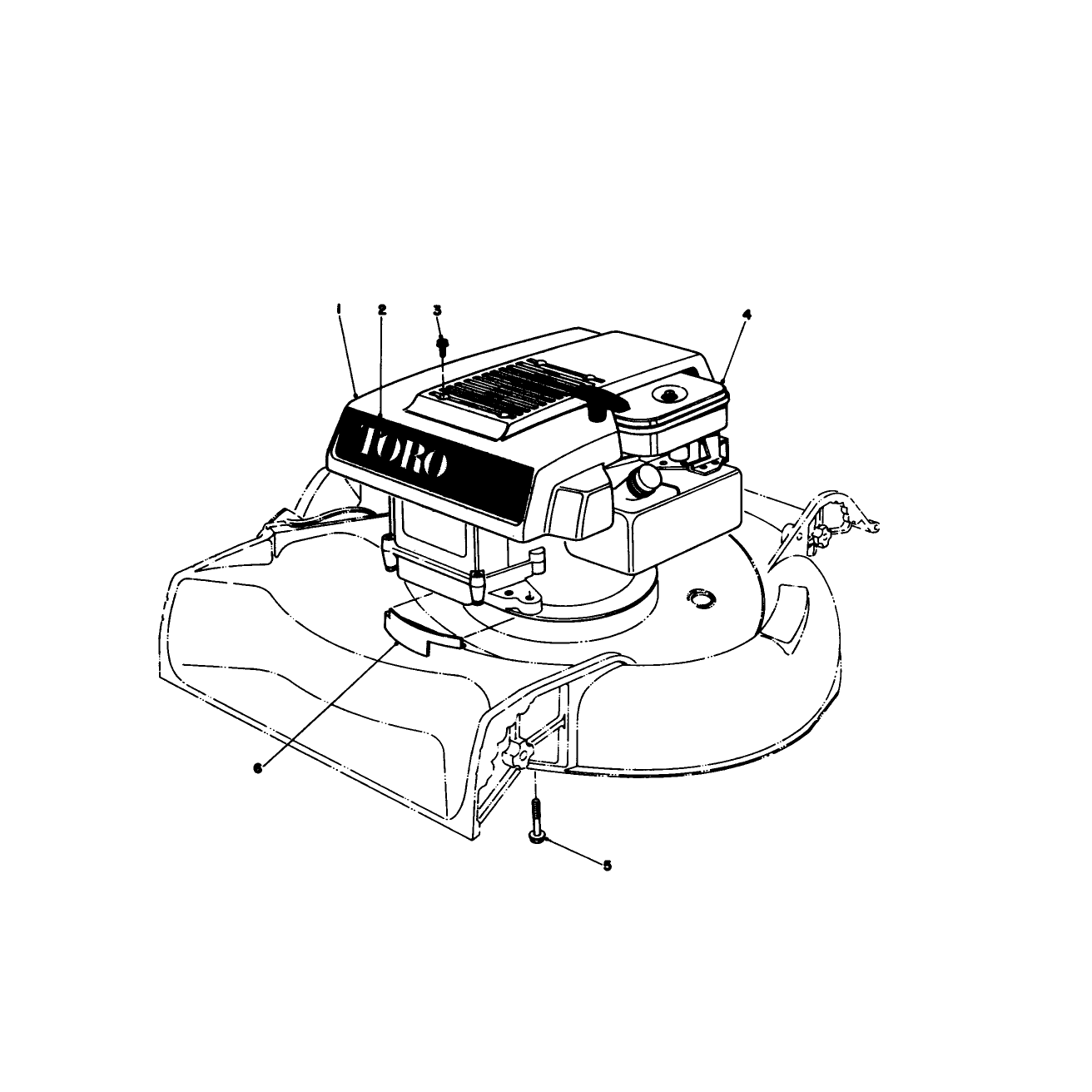

Engine Assembly Model 16009 and 16113
Engine Assembly Model 16009 and 16113
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
28-4720
28-4720
|
|||
|
|
28-4740
28-4740
|
|||
|
|
32104-94
32104-94
|
|||
|
|
221-547
221-547
|
|||
|
|
114580
114580
|
|||
|
|
27-7470
27-7470
|

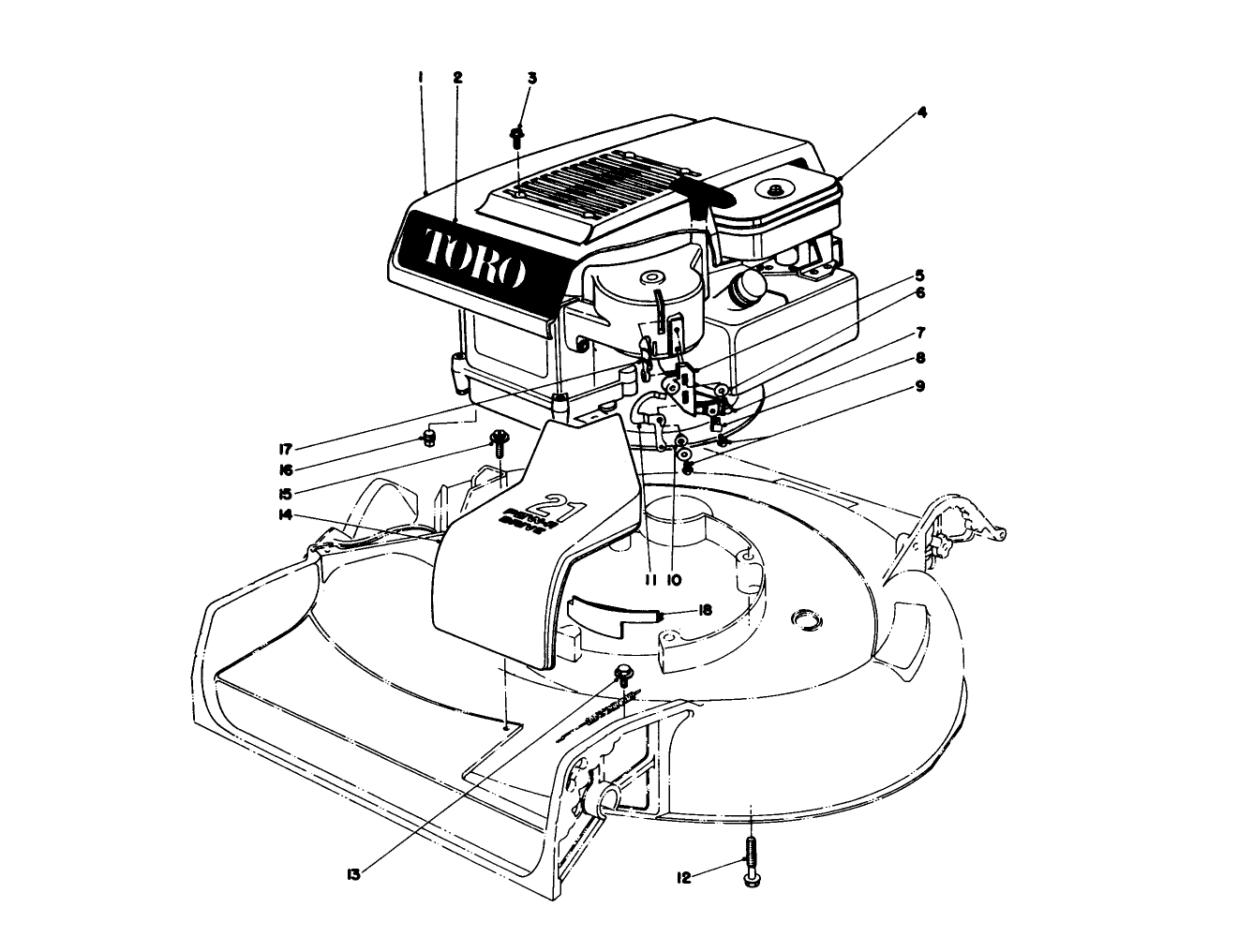

Engine Assembly Model 16277
Engine Assembly Model 16277
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
28-4720
28-4720
|
|||
|
|
28-4740
28-4740
|
|||
|
|
32104-94
32104-94
|
|||
|
|
221-545
221-545
|
|||
|
|
27-9280
27-9280
|
|||
|
|
3256-14
3256-14
|
|||
|
|
32144-19
32144-19
|
|||
|
|
2412-63
2412-63
|
|||
|
|
32144-20
32144-20
|
|||
|
|
25-0520
25-0520
|
|||
|
|
25-8150
25-8150
|
|||
|
|
11-0580
11-0580
|
|||
|
|
32144-11
32144-11
|
|||
|
|
28-4730
28-4730
|
|||
|
|
12-5450
12-5450
|
|||
|
|
281-2
281-2
|
|||
|
|
25-0350
25-0350
|
|||
|
|
27-7470
27-7470
|

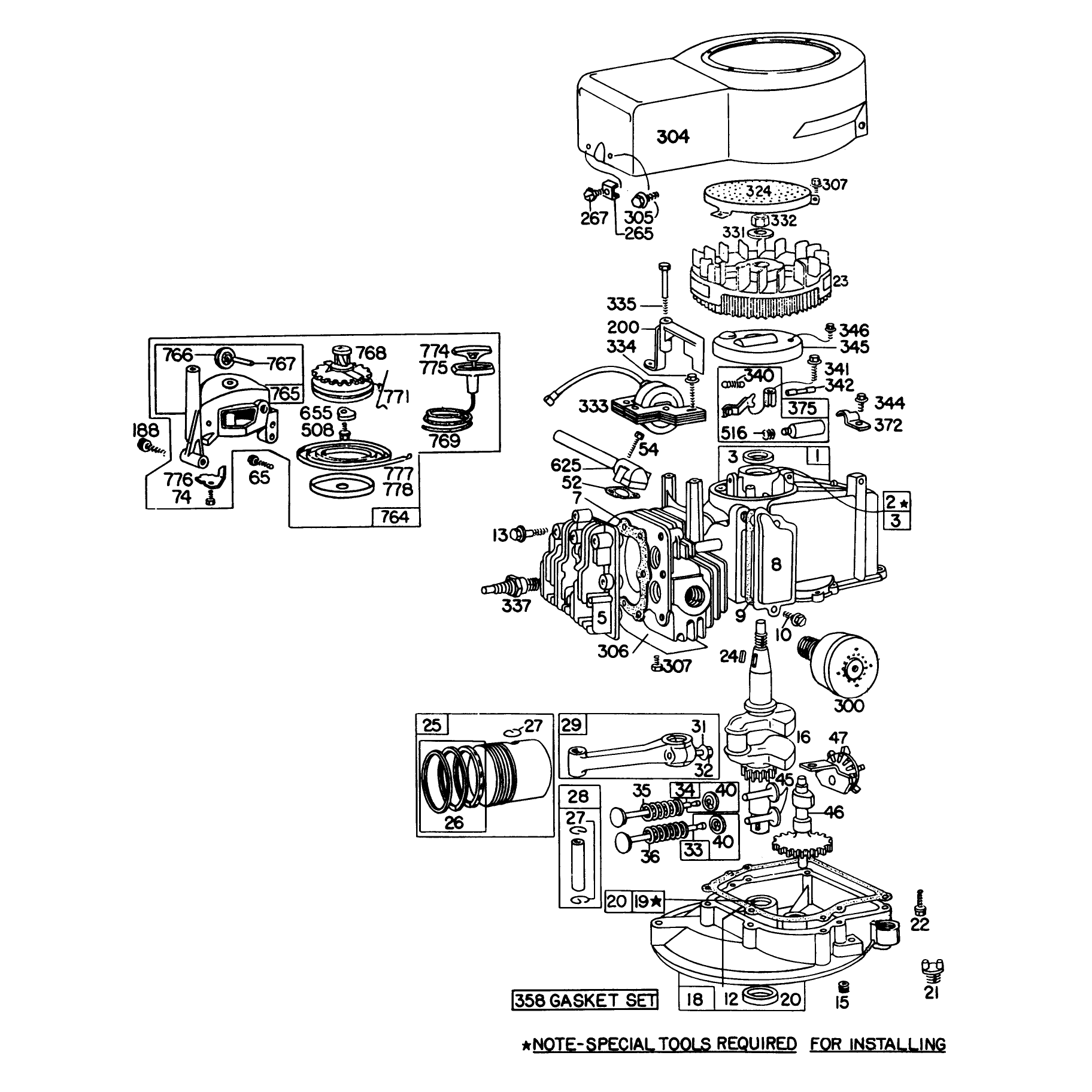

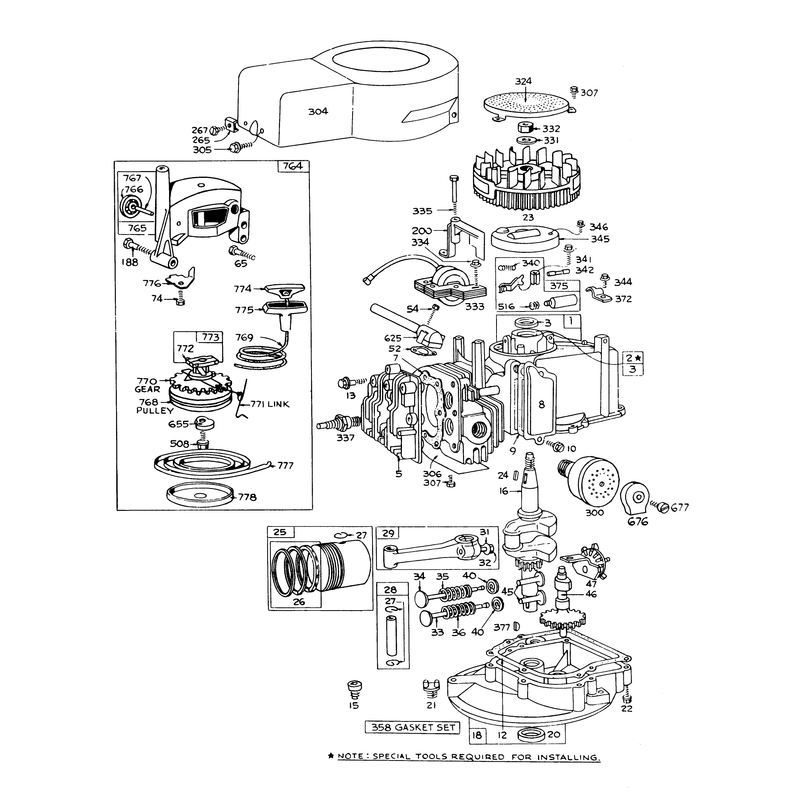

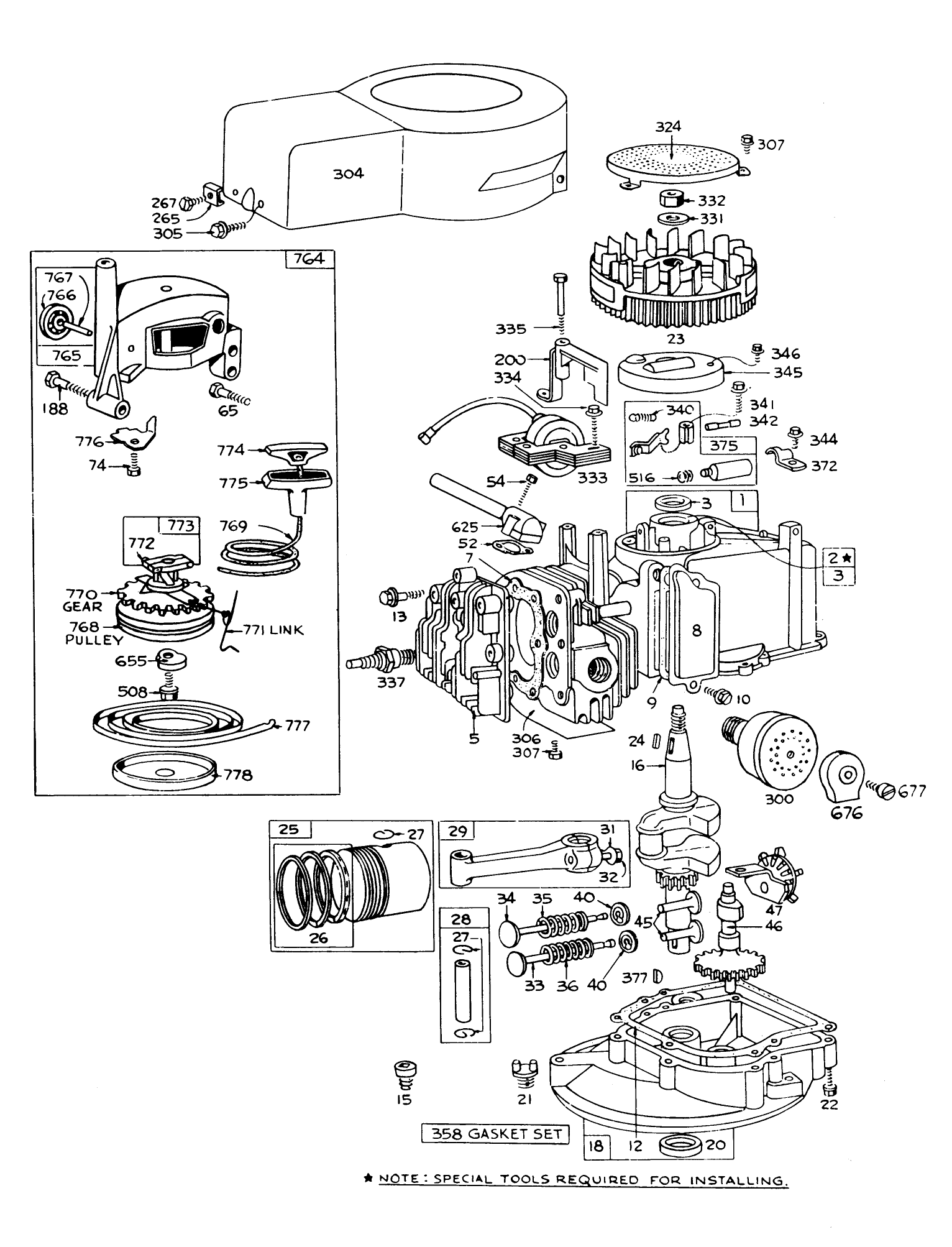

Engine Briggs and Stratton Model 92508 0954 01 For 19in Hand Propeled Model 16009
Engine Briggs and Stratton Model 92508 0954 01 For 19in Hand Propeled Model 16009
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
298985
298985
|
|||
|
|
298988
298988
|
|||
|
|
293708
293708
|
|||
|
|
89660
89660
|
|||
|
|
211479
211479
|
|||
|
|
270341
270341
|
|||
|
|
298383
298383
|
|||
|
|
|
|||
|
|
93394
93394
|
|||
|
|
93111
93111
|
|||
|
|
91084
91084
|
|||
|
|
261415
261415
|
|||
|
|
3900B8
3900B8
|
|||
|
|
291841
291841
|
|||
|
|
66768
66768
|
|||
|
|
93032
93032
|
|||
|
|
299982
299982
|
|||
|
|
61760
61760
|
|||
|
|
298904
298904
|
|||
|
|
298982
298982
|
|||
|
|
26026
26026
|
|||
|
|
298909
298909
|
|||
|
|
294201
294201
|
|||
|
|
220756
220756
|
|||
|
|
92296
92296
|
|||
|
|
296676
296676
|
|||
|
|
296677
296677
|
|||
|
|
260552
260552
|
|||
|
|
26478
26478
|
|||
|
|
93312
93312
|
|||
|
|
230173
230173
|
|||
|
|
740280
740280
|
|||
|
|
294652
294652
|
|||
|
|
270345
270345
|
|||
|
|
93485
93485
|
|||
|
|
93587
93587
|
|||
|
|
93490
93490
|
|||
|
|
93585
93585
|
|||
|
|
68388
68388
|
|||
|
|
22372
22372
|
|||
|
|
93469
93469
|
|||
|
|
391294
391294
|
|||
|
|
299983
299983
|
|||
|
|
93559
93559
|
|||
|
|
221805
221805
|
|||
|
|
93490
93490
|
|||
|
|
222063
222063
|
|||
|
|
220865
220865
|
|||
|
|
92284
92284
|
|||
|
|
298502
298502
|
|||
|
|
93381
93381
|
|||
|
|
93435
93435
|
|||
|
|
293918
293918
|
|||
|
|
26018
26018
|
|||
|
|
93381
93381
|
|||
|
|
65704
65704
|
|||
|
|
93042
93042
|
|||
|
|
220366
220366
|
|||
|
|
93014
93014
|
|||
|
|
298989
298989
|
|||
|
|
220477
220477
|
|||
|
|
294628
294628
|
|||
|
|
93065
93065
|
|||
|
|
93158
93158
|
|||
|
|
260374
260374
|
|||
|
|
298775
298775
|
|||
|
|
222057
222057
|
|||
|
|
221794
221794
|
|||
|
|
93606
93606
|
|||
|
|
299946
299946
|
|||
|
|
299947
299947
|
|||
|
|
280022
280022
|
|||
|
|
93586
93586
|
|||
|
|
280018
280018
|
|||
|
|
280020
280020
|
|||
|
|
299961
299961
|
|||
|
|
93598
93598
|
|||
|
|
390112
390112
|
|||
|
|
280035
280035
|
|||
|
|
280036
280036
|
|||
|
|
222049
222049
|
|||
|
|
390066
390066
|
|||
|
|
280021
280021
|

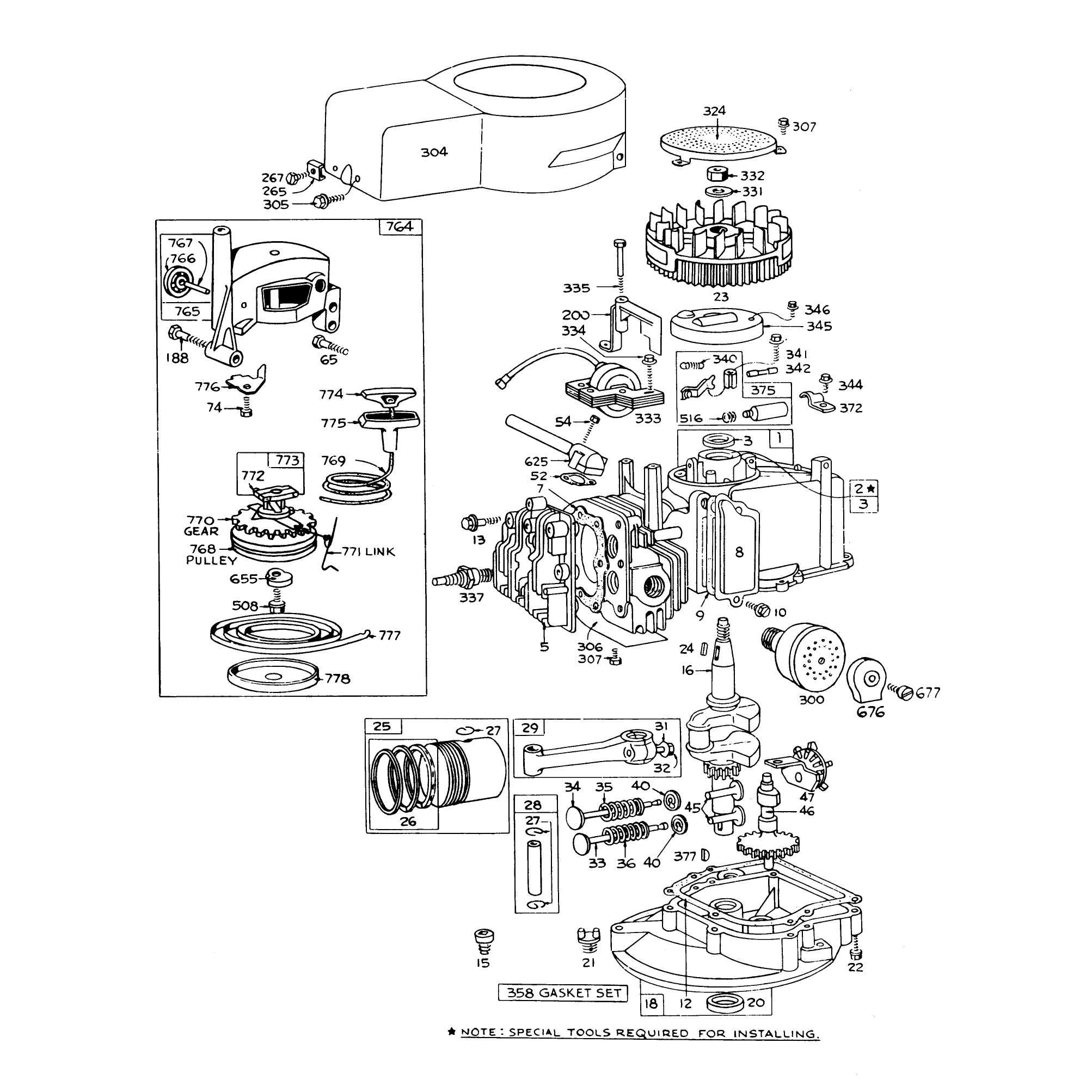

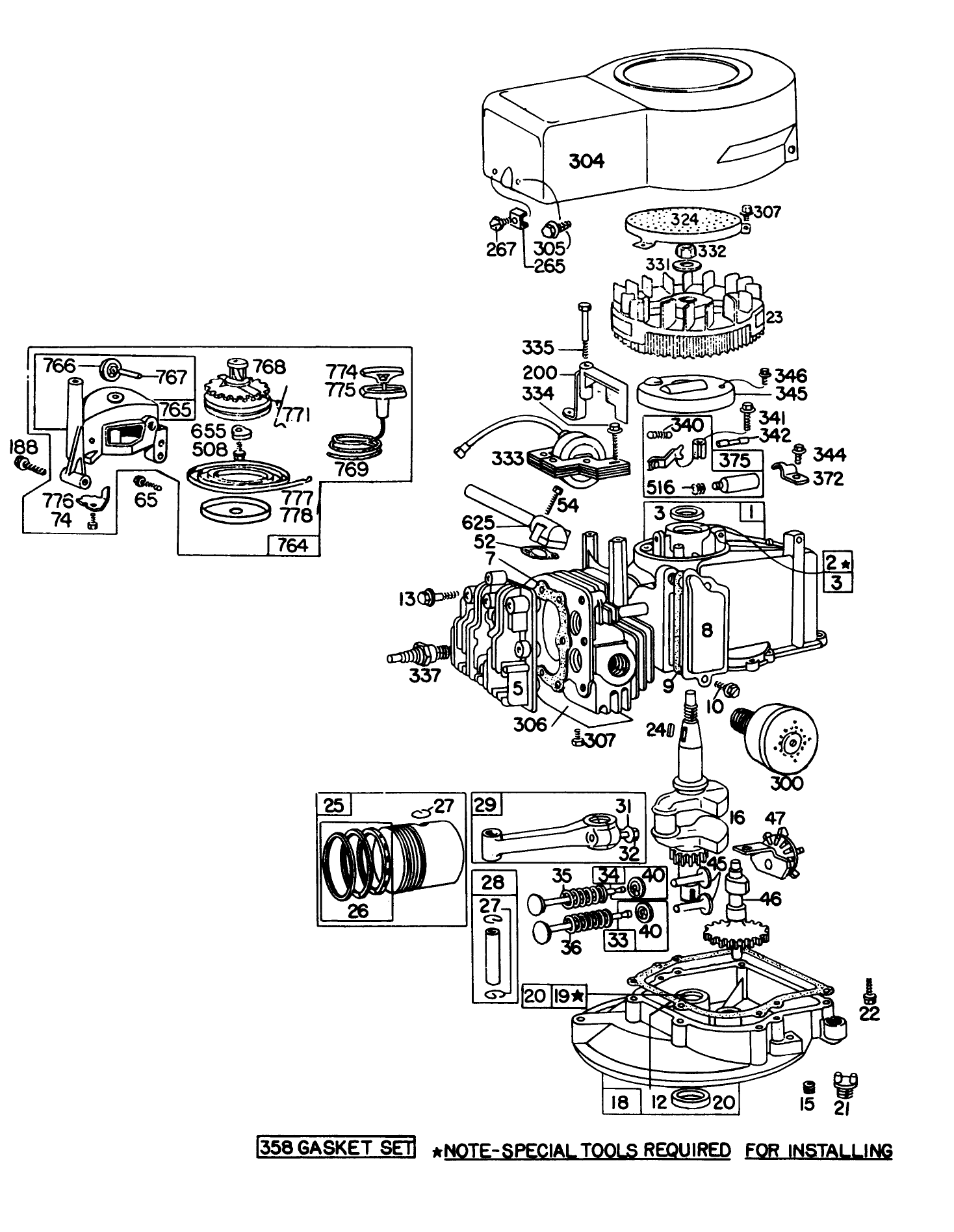

Engine Briggs and Stratton Model 92908 1743 01 For 21in Self Propelleed Model 16277
Engine Briggs and Stratton Model 92908 1743 01 For 21in Self Propelleed Model 16277
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
298908
298908
|
|||
|
|
298985
298985
|
|||
|
|
298988
298988
|
|||
|
|
293708
293708
|
|||
|
|
89660
89660
|
|||
|
|
211479
211479
|
|||
|
|
|
|||
|
|
298383
298383
|
|||
|
|
|
|||
|
|
93394
93394
|
|||
|
|
93111
93111
|
|||
|
|
91084
91084
|
|||
|
|
261293
261293
|
|||
|
|
390810
390810
|
|||
|
|
293709
293709
|
|||
|
|
291841
291841
|
|||
|
|
66768
66768
|
|||
|
|
93032
93032
|
|||
|
|
299982
299982
|
|||
|
|
61760
61760
|
|||
|
|
298904
298904
|
|||
|
|
298982
298982
|
|||
|
|
26026
26026
|
|||
|
|
298909
298909
|
|||
|
|
294201
294201
|
|||
|
|
220756
220756
|
|||
|
|
92296
92296
|
|||
|
|
296676
296676
|
|||
|
|
296677
296677
|
|||
|
|
260552
260552
|
|||
|
|
26478
26478
|
|||
|
|
93312
93312
|
|||
|
|
230173
230173
|
|||
|
|
740280
740280
|
|||
|
|
294652
294652
|
|||
|
|
|
|||
|
|
93485
93485
|
|||
|
|
93587
93587
|
|||
|
|
93490
93490
|
|||
|
|
93585
93585
|
|||
|
|
68388
68388
|
|||
|
|
22372
22372
|
|||
|
|
93469
93469
|
|||
|
|
391294
391294
|
|||
|
|
299983
299983
|
|||
|
|
93559
93559
|
|||
|
|
221805
221805
|
|||
|
|
93490
93490
|
|||
|
|
222063
222063
|
|||
|
|
220865
220865
|
|||
|
|
92284
92284
|
|||
|
|
298502
298502
|
|||
|
|
93381
93381
|
|||
|
|
93435
93435
|
|||
|
|
293918
293918
|
|||
|
|
26018
26018
|
|||
|
|
93381
93381
|
|||
|
|
65704
65704
|
|||
|
|
93042
93042
|
|||
|
|
220366
220366
|
|||
|
|
93014
93014
|
|||
|
|
298989
298989
|
|||
|
|
220477
220477
|
|||
|
|
294628
294628
|
|||
|
|
93158
93158
|
|||
|
|
260374
260374
|
|||
|
|
298775
298775
|
|||
|
|
222057
222057
|
|||
|
|
392064
392064
|
|||
|
|
392138
392138
|
|||
|
|
280022
280022
|
|||
|
|
231048
231048
|
|||
|
|
392063
392063
|
|||
|
|
299961
299961
|
|||
|
|
280121
280121
|
|||
|
|
280036
280036
|
|||
|
|
222049
222049
|
|||
|
|
390066
390066
|
|||
|
|
280021
280021
|

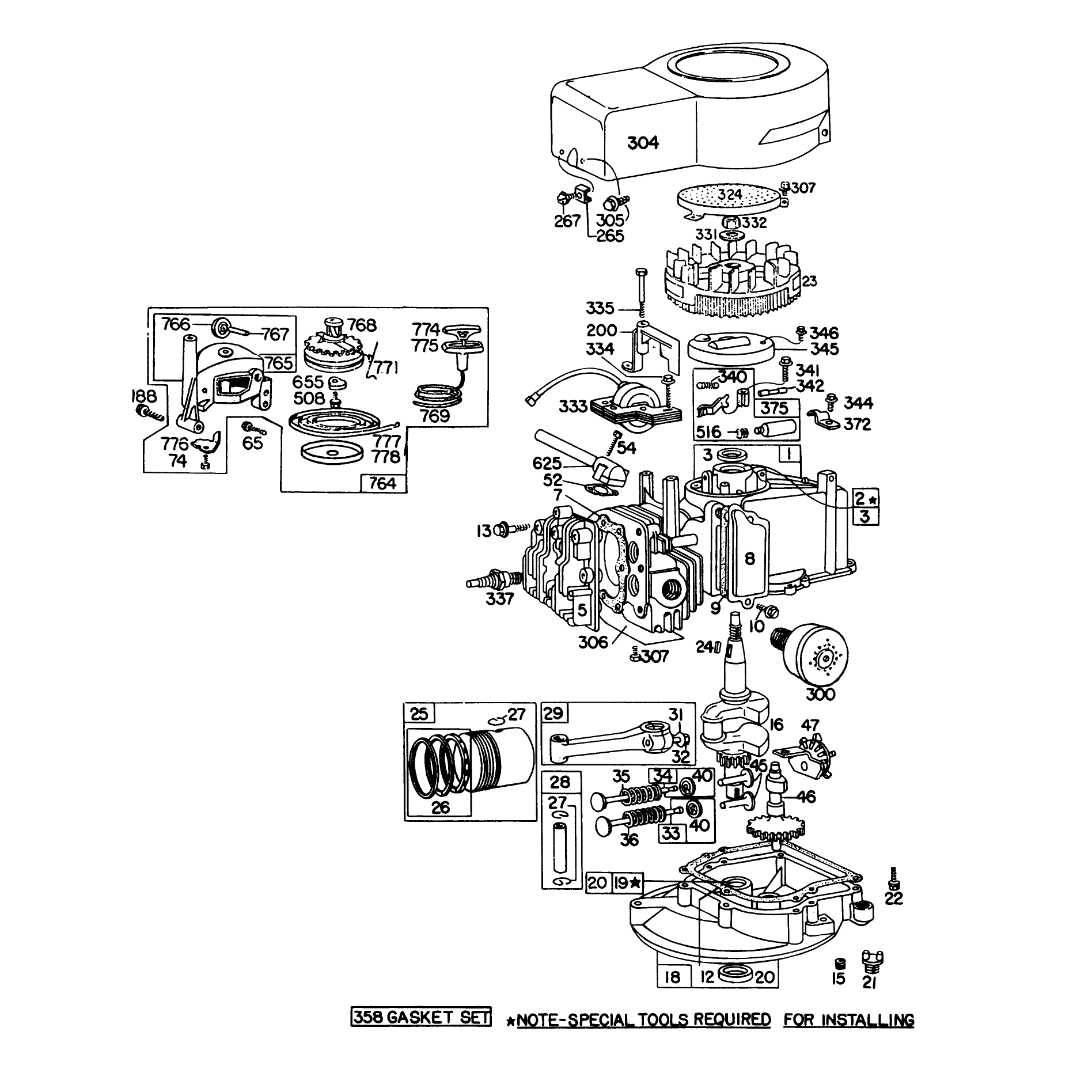

Engine Briggs and Stratton Model 92908 1744 01 For 21in Hand Propelled Model 16113
Engine Briggs and Stratton Model 92908 1744 01 For 21in Hand Propelled Model 16113
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
298908
298908
|
|||
|
|
|
|||
|
|
298985
298985
|
|||
|
|
298988
298988
|
|||
|
|
293708
293708
|
|||
|
|
89660
89660
|
|||
|
|
211479
211479
|
|||
|
|
|
|||
|
|
298383
298383
|
|||
|
|
|
|||
|
|
93394
93394
|
|||
|
|
93111
93111
|
|||
|
|
91084
91084
|
|||
|
|
261415
261415
|
|||
|
|
390810
390810
|
|||
|
|
293709
293709
|
|||
|
|
291841
291841
|
|||
|
|
66768
66768
|
|||
|
|
93032
93032
|
|||
|
|
299982
299982
|
|||
|
|
61760
61760
|
|||
|
|
298904
298904
|
|||
|
|
298982
298982
|
|||
|
|
26026
26026
|
|||
|
|
298909
298909
|
|||
|
|
294201
294201
|
|||
|
|
220756
220756
|
|||
|
|
92296
92296
|
|||
|
|
296676
296676
|
|||
|
|
296677
296677
|
|||
|
|
260552
260552
|
|||
|
|
26478
26478
|
|||
|
|
93312
93312
|
|||
|
|
230173
230173
|
|||
|
|
740280
740280
|
|||
|
|
294652
294652
|
|||
|
|
|
|||
|
|
93485
93485
|
|||
|
|
93587
93587
|
|||
|
|
93490
93490
|
|||
|
|
93585
93585
|
|||
|
|
68388
68388
|
|||
|
|
22372
22372
|
|||
|
|
93469
93469
|
|||
|
|
391294
391294
|
|||
|
|
299983
299983
|
|||
|
|
93559
93559
|
|||
|
|
221805
221805
|
|||
|
|
93490
93490
|
|||
|
|
222063
222063
|
|||
|
|
220865
220865
|
|||
|
|
92284
92284
|
|||
|
|
298502
298502
|
|||
|
|
93381
93381
|
|||
|
|
93435
93435
|
|||
|
|
293918
293918
|
|||
|
|
26018
26018
|
|||
|
|
93381
93381
|
|||
|
|
65704
65704
|
|||
|
|
93042
93042
|
|||
|
|
220366
220366
|
|||
|
|
93014
93014
|
|||
|
|
298989
298989
|
|||
|
|
220477
220477
|
|||
|
|
294628
294628
|
|||
|
|
93158
93158
|
|||
|
|
260374
260374
|
|||
|
|
298775
298775
|
|||
|
|
222057
222057
|
|||
|
|
299946
299946
|
|||
|
|
299947
299947
|
|||
|
|
280022
280022
|
|||
|
|
231048
231048
|
|||
|
|
299948
299948
|
|||
|
|
299961
299961
|
|||
|
|
280121
280121
|
|||
|
|
280036
280036
|
|||
|
|
222049
222049
|
|||
|
|
390066
390066
|
|||
|
|
280021
280021
|

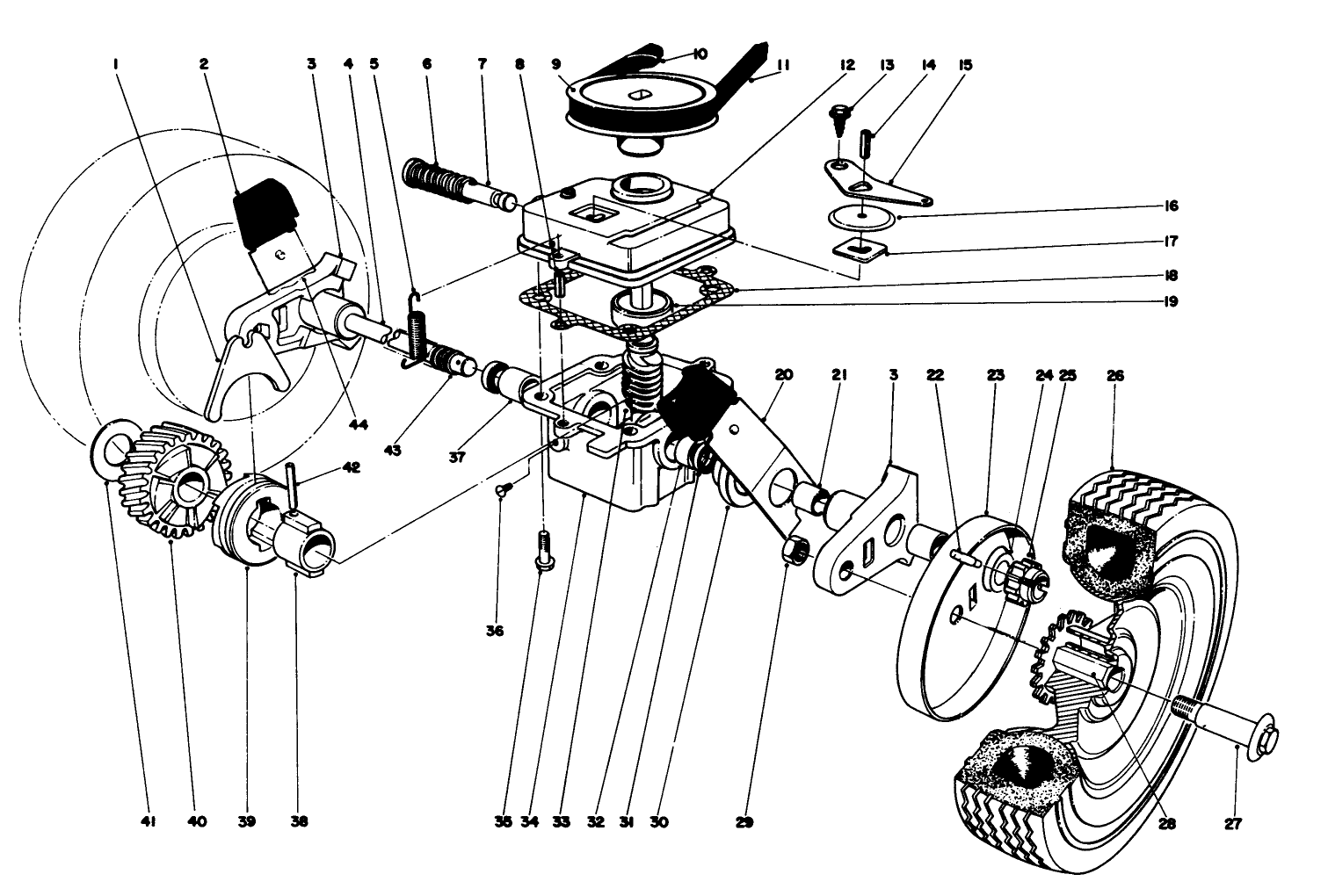

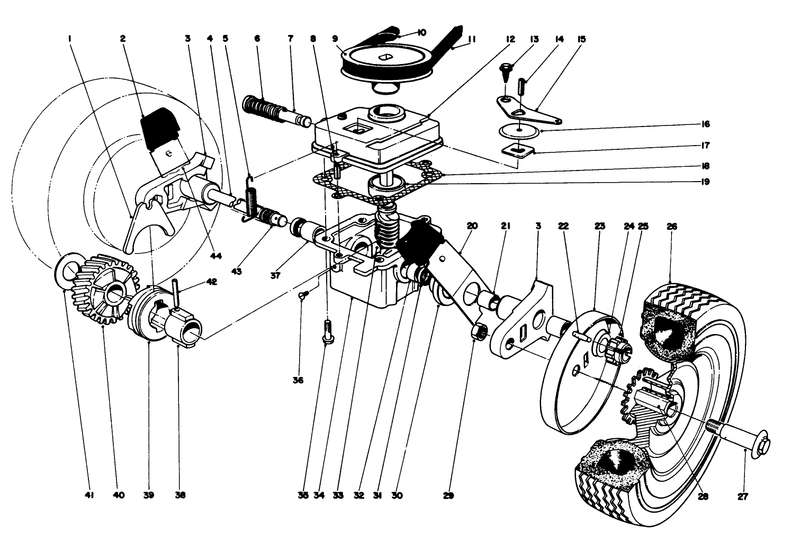

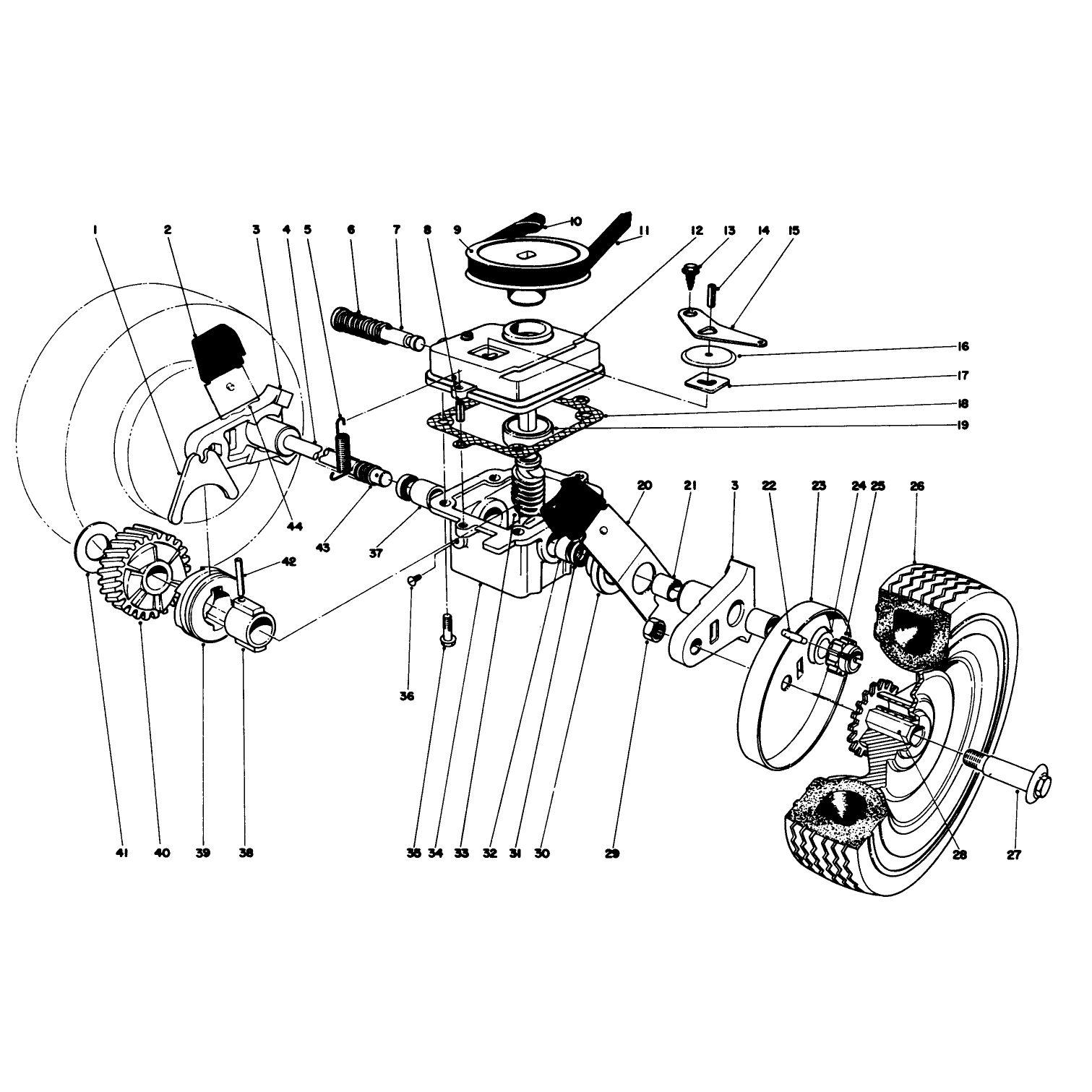

Gear Box Assembly Model 16277
Gear Box Assembly Model 16277
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
5-3247
5-3247
|
|||
|
|
25-7740
25-7740
|
|||
|
|
25-7580
25-7580
|
|||
|
|
37-9440
37-9440
|
|||
|
|
17-4490
17-4490
|
|||
|
|
3-0731
3-0731
|
|||
|
|
46-8240
46-8240
|
|||
|
|
32121-1
32121-1
|
|||
|
|
20-2780
20-2780
|
|||
|
|
3290-346
3290-346
|
|||
|
|
5-4505
5-4505
|
|||
|
|
5-3283
5-3283
|
|||
|
|
32144-112
32144-112
|
|||
|
|
32121-23
32121-23
|
|||
|
|
5-3252
5-3252
|
|||
|
|
3-2615
3-2615
|
|||
|
|
3-0681
3-0681
|
|||
|
|
3-0734
3-0734
|
|||
|
|
251-144
251-144
|
|||
|
|
25-7930
25-7930
|
|||
|
|
256-206
256-206
|
|||
|
|
3284-3
3284-3
|
|||
|
|
18-9820
18-9820
|
|||
|
|
18-9810
18-9810
|
|||
|
|
99-2532
99-2532
|
|||
|
|
11-9470
11-9470
|
|||
|
|
99-5651
99-5651
|
|||
|
|
11-9530
11-9530
|
|||
|
|
3296-6
3296-6
|
|||
|
|
3-2646
3-2646
|
|||
|
|
47-6730
47-6730
|
|||
|
|
47-2890
47-2890
|
|||
|
|
18-9700
18-9700
|
|||
|
|
5-4459
5-4459
|
|||
|
|
49-2040
49-2040
|
|||
|
|
28-1550
28-1550
|
|||
|
|
47-2900
47-2900
|
|||
|
|
3-0721
3-0721
|
|||
|
|
19-5660
19-5660
|
|||
|
|
18-9740
18-9740
|
|||
|
|
3-0724
3-0724
|
|||
|
|
32121-88
32121-88
|
|||
|
|
24-7920
24-7920
|
|||
|
|
25-7920
25-7920
|

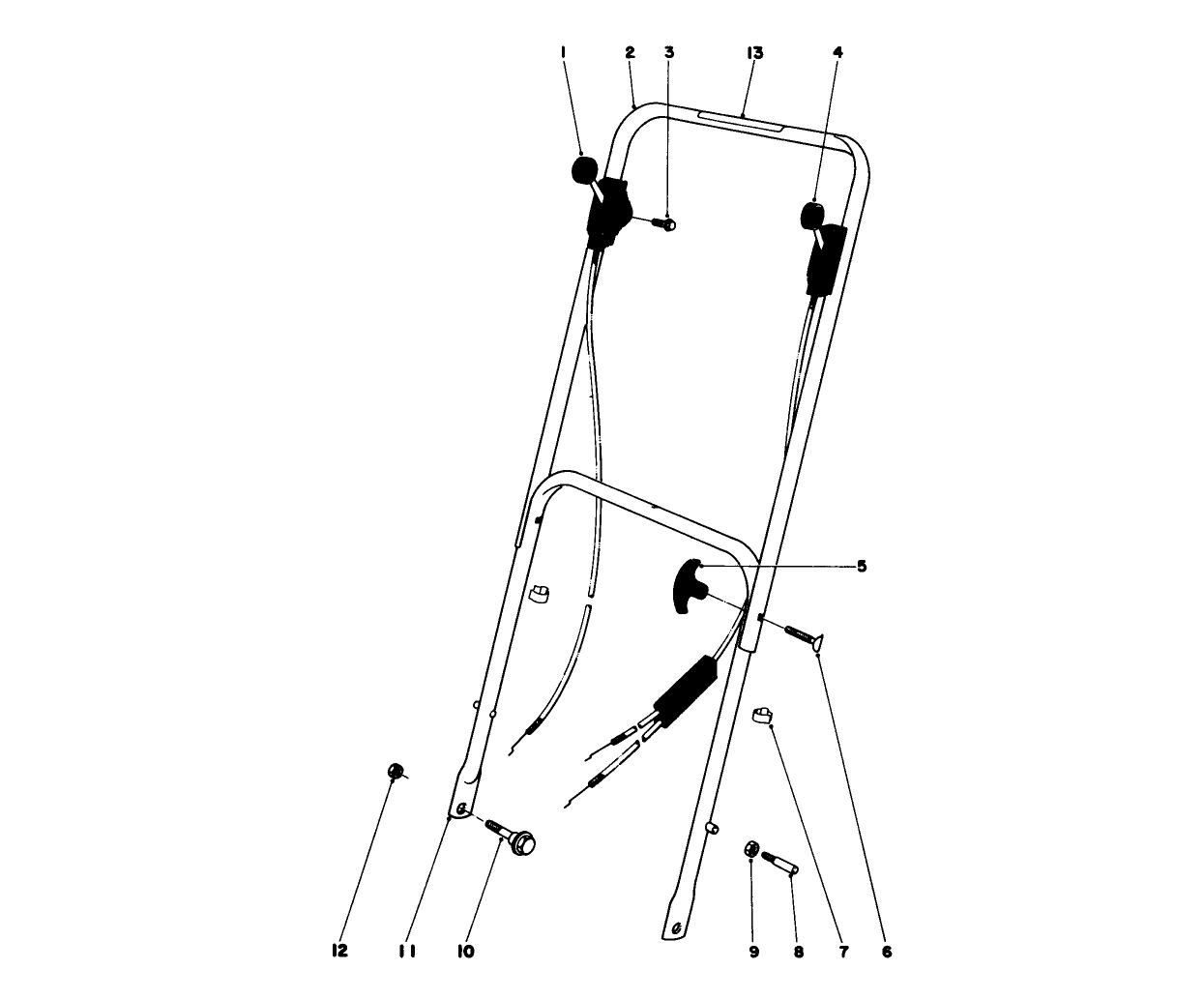

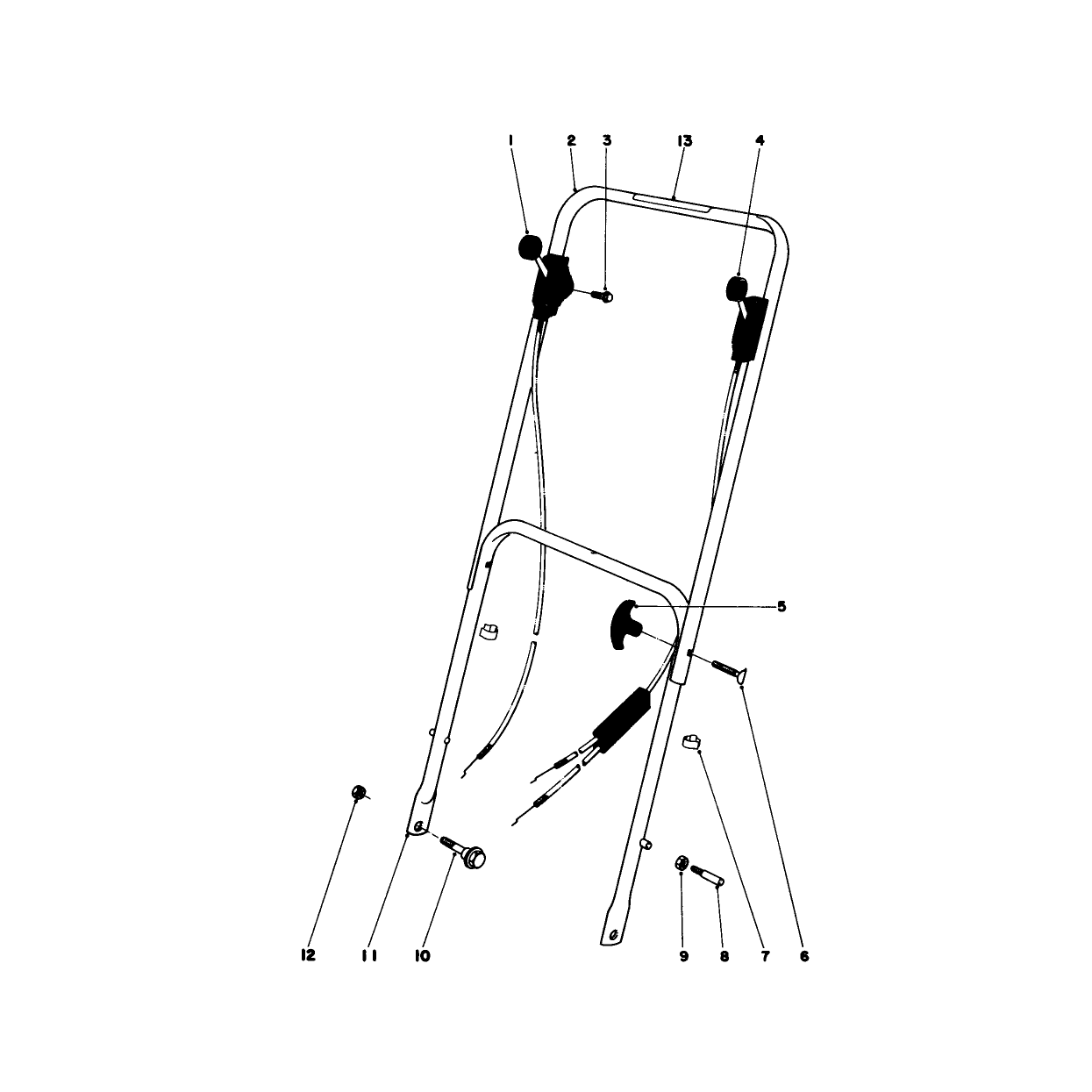

Handle Assembly Models 16009 16113 16277
Handle Assembly Models 16009 16113 16277
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
218-465
218-465
|
|||
|
|
|
|||
|
|
38-1260
38-1260
|
|||
|
|
46-6000
46-6000
|
|||
|
|
27-7030
27-7030
|
|||
|
|
|
|||
|
|
27-6490
27-6490
|
|||
|
|
233-41
233-41
|
|||
|
|
6-6330
6-6330
|
|||
|
|
218-465
218-465
|
|||
|
|
|
|||
|
|
32153-4
32153-4
|
|||
|
|
27-7210
27-7210
|
|||
|
|
27-7040
27-7040
|
|||
|
|
32153-3
32153-3
|
|||
|
|
29-6290
29-6290
|

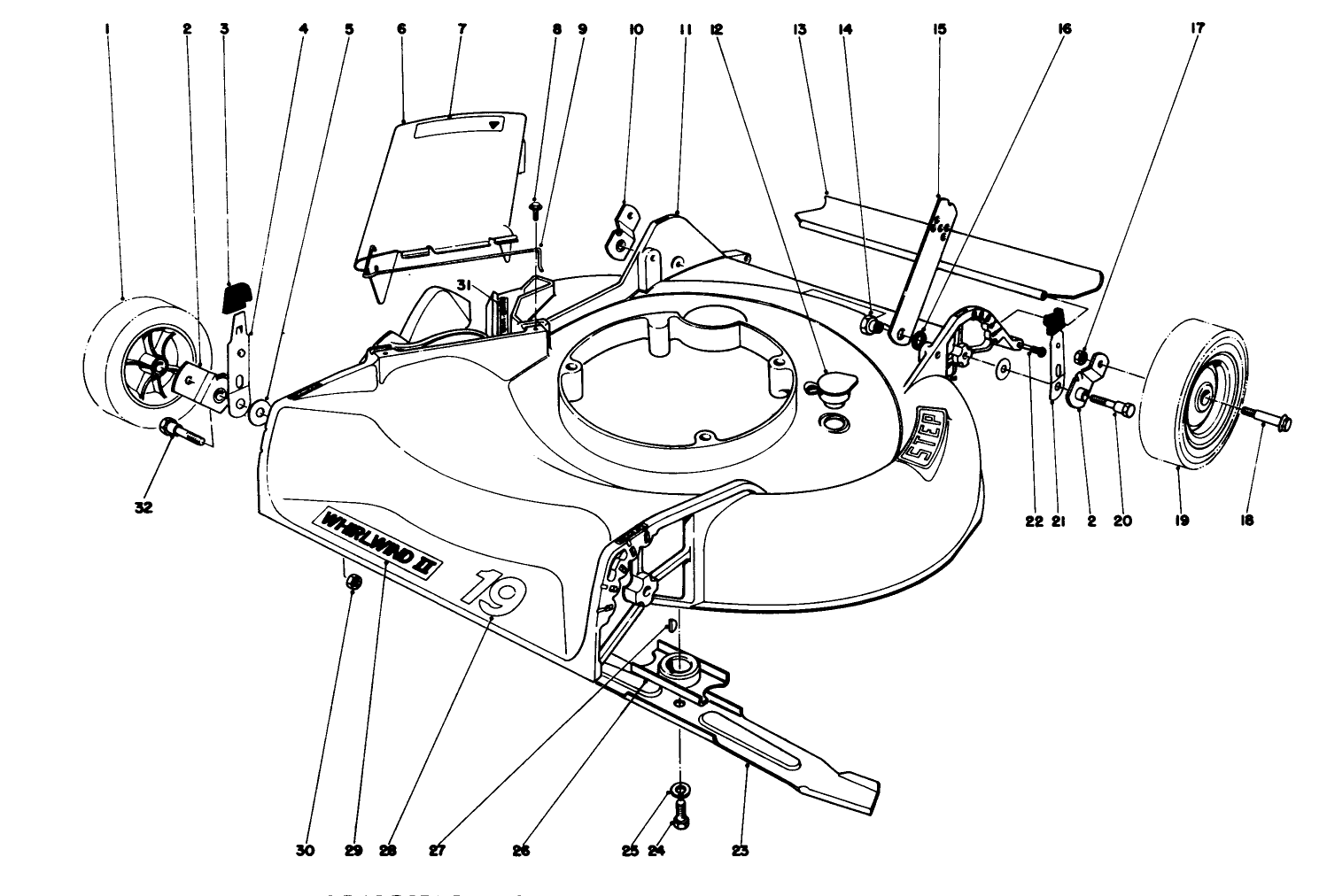

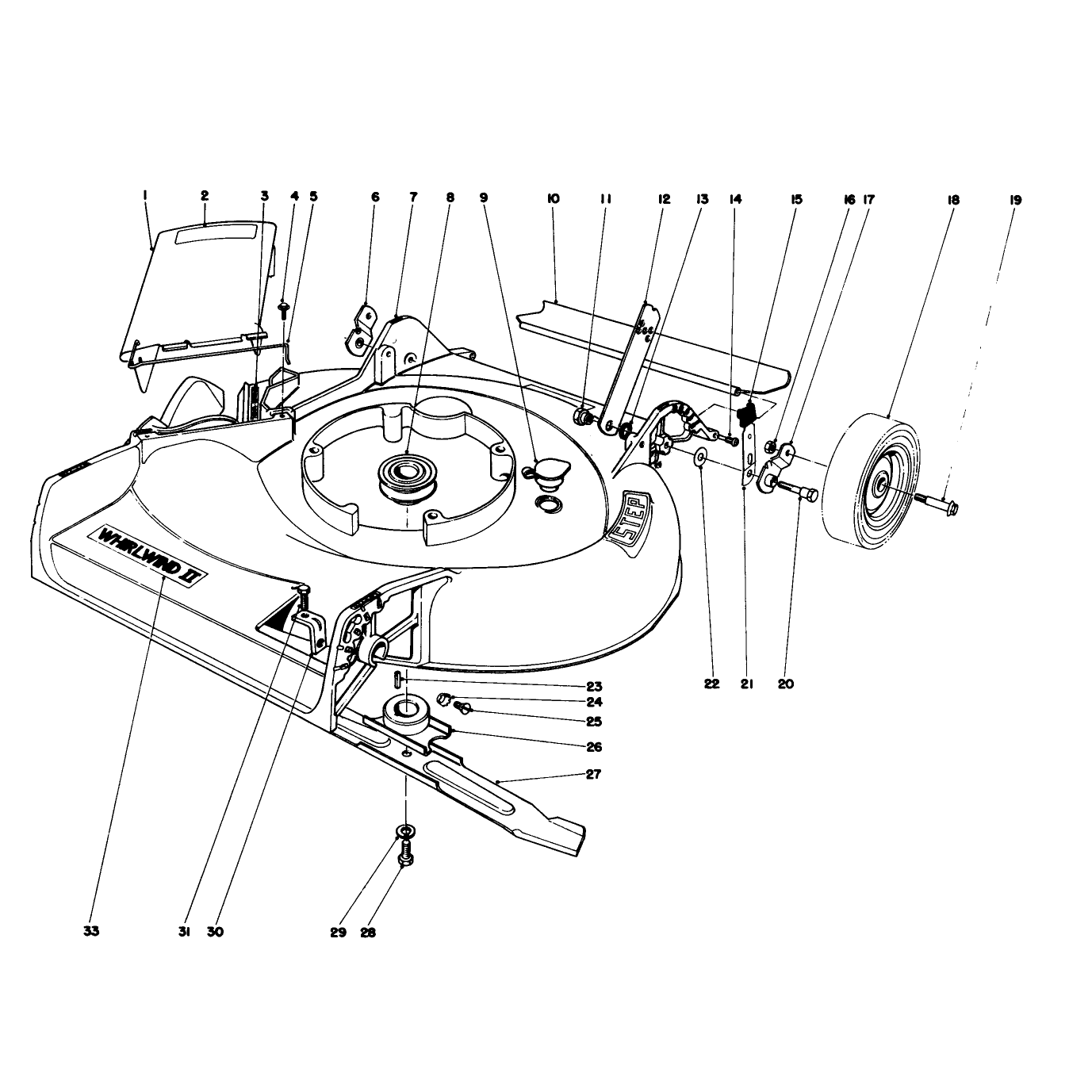

Housing Assembly Model 16009 and 16113
Housing Assembly Model 16009 and 16113
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
27-7080
27-7080
|
|||
|
|
|
|||
|
|
6-7399
6-7399
|
|||
|
|
25-8000
25-8000
|
|||
|
|
|
|||
|
|
20-2720-03
20-2720-03
|
|||
|
|
224950
224950
|
|||
|
|
174140
174140
|
|||
|
|
20-2140
20-2140
|
|||
|
|
25-7740
25-7740
|
|||
|
|
25-8000
25-8000
|
|||
|
|
54460
54460
|
|||
|
|
27-7810
27-7810
|
|||
|
|
204330
204330
|
|||
|
|
12-3270
12-3270
|
|||
|
|
20-2640
20-2640
|
|||
|
|
20-2130
20-2130
|
|||
|
|
6-7389
6-7389
|
|||
|
|
64500
64500
|
|||
|
|
224960
224960
|
|||
|
|
27-6520
27-6520
|
|||
|
|
27-7070
27-7070
|
|||
|
|
27-4510
27-4510
|
|||
|
|
3296-6
3296-6
|
|||
|
|
99-5651
99-5651
|
|||
|
|
|
|||
|
|
28-8880
28-8880
|
|||
|
|
27-7240
27-7240
|
|||
|
|
8-6160
8-6160
|
|||
|
|
3-5246
3-5246
|
|||
|
|
3253-22
3253-22
|
|||
|
|
20-2750
20-2750
|
|||
|
|
3257-32
3257-32
|
|||
|
|
28-4760
28-4760
|
|||
|
|
27-6270
27-6270
|
|||
|
|
32153-3
32153-3
|
|||
|
|
22-7350
22-7350
|
|||
|
|
25-3440
25-3440
|

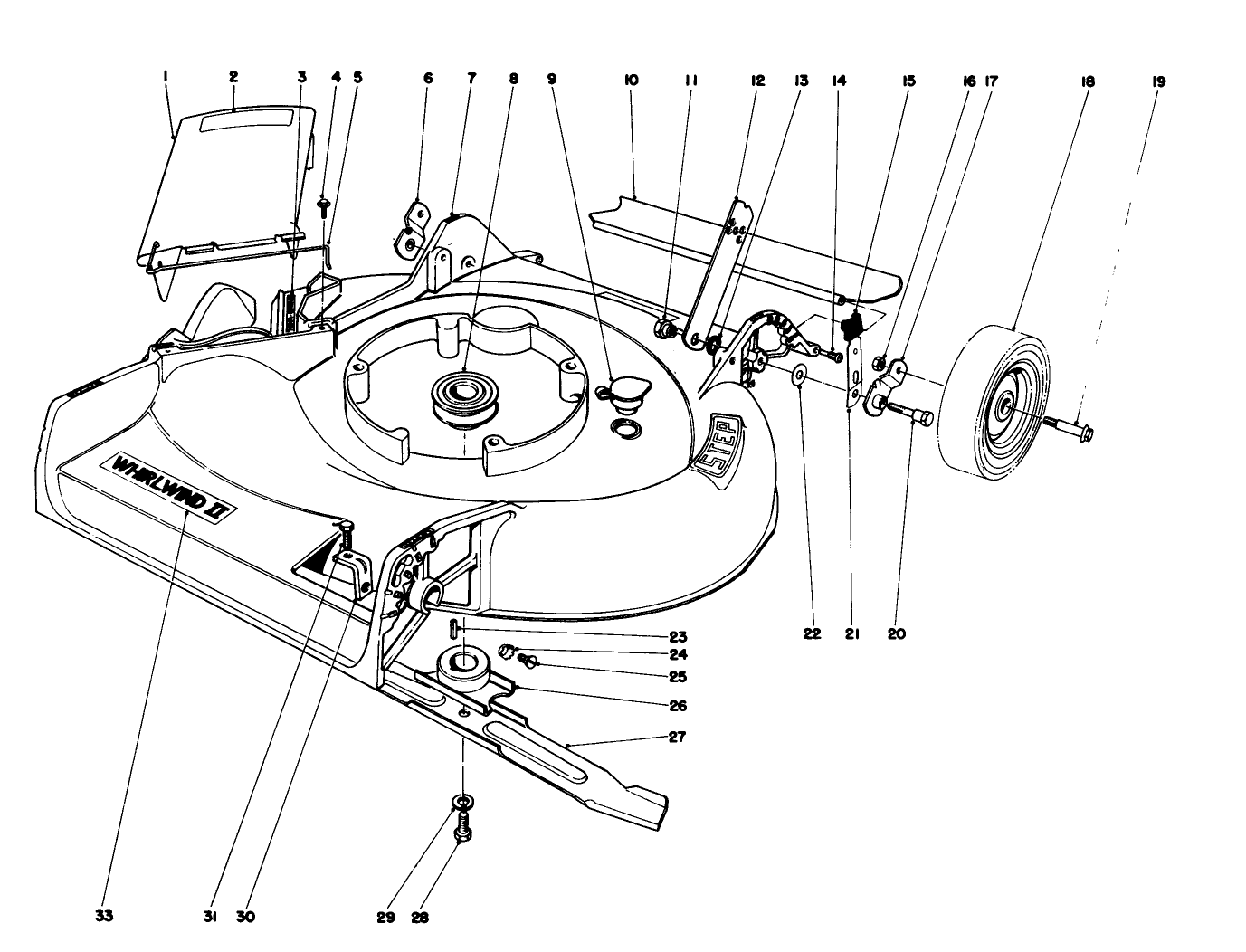

Housing Assembly Model 16277
Housing Assembly Model 16277
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
27-7810
27-7810
|
|||
|
|
20-4330
20-4330
|
|||
|
|
22-7350
22-7350
|
|||
|
|
12-3270
12-3270
|
|||
|
|
20-2640
20-2640
|
|||
|
|
20-2130
20-2130
|
|||
|
|
6-7409
6-7409
|
|||
|
|
21-5580
21-5580
|
|||
|
|
64500
64500
|
|||
|
|
224950
224950
|
|||
|
|
27-6520
27-6520
|
|||
|
|
27-7080
27-7080
|
|||
|
|
27-6510
27-6510
|
|||
|
|
8-6160
8-6160
|
|||
|
|
25-7740
25-7740
|
|||
|
|
3296-6
3296-6
|
|||
|
|
20-2140
20-2140
|
|||
|
|
17-4120
17-4120
|
|||
|
|
99-5651
99-5651
|
|||
|
|
28-8880
28-8880
|
|||
|
|
25-8000
25-8000
|
|||
|
|
54460
54460
|
|||
|
|
274300
274300
|
|||
|
|
3255-12
3255-12
|
|||
|
|
32108-94
32108-94
|
|||
|
|
20-2750
20-2750
|
|||
|
|
20-2720-03
20-2720-03
|
|||
|
|
3-5246
3-5246
|
|||
|
|
3253-22
3253-22
|
|||
|
|
25-7560
25-7560
|
|||
|
|
321-3
321-3
|
|||
|
|
27-6270
27-6270
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
