Toro 21610 Guardian Mower (Serial #: 4000001 - 4999999) Parts Diagram
Diagrams:
Diagram:
Carburetor No 631784 mower Model No21610 and 21711
Carburetor No 631784 mower Model No21610 and 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
631615
631615
|
|||
|
|
631616
631616
|
|||
|
|
650506
650506
|
|||
|
|
630731
630731
|
|||
|
|
631027
631027
|
|||
|
|
631021
631021
|
|||
|
|
631022
631022
|
|||
|
|
631023
631023
|
|||
|
|
631024
631024
|
|||
|
|
631700
631700
|
|||
|
|
631334
631334
|
|||
|
|
631617
631617
|
|||
|
|
631028
631028
|
|||
|
|
631807
631807
|
Engine Assembly Model No 21610
Engine Assembly Model No 21610
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
221453
221453
|
|||
|
|
21-4870
21-4870
|
|||
|
|
20-2710
20-2710
|
|||
|
|
20-4680
20-4680
|
|||
|
|
20-2860
20-2860
|
|||
|
|
20-4620
20-4620
|
|||
|
|
22-4900
22-4900
|
|||
|
|
11-0580
11-0580
|
|||
|
|
32144-11
32144-11
|
|||
|
|
28-4730
28-4730
|
|||
|
|
32104-76
32104-76
|
Engine Assembly Model No 21711
Engine Assembly Model No 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
221-460
221-460
|
|||
|
|
21-4860
21-4860
|
|||
|
|
20-2710
20-2710
|
|||
|
|
21-4850
21-4850
|
|||
|
|
20-2860
20-2860
|
|||
|
|
20-4620
20-4620
|
|||
|
|
12-3270
12-3270
|
|||
|
|
22-4900
22-4900
|
|||
|
|
11-0580
11-0580
|
|||
|
|
32144-11
32144-11
|
|||
|
|
28-4730
28-4730
|
|||
|
|
32104-76
32104-76
|
|||
|
|
20-4680
20-4680
|

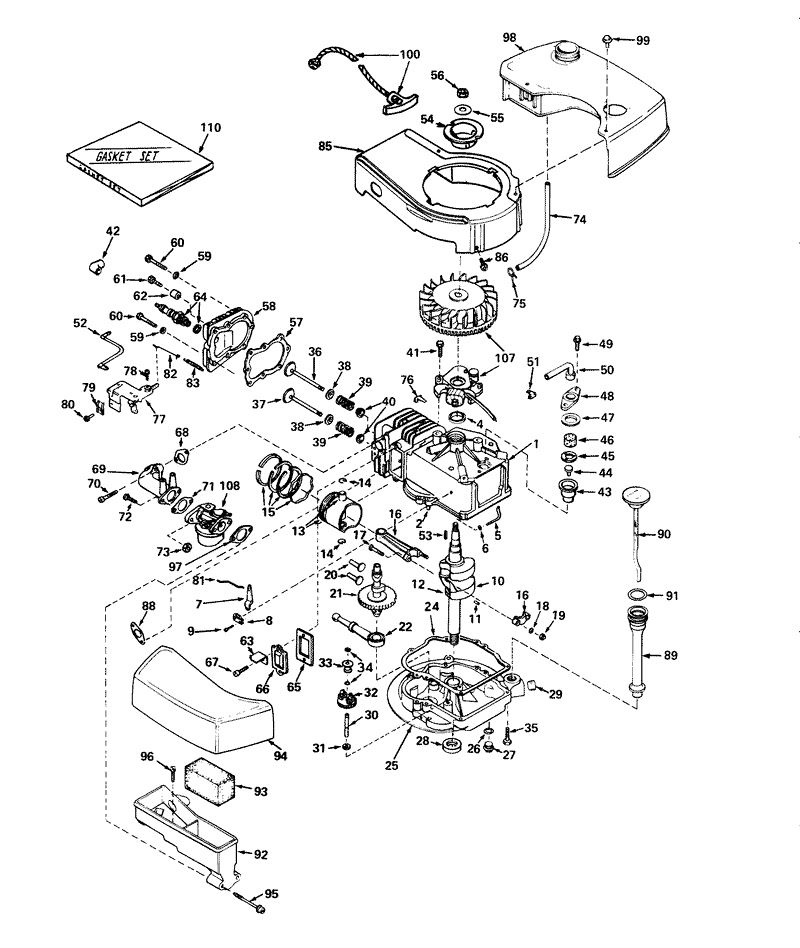

Engine Model Tnt100 10041 mower Model No 21711
Engine Model Tnt100 10041 mower Model No 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
33883
33883
|
|||
|
|
26727
26727
|
|||
|
|
29183
29183
|
|||
|
|
30589
30589
|
|||
|
|
28277
28277
|
|||
|
|
32651
32651
|
|||
|
|
31335
31335
|
|||
|
|
650548
650548
|
|||
|
|
33884
33884
|
|||
|
|
29783
29783
|
|||
|
|
27613
27613
|
|||
|
|
32603
32603
|
|||
|
|
32604
32604
|
|||
|
|
32605
32605
|
|||
|
|
20381
20381
|
|||
|
|
32606
32606
|
|||
|
|
32607
32607
|
|||
|
|
32608
32608
|
|||
|
|
30963B
30963B
|
|||
|
|
26706
26706
|
|||
|
|
20747
20747
|
|||
|
|
27573
27573
|
|||
|
|
27241
27241
|
|||
|
|
32260
32260
|
|||
|
|
29914
29914
|
|||
|
|
|
|||
|
|
33898
33898
|
|||
|
|
|
|||
|
|
27244
27244
|
|||
|
|
26208
26208
|
|||
|
|
33885
33885
|
|||
|
|
30574
30574
|
|||
|
|
30590A
30590A
|
|||
|
|
30591
30591
|
|||
|
|
30588A
30588A
|
|||
|
|
29193
29193
|
|||
|
|
650488
650488
|
|||
|
|
29314A
29314A
|
|||
|
|
29313B
29313B
|
|||
|
|
31671
31671
|
|||
|
|
31672
31672
|
|||
|
|
31673
31673
|
|||
|
|
650489
650489
|
|||
|
|
610118
610118
|
|||
|
|
33731
33731
|
|||
|
|
33732
33732
|
|||
|
|
33733
33733
|
|||
|
|
33734
33734
|
|||
|
|
|
|||
|
|
33737
33737
|
|||
|
|
650768
650768
|
|||
|
|
33886
33886
|
|||
|
|
33887
33887
|
|||
|
|
28468
28468
|
|||
|
|
27247
27247
|
|||
|
|
32723
32723
|
|||
|
|
650490
650490
|
|||
|
|
650607
650607
|
|||
|
|
|
|||
|
|
33016
33016
|
|||
|
|
26073
26073
|
|||
|
|
6021
6021
|
|||
|
|
650697
650697
|
|||
|
|
33892
33892
|
|||
|
|
30593
30593
|
|||
|
|
33636
33636
|
|||
|
|
|
|||
|
|
32755
32755
|
|||
|
|
650128
650128
|
|||
|
|
|
|||
|
|
33004
33004
|
|||
|
|
650451
650451
|
|||
|
|
|
|||
|
|
6202
6202
|
|||
|
|
29752
29752
|
|||
|
|
32342
32342
|
|||
|
|
26460
26460
|
|||
|
|
29443
29443
|
|||
|
|
33889
33889
|
|||
|
|
650783
650783
|
|||
|
|
27793
27793
|
|||
|
|
28942
28942
|
|||
|
|
33133
33133
|
|||
|
|
33295
33295
|
|||
|
|
33890
33890
|
|||
|
|
33907
33907
|
|||
|
|
650497
650497
|
|||
|
|
|
|||
|
|
33893
33893
|
|||
|
|
33894
33894
|
|||
|
|
700165
700165
|
|||
|
|
33895
33895
|
|||
|
|
33896
33896
|
|||
|
|
33897
33897
|
|||
|
|
650762
650762
|
|||
|
|
650784
650784
|
|||
|
|
|
|||
|
|
33904
33904
|
|||
|
|
28763
28763
|
|||
|
|
590343
590343
|
|||
|
|
610772
610772
|
|||
|
|
631784
631784
|
|||
|
|
33906
33906
|
Engine Tecumseh Model Tnt100 10042 mower Model No 21610
Engine Tecumseh Model Tnt100 10042 mower Model No 21610
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
33883
33883
|
|||
|
|
26727
26727
|
|||
|
|
29183
29183
|
|||
|
|
30589
30589
|
|||
|
|
28277
28277
|
|||
|
|
32651
32651
|
|||
|
|
31335
31335
|
|||
|
|
650548
650548
|
|||
|
|
33884
33884
|
|||
|
|
29783
29783
|
|||
|
|
27613
27613
|
|||
|
|
32604
32604
|
|||
|
|
32603
32603
|
|||
|
|
32605
32605
|
|||
|
|
20381
20381
|
|||
|
|
32606
32606
|
|||
|
|
32607
32607
|
|||
|
|
32608
32608
|
|||
|
|
30963B
30963B
|
|||
|
|
26706
26706
|
|||
|
|
20747
20747
|
|||
|
|
27573
27573
|
|||
|
|
27241
27241
|
|||
|
|
32260
32260
|
|||
|
|
29914
29914
|
|||
|
|
|
|||
|
|
33898
33898
|
|||
|
|
|
|||
|
|
27244
27244
|
|||
|
|
26208
26208
|
|||
|
|
33885
33885
|
|||
|
|
30574
30574
|
|||
|
|
30590A
30590A
|
|||
|
|
30591
30591
|
|||
|
|
30588A
30588A
|
|||
|
|
29193
29193
|
|||
|
|
650488
650488
|
|||
|
|
29314A
29314A
|
|||
|
|
29313B
29313B
|
|||
|
|
31671
31671
|
|||
|
|
31672
31672
|
|||
|
|
31673
31673
|
|||
|
|
650489
650489
|
|||
|
|
610118
610118
|
|||
|
|
33731
33731
|
|||
|
|
33732
33732
|
|||
|
|
33733
33733
|
|||
|
|
33734
33734
|
|||
|
|
|
|||
|
|
33737
33737
|
|||
|
|
650768
650768
|
|||
|
|
33886
33886
|
|||
|
|
33887
33887
|
|||
|
|
28468
28468
|
|||
|
|
27247
27247
|
|||
|
|
33914
33914
|
|||
|
|
650490
650490
|
|||
|
|
650607
650607
|
|||
|
|
|
|||
|
|
33016
33016
|
|||
|
|
26073
26073
|
|||
|
|
6021
6021
|
|||
|
|
650697
650697
|
|||
|
|
33892
33892
|
|||
|
|
30593
30593
|
|||
|
|
33636
33636
|
|||
|
|
|
|||
|
|
32755
32755
|
|||
|
|
650128
650128
|
|||
|
|
30188
30188
|
|||
|
|
33004
33004
|
|||
|
|
650451
650451
|
|||
|
|
|
|||
|
|
6202
6202
|
|||
|
|
29752
29752
|
|||
|
|
32342
32342
|
|||
|
|
26460
26460
|
|||
|
|
29443
29443
|
|||
|
|
33889
33889
|
|||
|
|
650783
650783
|
|||
|
|
27793
27793
|
|||
|
|
28942
28942
|
|||
|
|
33133
33133
|
|||
|
|
33295
33295
|
|||
|
|
33890
33890
|
|||
|
|
33891
33891
|
|||
|
|
650497
650497
|
|||
|
|
650737
650737
|
|||
|
|
30081
30081
|
|||
|
|
33893
33893
|
|||
|
|
33894
33894
|
|||
|
|
700165
700165
|
|||
|
|
33895
33895
|
|||
|
|
33896
33896
|
|||
|
|
33897
33897
|
|||
|
|
650762
650762
|
|||
|
|
650784
650784
|
|||
|
|
|
|||
|
|
33904
33904
|
|||
|
|
28763
28763
|
|||
|
|
610793
610793
|
|||
|
|
631784
631784
|
|||
|
|
590450A
590450A
|
|||
|
|
33906
33906
|
Gear Case Assembly Model No 21610 and 21711
Gear Case Assembly Model No 21610 and 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
5-3247
5-3247
|
|||
|
|
25-7740
25-7740
|
|||
|
|
18-9710
18-9710
|
|||
|
|
18-9730
18-9730
|
|||
|
|
17-4490
17-4490
|
|||
|
|
3-0731
3-0731
|
|||
|
|
46-8240
46-8240
|
|||
|
|
32121-1
32121-1
|
|||
|
|
20-2780
20-2780
|
|||
|
|
3290-346
3290-346
|
|||
|
|
5-4505
5-4505
|
|||
|
|
5-3283
5-3283
|
|||
|
|
32144-112
32144-112
|
|||
|
|
32121-23
32121-23
|
|||
|
|
5-3252
5-3252
|
|||
|
|
3-2615
3-2615
|
|||
|
|
3-0681
3-0681
|
|||
|
|
3-0734
3-0734
|
|||
|
|
251-144
251-144
|
|||
|
|
10-4380
10-4380
|
|||
|
|
256-1
256-1
|
|||
|
|
3284-3
3284-3
|
|||
|
|
18-9820
18-9820
|
|||
|
|
18-9810
18-9810
|
|||
|
|
99-2532
99-2532
|
|||
|
|
11-9530
11-9530
|
|||
|
|
99-5651
99-5651
|
|||
|
|
12-2610
12-2610
|
|||
|
|
3296-6
3296-6
|
|||
|
|
5-0745
5-0745
|
|||
|
|
47-7260
47-7260
|
|||
|
|
47-2890
47-2890
|
|||
|
|
18-9700
18-9700
|
|||
|
|
5-4459
5-4459
|
|||
|
|
49-2040
49-2040
|
|||
|
|
3-0721
3-0721
|
|||
|
|
19-5660
19-5660
|
|||
|
|
18-9740
18-9740
|
|||
|
|
3-0724
3-0724
|
|||
|
|
32121-88
32121-88
|

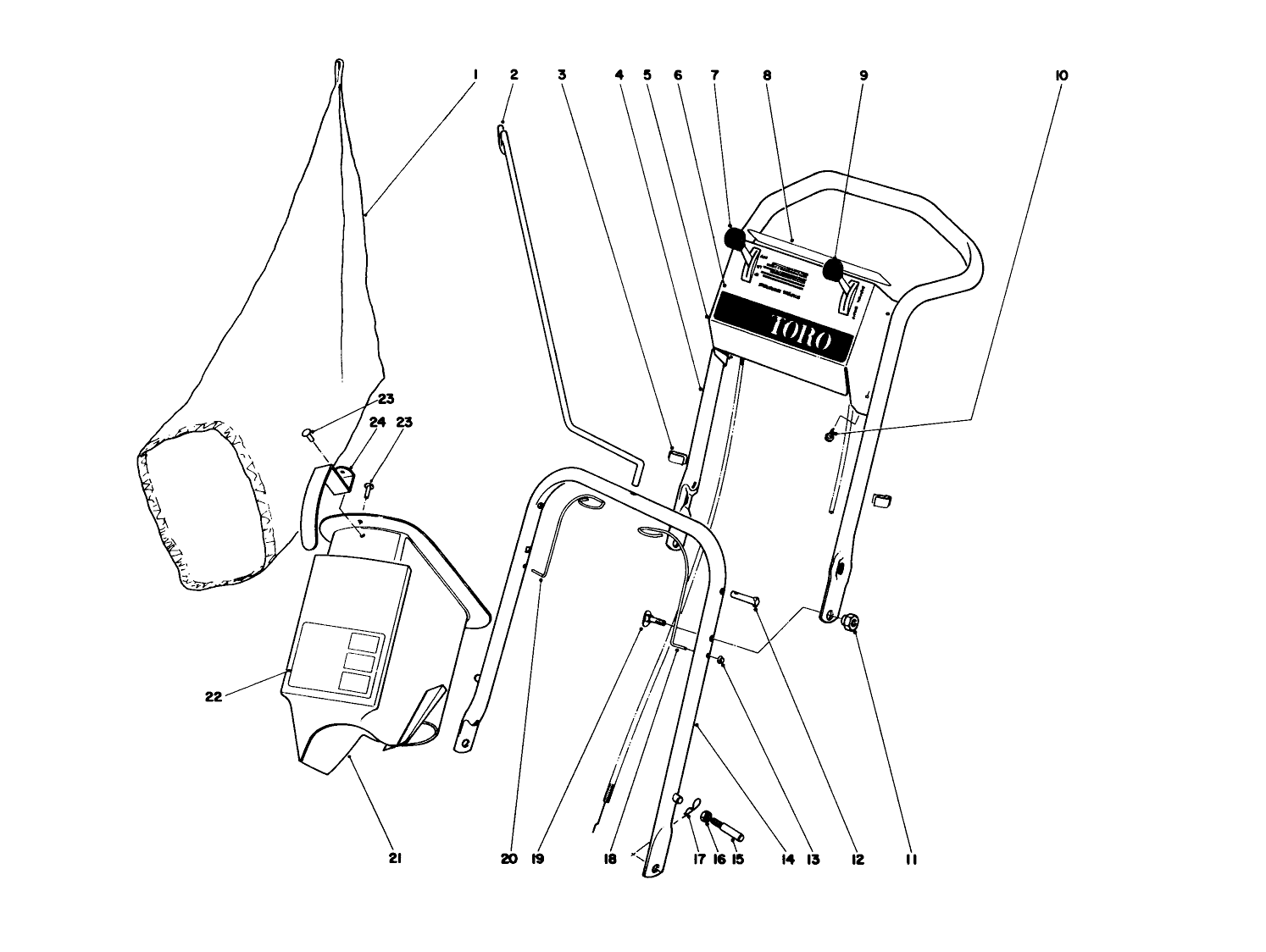

Handle Assembly Model No 21610
Handle Assembly Model No 21610
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
44-0540
44-0540
|
|||
|
|
22-6110
22-6110
|
|||
|
|
218-466
218-466
|
|||
|
|
17-4400
17-4400
|
|||
|
|
17-4520
17-4520
|
|||
|
|
20-2690
20-2690
|
|||
|
|
20-4600
20-4600
|
|||
|
|
17-4800
17-4800
|
|||
|
|
20-4880
20-4880
|
|||
|
|
32104-76
32104-76
|
|||
|
|
17-7010
17-7010
|
|||
|
|
17-4680
17-4680
|
|||
|
|
3290-299
3290-299
|
|||
|
|
17-7490
17-7490
|
|||
|
|
|
|||
|
|
32153-4
32153-4
|
|||
|
|
3290-255
3290-255
|
|||
|
|
17-4660
17-4660
|
|||
|
|
6-6330
6-6330
|
|||
|
|
17-4670
17-4670
|
|||
|
|
6-1089
6-1089
|
|||
|
|
22-4870
22-4870
|
|||
|
|
3290-368
3290-368
|
|||
|
|
20-4650
20-4650
|
Handle Assembly Model No 21711
Handle Assembly Model No 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
44-0540
44-0540
|
|||
|
|
22-6110
22-6110
|
|||
|
|
218-465
218-465
|
|||
|
|
17-4400
17-4400
|
|||
|
|
21-5160
21-5160
|
|||
|
|
20-6800
20-6800
|
|||
|
|
20-4600
20-4600
|
|||
|
|
17-4800
17-4800
|
|||
|
|
62-7770
62-7770
|
|||
|
|
218-461
218-461
|
|||
|
|
20-4880
20-4880
|
|||
|
|
3254-5
3254-5
|
|||
|
|
32104-76
32104-76
|
|||
|
|
|
|||
|
|
6-8320
6-8320
|
|||
|
|
32104-93
32104-93
|
|||
|
|
21-5190
21-5190
|
|||
|
|
6-8230
6-8230
|
|||
|
|
8-5600
8-5600
|
|||
|
|
6-9750
6-9750
|
|||
|
|
21-5500
21-5500
|
|||
|
|
11-3790
11-3790
|
|||
|
|
17-7010
17-7010
|
|||
|
|
131-0848
131-0848
|
|||
|
|
17-4680
17-4680
|
|||
|
|
3290-299
3290-299
|
|||
|
|
17-7490
17-7490
|
|||
|
|
|
|||
|
|
32153-4
32153-4
|
|||
|
|
3290-255
3290-255
|
|||
|
|
17-4660
17-4660
|
|||
|
|
6-6330
6-6330
|
|||
|
|
17-4670
17-4670
|
|||
|
|
22-4870
22-4870
|
|||
|
|
6-1089
6-1089
|
|||
|
|
3290-368
3290-368
|
|||
|
|
20-4650
20-4650
|
|||
|
|
|
|||
|
|
20-0170
20-0170
|
Housing Assembly Model No 21610 and 21711
Housing Assembly Model No 21610 and 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
20-4690
20-4690
|
|||
|
|
20-4330
20-4330
|
|||
|
|
20-2800
20-2800
|
|||
|
|
12-5450
12-5450
|
|||
|
|
20-2640
20-2640
|
|||
|
|
20-2130
20-2130
|
|||
|
|
3-3287
3-3287
|
|||
|
|
5-2446
5-2446
|
|||
|
|
5-2490
5-2490
|
|||
|
|
6-4500
6-4500
|
|||
|
|
12-2080
12-2080
|
|||
|
|
22-4950
22-4950
|
|||
|
|
25-7740
25-7740
|
|||
|
|
8-6160
8-6160
|
|||
|
|
3296-6
3296-6
|
|||
|
|
27-6250
27-6250
|
|||
|
|
12-2620
12-2620
|
|||
|
|
99-5651
99-5651
|
|||
|
|
3-0655
3-0655
|
|||
|
|
20-2140
20-2140
|
|||
|
|
23-0400
23-0400
|
|||
|
|
5-4460
5-4460
|
|||
|
|
54769
54769
|
|||
|
|
321-20
321-20
|
|||
|
|
3-5094
3-5094
|
|||
|
|
20-2720-03
20-2720-03
|
|||
|
|
20-2740
20-2740
|
|||
|
|
3-5246
3-5246
|
|||
|
|
3253-22
3253-22
|
|||
|
|
80-2770
80-2770
|
|||
|
|
21-5070
21-5070
|
|||
|
|
6-0679
6-0679
|
|||
|
|
22-4770
22-4770
|
|||
|
|
22-7350
22-7350
|
|||
|
|
32108-94
32108-94
|
|||
|
|
3255-12
3255-12
|
|||
|
|
3-7278
3-7278
|
|||
|
|
321-3
321-3
|
Magneto No 610772 mower Model No 21711
Magneto No 610772 mower Model No 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
610757
610757
|
|||
|
|
30551
30551
|
|||
|
|
30550
30550
|
|||
|
|
30552
30552
|
|||
|
|
30547A
30547A
|
|||
|
|
610385
610385
|
|||
|
|
30843
30843
|
|||
|
|
610408
610408
|
|||
|
|
29181
29181
|
|||
|
|
610593
610593
|
|||
|
|
30560A
30560A
|
|||
|
|
30554
30554
|
|||
|
|
30548A
30548A
|
|||
|
|
30545
30545
|
|||
|
|
30561A
30561A
|
|||
|
|
30549
30549
|
|||
|
|
31311
31311
|
|||
|
|
29629
29629
|
|||
|
|
32052
32052
|
Magneto No 610793 mower Model No 21610
Magneto No 610793 mower Model No 21610
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
610782
610782
|
|||
|
|
30551
30551
|
|||
|
|
30550
30550
|
|||
|
|
32052
32052
|
|||
|
|
30552
30552
|
|||
|
|
30547A
30547A
|
|||
|
|
610385
610385
|
|||
|
|
610408
610408
|
|||
|
|
29181
29181
|
|||
|
|
610593
610593
|
|||
|
|
30843
30843
|
|||
|
|
30560A
30560A
|
|||
|
|
30554
30554
|
|||
|
|
30548A
30548A
|
|||
|
|
30545
30545
|
|||
|
|
30561A
30561A
|
|||
|
|
30549
30549
|
|||
|
|
29629
29629
|
|||
|
|
31311
31311
|
Rewind Starter No 590450a mower Model No21610
Rewind Starter No 590450a mower Model No21610
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
590430
590430
|
|||
|
|
590431
590431
|
|||
|
|
590472
590472
|
|||
|
|
590432
590432
|
|||
|
|
590433
590433
|
|||
|
|
590434A
590434A
|
|||
|
|
590435A
590435A
|
|||
|
|
590470
590470
|
|||
|
|
590438
590438
|
|||
|
|
590439A
590439A
|
|||
|
|
590451
590451
|
|||
|
|
590441
590441
|
|||
|
|
590452
590452
|
|||
|
|
590446
590446
|
Starter Motor Model No 21711
Starter Motor Model No 21711
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
12-7970
12-7970
|
|||
|
|
11-9560
11-9560
|
|||
|
|
11-8370
11-8370
|
