Toro 22290 21 in. Heavy-duty Mower (Serial #: 410000000 - 999999999) Parts Diagram
Diagrams:
Diagram:
Engine and Blade Assembly
Engine and Blade Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
110-0520
110-0520
|
|||
|
|
125-1005-03
125-1005-03
|
|||
|
|
108-8110-03
108-8110-03
|
|||
|
|
95-1727
95-1727
|
|||
|
|
125-8432
125-8432
|
|||
|
|
106-3987
106-3987
|
|||
|
|
133-8183-03
133-8183-03
|
|||
|
|
125-1069-03
125-1069-03
|
|||
|
|
125-2466
125-2466
|
|||
|
|
49-2040
49-2040
|
|||
|
|
125-8403
125-8403
|
|||
|
|
133-8062
133-8062
|

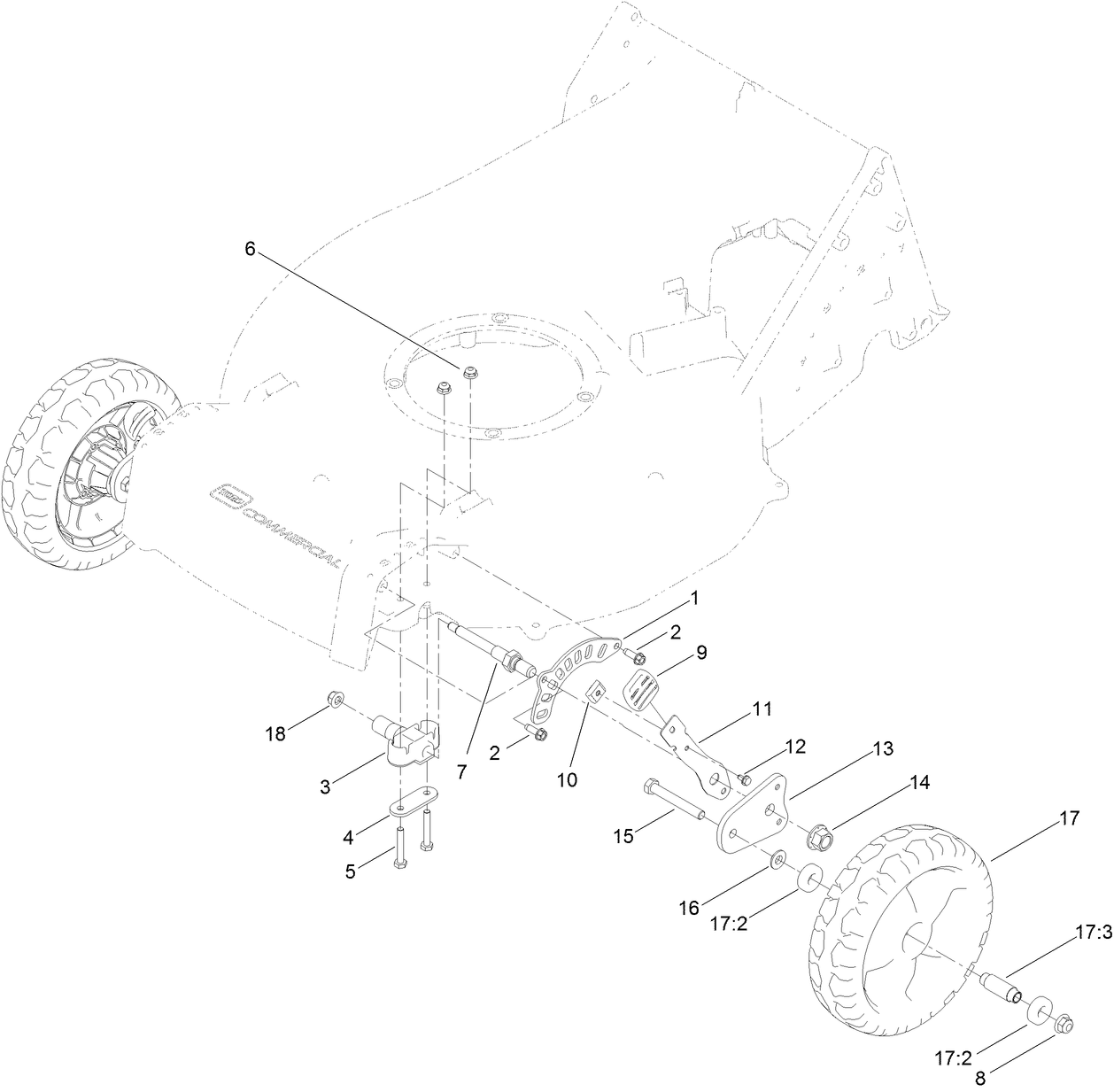

Front Wheel and Height of Cut Assembly
Front Wheel and Height of Cut Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
121-1439
121-1439
|
|||
|
|
49-2040
49-2040
|
|||
|
|
136-5871
136-5871
|
|||
|
|
130-6434
130-6434
|
|||
|
|
321-37
321-37
|
|||
|
|
104-7201
104-7201
|
|||
|
|
133-2644
133-2644
|
|||
|
|
104-8301
104-8301
|
|||
|
|
125-1093
125-1093
|
|||
|
|
131-5377
131-5377
|
|||
|
|
121-1431-03
121-1431-03
|
|||
|
|
104-2065
104-2065
|
|||
|
|
130-6420
130-6420
|
|||
|
|
99-5107
99-5107
|
|||
|
|
323-13
323-13
|
|||
|
|
74-1671
74-1671
|
|||
|
|
133-2639
133-2639
|
|||
|
|
133-2603
133-2603
|
|||
|
|
125-1077
125-1077
|
|||
|
|
104-8300
104-8300
|
Grass Bag Assembly
Grass Bag Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
125-1017
125-1017
|
|||
|
|
125-8402
125-8402
|
|||
|
|
116-7583
116-7583
|
|||
|
|
125-1019
125-1019
|
|||
|
|
1-513658
1-513658
|
|||
|
|
121-1399-03
121-1399-03
|
|||
|
|
147-8624
147-8624
|
|||
|
|
125-1008
125-1008
|
|||
|
|
125-1007
125-1007
|
|||
|
|
125-8413
125-8413
|
|||
|
|
133-8193-03
133-8193-03
|
|||
|
|
133-8194-03
133-8194-03
|
|||
|
|
32144-70
32144-70
|
Handle and Brake Assembly
Handle and Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
137-4817-03
137-4817-03
|
|||
|
|
3230-4
3230-4
|
|||
|
|
104-8300
104-8300
|
|||
|
|
115-1794
115-1794
|
|||
|
|
114-2775
114-2775
|
|||
|
|
104-7201
104-7201
|
|||
|
|
92-2270
92-2270
|
|||
|
|
125-8371
125-8371
|
|||
|
|
125-8372
125-8372
|
|||
|
|
125-8437-03
125-8437-03
|
|||
|
|
125-8436-03
125-8436-03
|
|||
|
|
94-2691
94-2691
|
|||
|
|
125-8404
125-8404
|
|||
|
|
127-6897-03
127-6897-03
|
|||
|
|
108-0988
108-0988
|
|||
|
|
114-3778
114-3778
|
|||
|
|
130-6722
130-6722
|
Housing Assembly
Housing Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-5896
136-5896
|
|||
|
|
94-8072
94-8072
|
|||
|
|
130-9670
130-9670
|
|||
|
|
125-1002-01
125-1002-01
|
|||
|
|
3229-2
3229-2
|
|||
|
|
104-7201
104-7201
|
|||
|
|
125-5041
125-5041
|
|||
|
|
49-2040
49-2040
|
|||
|
|
125-5038
125-5038
|
|||
|
|
125-8380
125-8380
|
|||
|
|
3296-29
3296-29
|
|||
|
|
3234-7
3234-7
|
|||
|
|
119-2368
119-2368
|
Transmission and Rear Wheel Assembly
Transmission and Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
125-1020
125-1020
|
|||
|
|
125-8430-03
125-8430-03
|
|||
|
|
27-0220
27-0220
|
|||
|
|
130-9681
130-9681
|
|||
|
|
125-8395
125-8395
|
|||
|
|
127-6848
127-6848
|
|||
|
|
98-1452
98-1452
|
|||
|
|
130-6422
130-6422
|
|||
|
|
49-2040
49-2040
|
|||
|
|
323-13
323-13
|
|||
|
|
133-2641
133-2641
|
|||
|
|
131-5377
131-5377
|
|||
|
|
125-1093
125-1093
|
|||
|
|
104-2065
104-2065
|
|||
|
|
121-1448-03
121-1448-03
|
|||
|
|
136-5894
136-5894
|
|||
|
|
133-2606
133-2606
|
|||
|
|
133-2668
133-2668
|
|||
|
|
133-2635
133-2635
|
|||
|
|
32151-61
32151-61
|
|||
|
|
131-5399
131-5399
|
|||
|
|
74-1671
74-1671
|
|||
|
|
133-2640
133-2640
|
|||
|
|
|
|||
|
|
133-2603
133-2603
|
|||
|
|
125-1077
125-1077
|
|||
|
|
104-8301
104-8301
|
