Toro 23515 21 in. Aerator (Serial #: 400000000 - 410049999) Parts Diagram
Diagrams:
Diagram:

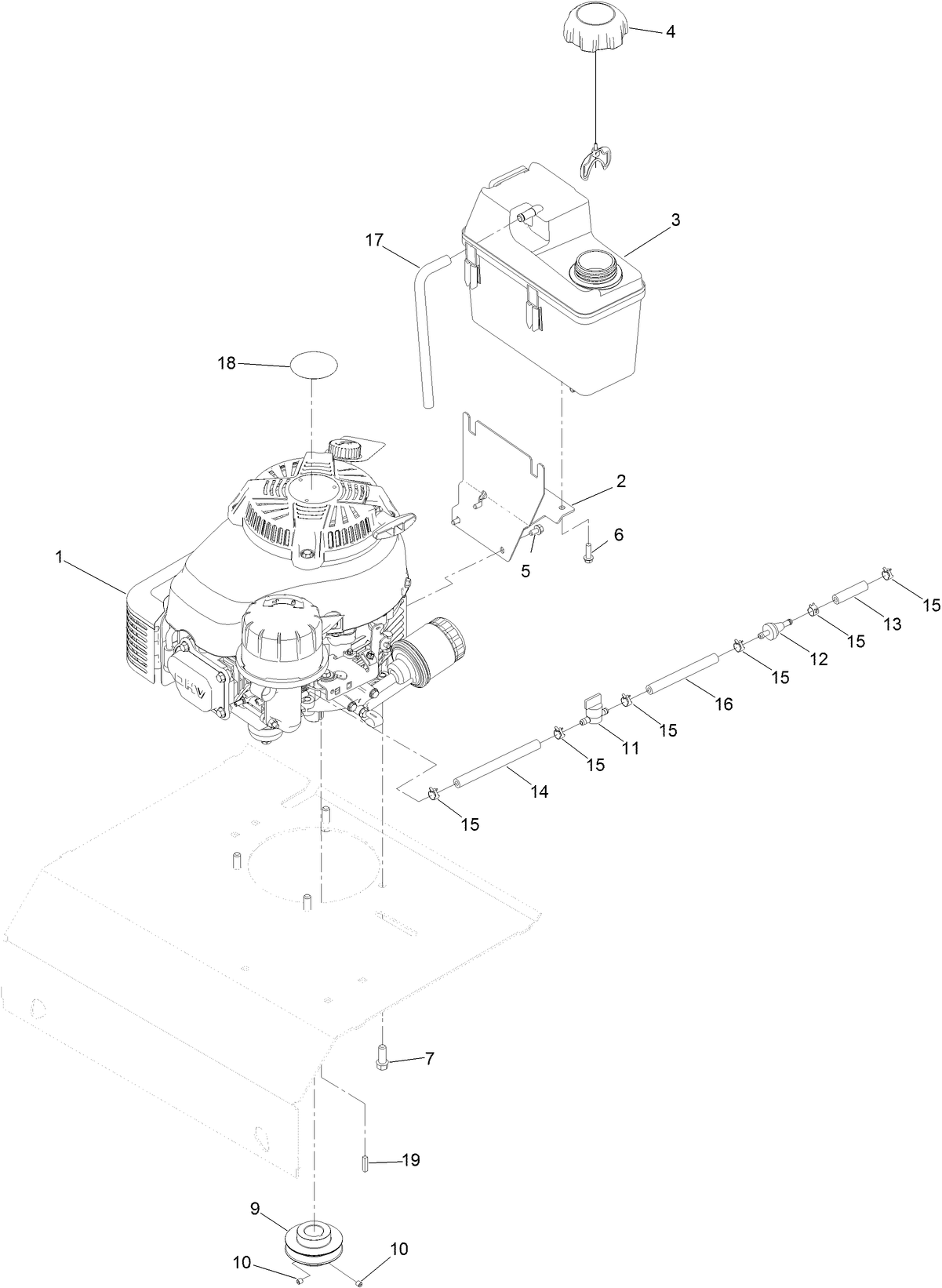

Engine and Fuel Tank Mounting Assembly
Engine and Fuel Tank Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
115-0954-03
115-0954-03
|
|||
|
|
114-0280
114-0280
|
|||
|
|
137-4127
137-4127
|
|||
|
|
104-2628
104-2628
|
|||
|
|
46-8091
46-8091
|
|||
|
|
95-1726
95-1726
|
|||
|
|
126-0839
126-0839
|
|||
|
|
|
|||
|
|
1-603770
1-603770
|
|||
|
|
139-5916
139-5916
|
|||
|
|
99-9415
99-9415
|
|||
|
|
109-0300
109-0300
|
|||
|
|
2412-98
2412-98
|
|||
|
|
109-0650
109-0650
|
|||
|
|
115-0962
115-0962
|
|||
|
|
110-0520
110-0520
|
|||
|
|
6366
6366
|

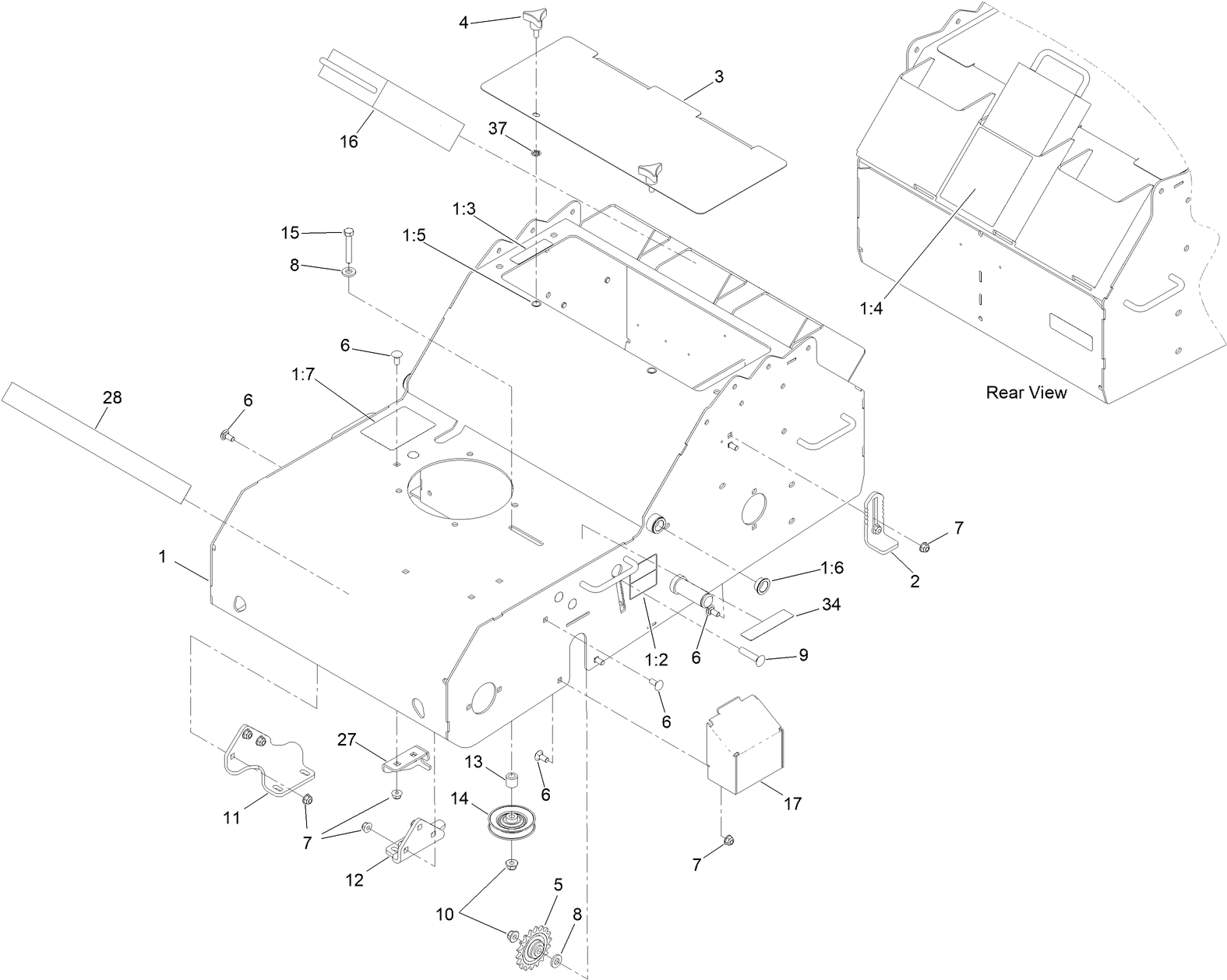

Engine Frame Assembly
Engine Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-5102
126-5102
|
|||
|
|
121-6150
121-6150
|
|||
|
|
119-0217
119-0217
|
|||
|
|
126-0651
126-0651
|
|||
|
|
32148-7
32148-7
|
|||
|
|
108519
108519
|
|||
|
|
126-1209
126-1209
|
|||
|
|
116-9886
116-9886
|
|||
|
|
126-0974-01
126-0974-01
|
|||
|
|
109-3351
109-3351
|
|||
|
|
121-4915
121-4915
|
|||
|
|
3230-1
3230-1
|
|||
|
|
104-8300
104-8300
|
|||
|
|
87-7480
87-7480
|
|||
|
|
3231-29
3231-29
|
|||
|
|
104-8301
104-8301
|
|||
|
|
121-4948-03
121-4948-03
|
|||
|
|
121-4949-03
121-4949-03
|
|||
|
|
121-6087
121-6087
|
|||
|
|
62-4530
62-4530
|
|||
|
|
323-11
323-11
|
|||
|
|
121-6080
121-6080
|
|||
|
|
121-6056
121-6056
|
|||
|
|
117-2718
117-2718
|
|||
|
|
117-2749
117-2749
|

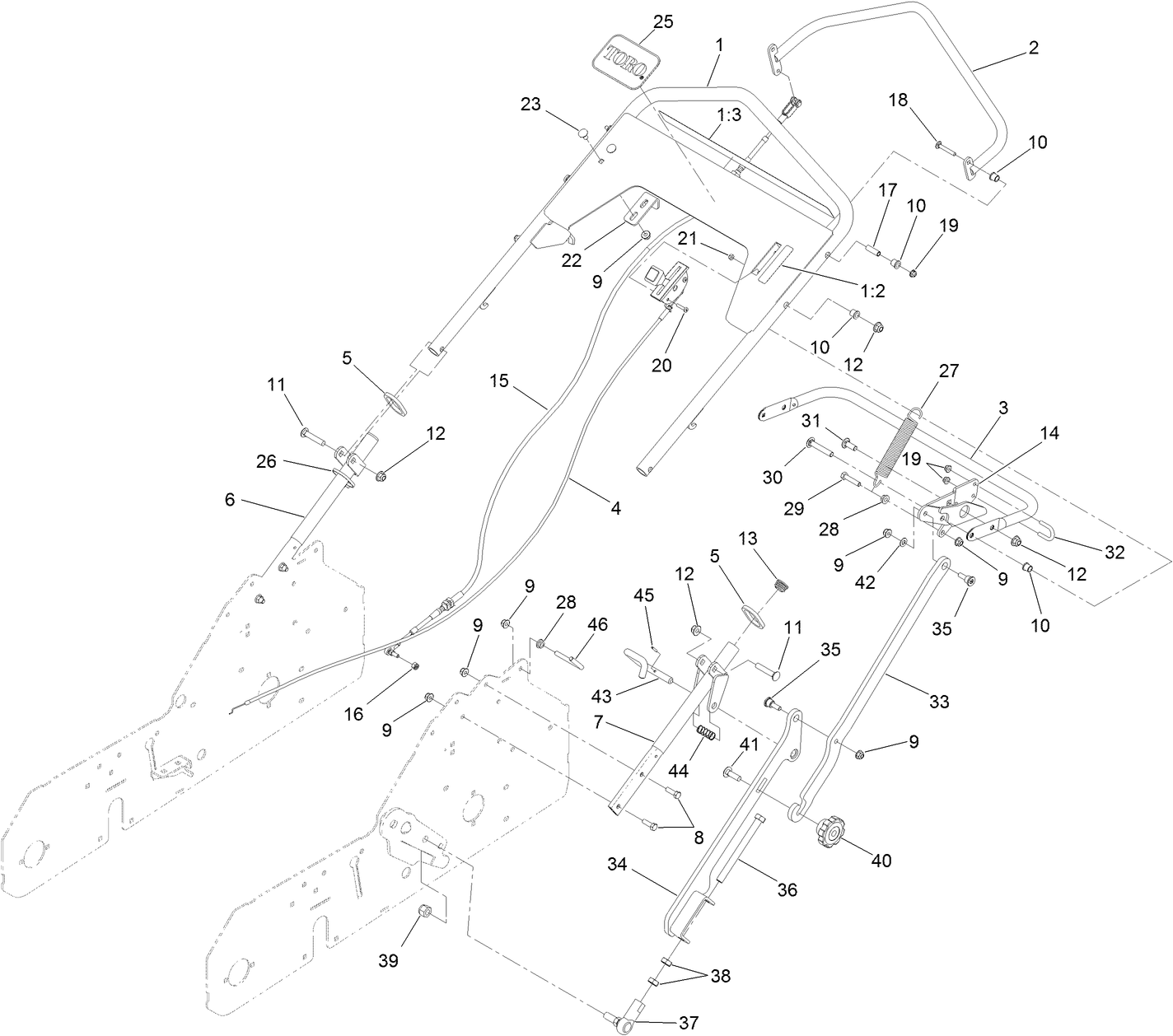

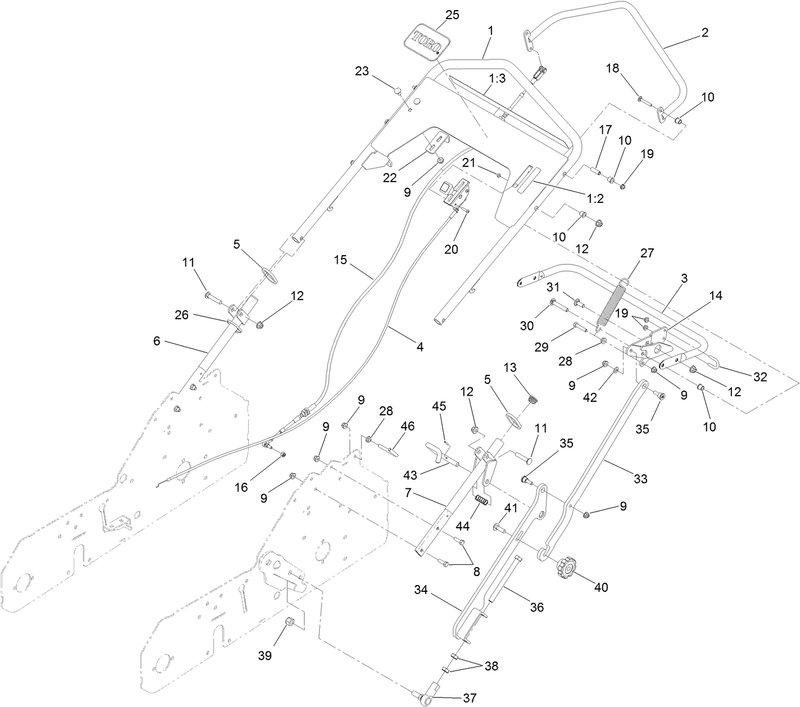

Handle Assembly
Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-0639
126-0639
|
|||
|
|
121-6151
121-6151
|
|||
|
|
116-8699
116-8699
|
|||
|
|
121-6053-03
121-6053-03
|
|||
|
|
116-9873-03
116-9873-03
|
|||
|
|
116-9898
116-9898
|
|||
|
|
121-6202
121-6202
|
|||
|
|
121-1893-03
121-1893-03
|
|||
|
|
116-9883-03
116-9883-03
|
|||
|
|
322-5
322-5
|
|||
|
|
104-8300
104-8300
|
|||
|
|
103-9928
103-9928
|
|||
|
|
3231-6
3231-6
|
|||
|
|
104-8301
104-8301
|
|||
|
|
126-5715-03
126-5715-03
|
|||
|
|
121-6068
121-6068
|
|||
|
|
3296-3
3296-3
|
|||
|
|
121-6060
121-6060
|
|||
|
|
3229-5
3229-5
|
|||
|
|
104-7201
104-7201
|
|||
|
|
3250-27
3250-27
|
|||
|
|
3296-2
3296-2
|
|||
|
|
121-6057
121-6057
|
|||
|
|
3230-18
3230-18
|
|||
|
|
67-1300
67-1300
|
|||
|
|
3290-378
3290-378
|
|||
|
|
106-2177
106-2177
|
|||
|
|
32128-20
32128-20
|
|||
|
|
322-7
322-7
|
|||
|
|
3231-40
3231-40
|
|||
|
|
3231-22
3231-22
|
|||
|
|
01-170-0040
01-170-0040
|
|||
|
|
126-6512
126-6512
|
|||
|
|
126-5470-03
126-5470-03
|
|||
|
|
119-4073
119-4073
|
|||
|
|
126-5473
126-5473
|
|||
|
|
86-1550
86-1550
|
|||
|
|
3220-5
3220-5
|
|||
|
|
3296-19
3296-19
|
|||
|
|
109-1092
109-1092
|
|||
|
|
119-4162
119-4162
|
|||
|
|
3256-23
3256-23
|
|||
|
|
126-5150
126-5150
|
|||
|
|
126-5151
126-5151
|
|||
|
|
32121-50
32121-50
|
|||
|
|
126-5659
126-5659
|

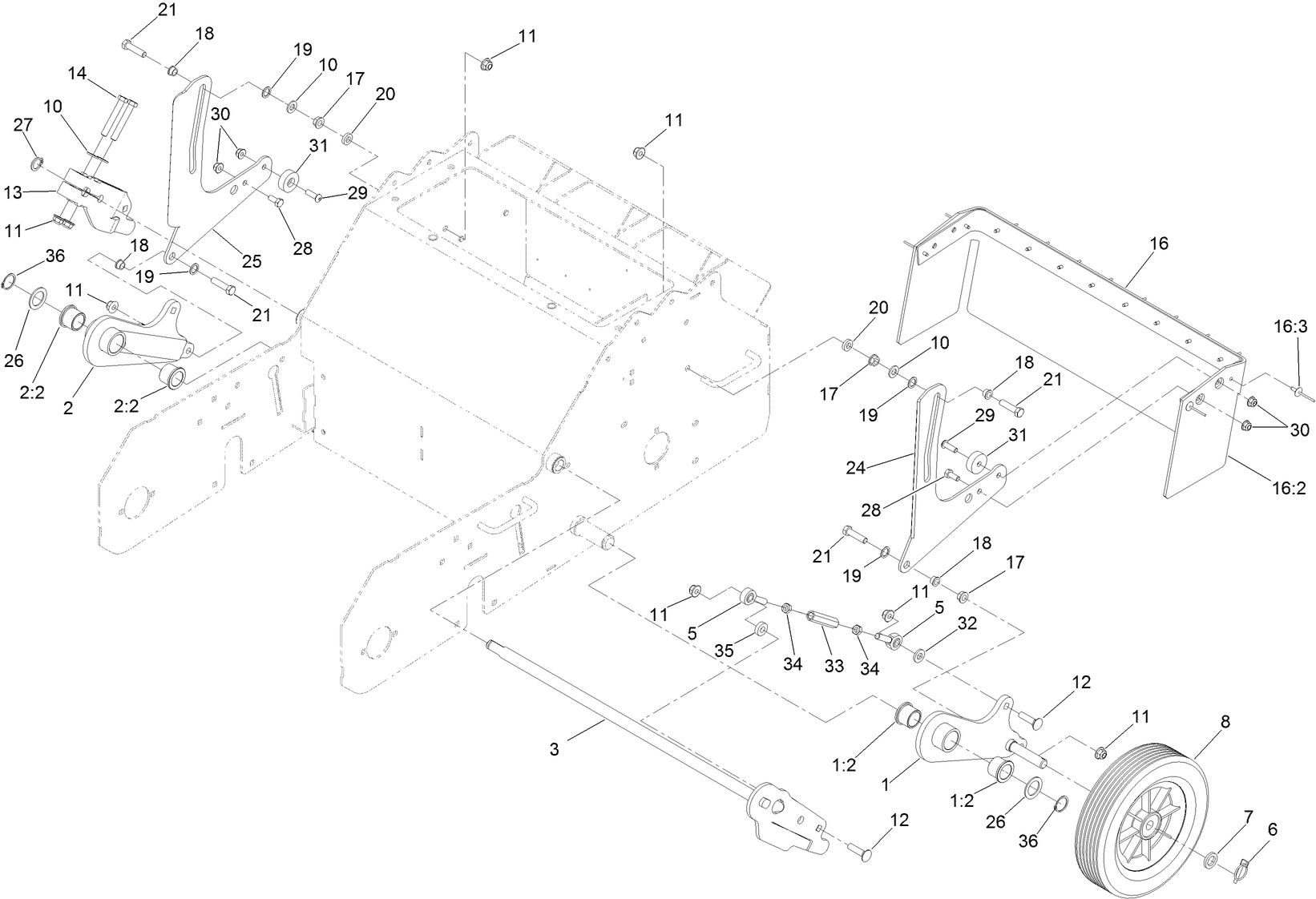

Height Adjustment Assembly
Height Adjustment Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-5098
126-5098
|
|||
|
|
94-8949
94-8949
|
|||
|
|
126-5099
126-5099
|
|||
|
|
94-8949
94-8949
|
|||
|
|
126-7273
126-7273
|
|||
|
|
1-613204
1-613204
|
|||
|
|
3290-495
3290-495
|
|||
|
|
63-9710
63-9710
|
|||
|
|
120-3560
120-3560
|
|||
|
|
3256-24
3256-24
|
|||
|
|
104-8301
104-8301
|
|||
|
|
3231-4
3231-4
|
|||
|
|
126-1345-03
126-1345-03
|
|||
|
|
323-12
323-12
|
|||
|
|
126-0564
126-0564
|
|||
|
|
116-9884
116-9884
|
|||
|
|
3269-20
3269-20
|
|||
|
|
3290-357
3290-357
|
|||
|
|
1-603735
1-603735
|
|||
|
|
94-8196
94-8196
|
|||
|
|
80-7730
80-7730
|
|||
|
|
323-8
323-8
|
|||
|
|
126-0824-01
126-0824-01
|
|||
|
|
126-0825-01
126-0825-01
|
|||
|
|
1-523157
1-523157
|
|||
|
|
32120-93
32120-93
|
|||
|
|
322-3
322-3
|
|||
|
|
109-4872
109-4872
|
|||
|
|
104-8300
104-8300
|
|||
|
|
116-8331
116-8331
|
|||
|
|
87-7480
87-7480
|
|||
|
|
116-9855
116-9855
|
|||
|
|
3220-3
3220-3
|
|||
|
|
5-0652
5-0652
|
|||
|
|
32151-29
32151-29
|

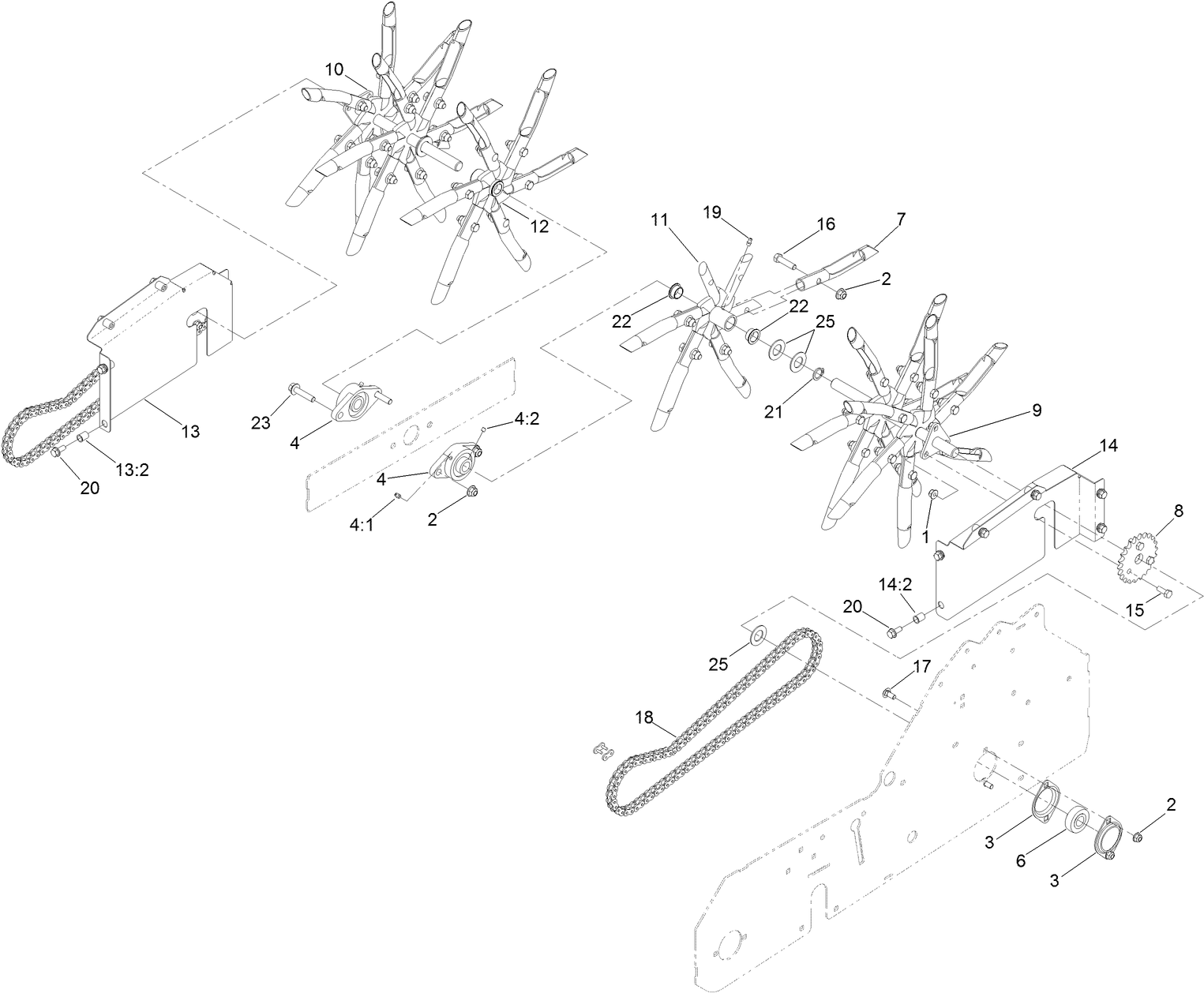

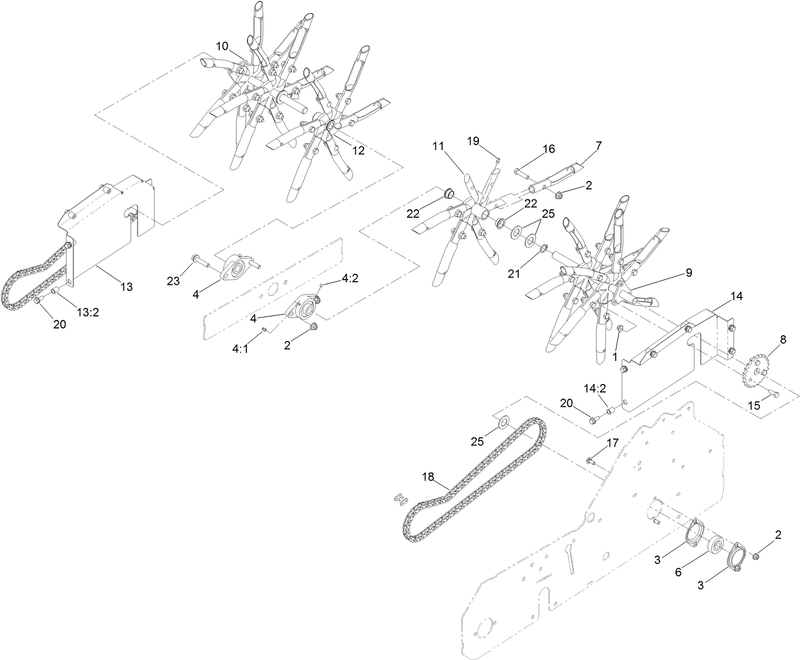

Tine Wheel Drive Assembly
Tine Wheel Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-8300
104-8300
|
|||
|
|
104-8301
104-8301
|
|||
|
|
105-9714
105-9714
|
|||
|
|
106-7126
106-7126
|
|||
|
|
302-58
302-58
|
|||
|
|
3245-35
3245-35
|
|||
|
|
120-9350
120-9350
|
|||
|
|
126-2143
126-2143
|
|||
|
|
116-9896
116-9896
|
|||
|
|
121-4930
121-4930
|
|||
|
|
121-6072
121-6072
|
|||
|
|
121-6099-01
121-6099-01
|
|||
|
|
121-6096
121-6096
|
|||
|
|
126-1204
126-1204
|
|||
|
|
32148-7
32148-7
|
|||
|
|
126-1206
126-1206
|
|||
|
|
32148-7
32148-7
|
|||
|
|
322-4
322-4
|
|||
|
|
323-8
323-8
|
|||
|
|
3230-1
3230-1
|
|||
|
|
121-6107
121-6107
|
|||
|
|
302-19
302-19
|
|||
|
|
3234-47
3234-47
|
|||
|
|
32120-93
32120-93
|
|||
|
|
108519
108519
|
|||
|
|
3234-19
3234-19
|
|||
|
|
69-8930
69-8930
|

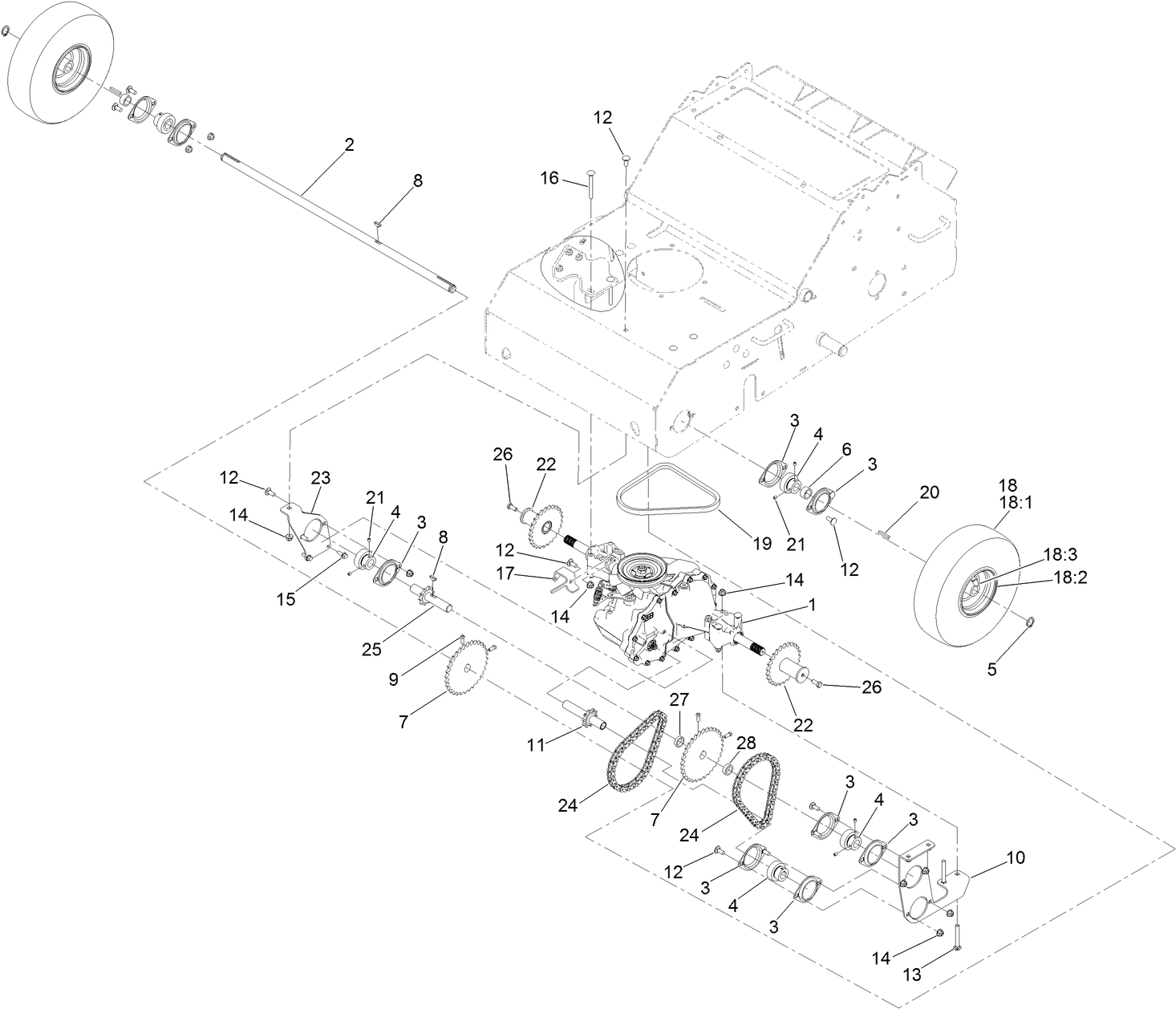

Transaxle Drive Assembly
Transaxle Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
121-4899
121-4899
|
|||
|
|
121-4927
121-4927
|
|||
|
|
105-9714
105-9714
|
|||
|
|
120-9350
120-9350
|
|||
|
|
32120-93
32120-93
|
|||
|
|
121-4931
121-4931
|
|||
|
|
121-4934
121-4934
|
|||
|
|
3257-5
3257-5
|
|||
|
|
|
|||
|
|
121-4936-03
121-4936-03
|
|||
|
|
121-4937
121-4937
|
|||
|
|
3230-23
3230-23
|
|||
|
|
3230-8
3230-8
|
|||
|
|
104-8300
104-8300
|
|||
|
|
3234-4
3234-4
|
|||
|
|
3230-9
3230-9
|
|||
|
|
121-6067
121-6067
|
|||
|
|
120-3707
120-3707
|
|||
|
|
121-6081
121-6081
|
|||
|
|
120-3706
120-3706
|
|||
|
|
5108
5108
|
|||
|
|
121-1999
121-1999
|
|||
|
|
92-0049
92-0049
|
|||
|
|
|
|||
|
|
116-9860
116-9860
|
|||
|
|
121-4932-03
121-4932-03
|
|||
|
|
121-6105
121-6105
|
|||
|
|
121-6108
121-6108
|
|||
|
|
|
|||
|
|
105-3828
105-3828
|
|||
|
|
94-9524
94-9524
|
