Toro 23741 36 in. Power Broom (Serial #: 415000000 - 416299999) Parts Diagram
Diagrams:
Diagram:
Auger Drive Assembly
Auger Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-8654-03
136-8654-03
|
|||
|
|
136-6654-03
136-6654-03
|
|||
|
|
92-9698
92-9698
|
|||
|
|
32144-85
32144-85
|
|||
|
|
137-3111
137-3111
|
|||
|
|
136-6689
136-6689
|
|||
|
|
137-6156-03
137-6156-03
|
|||
|
|
144-1622
144-1622
|
|||
|
|
137-3094
137-3094
|
|||
|
|
144-1620
144-1620
|
|||
|
|
38-7820
38-7820
|
|||
|
|
136-7124
136-7124
|
|||
|
|
137-6154
137-6154
|
|||
|
|
115-1166
115-1166
|
|||
|
|
119-4042
119-4042
|
|||
|
|
256-257
256-257
|
|||
|
|
120-7156
120-7156
|
|||
|
|
137-6189
137-6189
|
|||
|
|
137-3005
137-3005
|
|||
|
|
145-0670-03
145-0670-03
|
|||
|
|
121-4600
121-4600
|
|||
|
|
136-8671-03
136-8671-03
|
|||
|
|
136-7116
136-7116
|
|||
|
|
136-7186
136-7186
|
|||
|
|
120-3060
120-3060
|
|||
|
|
139-2553
139-2553
|
|||
|
|
3-4244
3-4244
|
Broom and Deflector Assembly
Broom and Deflector Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
144-0310
144-0310
|
|||
|
|
112-9028
112-9028
|
|||
|
|
115-2903
115-2903
|
|||
|
|
142-9656
142-9656
|
|||
|
|
32144-14
32144-14
|
|||
|
|
66-6140
66-6140
|
|||
|
|
62-5550
62-5550
|
|||
|
|
116-8869-03
116-8869-03
|
|||
|
|
116-8880-03
116-8880-03
|
|||
|
|
137-3042
137-3042
|
|||
|
|
104-7201
104-7201
|
|||
|
|
116-8864
116-8864
|
|||
|
|
3256-2
3256-2
|
|||
|
|
120-4654
120-4654
|
|||
|
|
139-9928-01
139-9928-01
|
|||
|
|
32144-85
32144-85
|
Broom Assembly
Broom Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
116-8119
116-8119
|
|||
|
|
116-8120
116-8120
|
|||
|
|
116-8121
116-8121
|
|||
|
|
139-2597
139-2597
|

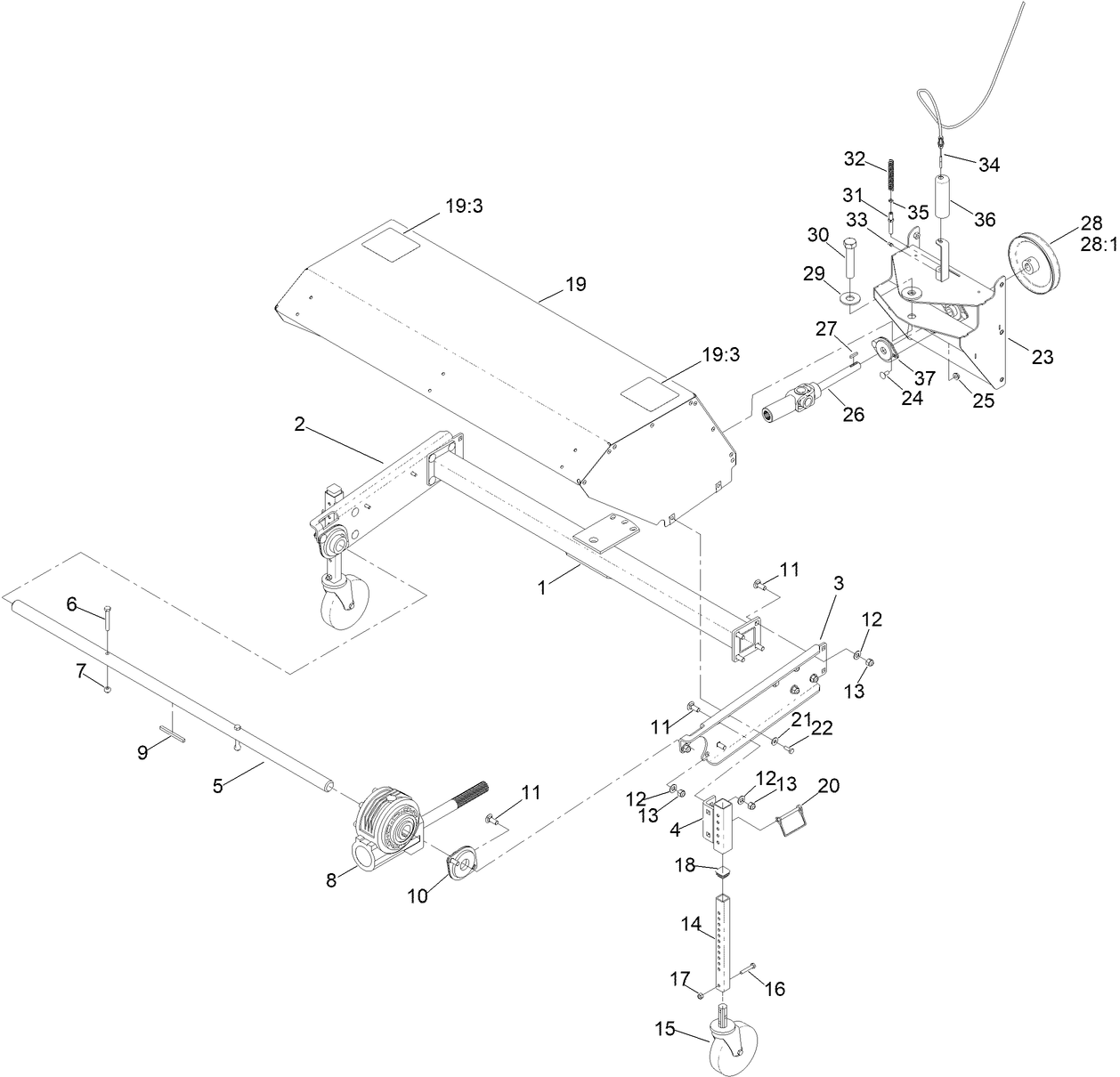

Broom Frame Assembly
Broom Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
116-8544
116-8544
|
|||
|
|
116-8546
116-8546
|
|||
|
|
116-8545
116-8545
|
|||
|
|
116-8543
116-8543
|
|||
|
|
116-8114
116-8114
|
|||
|
|
120-9738
120-9738
|
|||
|
|
119-4038
119-4038
|
|||
|
|
116-8115
116-8115
|
|||
|
|
83-2800
83-2800
|
|||
|
|
116-8116
116-8116
|
|||
|
|
139-2590
139-2590
|
|||
|
|
115-1166
115-1166
|
|||
|
|
137-3087
137-3087
|
|||
|
|
116-8223
116-8223
|
|||
|
|
116-8117
116-8117
|
|||
|
|
137-3050
137-3050
|
|||
|
|
137-3088
137-3088
|
|||
|
|
103-3202
103-3202
|
|||
|
|
116-8123
116-8123
|
|||
|
|
116-8140
116-8140
|
|||
|
|
116-8224
116-8224
|
|||
|
|
120-9646
120-9646
|
|||
|
|
137-3042
137-3042
|
|||
|
|
139-9942-01
139-9942-01
|
|||
|
|
3230-1
3230-1
|
|||
|
|
32128-20
32128-20
|
|||
|
|
116-8104
116-8104
|
|||
|
|
116-8105
116-8105
|
|||
|
|
116-7930
116-7930
|
|||
|
|
3246-18
3246-18
|
|||
|
|
3256-8
3256-8
|
|||
|
|
3216-7
3216-7
|
|||
|
|
116-8106
116-8106
|
|||
|
|
116-8107
116-8107
|
|||
|
|
302-19
302-19
|
|||
|
|
116-7671
116-7671
|
|||
|
|
3217-26
3217-26
|
|||
|
|
116-8108
116-8108
|
|||
|
|
116-8103
116-8103
|
Control Assembly
Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
144-1346
144-1346
|
|||
|
|
99-7420
99-7420
|
|||
|
|
138-8401
138-8401
|
|||
|
|
137-6187-03
137-6187-03
|
|||
|
|
137-6188-03
137-6188-03
|
|||
|
|
137-3099
137-3099
|
|||
|
|
137-3103
137-3103
|
|||
|
|
137-6231-03
137-6231-03
|
|||
|
|
136-7121
136-7121
|
|||
|
|
137-3038
137-3038
|
|||
|
|
94-4496
94-4496
|
|||
|
|
115-1166
115-1166
|
|||
|
|
136-7193
136-7193
|
|||
|
|
137-3083
137-3083
|
|||
|
|
137-6225
137-6225
|
|||
|
|
139-9919-03
139-9919-03
|
|||
|
|
137-3111
137-3111
|
|||
|
|
119-4040
119-4040
|
|||
|
|
92-9698
92-9698
|
|||
|
|
139-9920-03
139-9920-03
|
|||
|
|
139-1709
139-1709
|
|||
|
|
142-9546
142-9546
|
|||
|
|
144-0316
144-0316
|
|||
|
|
144-0315
144-0315
|
|||
|
|
139-9927-03
139-9927-03
|
|||
|
|
137-3011
137-3011
|
|||
|
|
105-9999
105-9999
|
|||
|
|
106-4423
106-4423
|
|||
|
|
138-0719
138-0719
|

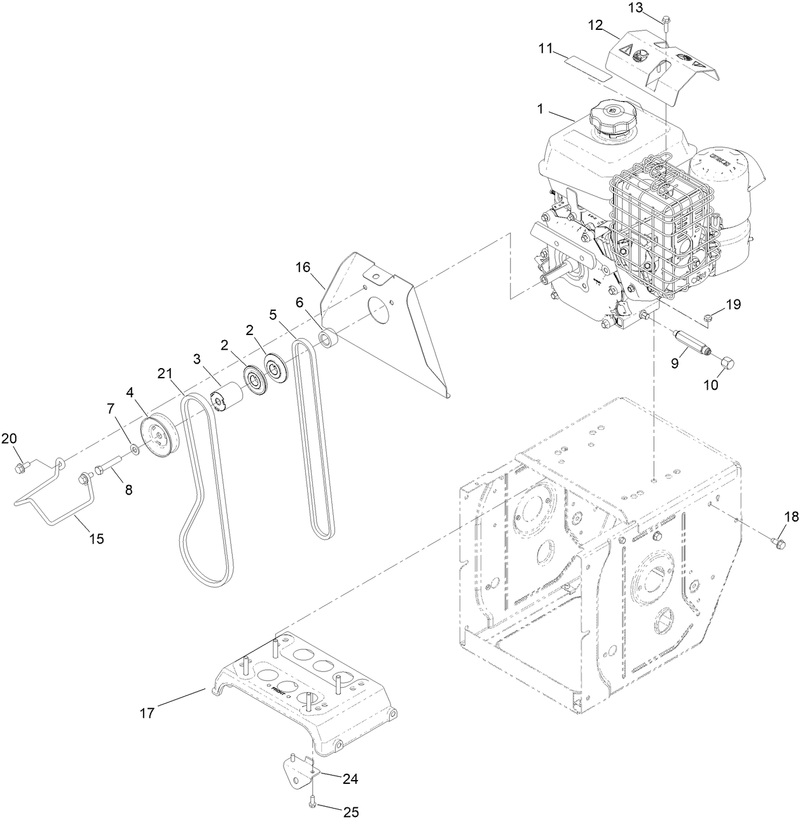

Engine Assembly
Engine Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
144-1240
144-1240
|
|||
|
|
144-1241
144-1241
|
|||
|
|
137-6179
137-6179
|
|||
|
|
109-7299
109-7299
|
|||
|
|
144-1242
144-1242
|
|||
|
|
115-1166
115-1166
|
|||
|
|
120-2302
120-2302
|
|||
|
|
116-8721
116-8721
|
|||
|
|
01-201-4520
01-201-4520
|
|||
|
|
133-8062
133-8062
|
|||
|
|
126-4178
126-4178
|
|||
|
|
33103-025
33103-025
|
|||
|
|
144-2816
144-2816
|
|||
|
|
140-7945-03
140-7945-03
|
|||
|
|
144-0331
144-0331
|
|||
|
|
32144-70
32144-70
|
|||
|
|
137-3089
137-3089
|
|||
|
|
138-0690
138-0690
|
|||
|
|
80-3590
80-3590
|
|||
|
|
136-6644-03
136-6644-03
|
|||
|
|
32144-85
32144-85
|
Handle Assembly
Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
137-6224-03
137-6224-03
|
|||
|
|
137-6233-01
137-6233-01
|
|||
|
|
137-6221-03
137-6221-03
|
|||
|
|
120-9686
120-9686
|
|||
|
|
138-8401
138-8401
|
|||
|
|
106-4509
106-4509
|
|||
|
|
138-3653
138-3653
|
|||
|
|
137-3094
137-3094
|
|||
|
|
120-1333
120-1333
|
|||
|
|
138-8402
138-8402
|
|||
|
|
137-3052
137-3052
|
|||
|
|
137-3107
137-3107
|
|||
|
|
145-4075-01
145-4075-01
|
|||
|
|
105-9980
105-9980
|
|||
|
|
137-3099
137-3099
|
|||
|
|
106-4505
106-4505
|
|||
|
|
1-808265
1-808265
|
|||
|
|
108-2992
108-2992
|
|||
|
|
137-6171
137-6171
|
|||
|
|
137-6182
137-6182
|
|||
|
|
138-0678
138-0678
|
|||
|
|
139-3694
139-3694
|
|||
|
|
131-8641
131-8641
|
|||
|
|
161-0973
161-0973
|
|||
|
|
161-0976
161-0976
|
Main Frame and Belt Cover Assembly
Main Frame and Belt Cover Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-6639-01
136-6639-01
|
|||
|
|
107069
107069
|
|||
|
|
136-6650-01
136-6650-01
|
|||
|
|
136-6651-01
136-6651-01
|
|||
|
|
32144-85
32144-85
|
|||
|
|
138-0731
138-0731
|

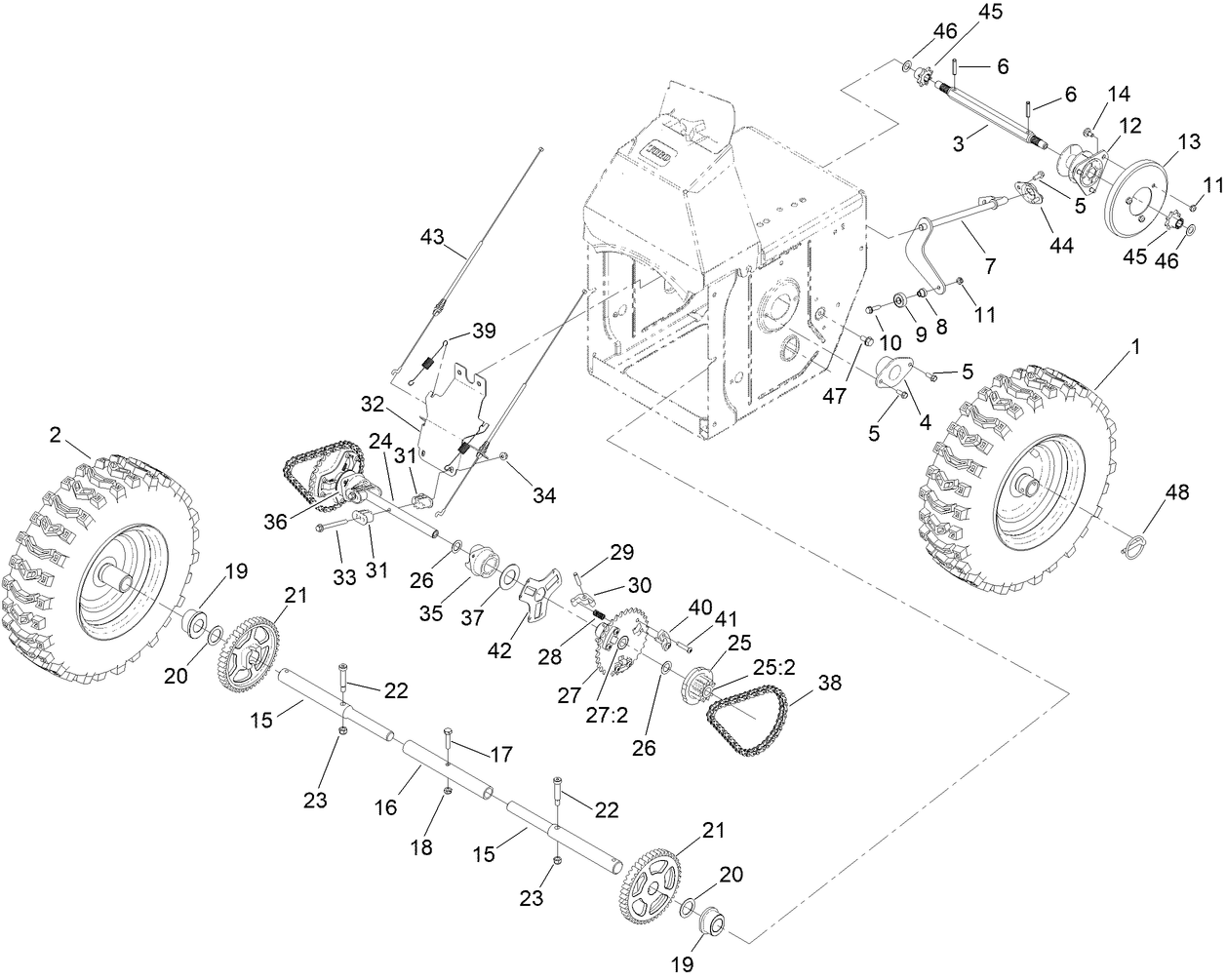

Traction Drive Assembly
Traction Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-6668
136-6668
|
|||
|
|
136-6667
136-6667
|
|||
|
|
125-1135
125-1135
|
|||
|
|
108-7319
108-7319
|
|||
|
|
32144-85
32144-85
|
|||
|
|
32121-9
32121-9
|
|||
|
|
137-6162
137-6162
|
|||
|
|
119-7684
119-7684
|
|||
|
|
121-6835
121-6835
|
|||
|
|
32144-86
32144-86
|
|||
|
|
137-3091
137-3091
|
|||
|
|
119-7630
119-7630
|
|||
|
|
119-1567
119-1567
|
|||
|
|
137-6246
137-6246
|
|||
|
|
136-6640
136-6640
|
|||
|
|
106-7259
106-7259
|
|||
|
|
137-3051
137-3051
|
|||
|
|
137-3089
137-3089
|
|||
|
|
136-6641
136-6641
|
|||
|
|
138-0725
138-0725
|
|||
|
|
136-6642
136-6642
|
|||
|
|
138-0720
138-0720
|
|||
|
|
137-3093
137-3093
|
|||
|
|
107-8883
107-8883
|
|||
|
|
107-8894
107-8894
|
|||
|
|
108-2973
108-2973
|
|||
|
|
108-0015
108-0015
|
|||
|
|
107-8895
107-8895
|
|||
|
|
108-2973
108-2973
|
|||
|
|
107-8885
107-8885
|
|||
|
|
107-8899
107-8899
|
|||
|
|
107-8879
107-8879
|
|||
|
|
107-8889
107-8889
|
|||
|
|
136-6648-03
136-6648-03
|
|||
|
|
138-3653
138-3653
|
|||
|
|
119-4040
119-4040
|
|||
|
|
107-8887
107-8887
|
|||
|
|
107-8888
107-8888
|
|||
|
|
107-8891
107-8891
|
|||
|
|
108-0016
108-0016
|
|||
|
|
107-8893
107-8893
|
|||
|
|
107-8880
107-8880
|
|||
|
|
137-3010
137-3010
|
|||
|
|
136-7318
136-7318
|
|||
|
|
107-8896
107-8896
|
|||
|
|
136-6647-03
136-6647-03
|
|||
|
|
125-1134
125-1134
|
|||
|
|
36-4780
36-4780
|
|||
|
|
32144-14
32144-14
|
|||
|
|
138-3642
138-3642
|
