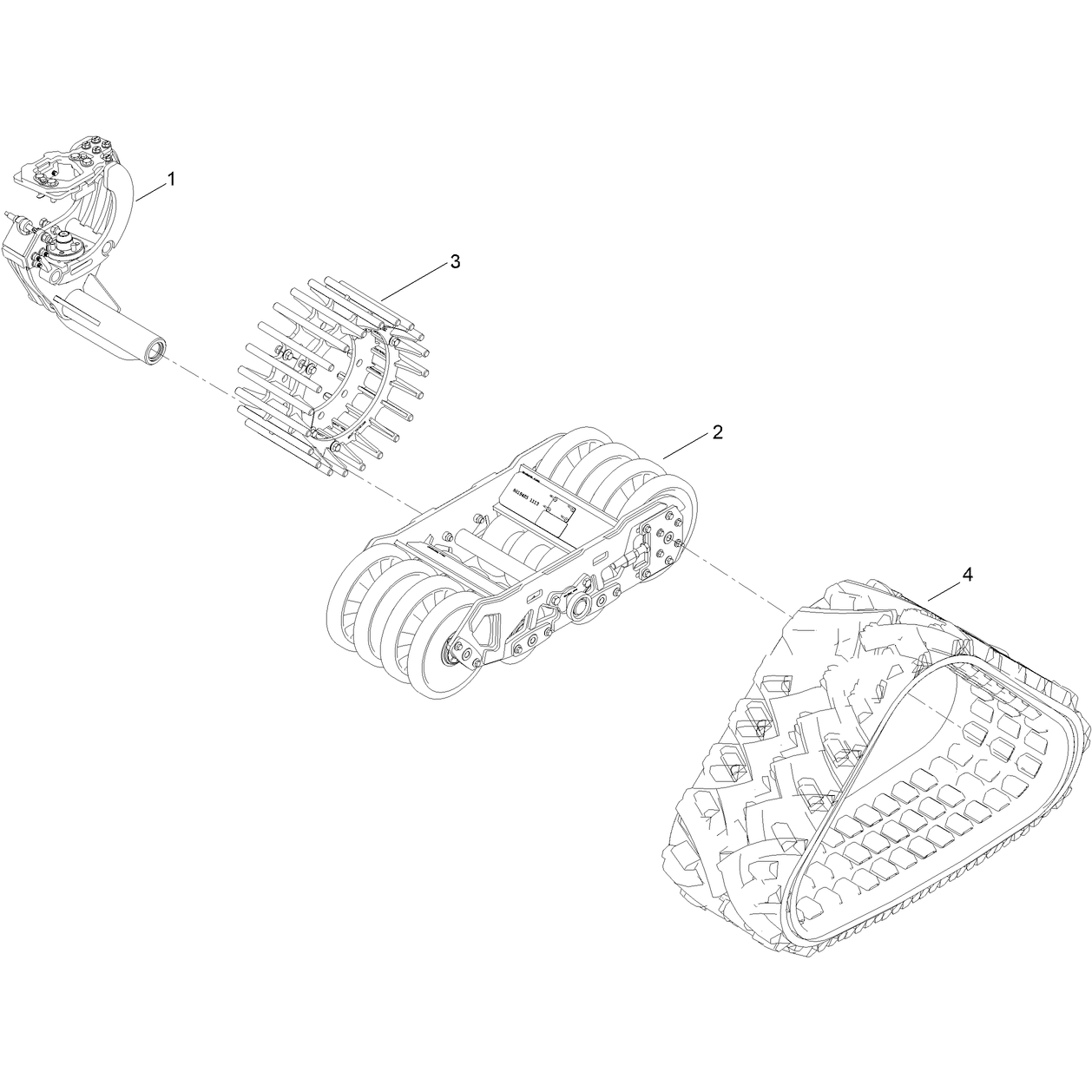

Toro 25429E Quad Track Kit, RT1200 Trencher Parts Diagram
Diagrams:
Diagram:

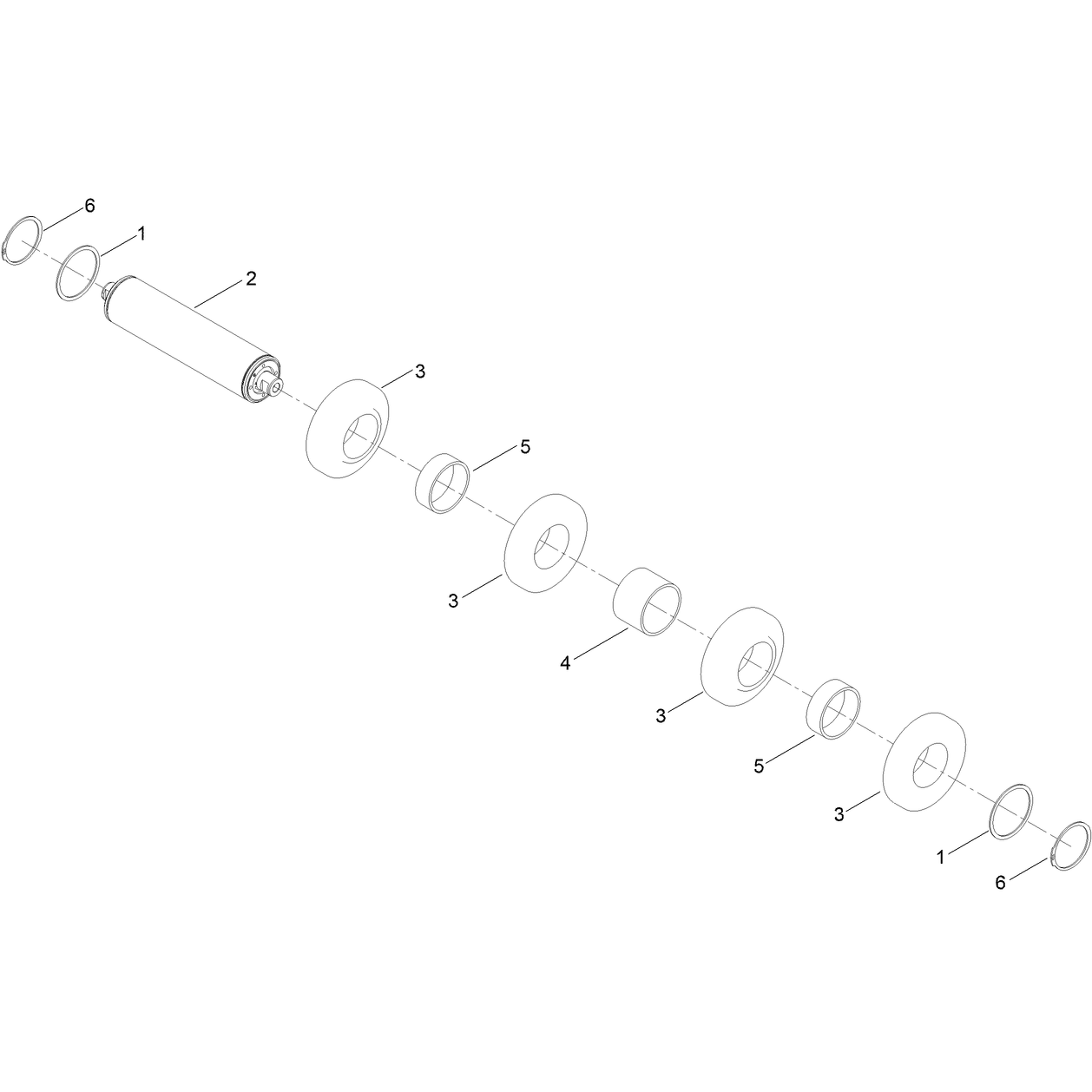

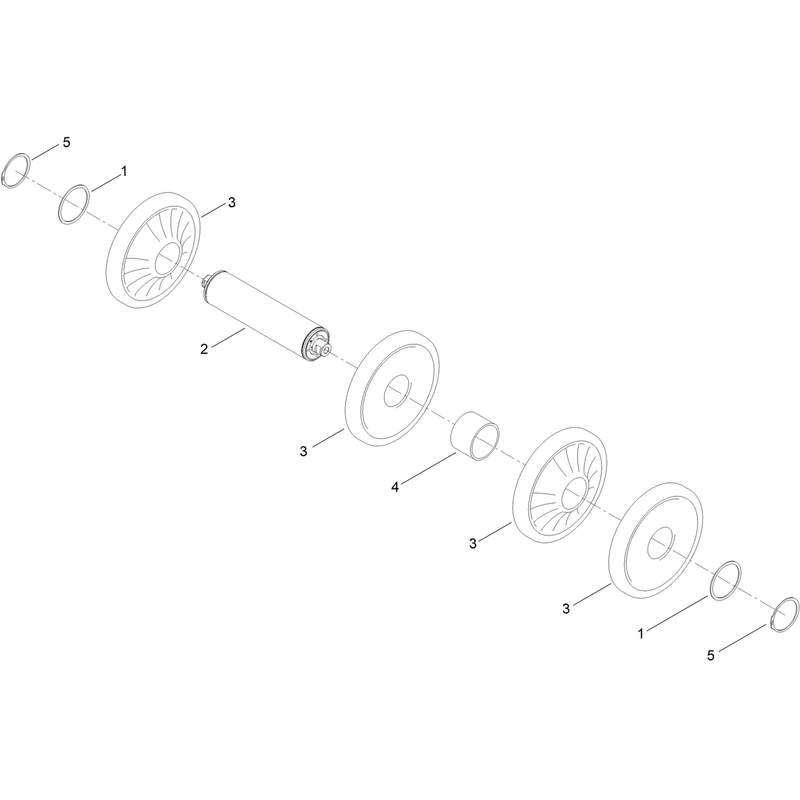

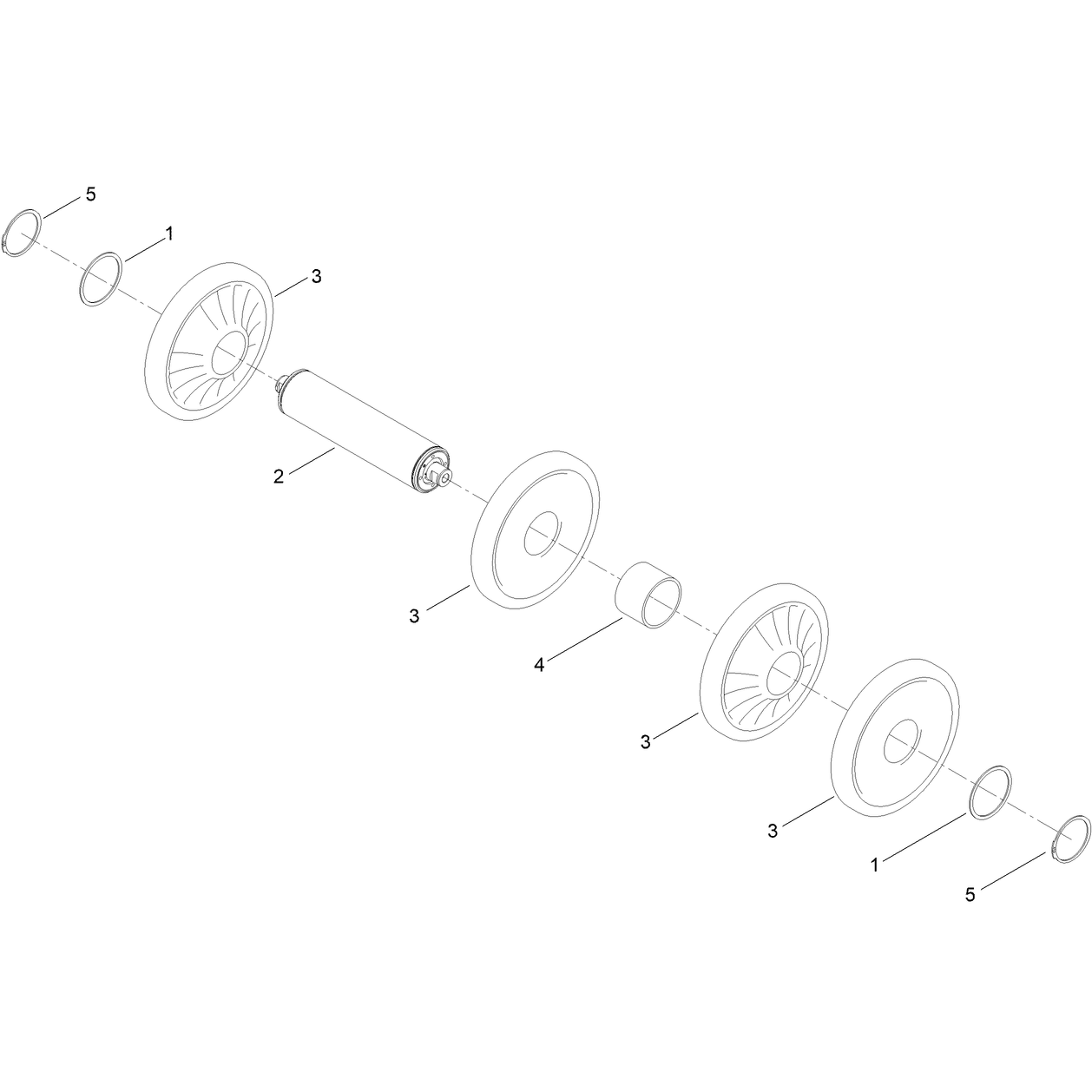

13.5in Wheel Assembly No. 133-5070
13.5in Wheel Assembly No. 133-5070
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
AU119233
AU119233
|
|||
|
|
133-5058
133-5058
|
|||
|
|
133-5071
133-5071
|
|||
|
|
133-5068
133-5068
|
|||
|
|
AU119237
AU119237
|

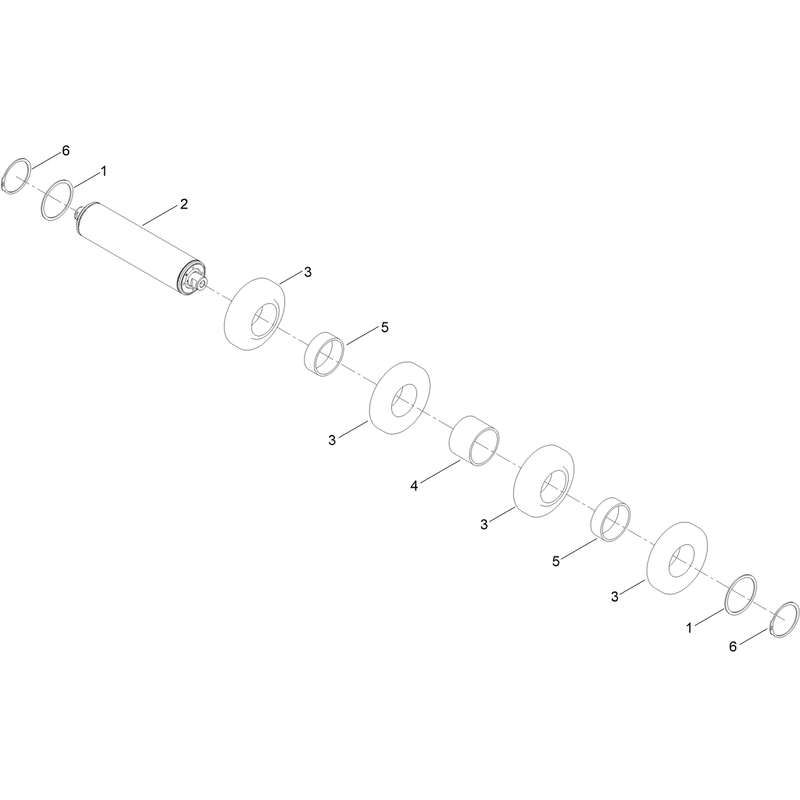

8in Wheel Assembly No. 133-5067
8in Wheel Assembly No. 133-5067
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
AU119233
AU119233
|
|||
|
|
133-5058
133-5058
|
|||
|
|
AU120850
AU120850
|
|||
|
|
133-5068
133-5068
|
|||
|
|
133-5069
133-5069
|
|||
|
|
AU119237
AU119237
|

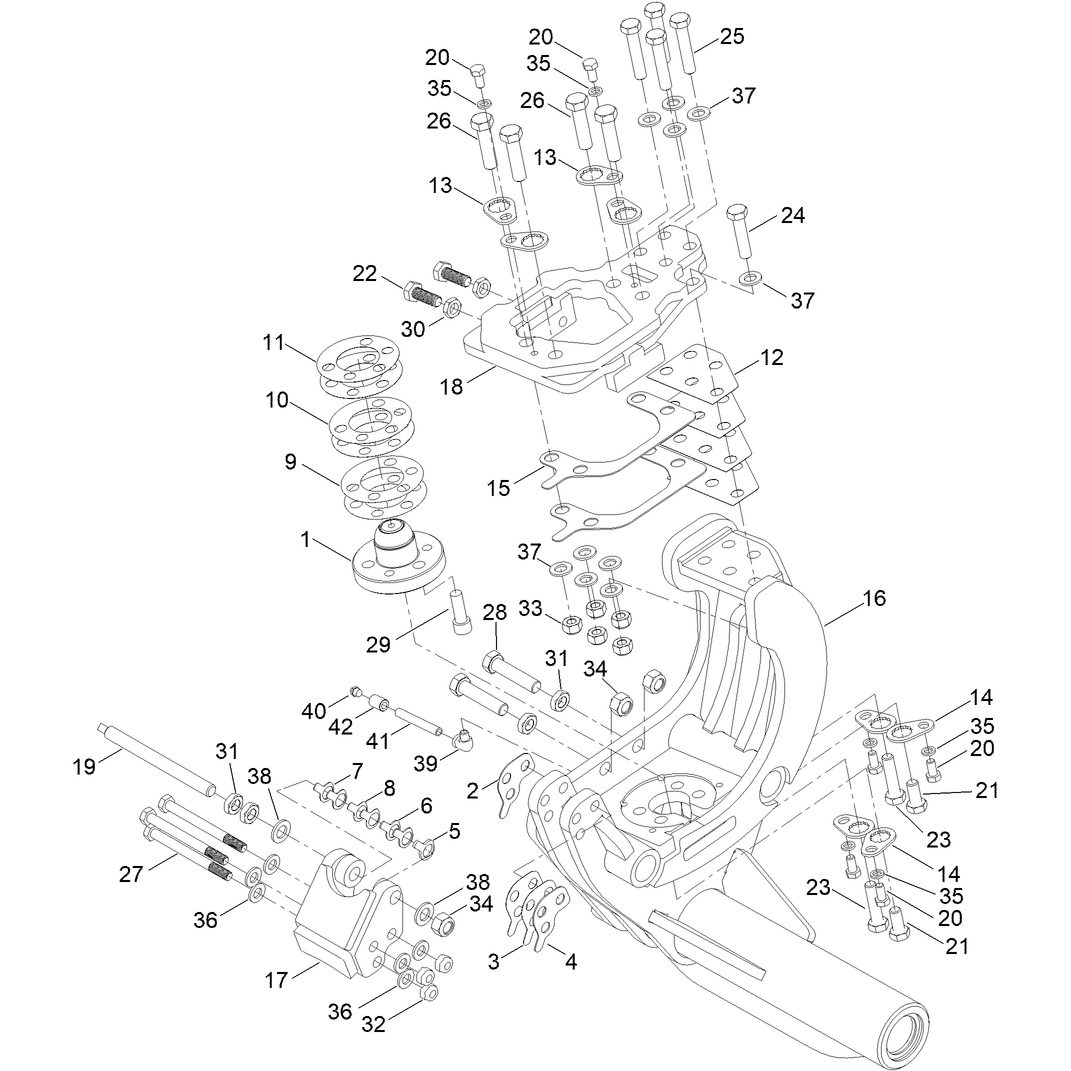

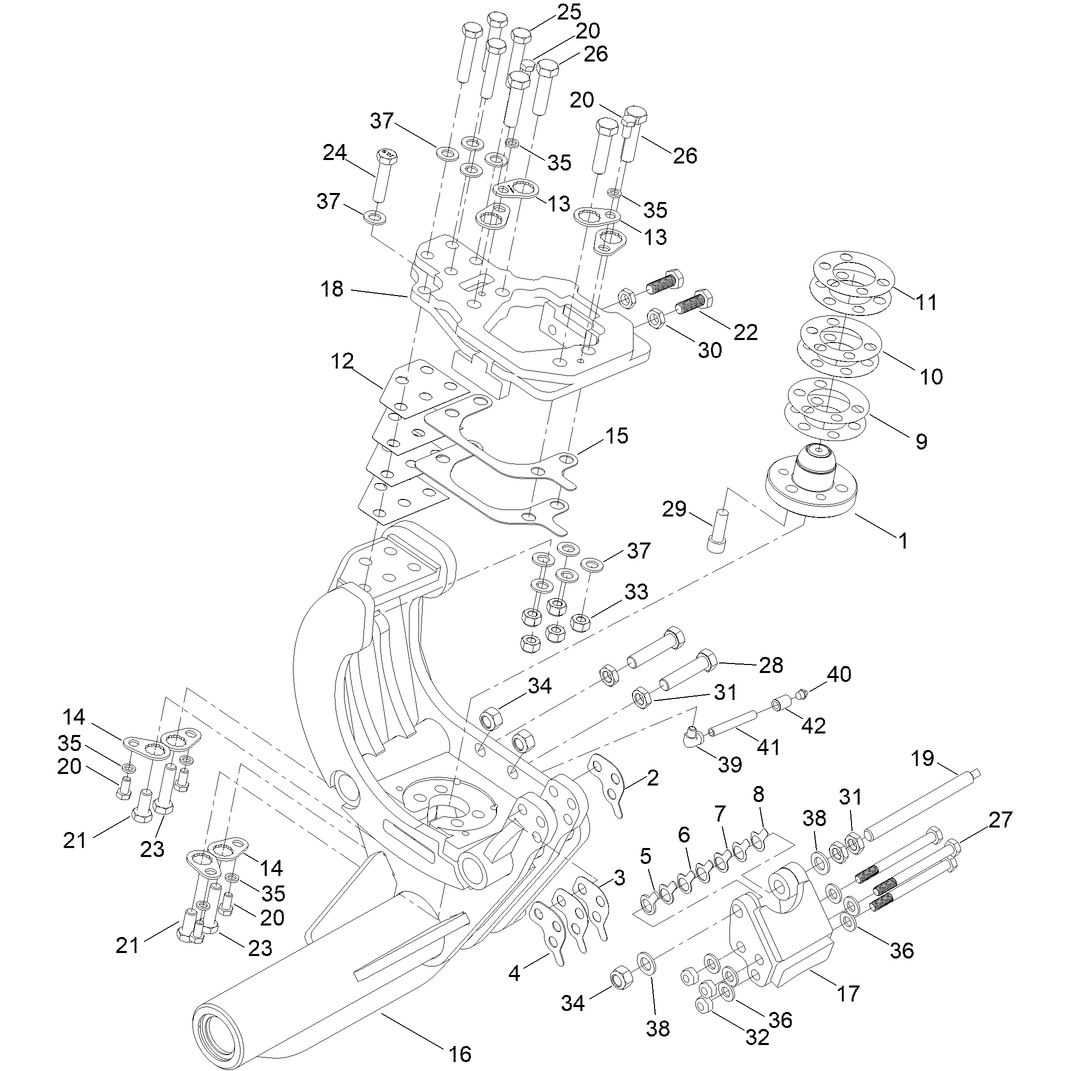

Chassis Assembly
Chassis Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-3962
136-3962
|
|||
|
|
AU119167
AU119167
|
|||
|
|
AU119168
AU119168
|
|||
|
|
133-5070
133-5070
|
|||
|
|
133-5067
133-5067
|
|||
|
|
136-3954
136-3954
|
|||
|
|
136-3961
136-3961
|
|||
|
|
136-3956
136-3956
|
|||
|
|
136-3957
136-3957
|
|||
|
|
136-3958
136-3958
|
|||
|
|
136-3959
136-3959
|
|||
|
|
136-3960
136-3960
|
|||
|
|
AU120624
AU120624
|
|||
|
|
33106-025
33106-025
|
|||
|
|
33106-040
33106-040
|
|||
|
|
136-3965
136-3965
|
|||
|
|
33019-00
33019-00
|
|||
|
|
94-4307
94-4307
|
|||
|
|
09456
09456
|
|||
|
|
AU103-16200
AU103-16200
|
Front Left and Rear Right Attachment Assembly No. 133-5074
Front Left and Rear Right Attachment Assembly No. 133-5074
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
AU119184
AU119184
|
|||
|
|
133-5077
133-5077
|
|||
|
|
133-5078
133-5078
|
|||
|
|
133-5079
133-5079
|
|||
|
|
133-5080
133-5080
|
|||
|
|
133-5081
133-5081
|
|||
|
|
133-5082
133-5082
|
|||
|
|
133-5083
133-5083
|
|||
|
|
133-5084
133-5084
|
|||
|
|
133-5085
133-5085
|
|||
|
|
133-5086
133-5086
|
|||
|
|
133-5087
133-5087
|
|||
|
|
133-5088
133-5088
|
|||
|
|
133-5089
133-5089
|
|||
|
|
133-5090
133-5090
|
|||
|
|
133-5072
133-5072
|
|||
|
|
133-5075
133-5075
|
|||
|
|
133-5076
133-5076
|
|||
|
|
133-5091
133-5091
|
|||
|
|
33115-020
33115-020
|
|||
|
|
133-5092
133-5092
|
|||
|
|
132-7849
132-7849
|
|||
|
|
133-5093
133-5093
|
|||
|
|
133-5094
133-5094
|
|||
|
|
133-5095
133-5095
|
|||
|
|
AU120624
AU120624
|
|||
|
|
133-5096
133-5096
|
|||
|
|
33180-070
33180-070
|
|||
|
|
AU864-14040
AU864-14040
|
|||
|
|
131-0423
131-0423
|
|||
|
|
09804
09804
|
|||
|
|
94-4307
94-4307
|
|||
|
|
133-5097
133-5097
|
|||
|
|
133-5098
133-5098
|
|||
|
|
ST81179
ST81179
|
|||
|
|
33096-00
33096-00
|
|||
|
|
09488
09488
|
|||
|
|
33098-00
33098-00
|
|||
|
|
2811-7
2811-7
|
|||
|
|
302-52
302-52
|
|||
|
|
130-8449
130-8449
|
|||
|
|
2810-1
2810-1
|

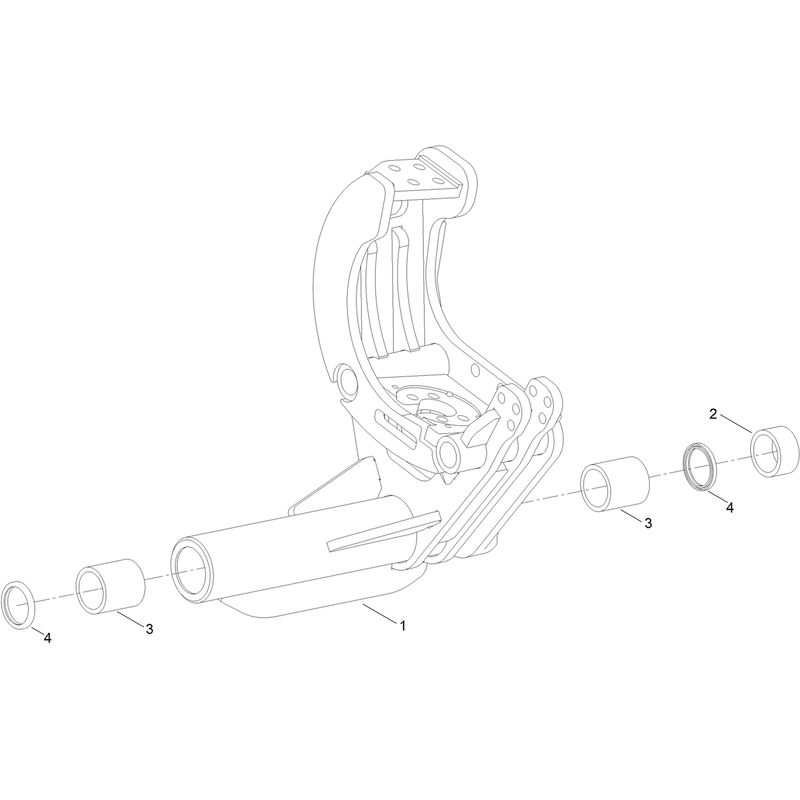

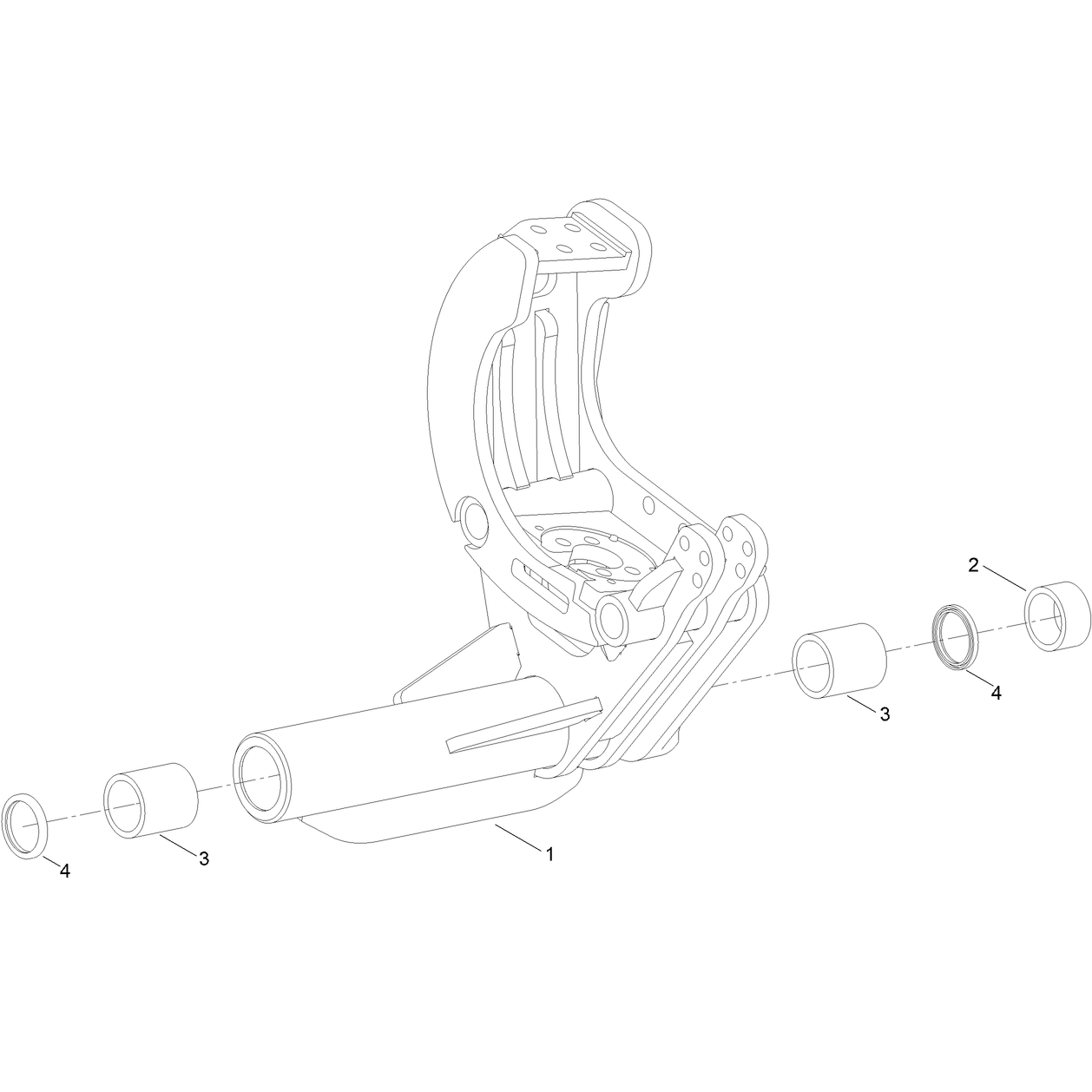

Front Left and Rear Right Attachment Bracket Assembly No. 133-5072
Front Left and Rear Right Attachment Bracket Assembly No. 133-5072
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
133-5073
133-5073
|
|||
|
|
131-0428
131-0428
|
|||
|
|
131-0427
131-0427
|
|||
|
|
131-0429
131-0429
|

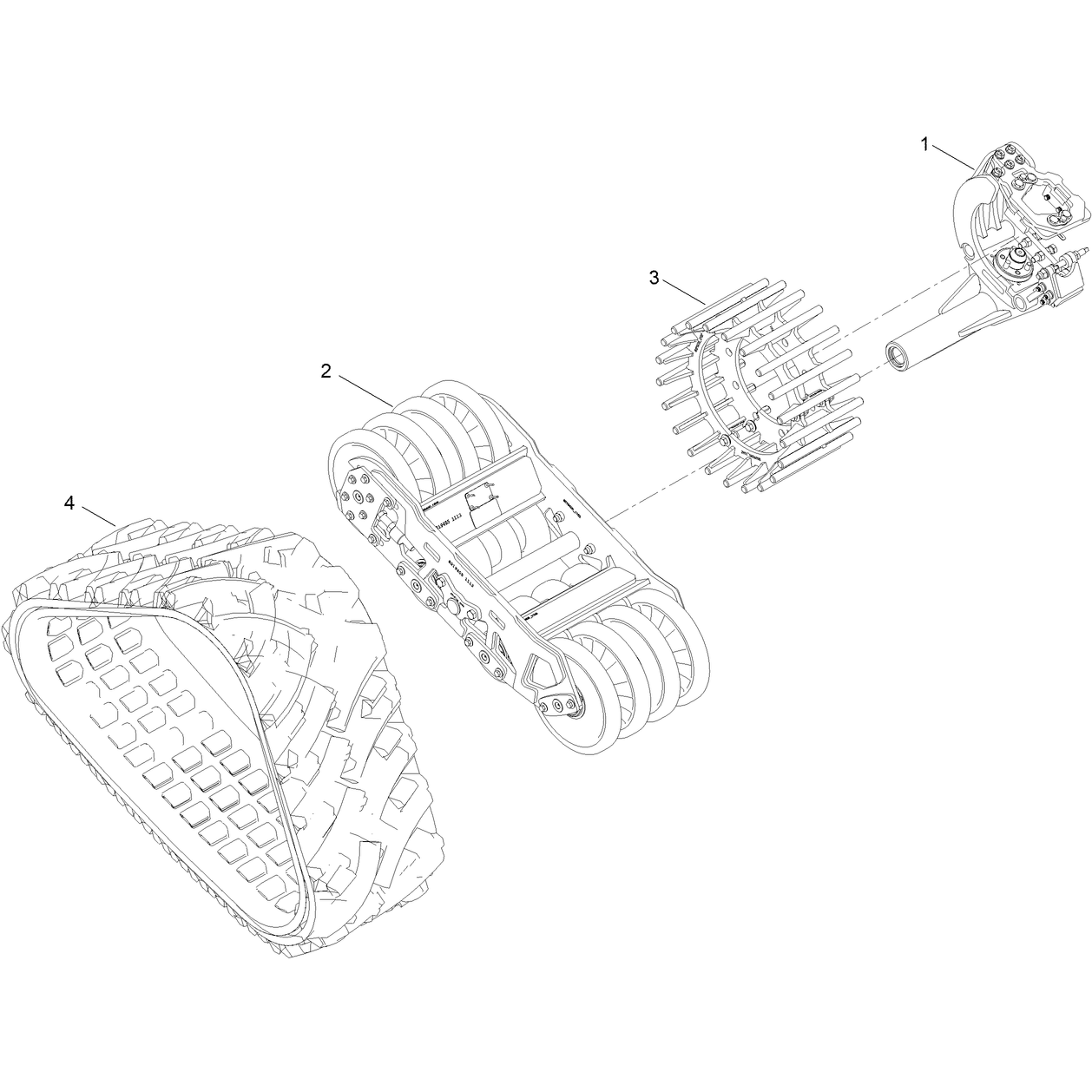

Front Left and Rear Right Track Assembly
Front Left and Rear Right Track Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
133-5074
133-5074
|
|||
|
|
136-3953
136-3953
|
|||
|
|
AU115408
AU115408
|
|||
|
|
AU119180
AU119180
|

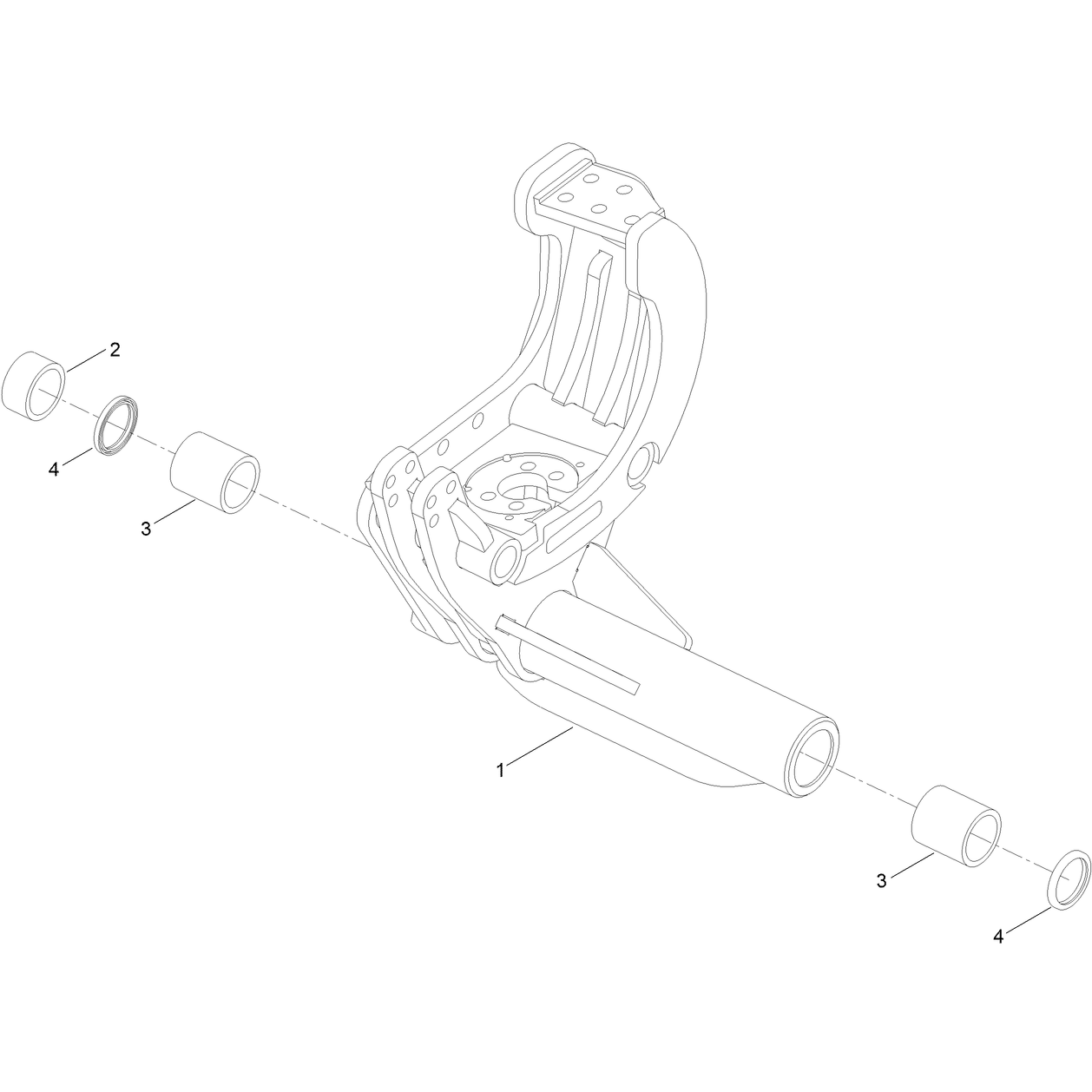

Front Right and Rear Left Attachment Bracket Assembly No. 136-3969
Front Right and Rear Left Attachment Bracket Assembly No. 136-3969
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-3968
136-3968
|
|||
|
|
131-0428
131-0428
|
|||
|
|
131-0427
131-0427
|
|||
|
|
131-0429
131-0429
|
Front Right and Rear Left Attachment Assembly No. 136-3970
Front Right and Rear Left Attachment Assembly No. 136-3970
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
AU119184
AU119184
|
|||
|
|
133-5077
133-5077
|
|||
|
|
133-5078
133-5078
|
|||
|
|
133-5079
133-5079
|
|||
|
|
133-5080
133-5080
|
|||
|
|
133-5081
133-5081
|
|||
|
|
133-5082
133-5082
|
|||
|
|
133-5083
133-5083
|
|||
|
|
133-5084
133-5084
|
|||
|
|
133-5085
133-5085
|
|||
|
|
133-5086
133-5086
|
|||
|
|
133-5087
133-5087
|
|||
|
|
133-5088
133-5088
|
|||
|
|
133-5089
133-5089
|
|||
|
|
133-5090
133-5090
|
|||
|
|
136-3969
136-3969
|
|||
|
|
136-3971
136-3971
|
|||
|
|
136-3972
136-3972
|
|||
|
|
133-5091
133-5091
|
|||
|
|
33115-020
33115-020
|
|||
|
|
133-5092
133-5092
|
|||
|
|
132-7849
132-7849
|
|||
|
|
133-5093
133-5093
|
|||
|
|
133-5094
133-5094
|
|||
|
|
133-5095
133-5095
|
|||
|
|
AU120624
AU120624
|
|||
|
|
133-5096
133-5096
|
|||
|
|
33180-070
33180-070
|
|||
|
|
AU864-14040
AU864-14040
|
|||
|
|
131-0423
131-0423
|
|||
|
|
09804
09804
|
|||
|
|
94-4307
94-4307
|
|||
|
|
133-5097
133-5097
|
|||
|
|
133-5098
133-5098
|
|||
|
|
ST81179
ST81179
|
|||
|
|
33096-00
33096-00
|
|||
|
|
09488
09488
|
|||
|
|
33098-00
33098-00
|
|||
|
|
2811-7
2811-7
|
|||
|
|
302-52
302-52
|
|||
|
|
130-8449
130-8449
|
|||
|
|
2810-1
2810-1
|
Front Right and Rear Left Track Assembly
Front Right and Rear Left Track Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
136-3970
136-3970
|
|||
|
|
136-3953
136-3953
|
|||
|
|
AU115408
AU115408
|
|||
|
|
AU119180
AU119180
|
