Toro 30096 Commercial Walk-Behind Mower, Floating Deck T-Bar Gear with 40in TURBO FORCE Deck (Serial #: 280000001 - 280999999) Parts Diagram
Diagrams:
Diagram:

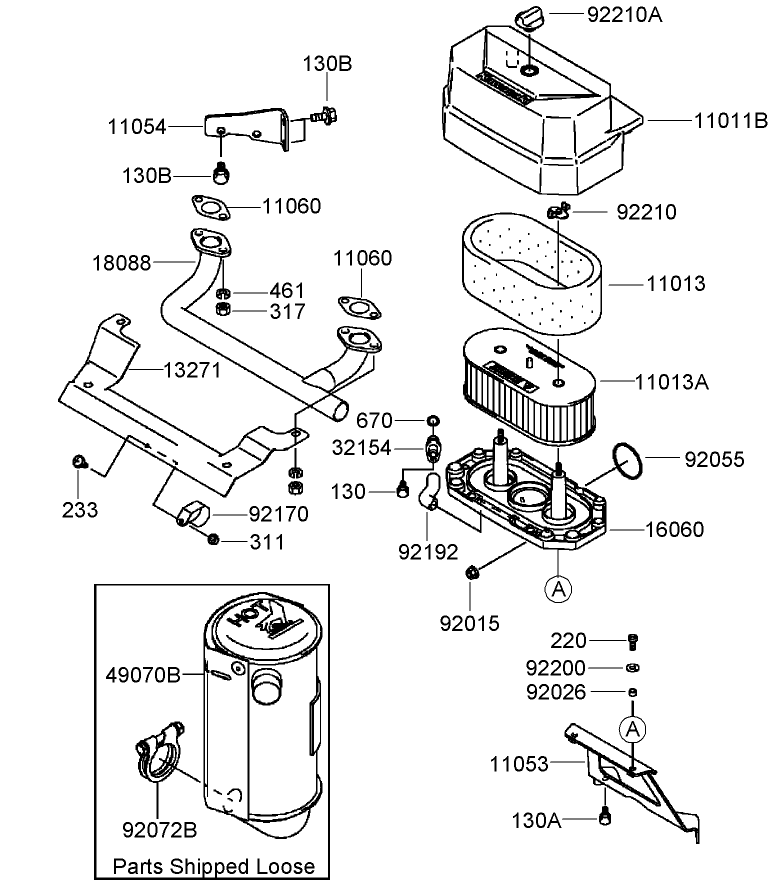

Air Filter and Muffler Assembly Kawasaki FH430V DS28
Air Filter and Muffler Assembly Kawasaki FH430V DS28
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

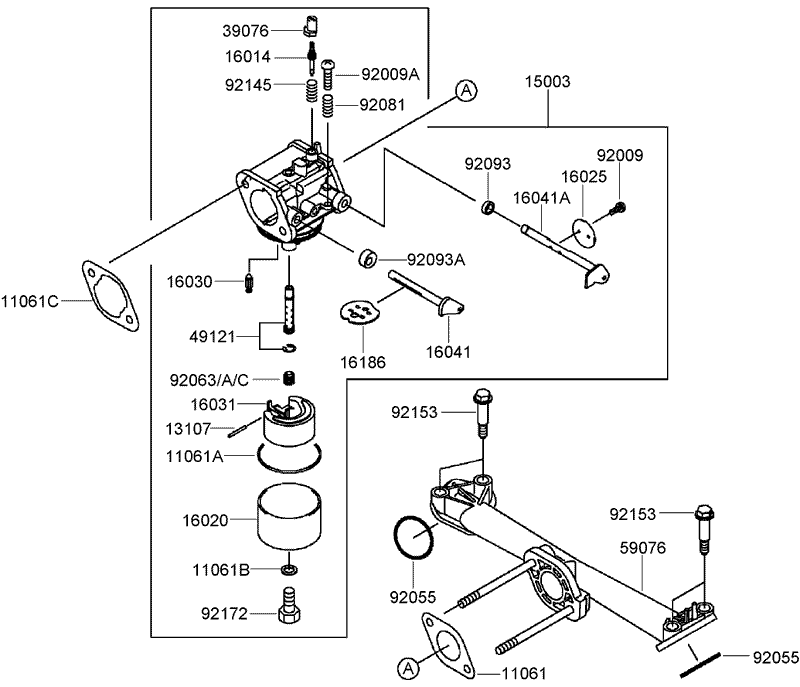

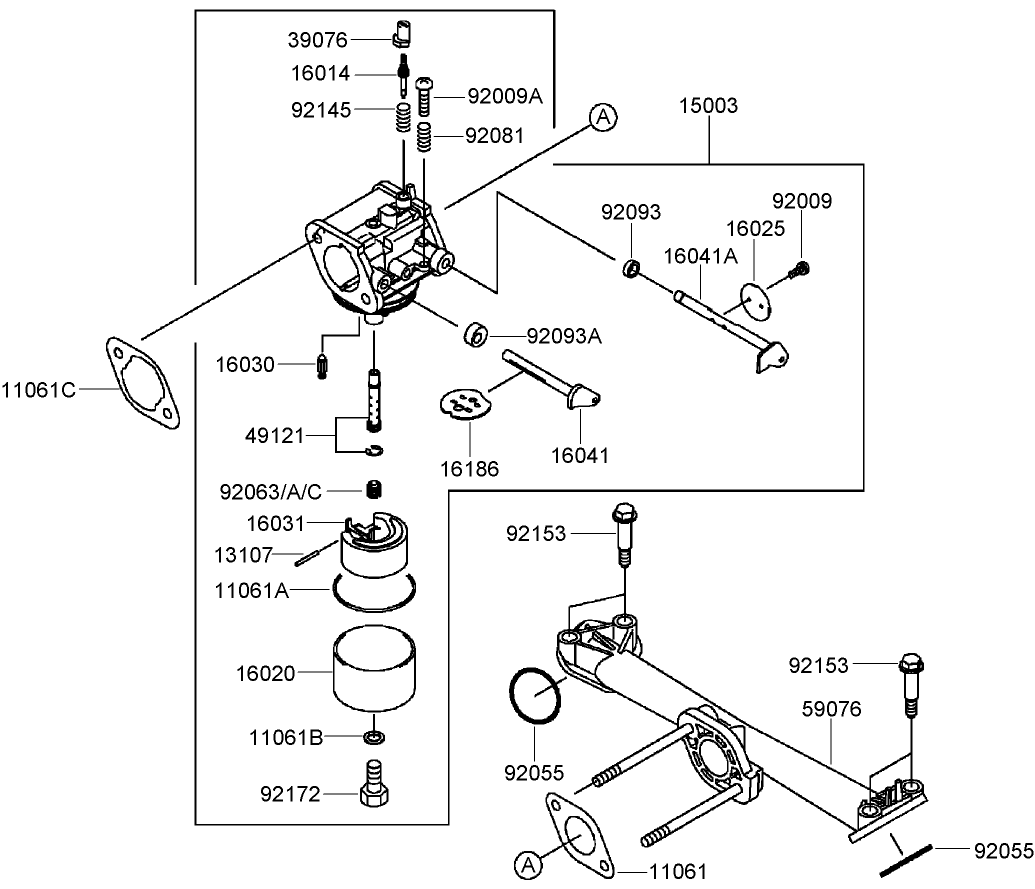

Carburetor Assembly Kawasaki FH430V DS28
Carburetor Assembly Kawasaki FH430V DS28
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

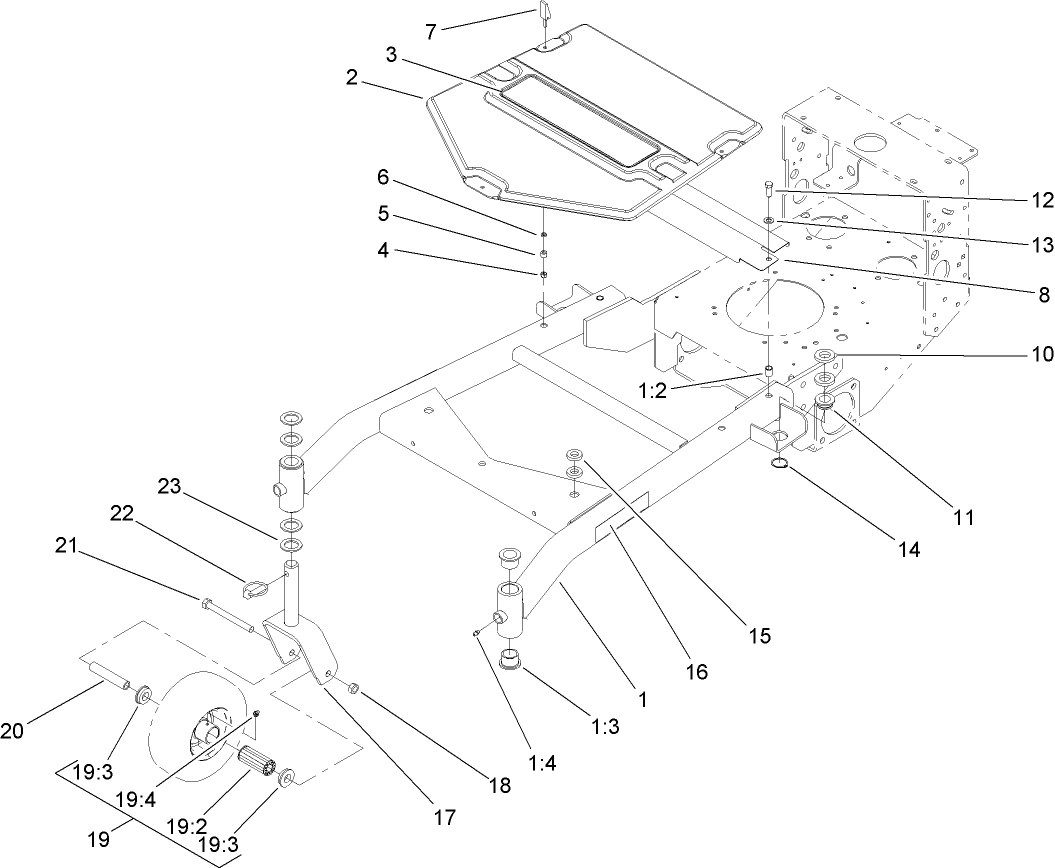

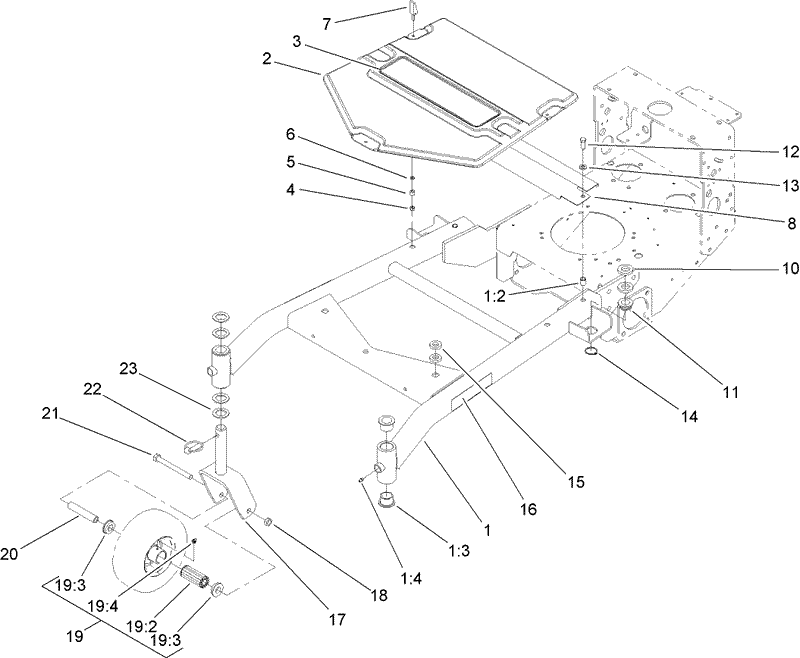

Carrier Frame Assembly
Carrier Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
110-6965
110-6965
|
|||
|
|
32148-9
32148-9
|
|||
|
|
94-1291
94-1291
|
|||
|
|
302-5
302-5
|
|||
|
|
110-6985
110-6985
|
|||
|
|
112-9711
112-9711
|
|||
|
|
1-804254
1-804254
|
|||
|
|
106-6778
106-6778
|
|||
|
|
99-3058
99-3058
|
|||
|
|
106-6777
106-6777
|
|||
|
|
110-6971-01
110-6971-01
|
|||
|
|
104-1105
104-1105
|
|||
|
|
1-513336
1-513336
|
|||
|
|
323-6
323-6
|
|||
|
|
3256-24
3256-24
|
|||
|
|
32120-33
32120-33
|
|||
|
|
1-323539
1-323539
|
|||
|
|
106-0635
106-0635
|
|||
|
|
105-3159-01
105-3159-01
|
|||
|
|
32153-5
32153-5
|
|||
|
|
110-5024
110-5024
|
|||
|
|
112-7066
112-7066
|
|||
|
|
1-513810
1-513810
|
|||
|
|
302-61
302-61
|
|||
|
|
100-6453
100-6453
|
|||
|
|
325-19
325-19
|
|||
|
|
283-71
283-71
|
|||
|
|
3-6781
3-6781
|

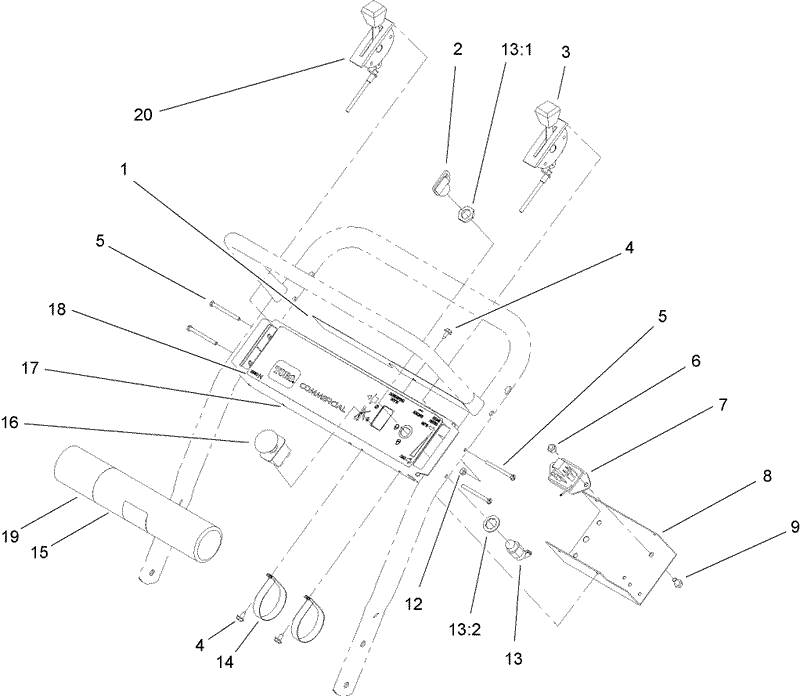

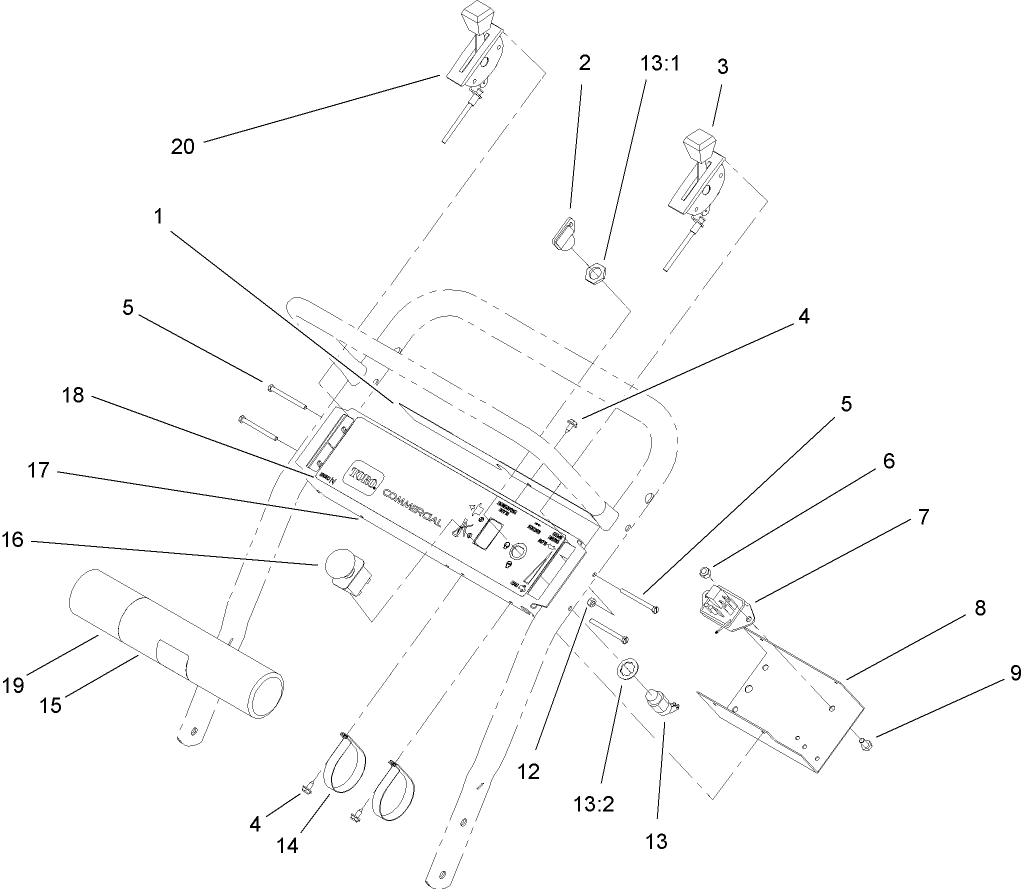

Control Panel Assembly
Control Panel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

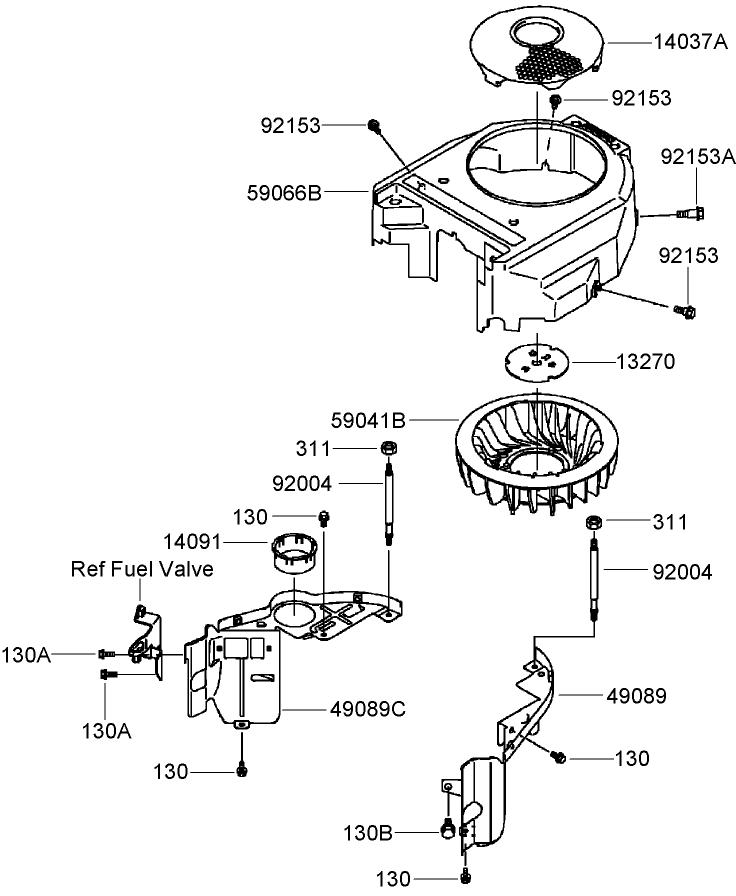

Cooling Equipment Assembly Kawasaki FH430V DS28
Cooling Equipment Assembly Kawasaki FH430V DS28
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
105-0884
105-0884
|
|||
|
|
63-8360
63-8360
|
|||
|
|
110-4994
110-4994
|
|||
|
|
32104-76
32104-76
|
|||
|
|
32105-14
32105-14
|
|||
|
|
3296-42
3296-42
|
|||
|
|
104-8141
104-8141
|
|||
|
|
93-1187-03
93-1187-03
|
|||
|
|
321-2
321-2
|
|||
|
|
3296-2
3296-2
|
|||
|
|
29-5560
29-5560
|
|||
|
|
218-461
218-461
|
|||
|
|
3254-5
3254-5
|
|||
|
|
2412-120
2412-120
|
|||
|
|
104-7050
104-7050
|
|||
|
|
104-8140
104-8140
|
|||
|
|
110-4982-03
110-4982-03
|
|||
|
|
110-4971
110-4971
|
|||
|
|
104-7048
104-7048
|
|||
|
|
110-4995
110-4995
|

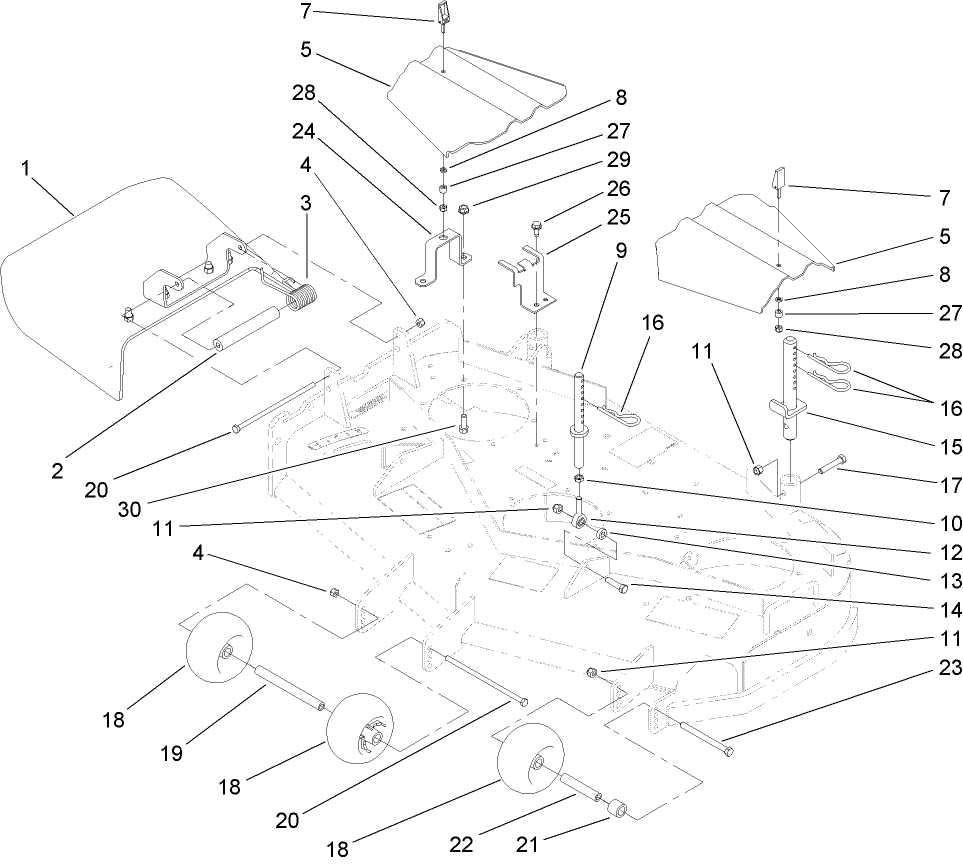

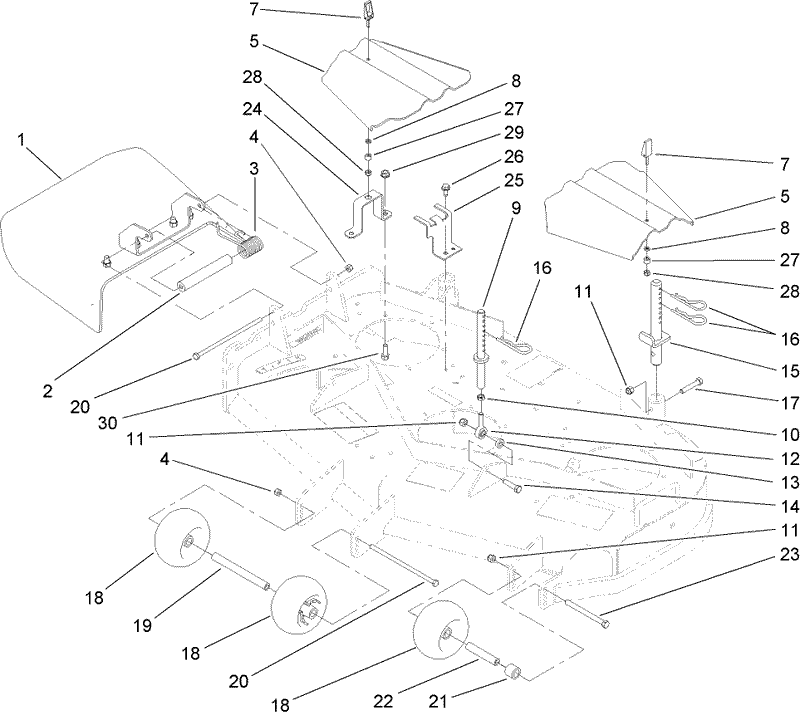

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

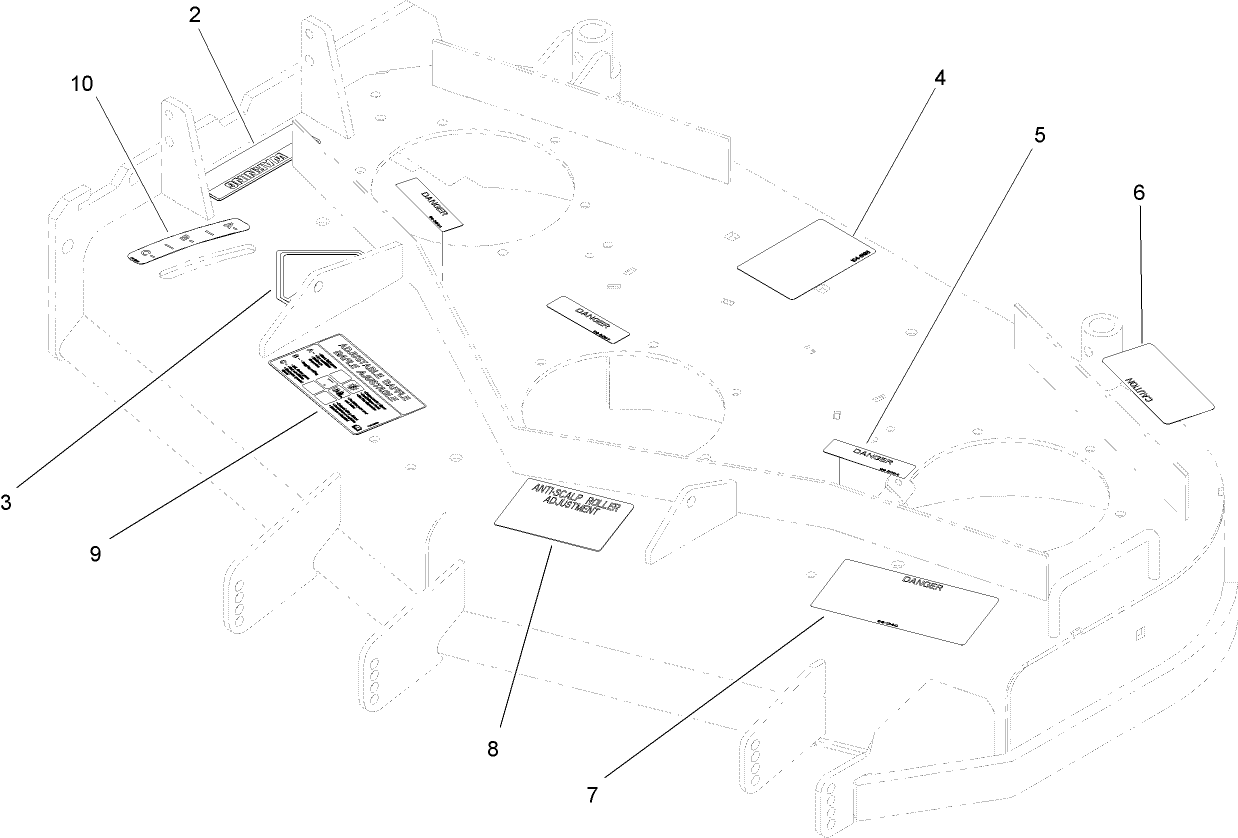

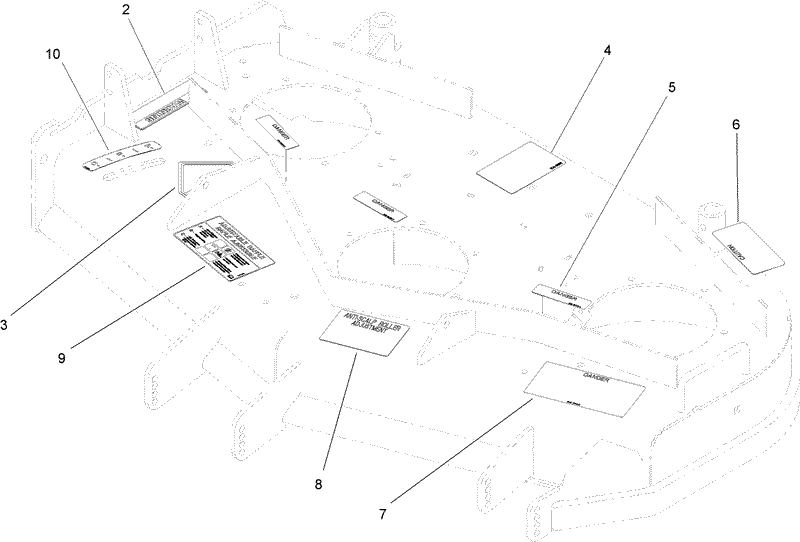

Deck Assembly No 112 7081.gif
Deck Assembly No 112 7081.gif
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

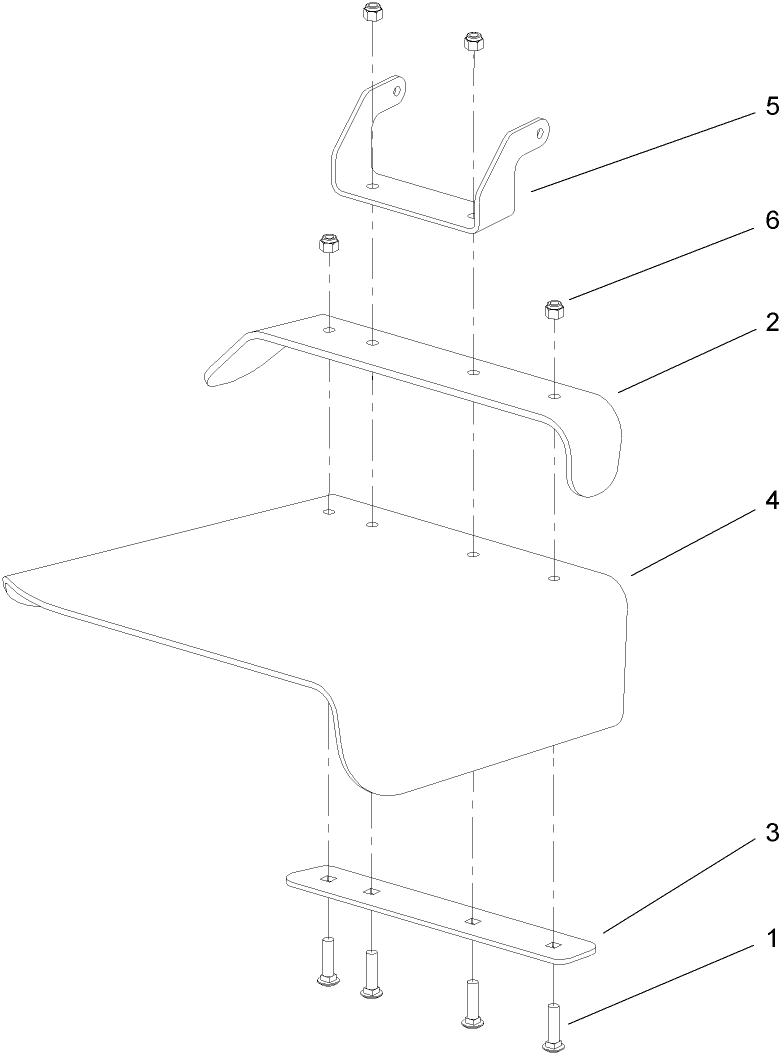

Deflector Assembly No 110 0790
Deflector Assembly No 110 0790
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
110-0790
110-0790
|
|||
|
|
105-4622
105-4622
|
|||
|
|
104-8554
104-8554
|
|||
|
|
3296-29
3296-29
|
|||
|
|
110-6984
110-6984
|
|||
|
|
106-6777
106-6777
|
|||
|
|
99-3058
99-3058
|
|||
|
|
108-2674
108-2674
|
|||
|
|
3220-3
3220-3
|
|||
|
|
3296-39
3296-39
|
|||
|
|
1-613204
1-613204
|
|||
|
|
104-1156
104-1156
|
|||
|
|
323-8
323-8
|
|||
|
|
110-2086
110-2086
|
|||
|
|
3290-256
3290-256
|
|||
|
|
323-10
323-10
|
|||
|
|
1-603299
1-603299
|
|||
|
|
98-5967
98-5967
|
|||
|
|
322-50
322-50
|
|||
|
|
98-7913
98-7913
|
|||
|
|
98-7912
98-7912
|
|||
|
|
323-23
323-23
|
|||
|
|
112-7053-01
112-7053-01
|
|||
|
|
112-7054-01
112-7054-01
|
|||
|
|
32144-70
32144-70
|
|||
|
|
106-6778
106-6778
|
|||
|
|
1-804254
1-804254
|
|||
|
|
3290-357
3290-357
|
|||
|
|
95-1726
95-1726
|

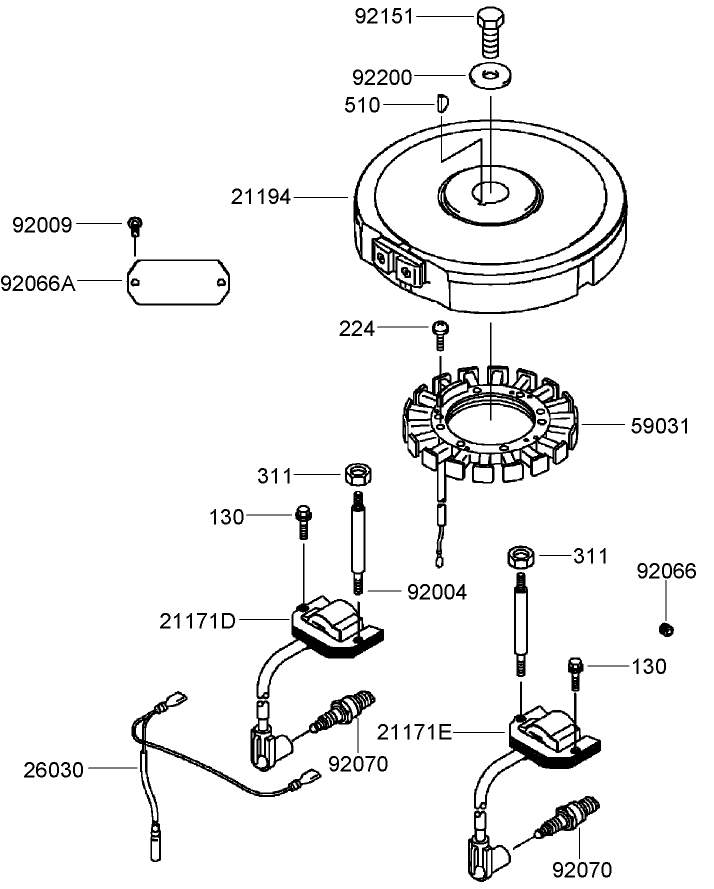

Electric Equipment Assembly Kawasaki FH430V DS28
Electric Equipment Assembly Kawasaki FH430V DS28
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-8569
104-8569
|
|||
|
|
43-8480
43-8480
|
|||
|
|
104-8186
104-8186
|
|||
|
|
98-5954
98-5954
|
|||
|
|
68-8340
68-8340
|
|||
|
|
66-1340
66-1340
|
|||
|
|
105-7798
105-7798
|
|||
|
|
110-2068
110-2068
|
|||
|
|
110-2067
110-2067
|
Label Assembly Kawasaki FH430V DS28
Label Assembly Kawasaki FH430V DS28
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
112-7081
112-7081
|
|||
|
|
110-6972
110-6972
|
|||
|
|
3256-24
3256-24
|
|||
|
|
3231-22
3231-22
|
|||
|
|
98-5980
98-5980
|
|||
|
|
110-6975
110-6975
|
|||
|
|
105-0850
105-0850
|
|||
|
|
3290-357
3290-357
|
|||
|
|
32128-21
32128-21
|
|||
|
|
95-1726
95-1726
|
|||
|
|
108-2728
108-2728
|
|||
|
|
302-11
302-11
|
|||
|
|
256-90
256-90
|
|||
|
|
3296-39
3296-39
|
|||
|
|
52-2860
52-2860
|
|||
|
|
93-1622
93-1622
|
|||
|
|
9202414
9202414
|
|||
|
|
51-3650
51-3650
|
|||
|
|
323-9
323-9
|
|||
|
|
112-7091
112-7091
|
|||
|
|
110-0728
110-0728
|
|||
|
|
108-4081-03
108-4081-03
|
|||
|
|
51-4060
51-4060
|
|||
|
|
103-0865
103-0865
|
|||
|
|
322-6
322-6
|
|||
|
|
323-14
323-14
|
|||
|
|
110-6927
110-6927
|
|||
|
|
3256-3
3256-3
|
|||
|
|
32128-13
32128-13
|
|||
|
|
110-6910-03
110-6910-03
|
|||
|
|
110-6940-03
110-6940-03
|
|||
|
|
108-7273-01
108-7273-01
|
|||
|
|
108-7282-01
108-7282-01
|
|||
|
|
3231-1
3231-1
|
|||
|
|
107-1664
107-1664
|
|||
|
|
32128-19
32128-19
|
|||
|
|
110-6973
110-6973
|
|||
|
|
323-4
323-4
|
Lever Assembly No 107 1664
Lever Assembly No 107 1664
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3231-4
3231-4
|
|||
|
|
110-0792-01
110-0792-01
|
|||
|
|
110-0793-03
110-0793-03
|
|||
|
|
110-0791
110-0791
|
|||
|
|
107-4164-01
107-4164-01
|
|||
|
|
3296-39
3296-39
|

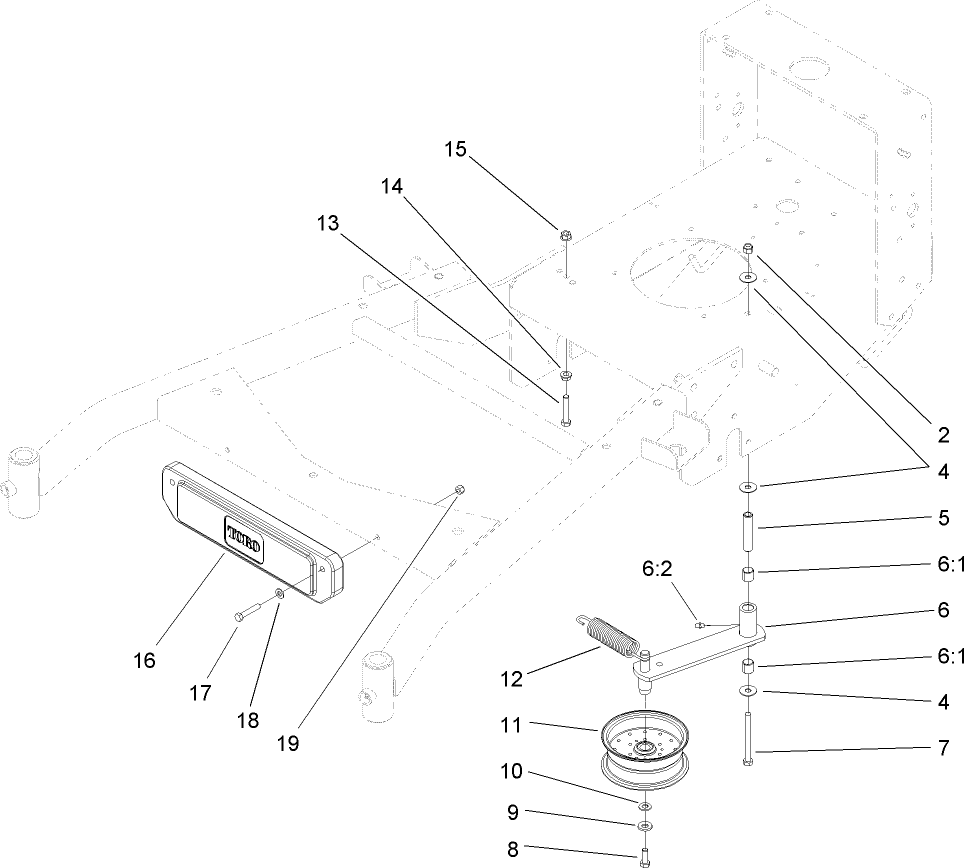

Power Take Off Idler and Weight Assembly
Power Take Off Idler and Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
Spindle Assembly No 110 0728
Spindle Assembly No 110 0728
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
56-6360
56-6360
|
|||
|
|
|
|||
|
|
2412-87
2412-87
|
|||
|
|
106-0699
106-0699
|
|||
|
|
2412-72
2412-72
|
|||
|
|
103-1966
103-1966
|
|||
|
|
92-6877
92-6877
|
|||
|
|
119-6508
119-6508
|
|||
|
|
32128-20
32128-20
|
|||
|
|
3255-8
3255-8
|
|||
|
|
112-7069
112-7069
|
|||
|
|
104-6373
104-6373
|
|||
|
|
1-613235
1-613235
|
|||
|
|
1-633630
1-633630
|
|||
|
|
1-633545
1-633545
|
|||
|
|
1-633543-03
1-633543-03
|
|||
|
|
322-11
322-11
|
|||
|
|
3256-23
3256-23
|
|||
|
|
322-7
322-7
|
|||
|
|
2412-134
2412-134
|
|||
|
|
3212-9
3212-9
|
|||
|
|
1-543610
1-543610
|
|||
|
|
105-2635
105-2635
|
|||
|
|
107-4112
107-4112
|
|||
|
|
608006
608006
|
|||
|
|
94-5847-01
94-5847-01
|
|||
|
|
12-3270
12-3270
|
|||
|
|
1-603610
1-603610
|
|||
|
|
322-9
322-9
|
|||
|
|
3290-378
3290-378
|
|||
|
|
103-1964
103-1964
|
Spindle Assembly No 110 6927
Spindle Assembly No 110 6927
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
88-3980
88-3980
|
|||
|
|
88-4010
88-4010
|
|||
|
|
106-0730
106-0730
|
|||
|
|
103-2605
103-2605
|
|||
|
|
104-8121
104-8121
|
|||
|
|
3256-23
3256-23
|
|||
|
|
1-633349
1-633349
|
|||
|
|
3296-47
3296-47
|
|||
|
|
110-4985-01
110-4985-01
|
|||
|
|
2412-98
2412-98
|
|||
|
|
110-4894
110-4894
|
|||
|
|
1-603770
1-603770
|
|||
|
|
107-0588
107-0588
|
|||
|
|
322-4
322-4
|
|||
|
|
3253-4
3253-4
|
|||
|
|
95-2814
95-2814
|
|||
|
|
98-0776
98-0776
|

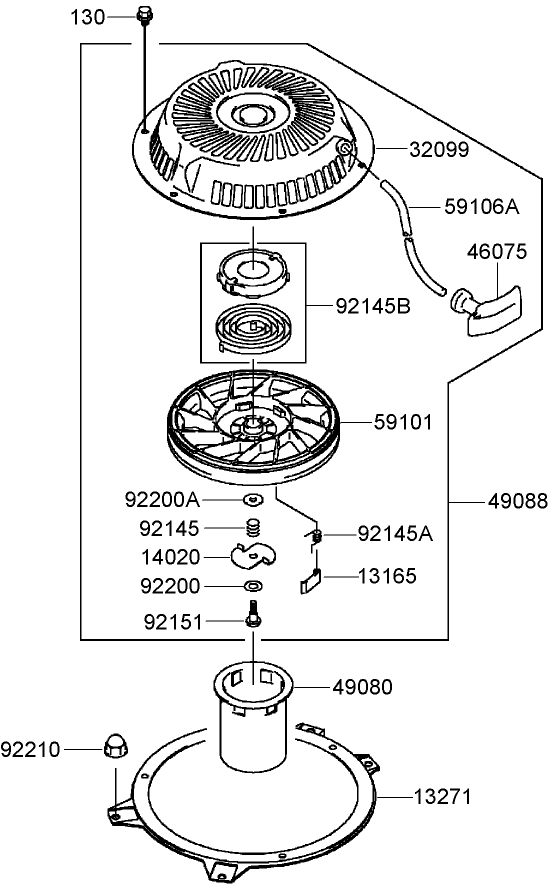

Starter Assembly Kawasaki FH430V DS28
Starter Assembly Kawasaki FH430V DS28
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

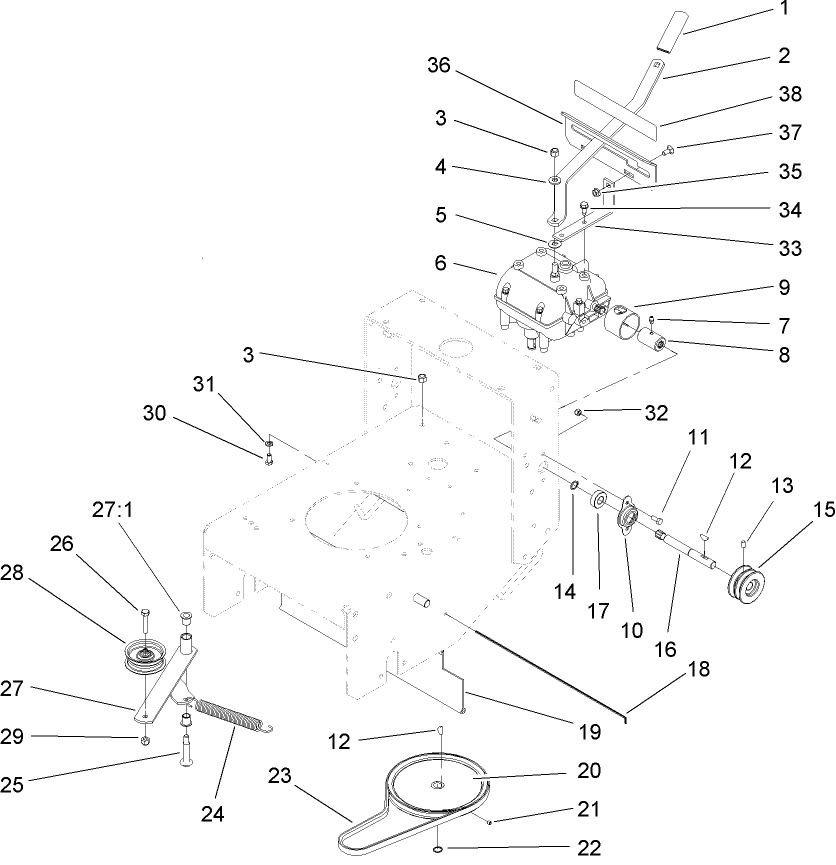

Transmission Drive Assembly
Transmission Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|

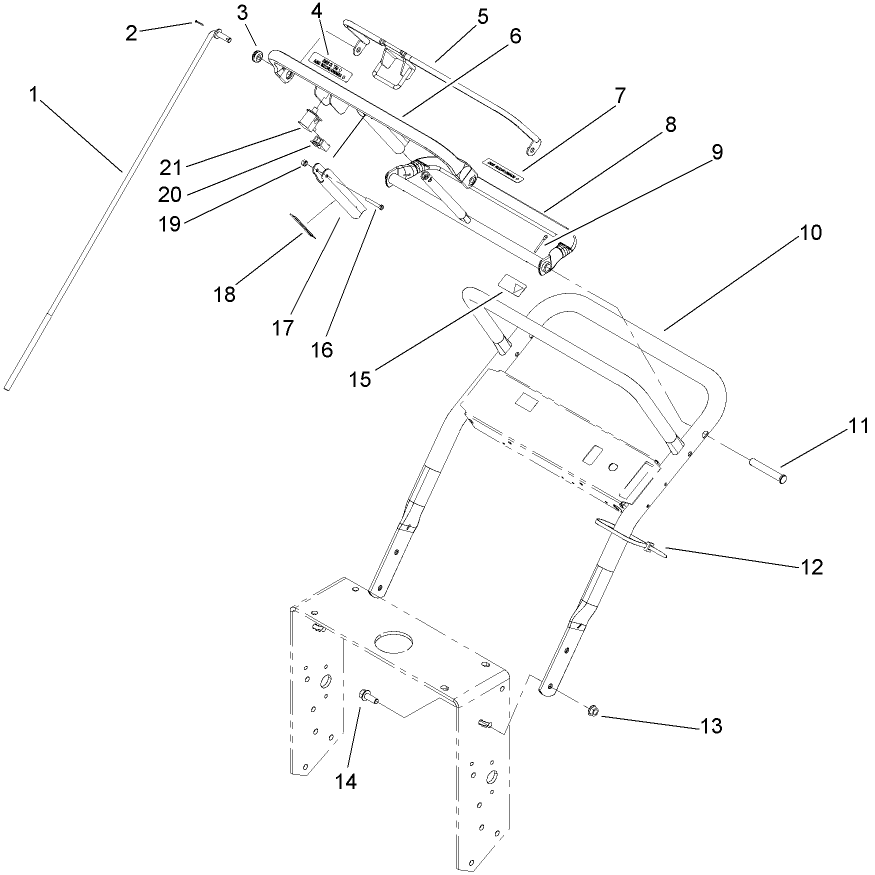

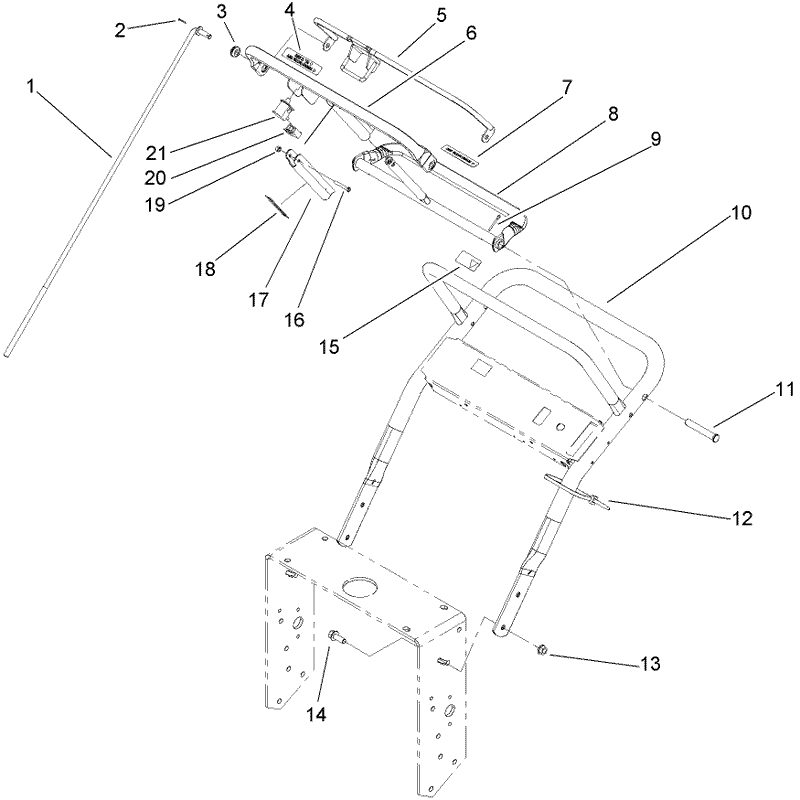

Upper Handle Assembly
Upper Handle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
106-3239
106-3239
|
|||
|
|
107-1644
107-1644
|
|||
|
|
107-1664
107-1664
|
|||
|
|
3296-29
3296-29
|

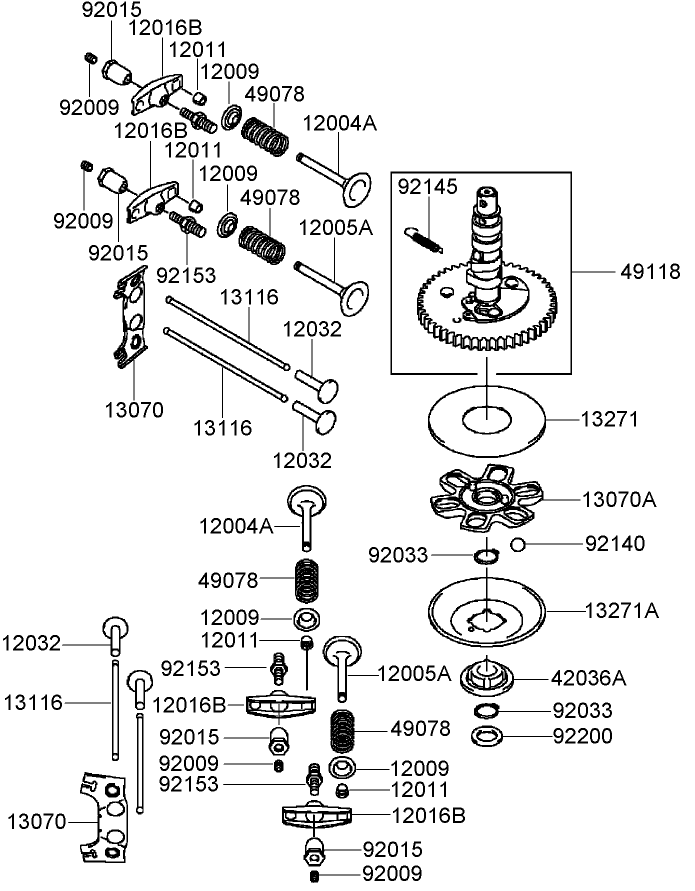

Valve and Camshaft Assembly Kawasaki FH430V DS28
Valve and Camshaft Assembly Kawasaki FH430V DS28
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32103-25
32103-25
|
|||
|
|
3256-23
3256-23
|
|||
|
|
1-806003
1-806003
|
|||
|
|
52-2890
52-2890
|
|||
|
|
74-0521
74-0521
|
|||
|
|
283-6
283-6
|
|||
|
|
74-0040
74-0040
|
|||
|
|
108-2725-01
108-2725-01
|
|||
|
|
108-2724-01
108-2724-01
|
|||
|
|
323-16
323-16
|
|||
|
|
323-7
323-7
|
|||
|
|
3296-23
3296-23
|
|||
|
|
95-2800
95-2800
|
|||
|
|
95-2801
95-2801
|
|||
|
|
108-2740-01
108-2740-01
|
|||
|
|
108-2741-01
108-2741-01
|
|||
|
|
51-4450
51-4450
|
|||
|
|
68-9690
68-9690
|
|||
|
|
51-4380
51-4380
|
|||
|
|
51-4370
51-4370
|
|||
|
|
3296-39
3296-39
|
|||
|
|
3234-32
3234-32
|
|||
|
|
32128-23
32128-23
|

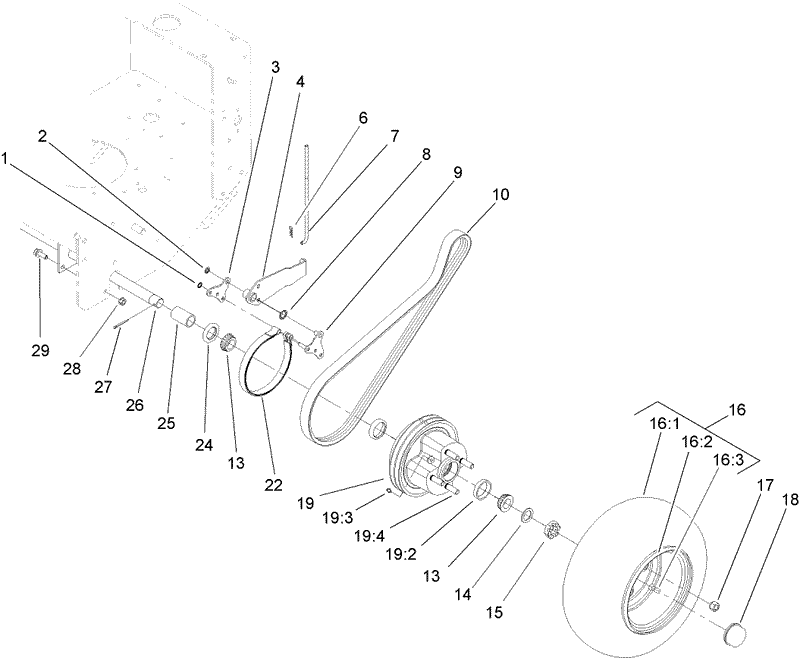

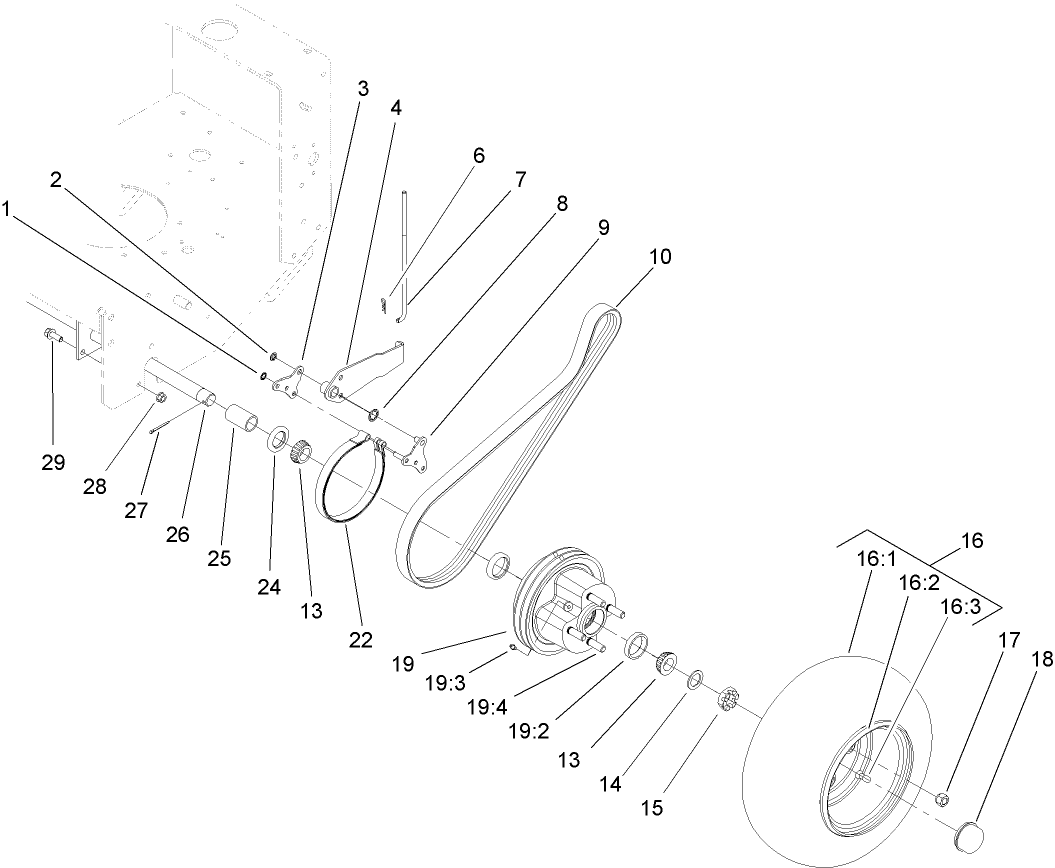

Wheel Drive and Brake Assembly
Wheel Drive and Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
