Toro 68142 Ultra Buggy e2500-THL (Serial #: 420600000 - 999999999) Parts Diagram
Diagrams:
Diagram:

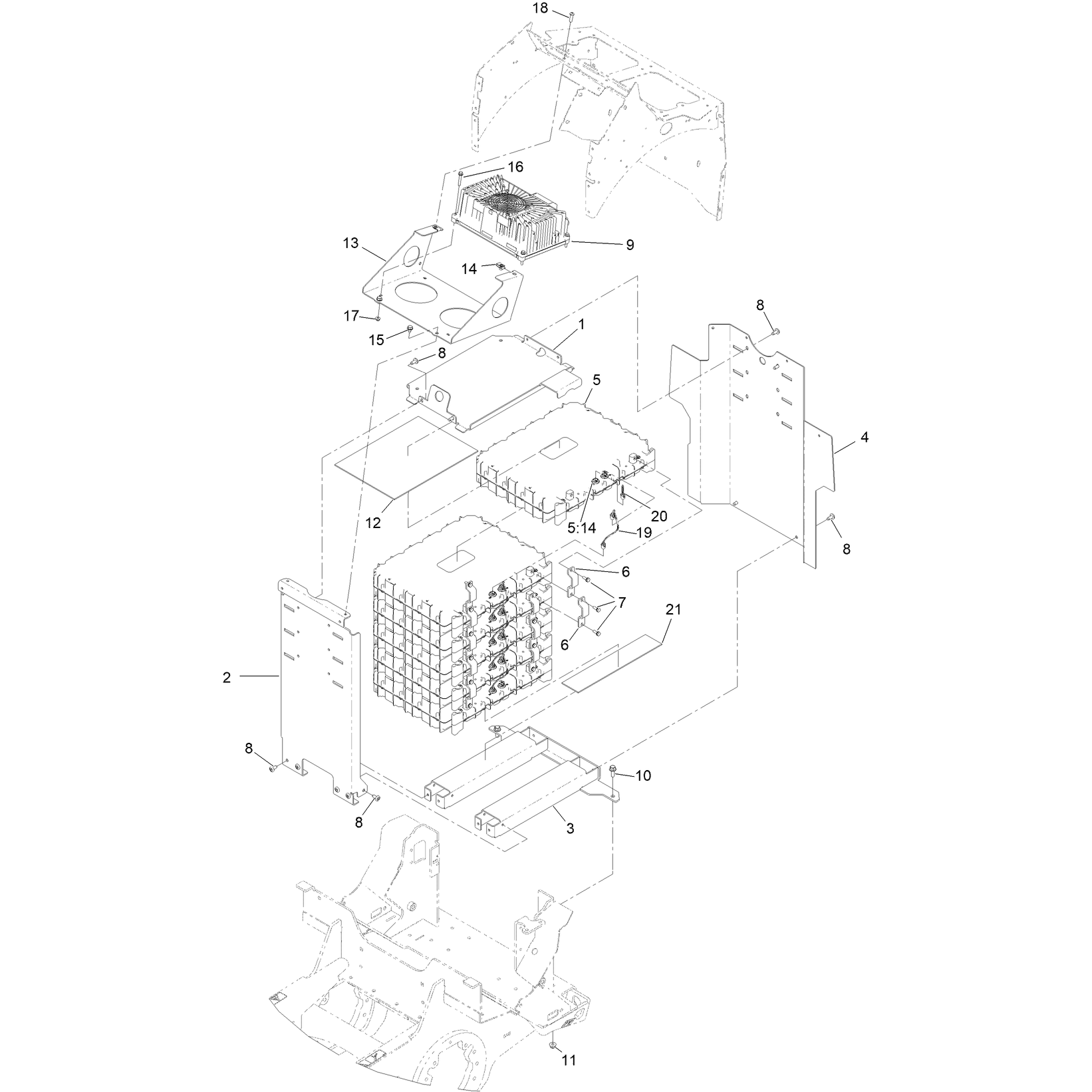

Battery Assembly
Battery Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
145-5338
145-5338
|
|||
|
|
161-5565-05
161-5565-05
|
|||
|
|
161-5563-05
161-5563-05
|
|||
|
|
161-5568-05
161-5568-05
|
|||
|
|
161-5564-05
161-5564-05
|
|||
|
|
145-5320
145-5320
|
|||
|
|
32180-466
32180-466
|
|||
|
|
147-3877
147-3877
|
|||
|
|
145-5783
145-5783
|
|||
|
|
138-9753
138-9753
|
|||
|
|
145-5393
145-5393
|
|||
|
|
3234-42
3234-42
|
|||
|
|
119-4042
119-4042
|
|||
|
|
145-2366
145-2366
|
|||
|
|
161-9549-05
161-9549-05
|
|||
|
|
112-3306
112-3306
|
|||
|
|
9266934
9266934
|
|||
|
|
94-5781
94-5781
|
|||
|
|
104-7201
104-7201
|
|||
|
|
109-4872
109-4872
|
|||
|
|
140-9565
140-9565
|
|||
|
|
122-2323
122-2323
|
|||
|
|
163-4489
163-4489
|

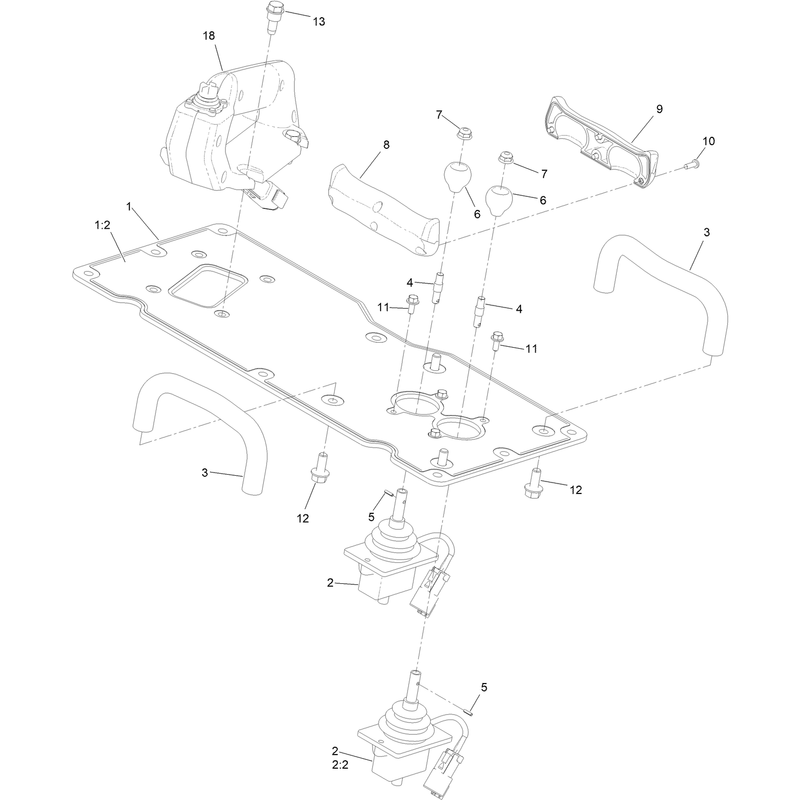

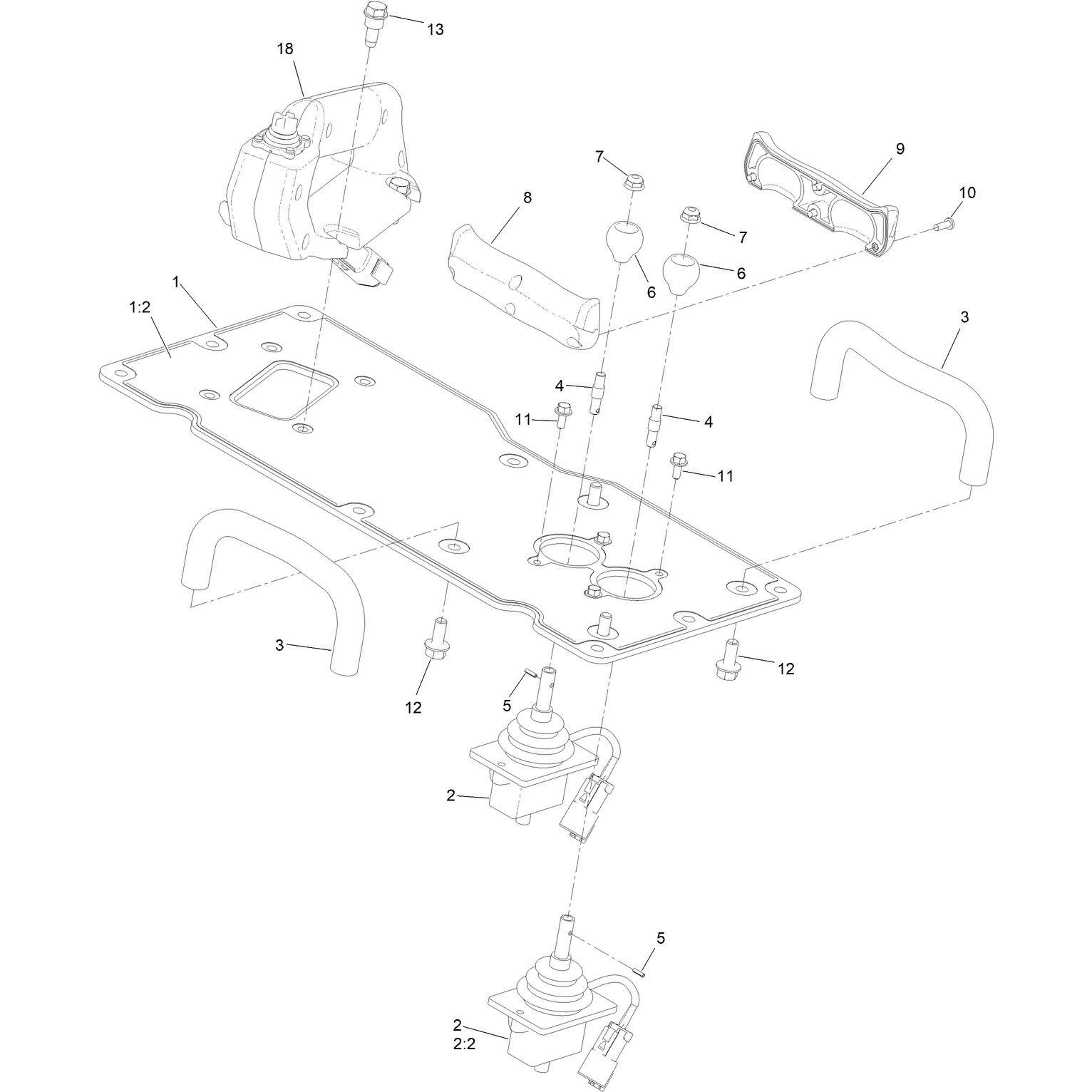

Control Assembly No. 163-2672
Control Assembly No. 163-2672
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
163-2653
163-2653
|
|||
|
|
147-9720
147-9720
|
|||
|
|
136-4784
136-4784
|
|||
|
|
136-4894
136-4894
|
|||
|
|
138-4693
138-4693
|
|||
|
|
137-0431
137-0431
|
|||
|
|
137-0432
137-0432
|
|||
|
|
130-7723
130-7723
|
|||
|
|
104-7201
104-7201
|
|||
|
|
139-1167
139-1167
|
|||
|
|
139-1166
139-1166
|
|||
|
|
94-6961
94-6961
|
|||
|
|
120-4579
120-4579
|
|||
|
|
3234-5
3234-5
|
|||
|
|
115-1958
115-1958
|
|||
|
|
163-4409
163-4409
|

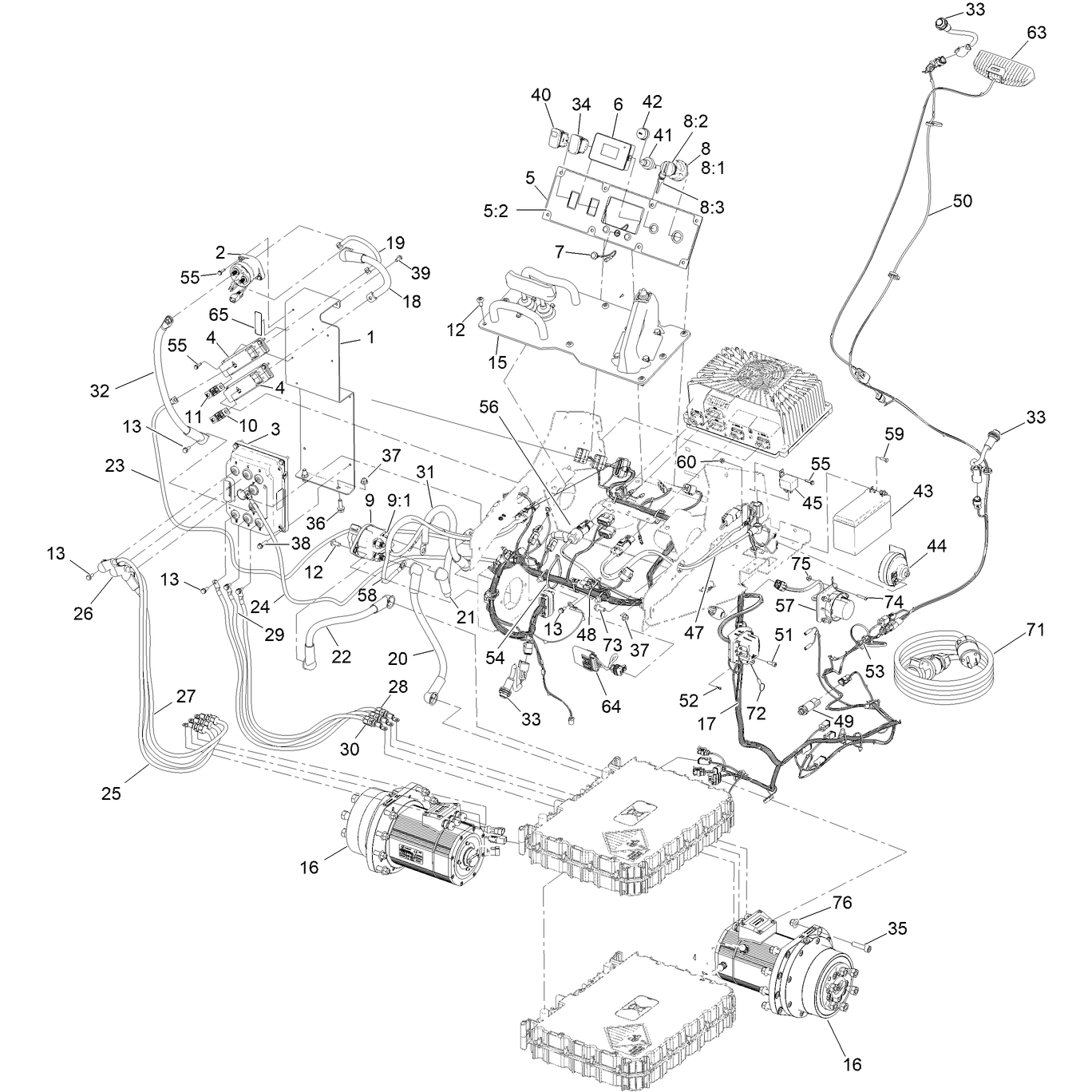

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3253-4
3253-4
|
|||
|
|
3256-74
3256-74
|
|||
|
|
237-78
237-78
|
|||
|
|
33014-00
33014-00
|
|||
|
|
147-9107
147-9107
|
|||
|
|
117-3207
117-3207
|
|||
|
|
117-3208
117-3208
|
|||
|
|
161-5579-05
161-5579-05
|
|||
|
|
122-2594
122-2594
|
|||
|
|
138-8984
138-8984
|
|||
|
|
145-4958
145-4958
|
|||
|
|
137-9288
137-9288
|
|||
|
|
147-9721
147-9721
|
|||
|
|
122-1201
122-1201
|
|||
|
|
136-9678
136-9678
|
|||
|
|
122-2513
122-2513
|
|||
|
|
121-5160
121-5160
|
|||
|
|
122-2704
122-2704
|
|||
|
|
121-5162
121-5162
|
|||
|
|
122-0603
122-0603
|
|||
|
|
33006-00
33006-00
|
|||
|
|
122-2959
122-2959
|
|||
|
|
122-2559
122-2559
|
|||
|
|
138-9753
138-9753
|
|||
|
|
145-5782
145-5782
|
|||
|
|
163-2672
163-2672
|
|||
|
|
163-4401
163-4401
|
|||
|
|
122-3106
122-3106
|
|||
|
|
122-3109
122-3109
|
|||
|
|
122-3111
122-3111
|
|||
|
|
122-3107
122-3107
|
|||
|
|
122-3108
122-3108
|
|||
|
|
122-3120
122-3120
|
|||
|
|
122-3121
122-3121
|
|||
|
|
122-3118
122-3118
|
|||
|
|
122-4194
122-4194
|
|||
|
|
122-4195
122-4195
|
|||
|
|
122-4196
122-4196
|
|||
|
|
122-4197
122-4197
|
|||
|
|
122-4198
122-4198
|
|||
|
|
122-4199
122-4199
|
|||
|
|
122-3119
122-3119
|
|||
|
|
122-3110
122-3110
|
|||
|
|
139-7238
139-7238
|
|||
|
|
112-9421
112-9421
|
|||
|
|
09718
09718
|
|||
|
|
3234-29
3234-29
|
|||
|
|
119-4041
119-4041
|
|||
|
|
32144-86
32144-86
|
|||
|
|
93-6083
93-6083
|
|||
|
|
122-2719
122-2719
|
|||
|
|
112-3324
112-3324
|
|||
|
|
112-3313
112-3313
|
|||
|
|
112-9621
112-9621
|
|||
|
|
116749
116749
|
|||
|
|
122-3200
122-3200
|
|||
|
|
122-3658
122-3658
|
|||
|
|
3290-378
3290-378
|
|||
|
|
119-0011
119-0011
|
|||
|
|
122-3691
122-3691
|
|||
|
|
105-2409
105-2409
|
|||
|
|
363-8289
363-8289
|
|||
|
|
3290-378
3290-378
|
|||
|
|
3290-379
3290-379
|
|||
|
|
100-4351
100-4351
|
|||
|
|
122-3656
122-3656
|
|||
|
|
122-4099
122-4099
|
|||
|
|
122-3659
122-3659
|
|||
|
|
60-6910
60-6910
|
|||
|
|
120-4580
120-4580
|
|||
|
|
126-7839
126-7839
|
|||
|
|
119-4330
119-4330
|
|||
|
|
161-5516
161-5516
|
|||
|
|
122-3491
122-3491
|
|||
|
|
163-4491
163-4491
|
|||
|
|
3234-47
3234-47
|
|||
|
|
108-3153
108-3153
|
|||
|
|
120-4578
120-4578
|
|||
|
|
103-9511
103-9511
|

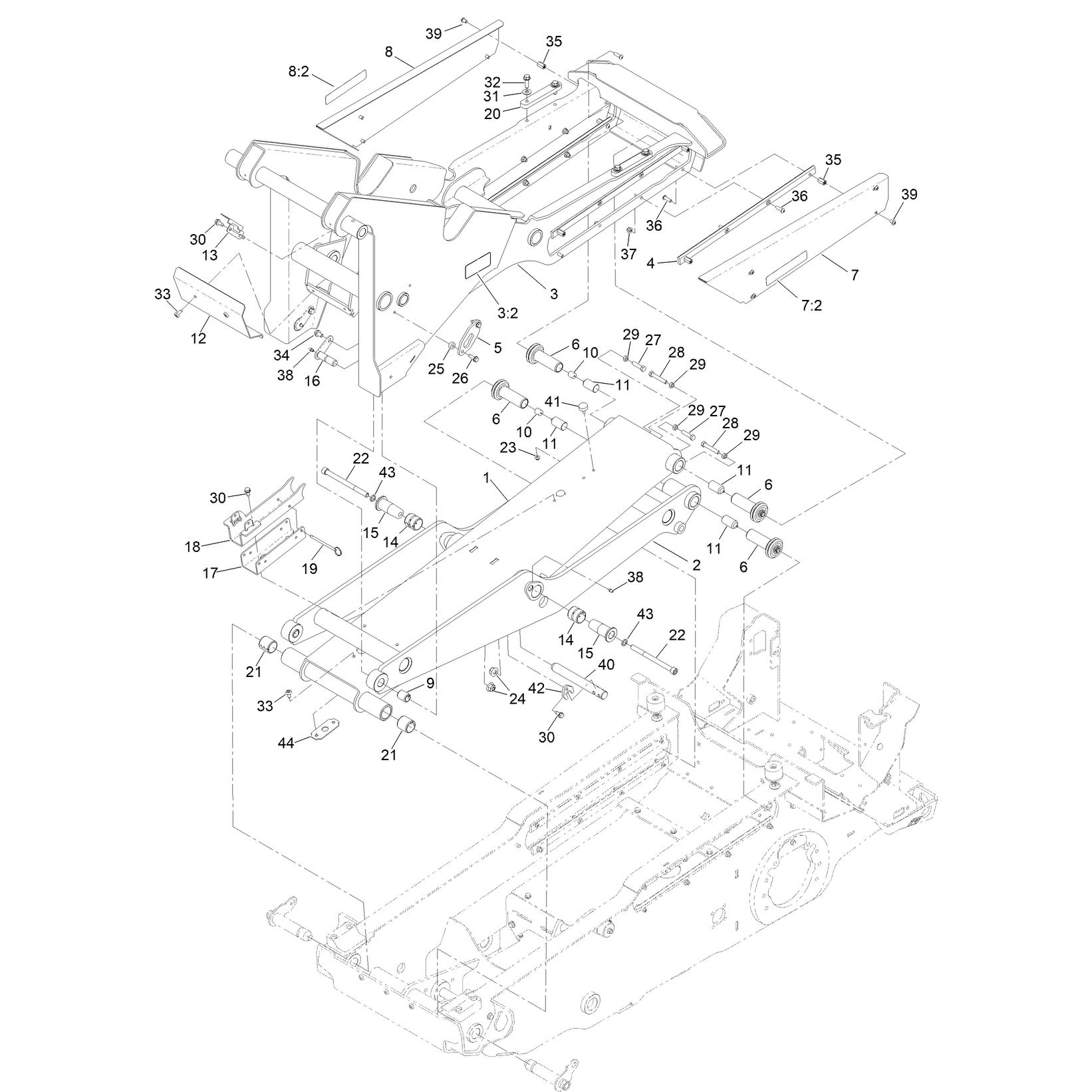

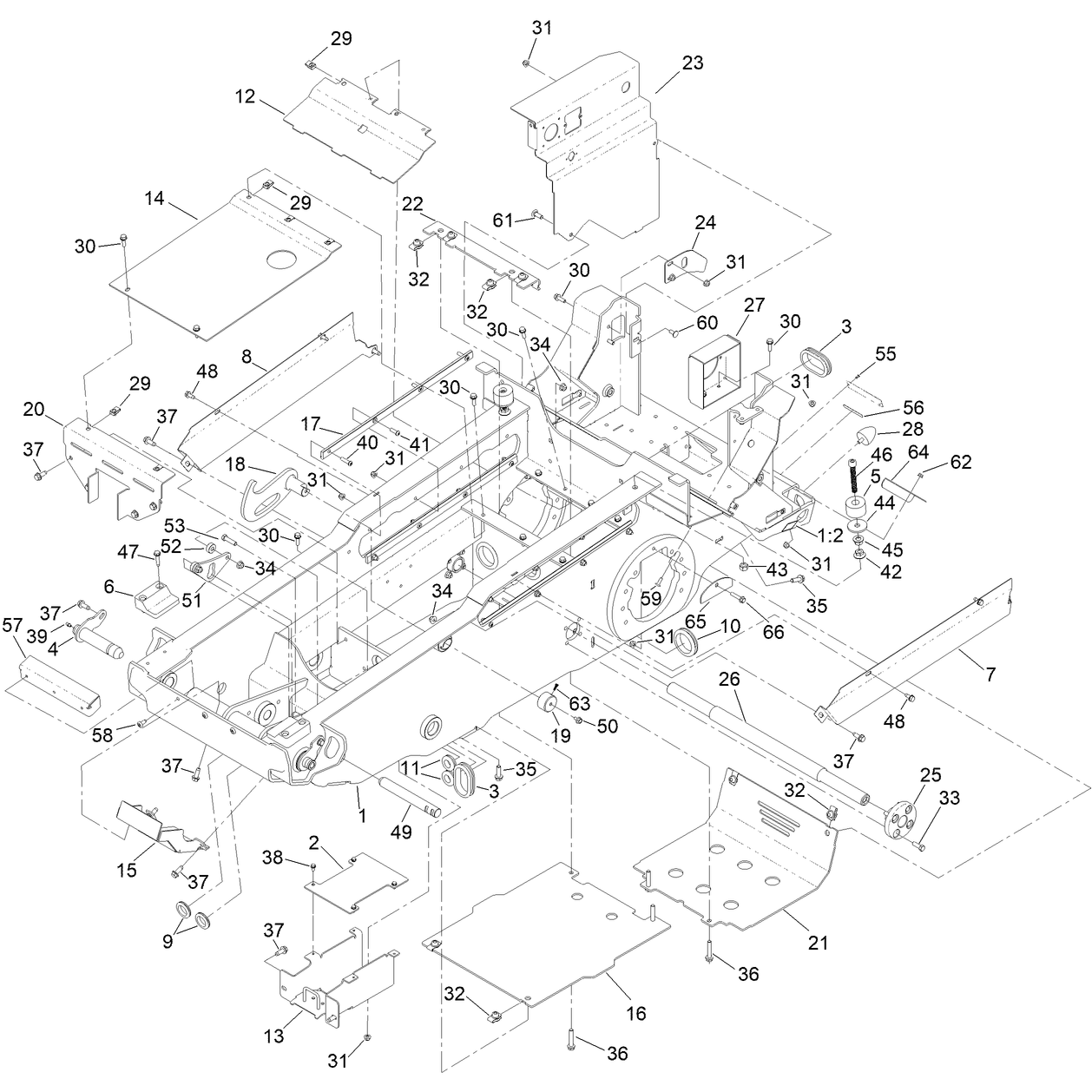

Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
163-4465
163-4465
|
|||
|
|
147-6707
147-6707
|
|||
|
|
163-2673-05
163-2673-05
|
|||
|
|
145-4923
145-4923
|
|||
|
|
161-9595
161-9595
|
|||
|
|
163-2697
163-2697
|
|||
|
|
163-2658
163-2658
|
|||
|
|
163-2698-05
163-2698-05
|
|||
|
|
163-2699-05
163-2699-05
|
|||
|
|
240-3
240-3
|
|||
|
|
126-0015
126-0015
|
|||
|
|
240-4
240-4
|
|||
|
|
161-5575-05
161-5575-05
|
|||
|
|
161-9568-05
161-9568-05
|
|||
|
|
161-5521-05
161-5521-05
|
|||
|
|
161-5511-05
161-5511-05
|
|||
|
|
161-7598-05
161-7598-05
|
|||
|
|
163-4420
163-4420
|
|||
|
|
163-4445-01
163-4445-01
|
|||
|
|
163-4432-01
163-4432-01
|
|||
|
|
161-7592-05
161-7592-05
|
|||
|
|
163-4476-05
163-4476-05
|
|||
|
|
163-2669-05
163-2669-05
|
|||
|
|
163-7931-05
163-7931-05
|
|||
|
|
161-7587
161-7587
|
|||
|
|
132-9075
132-9075
|
|||
|
|
161-3385
161-3385
|
|||
|
|
161-5580-05
161-5580-05
|
|||
|
|
114-1926
114-1926
|
|||
|
|
112-3306
112-3306
|
|||
|
|
3234-29
3234-29
|
|||
|
|
119-4041
119-4041
|
|||
|
|
105-4886
105-4886
|
|||
|
|
323-18
323-18
|
|||
|
|
119-4042
119-4042
|
|||
|
|
119-4061
119-4061
|
|||
|
|
108-3742
108-3742
|
|||
|
|
139-2428
139-2428
|
|||
|
|
9266714
9266714
|
|||
|
|
302-5
302-5
|
|||
|
|
3290-511
3290-511
|
|||
|
|
109-4872
109-4872
|
|||
|
|
32128-56
32128-56
|
|||
|
|
3217-9
3217-9
|
|||
|
|
75-7730
75-7730
|
|||
|
|
139-1689
139-1689
|
|||
|
|
163-2696
163-2696
|
|||
|
|
32144-57
32144-57
|
|||
|
|
32144-11
32144-11
|
|||
|
|
161-5500
161-5500
|
|||
|
|
3234-28
3234-28
|
|||
|
|
161-8054-05
161-8054-05
|
|||
|
|
135-0456
135-0456
|
|||
|
|
323-8
323-8
|
|||
|
|
3290-271
3290-271
|
|||
|
|
133-8061
133-8061
|
|||
|
|
163-4405-05
163-4405-05
|
|||
|
|
138-9753
138-9753
|
|||
|
|
1-807512
1-807512
|
|||
|
|
137-3061
137-3061
|
|||
|
|
3231-22
3231-22
|
|||
|
|
104-7201
104-7201
|
|||
|
|
163-4447
163-4447
|
|||
|
|
163-4490-05
163-4490-05
|
|||
|
|
163-4495-05
163-4495-05
|
|||
|
|
115-1794
115-1794
|

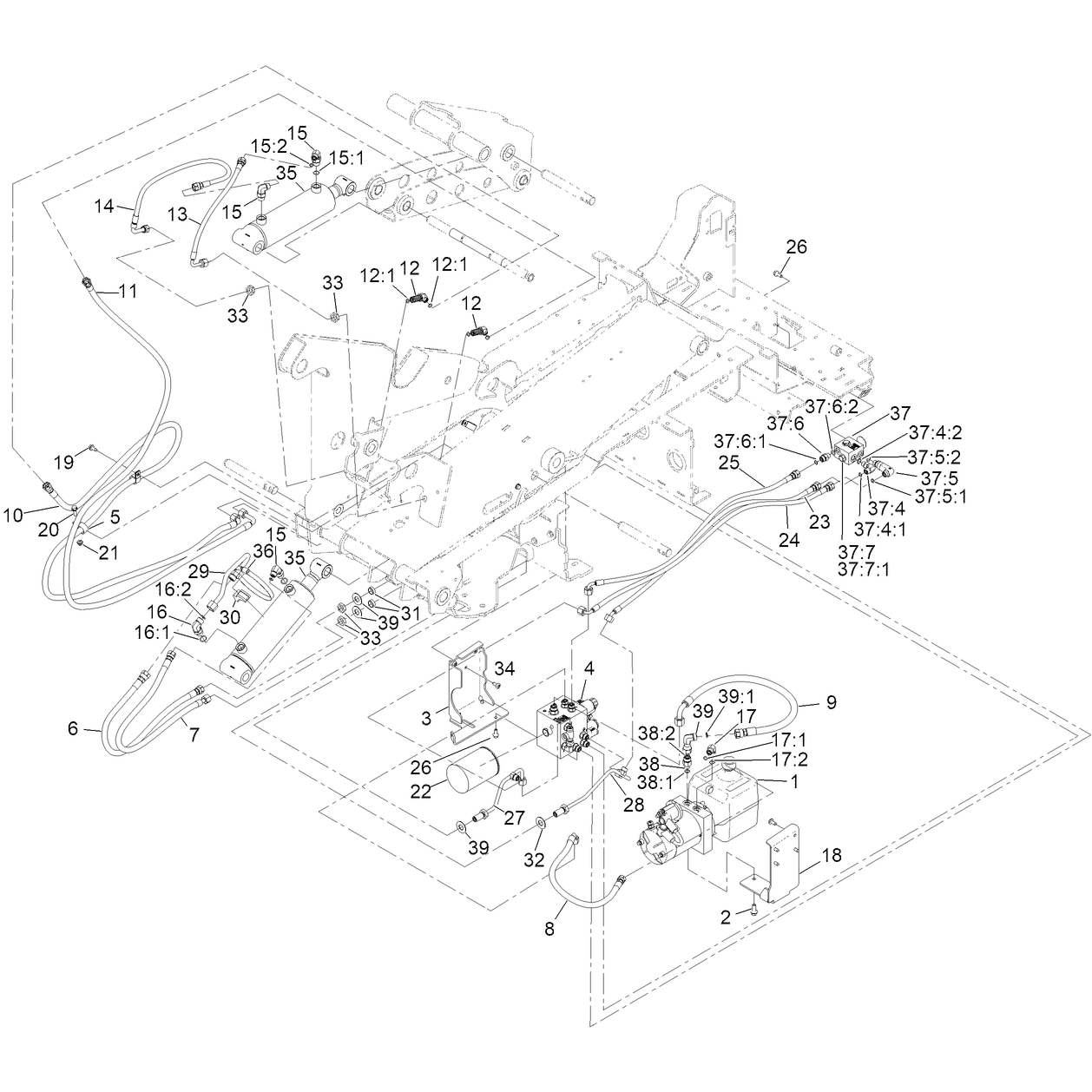

Hydraulic Assembly
Hydraulic Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
147-3542
147-3542
|
|||
|
|
3234-42
3234-42
|
|||
|
|
161-7582-05
161-7582-05
|
|||
|
|
161-9506
161-9506
|
|||
|
|
110-0824
110-0824
|
|||
|
|
161-5508
161-5508
|
|||
|
|
161-5510
161-5510
|
|||
|
|
161-8070
161-8070
|
|||
|
|
161-8071
161-8071
|
|||
|
|
161-9565
161-9565
|
|||
|
|
161-8075
161-8075
|
|||
|
|
340-69
340-69
|
|||
|
|
237-22
237-22
|
|||
|
|
161-8076
161-8076
|
|||
|
|
161-8077
161-8077
|
|||
|
|
340-18
340-18
|
|||
|
|
237-79
237-79
|
|||
|
|
237-22
237-22
|
|||
|
|
340-98
340-98
|
|||
|
|
237-79
237-79
|
|||
|
|
237-30
237-30
|
|||
|
|
340-77
340-77
|
|||
|
|
237-22
237-22
|
|||
|
|
237-42
237-42
|
|||
|
|
161-7581-05
161-7581-05
|
|||
|
|
32144-11
32144-11
|
|||
|
|
3234-29
3234-29
|
|||
|
|
119-4041
119-4041
|
|||
|
|
86-3010
86-3010
|
|||
|
|
161-8078
161-8078
|
|||
|
|
161-8072
161-8072
|
|||
|
|
161-8073
161-8073
|
|||
|
|
3234-47
3234-47
|
|||
|
|
161-9540
161-9540
|
|||
|
|
161-9541
161-9541
|
|||
|
|
161-9551
161-9551
|
|||
|
|
161-9570
161-9570
|
|||
|
|
69-8970
69-8970
|
|||
|
|
69-8940
69-8940
|
|||
|
|
340-70
340-70
|
|||
|
|
138-9753
138-9753
|
|||
|
|
161-3381
161-3381
|
|||
|
|
138-9005
138-9005
|
|||
|
|
163-4411
163-4411
|
|||
|
|
340-77
340-77
|
|||
|
|
237-22
237-22
|
|||
|
|
237-42
237-42
|
|||
|
|
145-2645
145-2645
|
|||
|
|
237-22
237-22
|
|||
|
|
237-42
237-42
|
|||
|
|
340-2
340-2
|
|||
|
|
237-22
237-22
|
|||
|
|
237-42
237-42
|
|||
|
|
353-508
353-508
|
|||
|
|
237-42
237-42
|
|||
|
|
340-5
340-5
|
|||
|
|
237-42
237-42
|
|||
|
|
237-30
237-30
|
|||
|
|
94-6031
94-6031
|
|||
|
|
237-30
237-30
|
Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
147-9741-05
147-9741-05
|
|||
|
|
161-3322-05
161-3322-05
|
|||
|
|
137-9291
137-9291
|
|||
|
|
125-4959
125-4959
|
|||
|
|
163-4420
163-4420
|
|||
|
|
161-7594-05
161-7594-05
|
|||
|
|
163-4404
163-4404
|
|||
|
|
137-9292
137-9292
|
|||
|
|
115-4858
115-4858
|
|||
|
|
137-9293
137-9293
|
|||
|
|
115-4858
115-4858
|
|||
|
|
161-3312
161-3312
|
|||
|
|
161-3378
161-3378
|
|||
|
|
161-3379
161-3379
|
|||
|
|
161-9510-05
161-9510-05
|
|||
|
|
161-7572-05
161-7572-05
|
|||
|
|
147-6875
147-6875
|
|||
|
|
161-9585
161-9585
|
|||
|
|
120-5575
120-5575
|
|||
|
|
161-7570-05
161-7570-05
|
|||
|
|
163-7916
163-7916
|
|||
|
|
161-7595
161-7595
|
|||
|
|
163-2685
163-2685
|
|||
|
|
139-5737
139-5737
|
|||
|
|
161-9597
161-9597
|
|||
|
|
104-7201
104-7201
|
|||
|
|
142-7784
142-7784
|
|||
|
|
140-3461
140-3461
|
|||
|
|
701243
701243
|
|||
|
|
323-50
323-50
|
|||
|
|
104-3396
104-3396
|
|||
|
|
3217-7
3217-7
|
|||
|
|
32144-11
32144-11
|
|||
|
|
3256-4
3256-4
|
|||
|
|
32144-109
32144-109
|
|||
|
|
138-9753
138-9753
|
|||
|
|
32144-15
32144-15
|
|||
|
|
161-8080
161-8080
|
|||
|
|
109-4872
109-4872
|
|||
|
|
119-4041
119-4041
|
|||
|
|
302-5
302-5
|
|||
|
|
131-1884
131-1884
|
|||
|
|
161-5500
161-5500
|
|||
|
|
138-2662
138-2662
|
|||
|
|
137-9285-05
137-9285-05
|
|||
|
|
62-7120
62-7120
|
|||
|
|
161-7588-05
161-7588-05
|

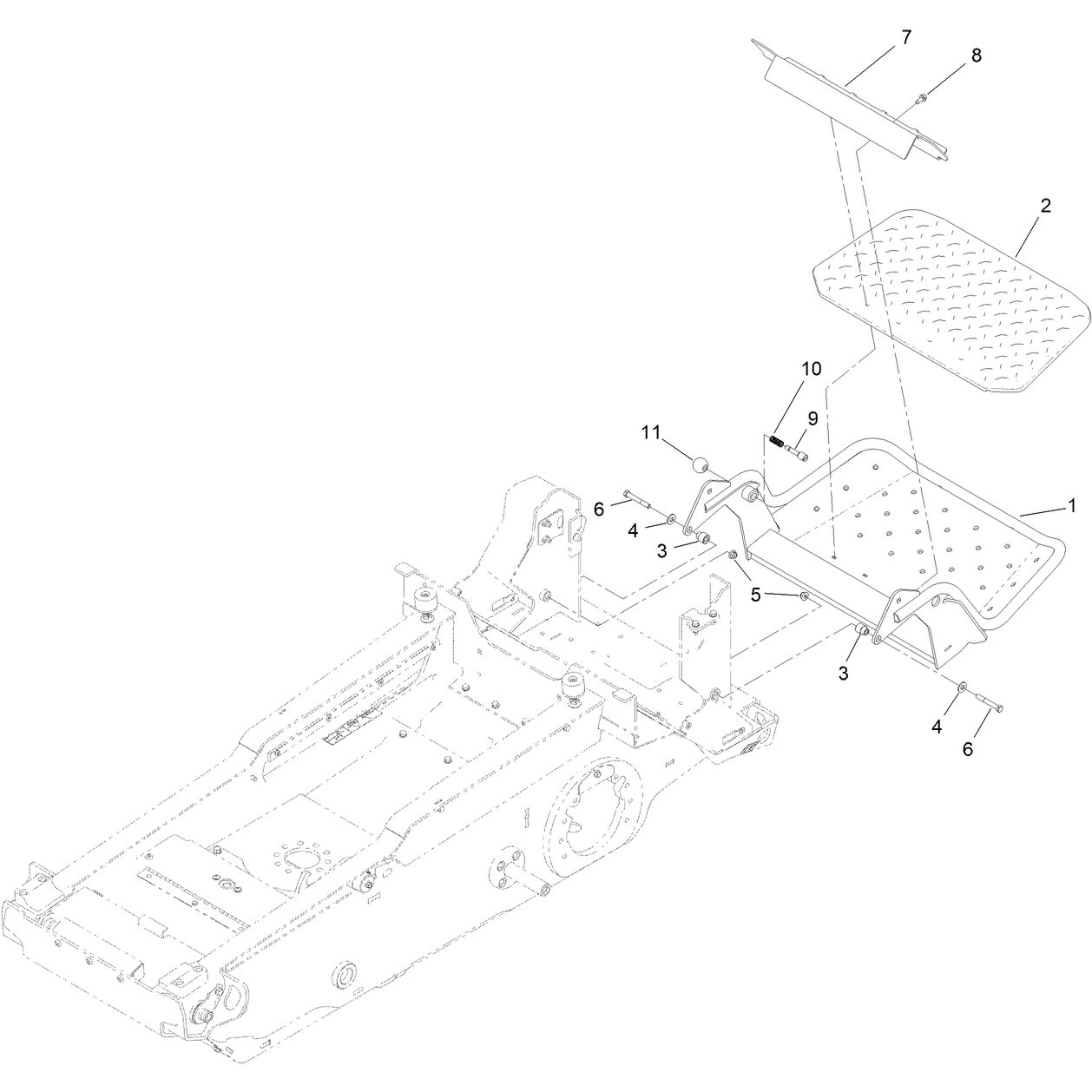

Platform Assembly
Platform Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
161-6796-05
161-6796-05
|
|||
|
|
126-7157
126-7157
|
|||
|
|
132-7583
132-7583
|
|||
|
|
3256-4
3256-4
|
|||
|
|
119-4042
119-4042
|
|||
|
|
323-13
323-13
|
|||
|
|
136-5669-05
136-5669-05
|
|||
|
|
32144-70
32144-70
|
|||
|
|
119-8650
119-8650
|
|||
|
|
114-5348
114-5348
|
|||
|
|
1-603175
1-603175
|

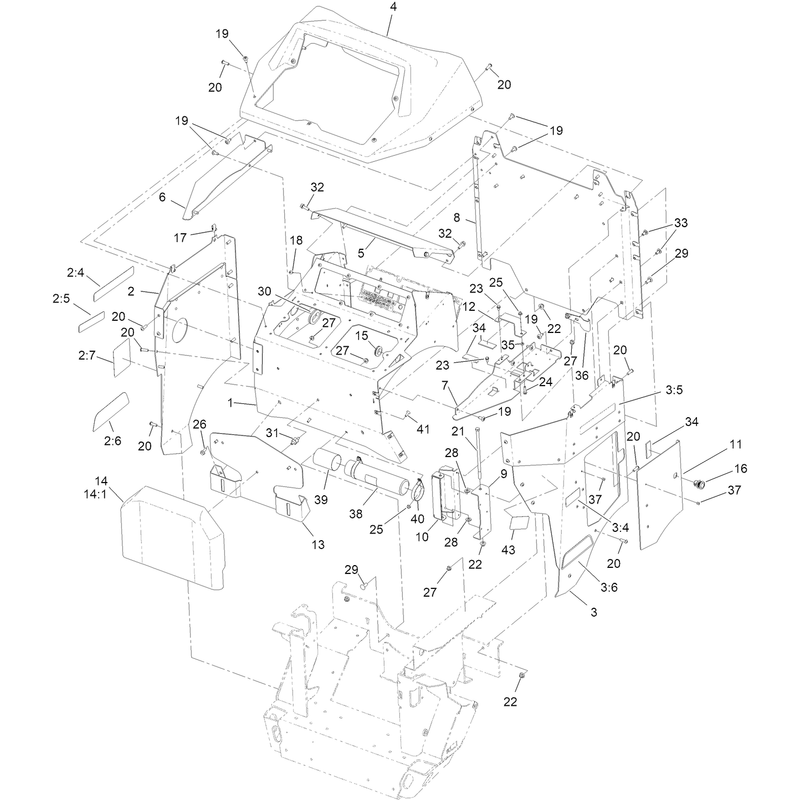

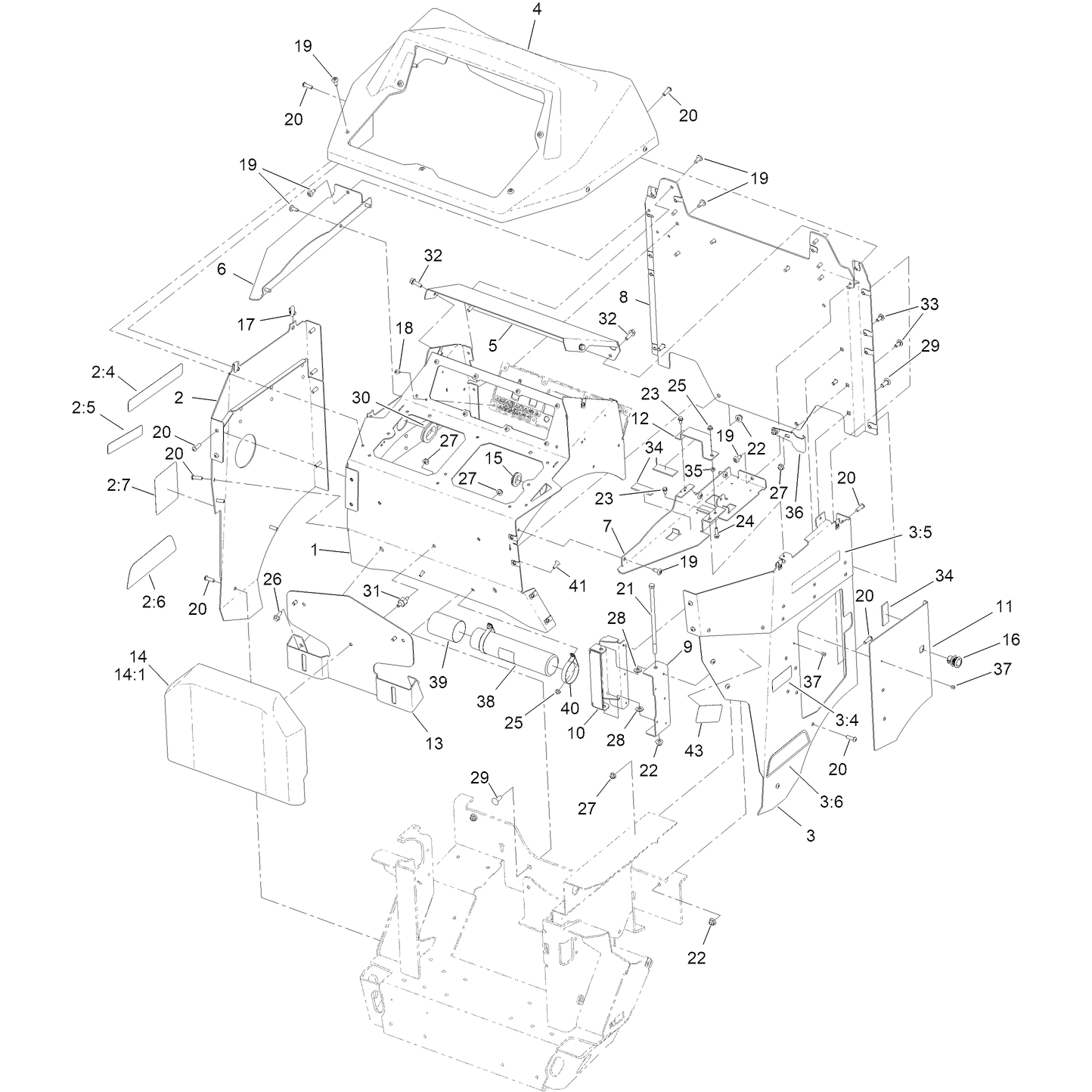

Tower and Hood Assembly
Tower and Hood Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
161-5537-05
161-5537-05
|
|||
|
|
163-2670
163-2670
|
|||
|
|
161-5515
161-5515
|
|||
|
|
145-1175
145-1175
|
|||
|
|
145-1172
145-1172
|
|||
|
|
163-4474
163-4474
|
|||
|
|
163-2671
163-2671
|
|||
|
|
161-2443
161-2443
|
|||
|
|
161-5515
161-5515
|
|||
|
|
145-1172
145-1172
|
|||
|
|
161-9520
161-9520
|
|||
|
|
161-5547-05
161-5547-05
|
|||
|
|
161-5566-05
161-5566-05
|
|||
|
|
161-5567-05
161-5567-05
|
|||
|
|
161-9522-05
161-9522-05
|
|||
|
|
161-7573-05
161-7573-05
|
|||
|
|
161-9546
161-9546
|
|||
|
|
161-7571-01
161-7571-01
|
|||
|
|
161-9556-05
161-9556-05
|
|||
|
|
161-9542-05
161-9542-05
|
|||
|
|
161-3555
161-3555
|
|||
|
|
161-3554
161-3554
|
|||
|
|
240-5
240-5
|
|||
|
|
163-4429
163-4429
|
|||
|
|
112-3306
112-3306
|
|||
|
|
142-7097
142-7097
|
|||
|
|
138-9753
138-9753
|
|||
|
|
109-4872
109-4872
|
|||
|
|
99-7203
99-7203
|
|||
|
|
119-4042
119-4042
|
|||
|
|
93-6083
93-6083
|
|||
|
|
120-4654
120-4654
|
|||
|
|
104-7201
104-7201
|
|||
|
|
3234-47
3234-47
|
|||
|
|
119-4041
119-4041
|
|||
|
|
48-9220
48-9220
|
|||
|
|
3231-22
3231-22
|
|||
|
|
110-5090
110-5090
|
|||
|
|
137-9294
137-9294
|
|||
|
|
3234-29
3234-29
|
|||
|
|
137-3061
137-3061
|
|||
|
|
133-0081
133-0081
|
|||
|
|
3218-1
3218-1
|
|||
|
|
163-4430
163-4430
|
|||
|
|
130-8451
130-8451
|
|||
|
|
104-7050
104-7050
|
|||
|
|
104-7048
104-7048
|
|||
|
|
107-1865
107-1865
|
|||
|
|
1-807512
1-807512
|
|||
|
|
100-4627
100-4627
|

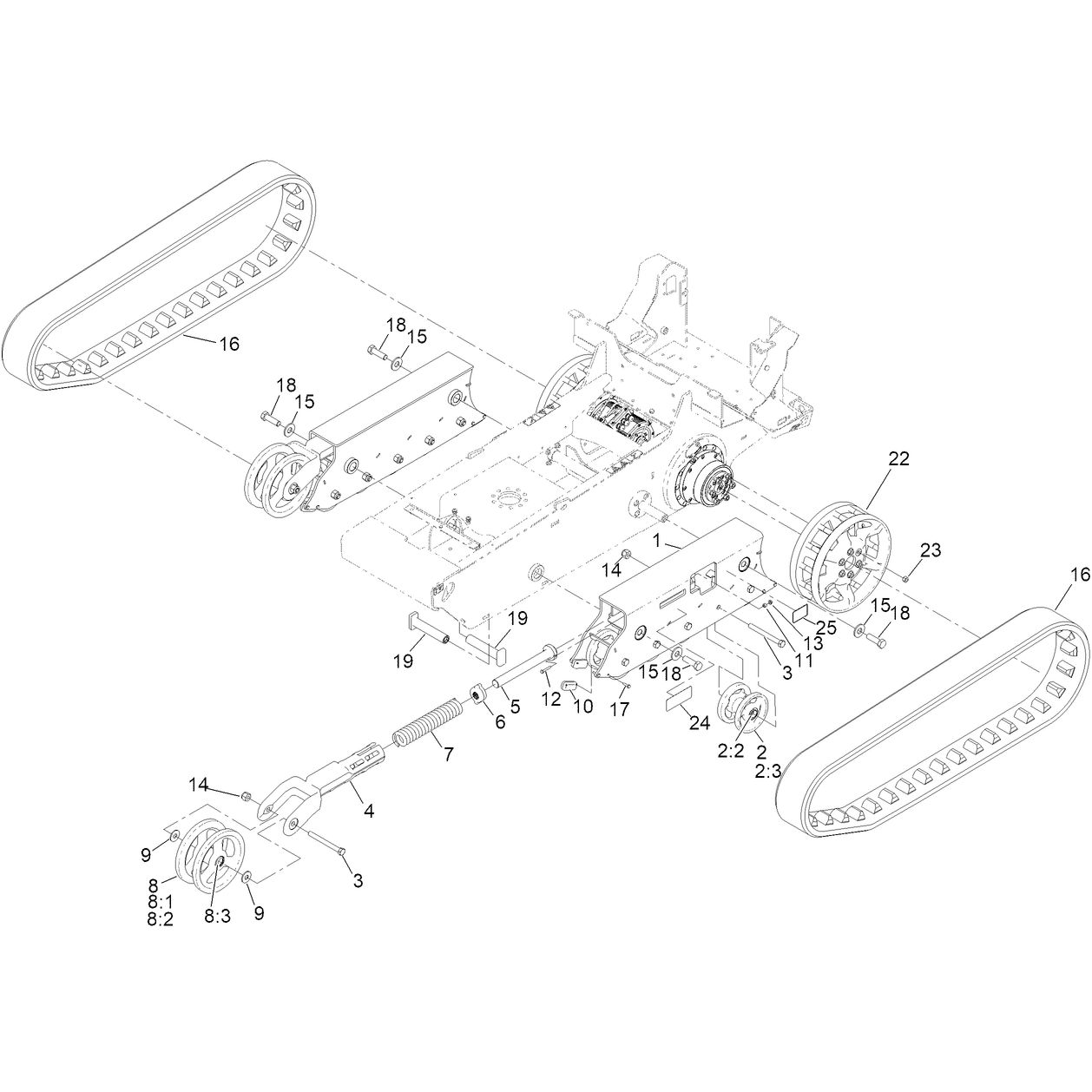

Track Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
163-7941
163-7941
|
|||
|
|
138-5231
138-5231
|
|||
|
|
138-0547
138-0547
|
|||
|
|
130-7564
130-7564
|
|||
|
|
327-17
327-17
|
|||
|
|
108-4691-05
108-4691-05
|
|||
|
|
127-9563
127-9563
|
|||
|
|
108-4664
108-4664
|
|||
|
|
95-3624
95-3624
|
|||
|
|
104-5745
104-5745
|
|||
|
|
104-5745
104-5745
|
|||
|
|
98-9835
98-9835
|
|||
|
|
120-5378
120-5378
|
|||
|
|
3256-7
3256-7
|
|||
|
|
132-6053
132-6053
|
|||
|
|
98-4799
98-4799
|
|||
|
|
321-37
321-37
|
|||
|
|
32128-32
32128-32
|
|||
|
|
3296-24
3296-24
|
|||
|
|
99-2659
99-2659
|
|||
|
|
136-5846
136-5846
|
|||
|
|
321-6
321-6
|
|||
|
|
328-2
328-2
|
|||
|
|
163-7909
163-7909
|
|||
|
|
163-7930-05
163-7930-05
|
|||
|
|
104-9914
104-9914
|
|||
|
|
139-7201
139-7201
|
|||
|
|
139-7709
139-7709
|

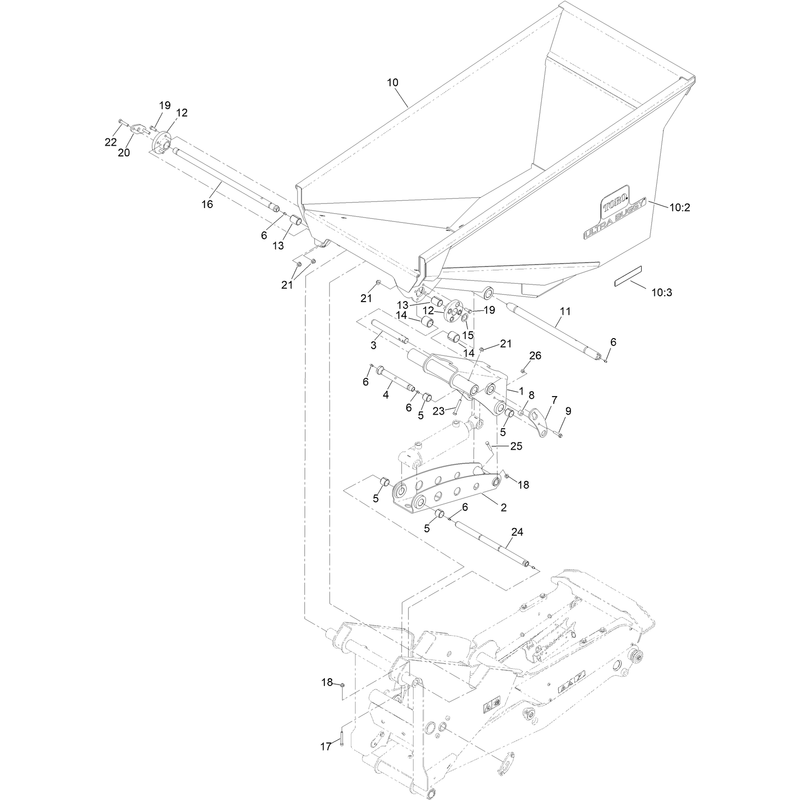

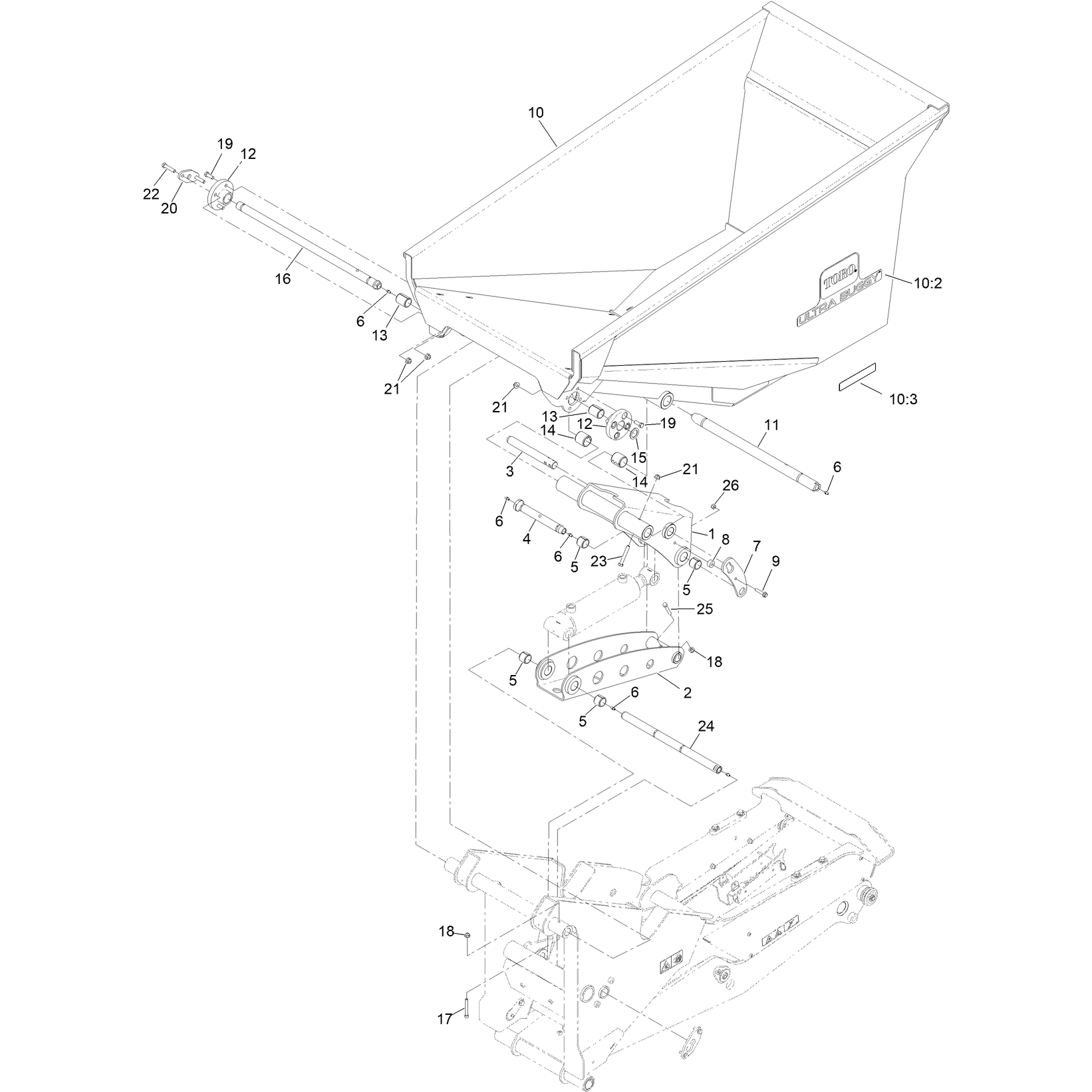

Tub Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
161-9511-05
161-9511-05
|
|||
|
|
161-3343-05
161-3343-05
|
|||
|
|
161-5500
161-5500
|
|||
|
|
161-3391
161-3391
|
|||
|
|
98-4871
98-4871
|
|||
|
|
302-5
302-5
|
|||
|
|
163-4498-05
163-4498-05
|
|||
|
|
132-9064
132-9064
|
|||
|
|
115-1794
115-1794
|
|||
|
|
137-9290
137-9290
|
|||
|
|
161-2909
161-2909
|
|||
|
|
115-4858
115-4858
|
|||
|
|
161-9586
161-9586
|
|||
|
|
132-9075
132-9075
|
|||
|
|
130-5200
130-5200
|
|||
|
|
139-5737
139-5737
|
|||
|
|
10-8110
10-8110
|
|||
|
|
161-3389
161-3389
|
|||
|
|
3274-40
3274-40
|
|||
|
|
119-4041
119-4041
|
|||
|
|
135-7915
135-7915
|
|||
|
|
161-9598-05
161-9598-05
|
|||
|
|
119-4042
119-4042
|
|||
|
|
323-52
323-52
|
|||
|
|
323-47
323-47
|
|||
|
|
163-2660
163-2660
|
|||
|
|
322-10
322-10
|
|||
|
|
3296-29
3296-29
|
