Toro 71505 GrandStand® 52 in. (132 cm) 22 hp 726 cc (California Model) (Serial #: 400000000 - 409999999) Parts Diagram
Diagrams:
Diagram:

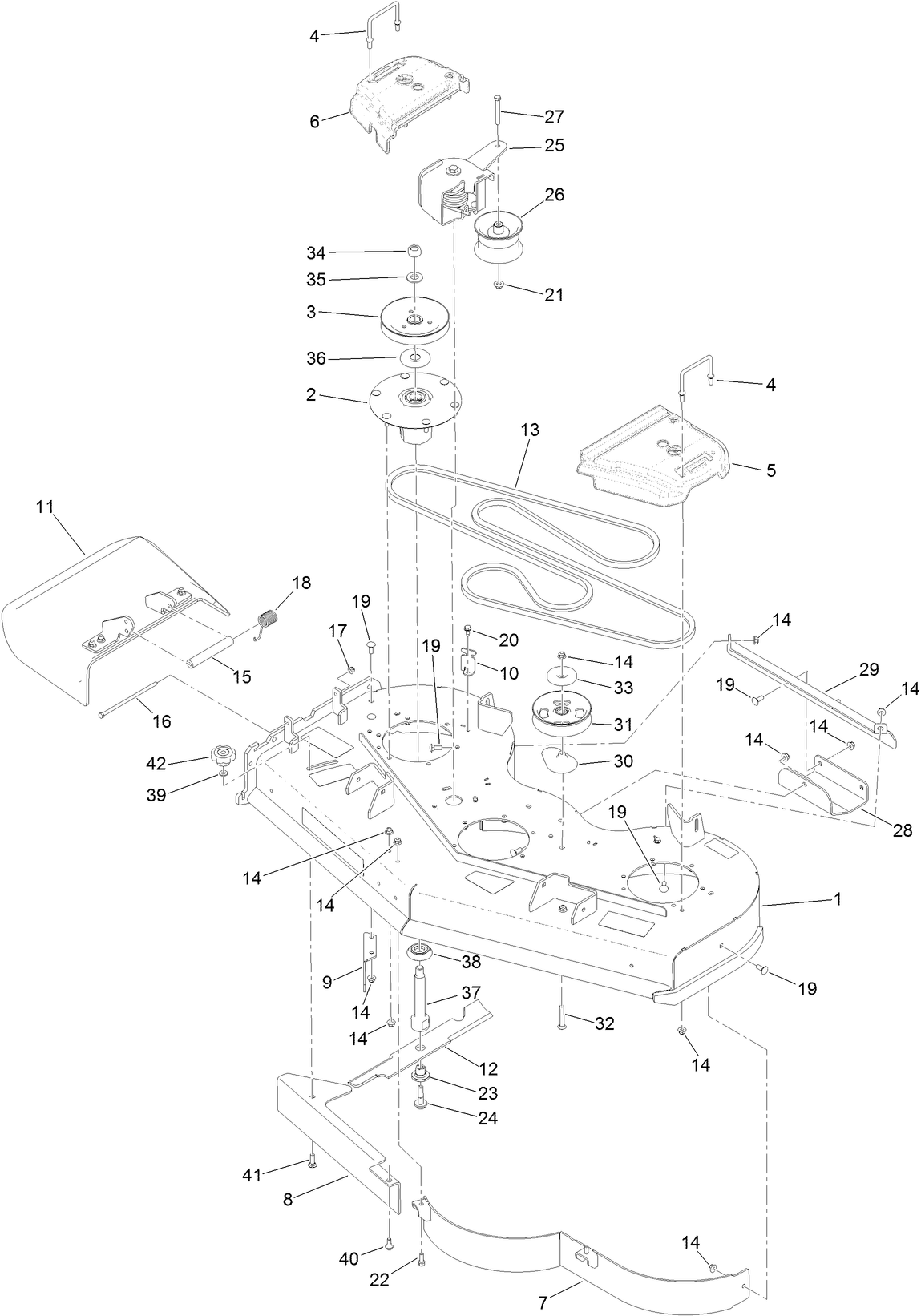

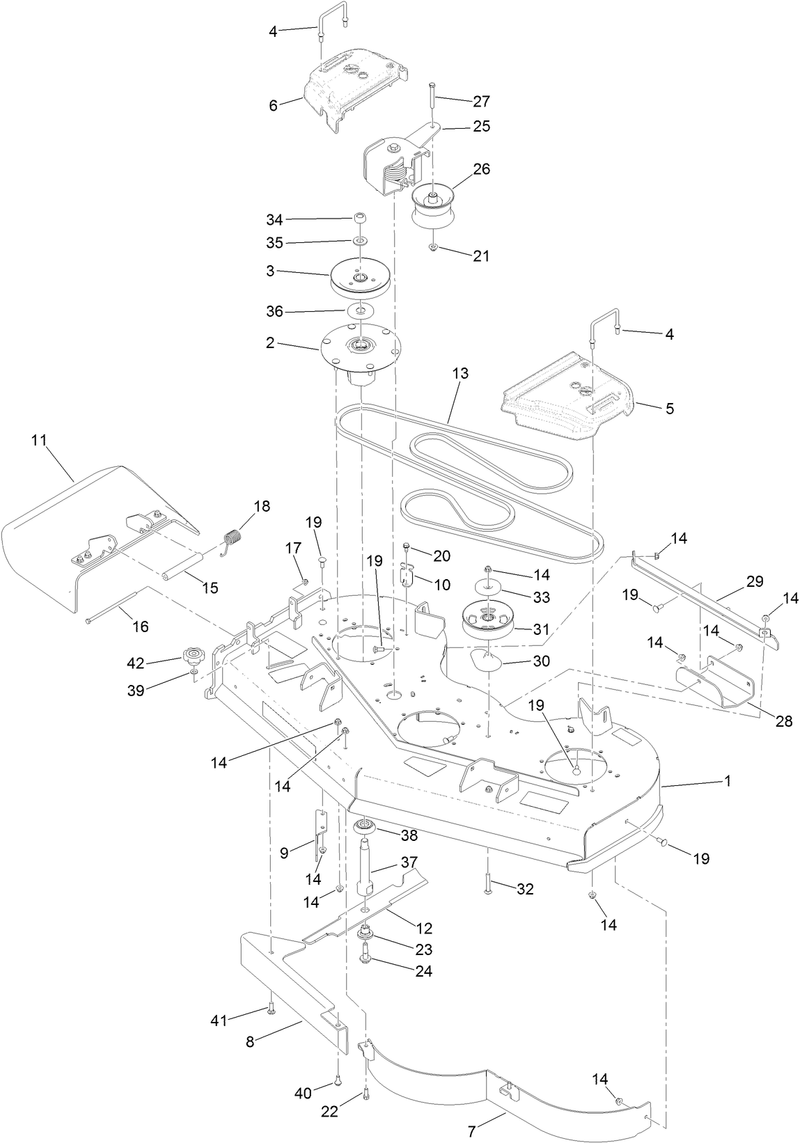

52 Inch Deck Assembly
52 Inch Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

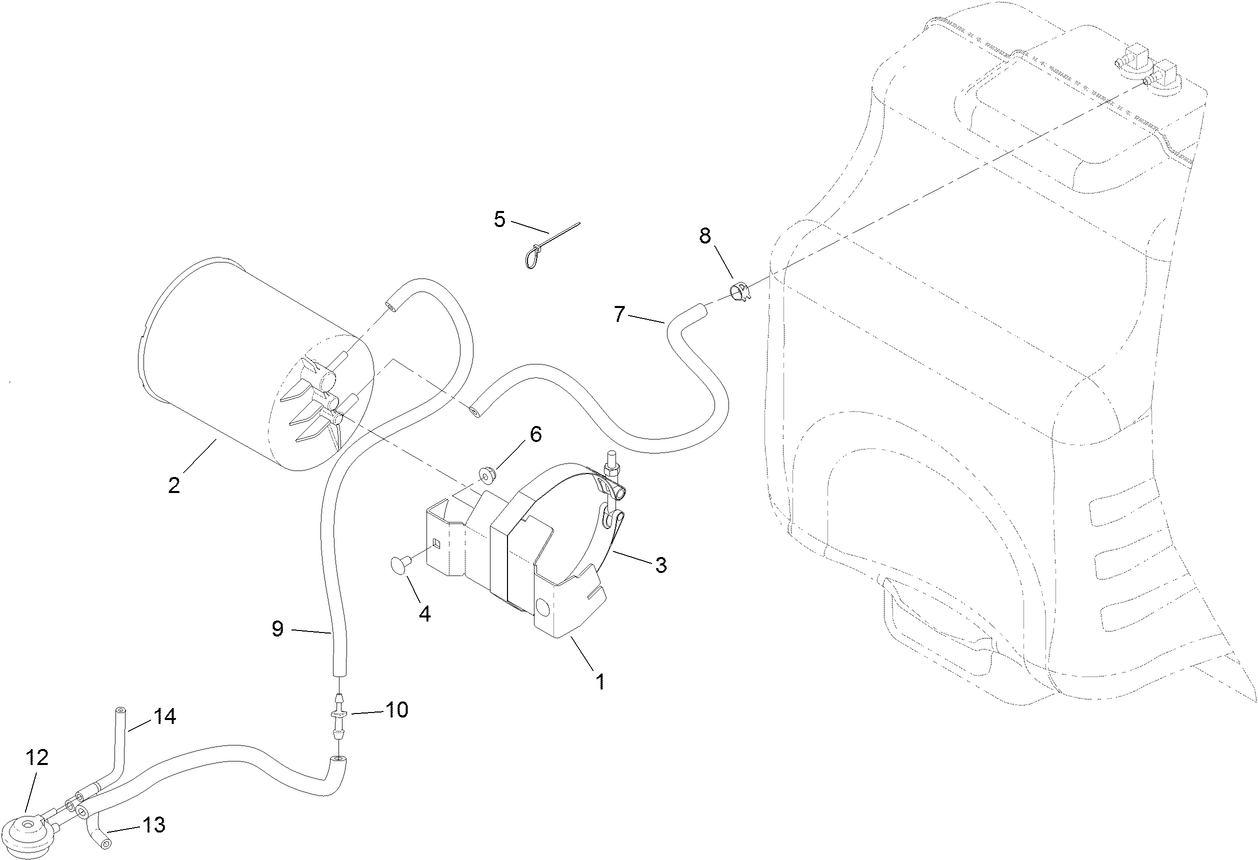

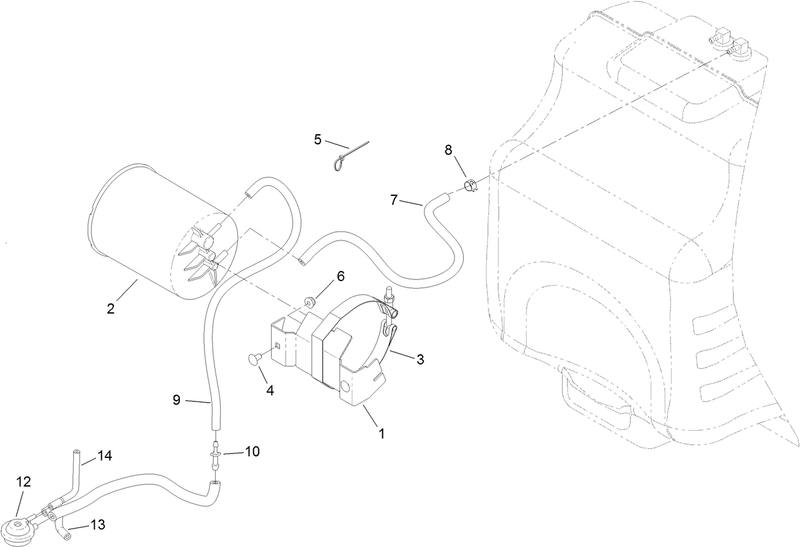

Carbon Canister Assembly
Carbon Canister Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Control Handle Assembly No 132 5157
Control Handle Assembly No 132 5157
| Sequence Number | Image | Product | Price | Add to cart |
|---|

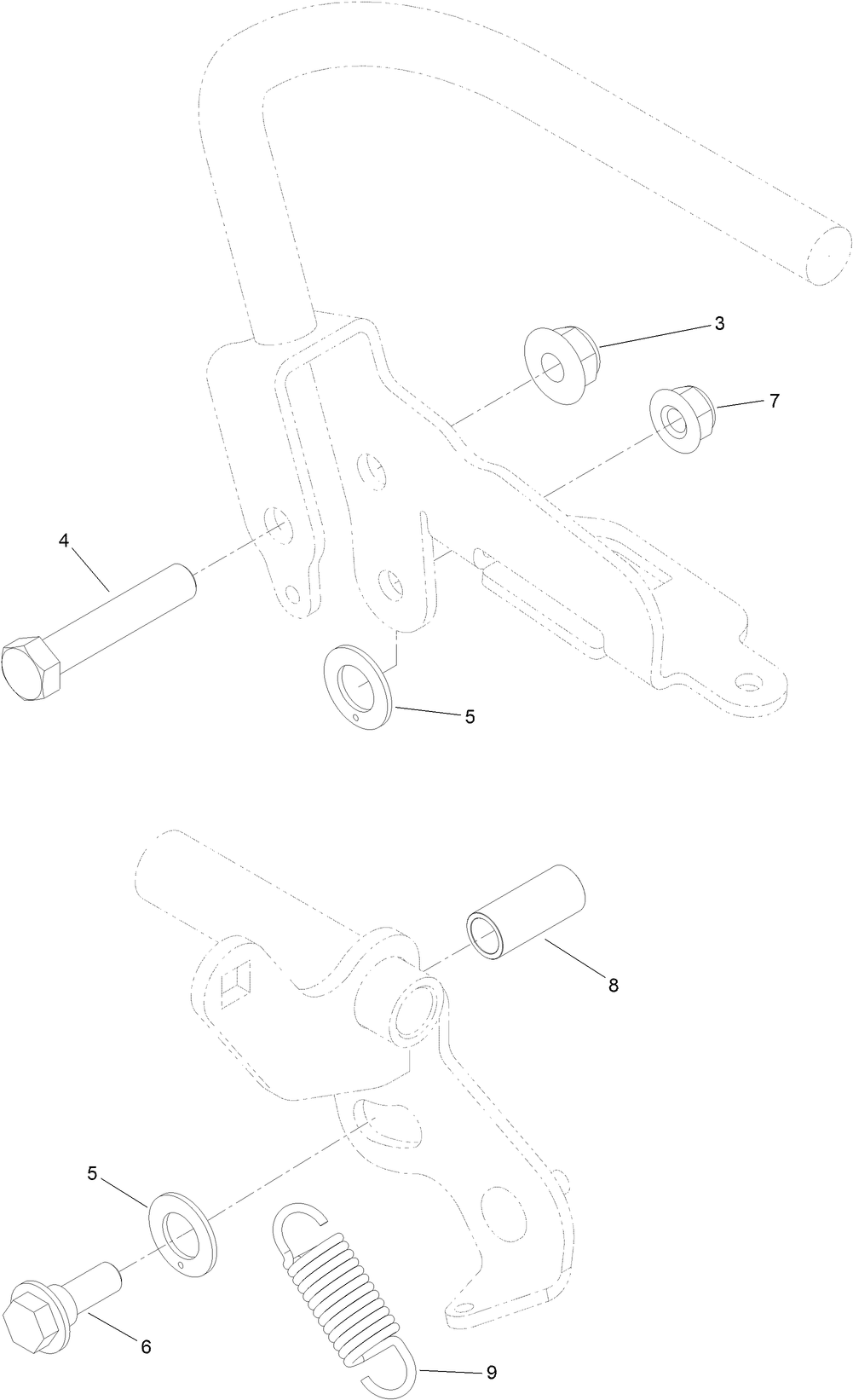

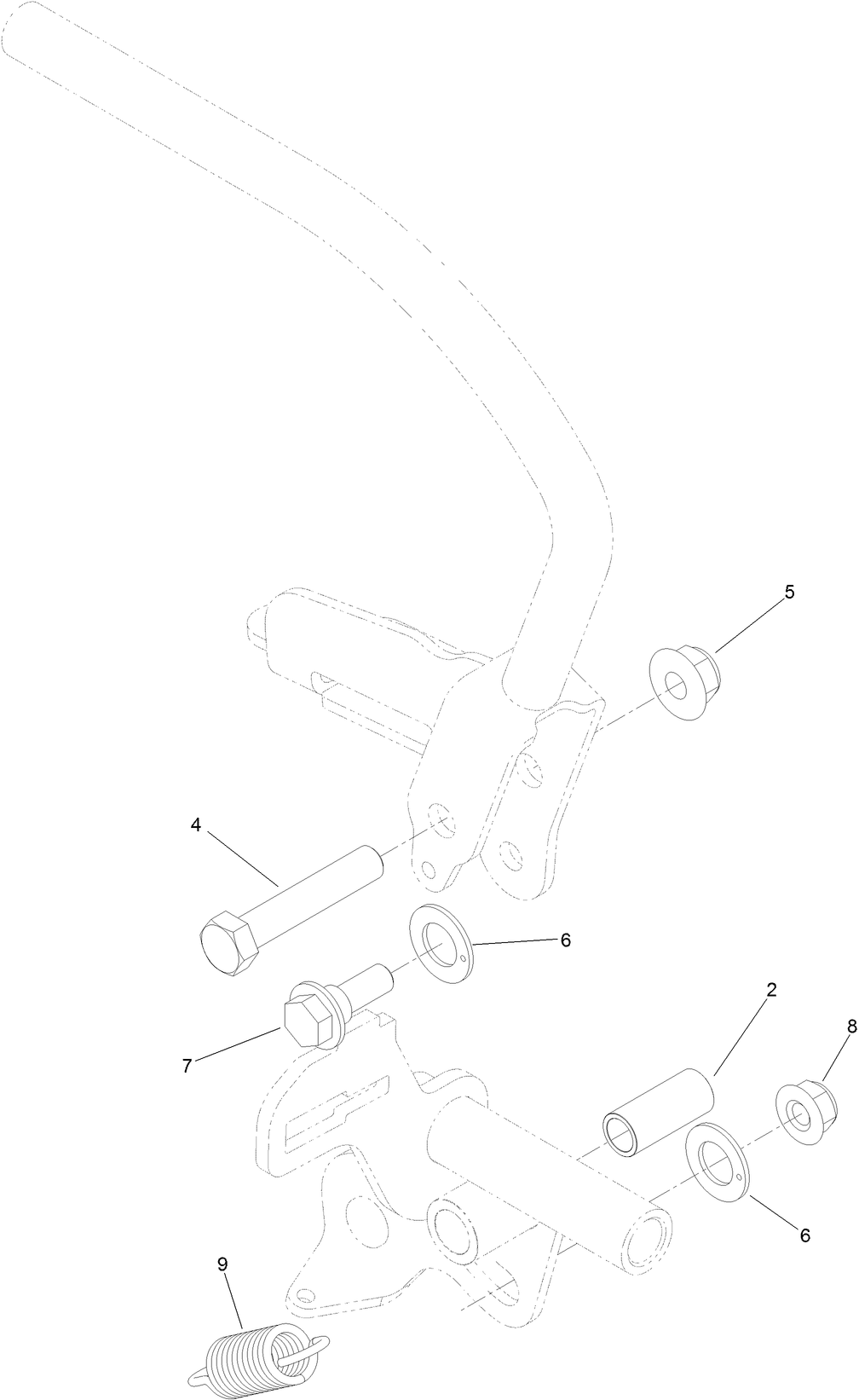

Control Handle Assembly No 132 5158
Control Handle Assembly No 132 5158
| Sequence Number | Image | Product | Price | Add to cart |
|---|

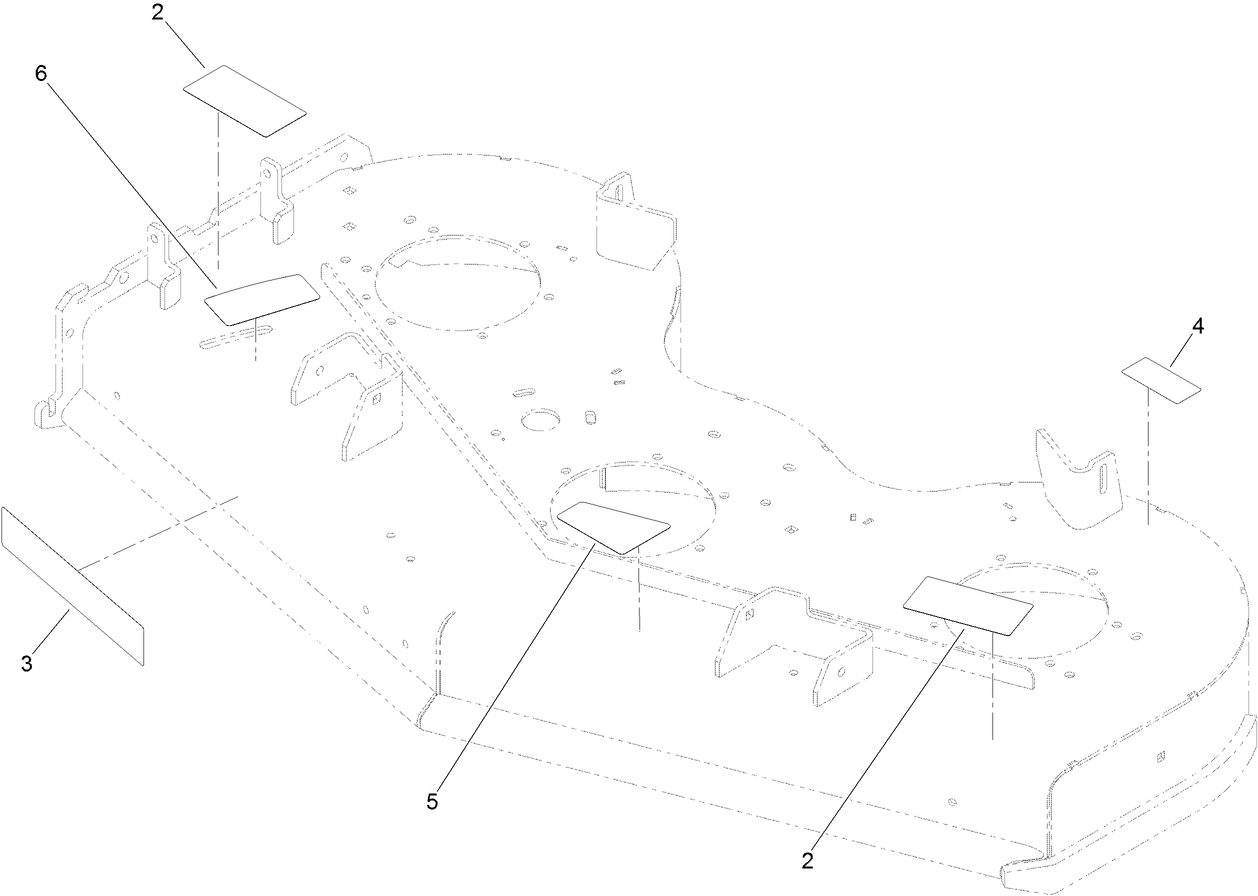

Deck and Decal Assembly No 139 8097

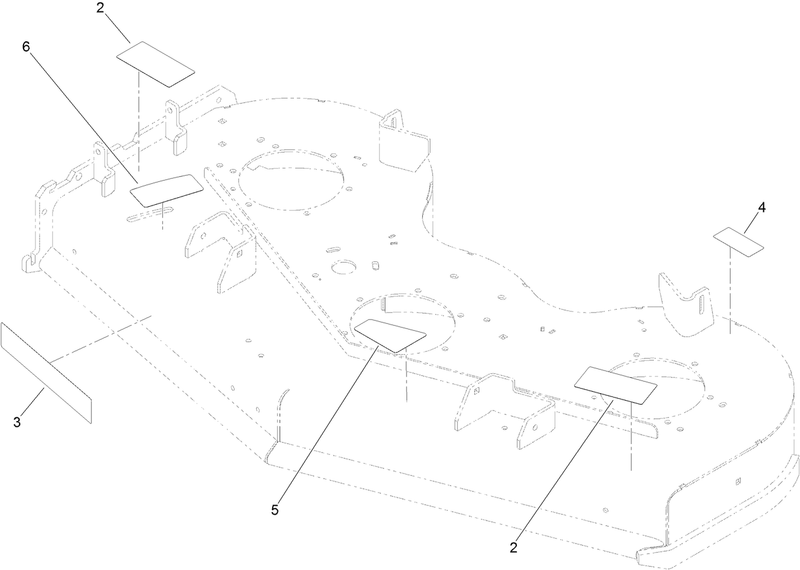

Deck and Decal Assembly No 139 8097
| Sequence Number | Image | Product | Price | Add to cart |
|---|

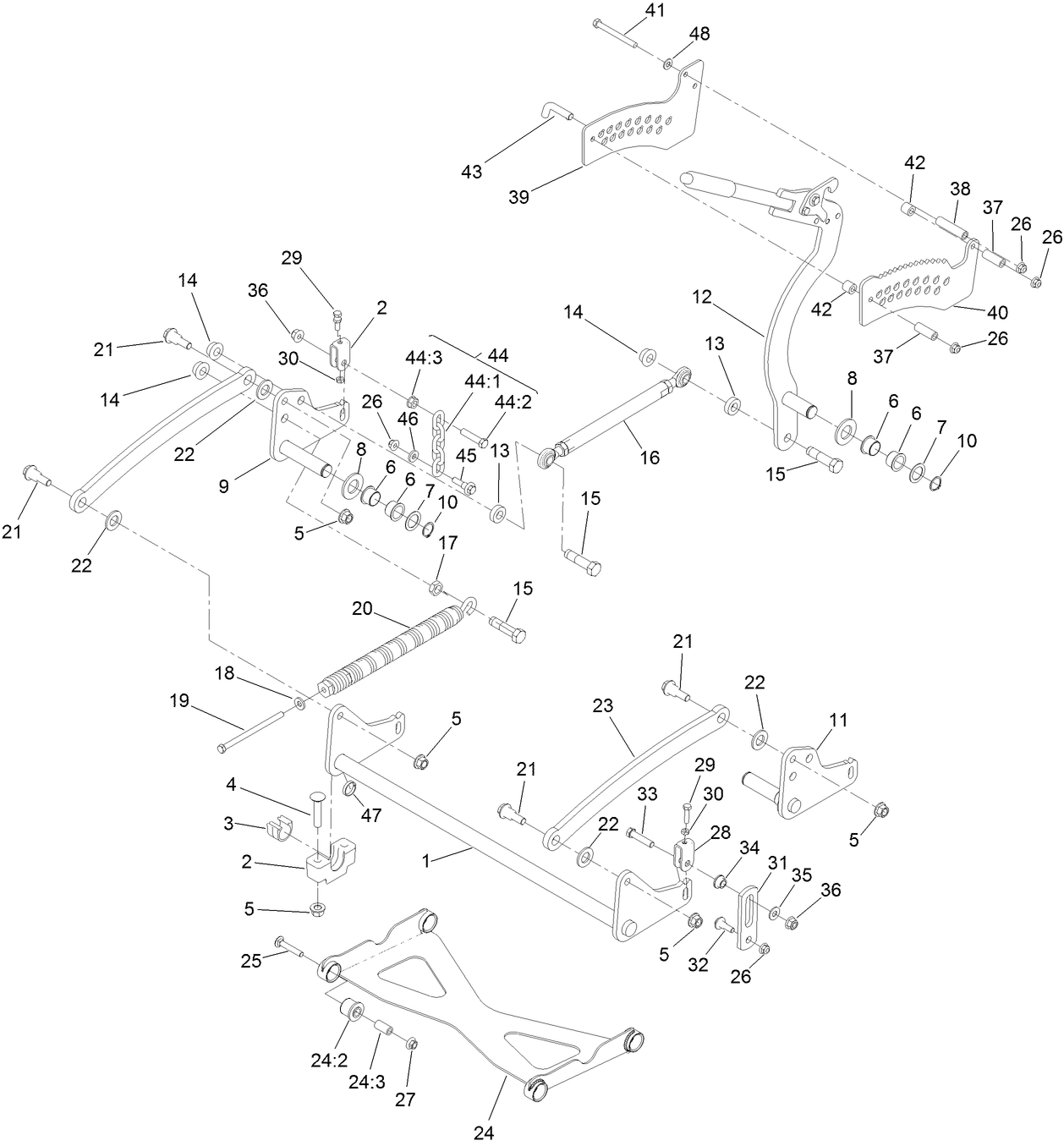

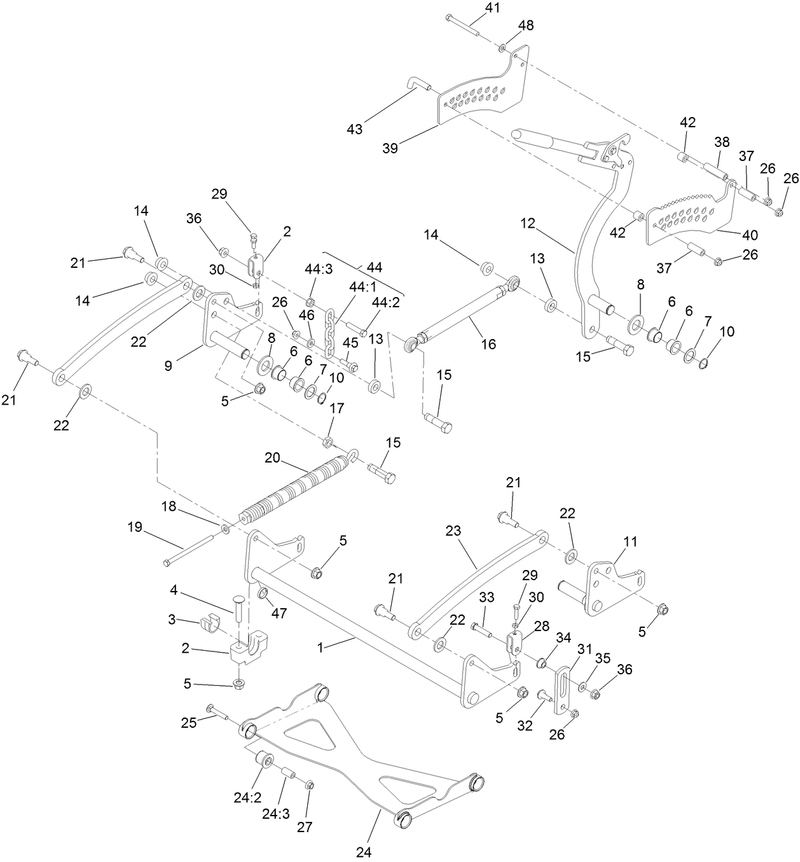

Deck Lift Assembly
Deck Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

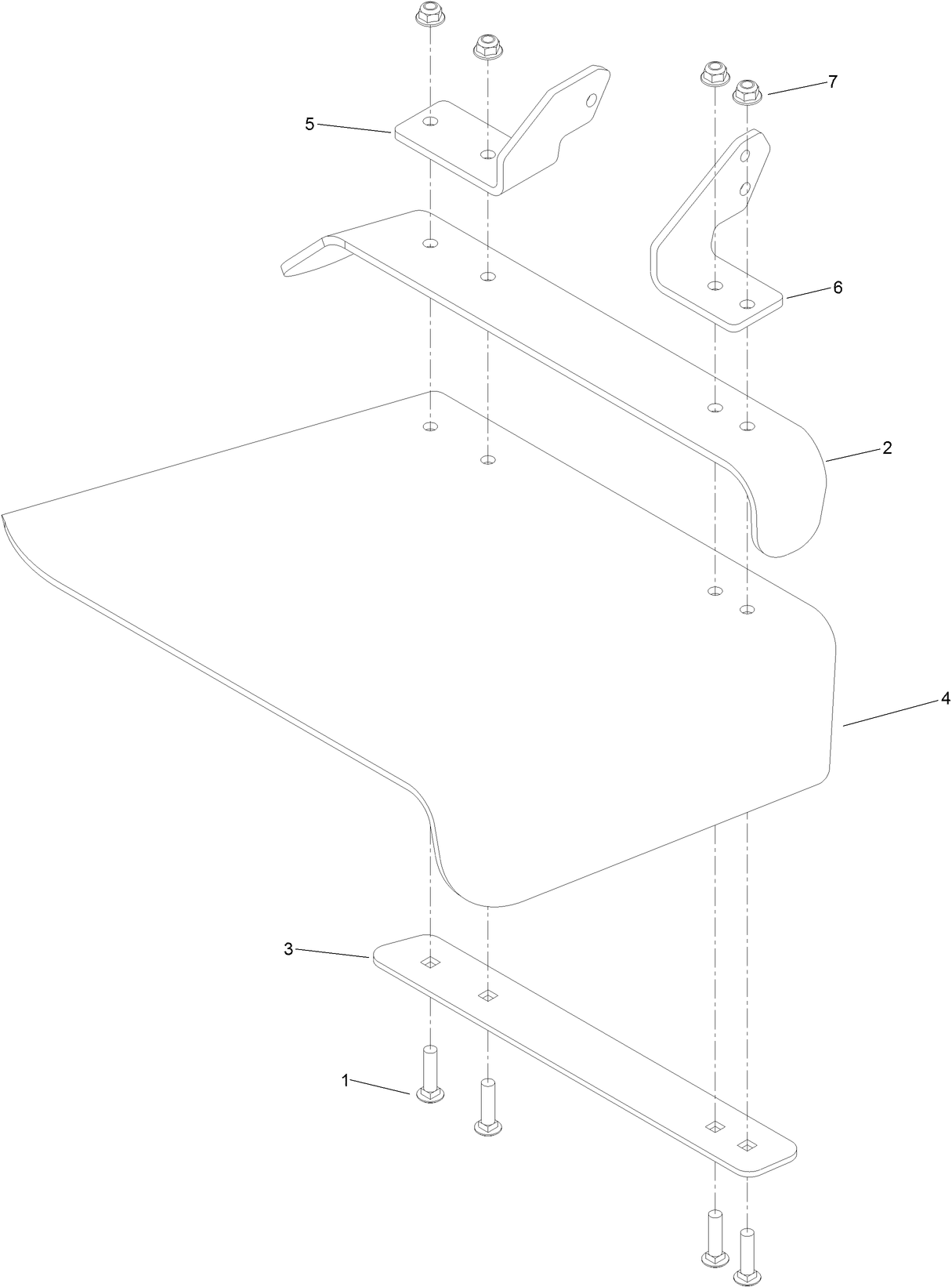

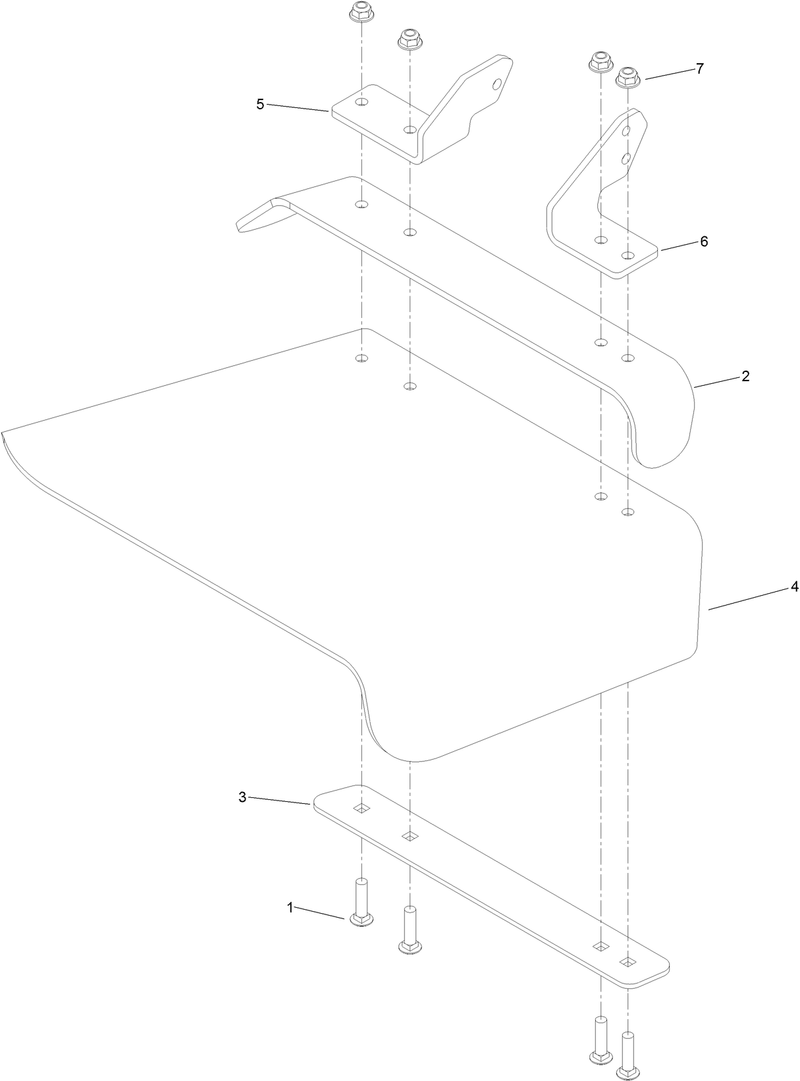

Deflector Assembly No 120 2451
Deflector Assembly No 120 2451
| Sequence Number | Image | Product | Price | Add to cart |
|---|

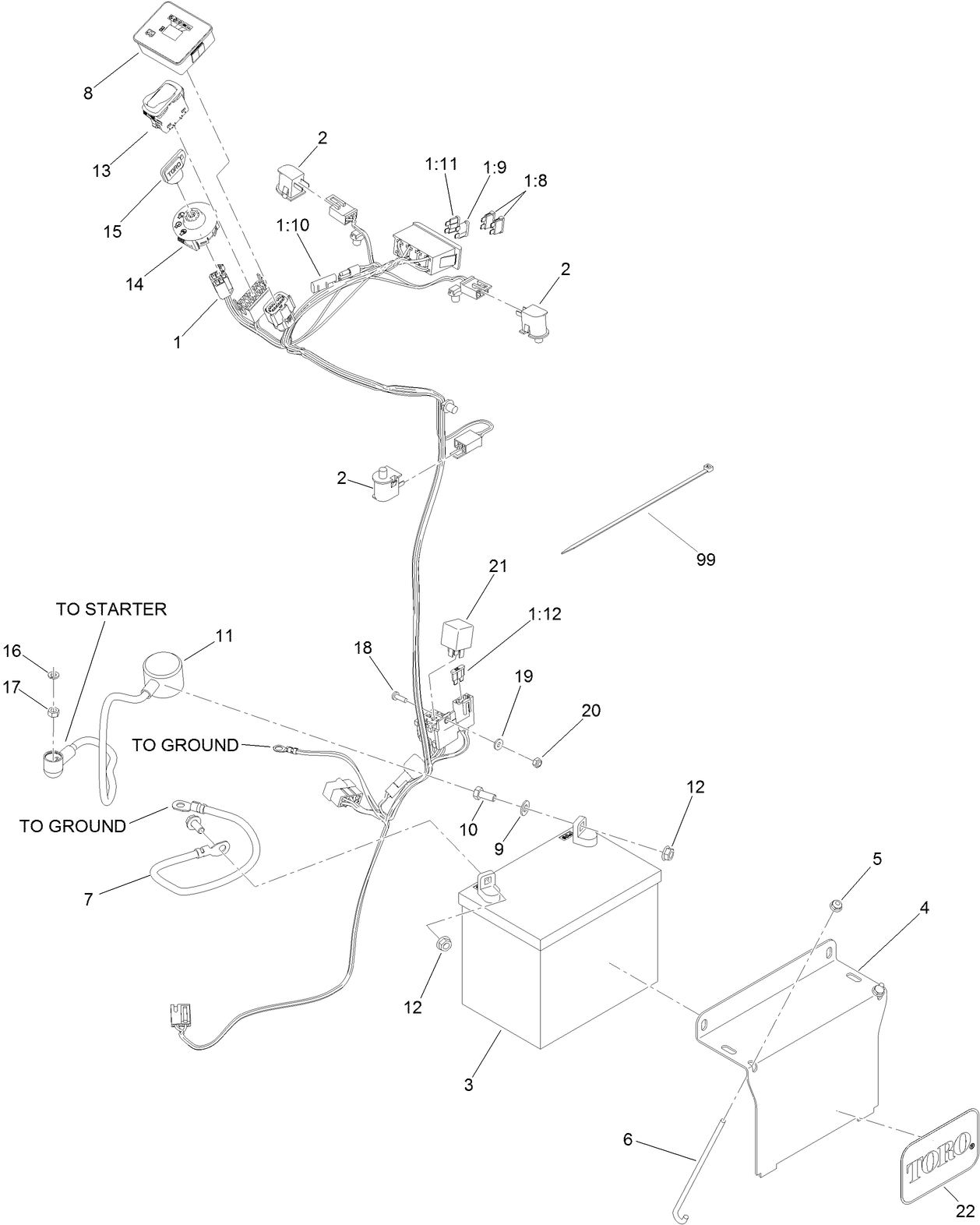

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

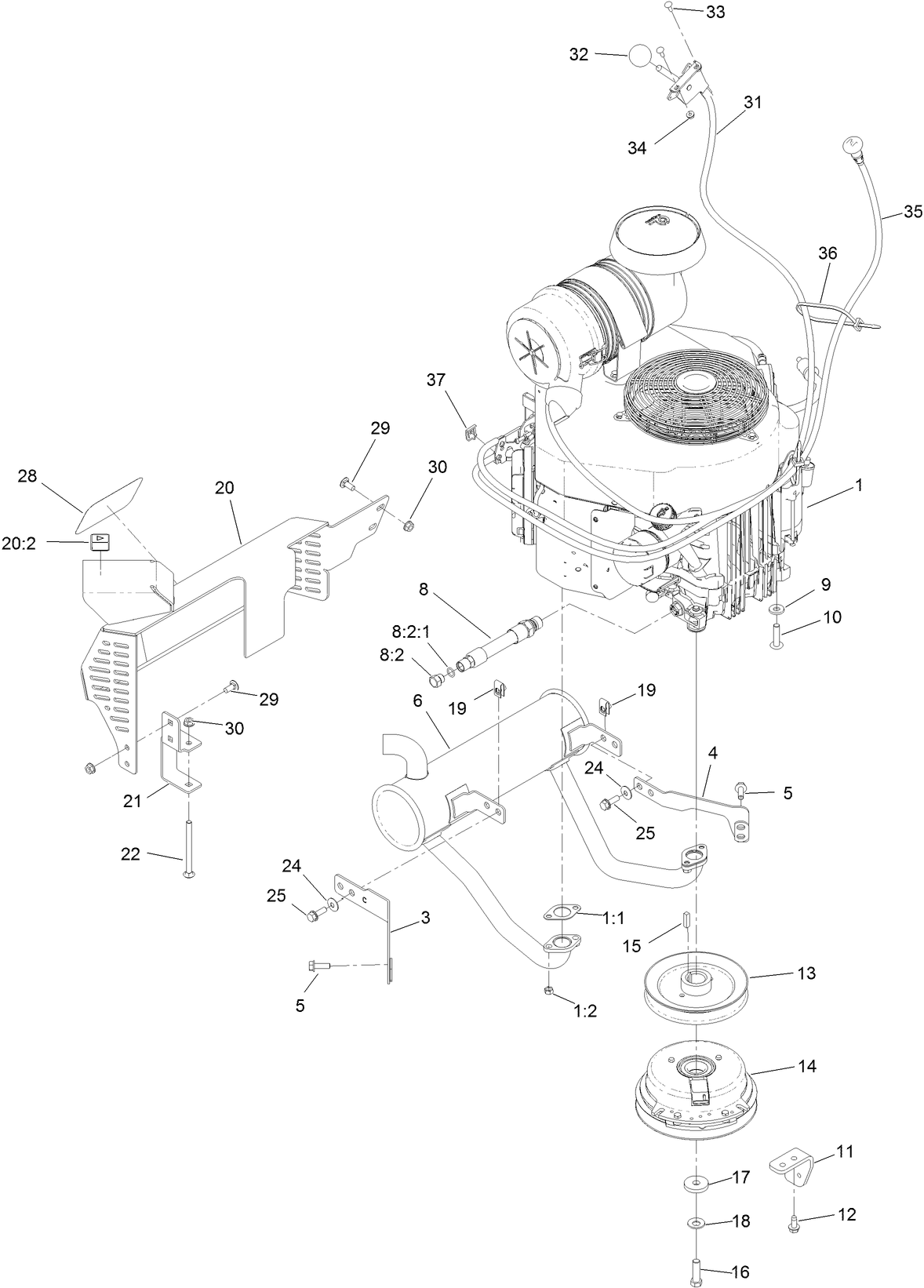

Engine Assembly
Engine Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

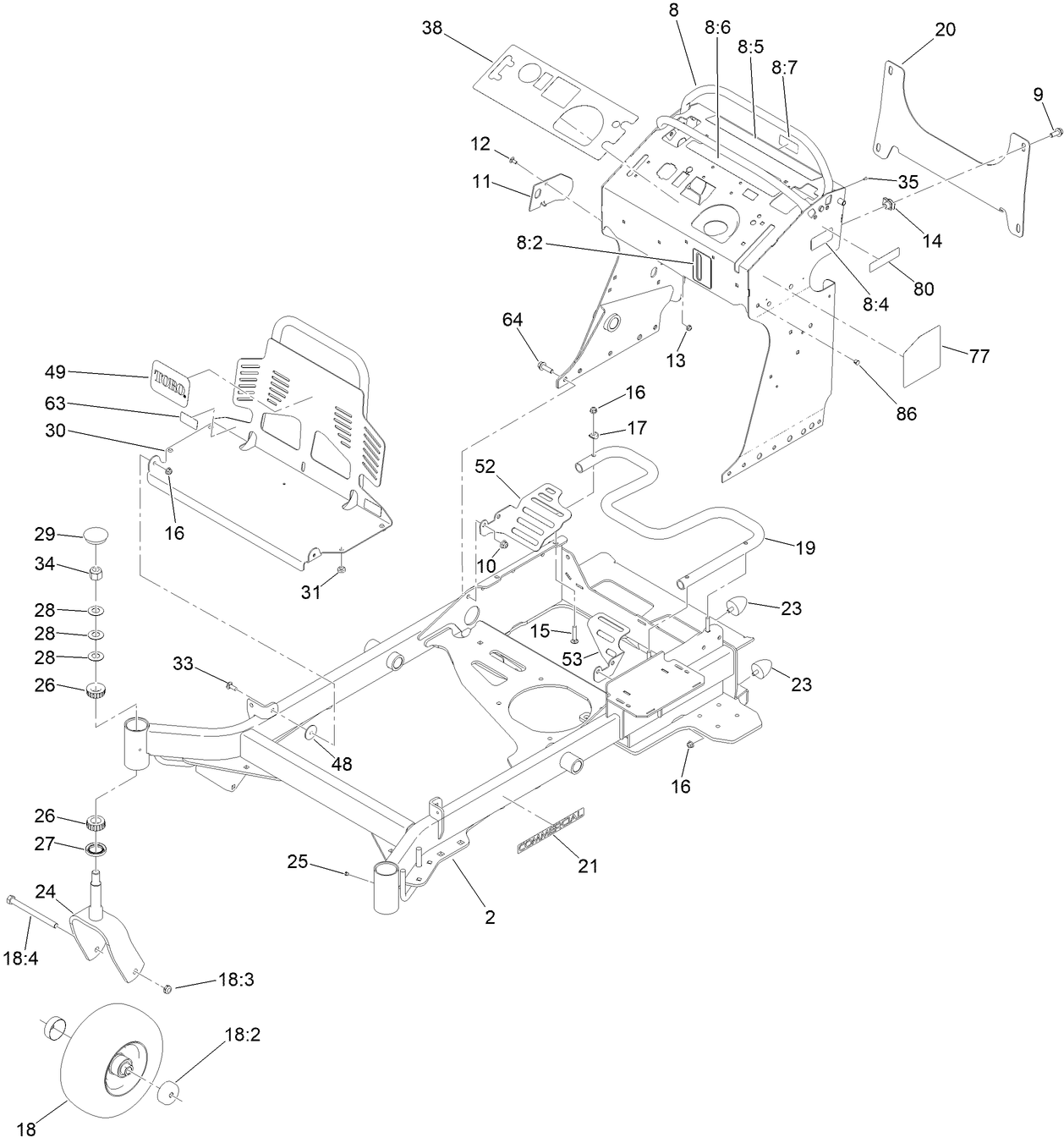

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

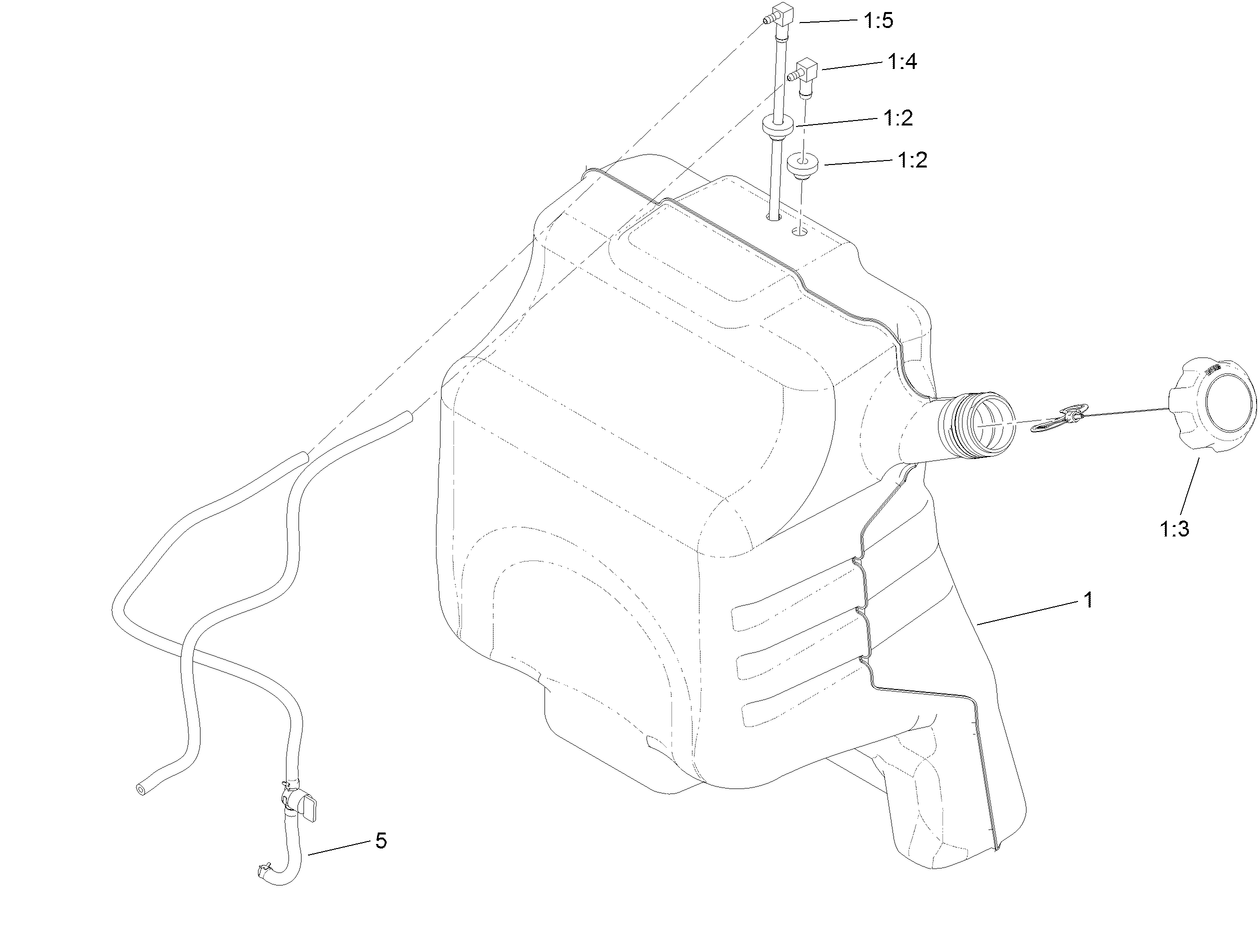

Fuel Tank Assembly
Fuel Tank Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

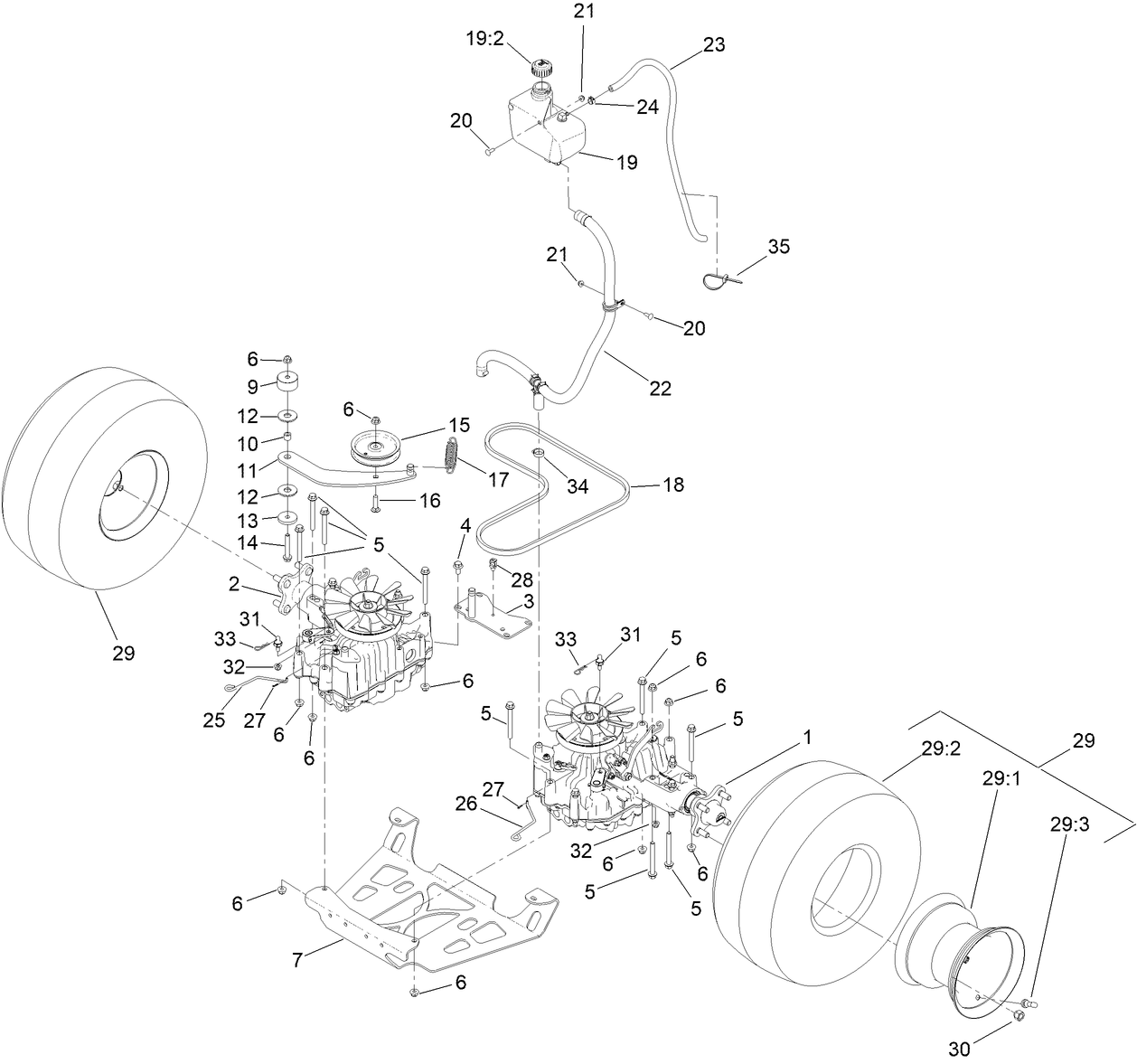

Ground Drive Assembly
Ground Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

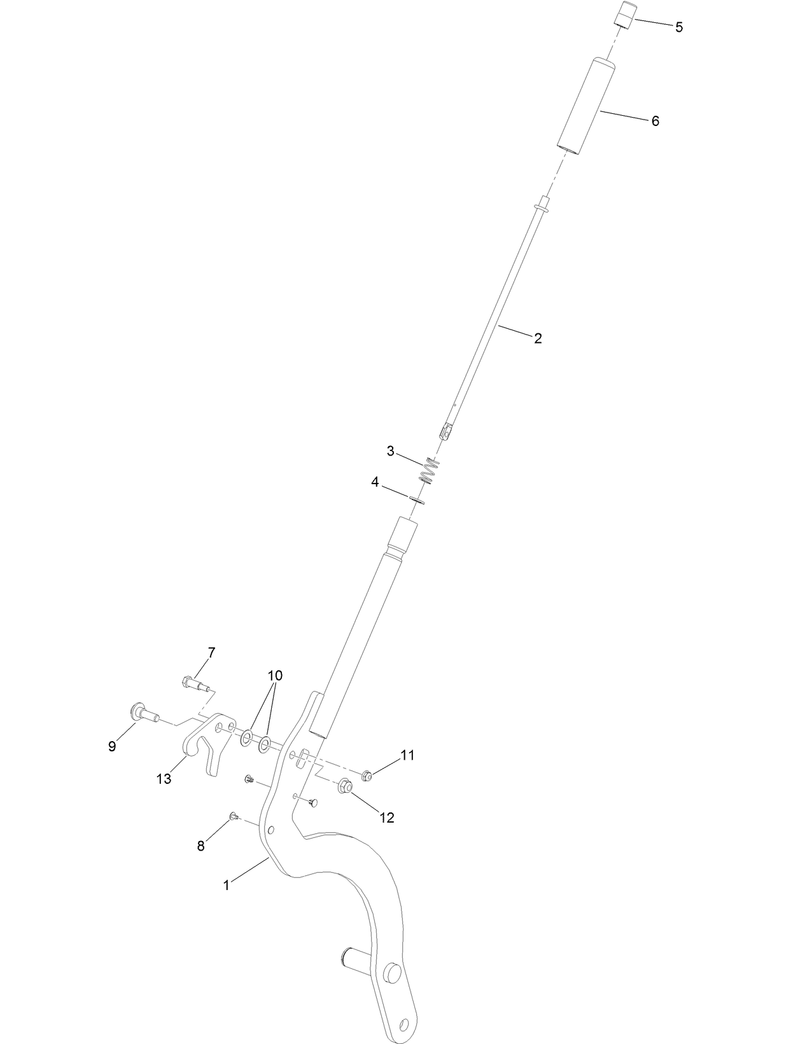

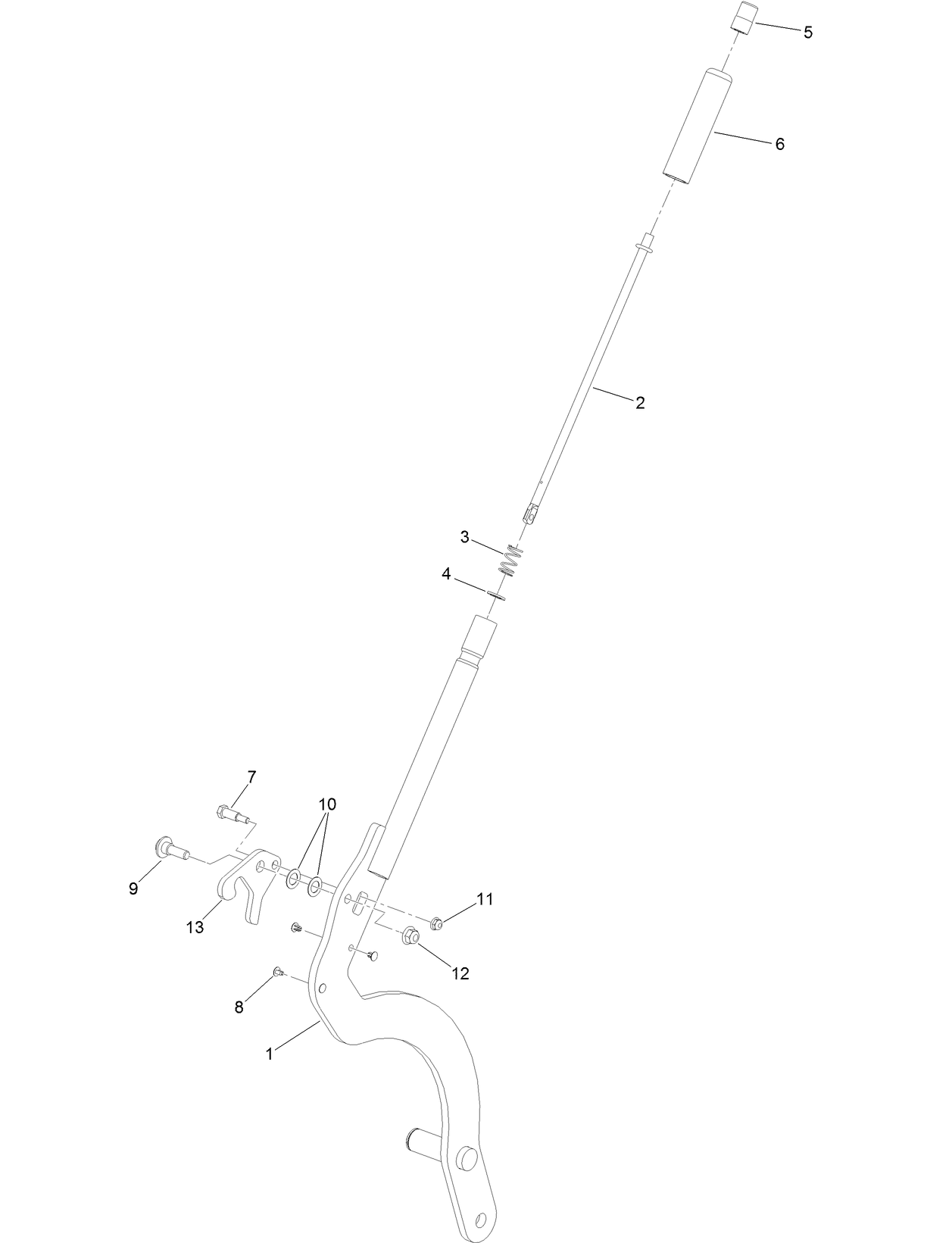

HOC Lever Assembly No 130 1755
HOC Lever Assembly No 130 1755
| Sequence Number | Image | Product | Price | Add to cart |
|---|

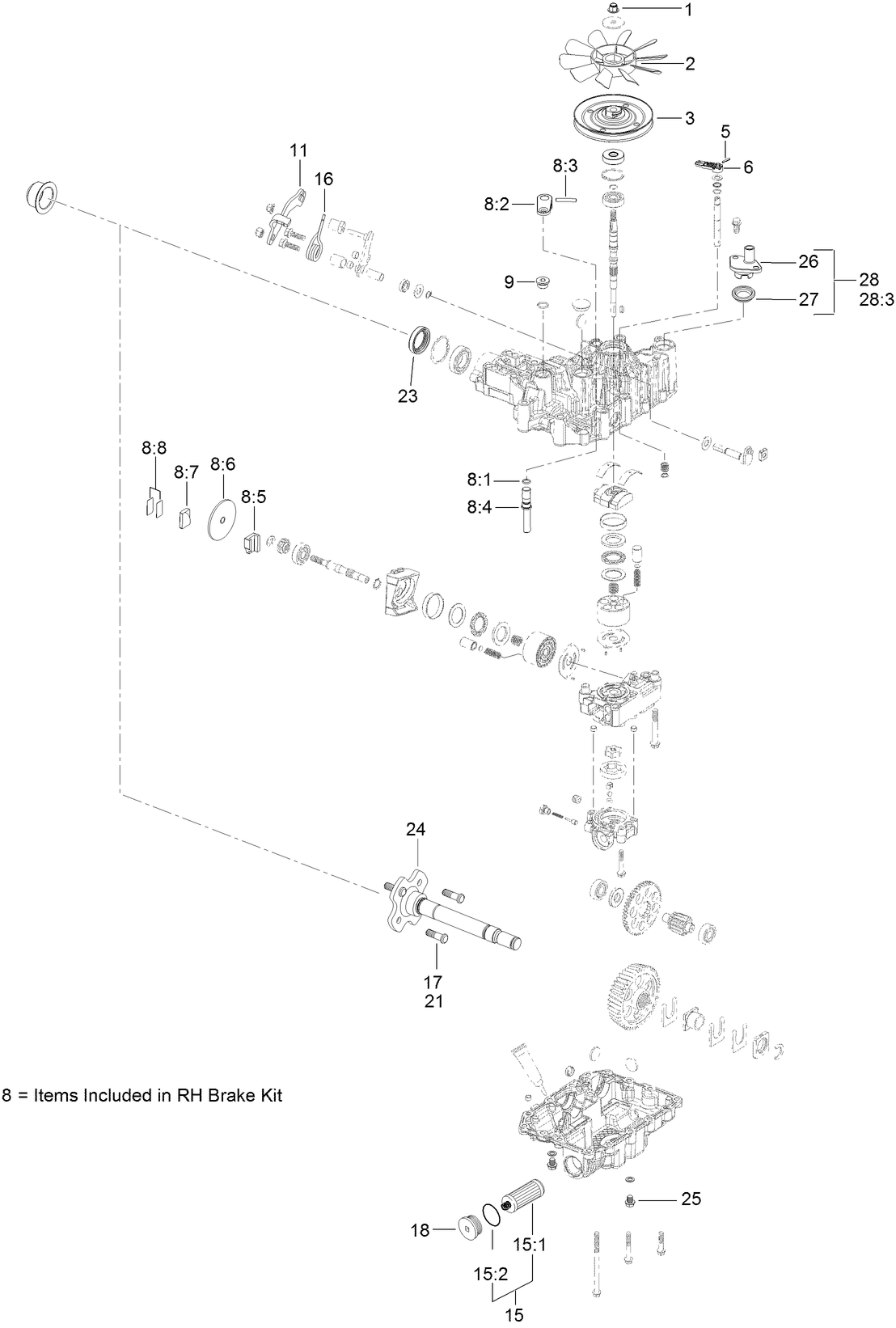

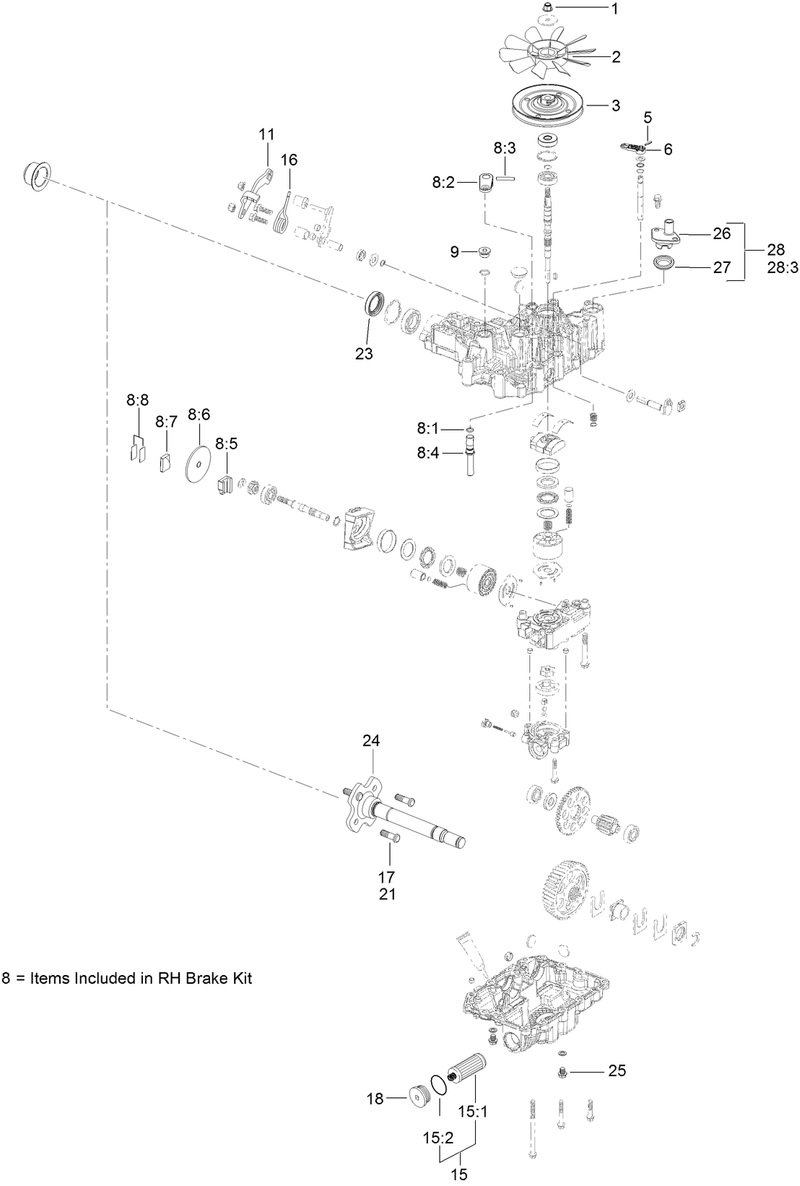

LH Transmission Assembly No 138 5838
LH Transmission Assembly No 138 5838
| Sequence Number | Image | Product | Price | Add to cart |
|---|

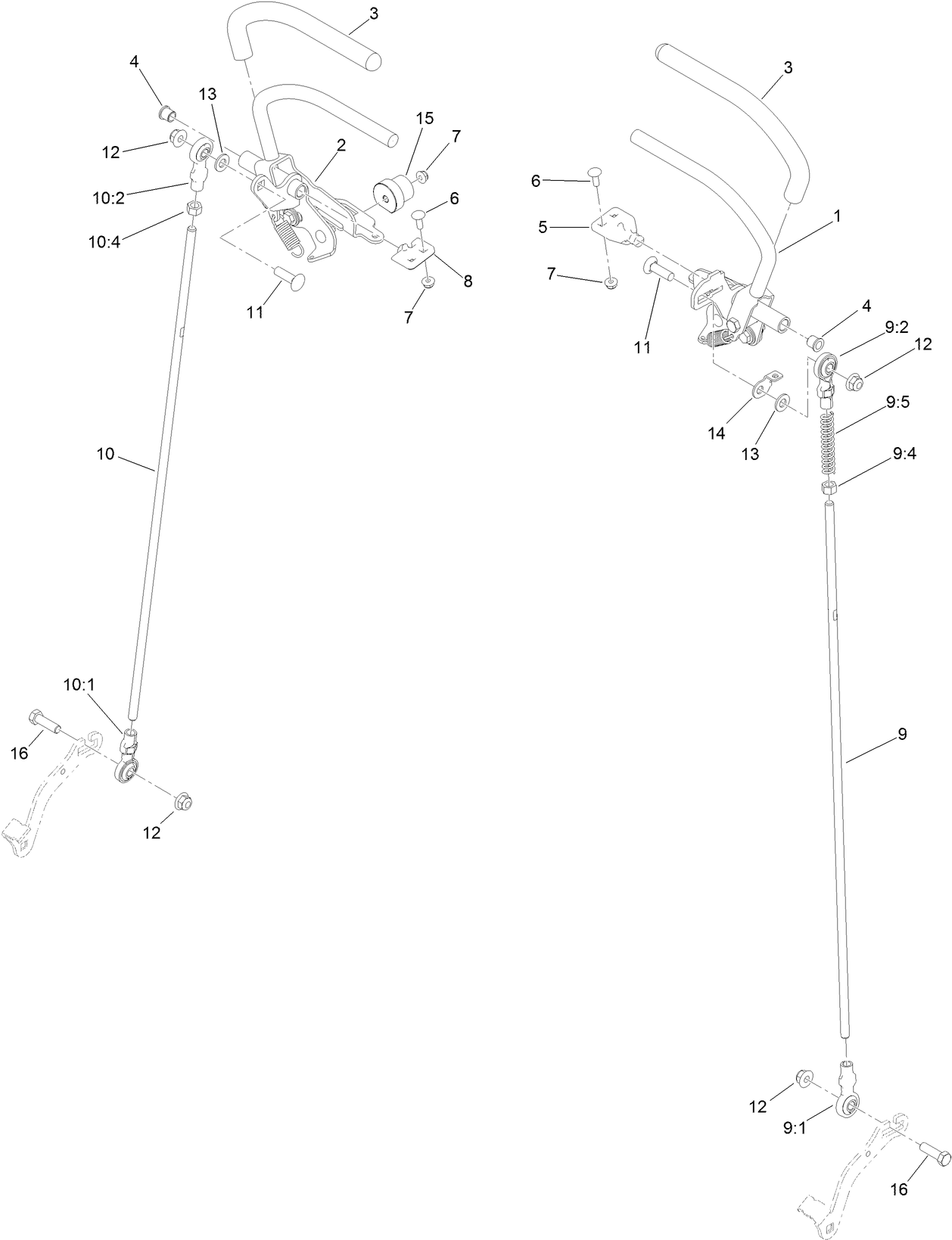

Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

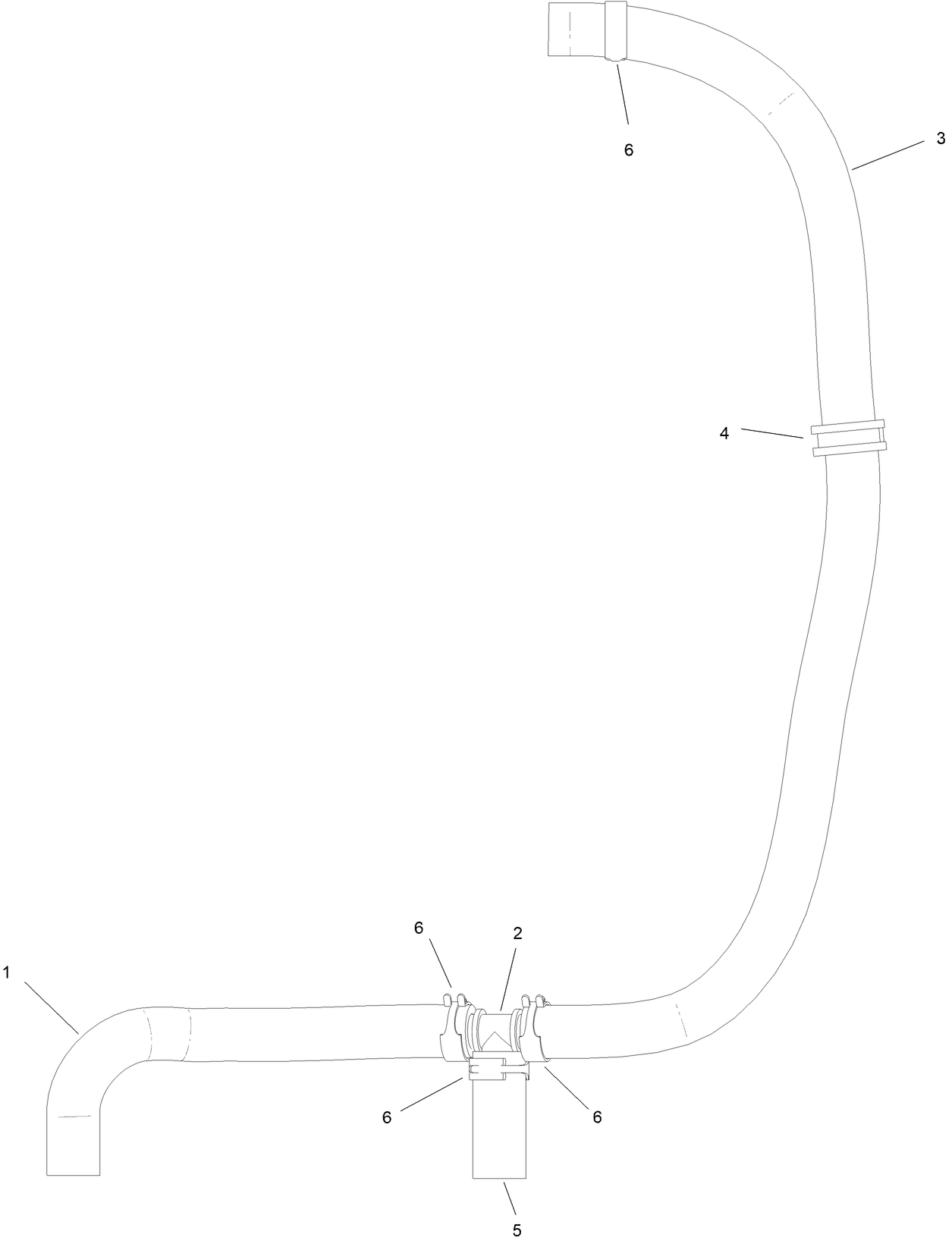

Overflow Hose Assembly
Overflow Hose Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

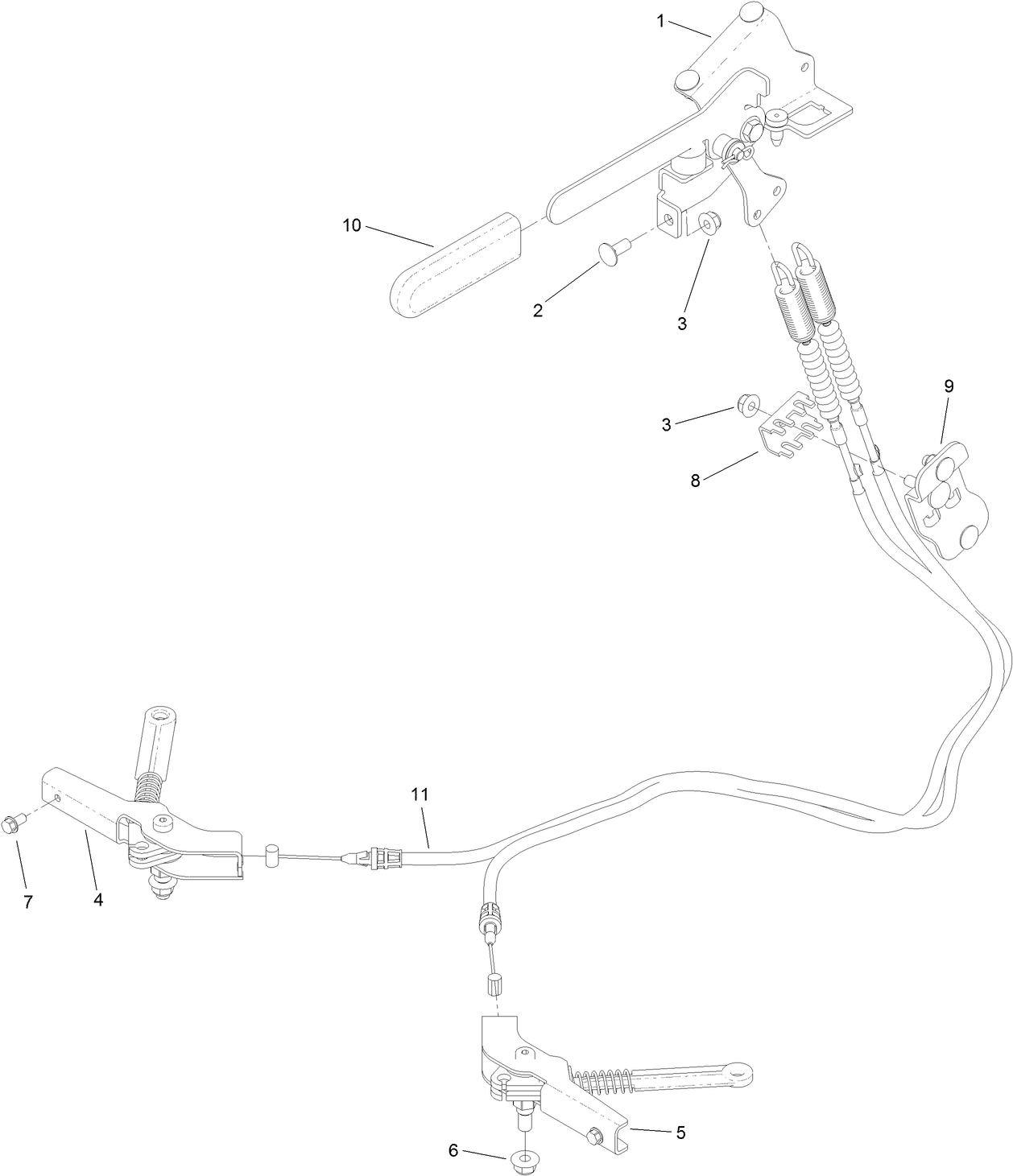

Parking Brake Assembly
Parking Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

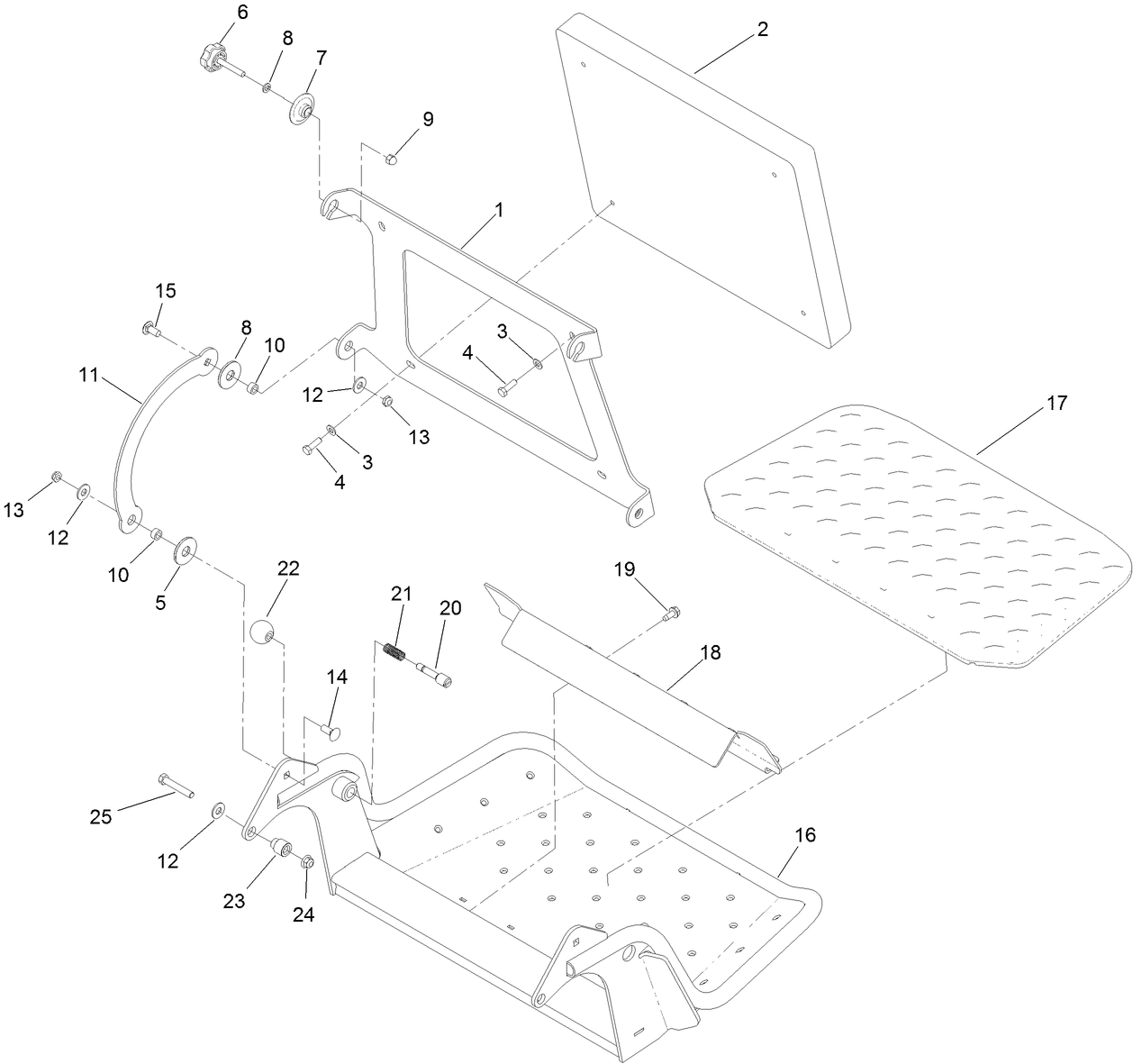

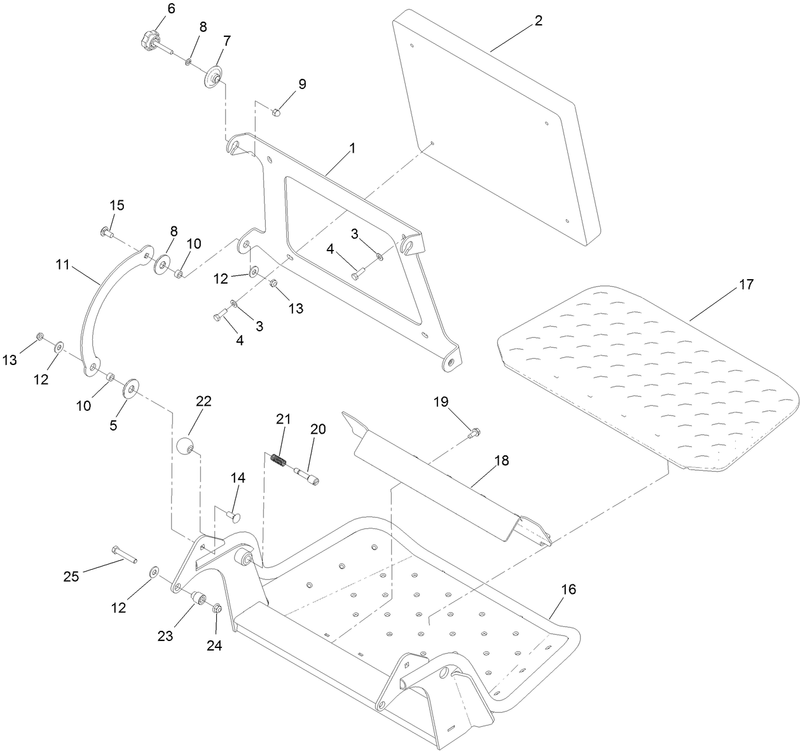

Platform Assembly
Platform Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

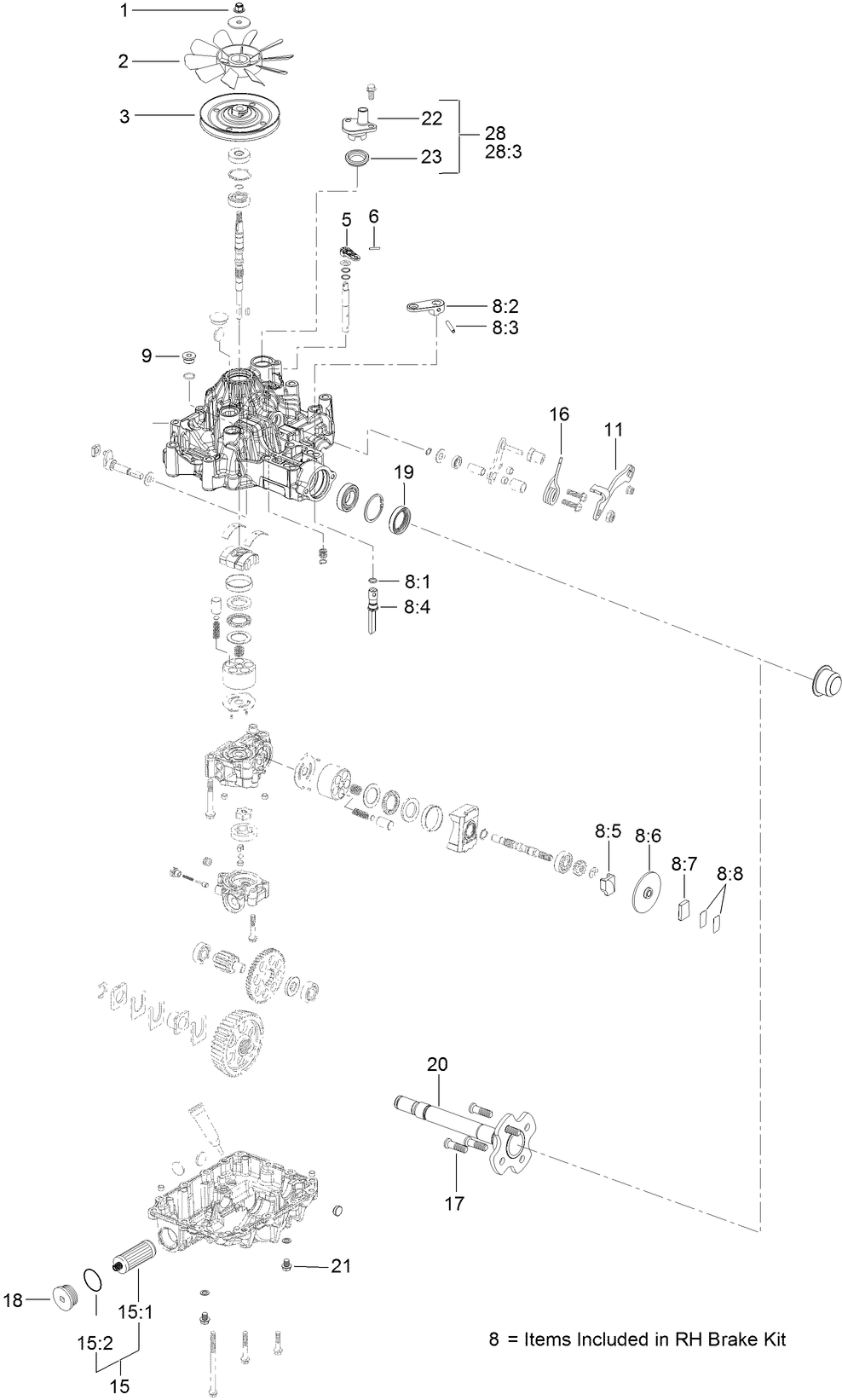

RH Transmission Assembly No 138 5839
RH Transmission Assembly No 138 5839
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Spindle Assembly No 137 9780
Spindle Assembly No 137 9780
| Sequence Number | Image | Product | Price | Add to cart |
|---|

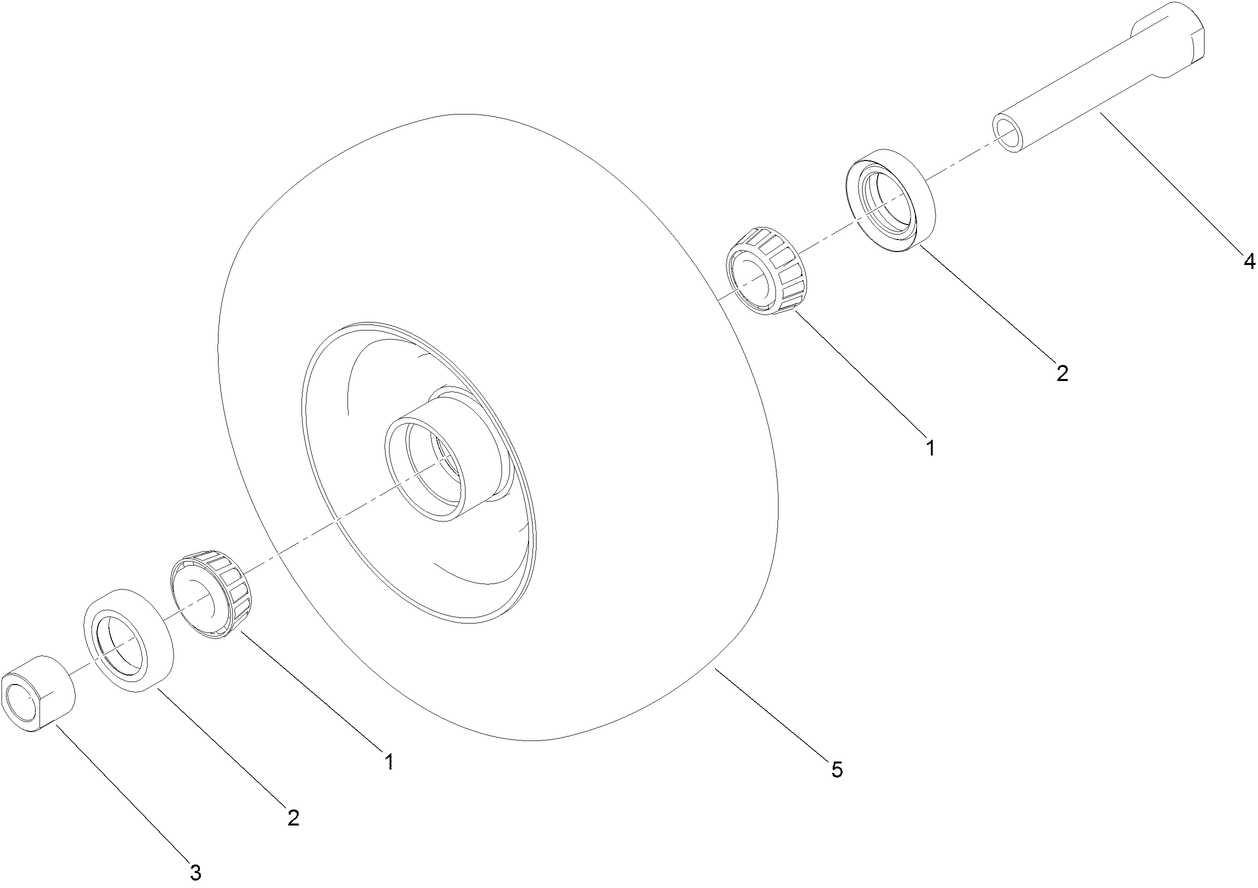

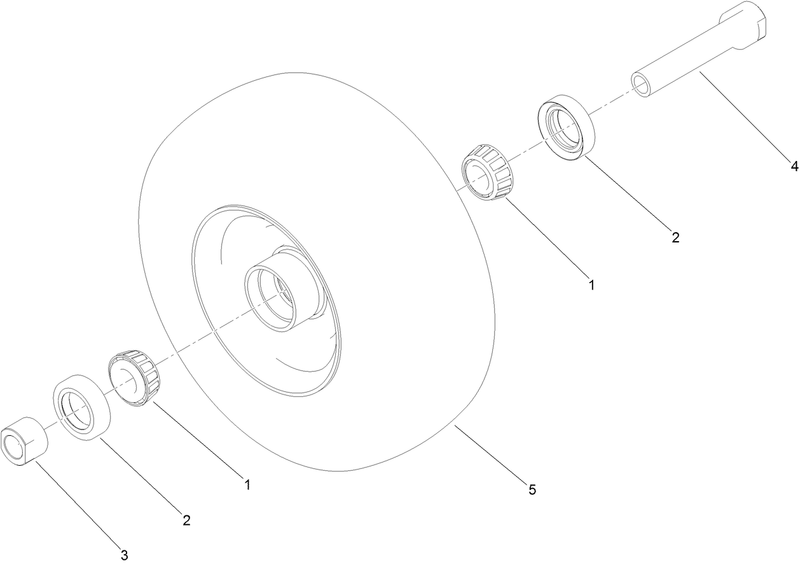

Wheel and Bearing Assembly
Wheel and Bearing Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
