Toro 72517 GrandStand® HDX 72 in. 37 hp 993 cc EFI with Oil Guard (Serial #: 414500000 - 416999999) Parts Diagram
Diagrams:
Diagram:

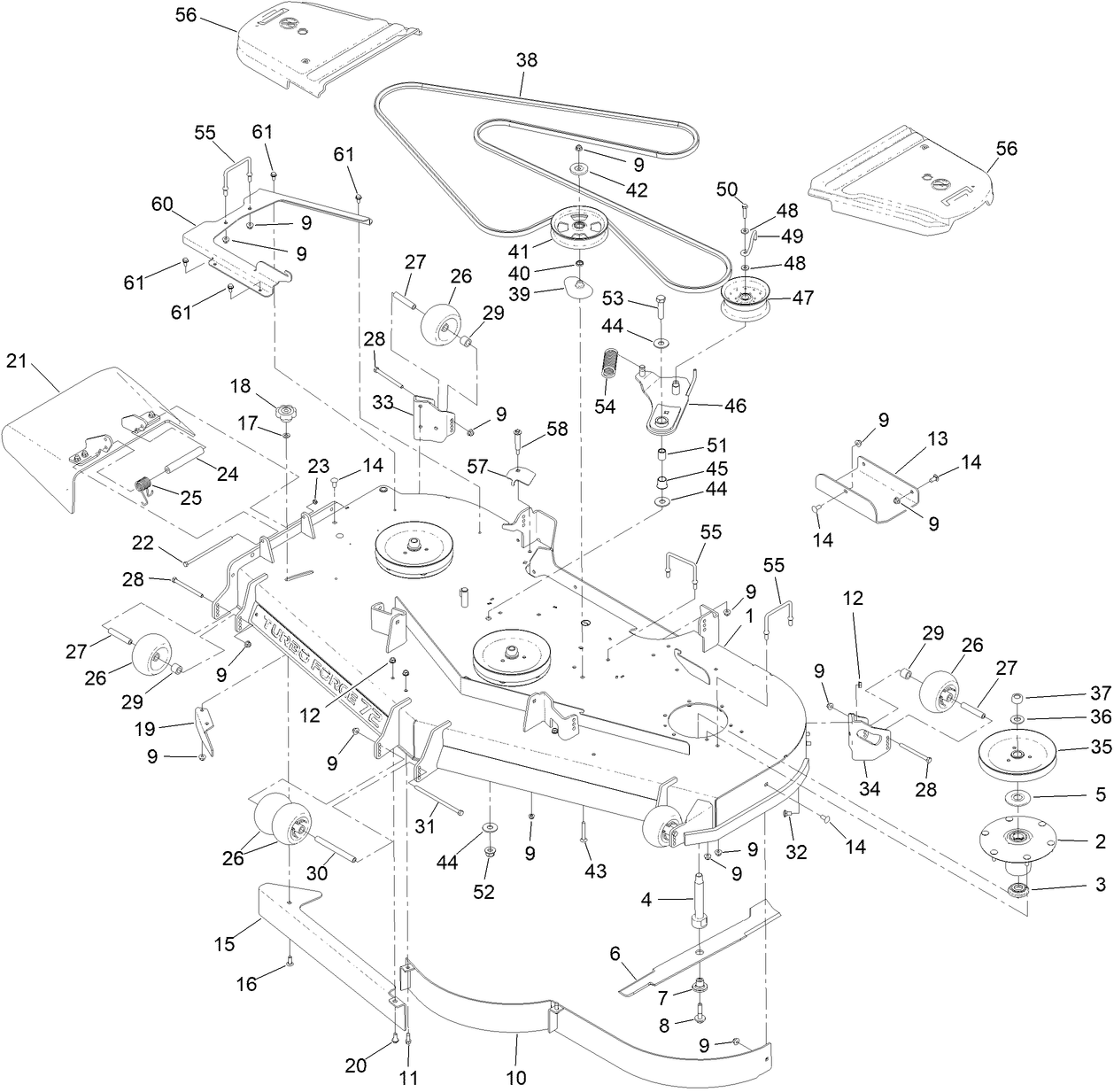

72 Inch Deck Assembly
72 Inch Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

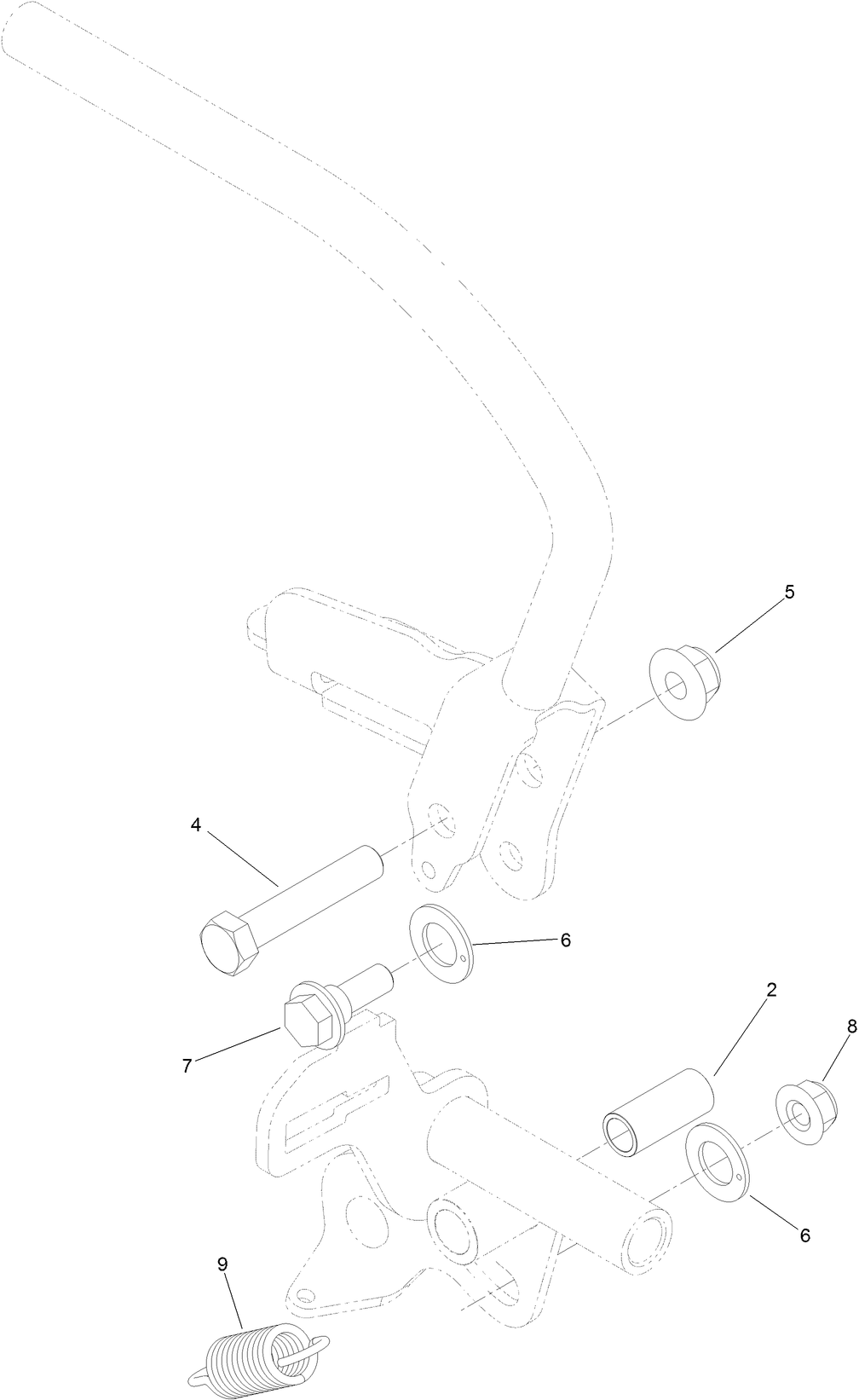

Control Handle Assembly No 132 5157
Control Handle Assembly No 132 5157
| Sequence Number | Image | Product | Price | Add to cart |
|---|

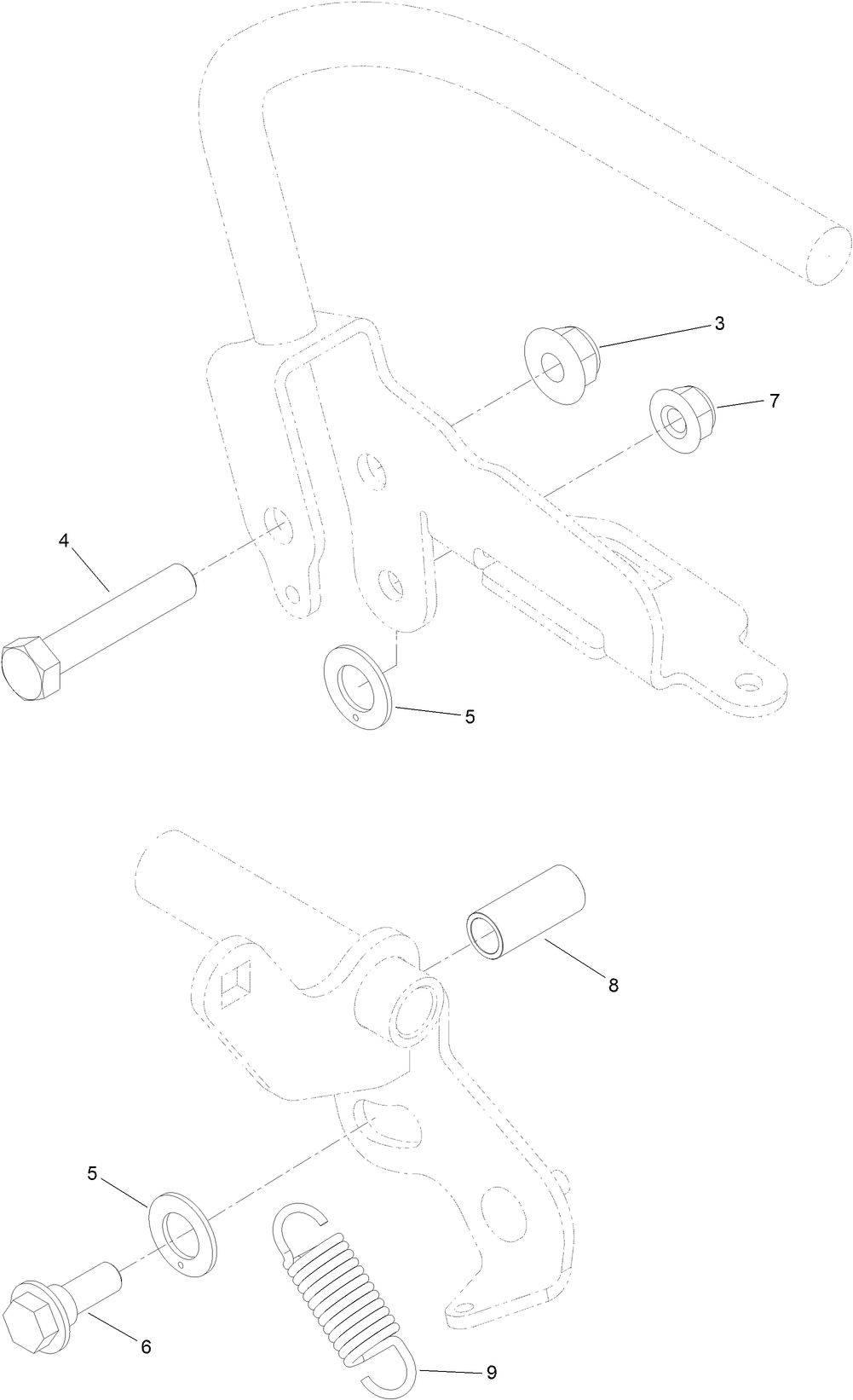

Control Handle Assembly No 132 5158
Control Handle Assembly No 132 5158
| Sequence Number | Image | Product | Price | Add to cart |
|---|

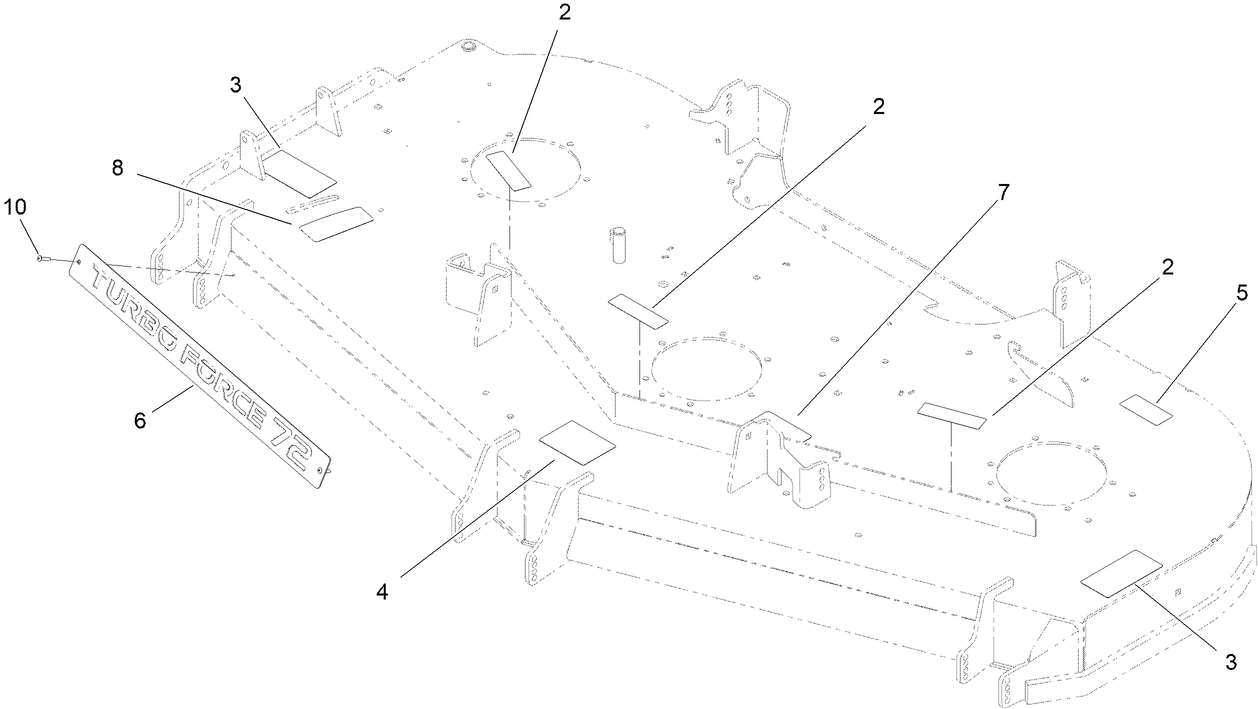

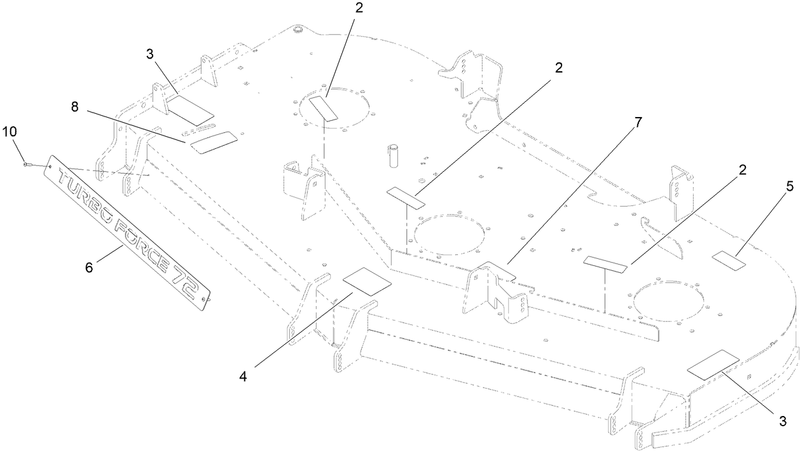

Deck and Decal Asssembly No 145 1621
Deck and Decal Asssembly No 145 1621
| Sequence Number | Image | Product | Price | Add to cart |
|---|

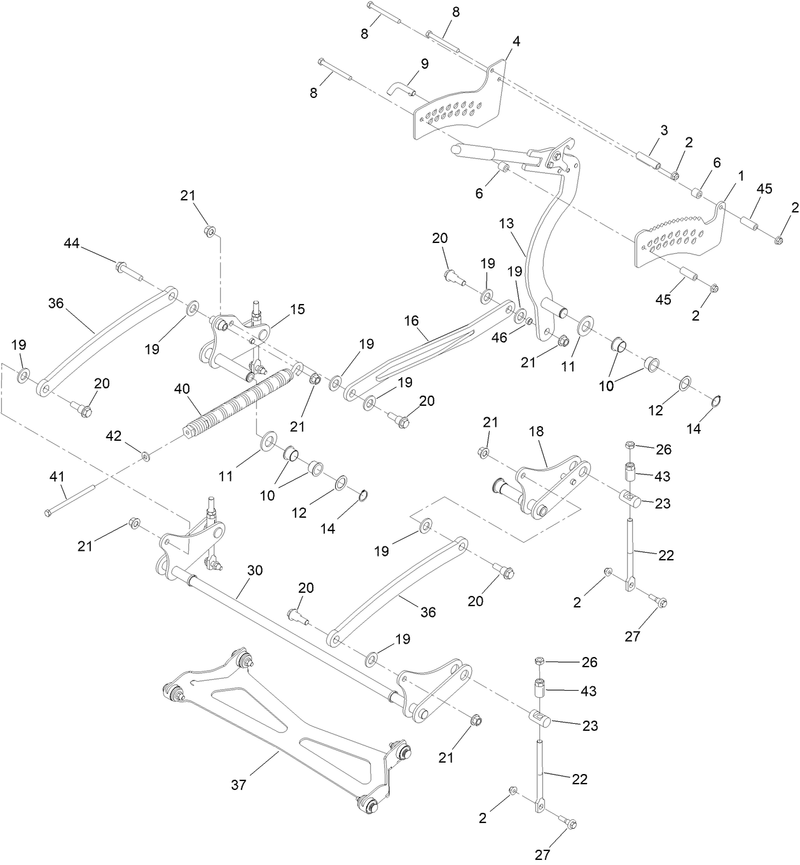

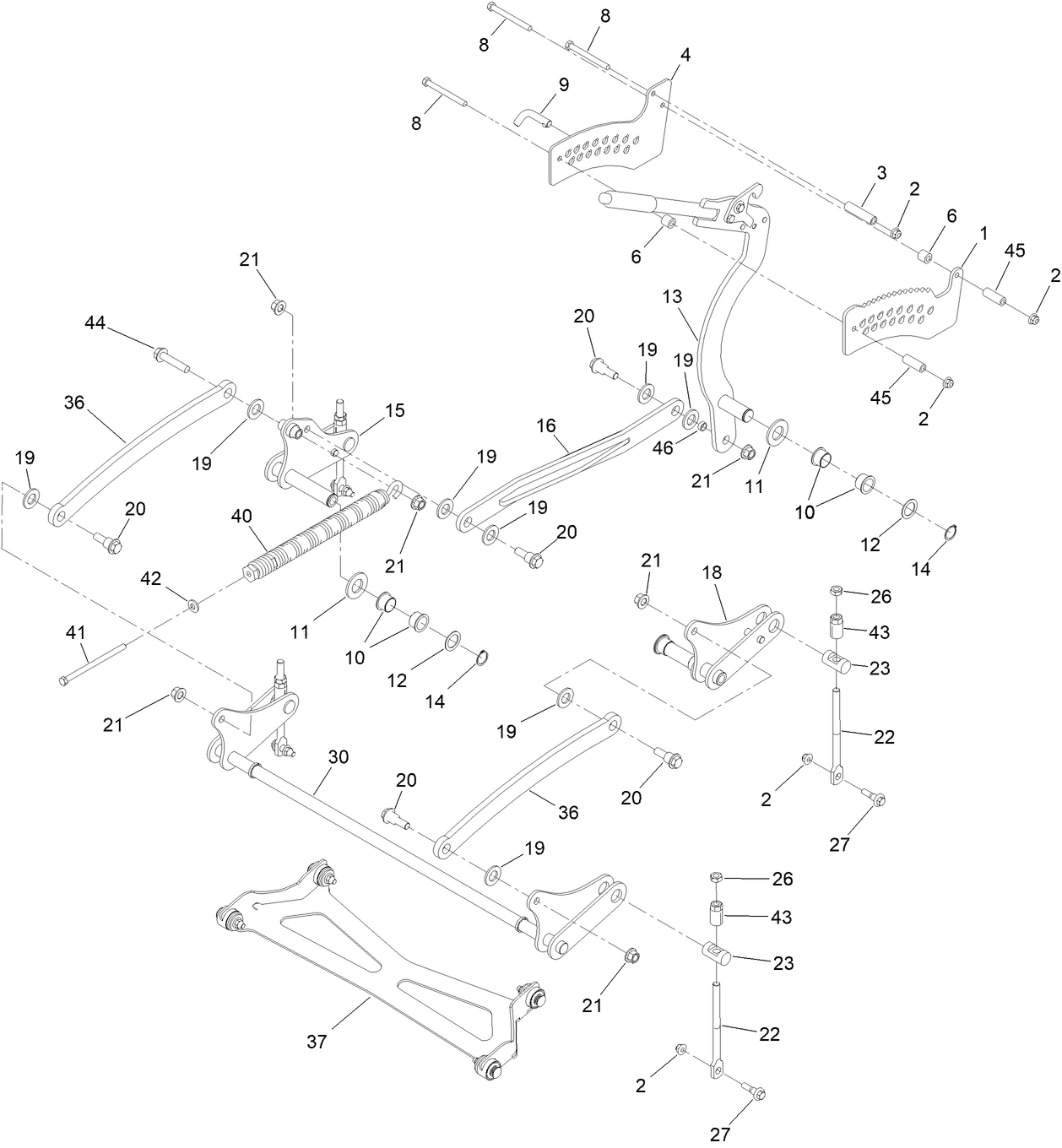

Deck Lift Assembly
Deck Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

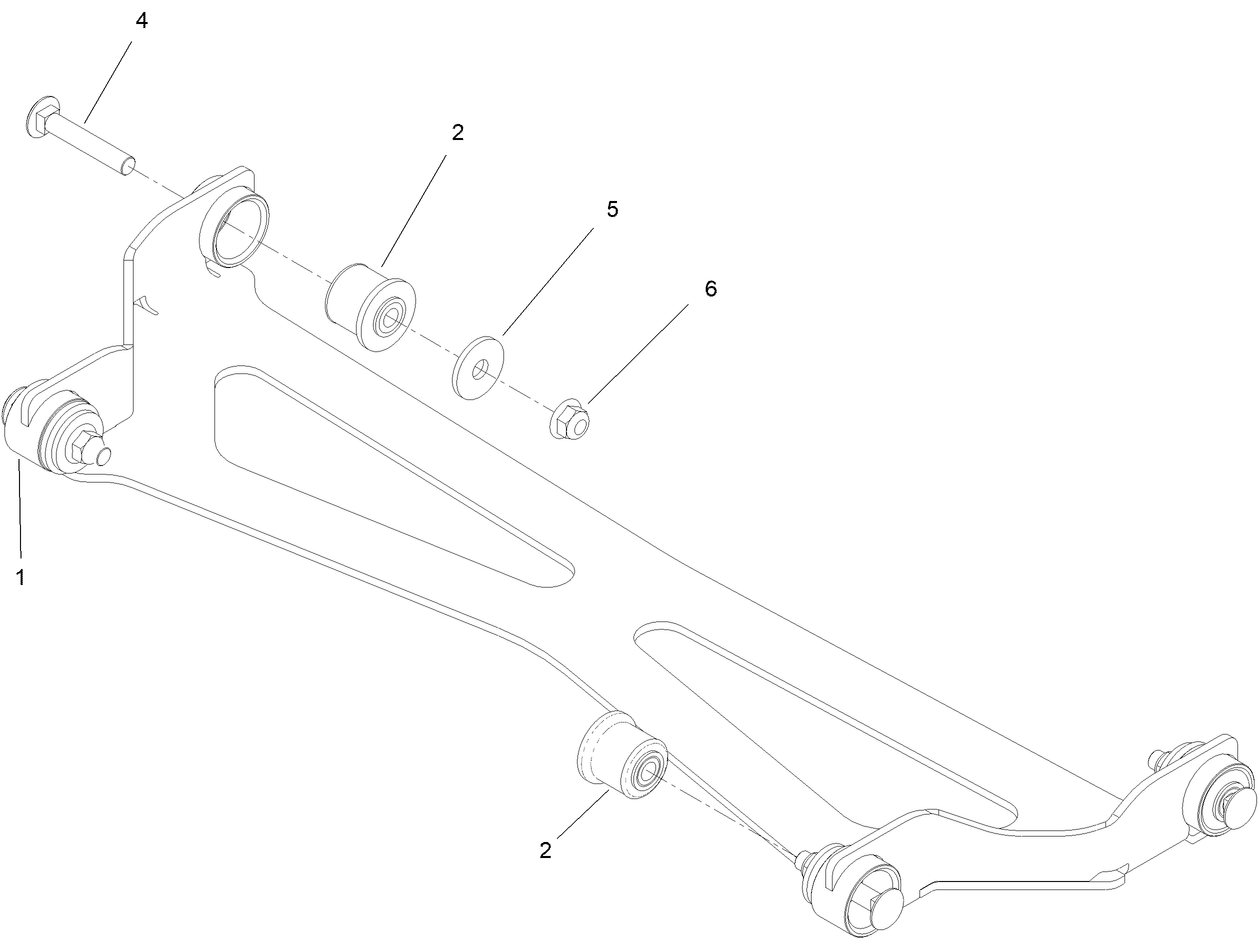

Deck Strut Assembly No 147 4557
Deck Strut Assembly No 147 4557
| Sequence Number | Image | Product | Price | Add to cart |
|---|

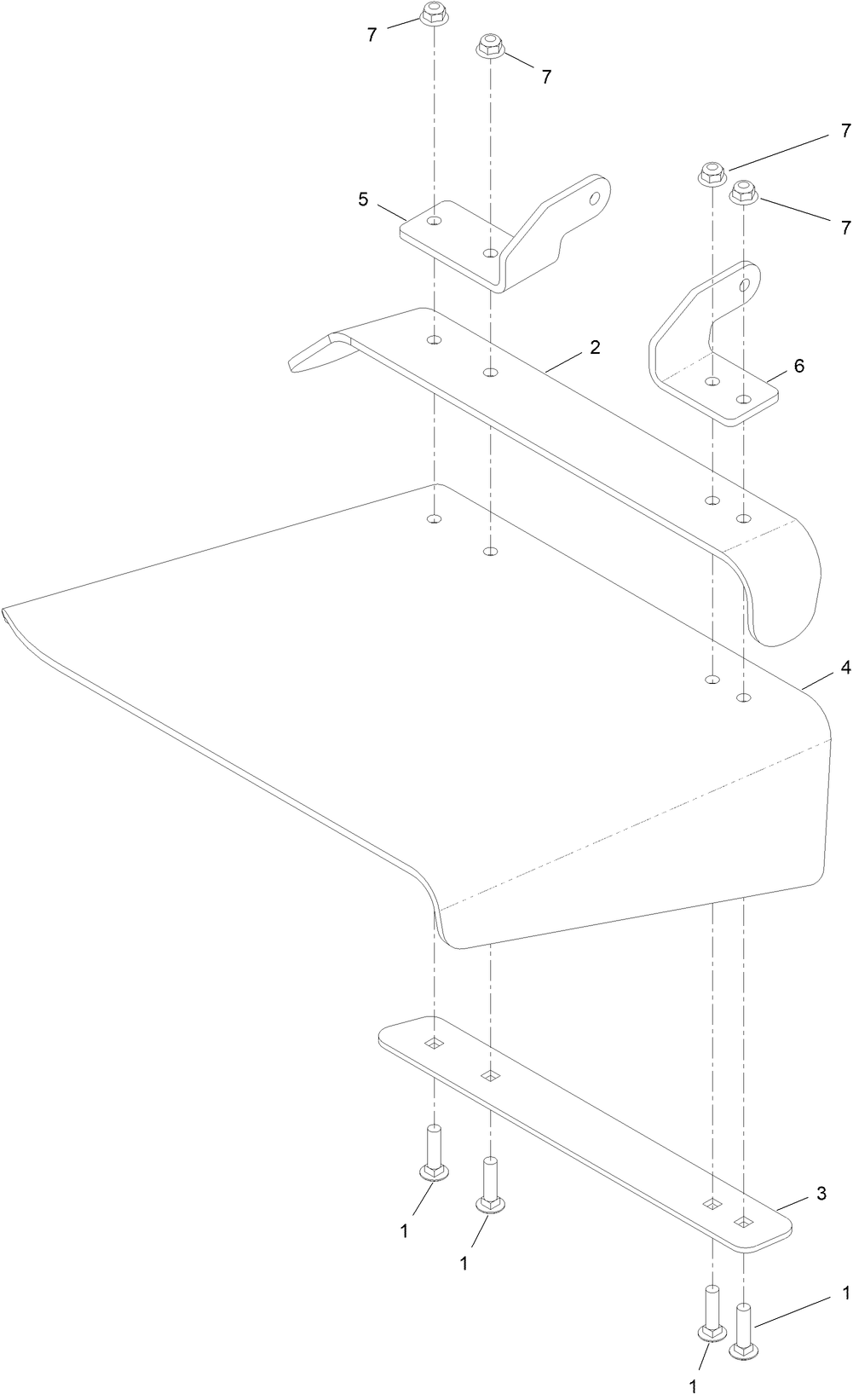

Deflector Assembly No 144 2635
Deflector Assembly No 144 2635
| Sequence Number | Image | Product | Price | Add to cart |
|---|

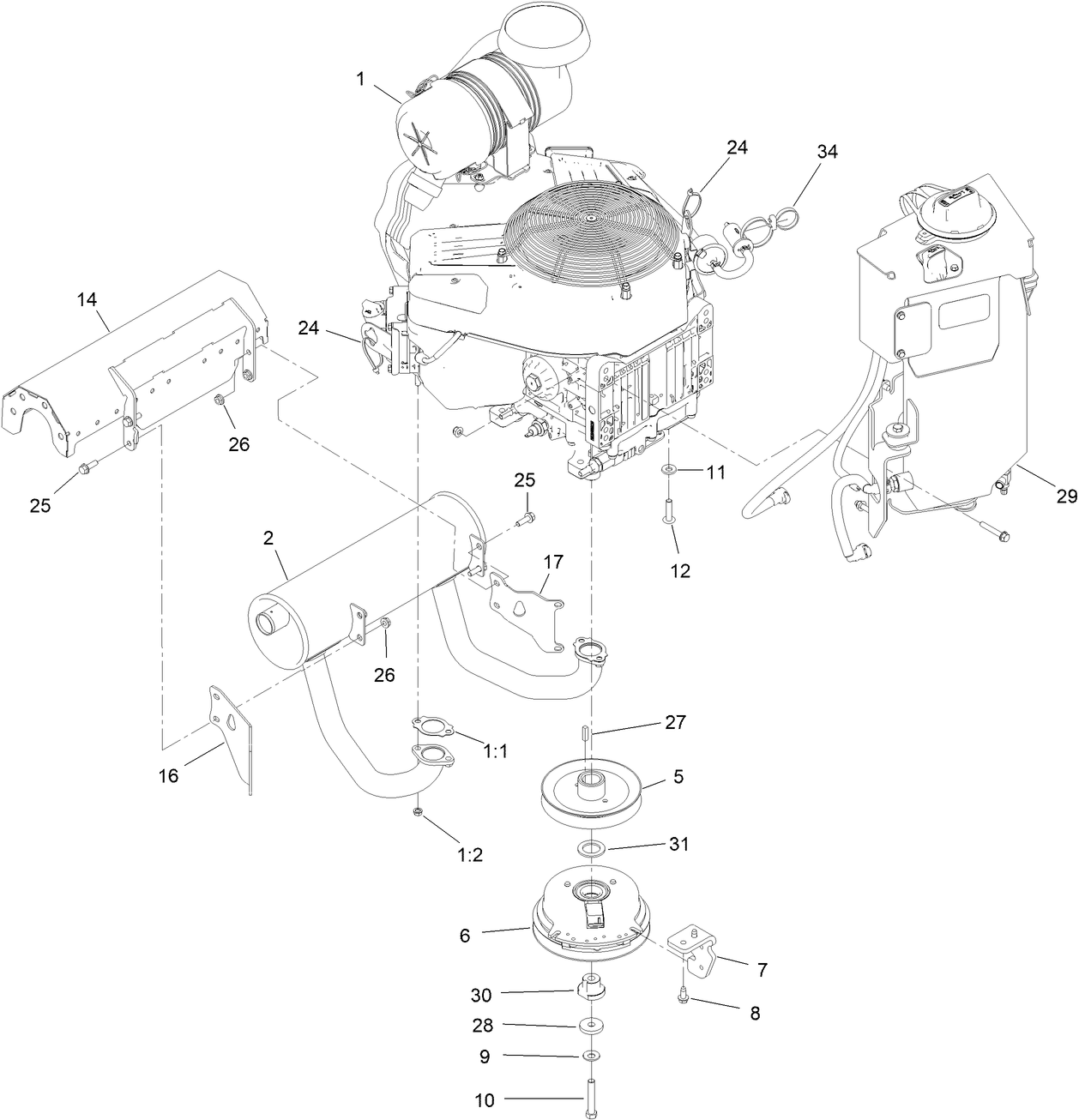

Engine Assembly
Engine Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

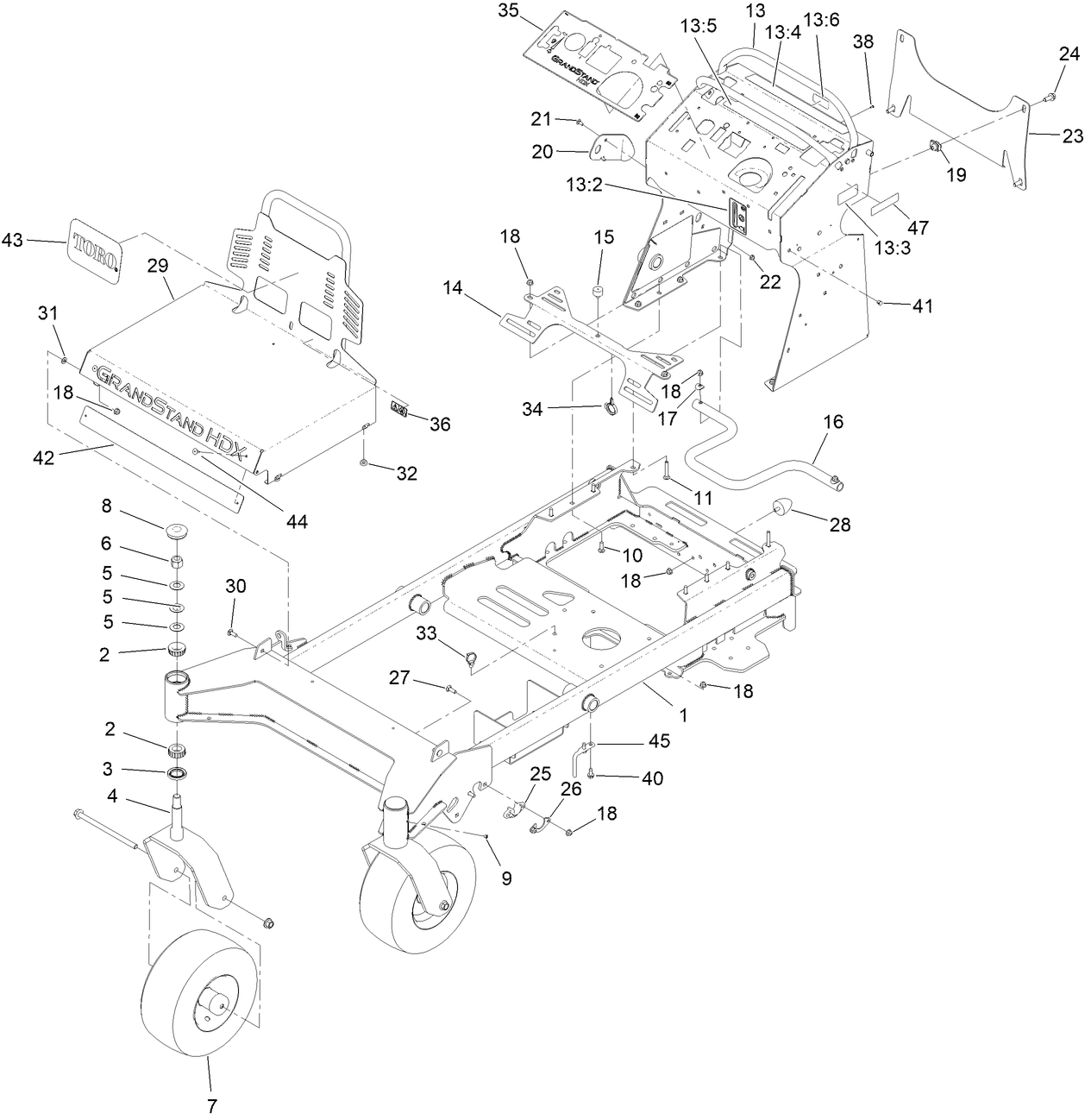

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

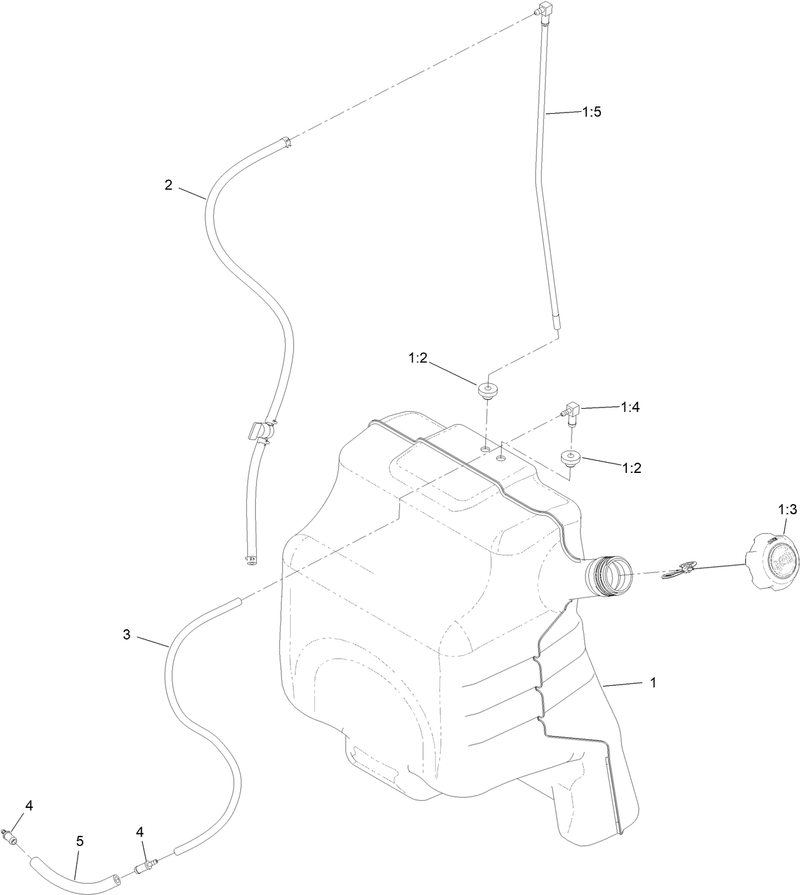

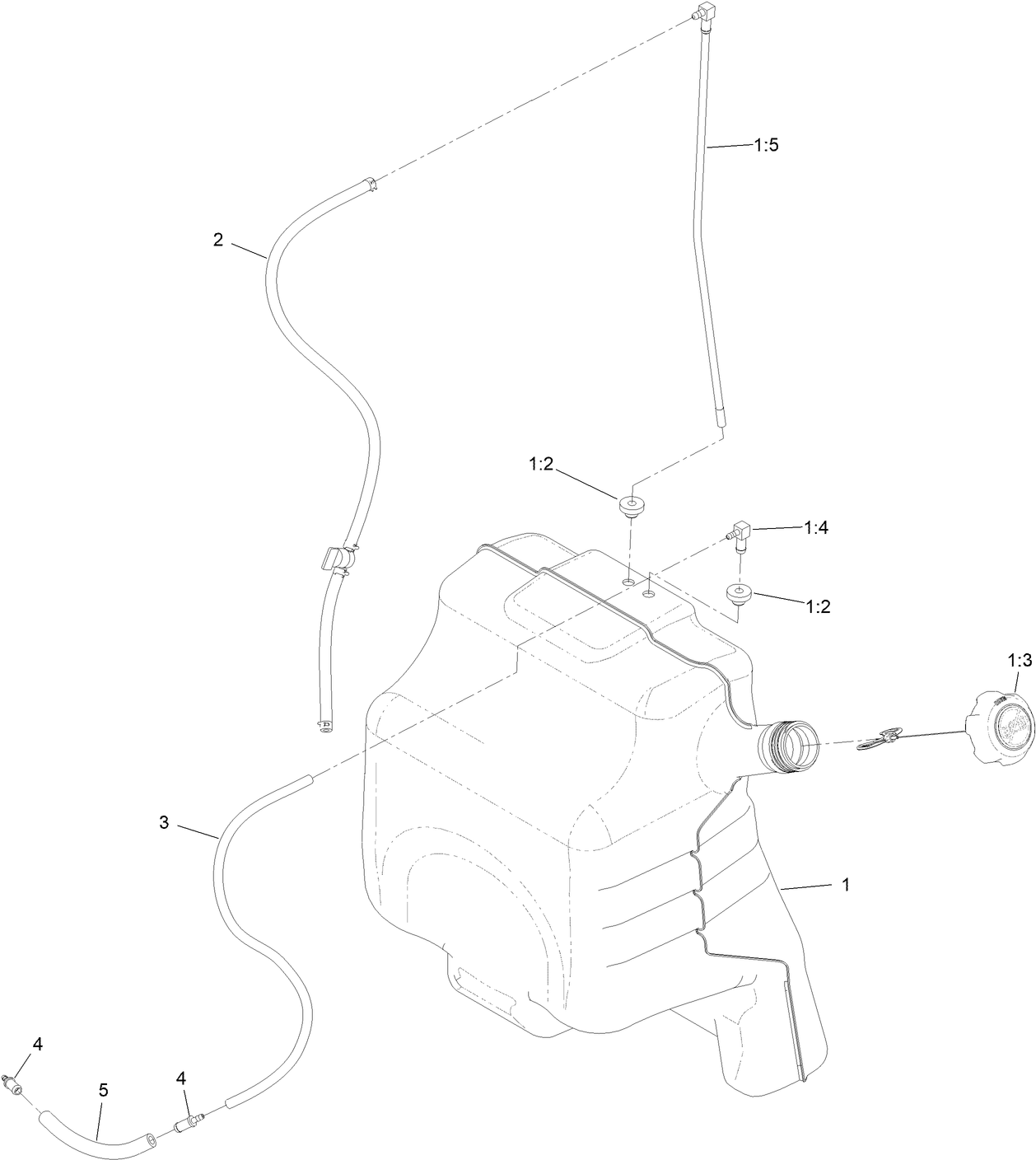

Fuel Tank Assembly
Fuel Tank Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

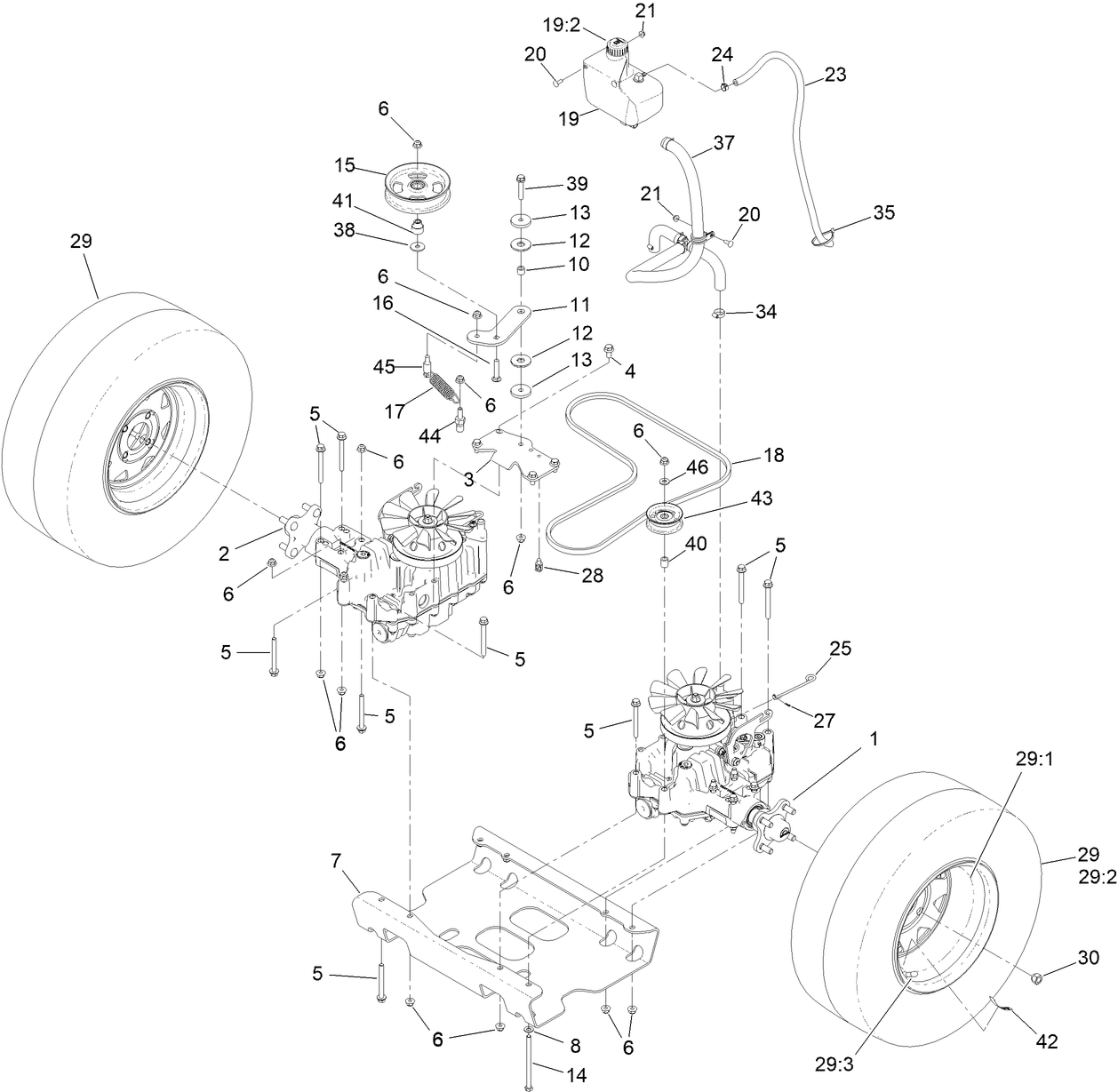

Ground Drive Assembly
Ground Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

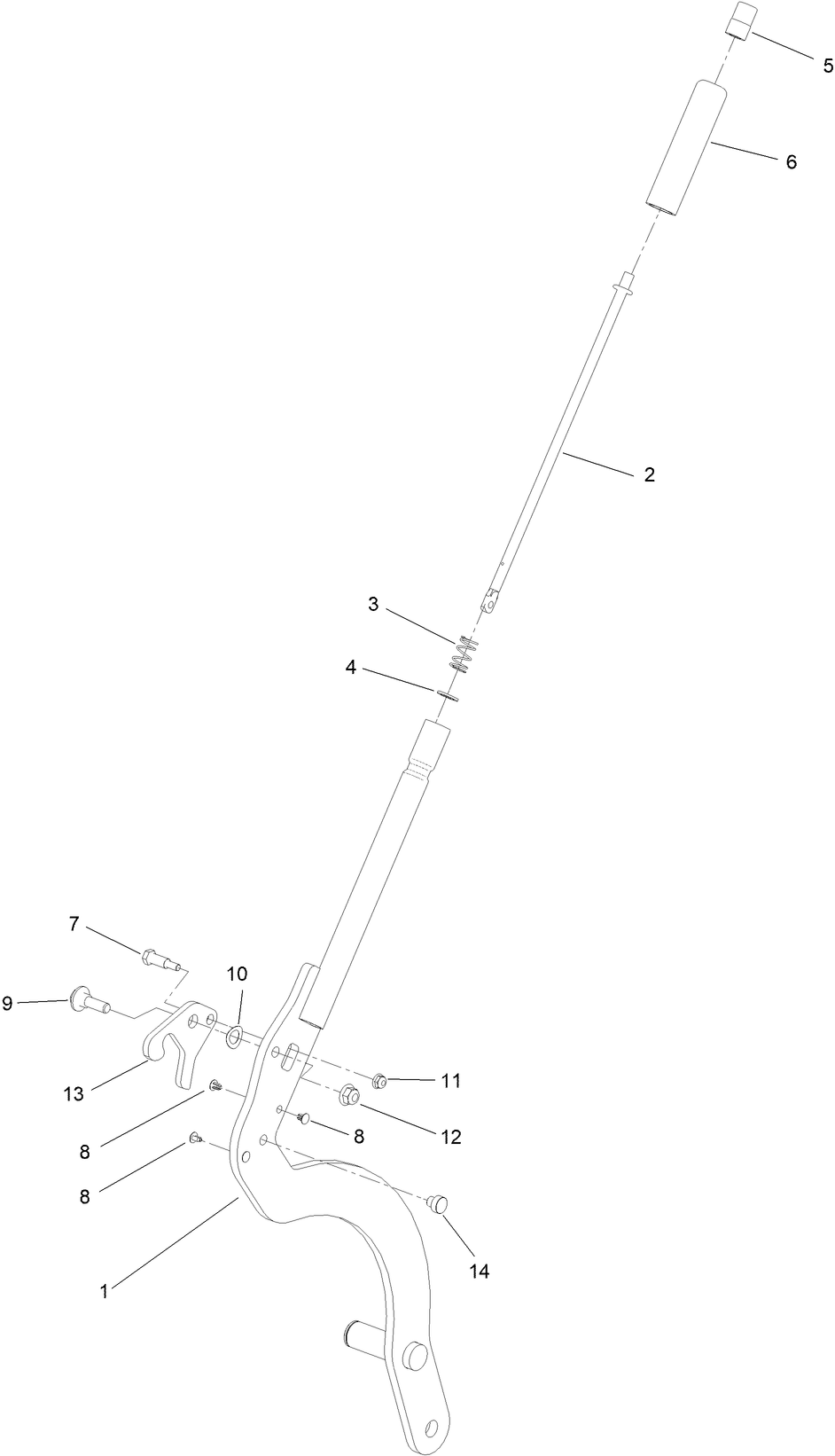

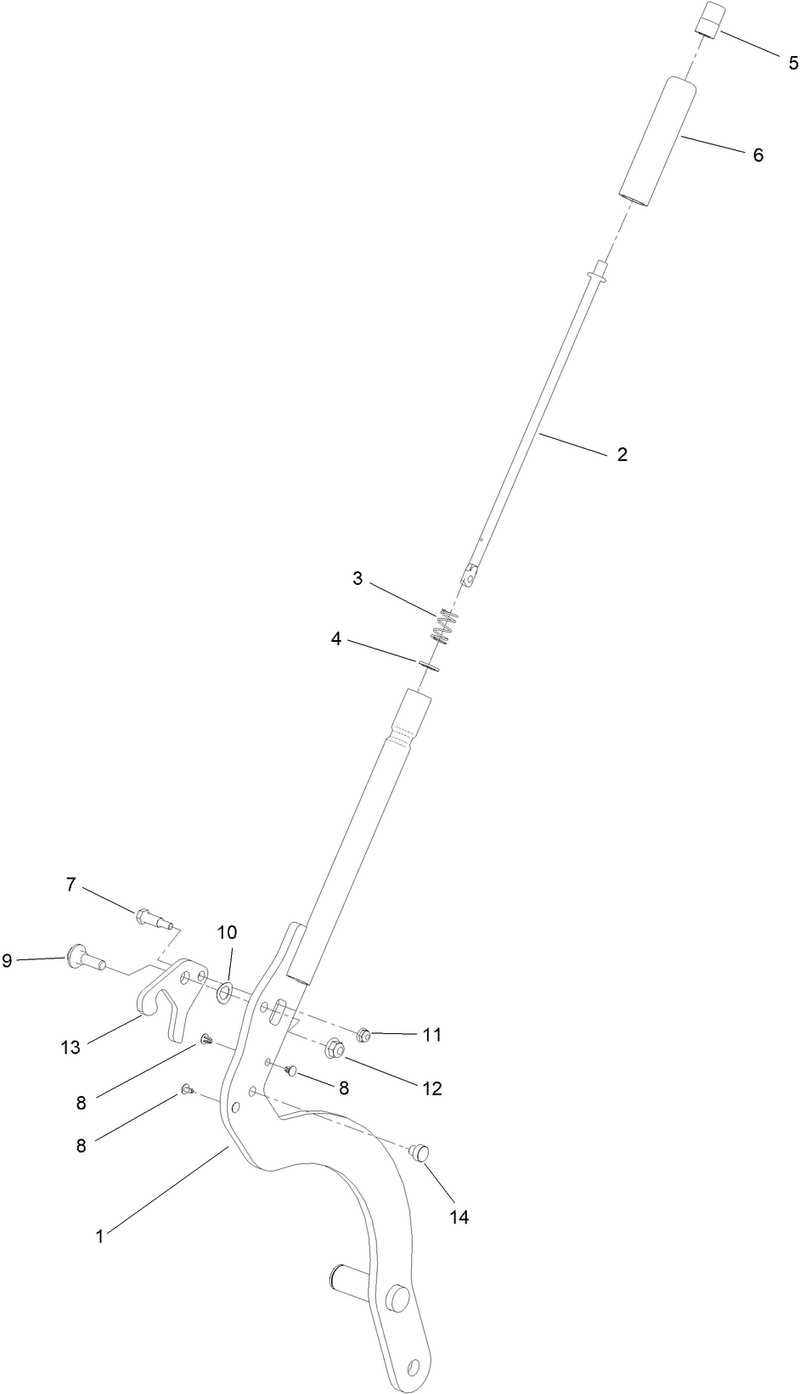

HOC Level Assembly No 130 1755
HOC Level Assembly No 130 1755
| Sequence Number | Image | Product | Price | Add to cart |
|---|

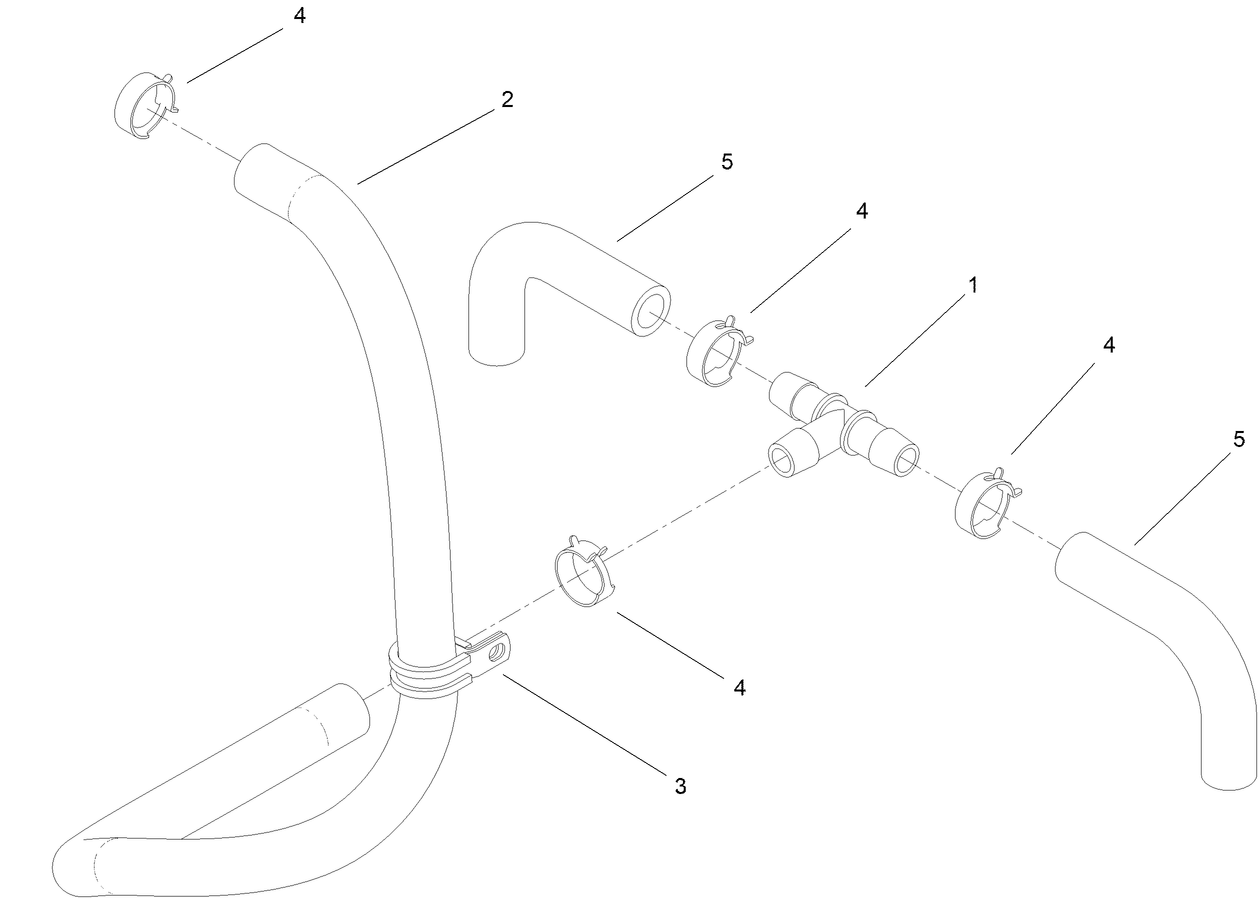

Hydraulic Hose Assembly
Hydraulic Hose Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

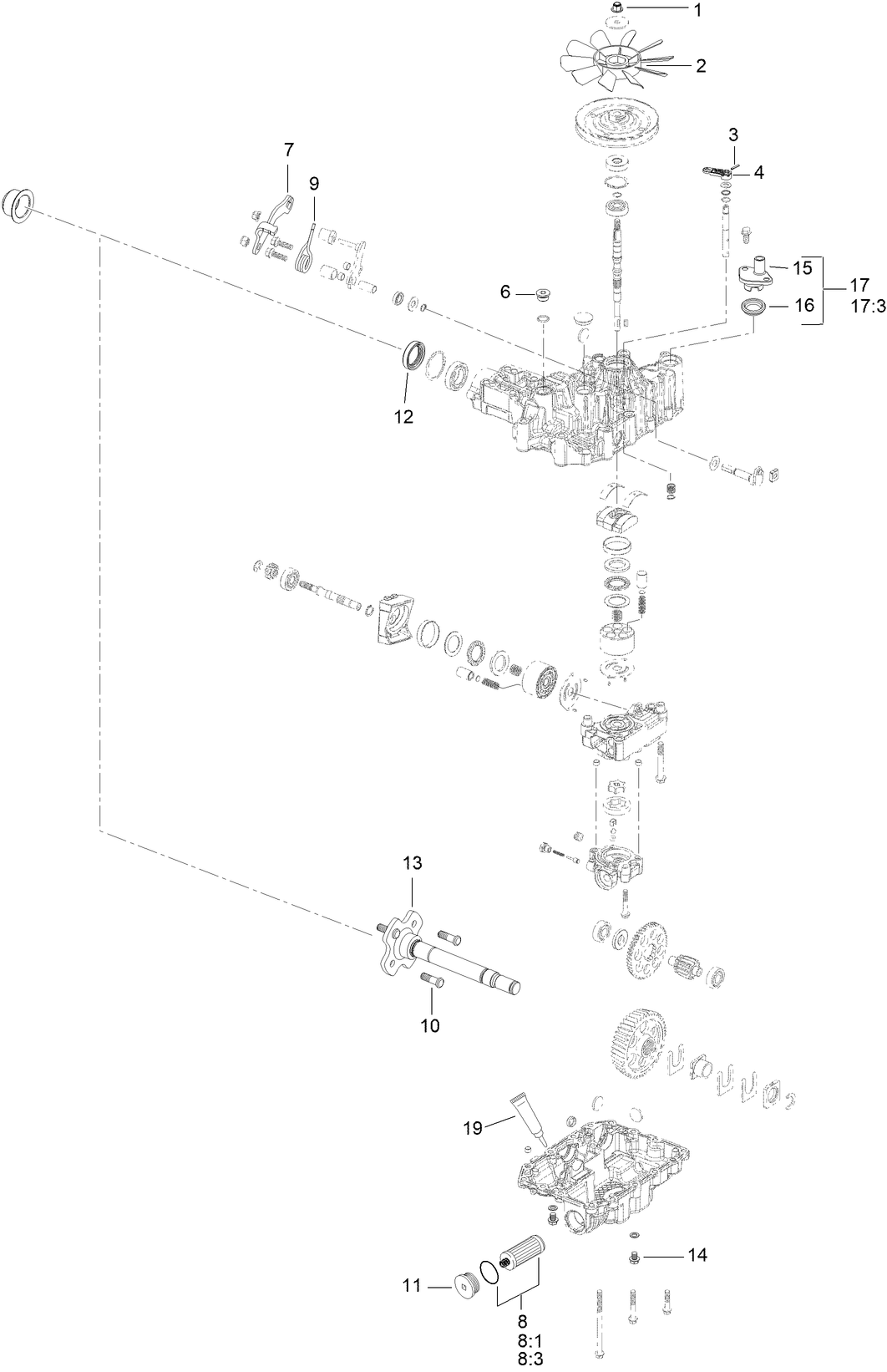

LH Transmission Assembly No 161 1323
LH Transmission Assembly No 161 1323
| Sequence Number | Image | Product | Price | Add to cart |
|---|

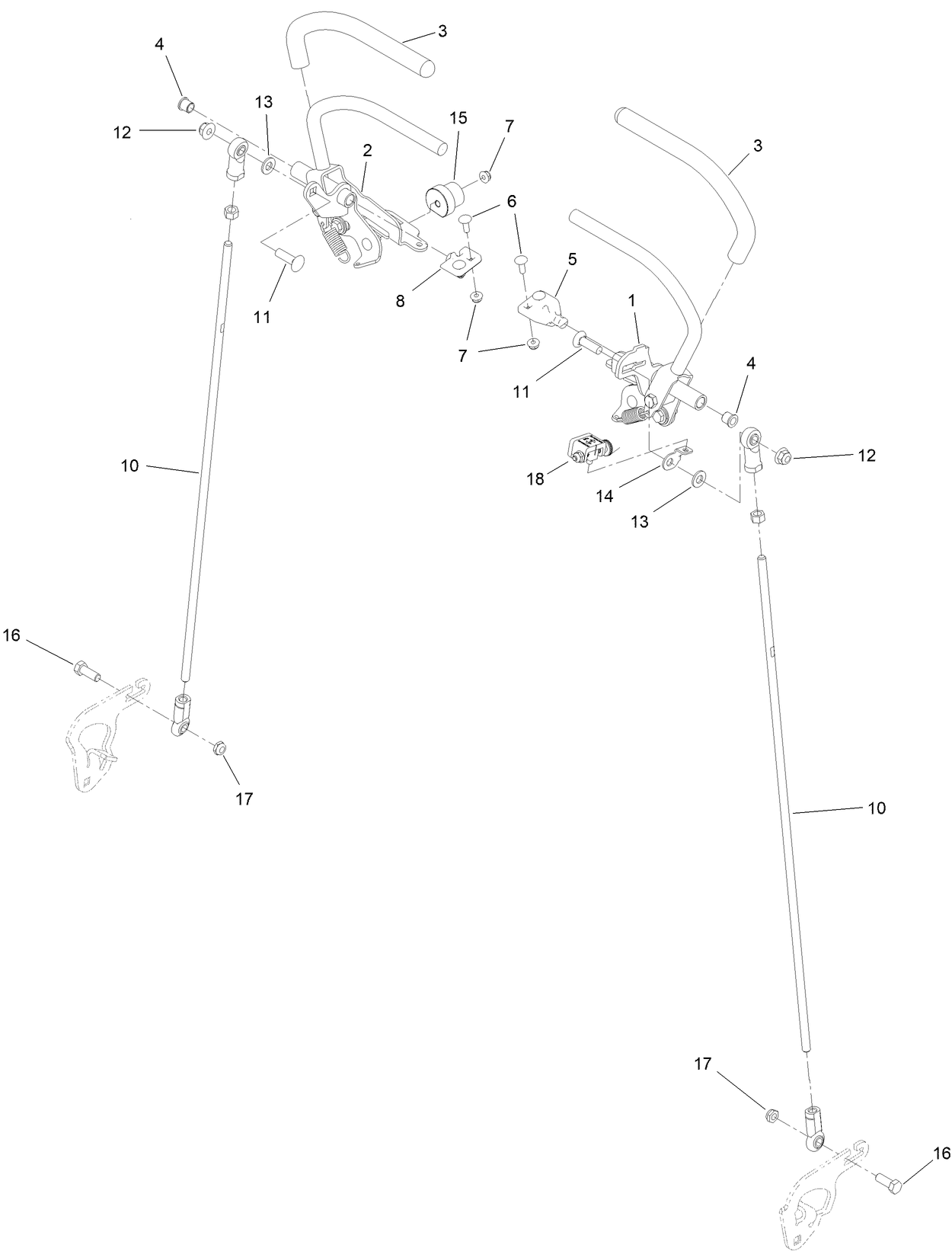

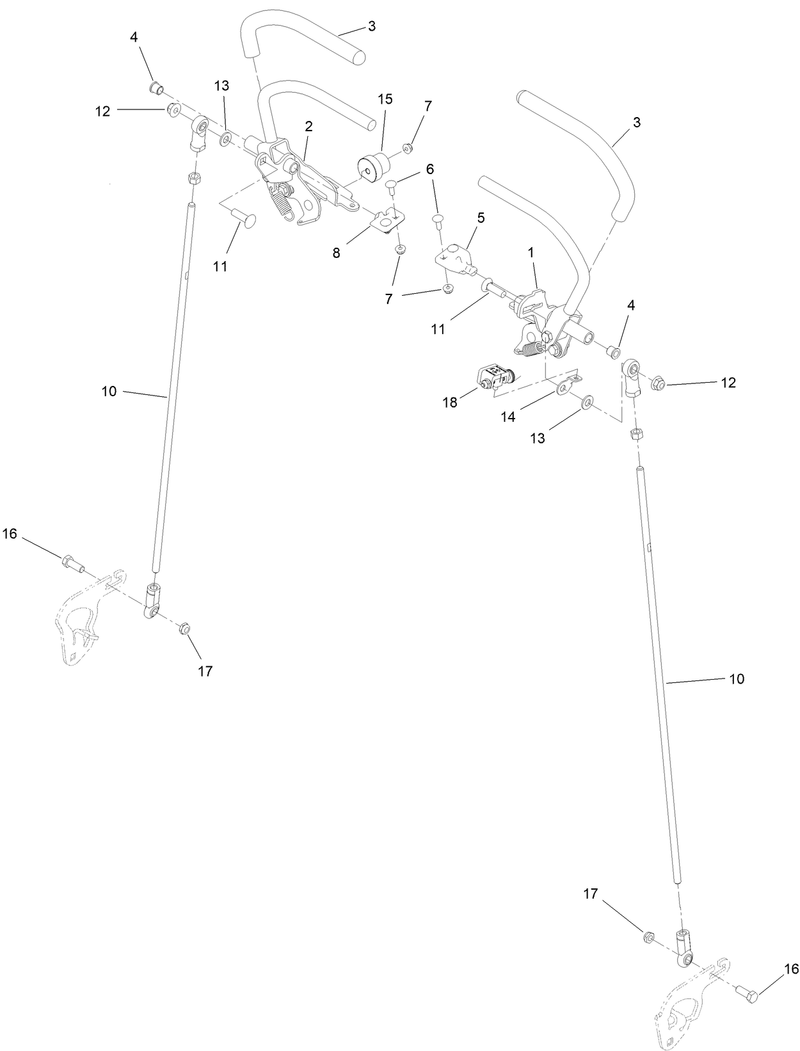

Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

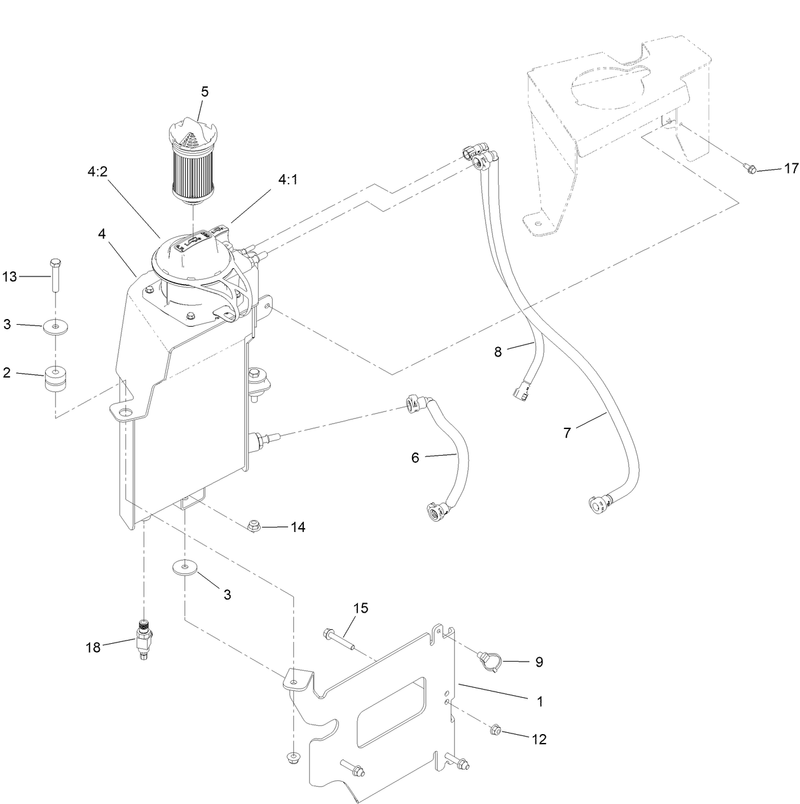

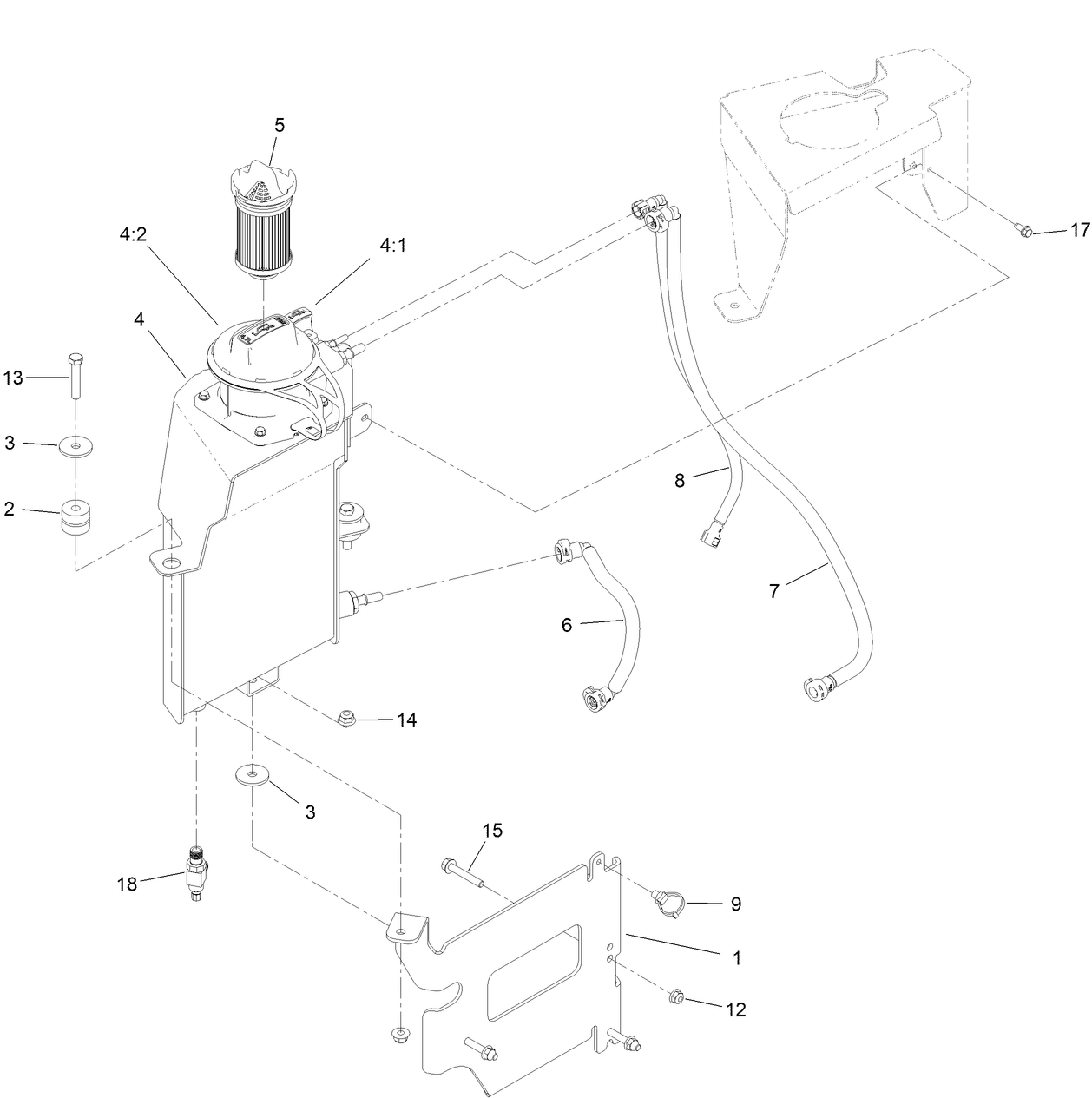

Oil Guard Assembly
Oil Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

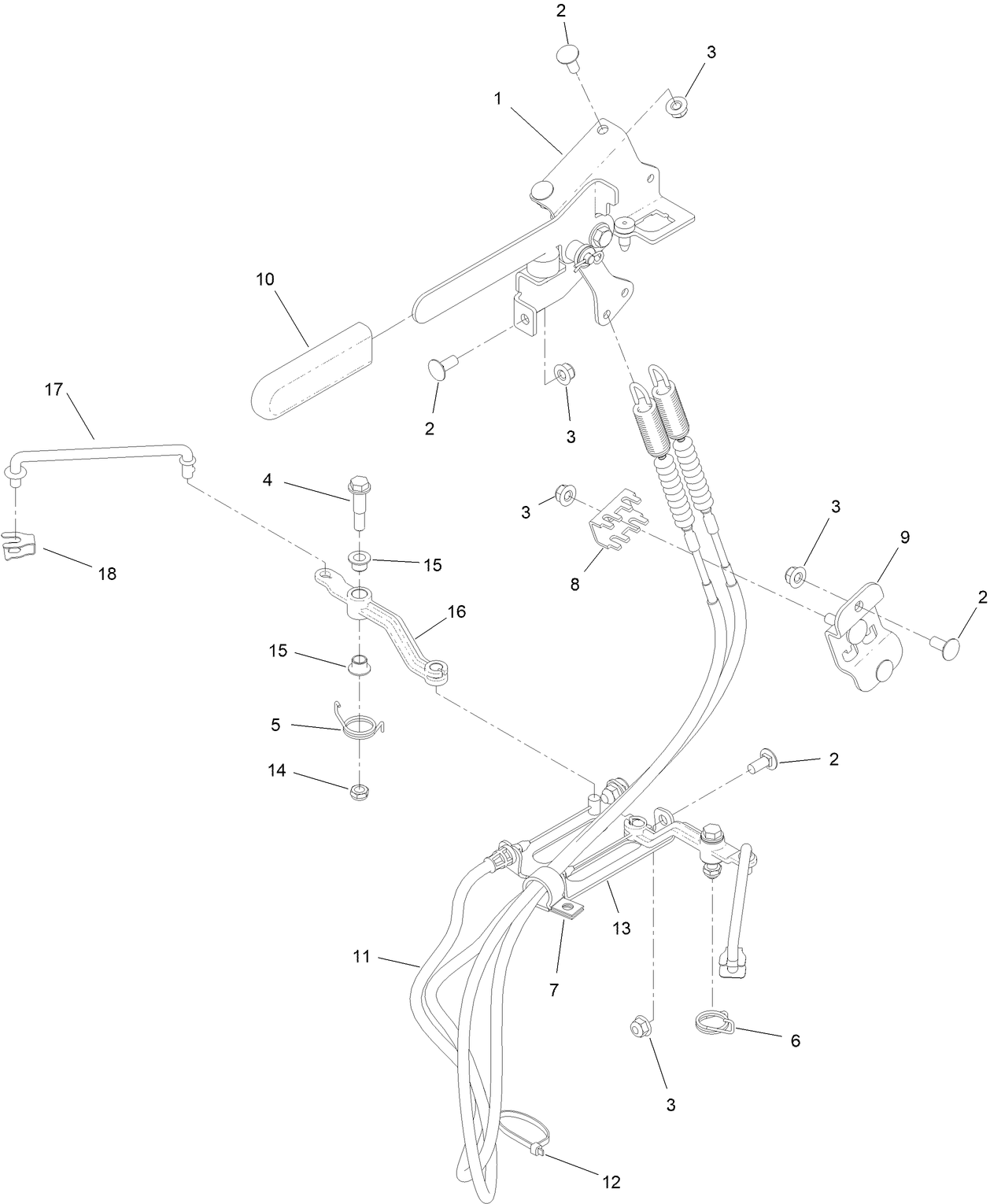

Parking Brake Assembly
Parking Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

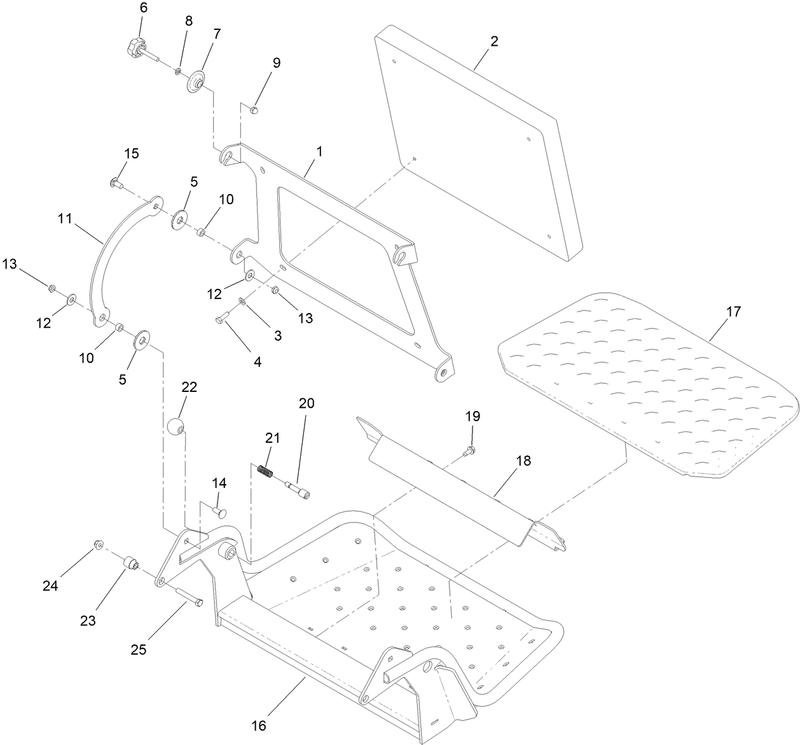

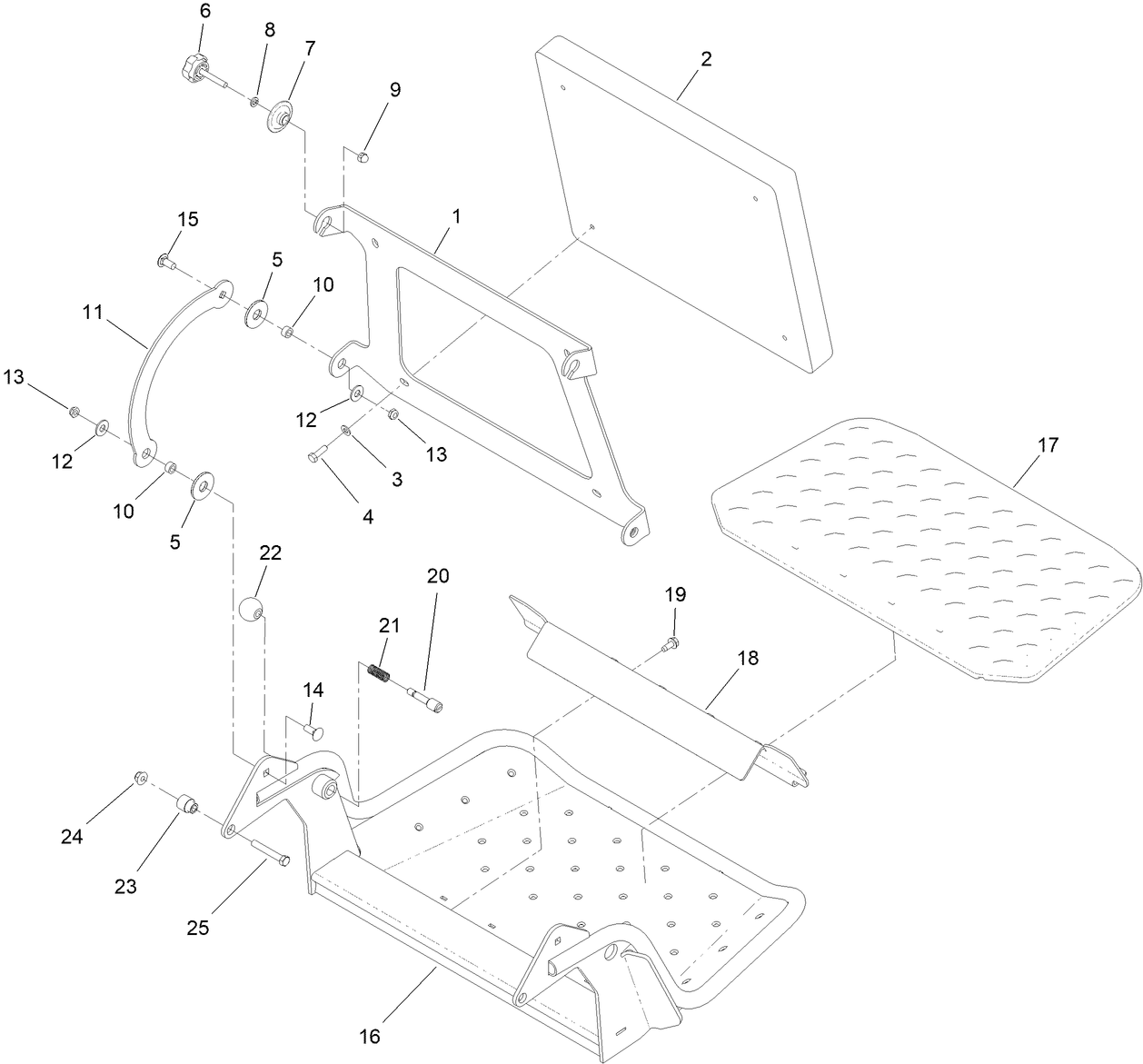

Platform Assembly
Platform Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

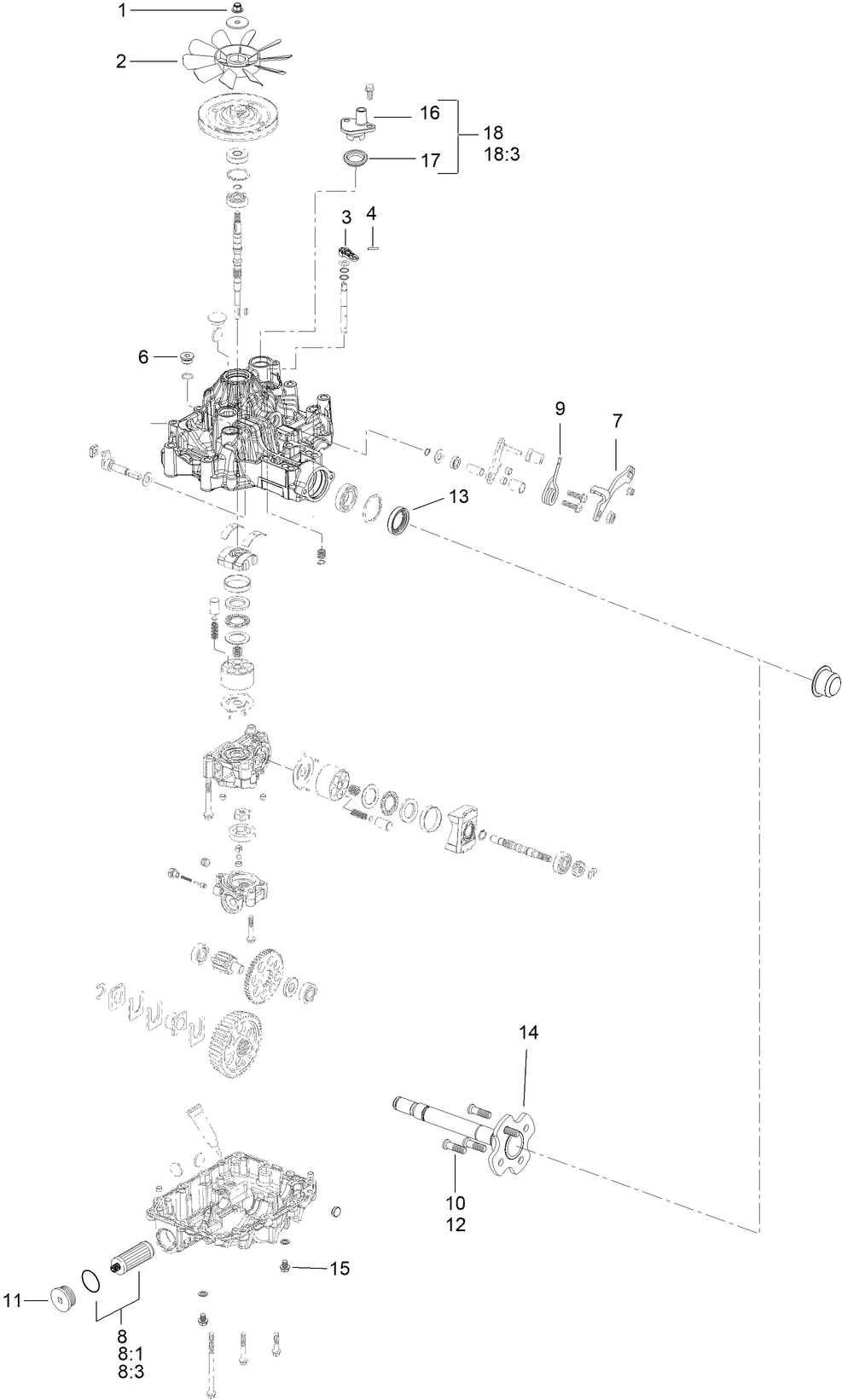

RH Transmission Assembly No 161 1324
RH Transmission Assembly No 161 1324
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Spindle Assembly No 137 9780
Spindle Assembly No 137 9780
| Sequence Number | Image | Product | Price | Add to cart |
|---|

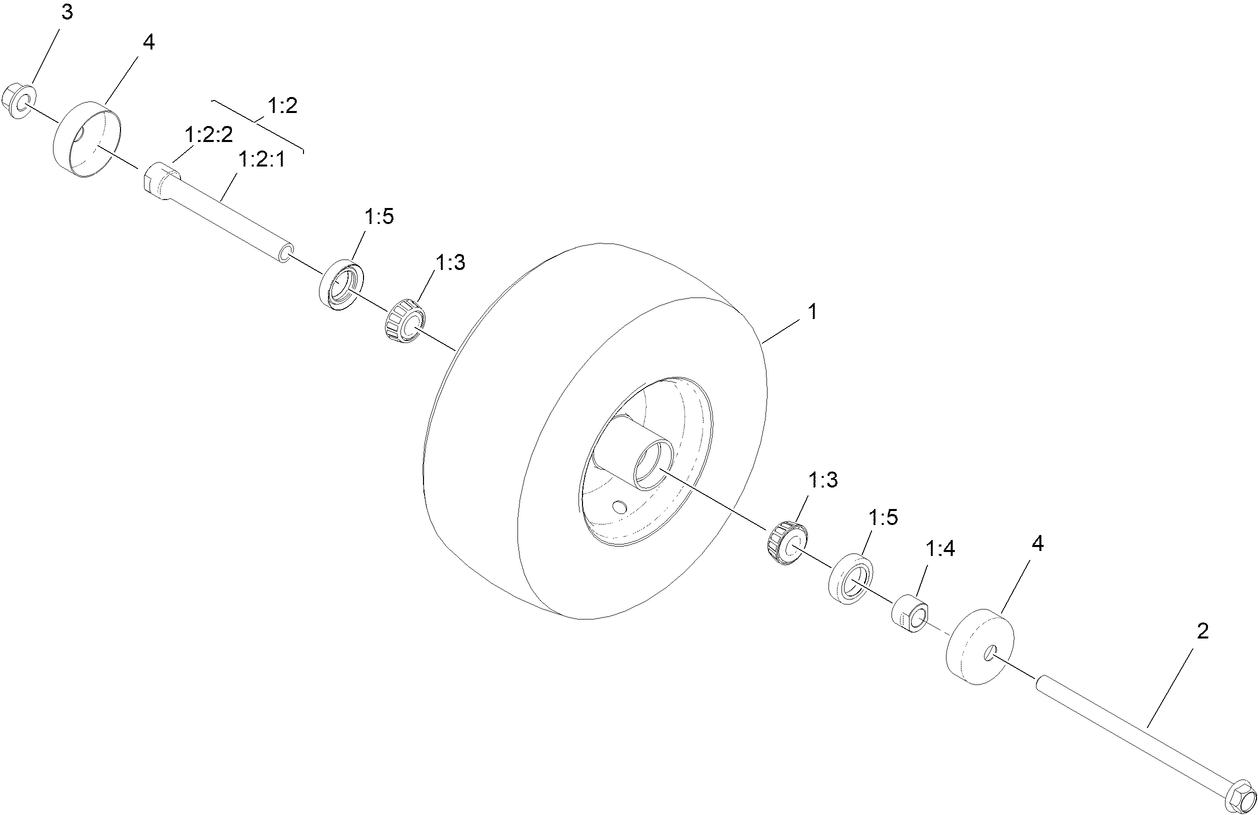

Wheel and Bearing Assembly No 140 4896
Wheel and Bearing Assembly No 140 4896
| Sequence Number | Image | Product | Price | Add to cart |
|---|
