Toro 74000 4000 Series 48 in. (122 cm) 24.5 hp 852cc (Serial #: 414301505 - 415399999) Parts Diagram
Diagrams:
Diagram:
Caster and Wheel Assembly
Caster and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

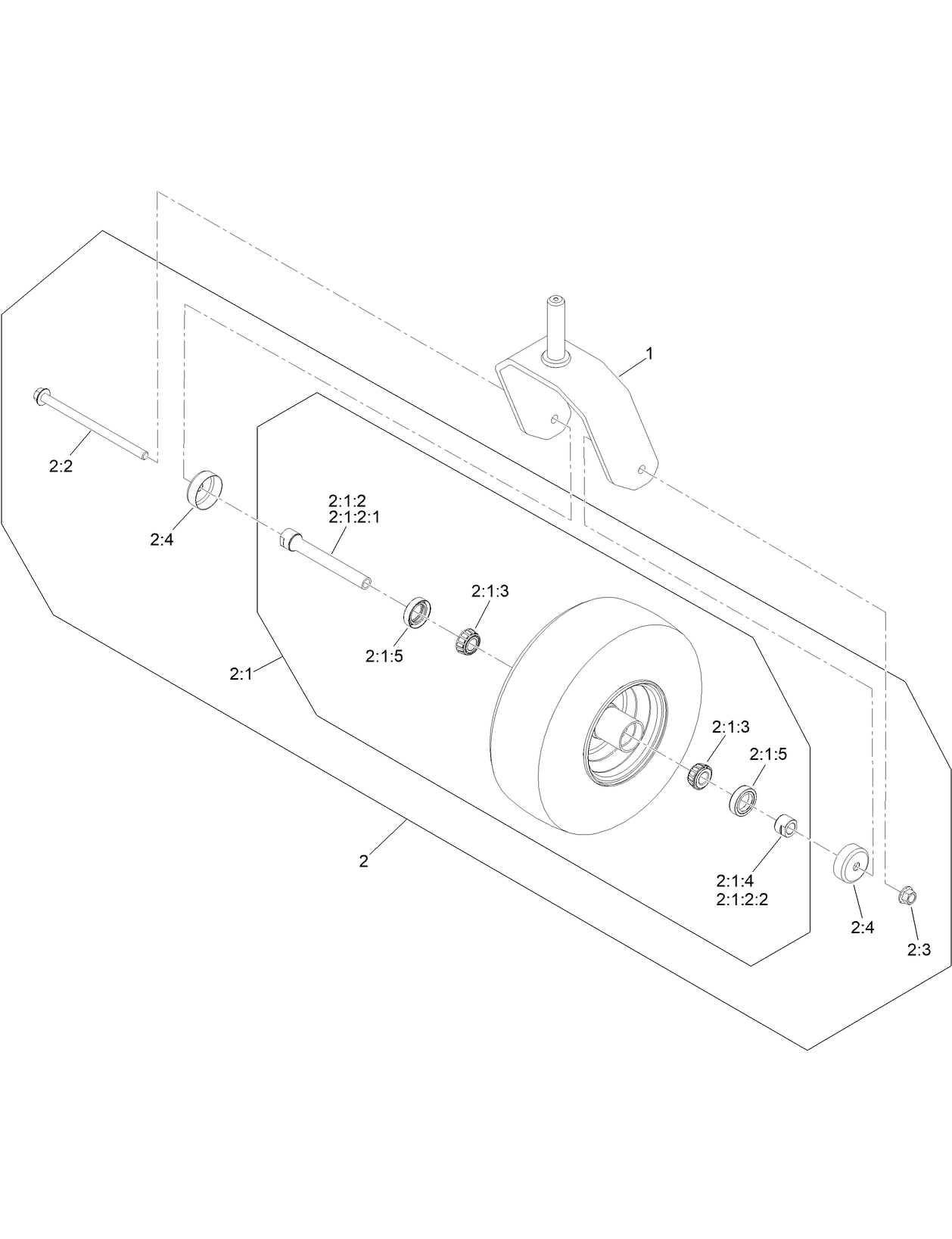

Caster Wheel Assembly
Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

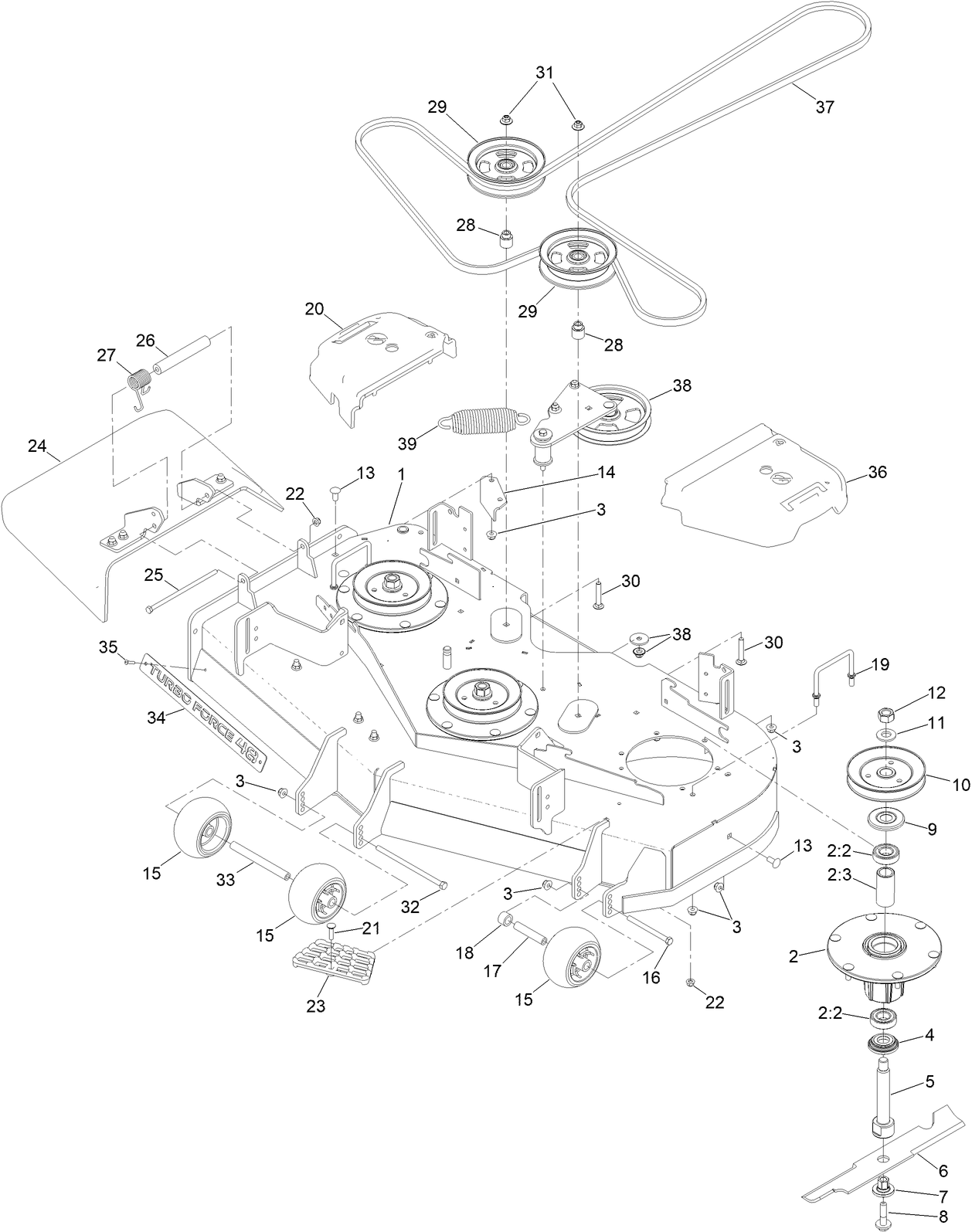

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

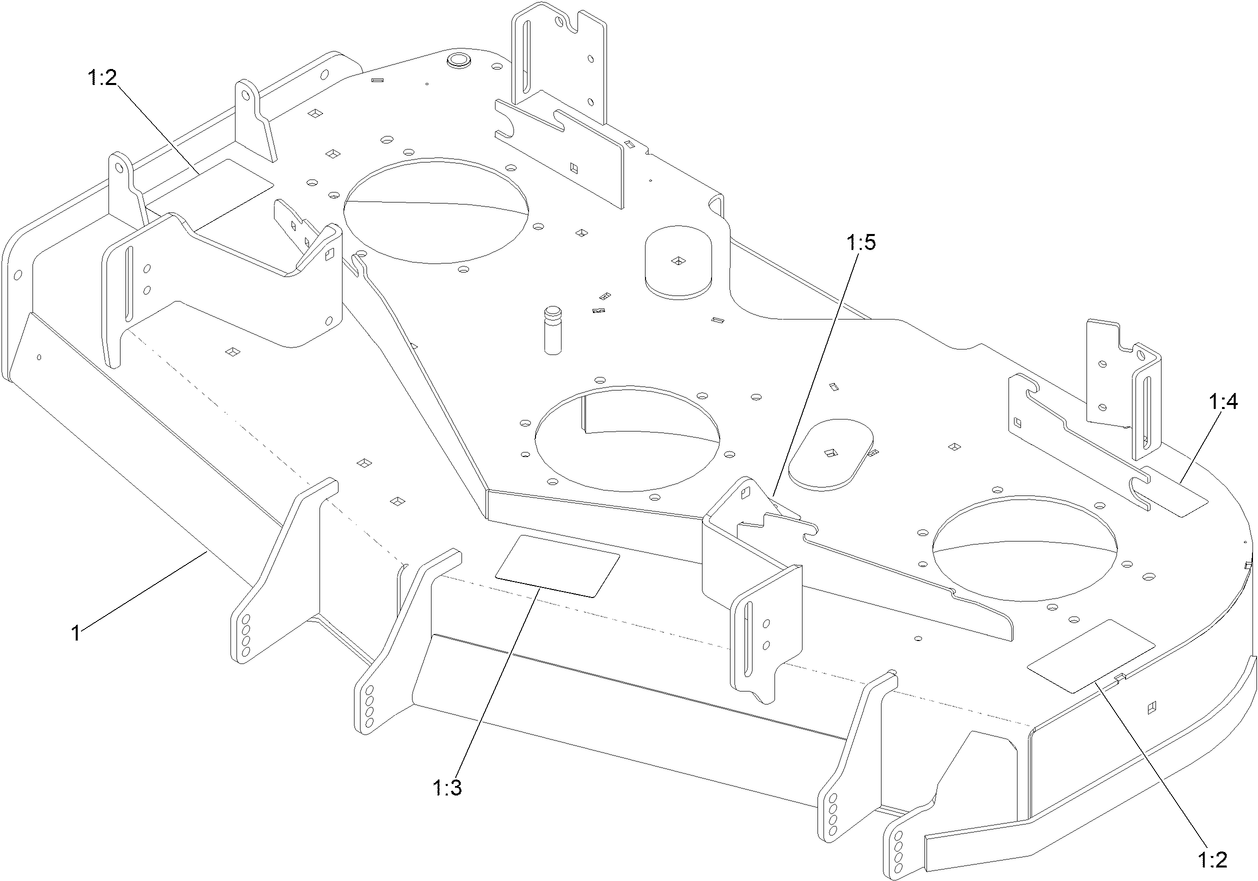

Deck Decal Assembly No 147 4995
Deck Decal Assembly No 147 4995
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deck Strut Assembly No 140 1179
Deck Strut Assembly No 140 1179
| Sequence Number | Image | Product | Price | Add to cart |
|---|

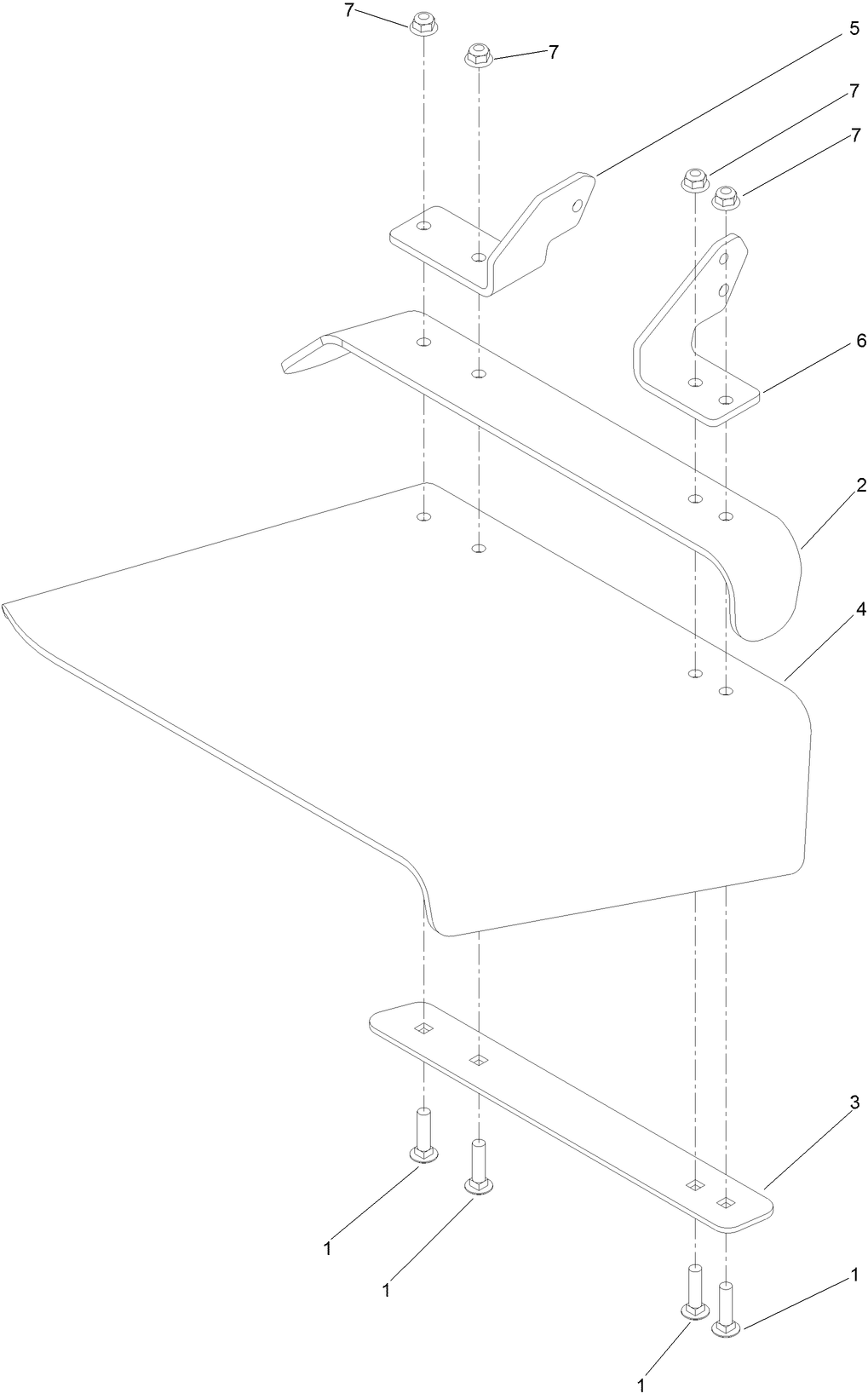

Deflector Assembly No 144 2635
Deflector Assembly No 144 2635
| Sequence Number | Image | Product | Price | Add to cart |
|---|

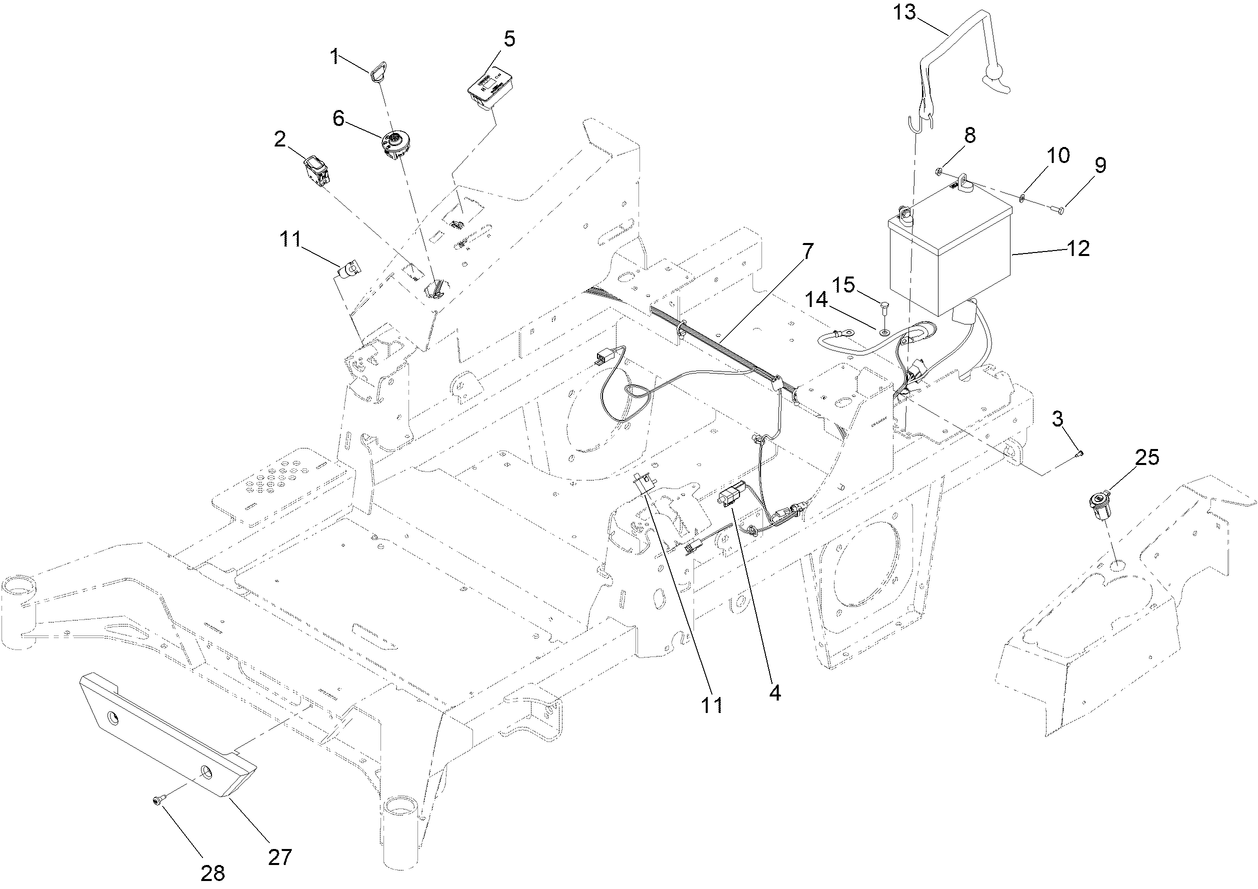

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

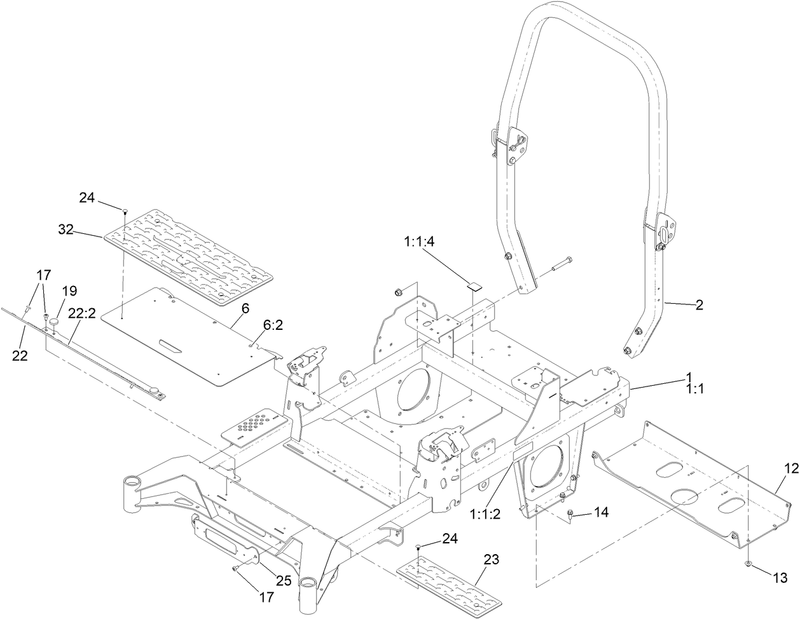

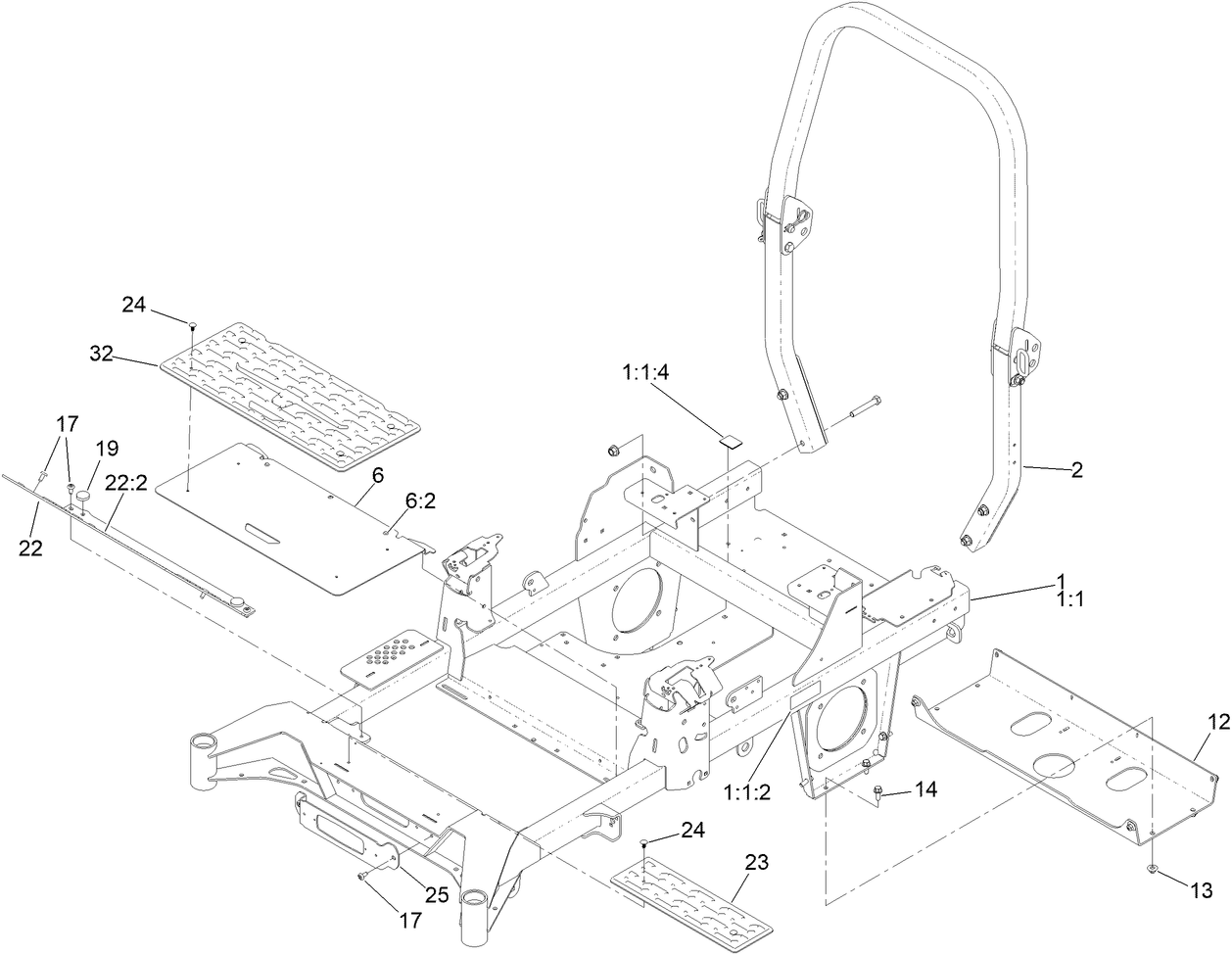

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel Tank Assembly No 139 6722
Fuel Tank Assembly No 139 6722
| Sequence Number | Image | Product | Price | Add to cart |
|---|

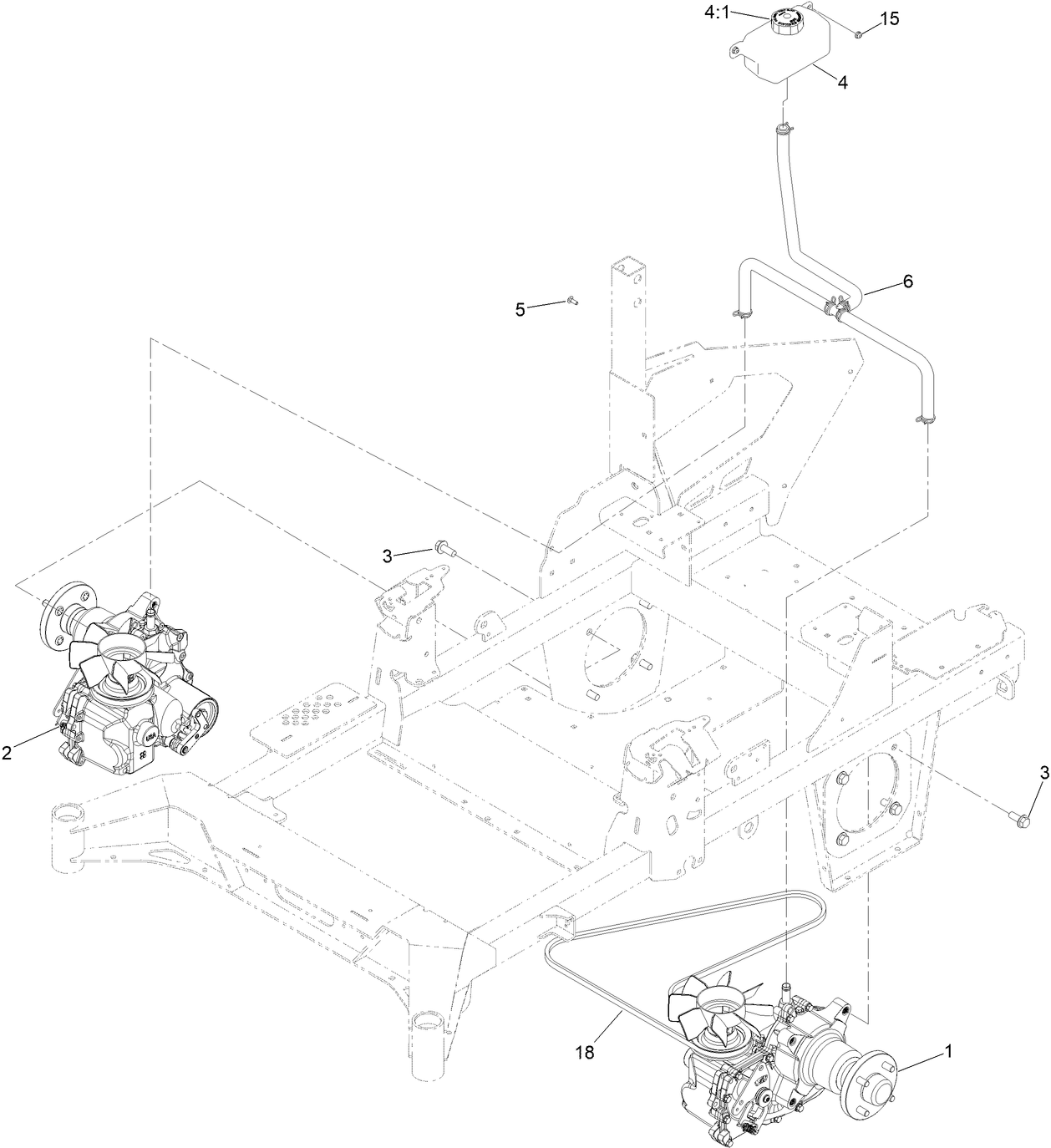

Hydraulic Drive Assembly
Hydraulic Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Idler Arm Assembly No 139 1087
Idler Arm Assembly No 139 1087
| Sequence Number | Image | Product | Price | Add to cart |
|---|

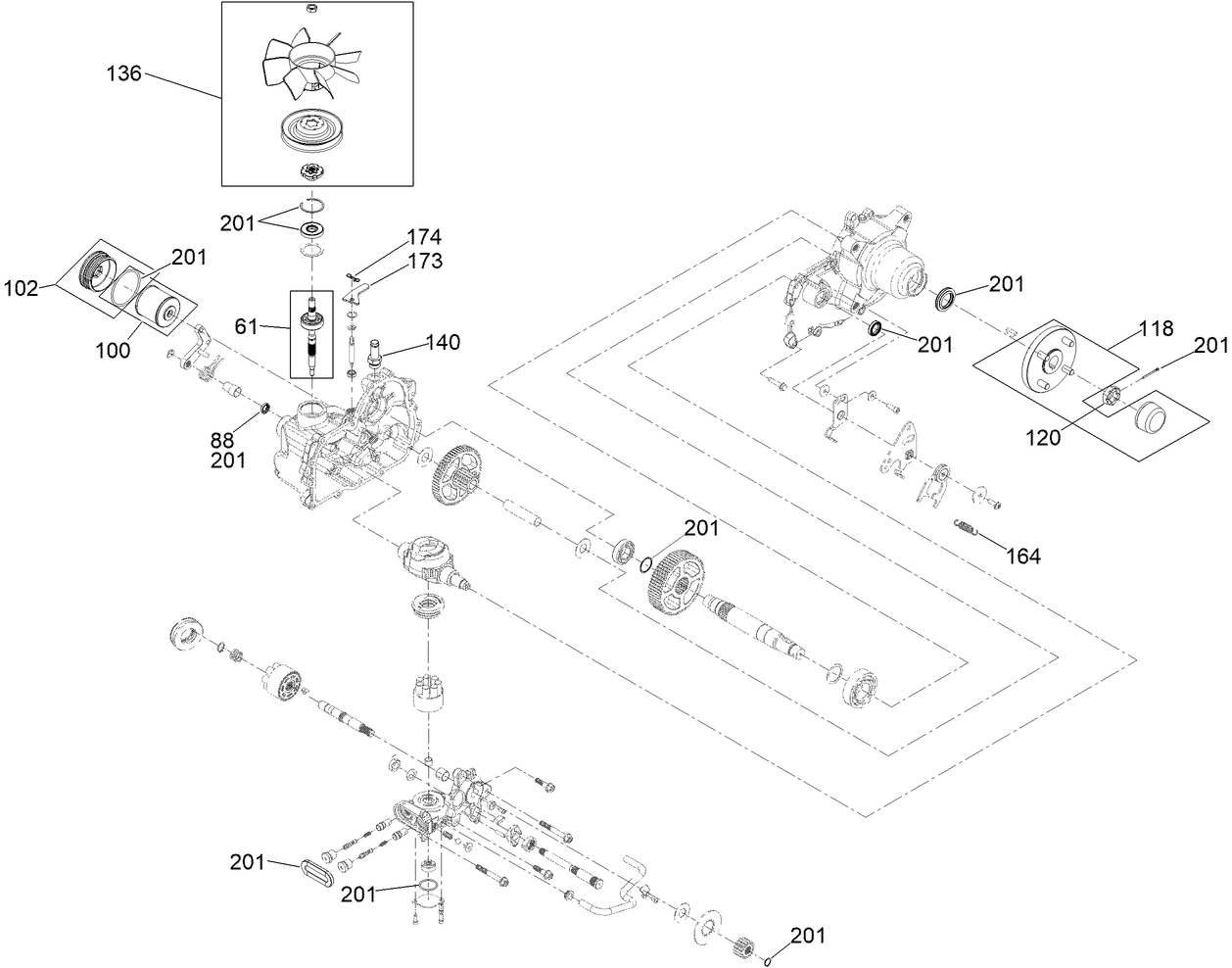

LH Transaxle Assembly No 145 3696
LH Transaxle Assembly No 145 3696
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

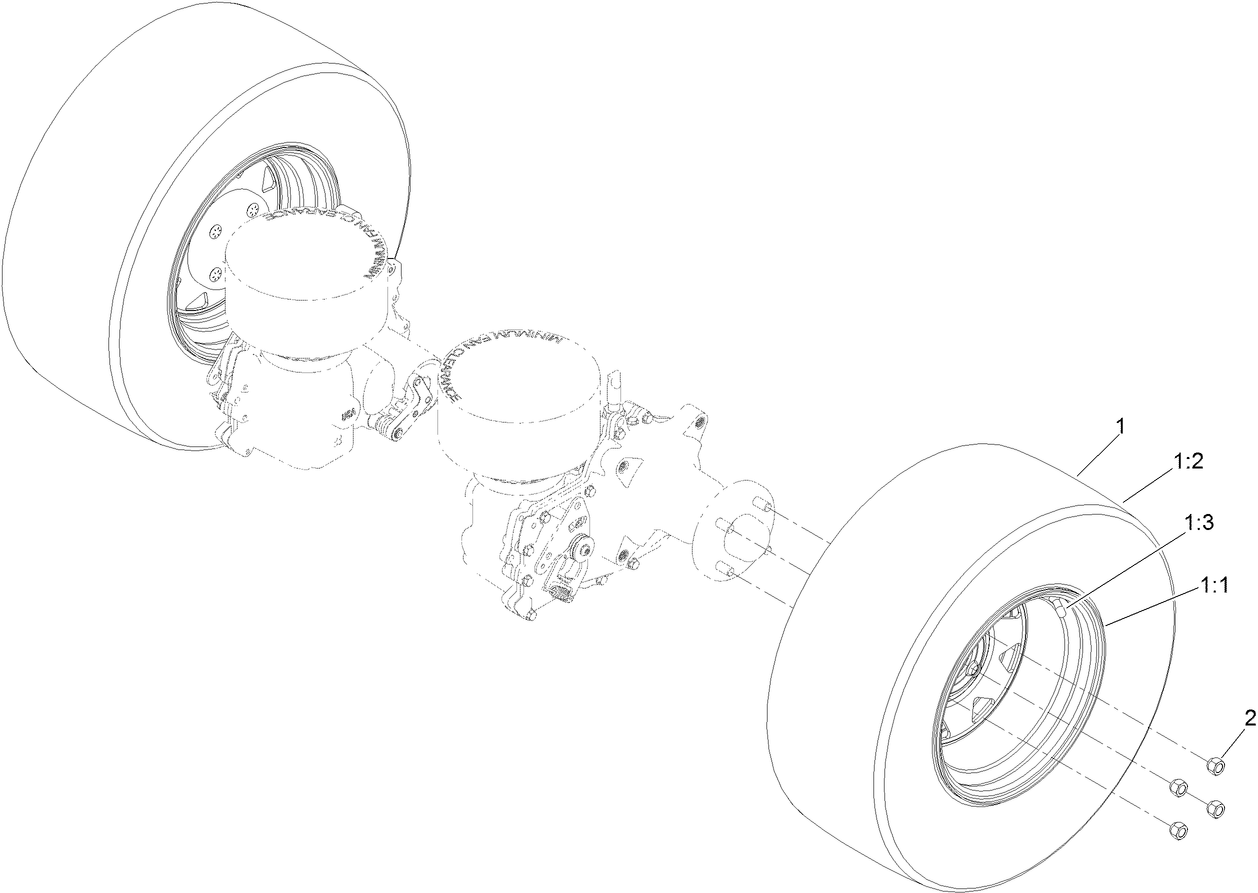

Rear Wheel Assembly
Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

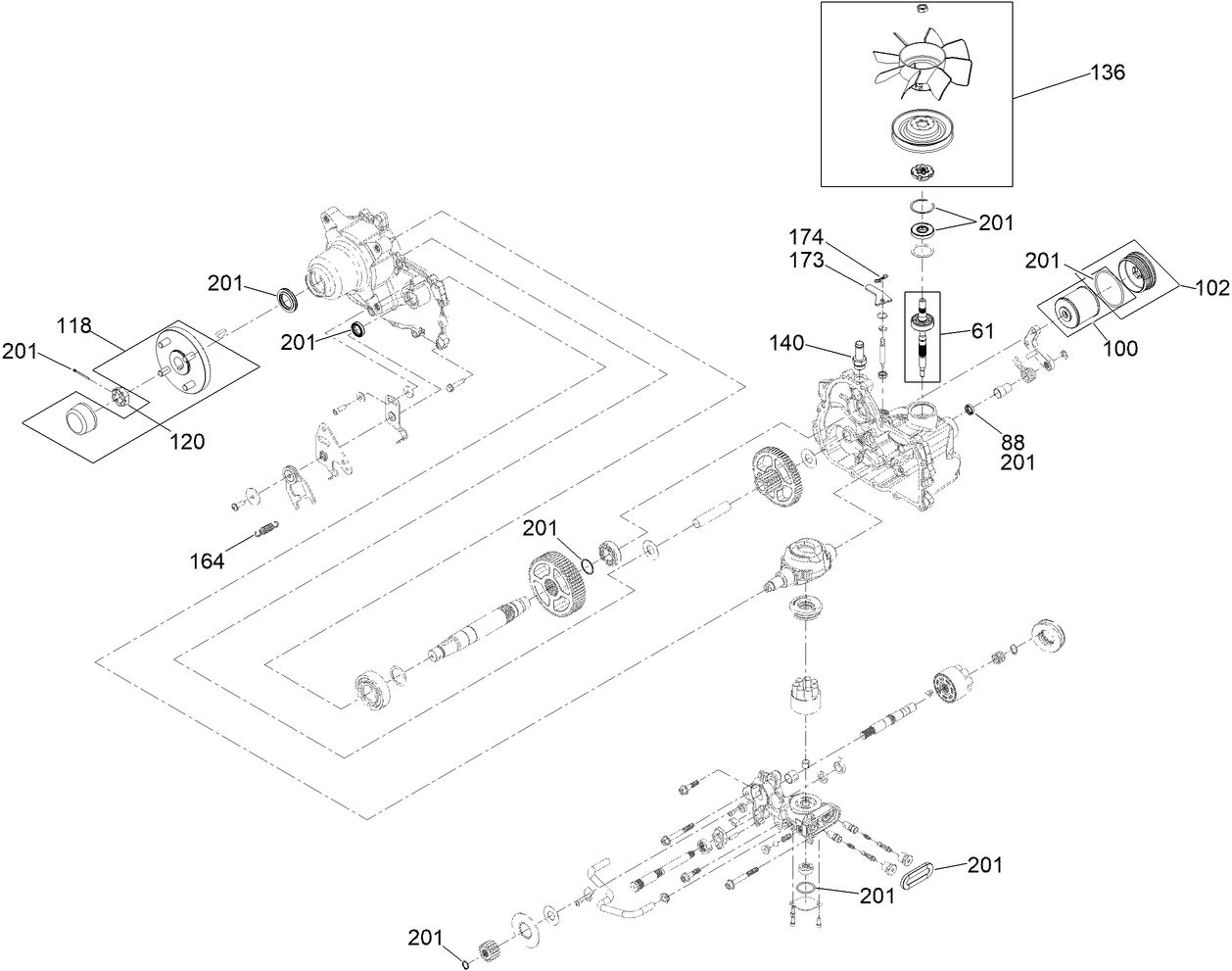

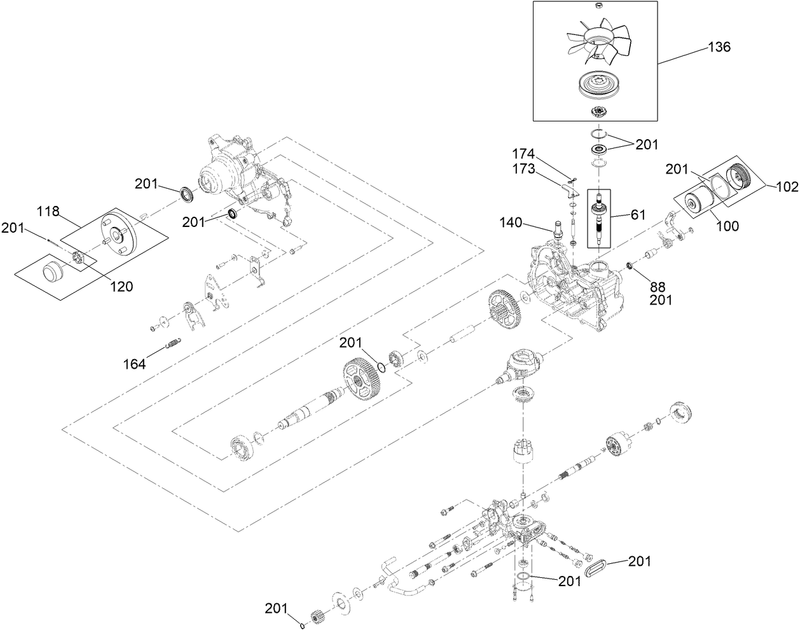

RH Transaxle Assembly No 145 3695
RH Transaxle Assembly No 145 3695
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Seat Assembly No 144 2632
Seat Assembly No 144 2632
| Sequence Number | Image | Product | Price | Add to cart |
|---|

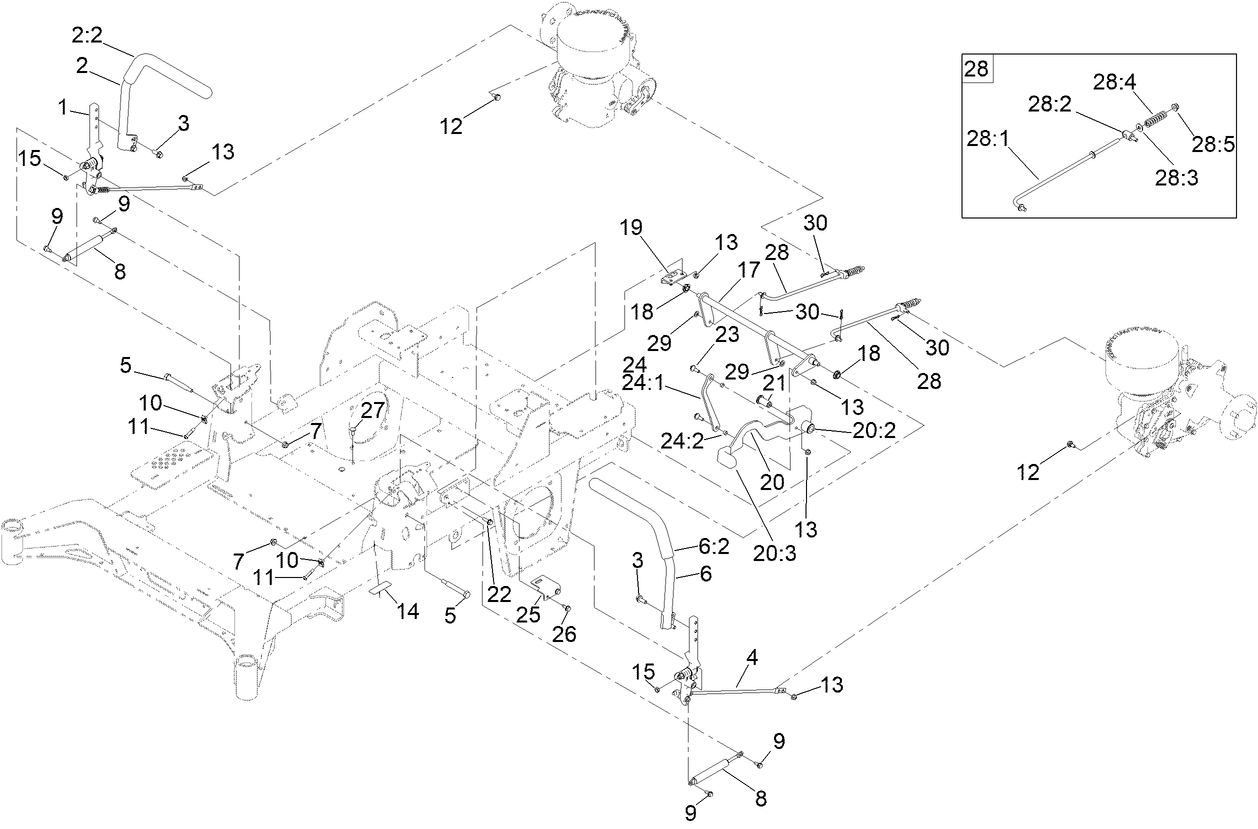

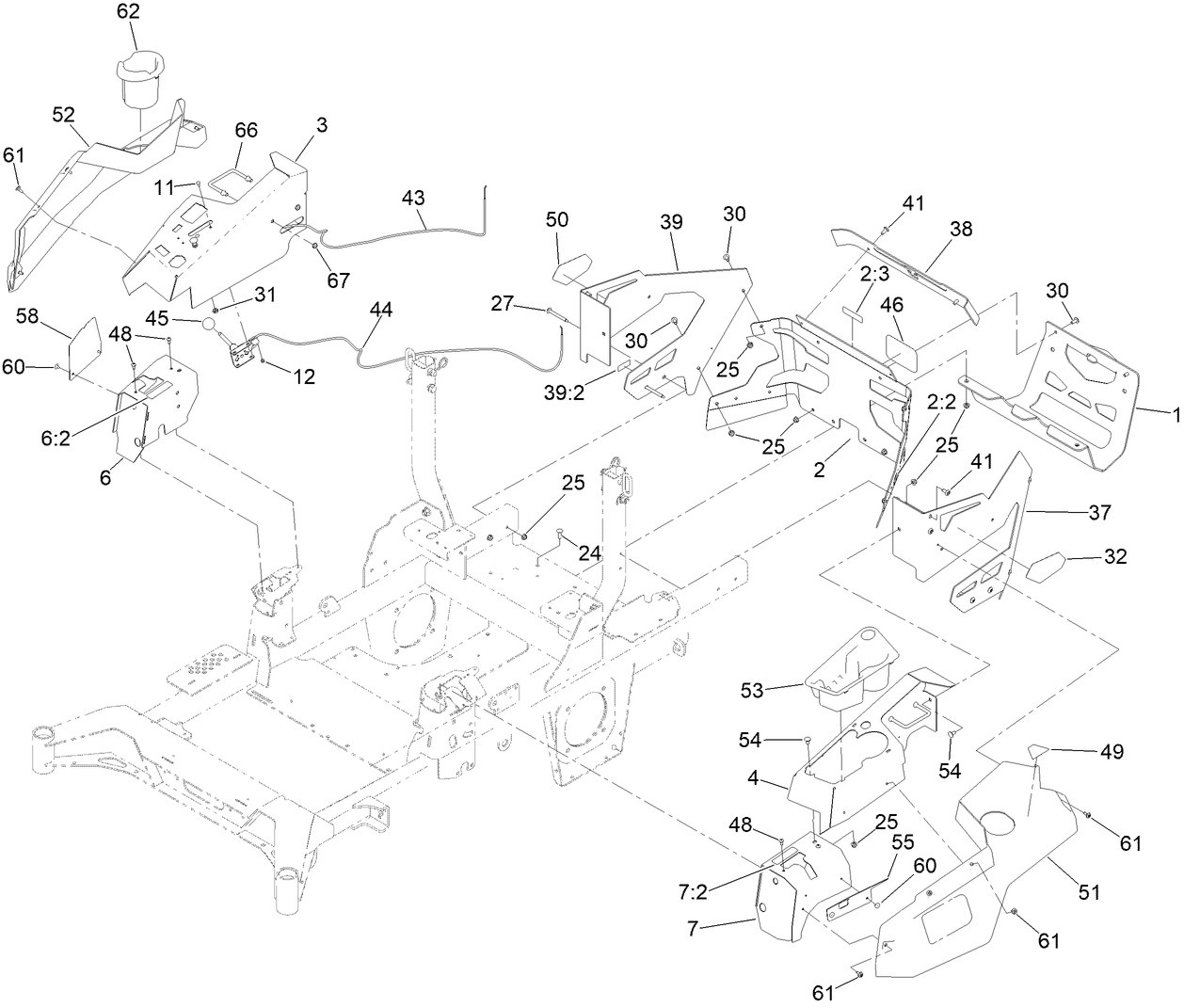

Throttle Choke Cables and Guard Assembly
Throttle Choke Cables and Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
