Toro 74020 4000 Series HDX Pro XL 60 in. (152 cm) 35 hp 999cc (Serial #: 416269174 - 416269209) Parts Diagram
Diagrams:
Diagram:

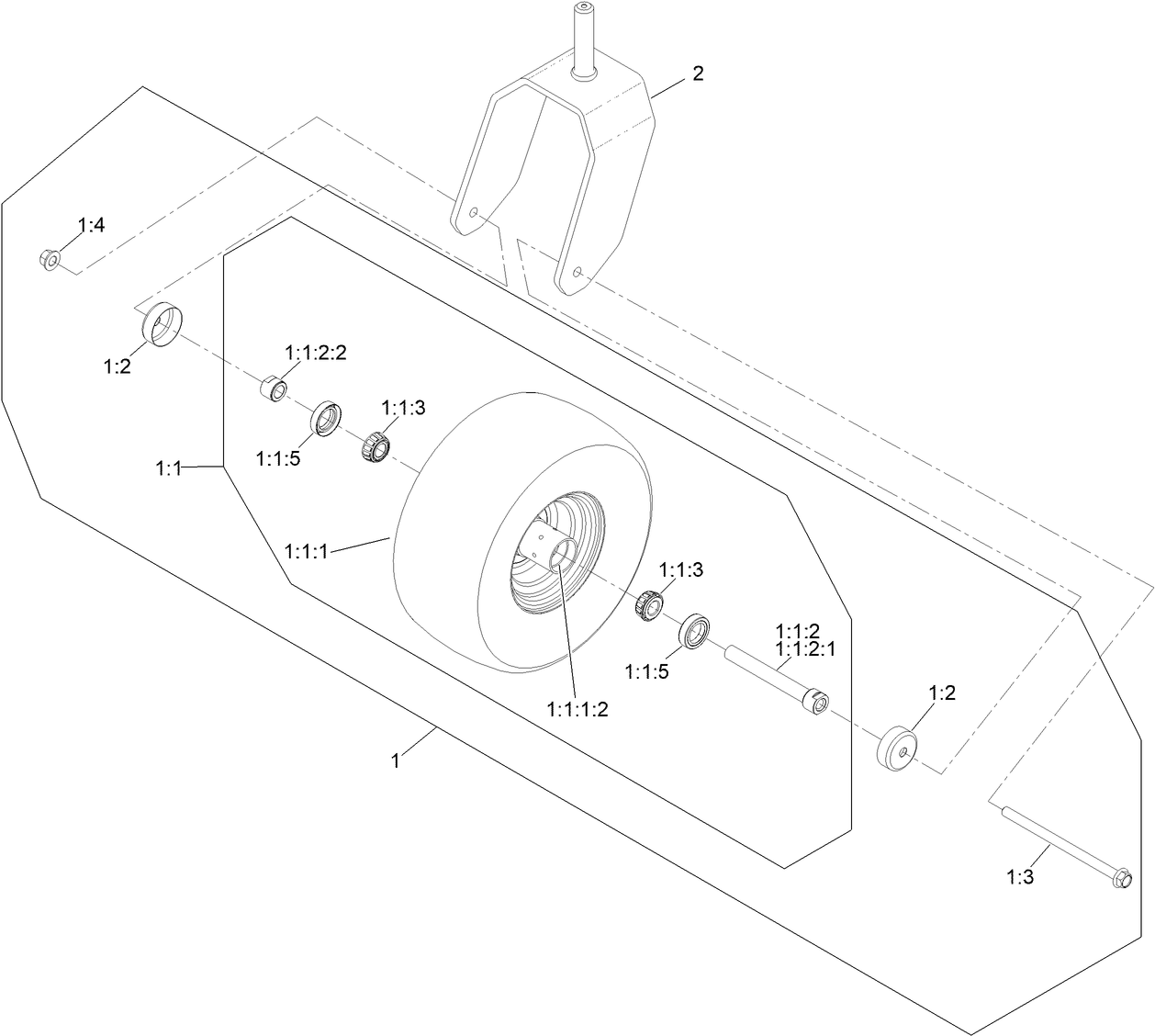

Caster Wheel and Fork Assembly
Caster Wheel and Fork Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Caster Wheel Assembly
Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

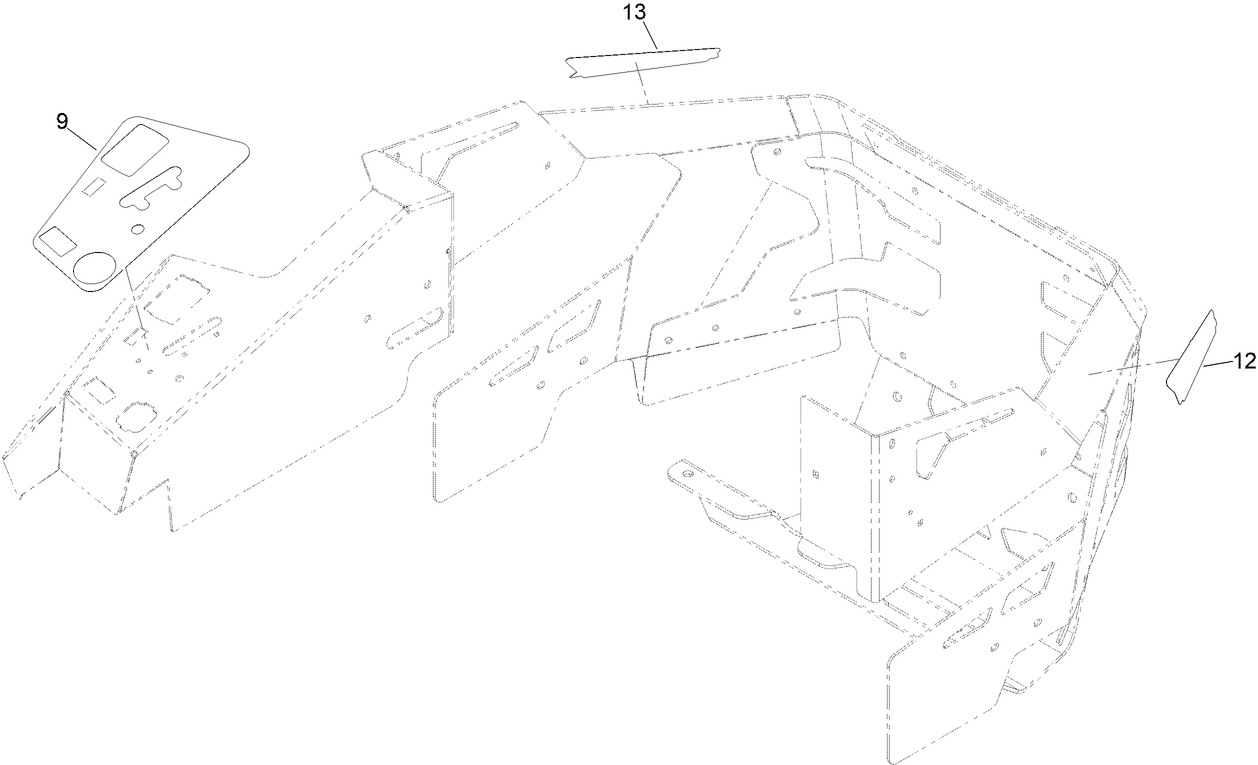

Decal Assembly
Decal Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

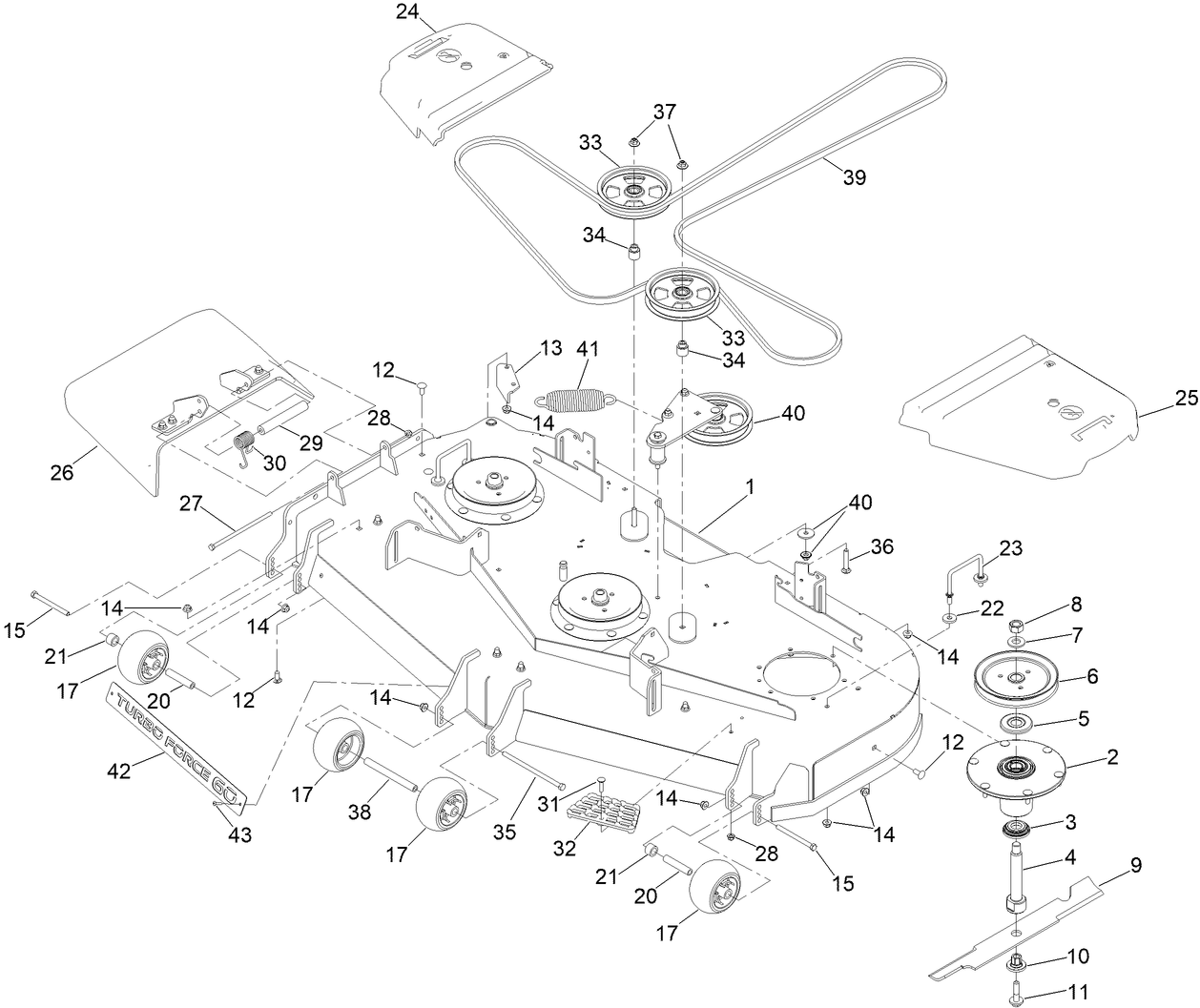

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

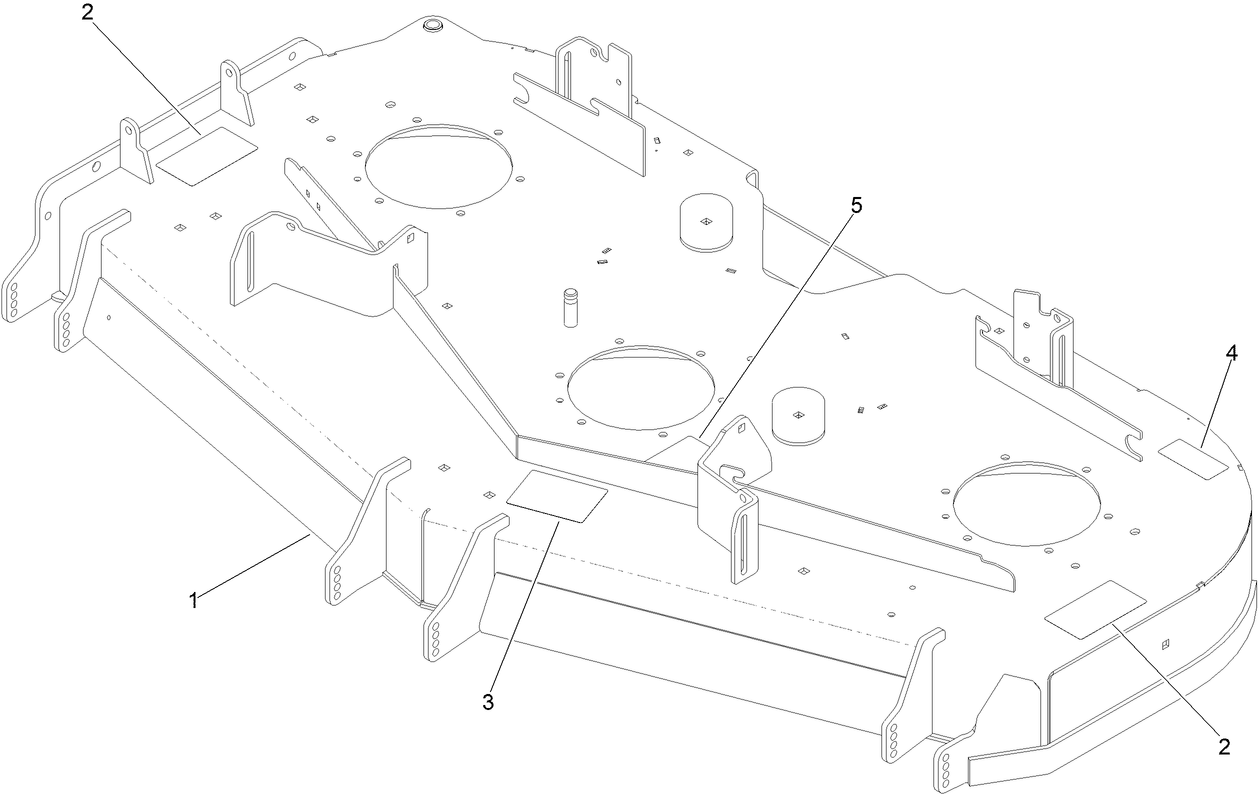

Deck Decal Assembly No 147 4997
Deck Decal Assembly No 147 4997
| Sequence Number | Image | Product | Price | Add to cart |
|---|

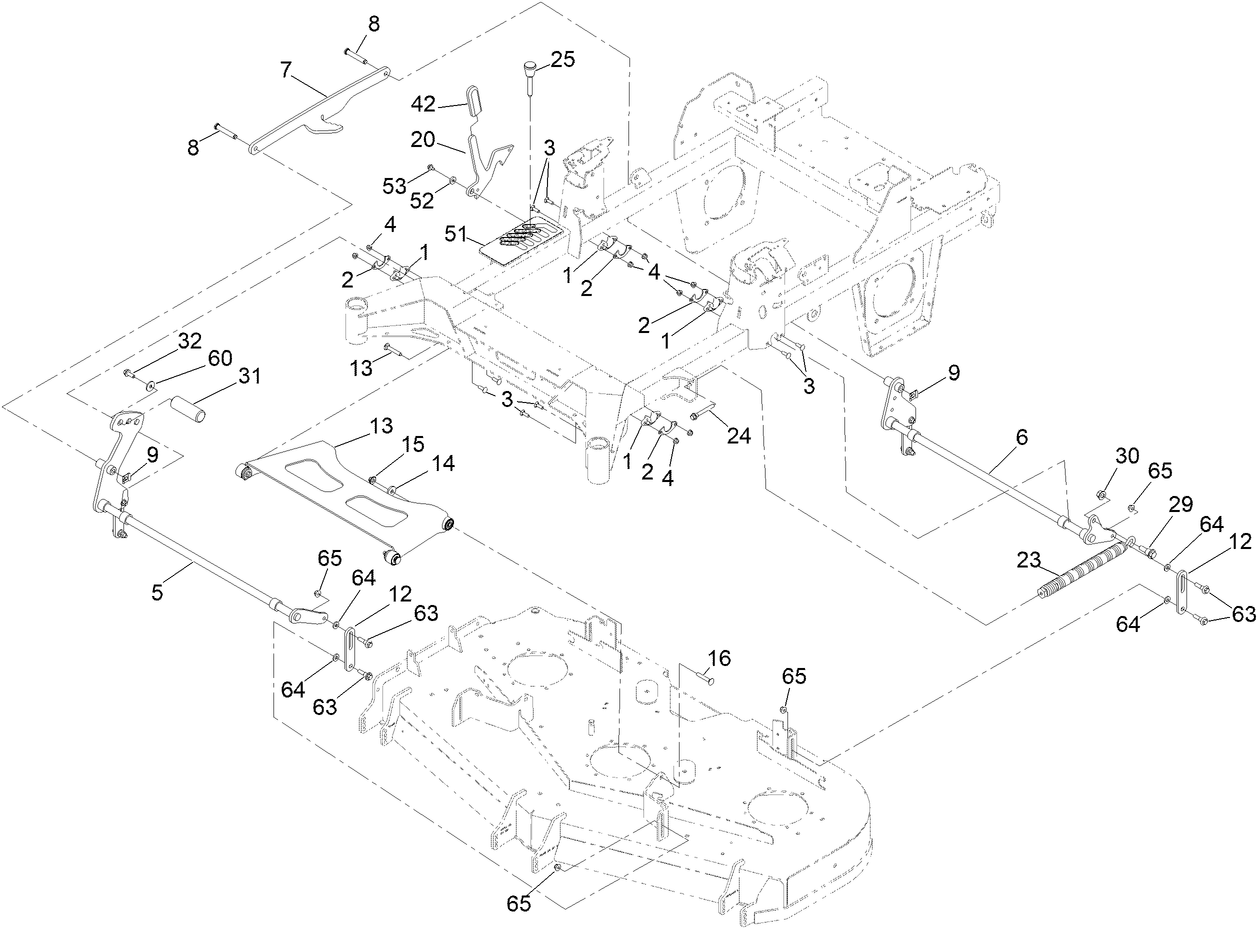

Deck Lift Assembly
Deck Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deck Strut Assembly No 140 1179
Deck Strut Assembly No 140 1179
| Sequence Number | Image | Product | Price | Add to cart |
|---|

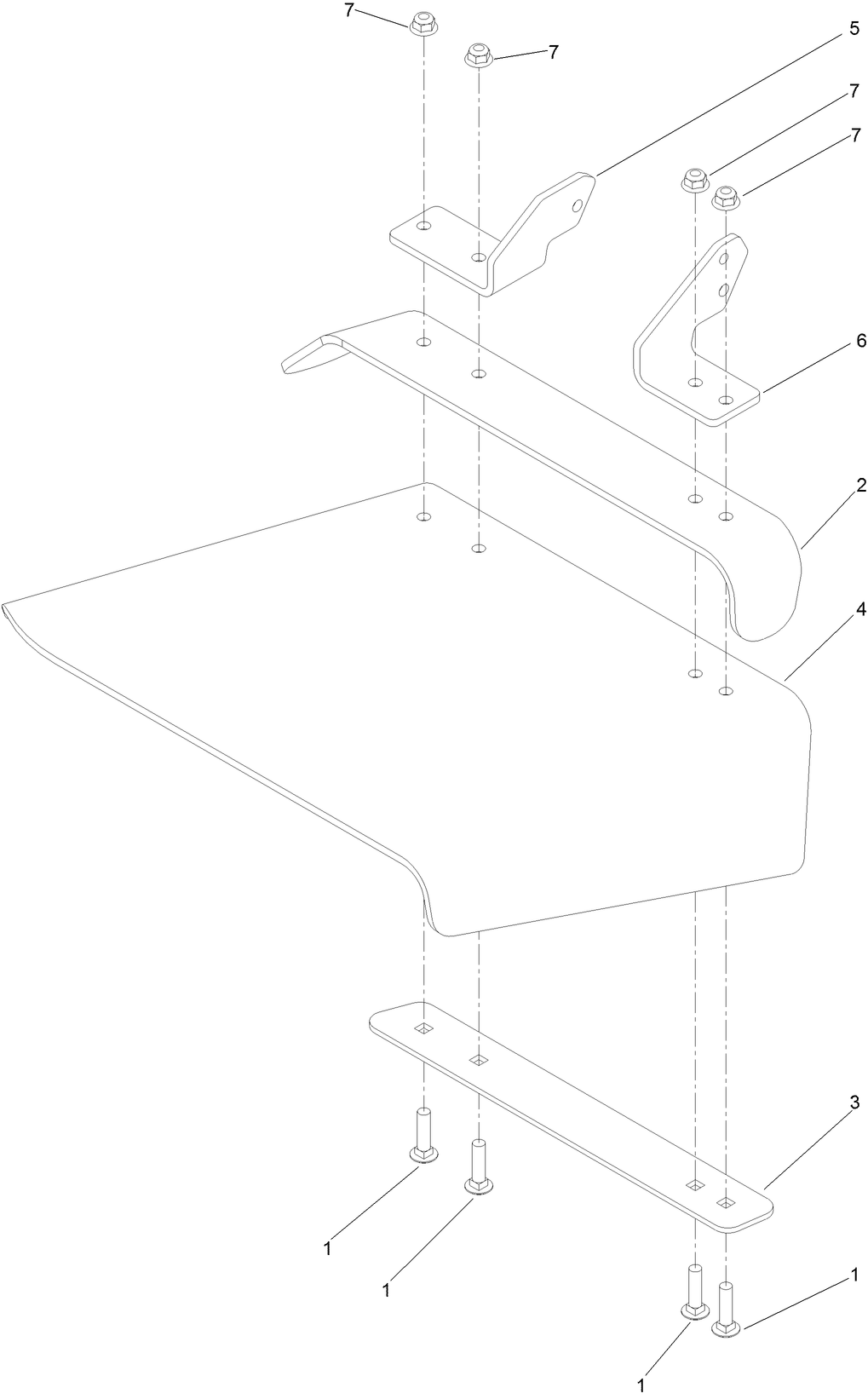

Deflector Assembly No 144 2635
Deflector Assembly No 144 2635
| Sequence Number | Image | Product | Price | Add to cart |
|---|

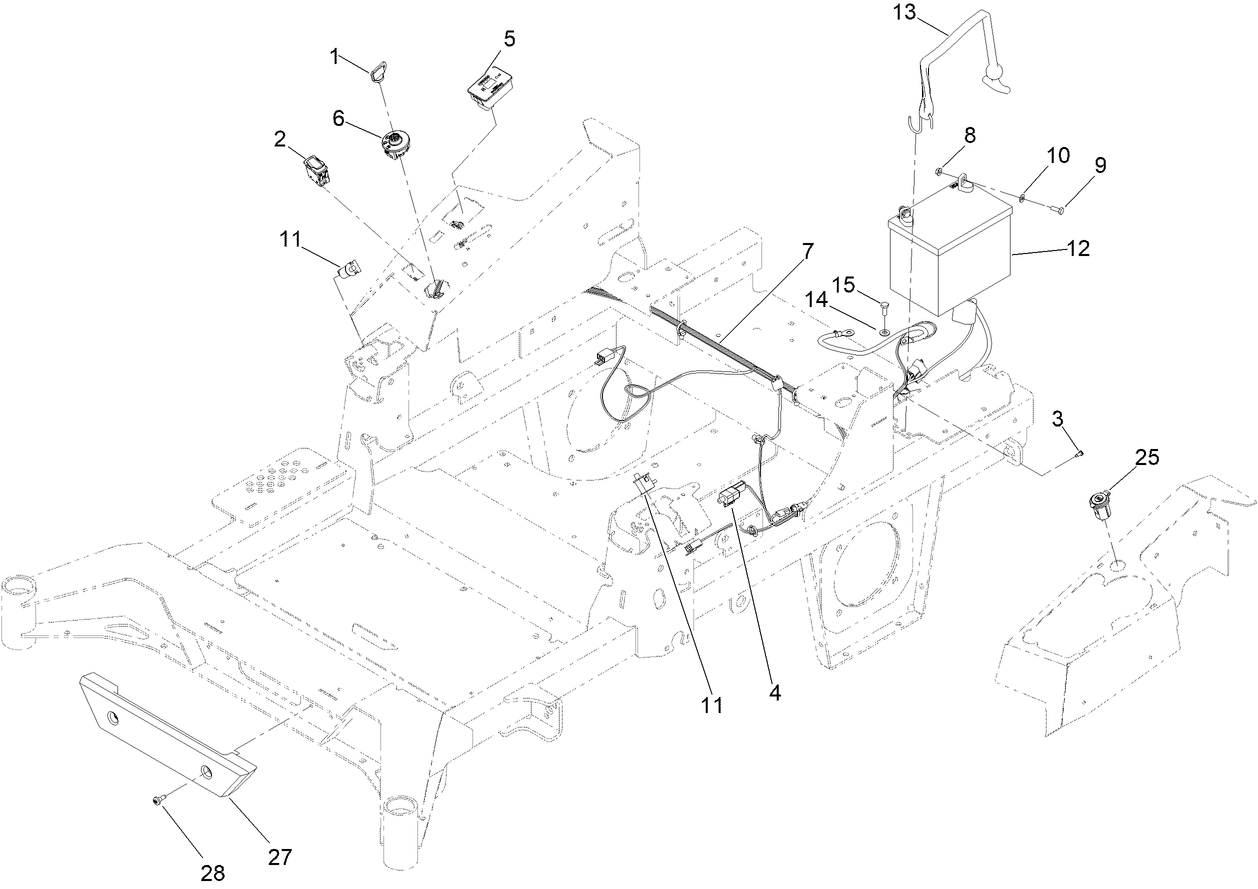

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

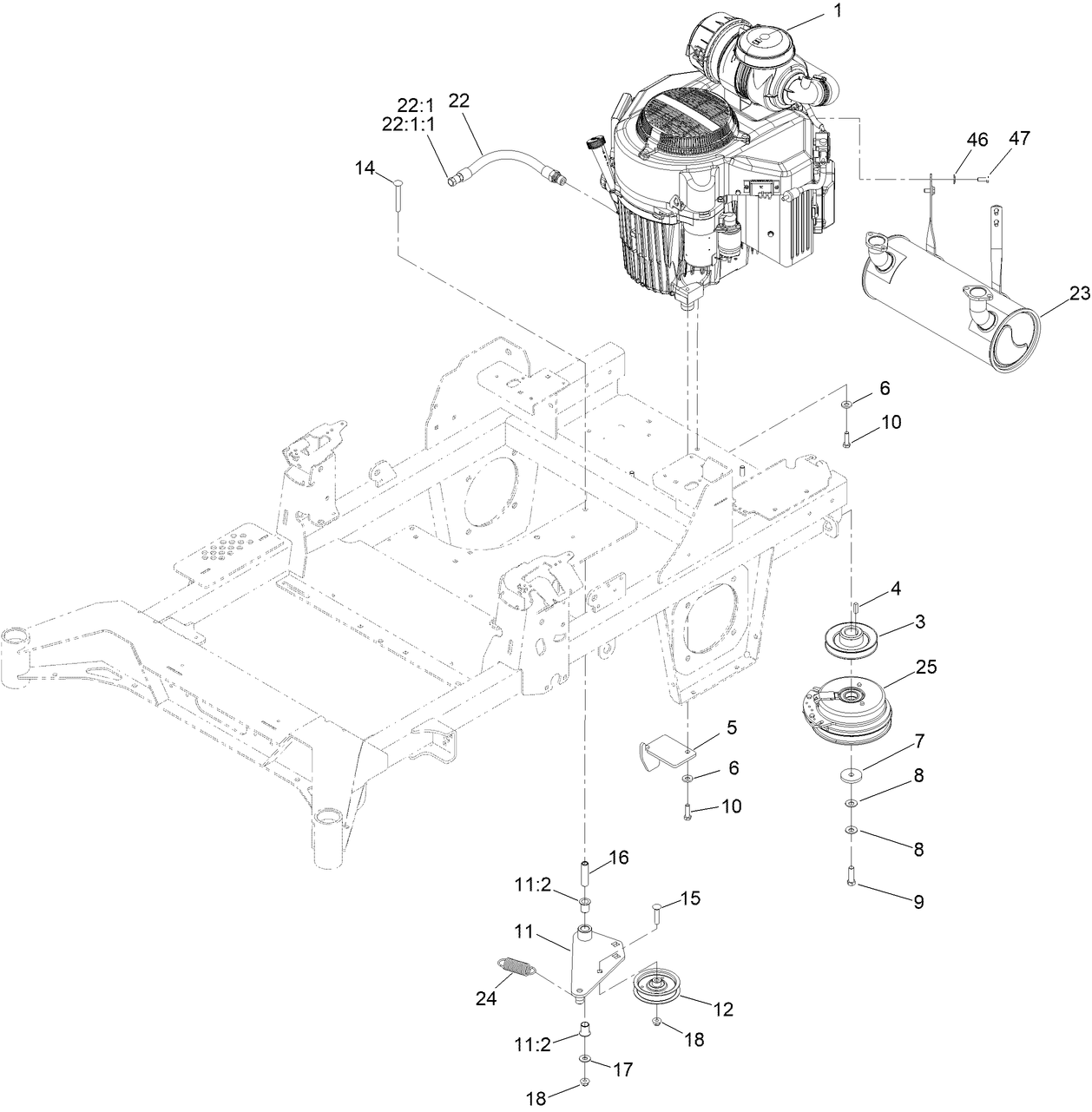

Engine Clutch and Muffler Assembly
Engine Clutch and Muffler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

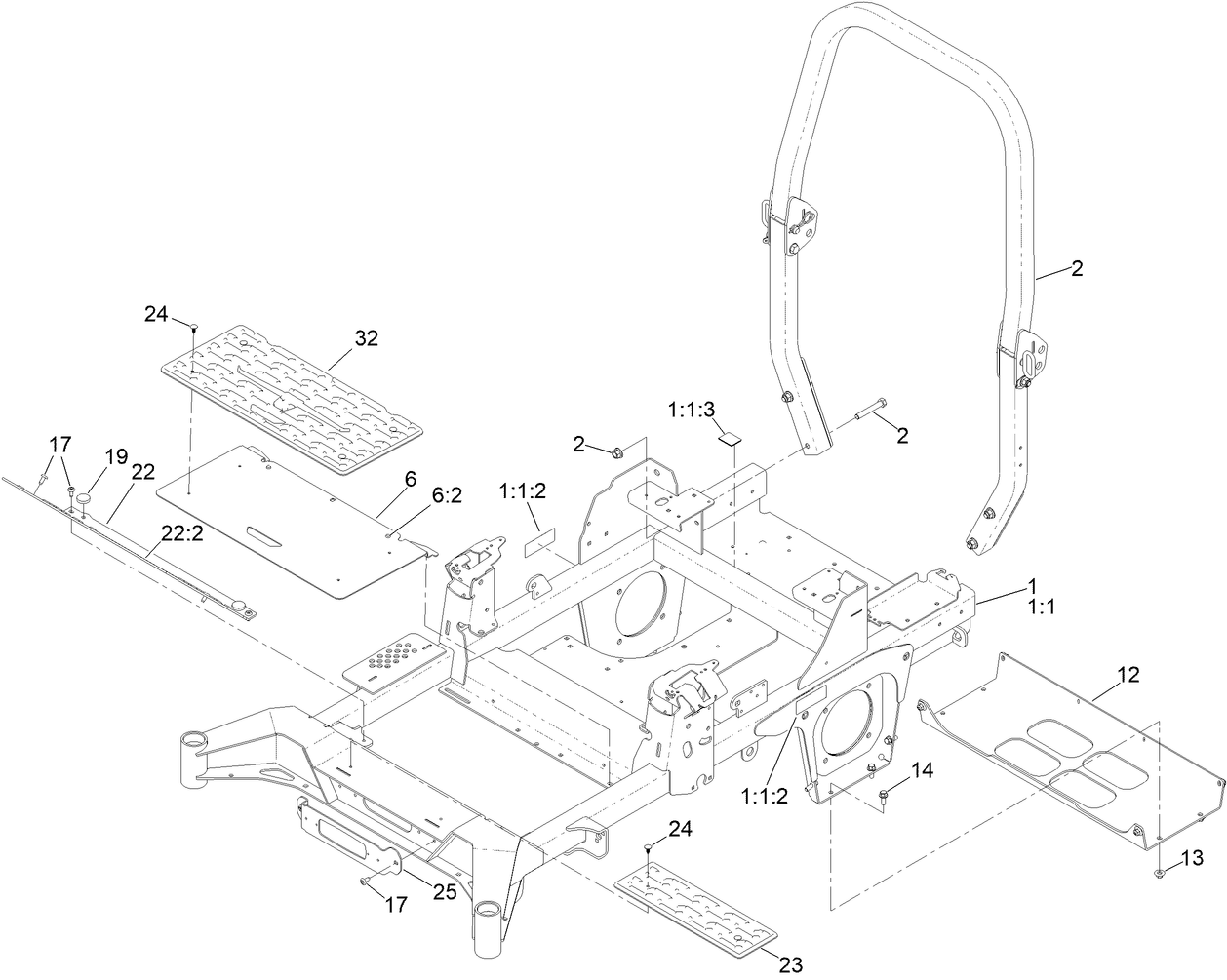

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

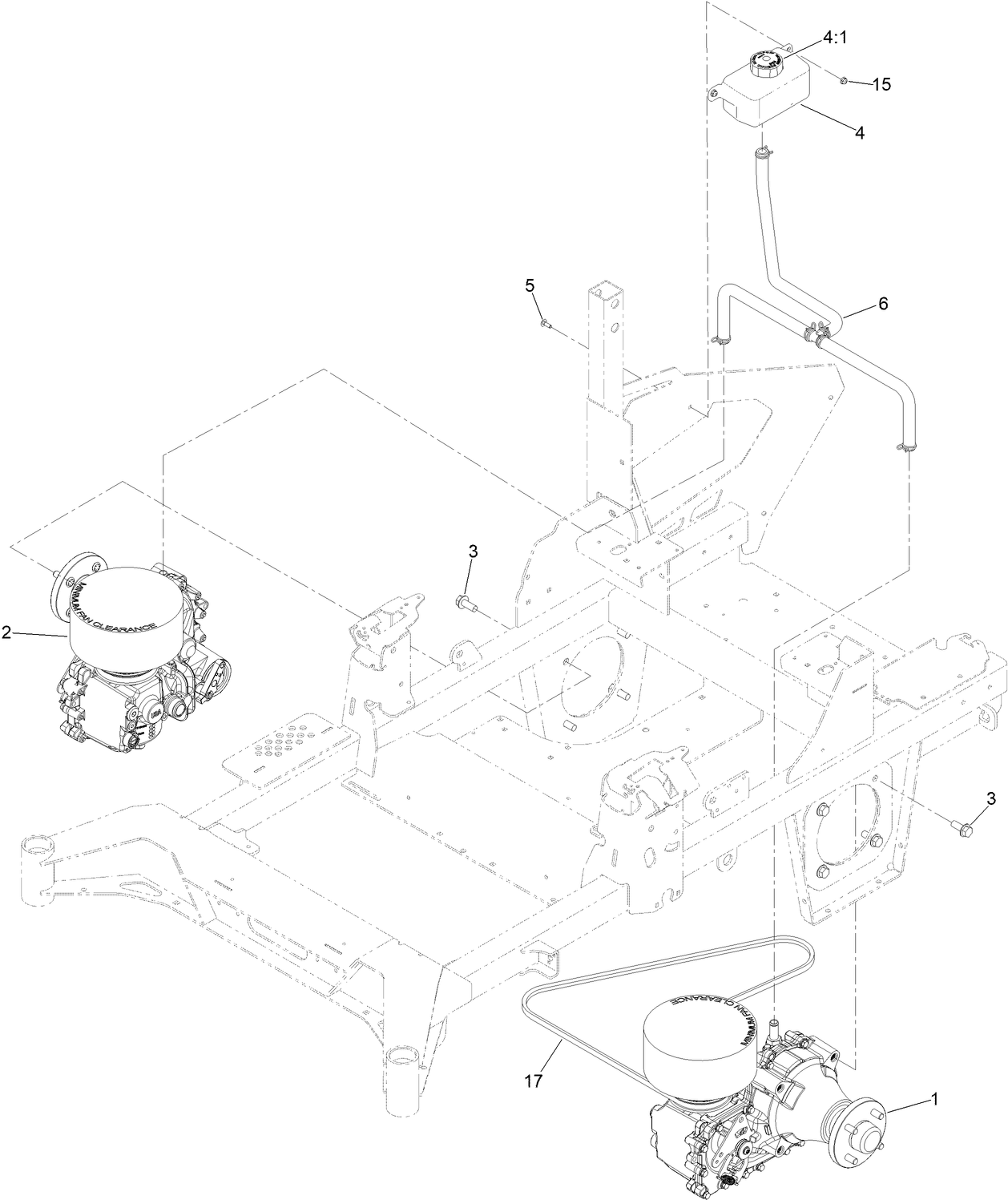

Hydro Assembly
Hydro Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Idler Arm Assembly No 139 1087
Idler Arm Assembly No 139 1087
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Left and Right Control Arm Assembly
Left and Right Control Arm Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

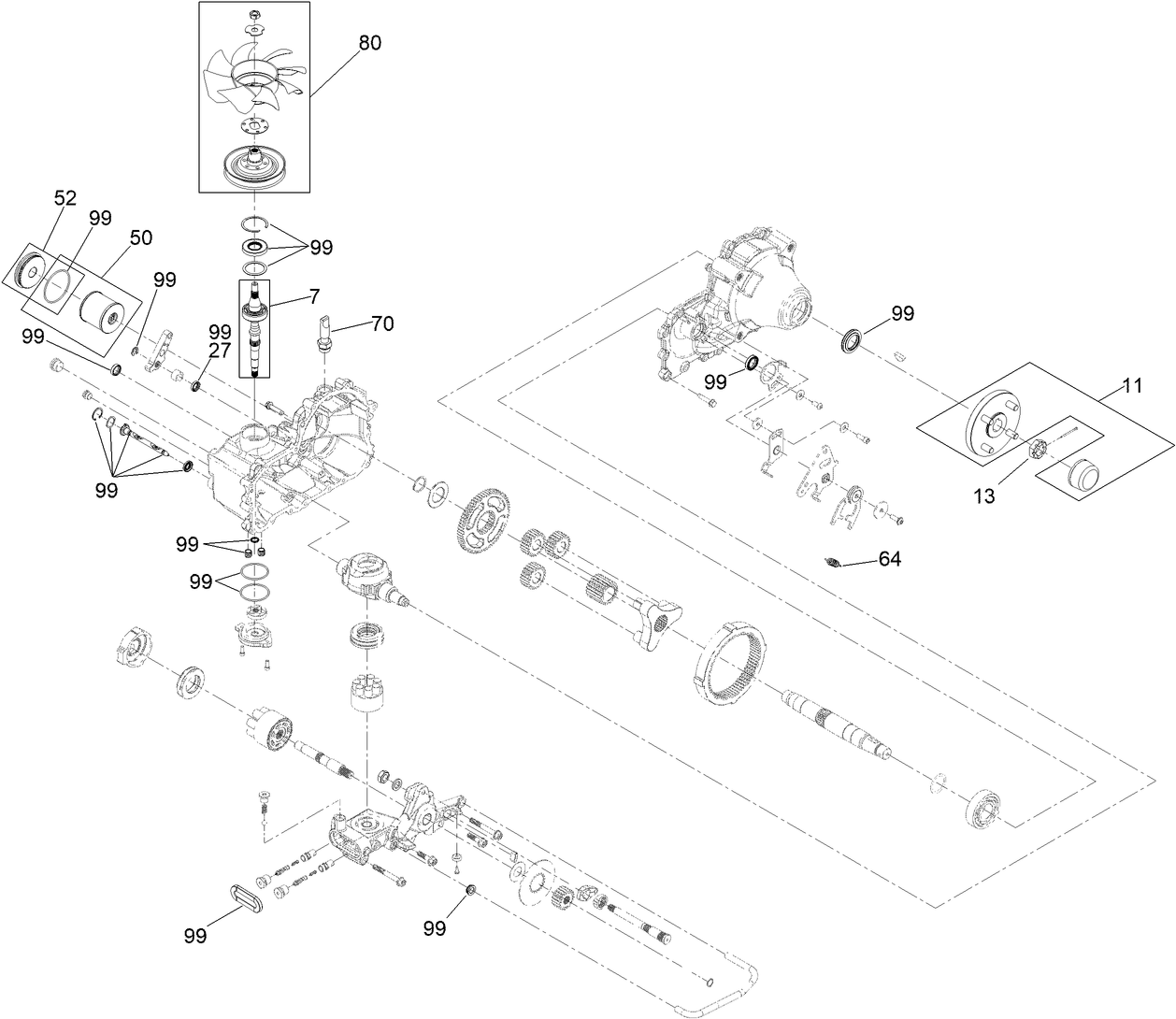

LH Transaxle Assembly No 138 6076
LH Transaxle Assembly No 138 6076
| Sequence Number | Image | Product | Price | Add to cart |
|---|

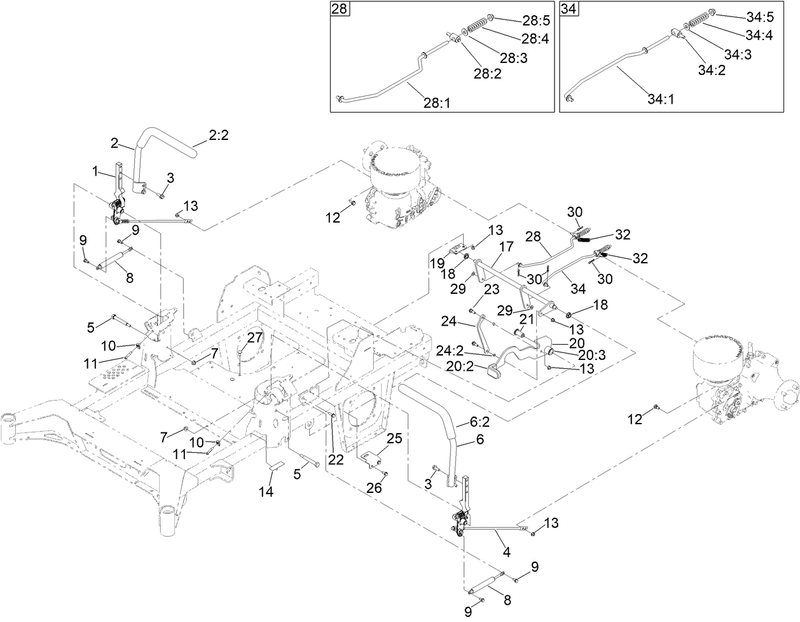

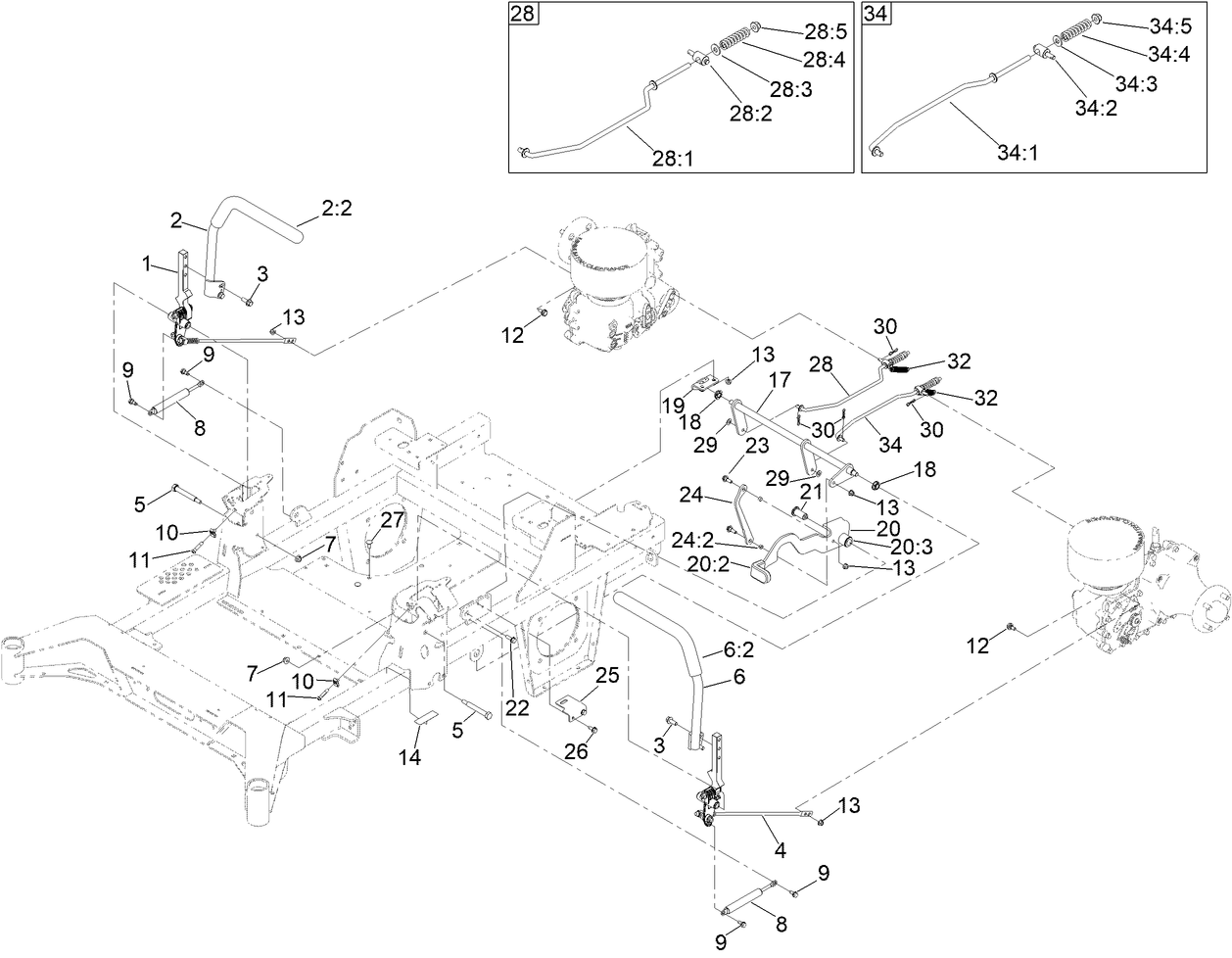

Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

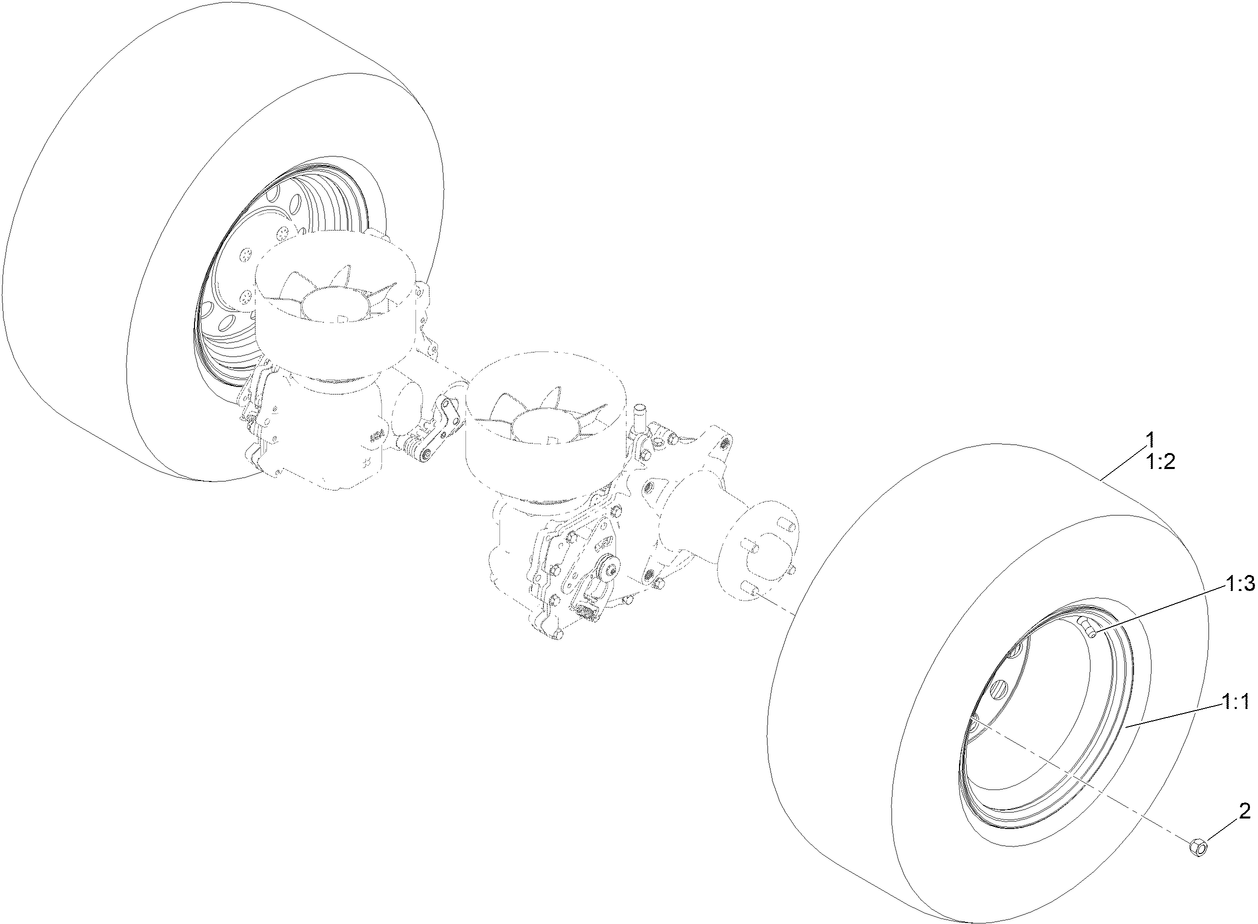

Rear Wheel Assembly
Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

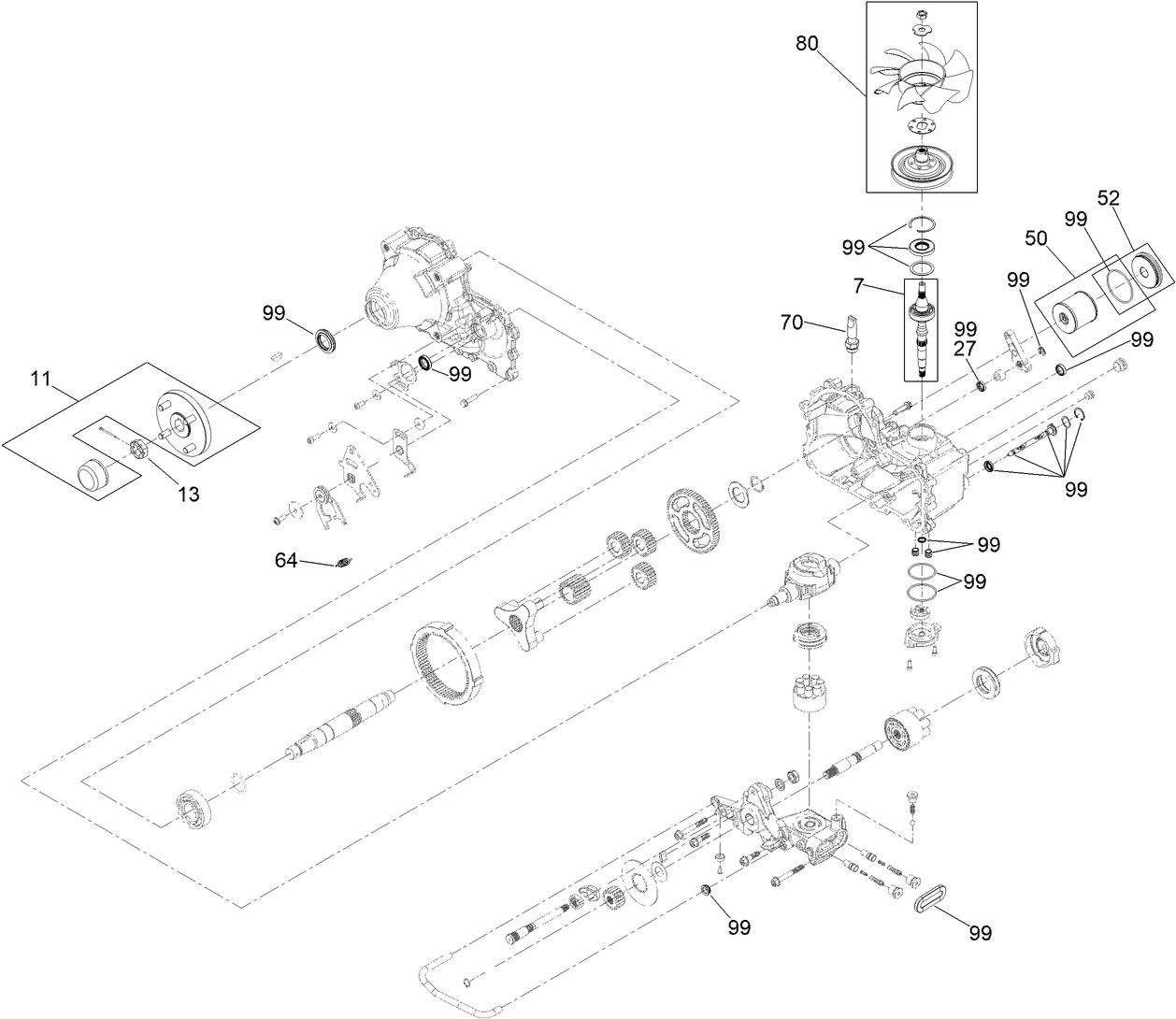

RH Transaxle Assembly No 138 6077
RH Transaxle Assembly No 138 6077
| Sequence Number | Image | Product | Price | Add to cart |
|---|

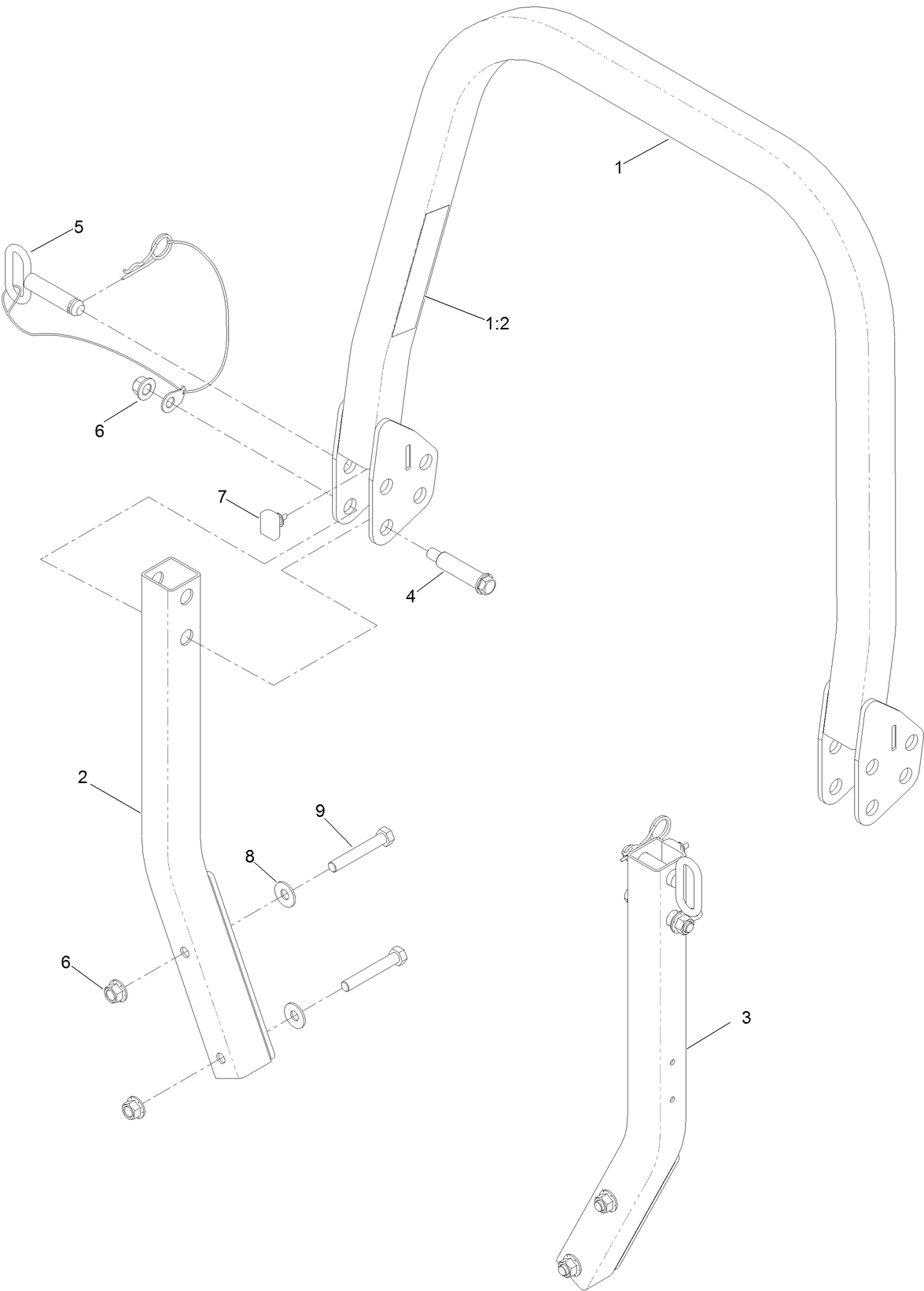

Roll Over Protection System Assembly No 139 8062
Roll Over Protection System Assembly No 139 8062
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Seat Assembly No 144 2632
Seat Assembly No 144 2632
| Sequence Number | Image | Product | Price | Add to cart |
|---|

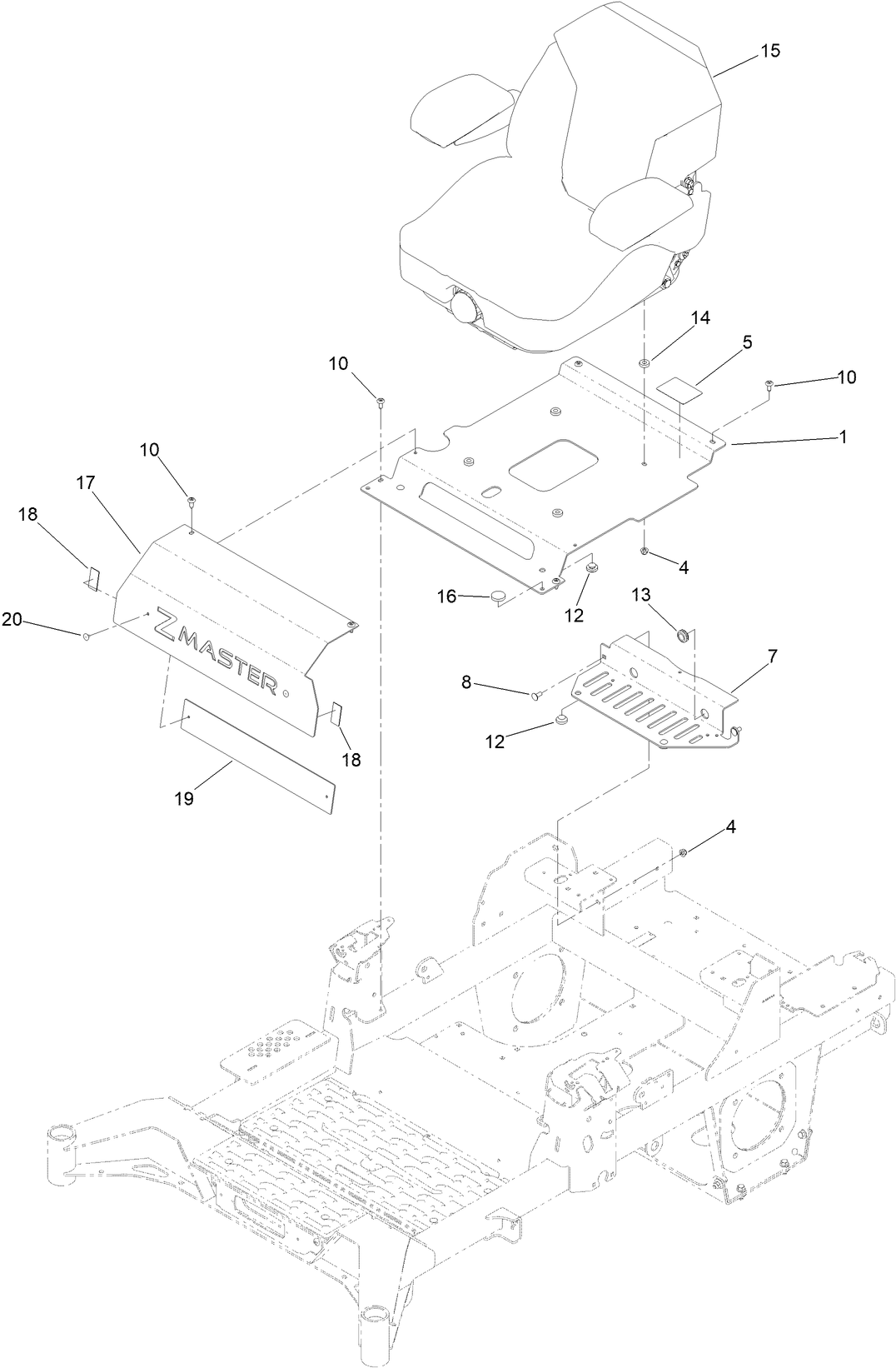

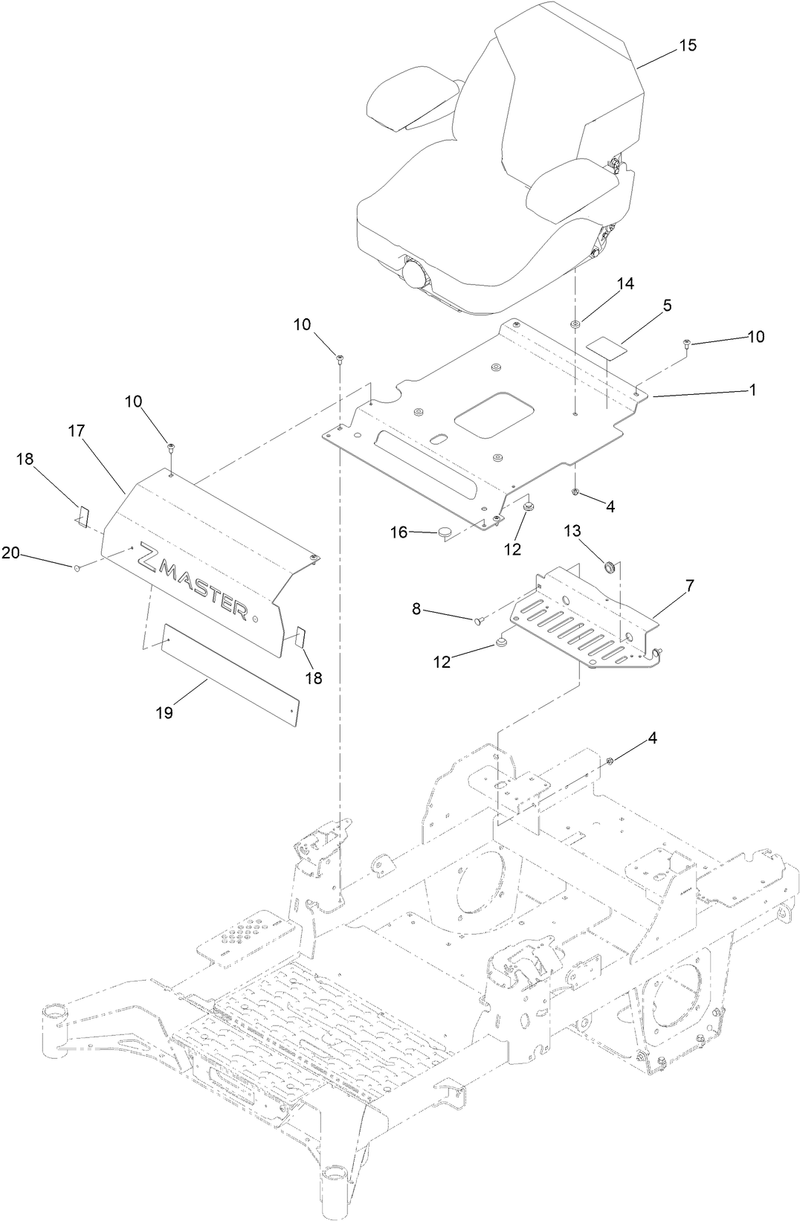

Seat Mount Assembly
Seat Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Spindle Assembly No 137 9780
Spindle Assembly No 137 9780
| Sequence Number | Image | Product | Price | Add to cart |
|---|

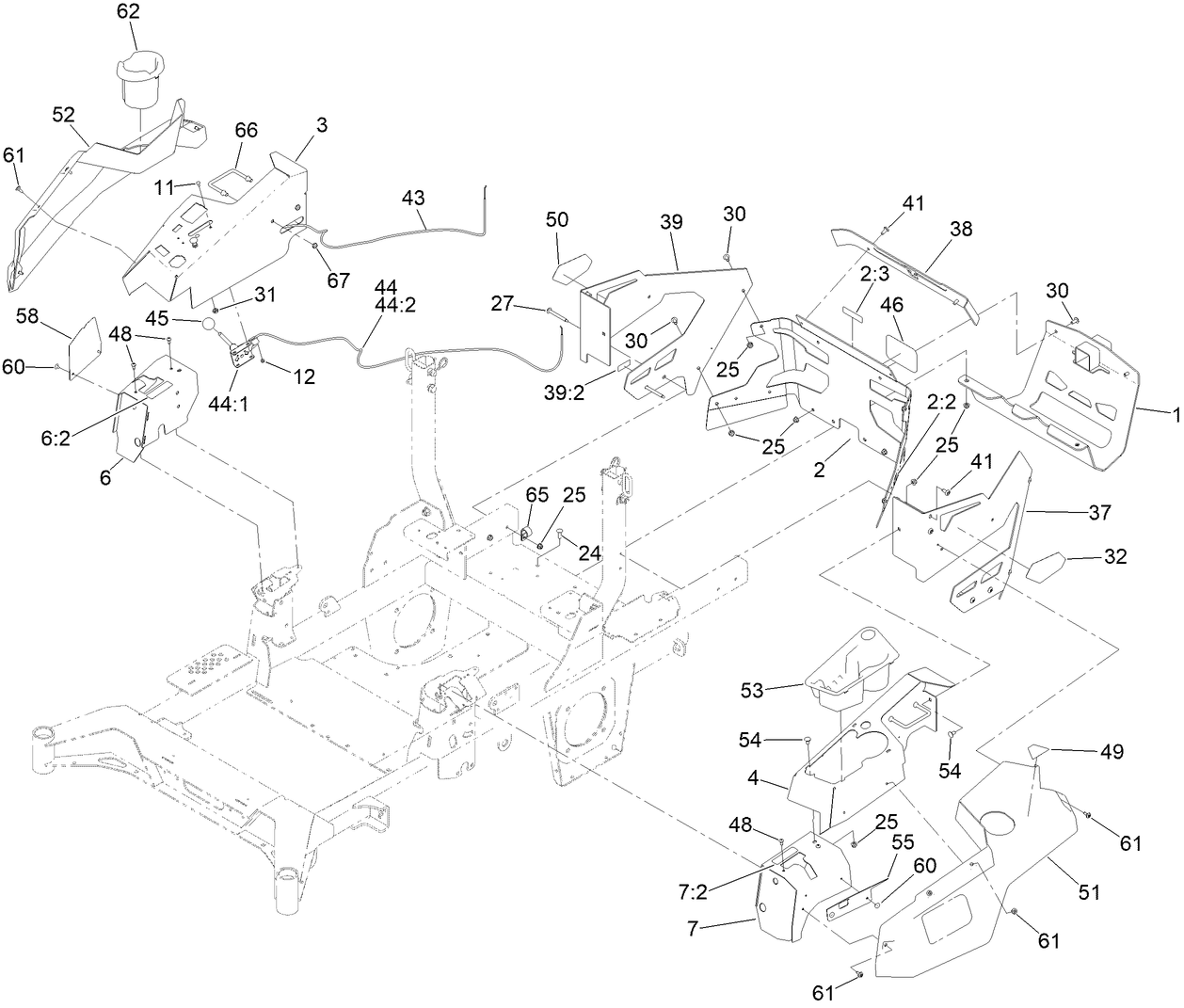

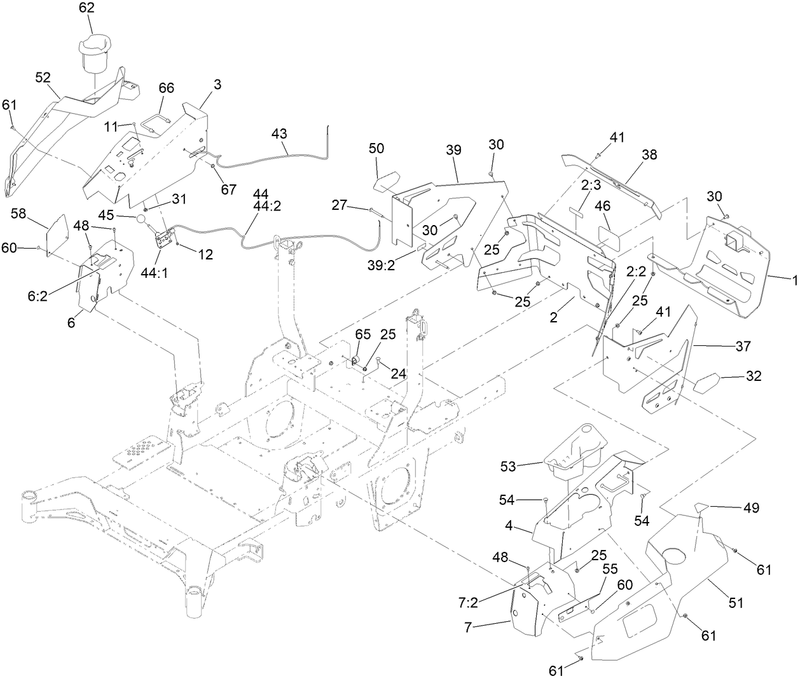

Throttle Choke Cables and Guard Assembly
Throttle Choke Cables and Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Wire Harness Assembly No 139 8078
Wire Harness Assembly No 139 8078
| Sequence Number | Image | Product | Price | Add to cart |
|---|
