Toro 74050 4000 Series 52 in. (132 cm) 25.5 hp 852cc (Serial #: 418029916 - 419999999) Parts Diagram
Diagrams:
Diagram:

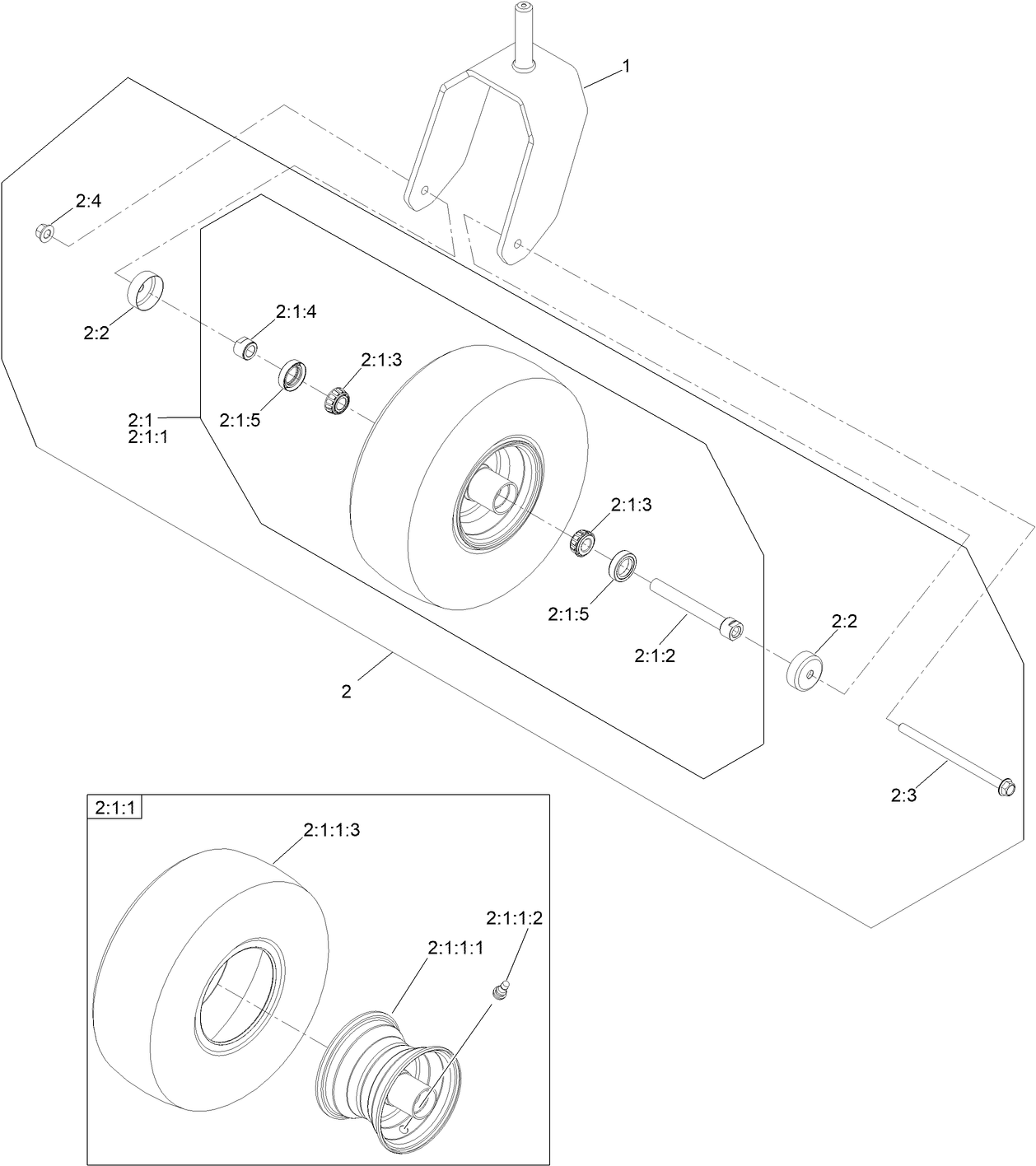

Caster Wheel and Fork Assembly
Caster Wheel and Fork Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Caster Wheel Assembly
Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

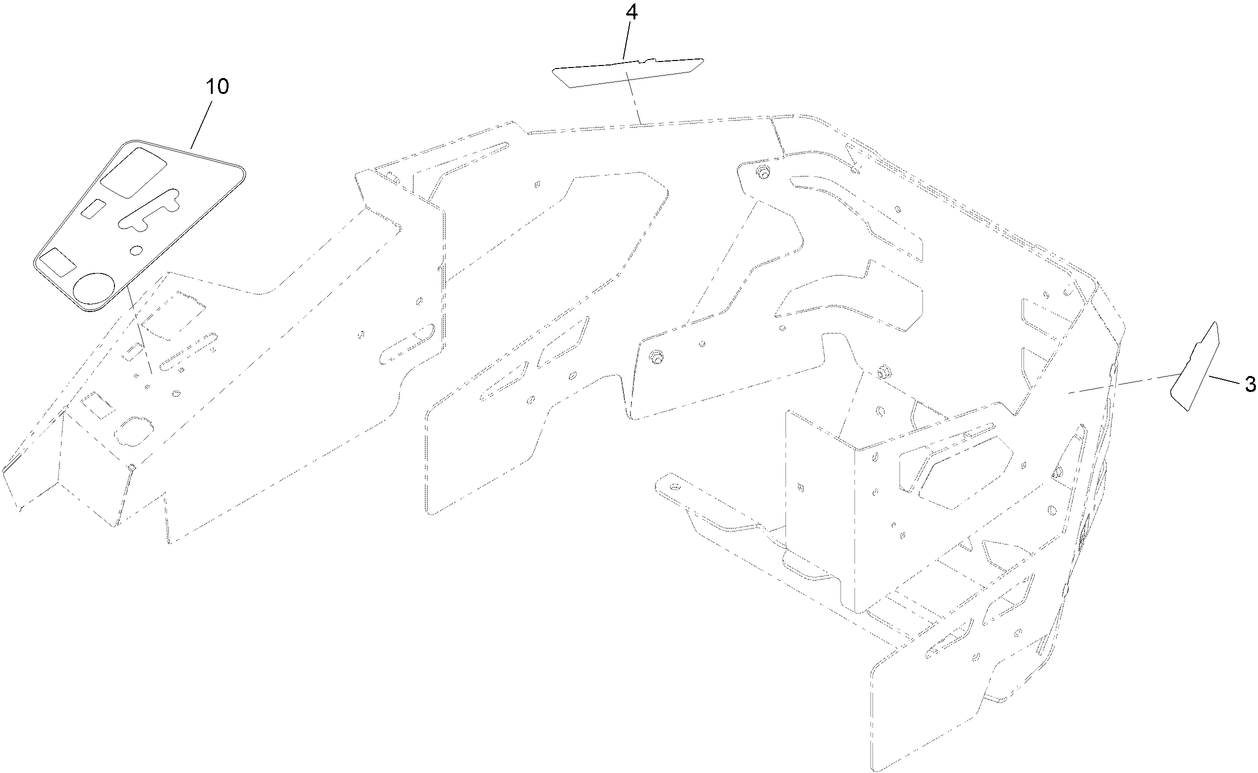

Decal Assembly
Decal Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

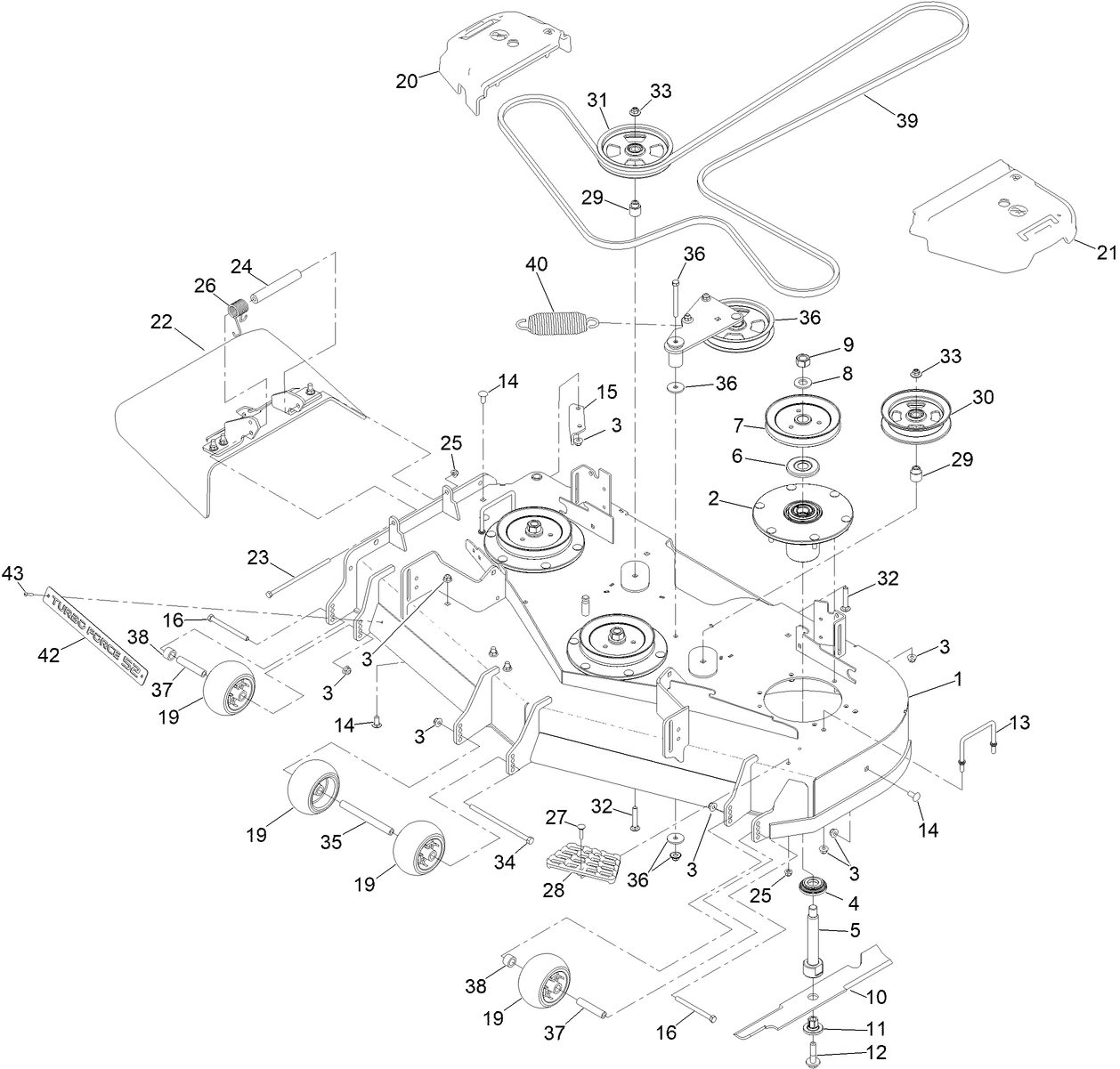

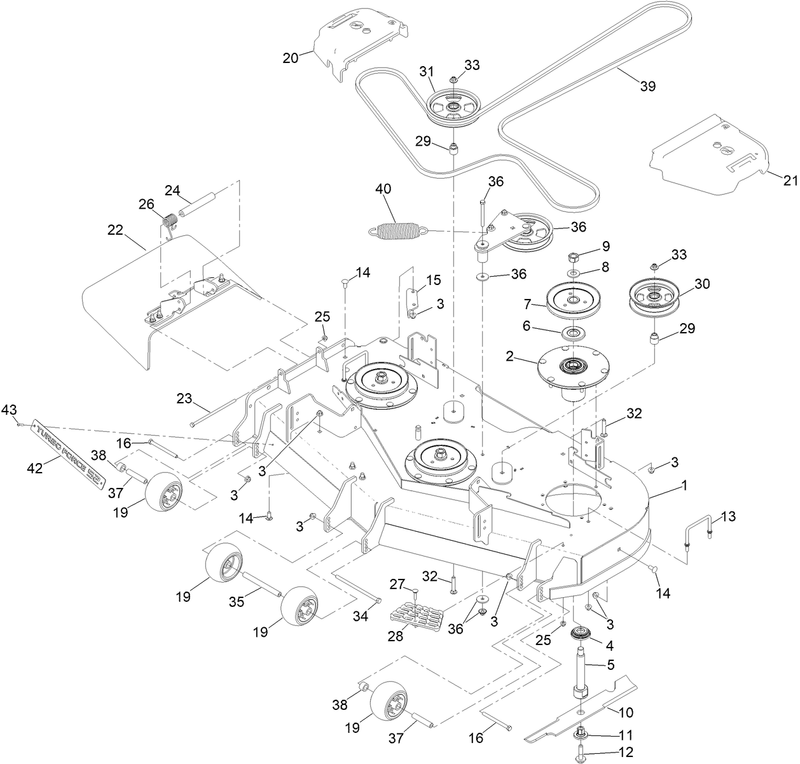

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

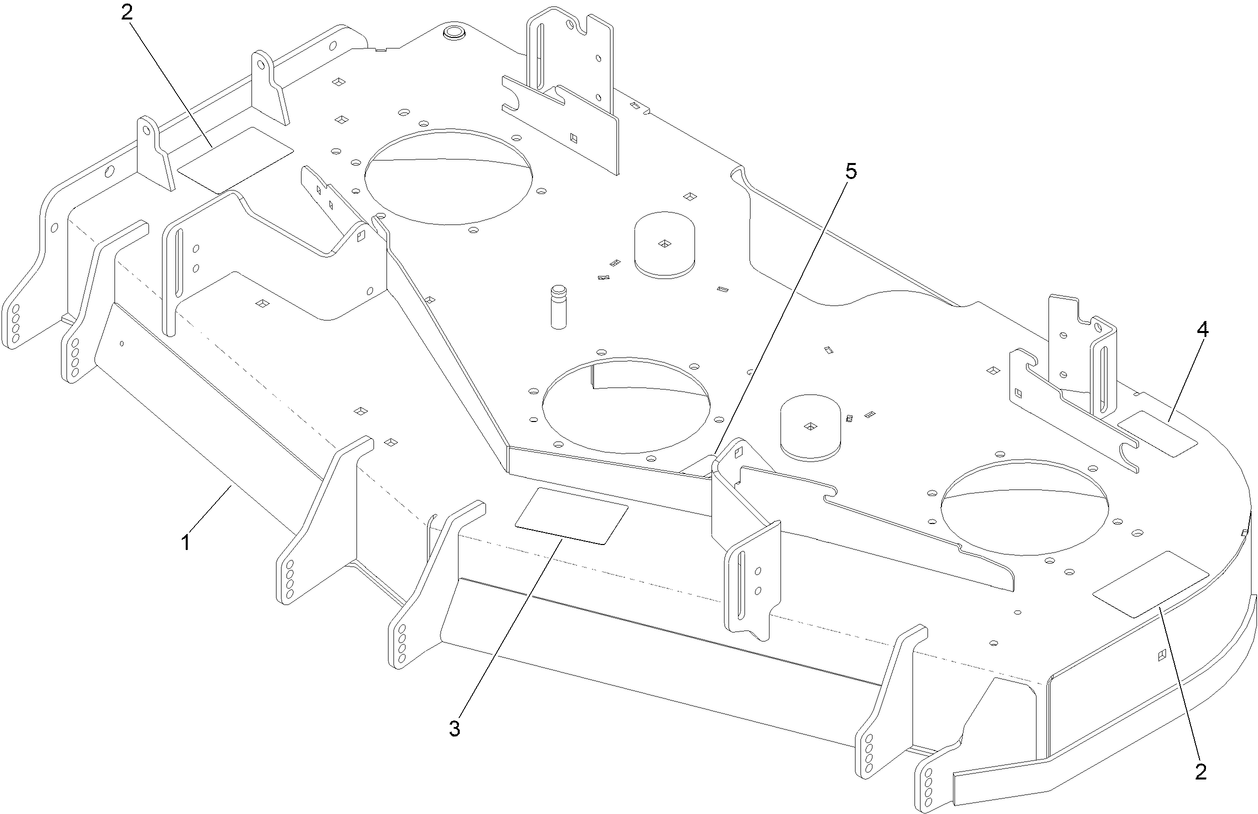

Deck Decal Assembly No 147 4996
Deck Decal Assembly No 147 4996
| Sequence Number | Image | Product | Price | Add to cart |
|---|

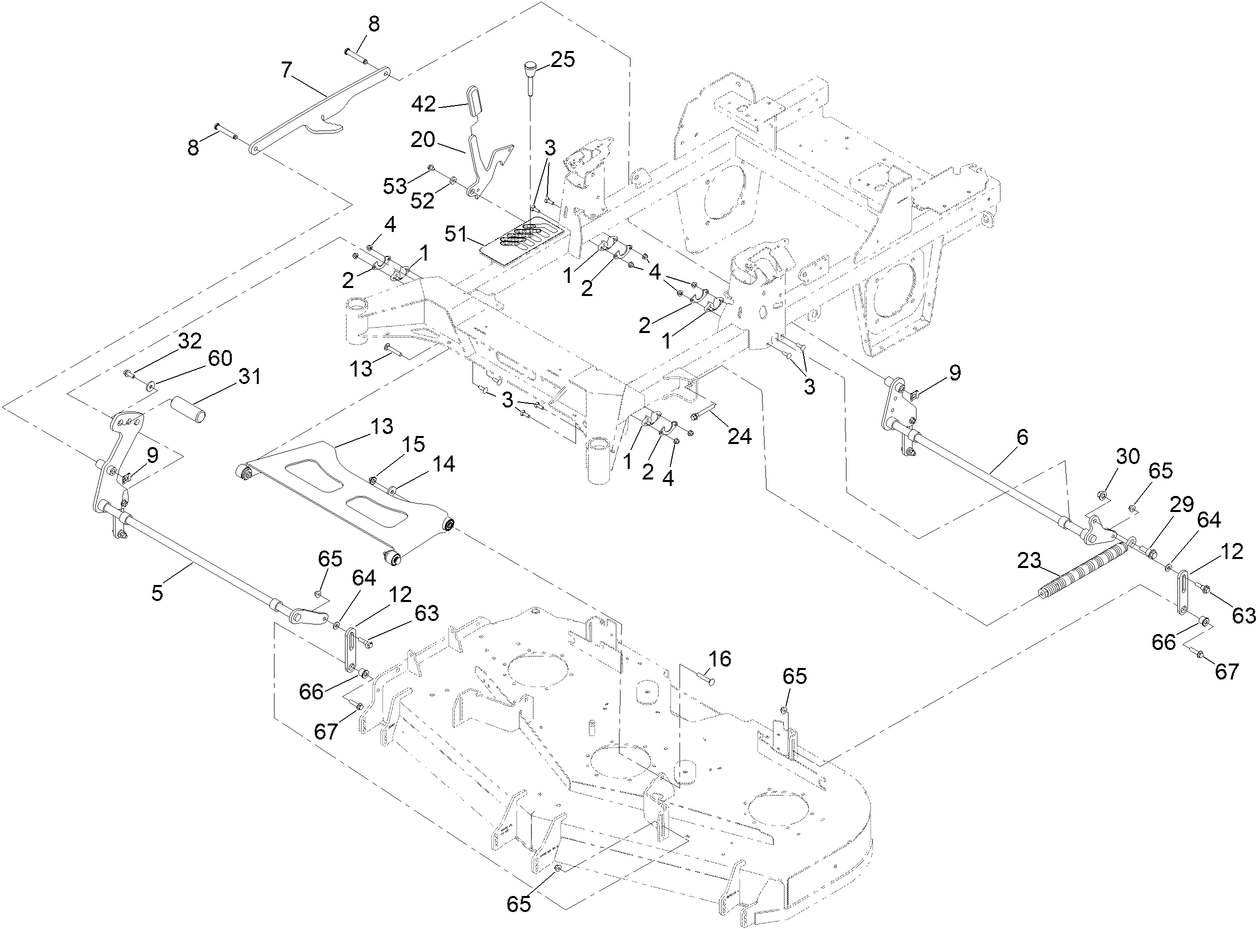

Deck Lift Assembly
Deck Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

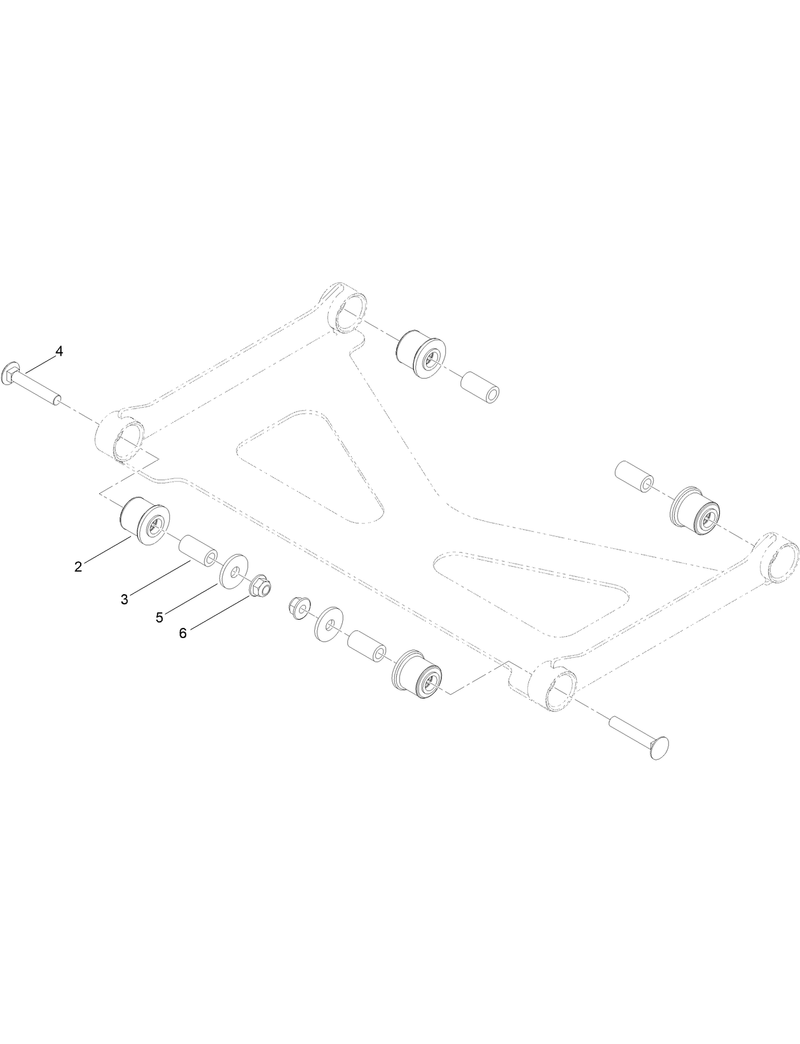

Deck Strut Assembly No 140 1179
Deck Strut Assembly No 140 1179
| Sequence Number | Image | Product | Price | Add to cart |
|---|

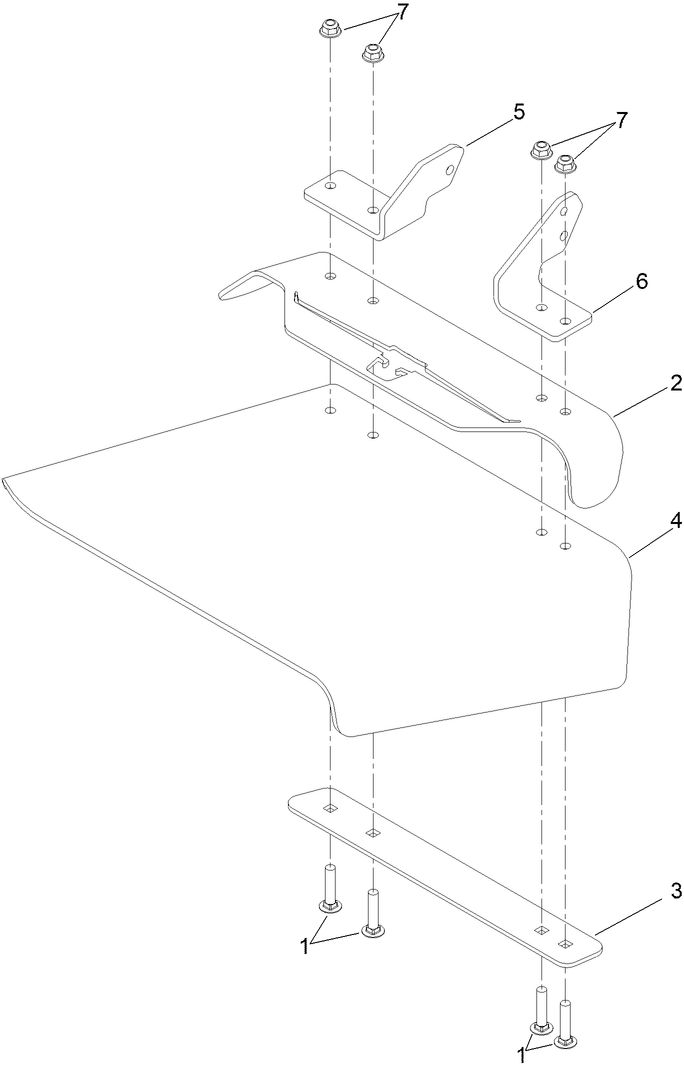

Deflector Assembly No 144 2635
Deflector Assembly No 144 2635
| Sequence Number | Image | Product | Price | Add to cart |
|---|

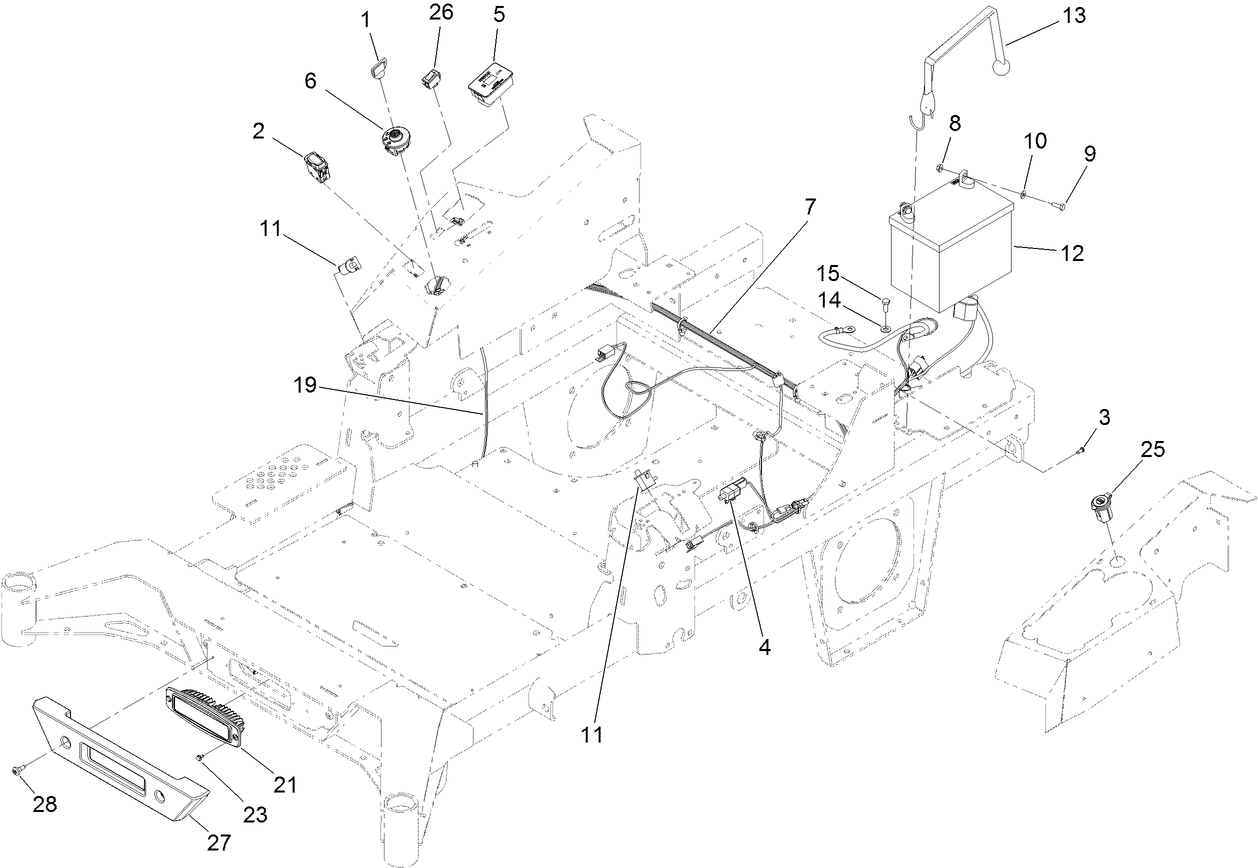

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

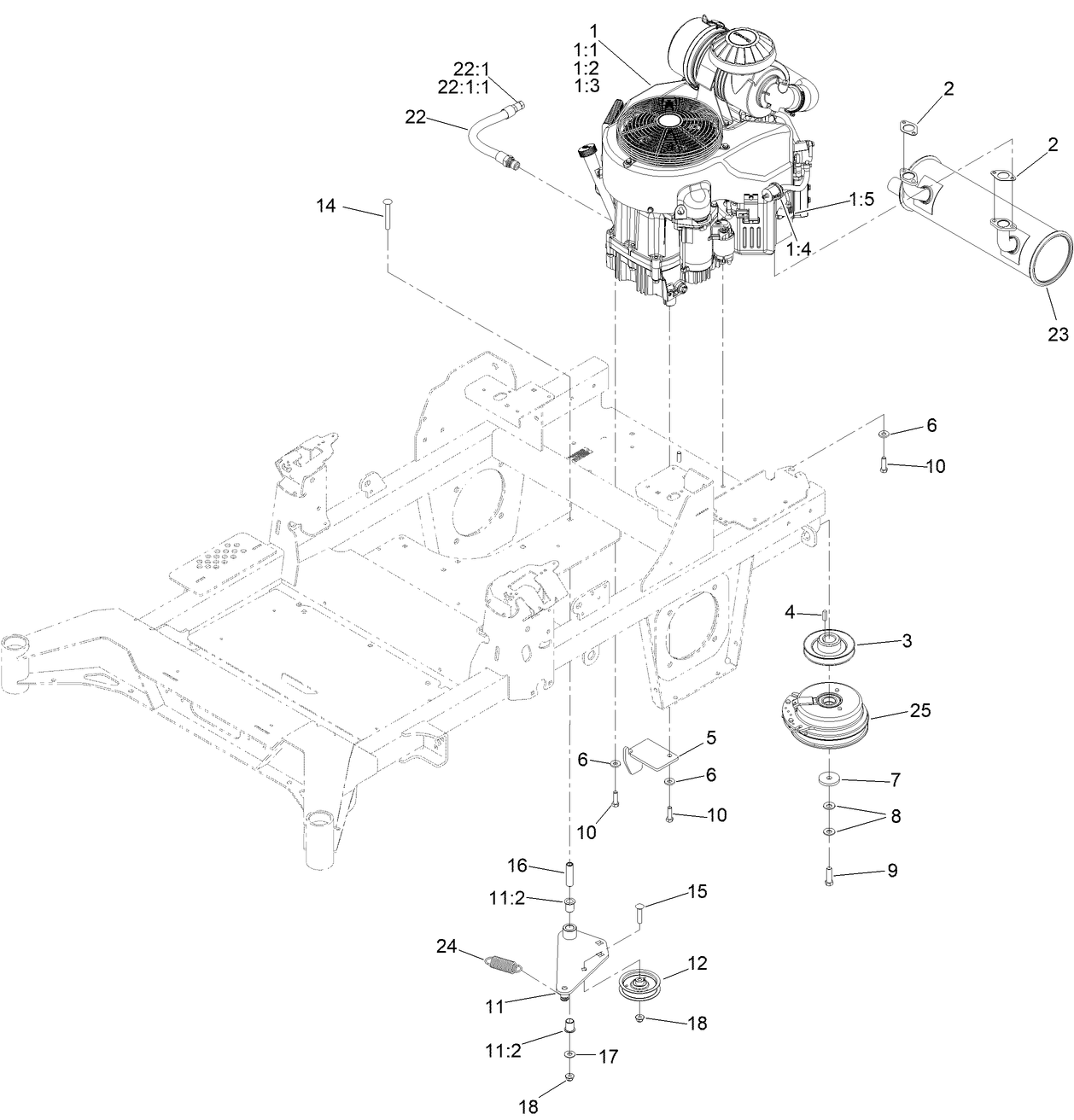

Engine Clutch and Muffler Assembly
Engine Clutch and Muffler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

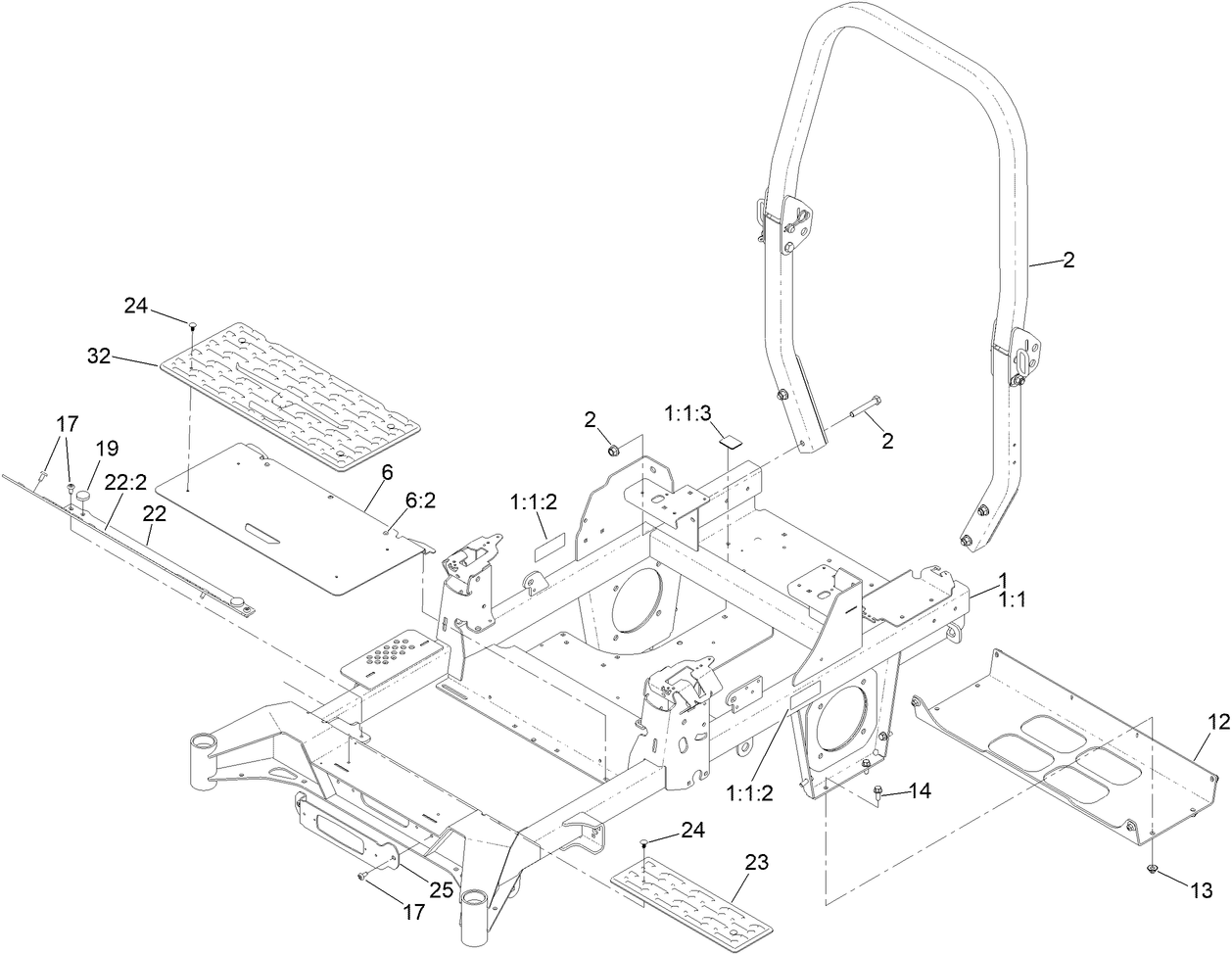

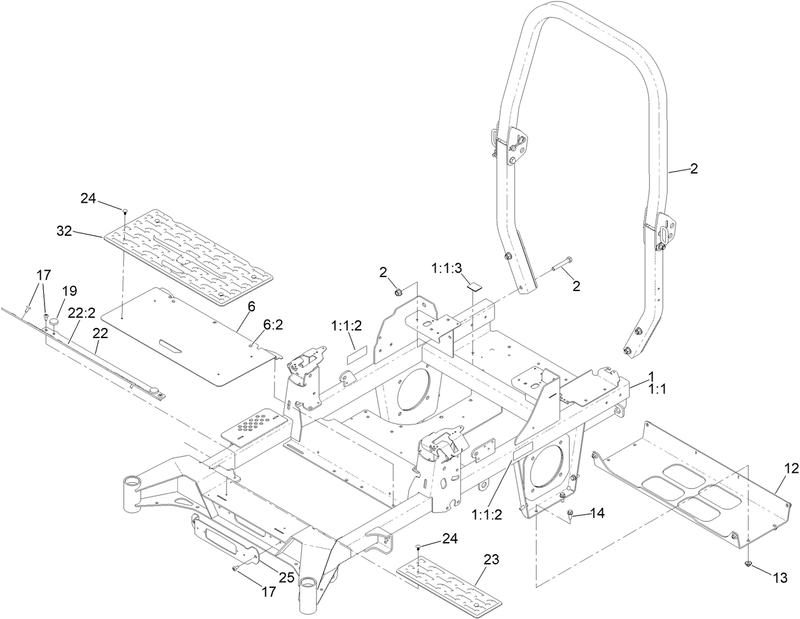

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel Tank Assembly No 139 6722
Fuel Tank Assembly No 139 6722
| Sequence Number | Image | Product | Price | Add to cart |
|---|

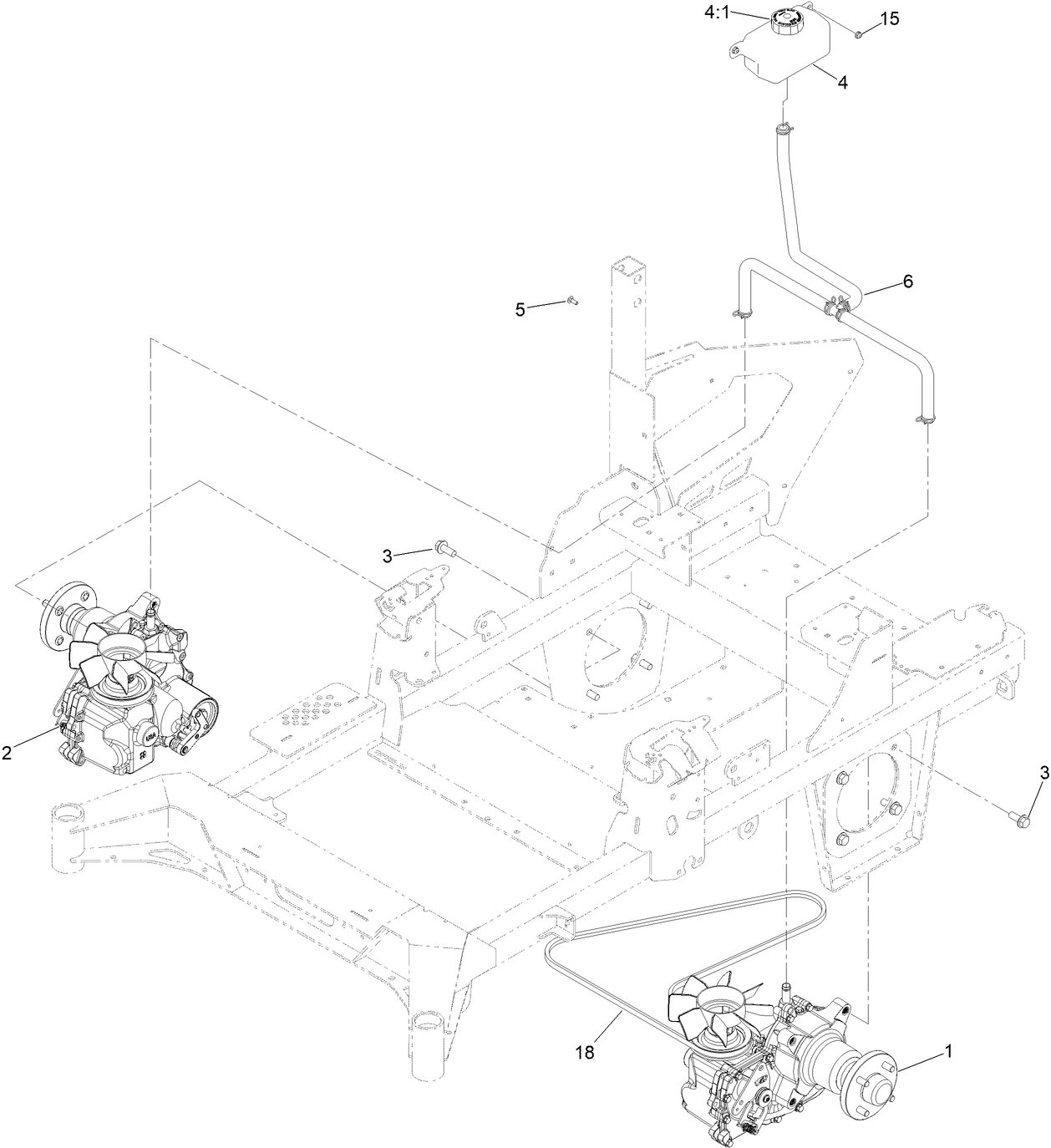

Hydraulic Drive Assembly
Hydraulic Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Idler Arm Assembly No 139 1087
Idler Arm Assembly No 139 1087
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Left and Right Control Arm Assembly
Left and Right Control Arm Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

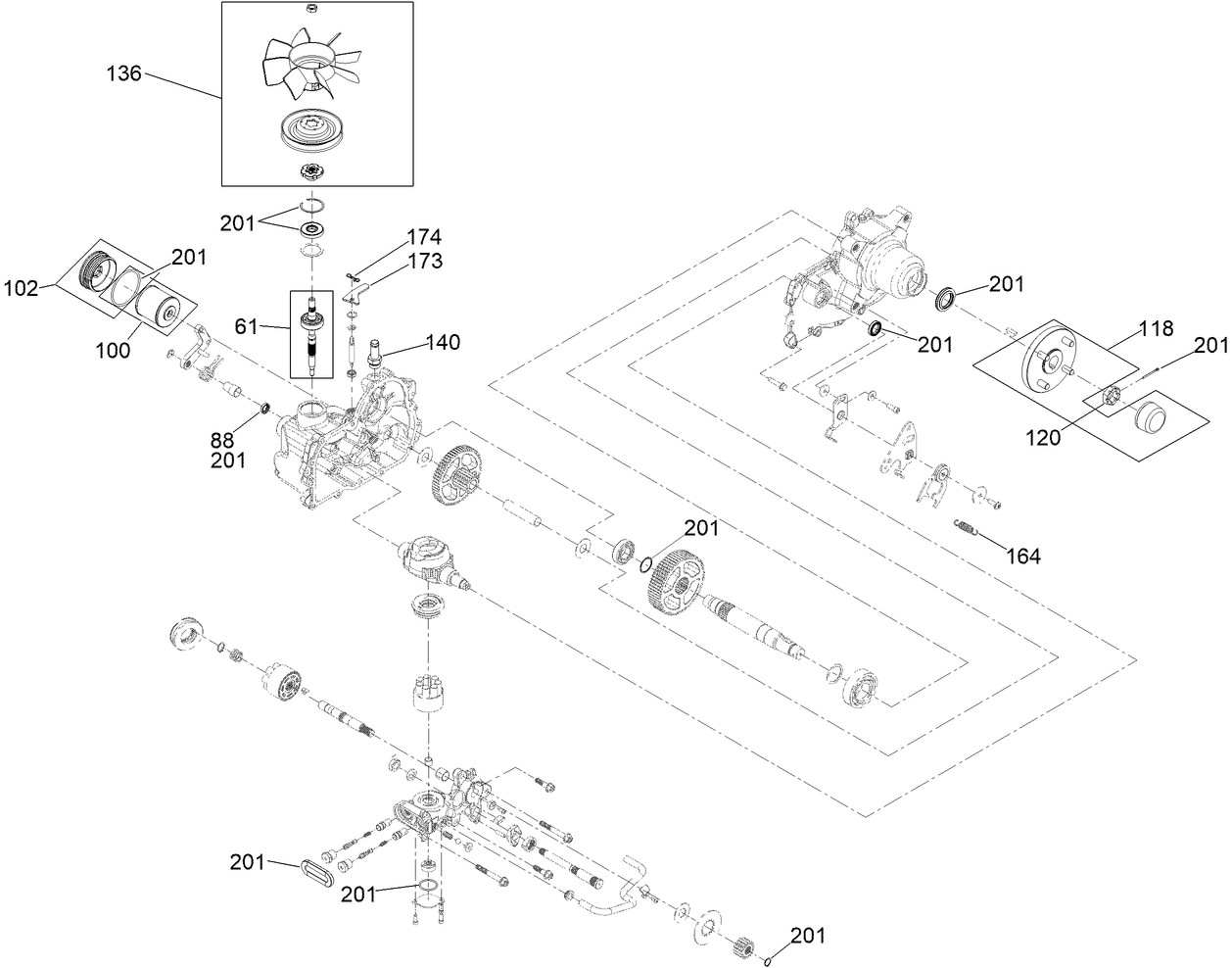

LH Transaxle Assembly No 145 3696
LH Transaxle Assembly No 145 3696
| Sequence Number | Image | Product | Price | Add to cart |
|---|

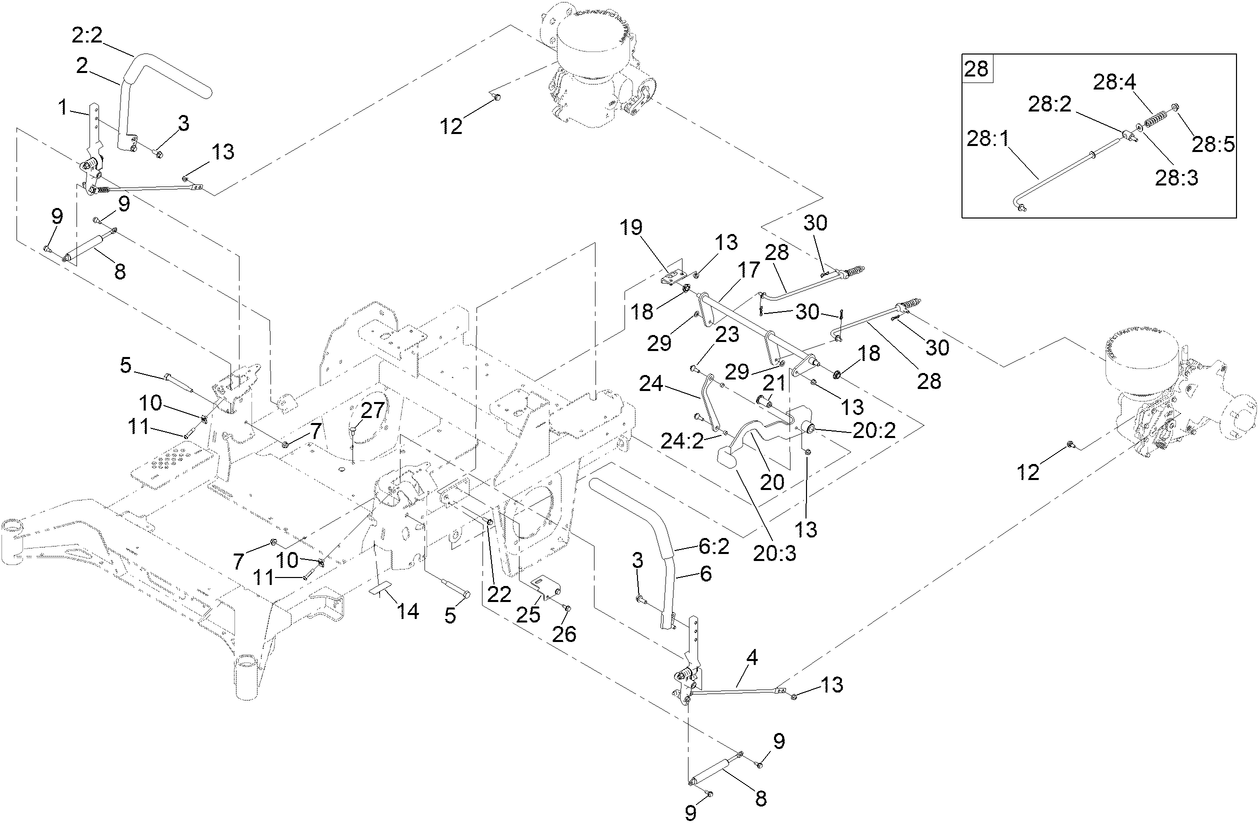

Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

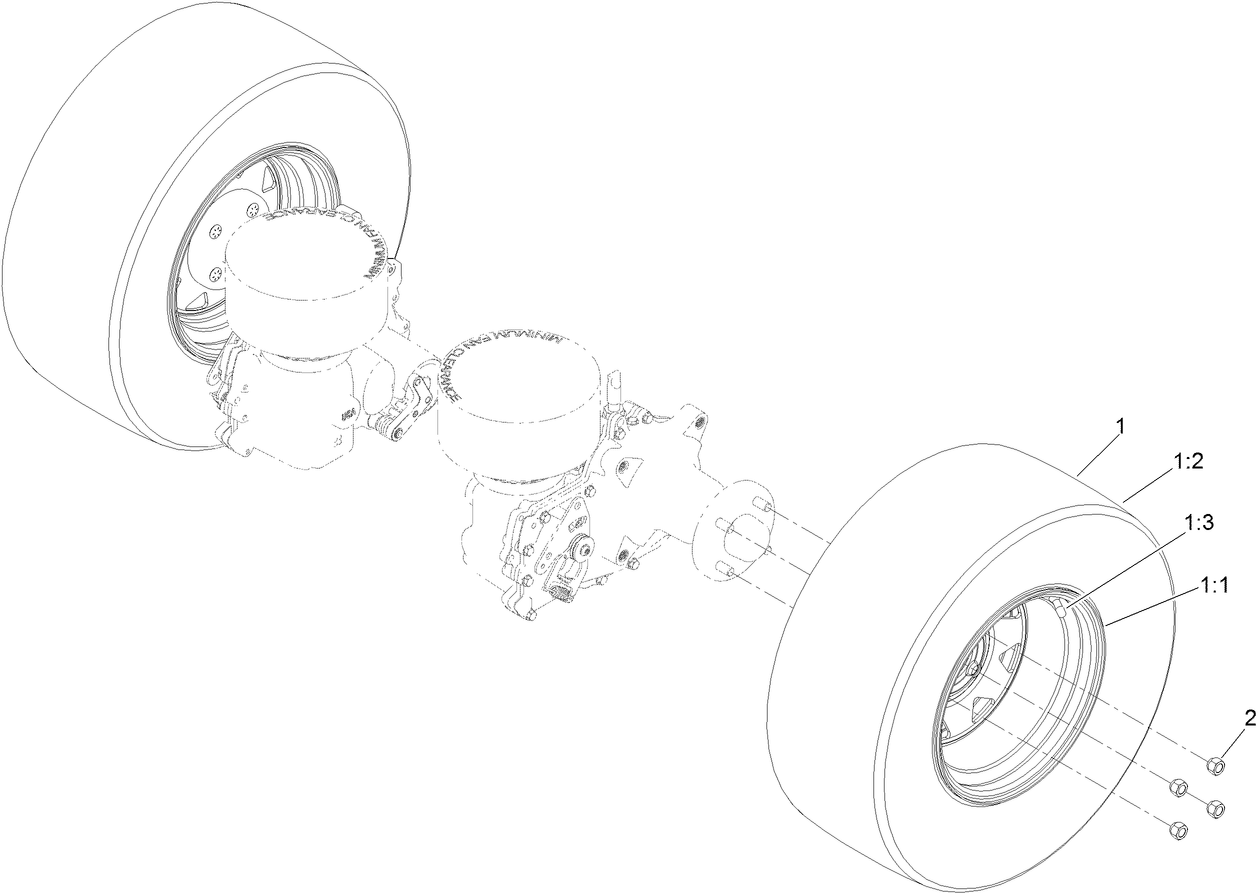

Rear Wheel Assembly
Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

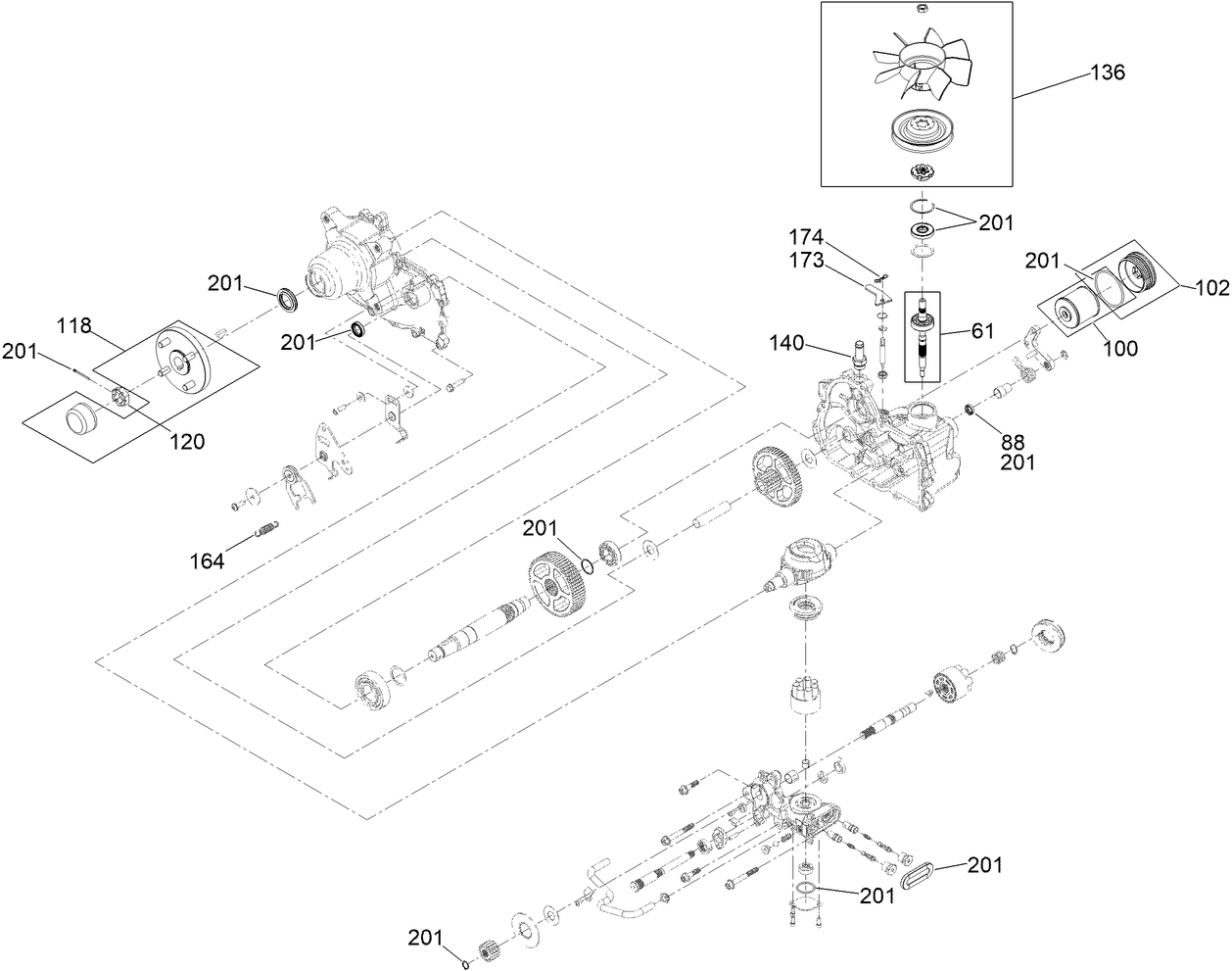

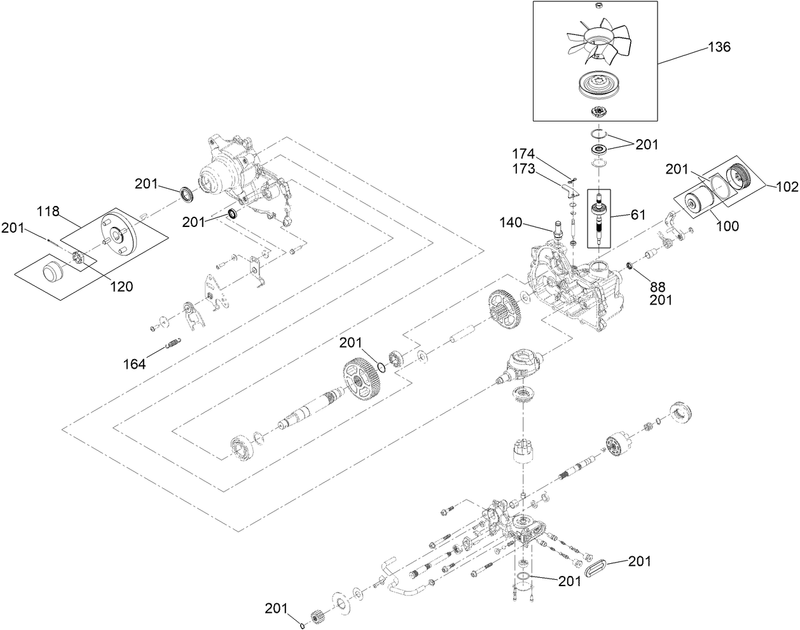

RH Transaxle Assembly No 145 3695
RH Transaxle Assembly No 145 3695
| Sequence Number | Image | Product | Price | Add to cart |
|---|

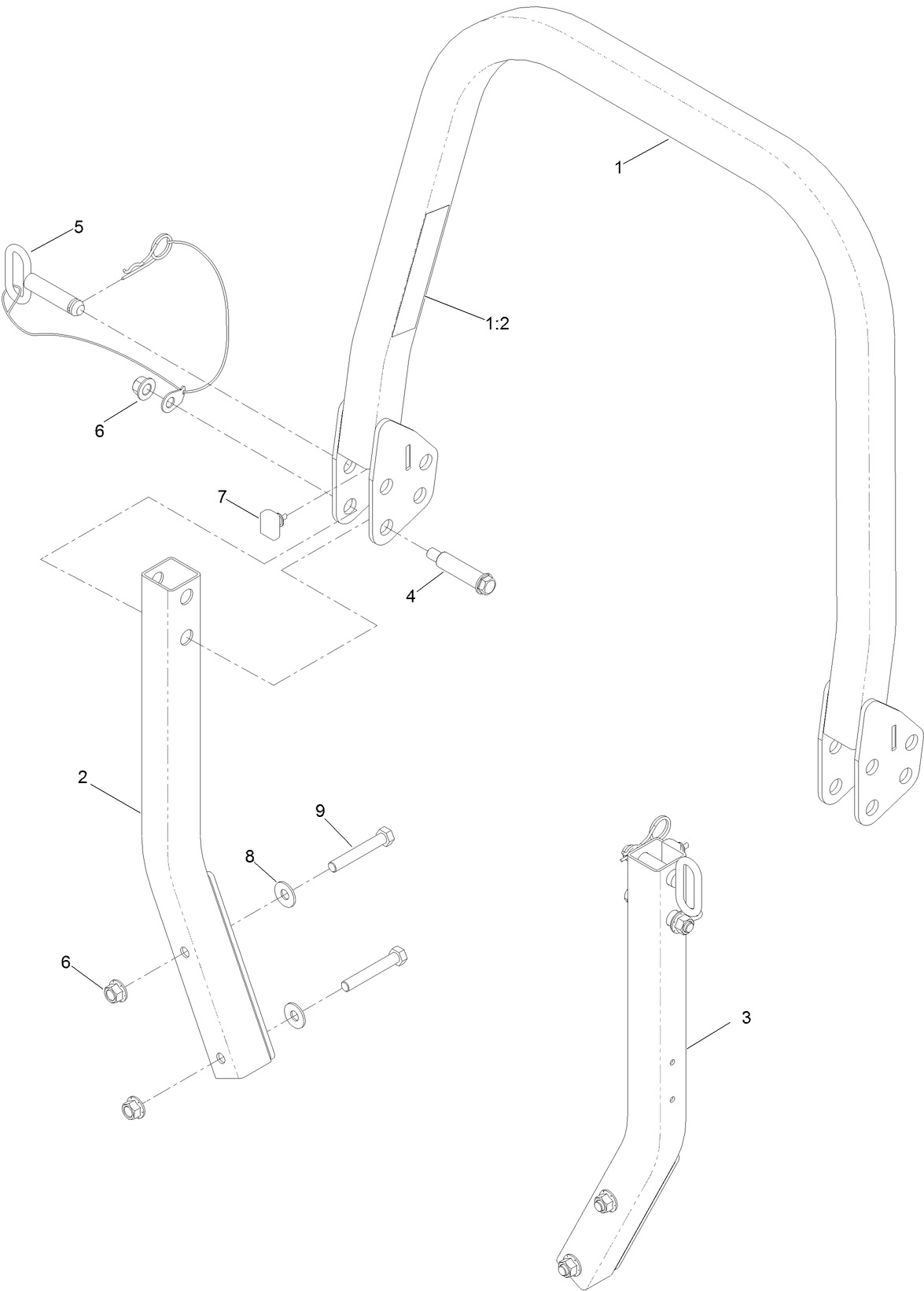

Roll Over Protection System Assembly No 139 8062
Roll Over Protection System Assembly No 139 8062
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Seat Assembly No 144 2632
Seat Assembly No 144 2632
| Sequence Number | Image | Product | Price | Add to cart |
|---|

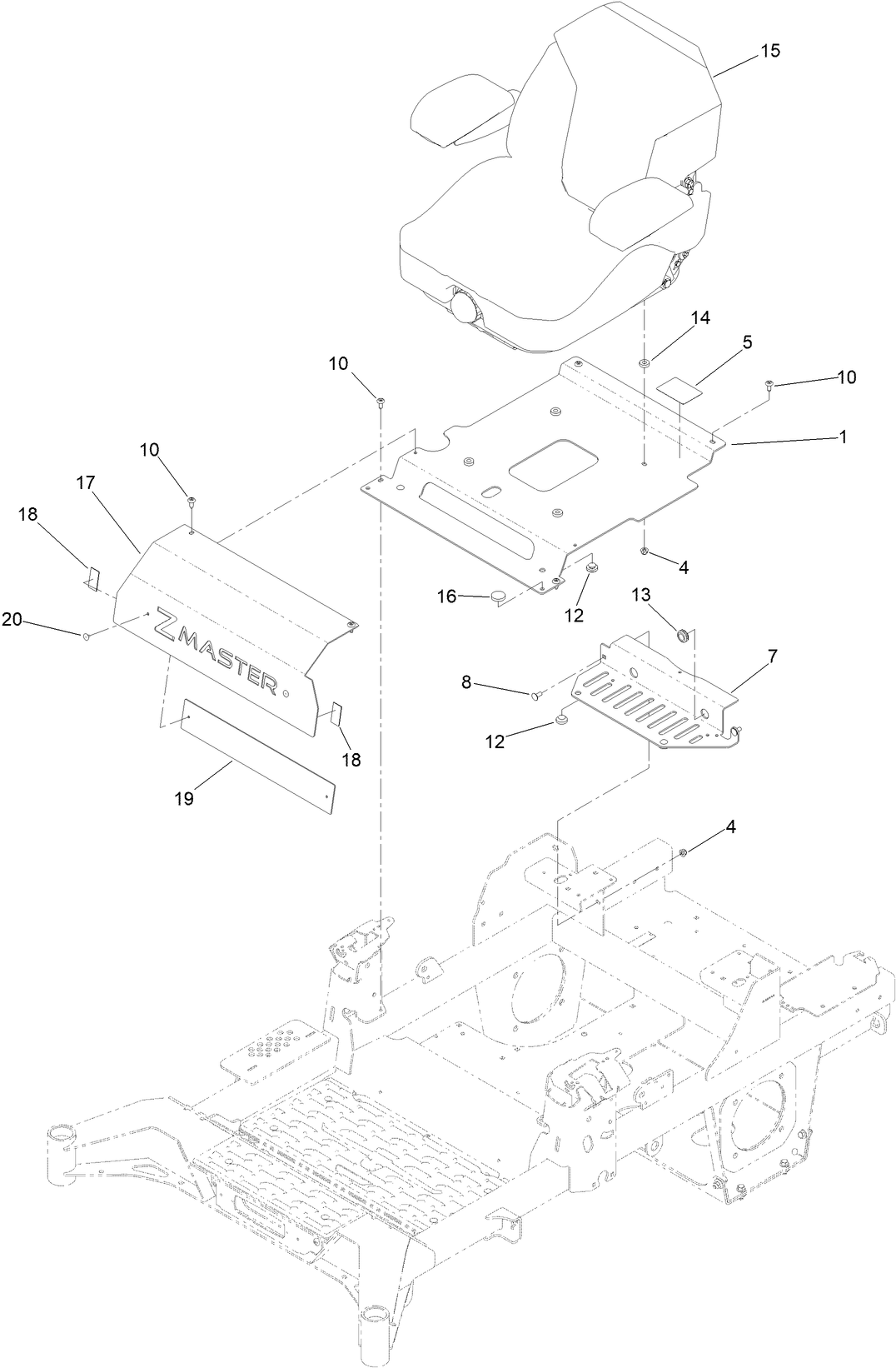

Seat Mount Assembly
Seat Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Spindle Assembly No 137 9780
Spindle Assembly No 137 9780
| Sequence Number | Image | Product | Price | Add to cart |
|---|

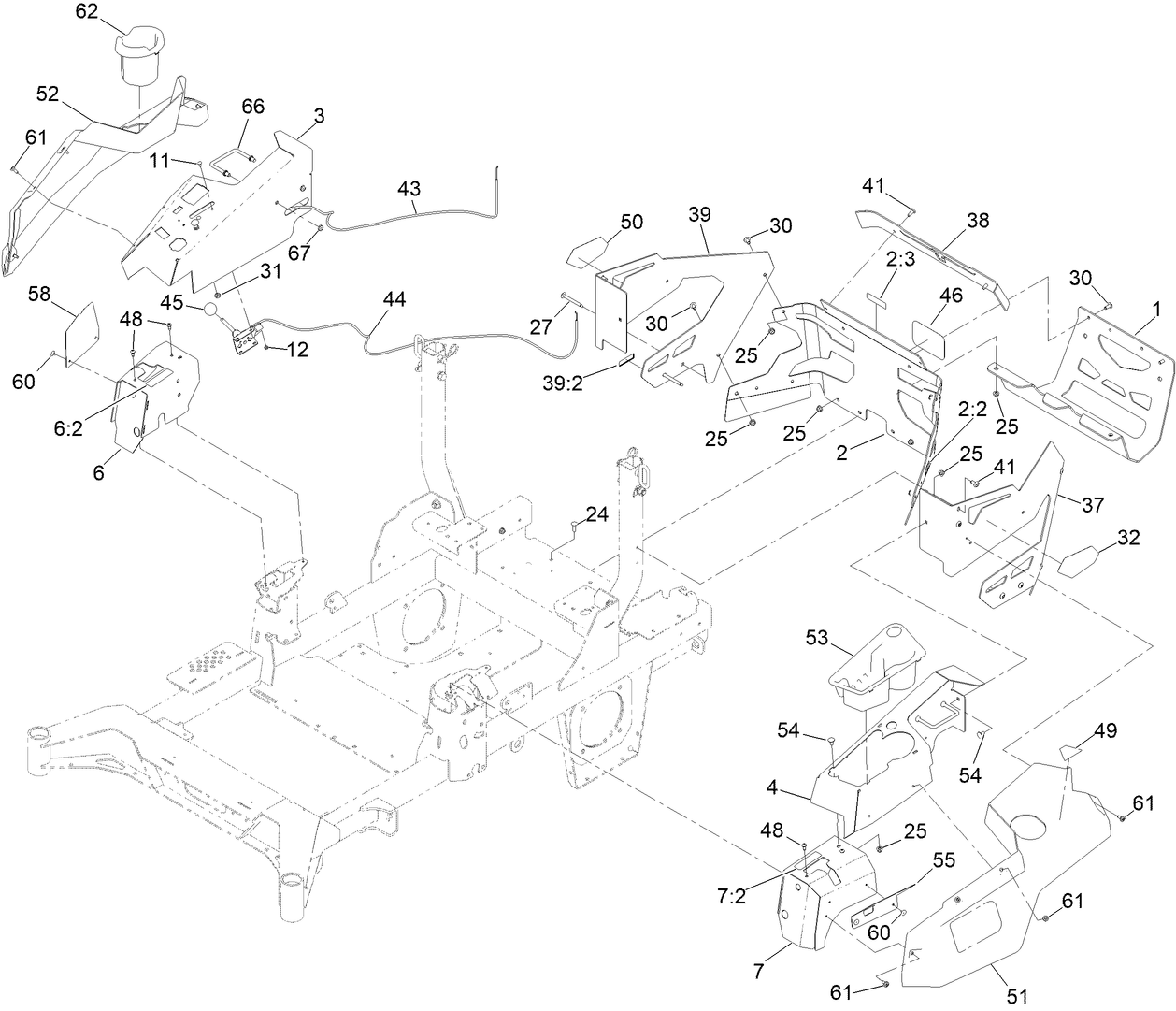

Throttle Cable and Guard Assembly
Throttle Cable and Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Wire Harness Assembly No 139 8078
Wire Harness Assembly No 139 8078
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Caster Wheel and Fork Assembly
Caster Wheel and Fork Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Caster Wheel Assembly
Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Decal Assembly
Decal Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deck Decal Assembly No 147 4996
Deck Decal Assembly No 147 4996
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deck Lift Assembly
Deck Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

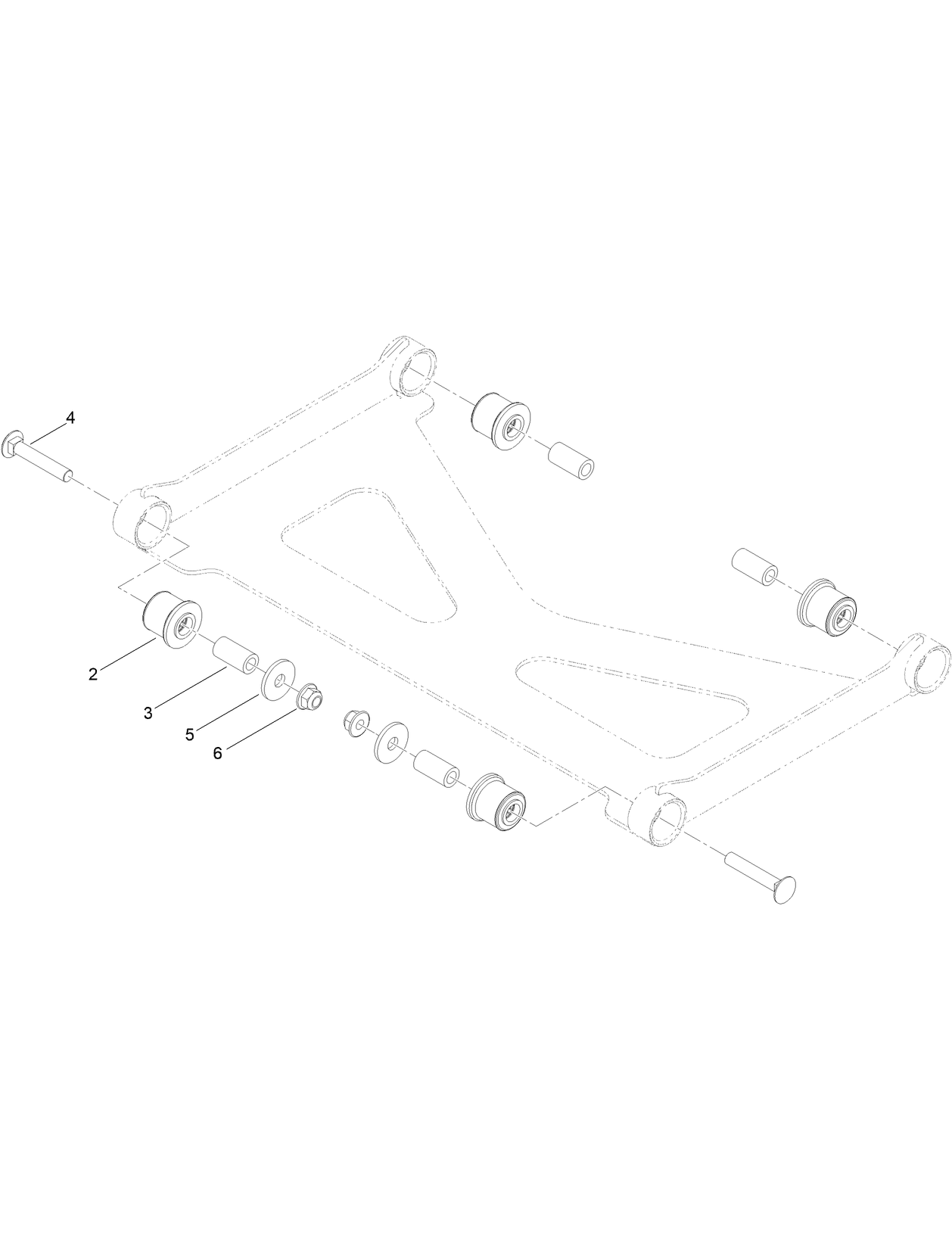

Deck Strut Assembly No 140 1179
Deck Strut Assembly No 140 1179
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deflector Assembly No 144 2635
Deflector Assembly No 144 2635
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Engine Clutch and Muffler Assembly
Engine Clutch and Muffler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel Tank Assembly No 139 6722
Fuel Tank Assembly No 139 6722
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Hydraulic Drive Assembly
Hydraulic Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Idler Arm Assembly No 139 1087
Idler Arm Assembly No 139 1087
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Left and Right Control Arm Assembly
Left and Right Control Arm Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
LH Transaxle Assembly No 145 3696
LH Transaxle Assembly No 145 3696
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Rear Wheel Assembly
Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
RH Transaxle Assembly No 145 3695
RH Transaxle Assembly No 145 3695
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Roll Over Protection System Assembly No 139 8062
Roll Over Protection System Assembly No 139 8062
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Seat Assembly No 144 2632
Seat Assembly No 144 2632
| Sequence Number | Image | Product | Price | Add to cart |
|---|

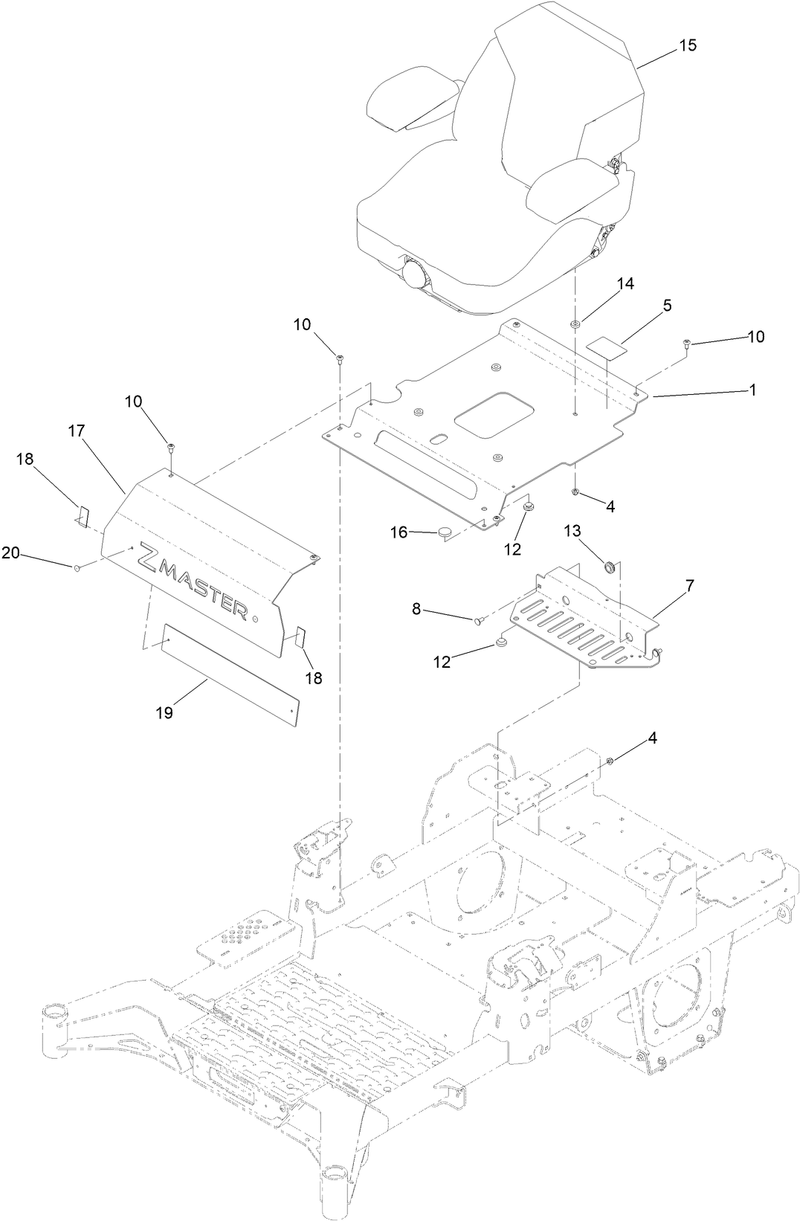

Seat Mount Assembly
Seat Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Spindle Assembly No 137 9780
Spindle Assembly No 137 9780
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Throttle Cable and Guard Assembly
Throttle Cable and Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Wire Harness Assembly No 139 8078
Wire Harness Assembly No 139 8078
| Sequence Number | Image | Product | Price | Add to cart |
|---|
