Toro 74052 4000 Series MyRIDE® HDX 52 in. (132 cm) 31 hp 999cc (Serial #: 416273440 - 416442646) Parts Diagram
Diagrams:
Diagram:

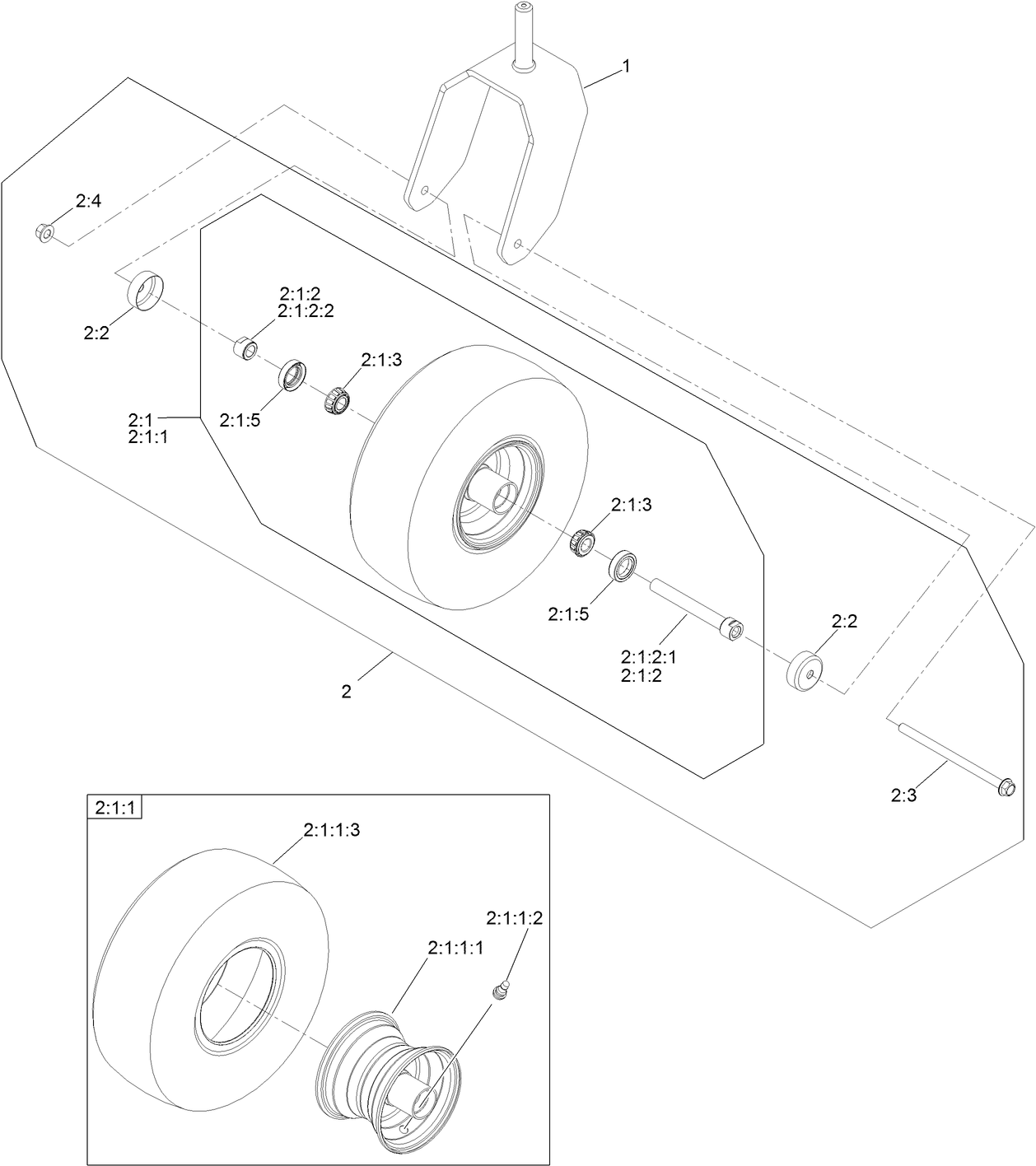

Caster Wheel and Fork Assembly
Caster Wheel and Fork Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Caster Wheel Assembly
Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

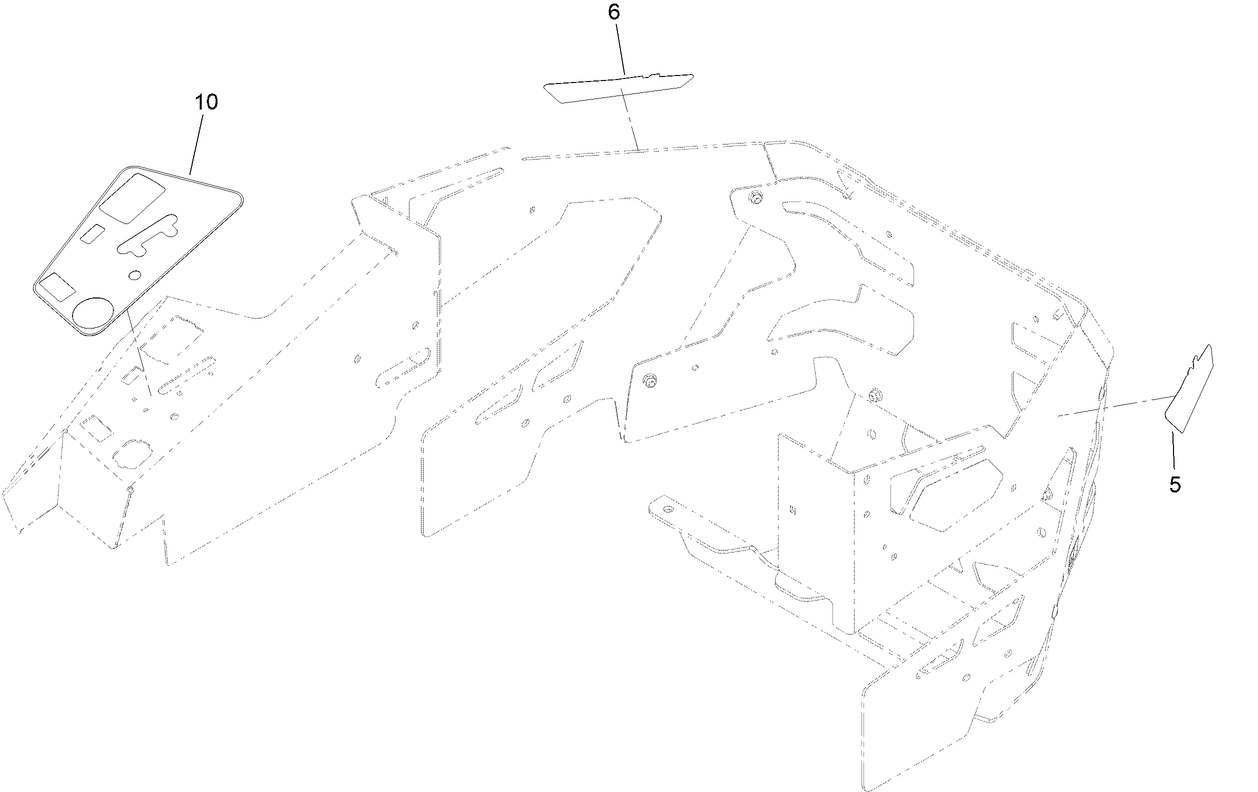

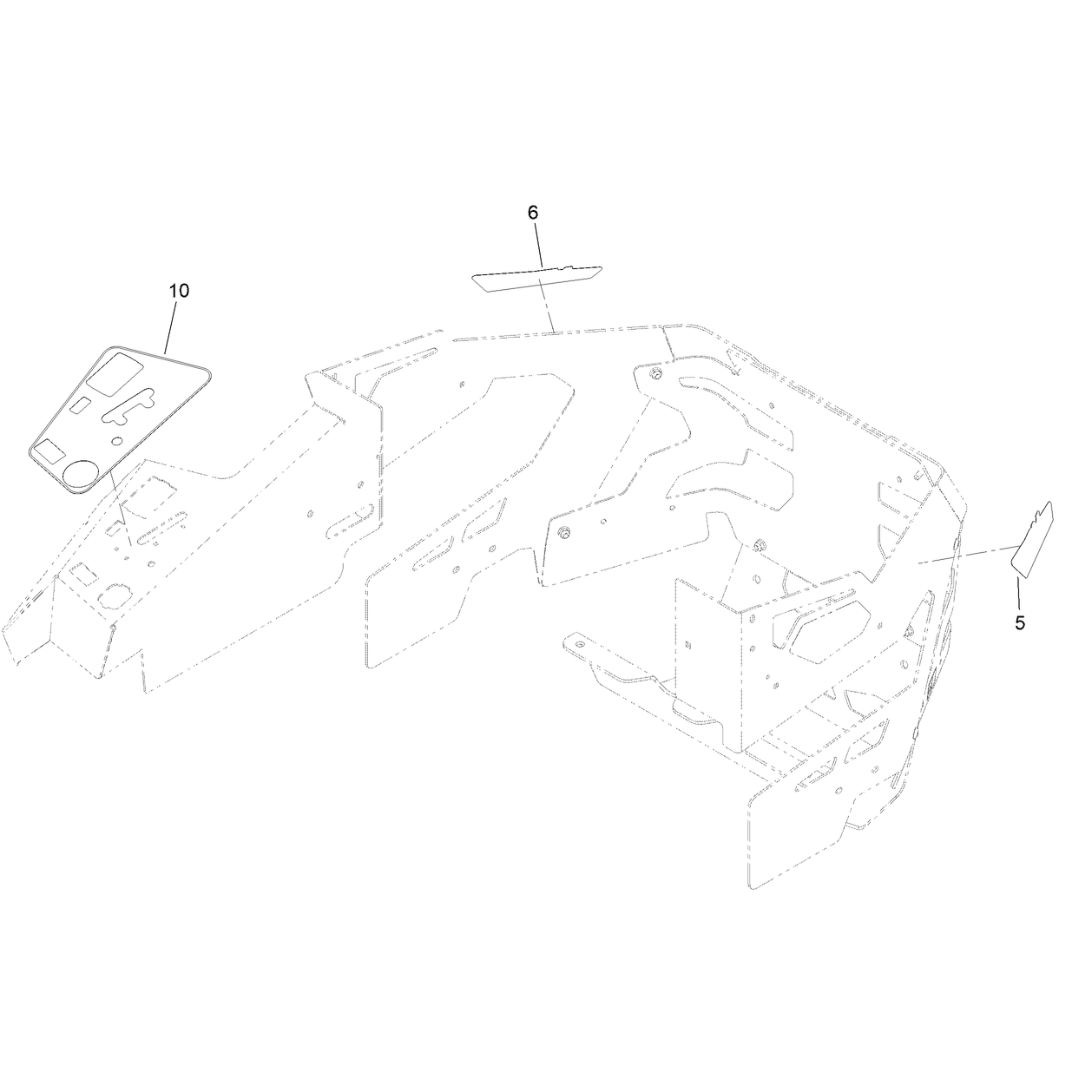

Decal Assembly
Decal Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

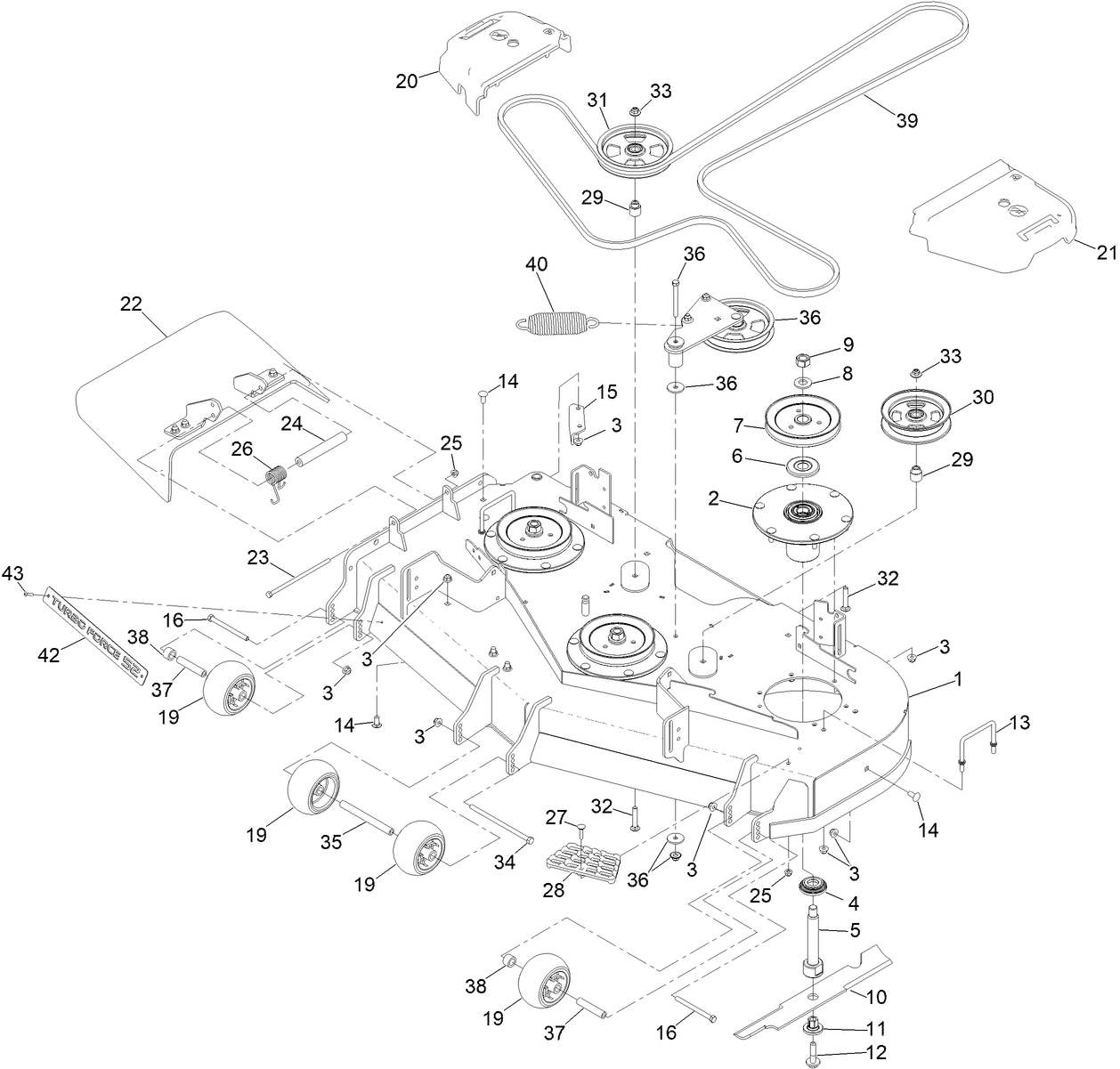

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

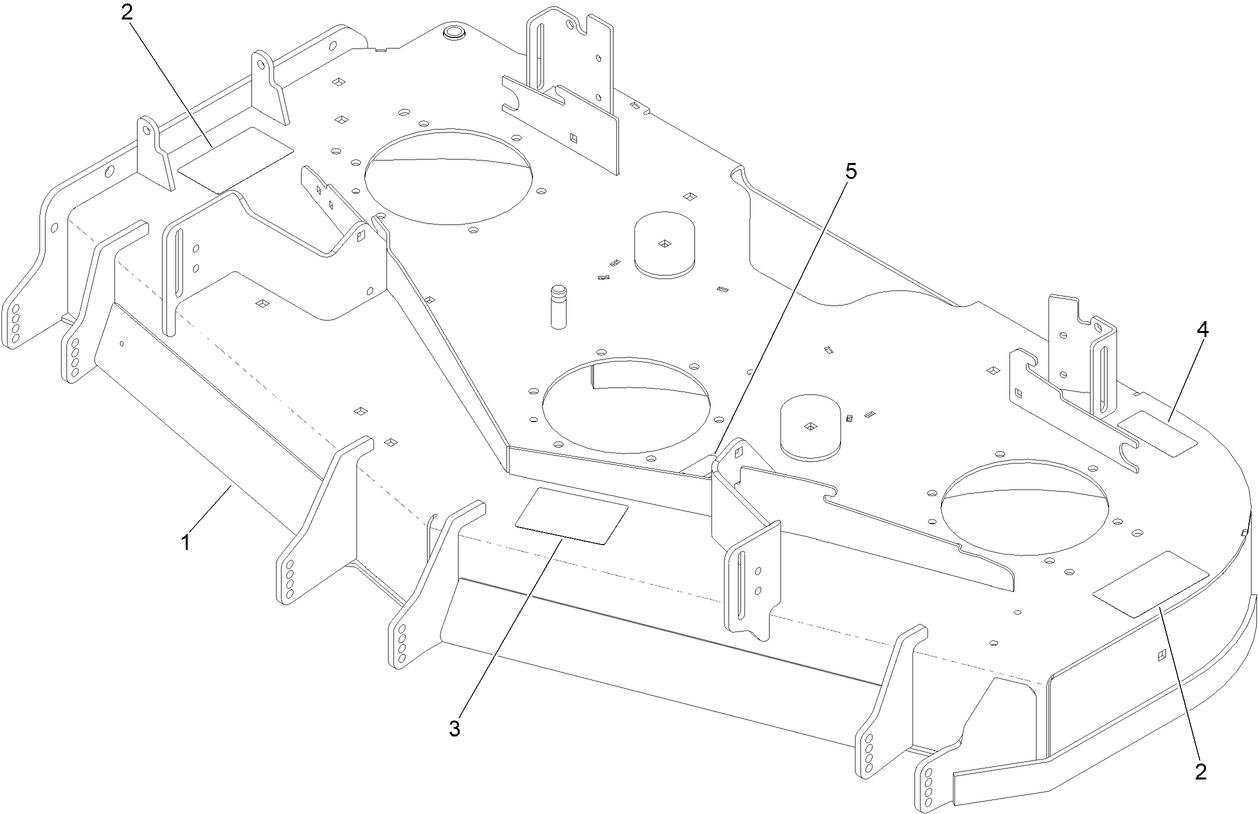

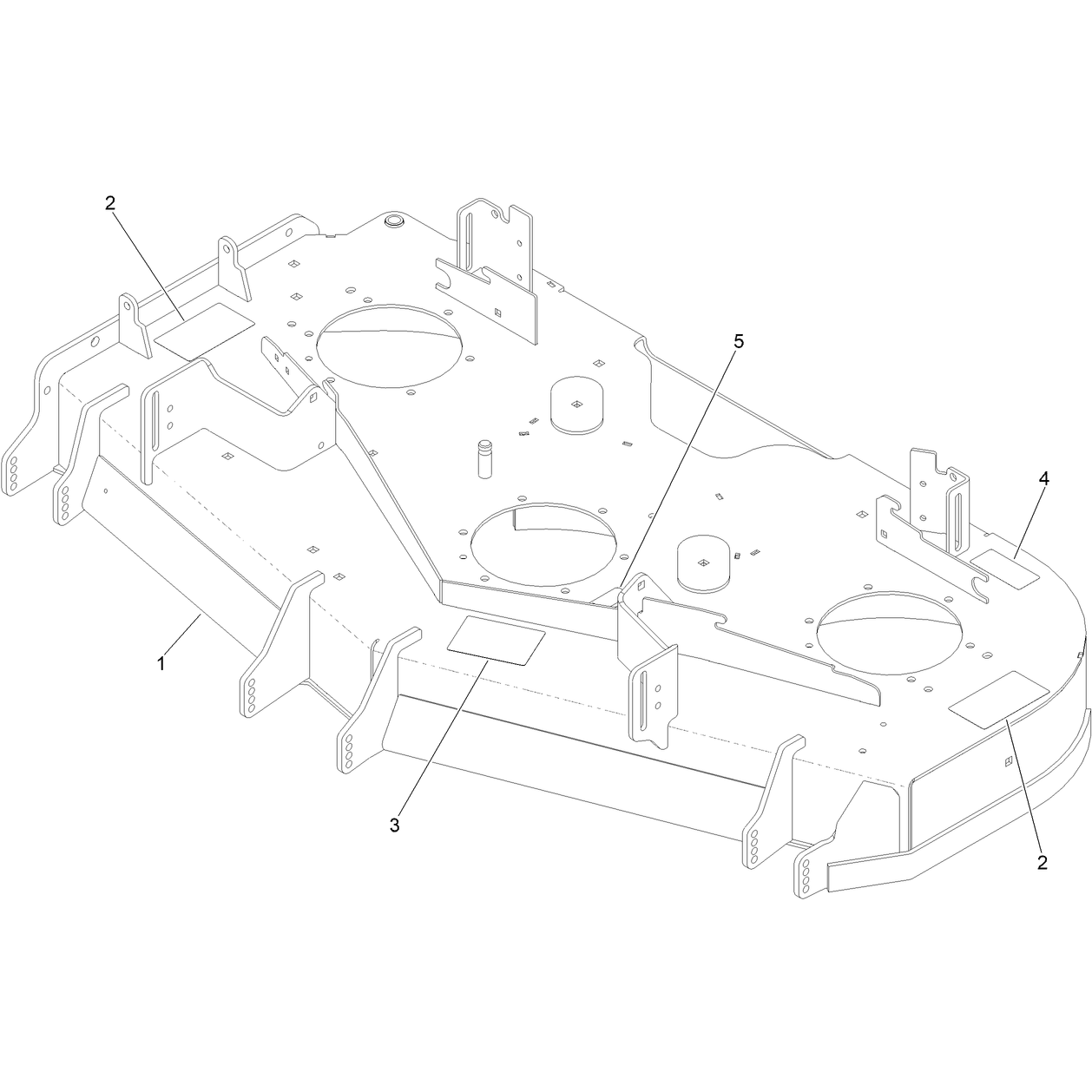

Deck Decal Assembly No 147 4996
Deck Decal Assembly No 147 4996
| Sequence Number | Image | Product | Price | Add to cart |
|---|

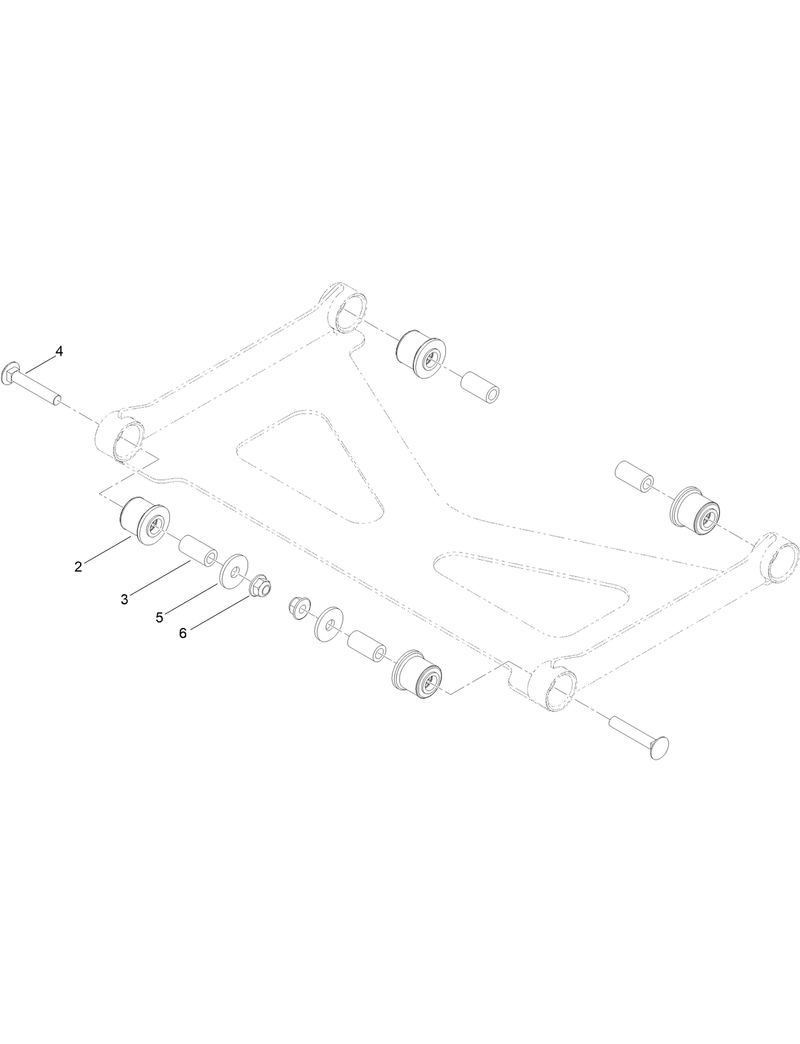

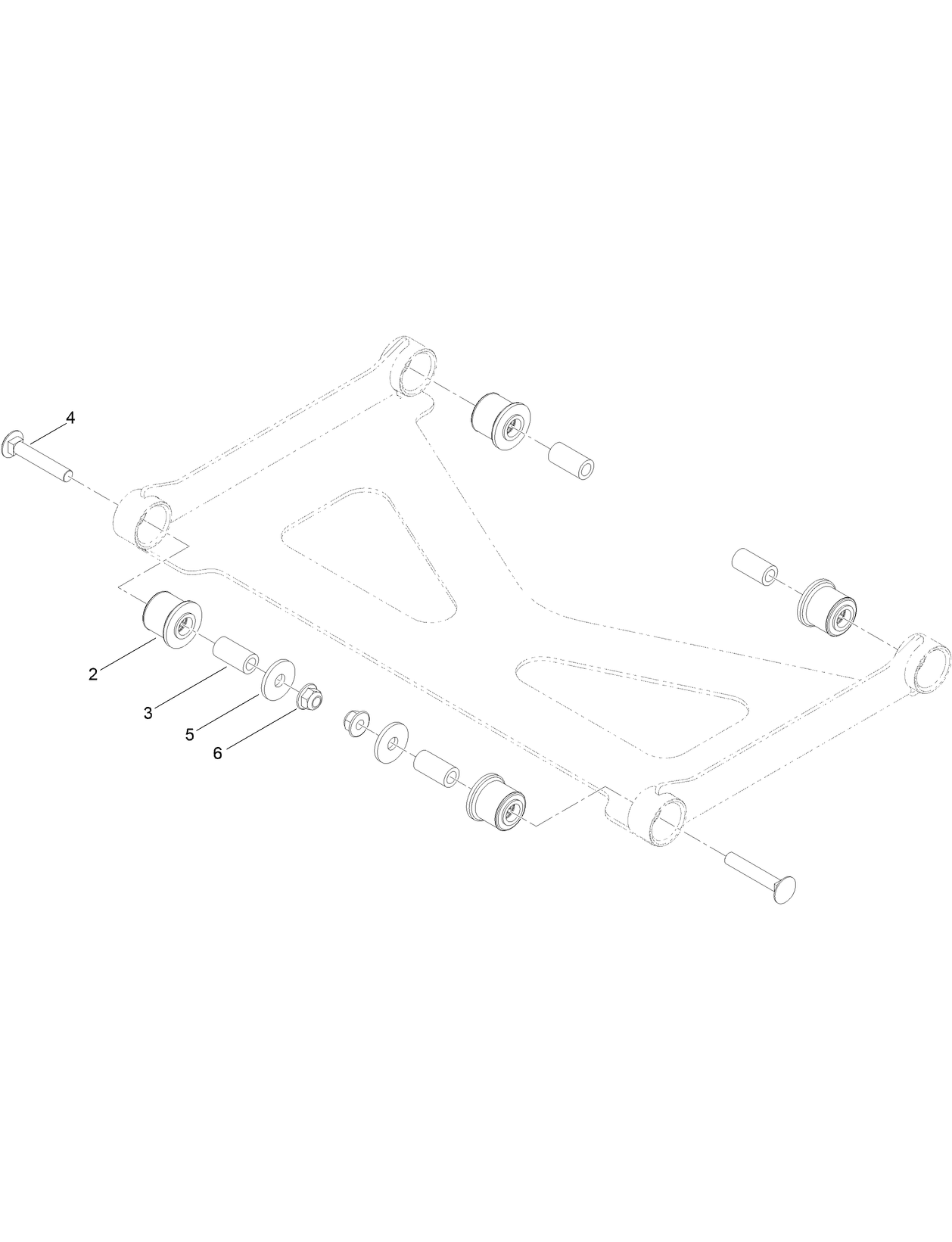

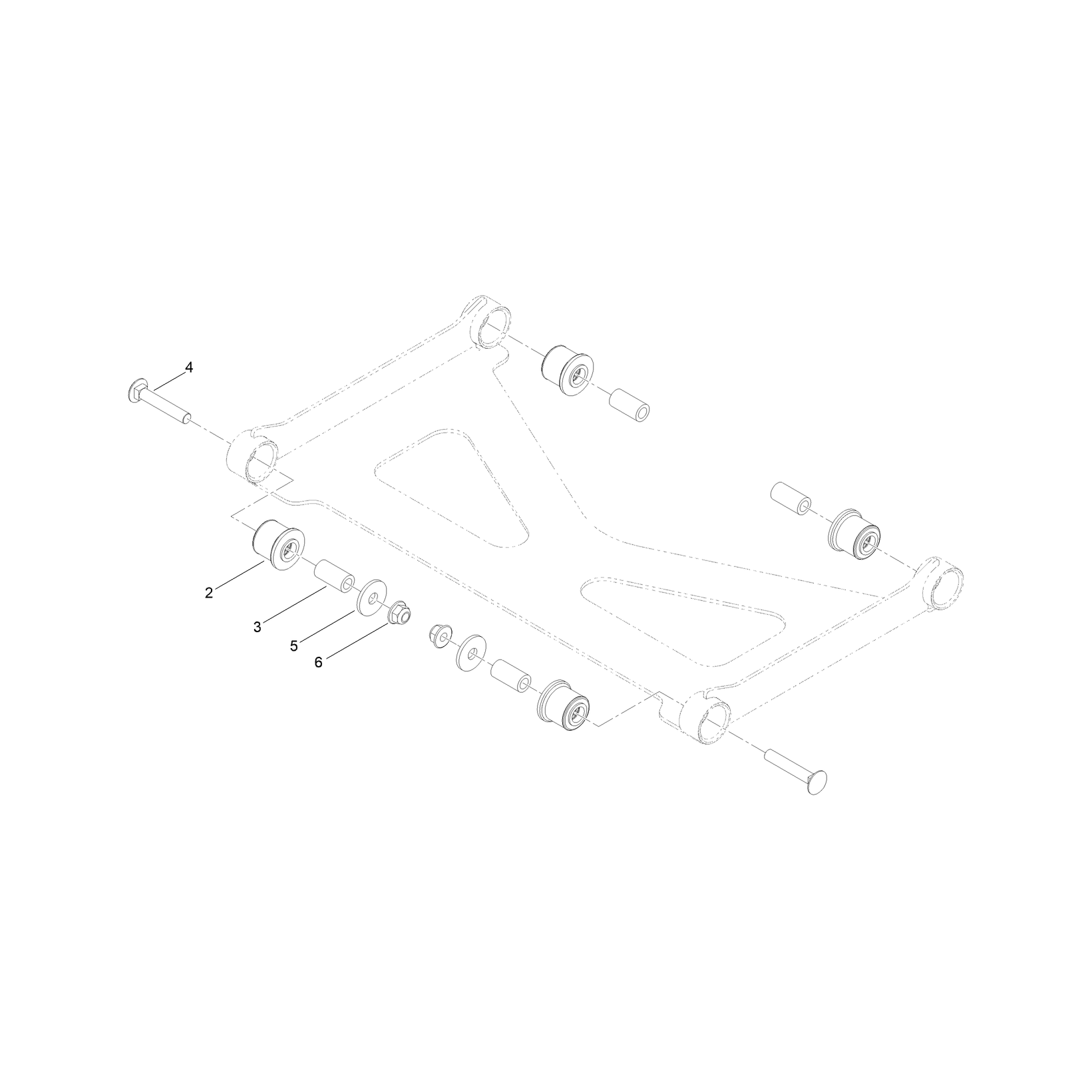

Deck Strut Assembly No 140 1179
Deck Strut Assembly No 140 1179
| Sequence Number | Image | Product | Price | Add to cart |
|---|

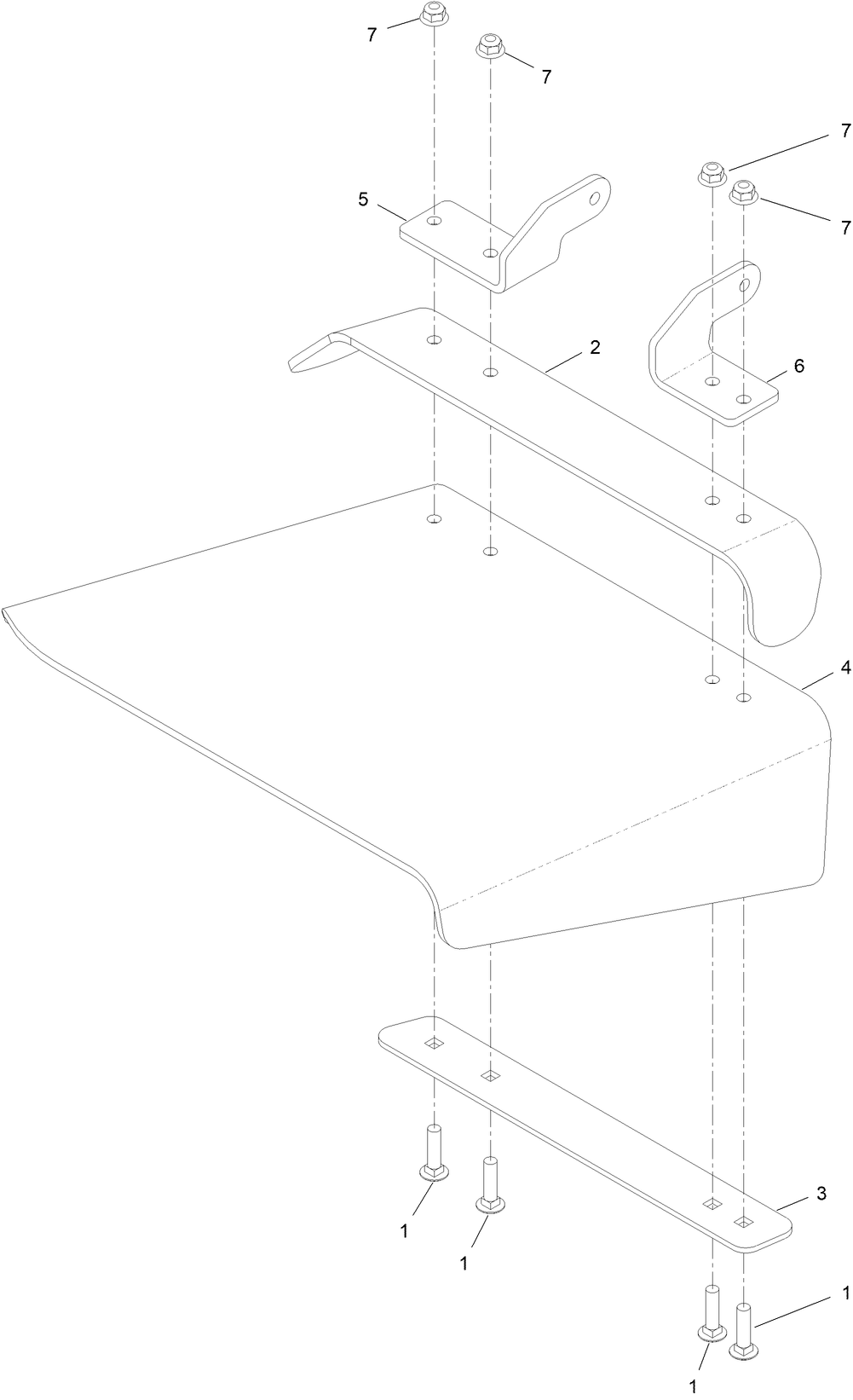

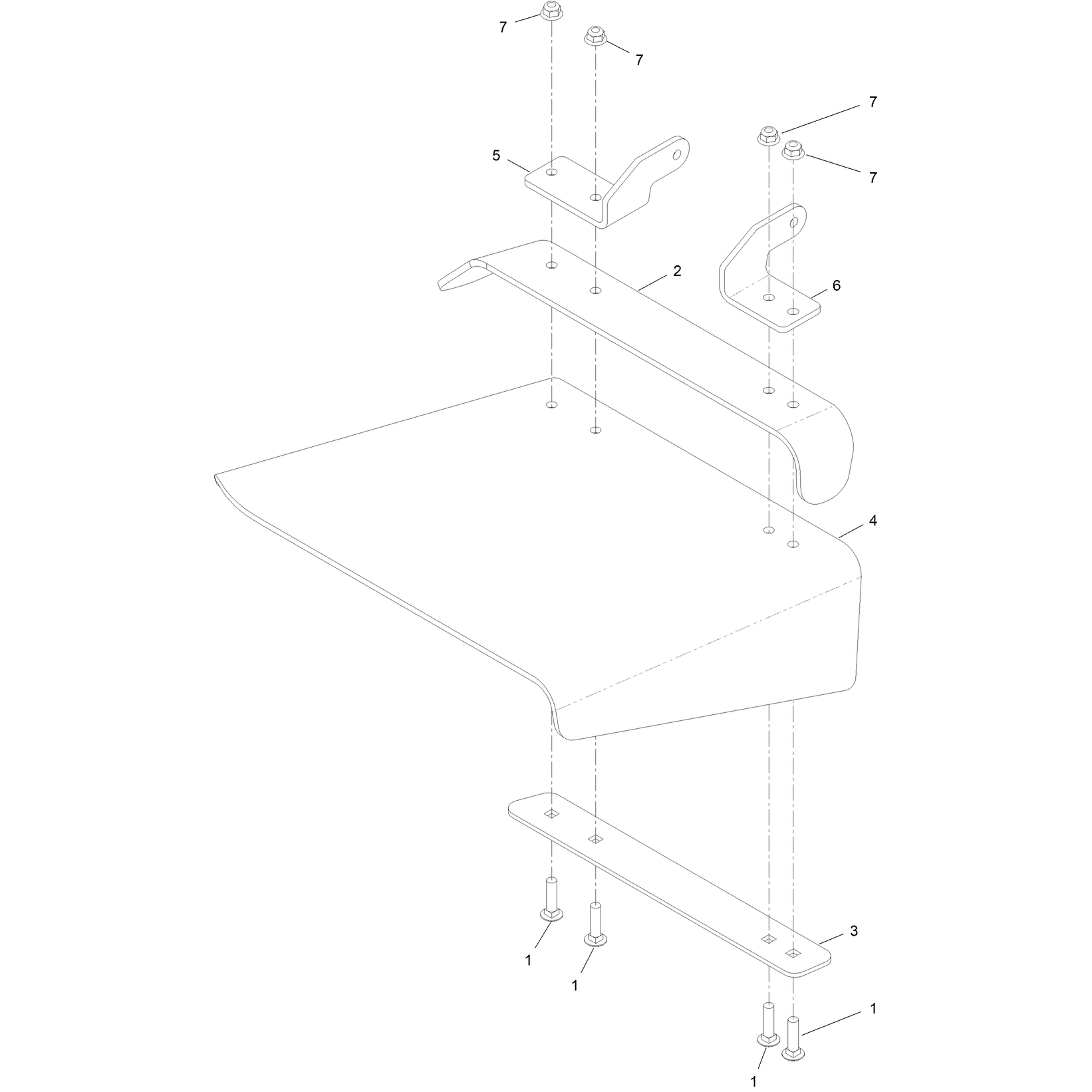

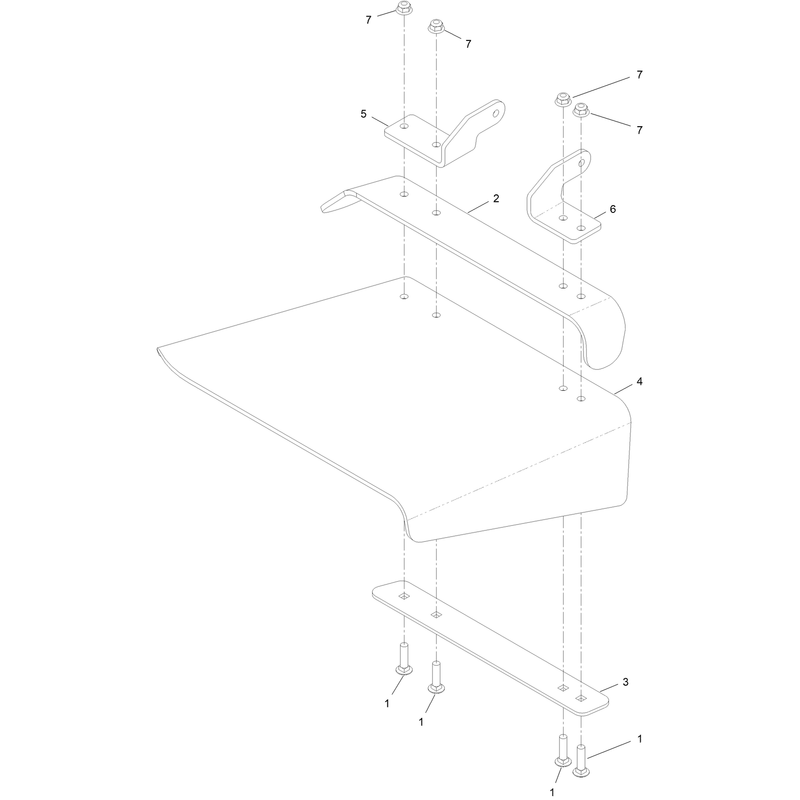

Deflector Assembly No 144 2635
Deflector Assembly No 144 2635
| Sequence Number | Image | Product | Price | Add to cart |
|---|

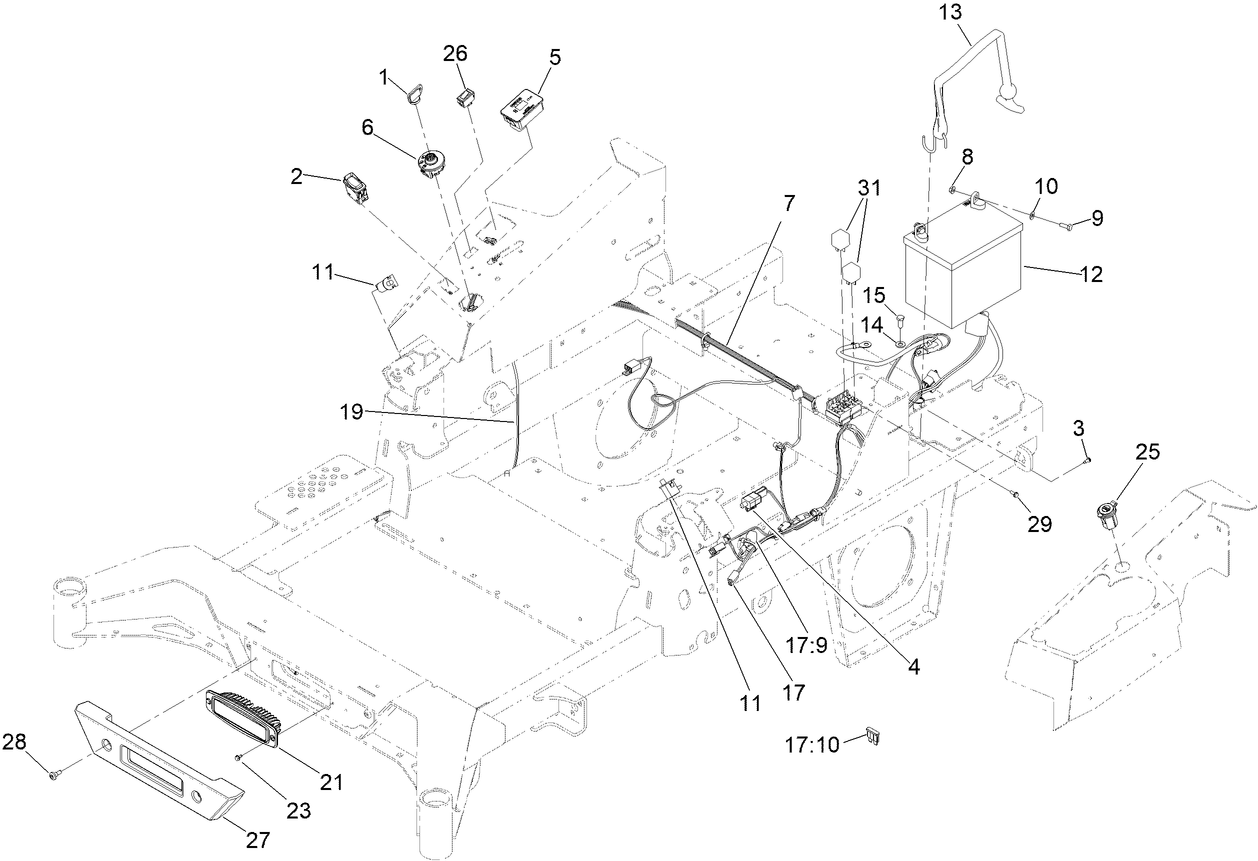

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

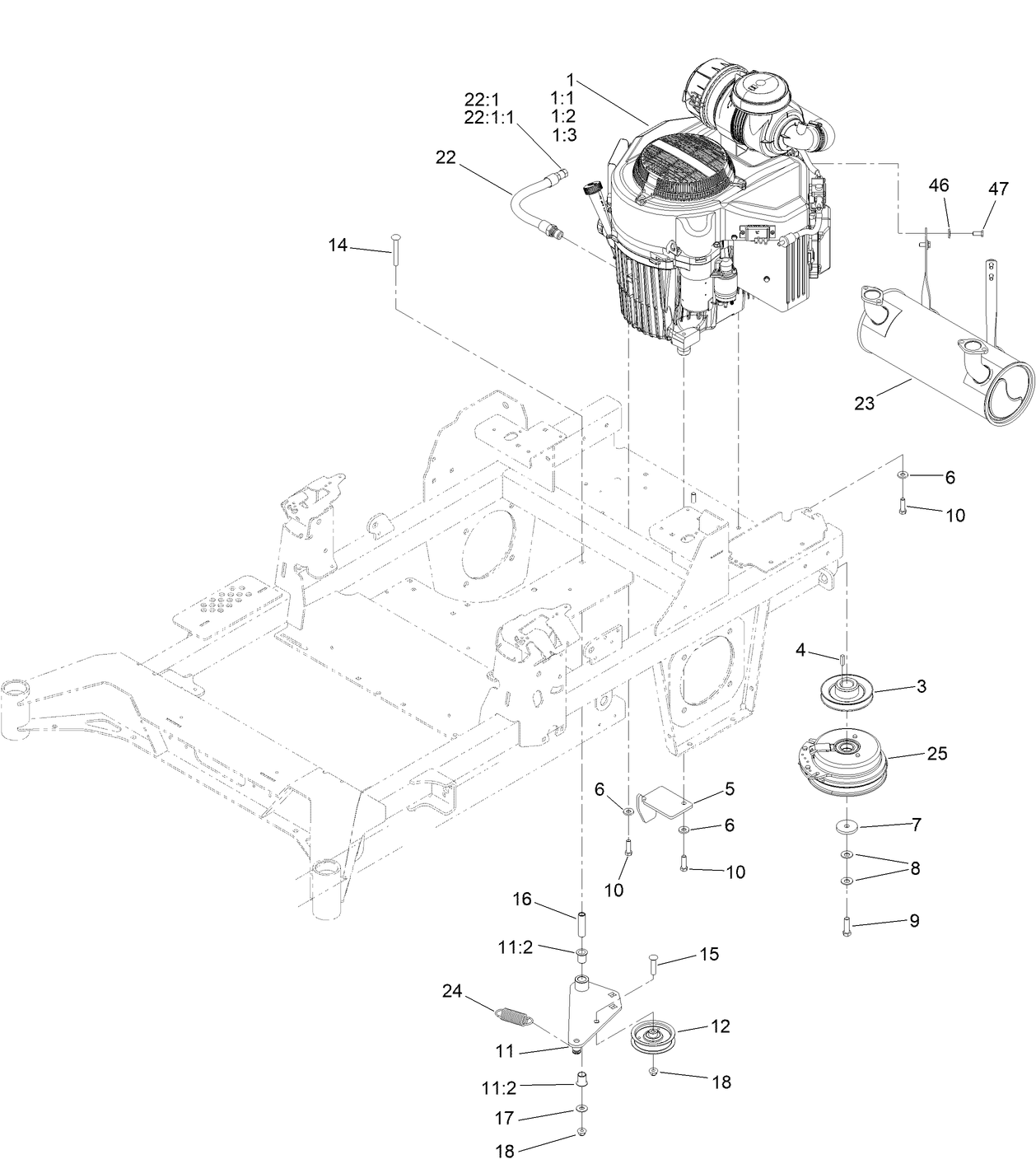

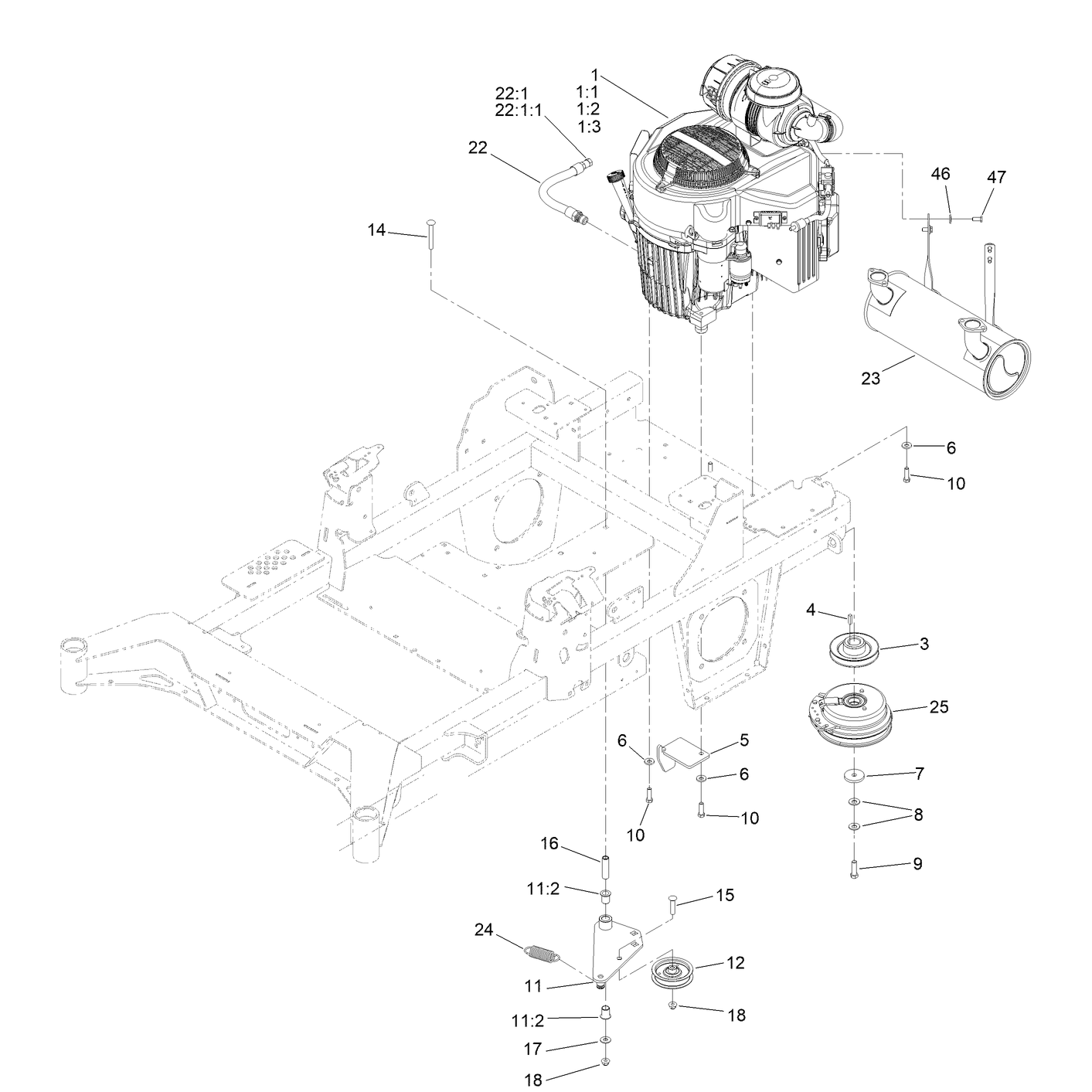

Engine Clutch and Muffler Assembly
Engine Clutch and Muffler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

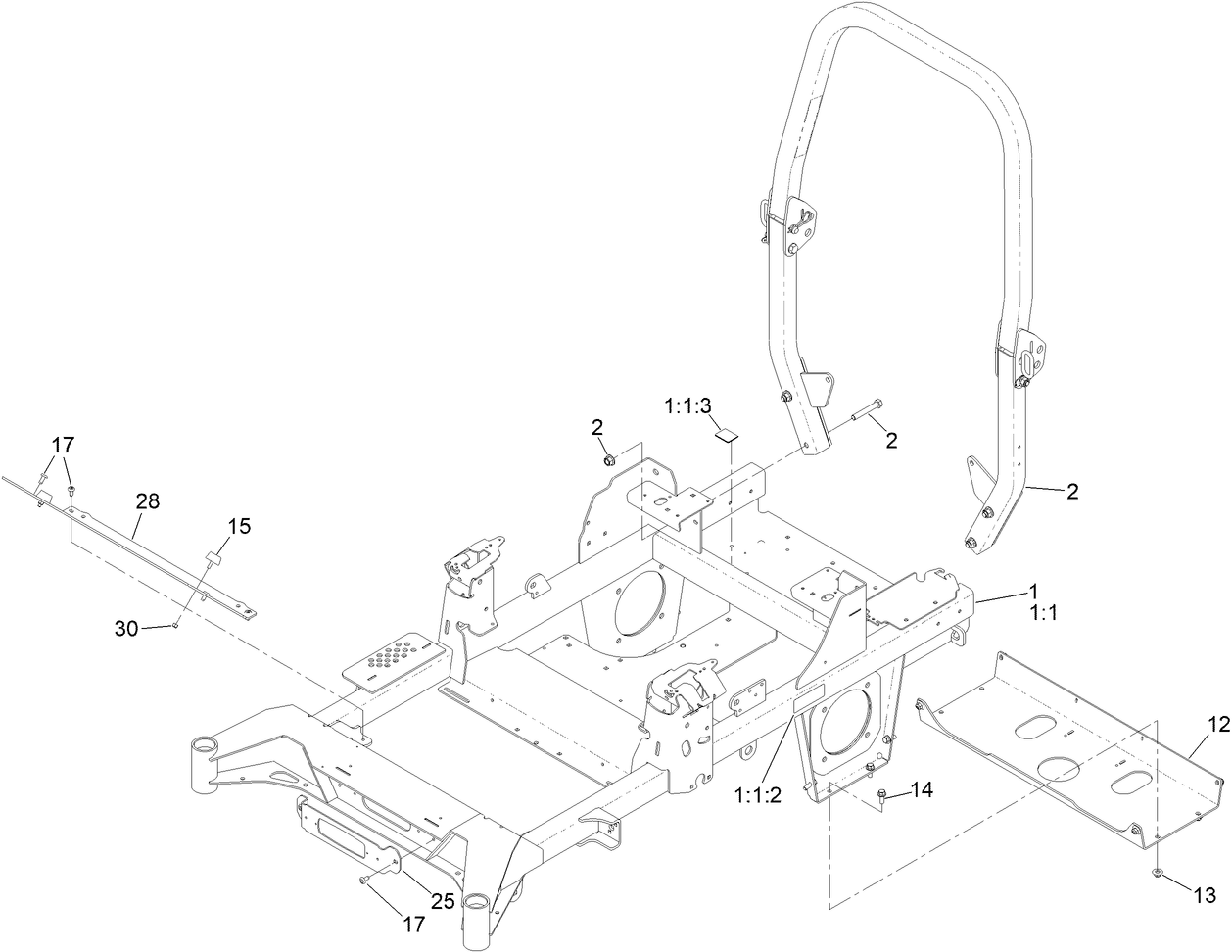

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Fuel Tank Assembly No 139 6722
Fuel Tank Assembly No 139 6722
| Sequence Number | Image | Product | Price | Add to cart |
|---|

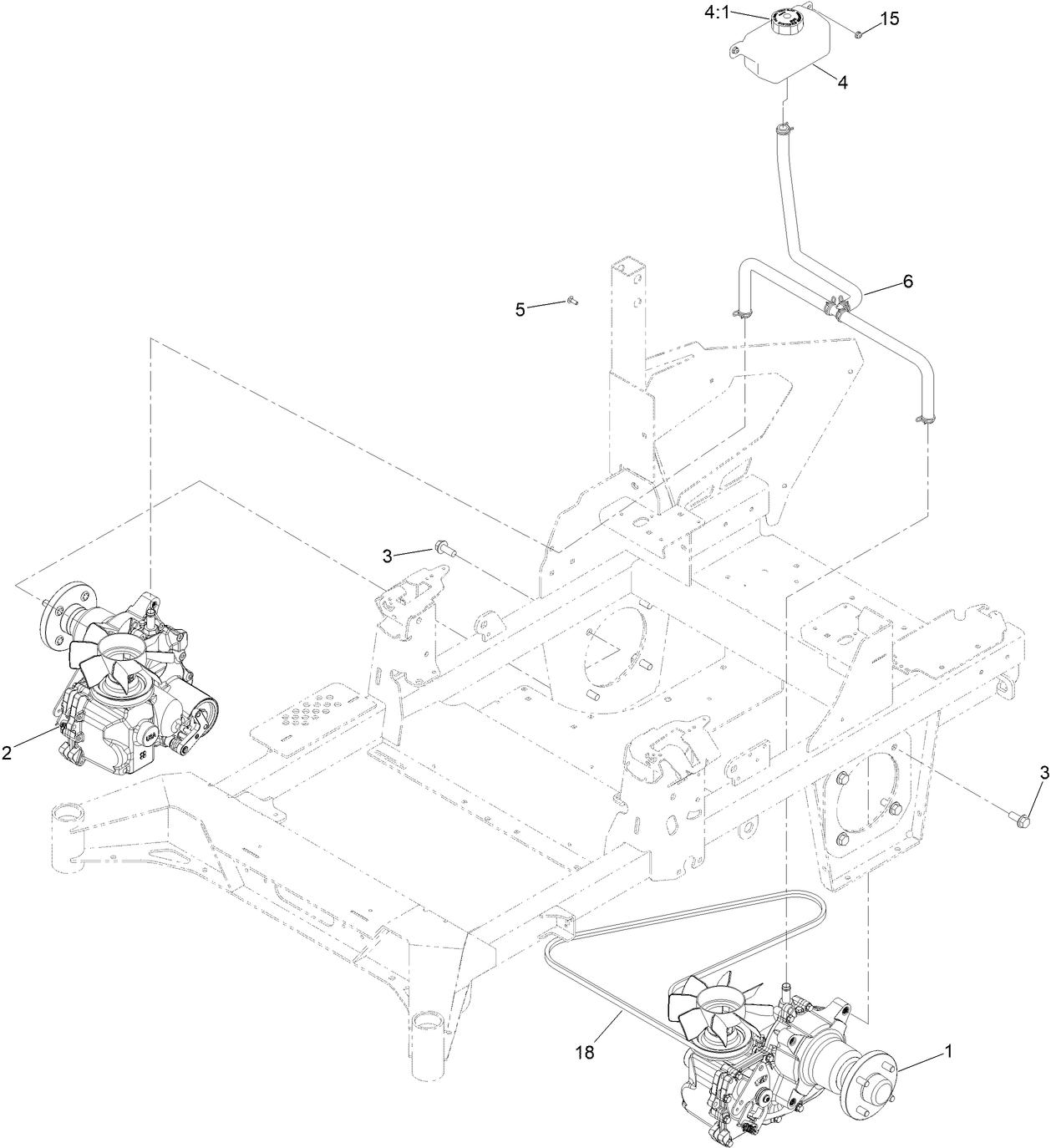

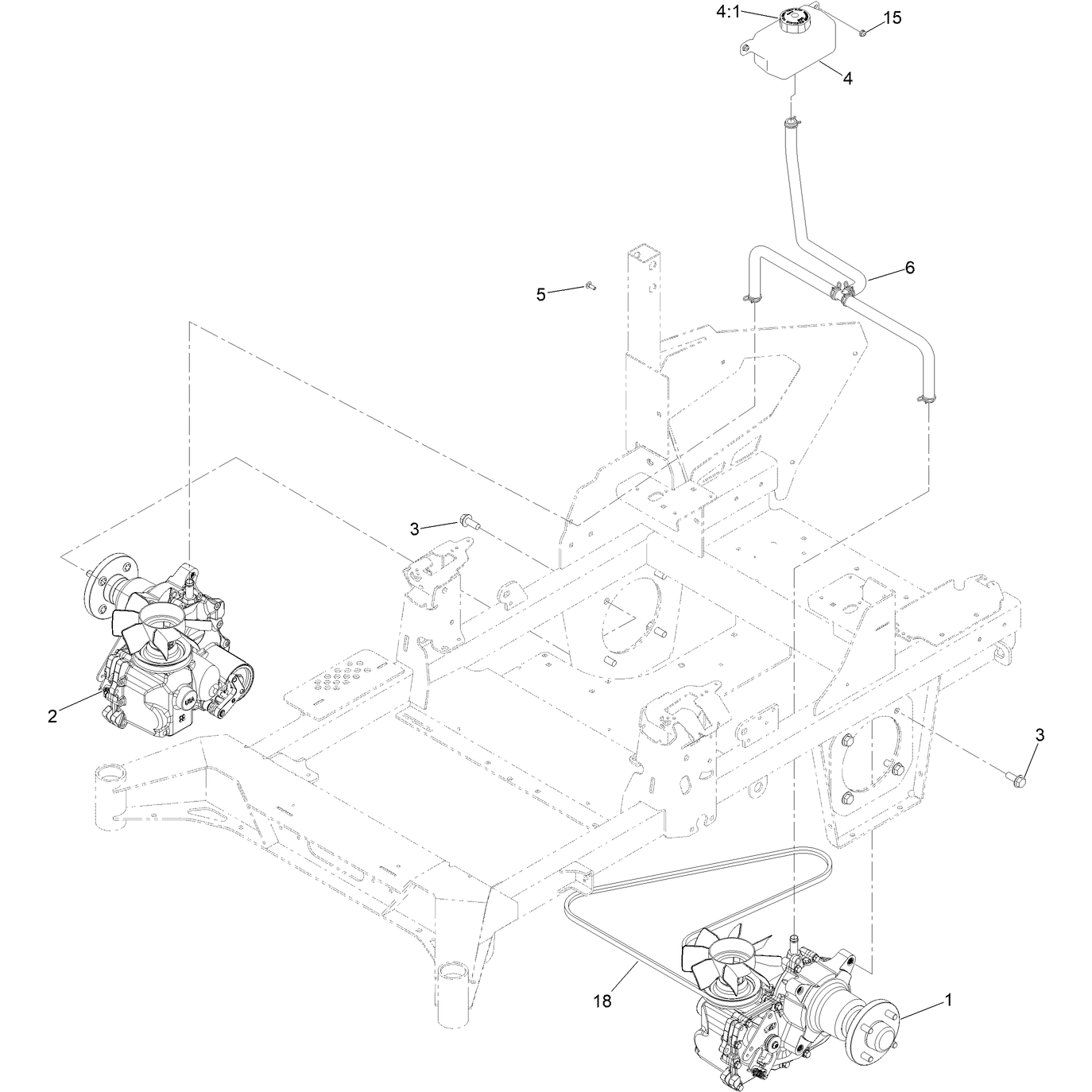

Hydraulic Drive Assembly
Hydraulic Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

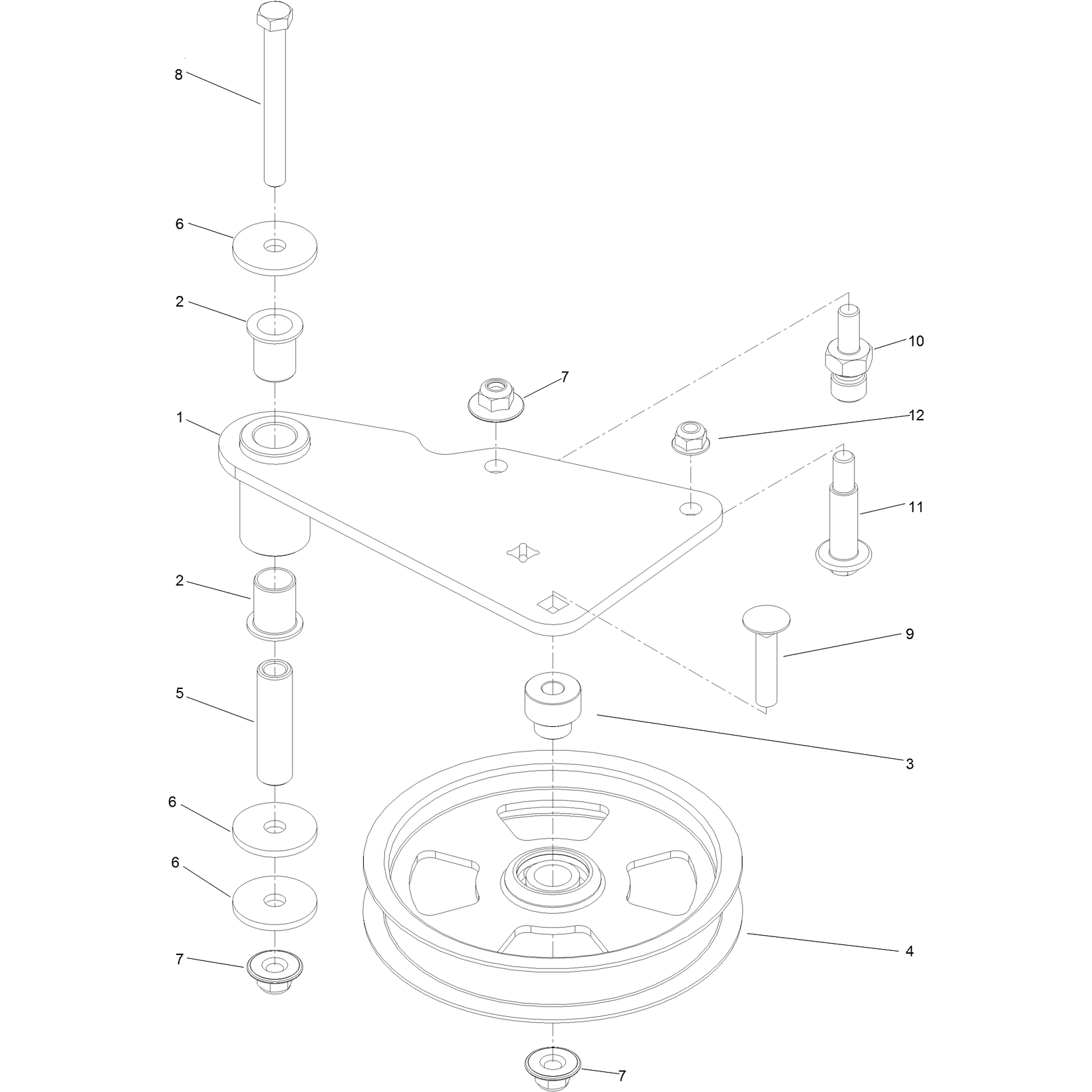

Idler Arm Assembly No 139 1087
Idler Arm Assembly No 139 1087
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Left and Right Control Arm Assembly
Left and Right Control Arm Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

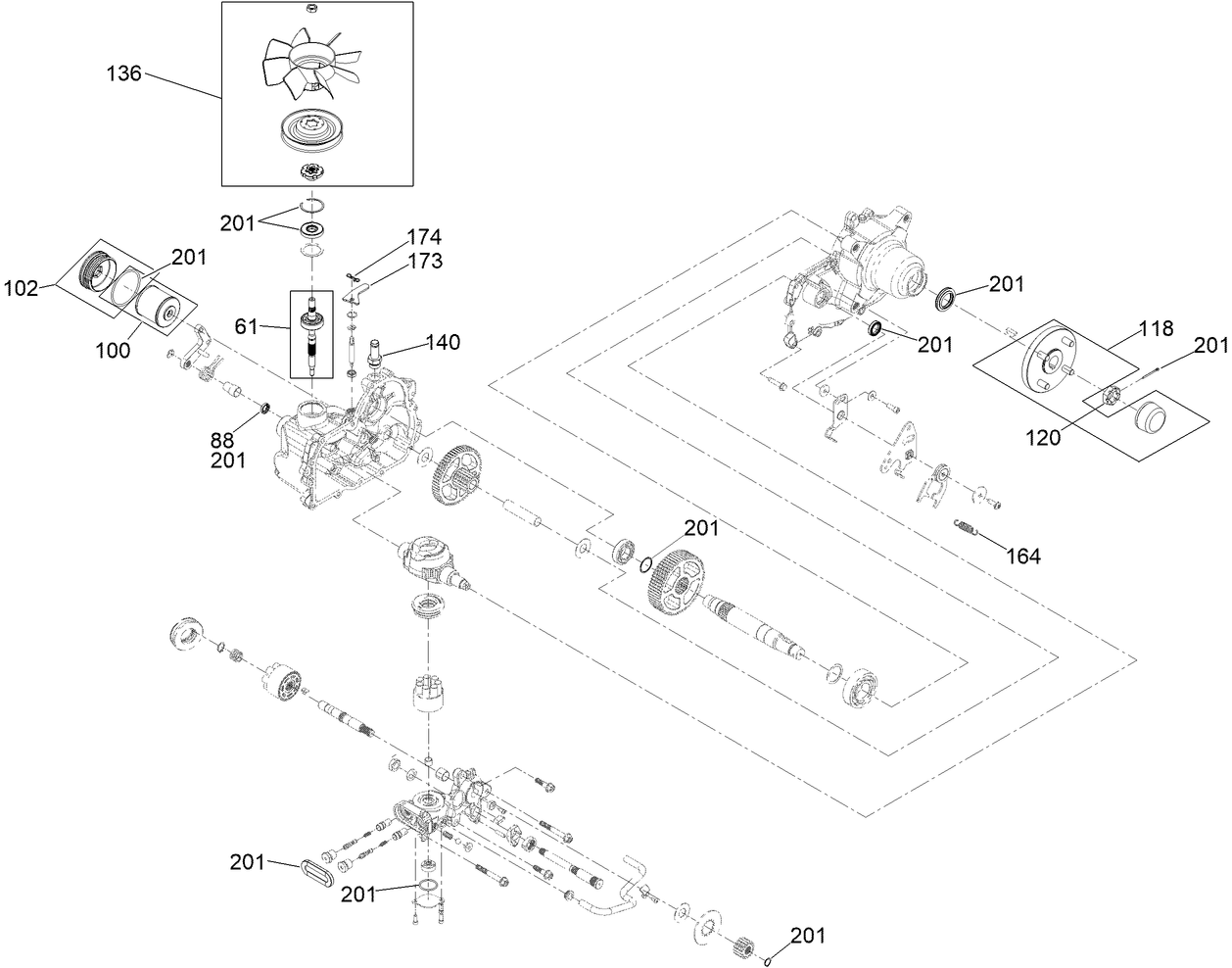

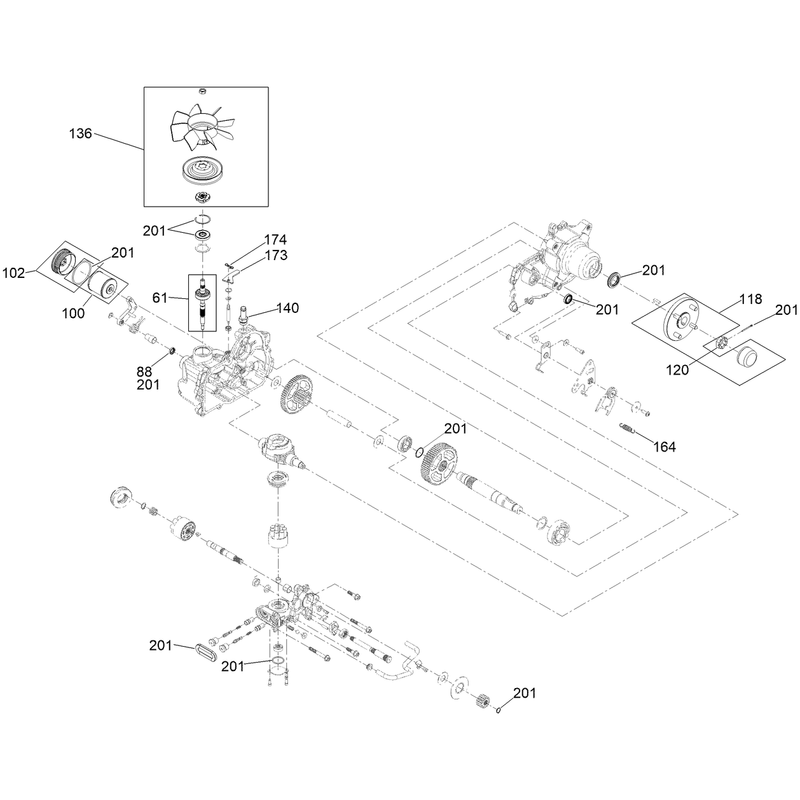

LH Transaxle Assembly No 145 3696
LH Transaxle Assembly No 145 3696
| Sequence Number | Image | Product | Price | Add to cart |
|---|

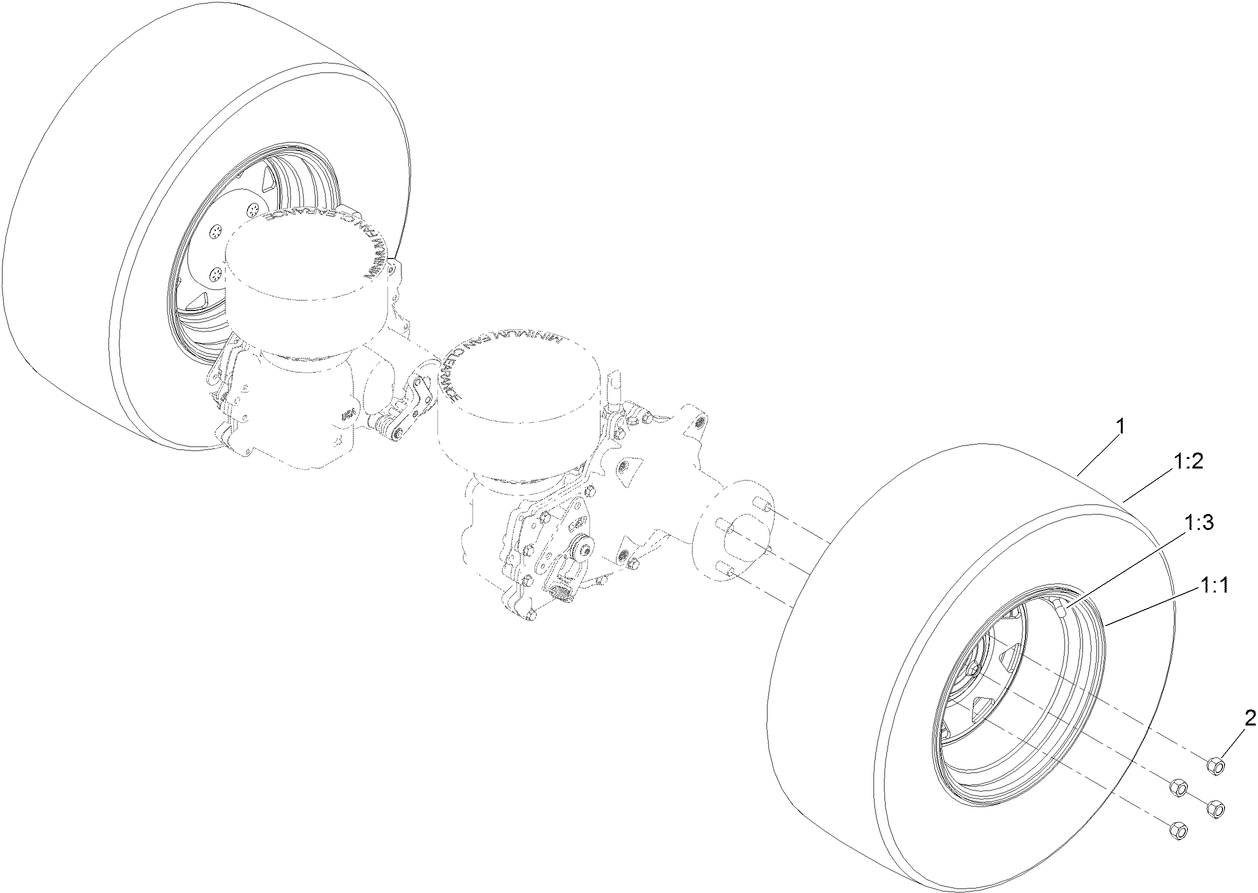

Rear Wheel Assembly
Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

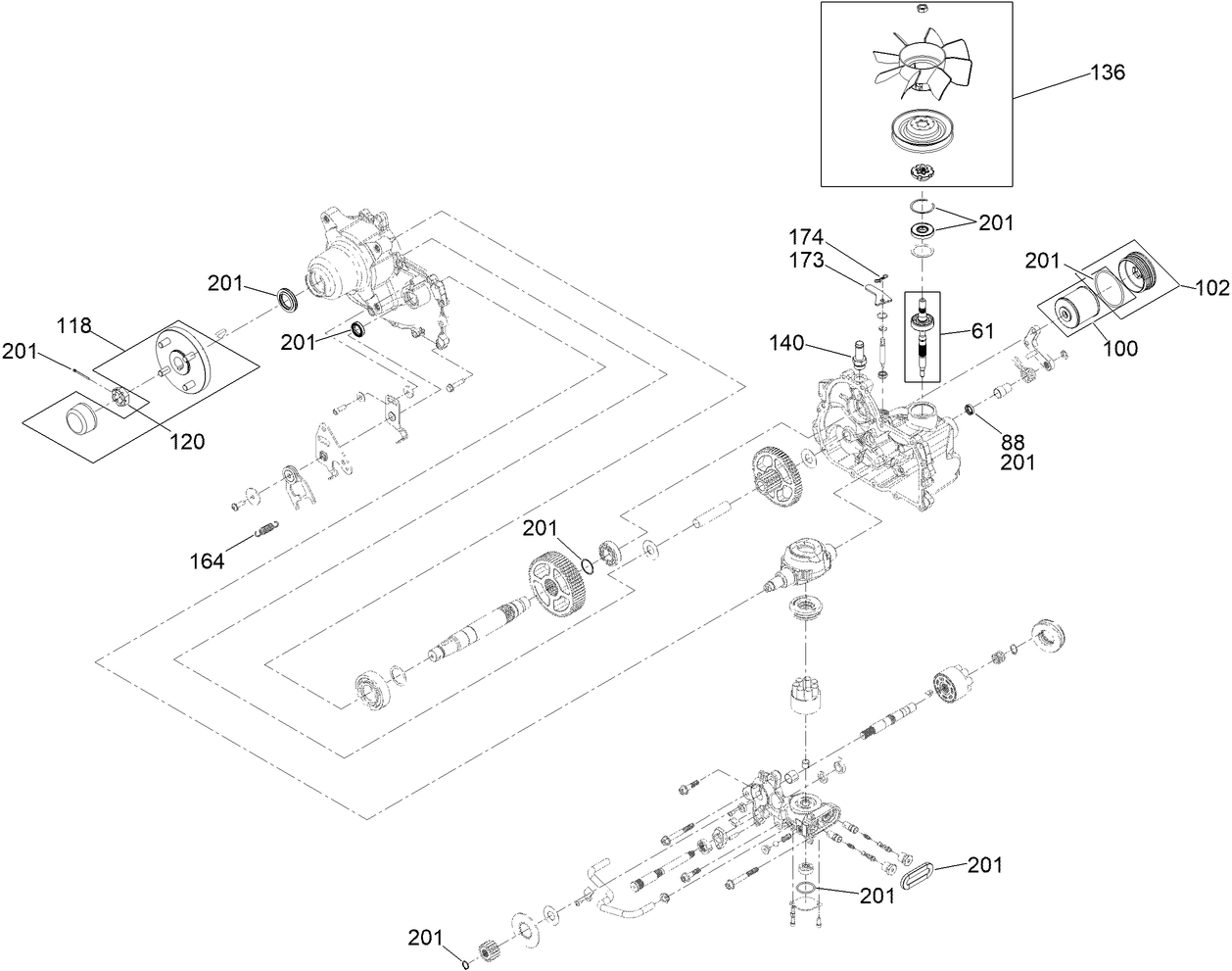

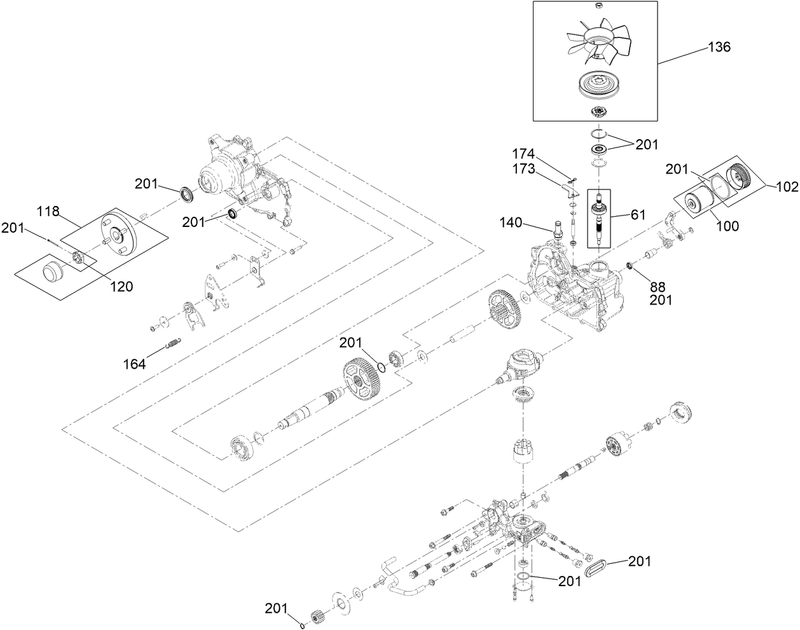

RH Transaxle Assembly No 145 3695
RH Transaxle Assembly No 145 3695
| Sequence Number | Image | Product | Price | Add to cart |
|---|

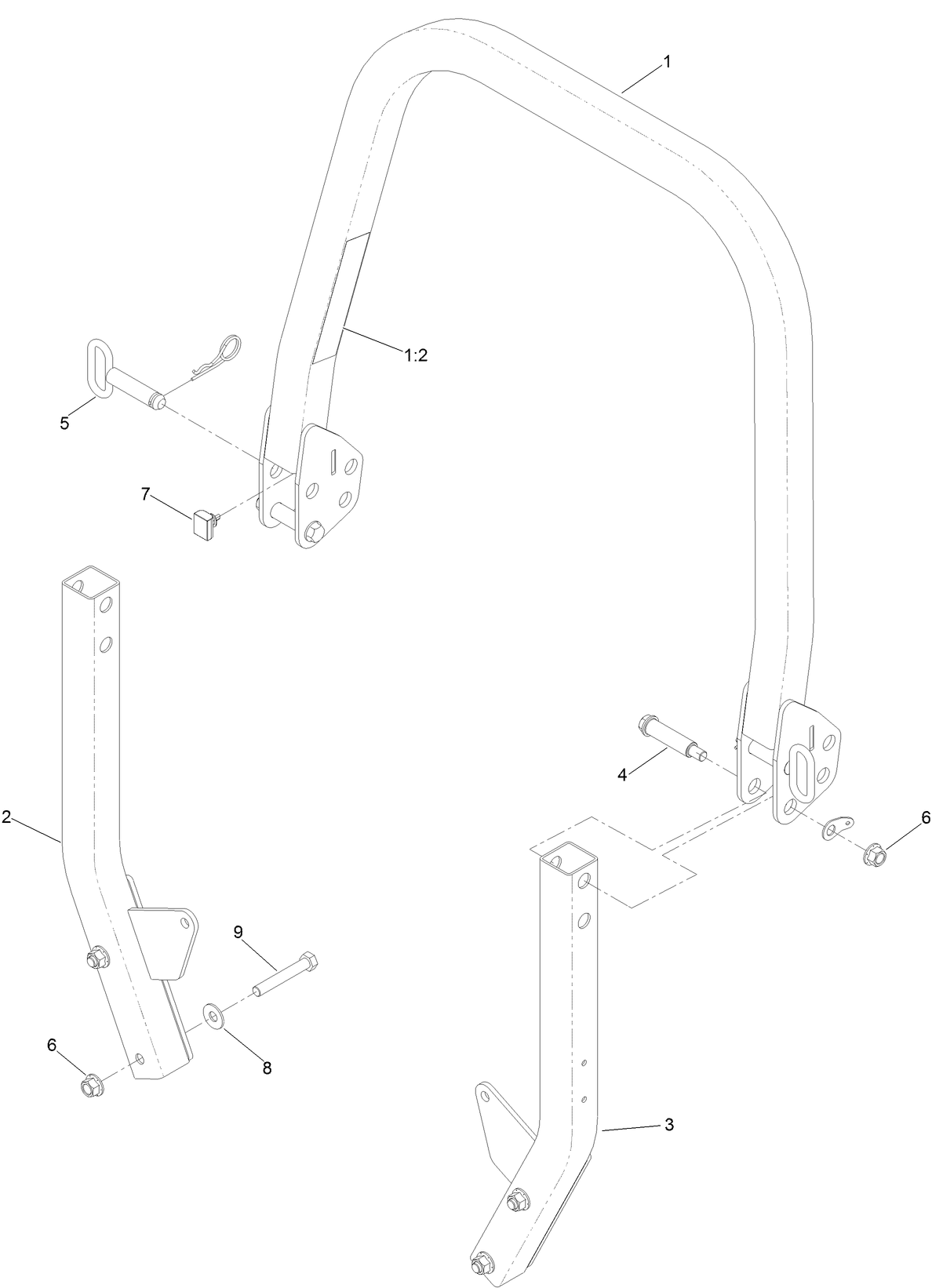

Roll Over Protection System Assembly No 139 8063
Roll Over Protection System Assembly No 139 8063
| Sequence Number | Image | Product | Price | Add to cart |
|---|

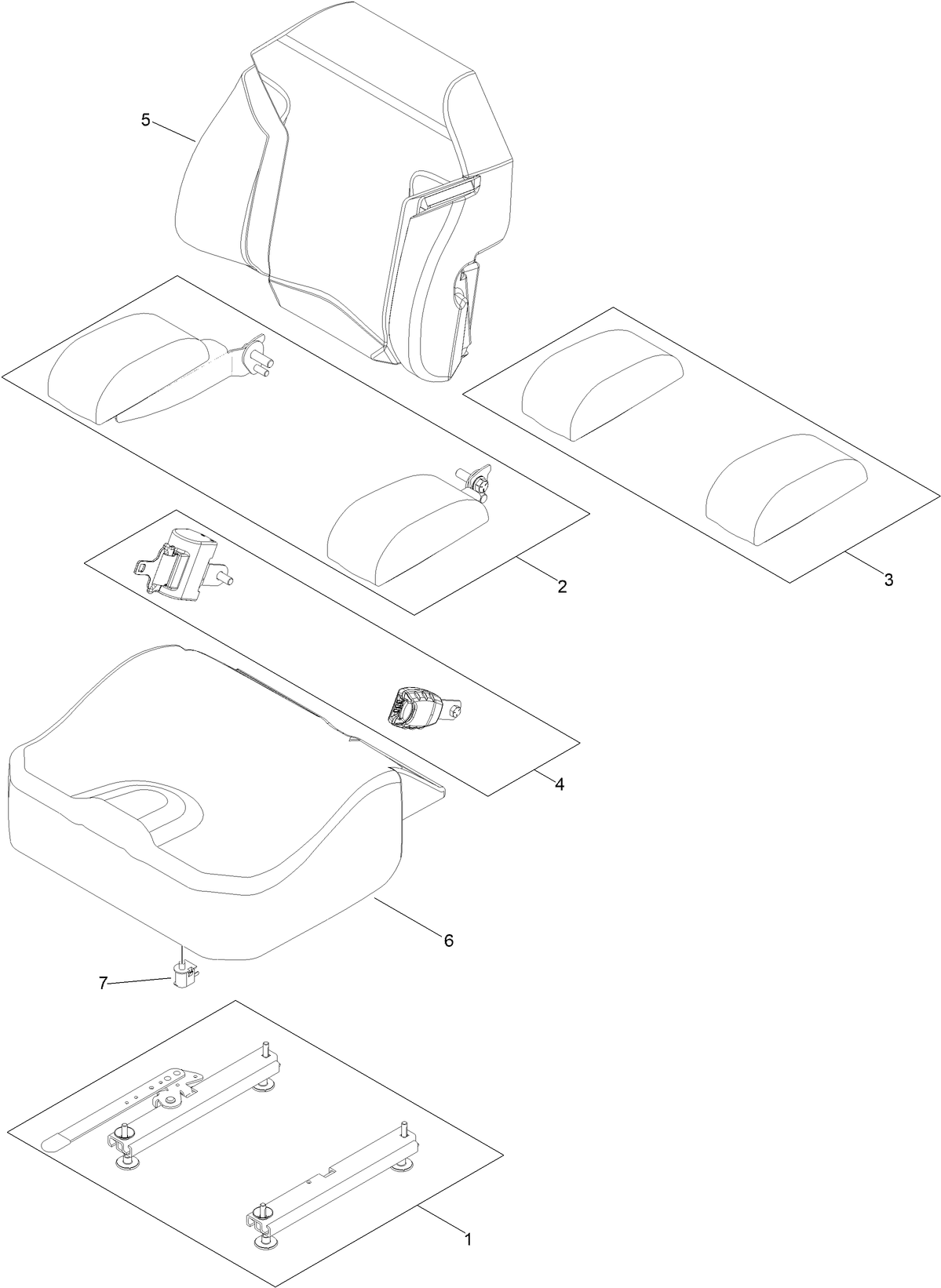

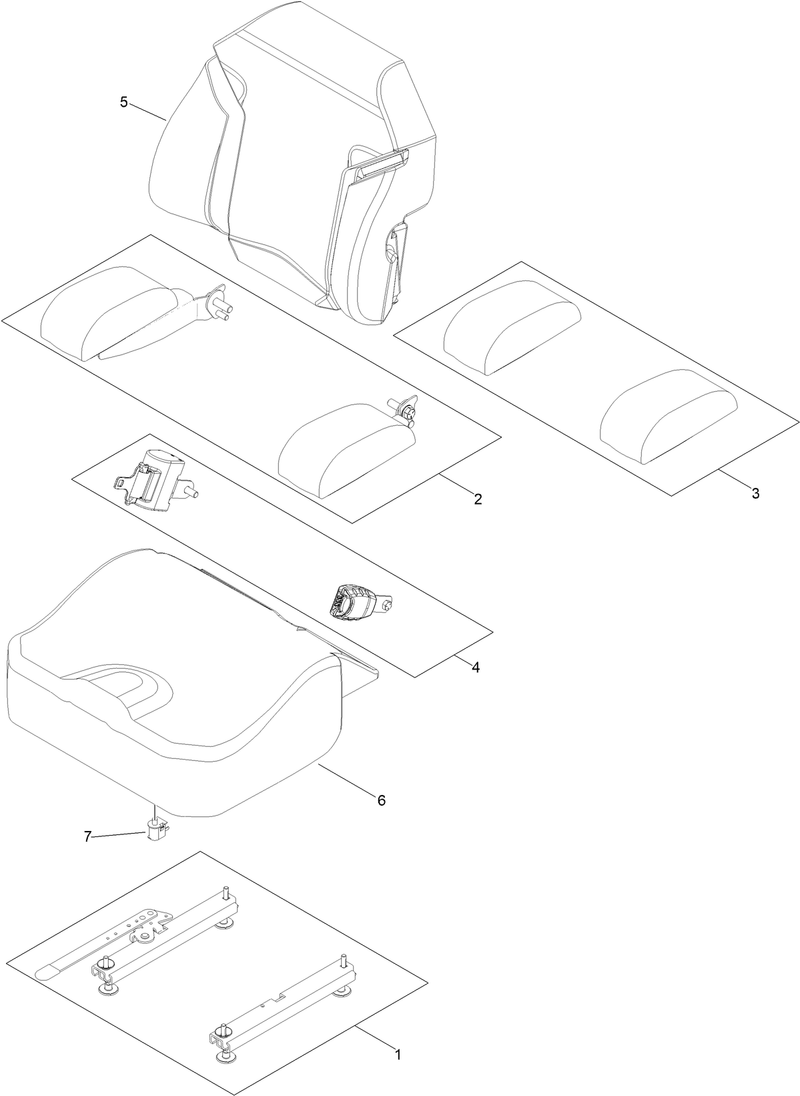

Seat Assembly No 144 2631
Seat Assembly No 144 2631
| Sequence Number | Image | Product | Price | Add to cart |
|---|

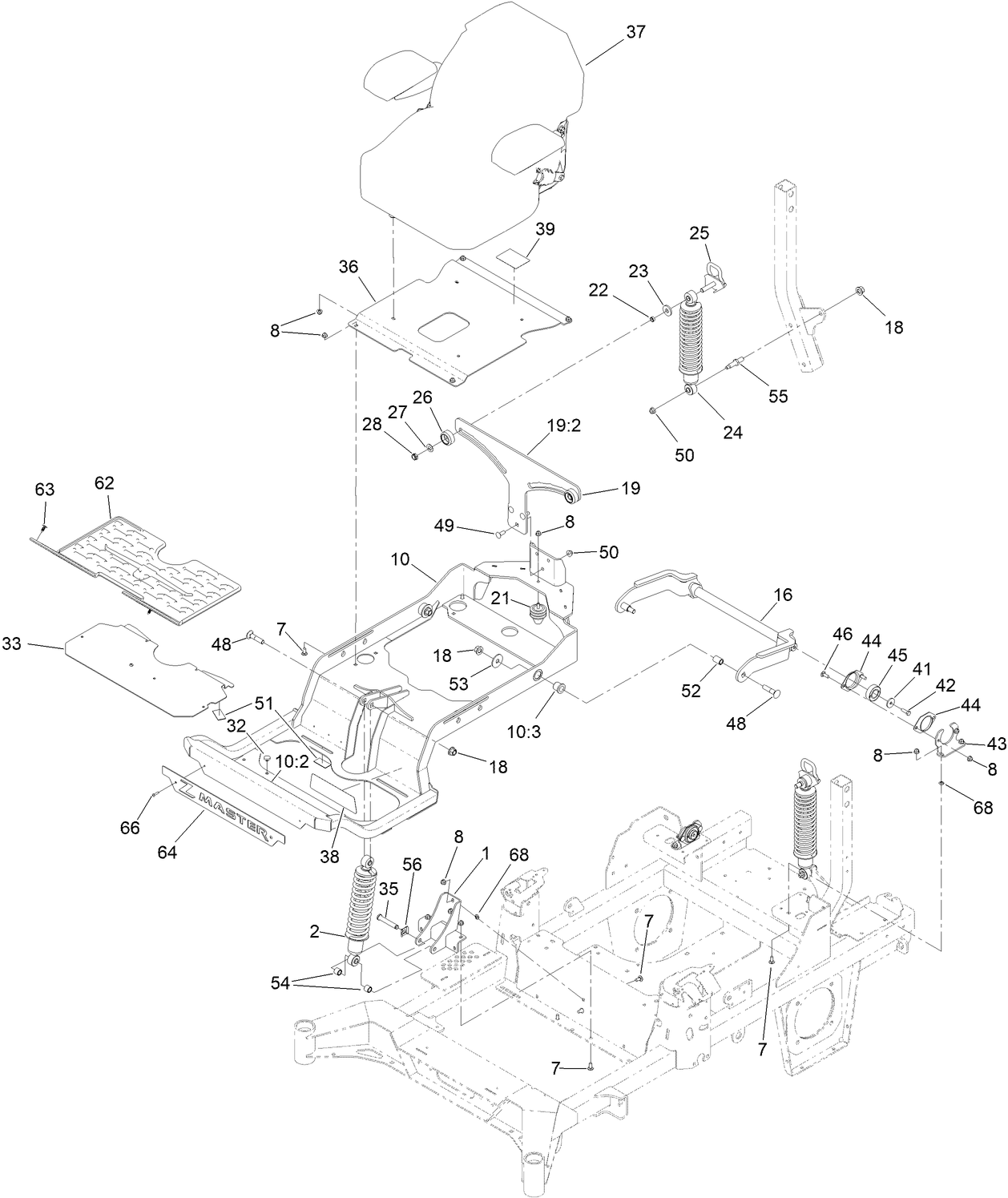

Seat Suspension Platform Assembly
Seat Suspension Platform Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Spindle Assembly No 137 9780
Spindle Assembly No 137 9780
| Sequence Number | Image | Product | Price | Add to cart |
|---|

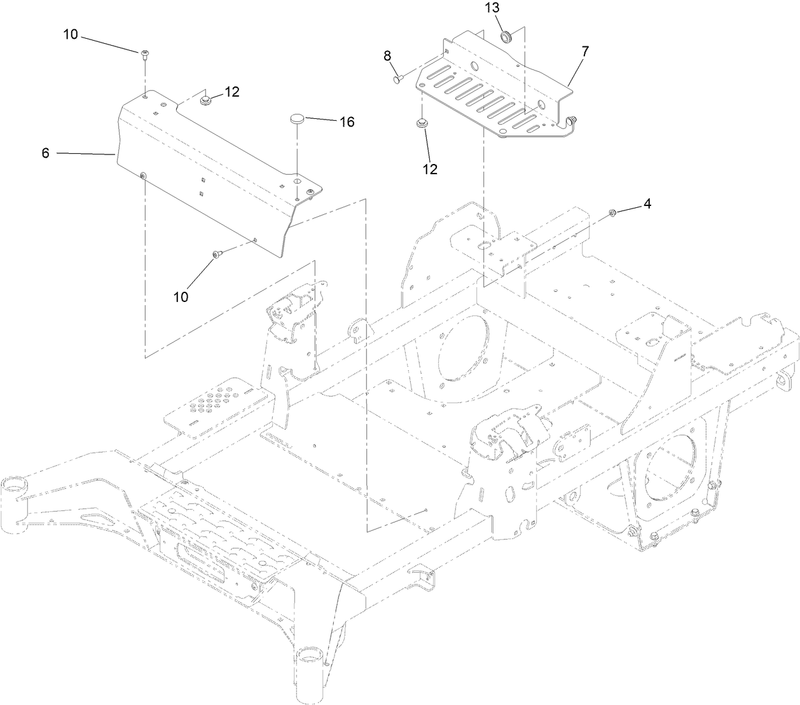

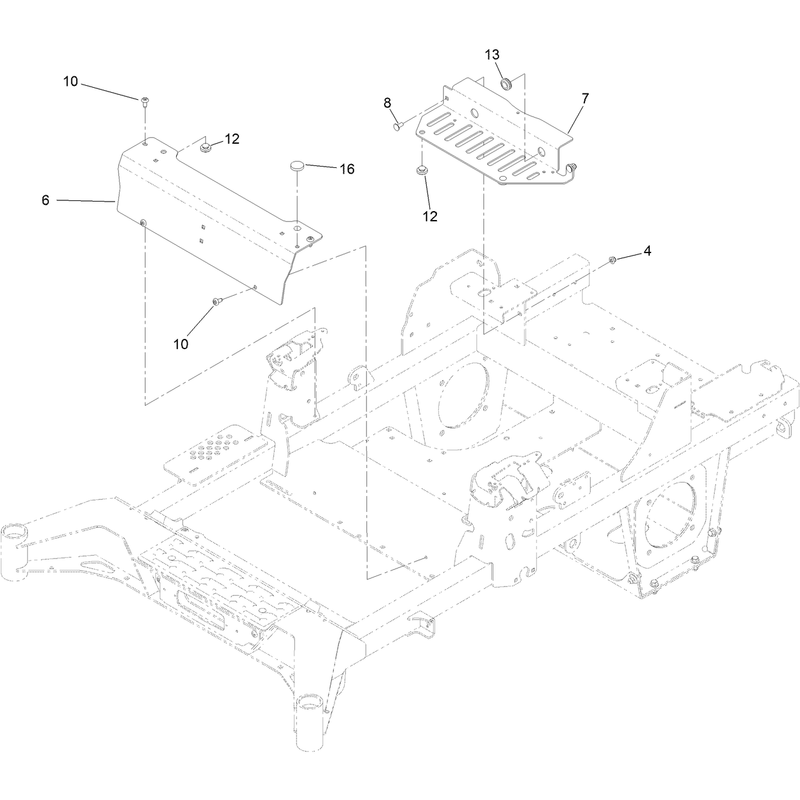

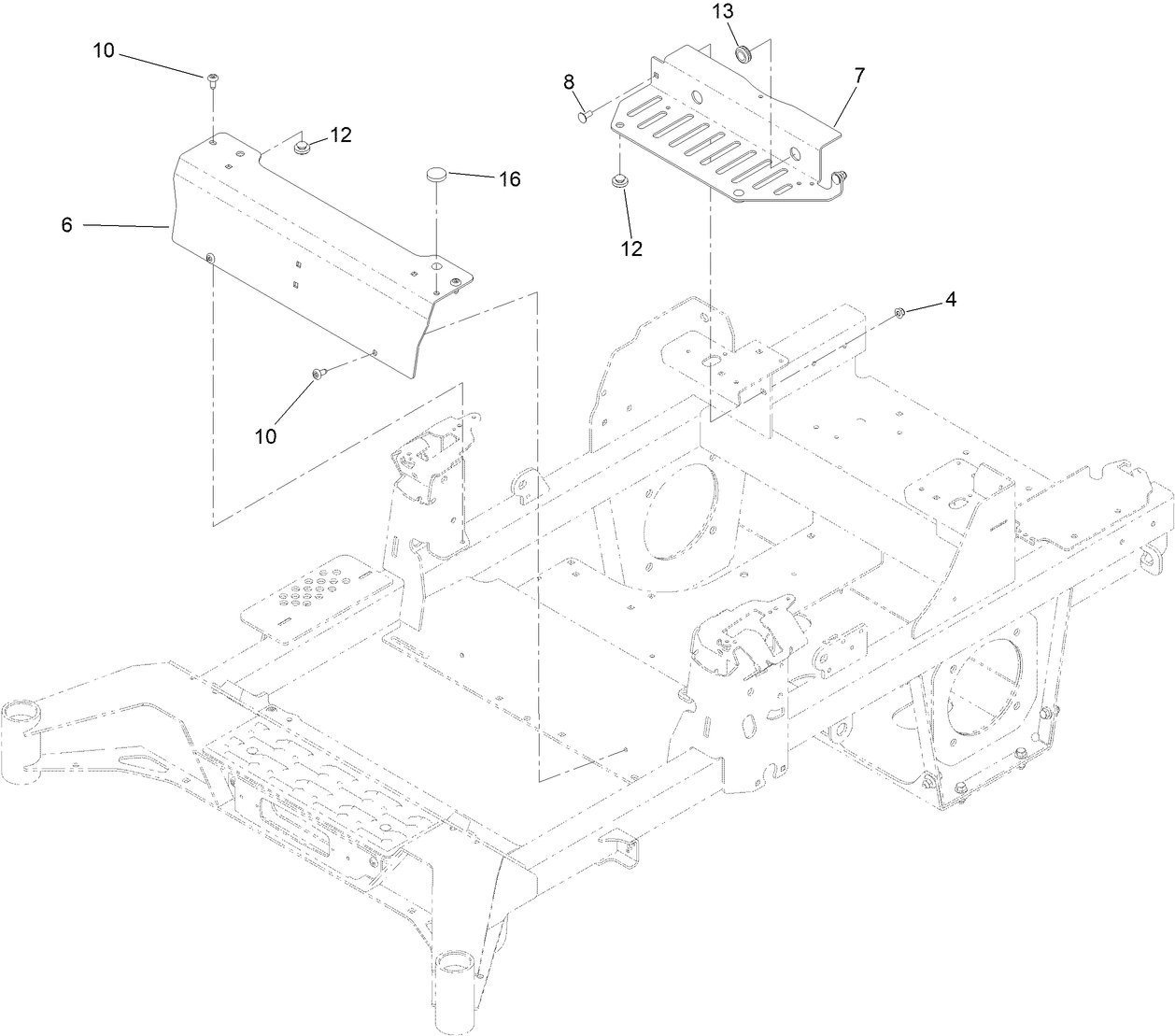

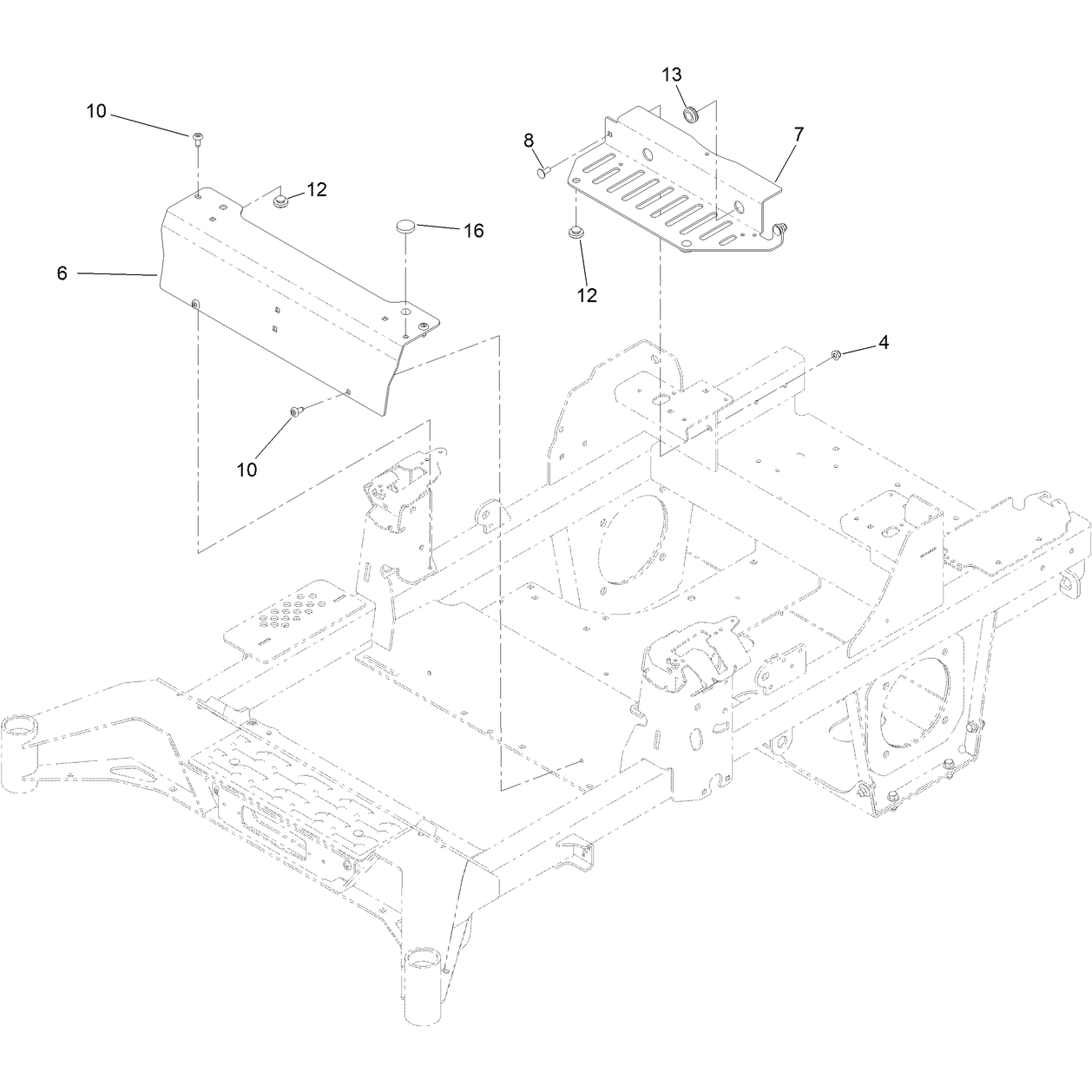

Tank Retainer Assembly
Tank Retainer Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

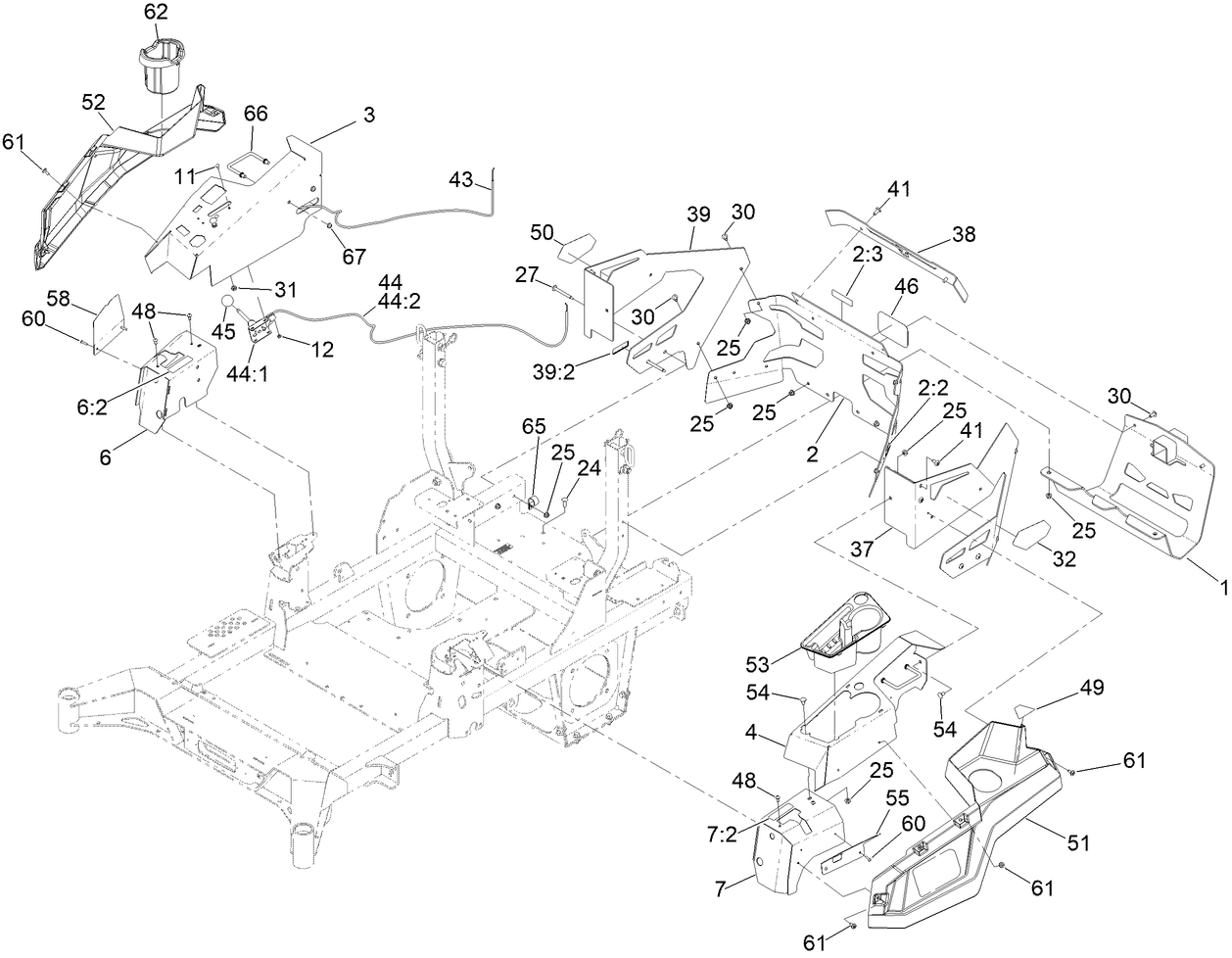

Throttle Choke Cable and Guard Assembly
Throttle Choke Cable and Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

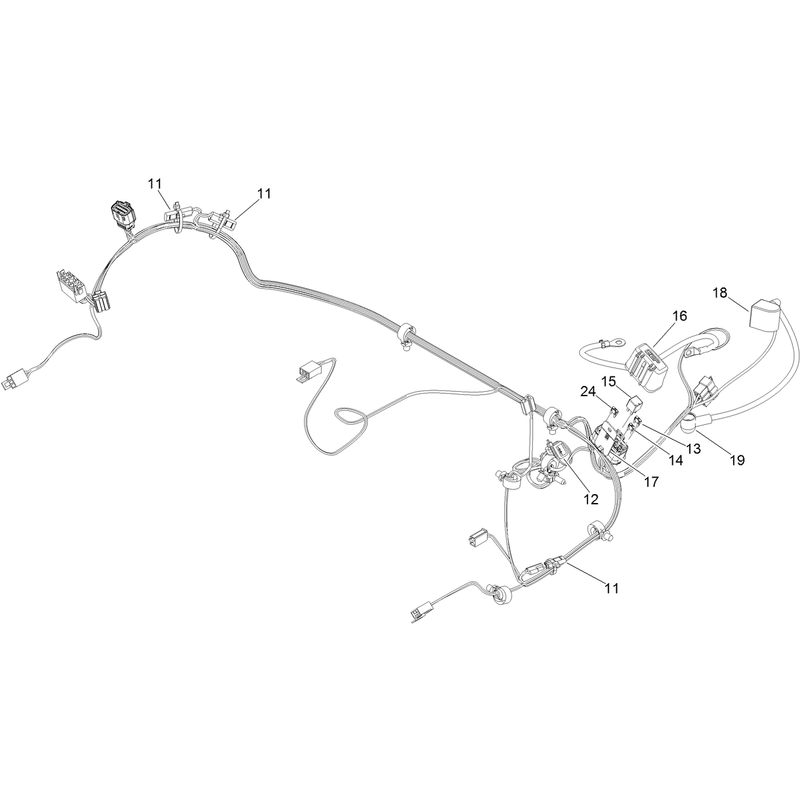

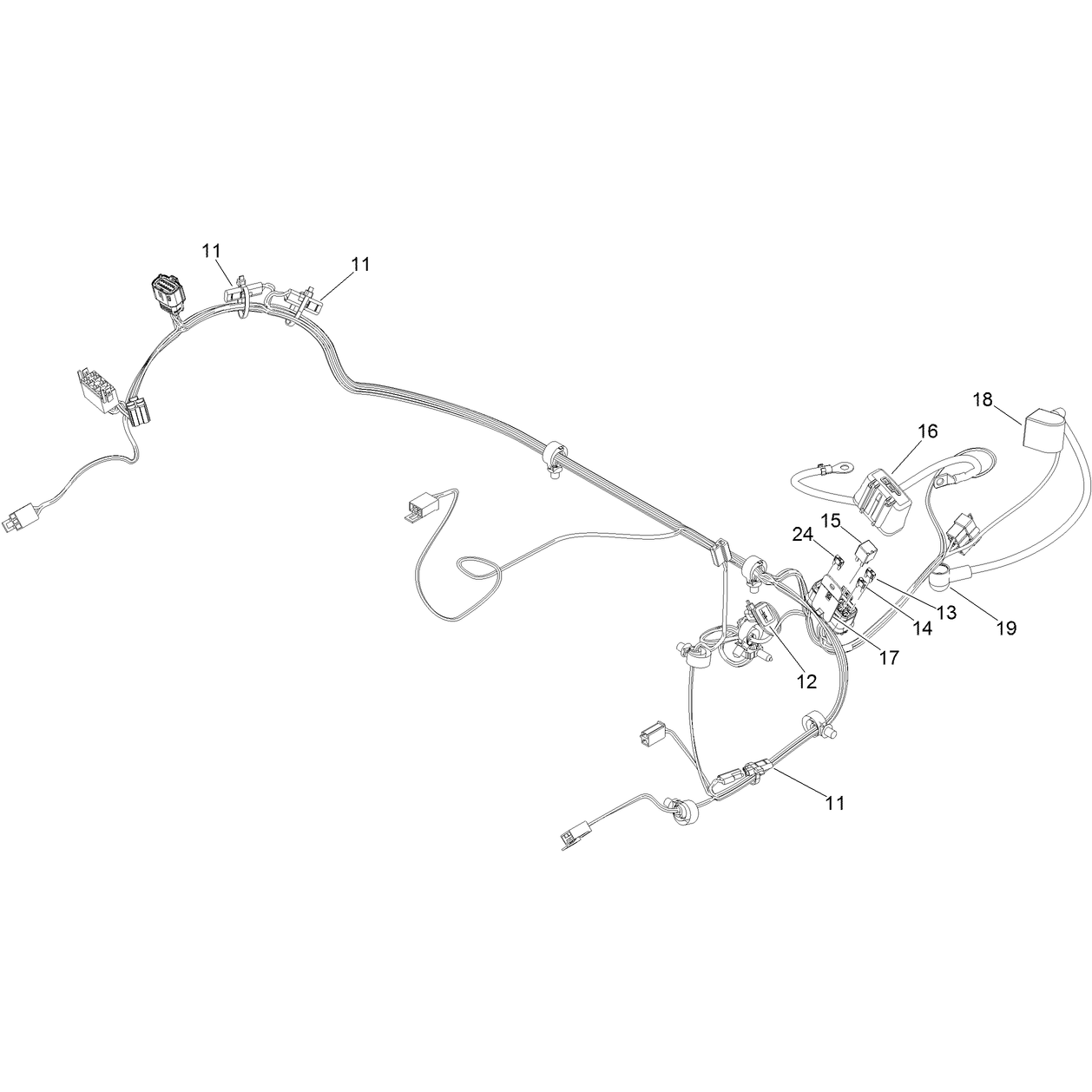

Wire Harness Assembly No 139 8078
Wire Harness Assembly No 139 8078
| Sequence Number | Image | Product | Price | Add to cart |
|---|
