Toro 74120 616-Z Tractor (Serial #: 590001 - 599999) Parts Diagram
Diagrams:
Diagram:

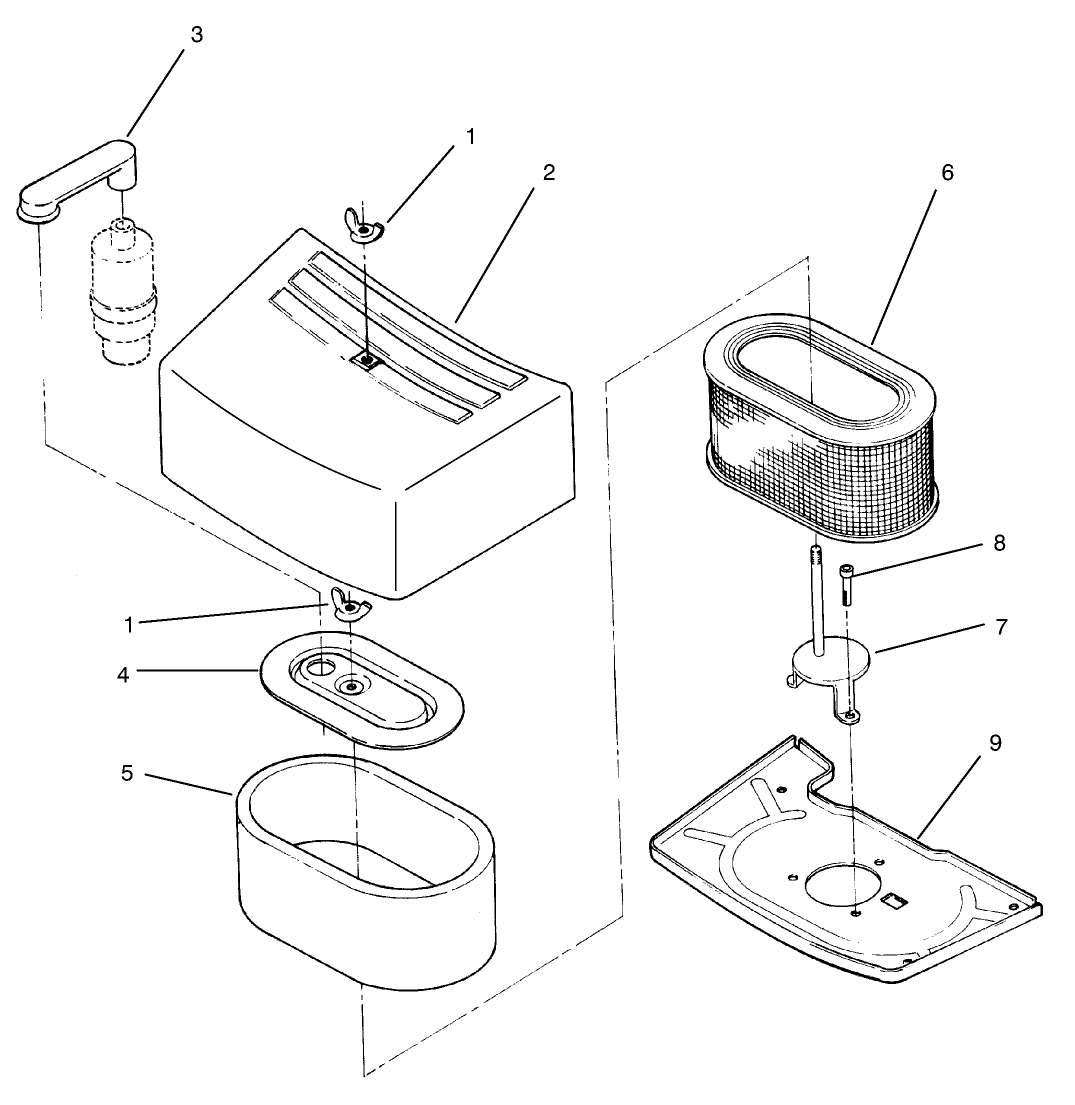

Air Cleaner Assembly
Air Cleaner Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

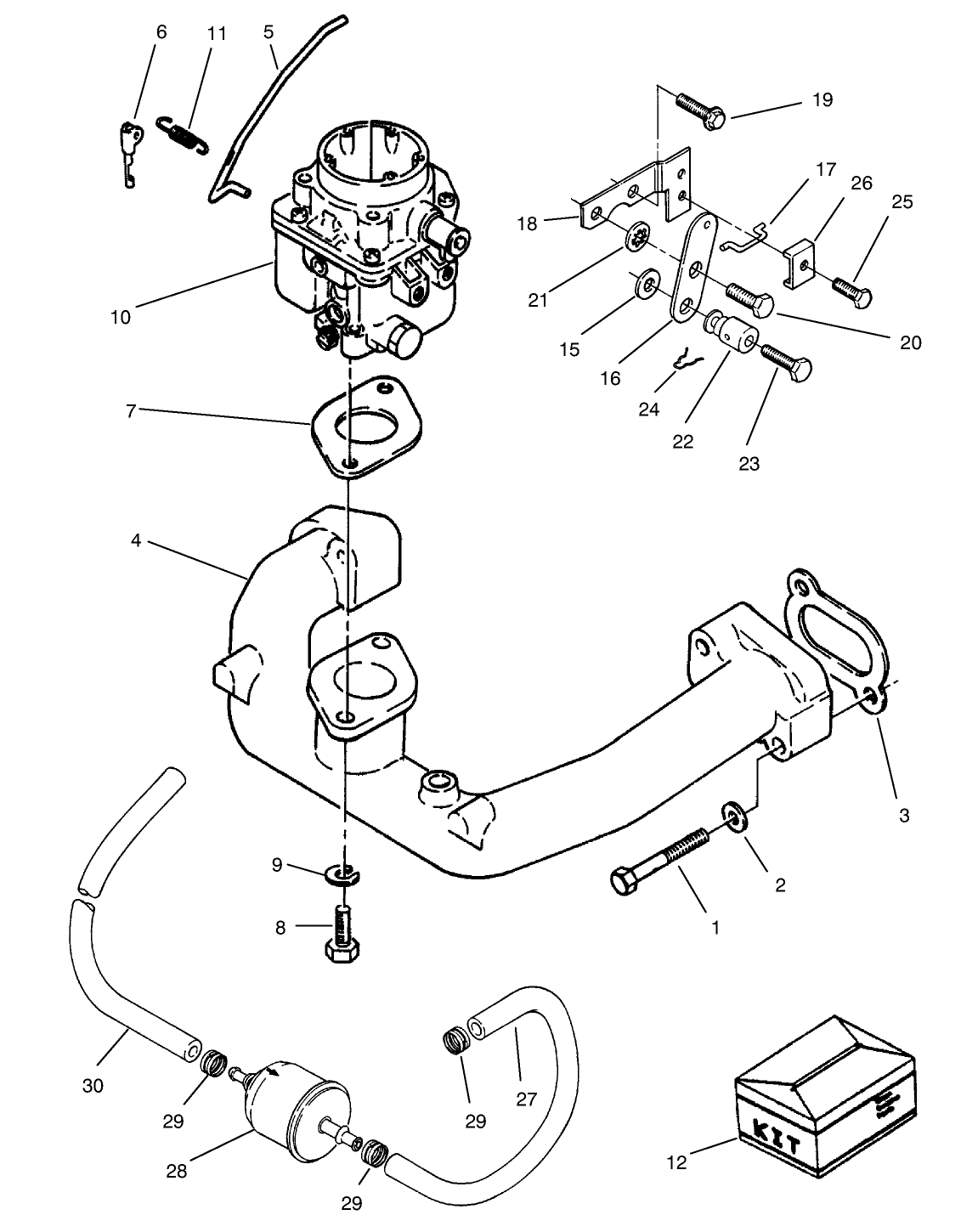

Carburetor and Intake Manifold Assembly
Carburetor and Intake Manifold Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

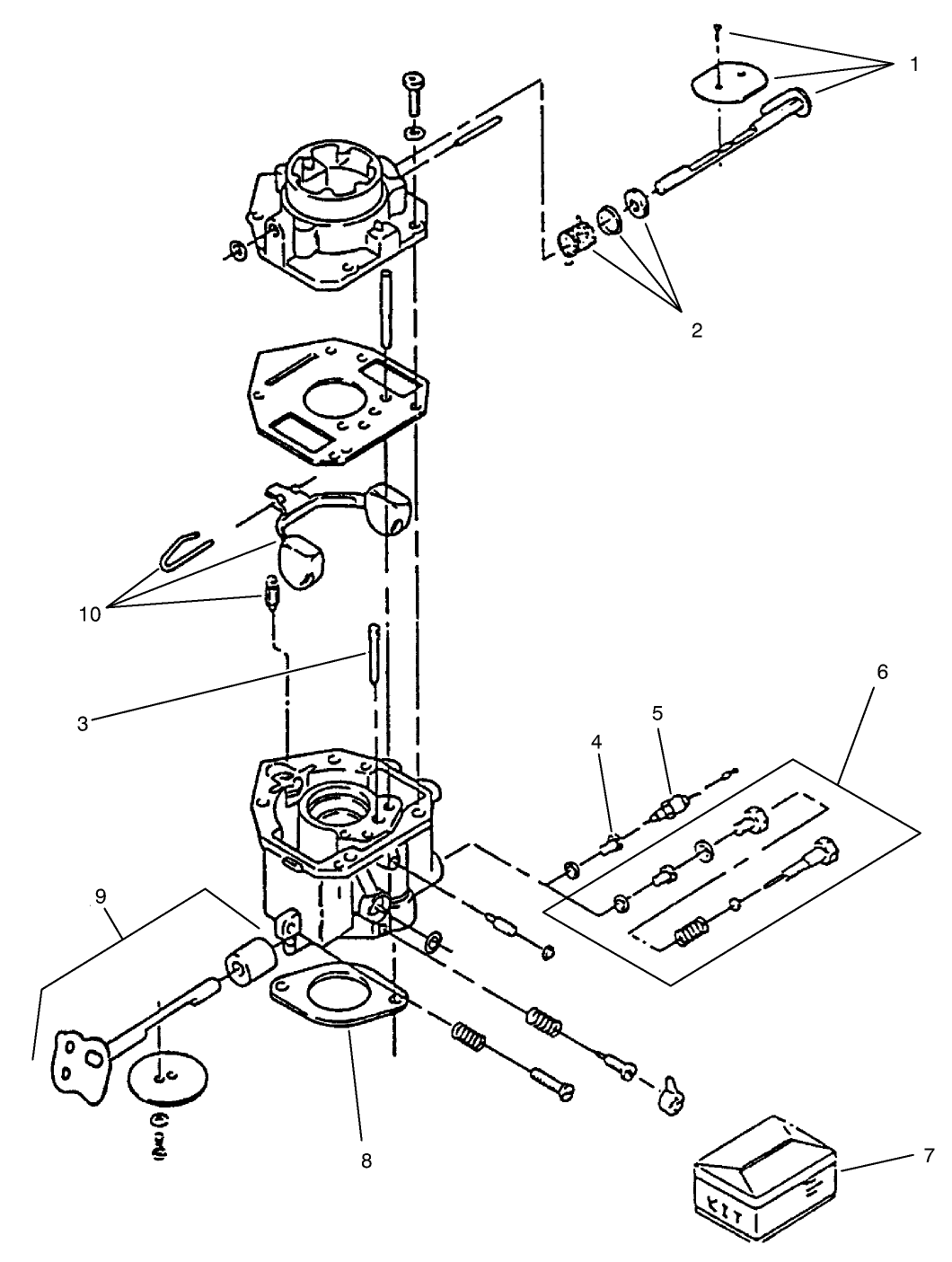

Carburetor Components Assembly
Carburetor Components Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

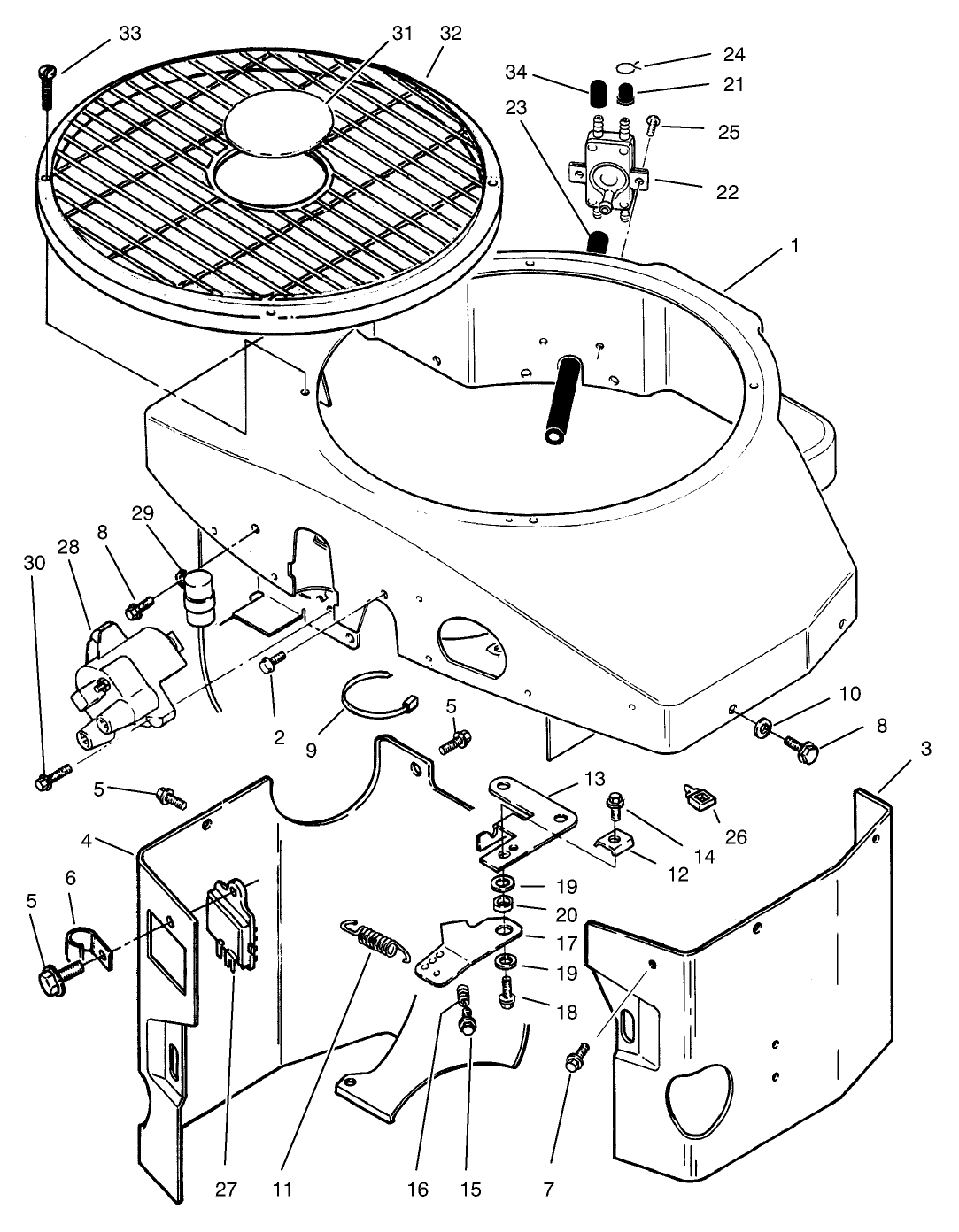

Covers Fuel Pump Coil Regulator and Governor Linkage Assembly
Covers Fuel Pump Coil Regulator and Governor Linkage Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

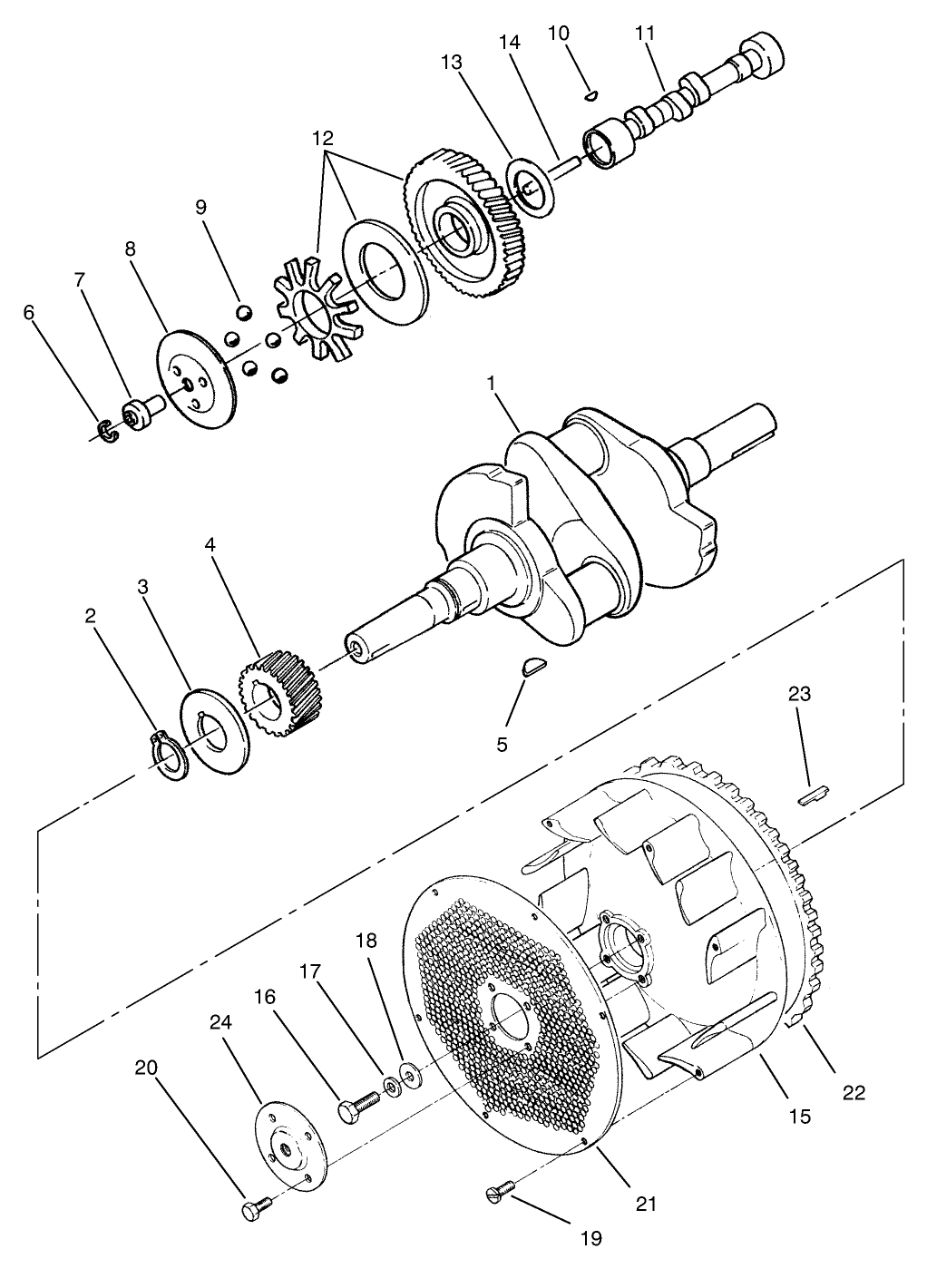

Crankshaft Camshaft and Flywheel Assembly
Crankshaft Camshaft and Flywheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

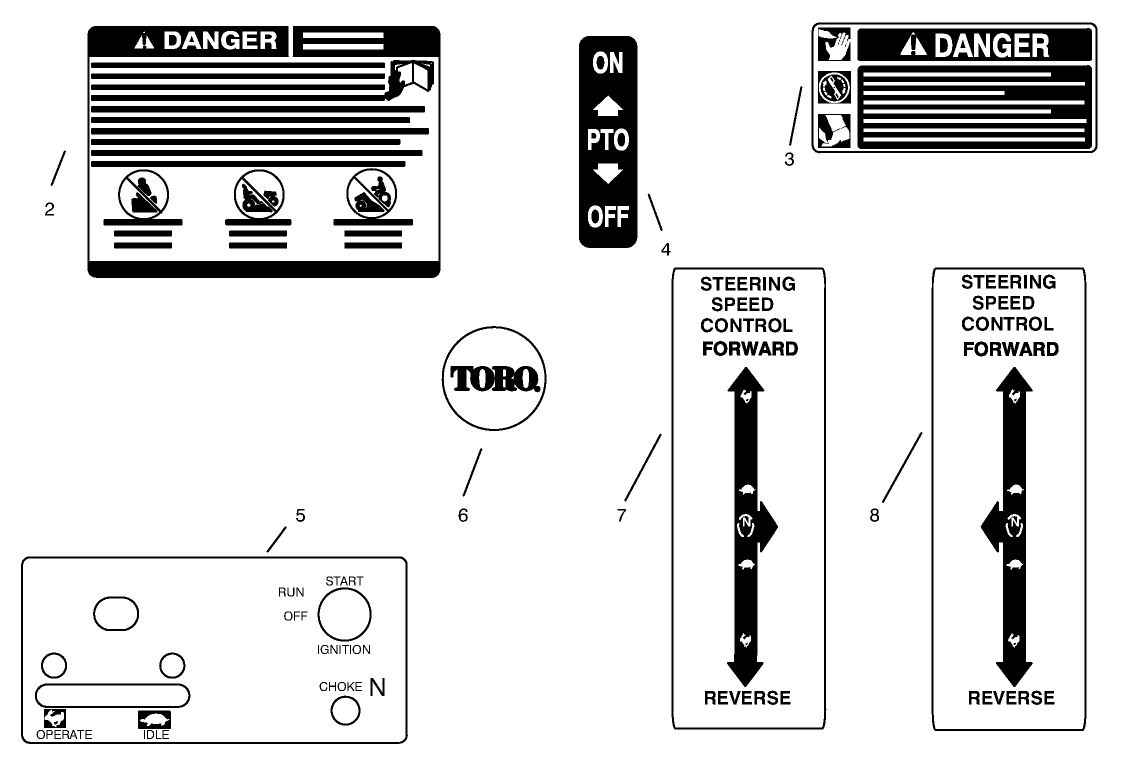

Decals
Decals
| Sequence Number | Image | Product | Price | Add to cart |
|---|

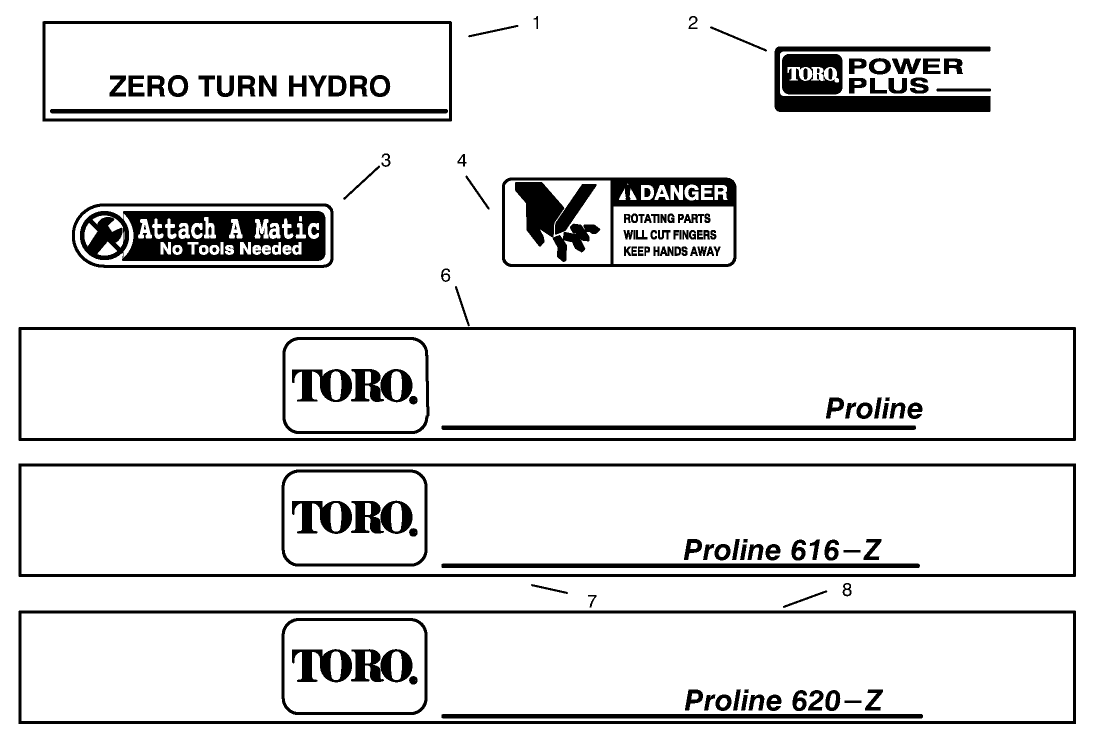

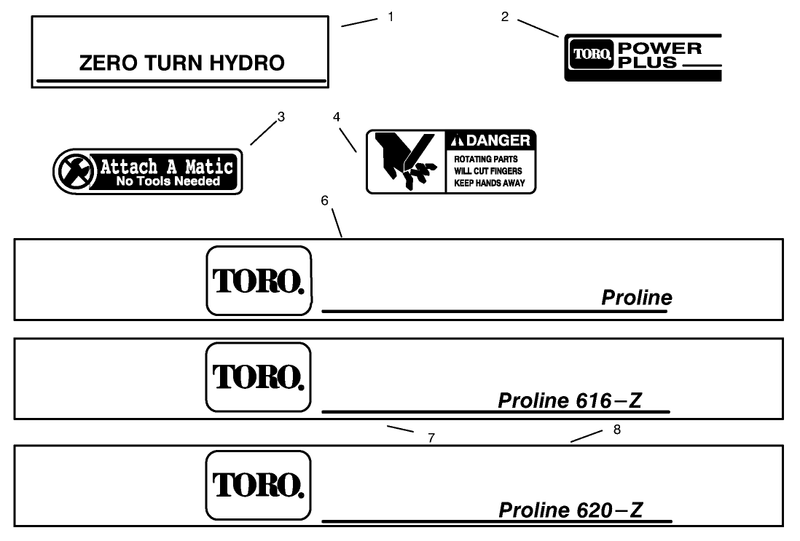

Decals continued
Decals continued
| Sequence Number | Image | Product | Price | Add to cart |
|---|

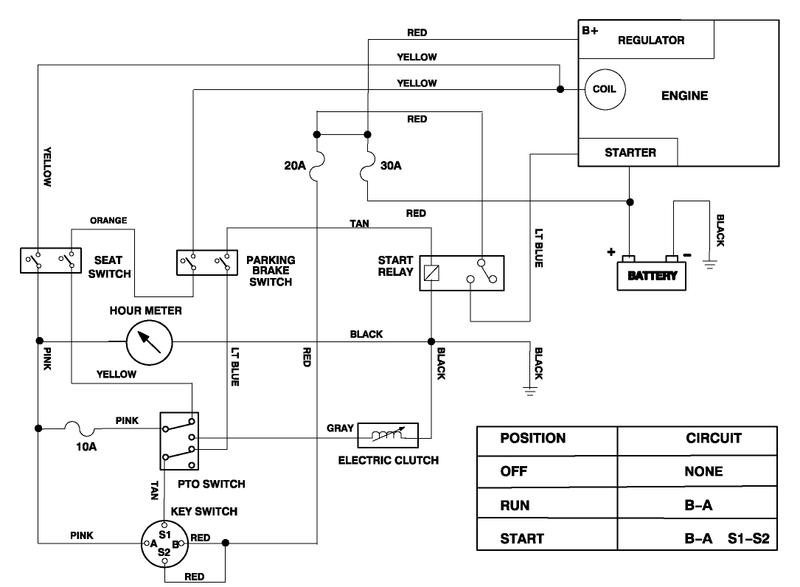

Electric Schematic

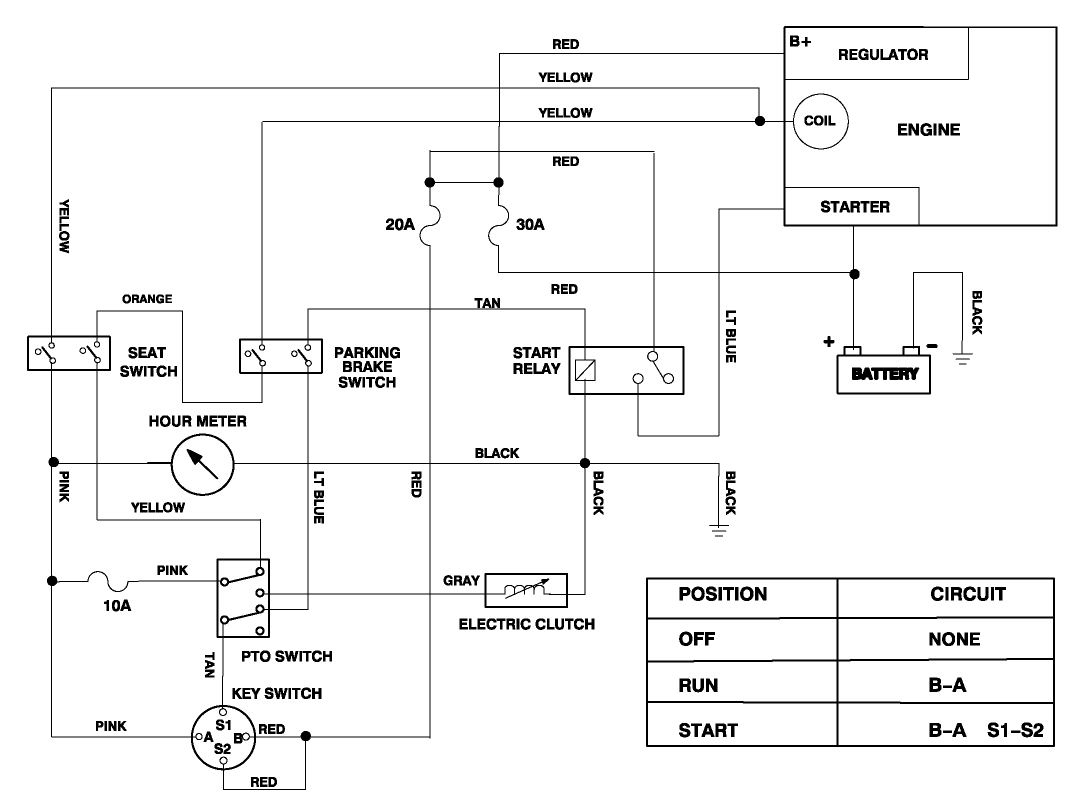

Electric Schematic
| Sequence Number | Image | Product | Price | Add to cart |
|---|

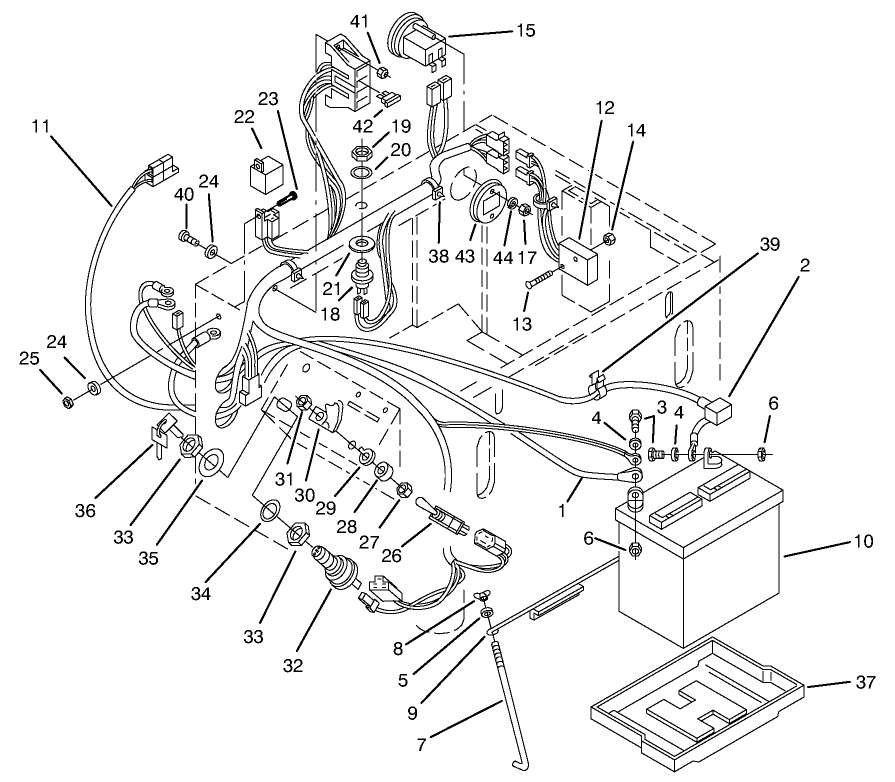

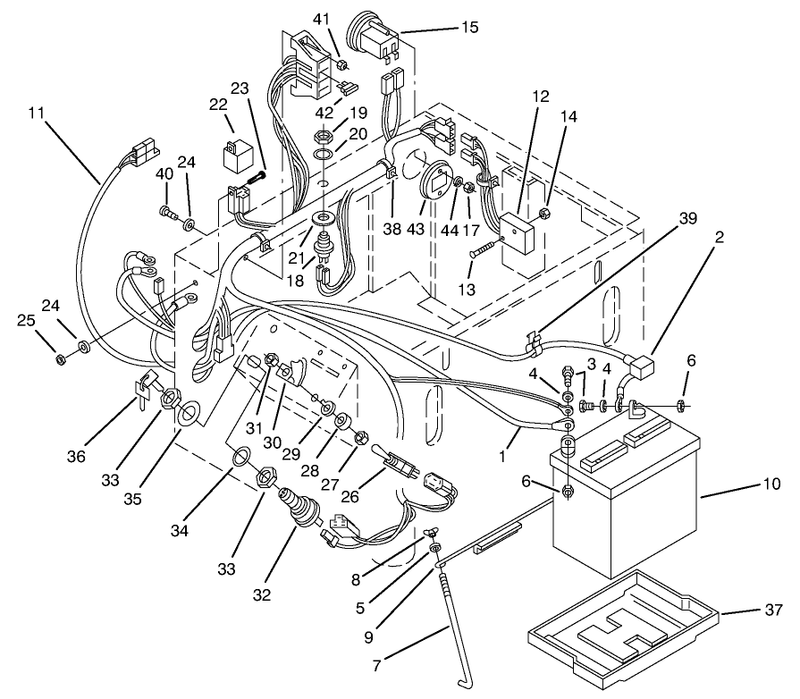

Electrical System Assembly
Electrical System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

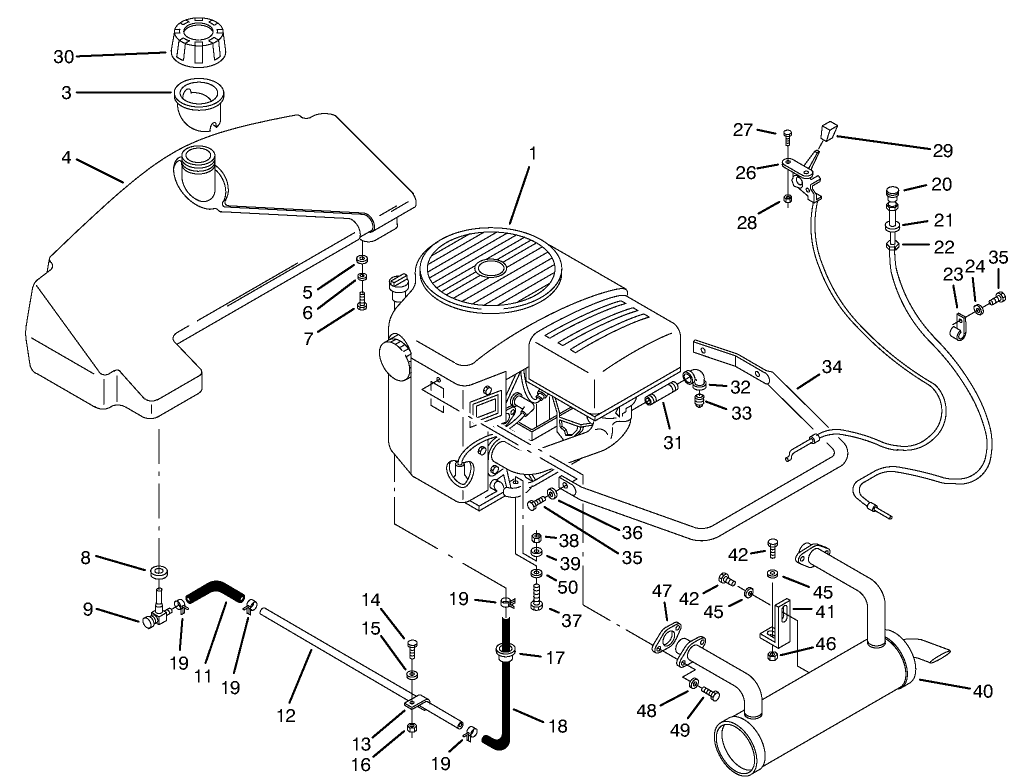

Engine and Fuel System Assembly
Engine and Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

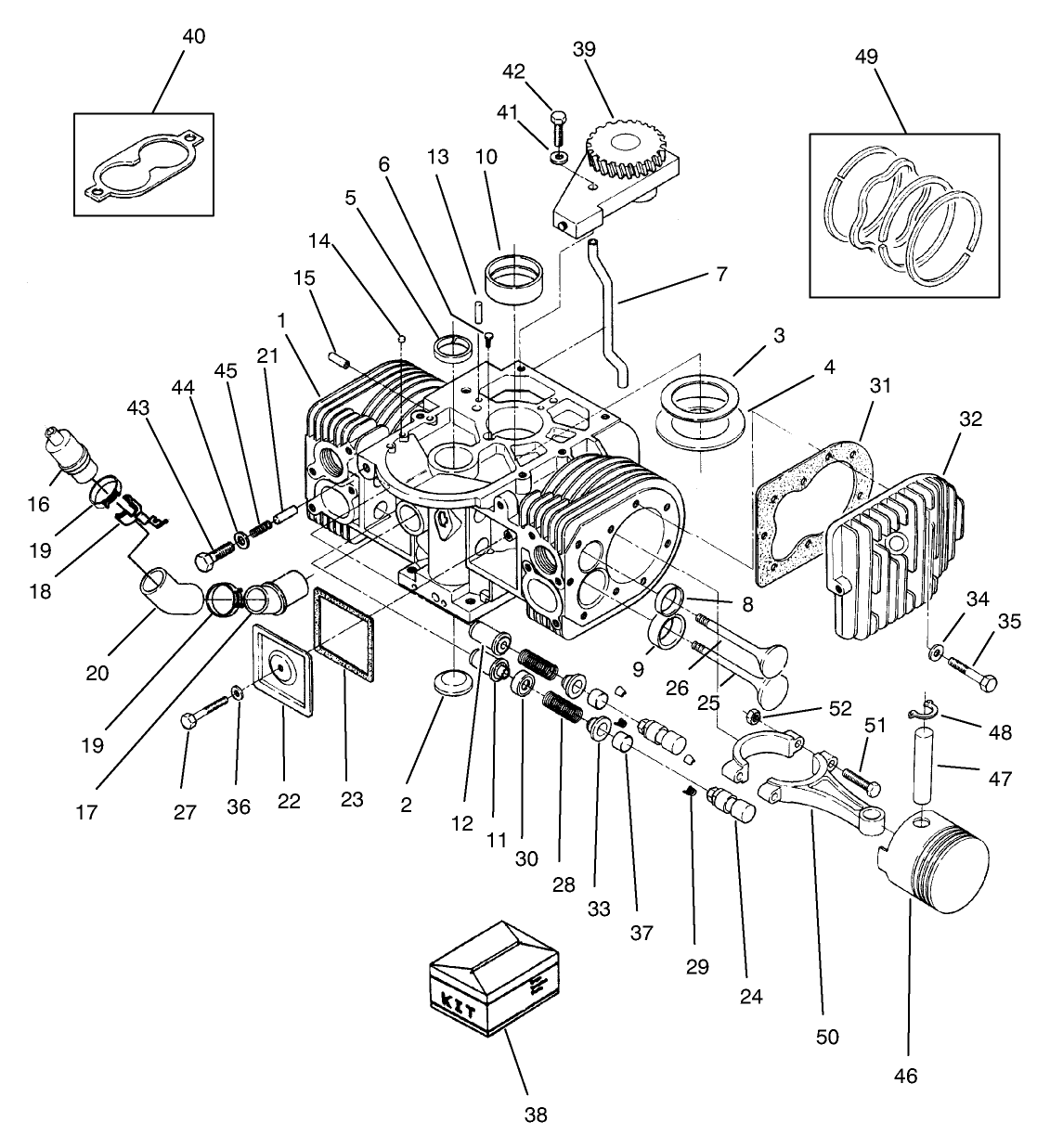

Engine Cylinder Block Assembly
Engine Cylinder Block Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

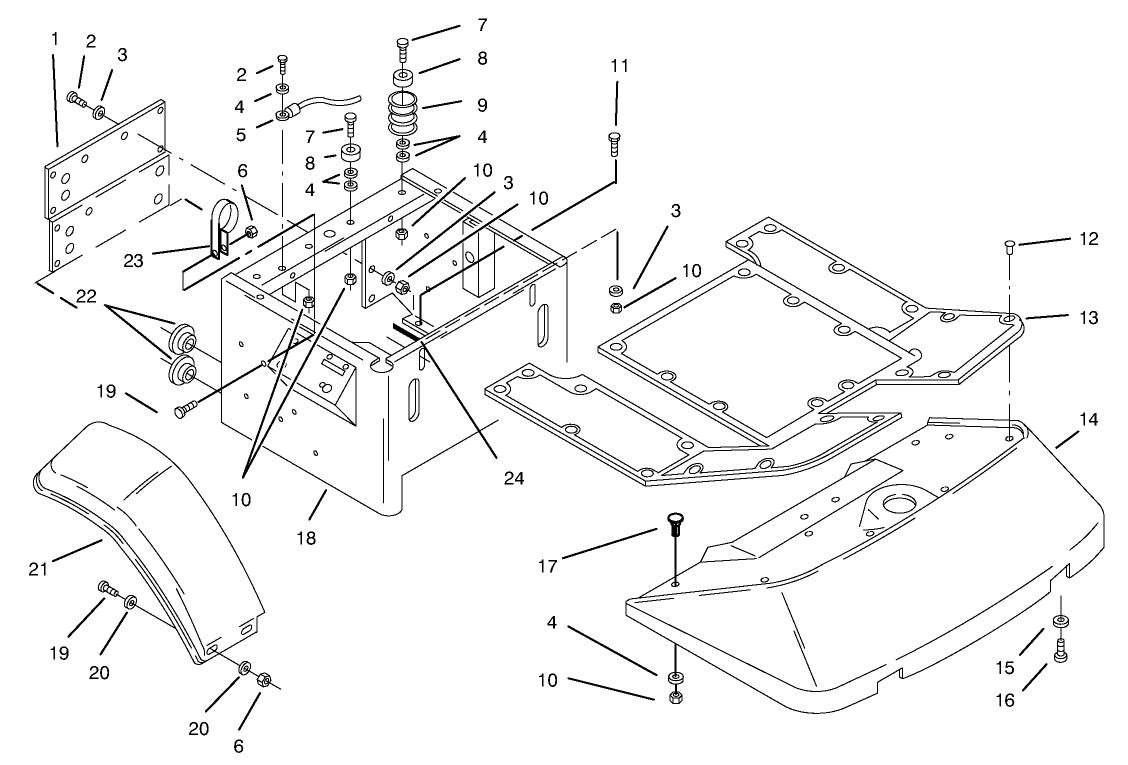

Fenders and Floor Pan Assembly
Fenders and Floor Pan Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

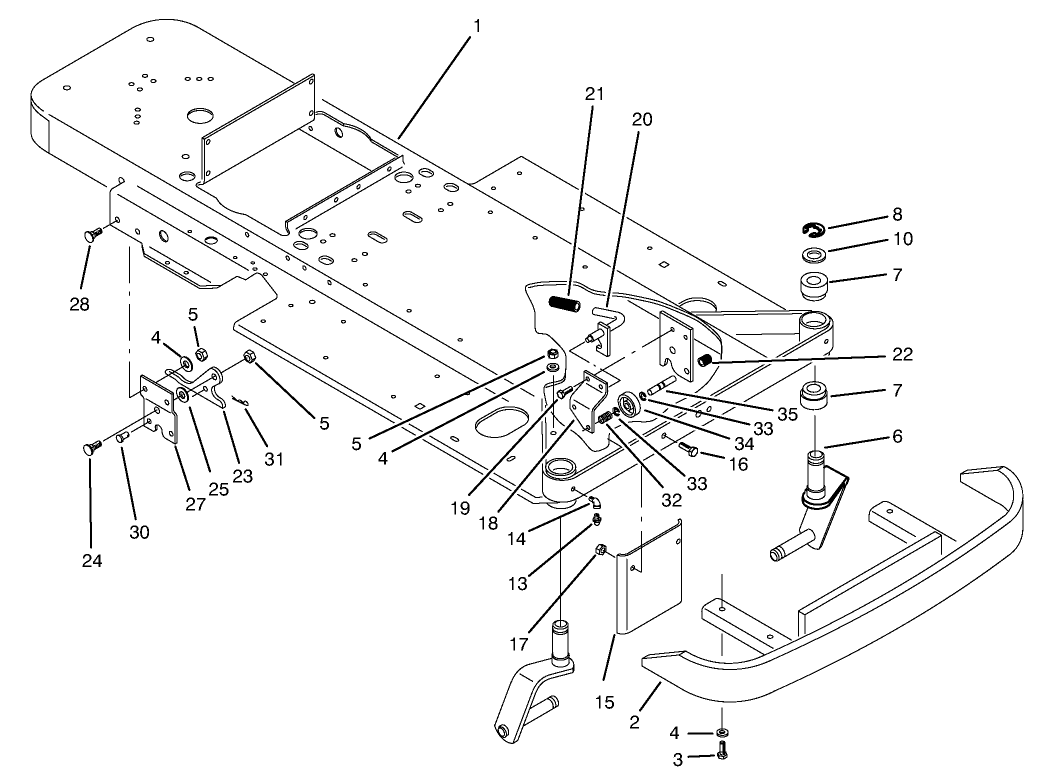

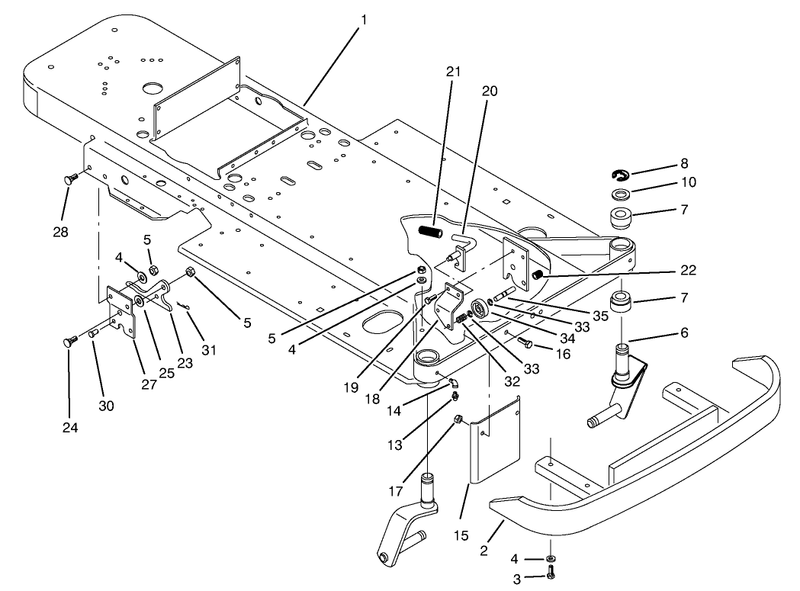

Frame and Front Wheel Fork Assembly
Frame and Front Wheel Fork Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

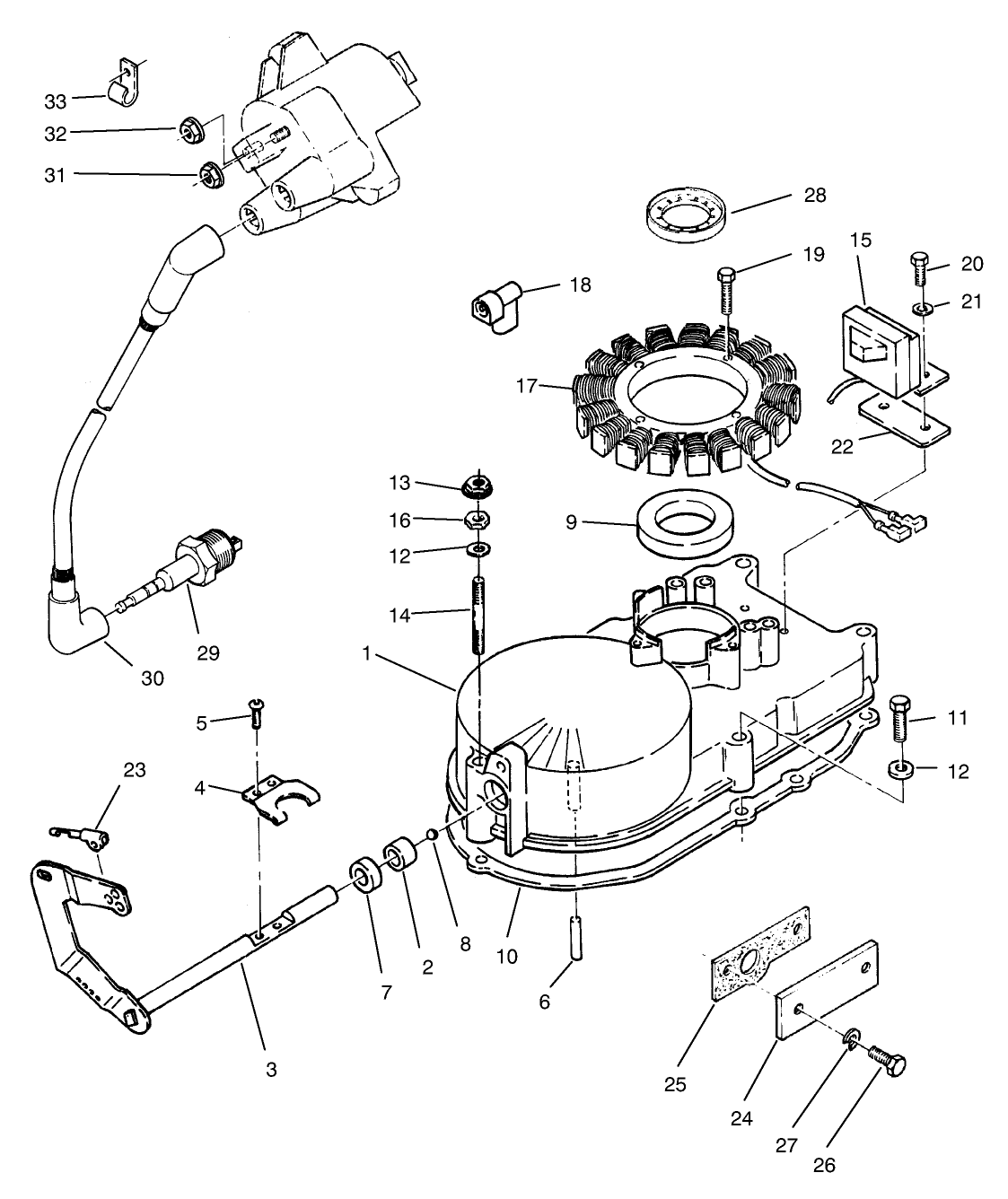

Gearcase and Ignition Assembly
Gearcase and Ignition Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

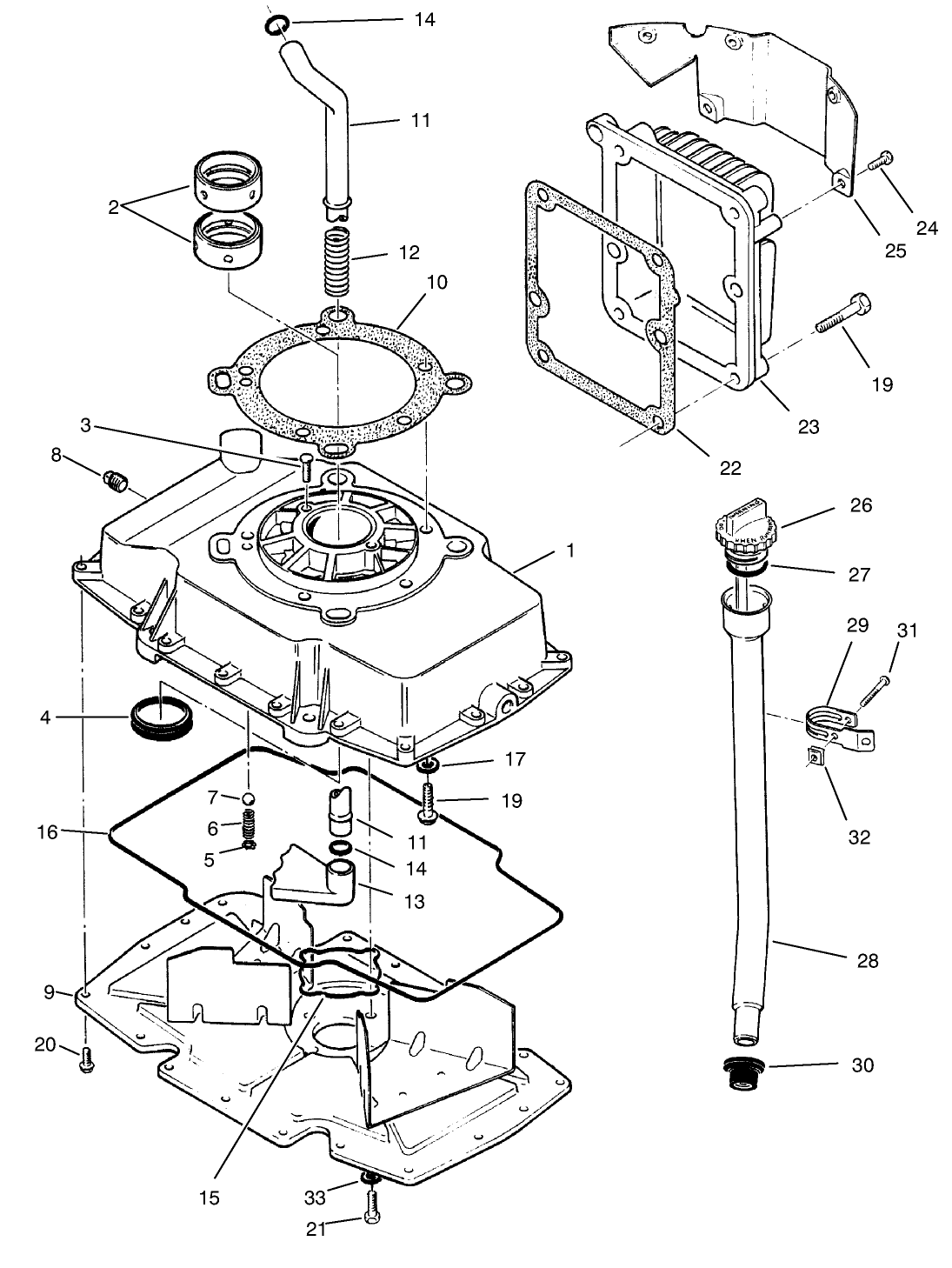

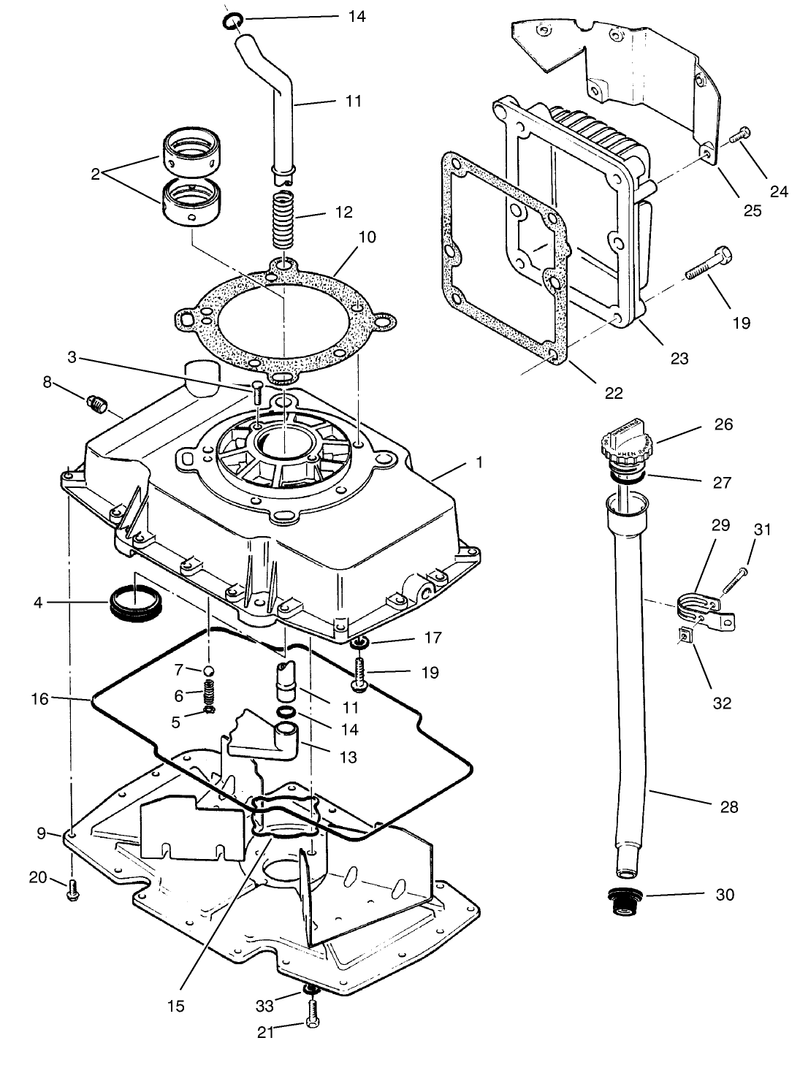

Oil Base and Fill Tube Assembly
Oil Base and Fill Tube Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

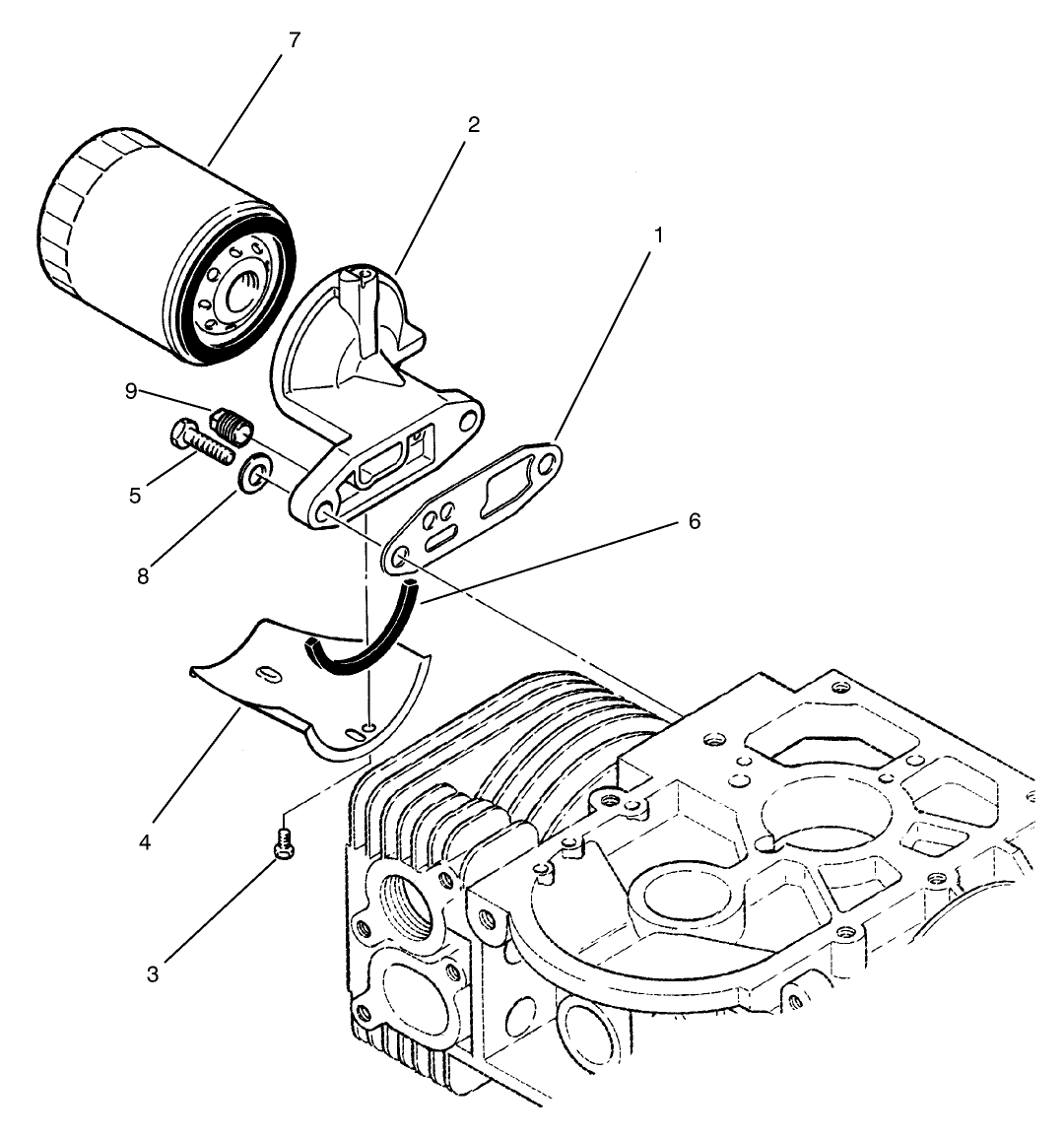

Oil Filter Assembly
Oil Filter Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

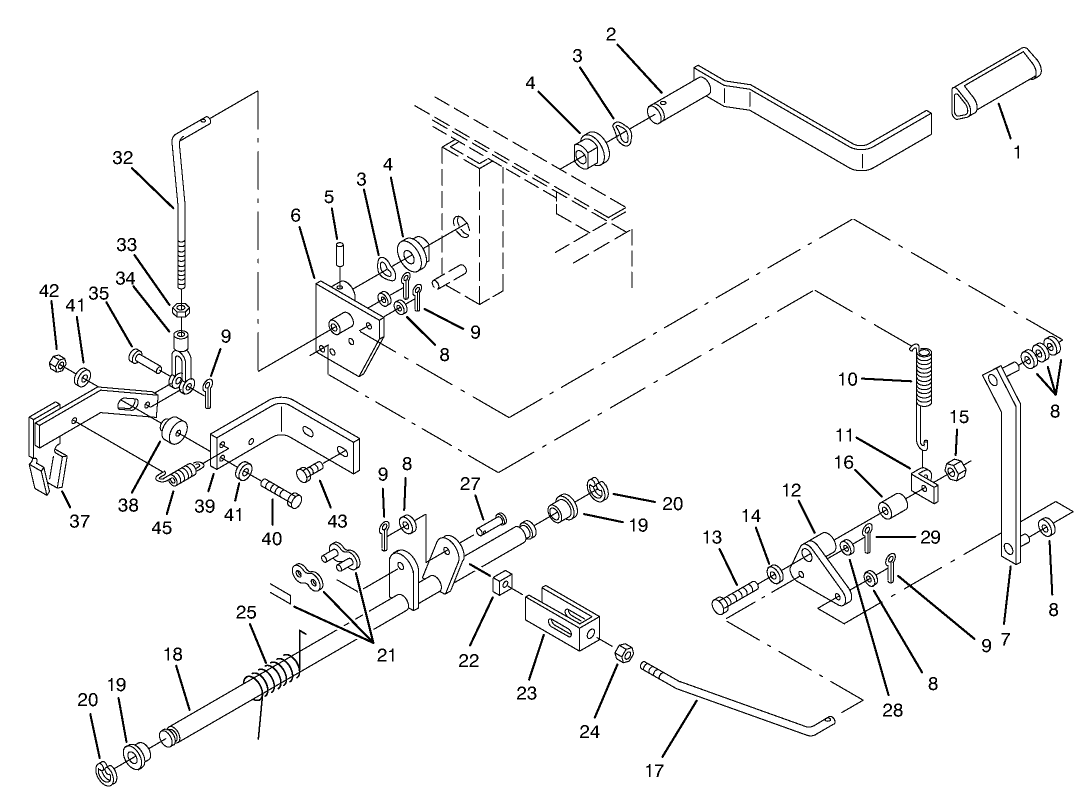

Parking Brake Assembly
Parking Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

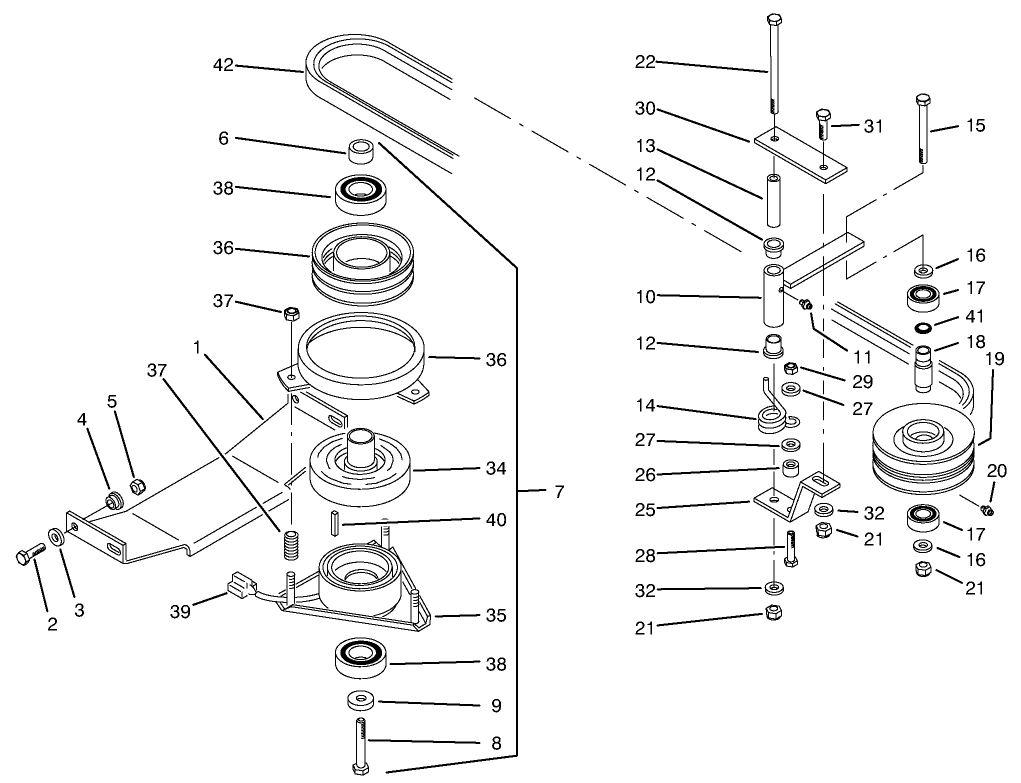

Pto Electric Clutch and Drive Assembly
Pto Electric Clutch and Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

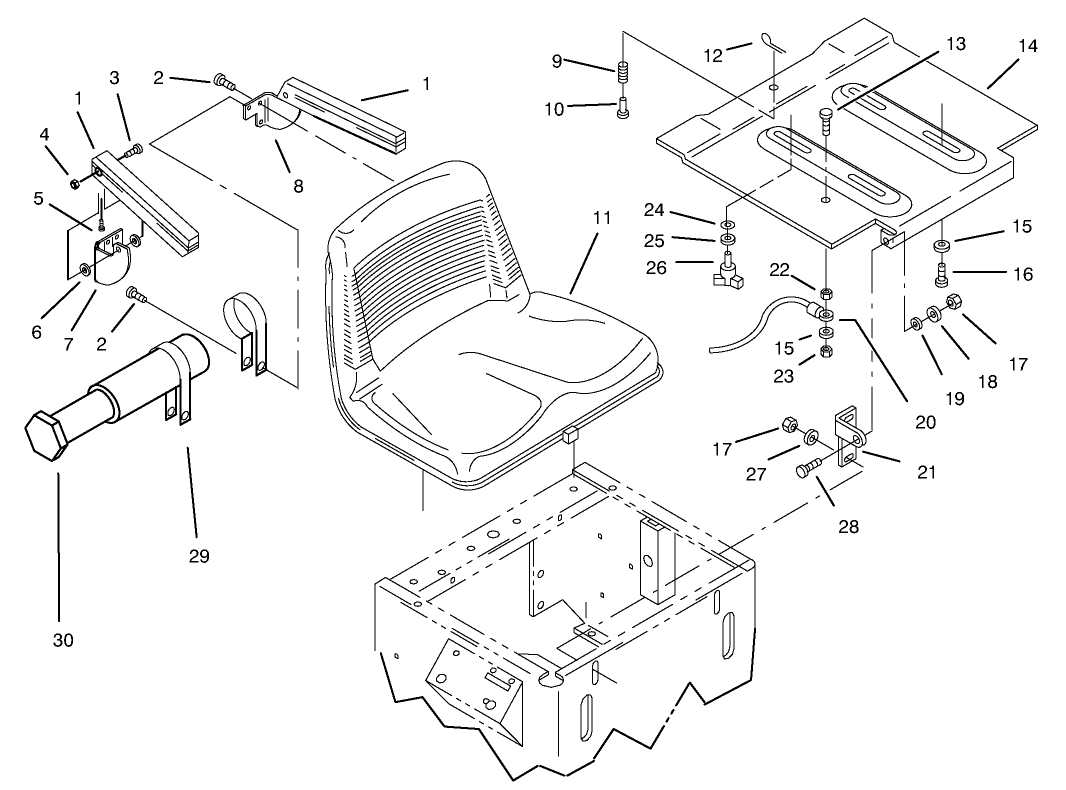

Seat Assembly
Seat Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

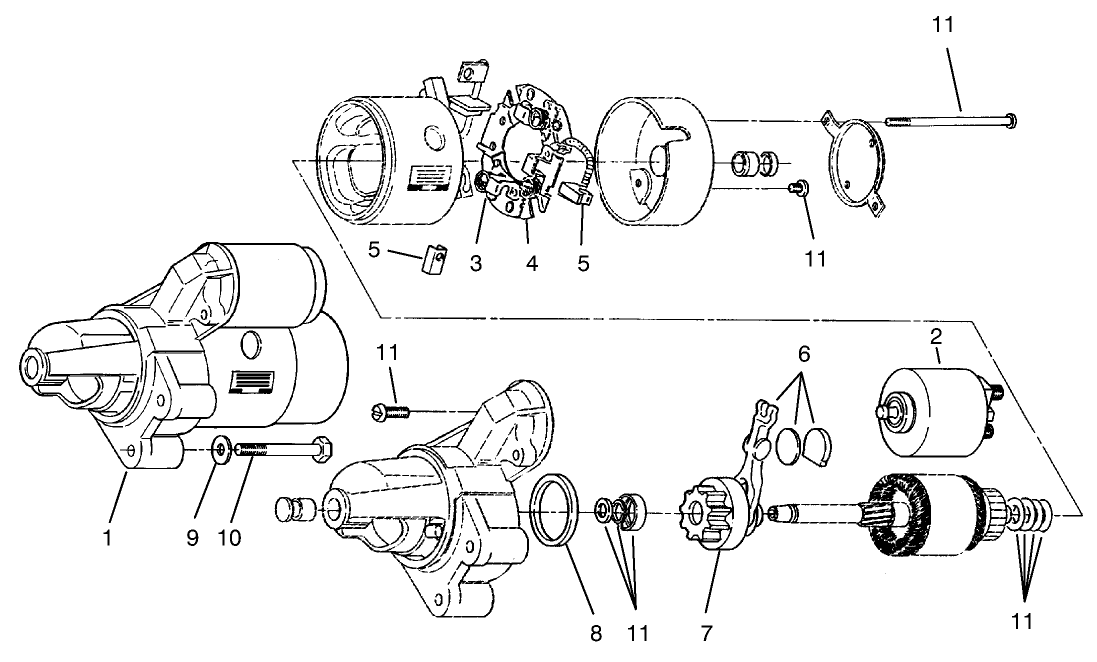

Starter Assembly
Starter Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

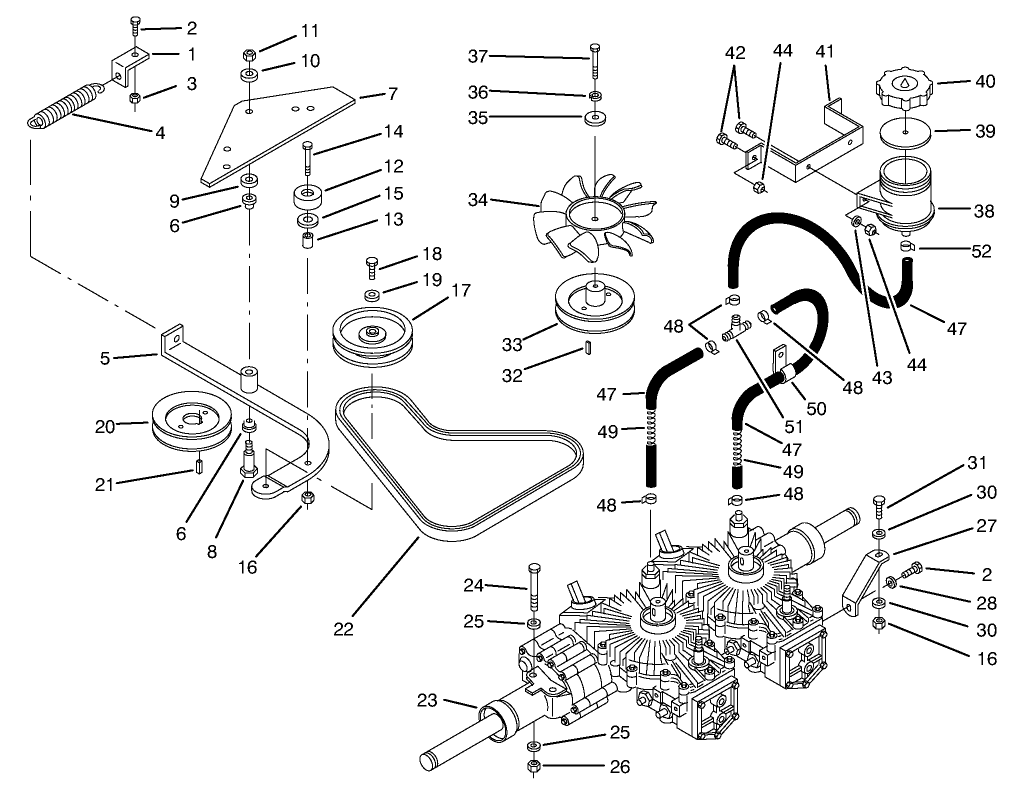

Transmission and Drive System Assembly
Transmission and Drive System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

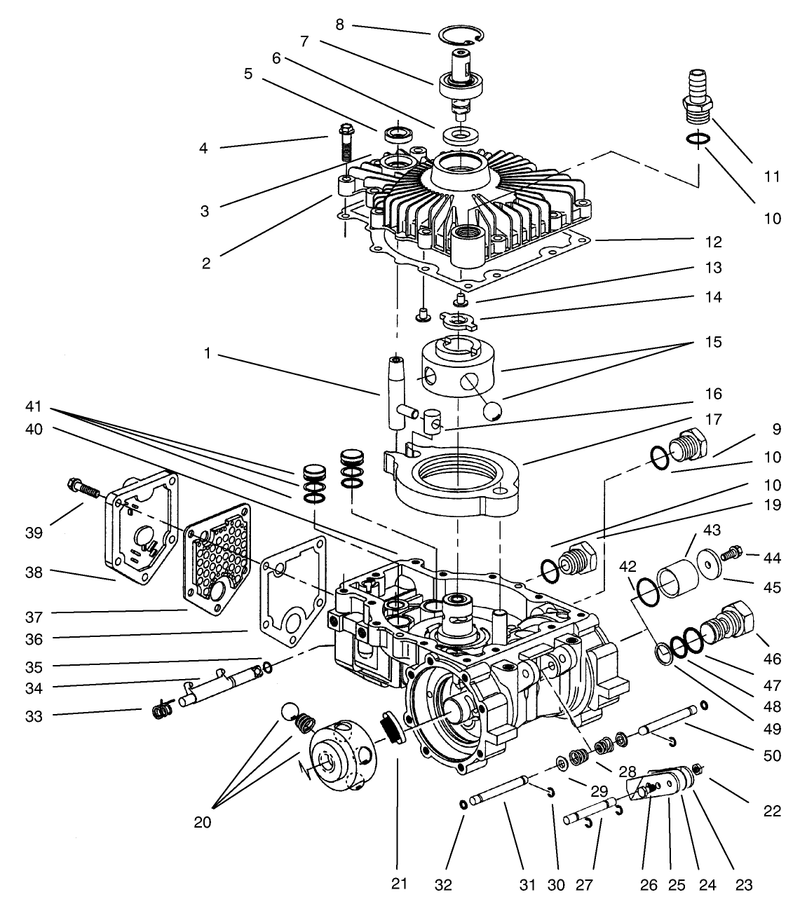

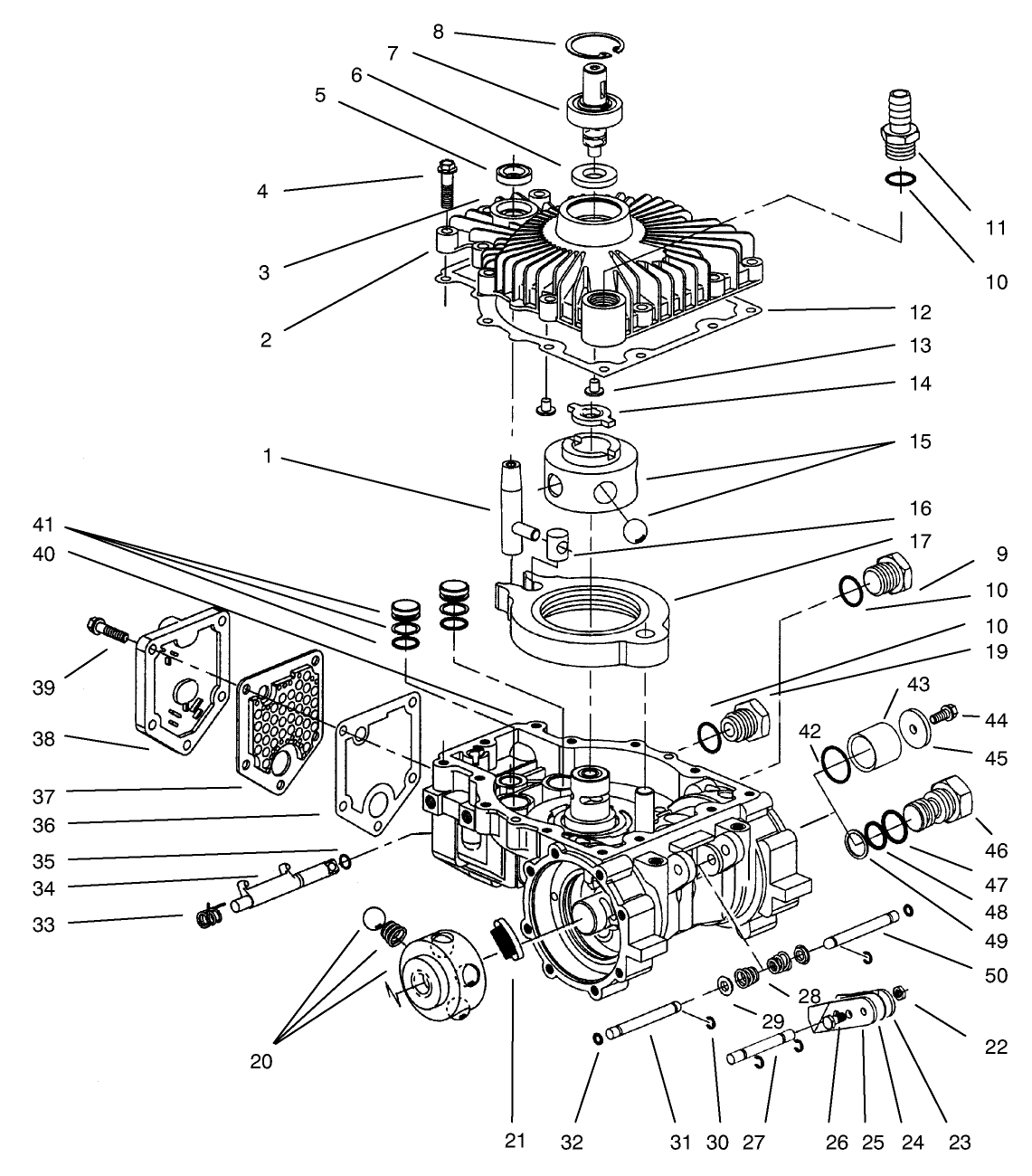

Transmission Assembly Eaton Model 781 016
Transmission Assembly Eaton Model 781 016
| Sequence Number | Image | Product | Price | Add to cart |
|---|

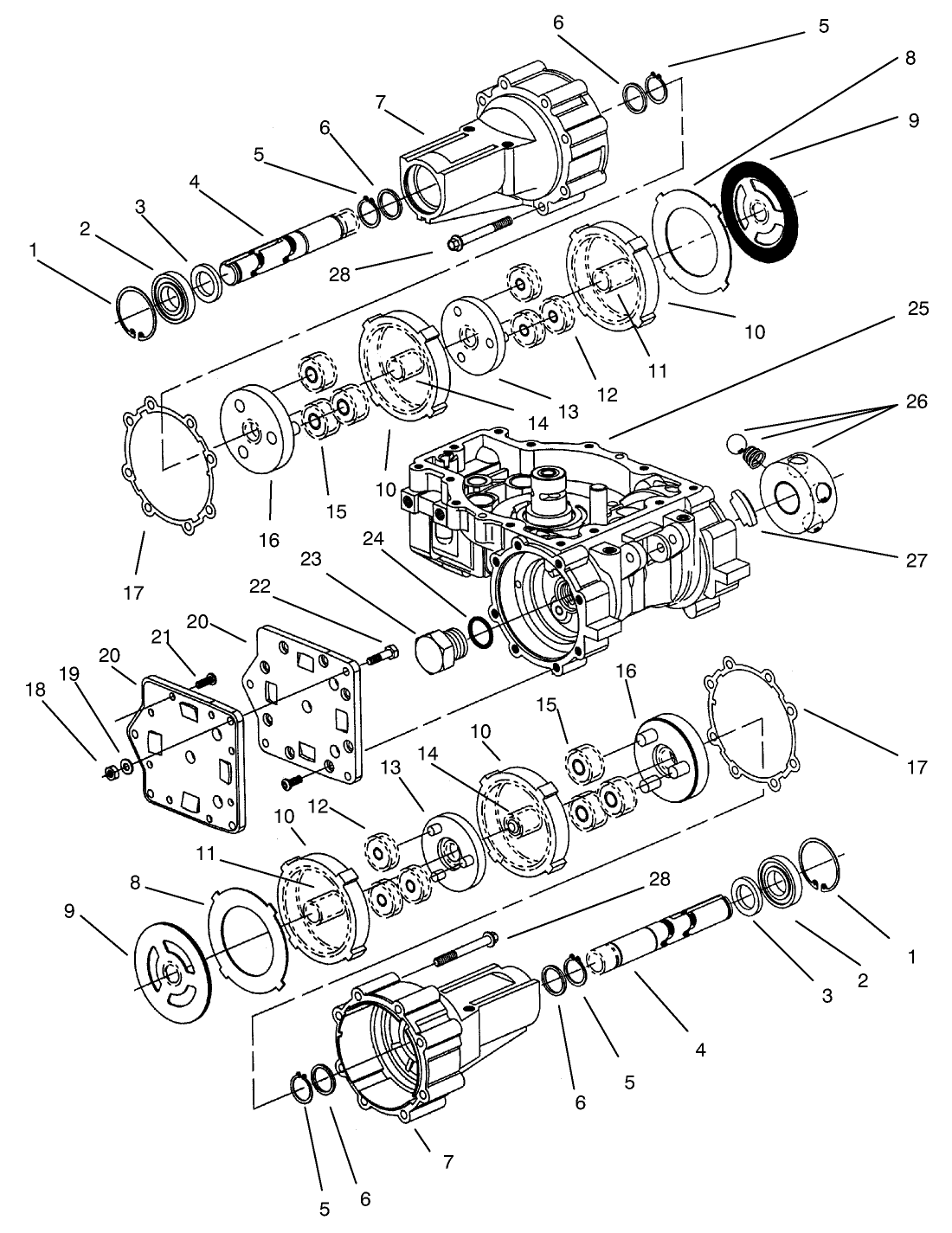

Transmission Assembly Eaton Model 781 016 continued
Transmission Assembly Eaton Model 781 016 continued
| Sequence Number | Image | Product | Price | Add to cart |
|---|

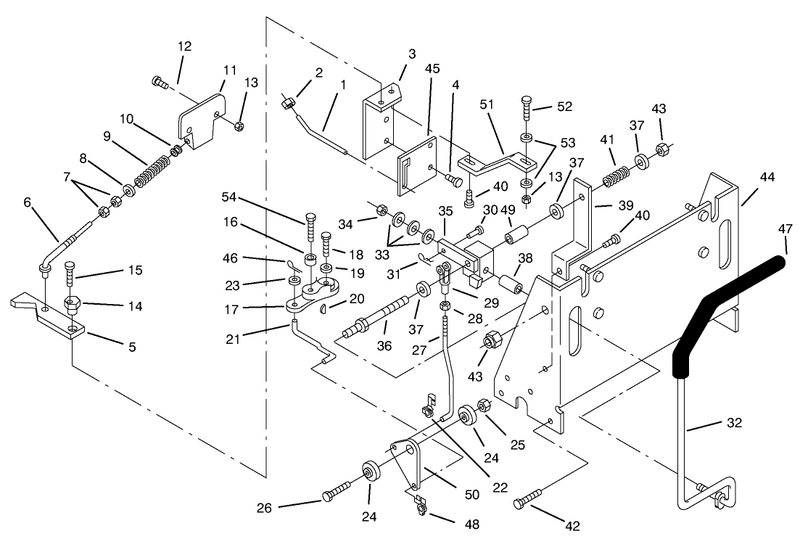

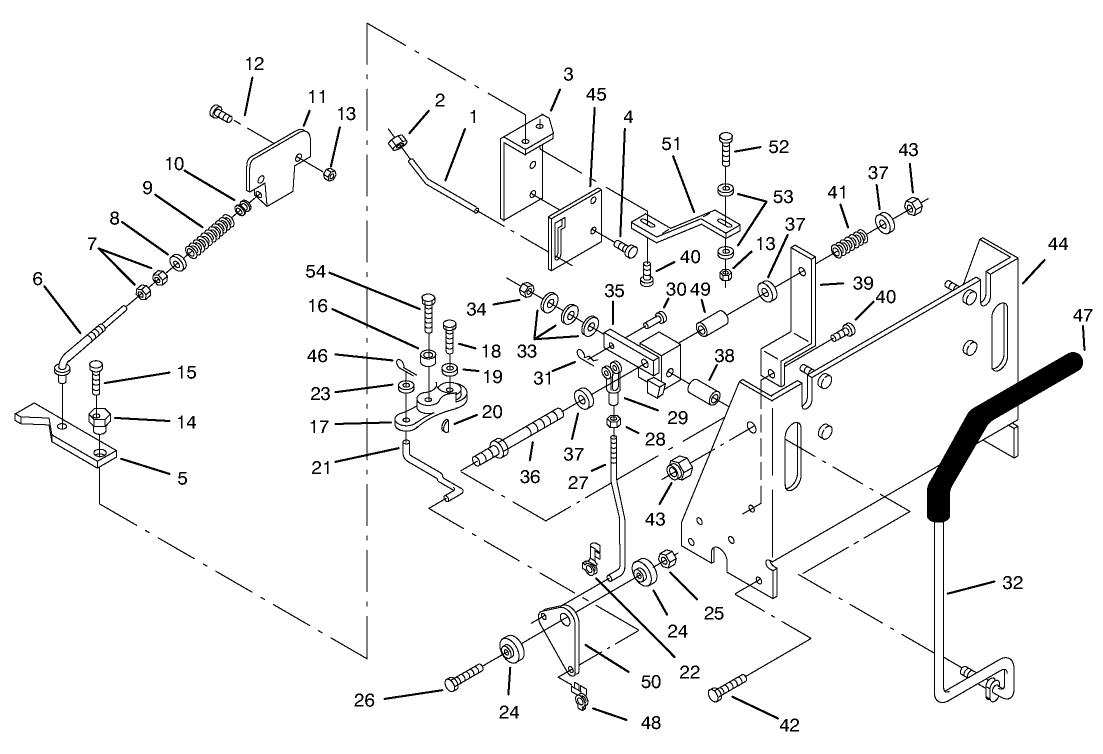

Transmission Controls Assembly
Transmission Controls Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

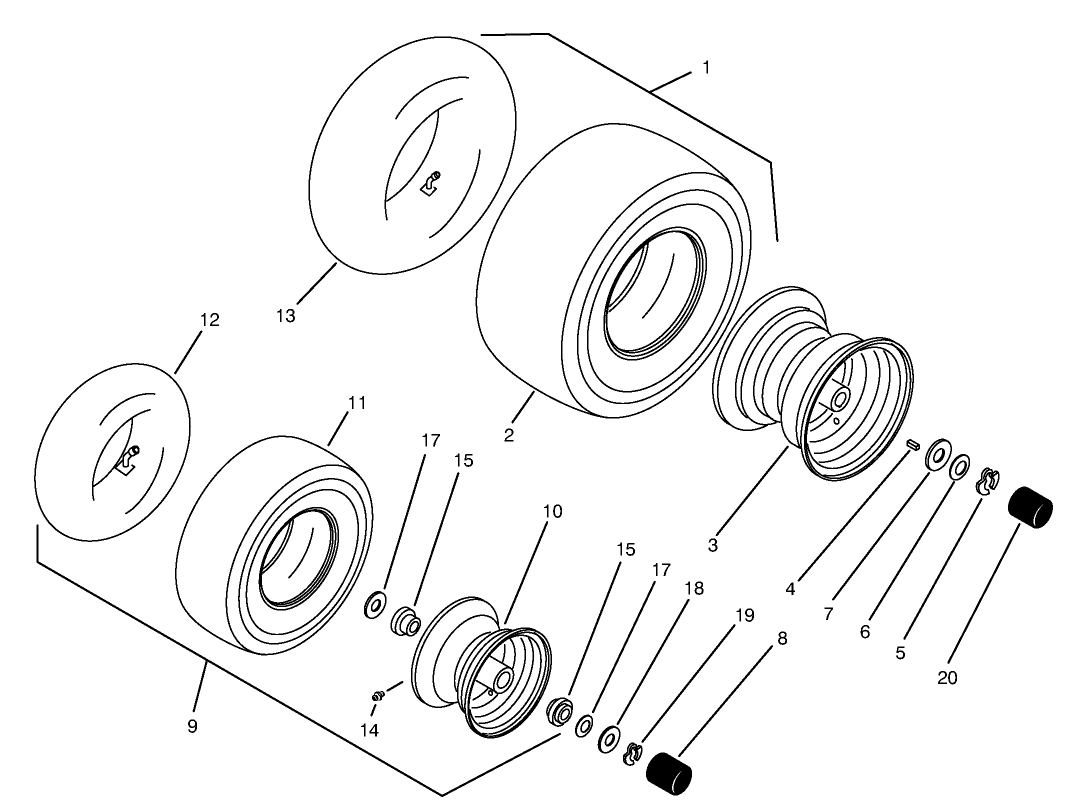

Wheels and Tires Assembly
Wheels and Tires Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
