Toro 74225 Z253 Z Master, With 62" SFS Side Discharge Mower (Serial #: 230000001 - 230006000) Parts Diagram
Diagrams:
Diagram:

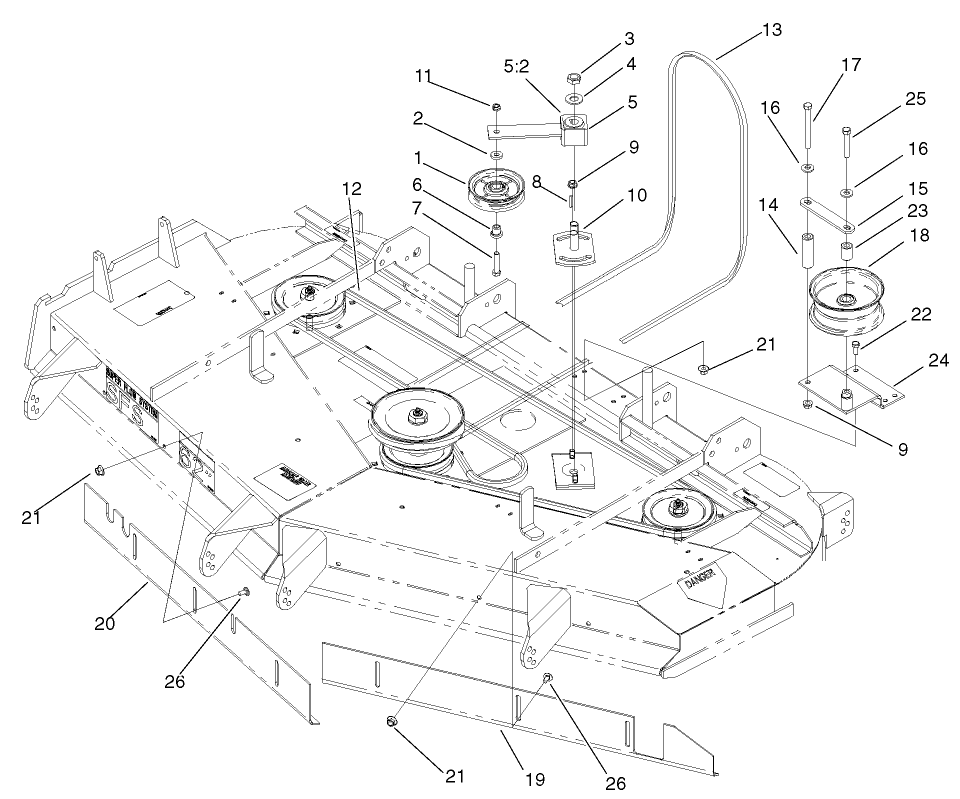

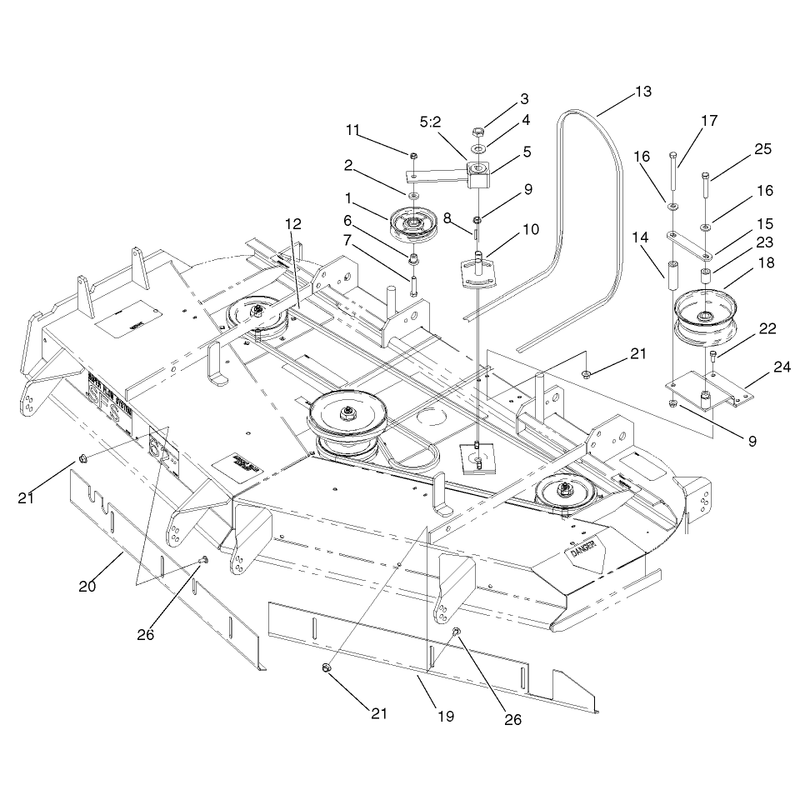

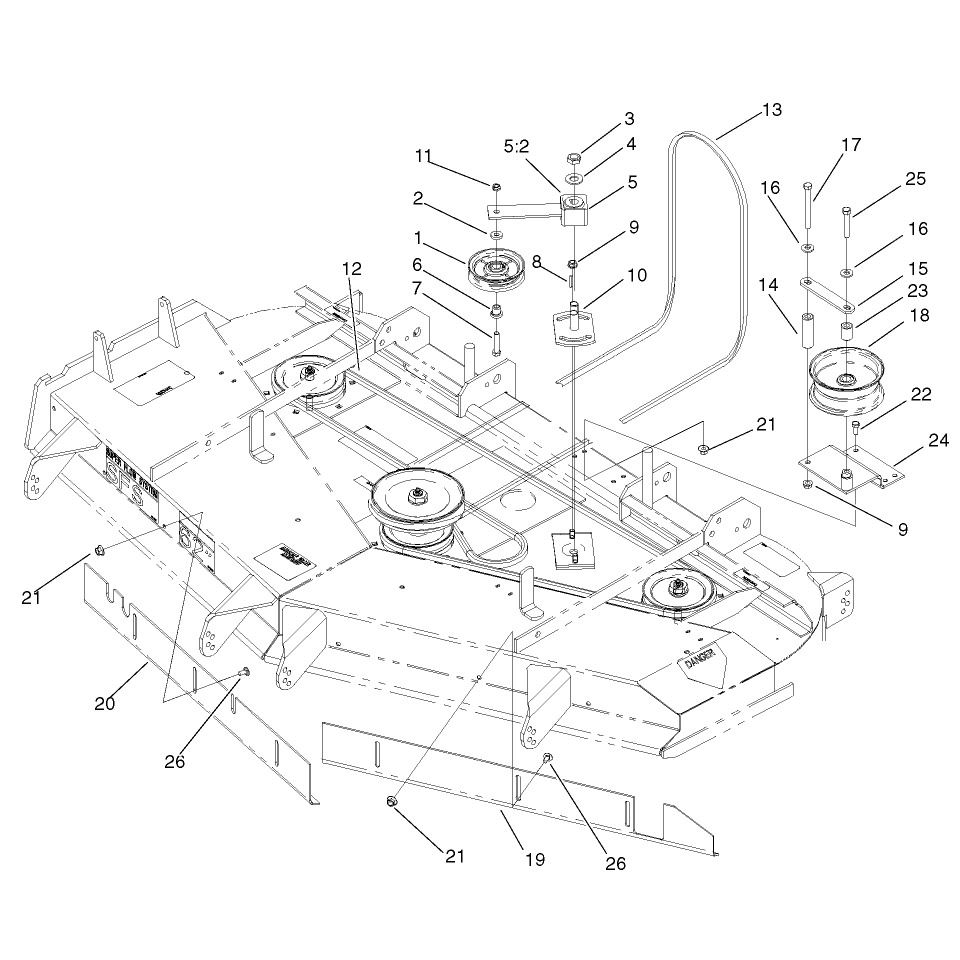

Belt and Idler Arm Assembly
Belt and Idler Arm Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

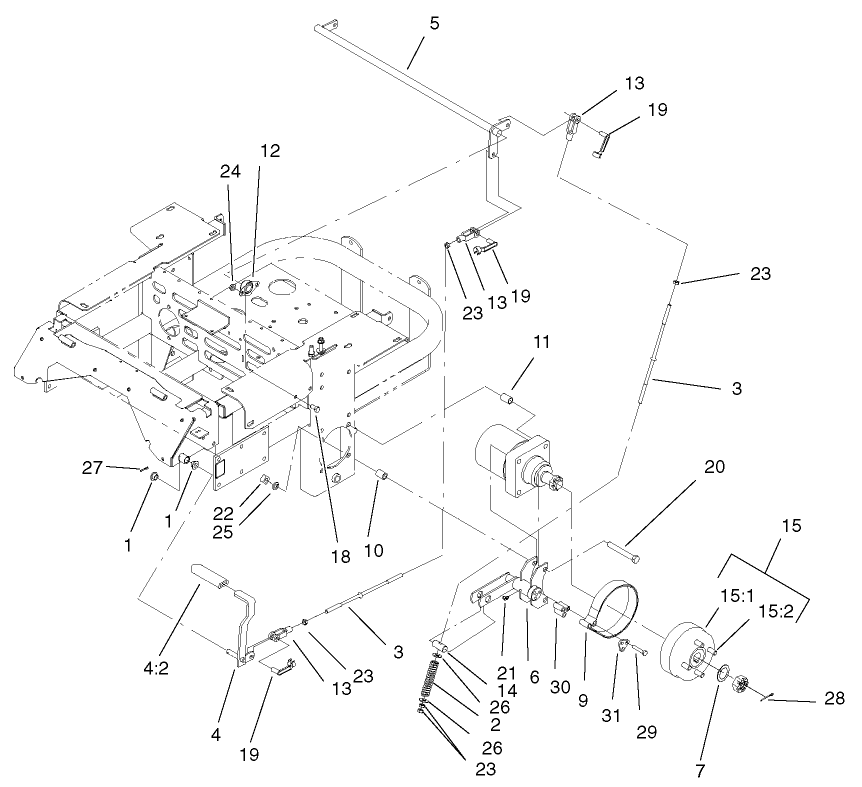

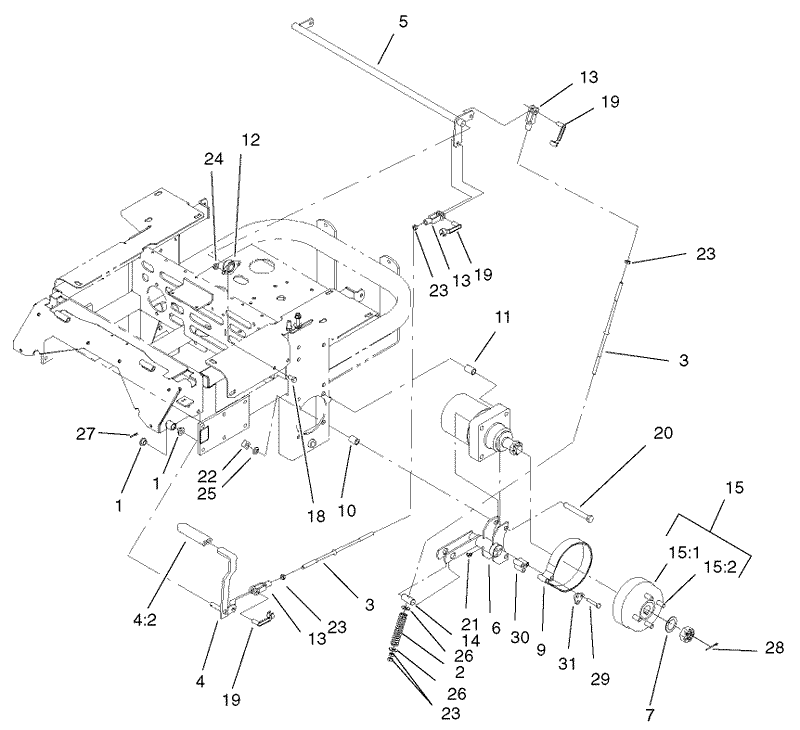

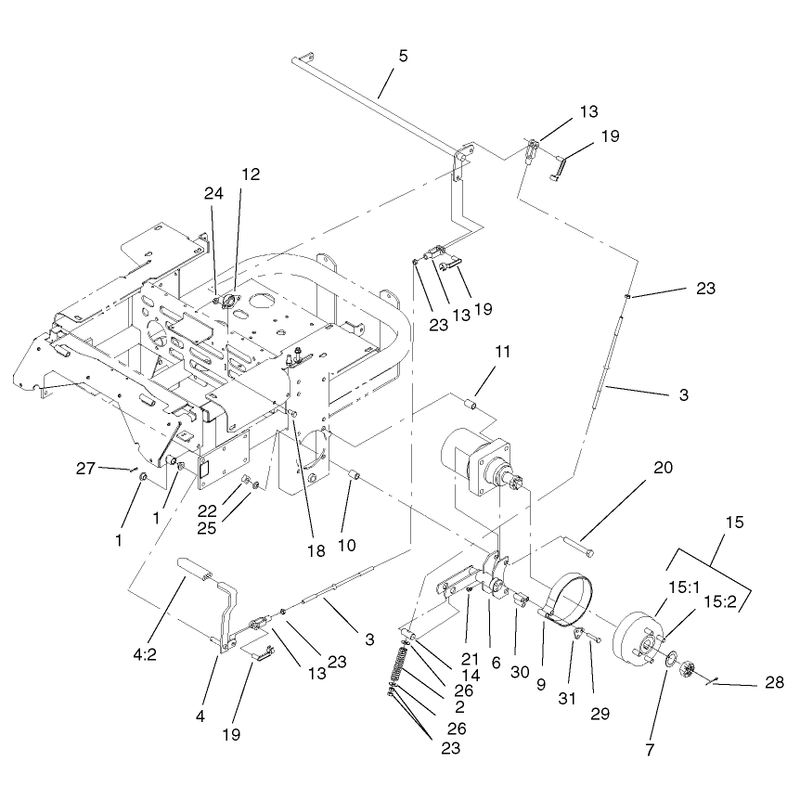

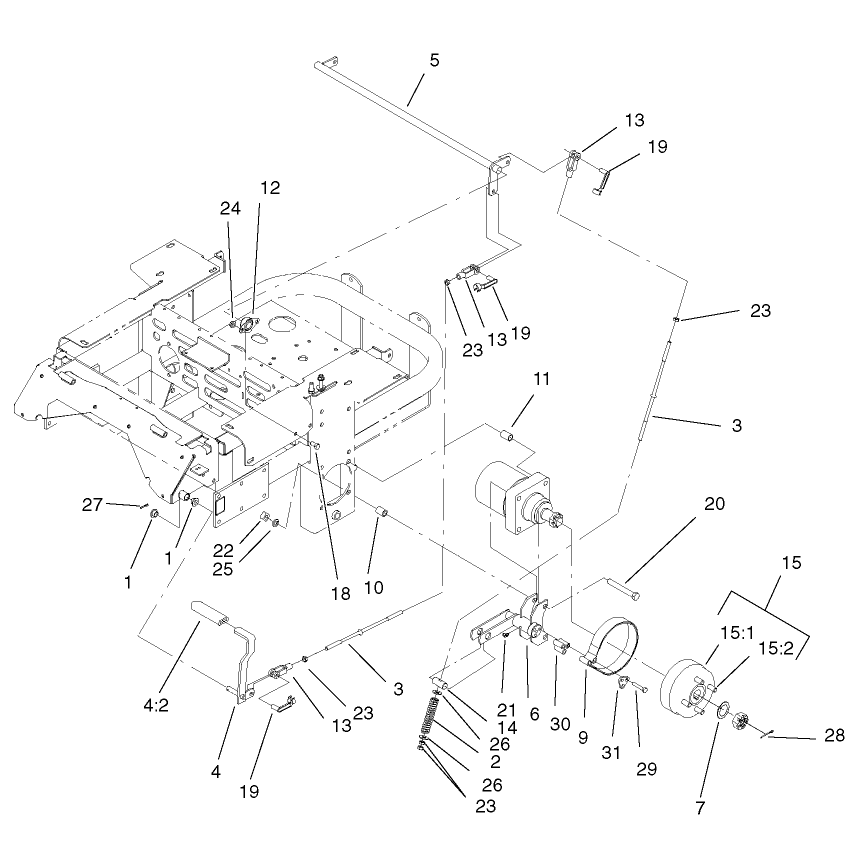

Brake and Wheel Hub Assembly
Brake and Wheel Hub Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

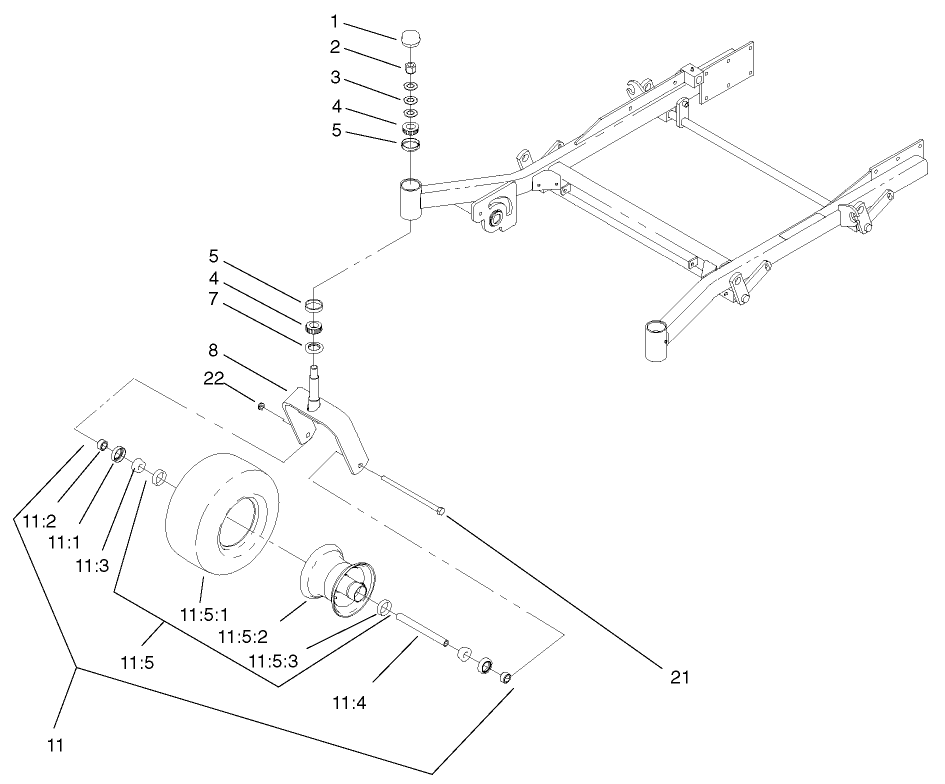

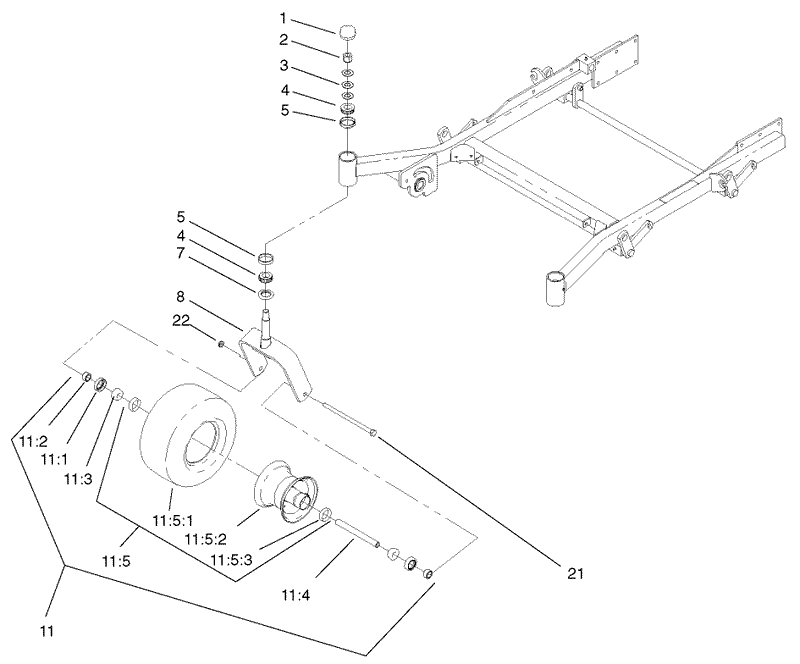

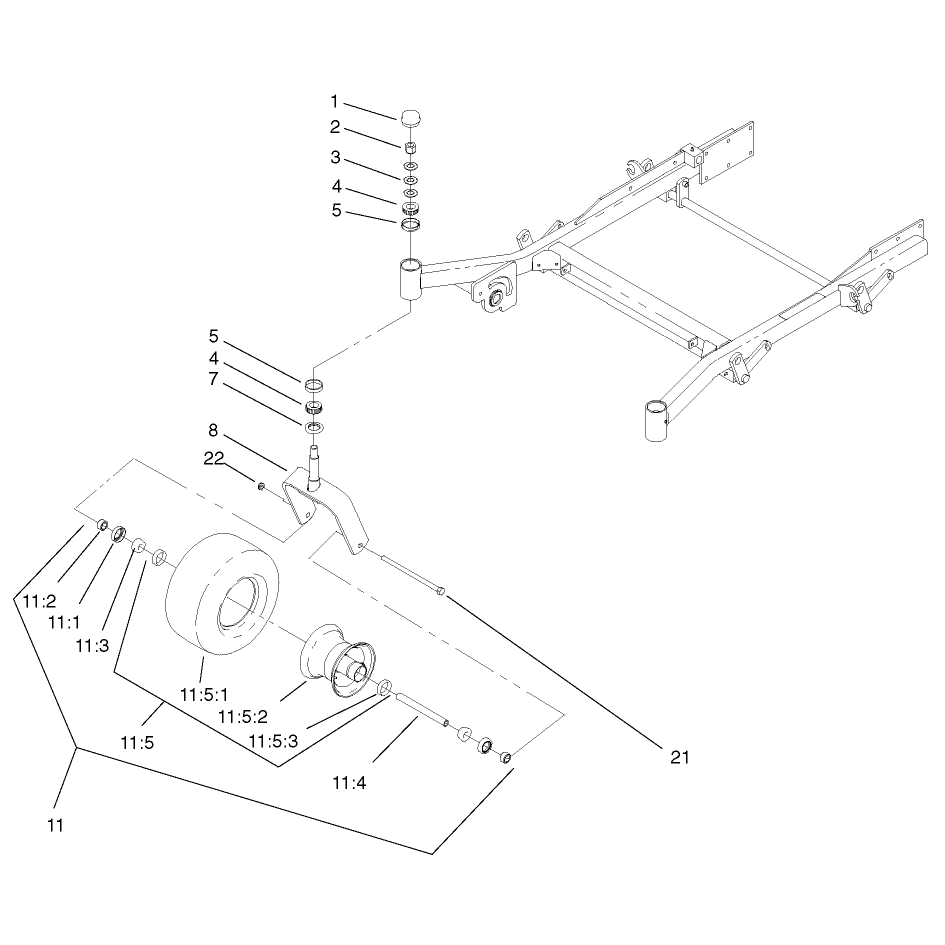

Caster and Wheel Assembly
Caster and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

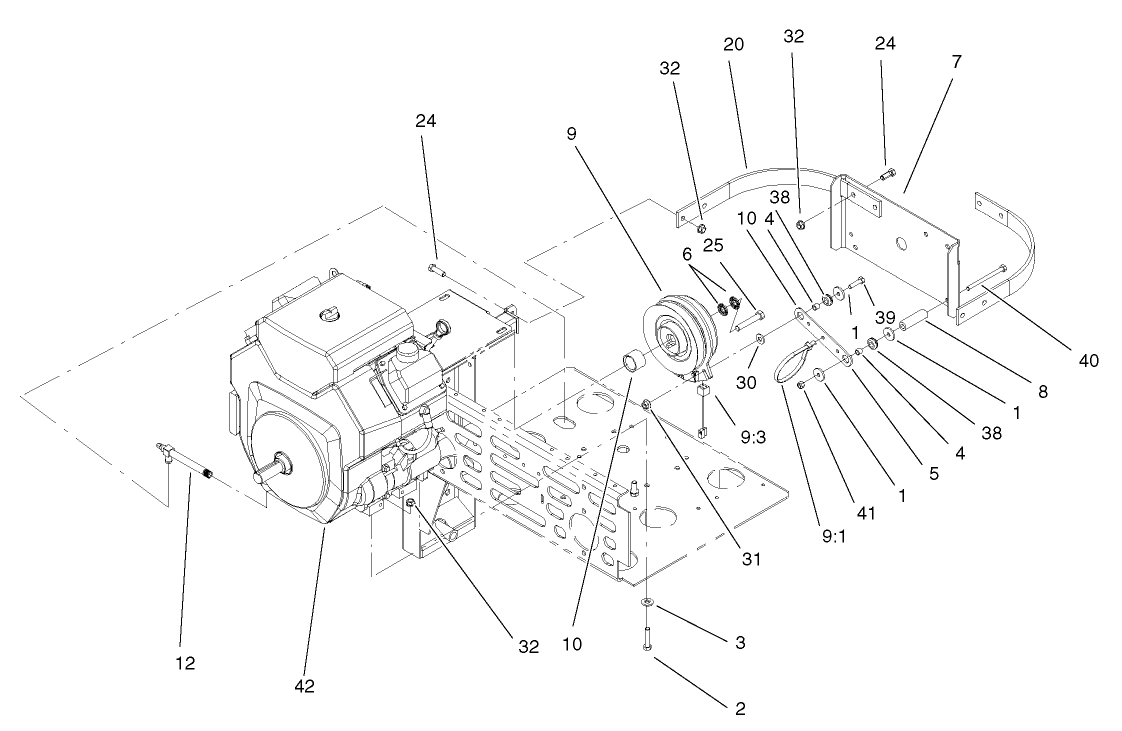

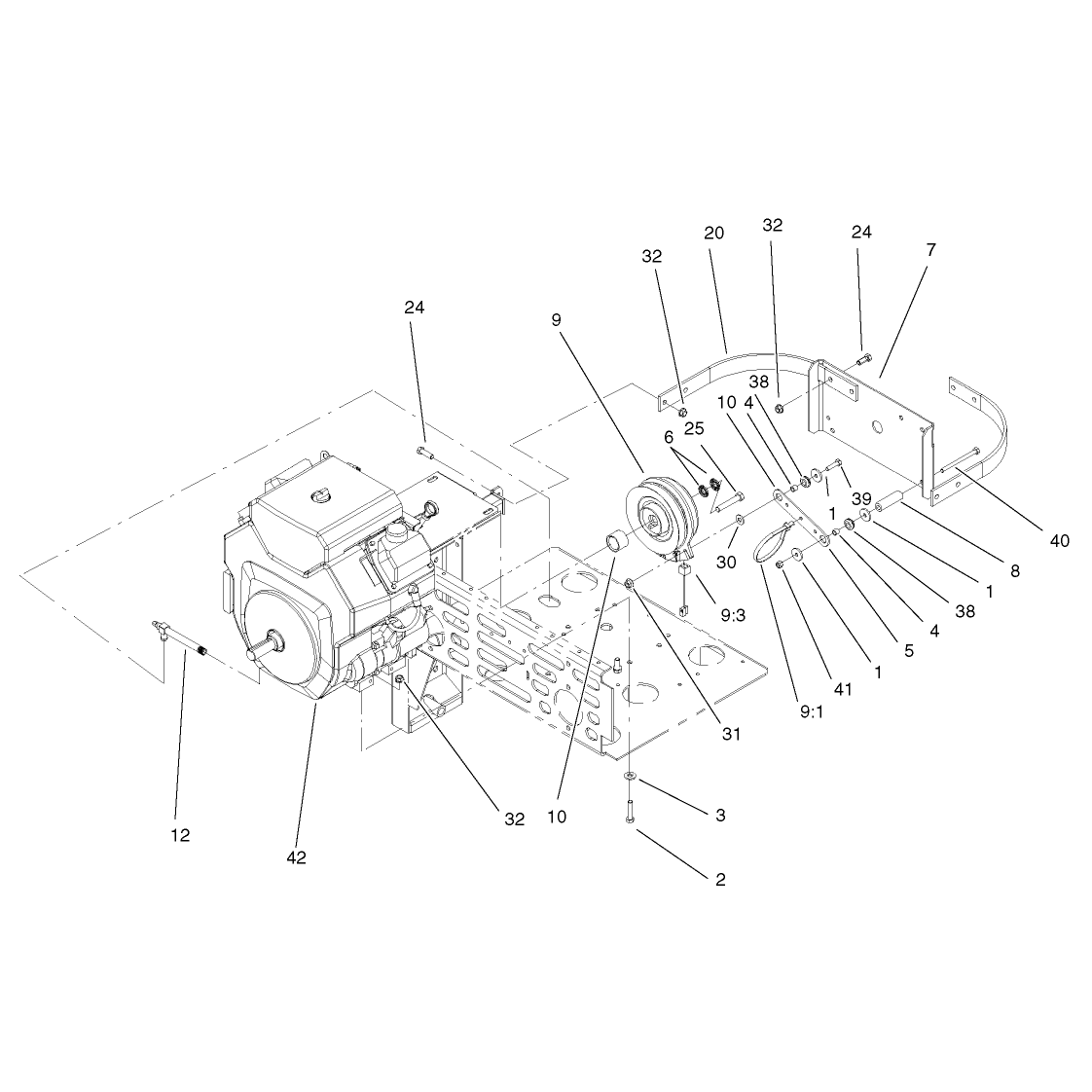

Clutch Assembly
Clutch Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

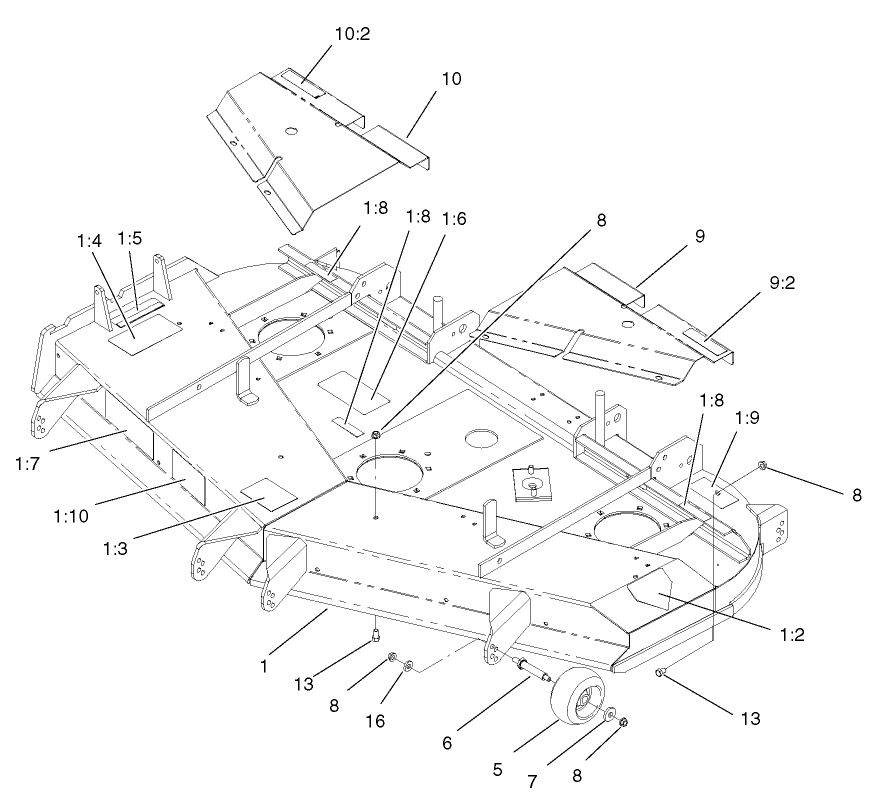

Deck Deflector and Roller Assembly
Deck Deflector and Roller Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

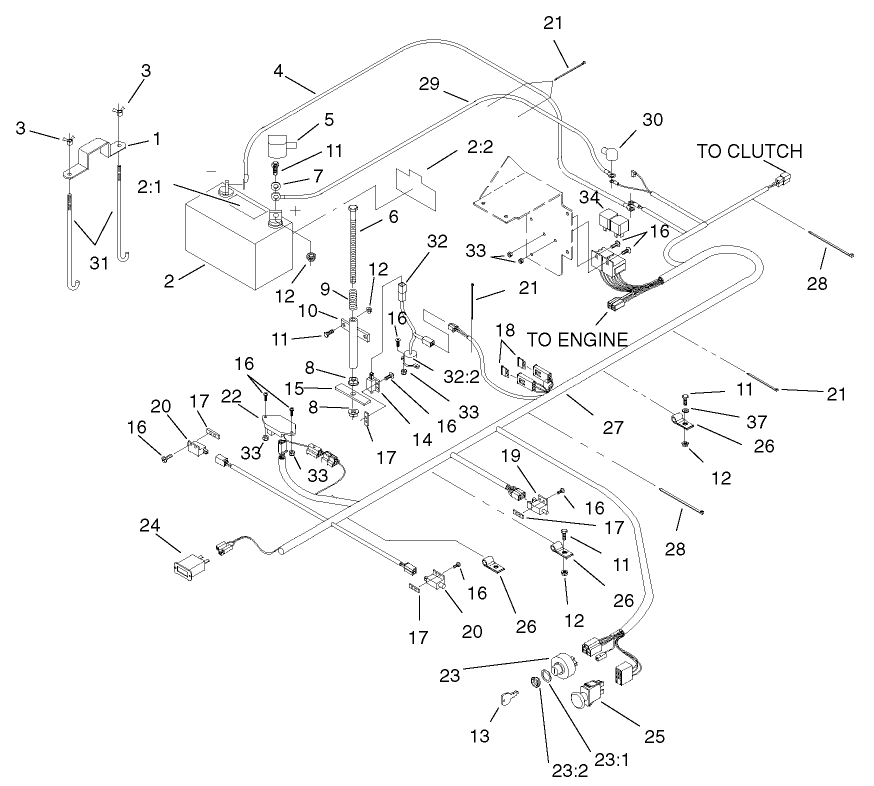

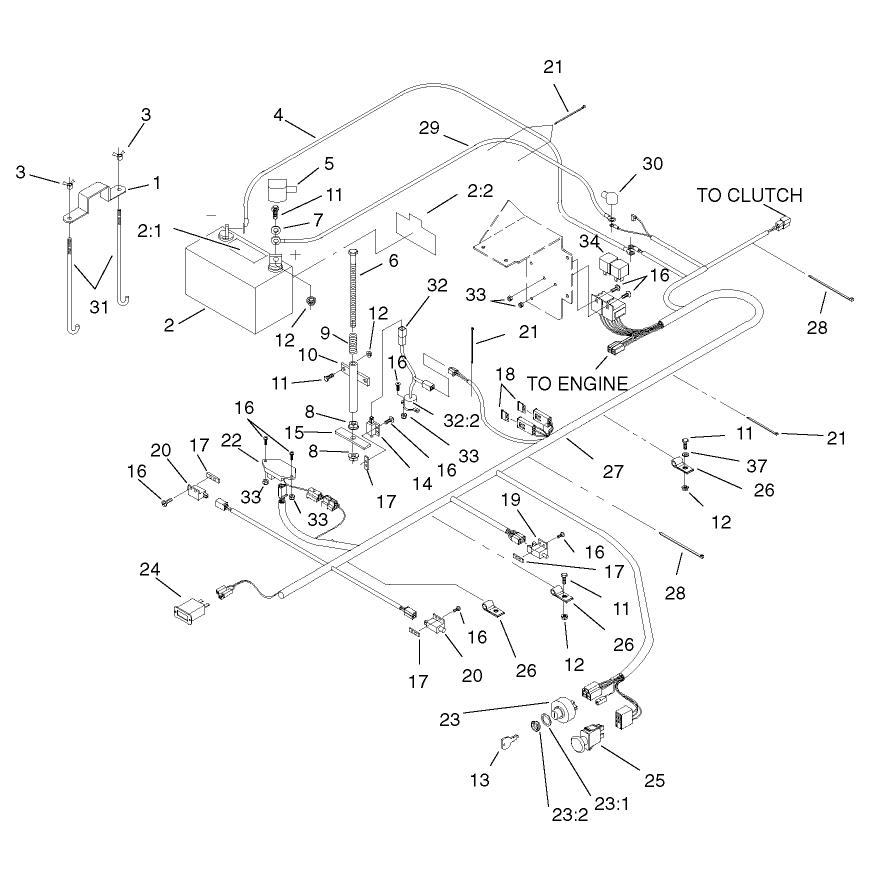

Electrical System Assembly
Electrical System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

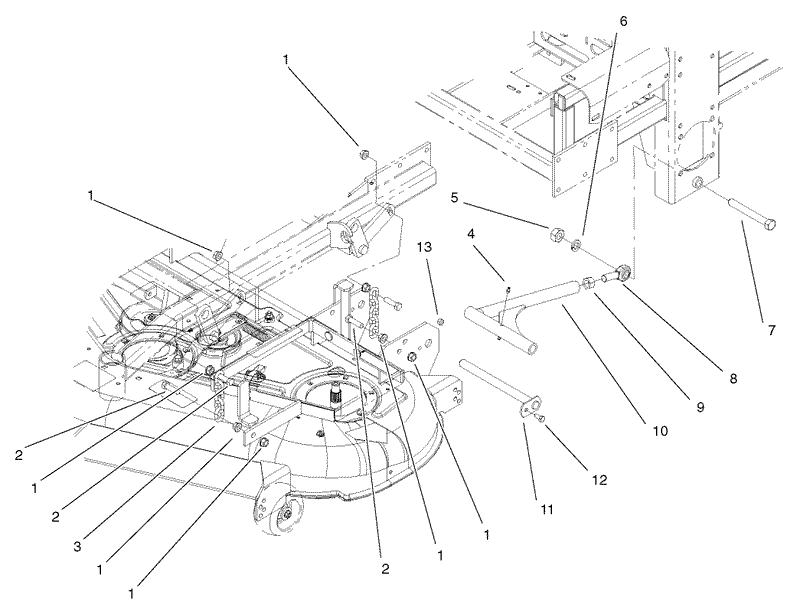

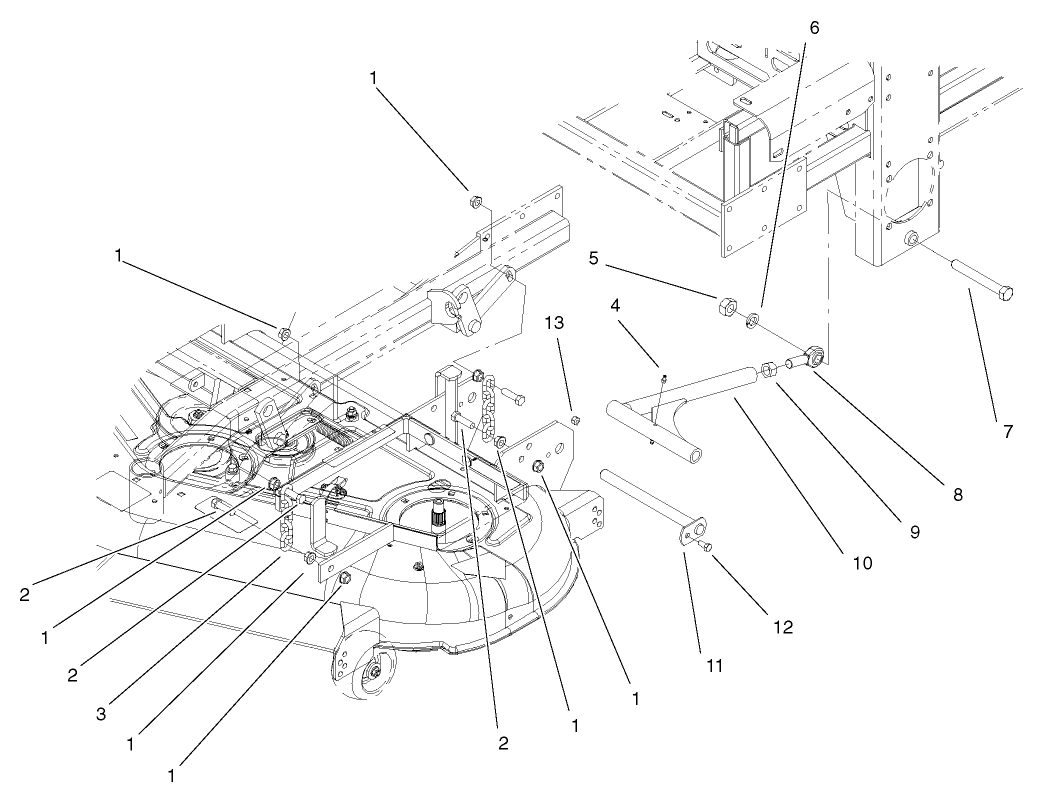

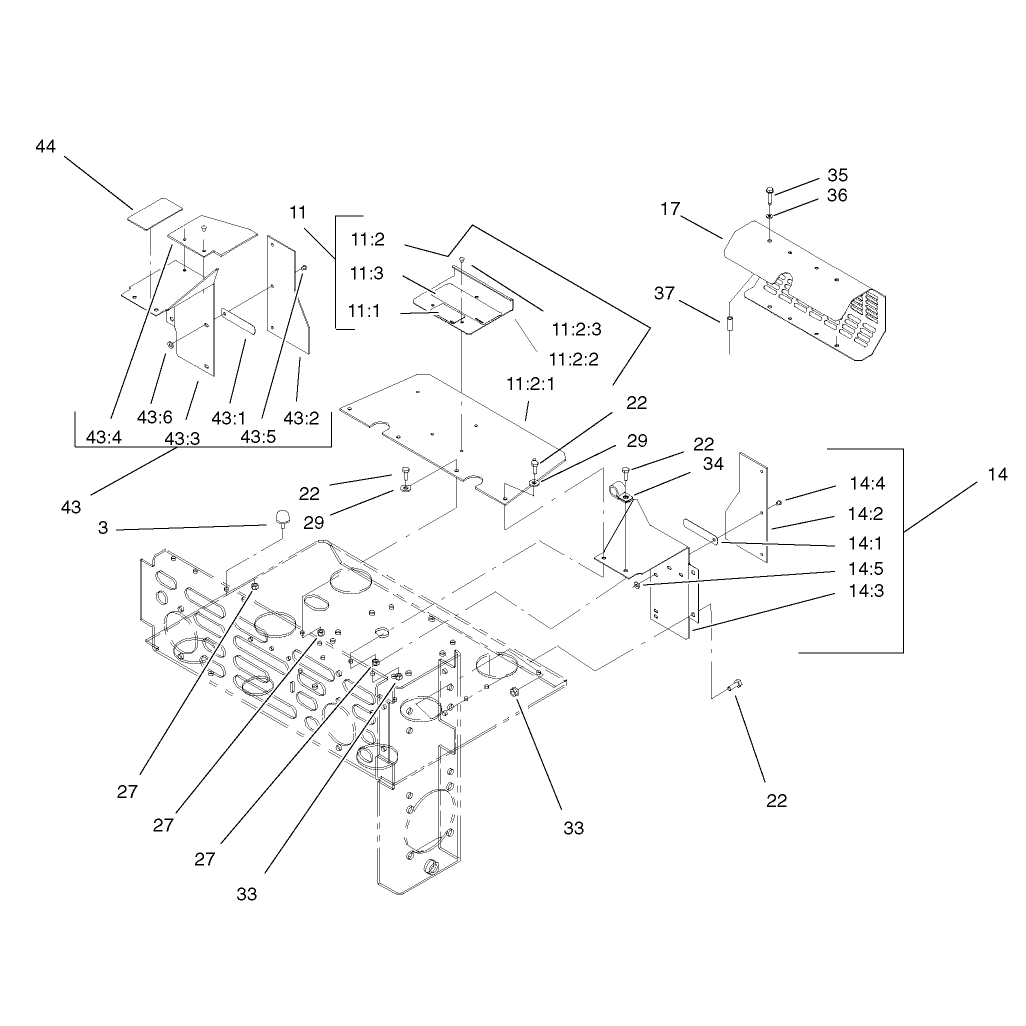

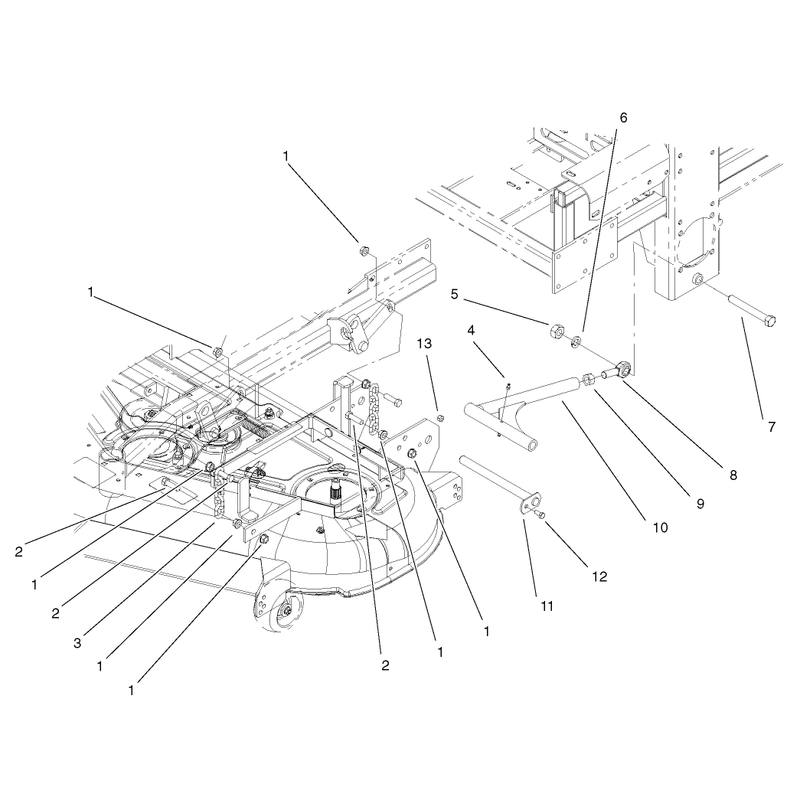

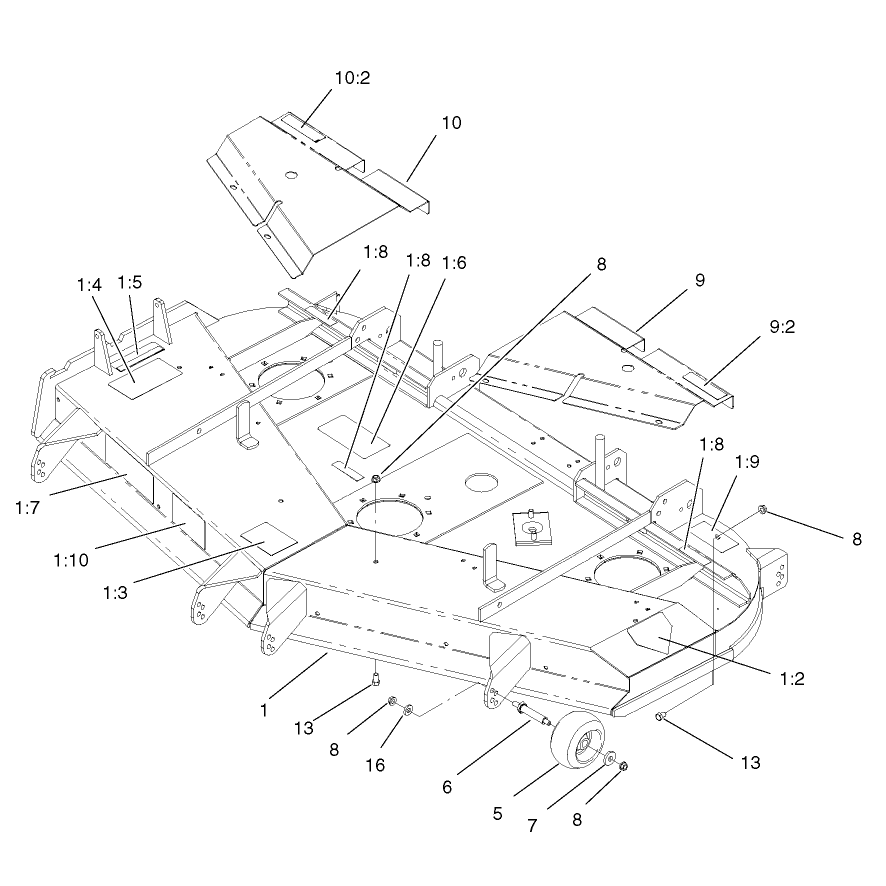

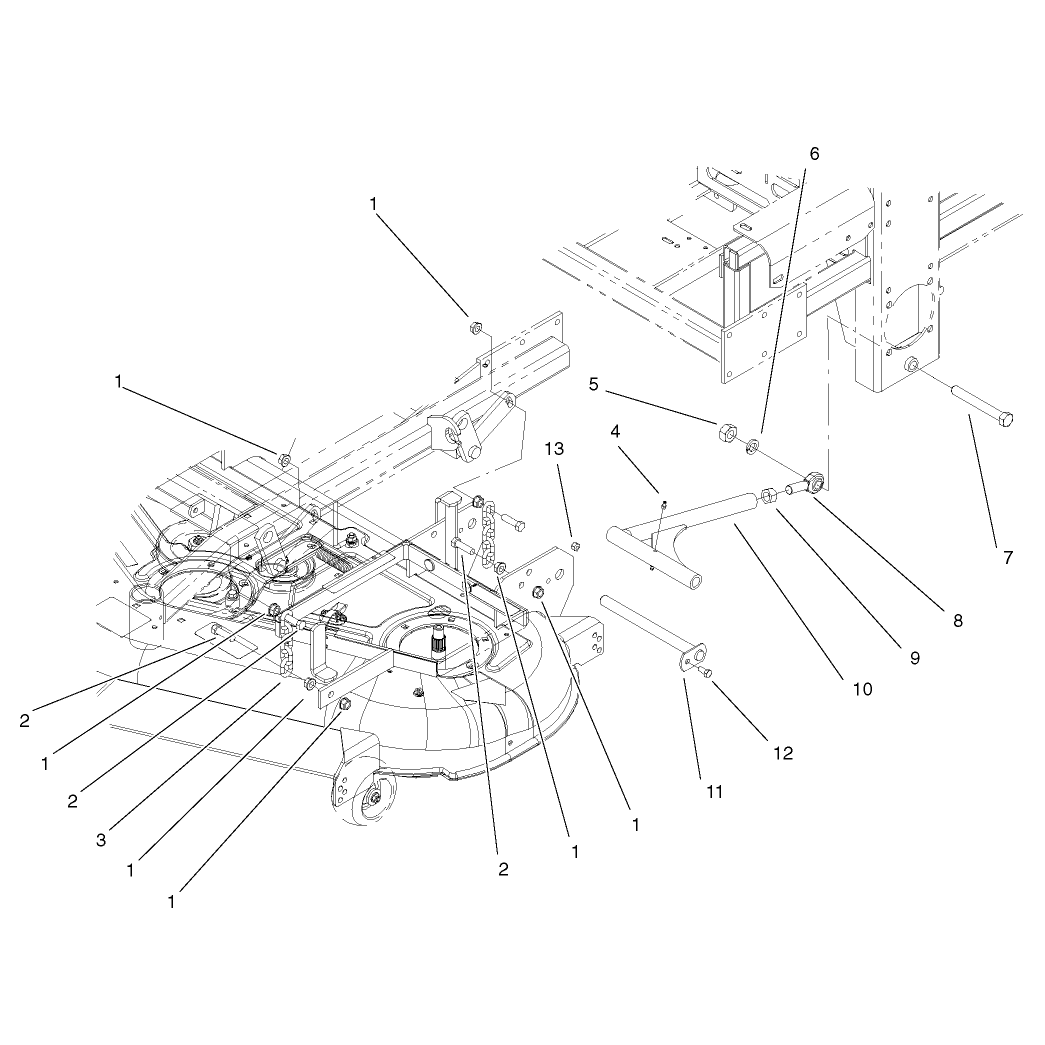

Frame and Deck Assembly
Frame and Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

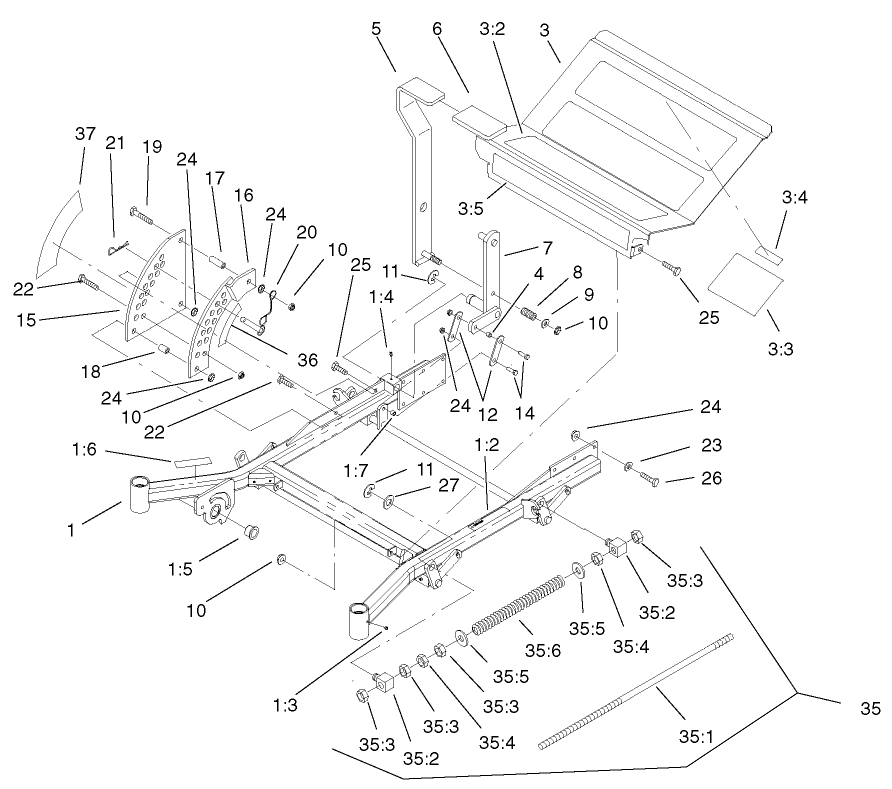

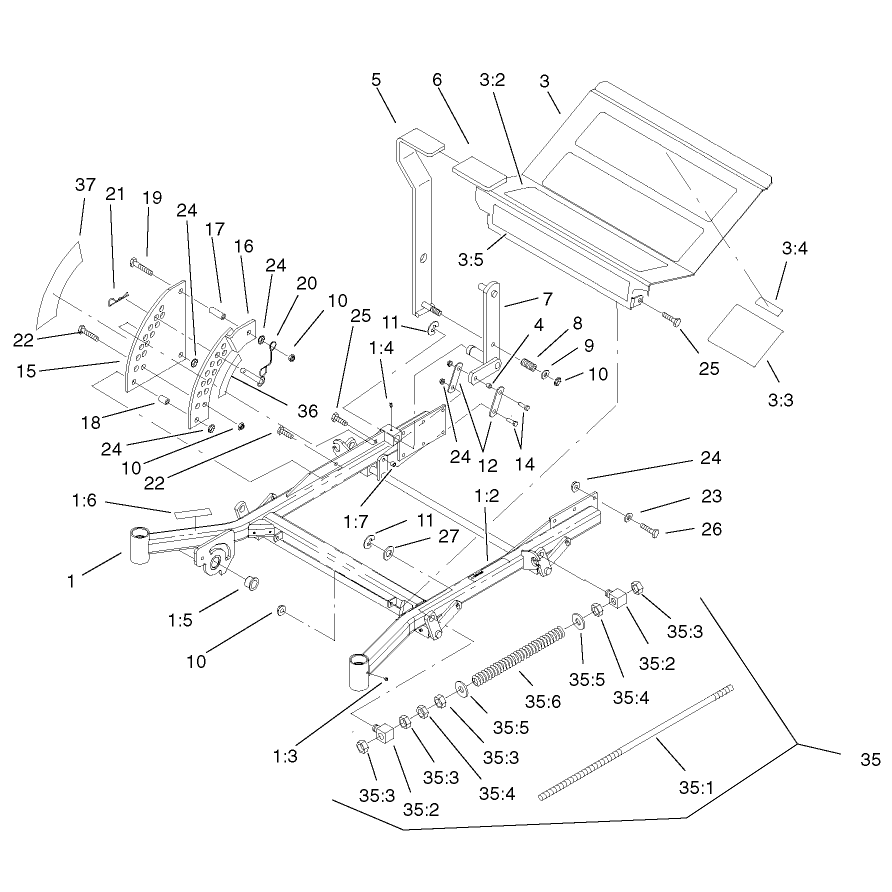

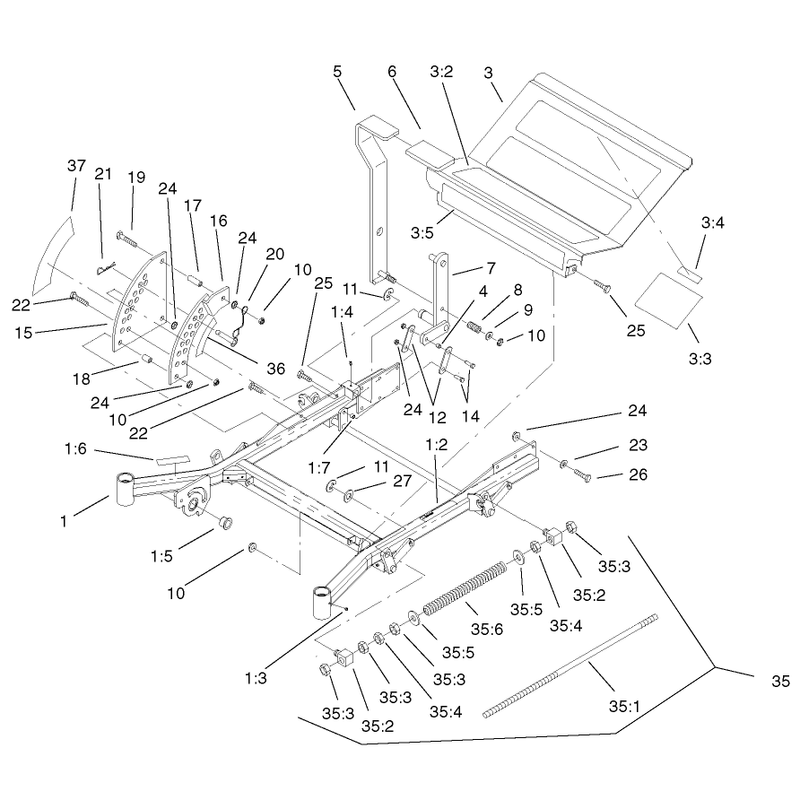

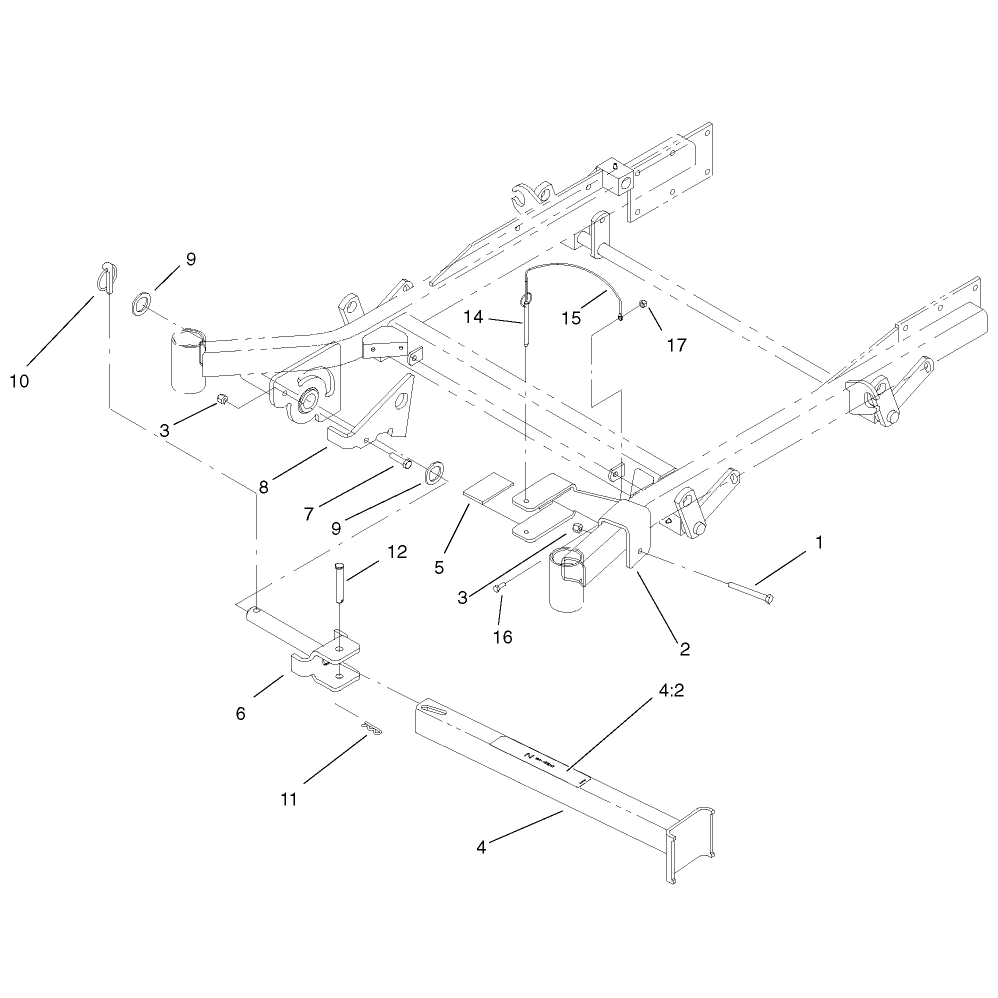

Front Frame Assembly
Front Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

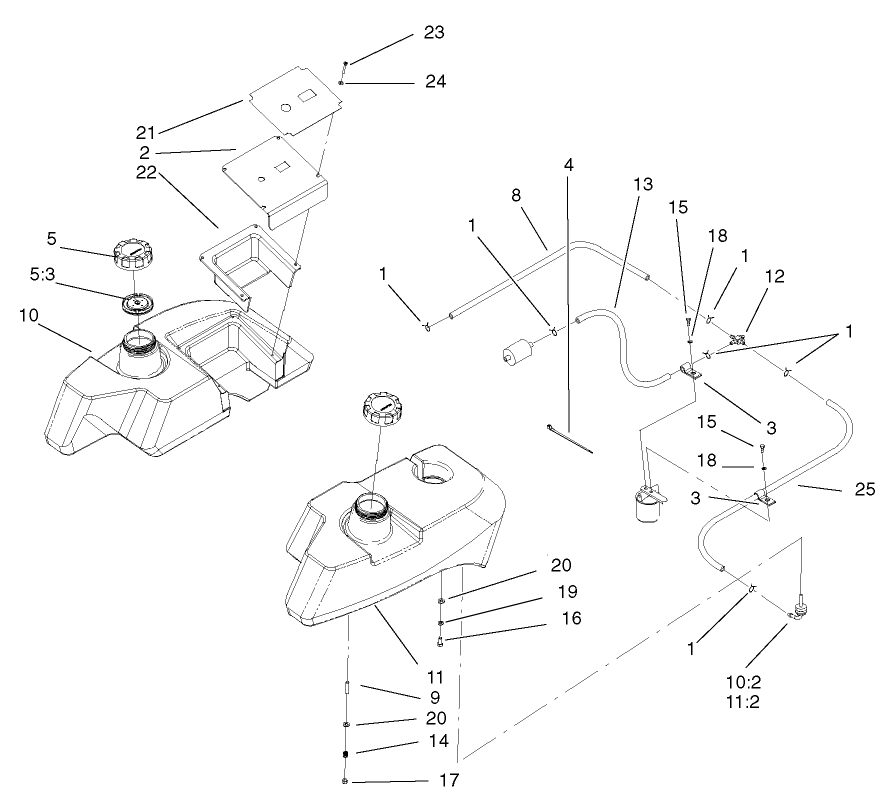

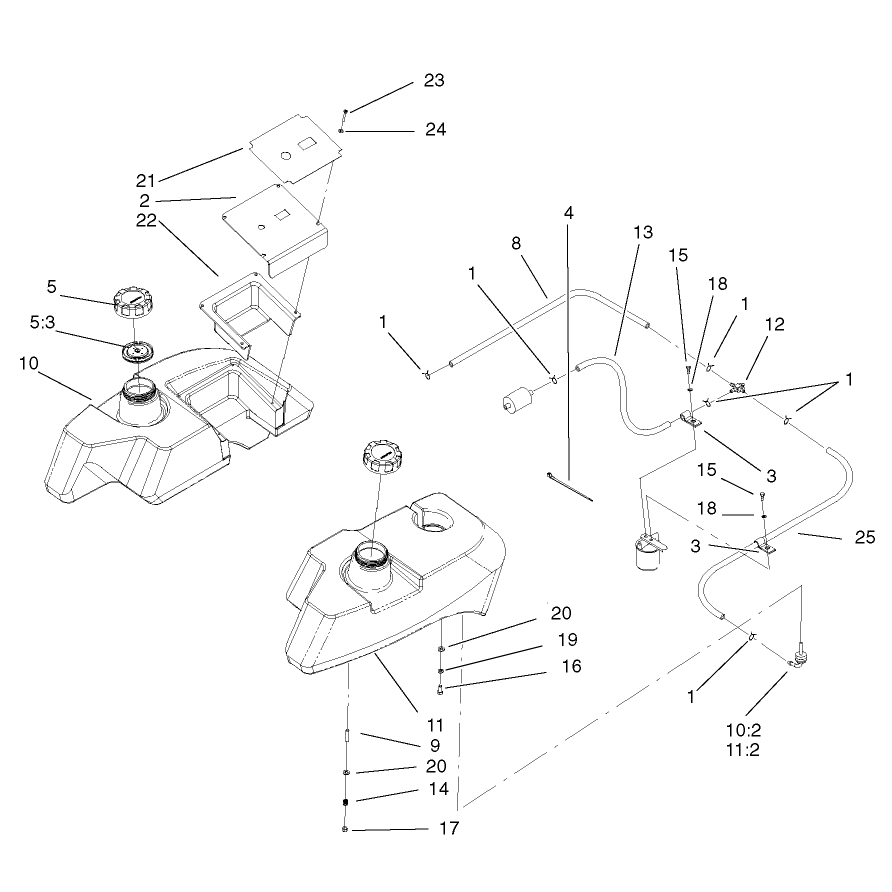

Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

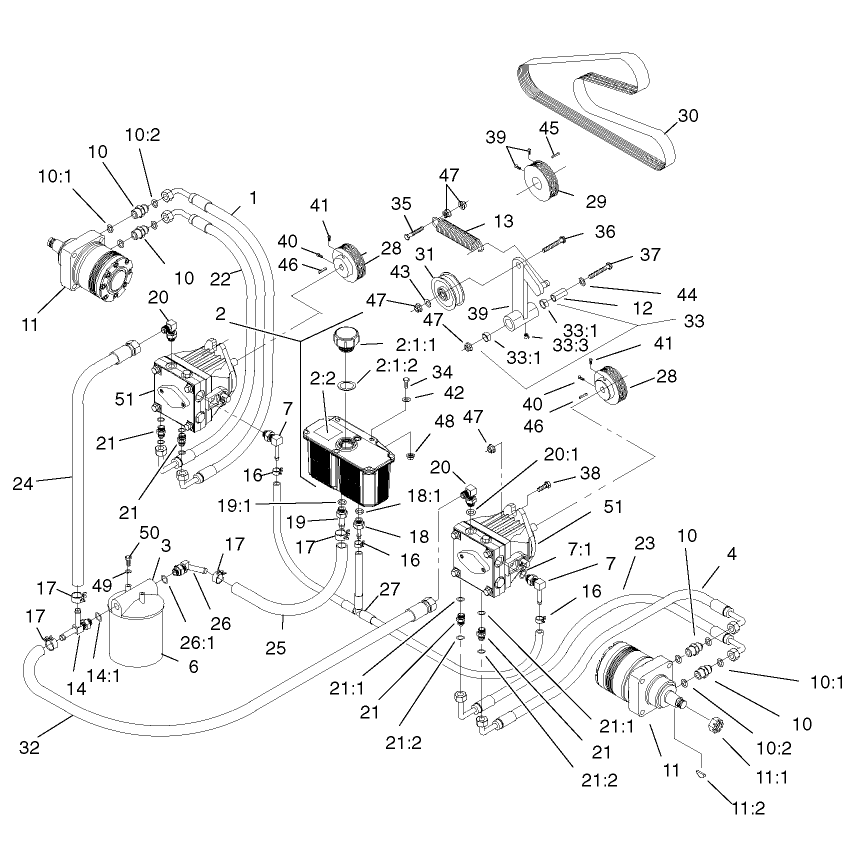

Hydraulic System Assembly
Hydraulic System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

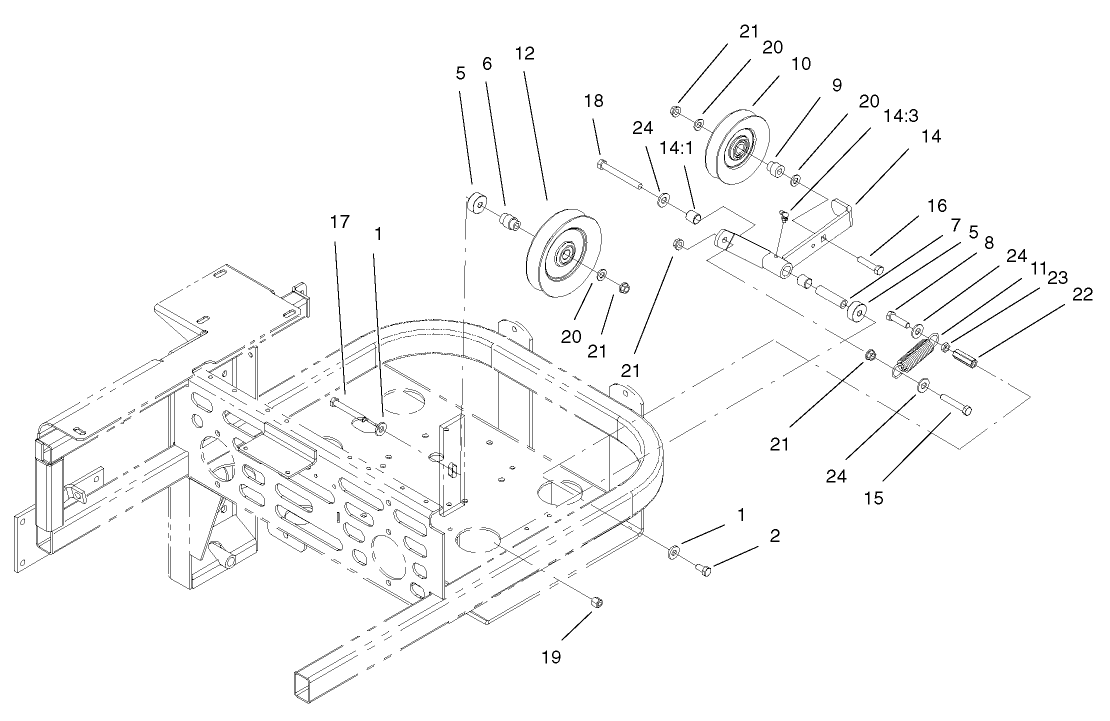

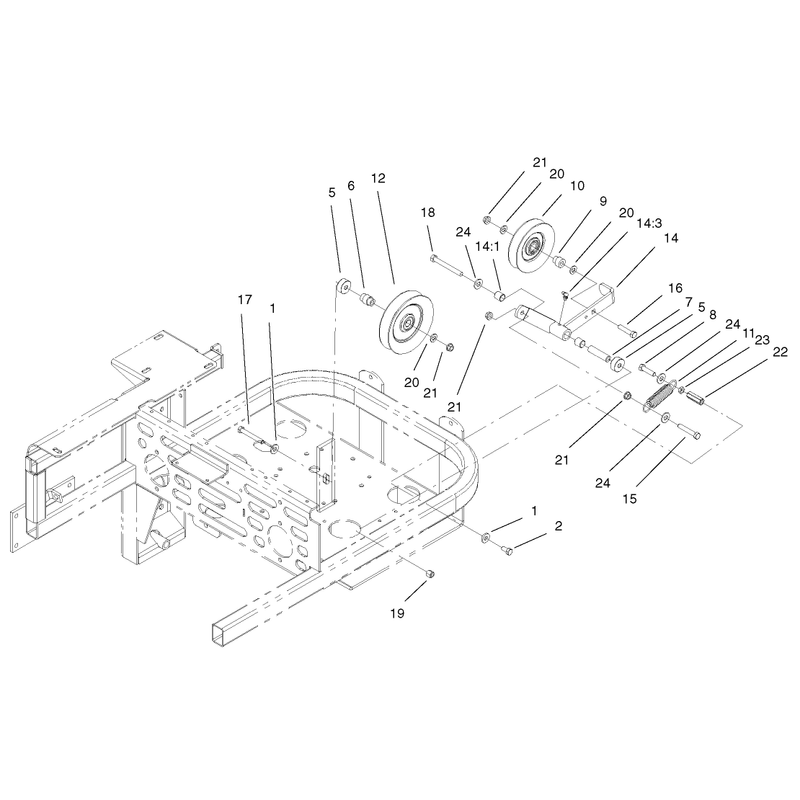

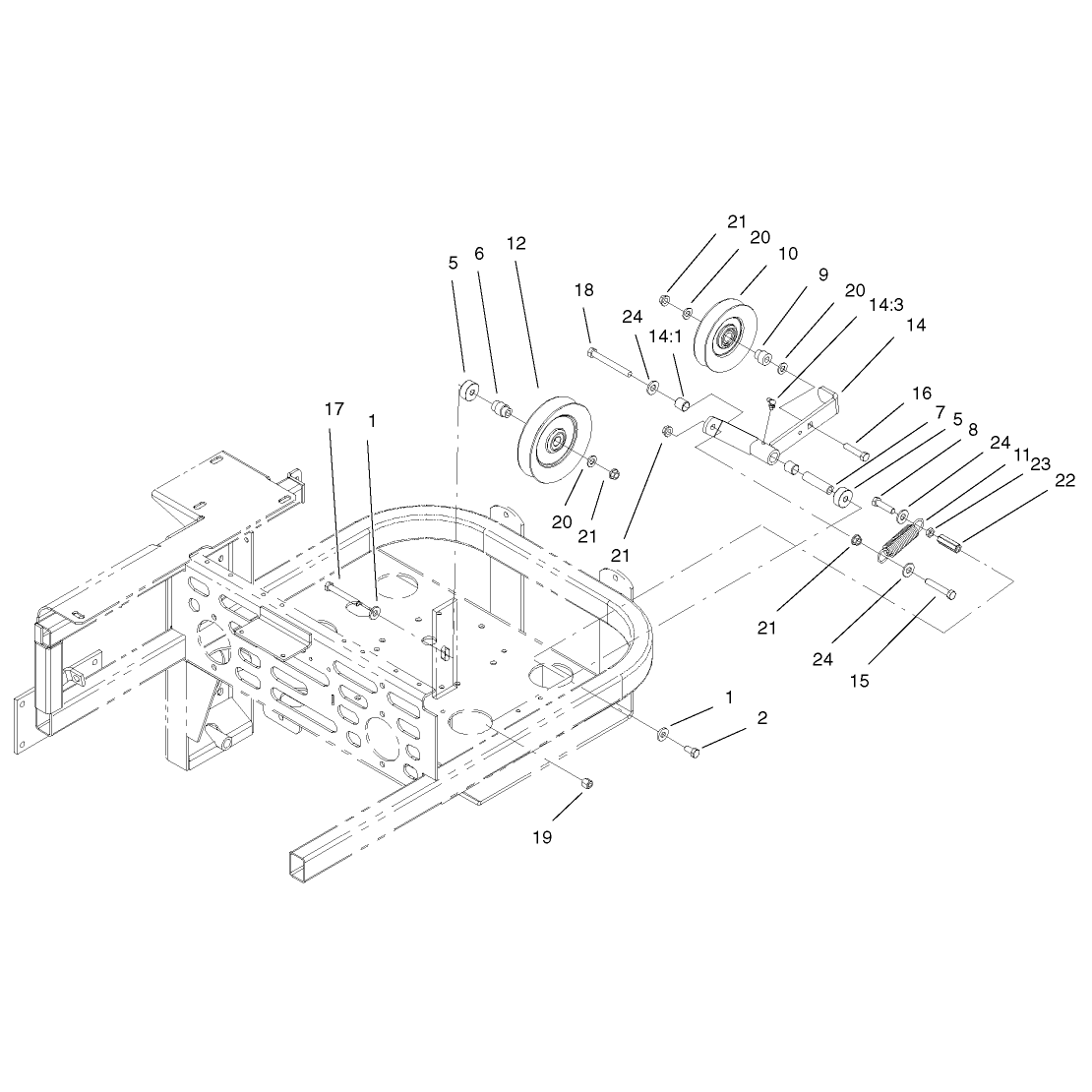

Idler Assembly
Idler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

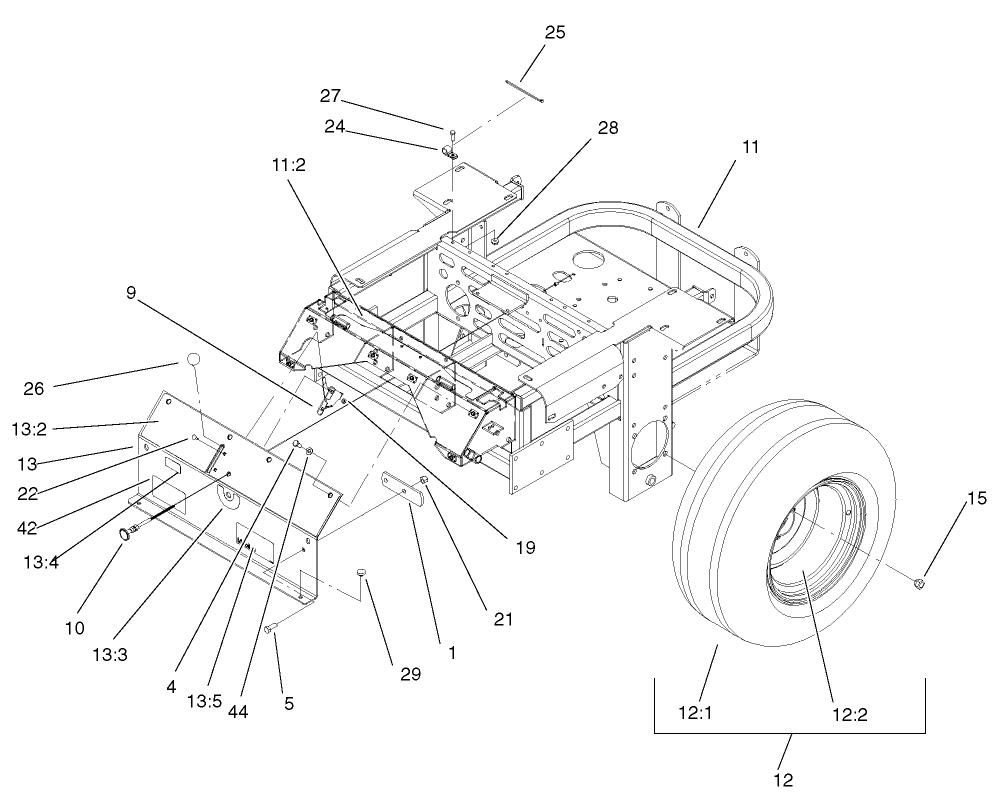

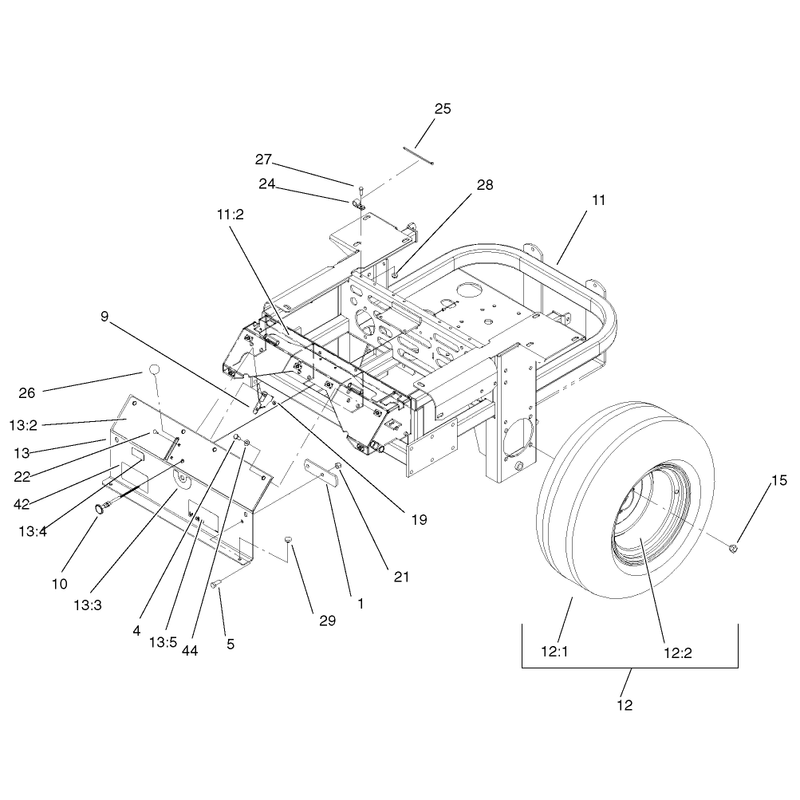

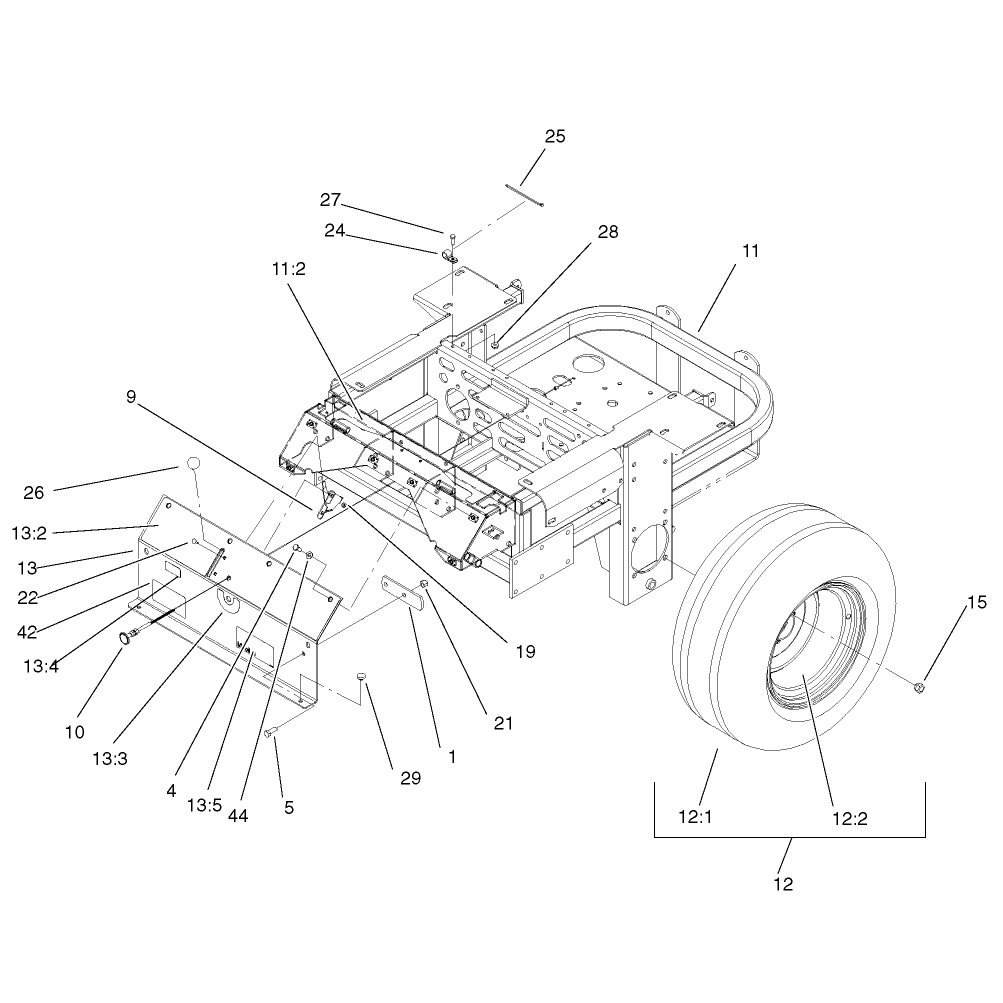

Rear Frame and Wheel Assembly
Rear Frame and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

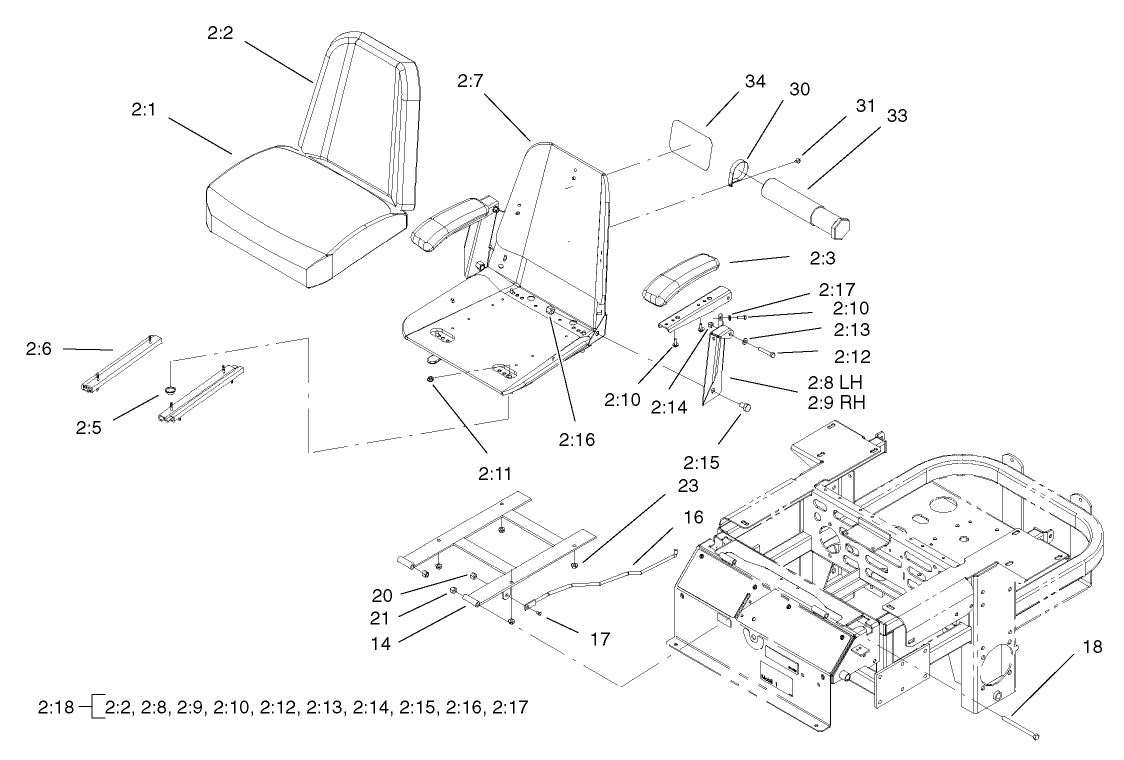

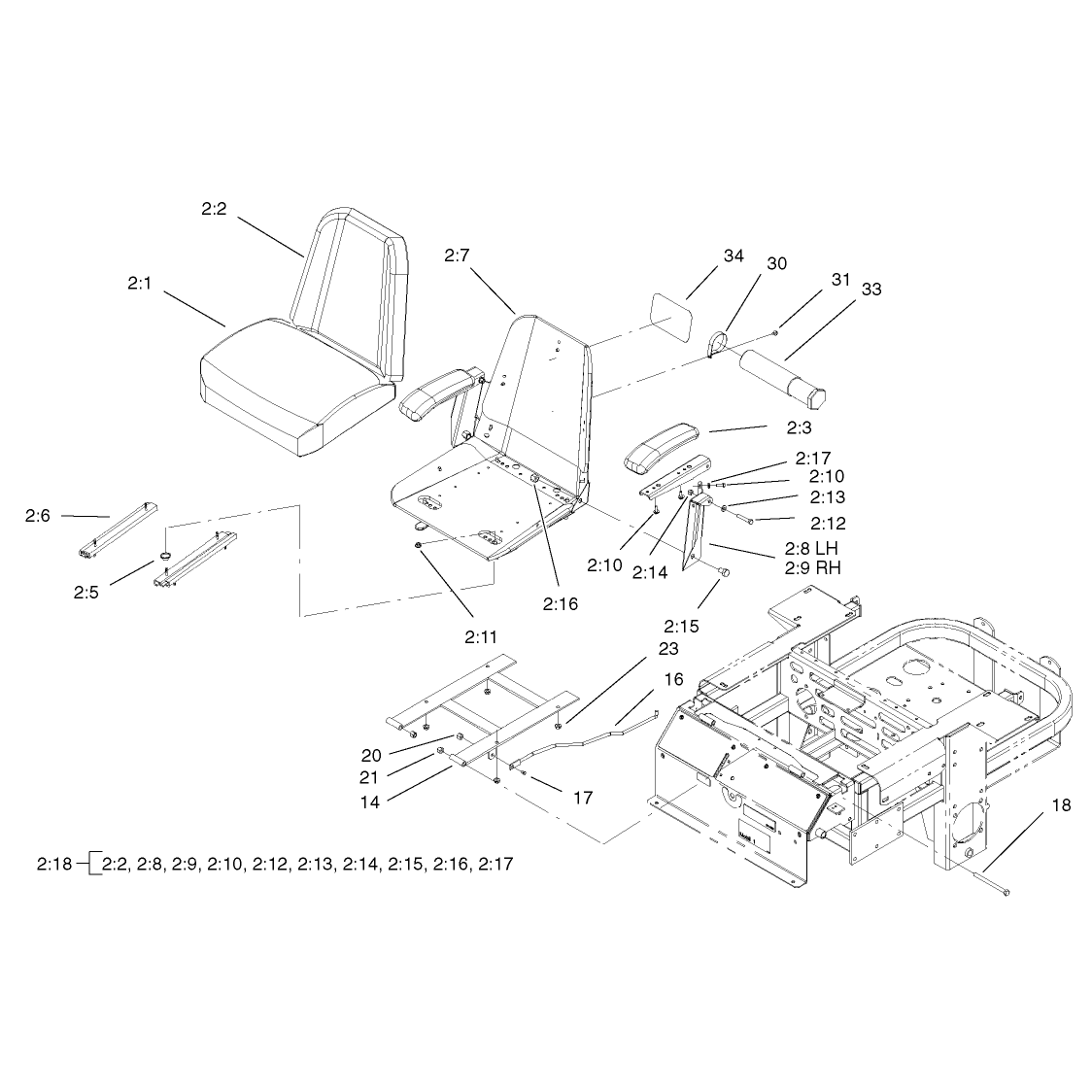

Seat Assembly
Seat Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

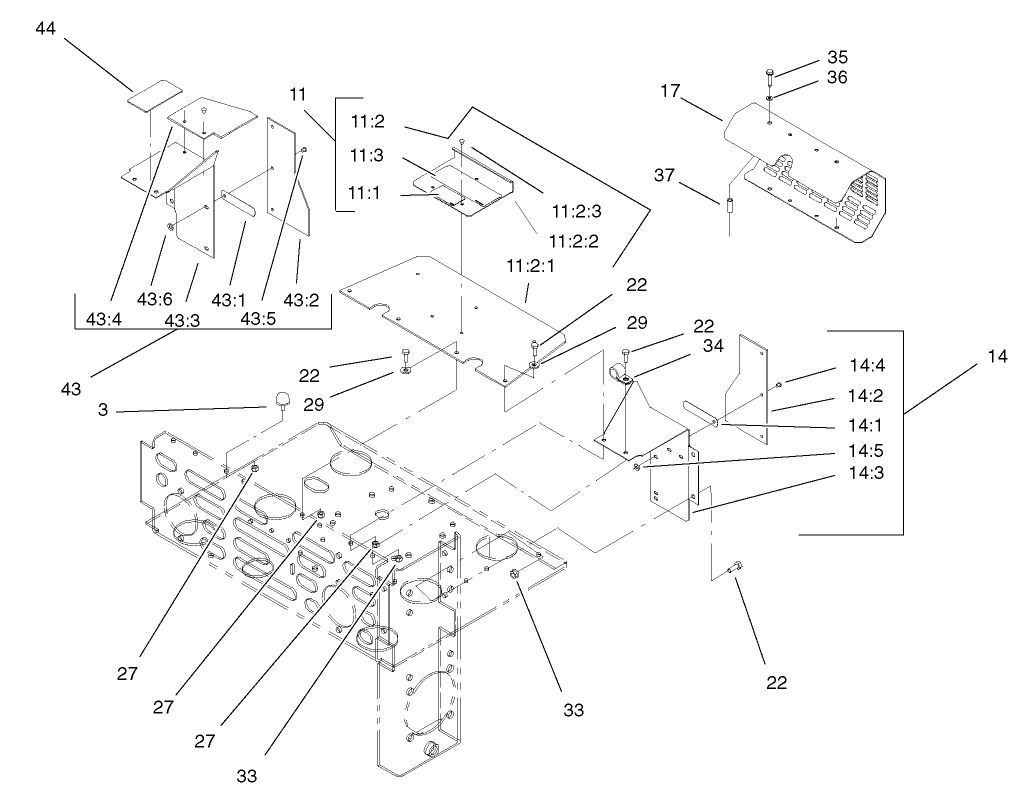

Shield Assembly
Shield Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

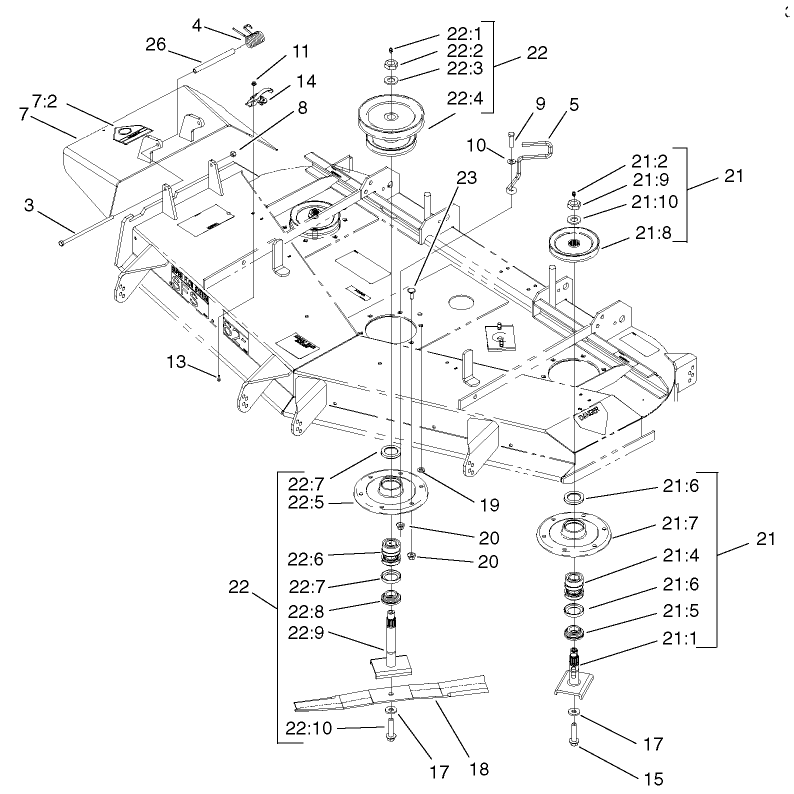

Spindle and Pulley Assembly
Spindle and Pulley Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

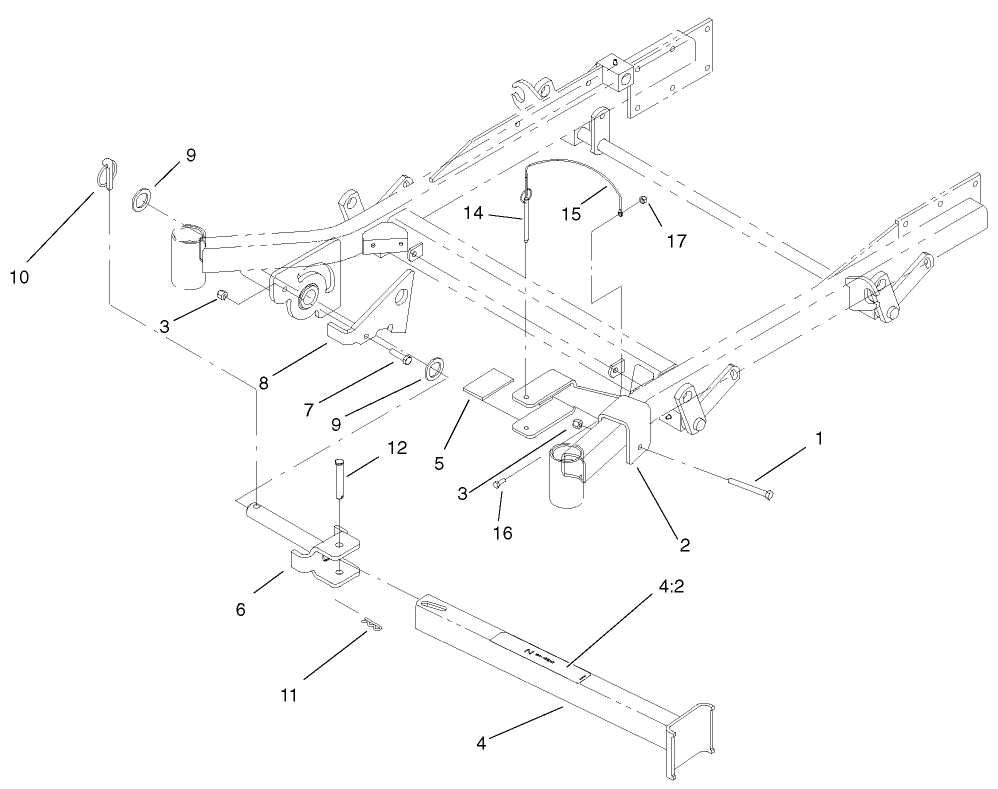

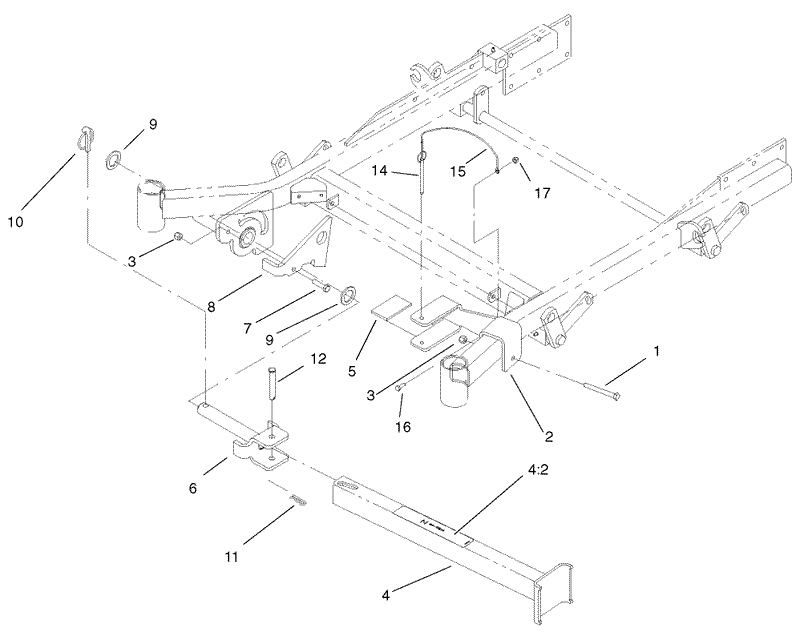

Stand Assembly
Stand Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

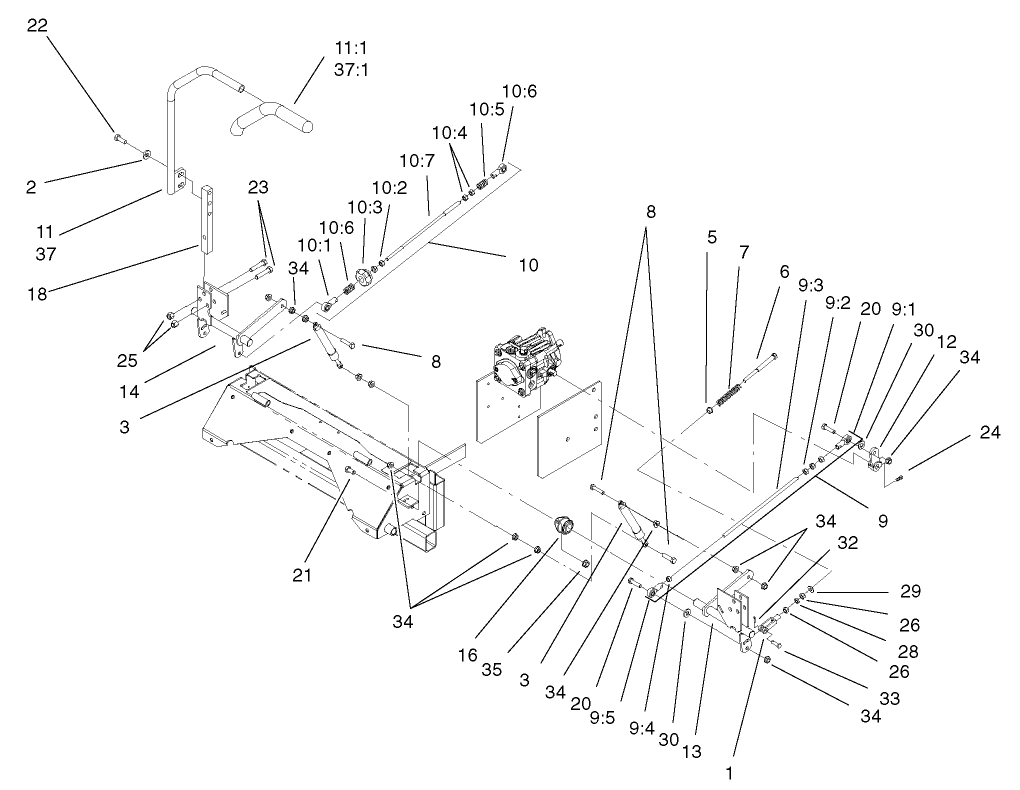

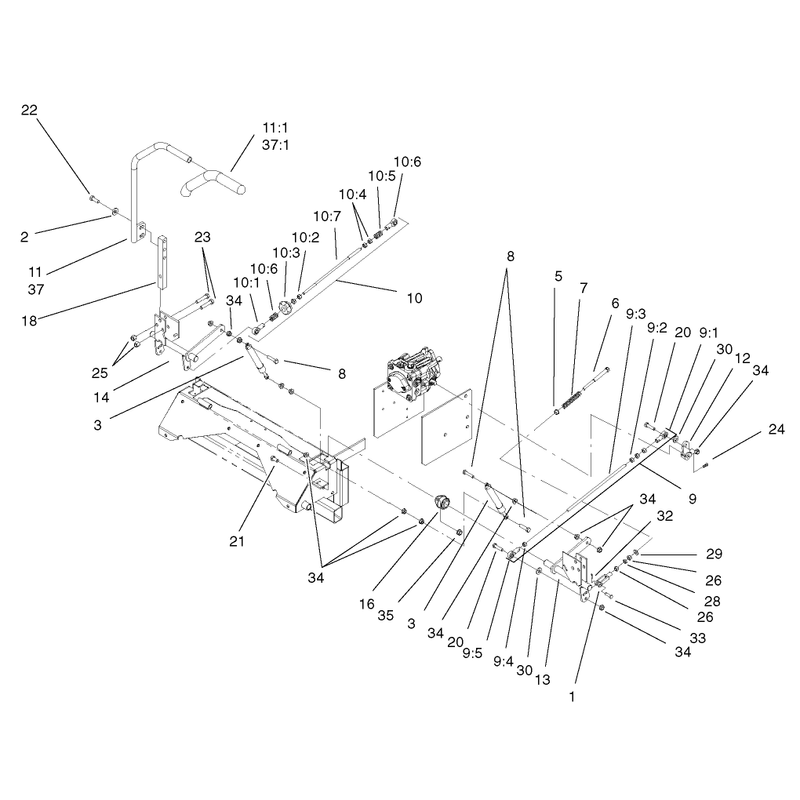

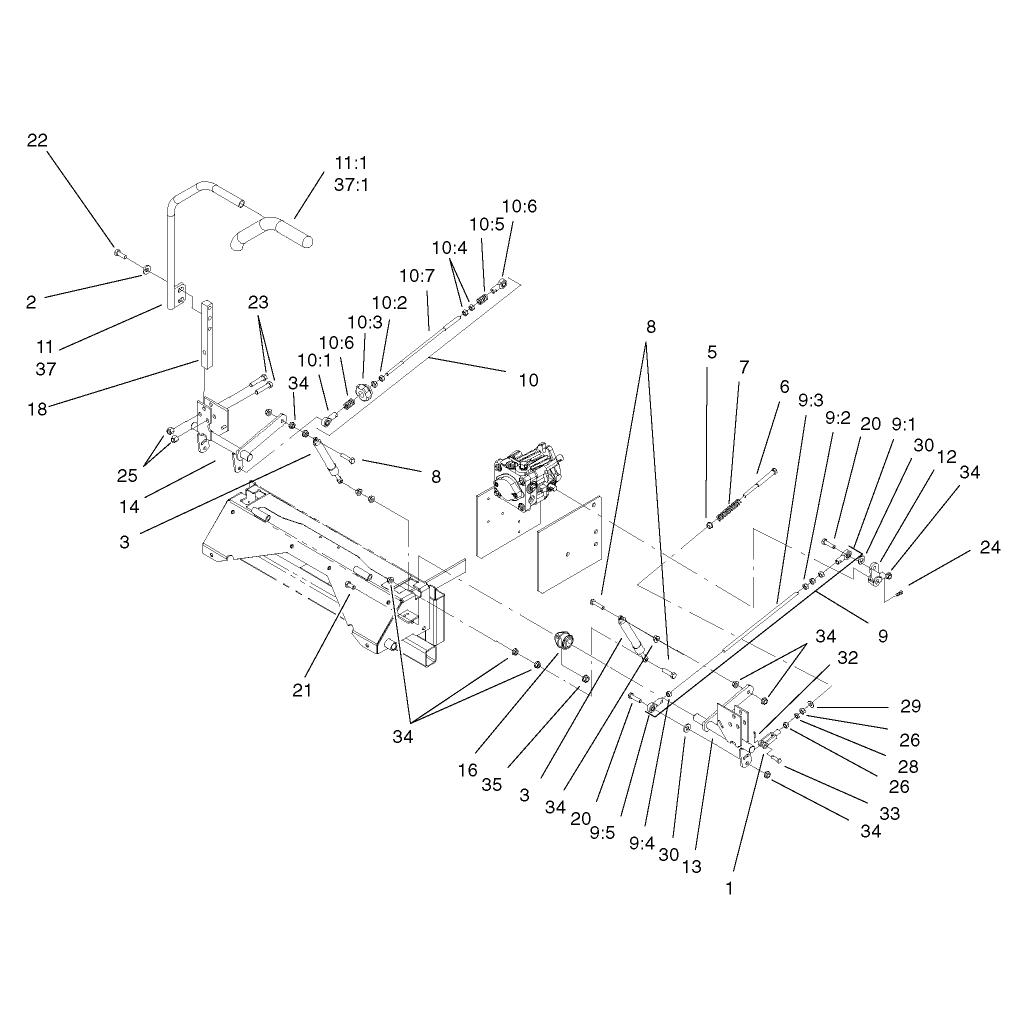

Steering Control Assembly
Steering Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
