Toro 74234 Z255 Z Master, With 62" SFS Side Discharge Mower (Serial #: 230006001 - 230999999) Parts Diagram
Diagrams:
Diagram:

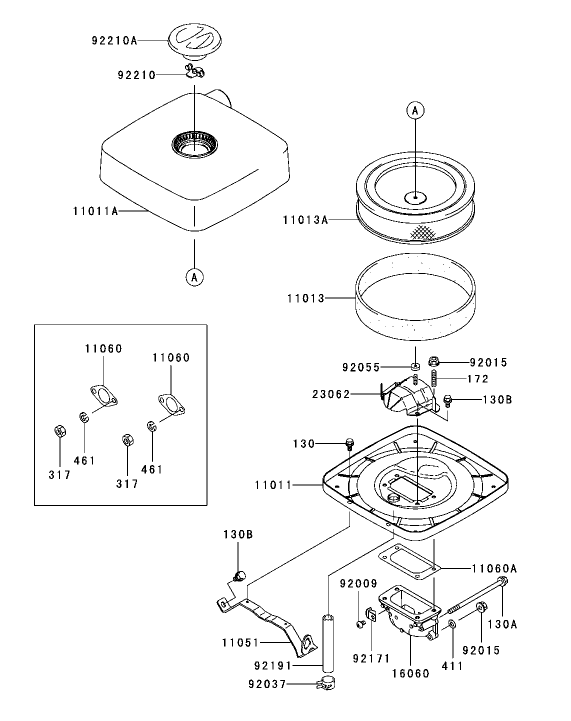

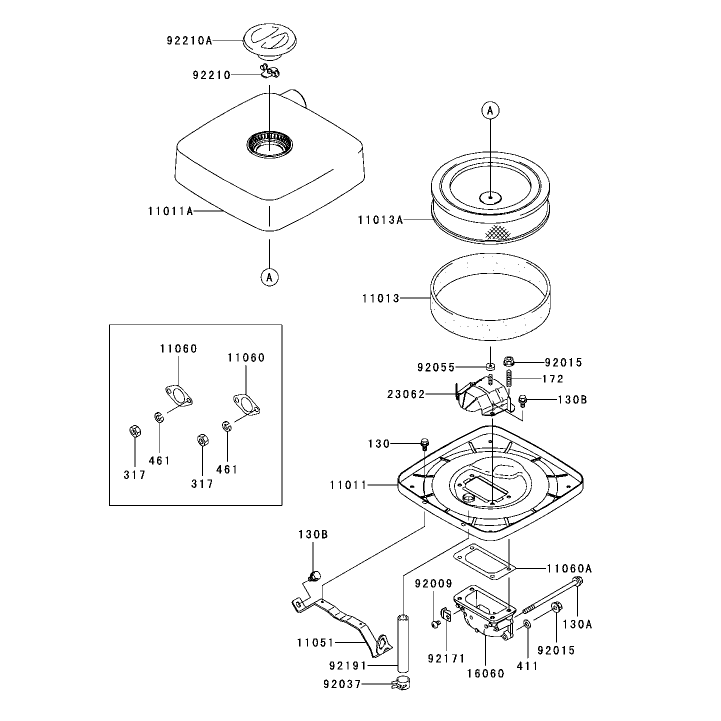

Air FilterMuffler Assembly Kawasaki FH721D AS05
Air FilterMuffler Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

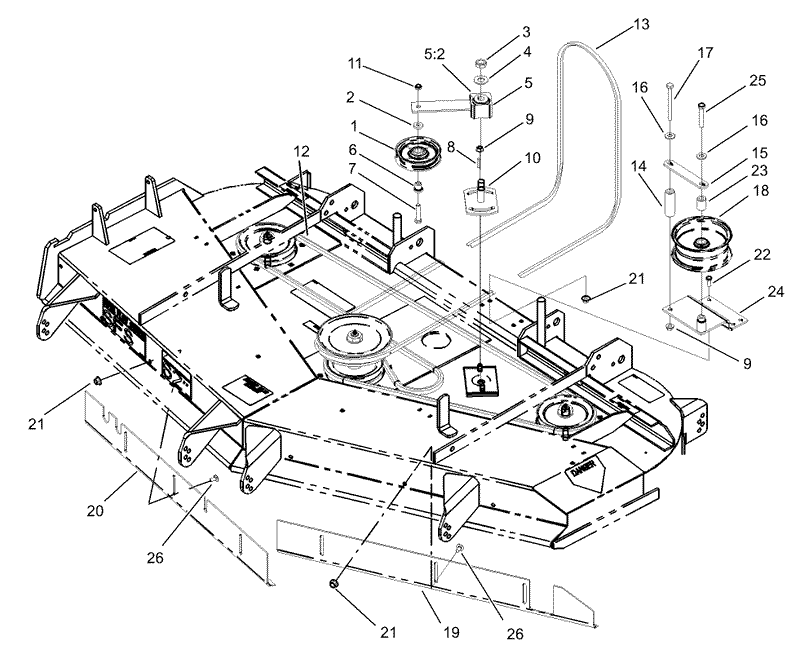

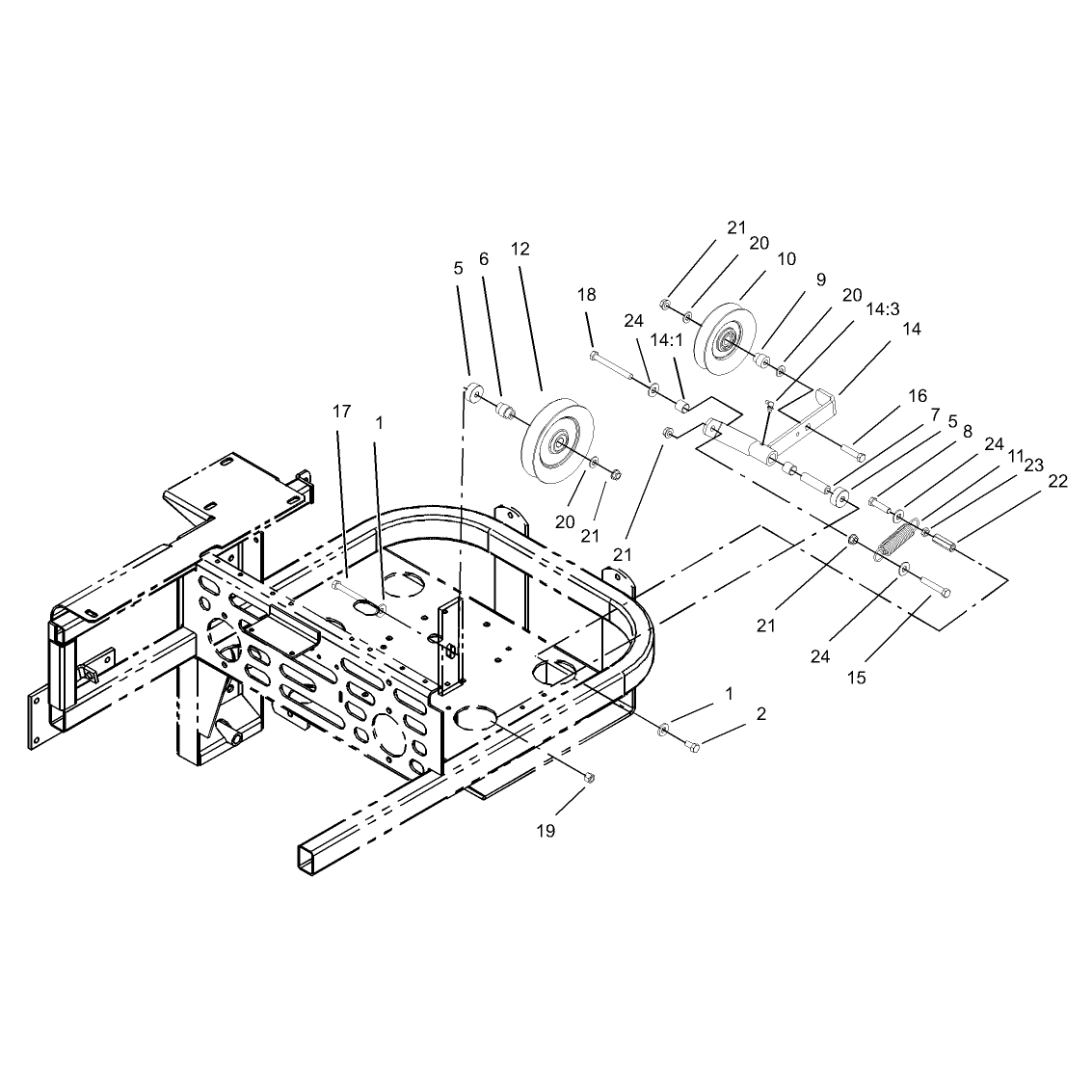

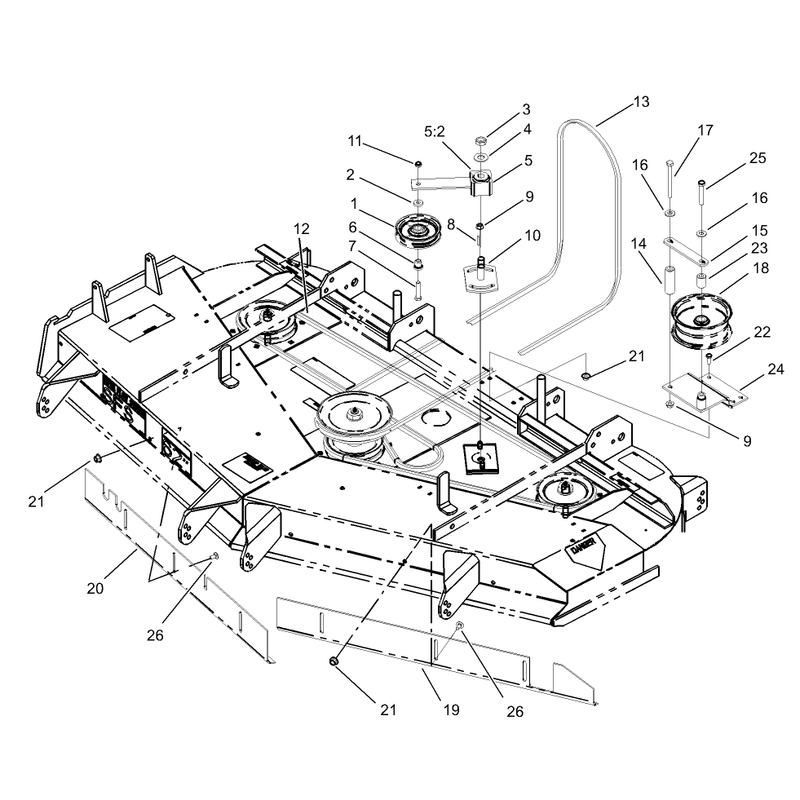

Belt and Idler Arm Assembly
Belt and Idler Arm Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

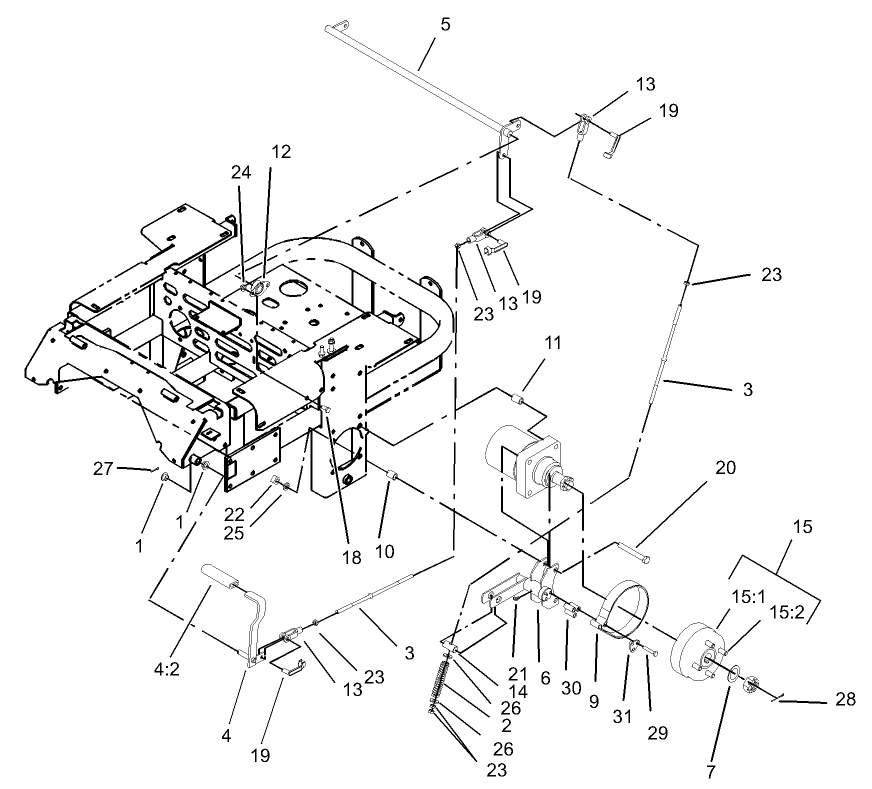

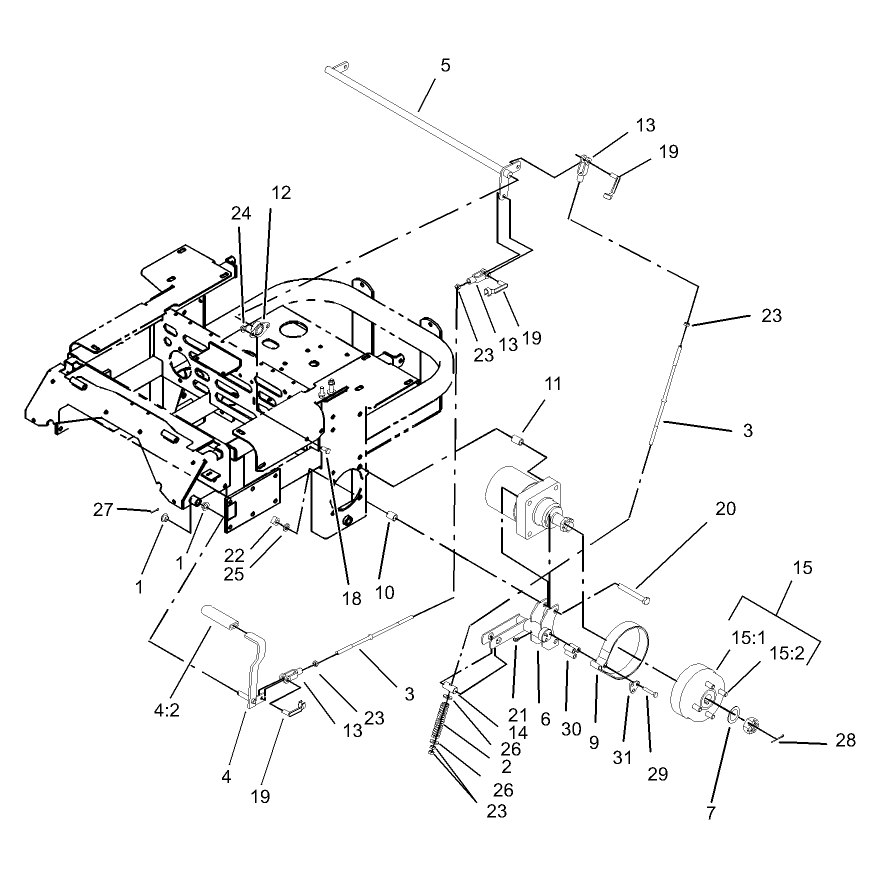

Brake and Wheel Hub Assembly
Brake and Wheel Hub Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

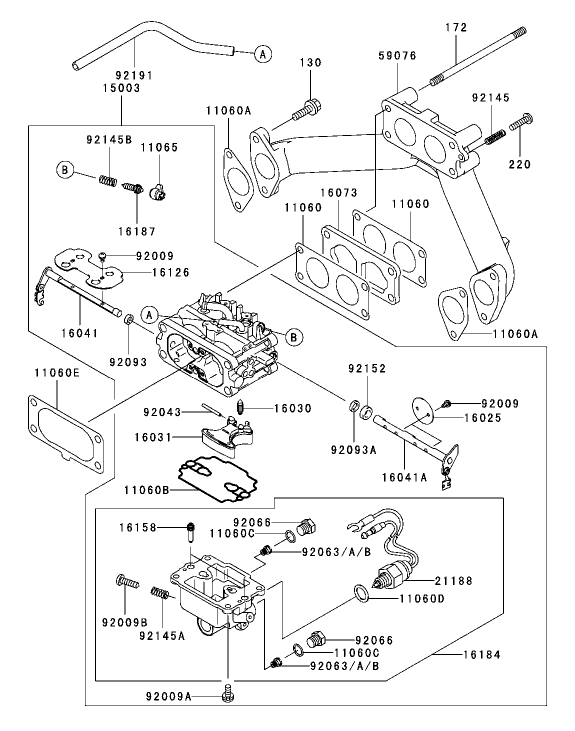

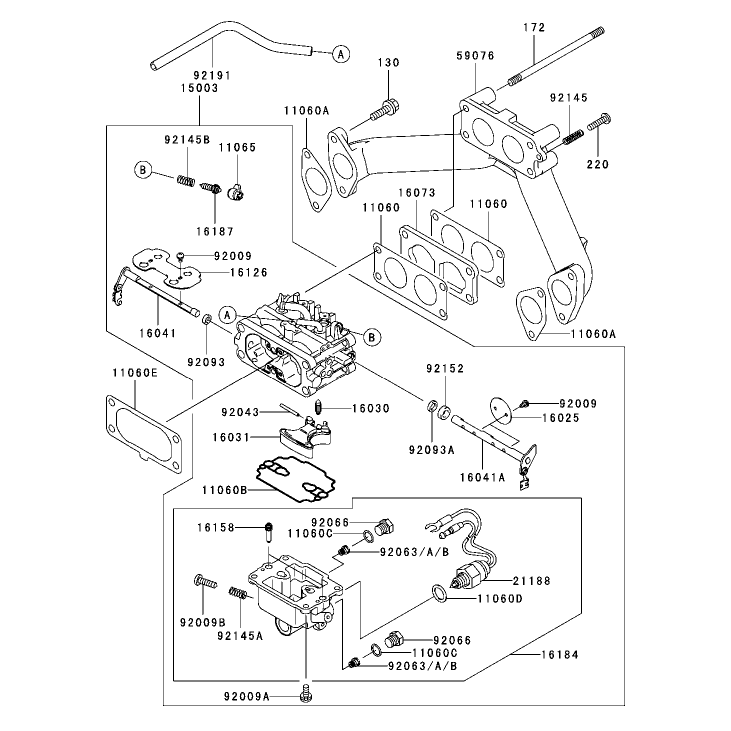

Carburetor Assembly Kawasaki FH721D AS05
Carburetor Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

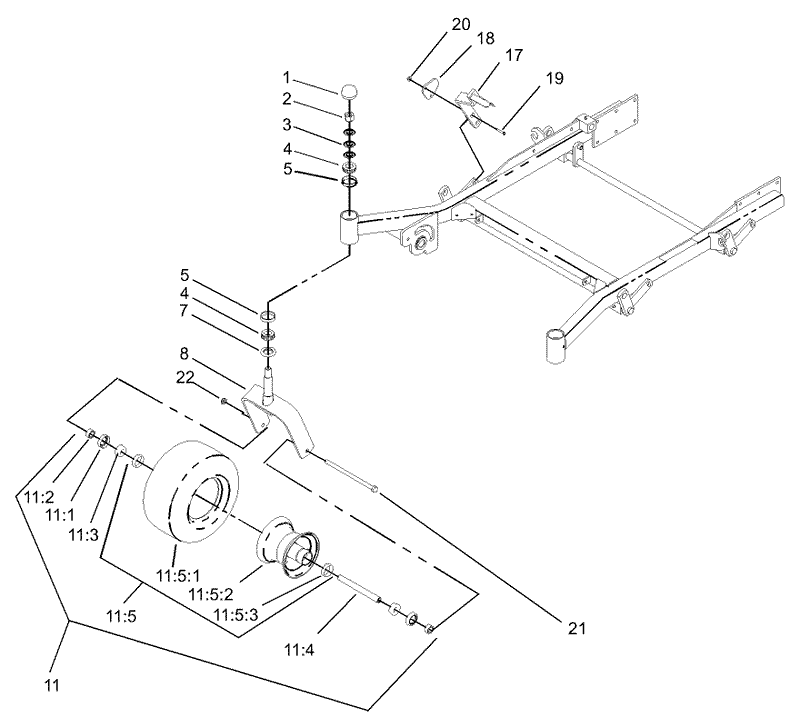

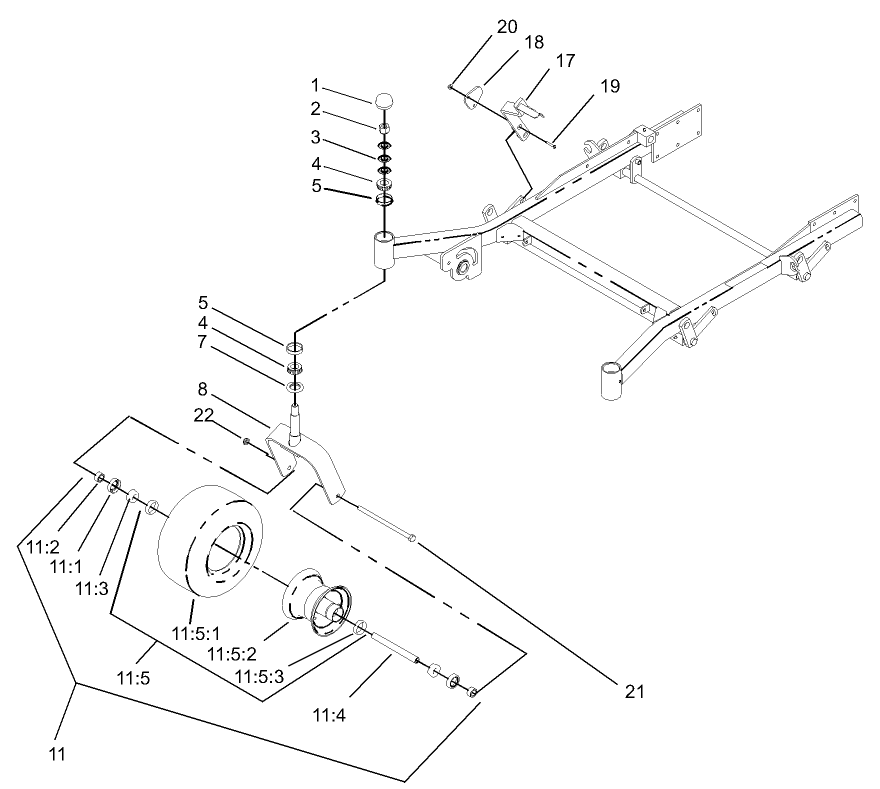

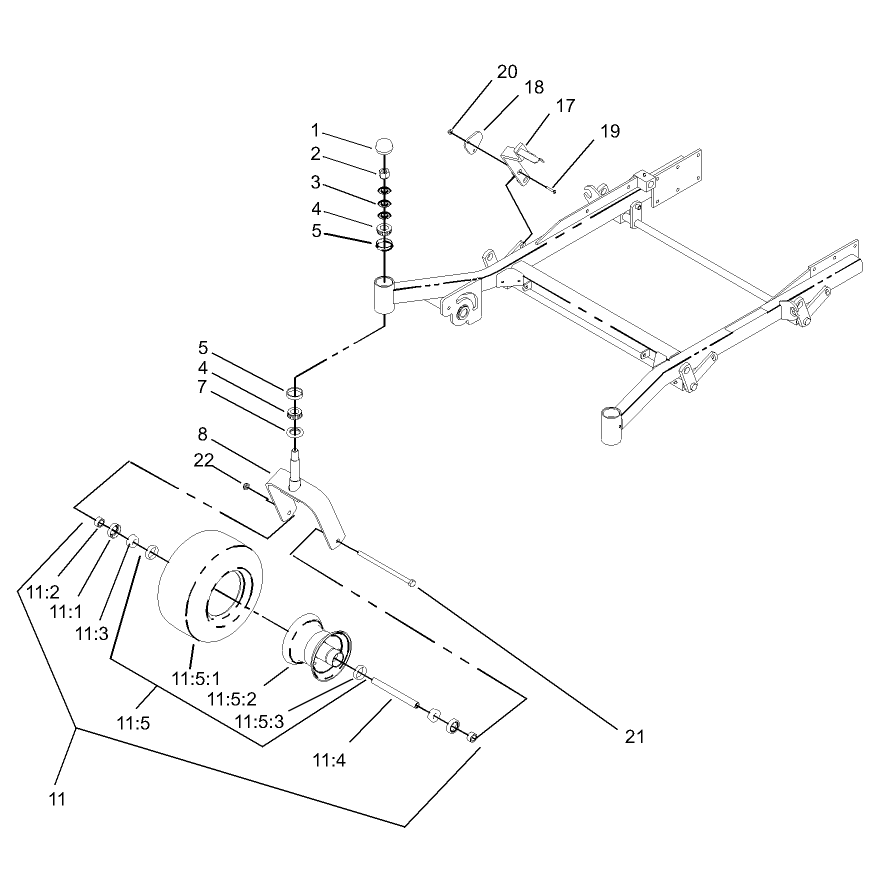

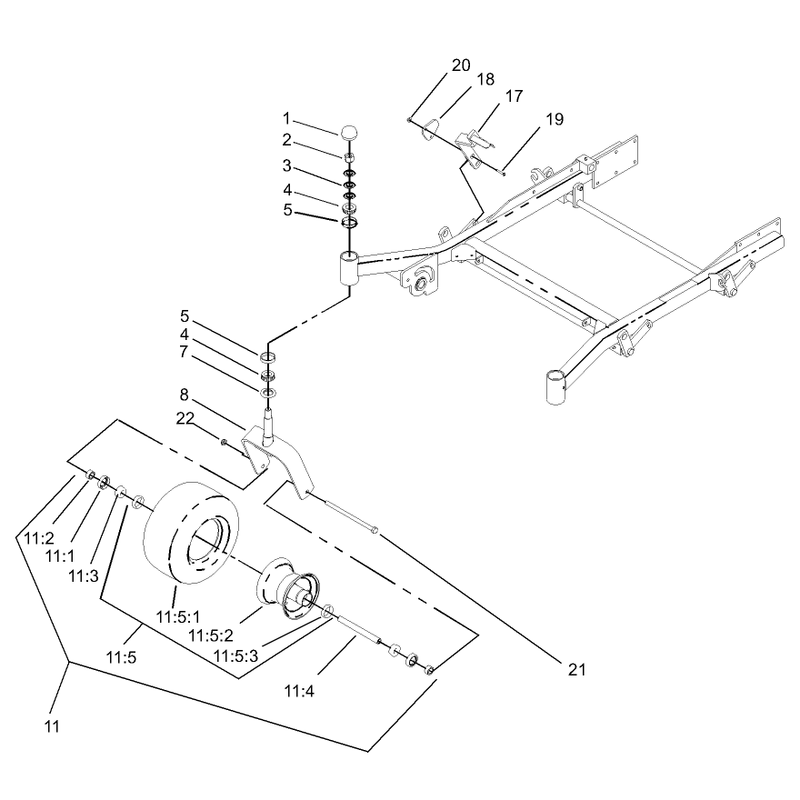

Caster and Wheel Assembly
Caster and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

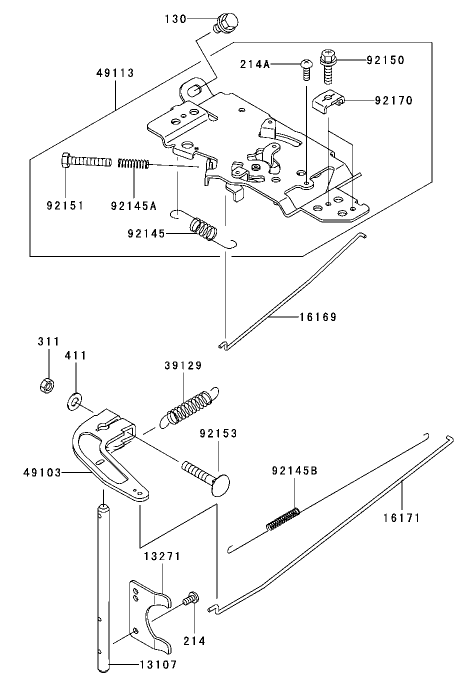

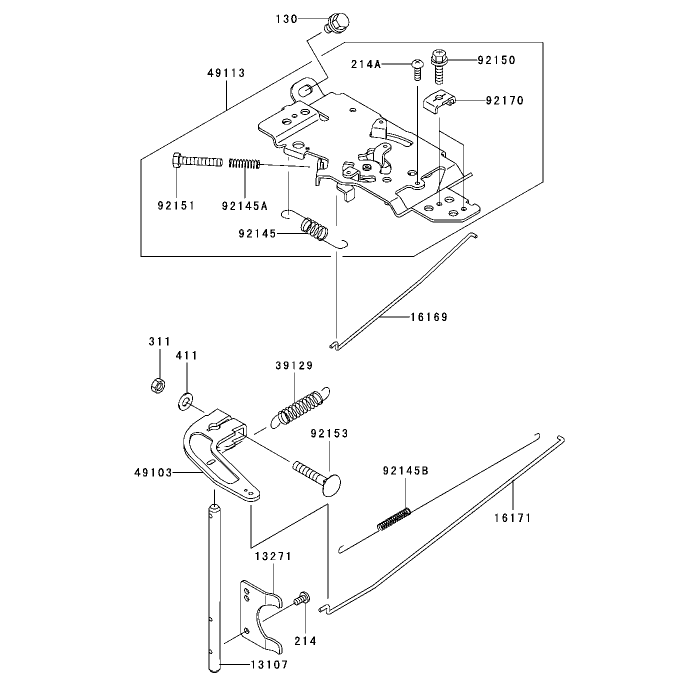

Control Equipment Assembly Kawasaki FH721D AS05
Control Equipment Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

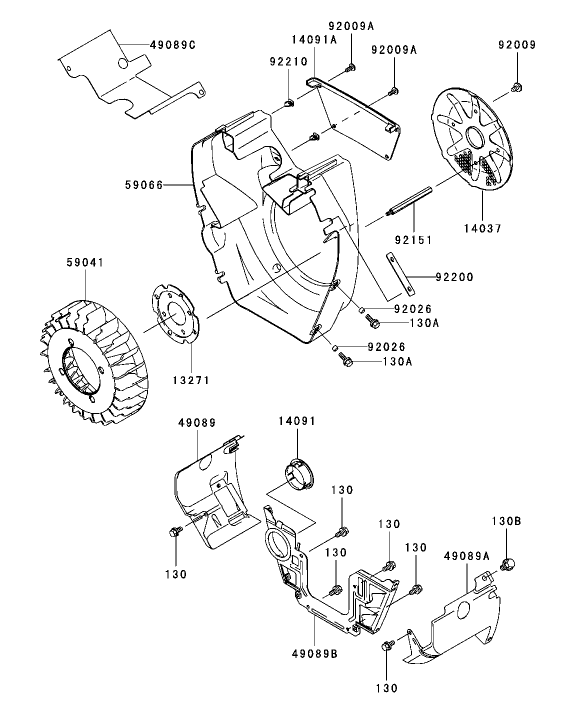

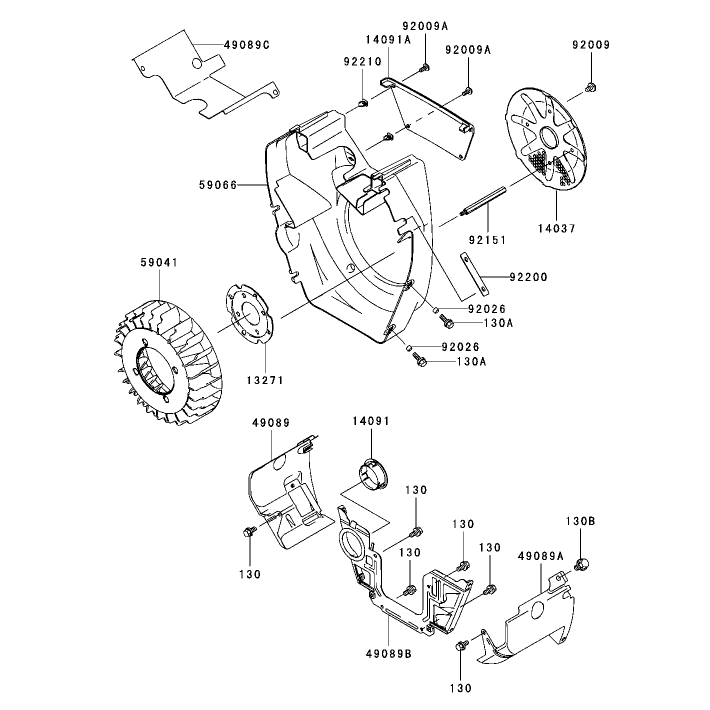

Cooling Equipment Assembly Kawasaki FH721D AS05
Cooling Equipment Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

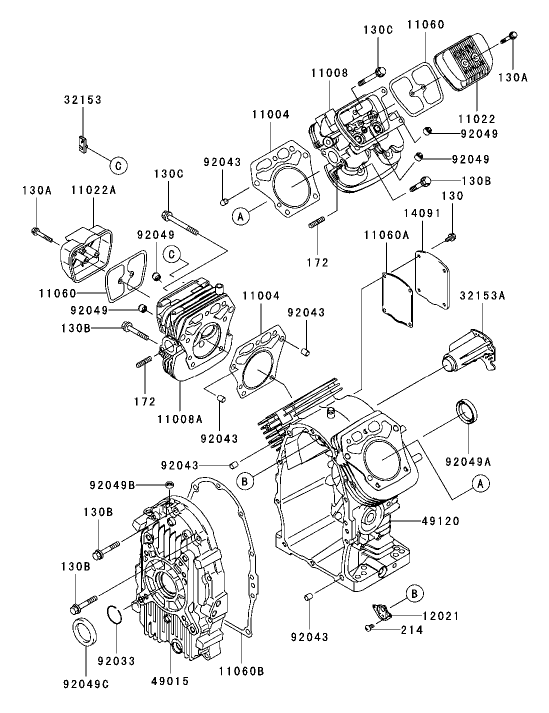

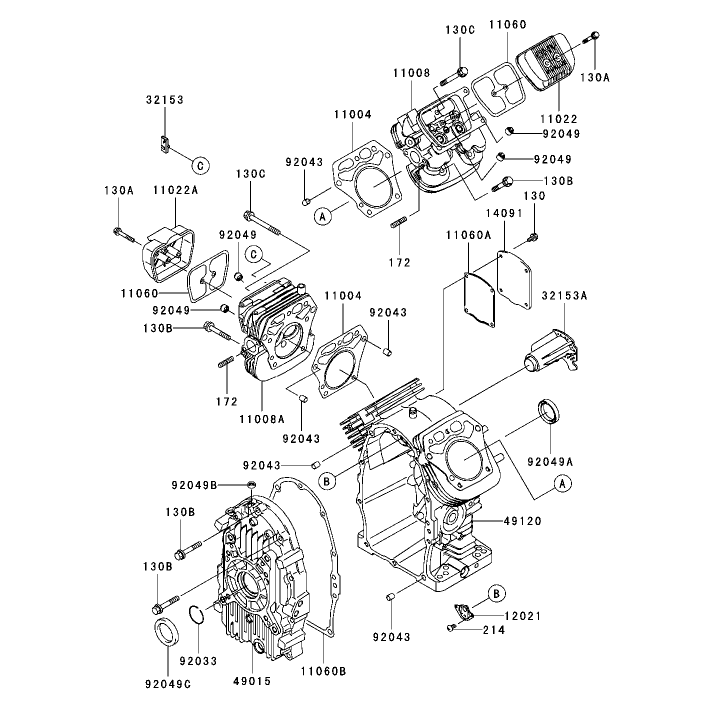

CylinderCrankcase Assembly Kawasaki FH721D AS05
CylinderCrankcase Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

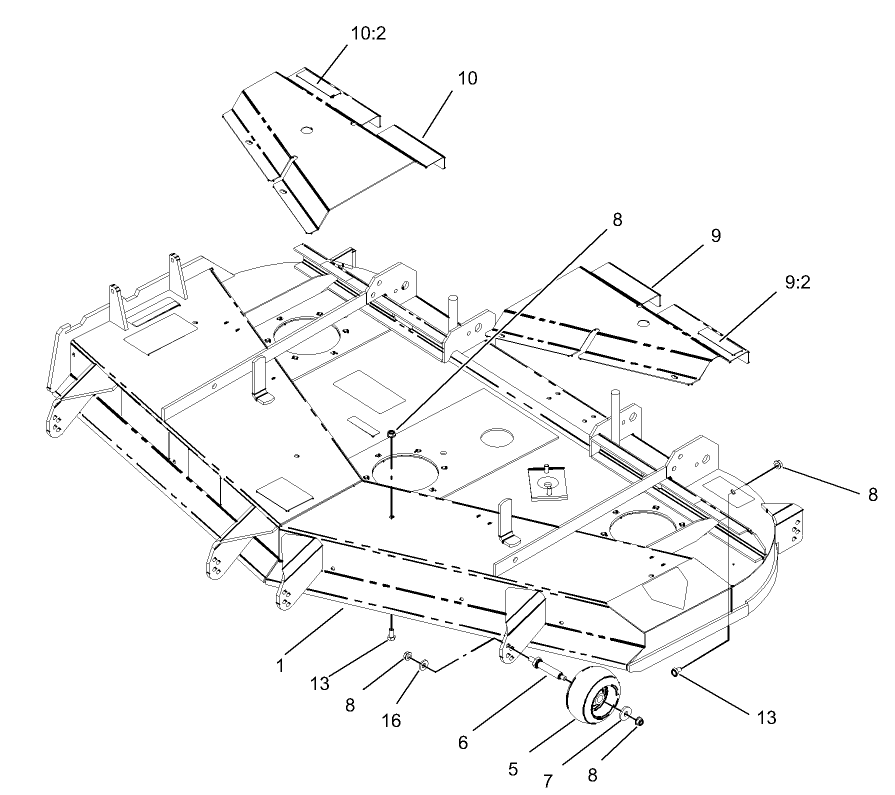

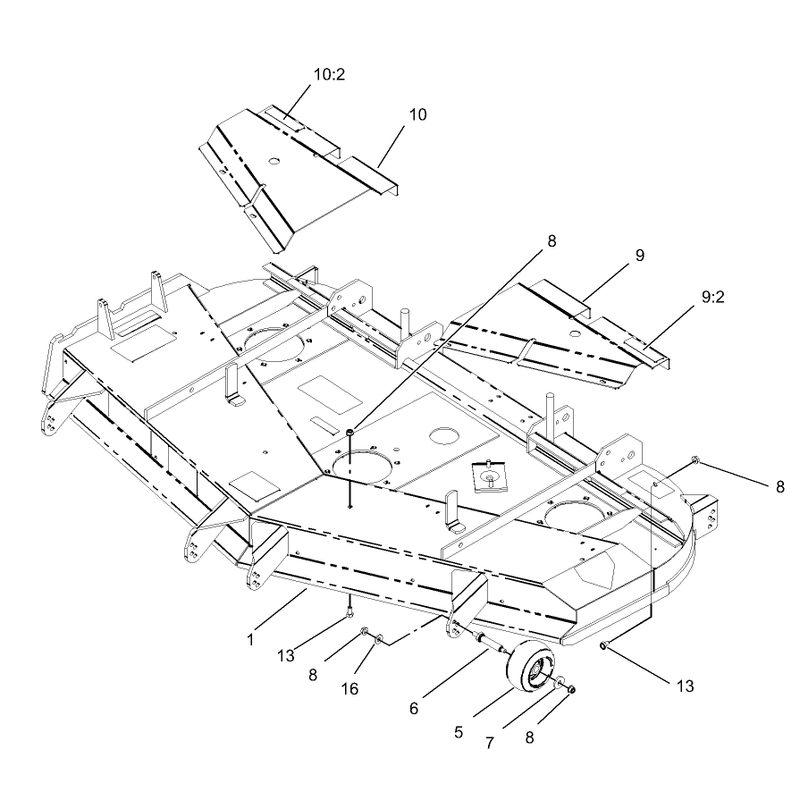

Deck and Wheel Gage Assembly
Deck and Wheel Gage Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

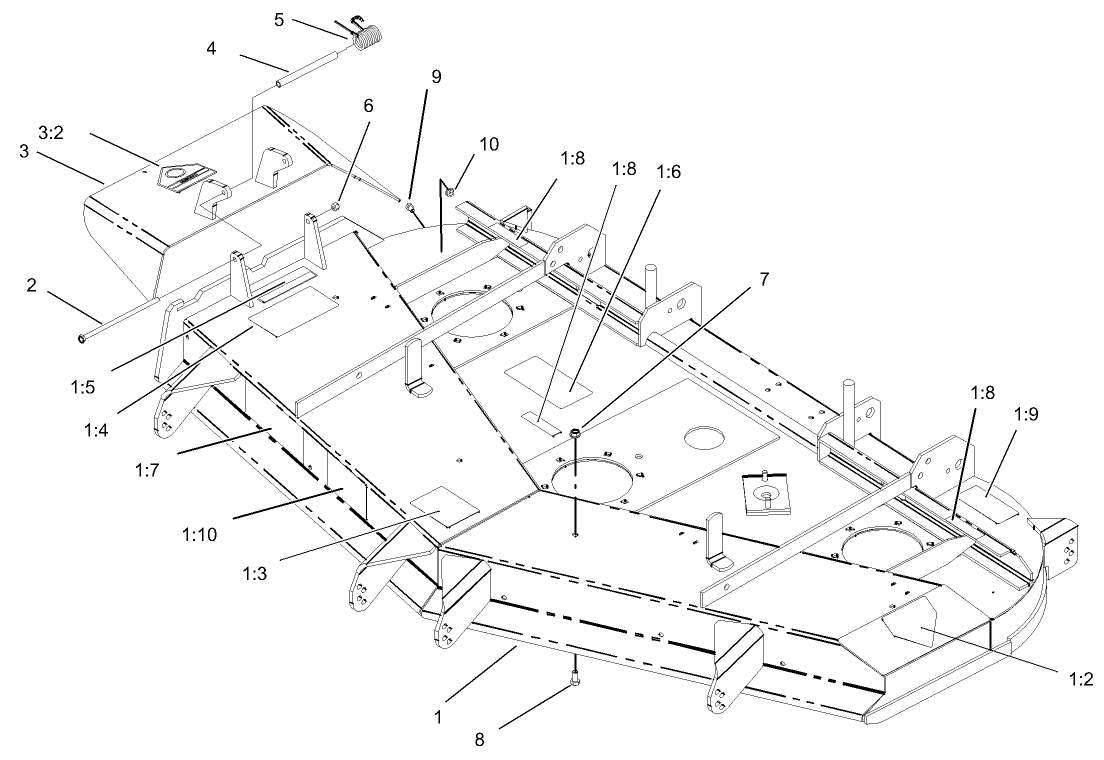

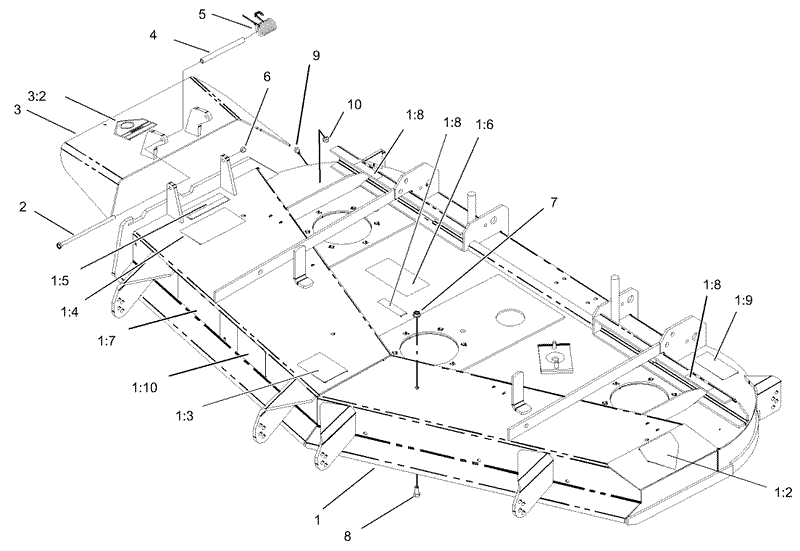

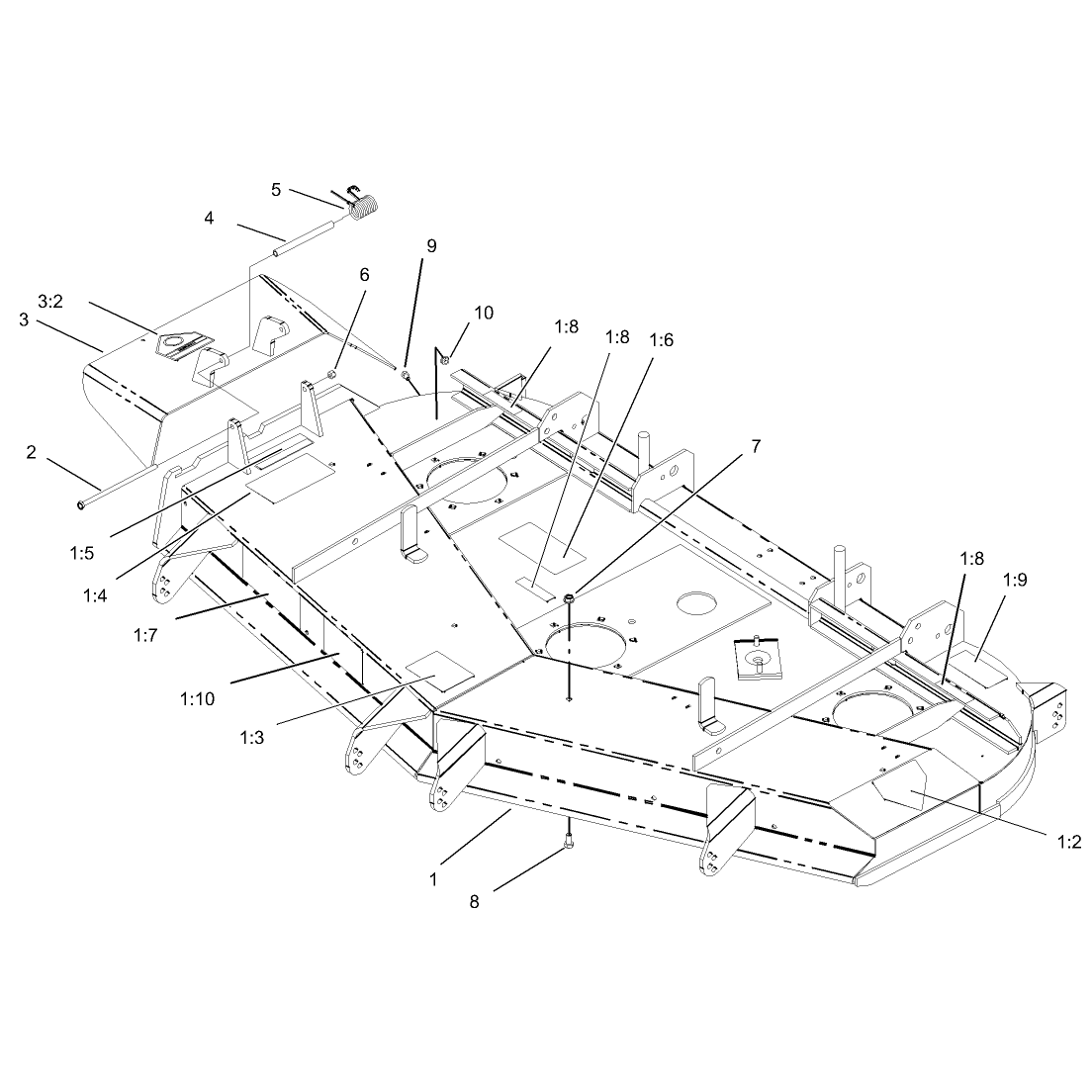

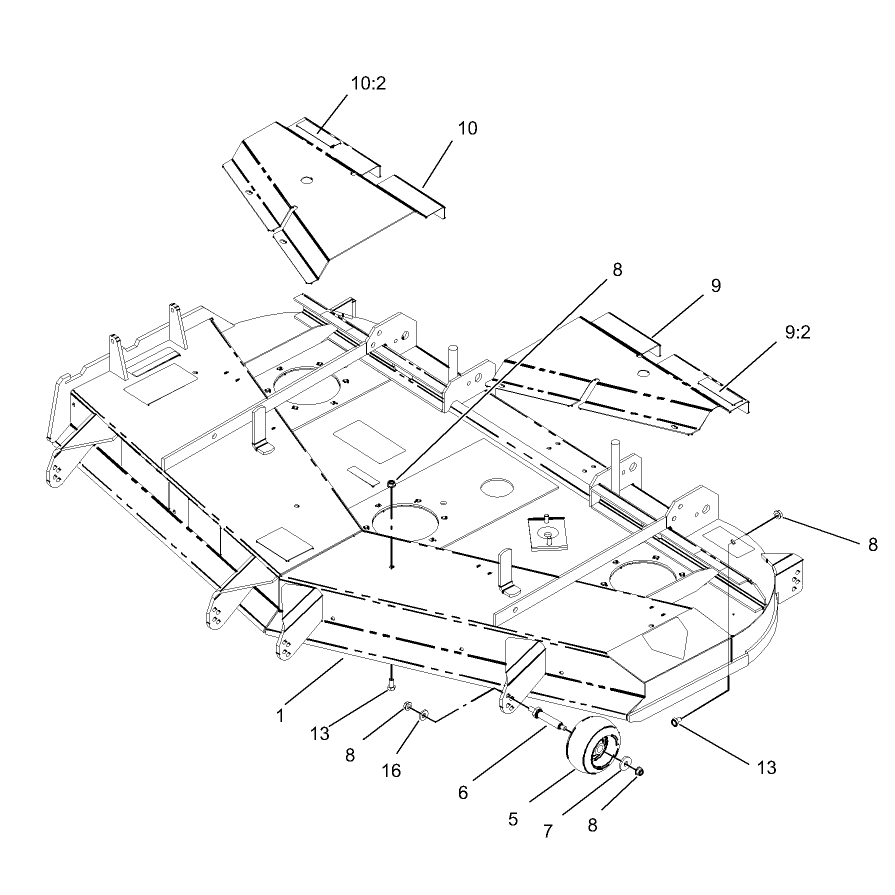

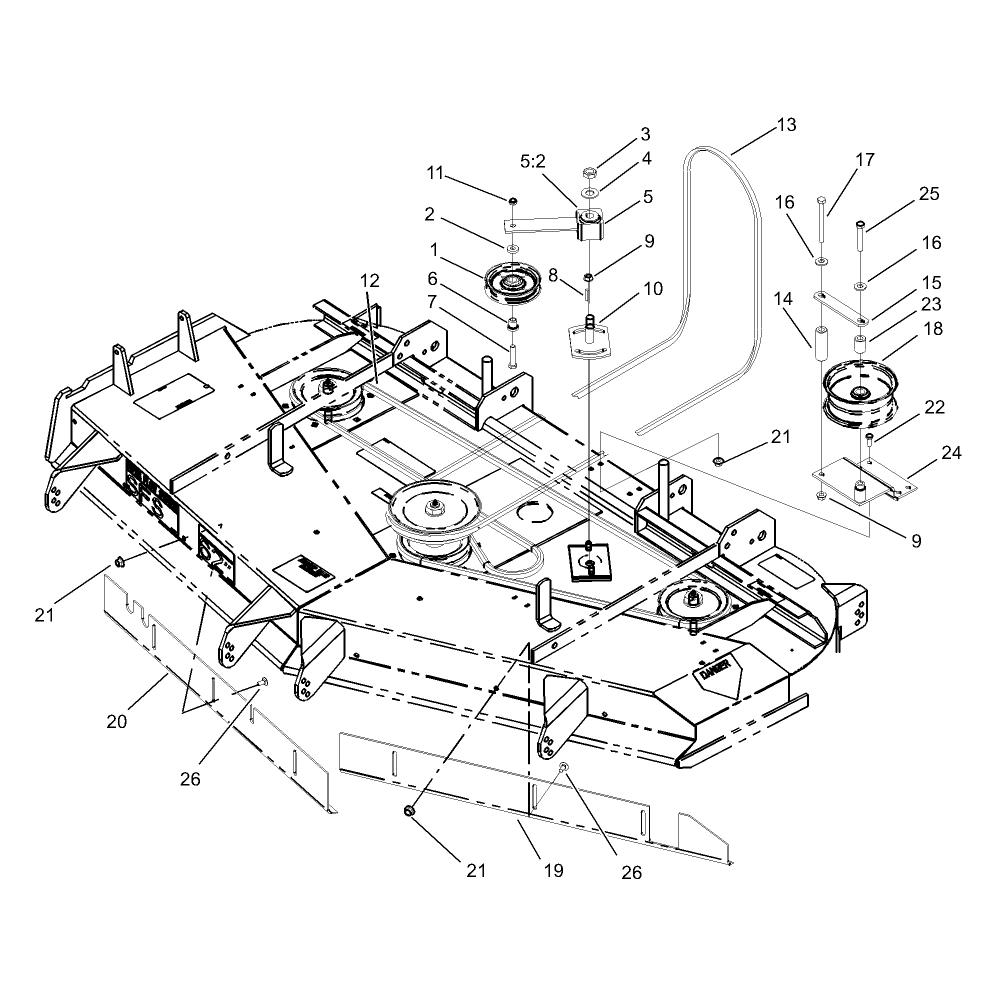

Deck Assembly No 106 5864
Deck Assembly No 106 5864
| Sequence Number | Image | Product | Price | Add to cart |
|---|

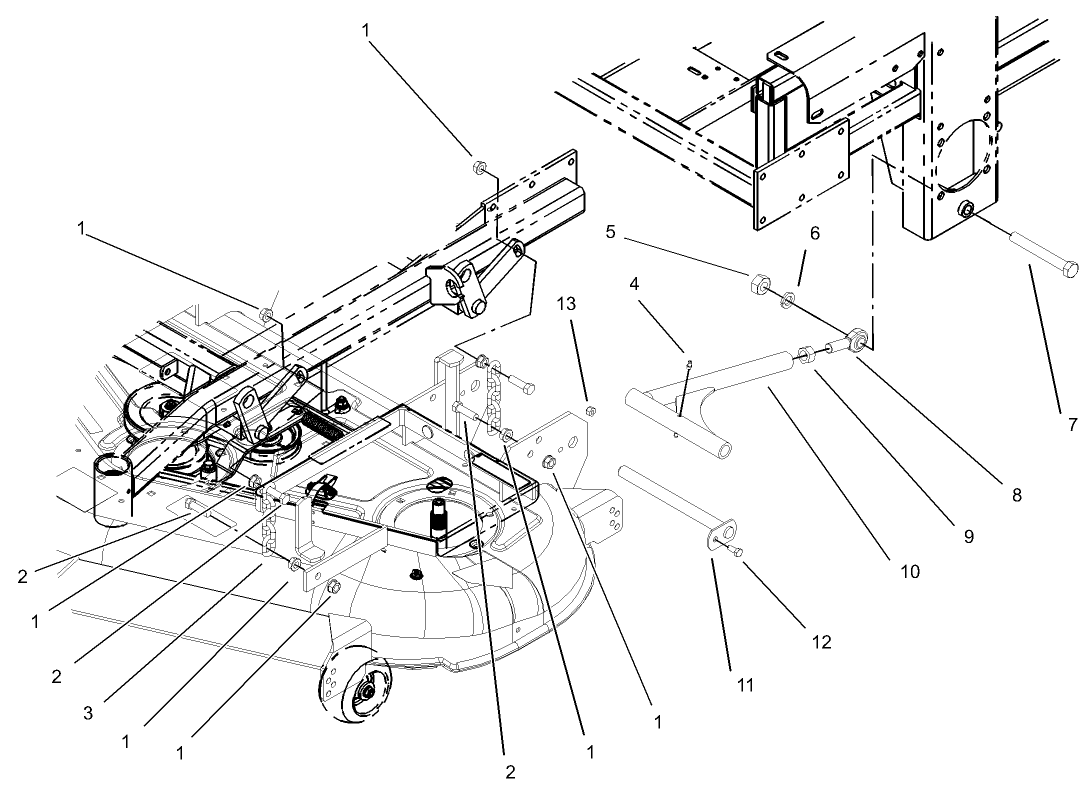

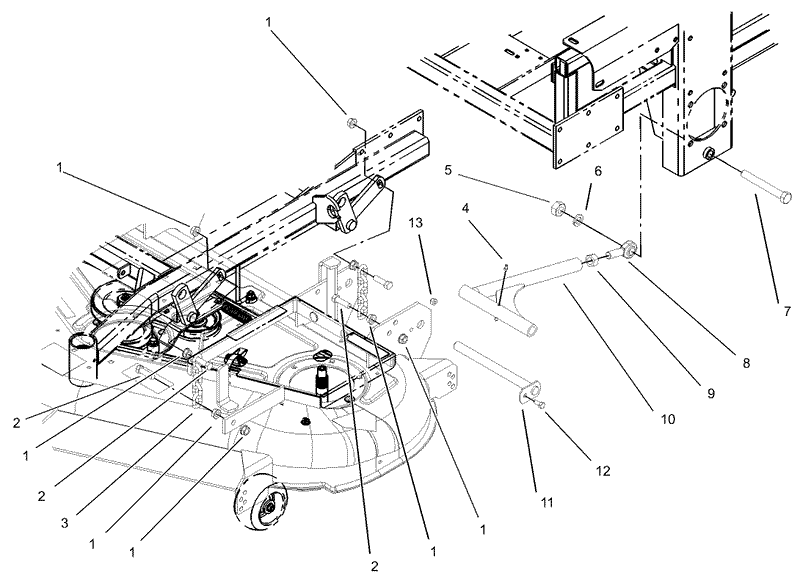

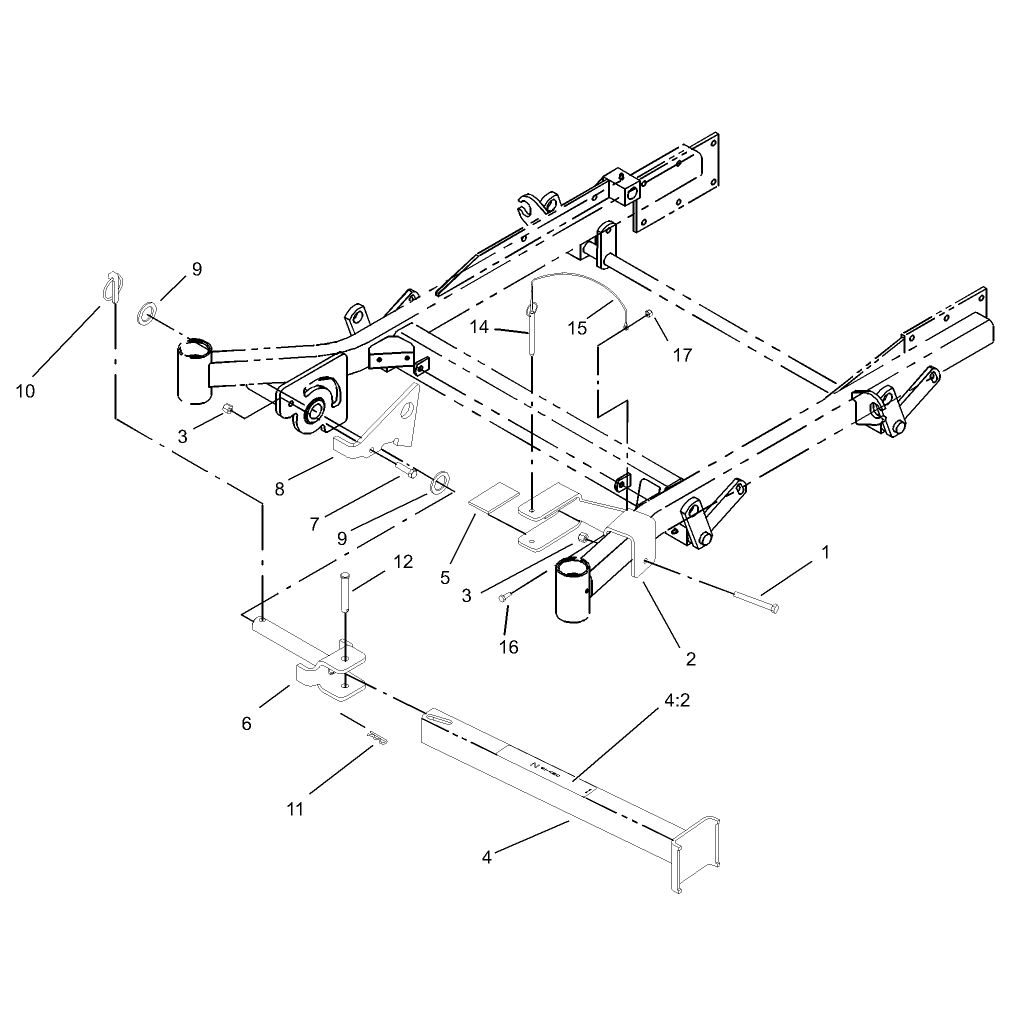

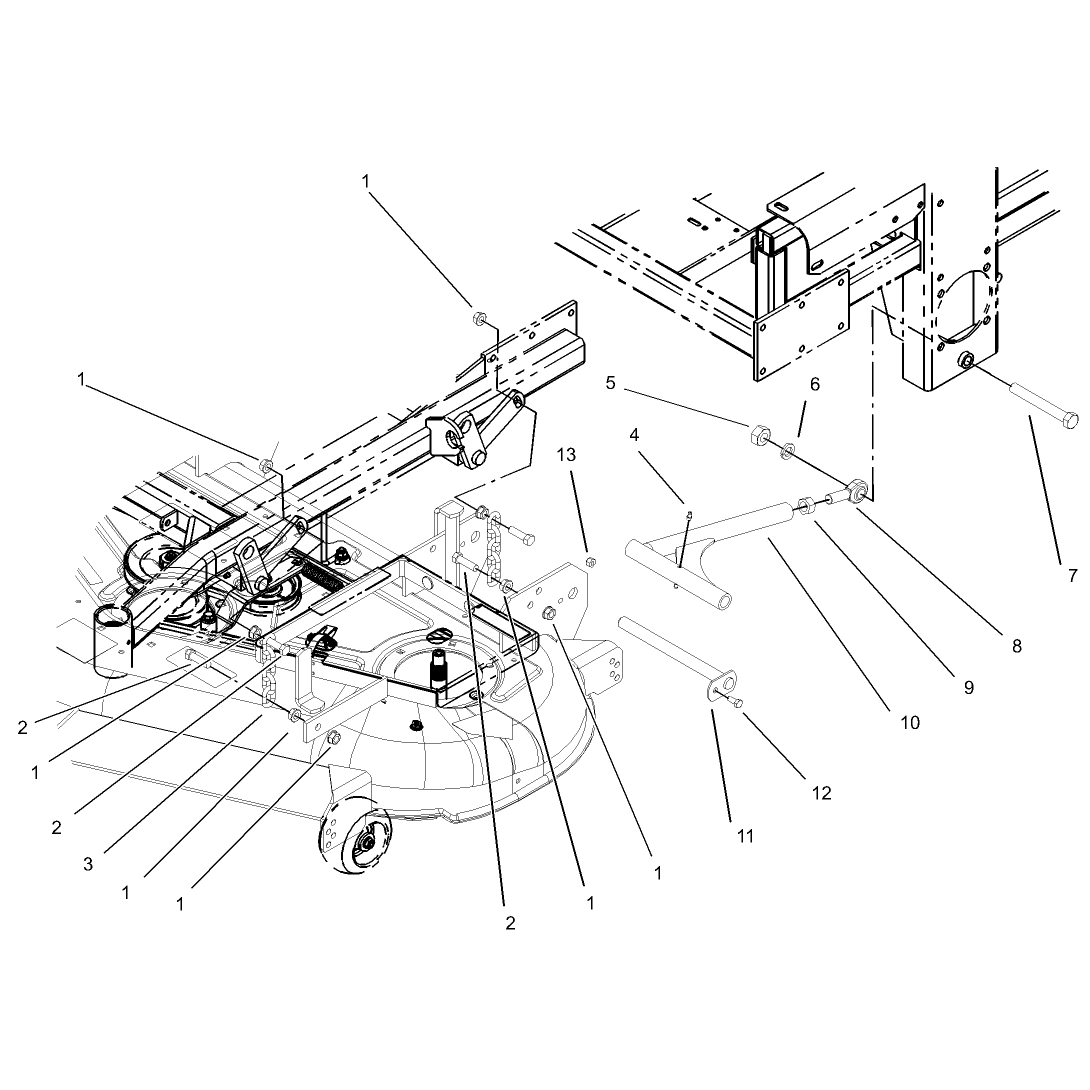

Deck Connection Assembly
Deck Connection Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

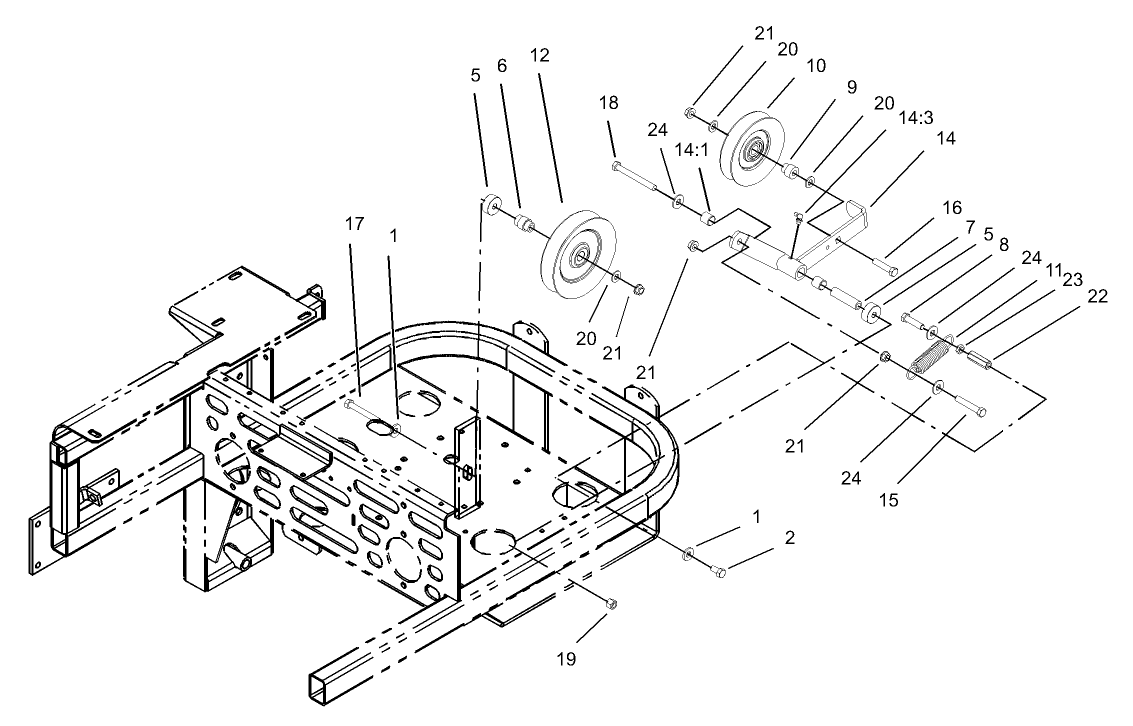

Drive Idler Assembly
Drive Idler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

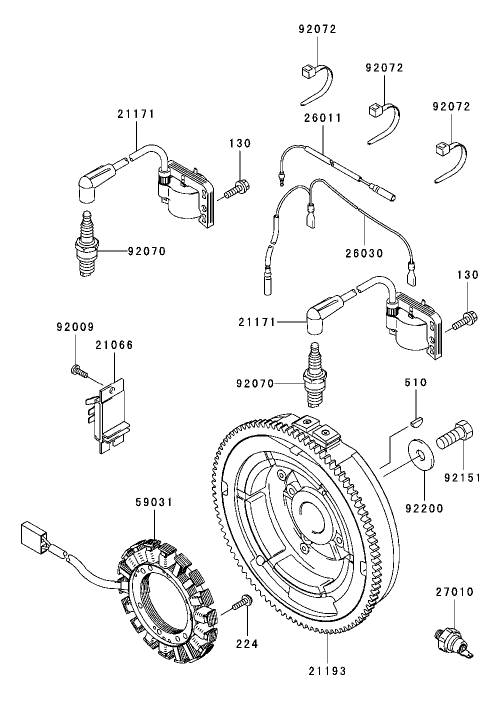

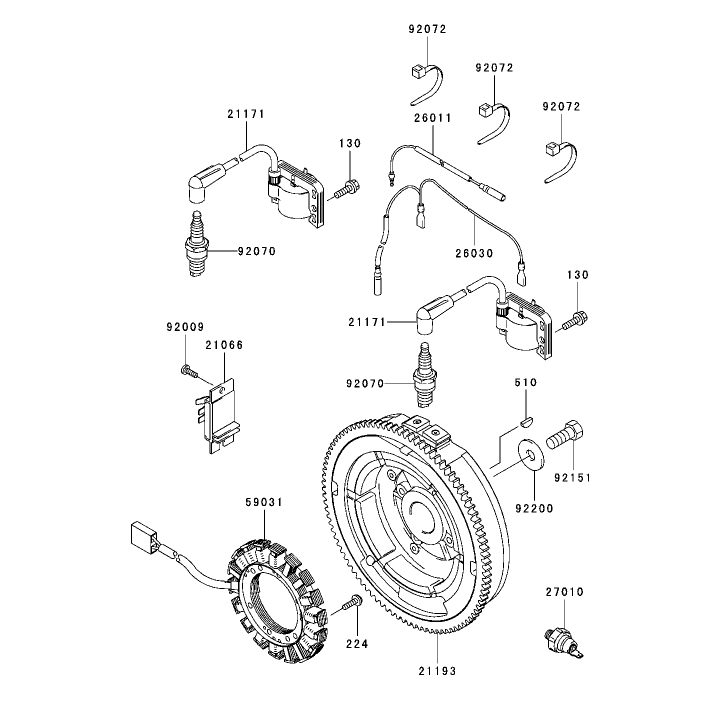

Electric Equipment Assembly Kawasaki FH721D AS05
Electric Equipment Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

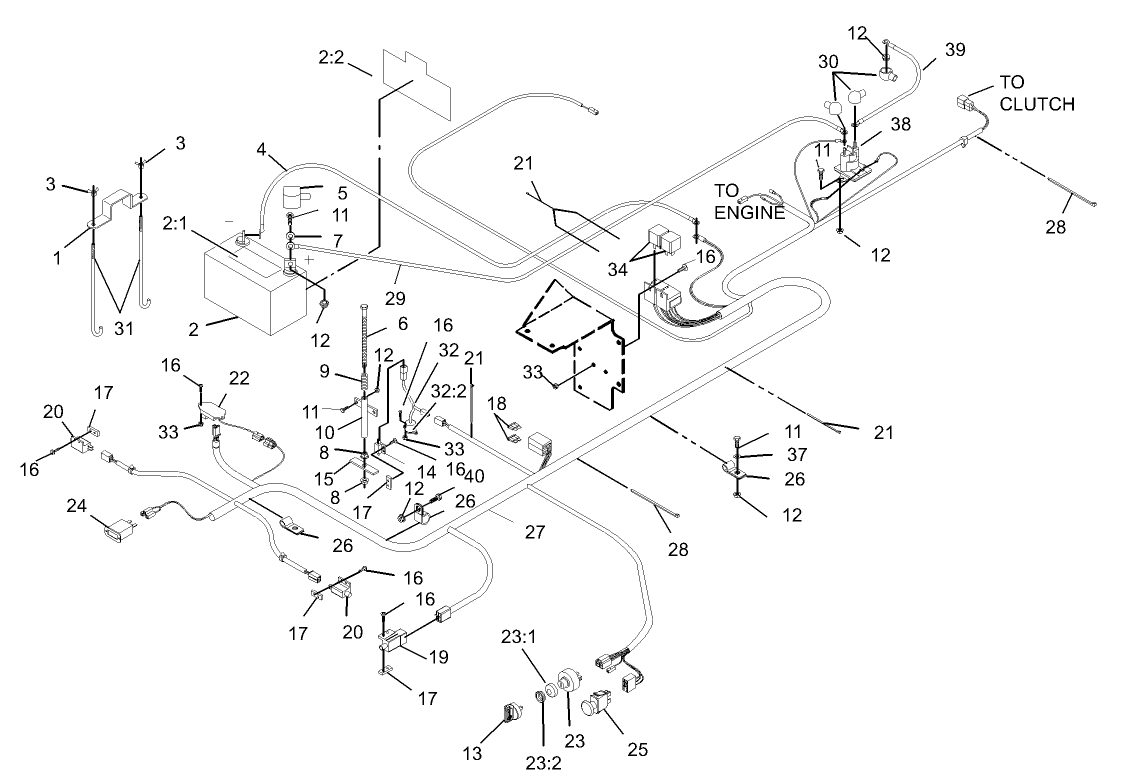

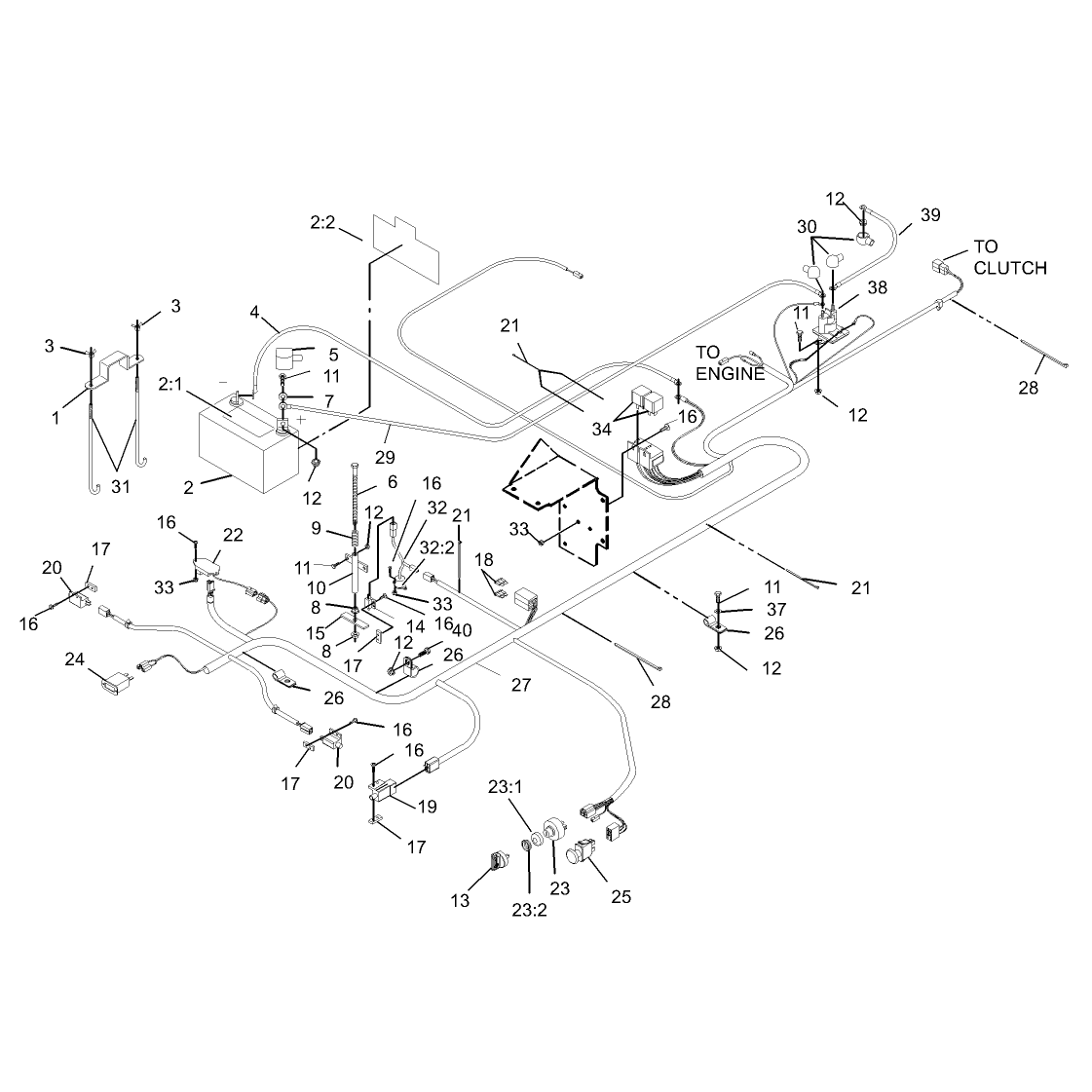

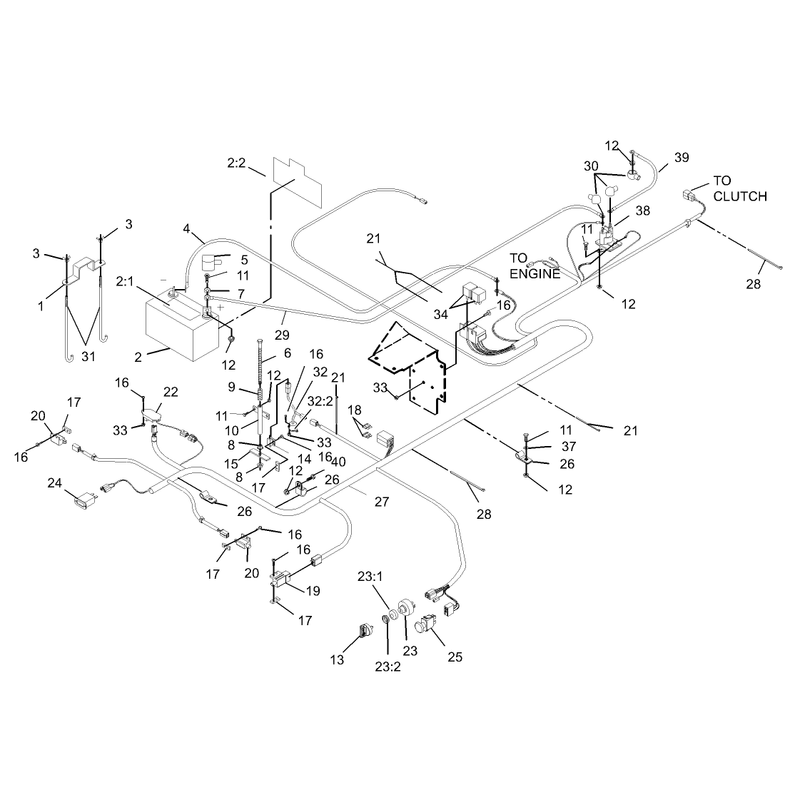

Electrical System Assembly
Electrical System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

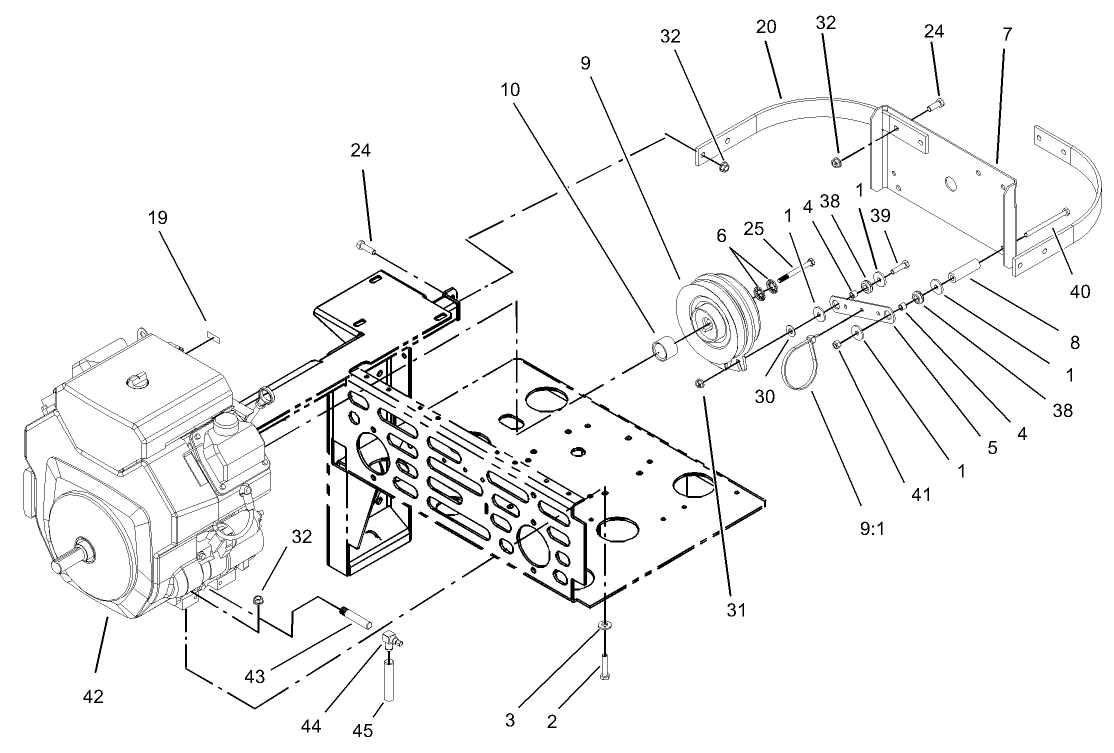

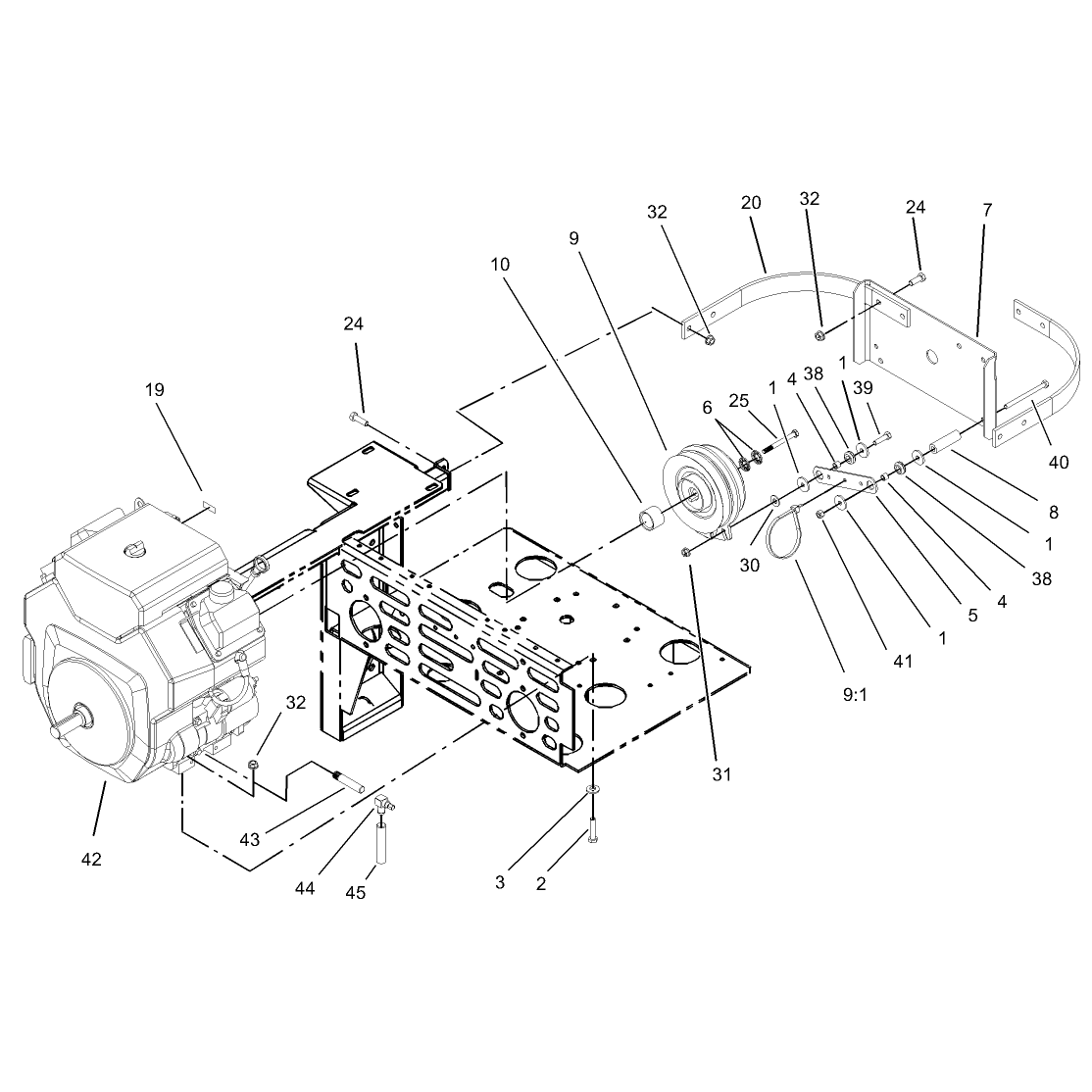

Engine and Clutch Assembly
Engine and Clutch Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

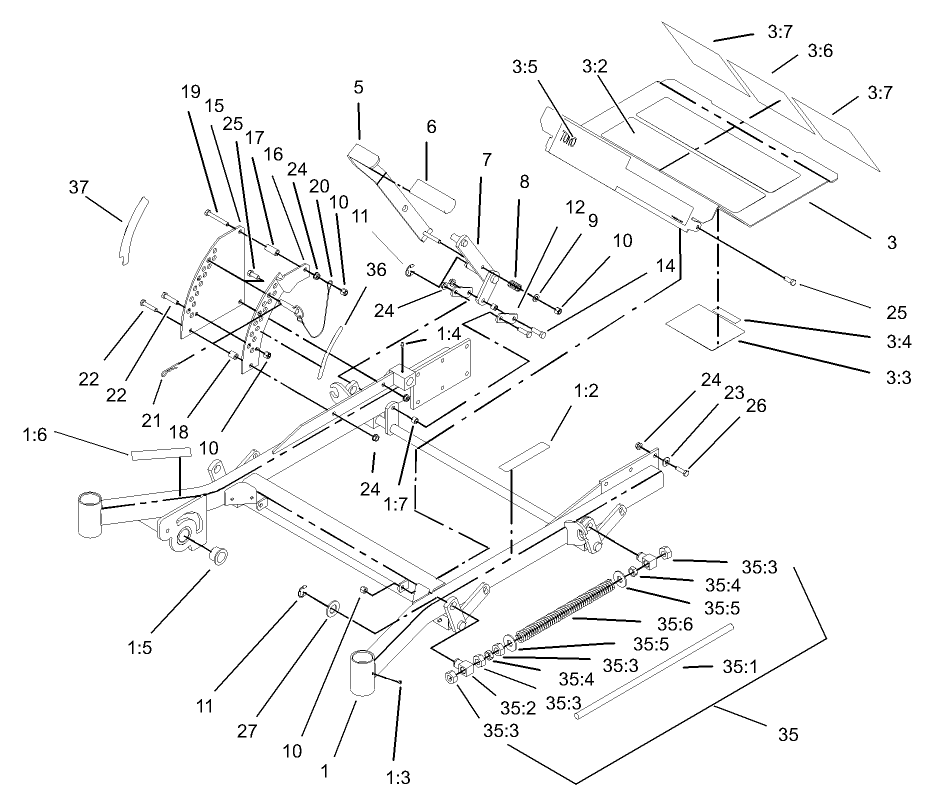

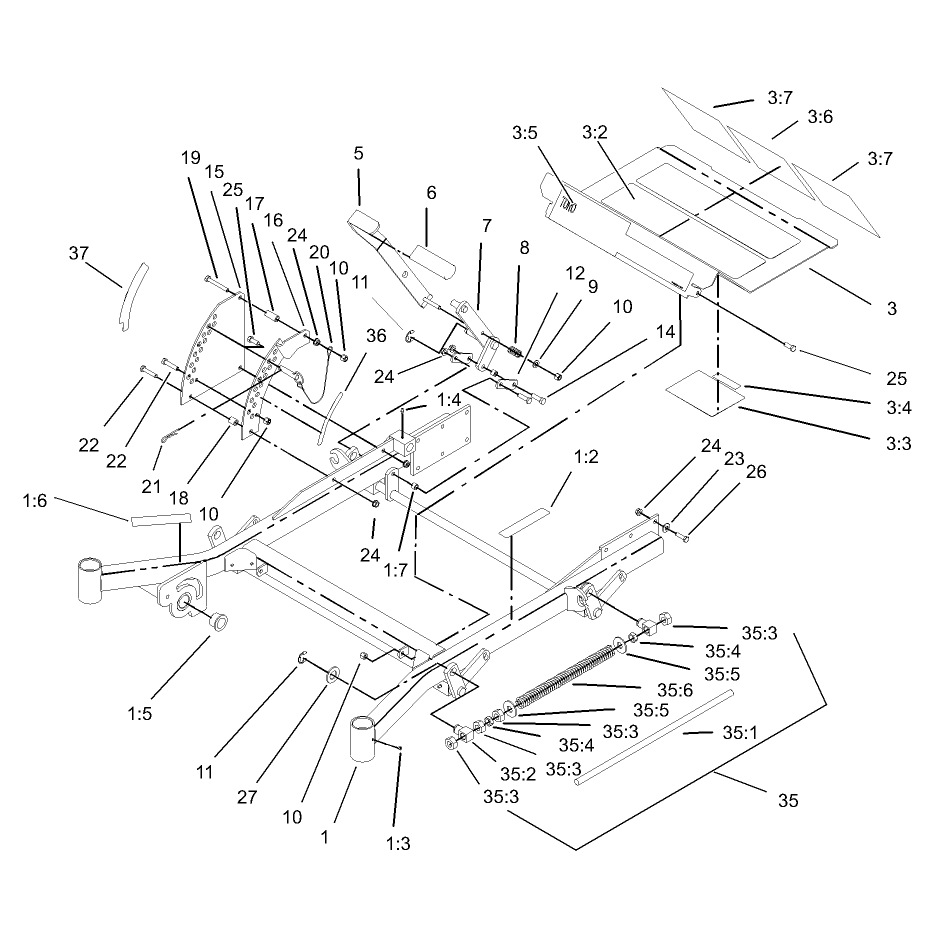

Front Frame Assembly
Front Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

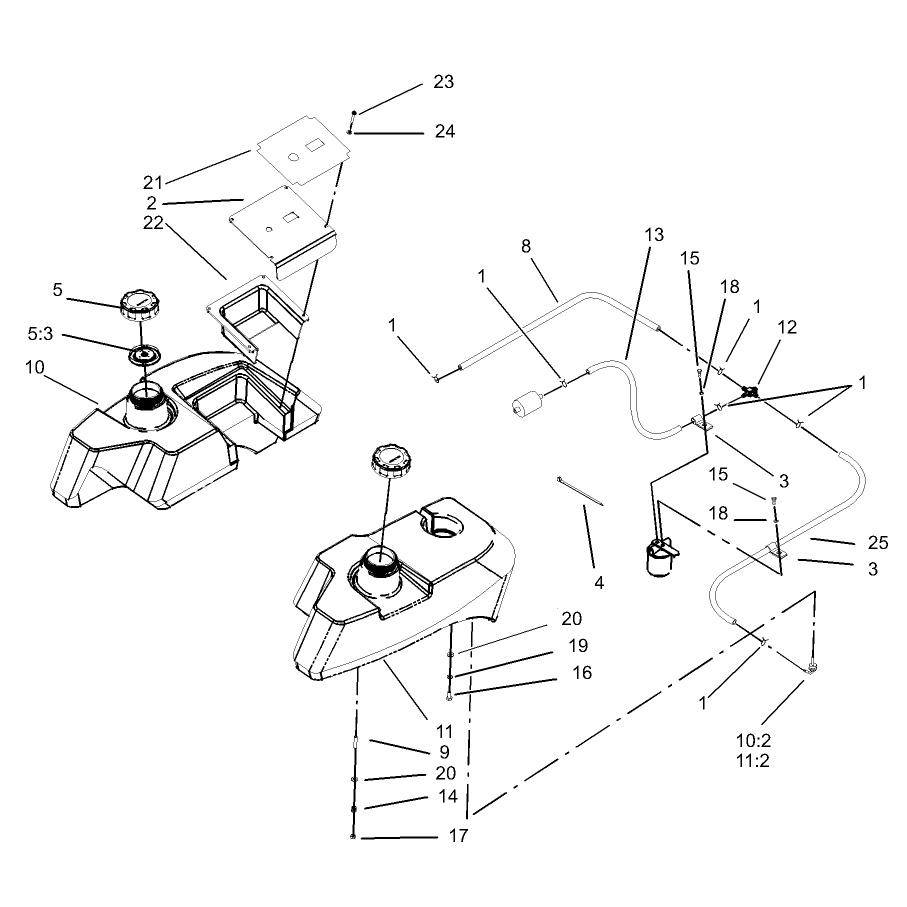

Fuel System Assembly
Fuel System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

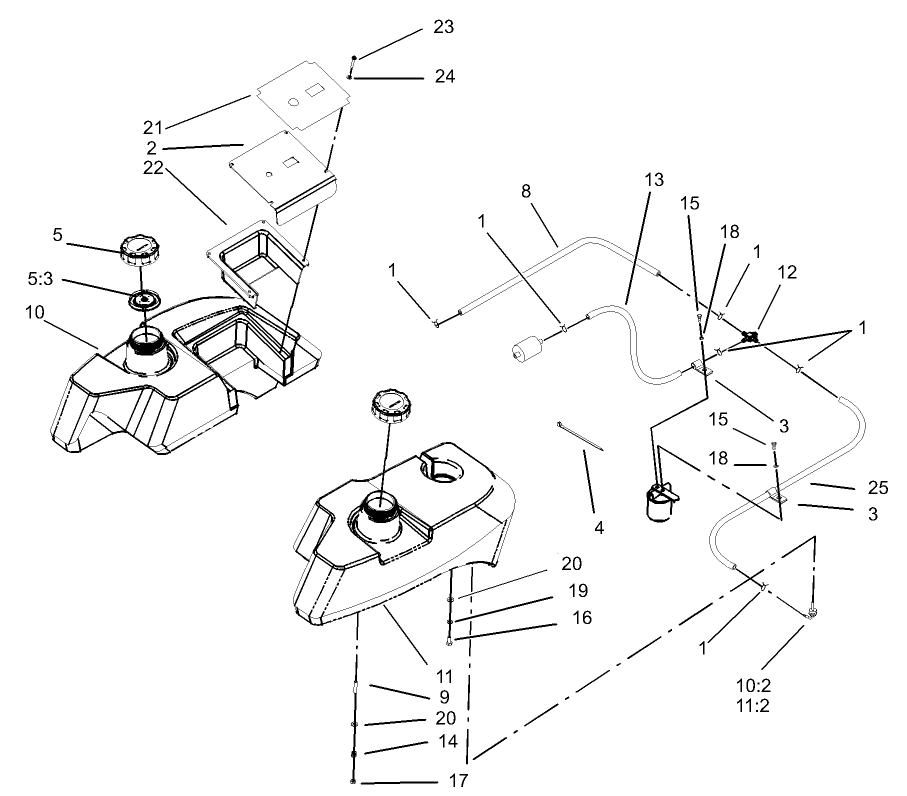

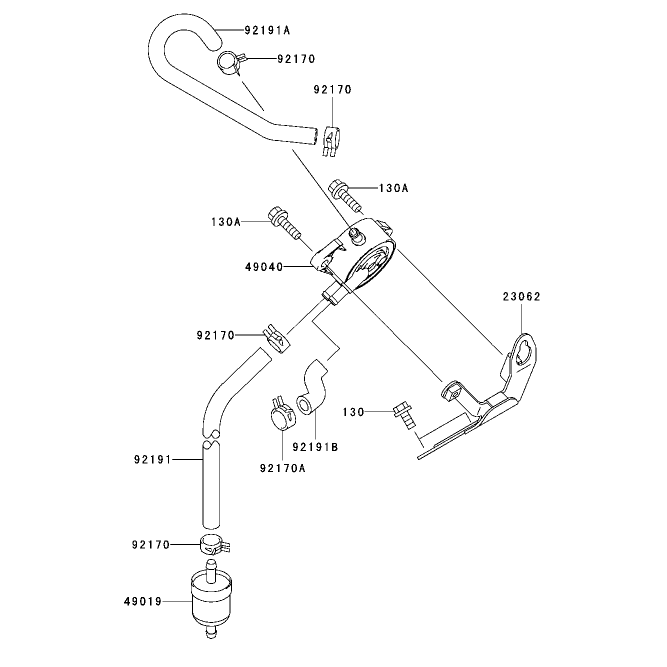

Fuel TankFuel Valve Assembly Kawasaki FH721D AS05
Fuel TankFuel Valve Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

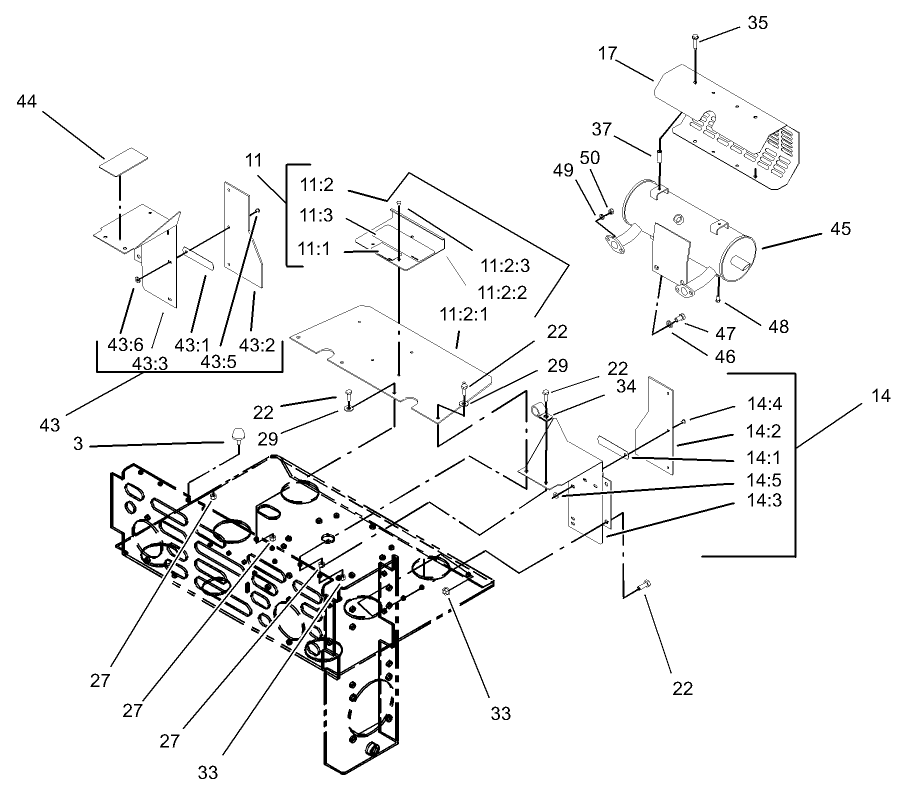

Guard Assembly
Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

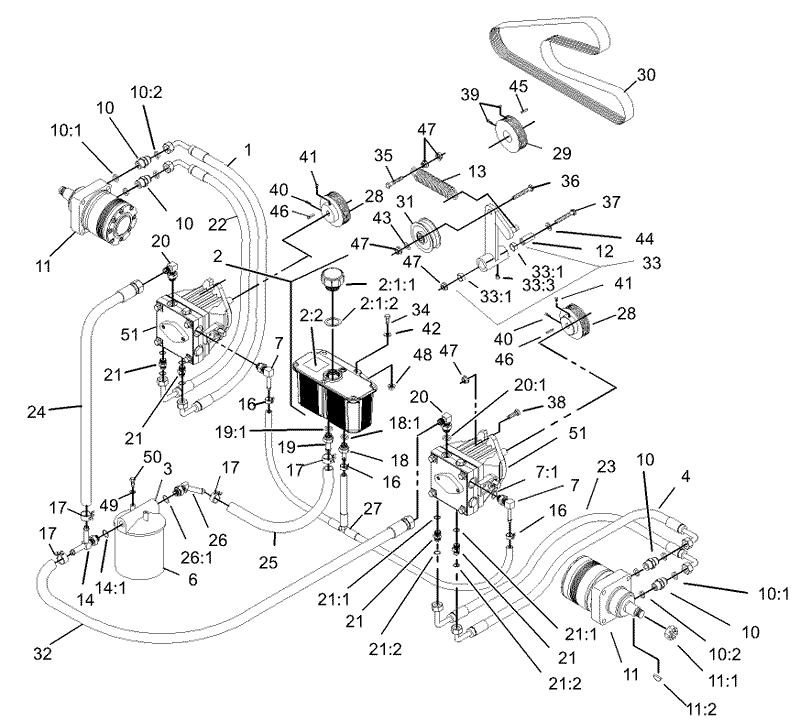

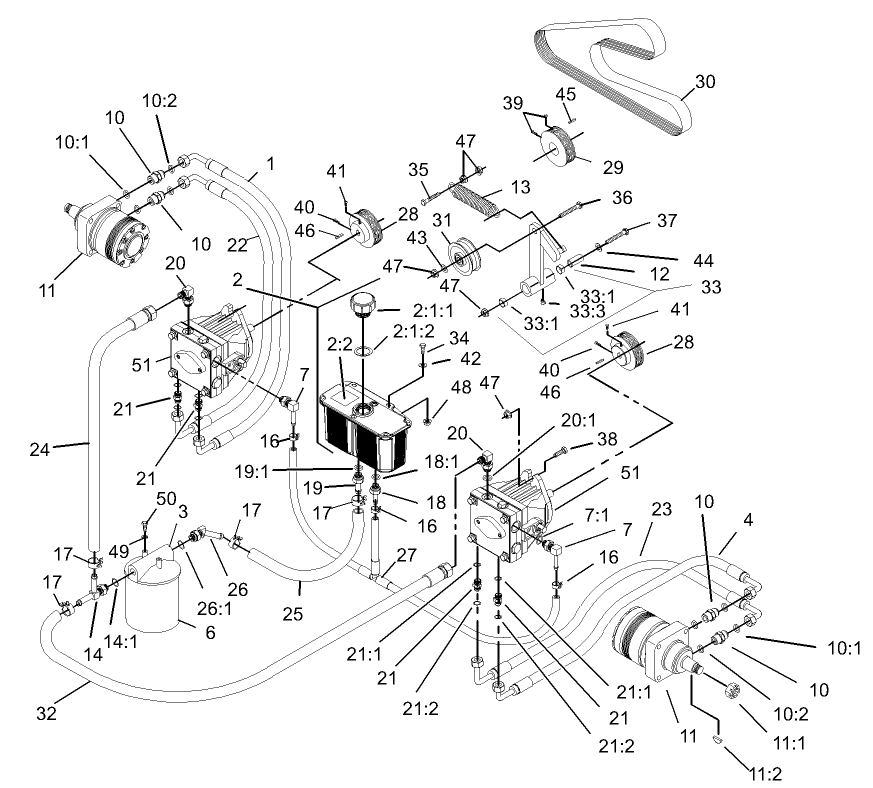

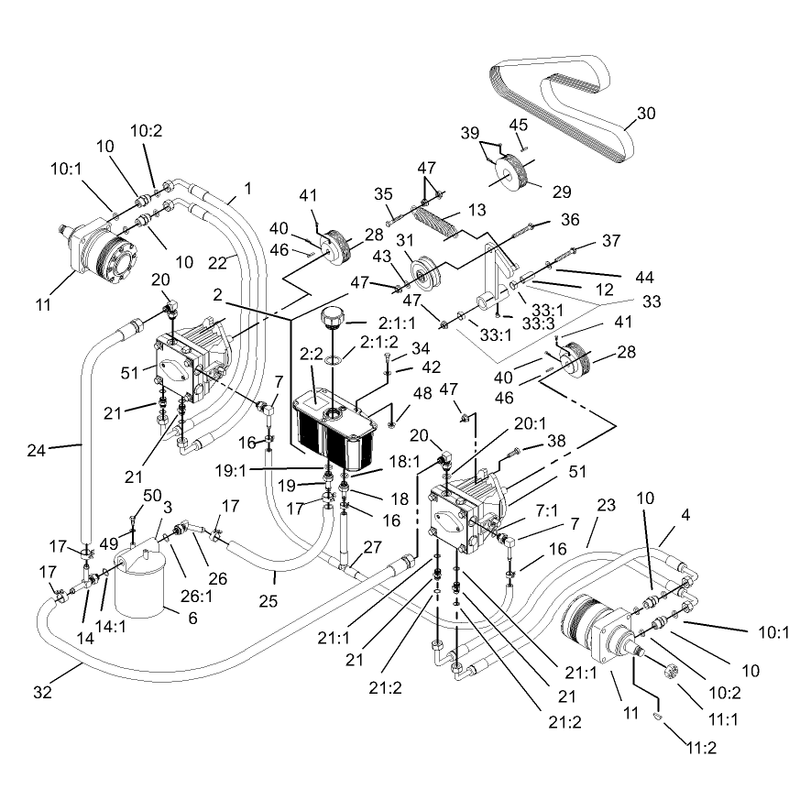

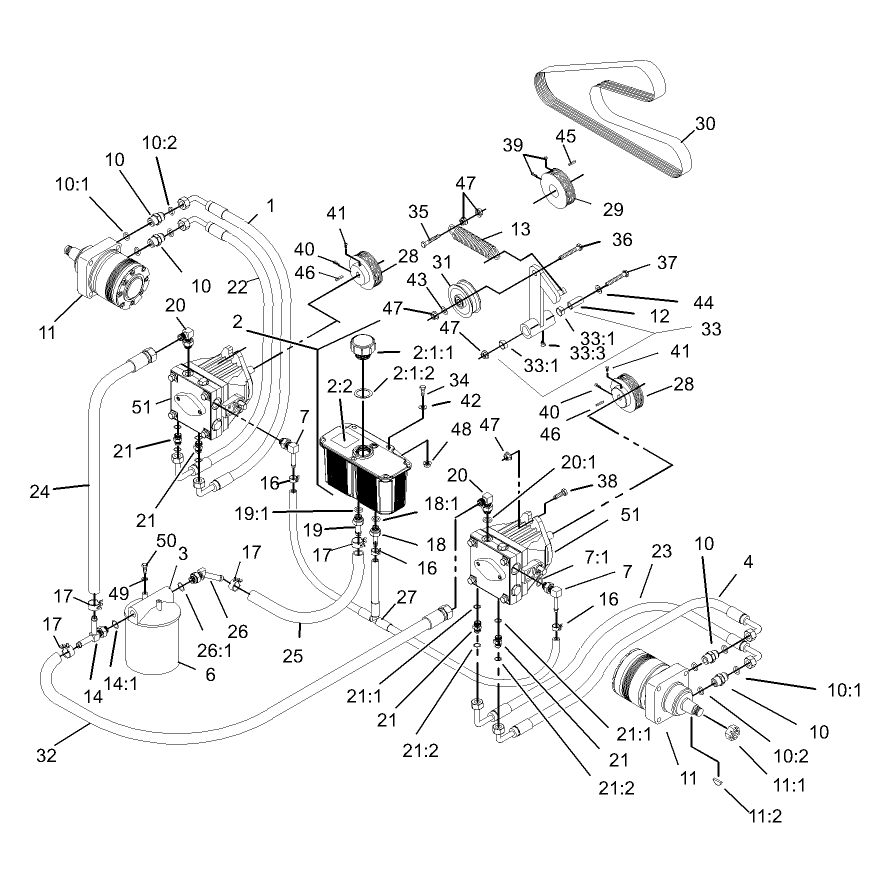

Hydraulic System Assembly
Hydraulic System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Label Assembly Kawasaki FH721D AS05
Label Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

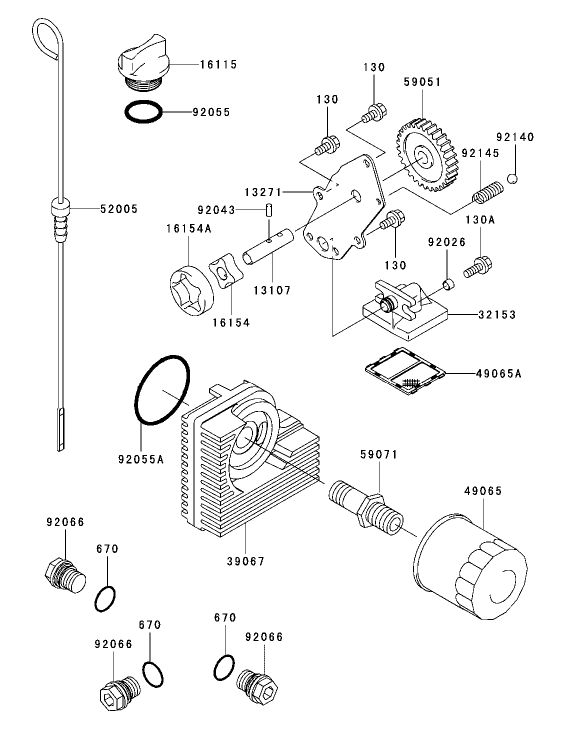

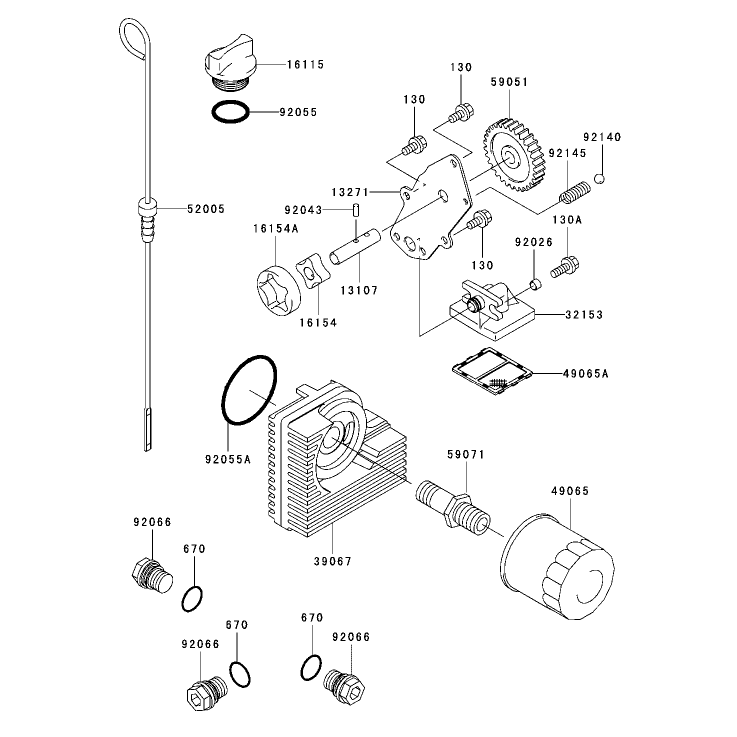

Lubrication Equipment Assembly Kawasaki FH721D AS05
Lubrication Equipment Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

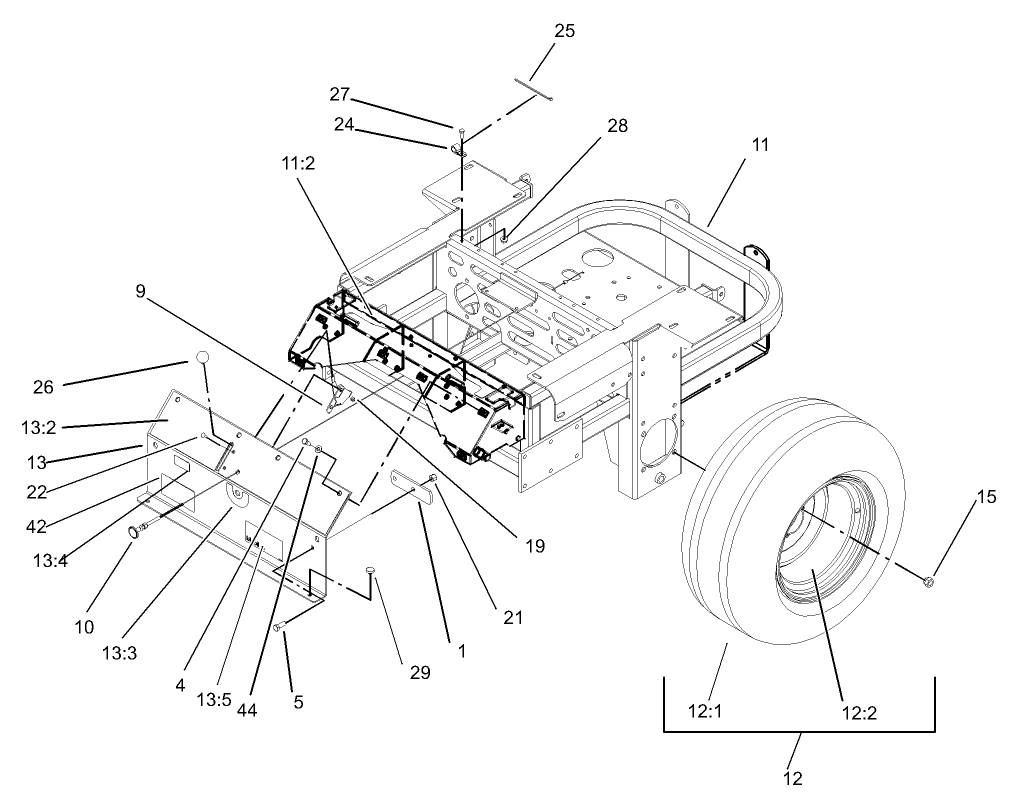

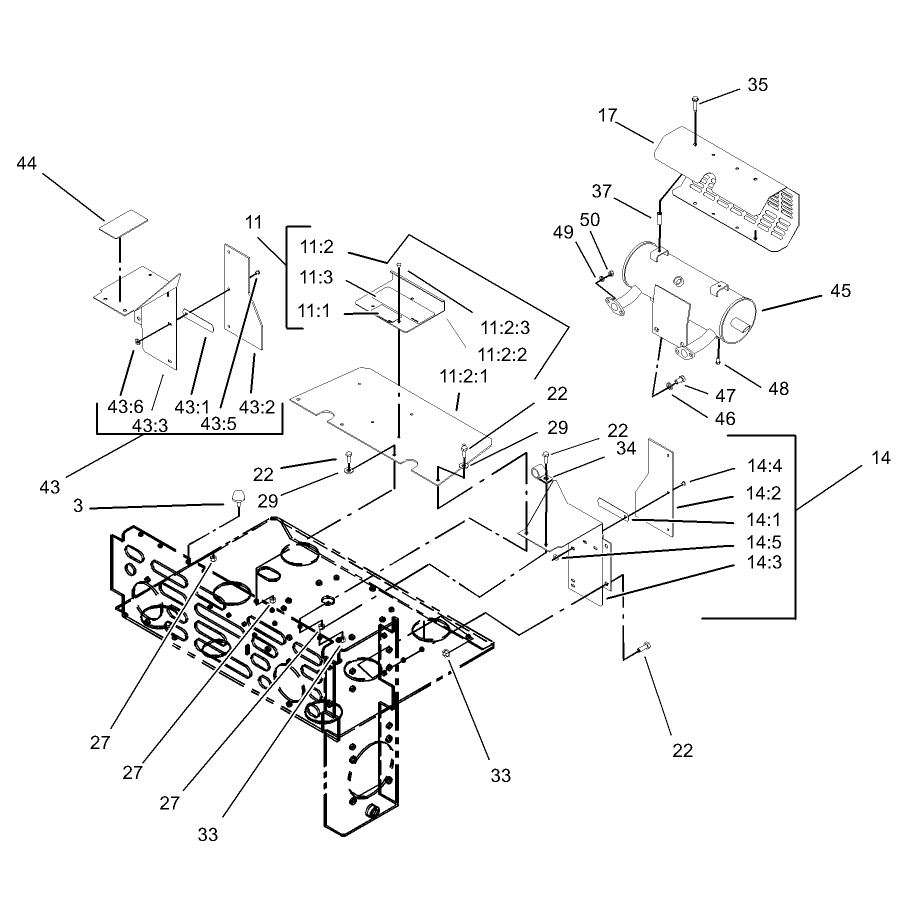

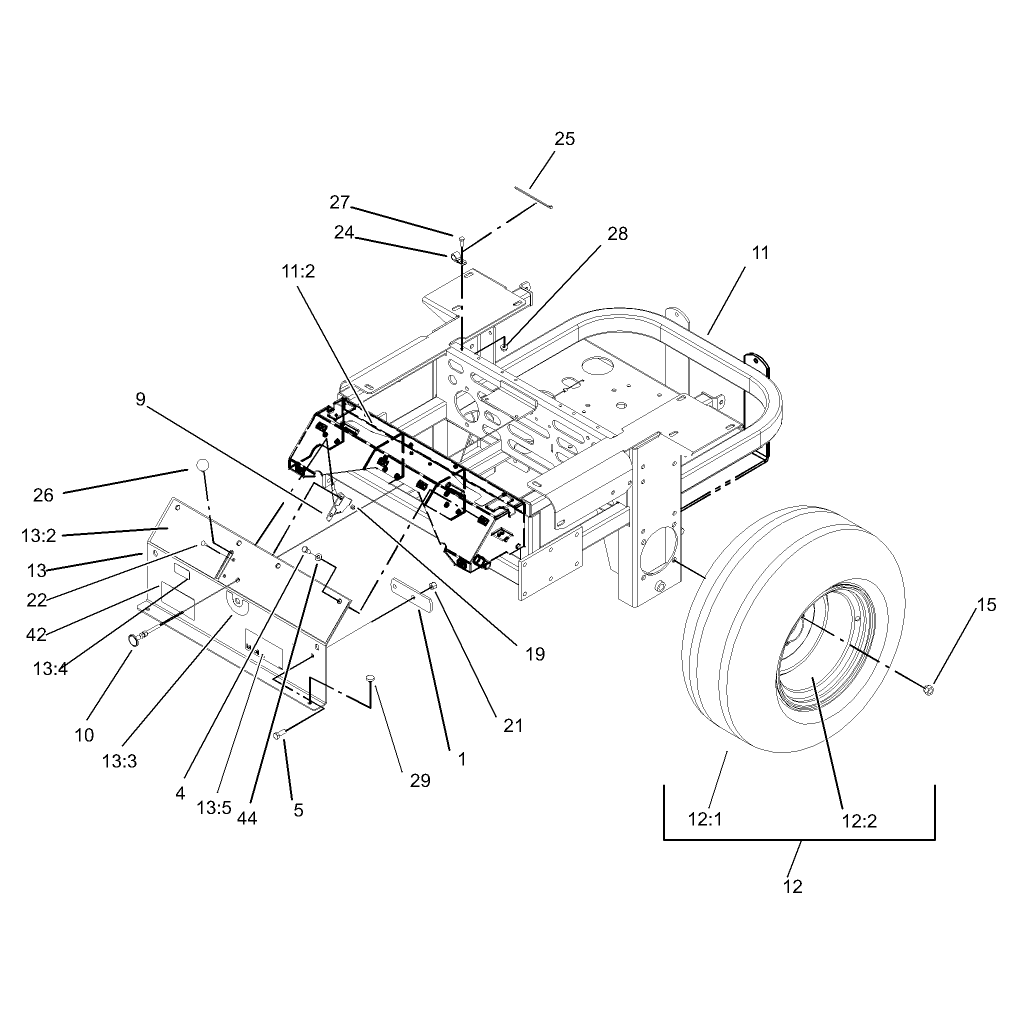

Main Frame Assembly
Main Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
PTO Equipment Assembly Kawasaki FH721D AS05
PTO Equipment Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

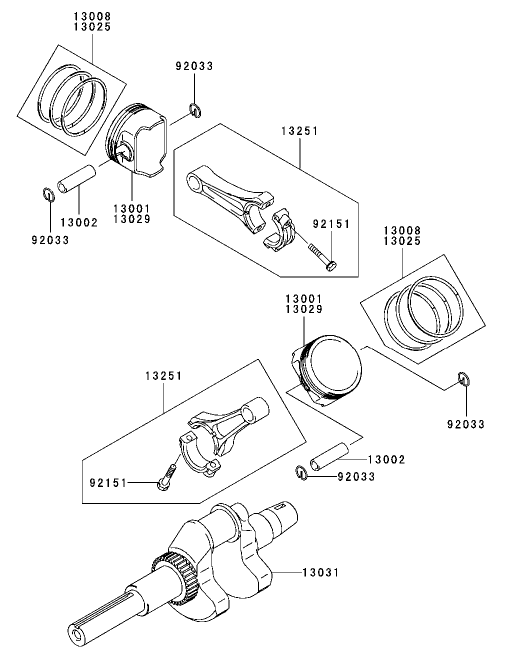

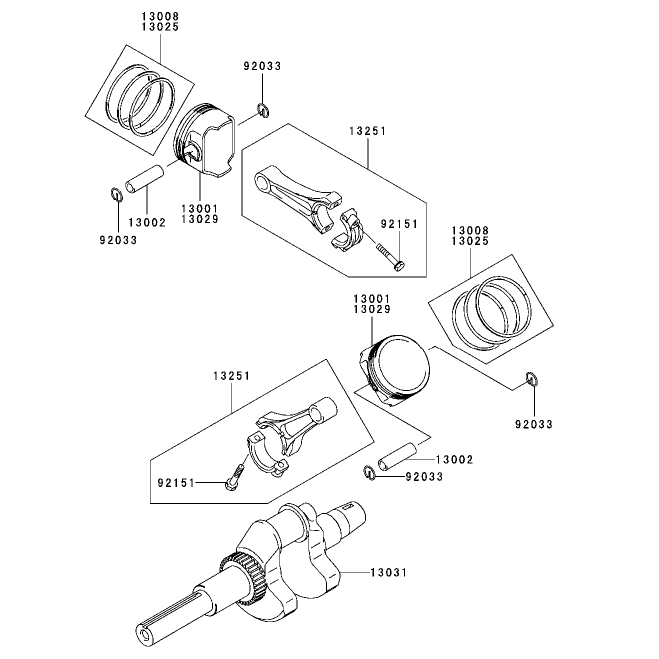

PistonCrankshaft Assembly Kawasaki FH721D AS05
PistonCrankshaft Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

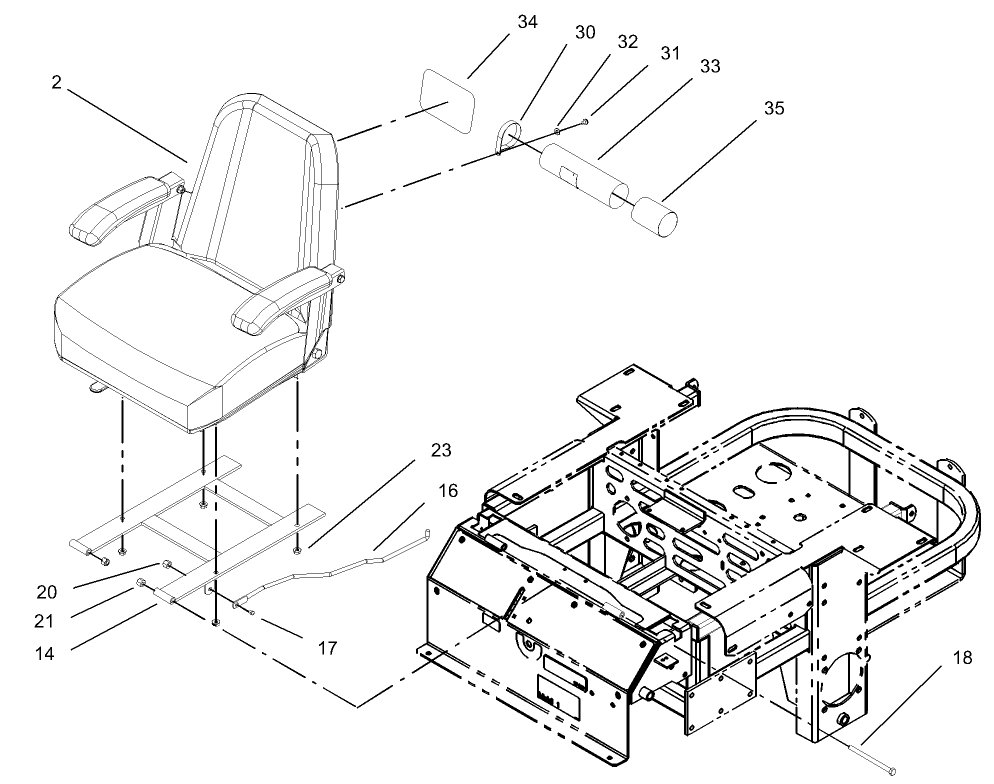

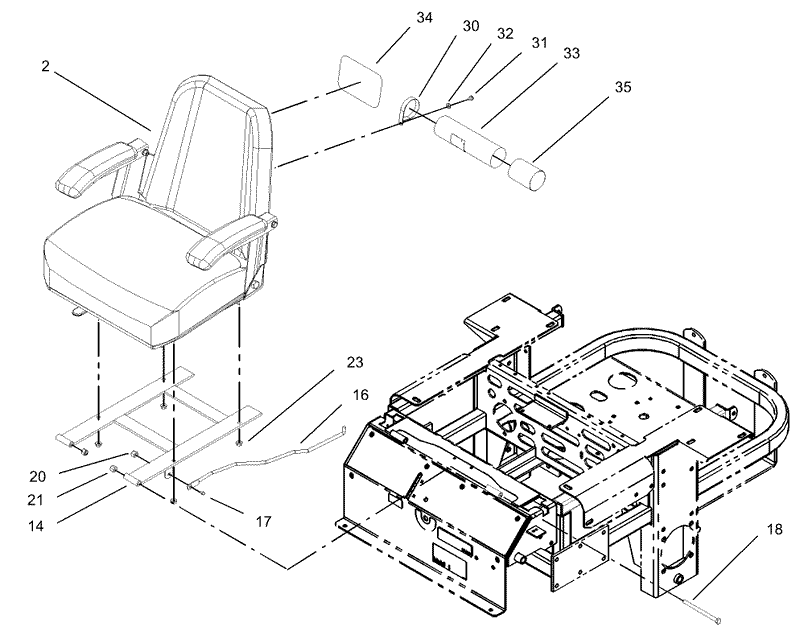

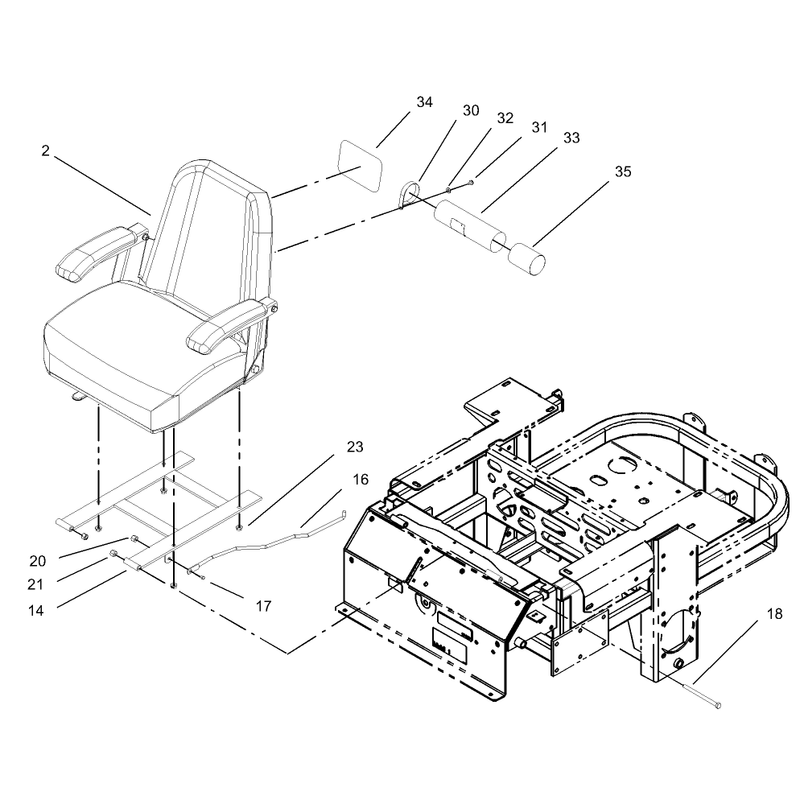

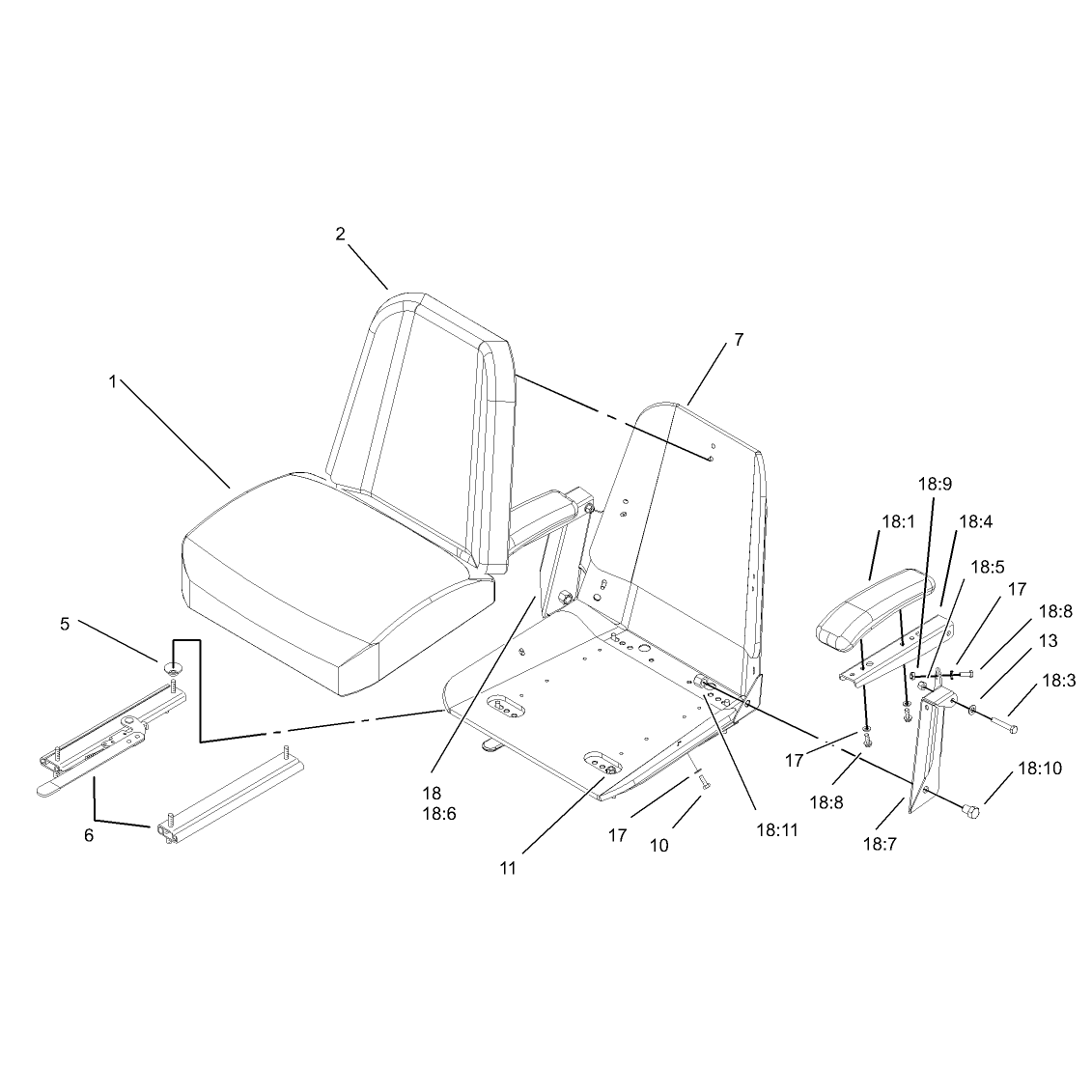

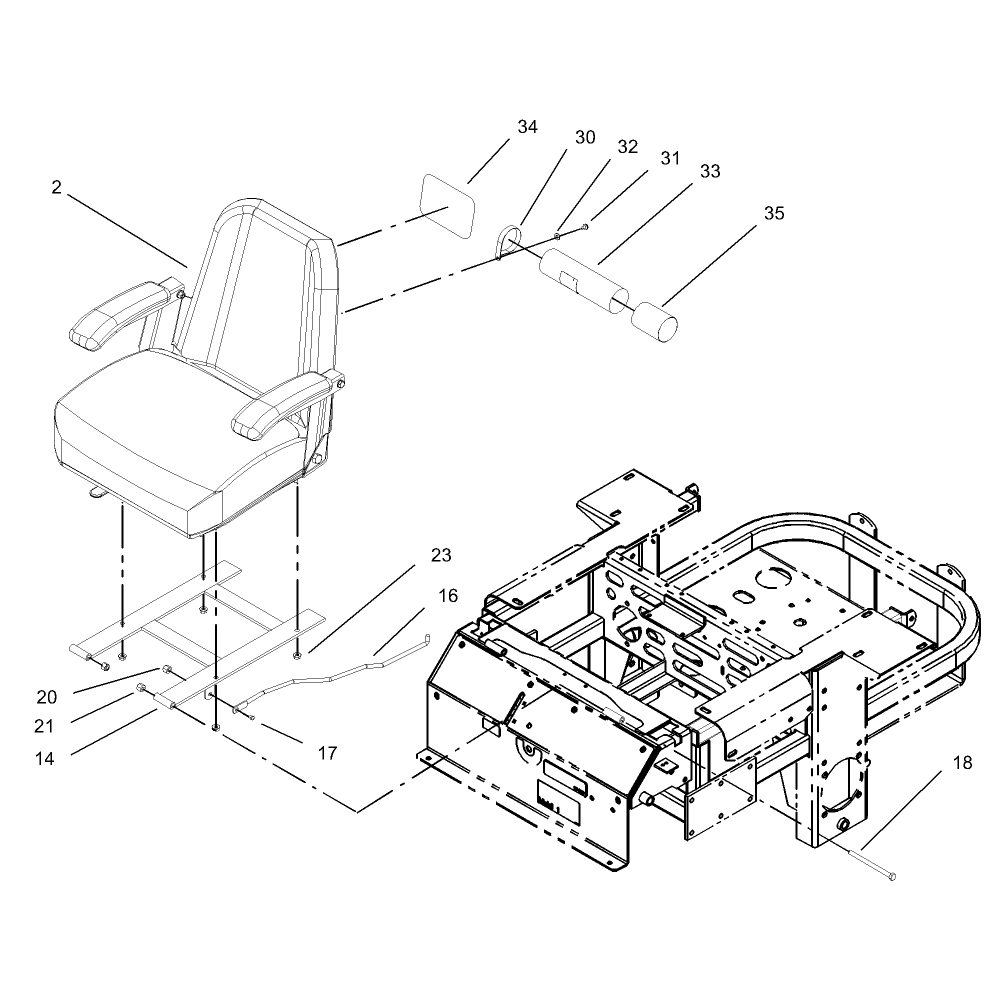

Seat Assembly
Seat Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

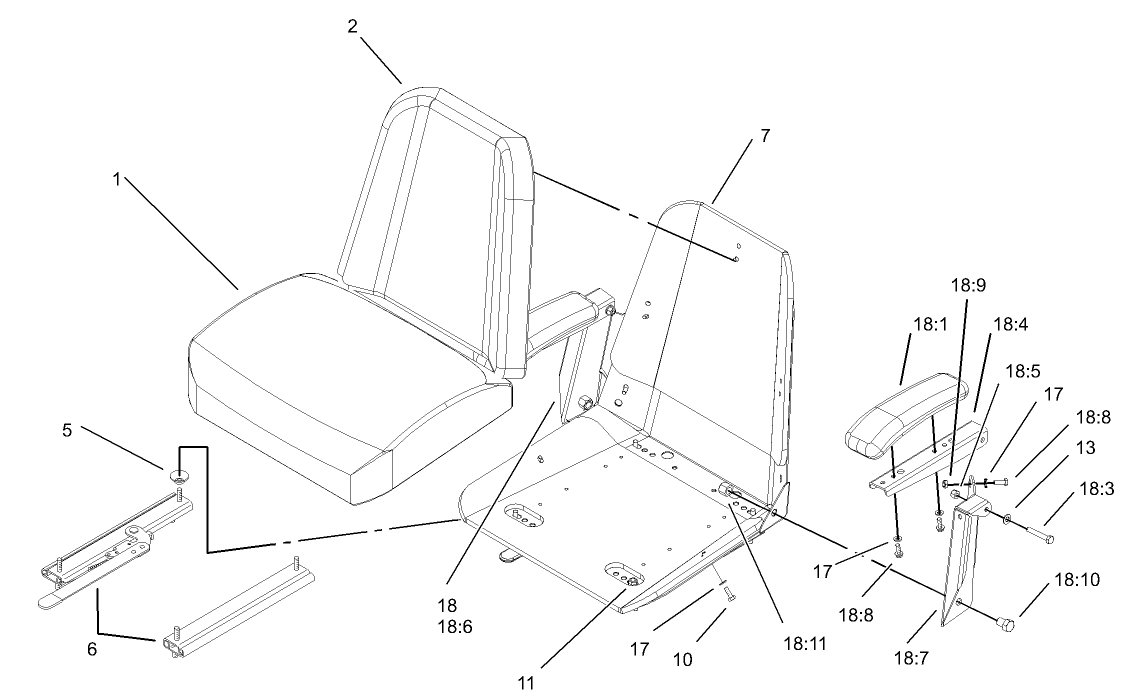

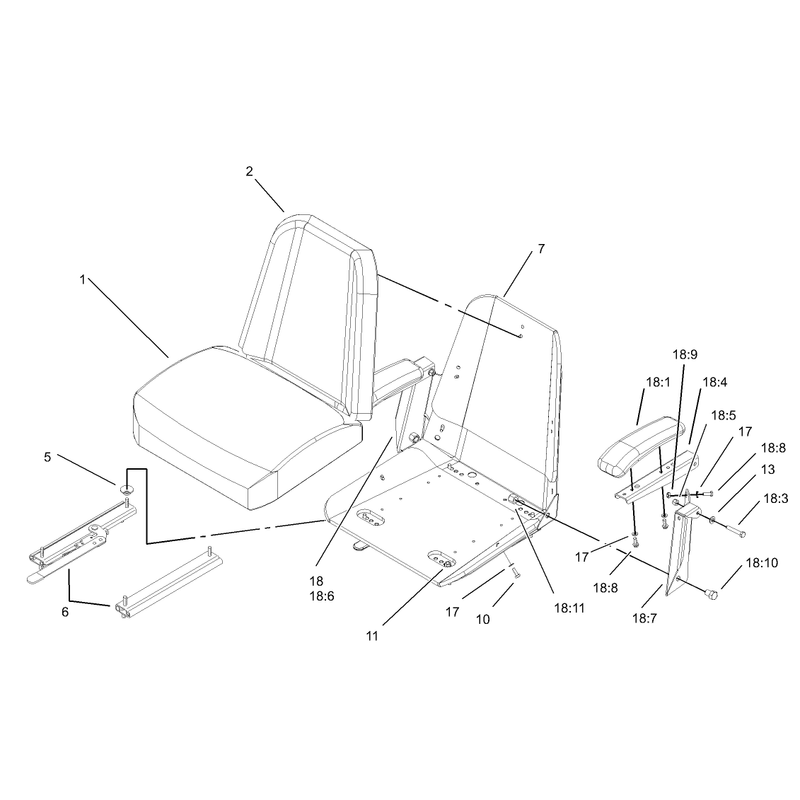

Seat Assembly No 1 633705
Seat Assembly No 1 633705
| Sequence Number | Image | Product | Price | Add to cart |
|---|

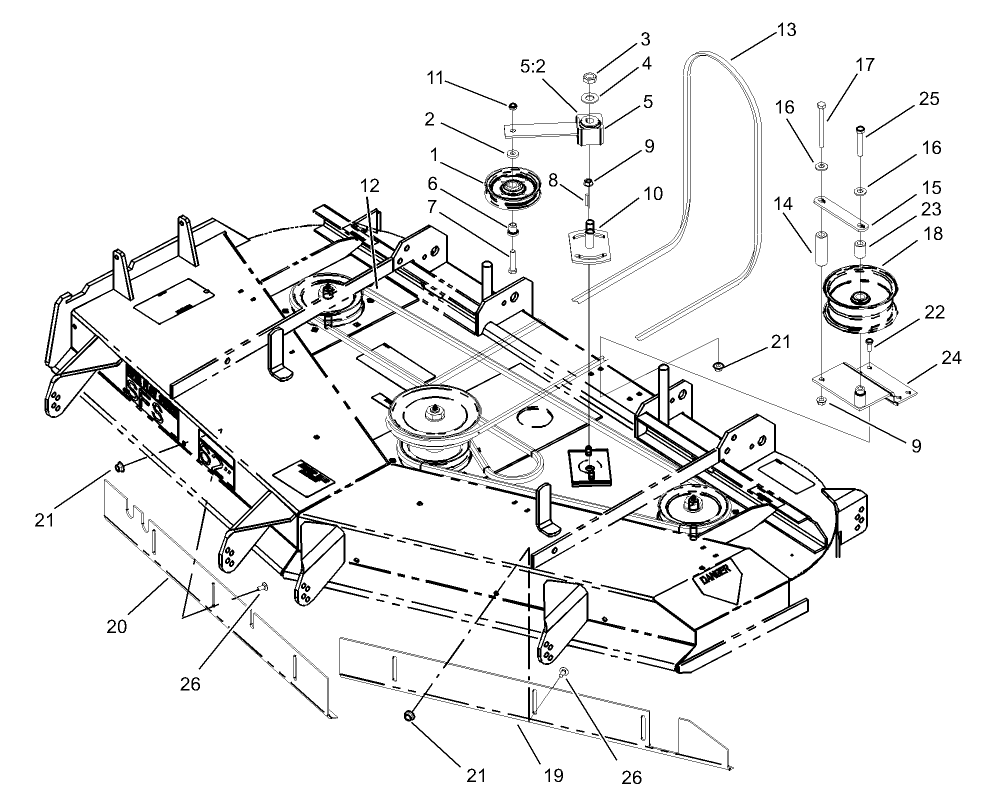

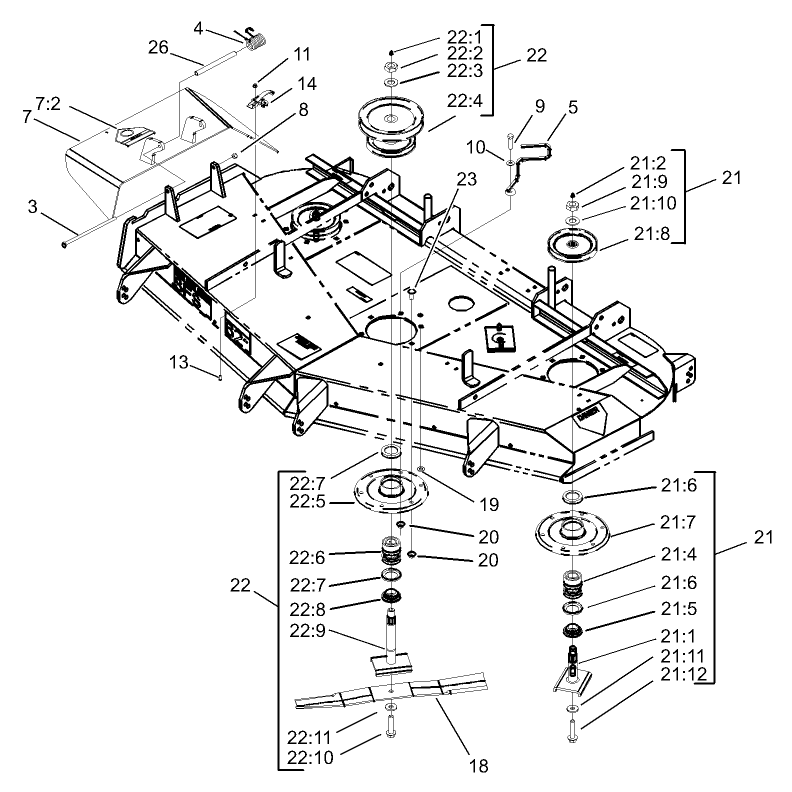

Spindle and Pulley Assembly
Spindle and Pulley Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

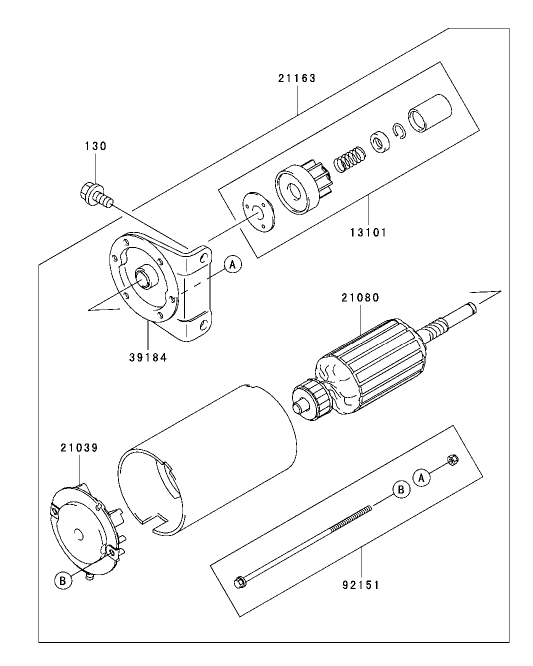

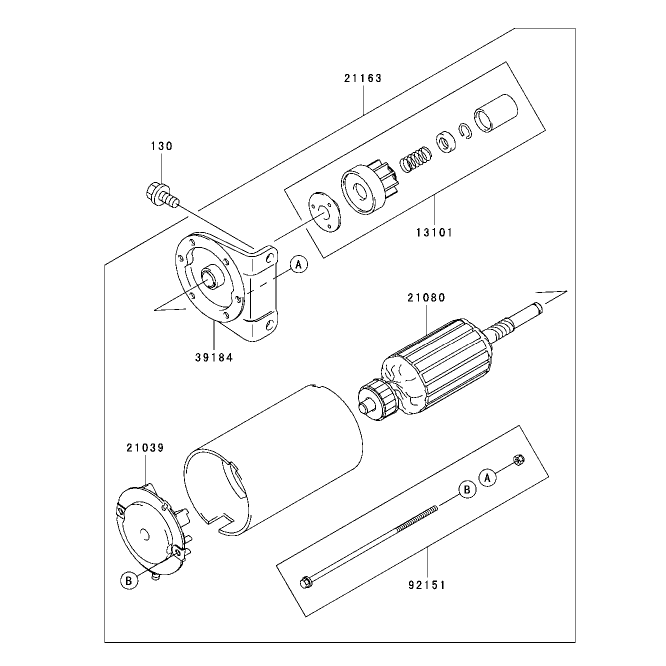

Starter Assembly Kawasaki FH721D AS05
Starter Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

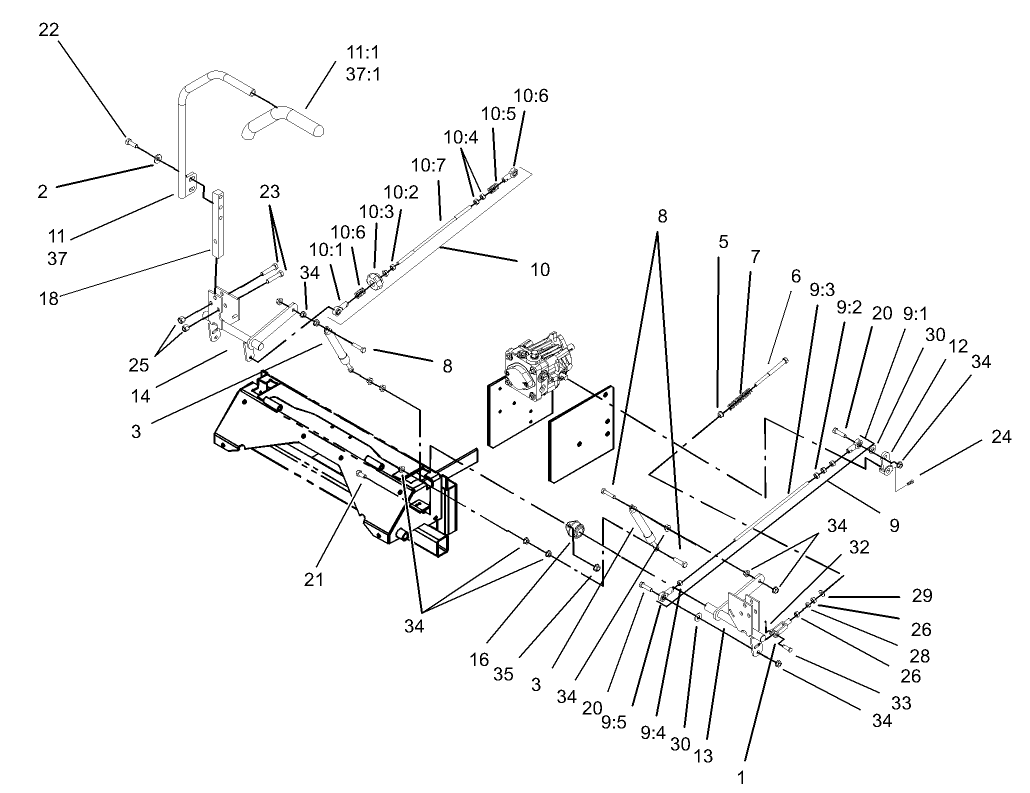

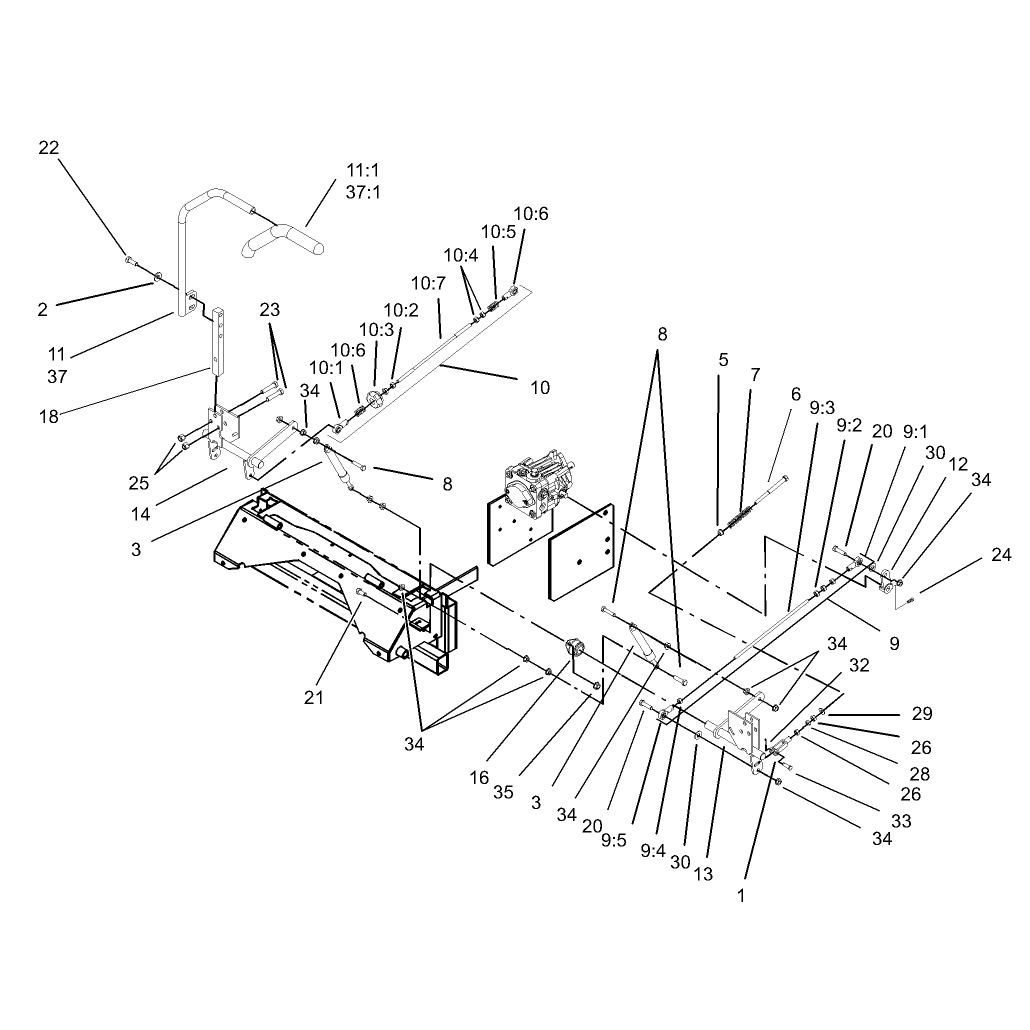

Steering Control Assembly
Steering Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

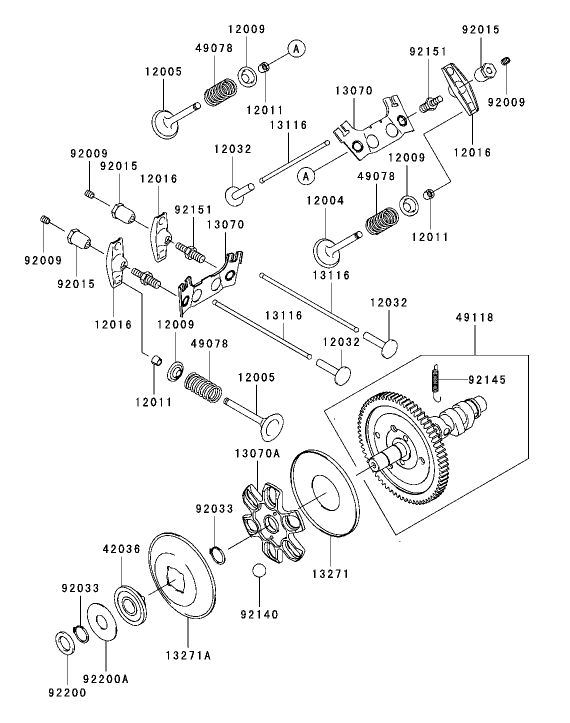

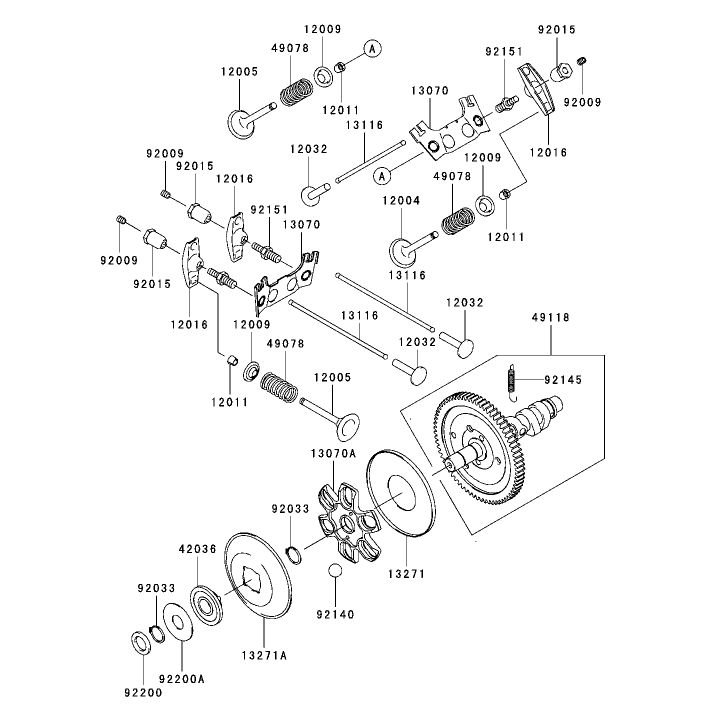

ValveCamshaft Assembly Kawasaki FH721D AS05
ValveCamshaft Assembly Kawasaki FH721D AS05
| Sequence Number | Image | Product | Price | Add to cart |
|---|

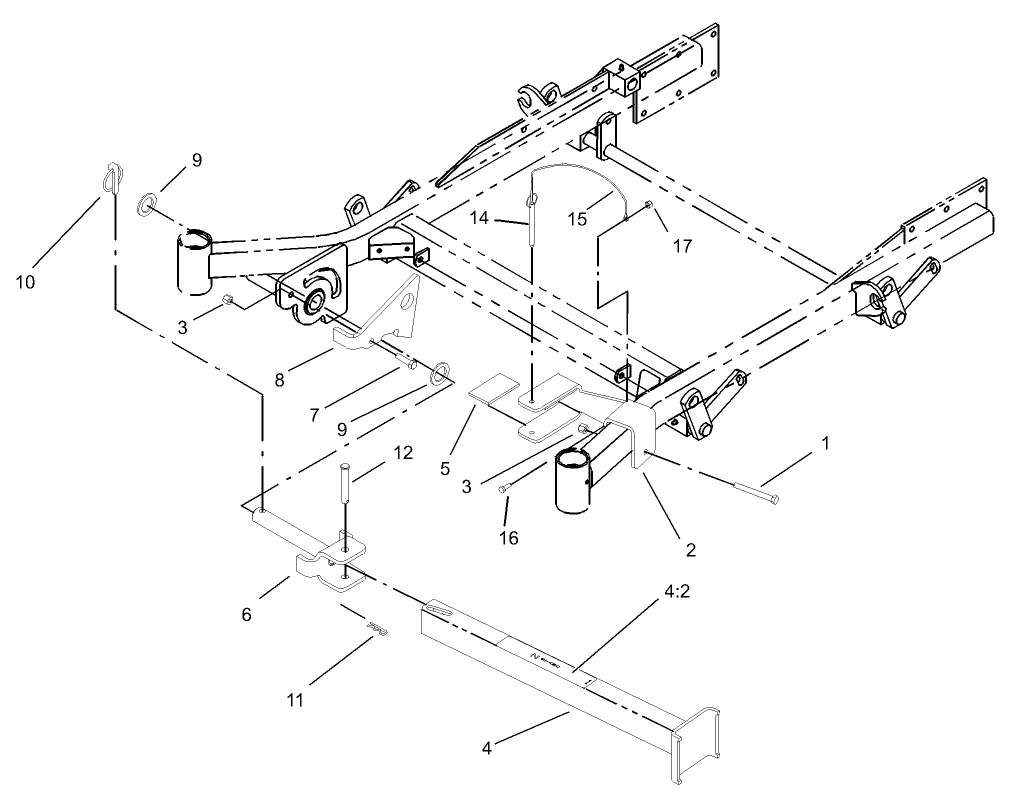

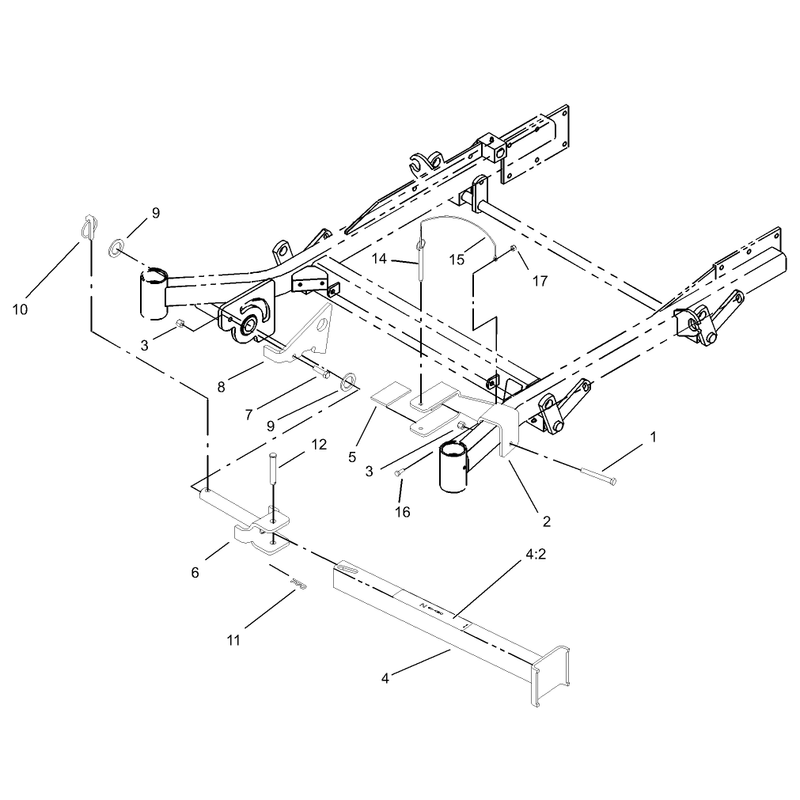

Z Stand Assembly
Z Stand Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
