Toro 74311TE Z Master 8000 Series Riding Mower, with 122cm Deck (Serial #: 402000000 - 404329999) Parts Diagram
Diagrams:
Diagram:

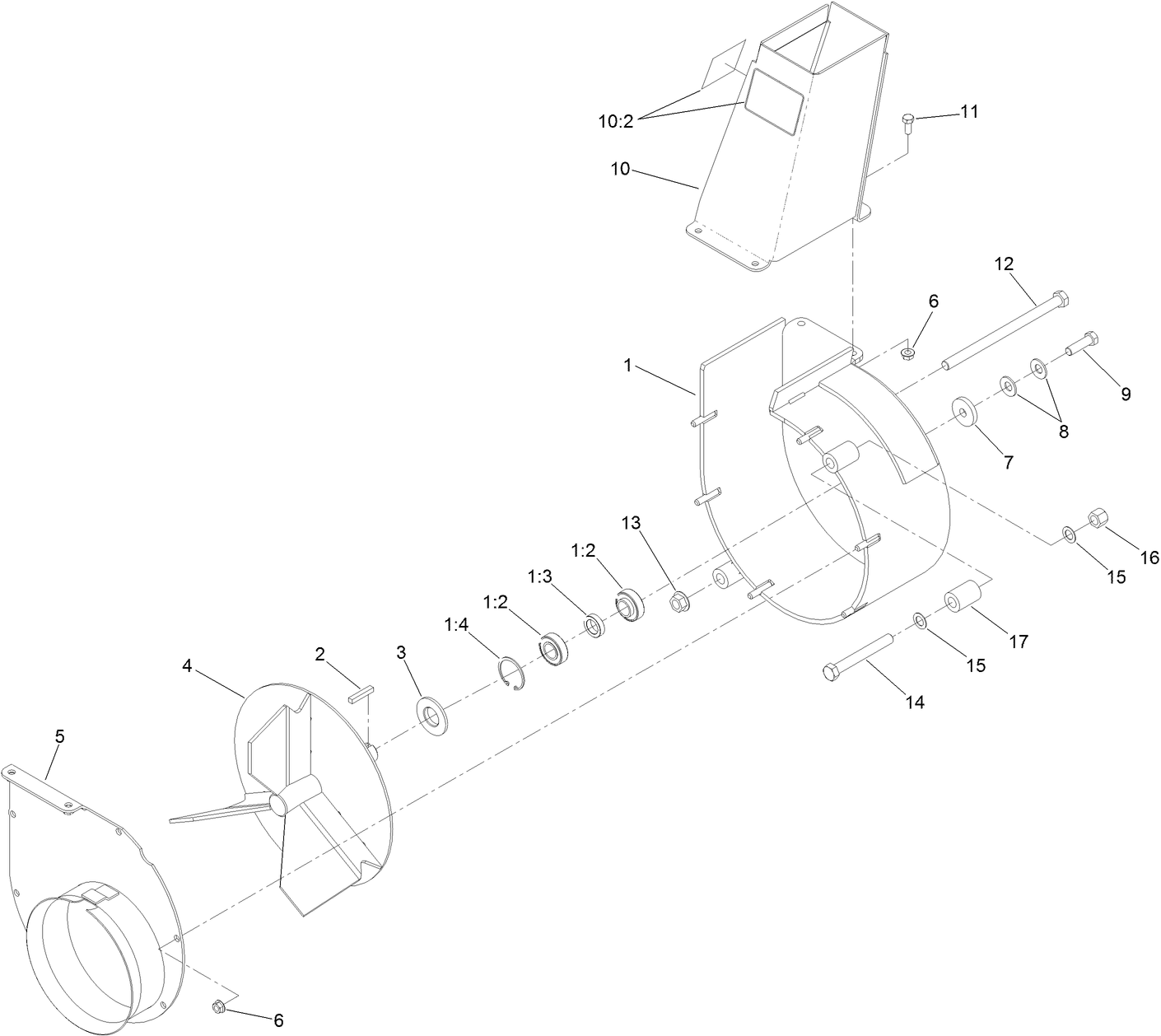

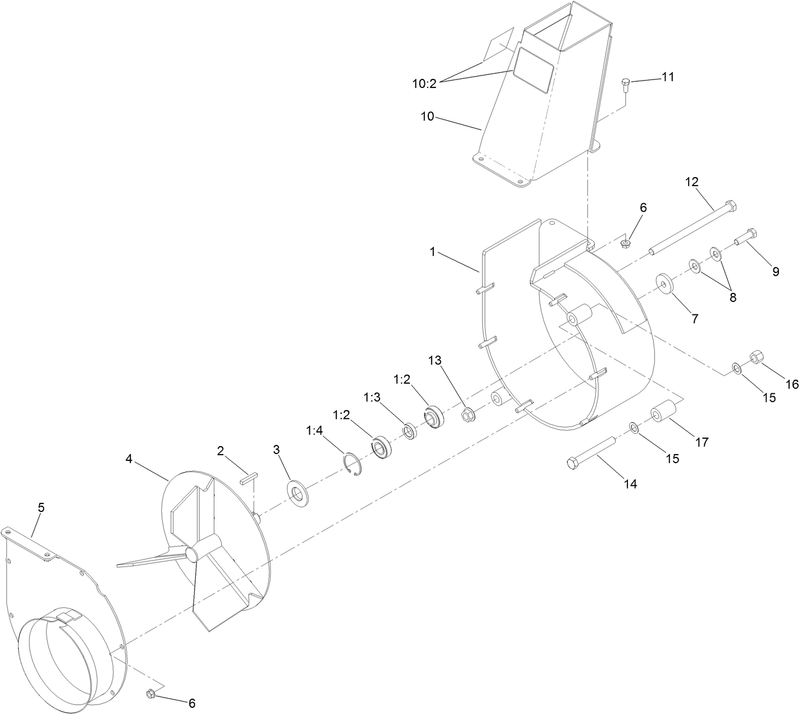

Blower Assembly No 116 9649
Blower Assembly No 116 9649
| Sequence Number | Image | Product | Price | Add to cart |
|---|

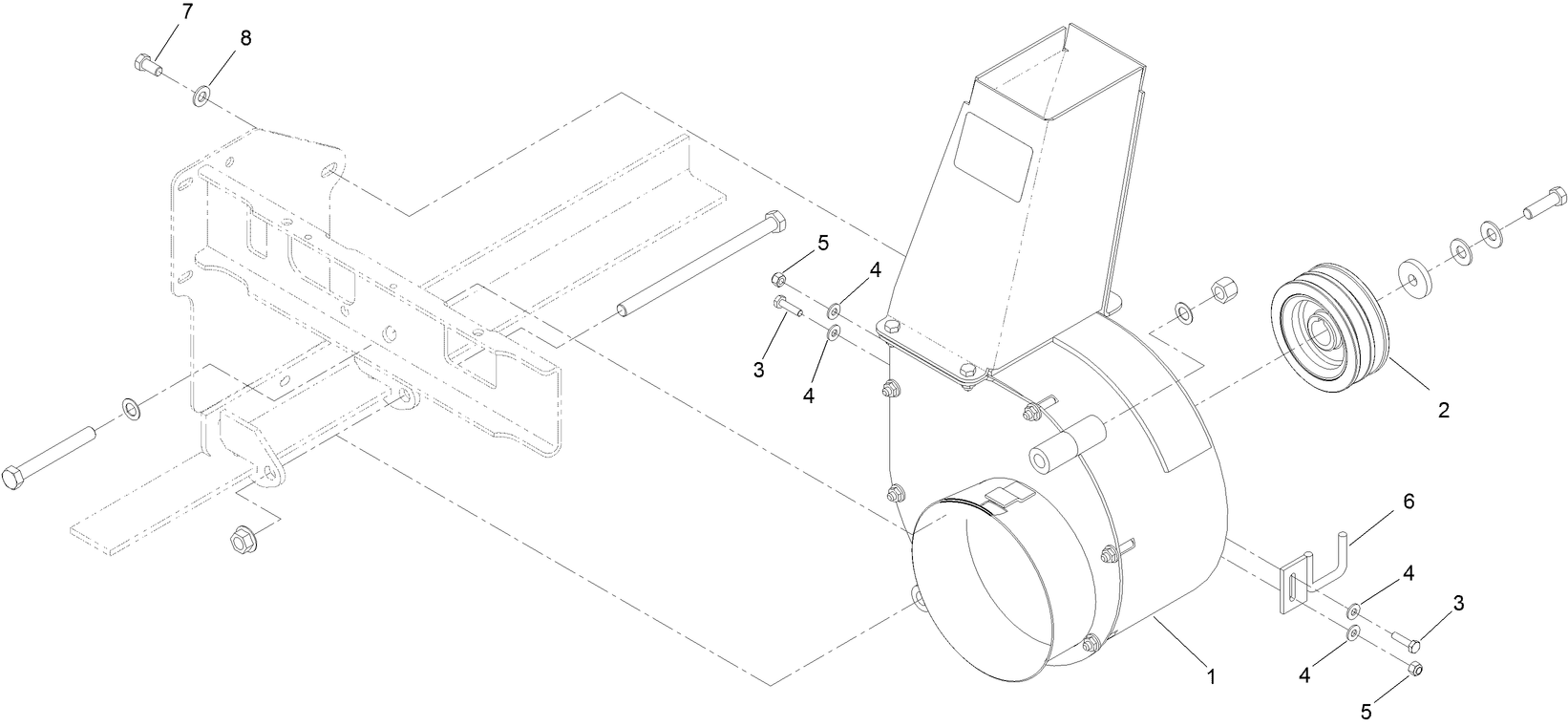

Blower Mounting Assembly
Blower Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

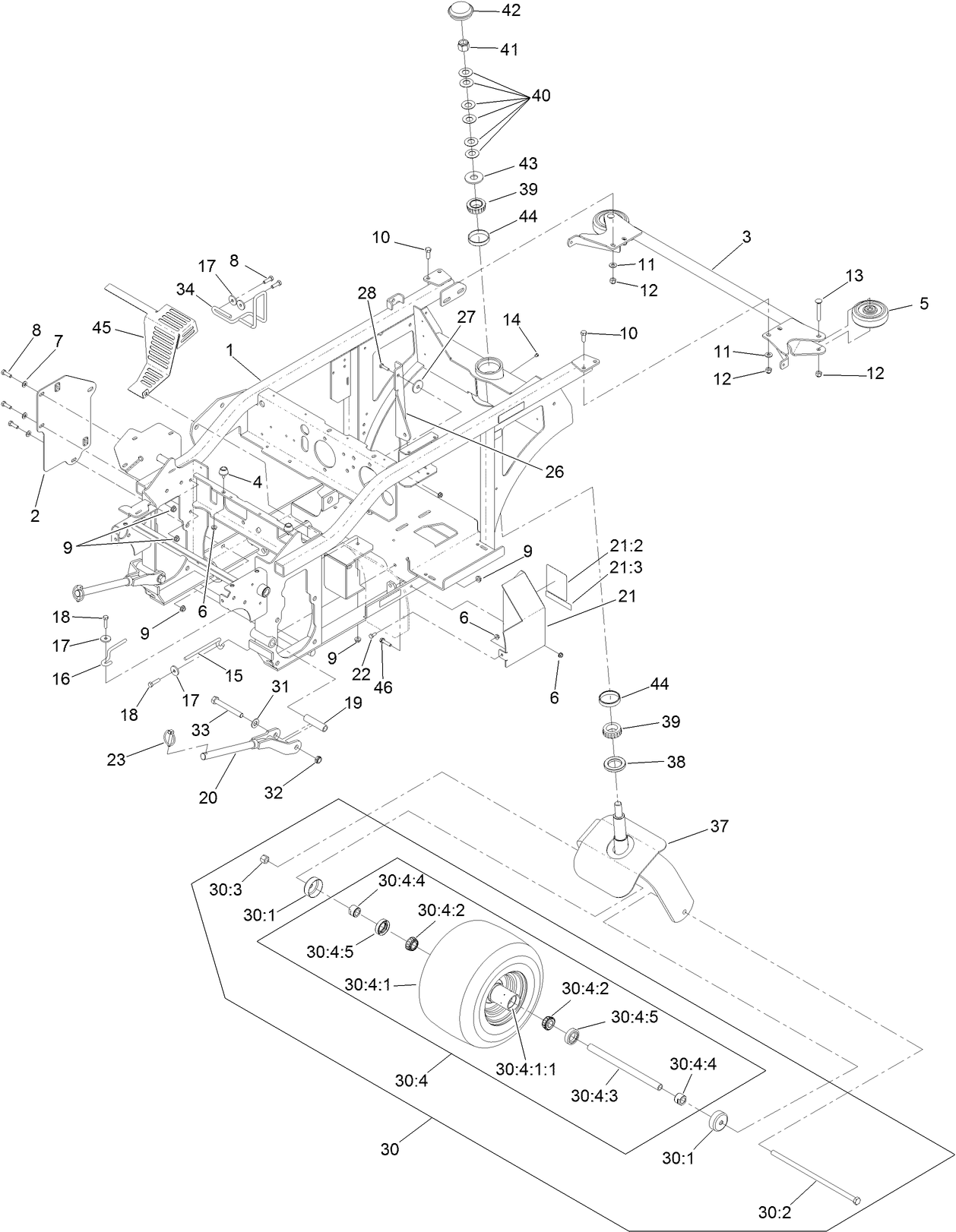

Caster Wheel and Frame Assembly
Caster Wheel and Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

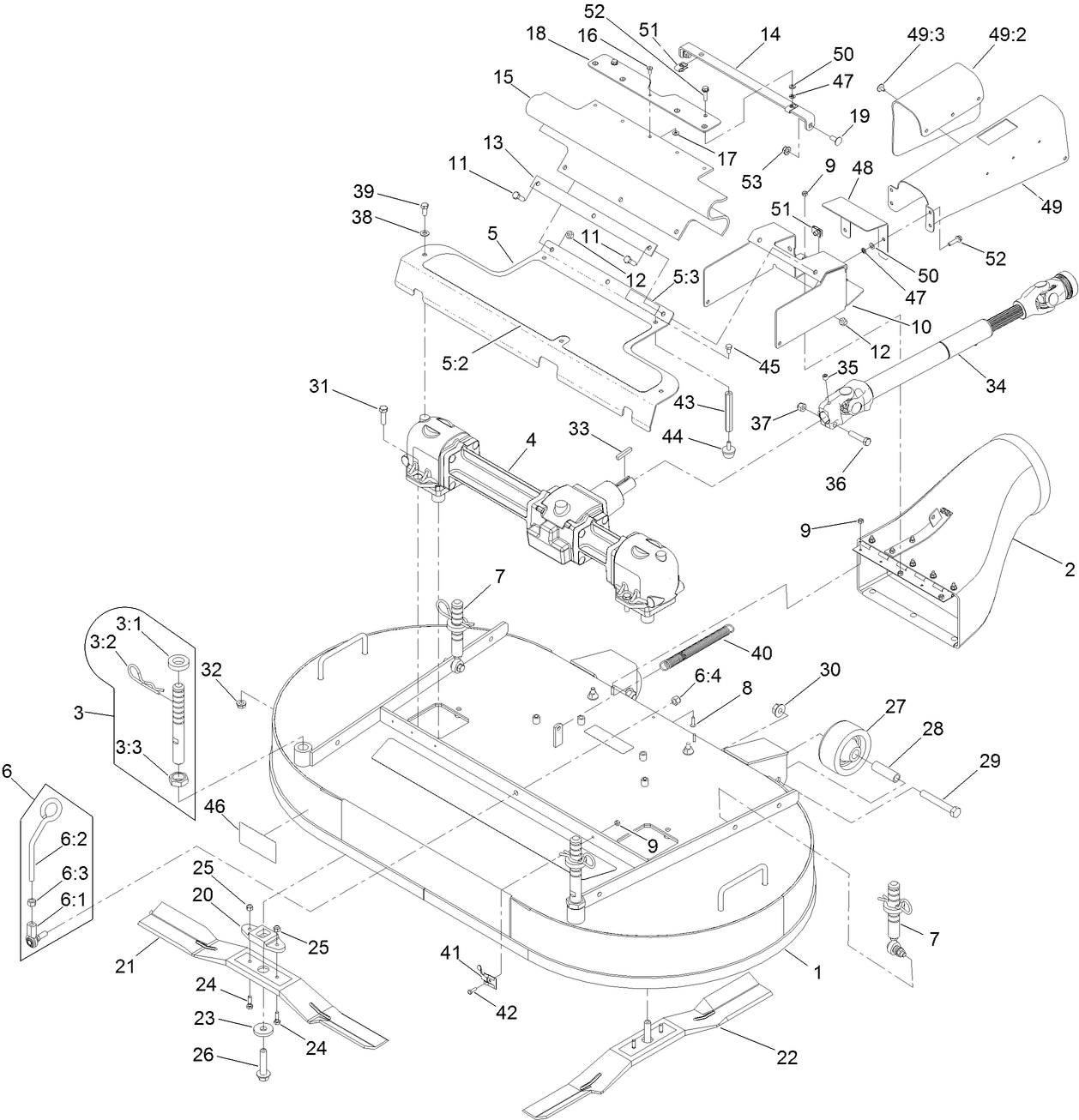

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

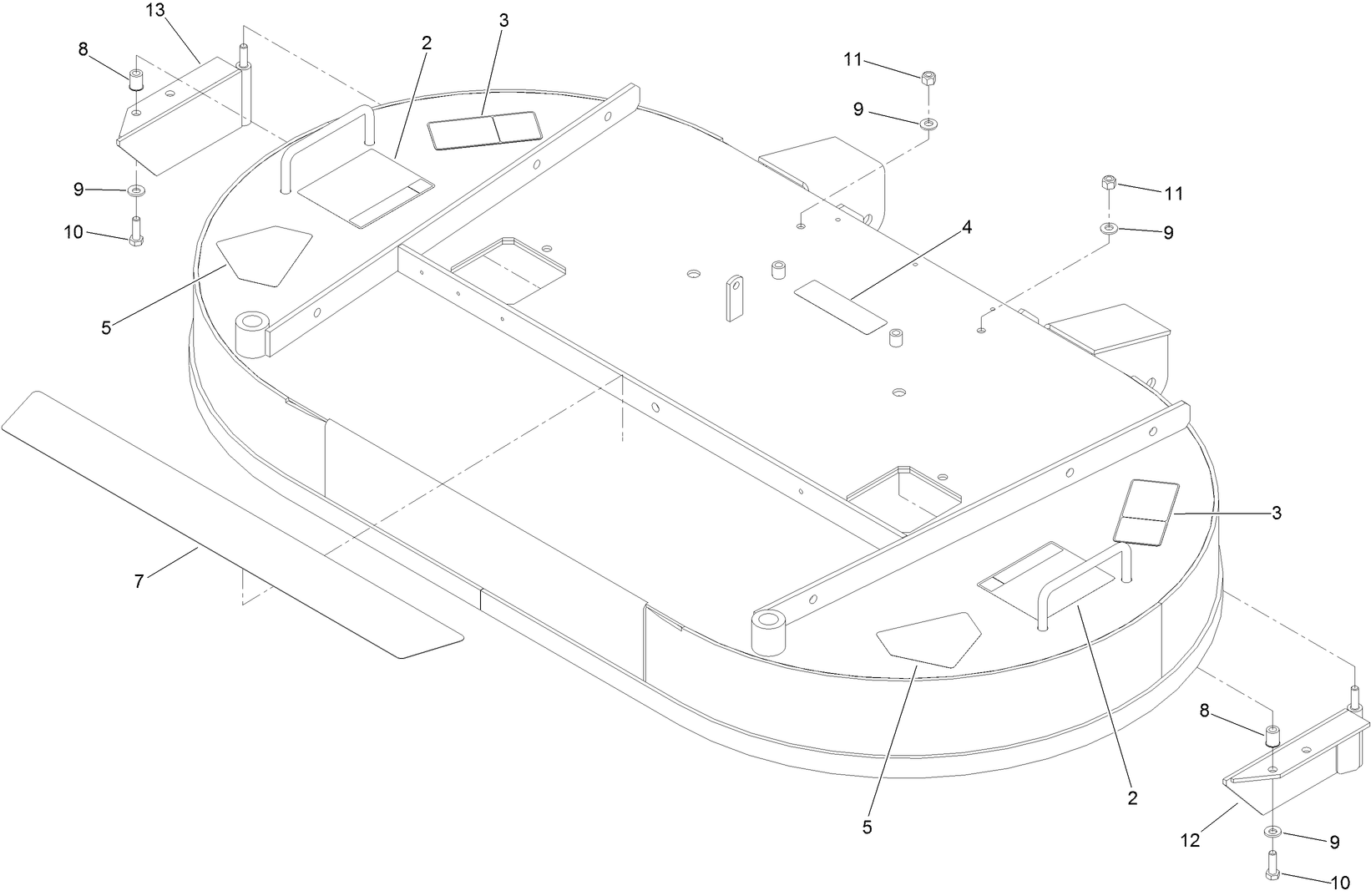

Deck Decal Assembly No 109 4372
Deck Decal Assembly No 109 4372
| Sequence Number | Image | Product | Price | Add to cart |
|---|

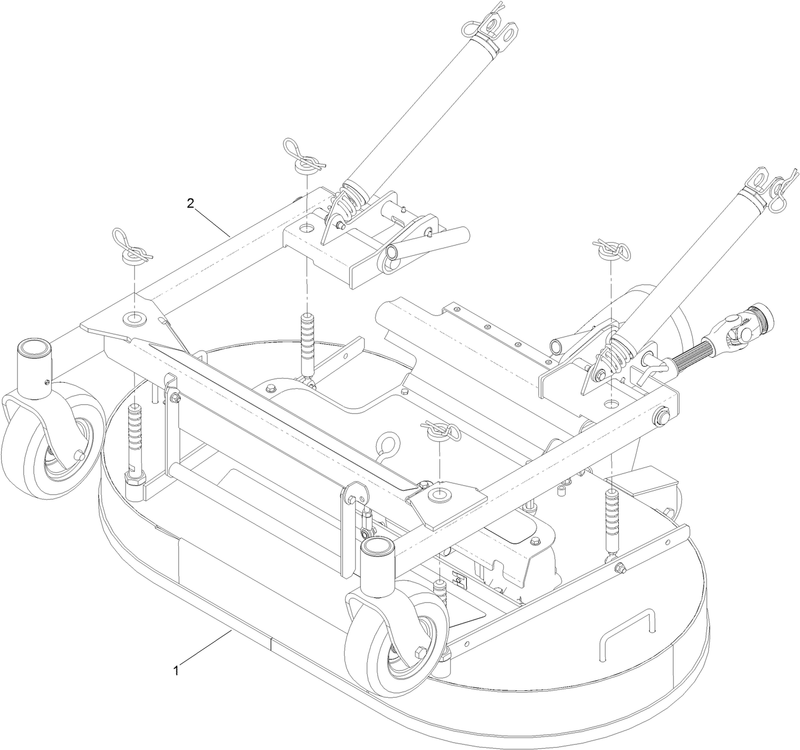

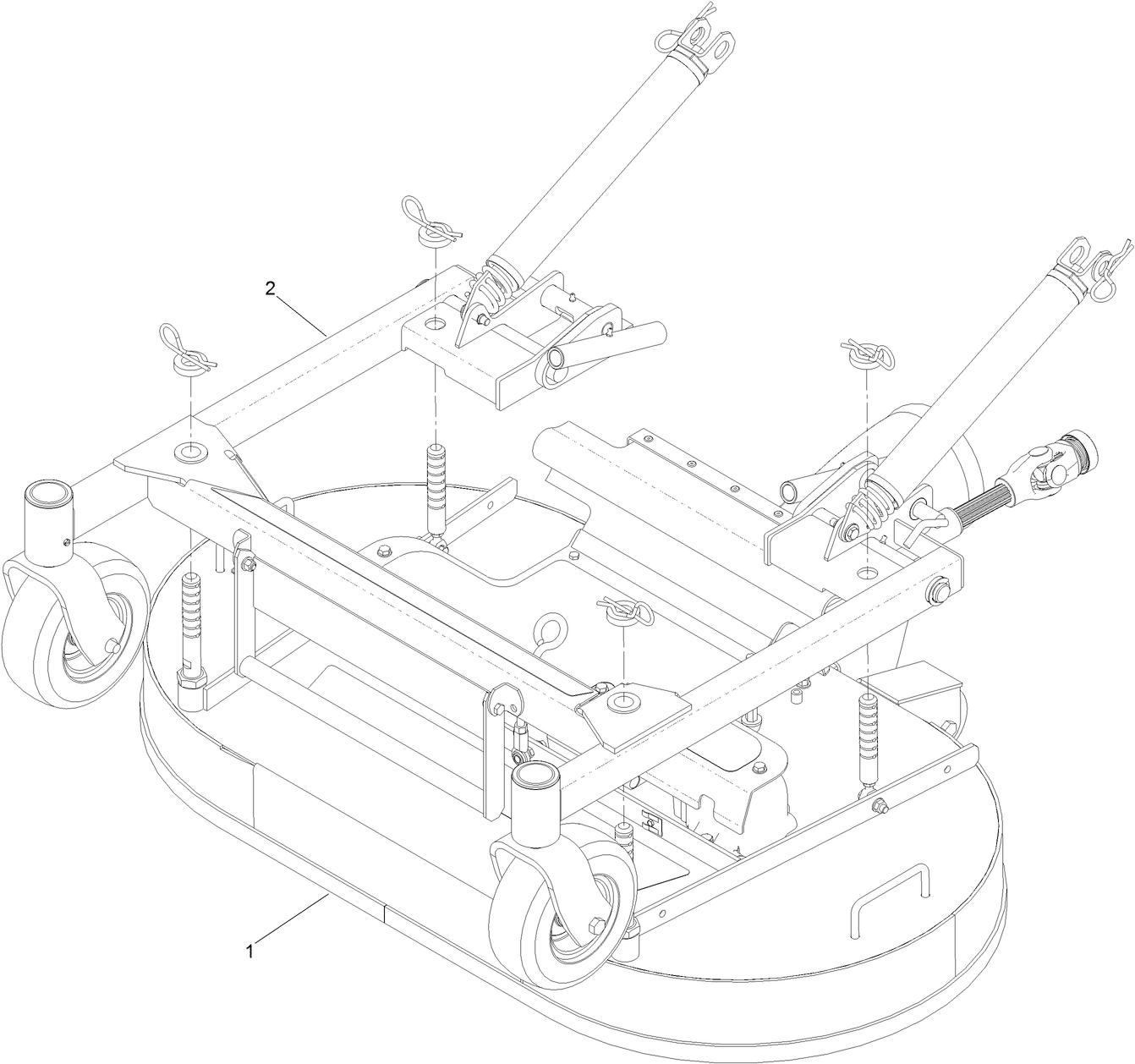

Deck Mounting Assembly
Deck Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

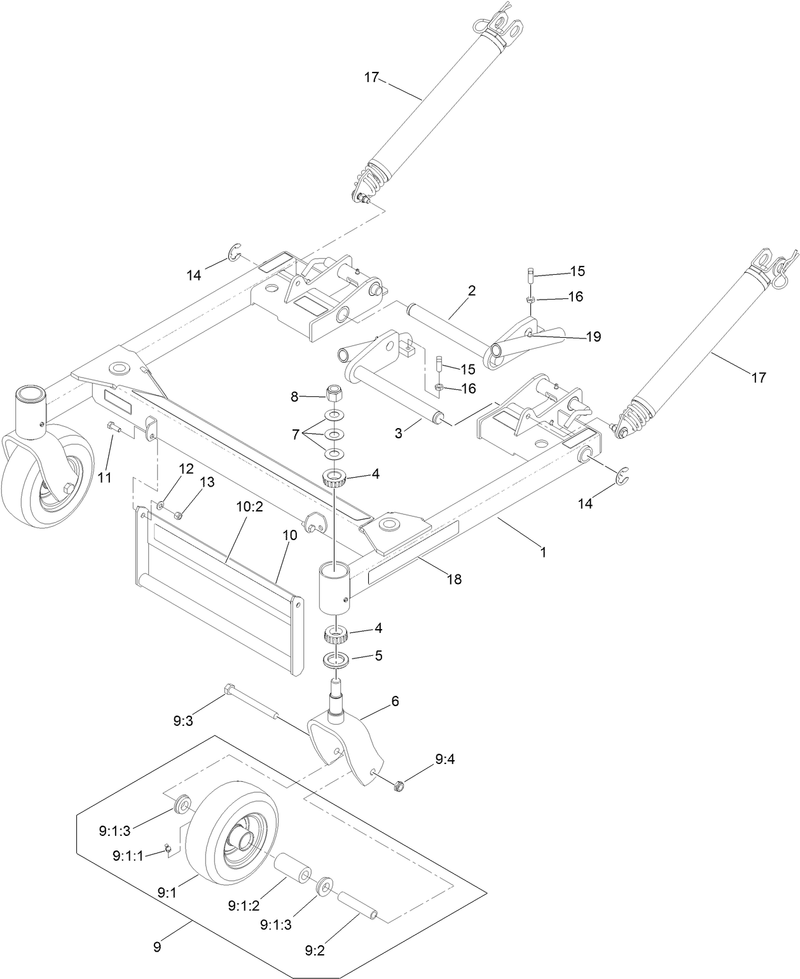

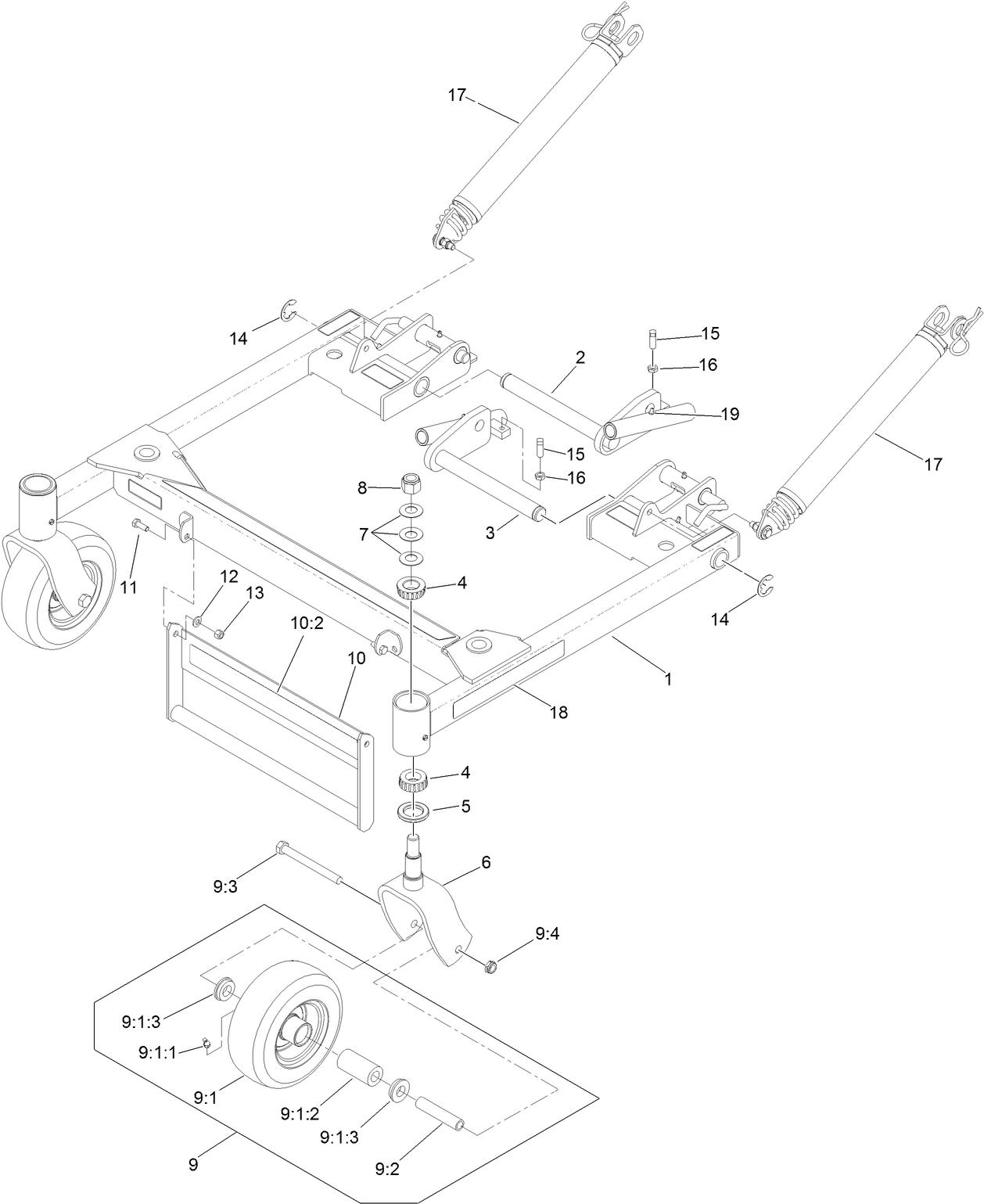

Deck Support Frame Assembly No 130 2893
Deck Support Frame Assembly No 130 2893
| Sequence Number | Image | Product | Price | Add to cart |
|---|

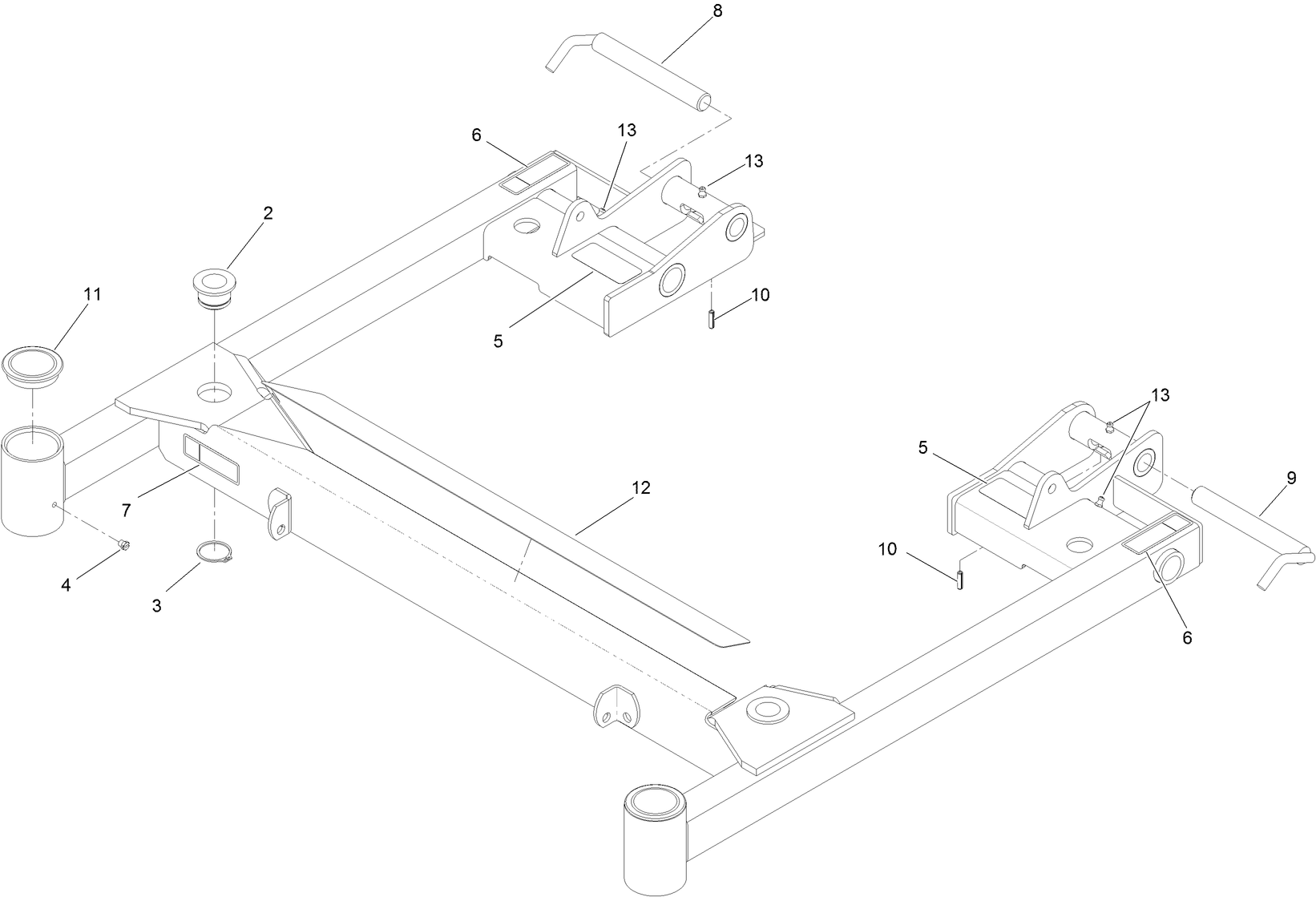

Deck Support WDecals Assembly No 103 9480
Deck Support WDecals Assembly No 103 9480
| Sequence Number | Image | Product | Price | Add to cart |
|---|

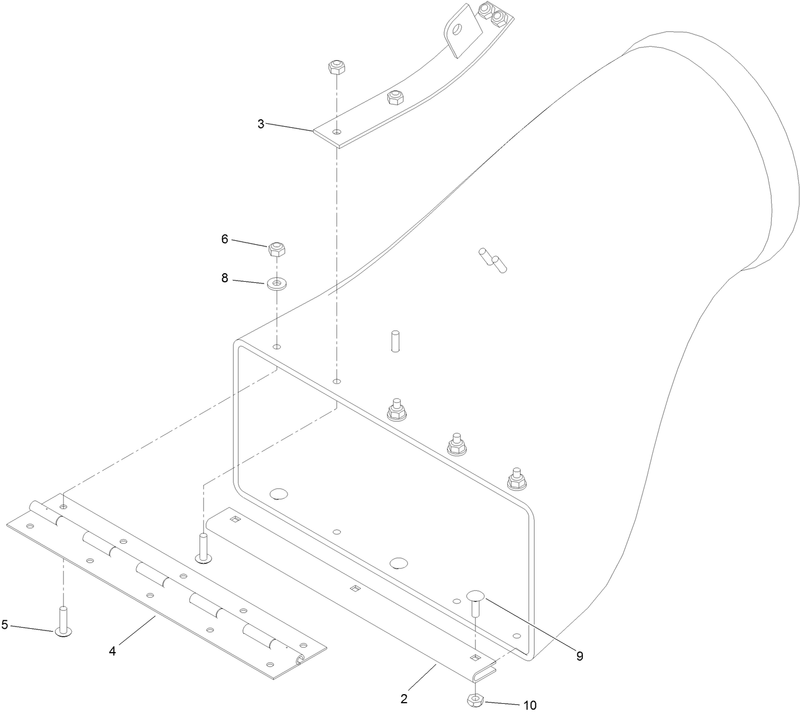

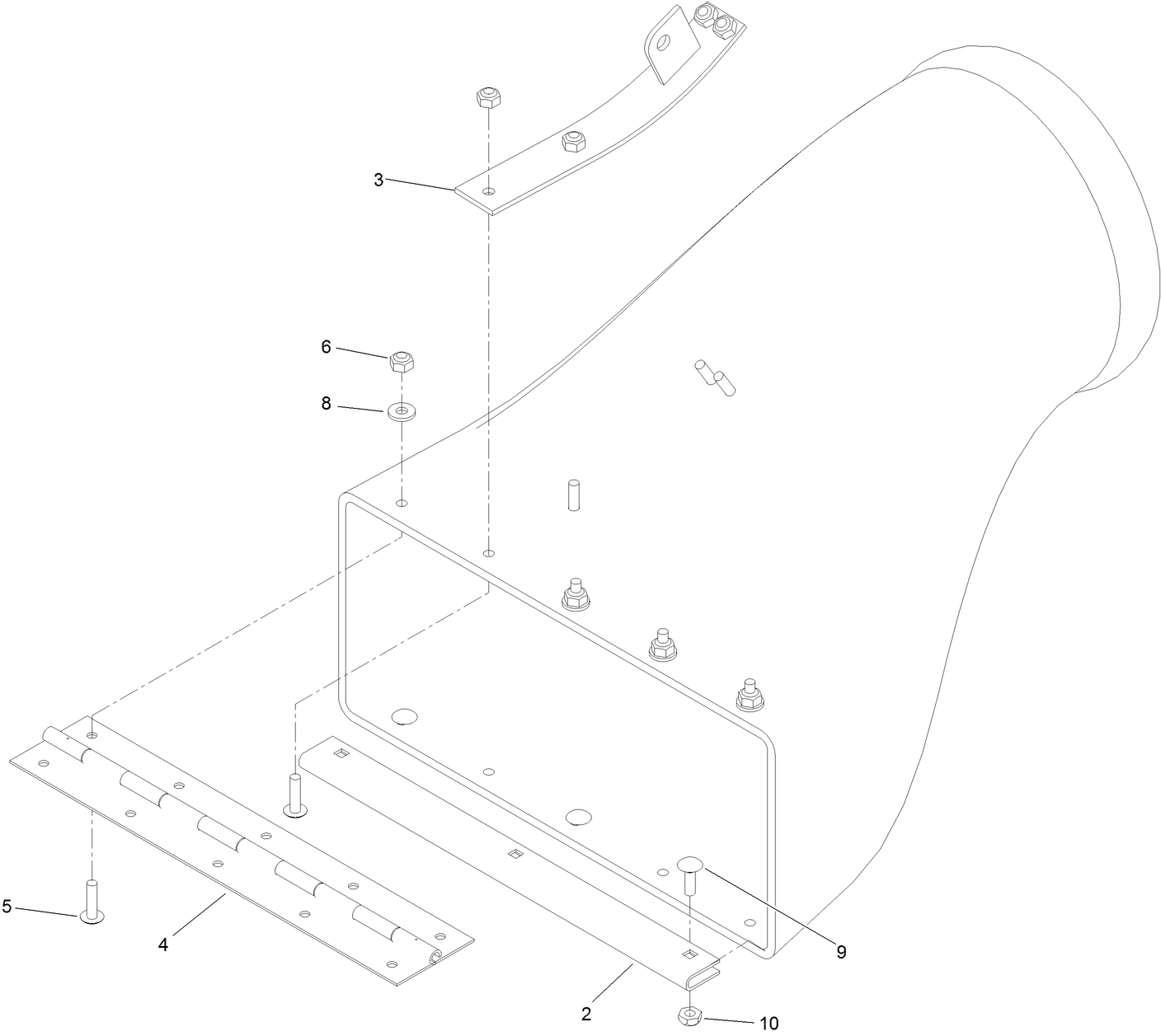

Discharge Tube Assembly No 103 9487
Discharge Tube Assembly No 103 9487
| Sequence Number | Image | Product | Price | Add to cart |
|---|

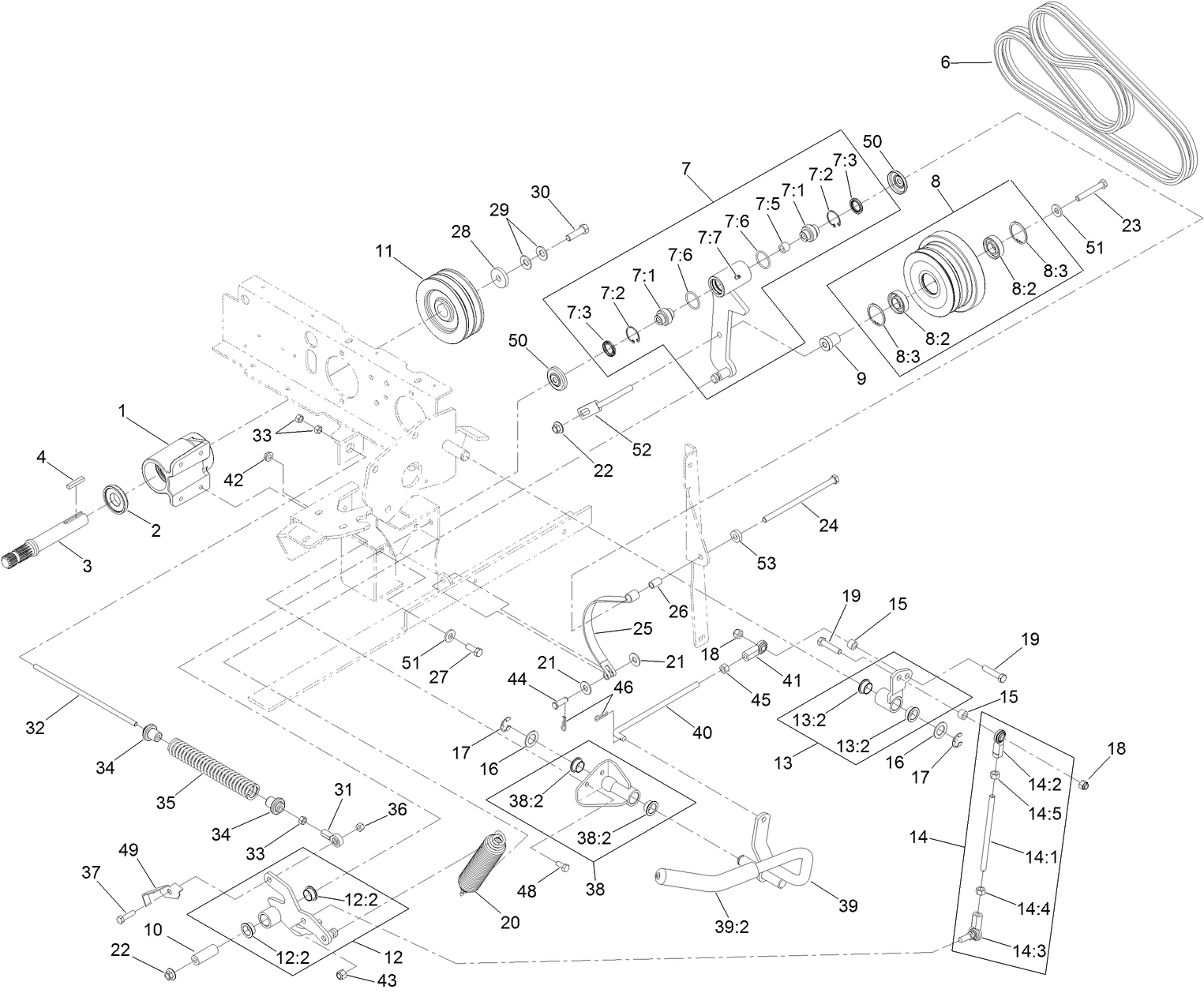

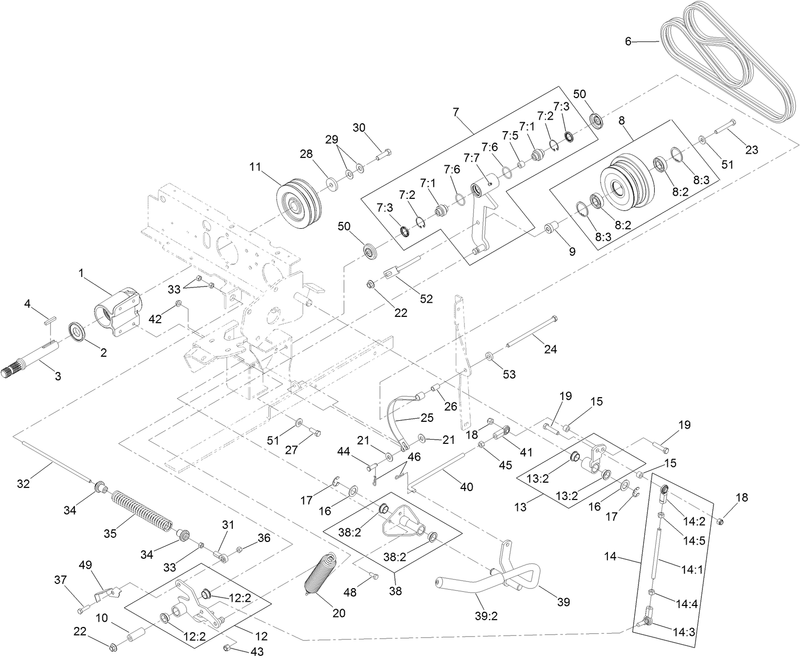

Drive Assembly
Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

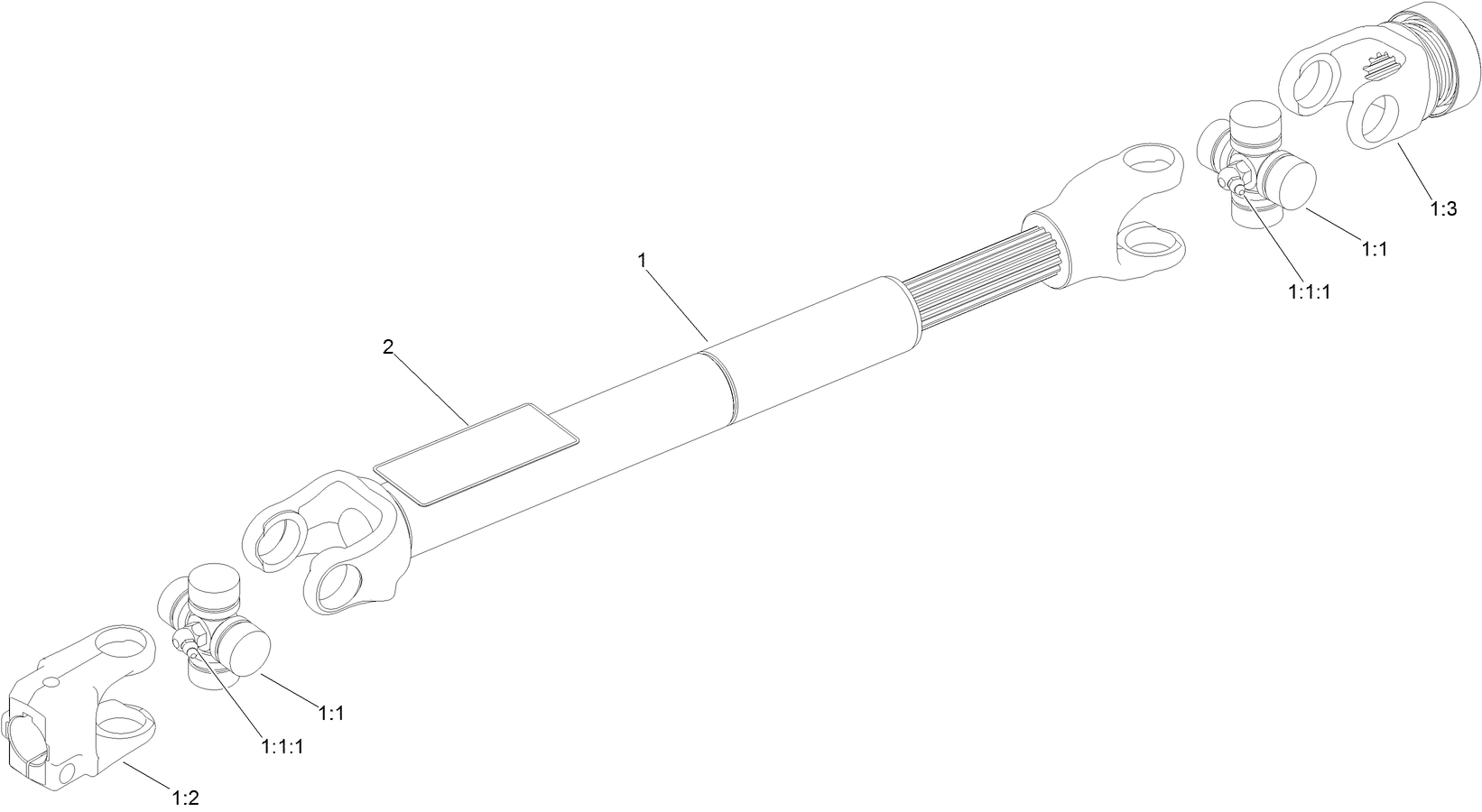

Drive Shaft Assembly No 103 9485
Drive Shaft Assembly No 103 9485
| Sequence Number | Image | Product | Price | Add to cart |
|---|

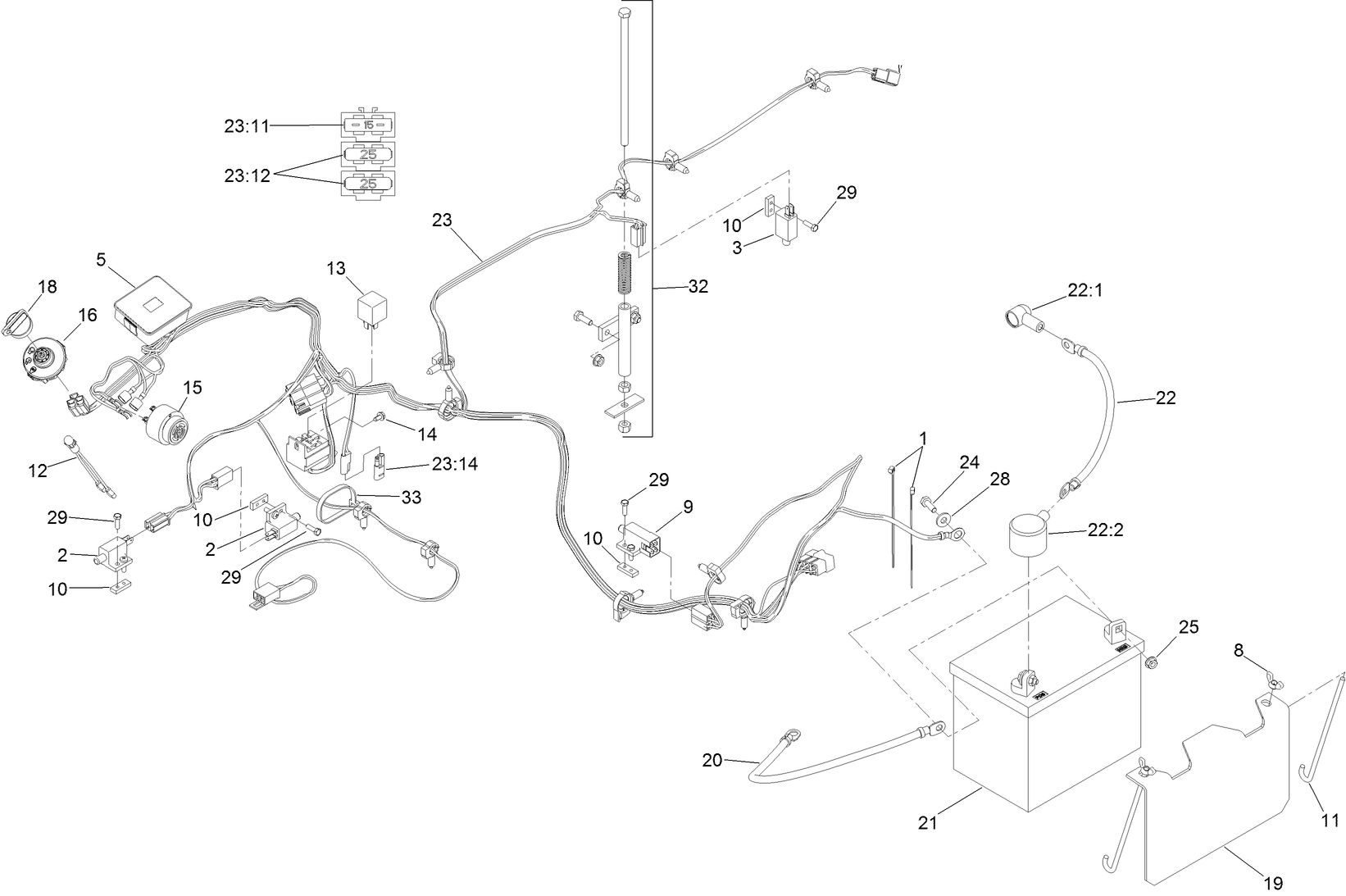

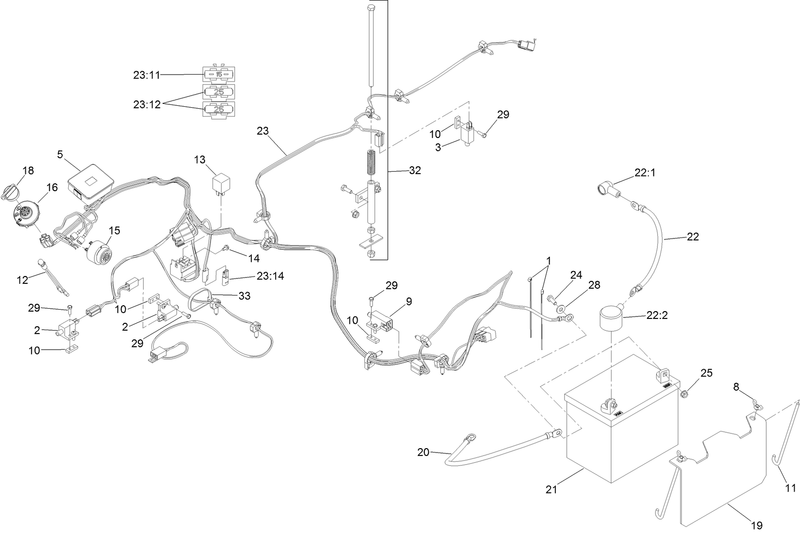

Electrical System Assembly
Electrical System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

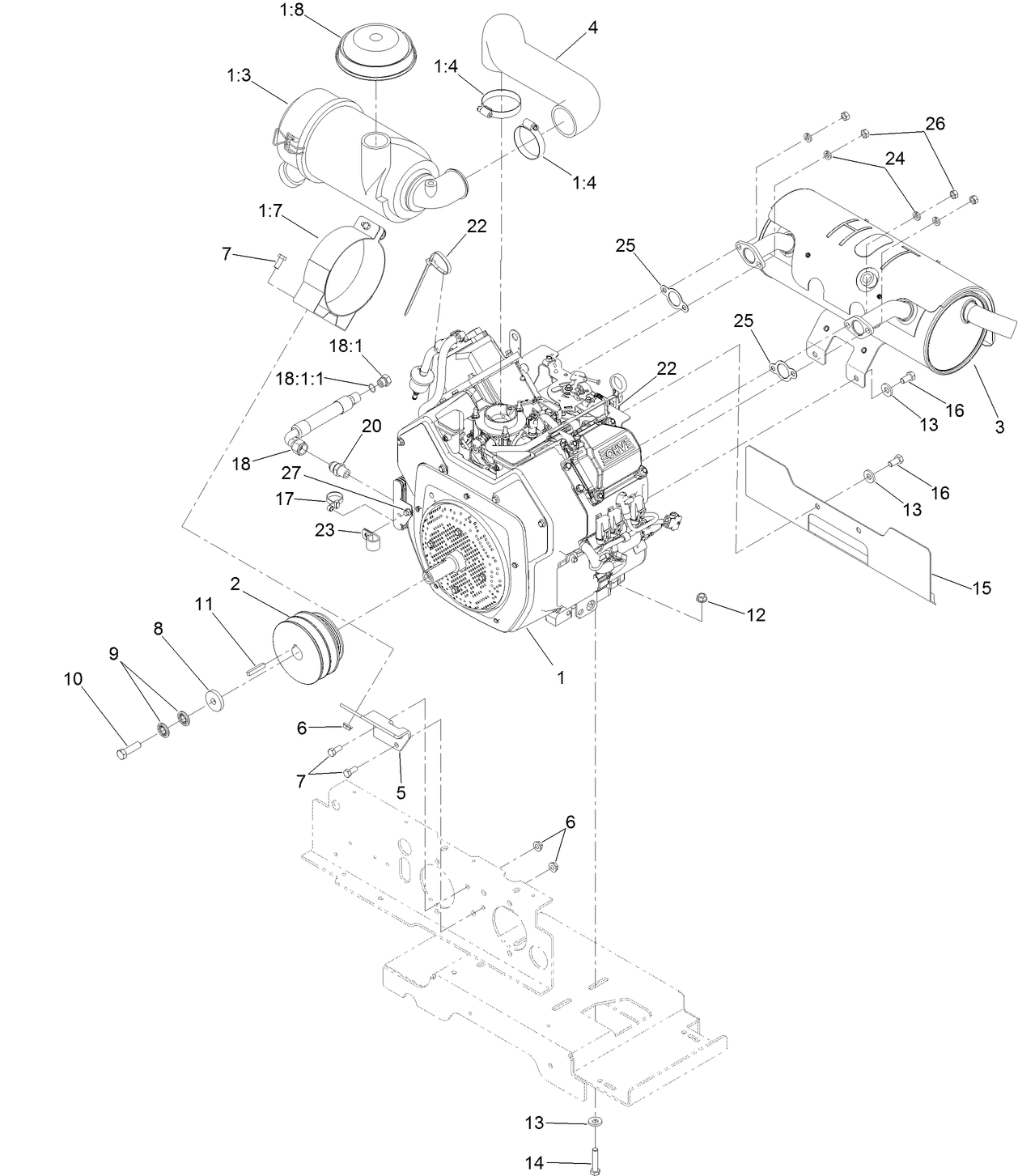

Engine Muffler and Air Cleaner Assembly
Engine Muffler and Air Cleaner Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

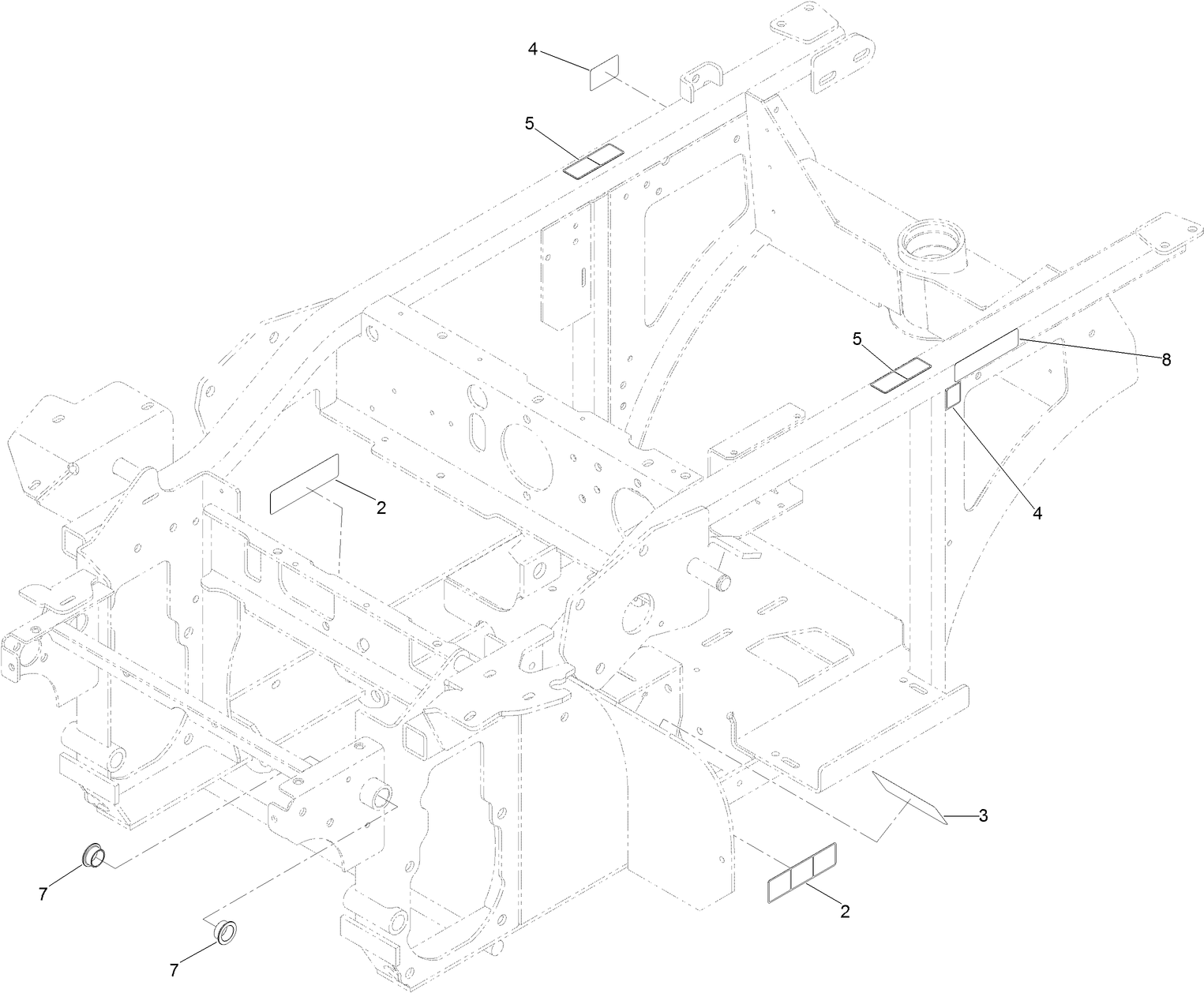

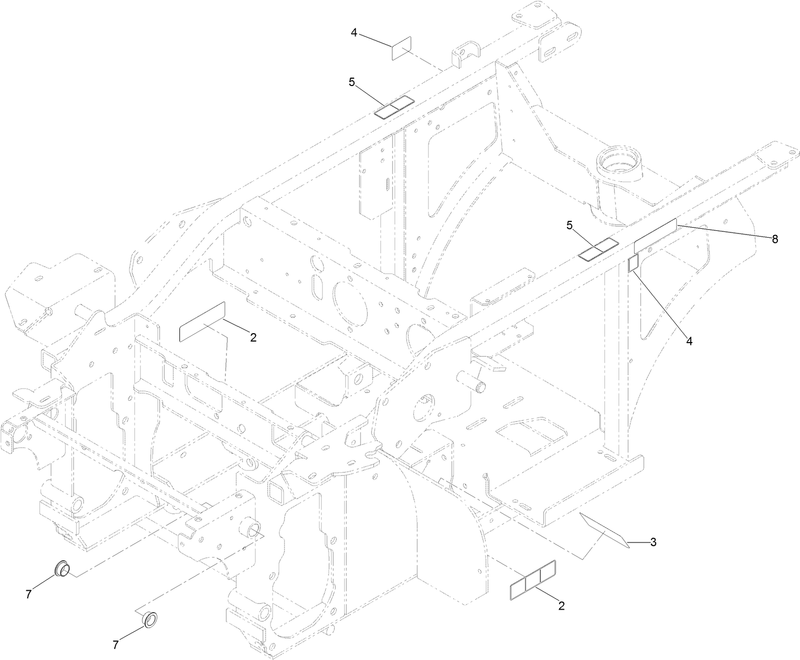

Frame and Decal Assembly No 116 7482
Frame and Decal Assembly No 116 7482
| Sequence Number | Image | Product | Price | Add to cart |
|---|

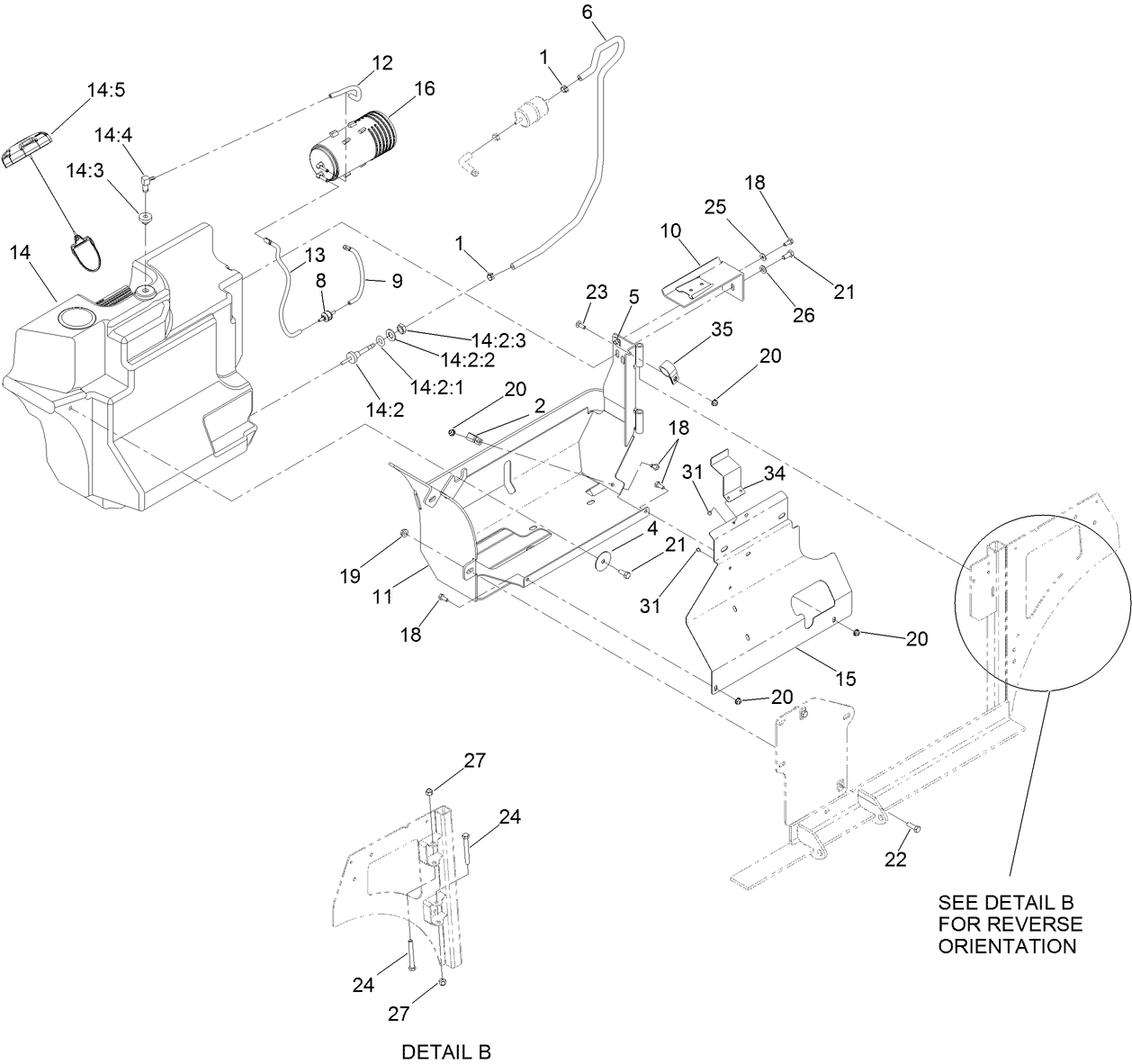

Fuel Assembly
Fuel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

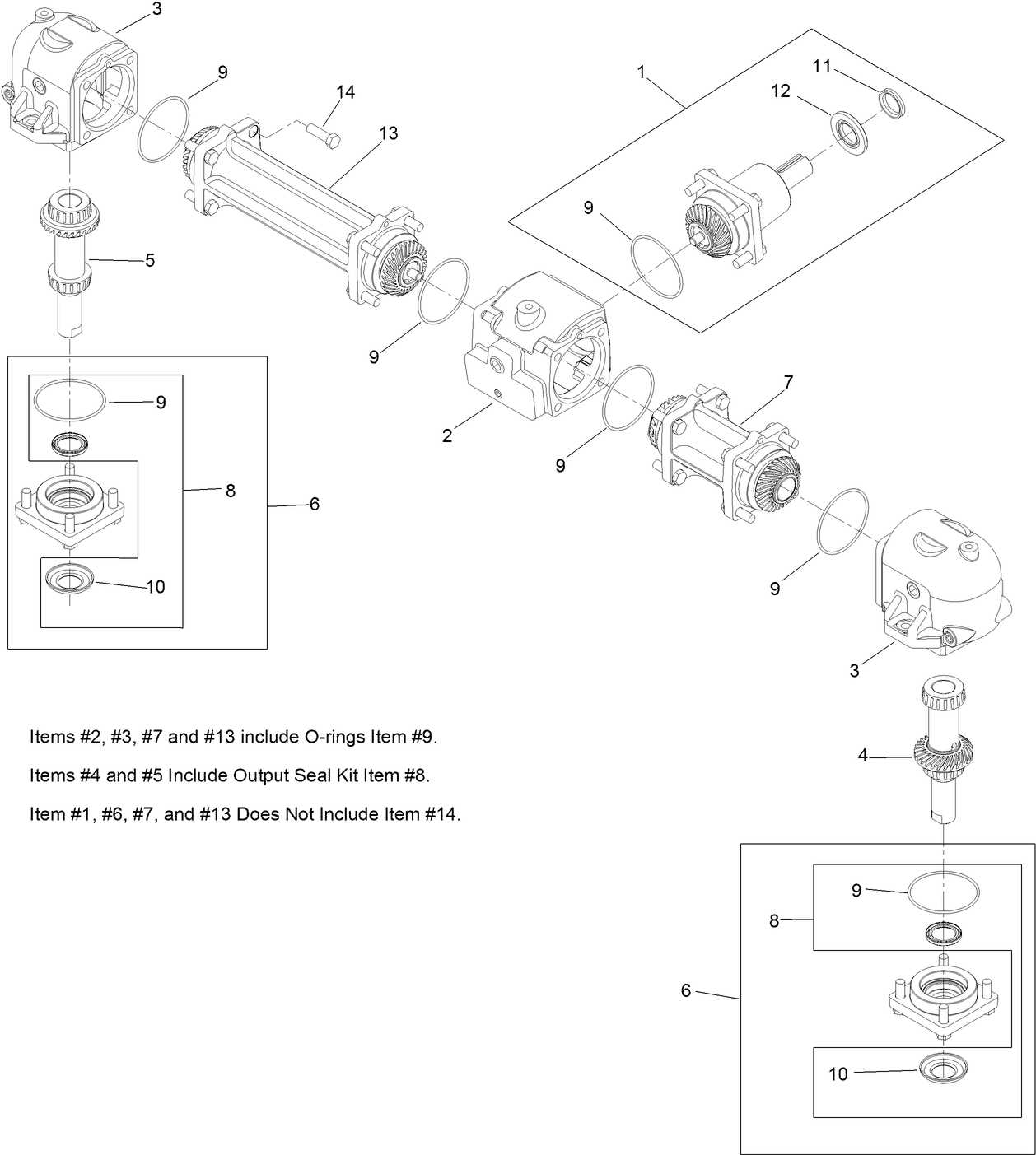

Gearbox Assembly No 103 3387
Gearbox Assembly No 103 3387
| Sequence Number | Image | Product | Price | Add to cart |
|---|

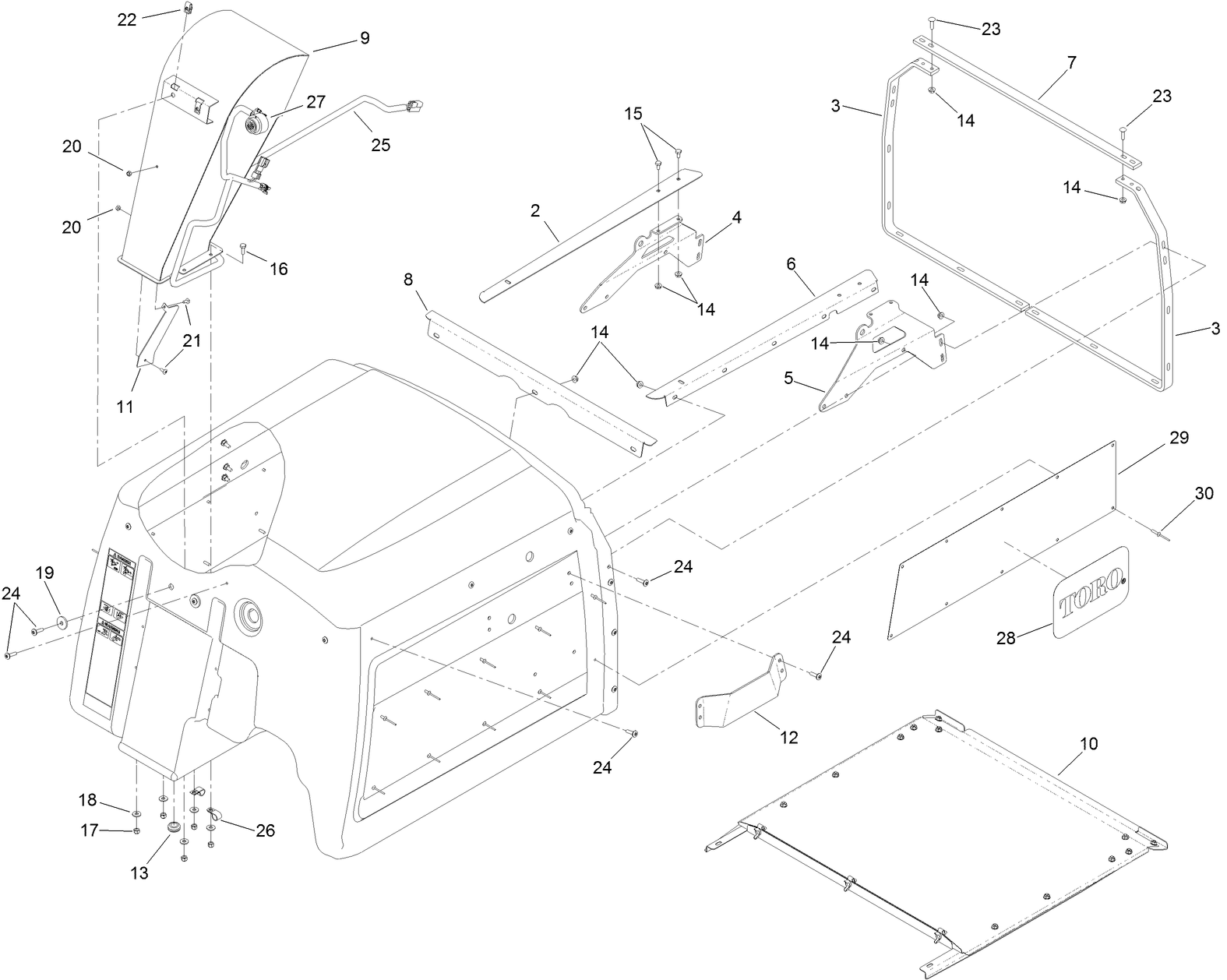

Hopper Assembly No 130 2872
Hopper Assembly No 130 2872
| Sequence Number | Image | Product | Price | Add to cart |
|---|

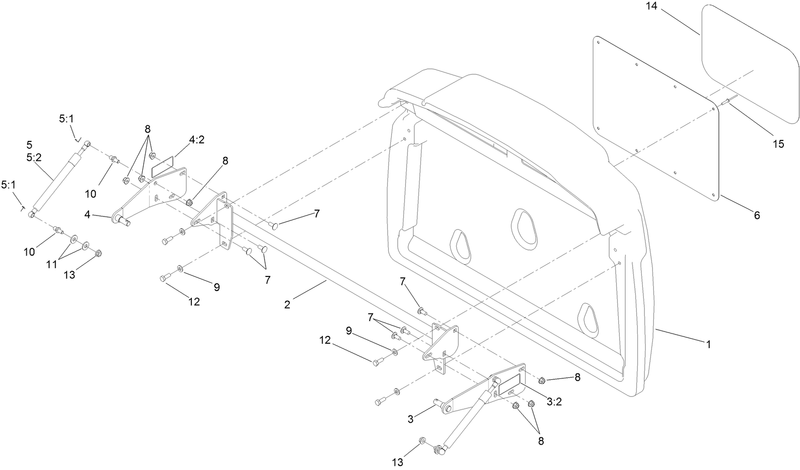

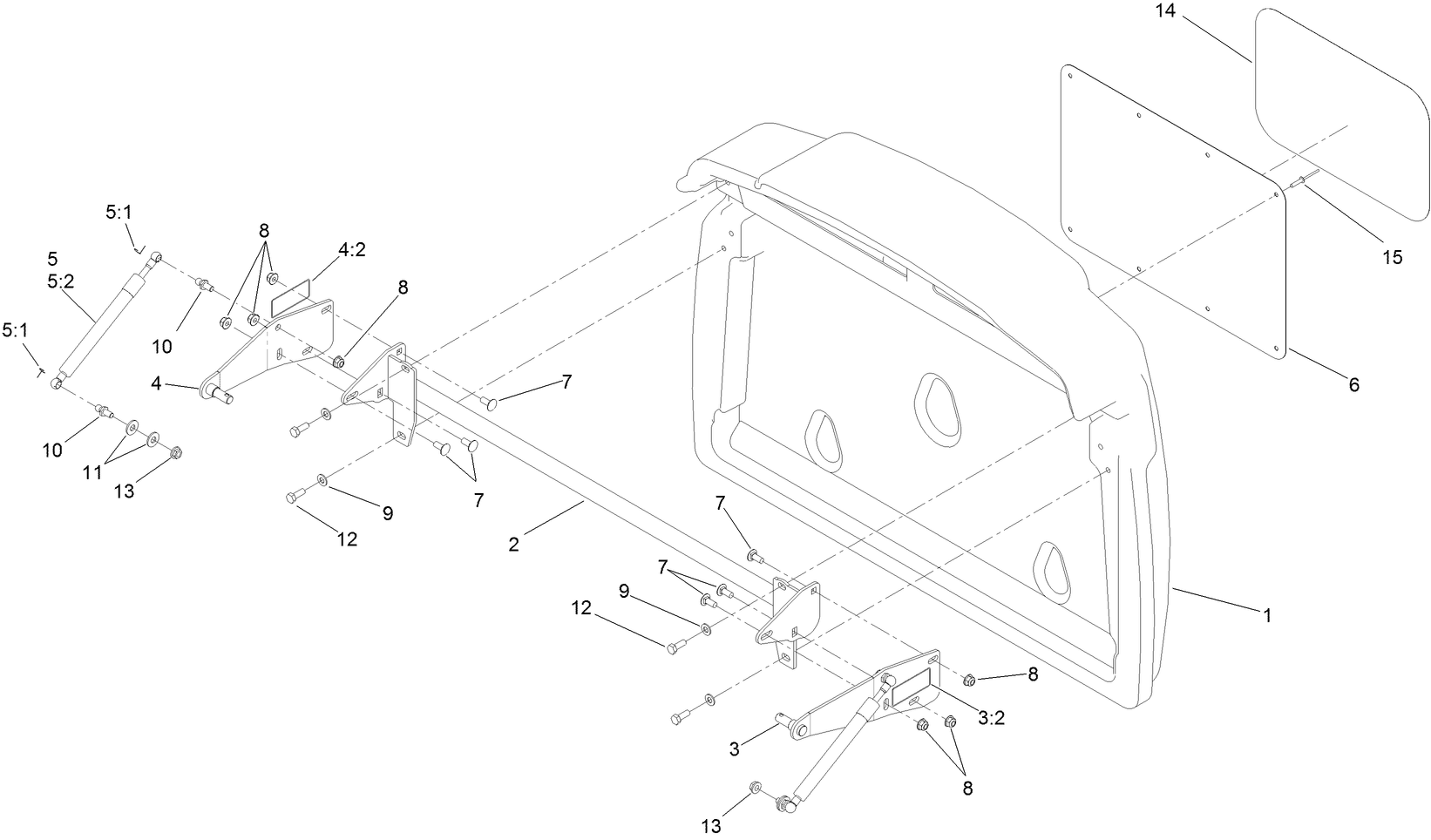

Hopper Door Assembly No 130 2875
Hopper Door Assembly No 130 2875
| Sequence Number | Image | Product | Price | Add to cart |
|---|

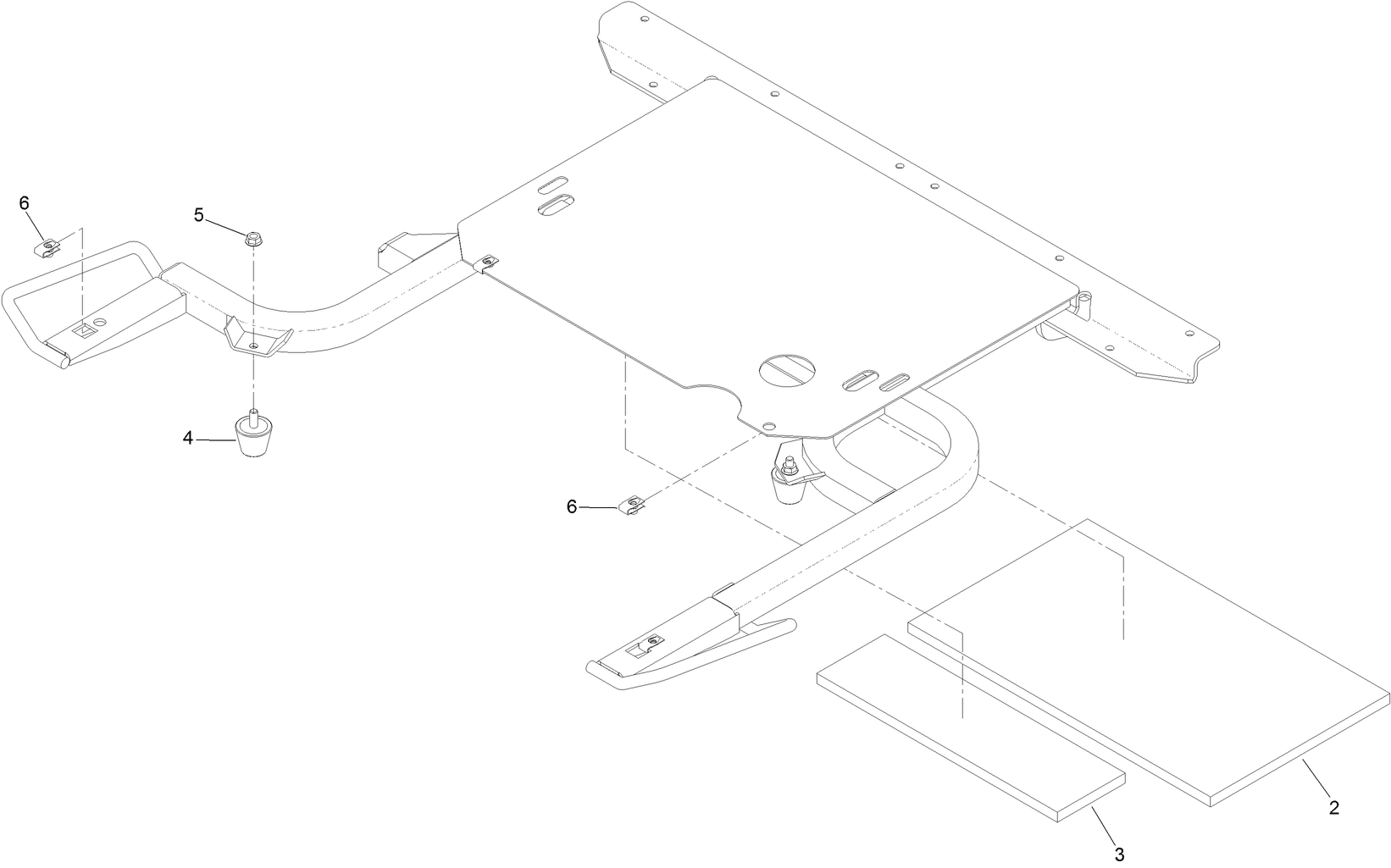

Hopper Frame Assembly No 109 4086
Hopper Frame Assembly No 109 4086
| Sequence Number | Image | Product | Price | Add to cart |
|---|

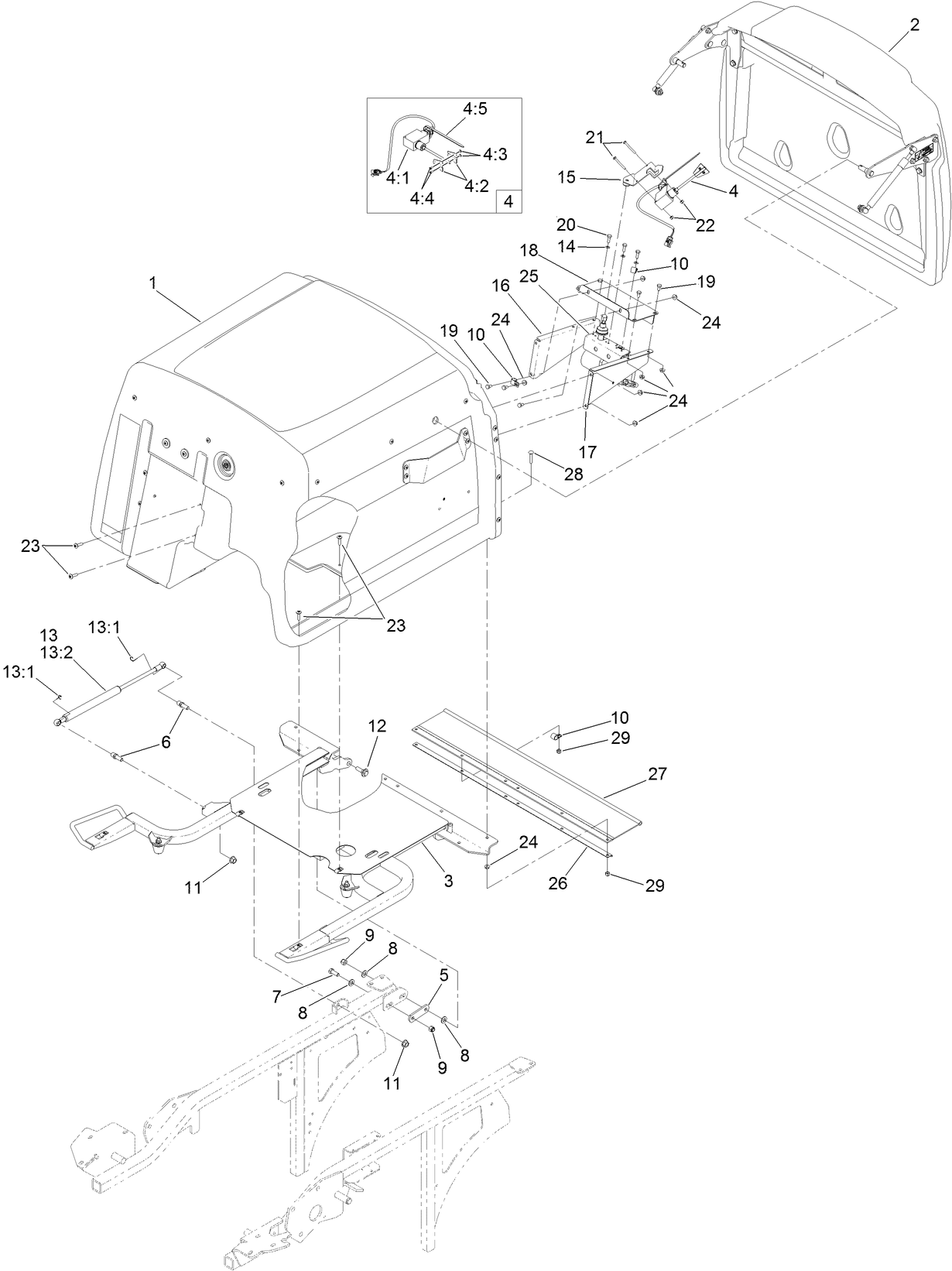

Hopper Mounting Assembly
Hopper Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

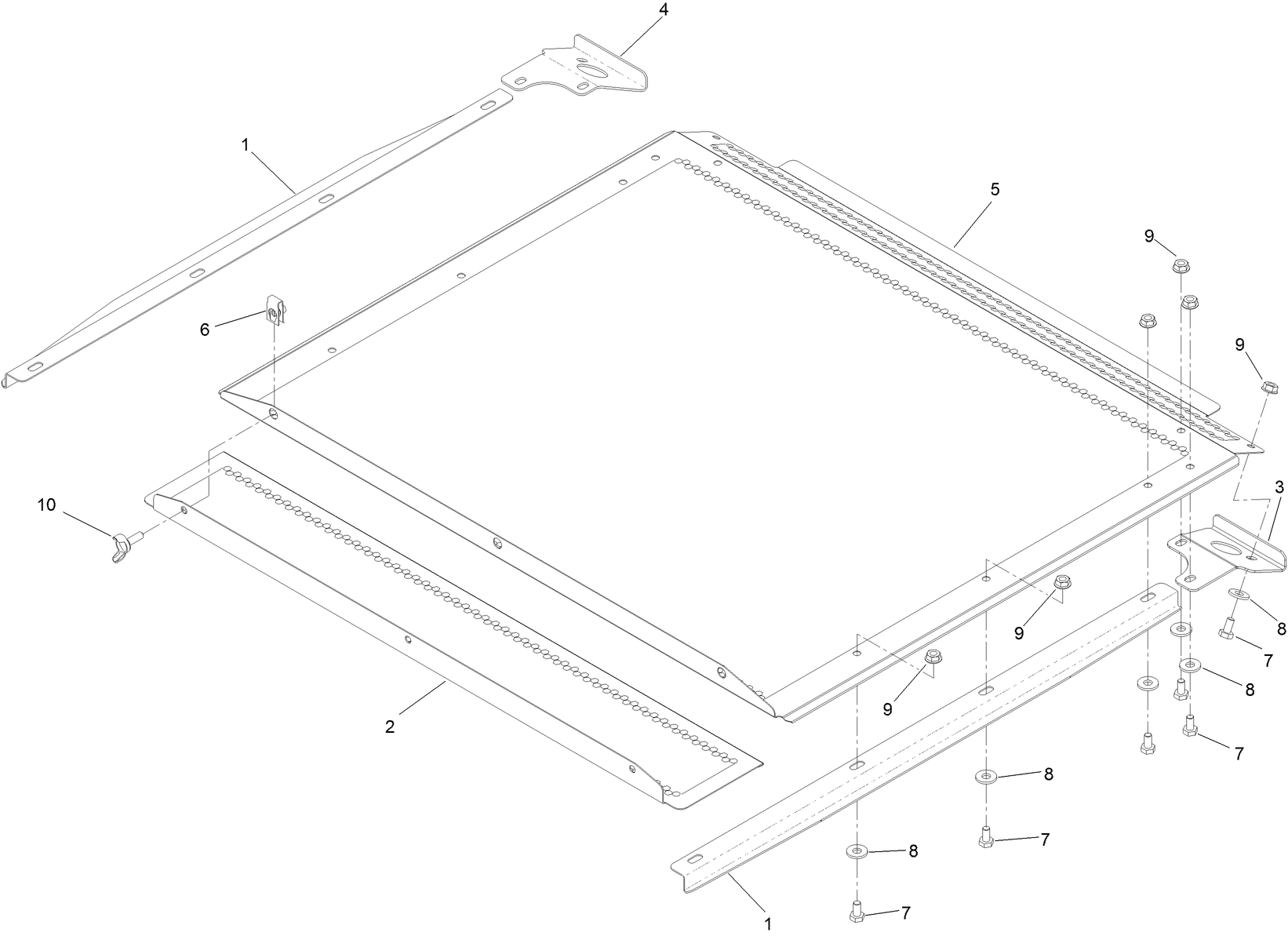

Hopper Screen Assembly No 109 0717
Hopper Screen Assembly No 109 0717
| Sequence Number | Image | Product | Price | Add to cart |
|---|

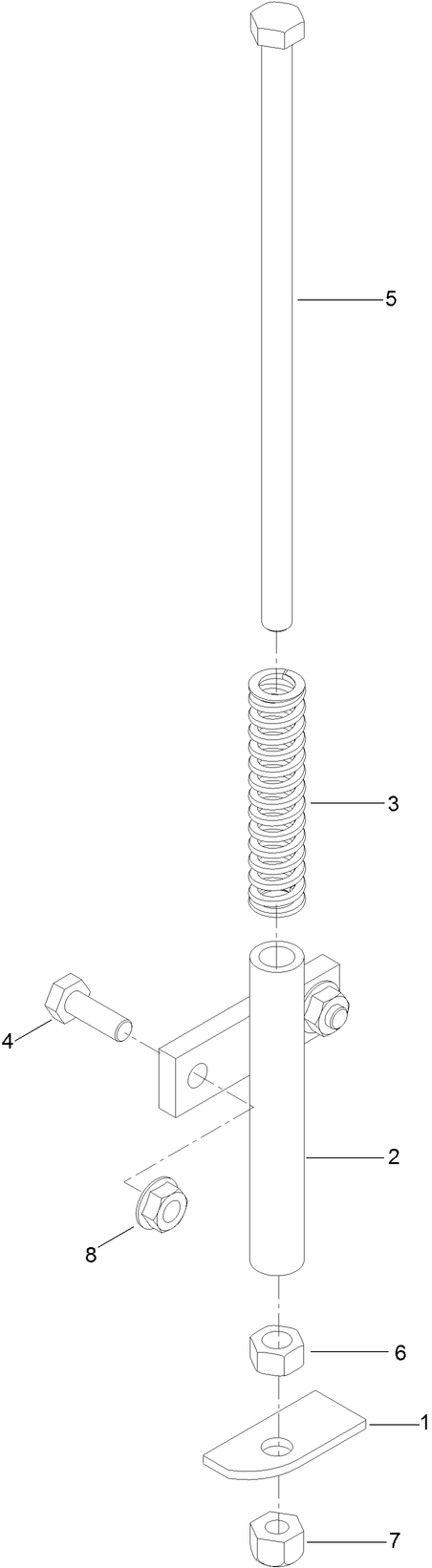

Hopper Switch Actuator Assembly No 103 8528
Hopper Switch Actuator Assembly No 103 8528
| Sequence Number | Image | Product | Price | Add to cart |
|---|

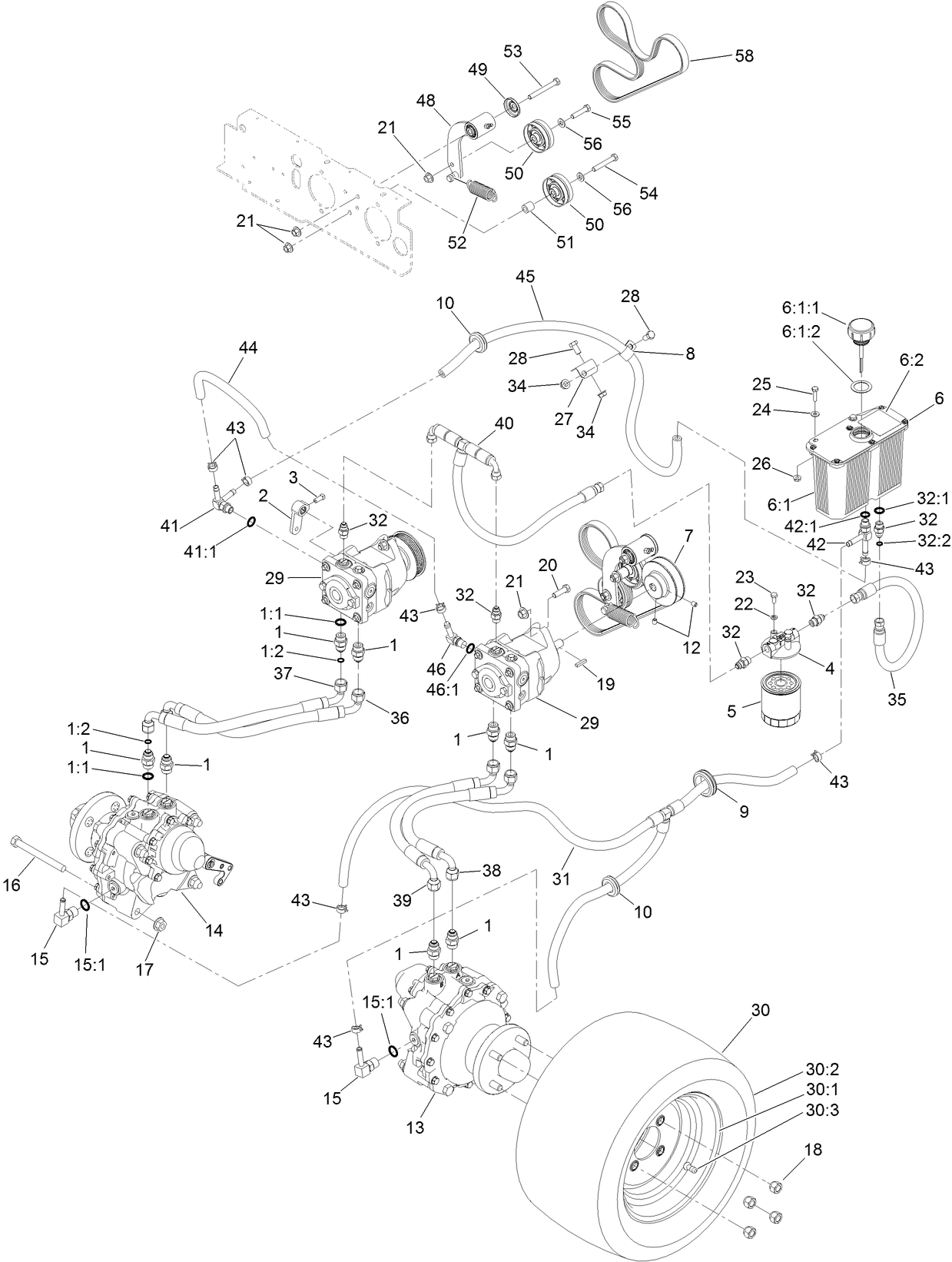

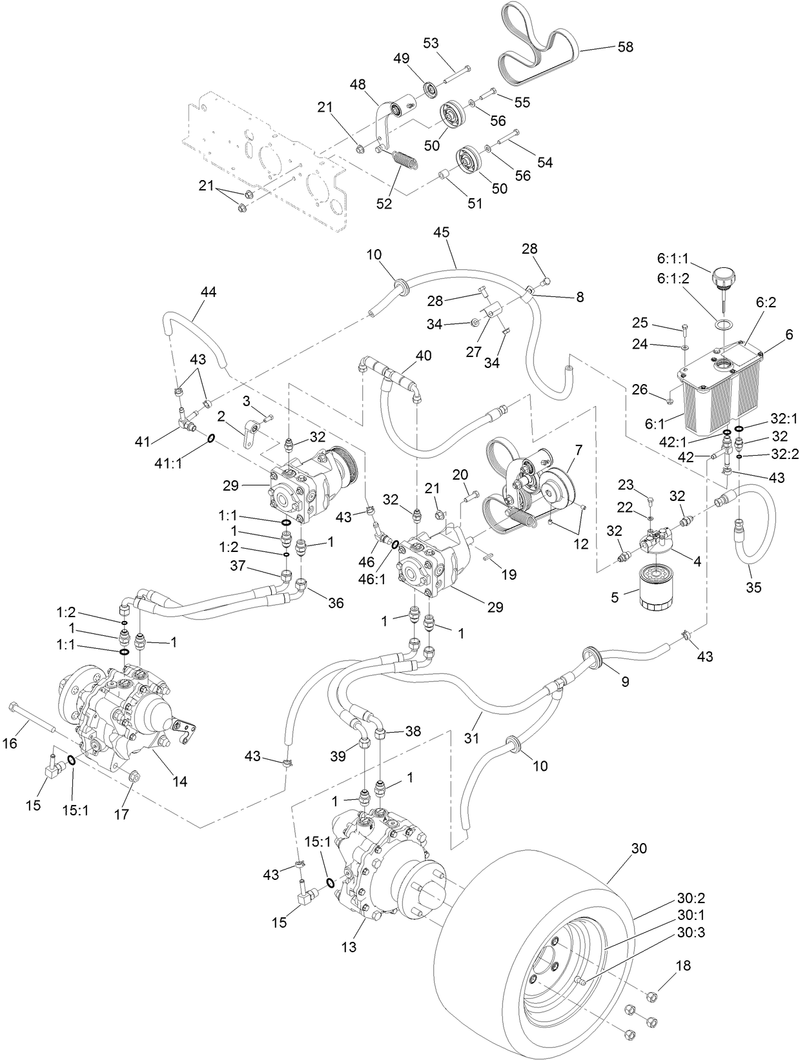

Hydraulic Assembly
Hydraulic Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

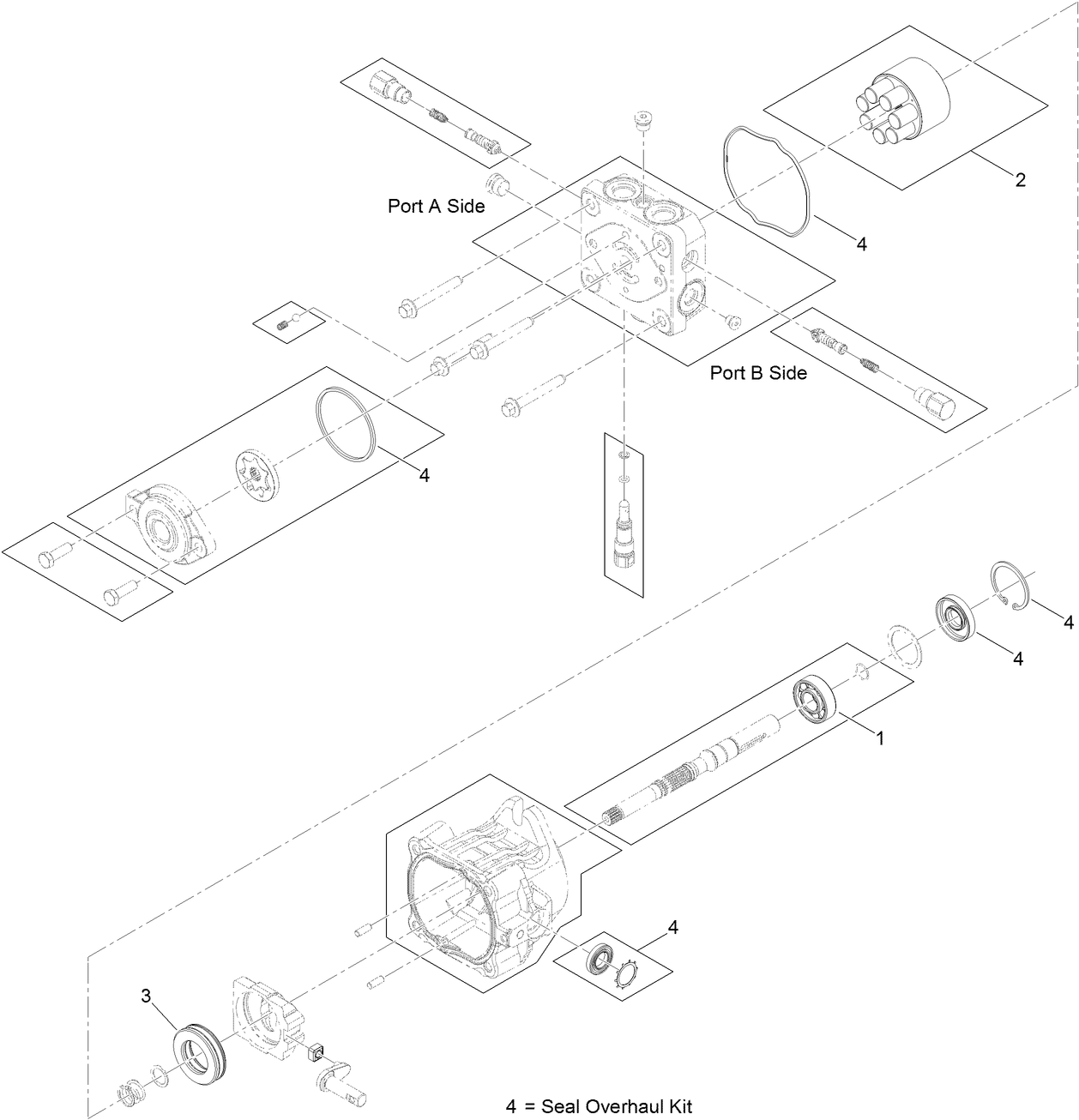

Hydraulic Pump Assembly No 116 7836
Hydraulic Pump Assembly No 116 7836
| Sequence Number | Image | Product | Price | Add to cart |
|---|

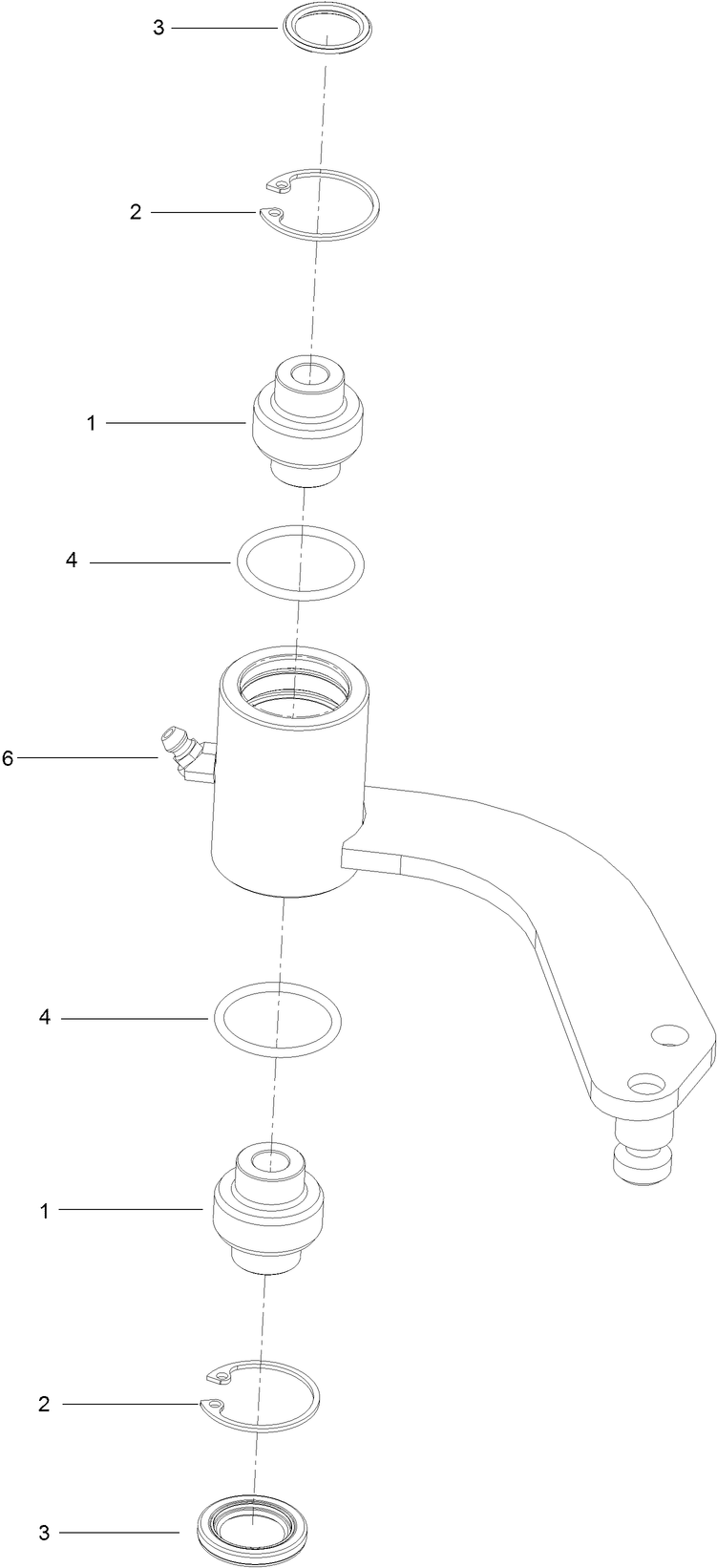

Idler Assembly No 103 7349
Idler Assembly No 103 7349
| Sequence Number | Image | Product | Price | Add to cart |
|---|

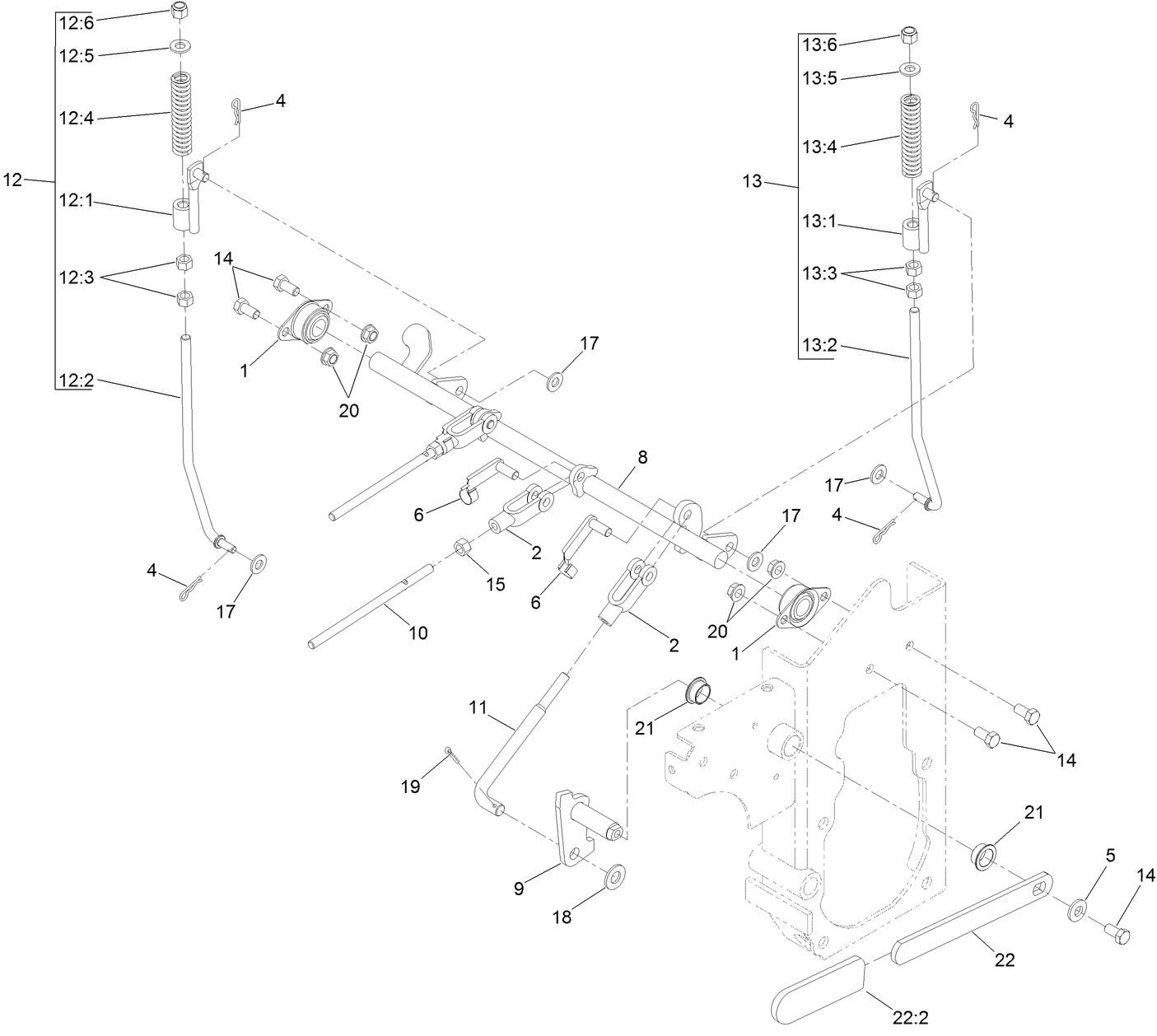

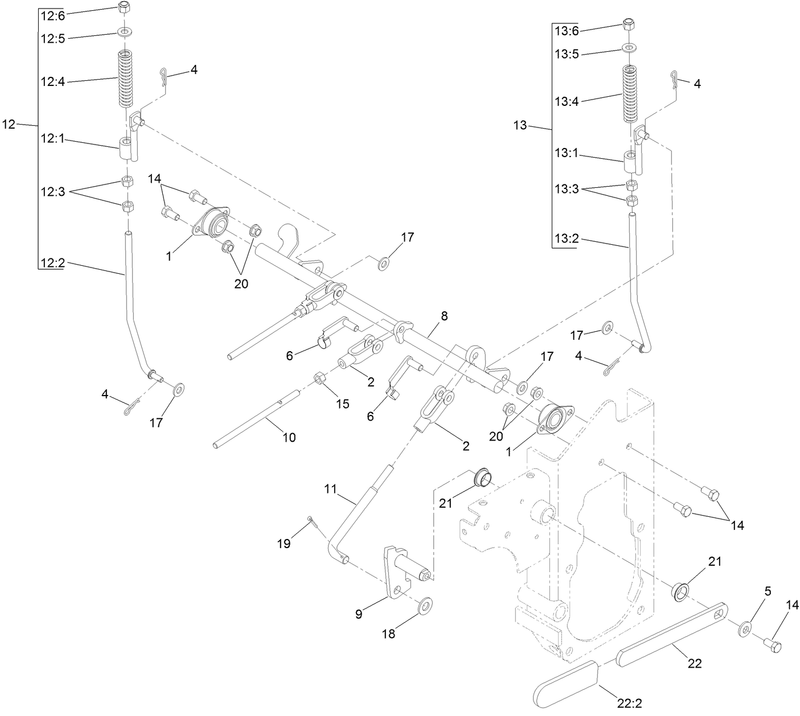

Parking Brake Assembly
Parking Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

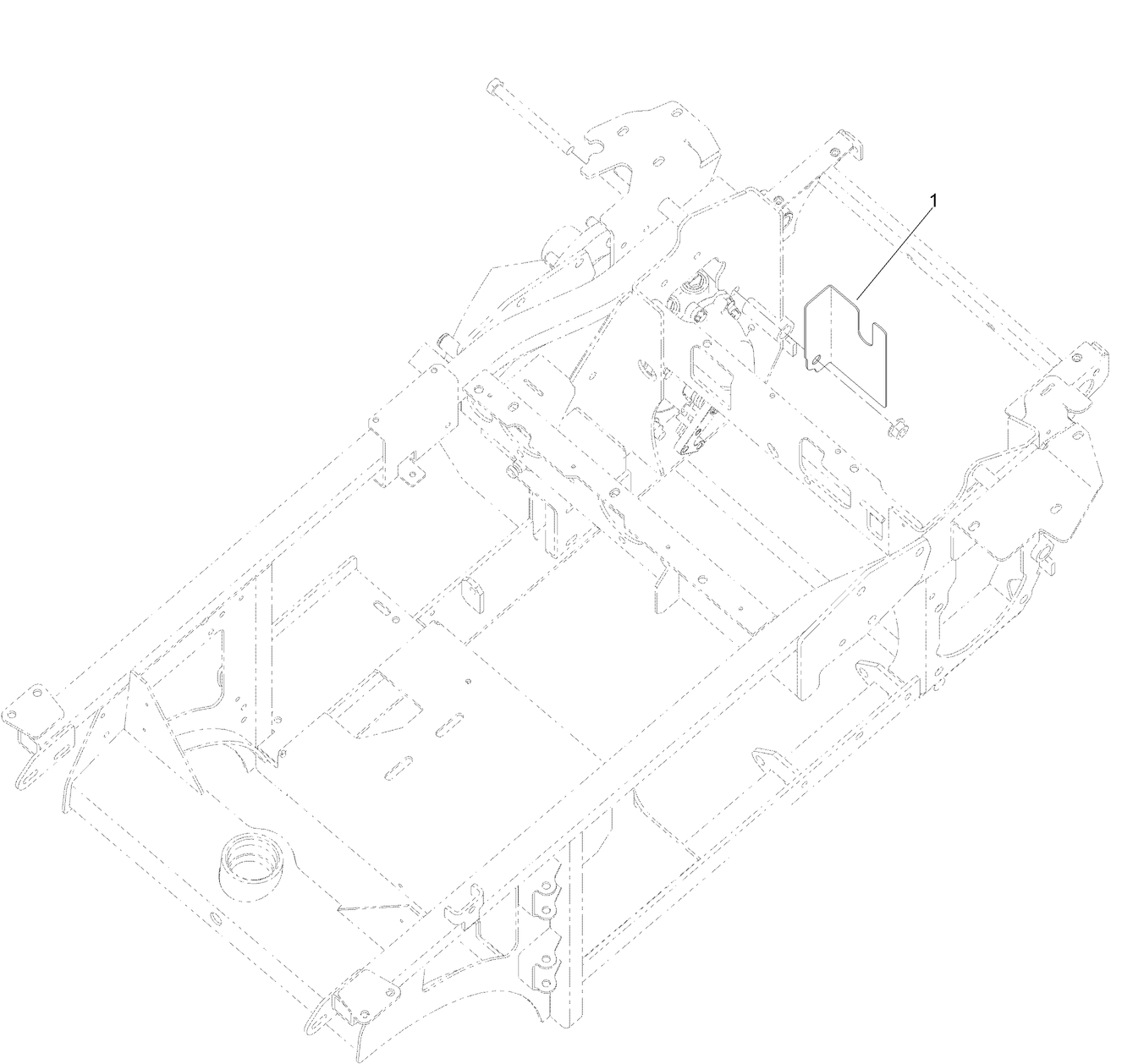

PTO Guard Assembly
PTO Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

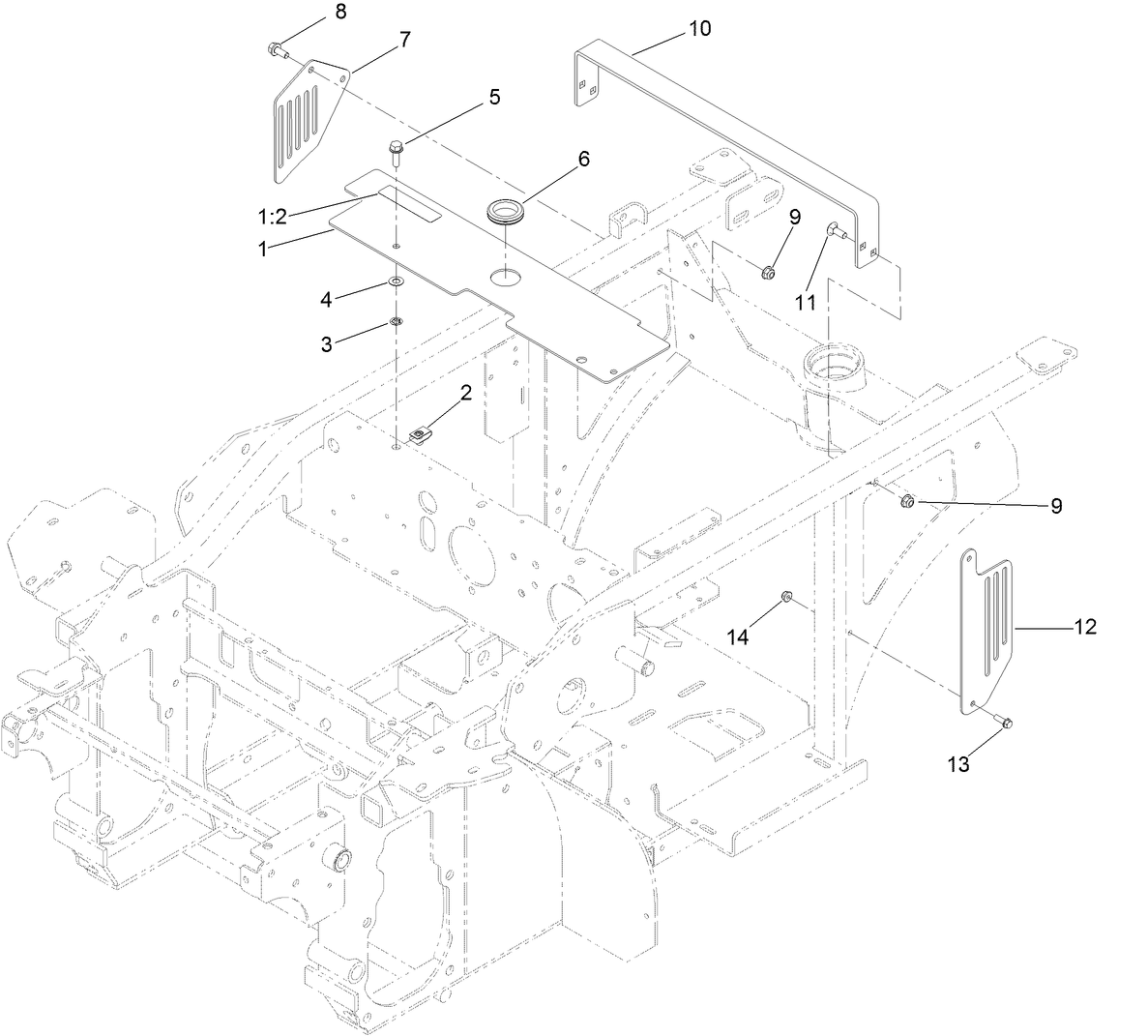

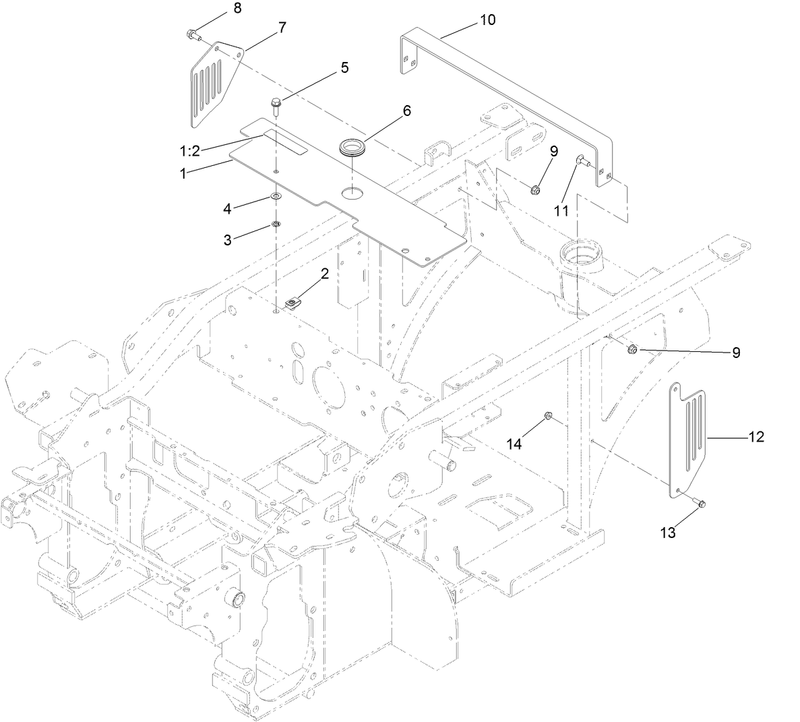

Pump and Muffler Guard Assembly
Pump and Muffler Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

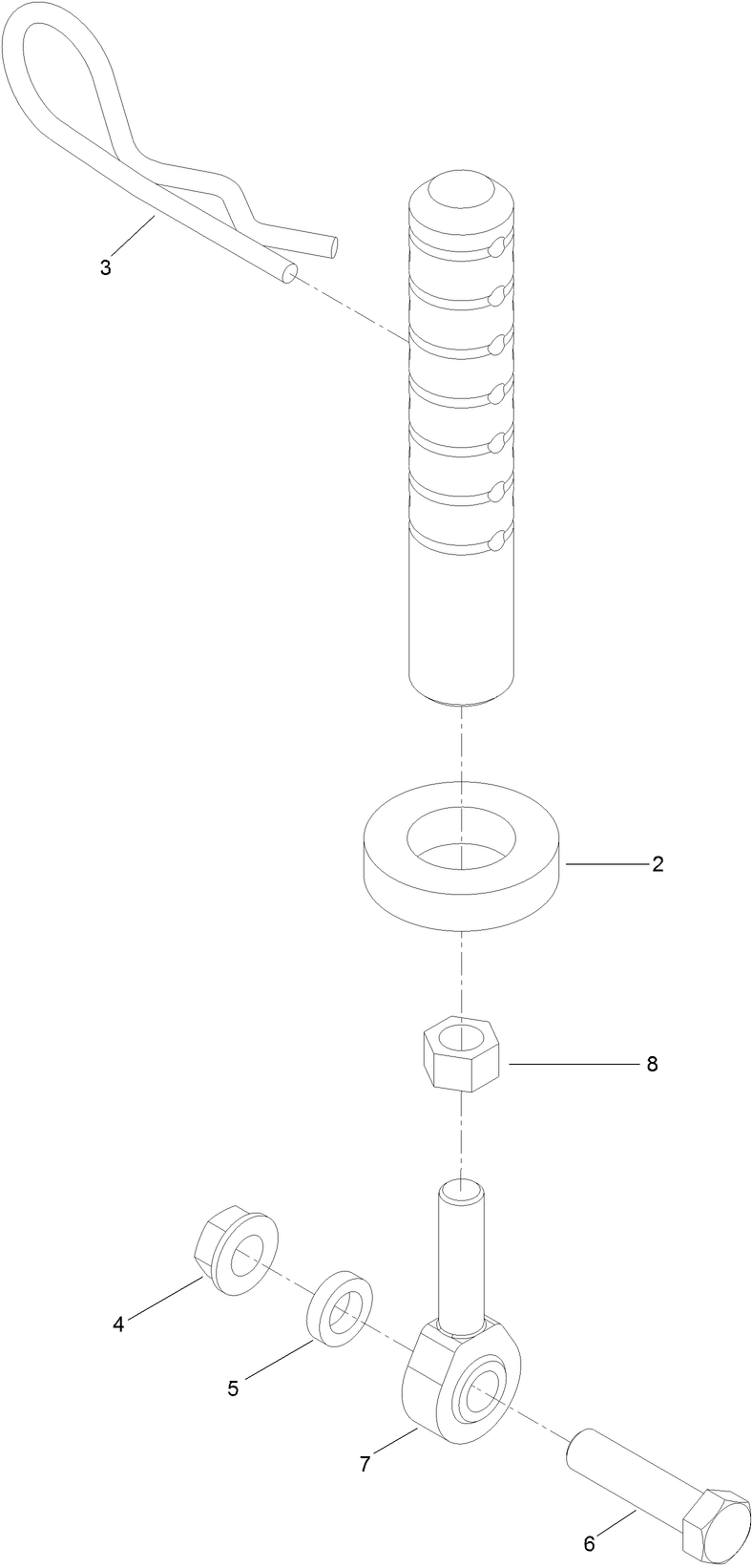

Rear Deck Height Adjustment Assembly No 109 0323
Rear Deck Height Adjustment Assembly No 109 0323
| Sequence Number | Image | Product | Price | Add to cart |
|---|

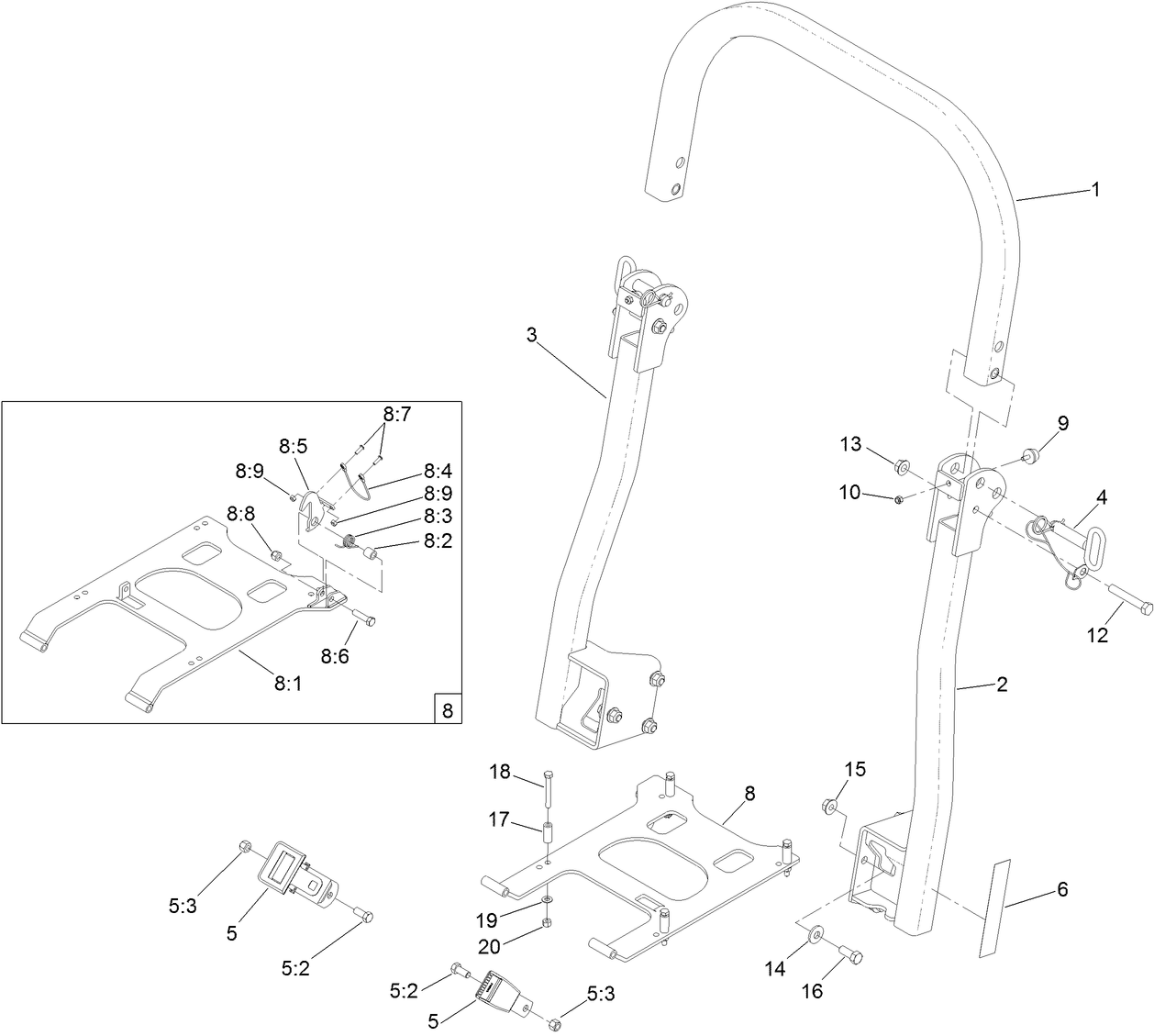

Roll Over Protection System Assembly No 78559
Roll Over Protection System Assembly No 78559
| Sequence Number | Image | Product | Price | Add to cart |
|---|

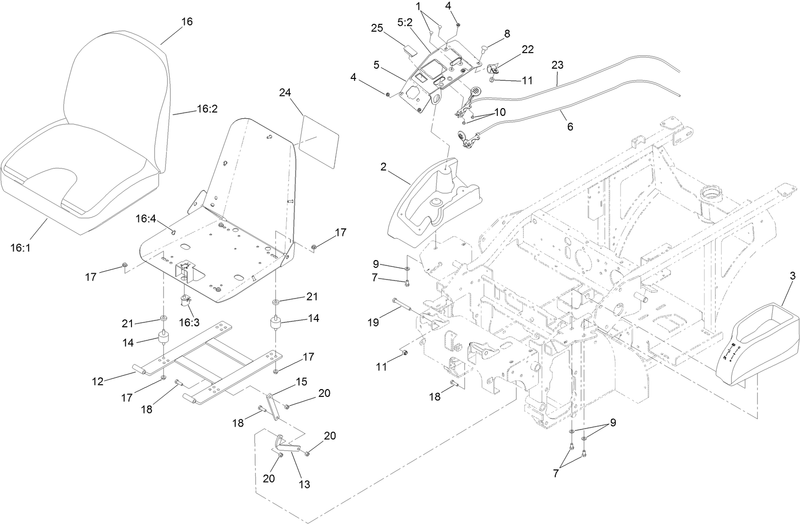

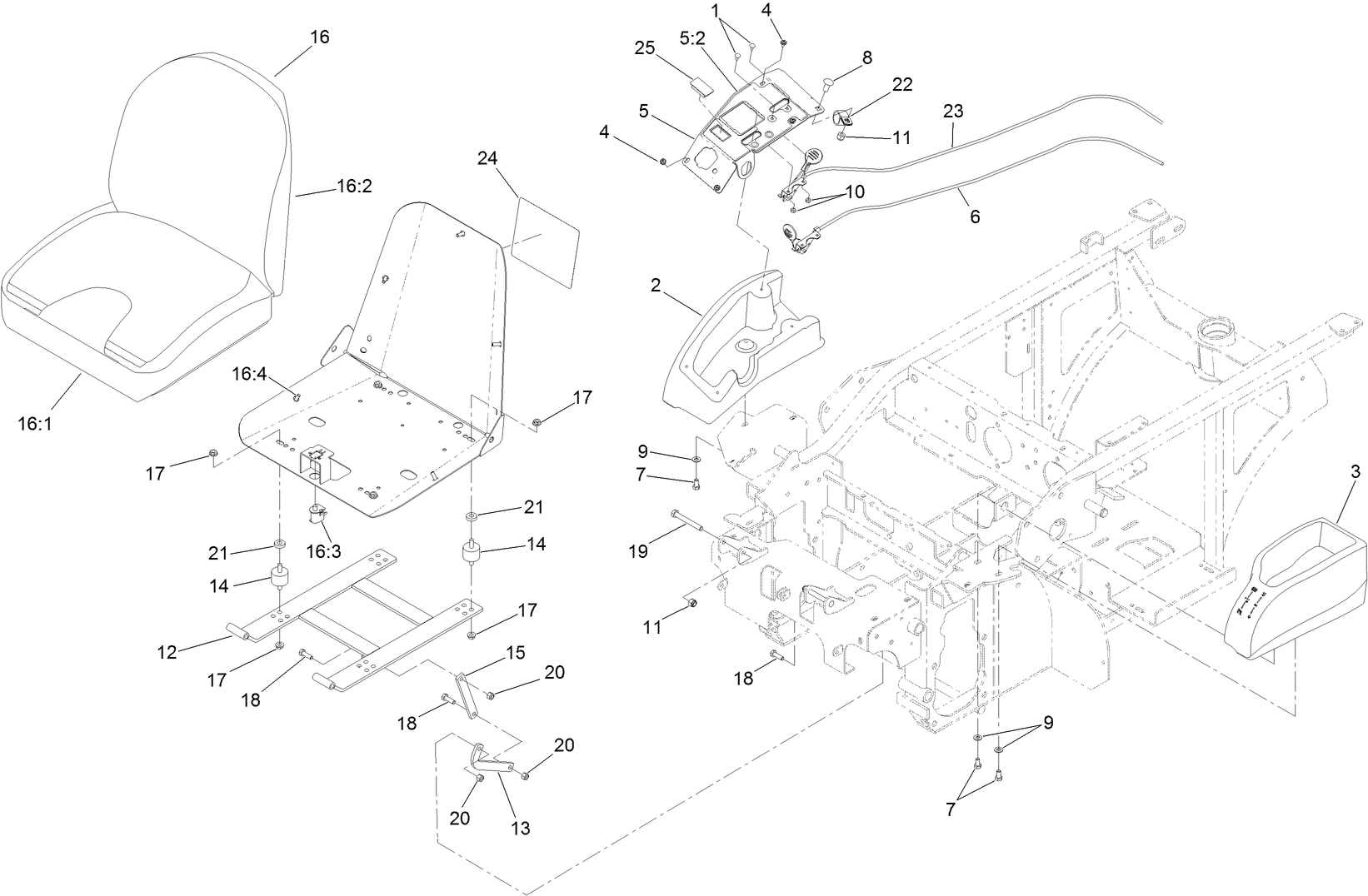

Seat and Console Assembly
Seat and Console Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

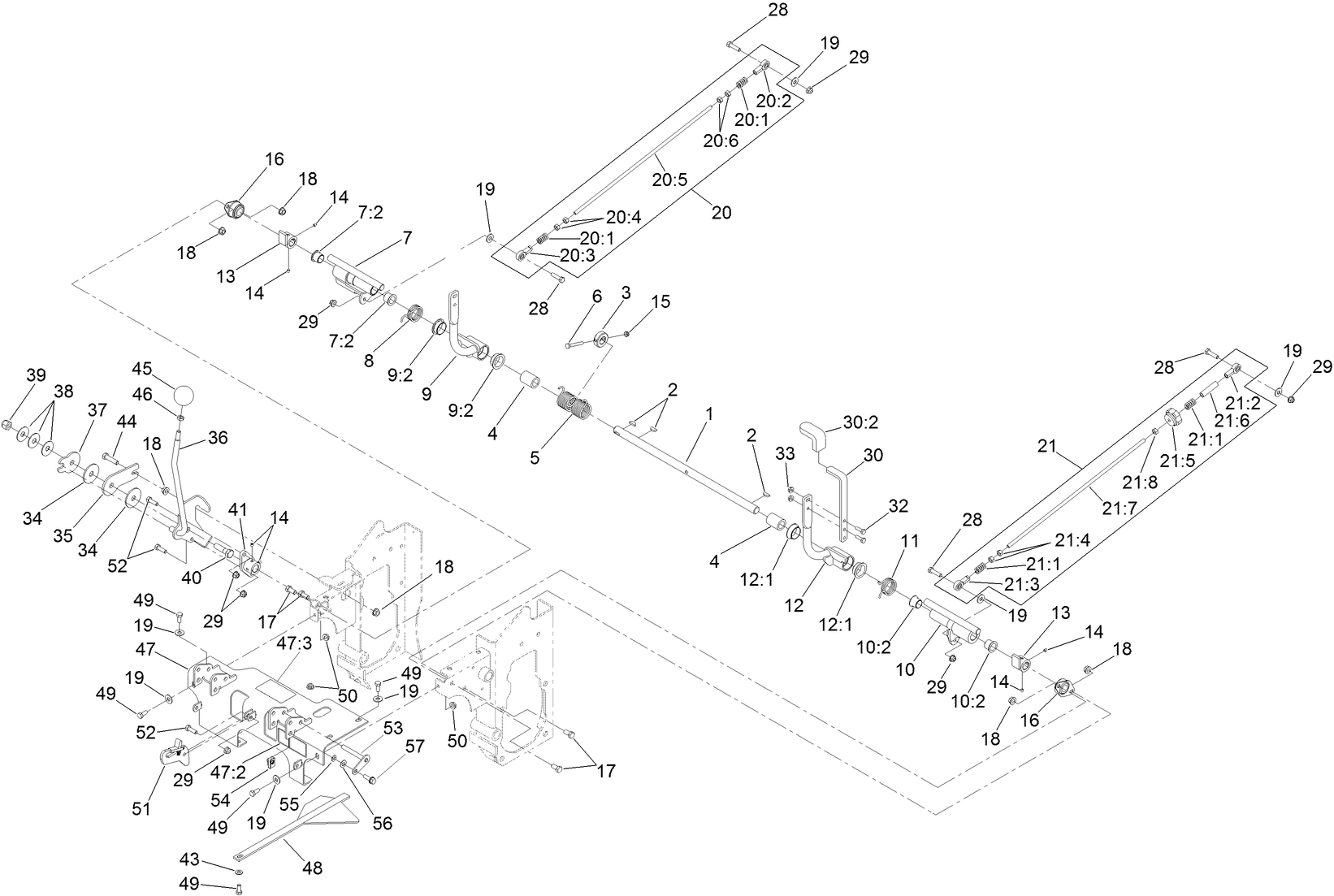

Speed and Steering Control Assembly
Speed and Steering Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

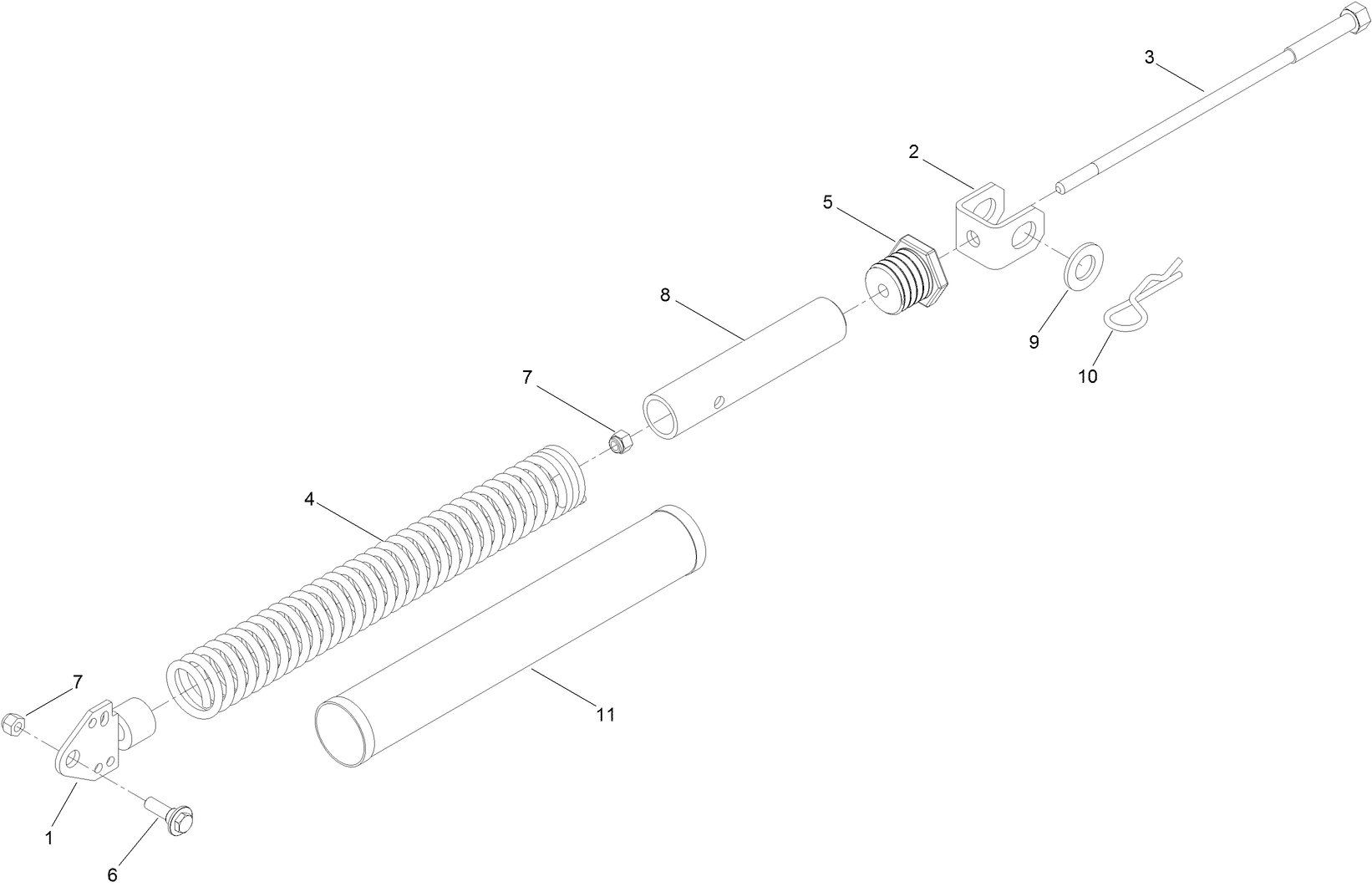

Spring Lift Assist Assembly No 116 7851
Spring Lift Assist Assembly No 116 7851
| Sequence Number | Image | Product | Price | Add to cart |
|---|
