Toro 74312 8000 Series 48 in. (122 cm) 23 hp 747cc (Serial #: 402080000 - 403226947) Parts Diagram
Diagrams:
Diagram:

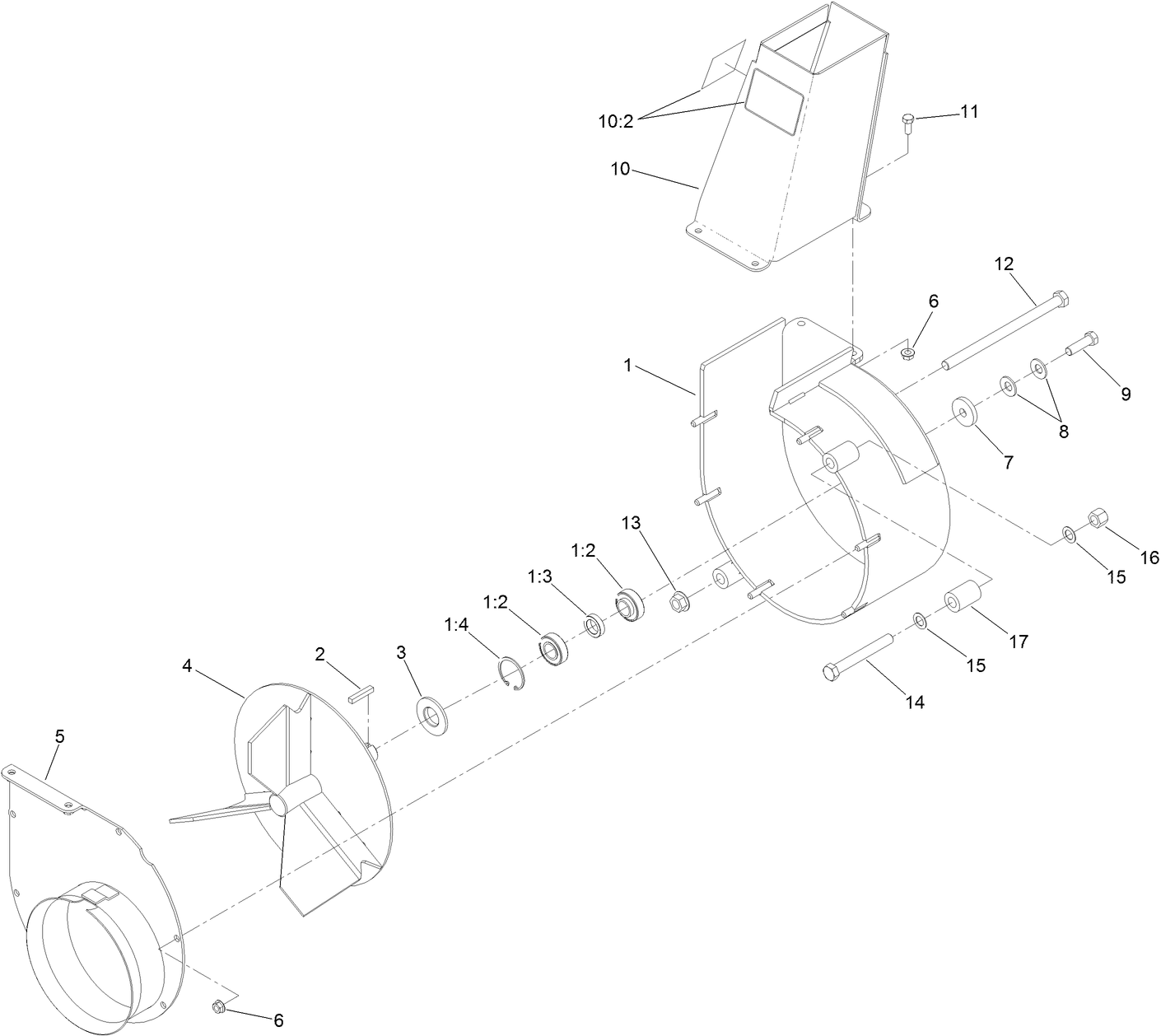

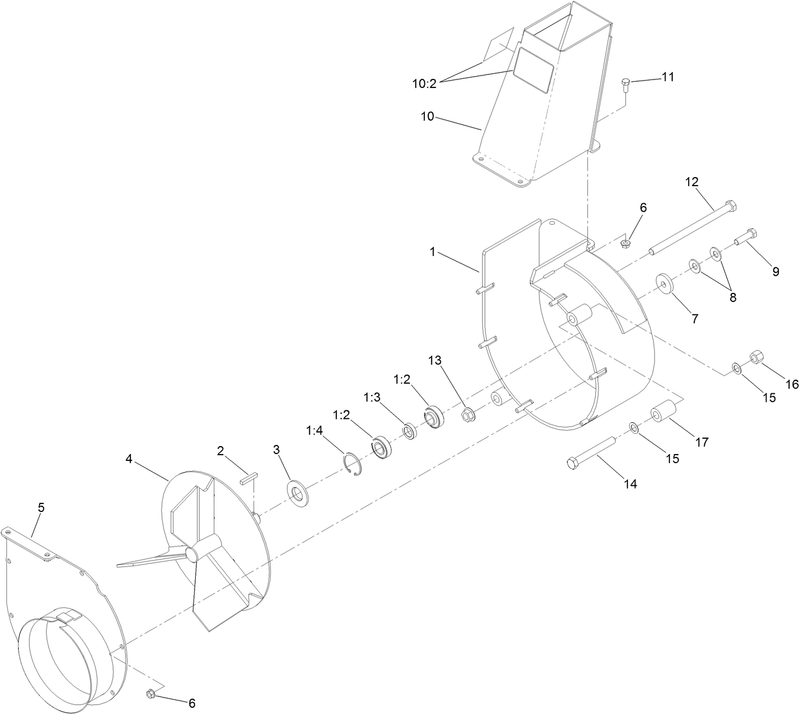

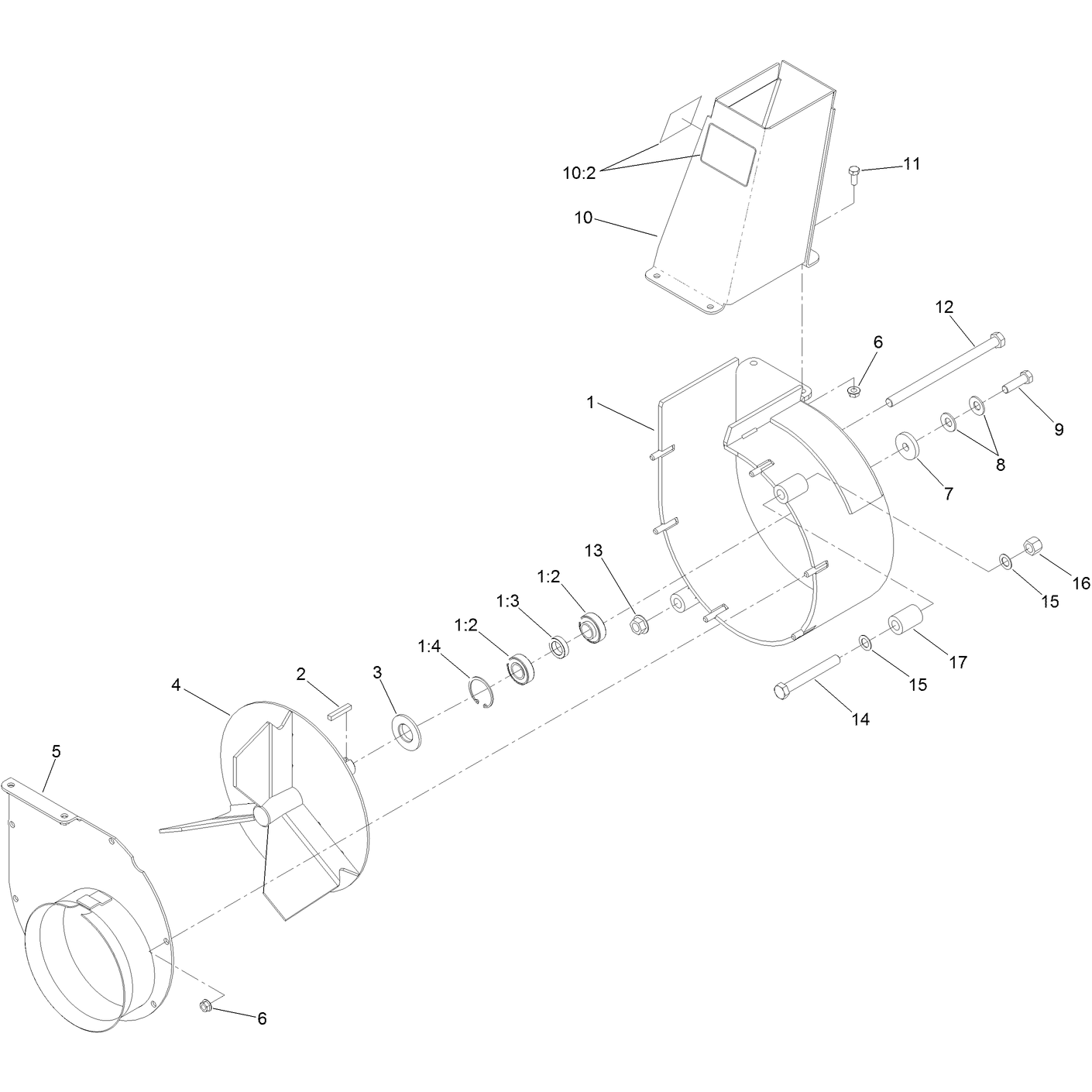

Blower Assembly No 116 9649
Blower Assembly No 116 9649
| Sequence Number | Image | Product | Price | Add to cart |
|---|

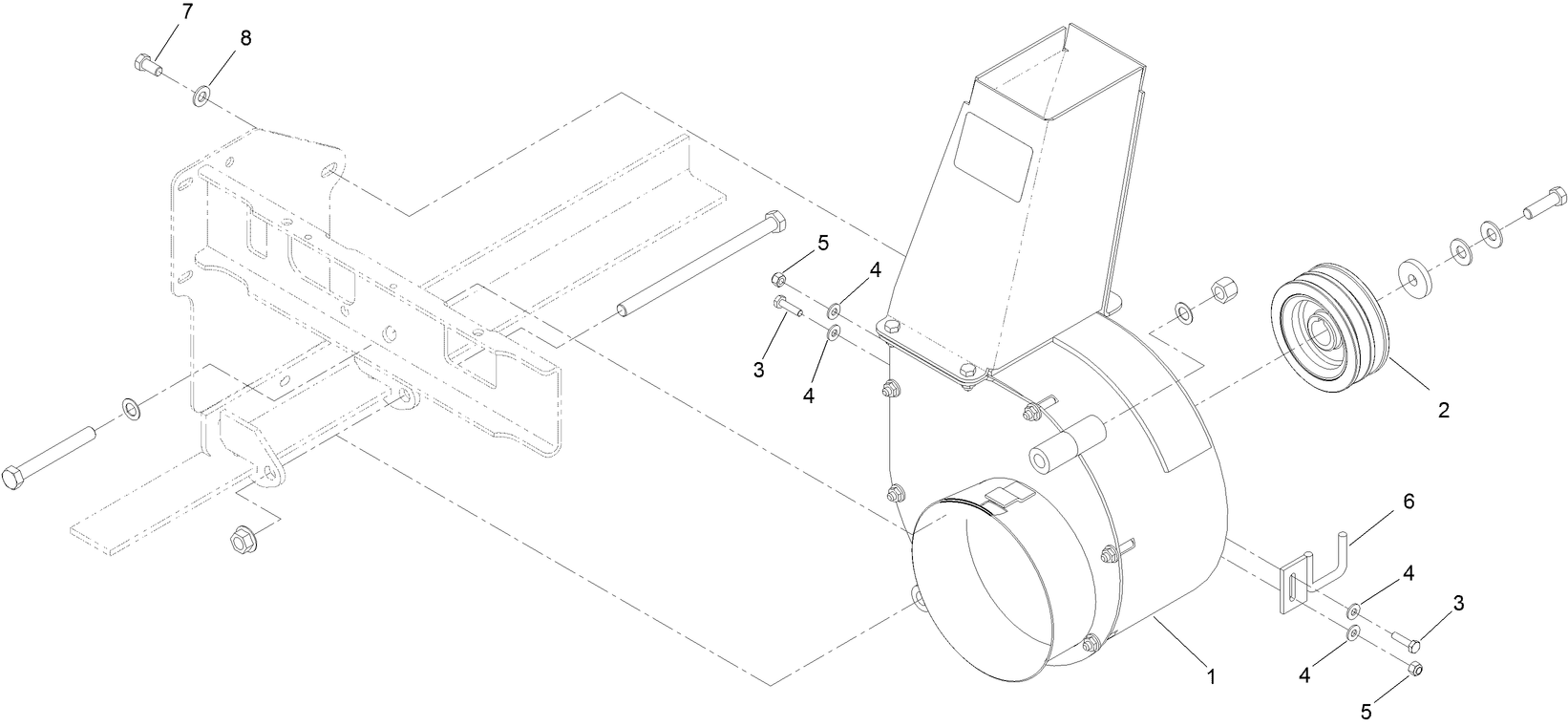

Blower Mounting Assembly
Blower Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

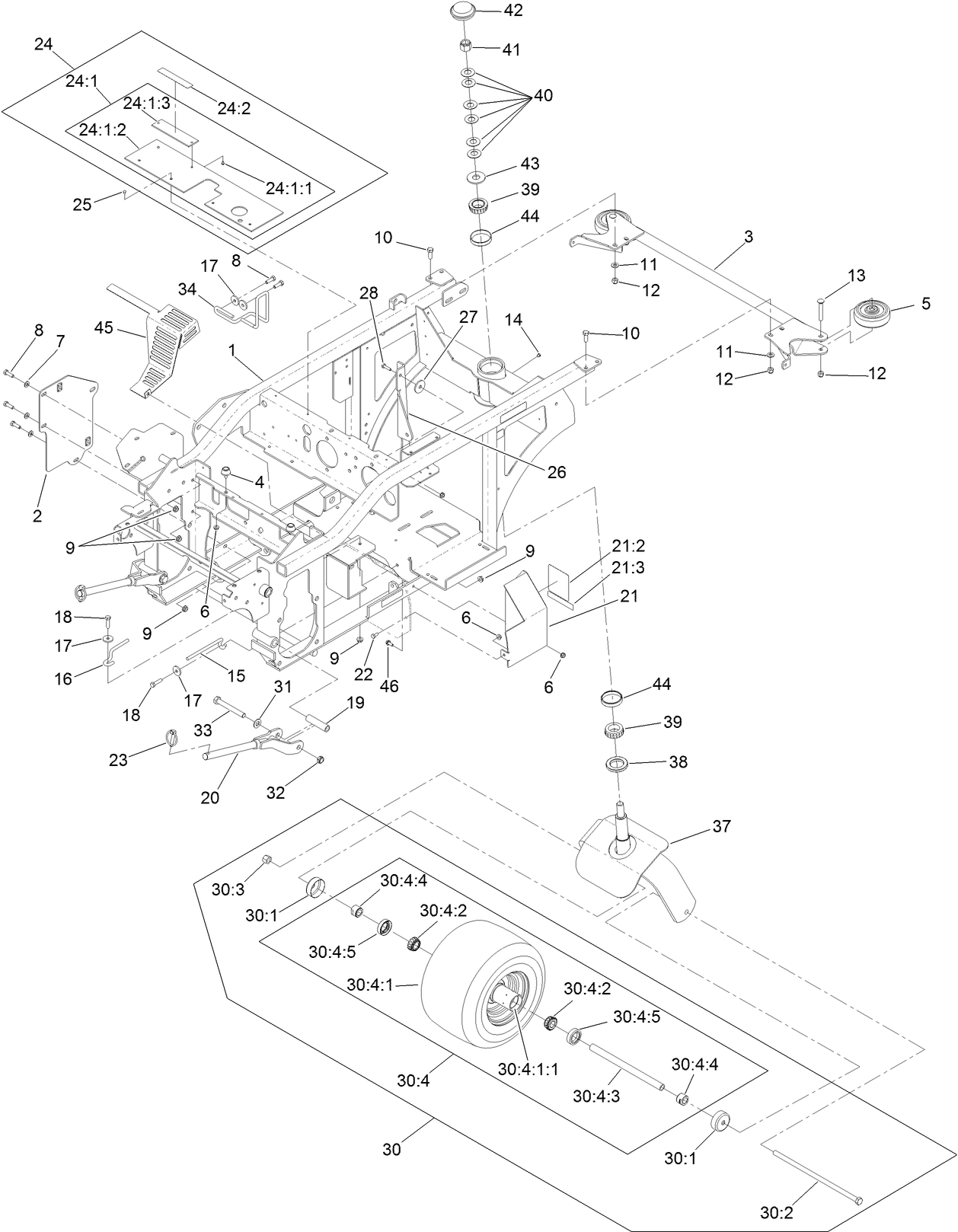

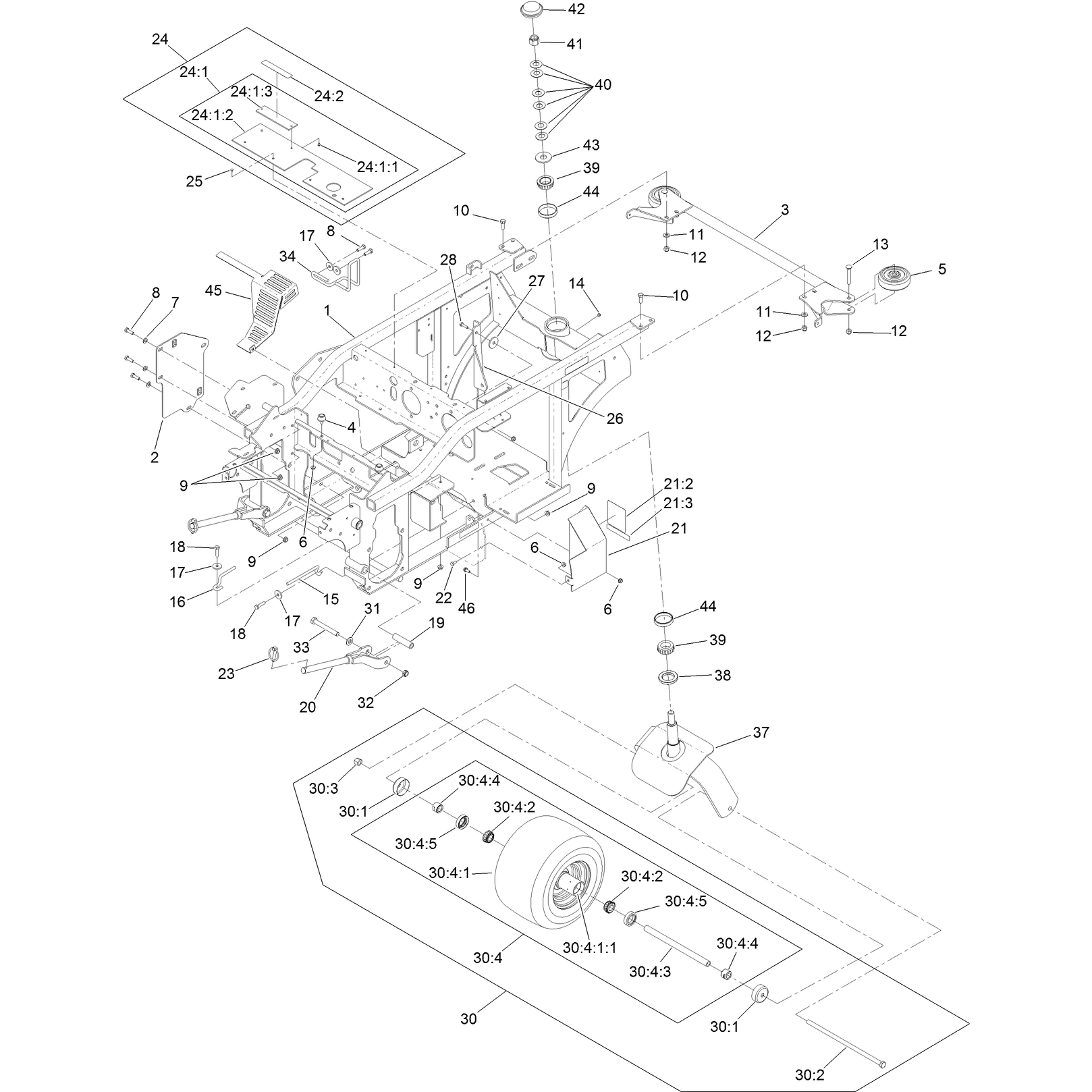

Caster Wheel and Frame Assembly
Caster Wheel and Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

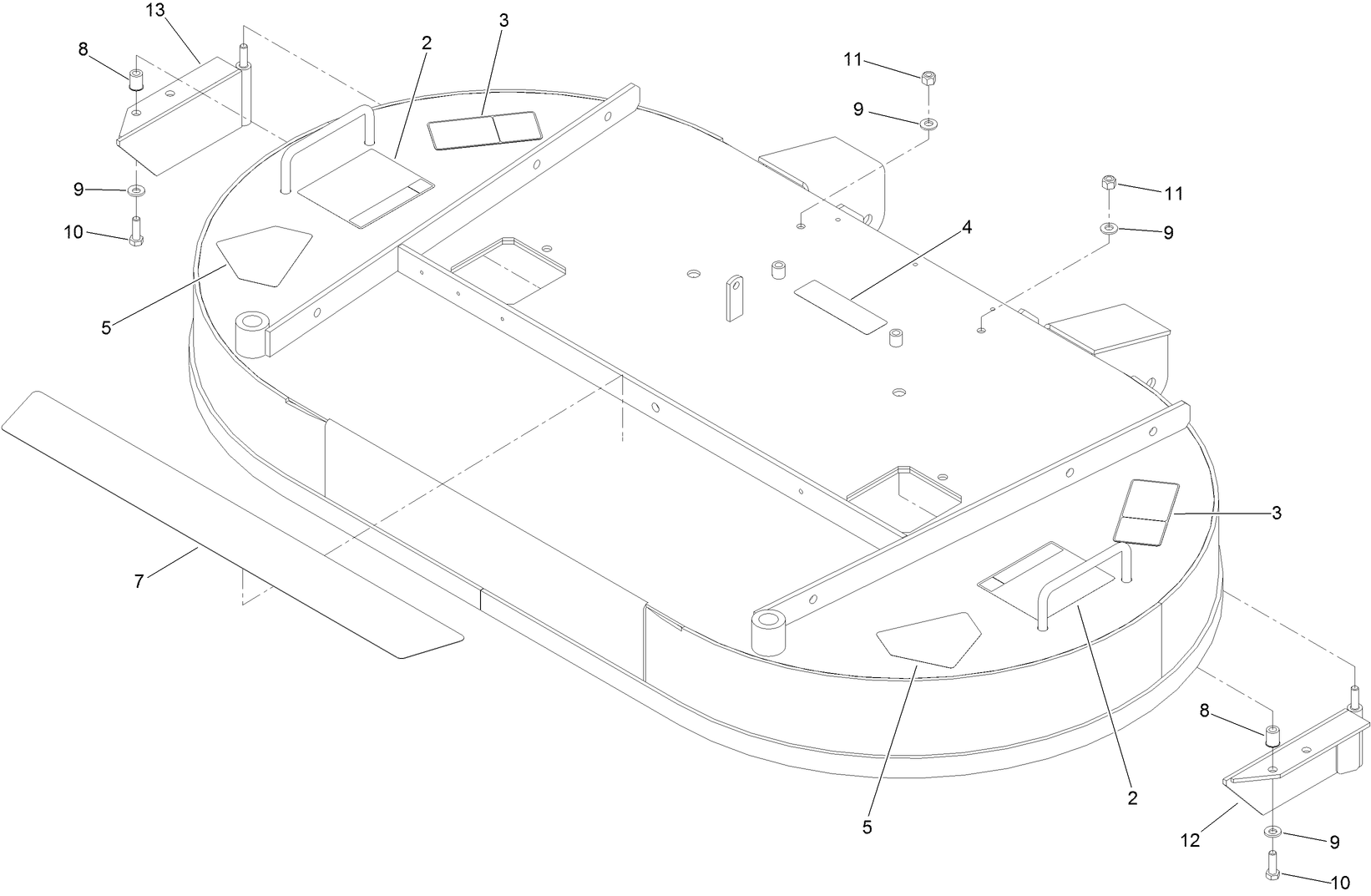

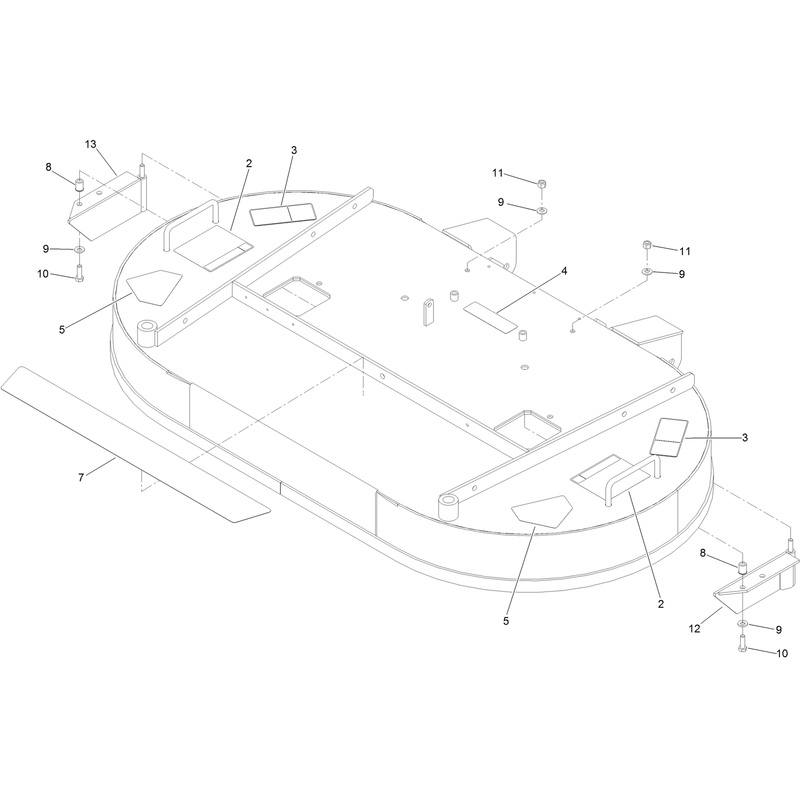

Deck Decal Assembly No 109 4372
Deck Decal Assembly No 109 4372
| Sequence Number | Image | Product | Price | Add to cart |
|---|

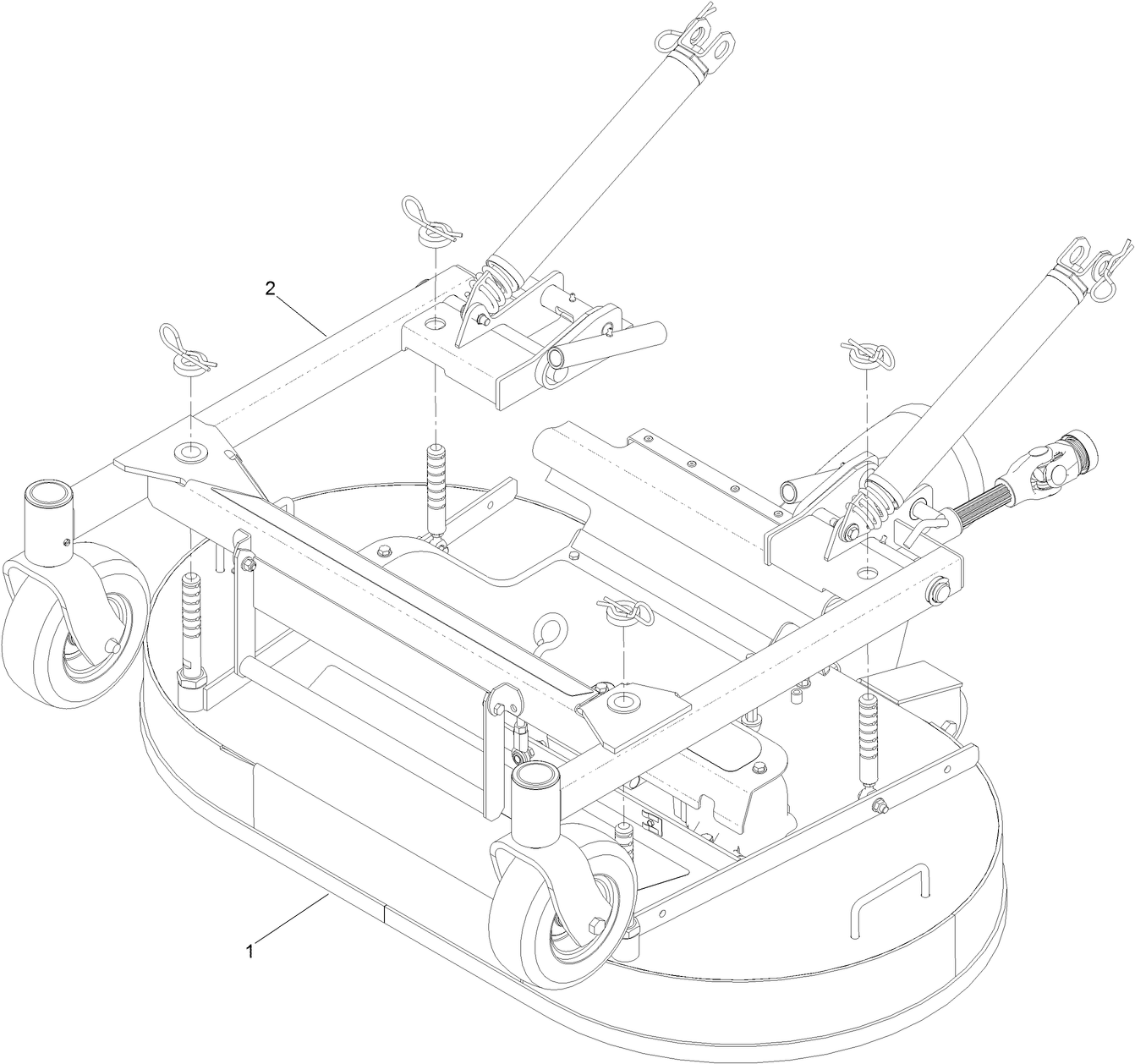

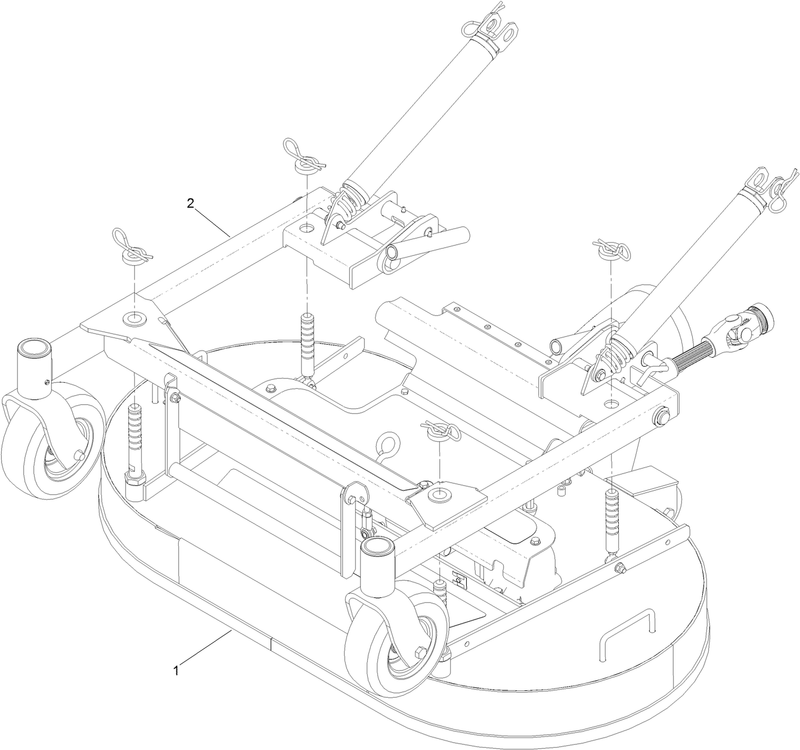

Deck Mounting Assembly
Deck Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

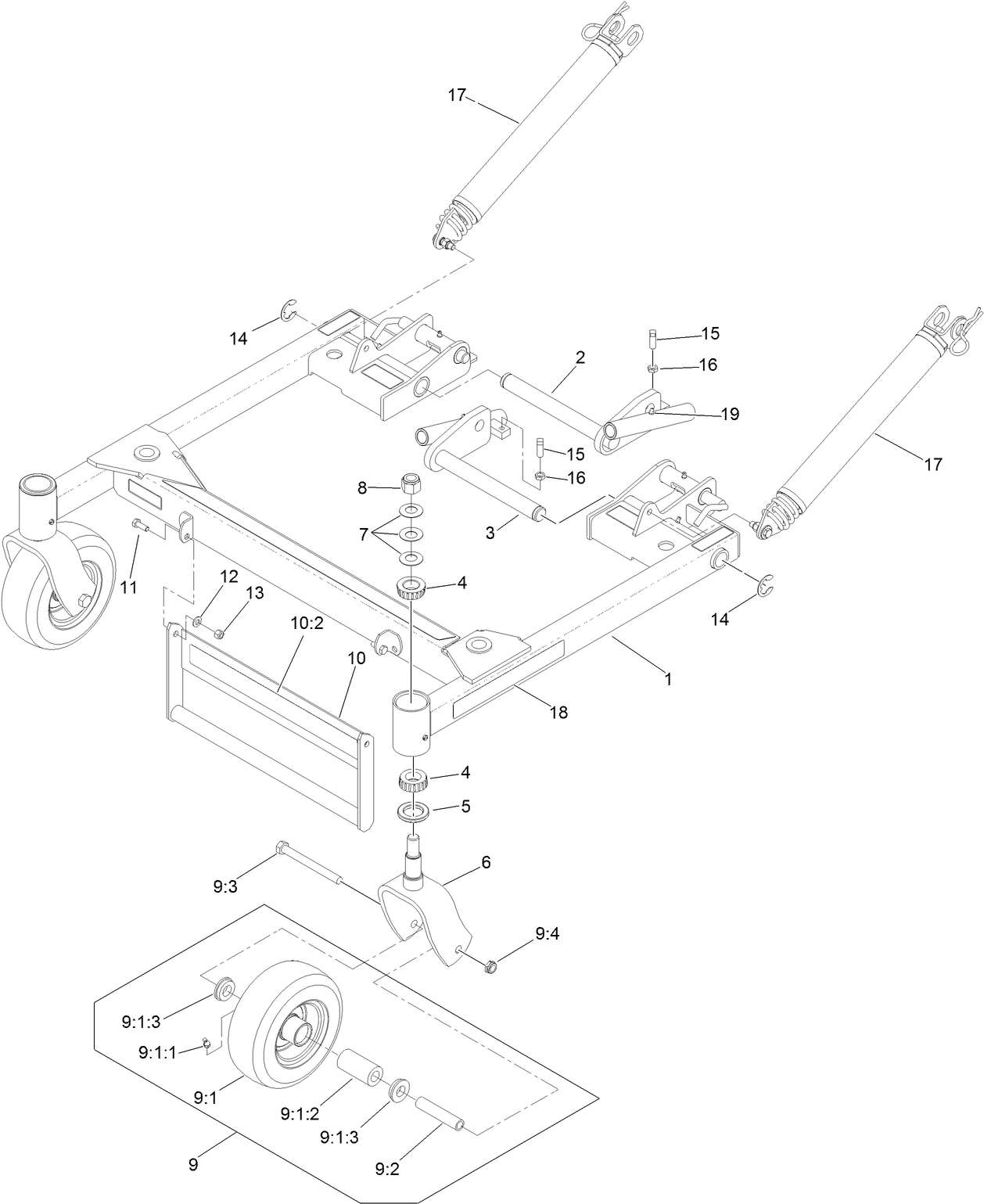

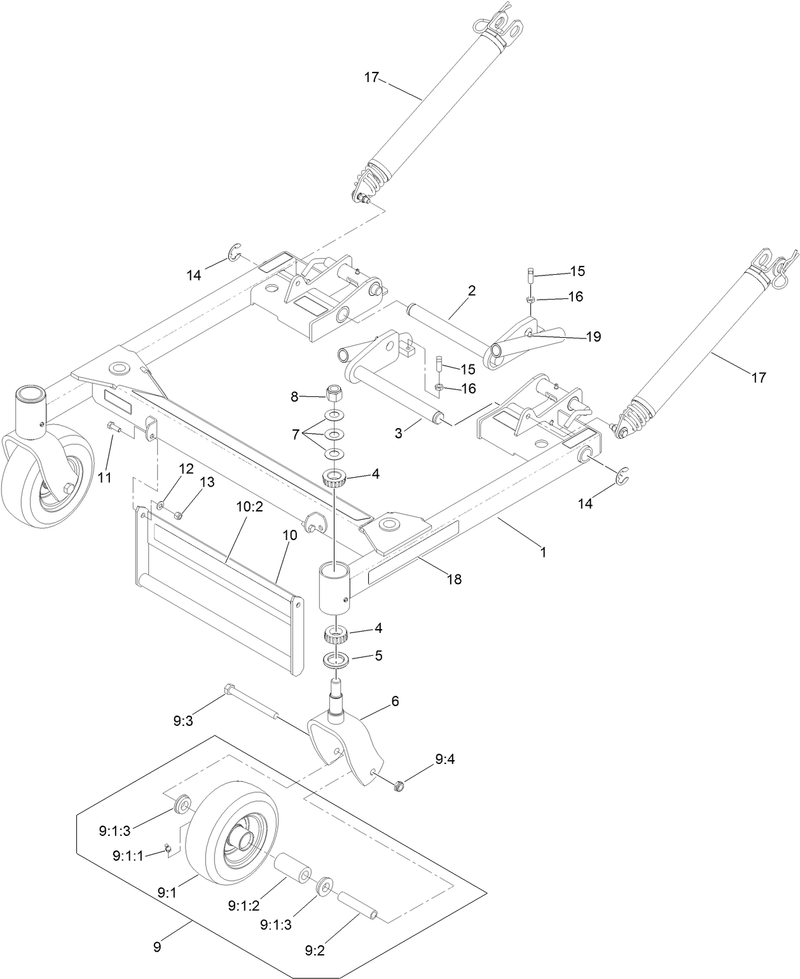

Deck Support Frame Assembly No 130 2893
Deck Support Frame Assembly No 130 2893
| Sequence Number | Image | Product | Price | Add to cart |
|---|

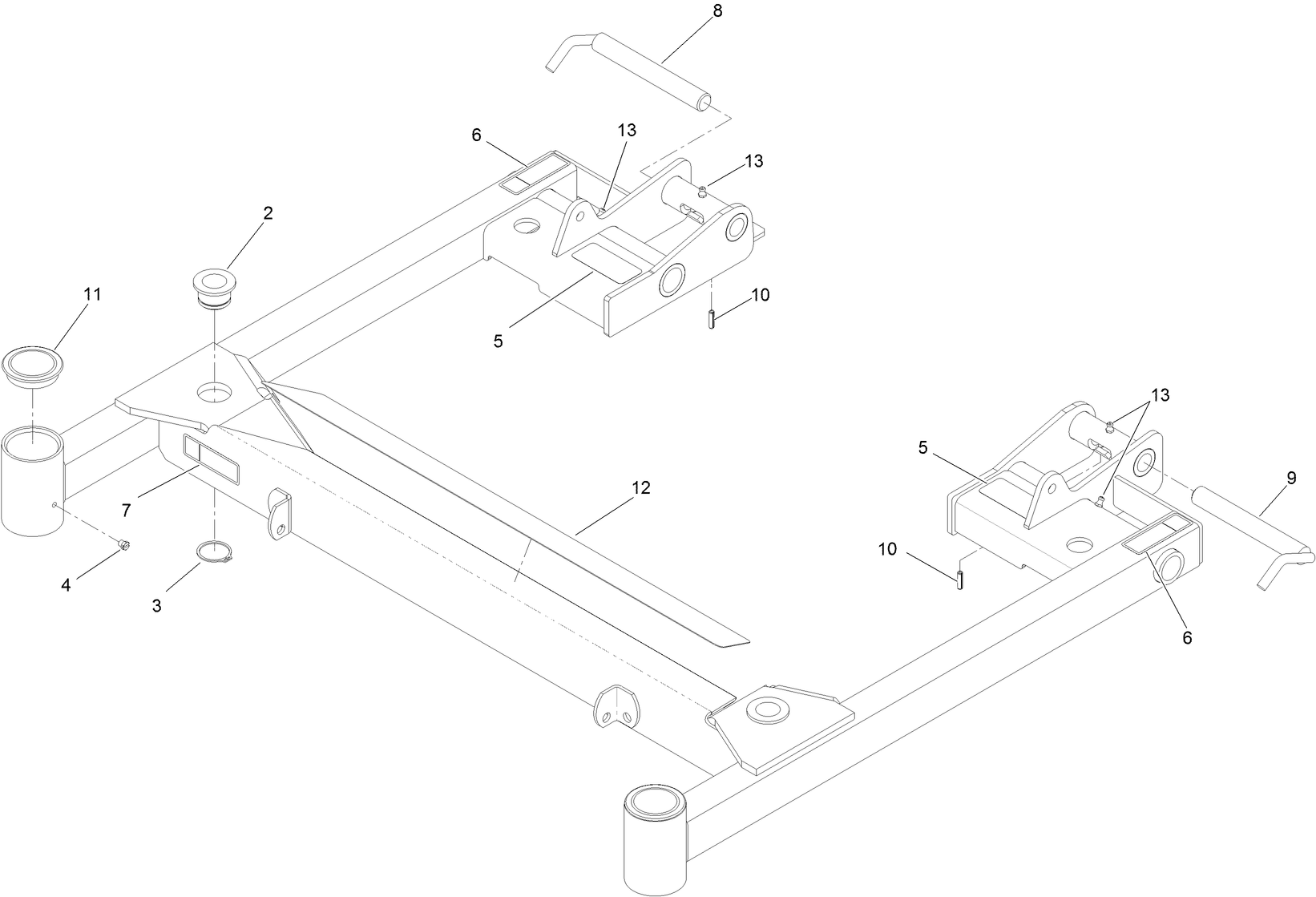

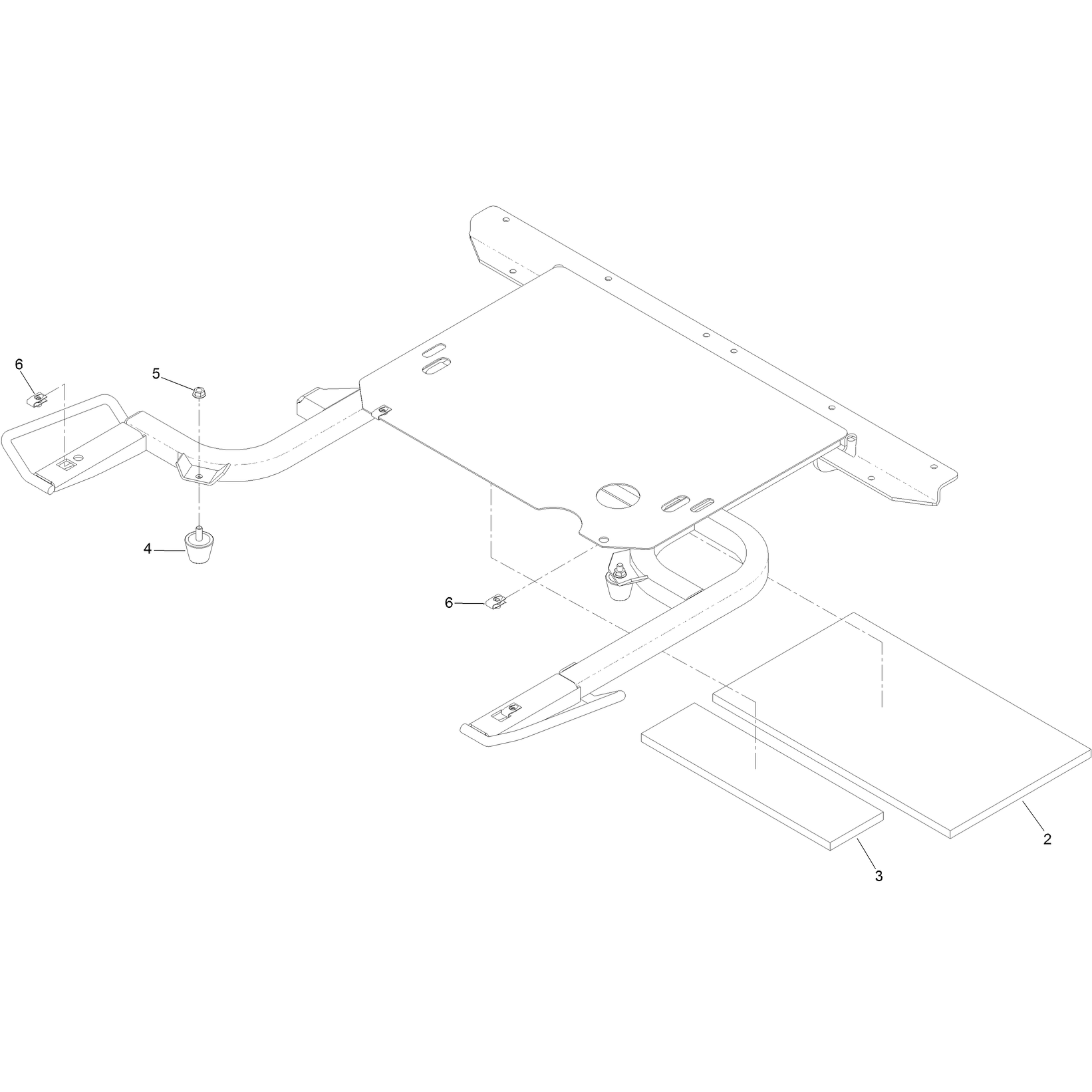

Deck Support WDecals Assembly No 103 9480
Deck Support WDecals Assembly No 103 9480
| Sequence Number | Image | Product | Price | Add to cart |
|---|

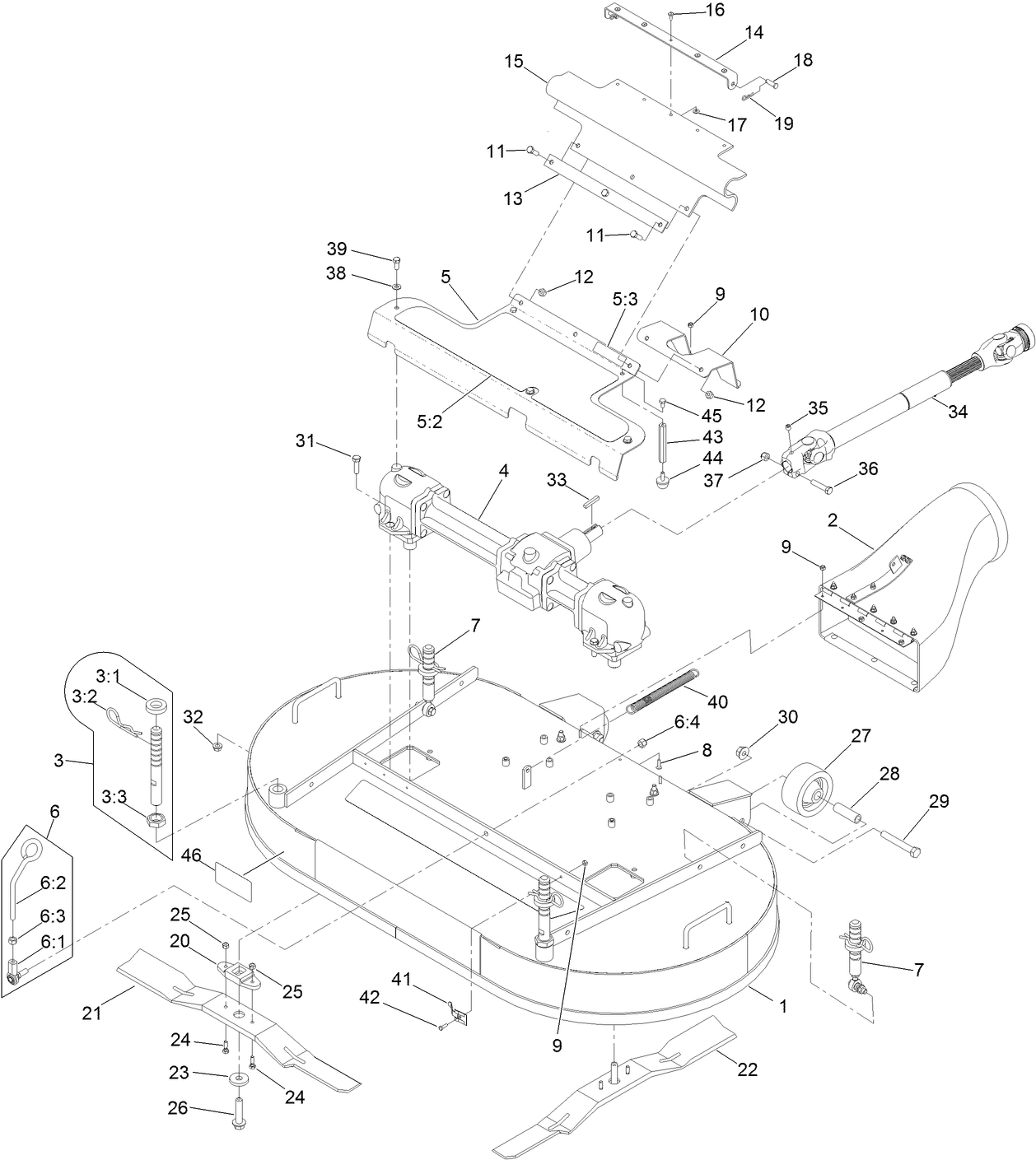

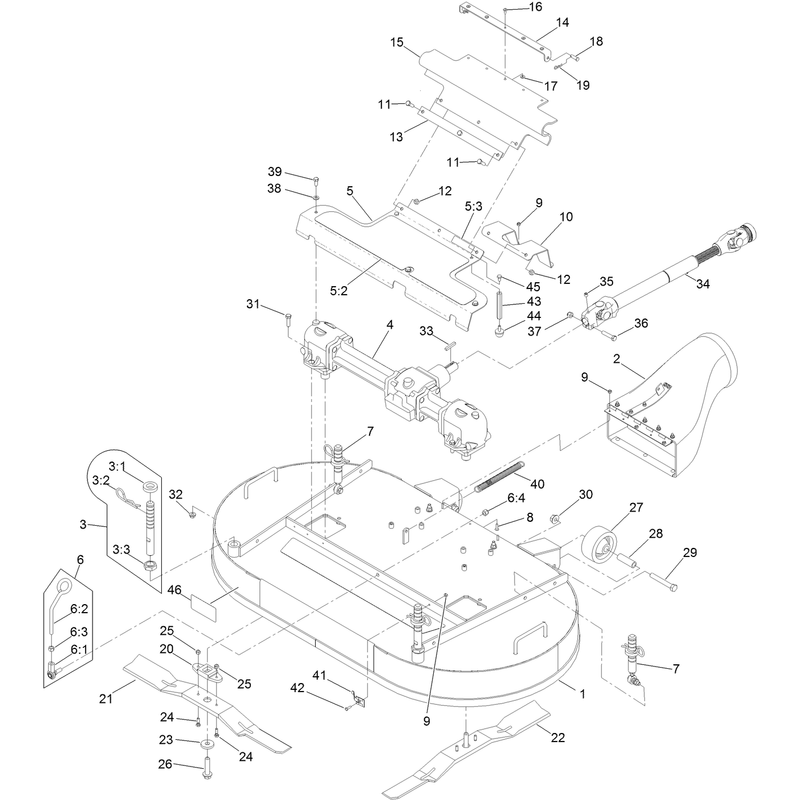

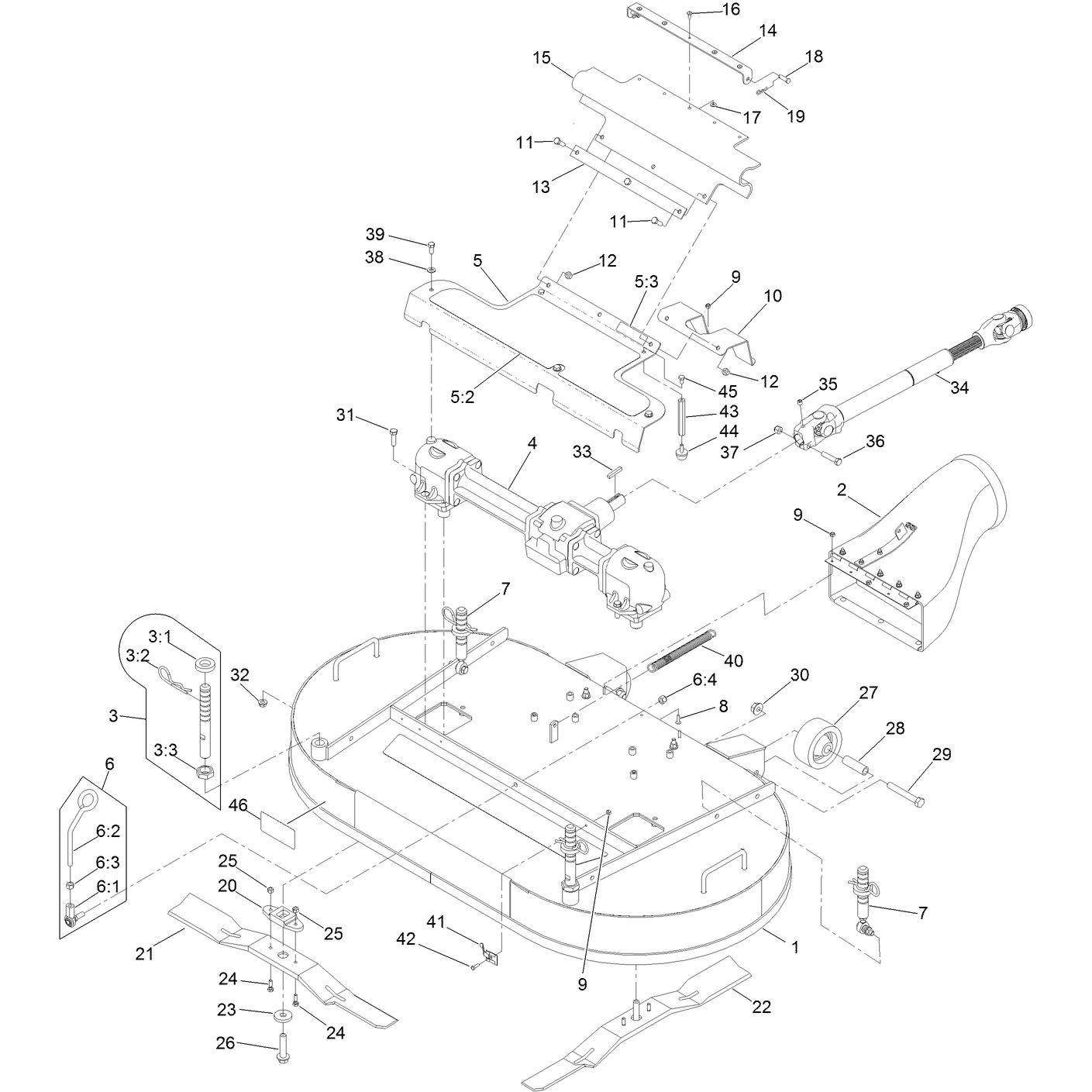

Deck Gearbox and Driveshaft Mounting Assembly
Deck Gearbox and Driveshaft Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

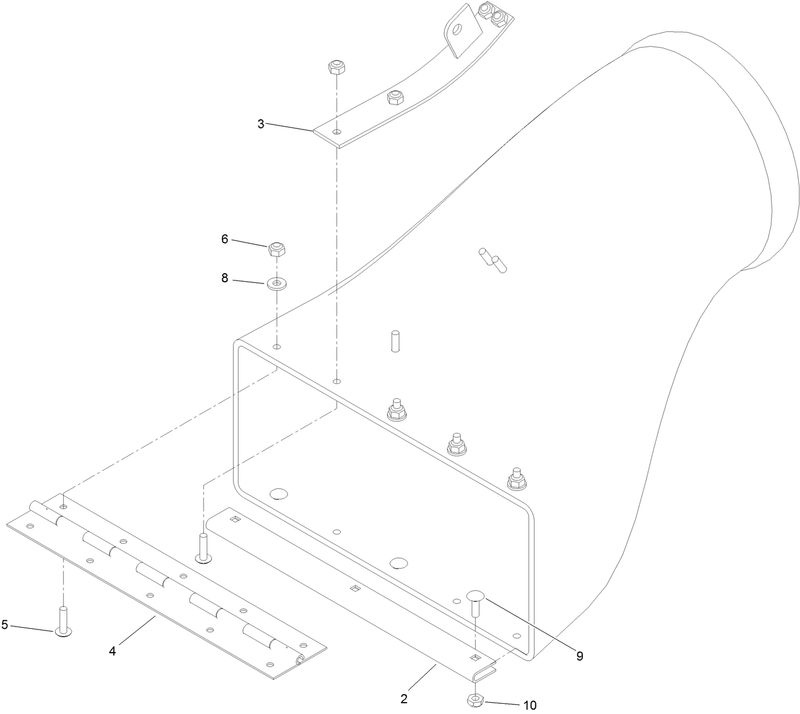

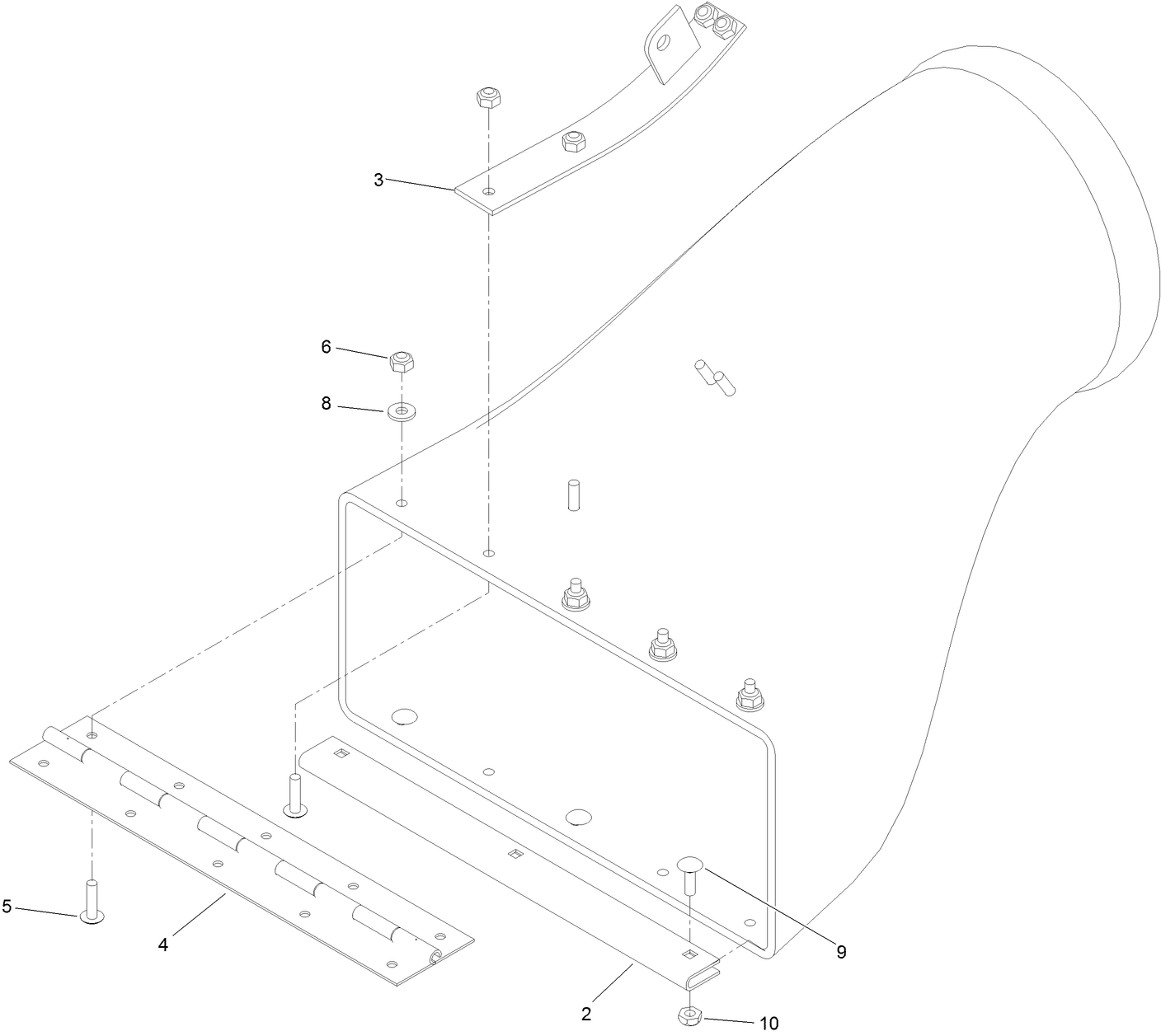

Discharge Tube Assembly No 103 9487
Discharge Tube Assembly No 103 9487
| Sequence Number | Image | Product | Price | Add to cart |
|---|

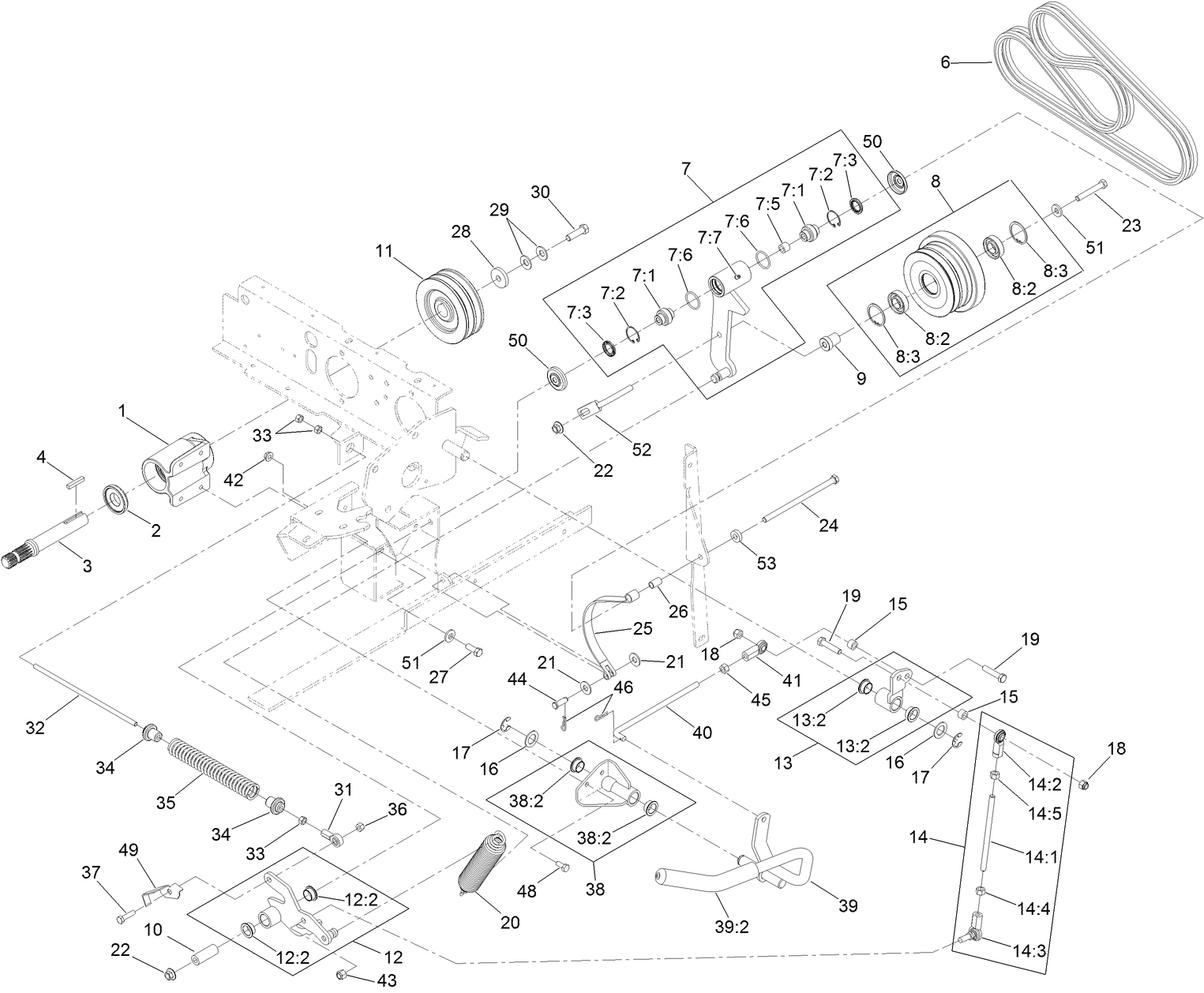

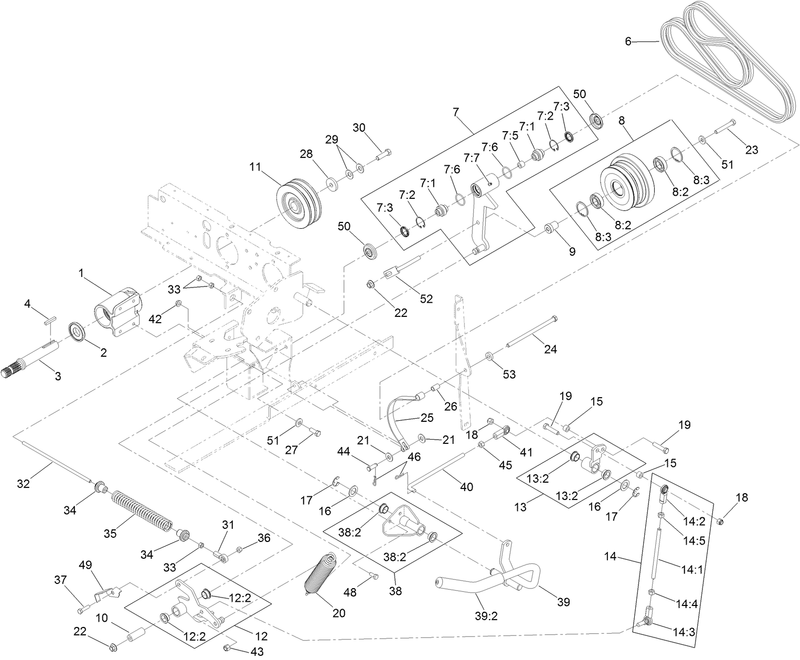

Drive Assembly
Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

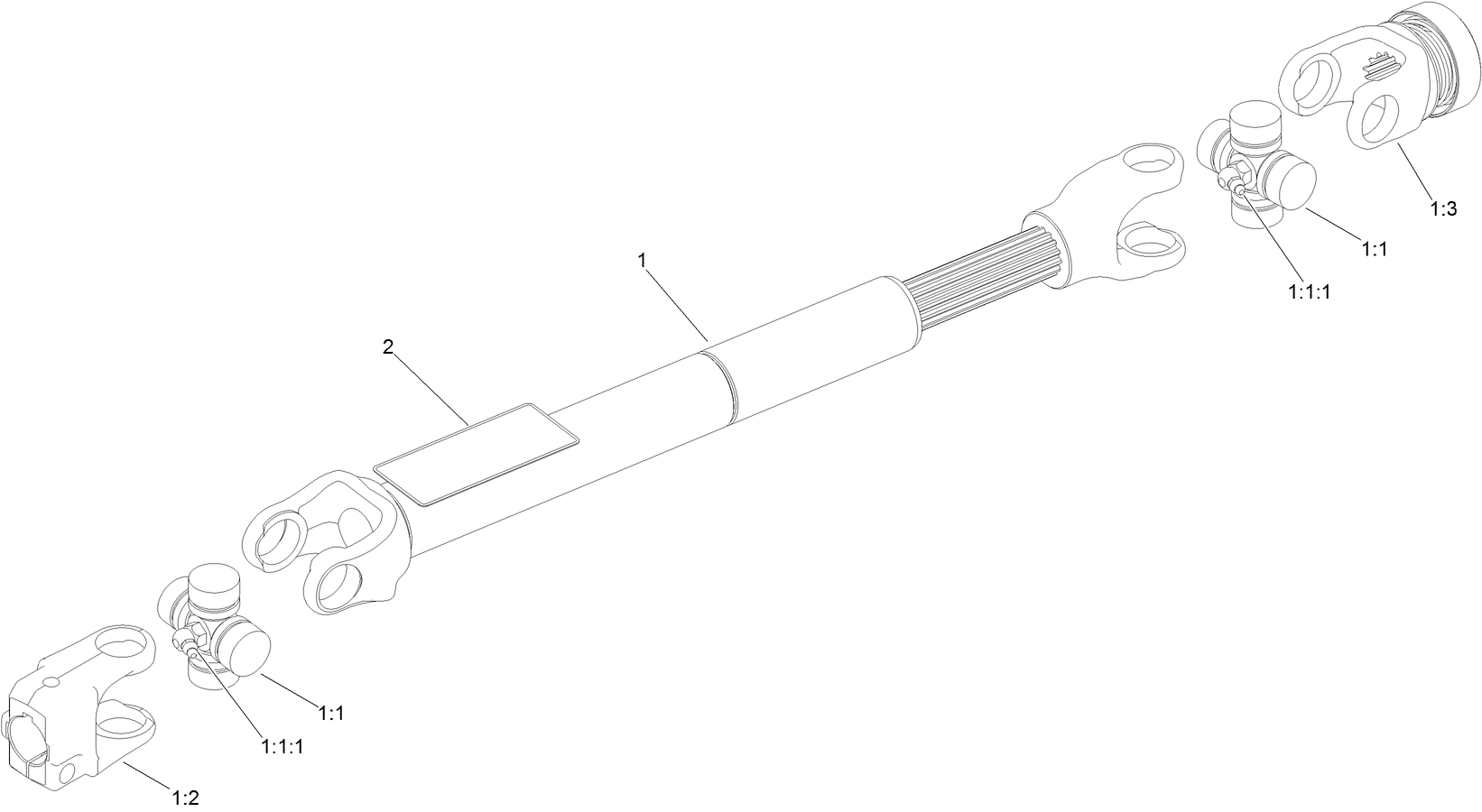

Drive Shaft Assembly No 103 9485
Drive Shaft Assembly No 103 9485
| Sequence Number | Image | Product | Price | Add to cart |
|---|

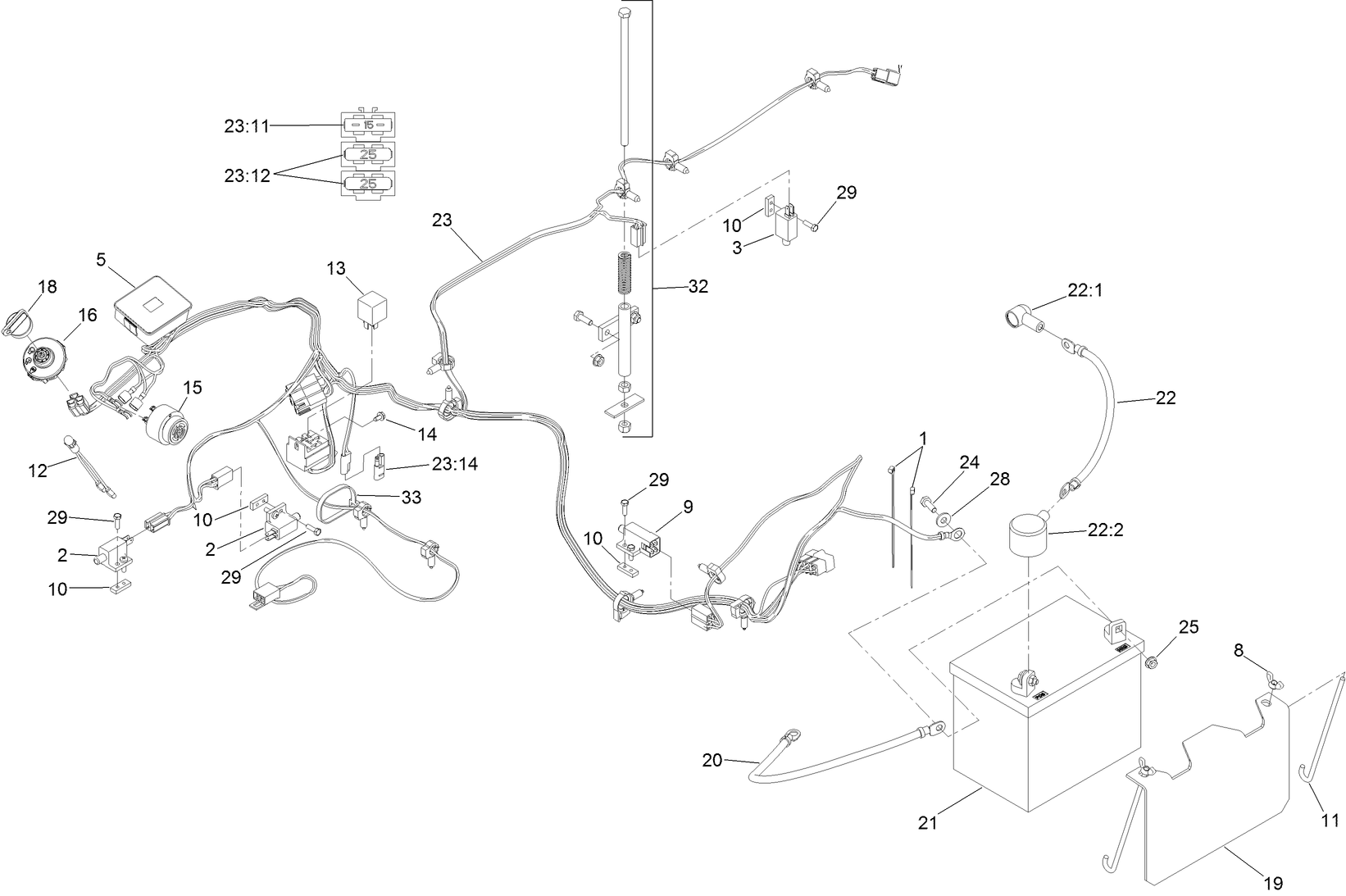

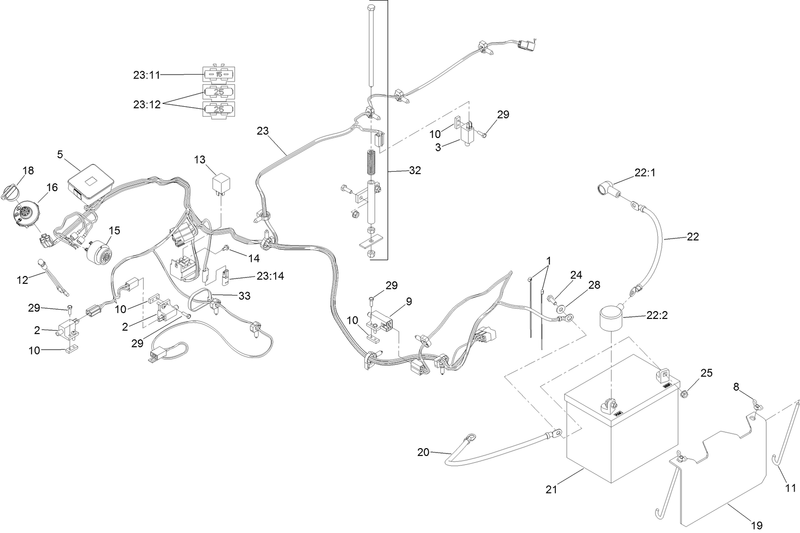

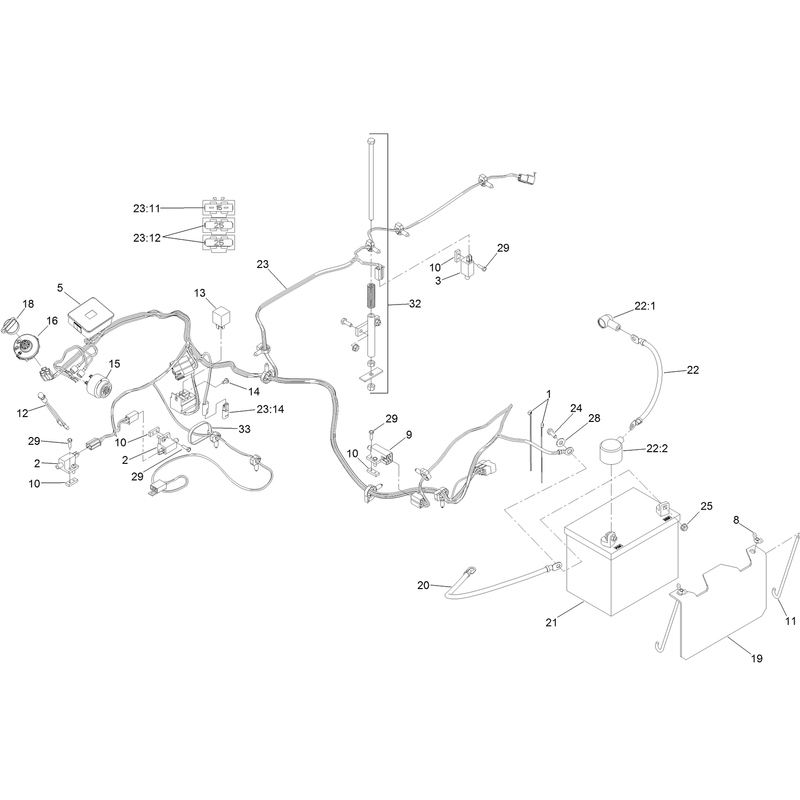

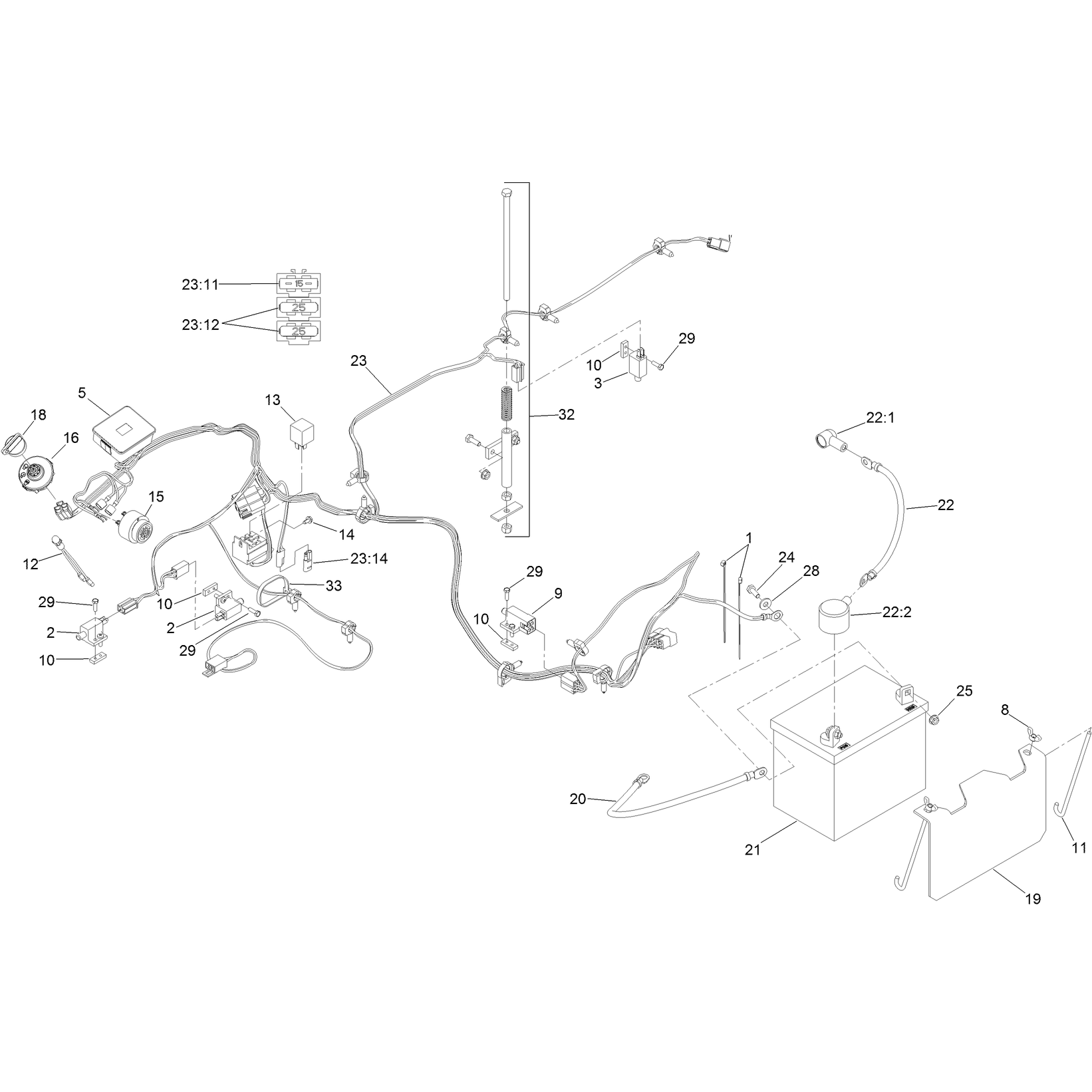

Electrical System Assembly
Electrical System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

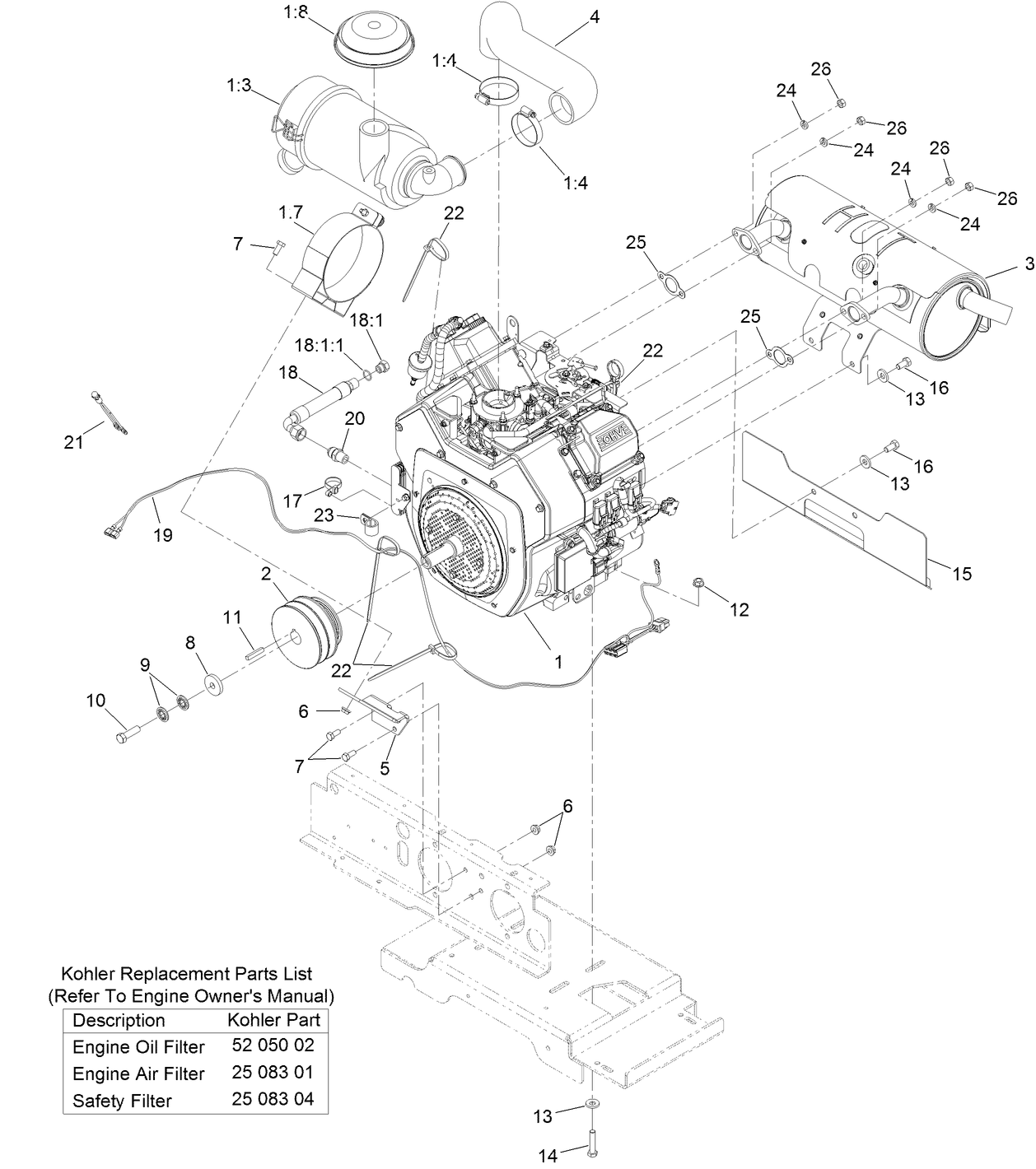

Engine Assembly
Engine Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

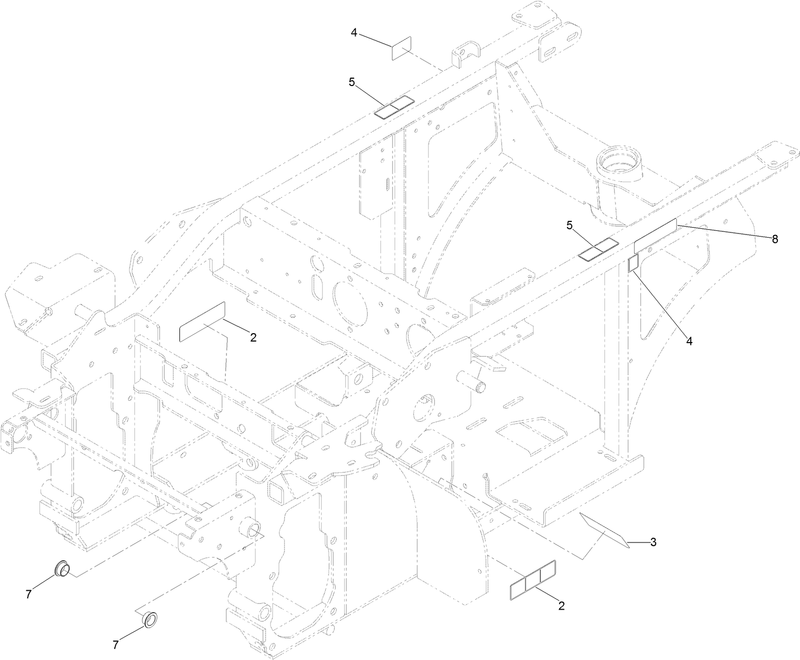

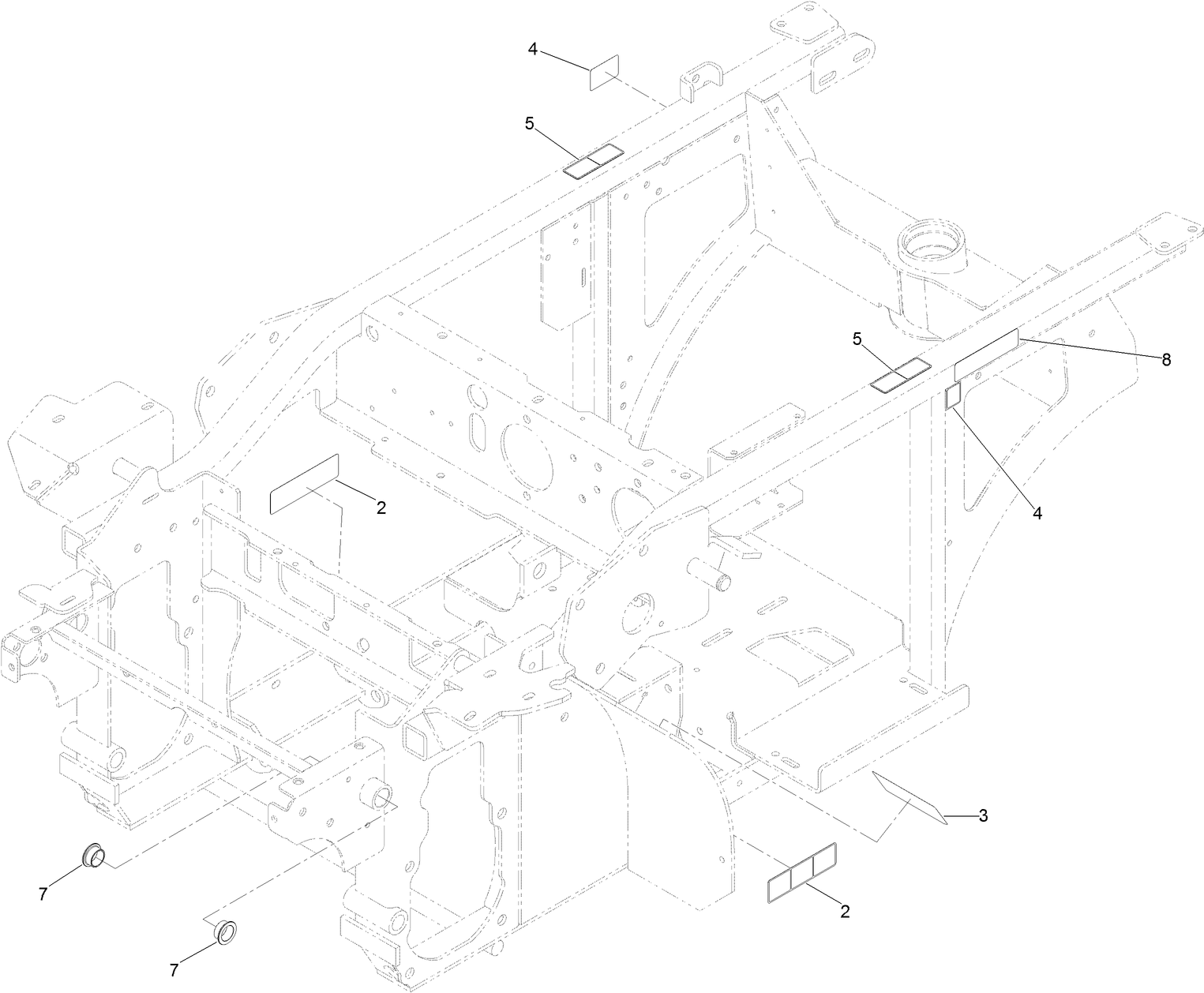

Frame and Decal Assembly No 116 7482
Frame and Decal Assembly No 116 7482
| Sequence Number | Image | Product | Price | Add to cart |
|---|

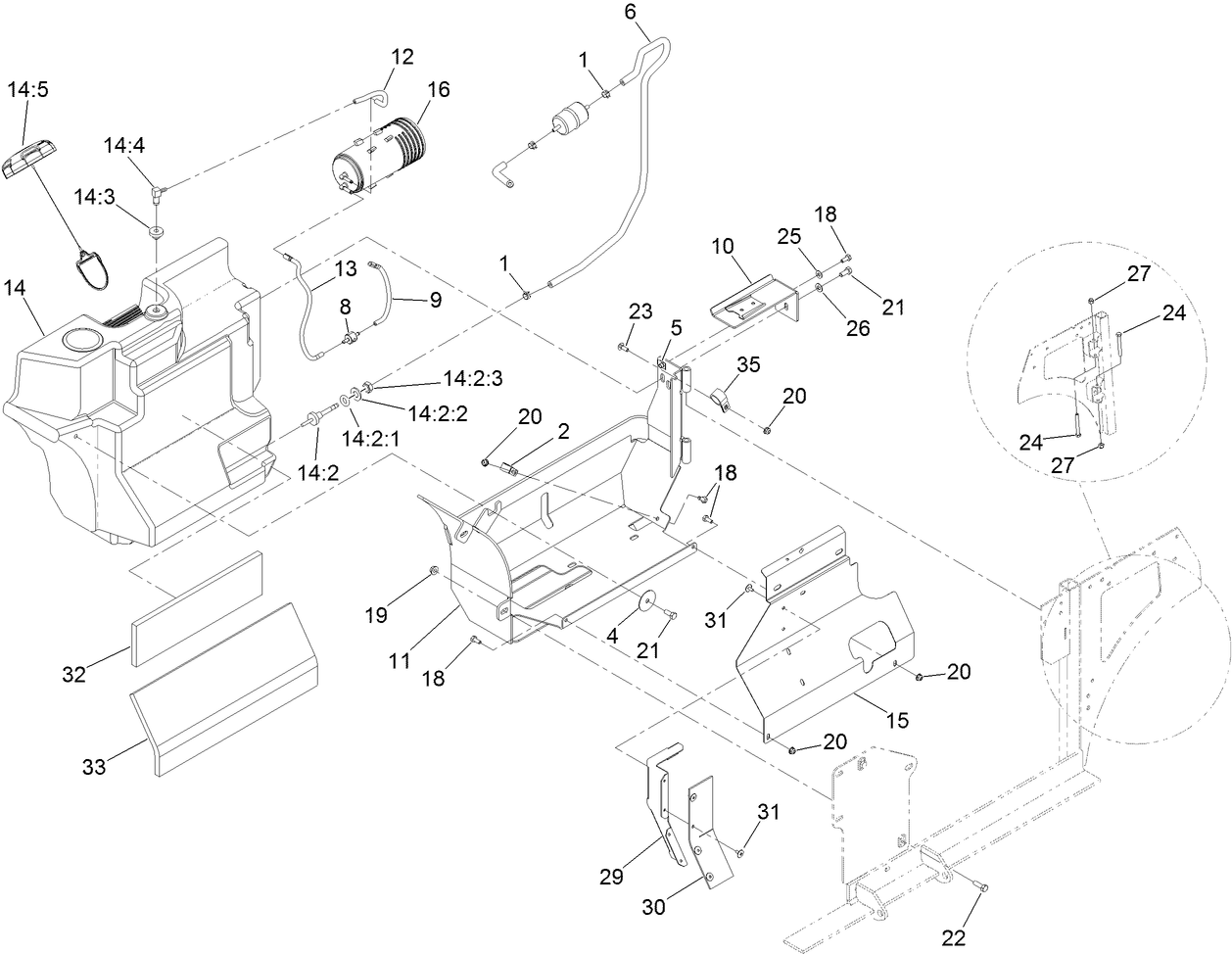

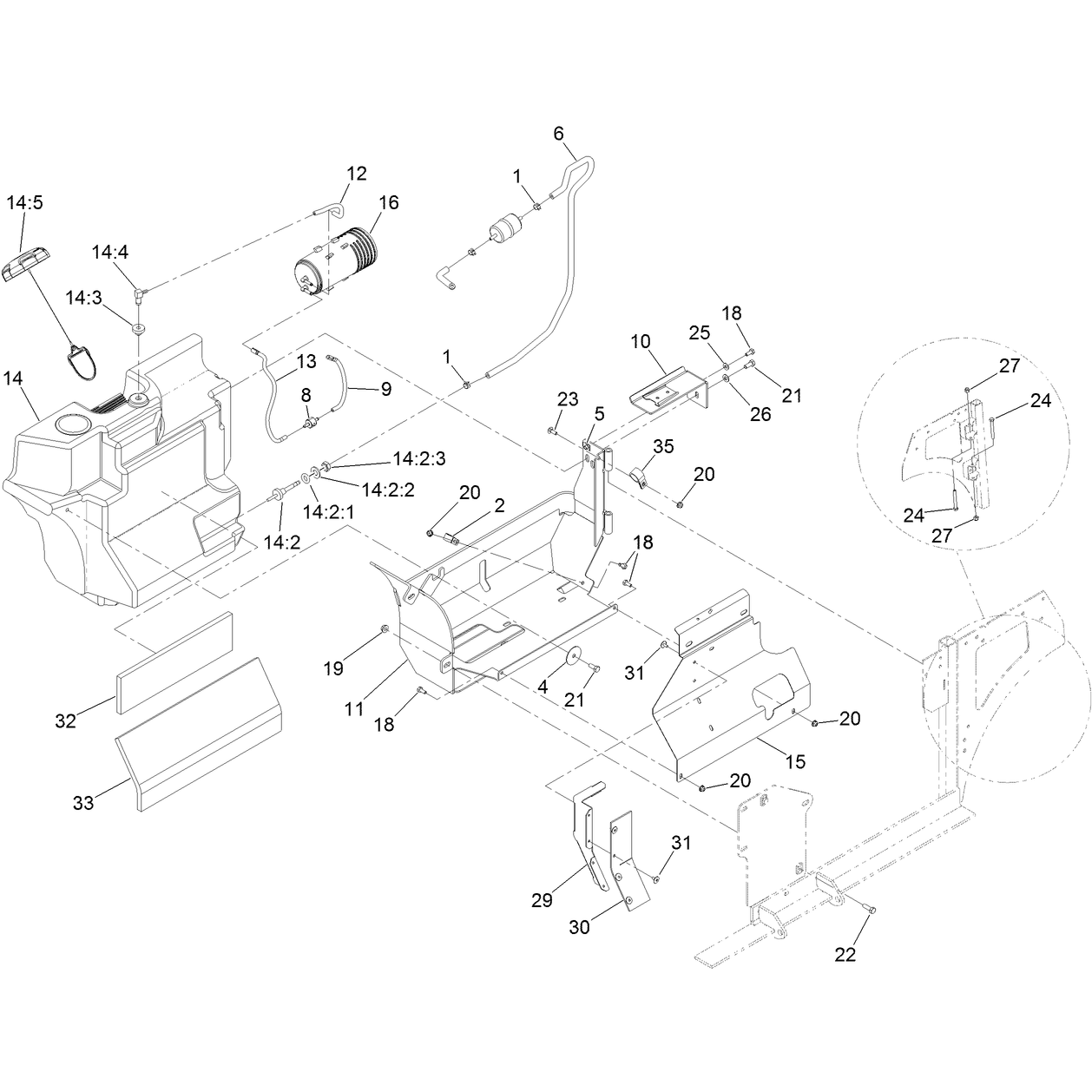

Fuel Tank Assembly
Fuel Tank Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

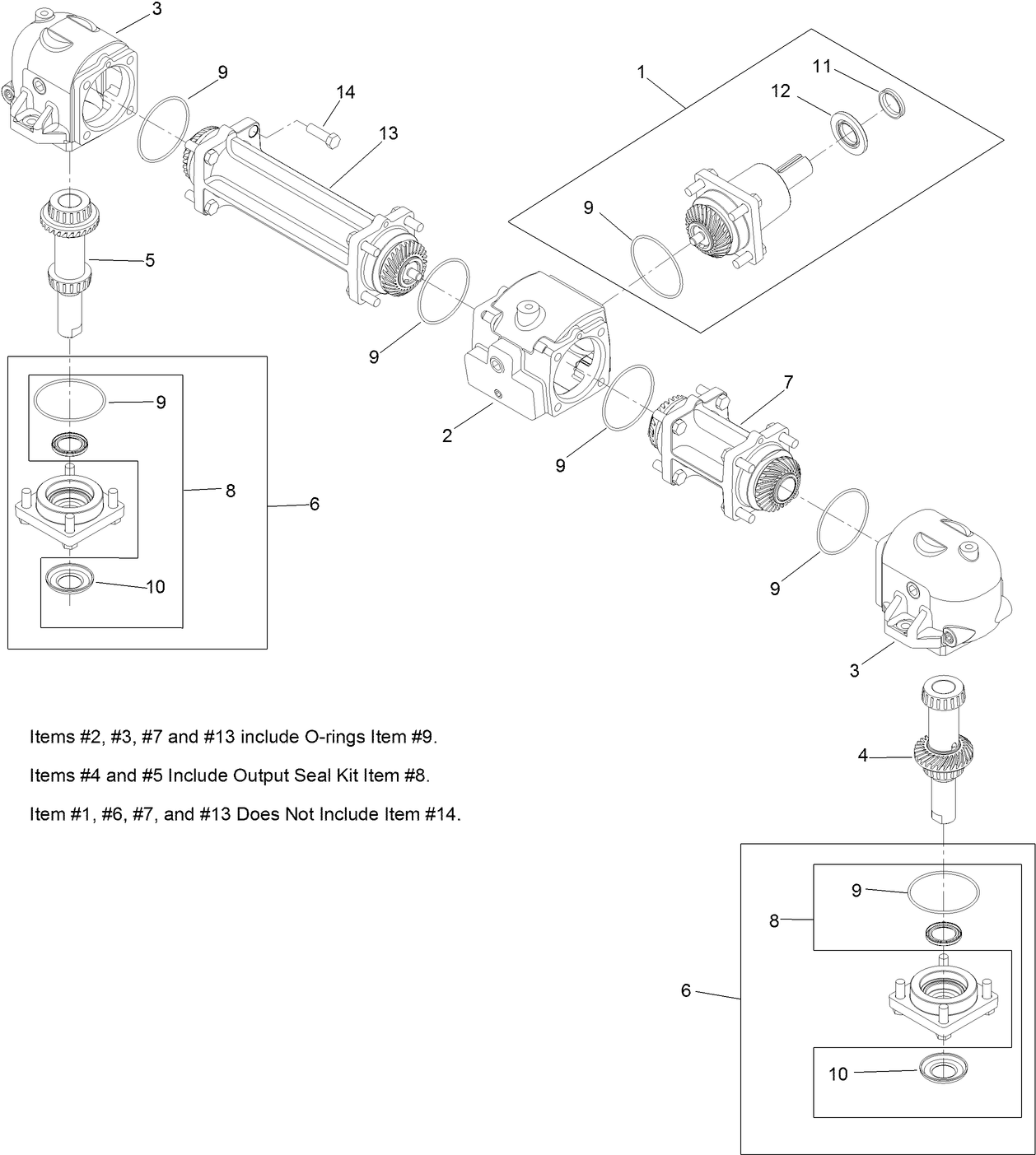

Gearbox Assembly No 103 3387
Gearbox Assembly No 103 3387
| Sequence Number | Image | Product | Price | Add to cart |
|---|

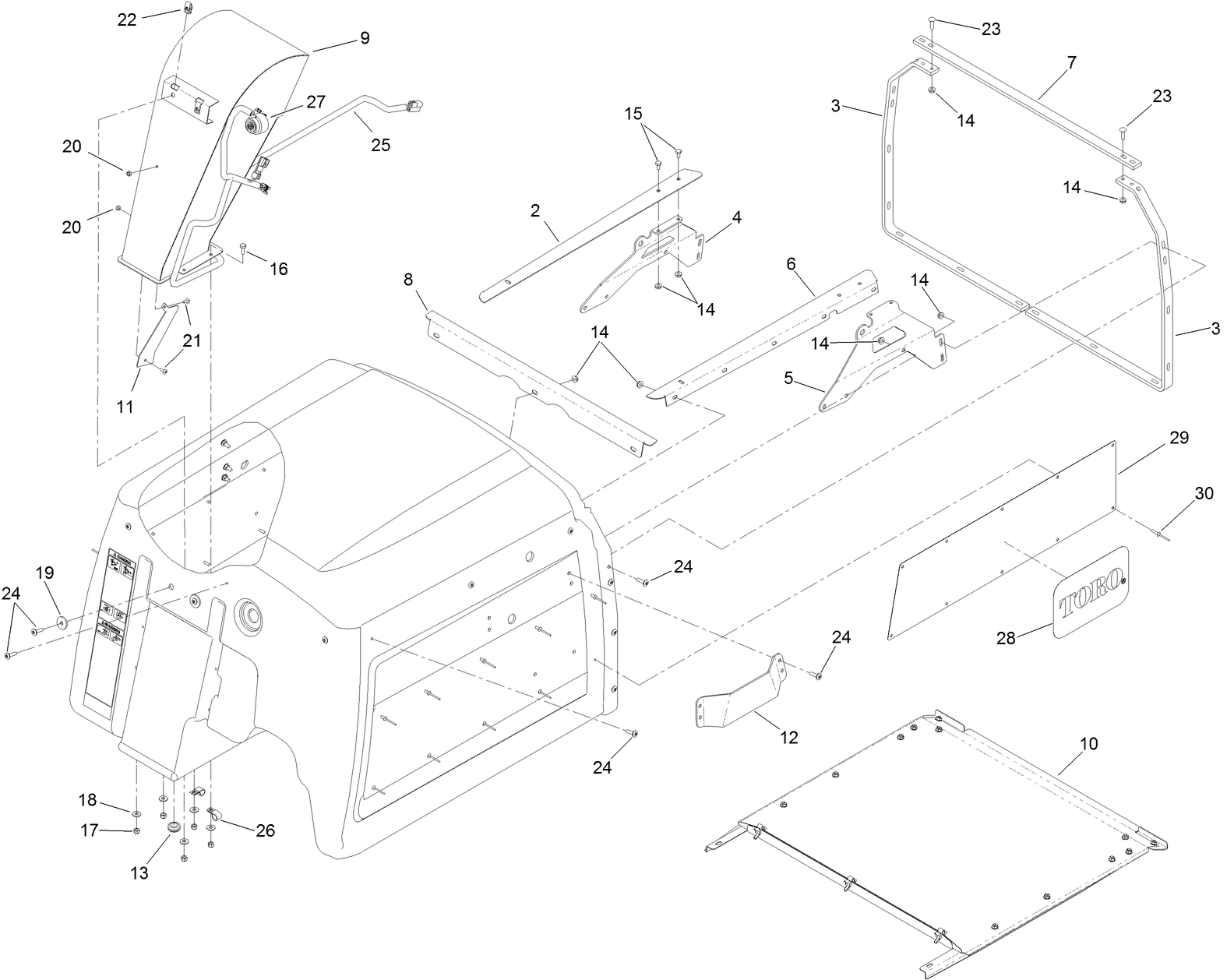

Hopper Assembly No 130 2872
Hopper Assembly No 130 2872
| Sequence Number | Image | Product | Price | Add to cart |
|---|

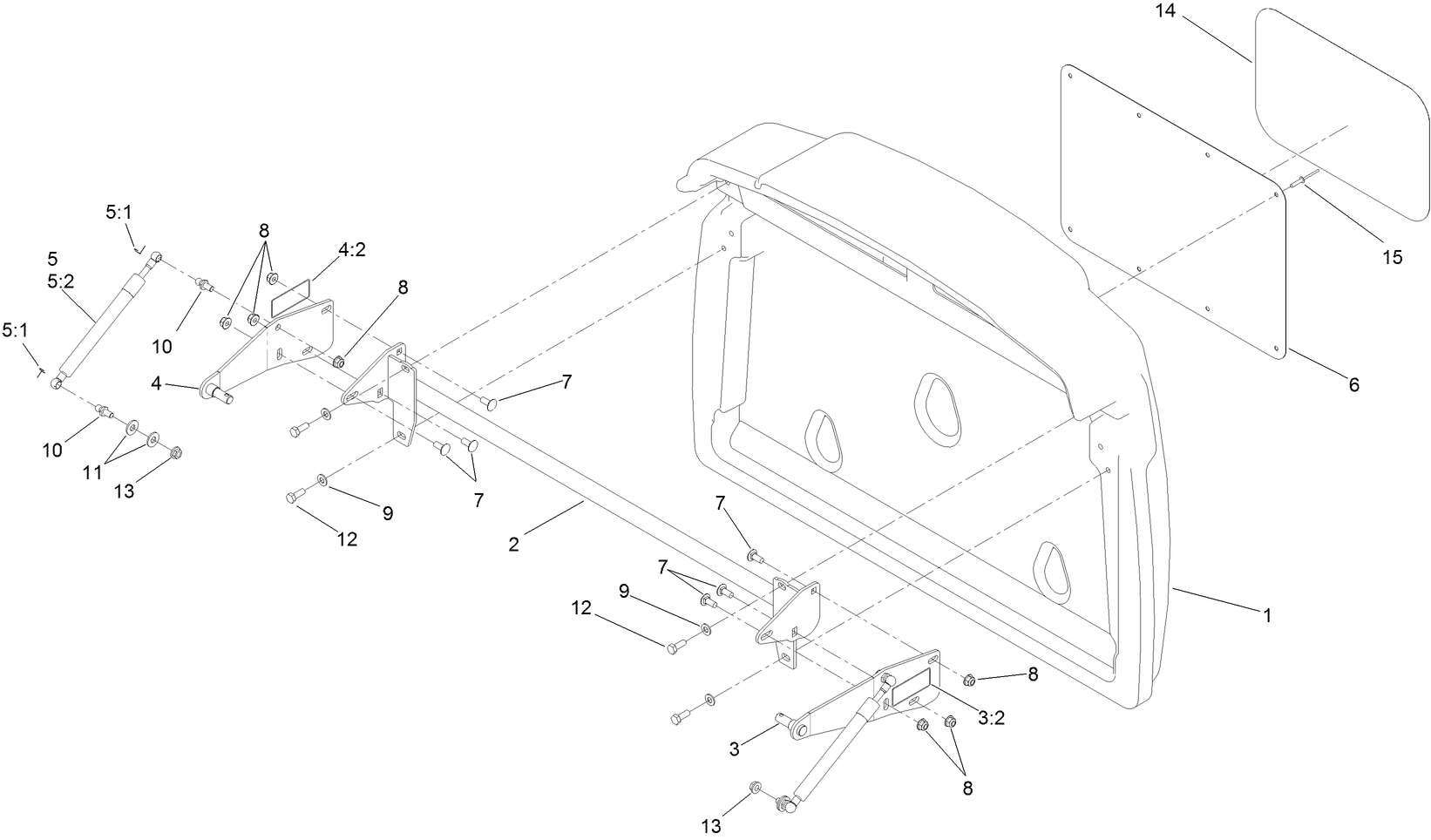

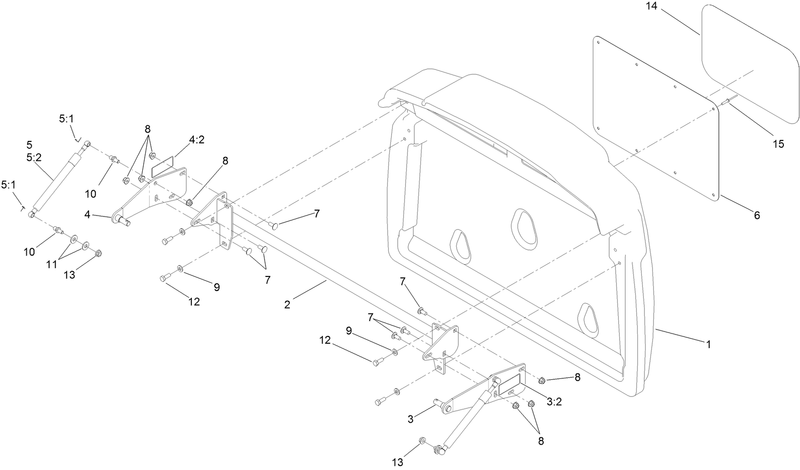

Hopper Door Assembly No 130 2875
Hopper Door Assembly No 130 2875
| Sequence Number | Image | Product | Price | Add to cart |
|---|

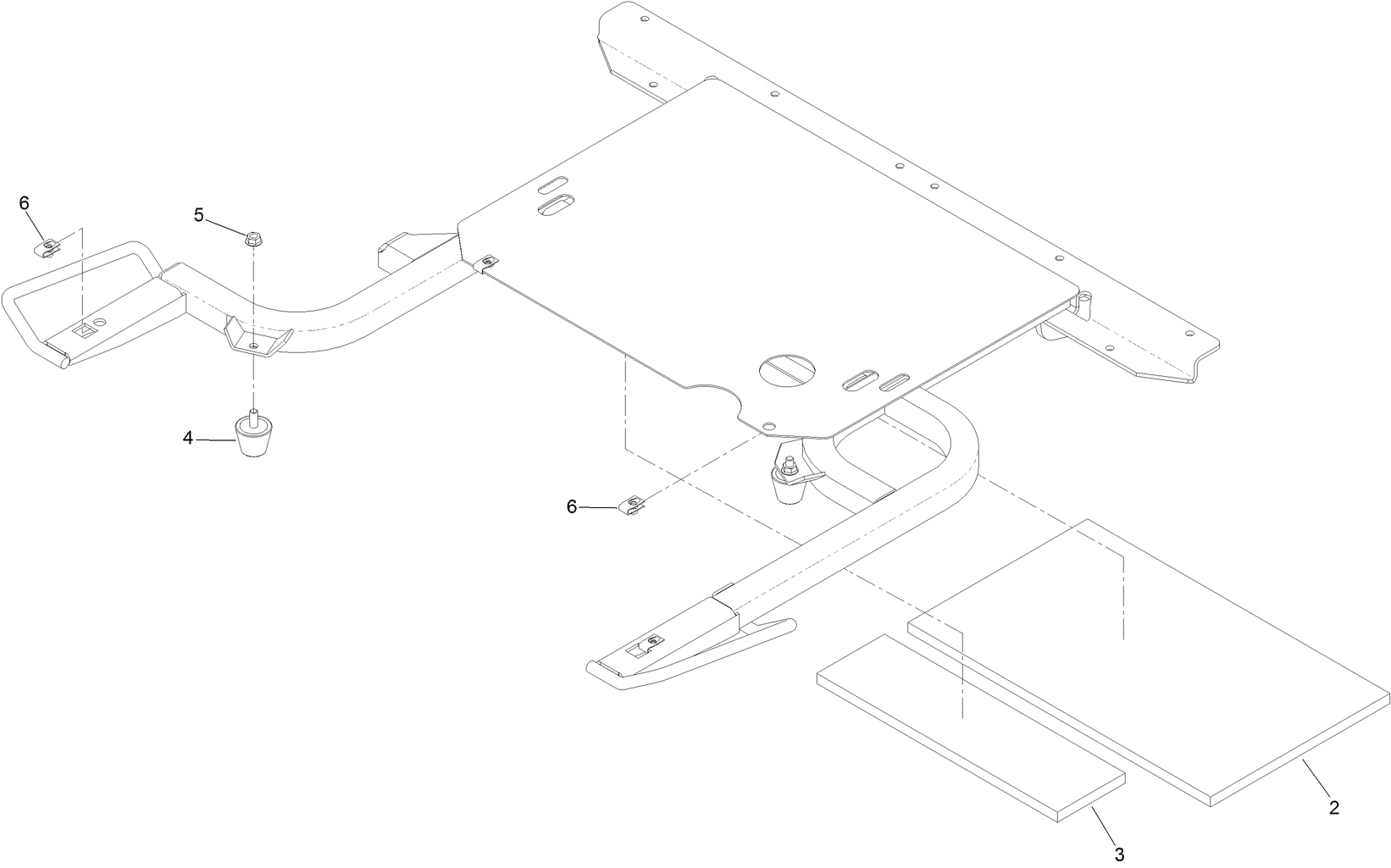

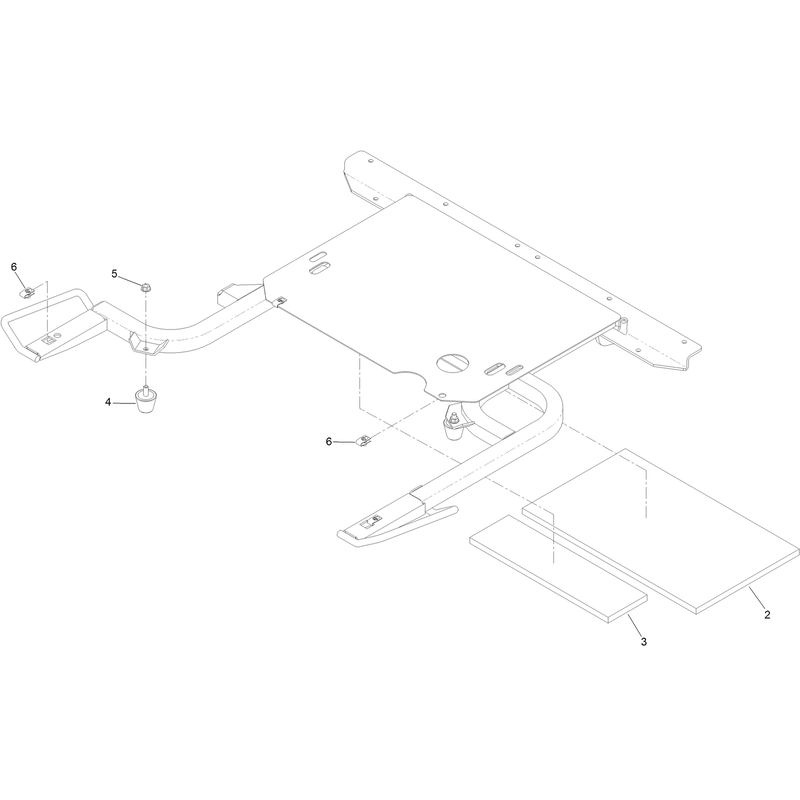

Hopper Frame Assembly No 109 4086
Hopper Frame Assembly No 109 4086
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Hopper Mounting Assembly
Hopper Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

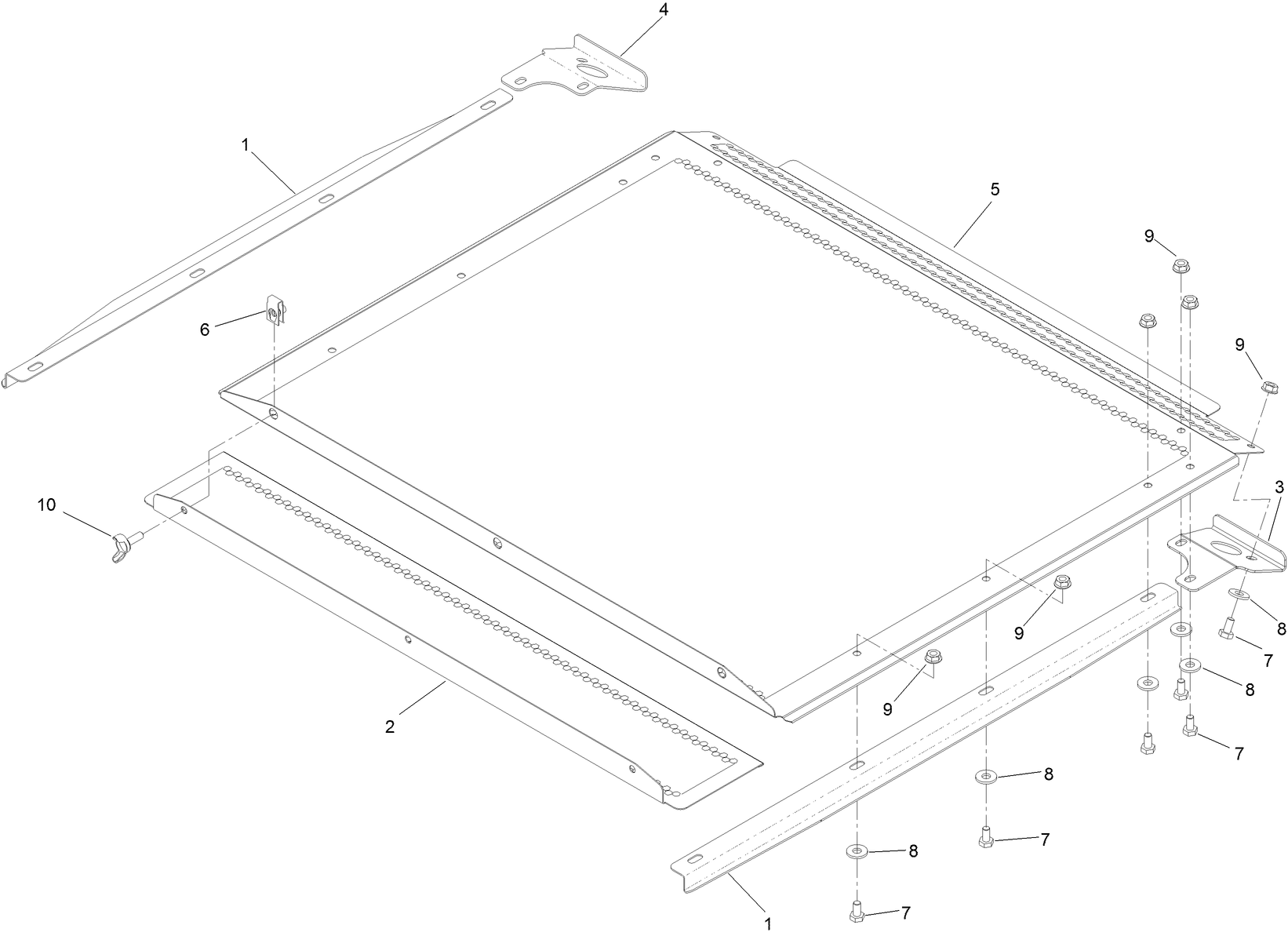

Hopper Screen Assembly No 109 0717
Hopper Screen Assembly No 109 0717
| Sequence Number | Image | Product | Price | Add to cart |
|---|

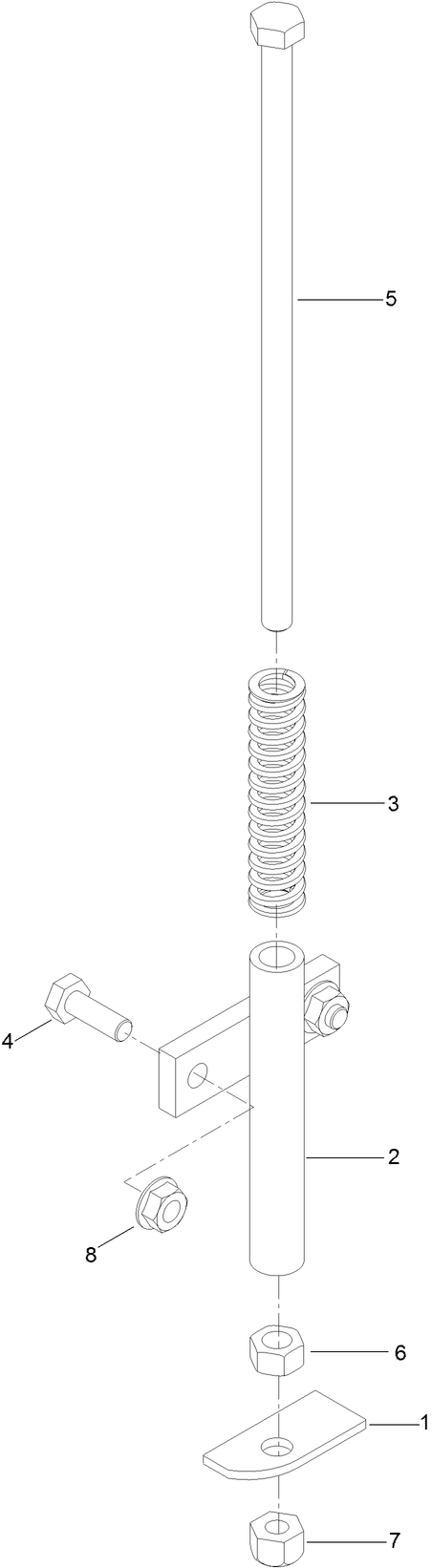

Hopper Switch Actuator Assembly No 103 8528
Hopper Switch Actuator Assembly No 103 8528
| Sequence Number | Image | Product | Price | Add to cart |
|---|

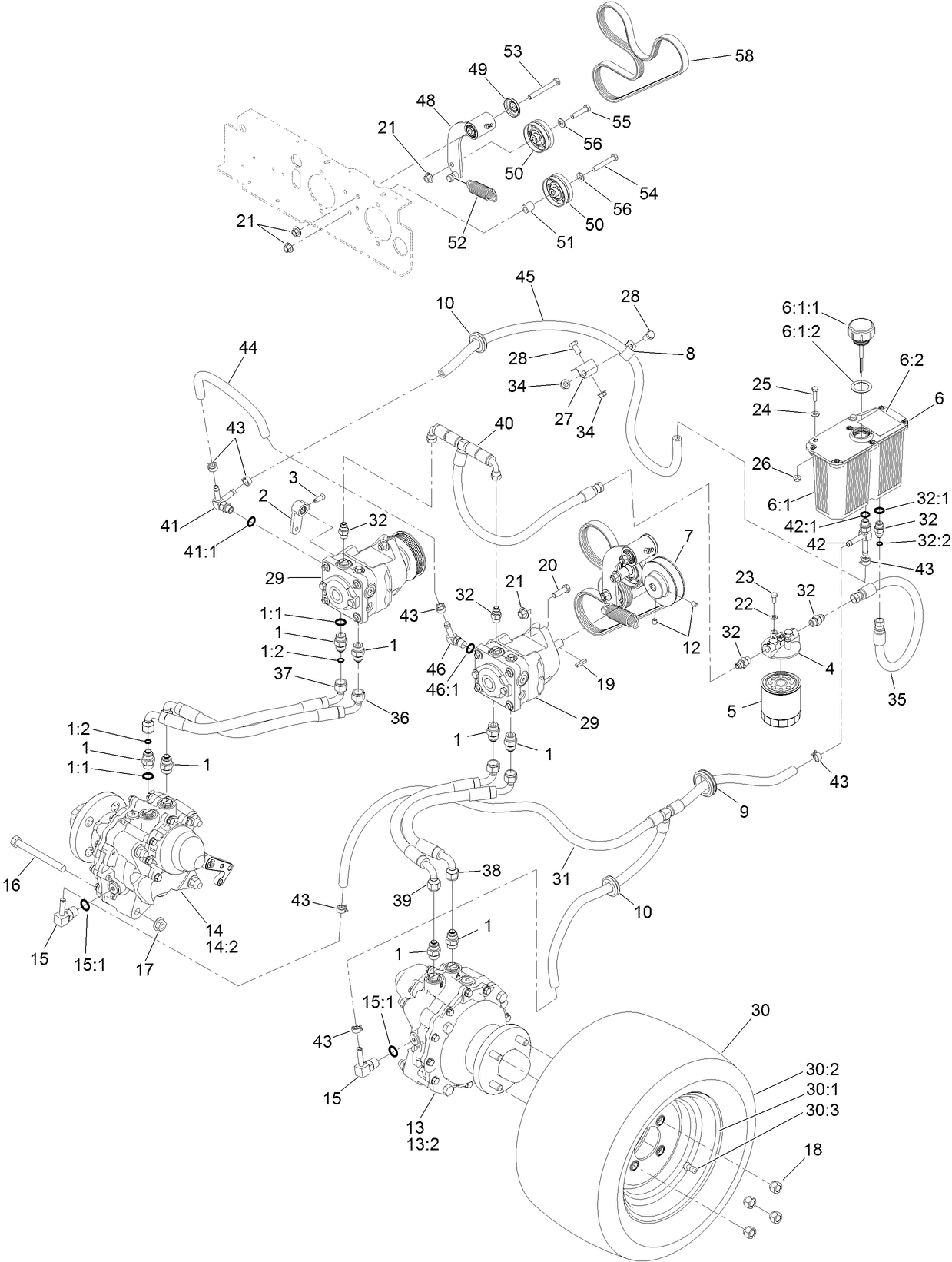

Hydraulic Assembly
Hydraulic Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

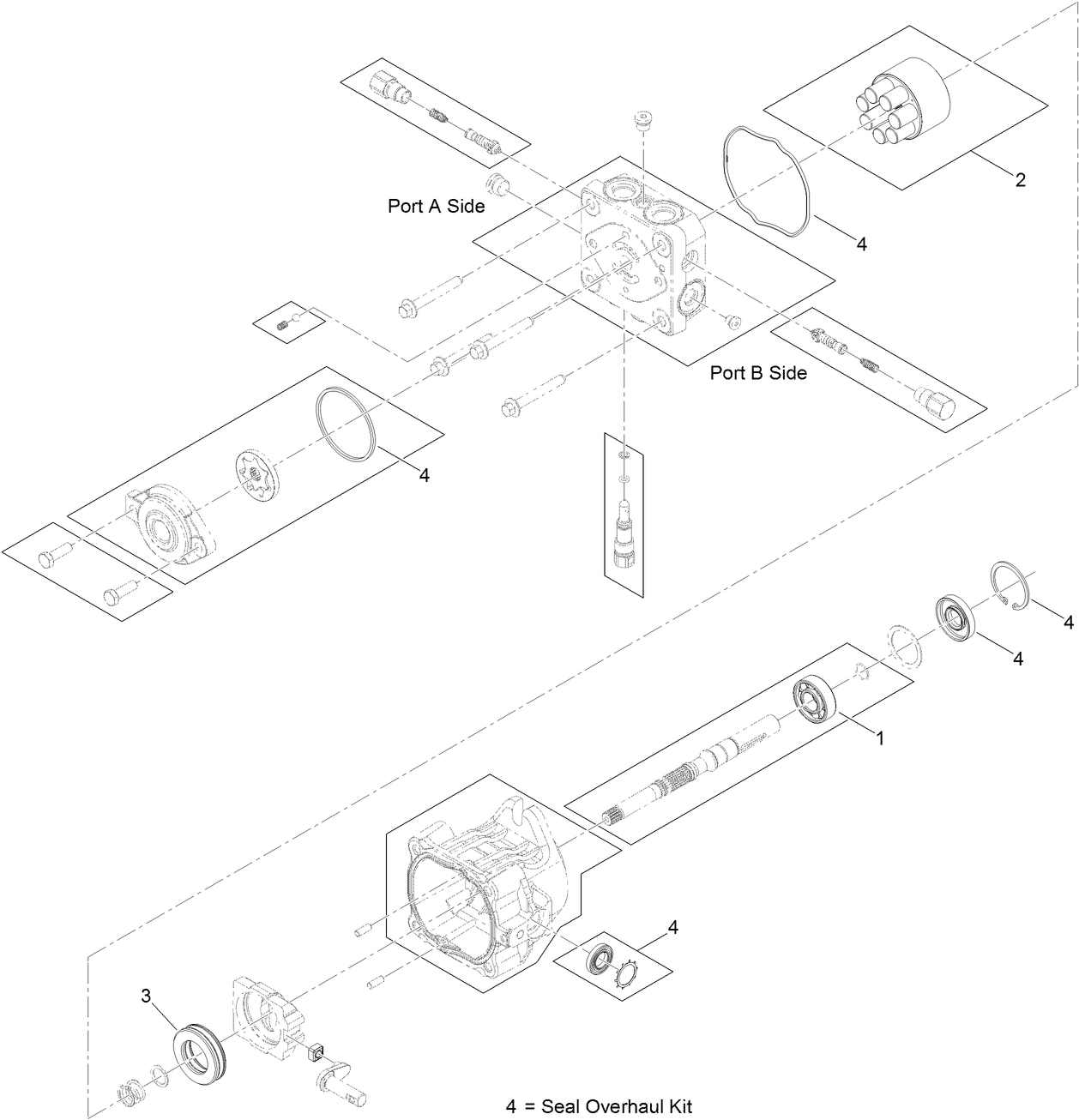

Hydraulic Pump Assembly No 116 7836
Hydraulic Pump Assembly No 116 7836
| Sequence Number | Image | Product | Price | Add to cart |
|---|

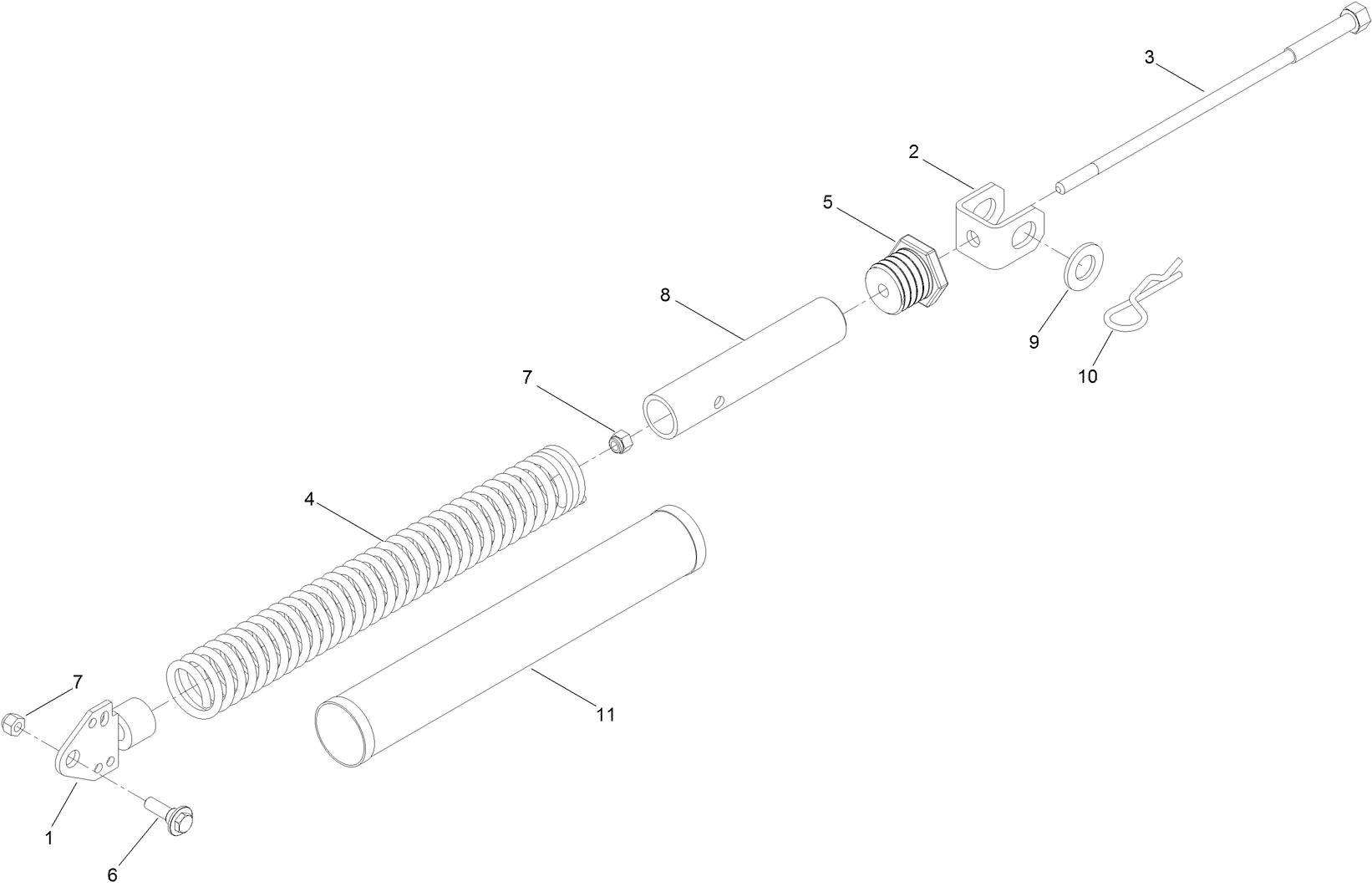

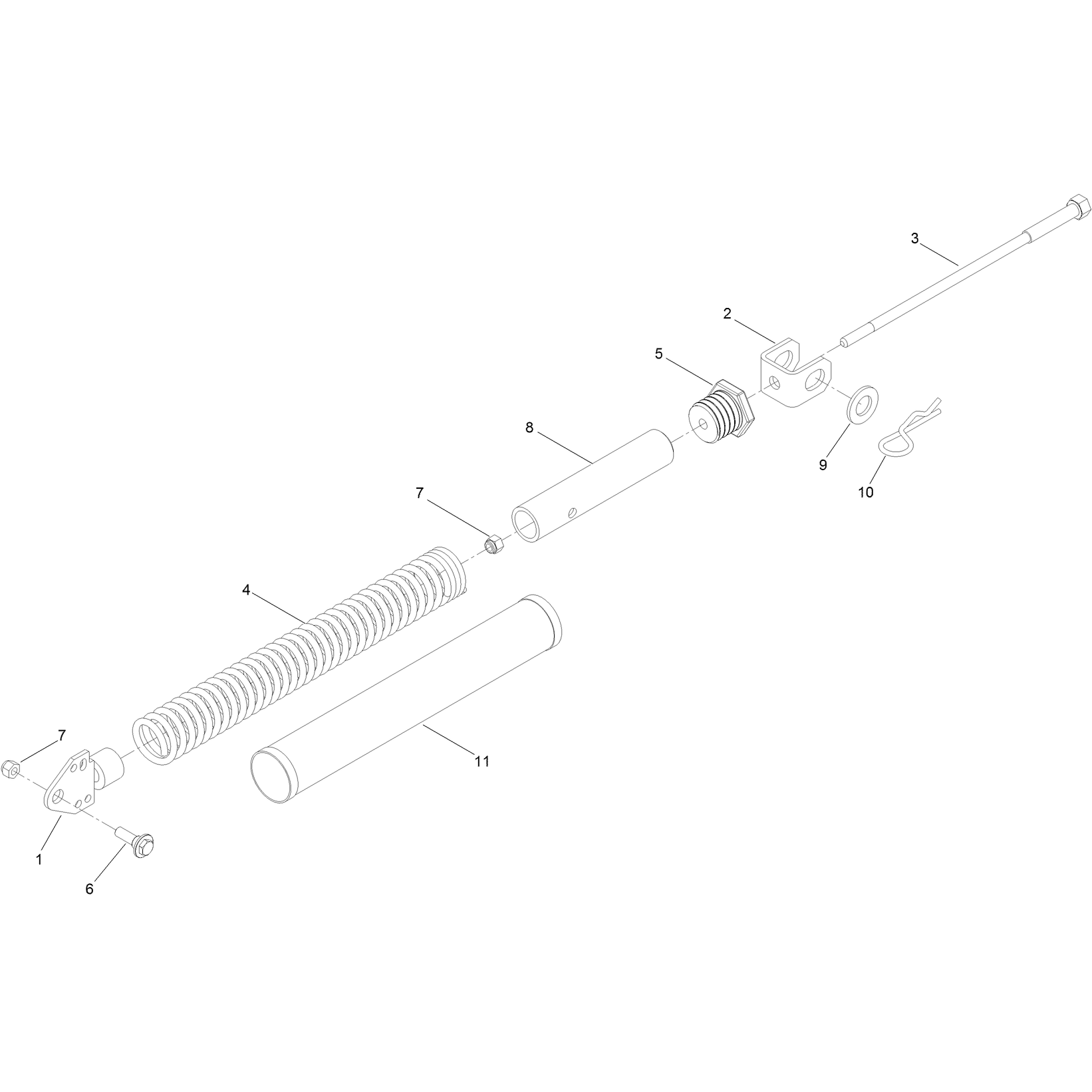

Lift Assist Spring Assembly No 116 7851
Lift Assist Spring Assembly No 116 7851
| Sequence Number | Image | Product | Price | Add to cart |
|---|

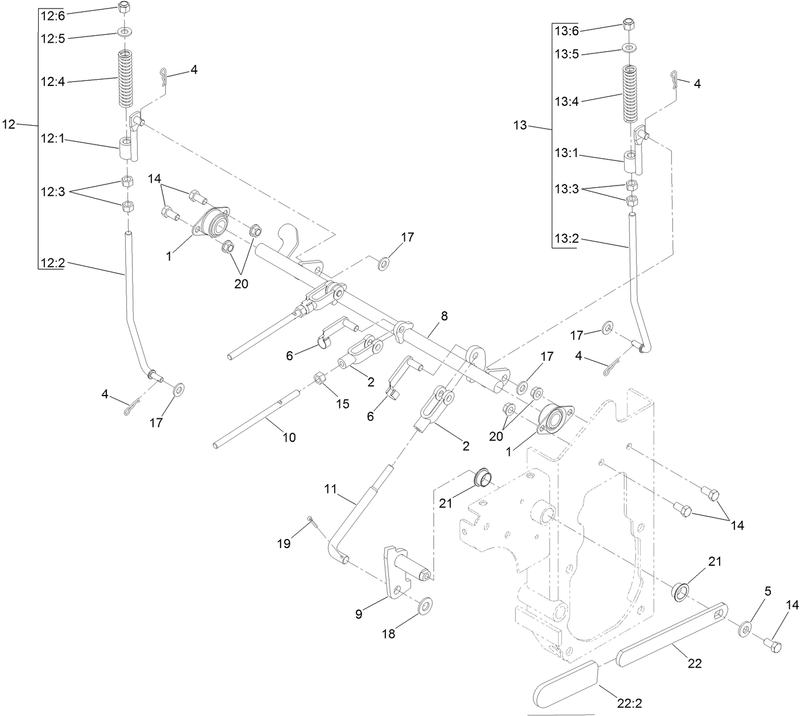

Parking Brake Assembly
Parking Brake Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

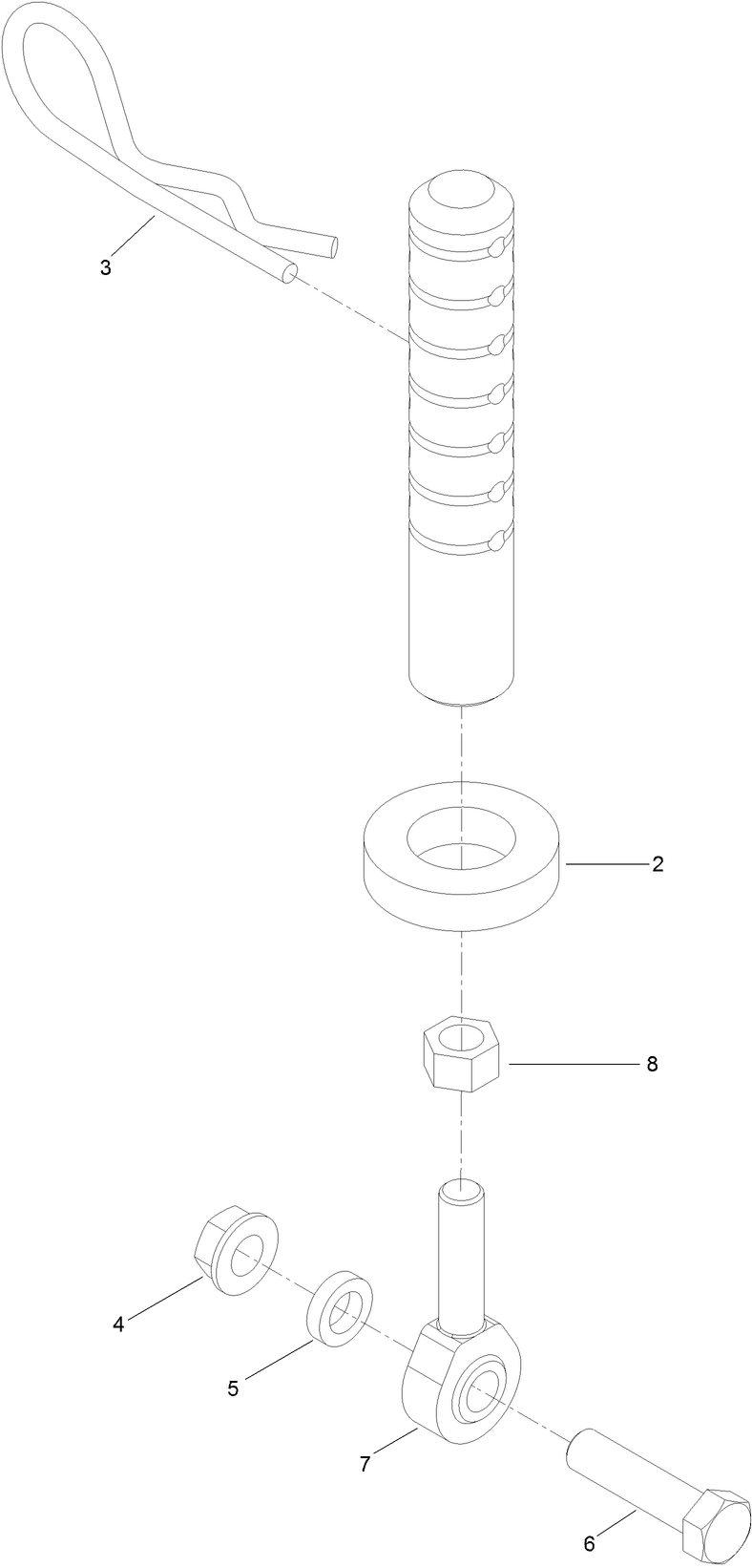

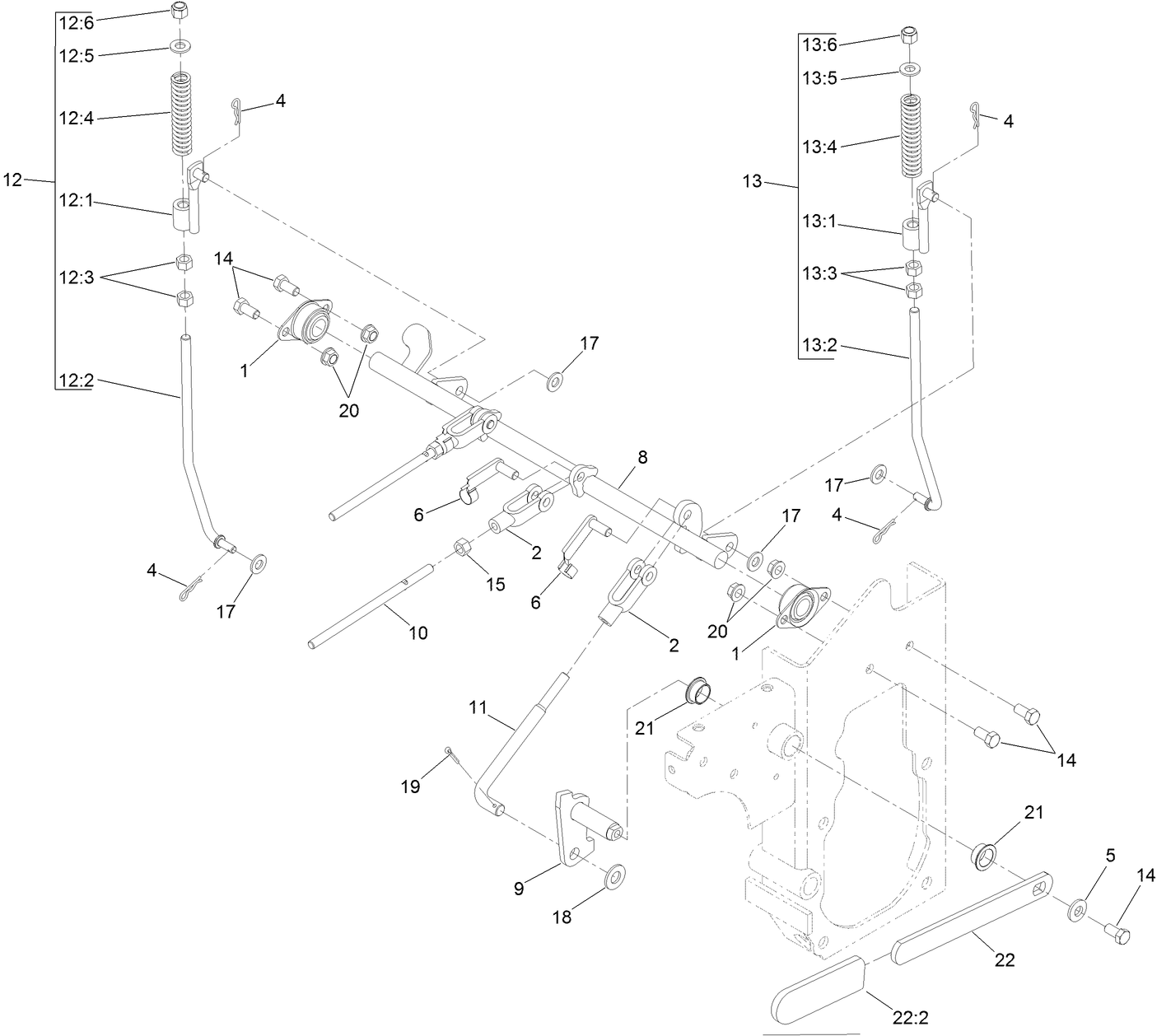

Rear Deck Height Adjustment Assembly No 109 0323
Rear Deck Height Adjustment Assembly No 109 0323
| Sequence Number | Image | Product | Price | Add to cart |
|---|

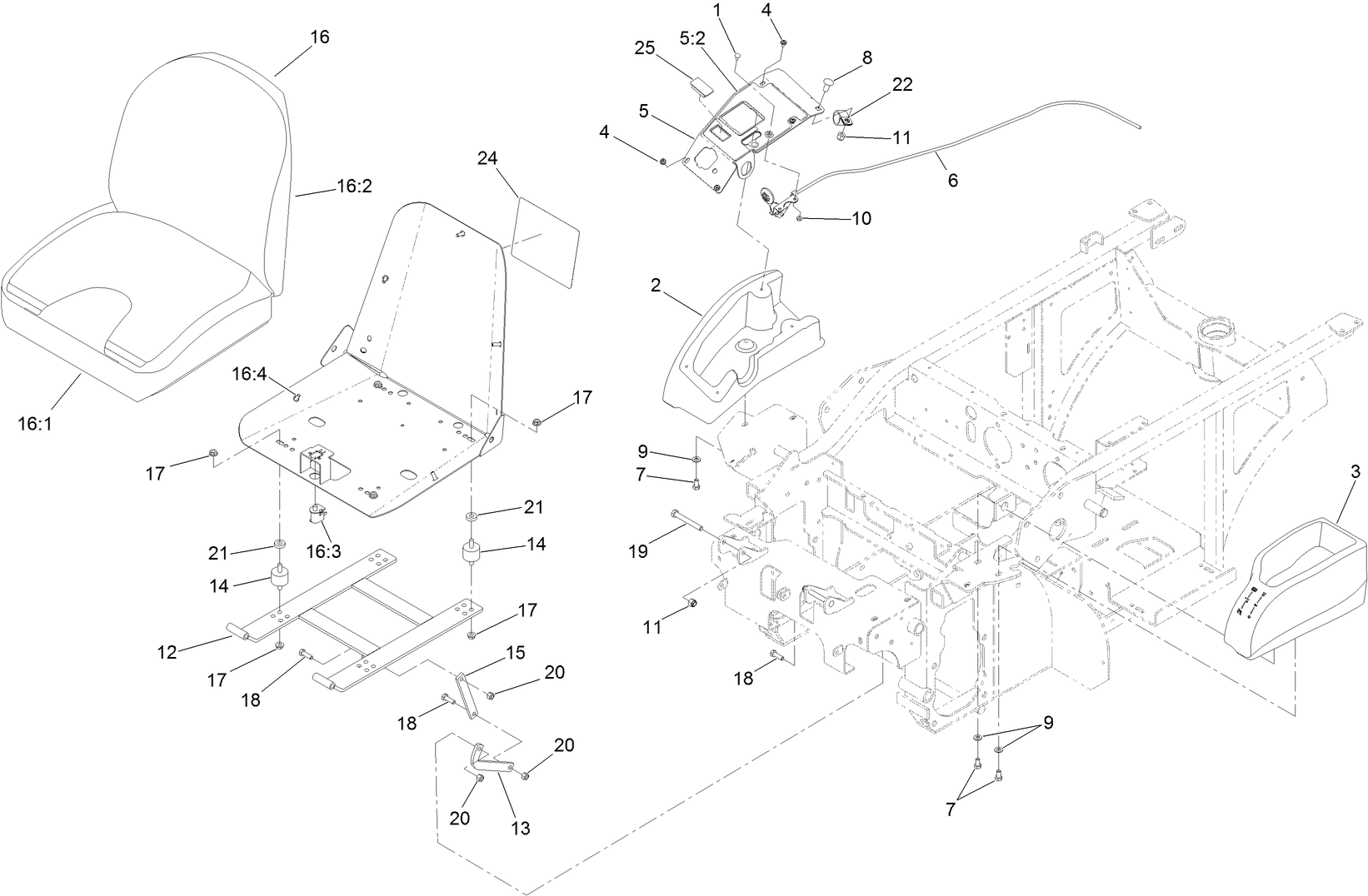

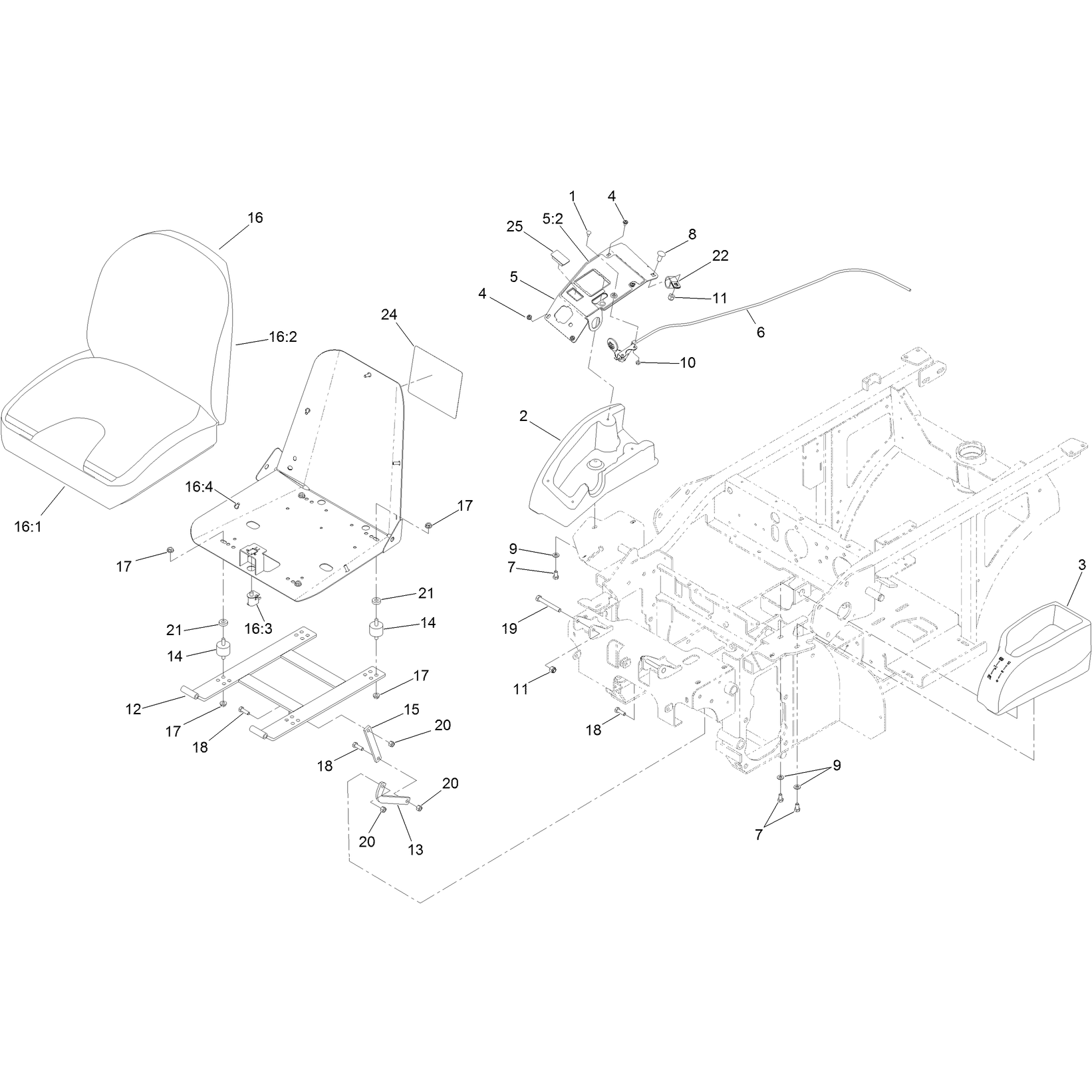

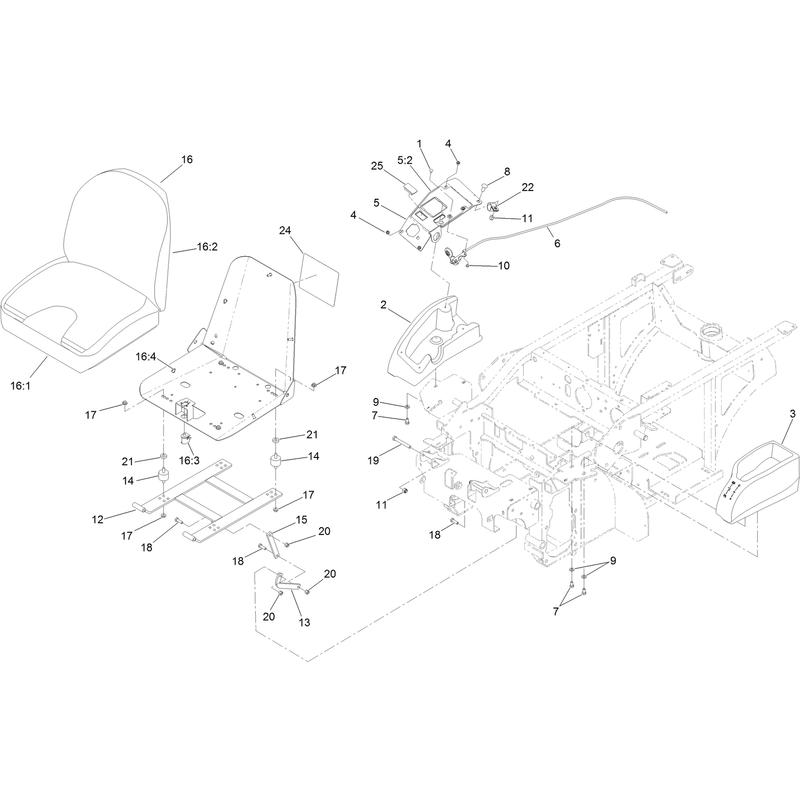

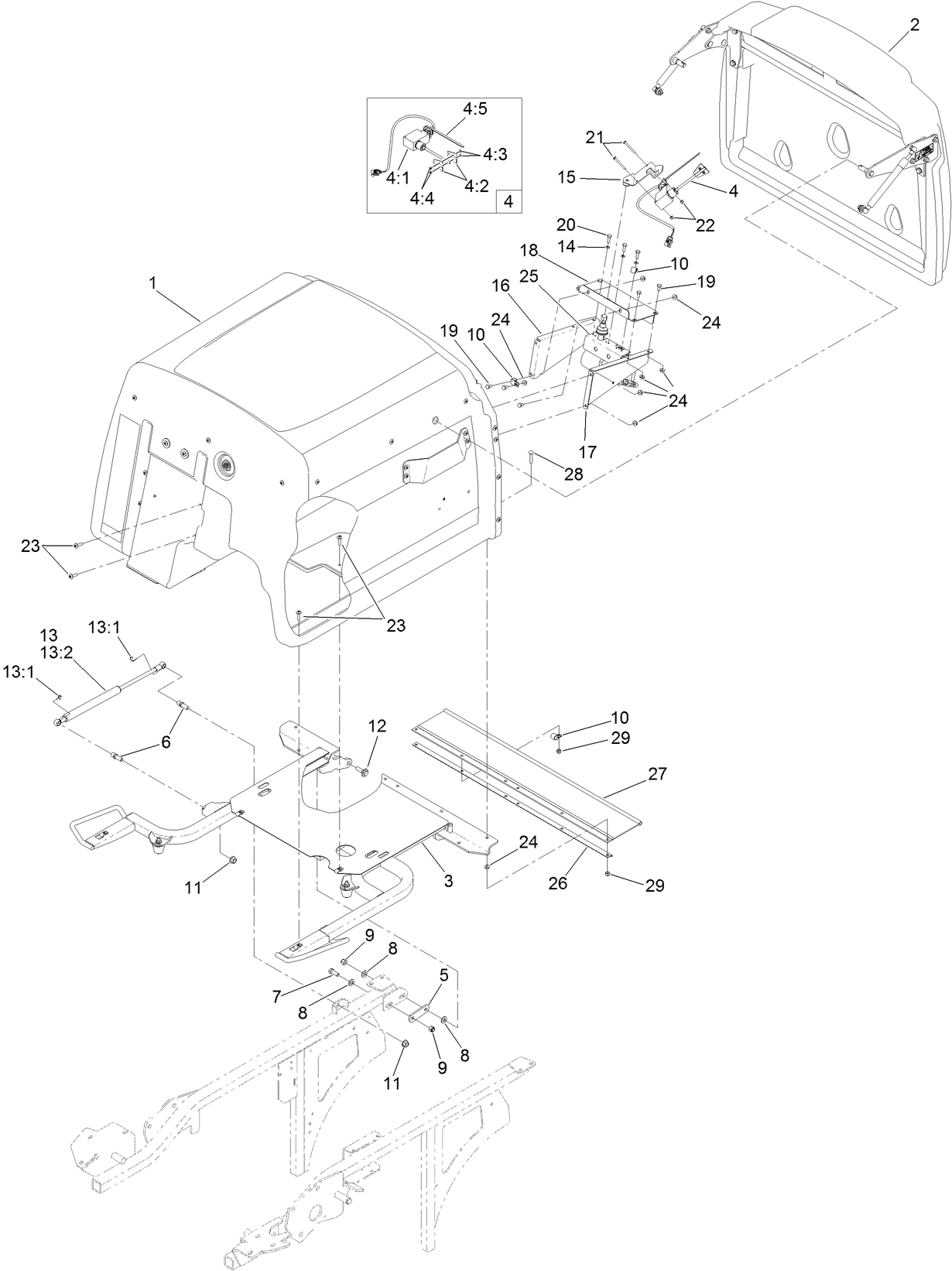

Seat and Consoles Assembly
Seat and Consoles Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

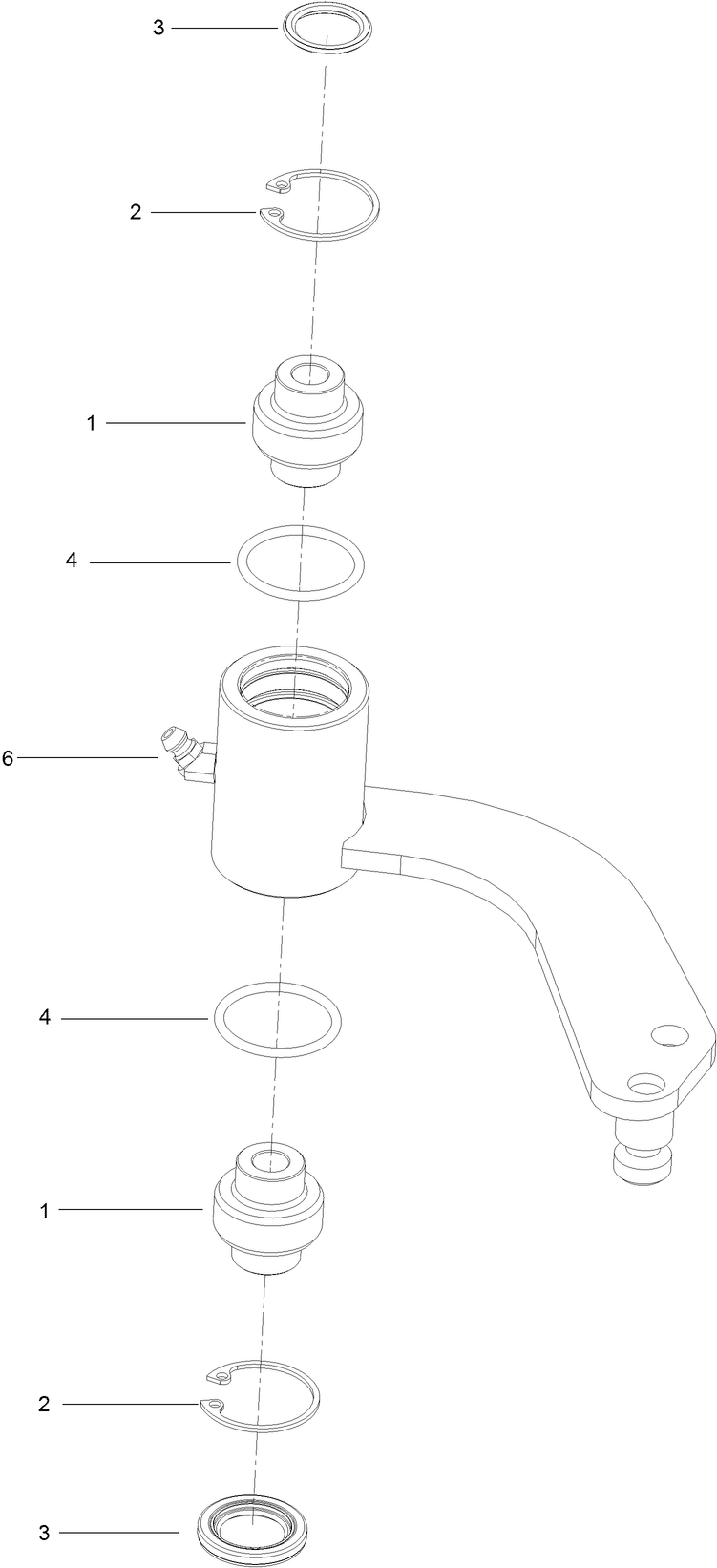

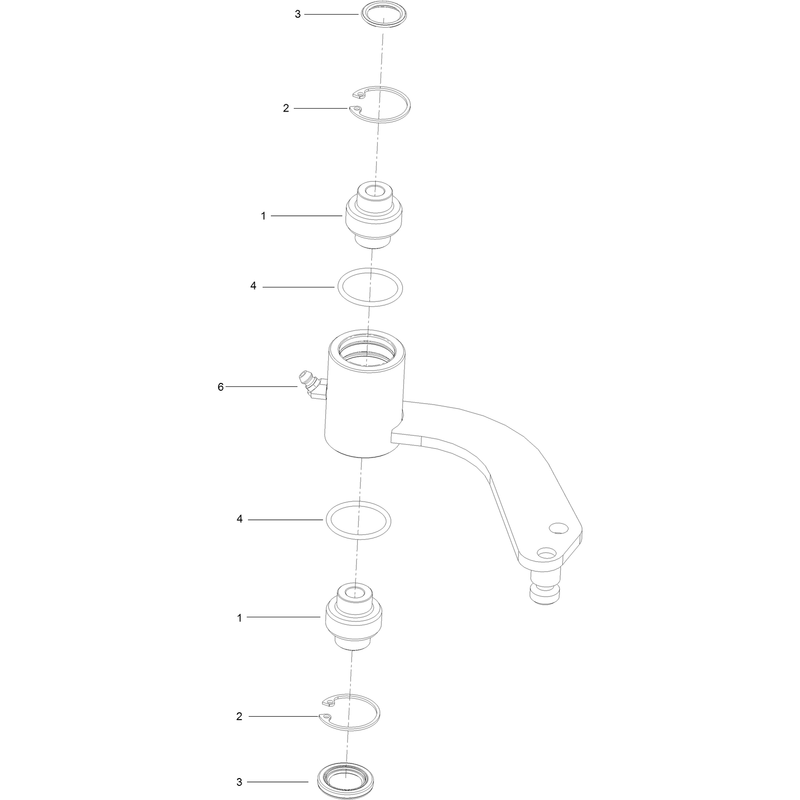

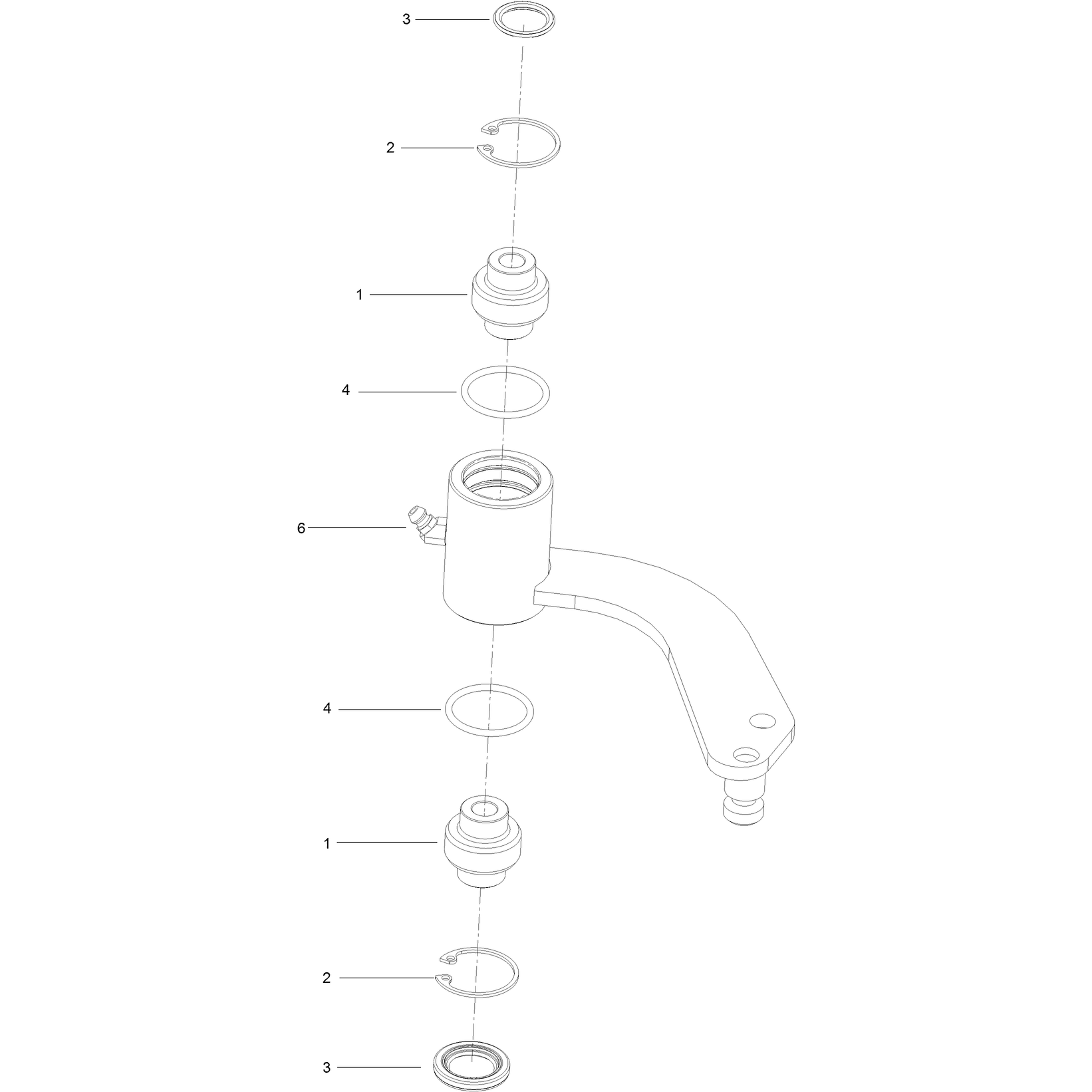

Short Idler Assembly No103 7349
Short Idler Assembly No103 7349
| Sequence Number | Image | Product | Price | Add to cart |
|---|

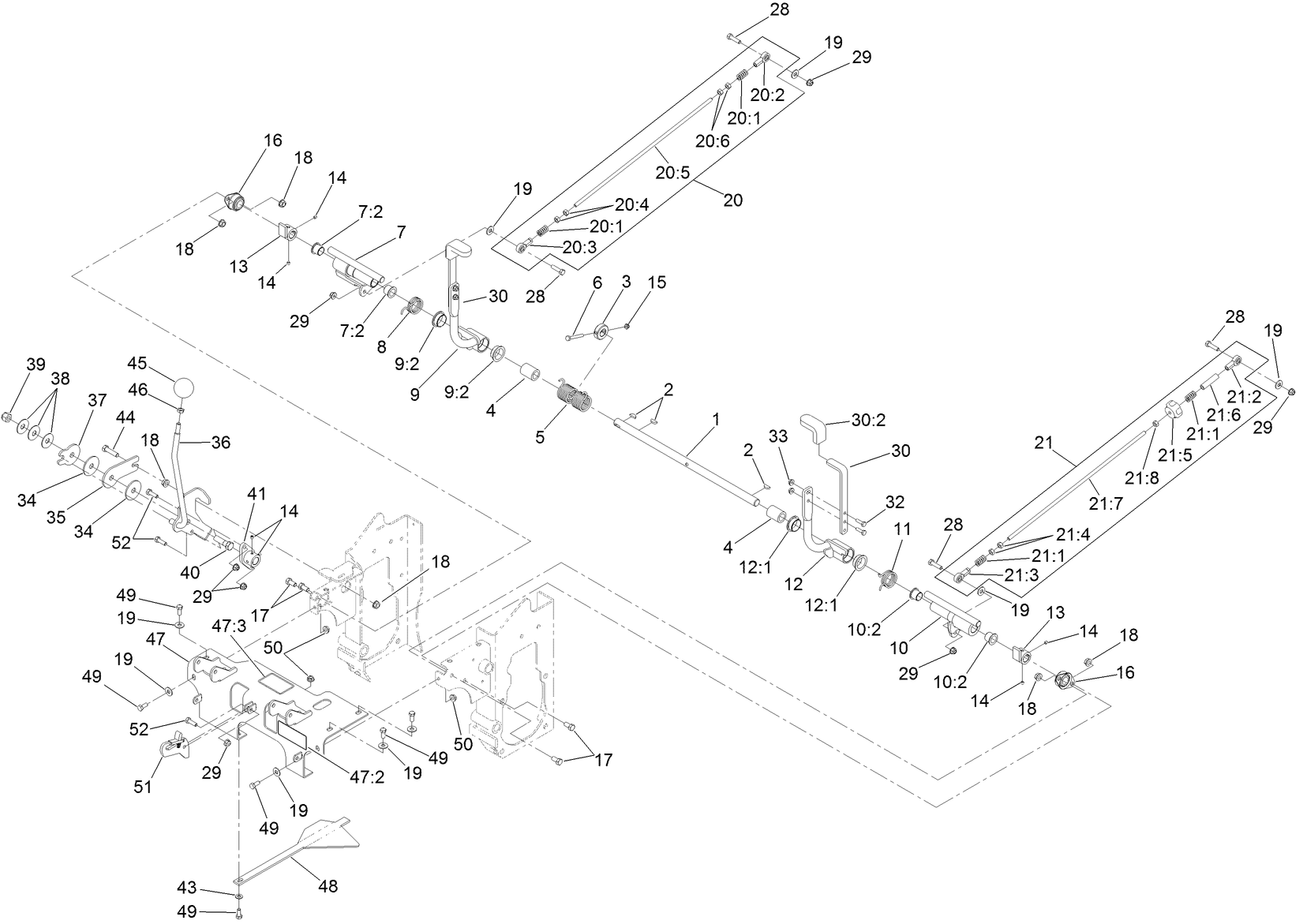

Speed Control Assembly
Speed Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
