Toro 74409TE Z340 Z Master, With 102cm 7-Gauge Side Discharge Mower (Serial #: 270000001 - 270000700) Parts Diagram
Diagrams:
Diagram:

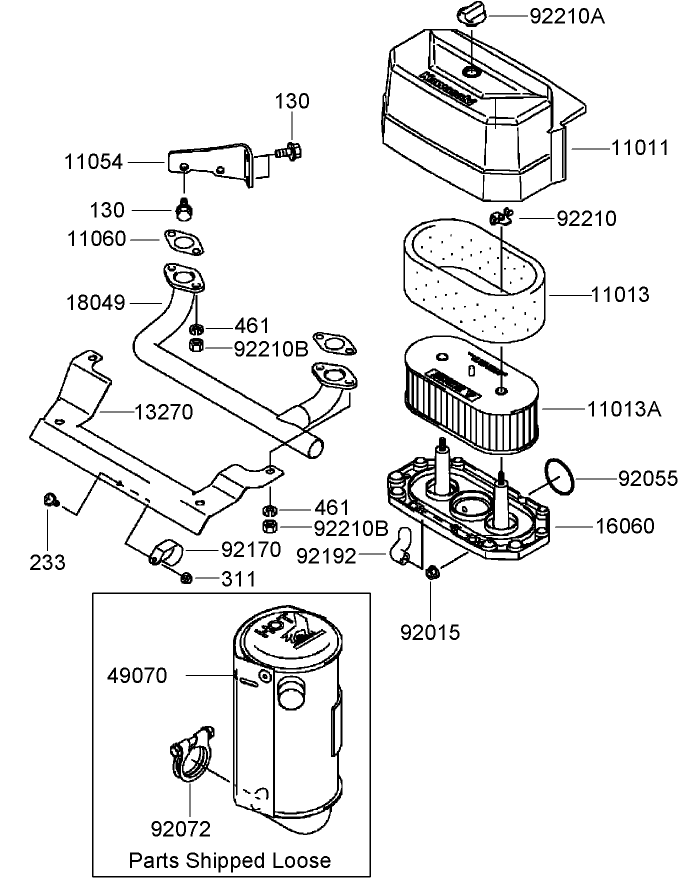

Air Filter and Muffler Assembly Kawasaki FH580V AS50 R
Air Filter and Muffler Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

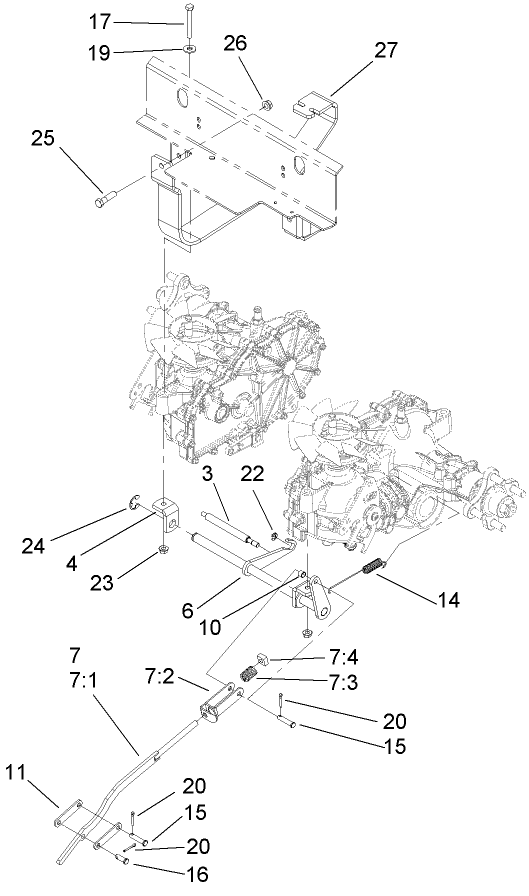

Brake Linkage Assembly
Brake Linkage Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

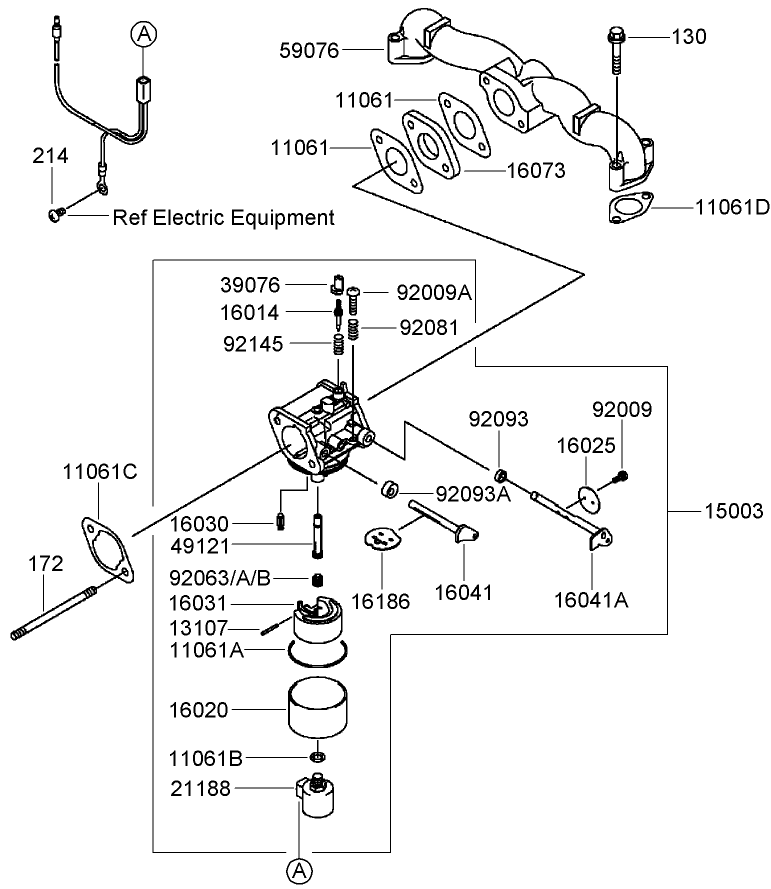

Carburetor Assembly Kawasaki FH580V AS50 R
Carburetor Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

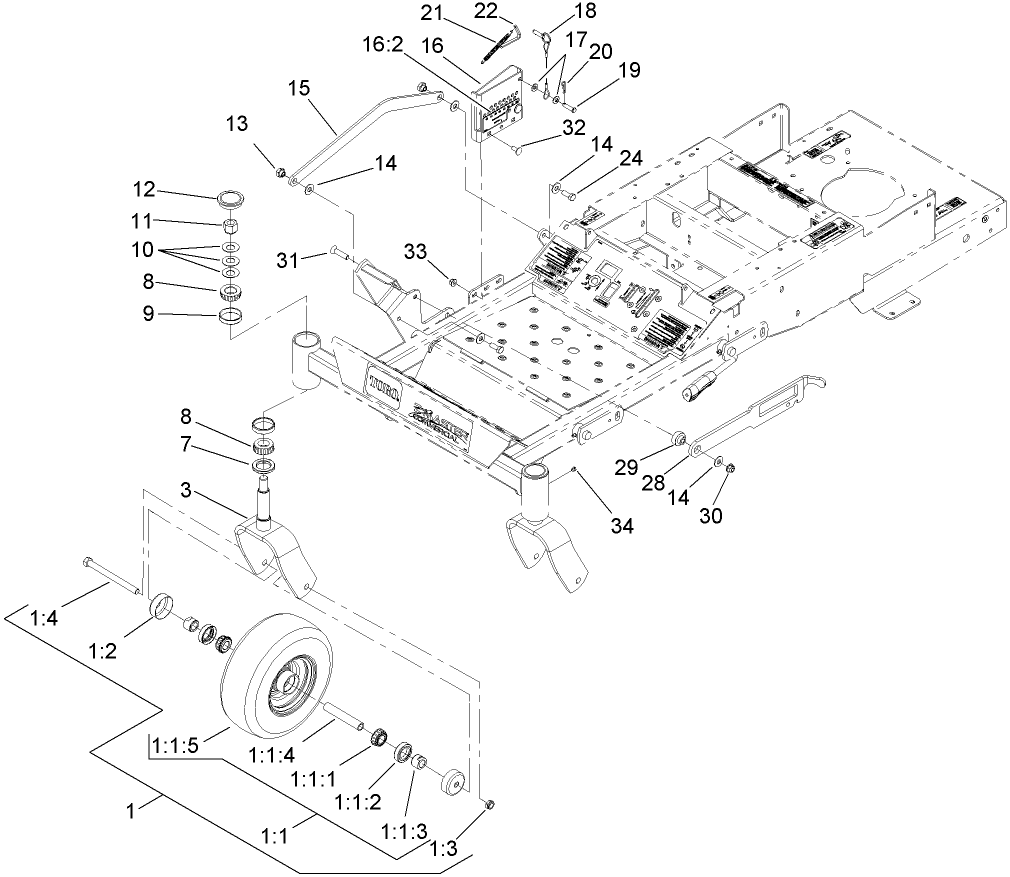

Caster Fork and Wheel Assembly
Caster Fork and Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

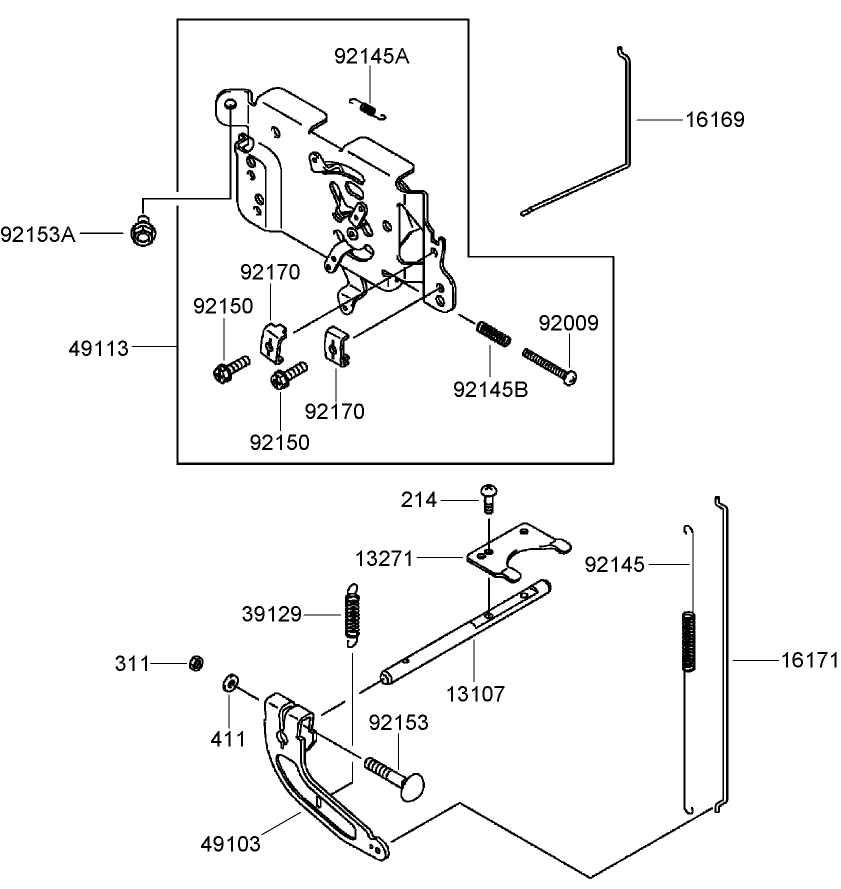

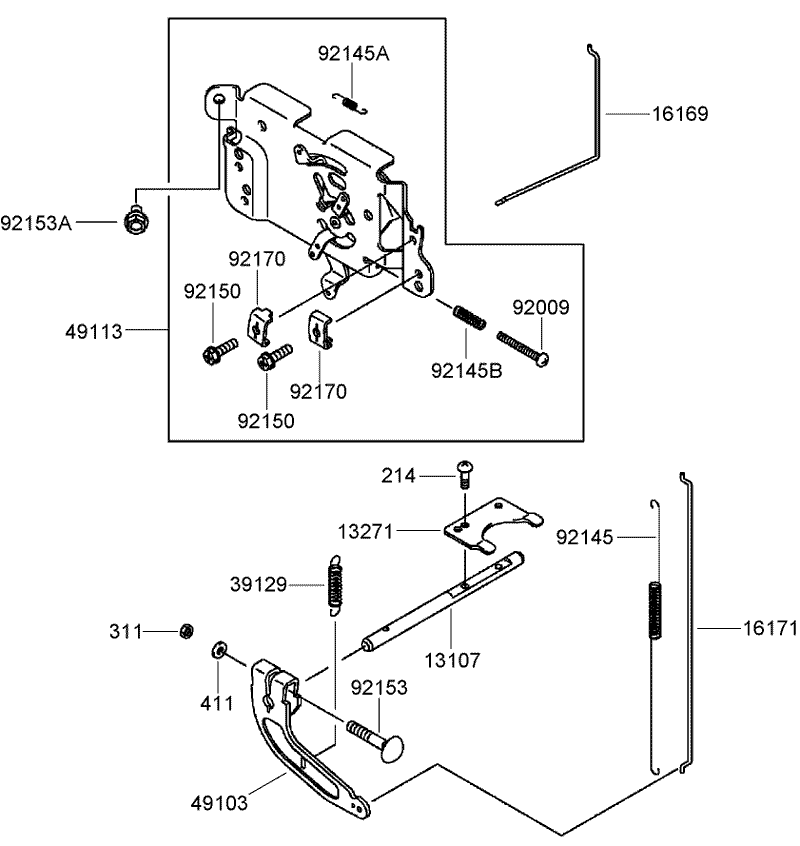

Control Equipment Assembly Kawasaki FH580V AS50 R
Control Equipment Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

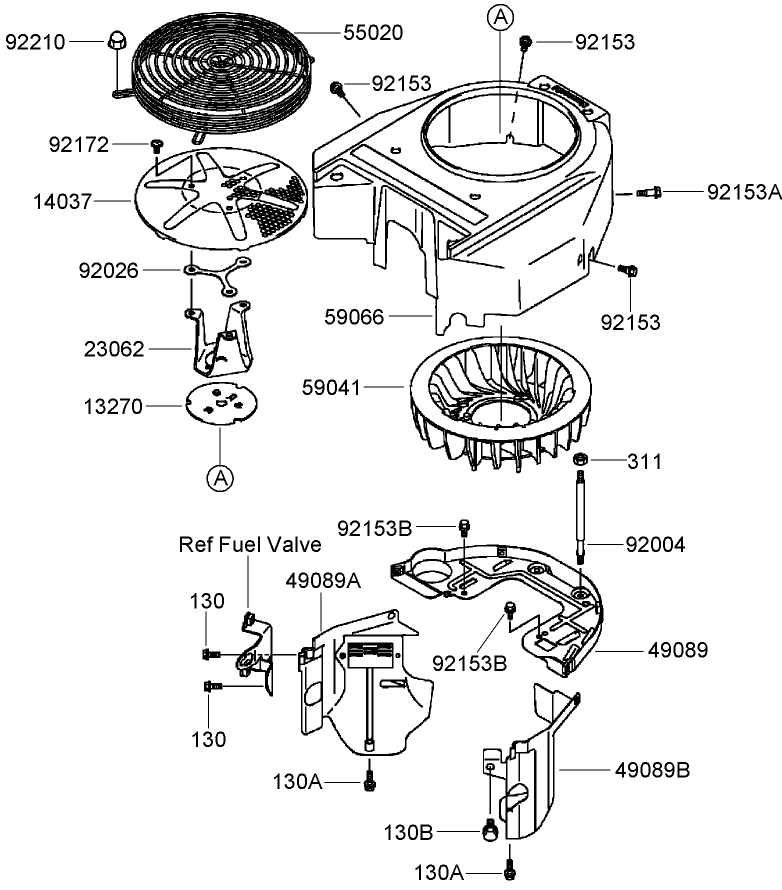

Cooling Equipment Assembly Kawasaki FH580V AS50 R
Cooling Equipment Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

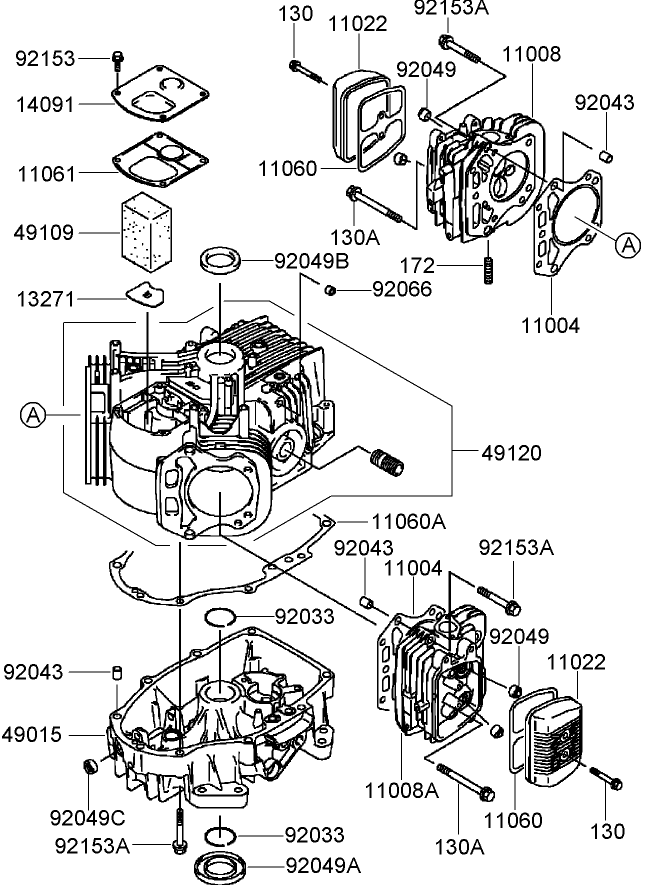

Cylinder and Crankcase Assembly Kawasaki FH580V AS50 R
Cylinder and Crankcase Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

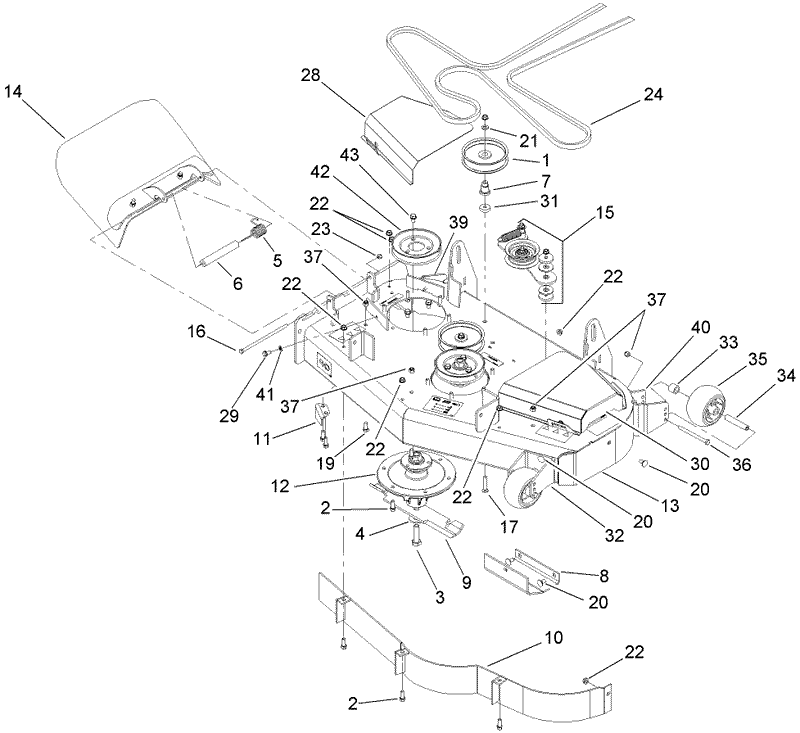

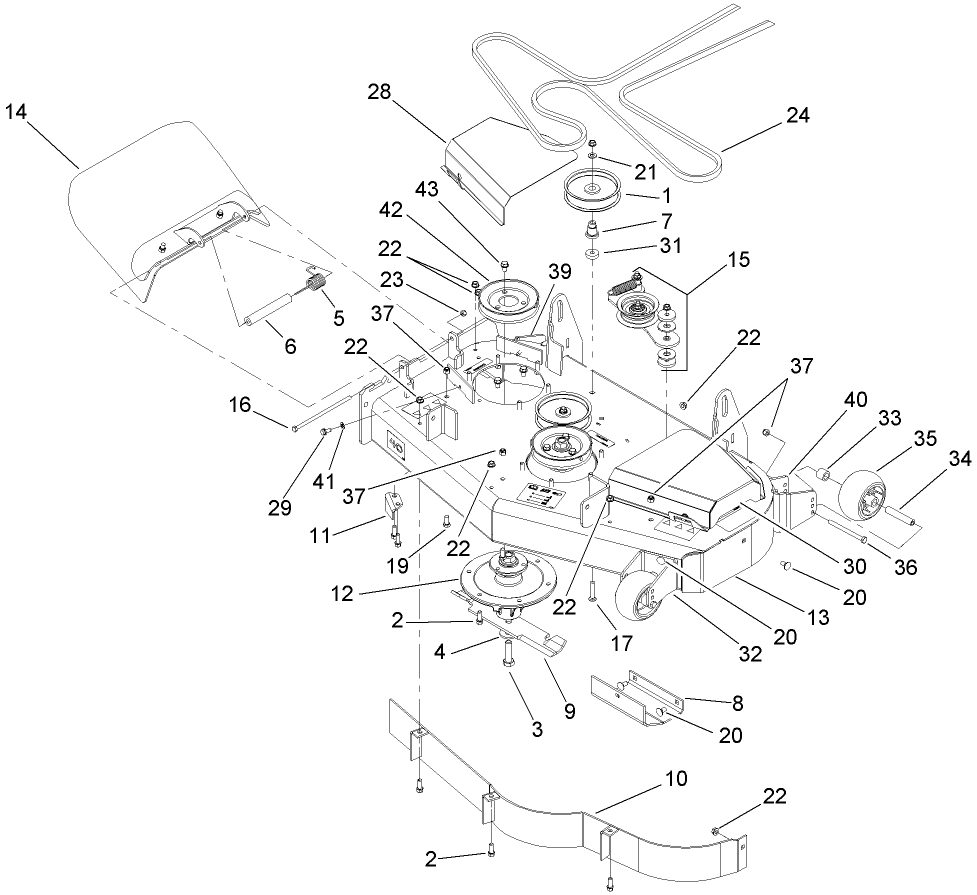

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

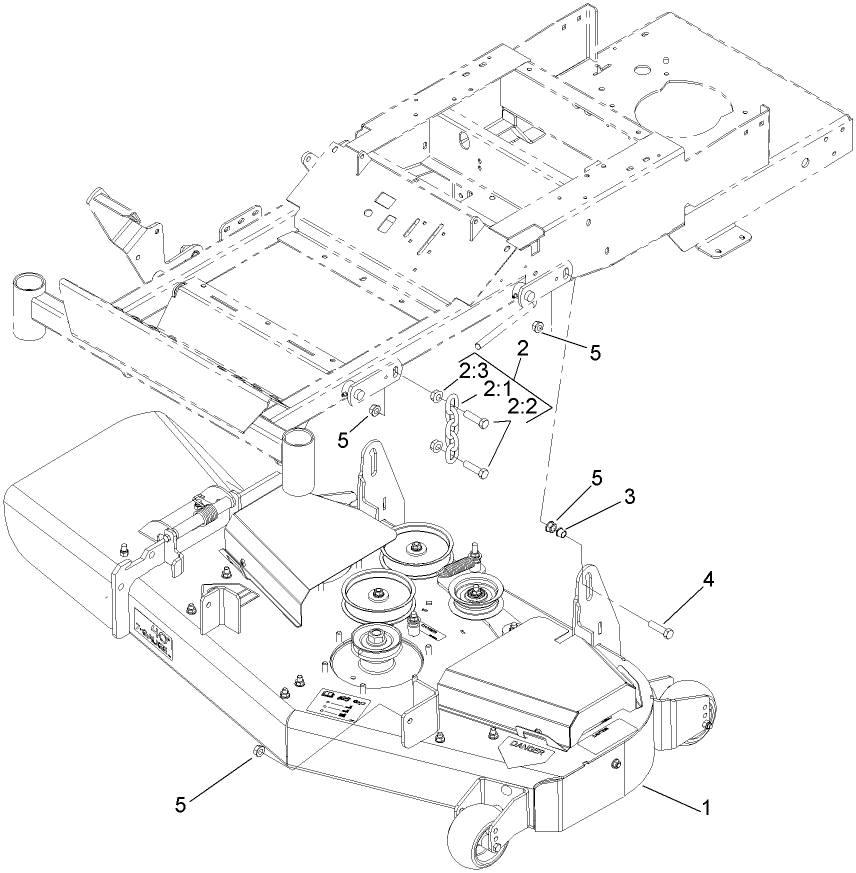

Deck Connection Assembly
Deck Connection Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

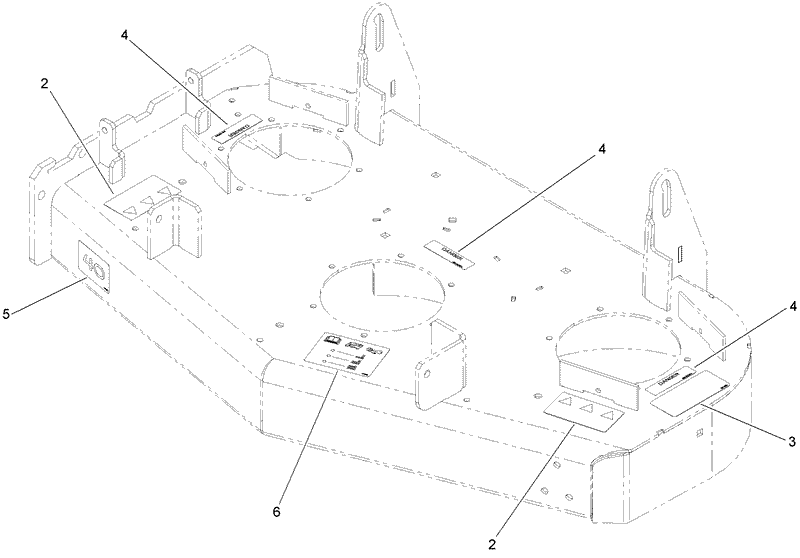

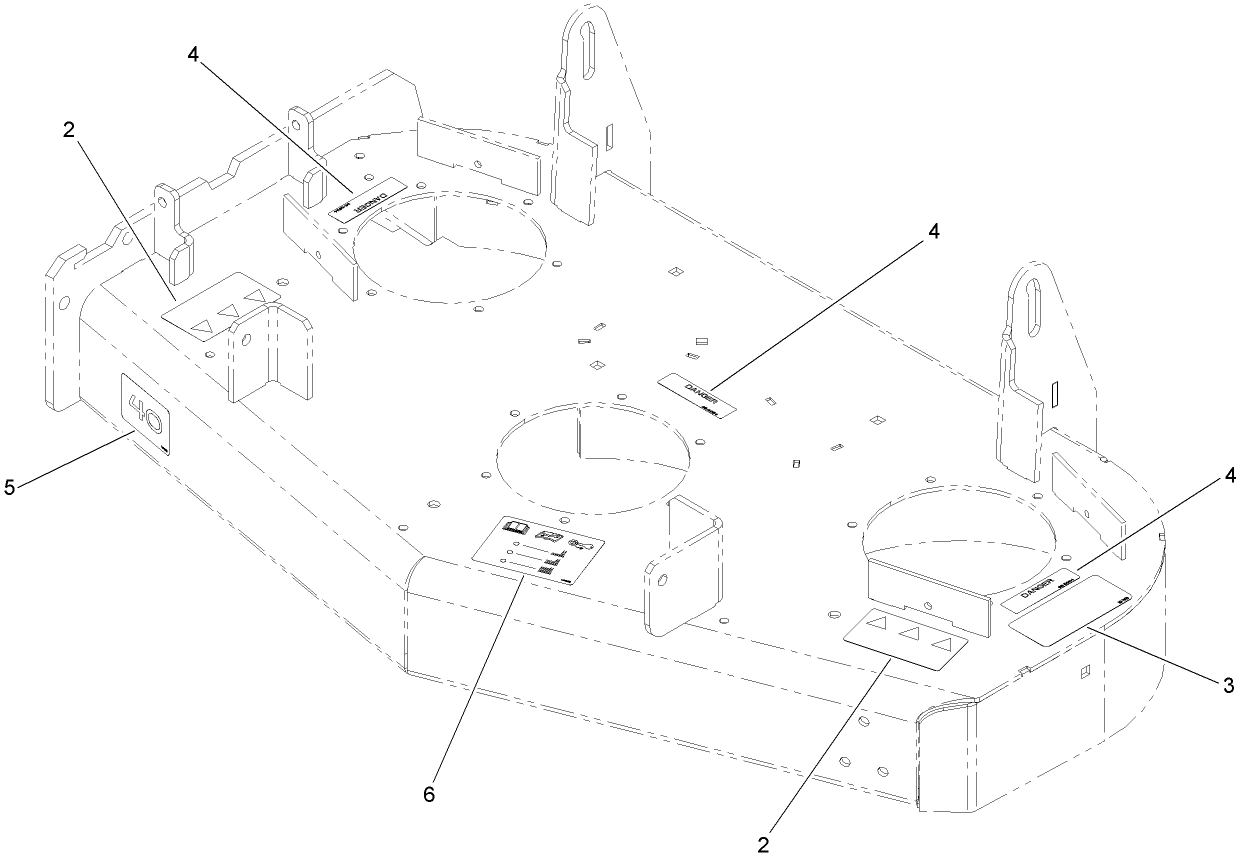

Deck Decal Assembly No 112 3843
Deck Decal Assembly No 112 3843
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deflector Assembly No 110 9917
Deflector Assembly No 110 9917
| Sequence Number | Image | Product | Price | Add to cart |
|---|

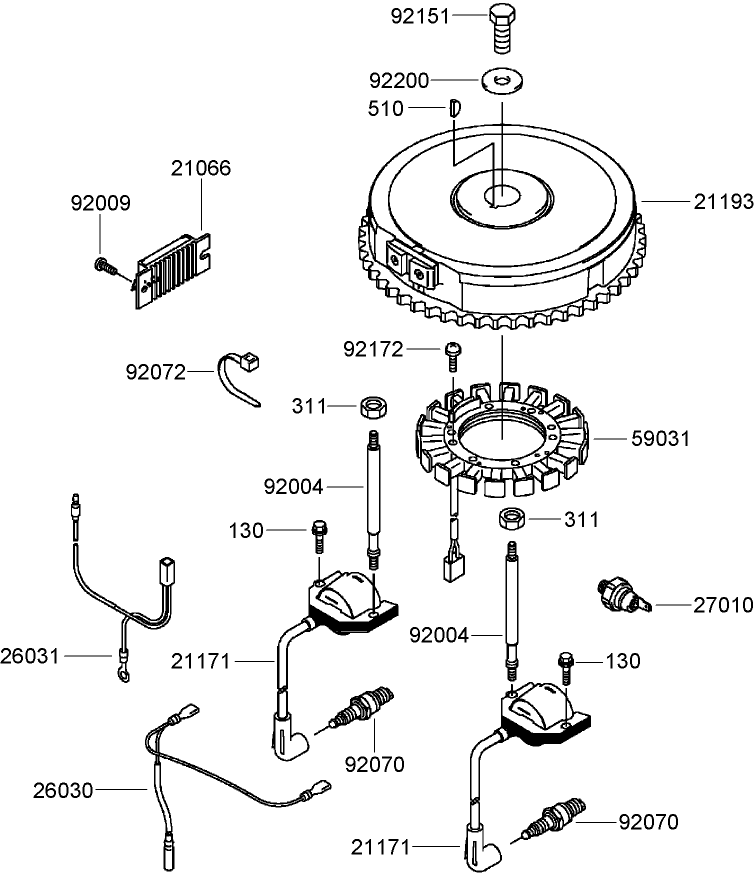

Electric Equipment Assembly Kawasaki FH580V AS50 R
Electric Equipment Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

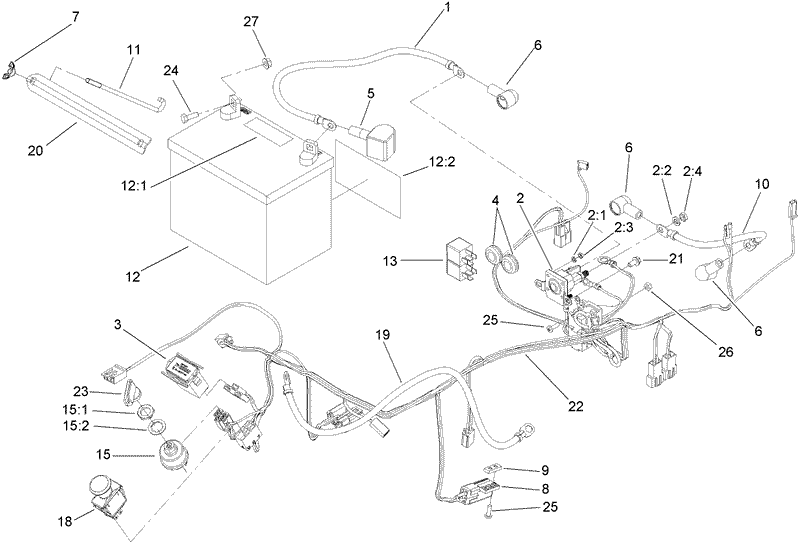

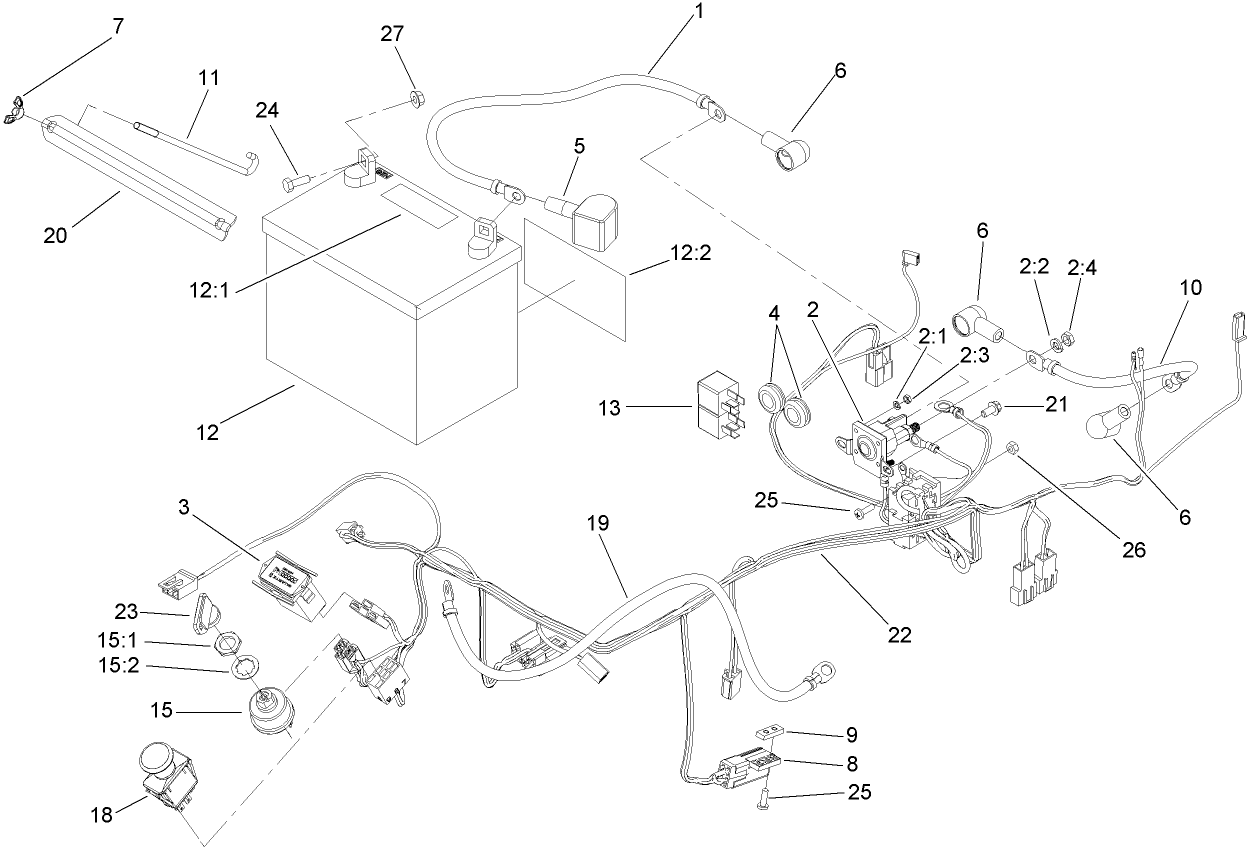

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

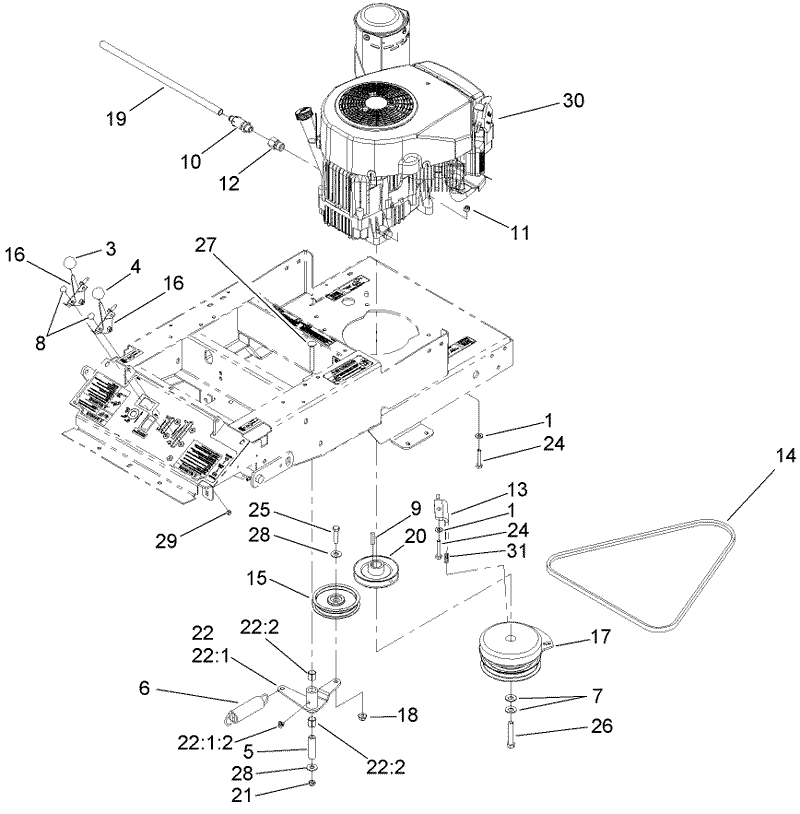

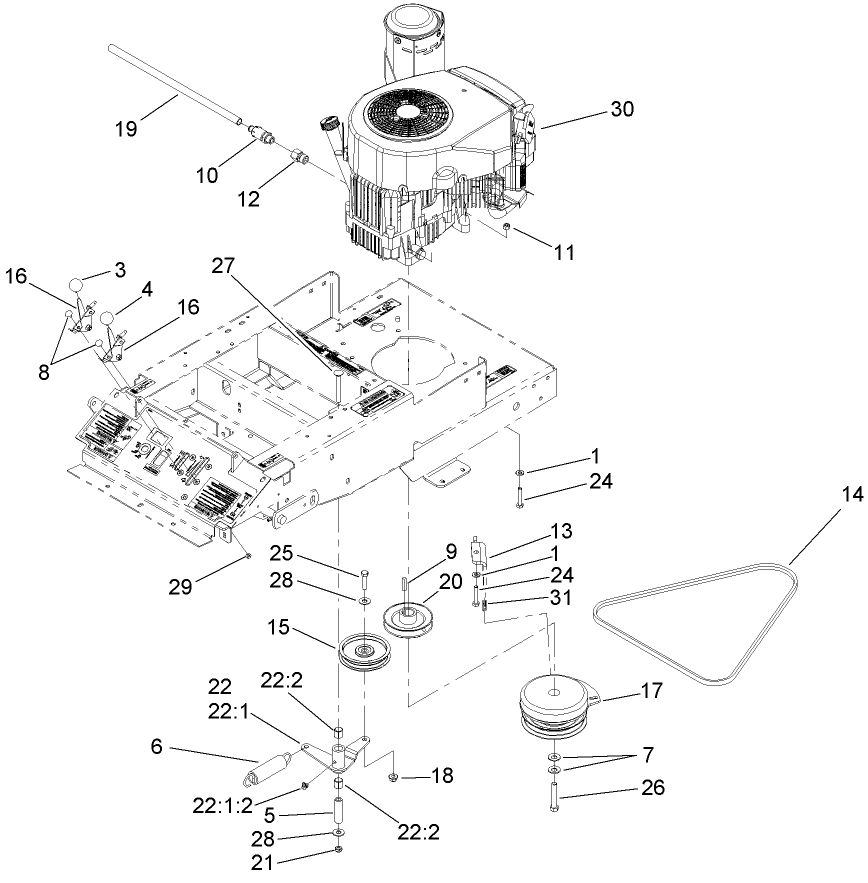

Engine Mounting Assembly
Engine Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

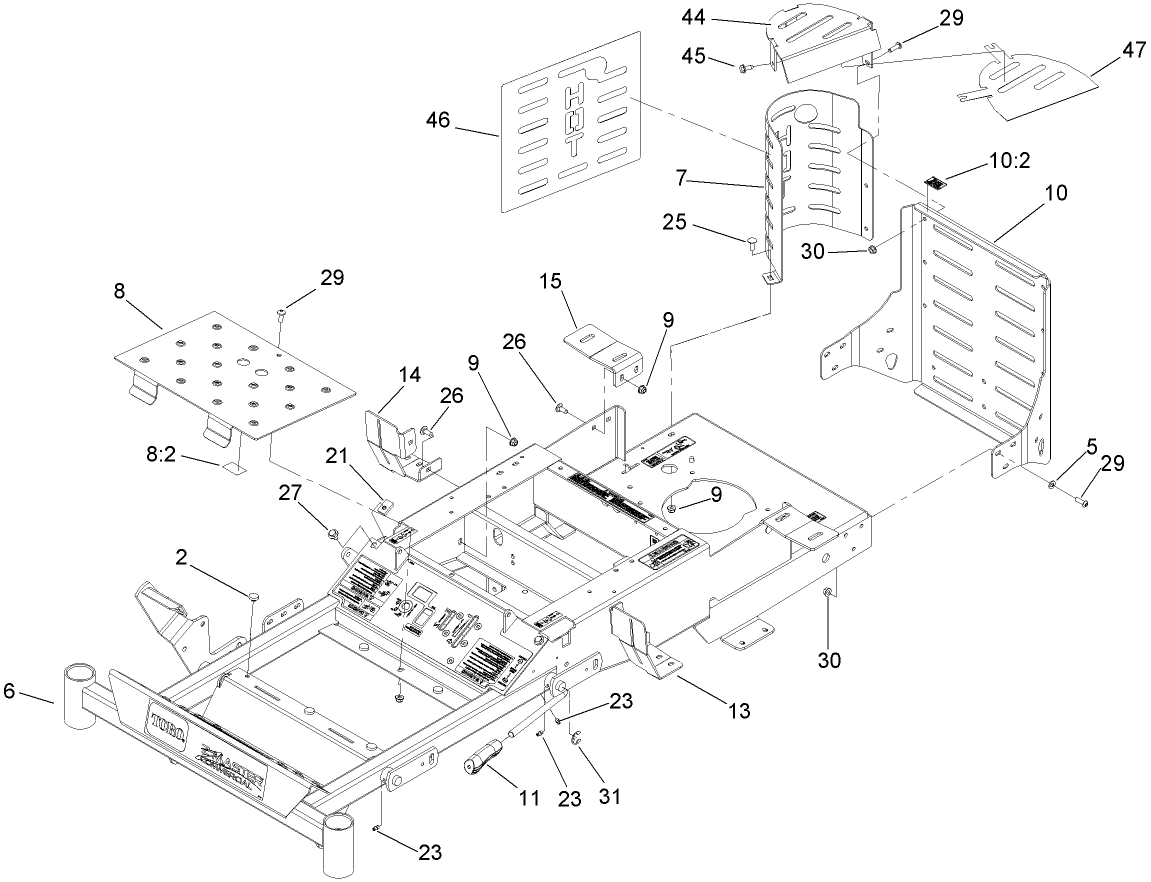

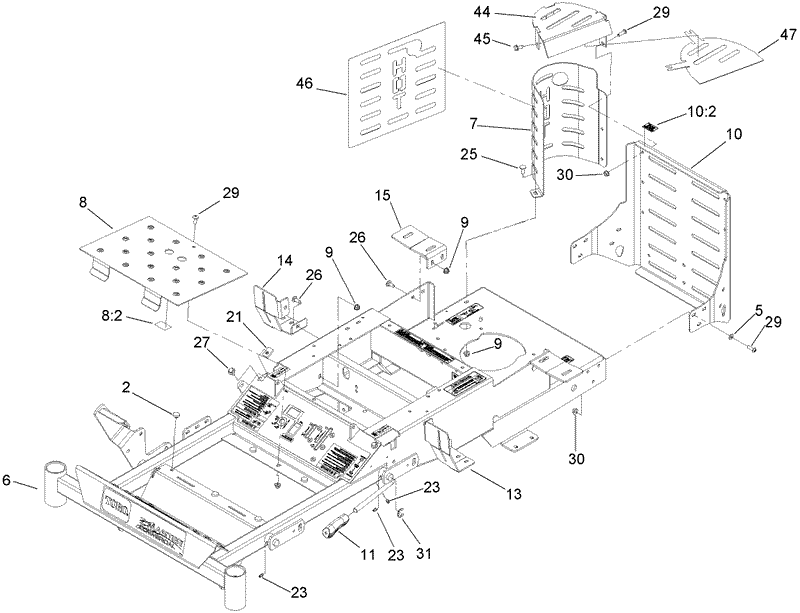

Frame Assembly
Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

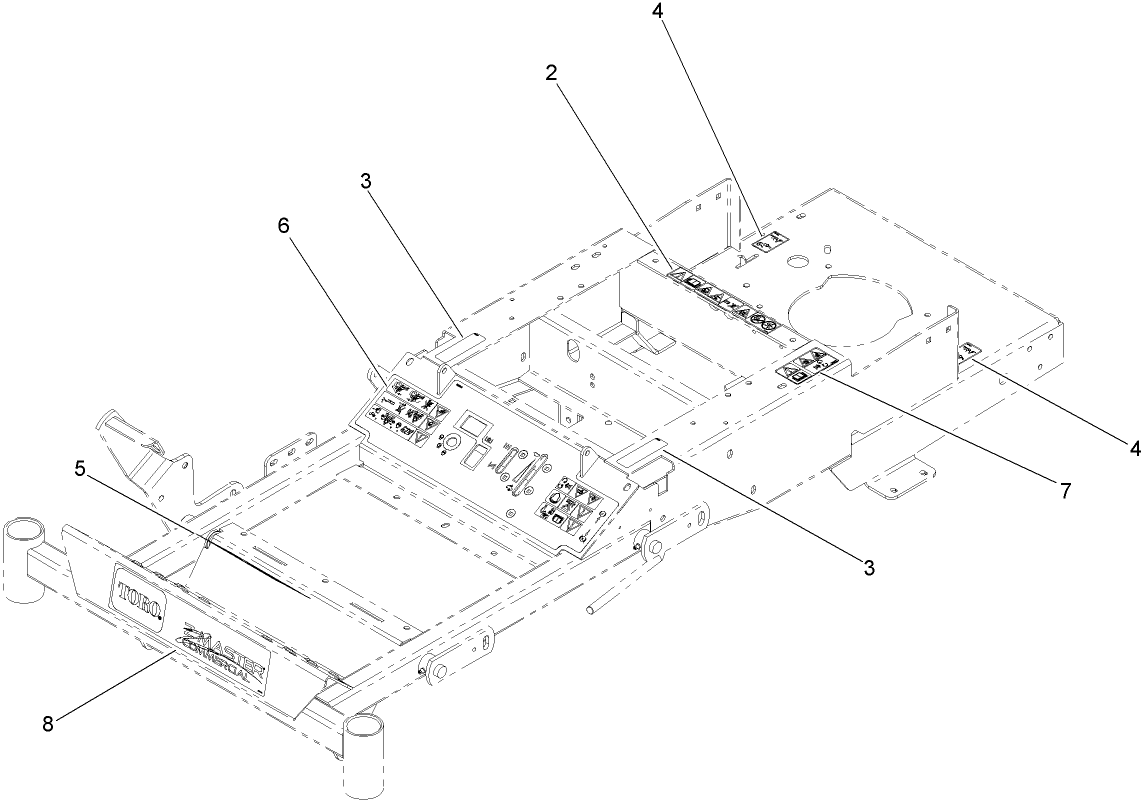

Frame Decal Assembly No 112 3796
Frame Decal Assembly No 112 3796
| Sequence Number | Image | Product | Price | Add to cart |
|---|

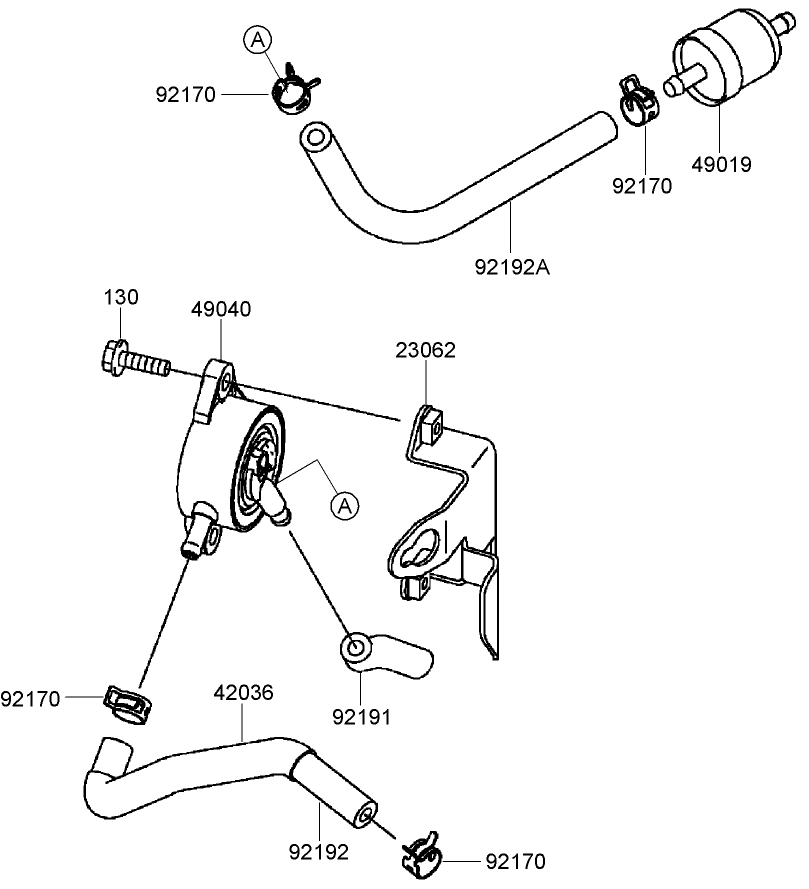

Fuel Tank and Valve Assembly Kawasaki FH580V AS50 R
Fuel Tank and Valve Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

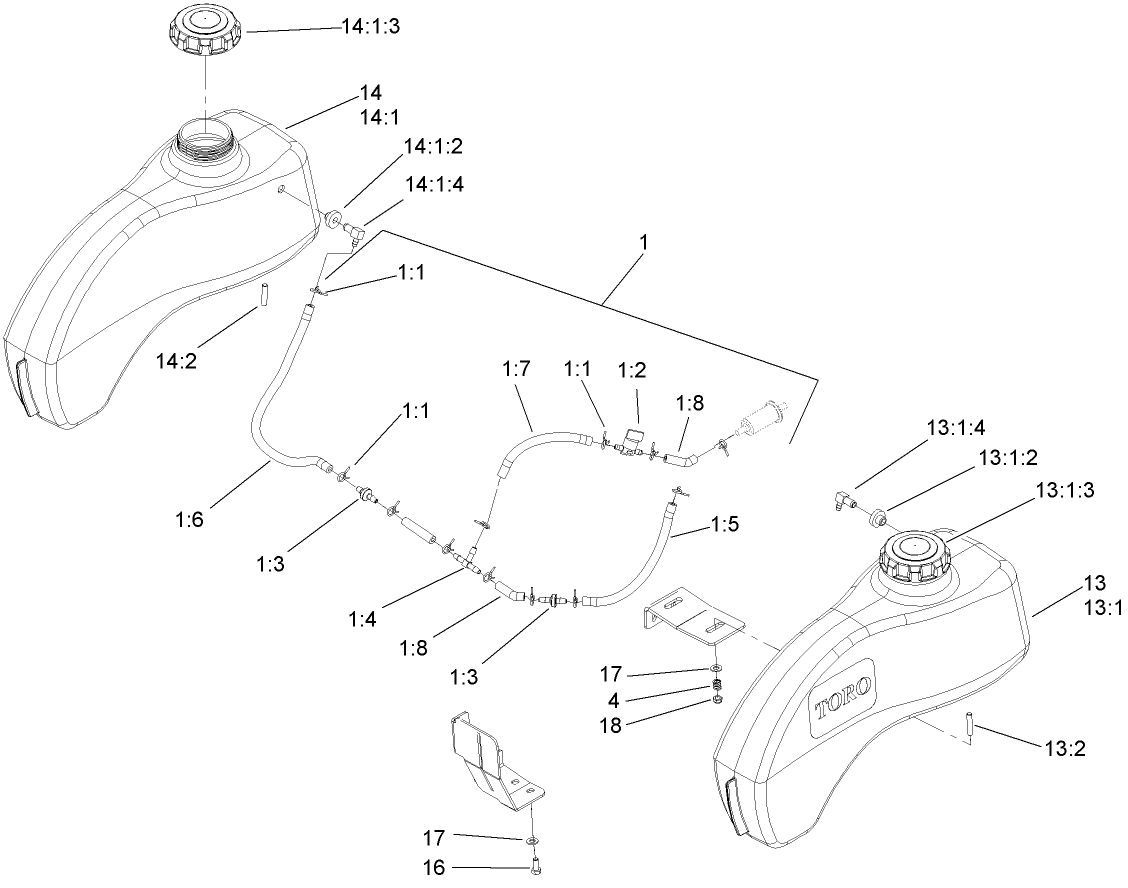

Fuel Tank Assembly
Fuel Tank Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

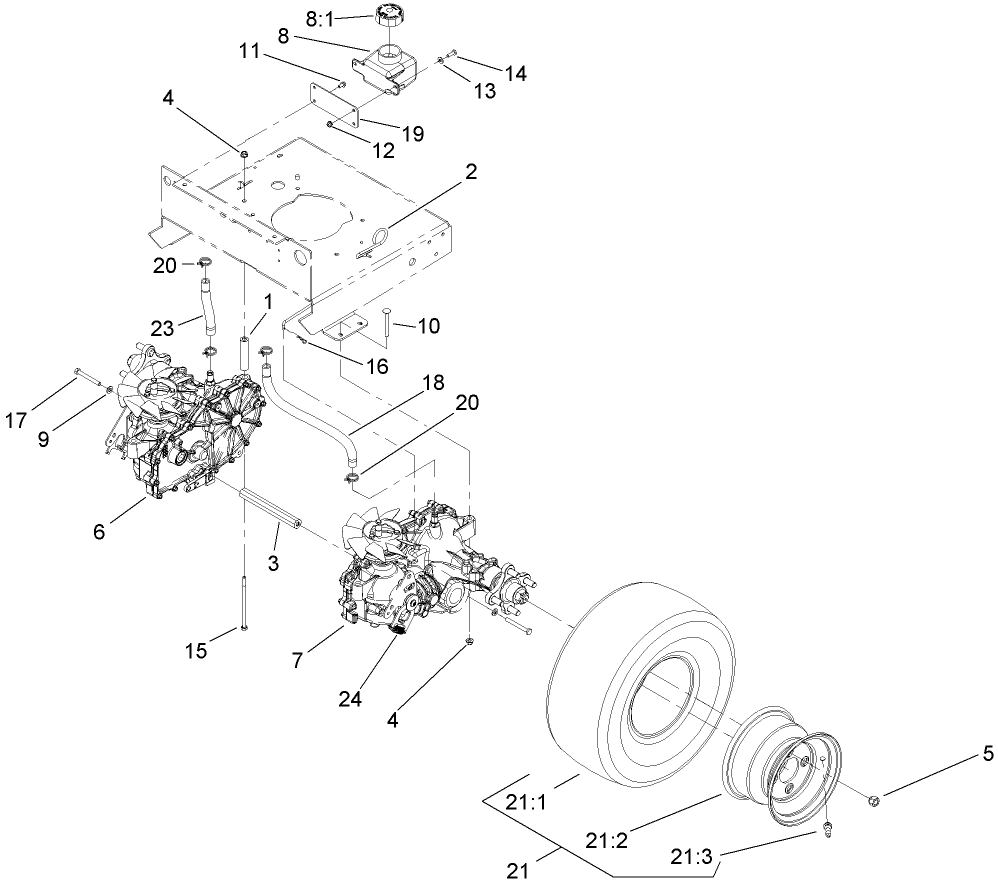

Hydraulic Drive Assembly
Hydraulic Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

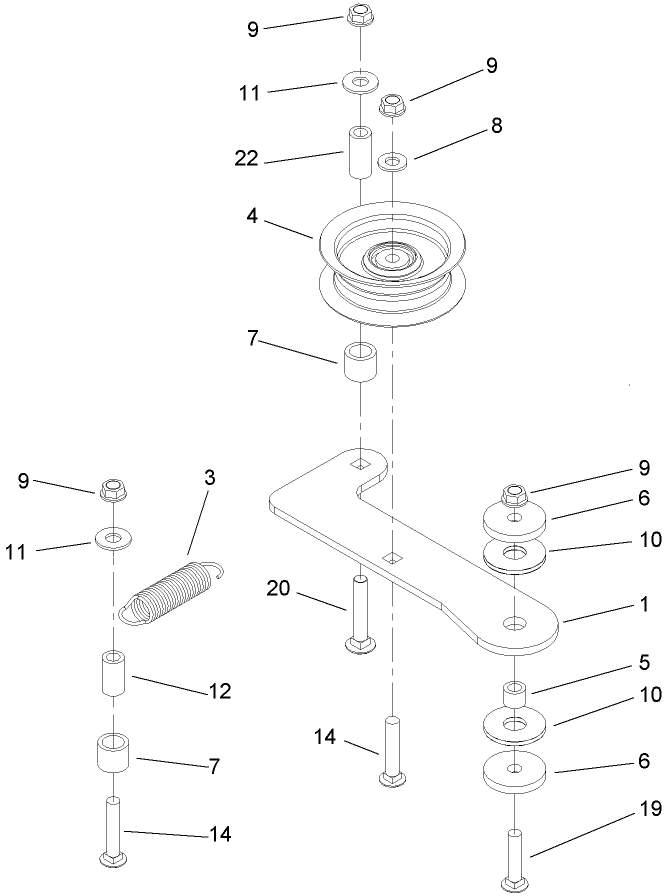

Idler Assembly No 114 0474
Idler Assembly No 114 0474
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Label Assembly Kawasaki FH580V AS50 R
Label Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

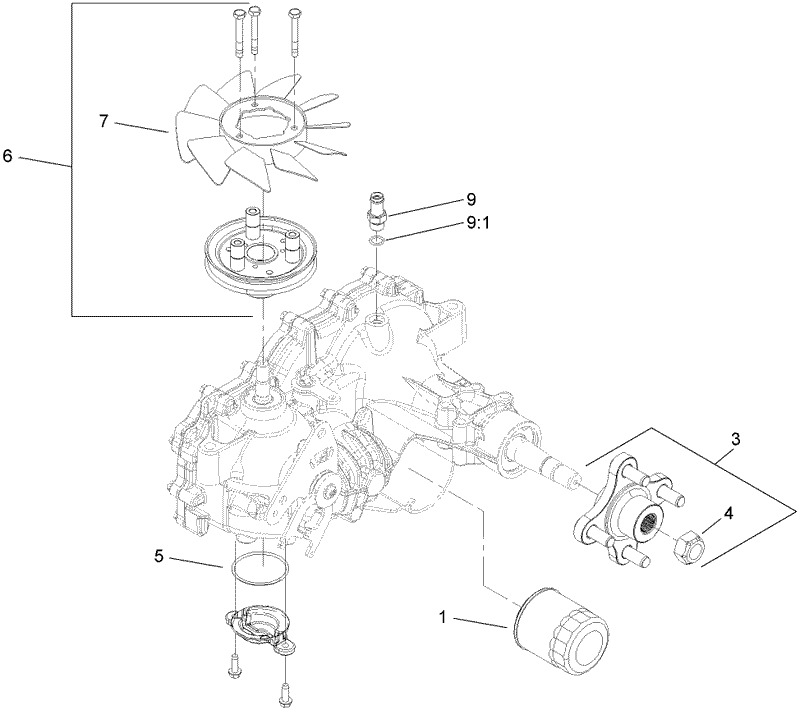

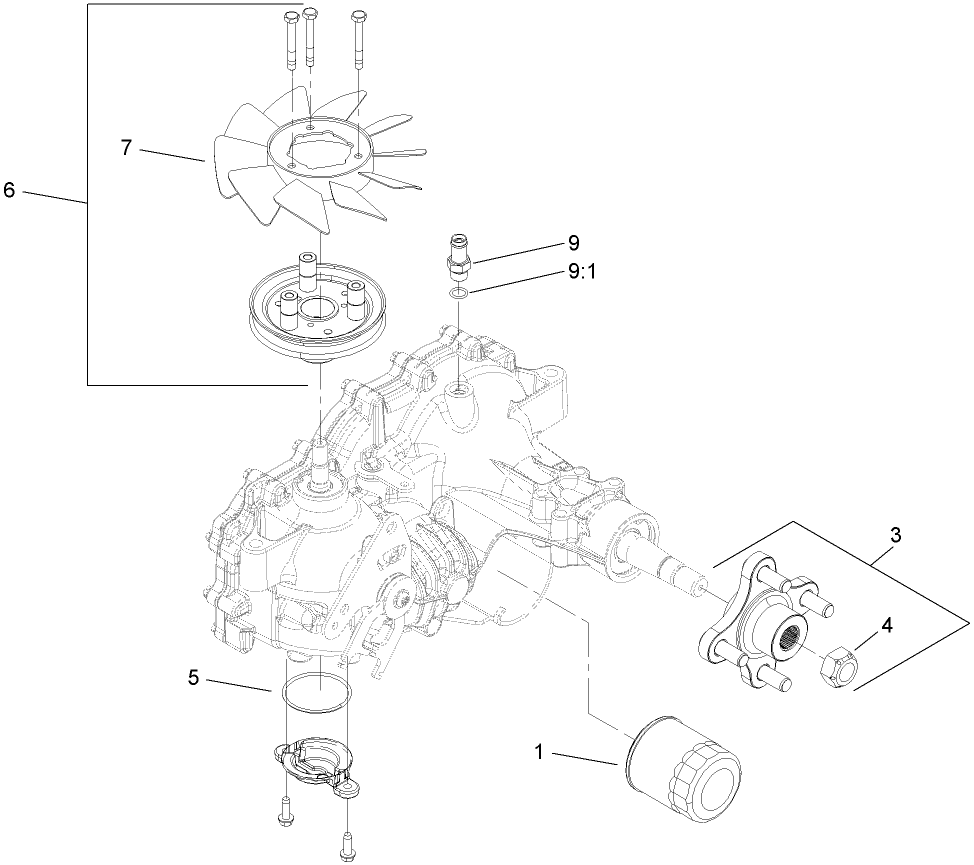

LH Transmission Assembly No 109 2241
LH Transmission Assembly No 109 2241
| Sequence Number | Image | Product | Price | Add to cart |
|---|

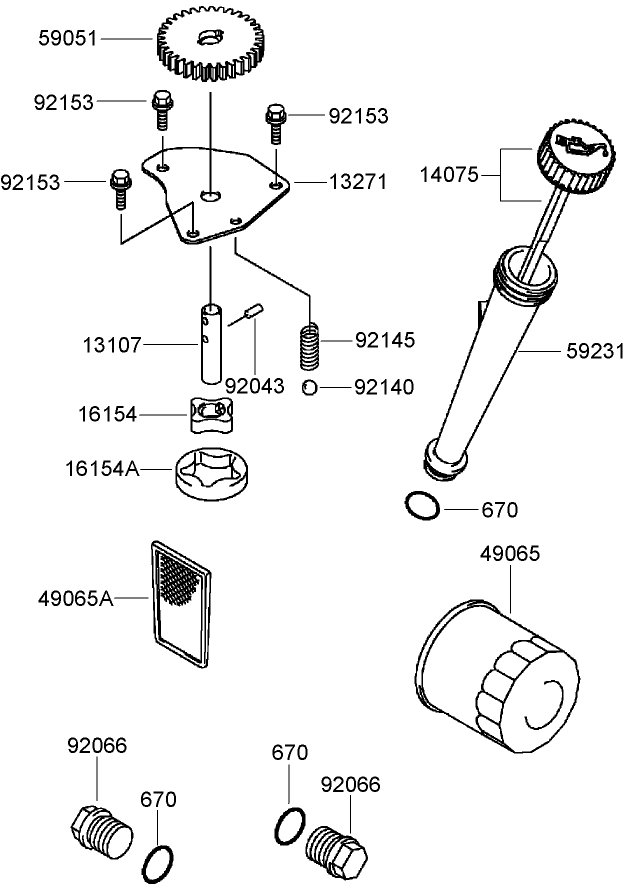

Lubrication Equipment Assembly Kawasaki FH580V AS50 R
Lubrication Equipment Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

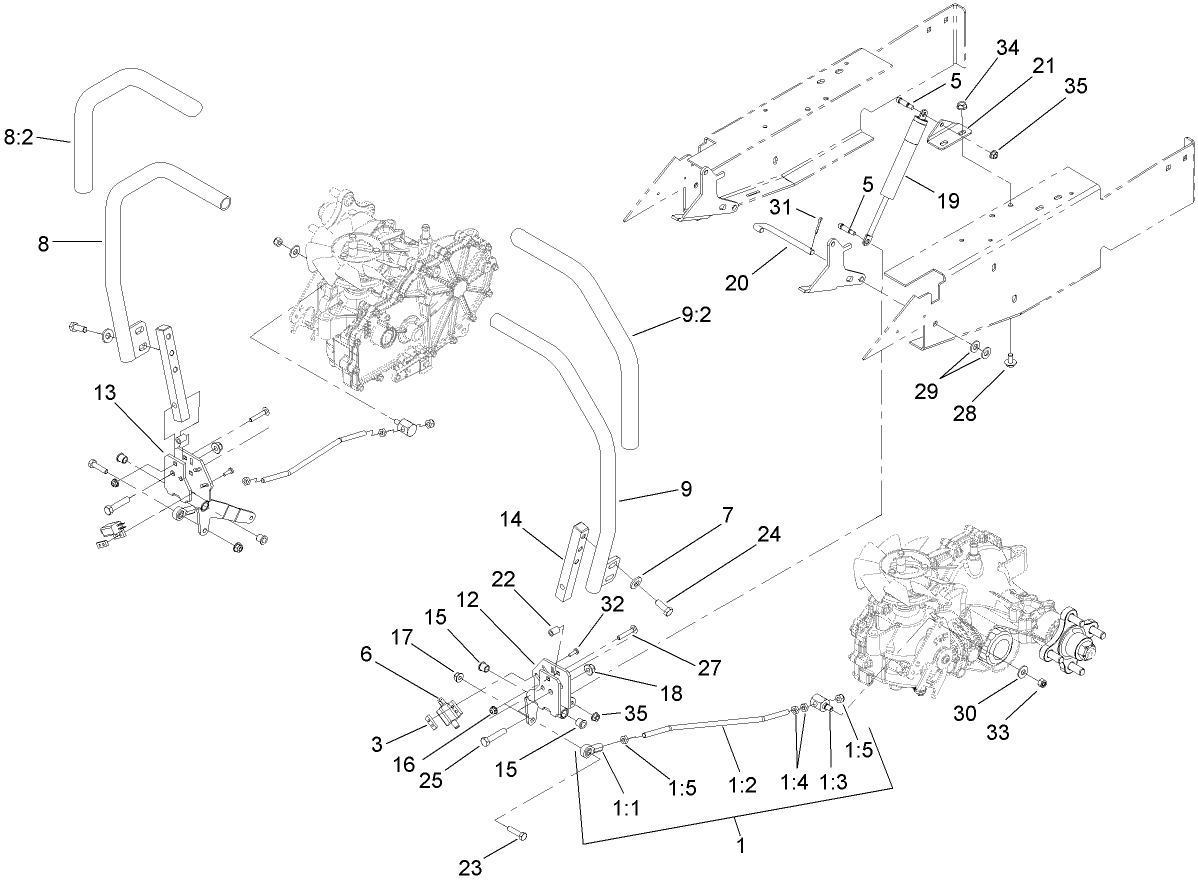

Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

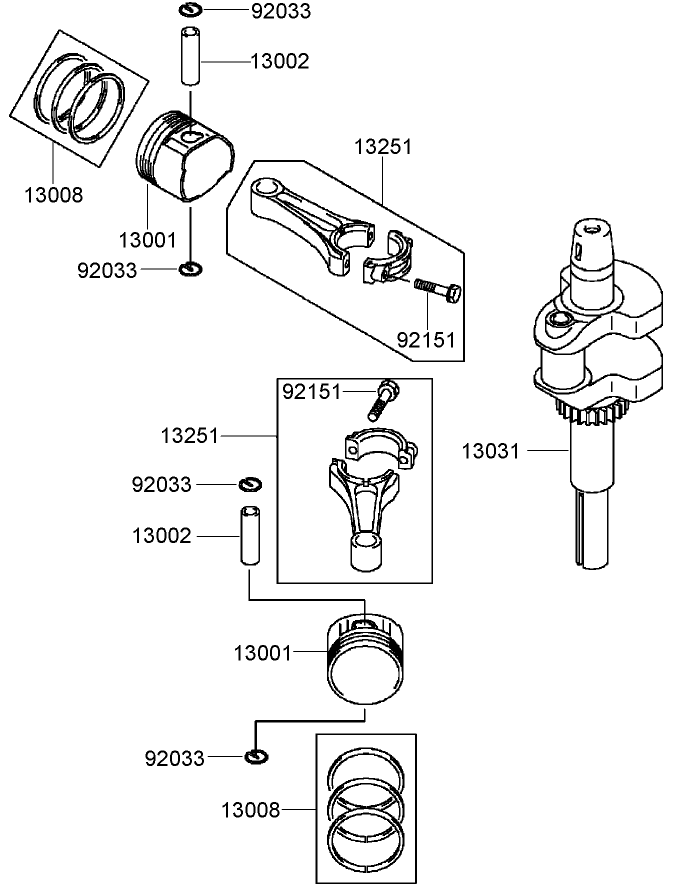

Piston and Crankshaft Assembly Kawasaki FH580V AS50 R
Piston and Crankshaft Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

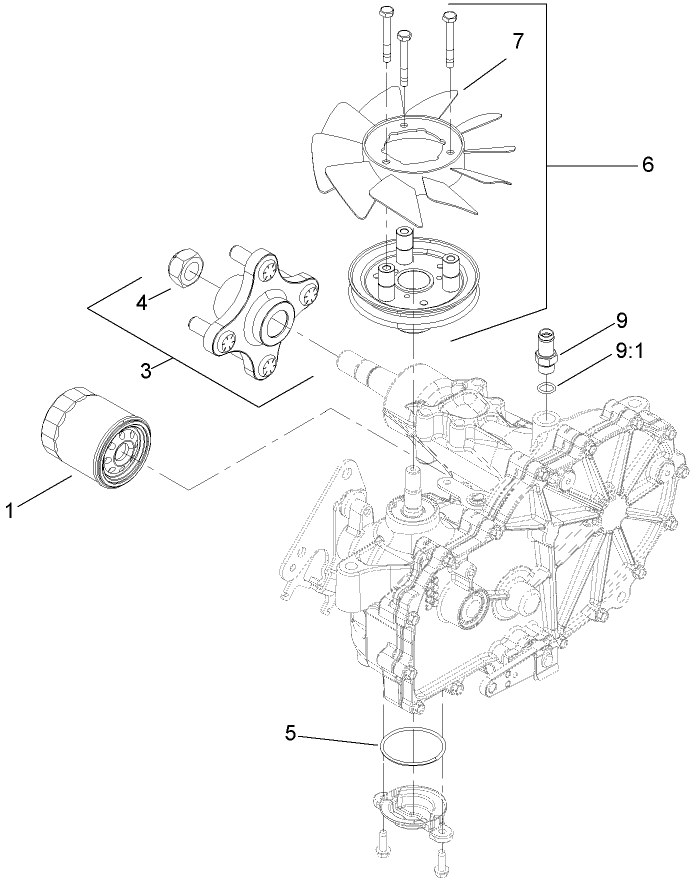

RH Transmission Assembly No 109 2240
RH Transmission Assembly No 109 2240
| Sequence Number | Image | Product | Price | Add to cart |
|---|

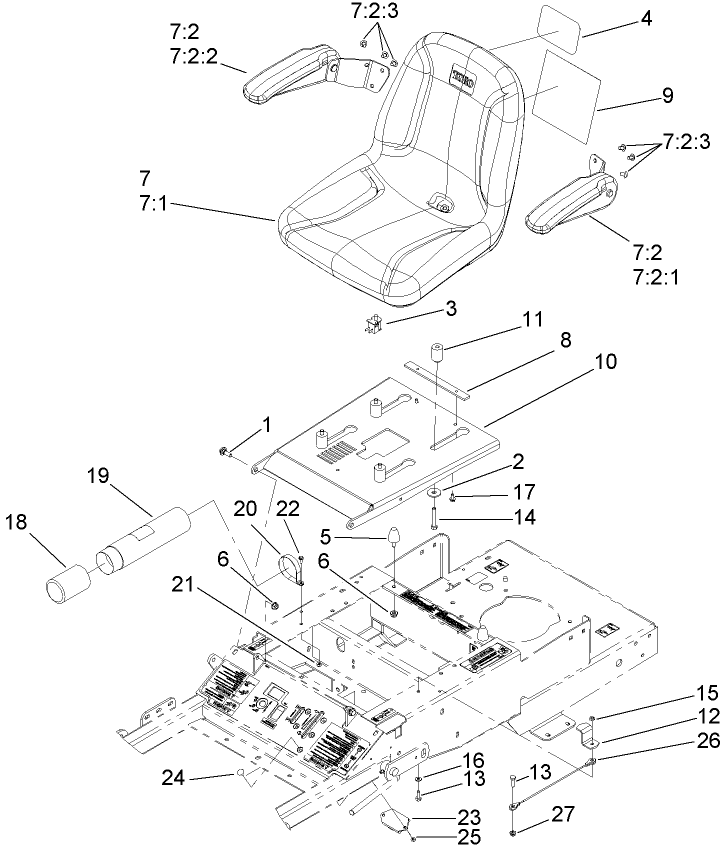

Seat Assembly
Seat Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Spindle Assembly No 114 0460
Spindle Assembly No 114 0460
| Sequence Number | Image | Product | Price | Add to cart |
|---|

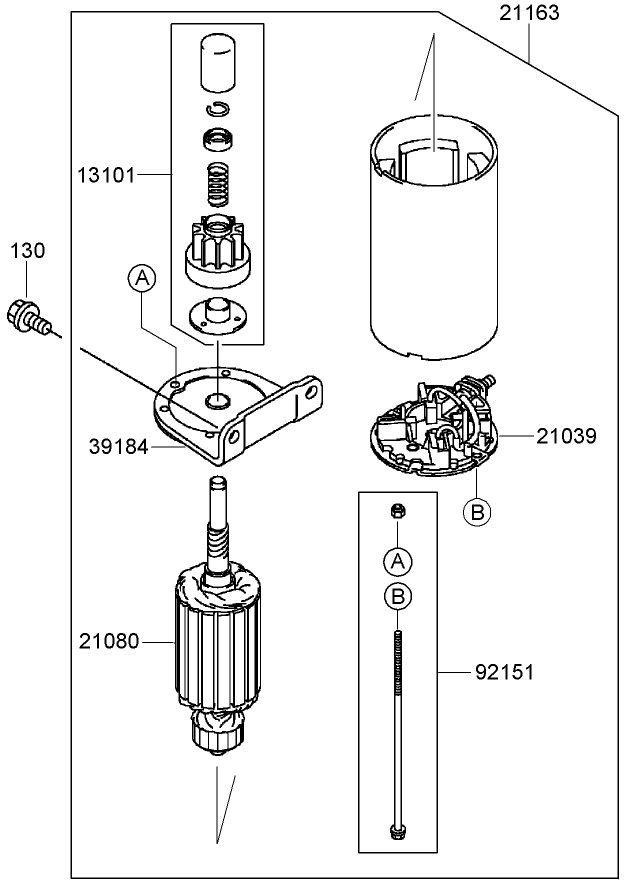

Starter Assembly Kawasaki FH580V AS50 R
Starter Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|

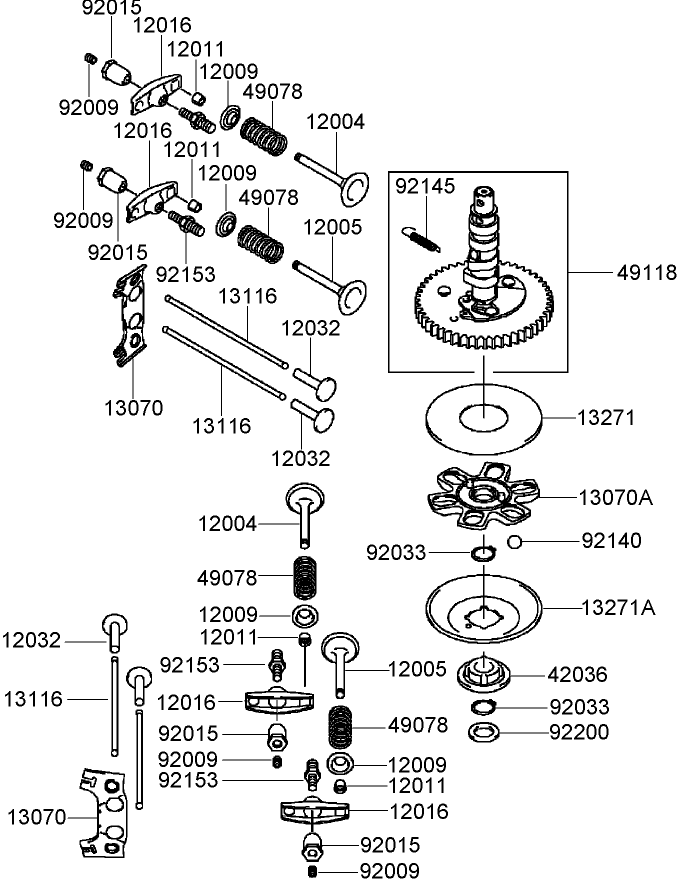

Valve and Camshaft Assembly Kawasaki FH580V AS50 R
Valve and Camshaft Assembly Kawasaki FH580V AS50 R
| Sequence Number | Image | Product | Price | Add to cart |
|---|
