Toro 74456TE Professional 2000 Series Petrol Z Master® 122 cm 74456TE (Serial #: 410020000 - 411999999) Parts Diagram
Diagrams:
Diagram:

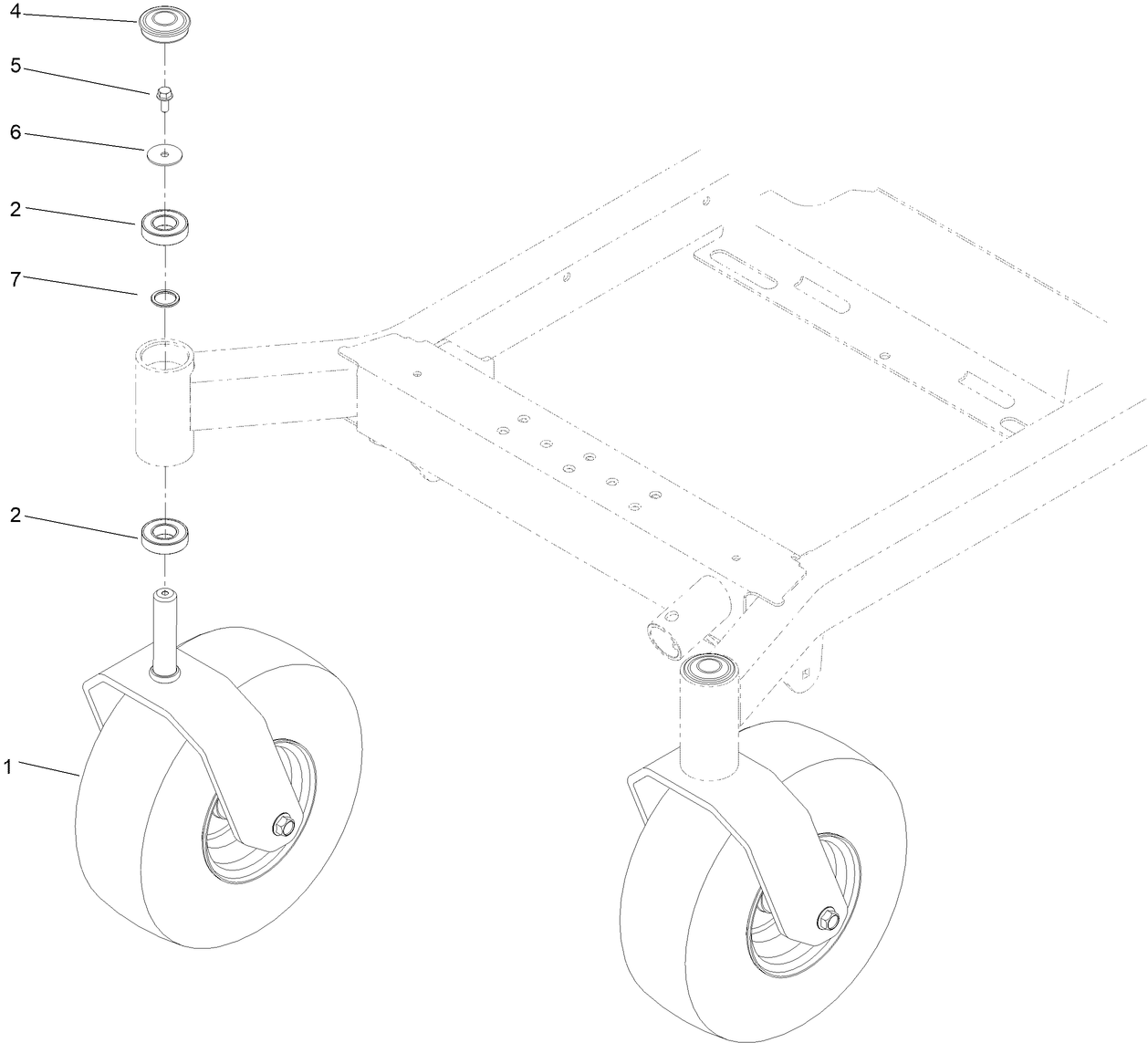

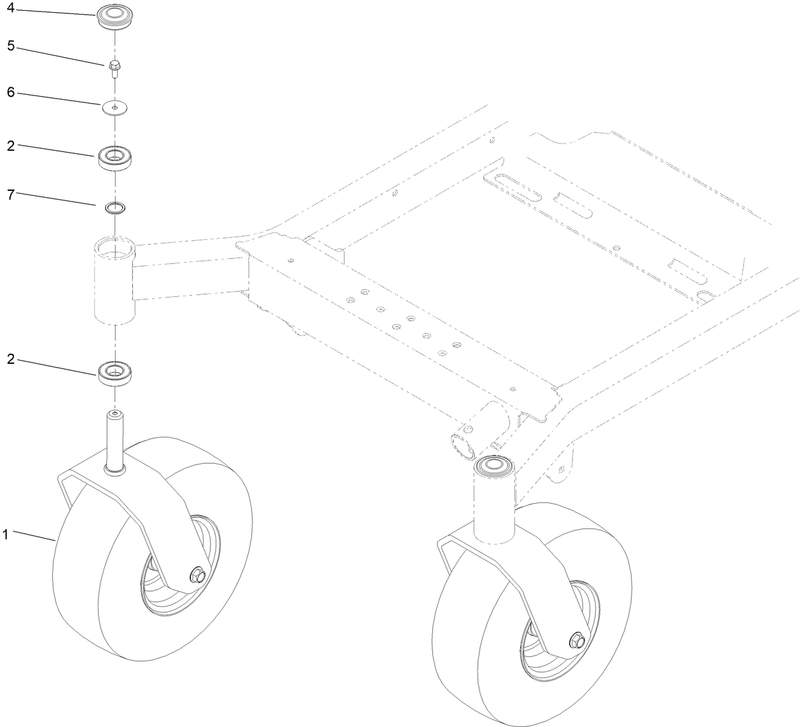

Caster Wheel and Fork Assembly
Caster Wheel and Fork Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

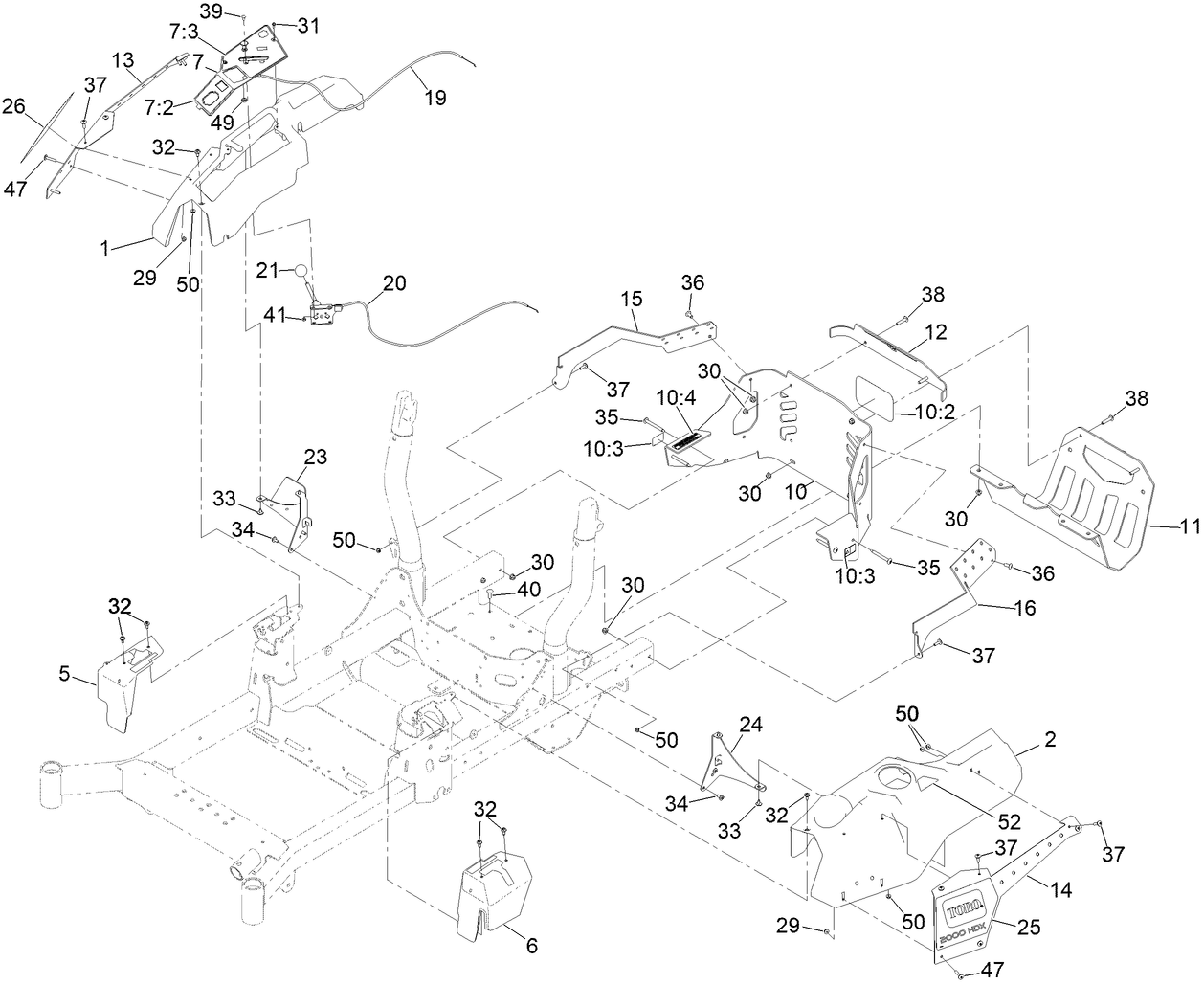

Console and Guard Assembly
Console and Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

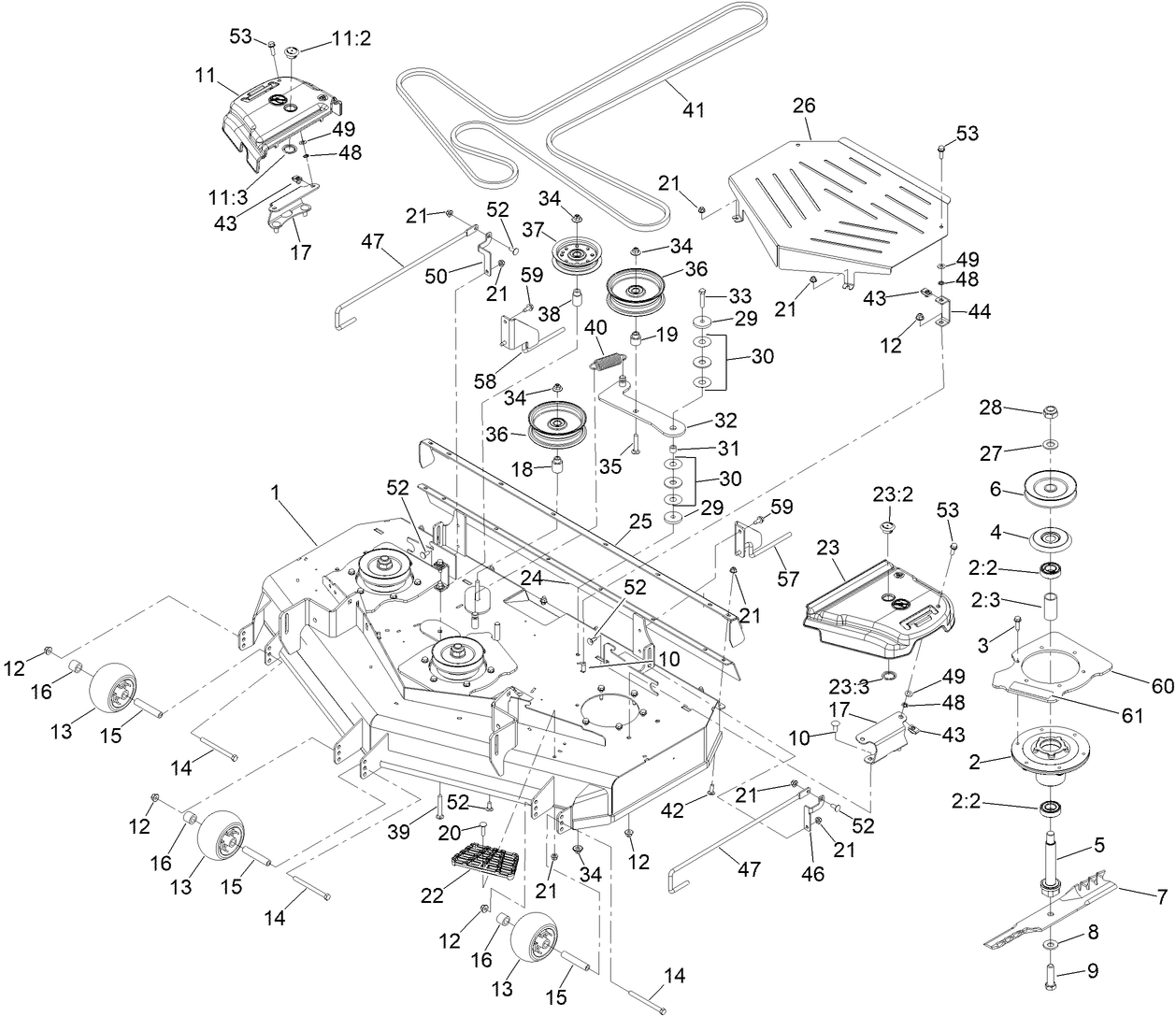

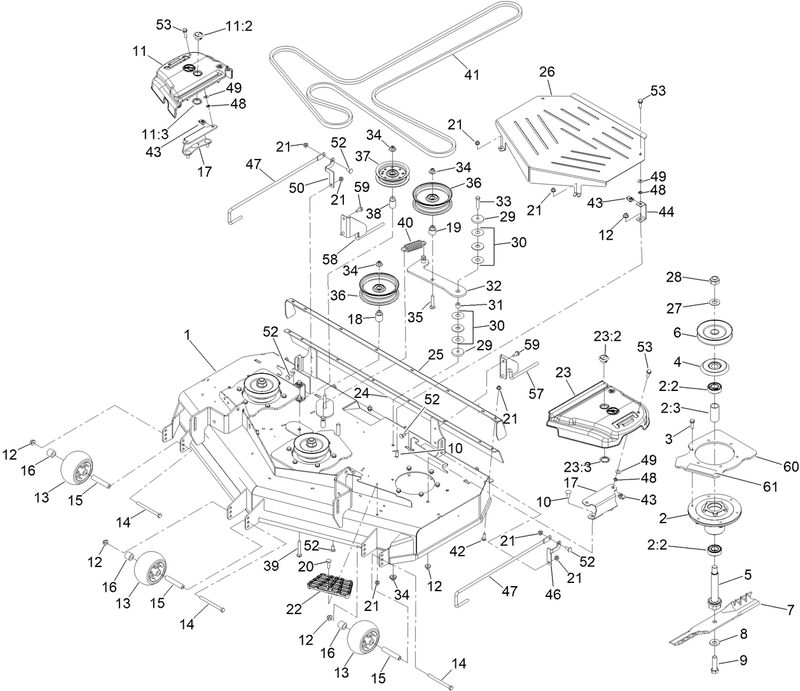

Deck Assembly
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

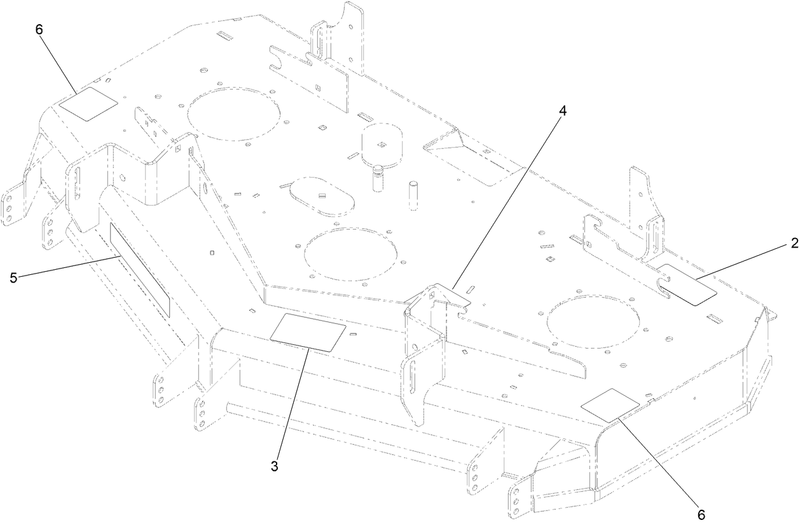

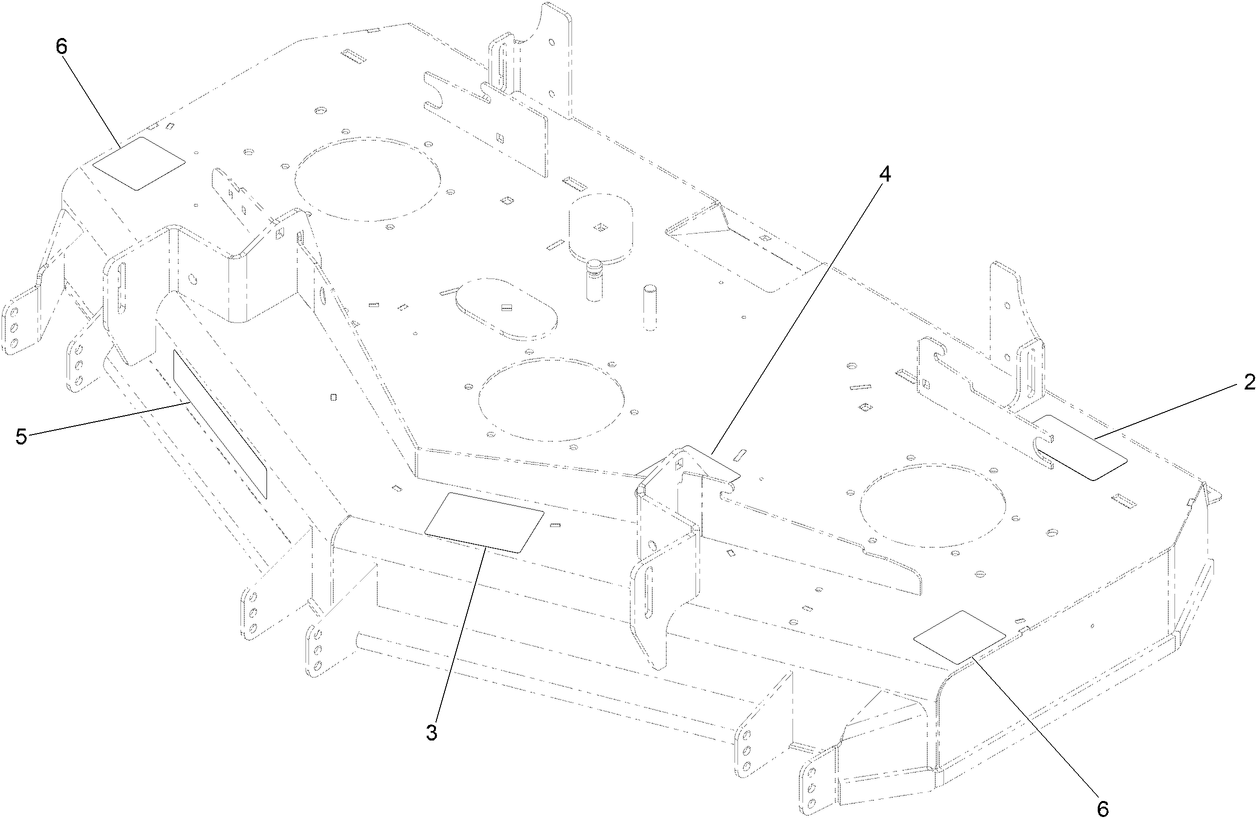

Deck Decal Assembly No 134 4546
Deck Decal Assembly No 134 4546
| Sequence Number | Image | Product | Price | Add to cart |
|---|

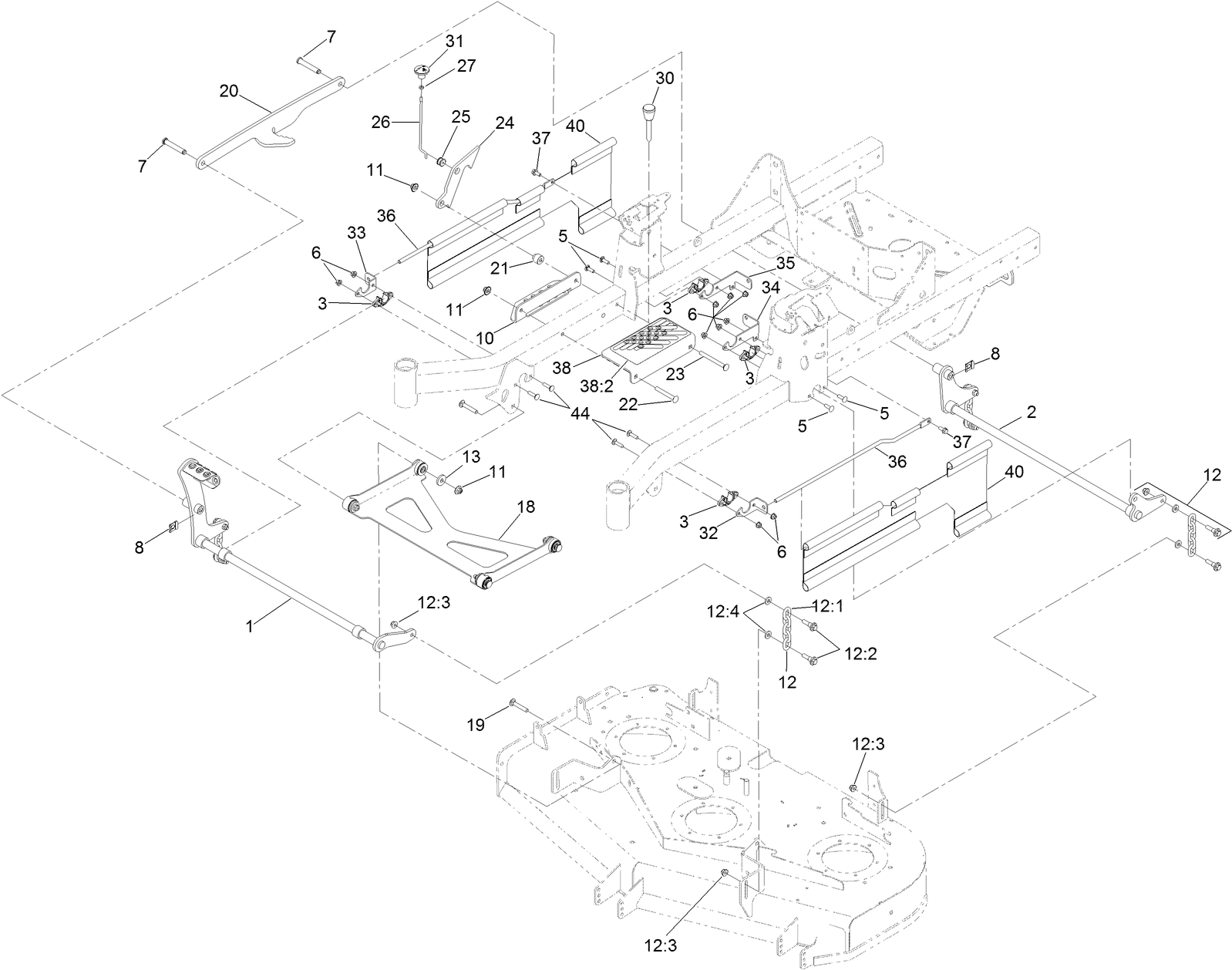

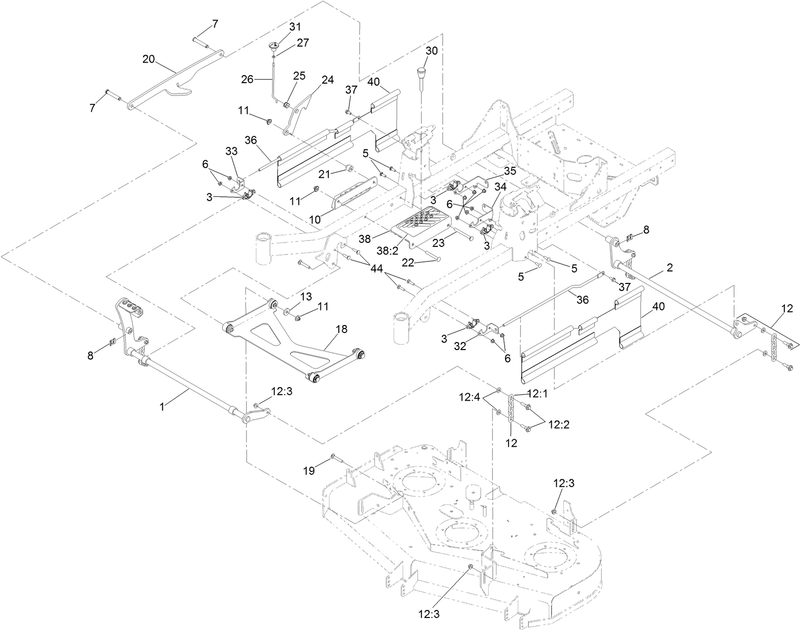

Deck Lift Assembly
Deck Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Deck Strut Assembly No 126 8365
Deck Strut Assembly No 126 8365
| Sequence Number | Image | Product | Price | Add to cart |
|---|

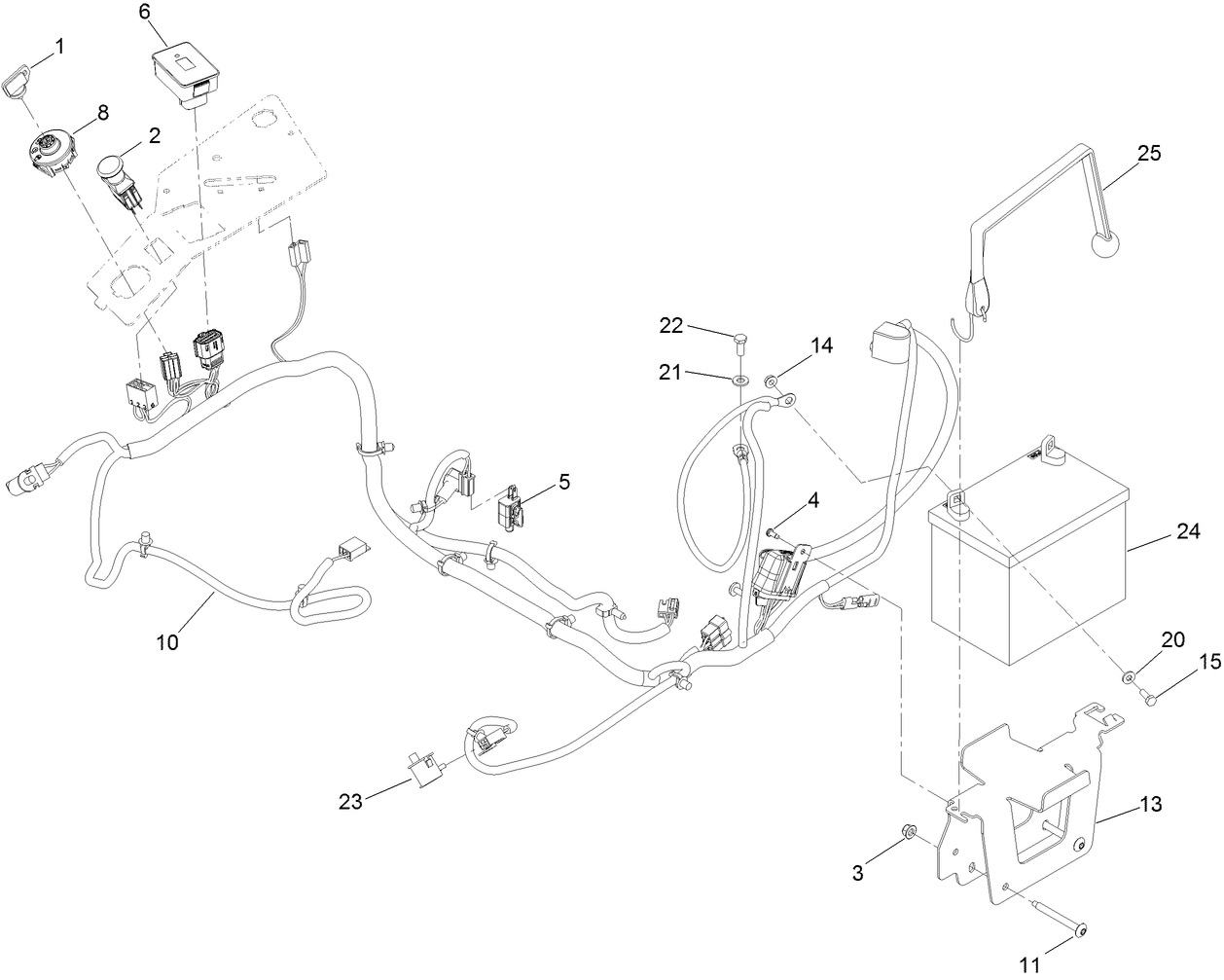

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

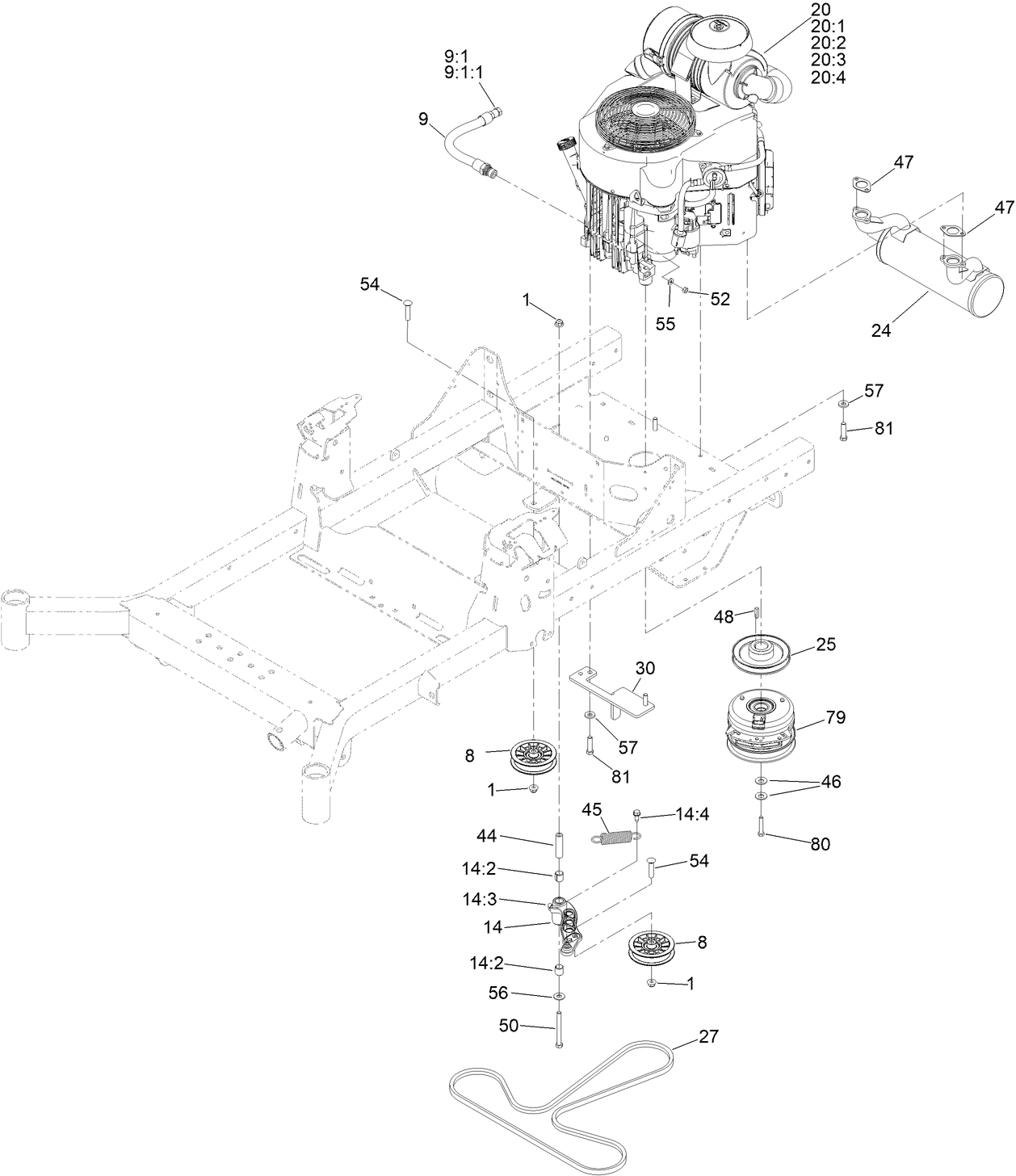

Engine Clutch and Muffler Assembly
Engine Clutch and Muffler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

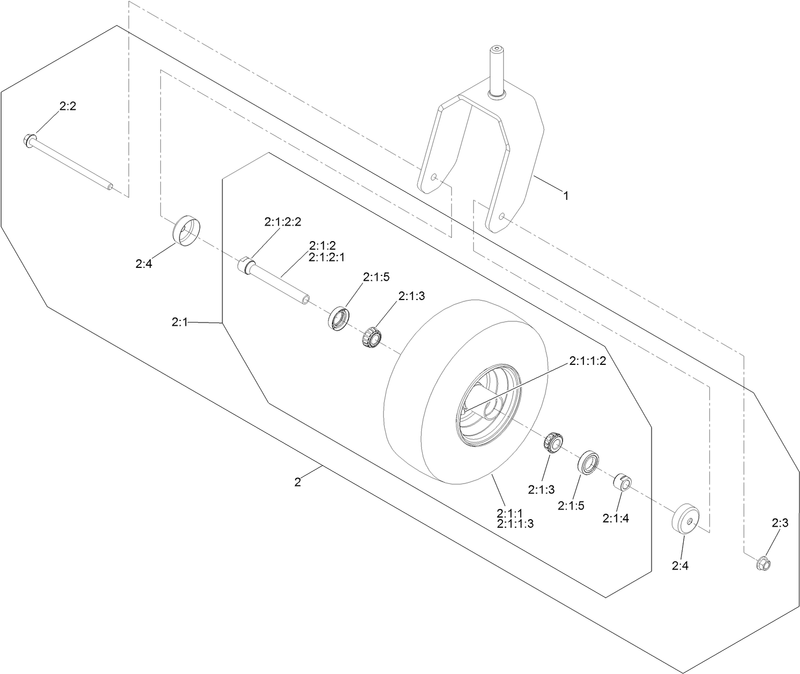

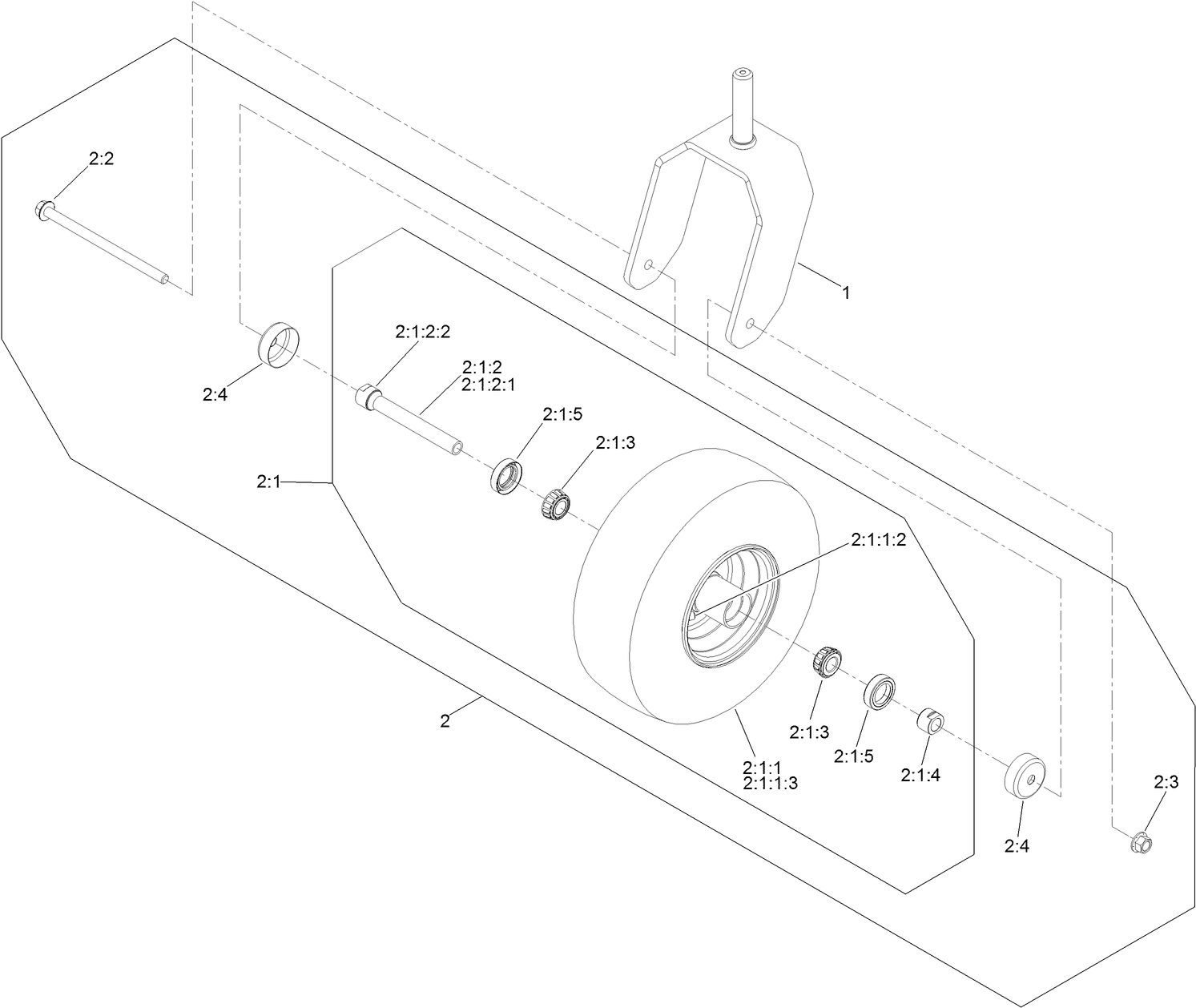

Fork and Caster Wheel Assembly
Fork and Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

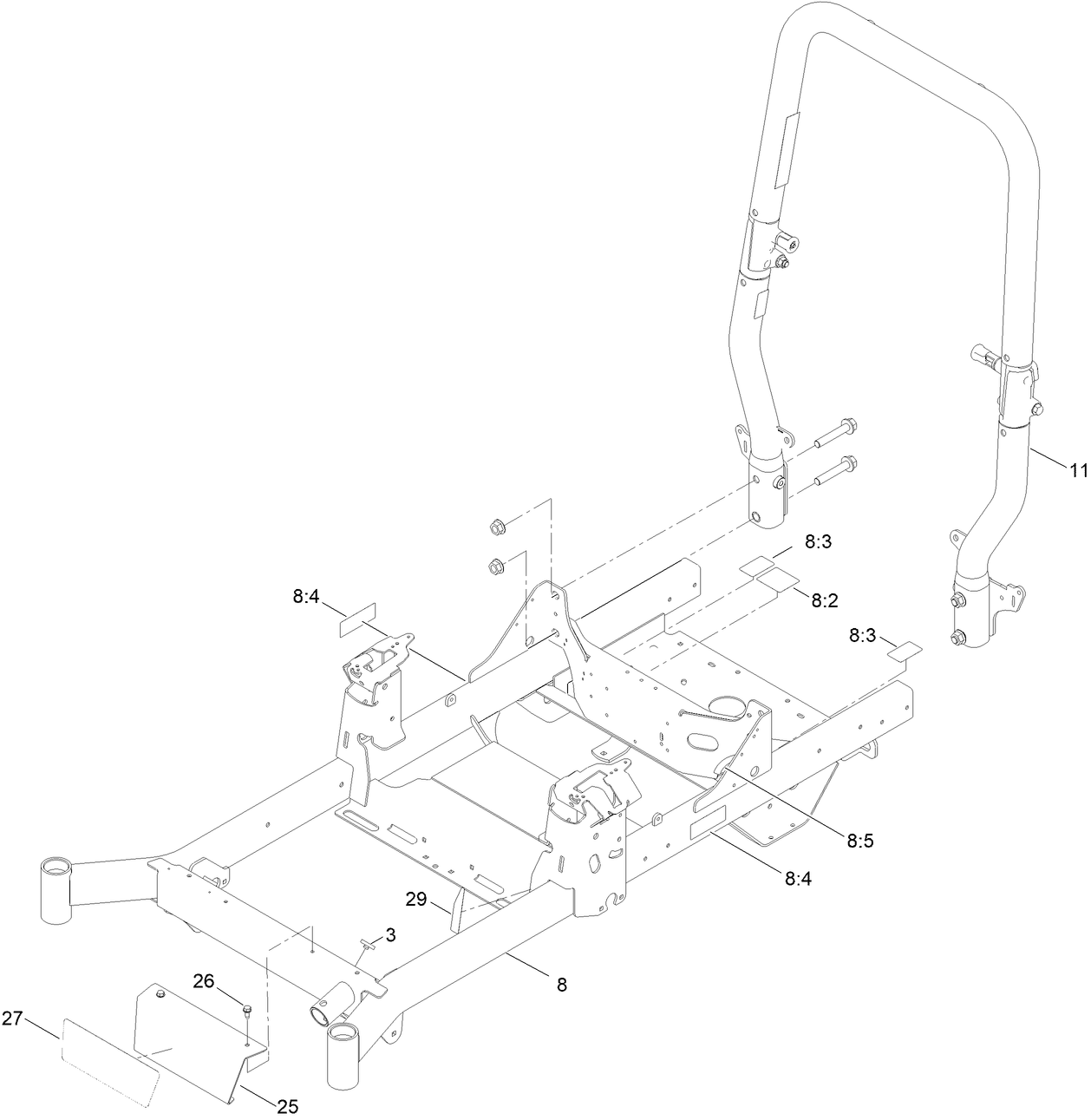

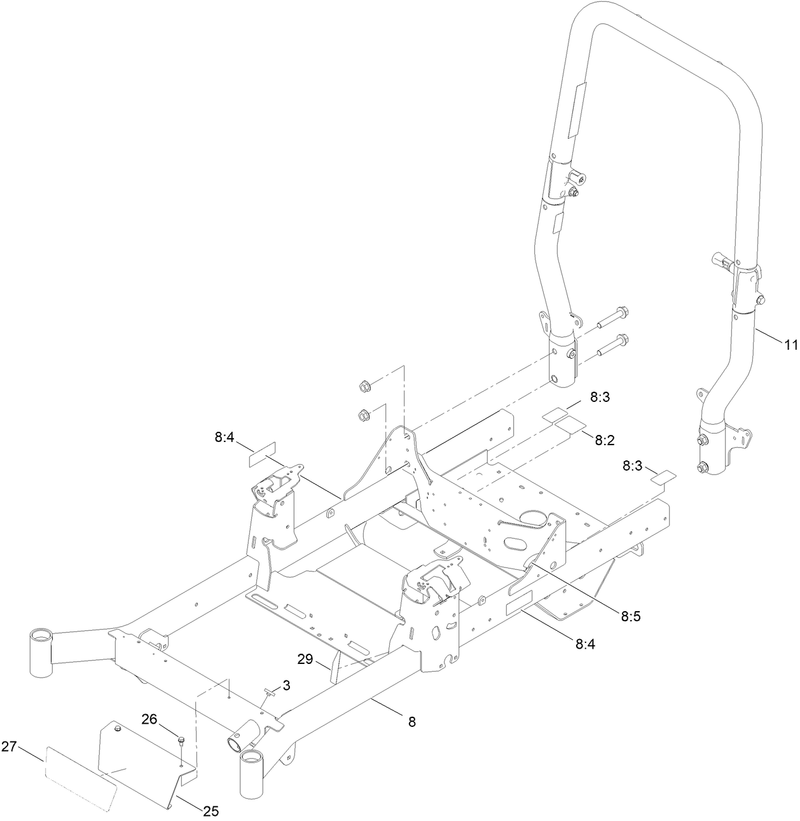

Frame and Roll Over Protection System Assembly
Frame and Roll Over Protection System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

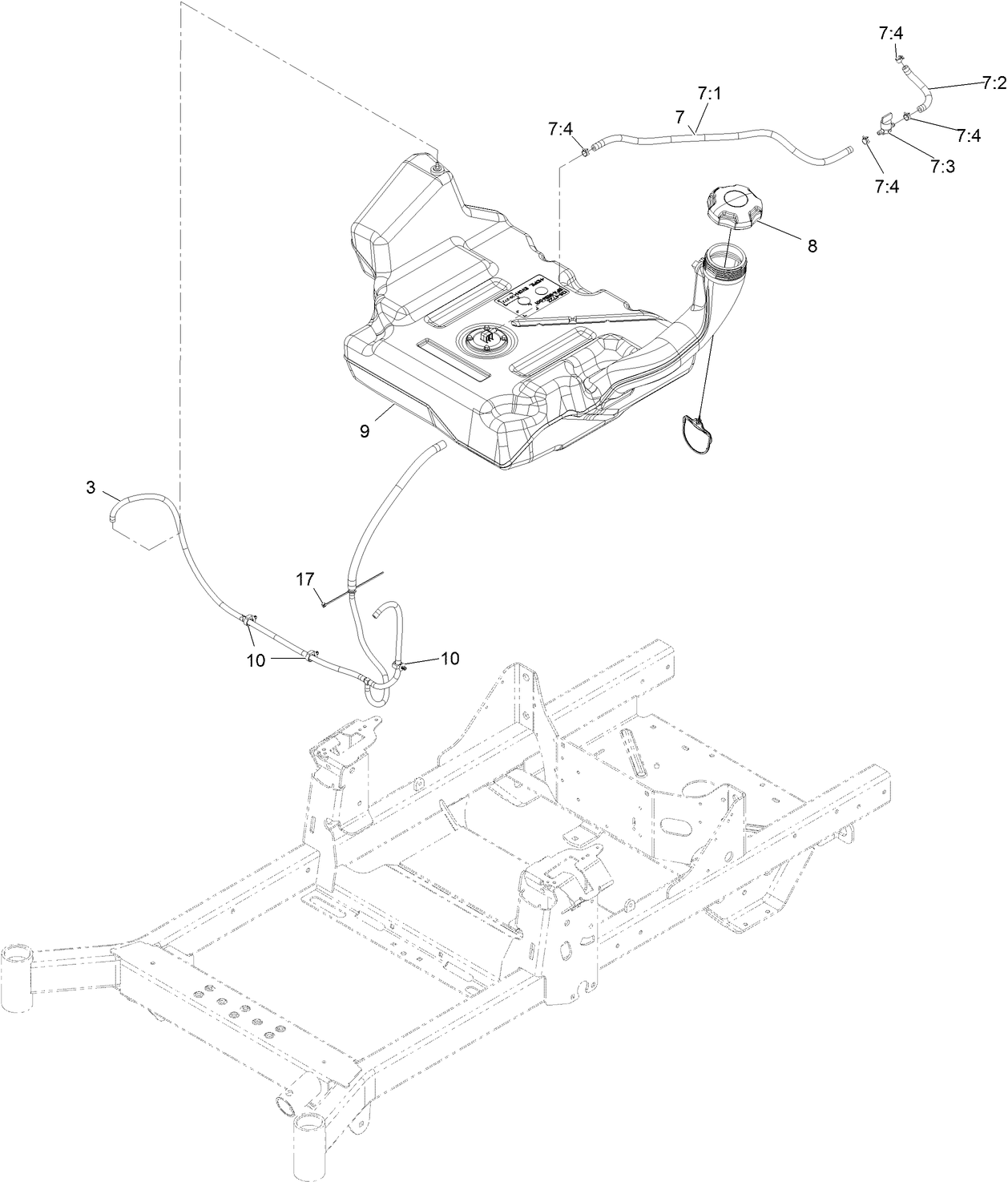

Fuel Assembly
Fuel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

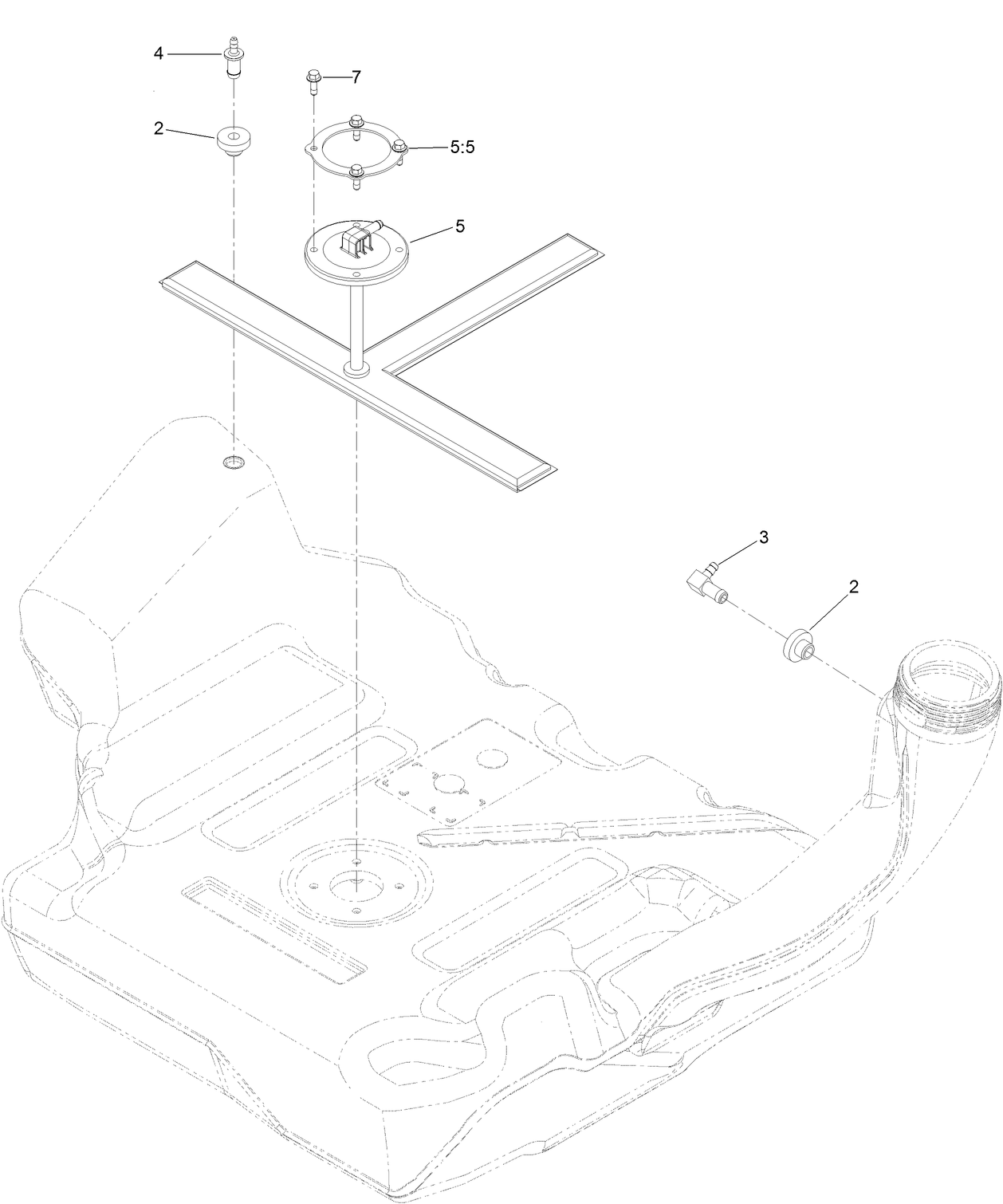

Fuel Tank Assembly No 126 4724
Fuel Tank Assembly No 126 4724
| Sequence Number | Image | Product | Price | Add to cart |
|---|

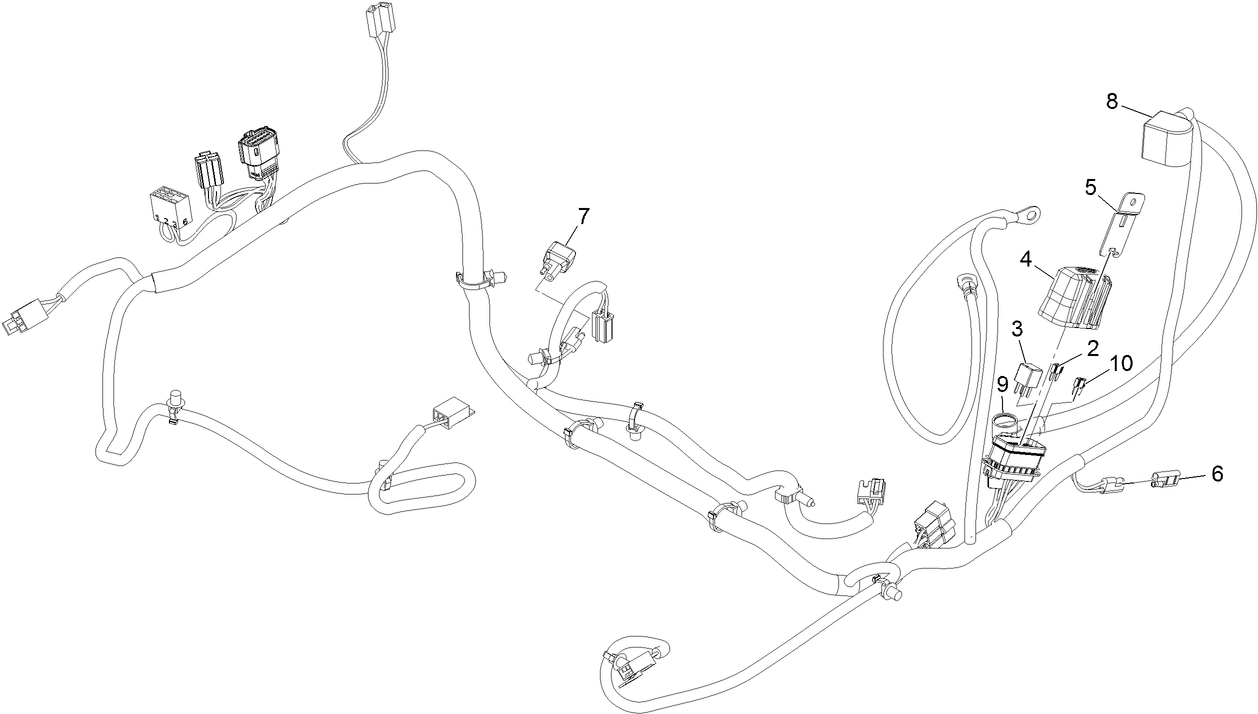

Harness Assembly No 126 5803
Harness Assembly No 126 5803
| Sequence Number | Image | Product | Price | Add to cart |
|---|

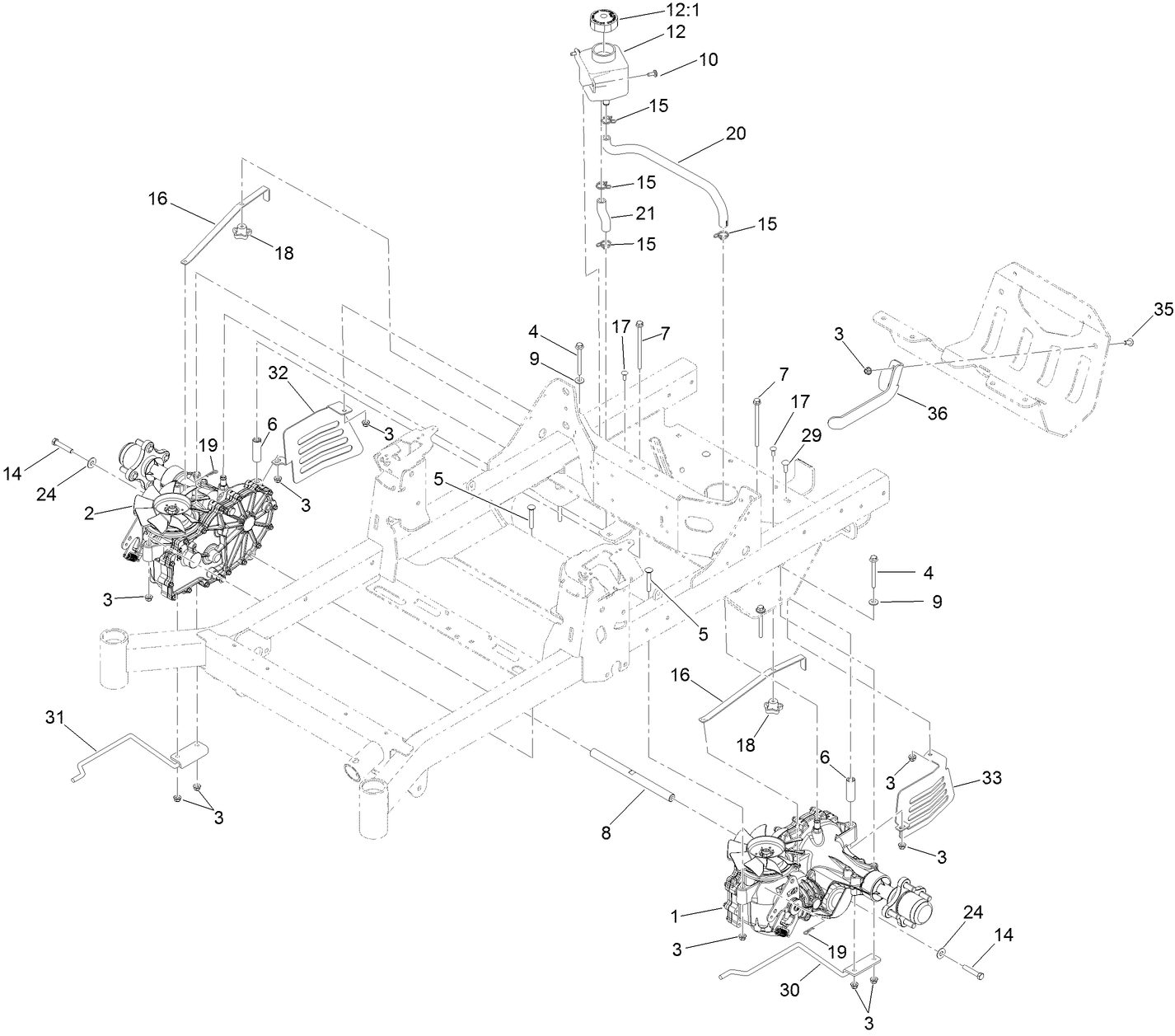

Hydraulic Drive Assembly
Hydraulic Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

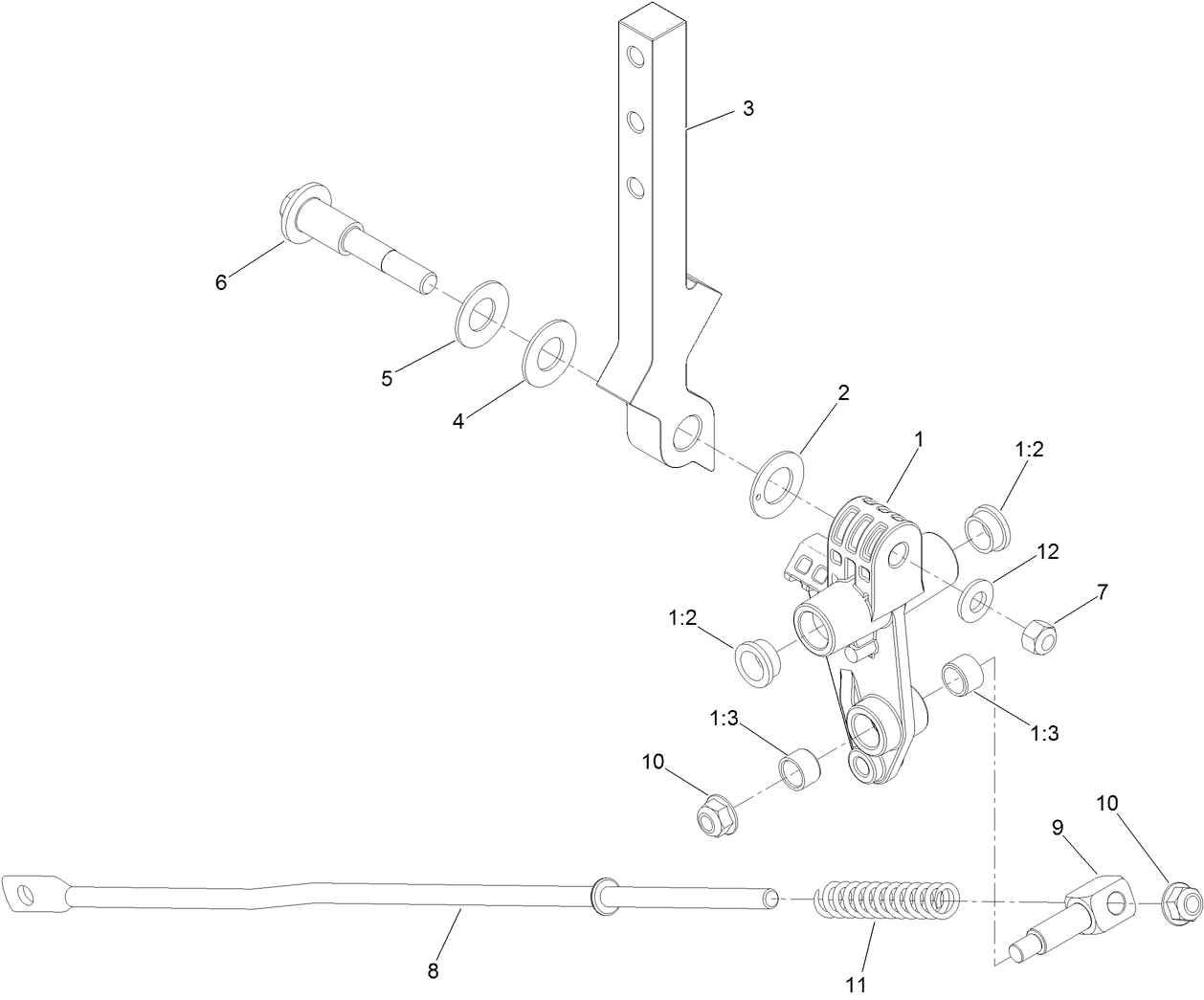

LH and RH Motion Control Assembly
LH and RH Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

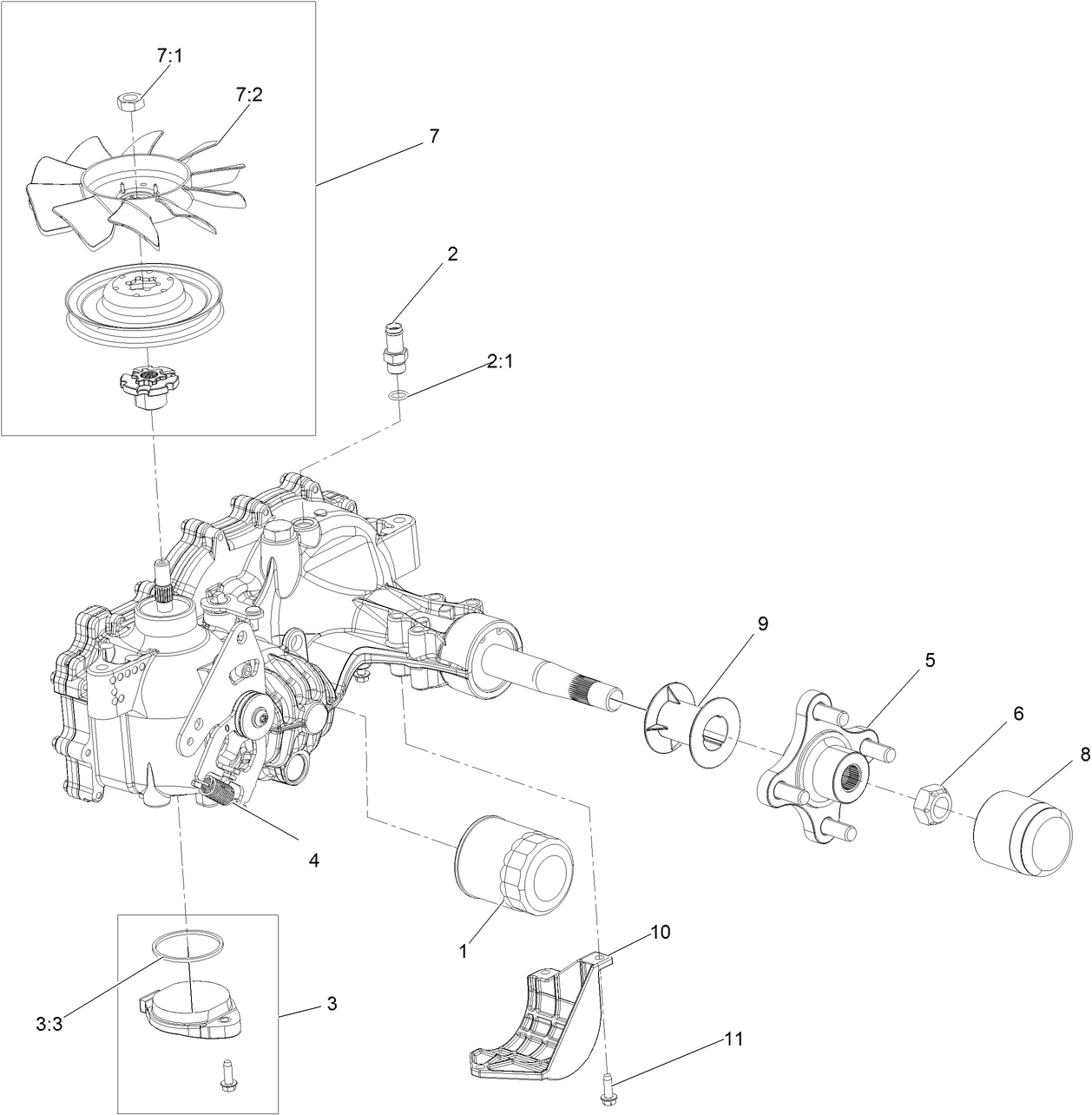

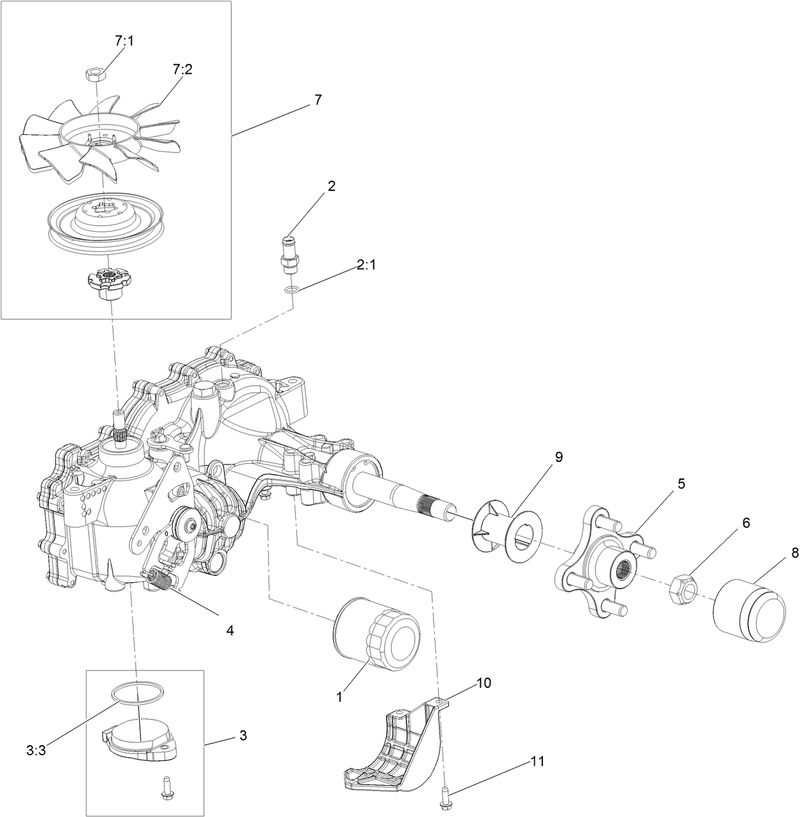

LH Transaxle Assembly No 126 4882
LH Transaxle Assembly No 126 4882
| Sequence Number | Image | Product | Price | Add to cart |
|---|

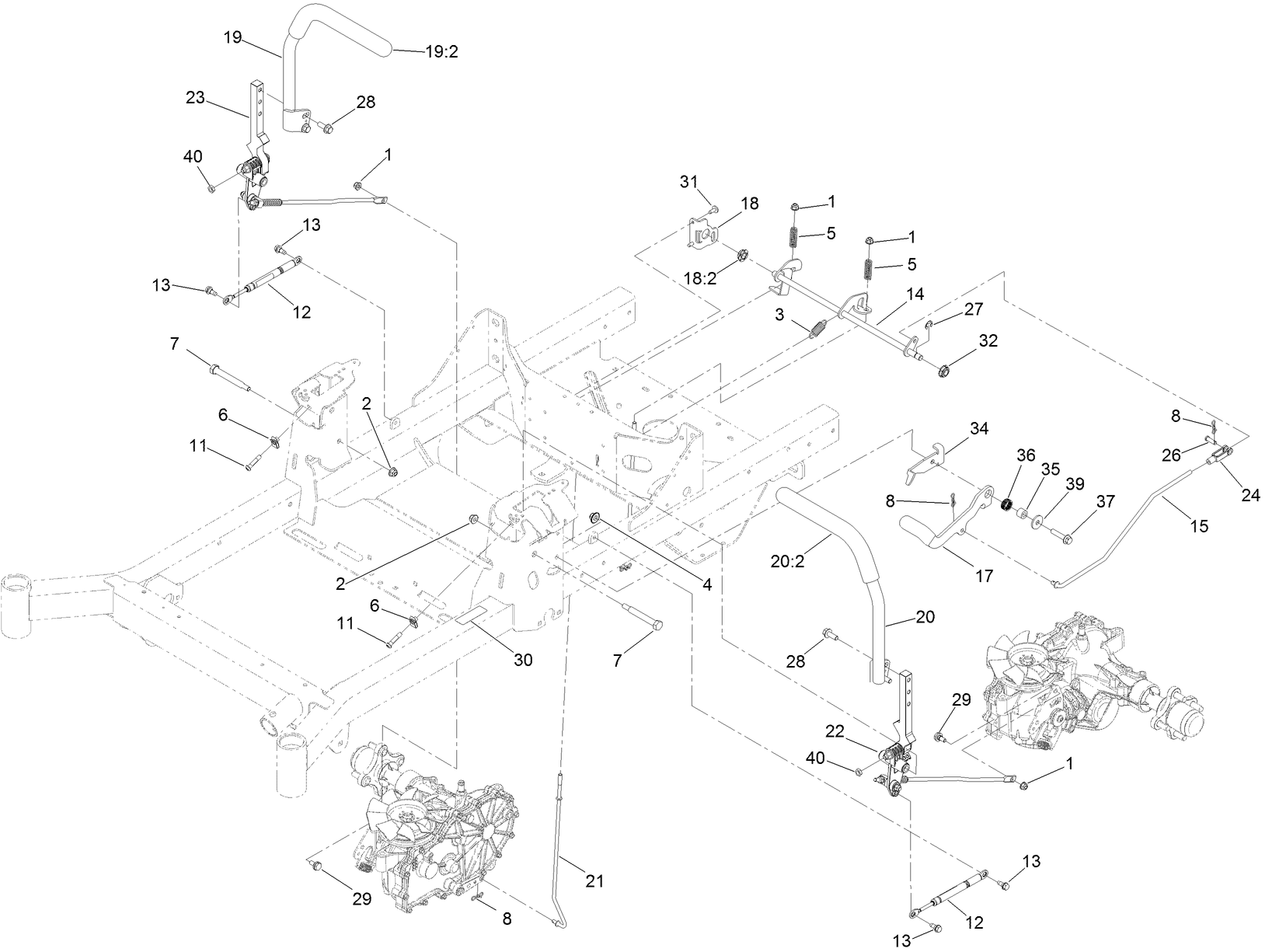

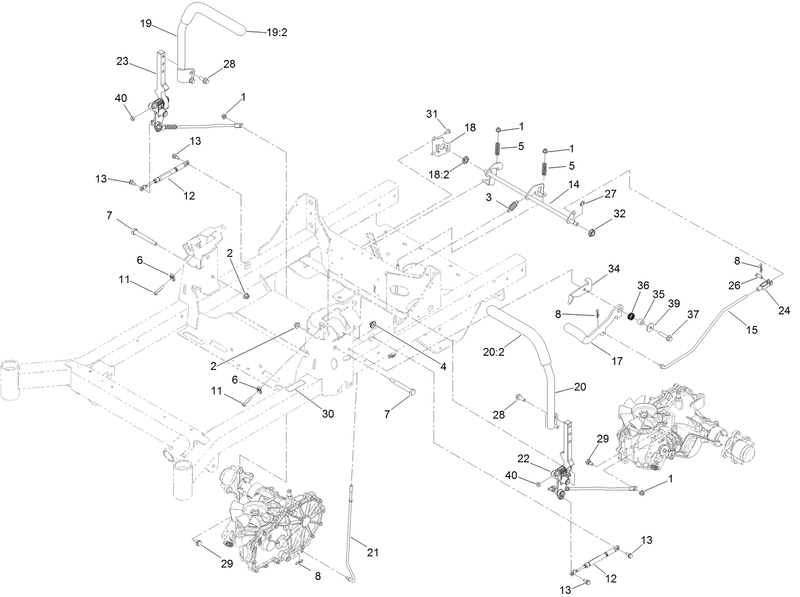

Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

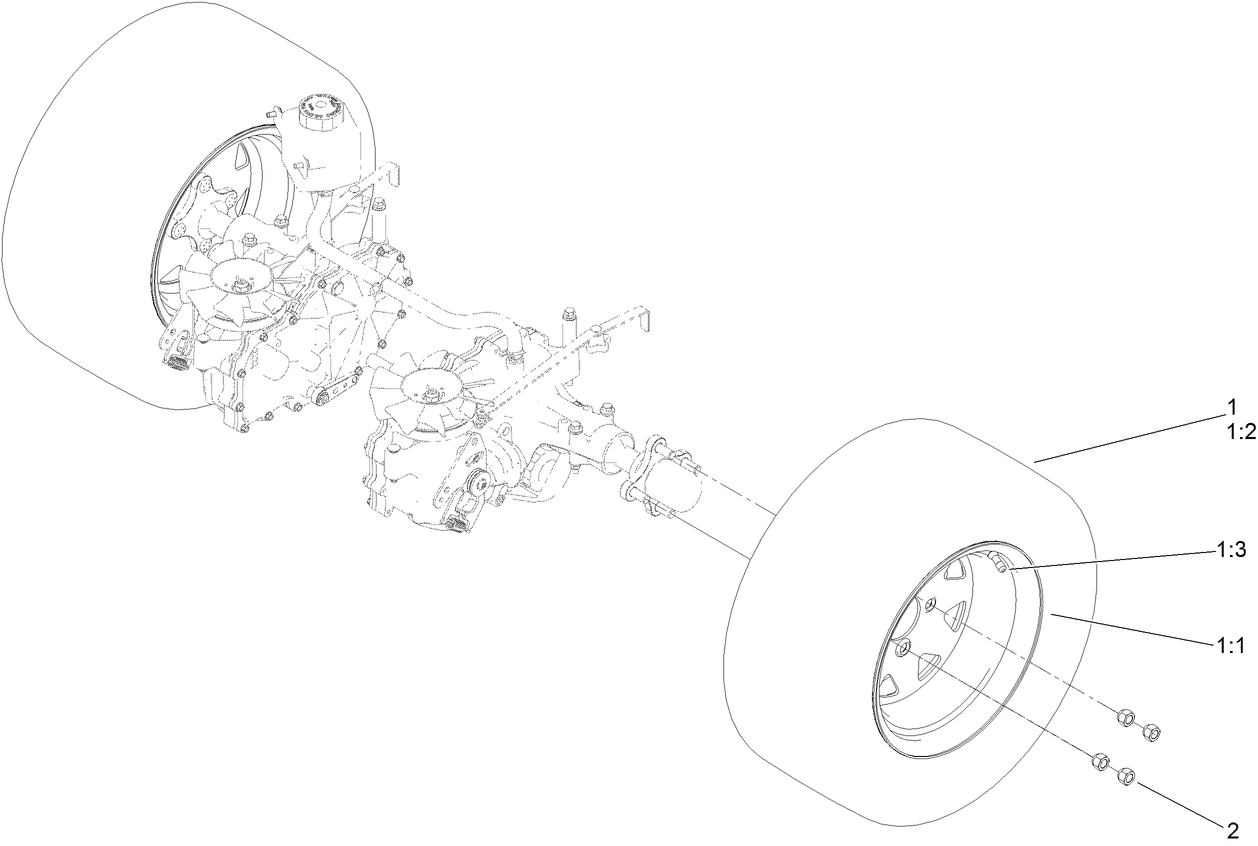

Rear Wheel Assembly
Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|

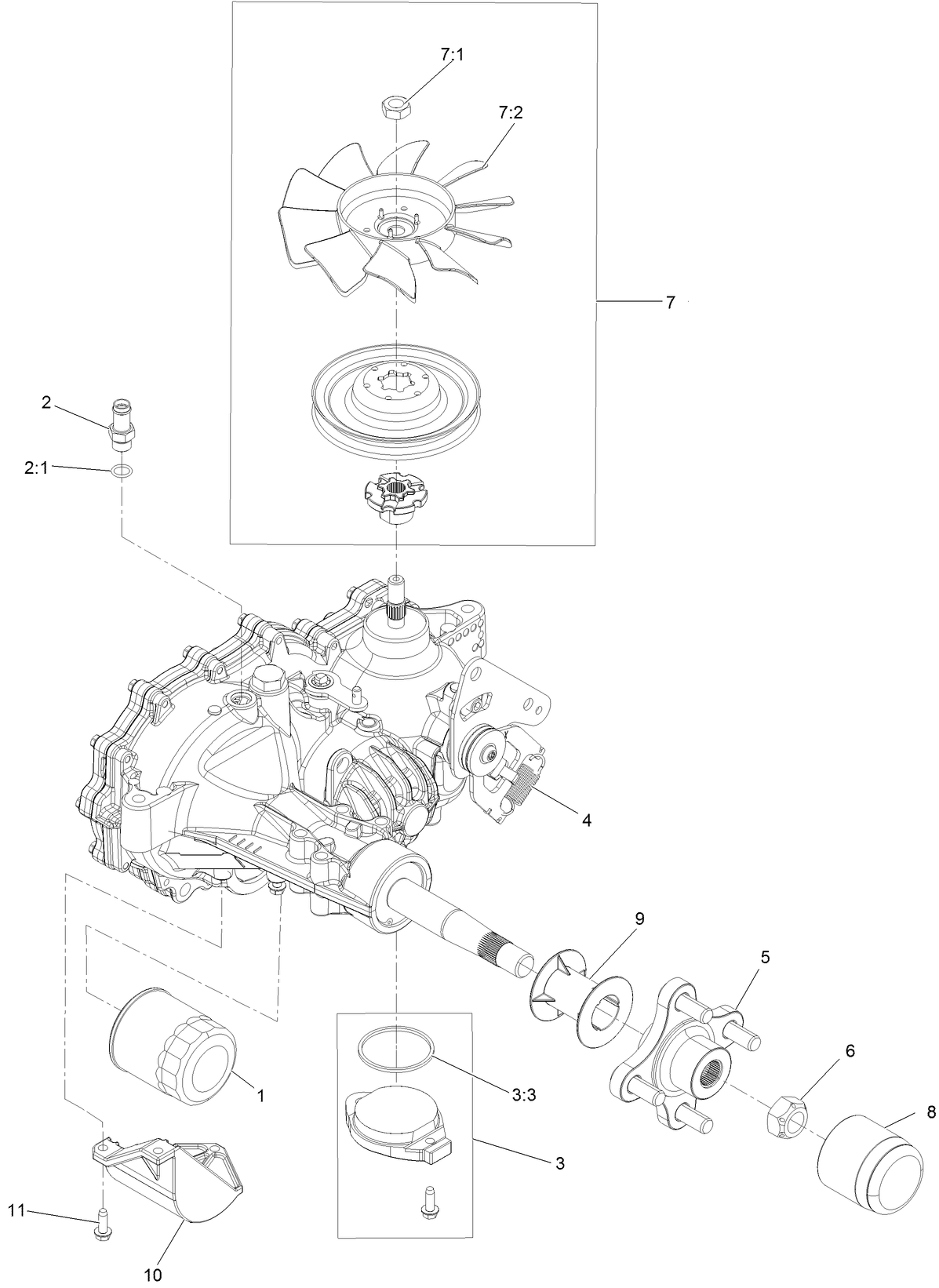

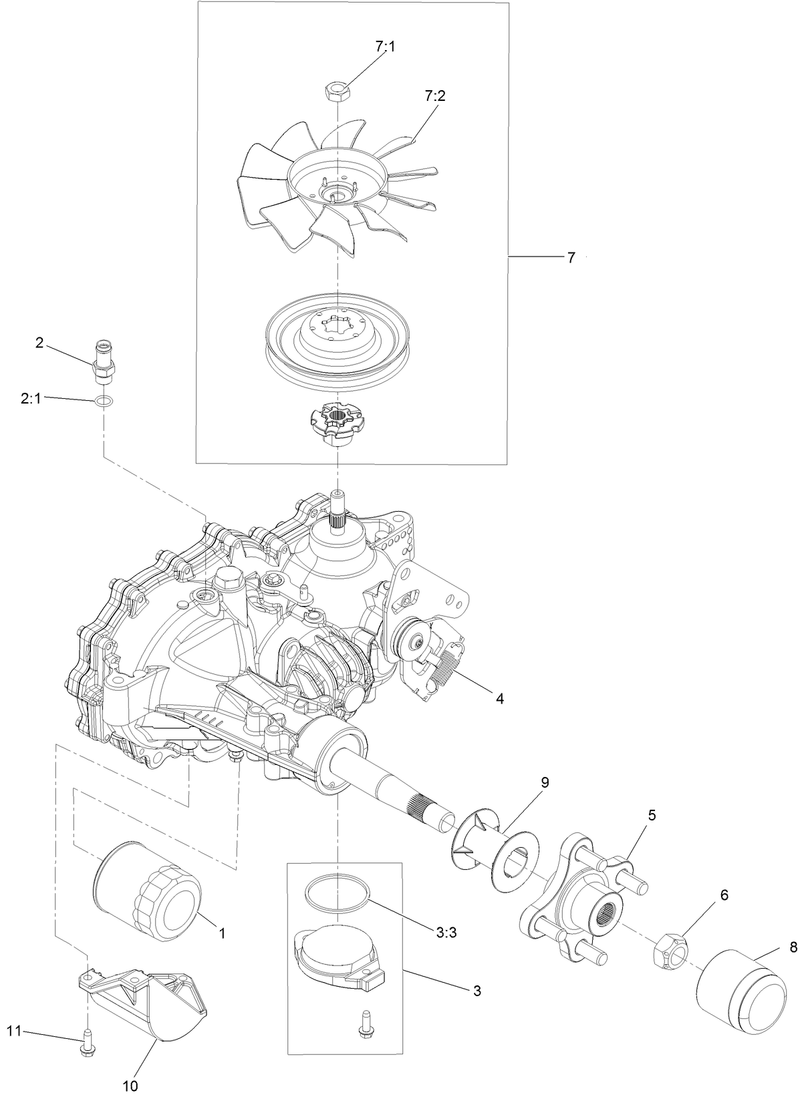

RH Transaxle Assembly No 126 4883
RH Transaxle Assembly No 126 4883
| Sequence Number | Image | Product | Price | Add to cart |
|---|

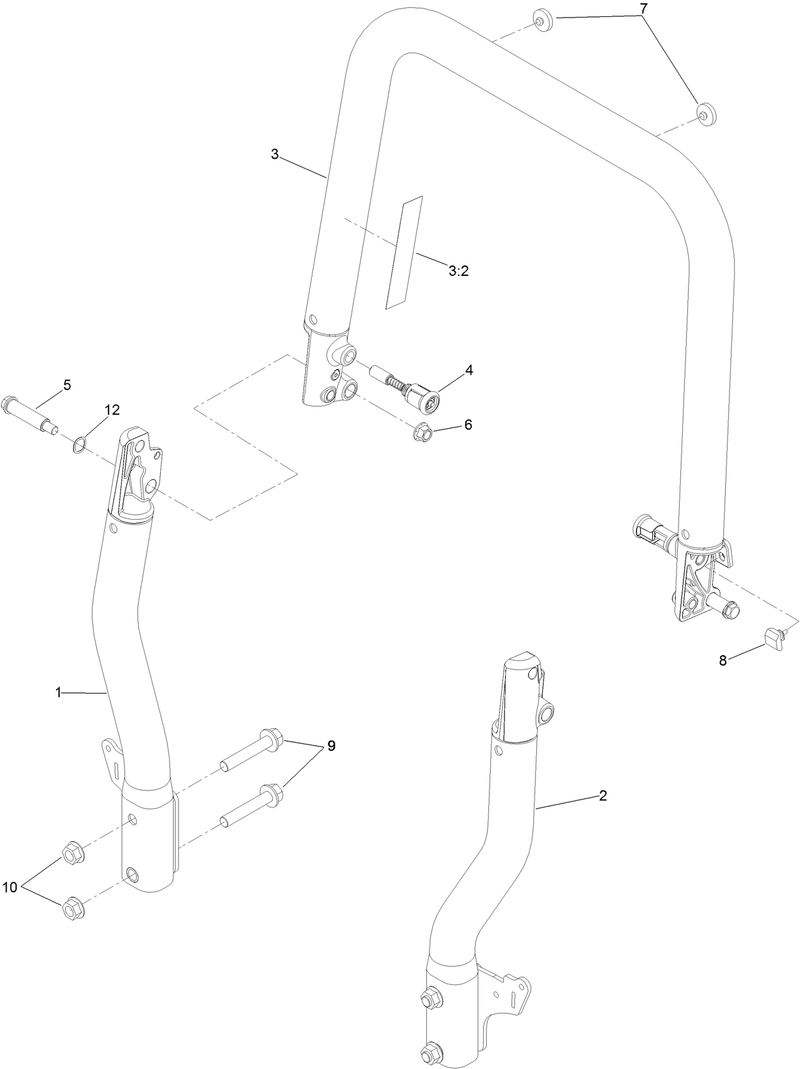

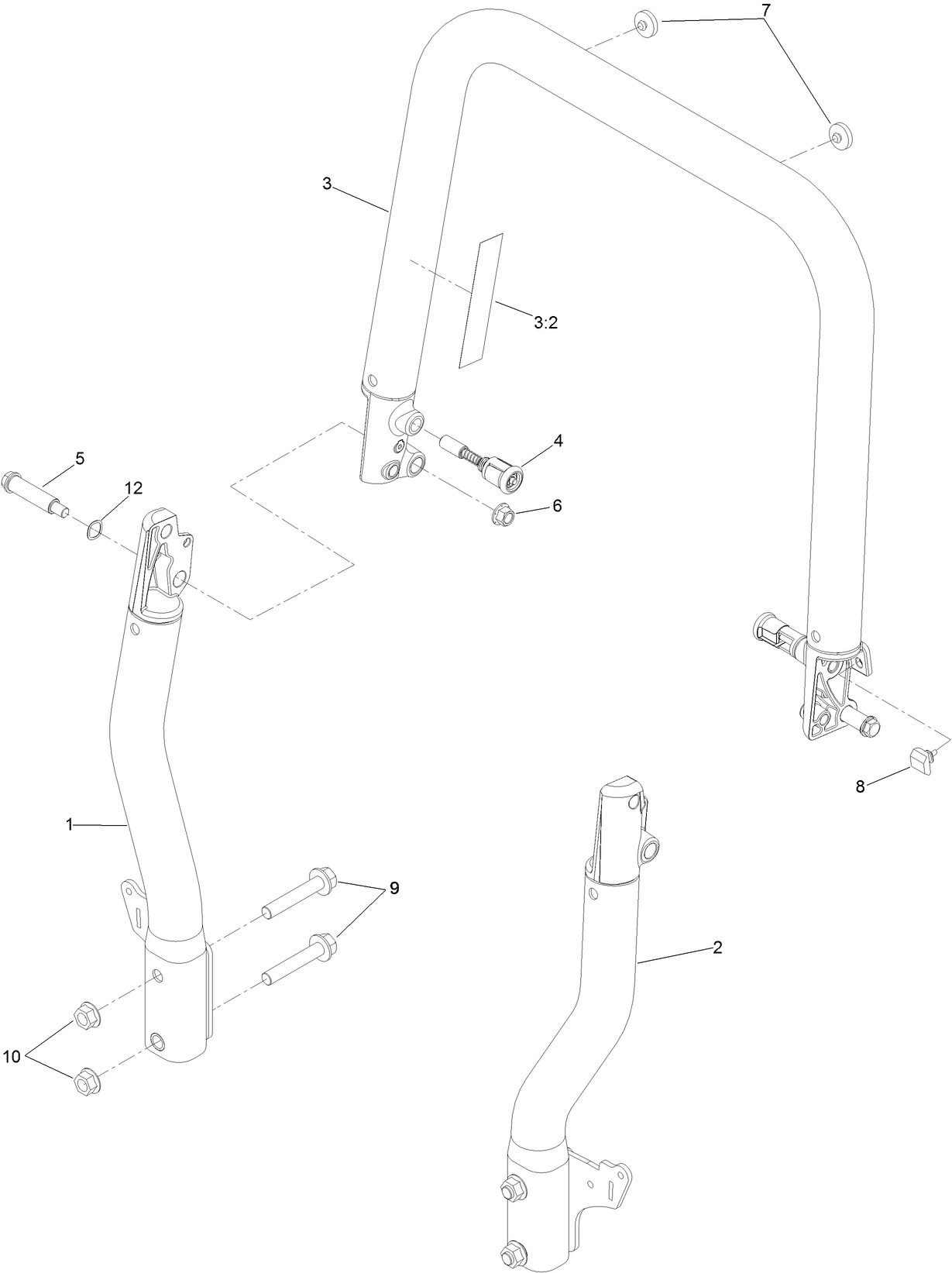

Roll Over Protection System Assembly No 136 8987
Roll Over Protection System Assembly No 136 8987
| Sequence Number | Image | Product | Price | Add to cart |
|---|

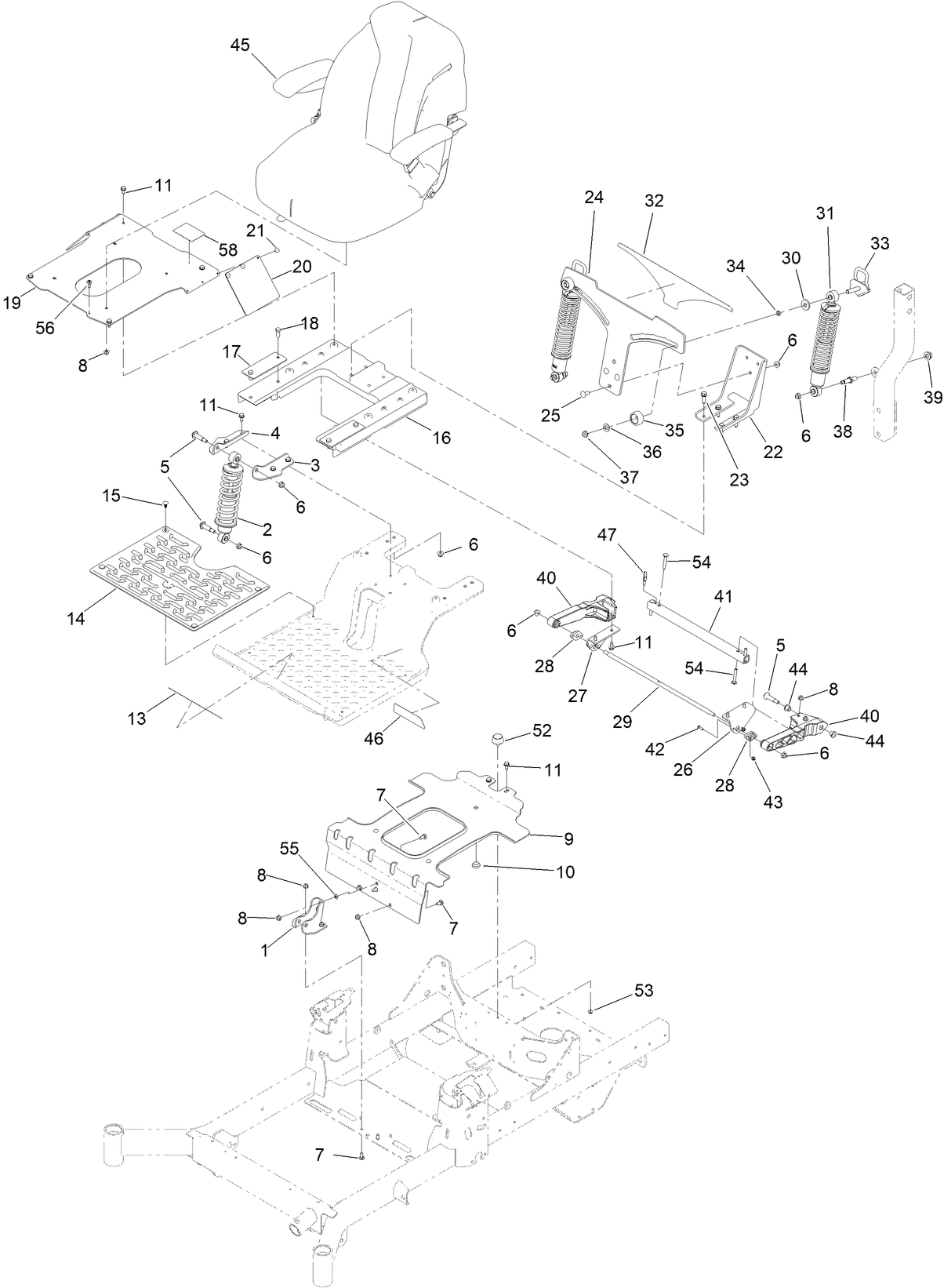

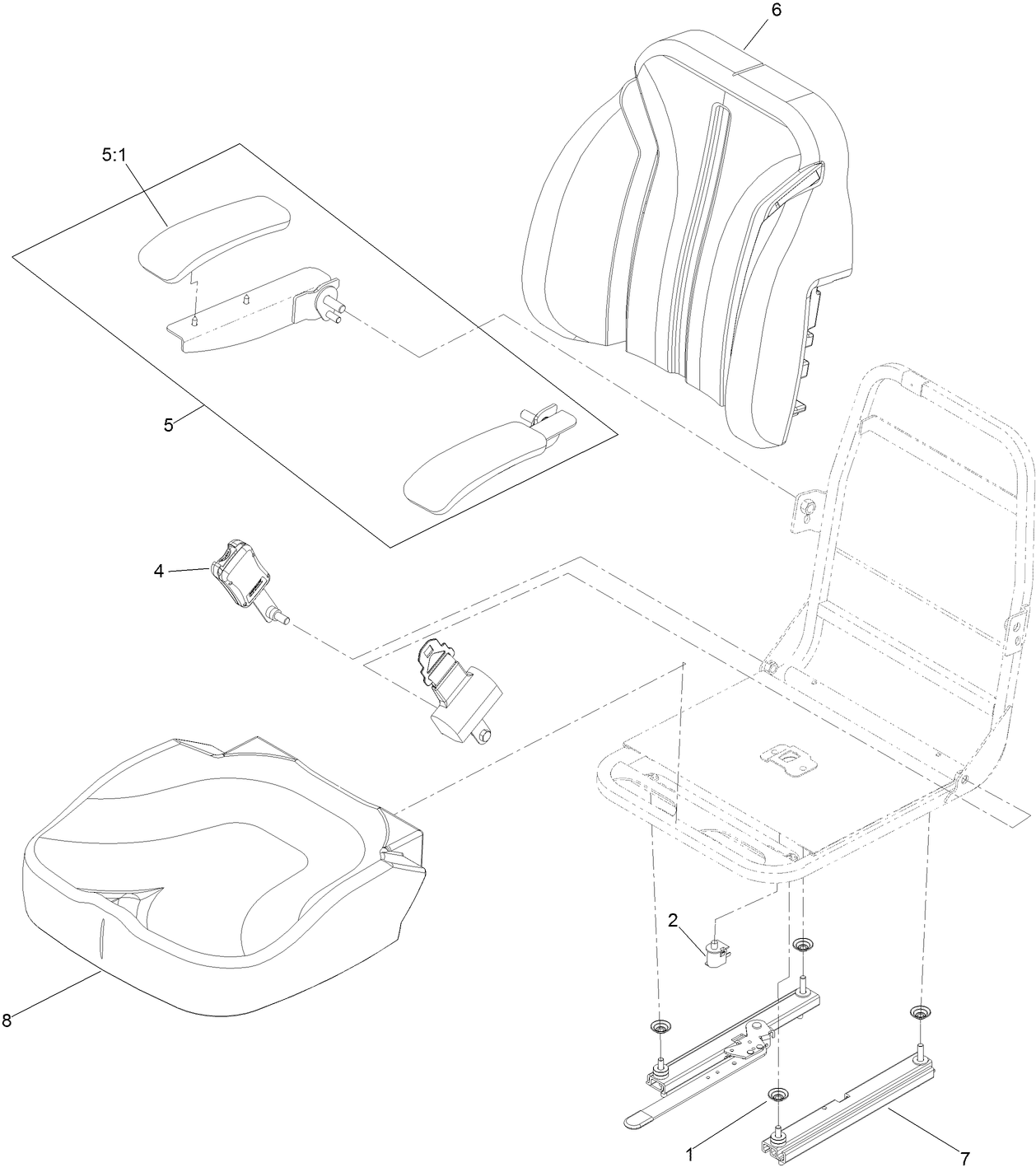

Seat Assembly No 144 3771
Seat Assembly No 144 3771
| Sequence Number | Image | Product | Price | Add to cart |
|---|
Suspension Platform and Seat Assembly
Suspension Platform and Seat Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|
