Toro 78450 48in TITAN HD 1500 Series Riding Mower (Serial #: 403062674 - 404314999) Parts Diagram
Diagrams:
Diagram:

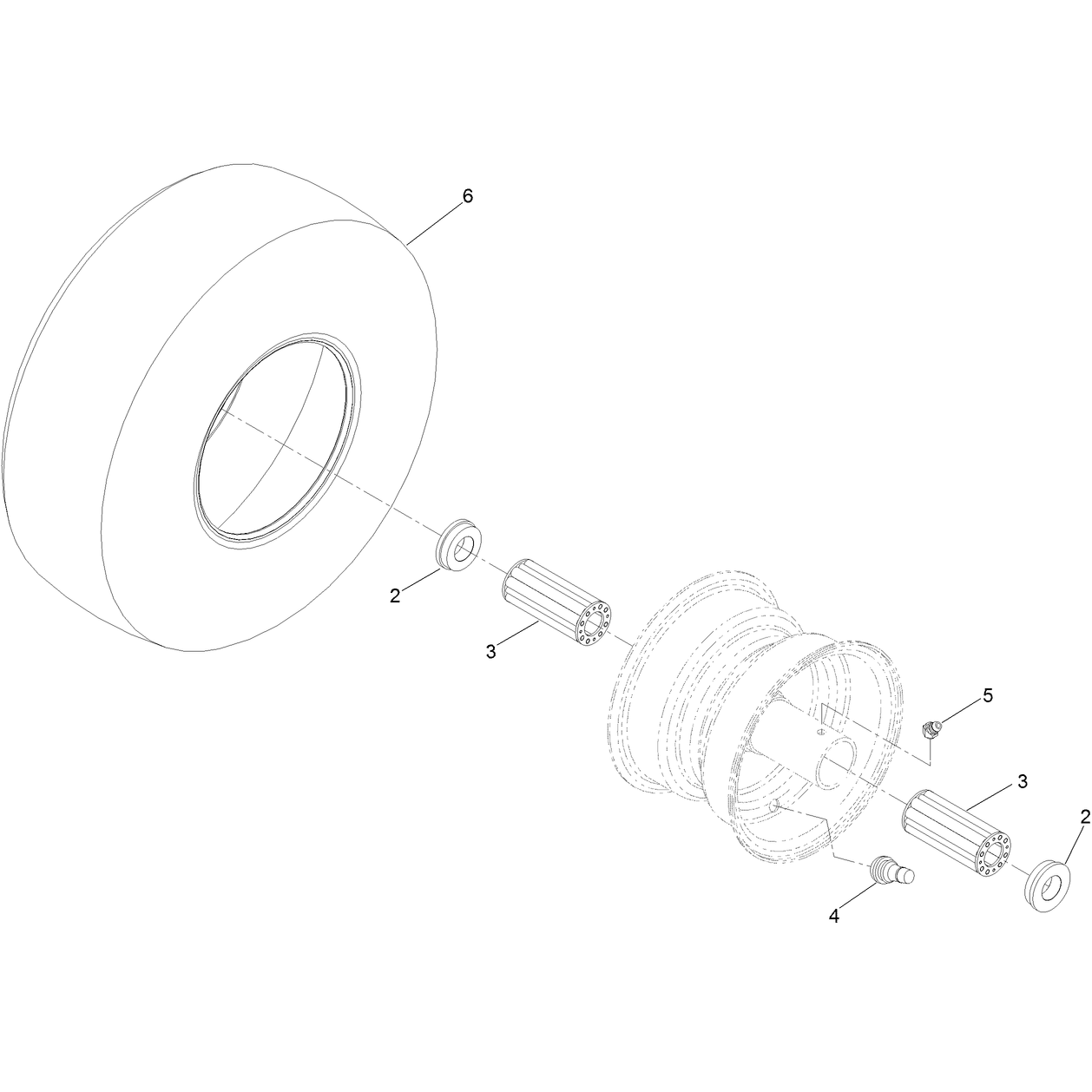

Caster Wheel and Fork Assembly
Caster Wheel and Fork Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
109-3678
109-3678
|
|||
|
|
126-5897
126-5897
|
|||
|
|
116-4348
116-4348
|
|||
|
|
3234-5
3234-5
|
|||
|
|
3256-68
3256-68
|

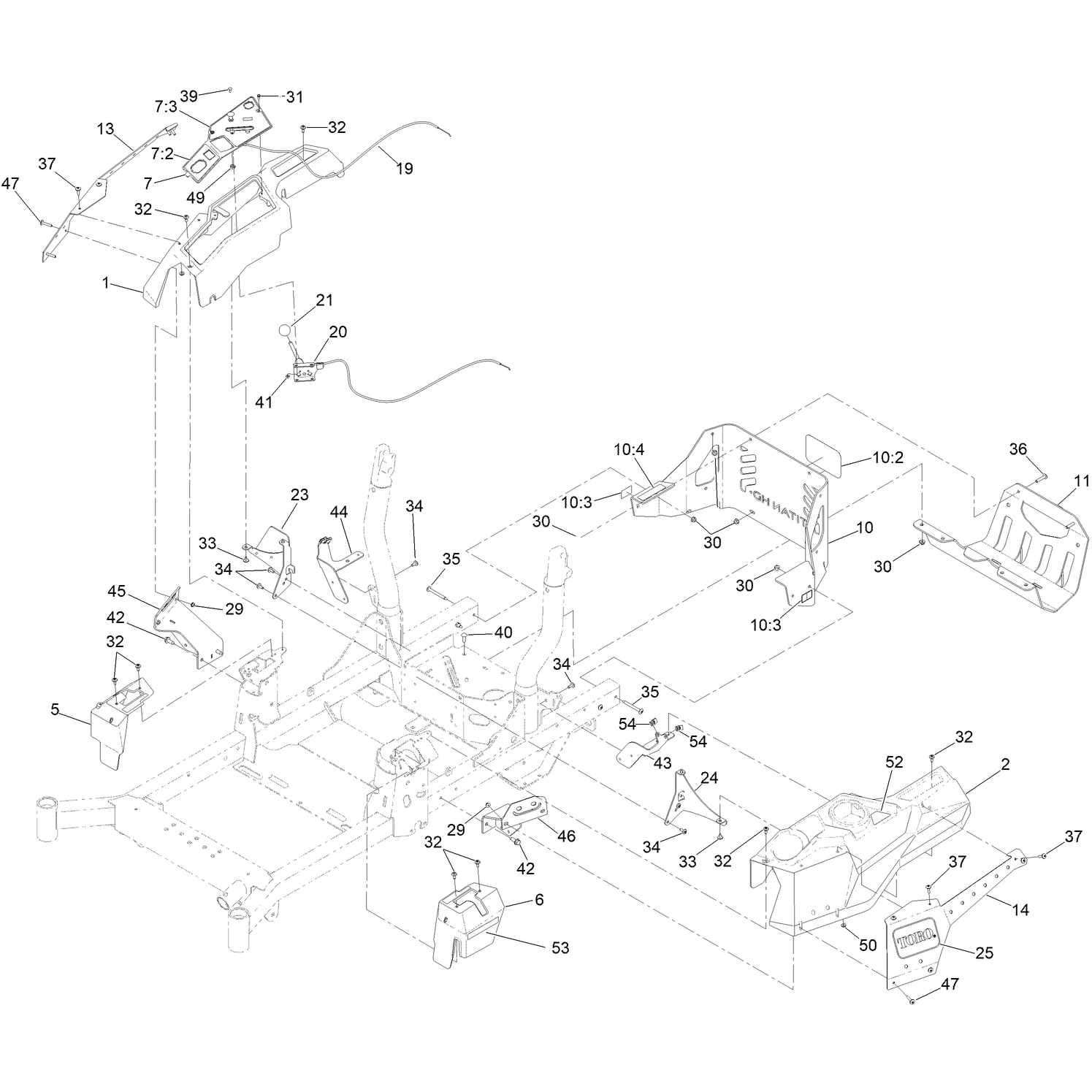

Control Console and Guard Assembly
Control Console and Guard Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-4983
126-4983
|
|||
|
|
126-4984
126-4984
|
|||
|
|
126-7371
126-7371
|
|||
|
|
126-7372
126-7372
|
|||
|
|
136-1673
136-1673
|
|||
|
|
126-9115
126-9115
|
|||
|
|
136-1305
136-1305
|
|||
|
|
126-7803
126-7803
|
|||
|
|
99-4693
99-4693
|
|||
|
|
106-5517
106-5517
|
|||
|
|
133-8062
133-8062
|
|||
|
|
135-5084-03
135-5084-03
|
|||
|
|
136-1745-01
136-1745-01
|
|||
|
|
136-1746-01
136-1746-01
|
|||
|
|
144-2647
144-2647
|
|||
|
|
126-6946
126-6946
|
|||
|
|
1-603175
1-603175
|
|||
|
|
126-9945
126-9945
|
|||
|
|
126-5532-03
126-5532-03
|
|||
|
|
68-3640
68-3640
|
|||
|
|
104-7201
104-7201
|
|||
|
|
104-8300
104-8300
|
|||
|
|
117-5036
117-5036
|
|||
|
|
120-7950
120-7950
|
|||
|
|
126-5544
126-5544
|
|||
|
|
126-6266
126-6266
|
|||
|
|
126-6267
126-6267
|
|||
|
|
126-6268
126-6268
|
|||
|
|
126-6269
126-6269
|
|||
|
|
1-807513
1-807513
|
|||
|
|
3230-22
3230-22
|
|||
|
|
3296-2
3296-2
|
|||
|
|
126-1696
126-1696
|
|||
|
|
126-9808-03
126-9808-03
|
|||
|
|
126-9809-03
126-9809-03
|
|||
|
|
136-9030-01
136-9030-01
|
|||
|
|
136-9029-01
136-9029-01
|
|||
|
|
126-8232
126-8232
|
|||
|
|
3220-3
3220-3
|
|||
|
|
32149-2
32149-2
|
|||
|
|
126-9939
126-9939
|
|||
|
|
126-9298
126-9298
|
|||
|
|
126-3739
126-3739
|
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-8956
126-8956
|
|||
|
|
139-2357
139-2357
|
|||
|
|
116-0720
116-0720
|
|||
|
|
138-7220
138-7220
|
|||
|
|
32144-41
32144-41
|
|||
|
|
138-7221
138-7221
|
|||
|
|
126-7629
126-7629
|
|||
|
|
117-7326
117-7326
|
|||
|
|
133-2137
133-2137
|
|||
|
|
125-1736
125-1736
|
|||
|
|
51-4060
51-4060
|
|||
|
|
3231-27
3231-27
|
|||
|
|
107-8541-01
107-8541-01
|
|||
|
|
104-8301
104-8301
|
|||
|
|
1-603299
1-603299
|
|||
|
|
323-23
323-23
|
|||
|
|
98-7912
98-7912
|
|||
|
|
98-7913
98-7913
|
|||
|
|
109-6982
109-6982
|
|||
|
|
109-6936
109-6936
|
|||
|
|
109-6935
109-6935
|
|||
|
|
3230-3
3230-3
|
|||
|
|
104-8300
104-8300
|
|||
|
|
126-4781-03
126-4781-03
|
|||
|
|
120-2451
120-2451
|
|||
|
|
322-50
322-50
|
|||
|
|
105-4622
105-4622
|
|||
|
|
108-4052
108-4052
|
|||
|
|
92-5836
92-5836
|
|||
|
|
3296-67
3296-67
|
|||
|
|
110-9981
110-9981
|
|||
|
|
114-0463
114-0463
|
|||
|
|
1-413088
1-413088
|
|||
|
|
115-5054
115-5054
|
|||
|
|
323-9
323-9
|
|||
|
|
109-6658
109-6658
|
|||
|
|
3231-6
3231-6
|
|||
|
|
126-7684
126-7684
|
|||
|
|
132-4718
132-4718
|
|||
|
|
1-413113
1-413113
|
|||
|
|
3231-31
3231-31
|
|||
|
|
139-3616
139-3616
|
|||
|
|
126-7731
126-7731
|
|||
|
|
126-7683
126-7683
|
|||
|
|
116-4669
116-4669
|
Deck Decal Assembly No. 126-8956
Deck Decal Assembly No. 126-8956
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
93-7818
93-7818
|
|||
|
|
112-3858
112-3858
|
|||
|
|
112-9028
112-9028
|
|||
|
|
117-1194
117-1194
|
|||
|
|
121-3204
121-3204
|
|||
|
|
117-3848
117-3848
|
Deck Lift Assembly
Deck Lift Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-3342-03
126-3342-03
|
|||
|
|
126-3343-03
126-3343-03
|
|||
|
|
115-5065
115-5065
|
|||
|
|
116-2887
116-2887
|
|||
|
|
3230-22
3230-22
|
|||
|
|
104-8300
104-8300
|
|||
|
|
126-9181
126-9181
|
|||
|
|
138-8491
138-8491
|
|||
|
|
126-4535
126-4535
|
|||
|
|
126-4784
126-4784
|
|||
|
|
126-4640-03
126-4640-03
|
|||
|
|
109-6658
109-6658
|
|||
|
|
126-8877
126-8877
|
|||
|
|
1-633447
1-633447
|
|||
|
|
130-0742
130-0742
|
|||
|
|
104-8301
104-8301
|
|||
|
|
43-0940
43-0940
|
|||
|
|
1-373034
1-373034
|
|||
|
|
126-8365
126-8365
|
|||
|
|
3231-7
3231-7
|
|||
|
|
126-4639-03
126-4639-03
|
|||
|
|
126-5221
126-5221
|
|||
|
|
3231-42
3231-42
|
|||
|
|
135-0313
135-0313
|
|||
|
|
126-5222
126-5222
|
|||
|
|
126-5593
126-5593
|
|||
|
|
126-5223
126-5223
|
|||
|
|
3218-1
3218-1
|
|||
|
|
140-2146
140-2146
|
|||
|
|
126-7019
126-7019
|
Deck Strut Assembly No. 126-8365
Deck Strut Assembly No. 126-8365
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-8360
126-8360
|
|||
|
|
108-6544
108-6544
|
|||
|
|
3231-7
3231-7
|
|||
|
|
2844
2844
|
|||
|
|
104-8301
104-8301
|
Deflector Assembly No. 120-2451
Deflector Assembly No. 120-2451
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3231-4
3231-4
|
|||
|
|
106-3246-01
106-3246-01
|
|||
|
|
106-3248-03
106-3248-03
|
|||
|
|
110-0759
110-0759
|
|||
|
|
108-4059-01
108-4059-01
|
|||
|
|
106-3253-01
106-3253-01
|
|||
|
|
104-8301
104-8301
|

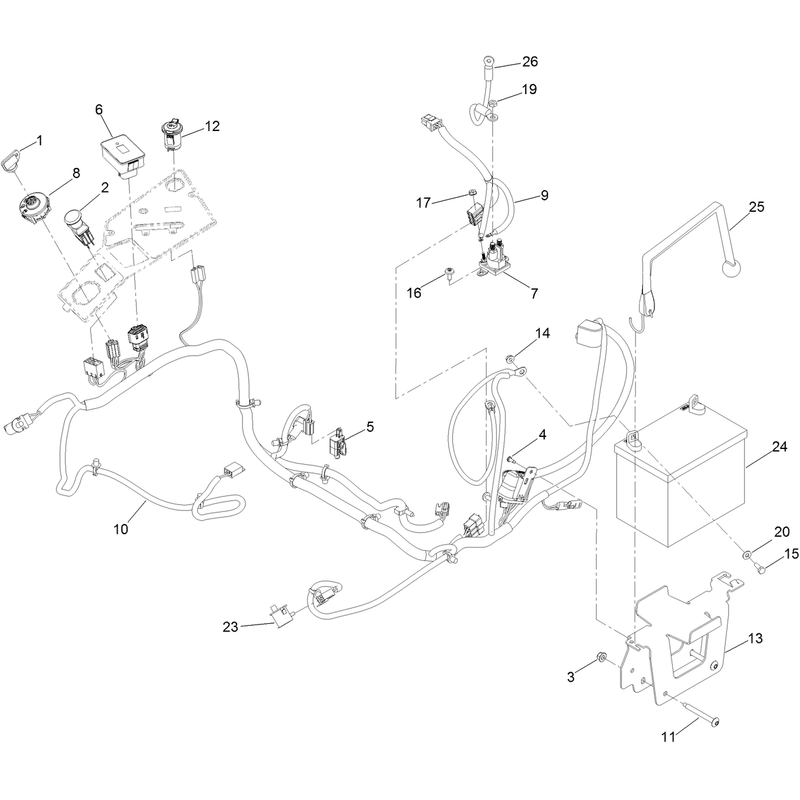

Electrical Assembly
Electrical Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
63-8360
63-8360
|
|||
|
|
103-5221
103-5221
|
|||
|
|
104-8300
104-8300
|
|||
|
|
105-6849
105-6849
|
|||
|
|
110-6765
110-6765
|
|||
|
|
116-5609
116-5609
|
|||
|
|
117-1197
117-1197
|
|||
|
|
137-4100
137-4100
|
|||
|
|
126-5036
126-5036
|
|||
|
|
126-5803
126-5803
|
|||
|
|
126-6267
126-6267
|
|||
|
|
126-6499
126-6499
|
|||
|
|
126-6725-03
126-6725-03
|
|||
|
|
32128-33
32128-33
|
|||
|
|
321-4
321-4
|
|||
|
|
126-6266
126-6266
|
|||
|
|
32149-8
32149-8
|
|||
|
|
3220-2
3220-2
|
|||
|
|
3256-22
3256-22
|
|||
|
|
82-2190
82-2190
|
|||
|
|
|
|||
|
|
126-7627
126-7627
|
|||
|
|
100-3540
100-3540
|
Engine, Clutch and Muffler Assembly
Engine, Clutch and Muffler Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-8301
104-8301
|
|||
|
|
110-6697
110-6697
|
|||
|
|
116-2456
116-2456
|
|||
|
|
116-5108
116-5108
|
|||
|
|
353-508
353-508
|
|||
|
|
237-42
237-42
|
|||
|
|
126-0973
126-0973
|
|||
|
|
1-513034
1-513034
|
|||
|
|
302-40
302-40
|
|||
|
|
32144-11
32144-11
|
|||
|
|
126-4359
126-4359
|
|||
|
|
126-5993
126-5993
|
|||
|
|
135-0134
135-0134
|
|||
|
|
126-6687-03
126-6687-03
|
|||
|
|
126-7198
126-7198
|
|||
|
|
127-3410
127-3410
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
1-603384
1-603384
|
|||
|
|
1-603402
1-603402
|
|||
|
|
1-603610
1-603610
|
|||
|
|
1-807259
1-807259
|
|||
|
|
32144-102
32144-102
|
|||
|
|
323-15
323-15
|
|||
|
|
3231-29
3231-29
|
|||
|
|
3256-4
3256-4
|
|||
|
|
98-5975
98-5975
|
|||
|
|
32128-33
32128-33
|
Fork and Caster Wheel Assembly
Fork and Caster Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-7592
126-7592
|
|||
|
|
142-7827-01
142-7827-01
|
|||
|
|
126-5389
126-5389
|
|||
|
|
127-0068
127-0068
|
|||
|
|
99-5107
99-5107
|

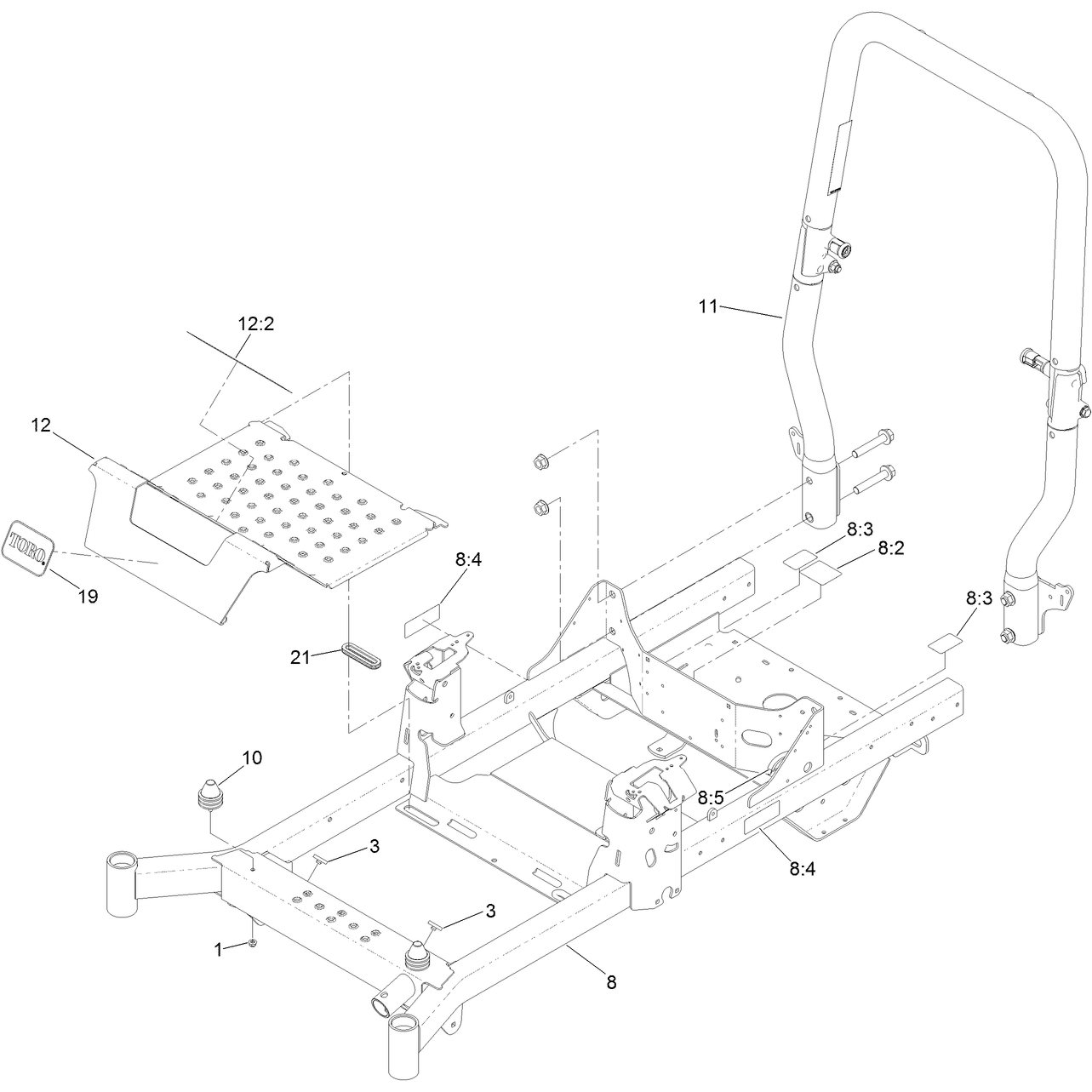

Frame and Roll-Over Protection System Assembly
Frame and Roll-Over Protection System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-8300
104-8300
|
|||
|
|
109-9233
109-9233
|
|||
|
|
126-4699
126-4699
|
|||
|
|
109-6014
109-6014
|
|||
|
|
116-8588
116-8588
|
|||
|
|
126-4363
126-4363
|
|||
|
|
127-6618
127-6618
|
|||
|
|
126-5491
126-5491
|
|||
|
|
126-9526
126-9526
|
|||
|
|
126-5872
126-5872
|
|||
|
|
126-8383
126-8383
|
|||
|
|
67-1300
67-1300
|
|||
|
|
126-7065
126-7065
|
Fuel Tank and Vent Hose System Assembly
Fuel Tank and Vent Hose System Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-8734
126-8734
|
|||
|
|
126-8739
126-8739
|
|||
|
|
110-5702
110-5702
|
|||
|
|
109-0282
109-0282
|
|||
|
|
1-603770
1-603770
|
|||
|
|
2412-98
2412-98
|
|||
|
|
135-4801
135-4801
|
|||
|
|
126-4724
126-4724
|
|||
|
|
126-5523
126-5523
|
|||
|
|
93-6083
93-6083
|
|||
|
|
109-0678
109-0678
|
|||
|
|
114-0292
114-0292
|
|||
|
|
117-1221
117-1221
|
|||
|
|
126-8892
126-8892
|
|||
|
|
110-1876
110-1876
|
|||
|
|
108-9698
108-9698
|
|||
|
|
120-2038
120-2038
|
|||
|
|
106-8150
106-8150
|
|||
|
|
1-303287
1-303287
|
Fuel Tank Assembly No. 126-4724
Fuel Tank Assembly No. 126-4724
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
46-6560
46-6560
|
|||
|
|
126-9057
126-9057
|
|||
|
|
116-4630
116-4630
|
|||
|
|
126-5528
126-5528
|
|||
|
|
126-5527
126-5527
|
|||
|
|
126-5525
126-5525
|
Hydraulic Assembly
Hydraulic Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
135-0140
135-0140
|
|||
|
|
135-0139
135-0139
|
|||
|
|
104-8300
104-8300
|
|||
|
|
126-4687
126-4687
|
|||
|
|
3230-7
3230-7
|
|||
|
|
116-5809
116-5809
|
|||
|
|
126-5896
126-5896
|
|||
|
|
116-6833
116-6833
|
|||
|
|
1-303334
1-303334
|
|||
|
|
126-6266
126-6266
|
|||
|
|
109-2250
109-2250
|
|||
|
|
109-3320
109-3320
|
|||
|
|
32180-118
32180-118
|
|||
|
|
94-7972
94-7972
|
|||
|
|
126-0327
126-0327
|
|||
|
|
109-5395
109-5395
|
|||
|
|
3229-1
3229-1
|
|||
|
|
108-6402
108-6402
|
|||
|
|
1-806003
1-806003
|
|||
|
|
126-5668
126-5668
|
|||
|
|
126-5669
126-5669
|
|||
|
|
3256-4
3256-4
|
LH and RH Motion Control Assembly
LH and RH Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-3773
126-3773
|
|||
|
|
126-8909
126-8909
|
|||
|
|
1-413152
1-413152
|
|||
|
|
126-7296
126-7296
|
|||
|
|
126-8182
126-8182
|
|||
|
|
117-1240
117-1240
|
|||
|
|
119-8925
119-8925
|
|||
|
|
117-1198
117-1198
|
|||
|
|
32152-2
32152-2
|
|||
|
|
126-5435
126-5435
|
|||
|
|
126-5434
126-5434
|
|||
|
|
104-8300
104-8300
|
|||
|
|
126-8195
126-8195
|
|||
|
|
3256-24
3256-24
|

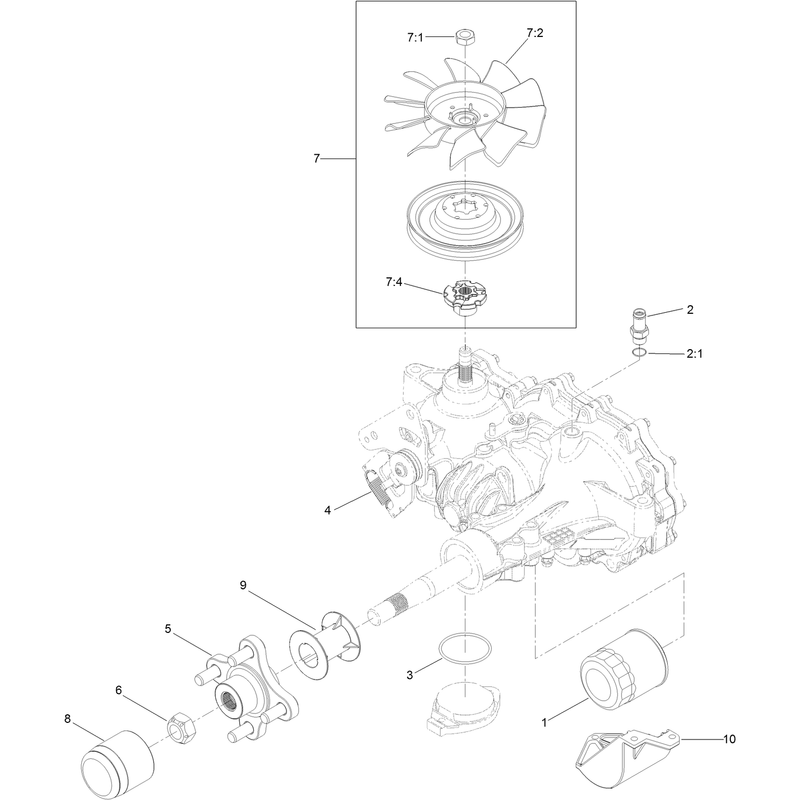

LH Transaxle Assembly No. 135-0140
LH Transaxle Assembly No. 135-0140
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
140-8351
140-8351
|
|||
|
|
135-3604
135-3604
|
|||
|
|
109-3321
109-3321
|
|||
|
|
109-3278
109-3278
|
|||
|
|
237-42
237-42
|
|||
|
|
109-3540
109-3540
|
|||
|
|
109-5592
109-5592
|
|||
|
|
116-3872
116-3872
|
|||
|
|
109-3536
109-3536
|
|||
|
|
135-7347
135-7347
|
|||
|
|
116-9714
116-9714
|
|||
|
|
126-0226
126-0226
|
|||
|
|
116-9705
116-9705
|
|||
|
|
116-6214
116-6214
|
|||
|
|
116-6213
116-6213
|
|||
|
|
120-7979
120-7979
|
Motion Control Assembly
Motion Control Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-8300
104-8300
|
|||
|
|
104-8301
104-8301
|
|||
|
|
107-1045
107-1045
|
|||
|
|
109-7694
109-7694
|
|||
|
|
112-3306
112-3306
|
|||
|
|
115-5099
115-5099
|
|||
|
|
119-1415
119-1415
|
|||
|
|
323-8
323-8
|
|||
|
|
119-4164
119-4164
|
|||
|
|
126-4299
126-4299
|
|||
|
|
142-6851
142-6851
|
|||
|
|
126-4424
126-4424
|
|||
|
|
126-5813
126-5813
|
|||
|
|
126-5819
126-5819
|
|||
|
|
126-5989
126-5989
|
|||
|
|
126-9490
126-9490
|
|||
|
|
126-6456
126-6456
|
|||
|
|
126-5820
126-5820
|
|||
|
|
126-9191
126-9191
|
|||
|
|
126-7359
126-7359
|
|||
|
|
126-9192
126-9192
|
|||
|
|
126-7359
126-7359
|
|||
|
|
126-7217
126-7217
|
|||
|
|
|
|||
|
|
|
|||
|
|
1-303105
1-303105
|
|||
|
|
1-808280
1-808280
|
|||
|
|
32120-47
32120-47
|
|||
|
|
3234-42
3234-42
|
|||
|
|
37-8771
37-8771
|
|||
|
|
115-9625
115-9625
|
|||
|
|
126-6266
126-6266
|
|||
|
|
126-5820
126-5820
|
|||
|
|
2844
2844
|
|||
|
|
3218-3
3218-3
|

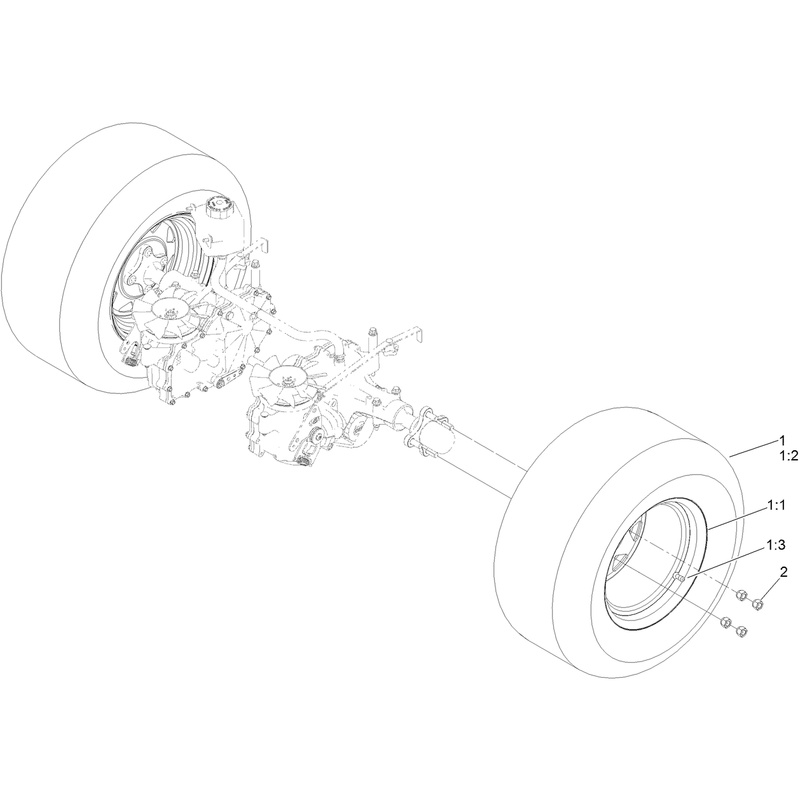

Rear Wheel Assembly
Rear Wheel Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-3280
126-3280
|
|||
|
|
126-9074
126-9074
|
|||
|
|
142-4282
142-4282
|
|||
|
|
5108
5108
|
|||
|
|
139-2564
139-2564
|
RH Transaxle Assembly No. 135-0139
RH Transaxle Assembly No. 135-0139
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
135-3604
135-3604
|
|||
|
|
140-8351
140-8351
|
|||
|
|
109-3321
109-3321
|
|||
|
|
109-3278
109-3278
|
|||
|
|
237-42
237-42
|
|||
|
|
109-3540
109-3540
|
|||
|
|
109-5592
109-5592
|
|||
|
|
116-3872
116-3872
|
|||
|
|
109-3536
109-3536
|
|||
|
|
135-7347
135-7347
|
|||
|
|
116-9714
116-9714
|
|||
|
|
126-0226
126-0226
|
|||
|
|
116-9705
116-9705
|
|||
|
|
116-6214
116-6214
|
|||
|
|
116-6213
116-6213
|
|||
|
|
120-7981
120-7981
|
Roll-Over Protection System Assembly No. 126-9526
Roll-Over Protection System Assembly No. 126-9526
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
107-3069
107-3069
|
|||
|
|
116-0104
116-0104
|
|||
|
|
126-9209
126-9209
|
|||
|
|
99-5107
99-5107
|
|||
|
|
135-0504
135-0504
|
|||
|
|
126-9966
126-9966
|
|||
|
|
126-9488
126-9488
|
|||
|
|
32128-50
32128-50
|
|||
|
|
119-4164
119-4164
|
Seat Assembly No. 136-9014
Seat Assembly No. 136-9014
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-2058
126-2058
|
|||
|
|
110-4163
110-4163
|
|||
|
|
130-0845
130-0845
|
|||
|
|
130-0846
130-0846
|
|||
|
|
126-3506
126-3506
|
|||
|
|
82-2190
82-2190
|
|||
|
|
26-4840
26-4840
|
|||
|
|
130-0844
130-0844
|
|||
|
|
136-9019
136-9019
|
|||
|
|
136-9020
136-9020
|
Seat Mount Assembly
Seat Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
126-4082-03
126-4082-03
|
|||
|
|
3230-23
3230-23
|
|||
|
|
104-8300
104-8300
|
|||
|
|
135-0505
135-0505
|
|||
|
|
126-7309
126-7309
|
|||
|
|
139-3615
139-3615
|
|||
|
|
126-5914
126-5914
|
|||
|
|
32144-44
32144-44
|
|||
|
|
1-603735
1-603735
|
|||
|
|
126-8151
126-8151
|
|||
|
|
126-8161
126-8161
|
|||
|
|
126-9273
126-9273
|
|||
|
|
3256-67
3256-67
|
|||
|
|
135-0214
135-0214
|

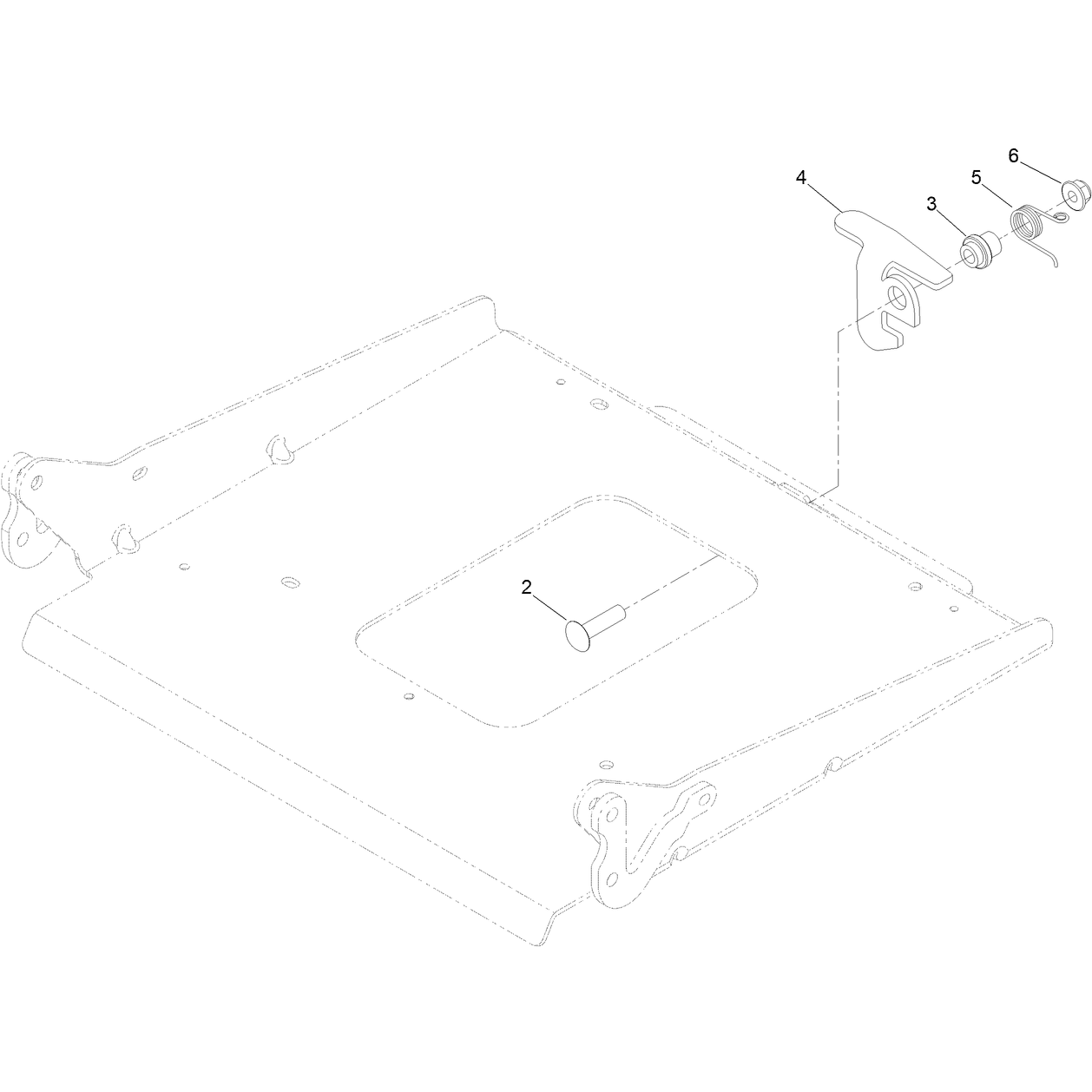

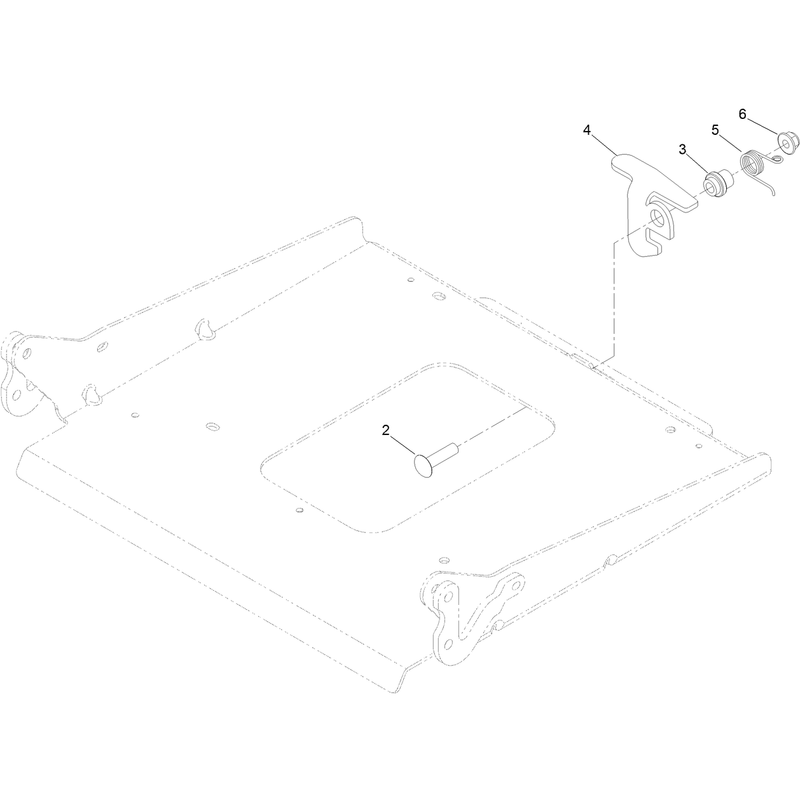

Seat Pan and Latch Assembly No. 126-7309
Seat Pan and Latch Assembly No. 126-7309
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3231-26
3231-26
|
|||
|
|
107-0075
107-0075
|
|||
|
|
126-6739
126-6739
|
|||
|
|
126-8923
126-8923
|
|||
|
|
104-8301
104-8301
|
Wheel and Tire Assembly No. 126-7592
Wheel and Tire Assembly No. 126-7592
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
130-0705
130-0705
|
|||
|
|
135-4489
135-4489
|
|||
|
|
5108
5108
|
|||
|
|
120-7125
120-7125
|
|||
|
|
126-5959
126-5959
|
Wire Harness Assembly No. 126-5803
Wire Harness Assembly No. 126-5803
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
121-8868
121-8868
|
|||
|
|
126-3991
126-3991
|
|||
|
|
32180-176
32180-176
|
|||
|
|
32180-177
32180-177
|
|||
|
|
116-0053
116-0053
|
|||
|
|
103-3895
103-3895
|
|||
|
|
126-8876
126-8876
|
|||
|
|
1-543393
1-543393
|
|||
|
|
121-8867
121-8867
|
SUBSCRIBE AND GET EXCLUSIVE DEALS!
Subscribe to our newsletter TODAY and GET $10 OFF your next order of $100 or more. Our newsletter contains special offers, discounts and updates on new EGO products
