Toro 78452 52" Side Discharge Mower, 5xi Garden Tractors (Serial #: 8900001 - 8999999) Parts Diagram
Diagrams:
Diagram:

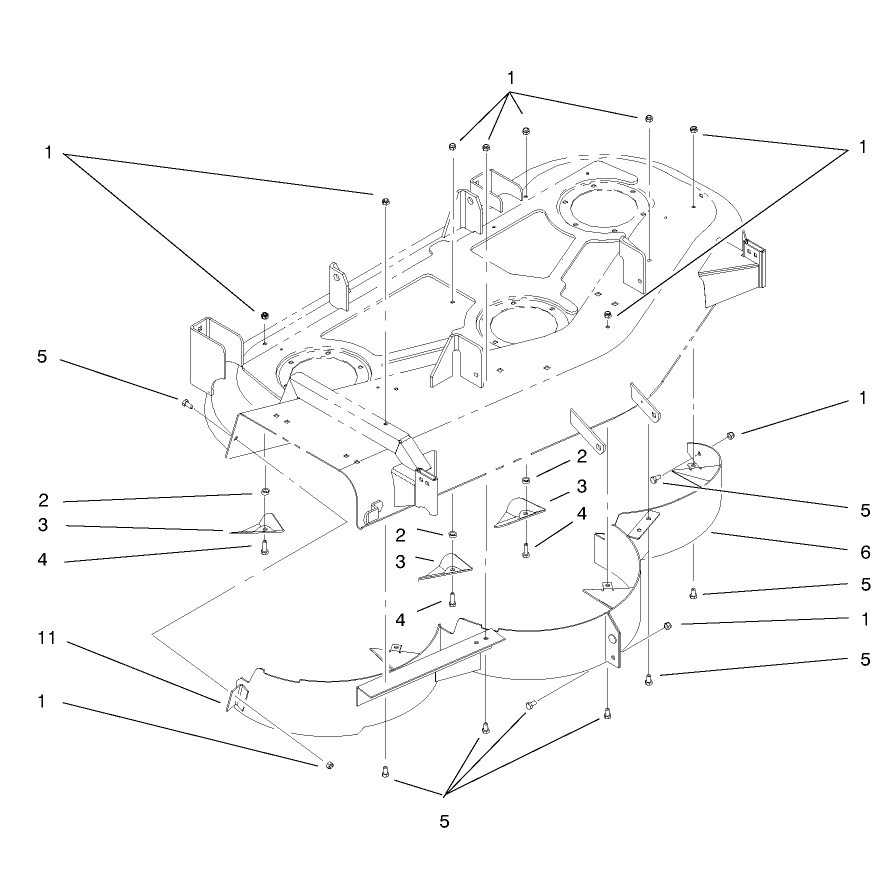

Baffle Assembly
Baffle Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3296-29
3296-29
|
|||
|
|
59-4310
59-4310
|
|||
|
|
84-5760
84-5760
|
|||
|
|
322-4
322-4
|
|||
|
|
322-2
322-2
|
|||
|
|
94-2505-03
94-2505-03
|
|||
|
|
94-2504-03
94-2504-03
|
Decal Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
98-3481
98-3481
|
|||
|
|
94-4943
94-4943
|
|||
|
|
98-3480
98-3480
|
|||
|
|
93-7282
93-7282
|
|||
|
|
111655
111655
|
Deck Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
94-1580-01
94-1580-01
|
|||
|
|
94-1581-01
94-1581-01
|
|||
|
|
92-7108
92-7108
|
|||
|
|
93-7316
93-7316
|
|||
|
|
93-7317
93-7317
|
|||
|
|
93-1122
93-1122
|
|||
|
|
3211-15
3211-15
|
|||
|
|
3296-5
3296-5
|
|||
|
|
3272-11
3272-11
|
|||
|
|
40-0340
40-0340
|
|||
|
|
36-1740
36-1740
|
|||
|
|
322-2
322-2
|
|||
|
|
3296-29
3296-29
|
|||
|
|
3296-39
3296-39
|
|||
|
|
3256-41
3256-41
|
|||
|
|
95-3953
95-3953
|
|||
|
|
94-7952-03
94-7952-03
|
|||
|
|
98-5030
98-5030
|
|||
|
|
29-4820
29-4820
|
|||
|
|
119-4162
119-4162
|
|||
|
|
9335054
9335054
|
|||
|
|
68-2350
68-2350
|
|||
|
|
1-603299
1-603299
|
|||
|
|
3256-24
3256-24
|
|||
|
|
283-2
283-2
|
|||
|
|
3230-18
3230-18
|
|||
|
|
29-5590-03
29-5590-03
|
|||
|
|
3296-29
3296-29
|
|||
|
|
40-6230
40-6230
|
|||
|
|
98-5093
98-5093
|
|||
|
|
98-5092
98-5092
|
|||
|
|
93-7009
93-7009
|
|||
|
|
92-7109
92-7109
|
|||
|
|
92-7108
92-7108
|
|||
|
|
93-7317
93-7317
|
|||
|
|
3296-16
3296-16
|
|||
|
|
3256-1
3256-1
|
|||
|
|
133-9289
133-9289
|
|||
|
|
46-6290
46-6290
|
|||
|
|
3229-1
3229-1
|
|||
|
|
32144-14
32144-14
|
|||
|
|
46-8560
46-8560
|
|||
|
|
98-5032
98-5032
|
|||
|
|
98-5033
98-5033
|
Deck Suspension Assembly
Deck Suspension Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
98-5044
98-5044
|
|||
|
|
98-5042
98-5042
|
|||
|
|
98-5041
98-5041
|
|||
|
|
98-5043
98-5043
|
|||
|
|
98-3478
98-3478
|
|||
|
|
93-9367
93-9367
|
|||
|
|
323-7
323-7
|
|||
|
|
94-7801-01
94-7801-01
|
|||
|
|
32128-19
32128-19
|
|||
|
|
94-7804-01
94-7804-01
|
|||
|
|
94-7943-01
94-7943-01
|
|||
|
|
95-4102
95-4102
|
|||
|
|
3256-69
3256-69
|
|||
|
|
933216
933216
|
|||
|
|
115706
115706
|
|||
|
|
3231-38
3231-38
|
|||
|
|
32152-2
32152-2
|
|||
|
|
94-2130-03
94-2130-03
|
|||
|
|
3231-2
3231-2
|
|||
|
|
114127
114127
|
|||
|
|
94-2041-01
94-2041-01
|
|||
|
|
94-2128-01
94-2128-01
|
|||
|
|
102597
102597
|
|||
|
|
94-7965-01
94-7965-01
|
|||
|
|
101853
101853
|
|||
|
|
92-1057
92-1057
|
|||
|
|
603773
603773
|
|||
|
|
110837-03
110837-03
|
|||
|
|
3296-39
3296-39
|
|||
|
|
3272-12
3272-12
|
|||
|
|
3256-26
3256-26
|
|||
|
|
323-9
323-9
|
|||
|
|
94-7802
94-7802
|
|||
|
|
94-7953
94-7953
|
|||
|
|
3245-2
3245-2
|
|||
|
|
94-7543-03
94-7543-03
|
|||
|
|
32128-40
32128-40
|
|||
|
|
94-7954
94-7954
|
|||
|
|
98-3479
98-3479
|
|||
|
|
3231-4
3231-4
|
|||
|
|
3296-23
3296-23
|

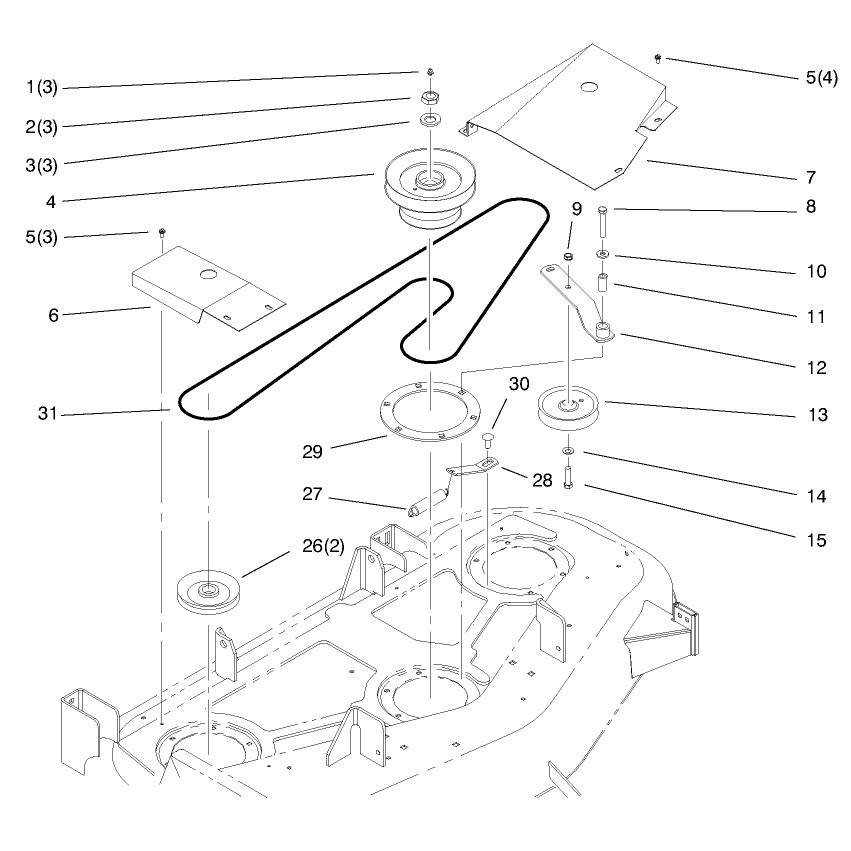

Pulley And Belt Assembly
Pulley And Belt Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
302-2
302-2
|
|||
|
|
3220-7
3220-7
|
|||
|
|
3256-28
3256-28
|
|||
|
|
94-2035
94-2035
|
|||
|
|
46-8560
46-8560
|
|||
|
|
98-1618-01
98-1618-01
|
|||
|
|
98-1619-01
98-1619-01
|
|||
|
|
323-11
323-11
|
|||
|
|
32128-21
32128-21
|
|||
|
|
3256-3
3256-3
|
|||
|
|
51-3640
51-3640
|
|||
|
|
55-7640-03
55-7640-03
|
|||
|
|
93-1622
93-1622
|
|||
|
|
3256-24
3256-24
|
|||
|
|
323-8
323-8
|
|||
|
|
79-0620
79-0620
|
|||
|
|
51-3650
51-3650
|
|||
|
|
55-7650
55-7650
|
|||
|
|
27-7680-03
27-7680-03
|
|||
|
|
3231-22
3231-22
|
|||
|
|
94-2501
94-2501
|
Pulley Box Assembly
Pulley Box Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3296-39
3296-39
|
|||
|
|
94-2447
94-2447
|
|||
|
|
94-2284-01
94-2284-01
|
|||
|
|
323-10
323-10
|
|||
|
|
94-2423
94-2423
|
|||
|
|
32144-70
32144-70
|
|||
|
|
94-2449
94-2449
|
|||
|
|
94-2287-03
94-2287-03
|
|||
|
|
3256-24
3256-24
|
|||
|
|
108571
108571
|
|||
|
|
933156
933156
|
|||
|
|
101851
101851
|
|||
|
|
94-7764
94-7764
|
|||
|
|
3296-29
3296-29
|
|||
|
|
32152-9
32152-9
|
|||
|
|
94-2460
94-2460
|
|||
|
|
19-1471
19-1471
|
|||
|
|
94-2288
94-2288
|
|||
|
|
302-5
302-5
|
|||
|
|
94-2462-01
94-2462-01
|
|||
|
|
95-4094
95-4094
|

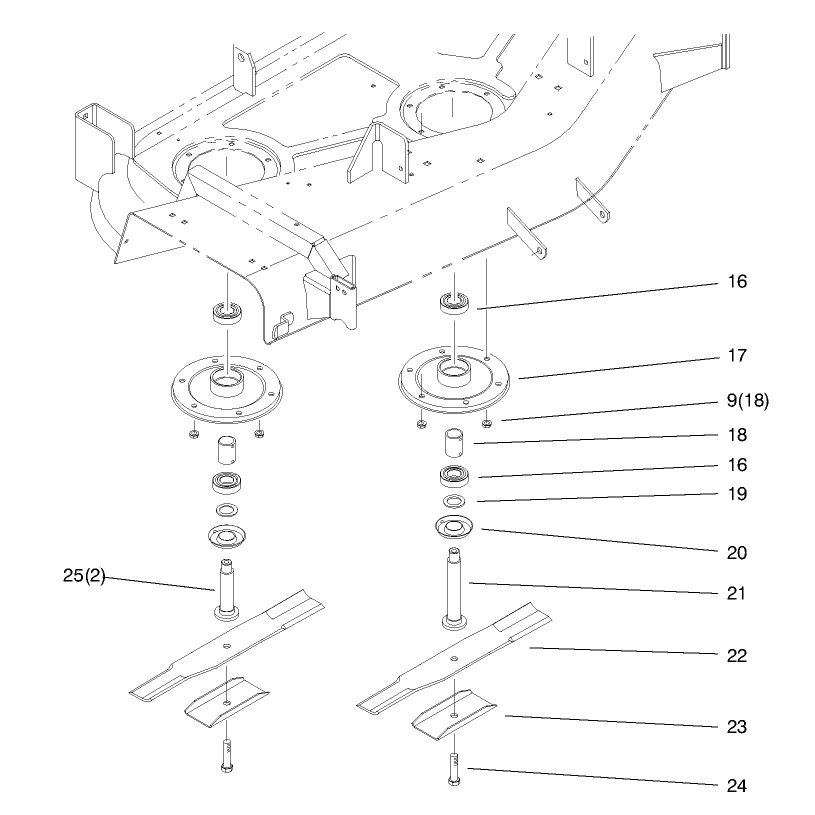

Spindle And Blade Assembly
Spindle And Blade Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32128-21
32128-21
|
|||
|
|
113514
113514
|
|||
|
|
79-2480
79-2480
|
|||
|
|
79-1890
79-1890
|
|||
|
|
120860
120860
|
|||
|
|
79-1920
79-1920
|
|||
|
|
79-1910
79-1910
|
|||
|
|
27-0990-03
27-0990-03
|
|||
|
|
92-7961-03
92-7961-03
|
|||
|
|
92-9820
92-9820
|
|||
|
|
44-2200
44-2200
|
|||
|
|
79-1900
79-1900
|
