Toro 78456 62in Triple Soft Bagger, 200 and 500 Series Z Master (Serial #: 250000001 - 250000171) Parts Diagram
Diagrams:
Diagram:

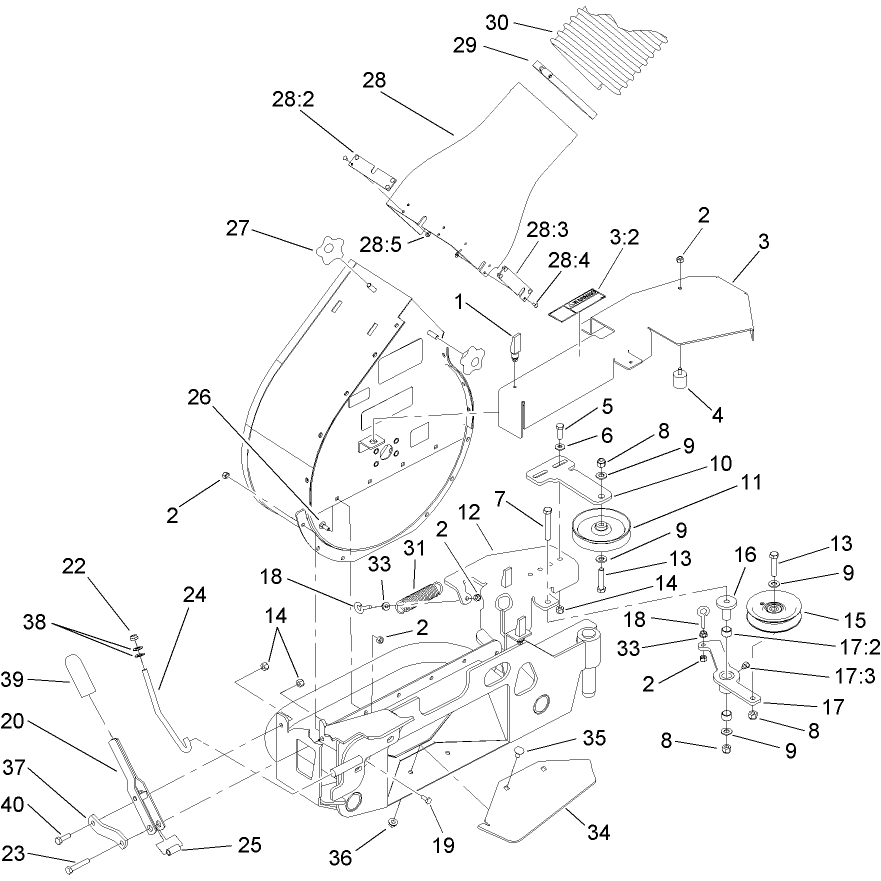

Bag and Frame Assembly
Bag and Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
161-6779
161-6779
|
|||
|
|
1-653529-03
1-653529-03
|
|||
|
|
114973-03
114973-03
|
|||
|
|
114974-03
114974-03
|
|||
|
|
3230-1
3230-1
|
|||
|
|
3296-29
3296-29
|
|||
|
|
161-6778
161-6778
|
|||
|
|
1-653566
1-653566
|
|||
|
|
3229-1
3229-1
|
|||
|
|
1-653036
1-653036
|
|||
|
|
3296-42
3296-42
|

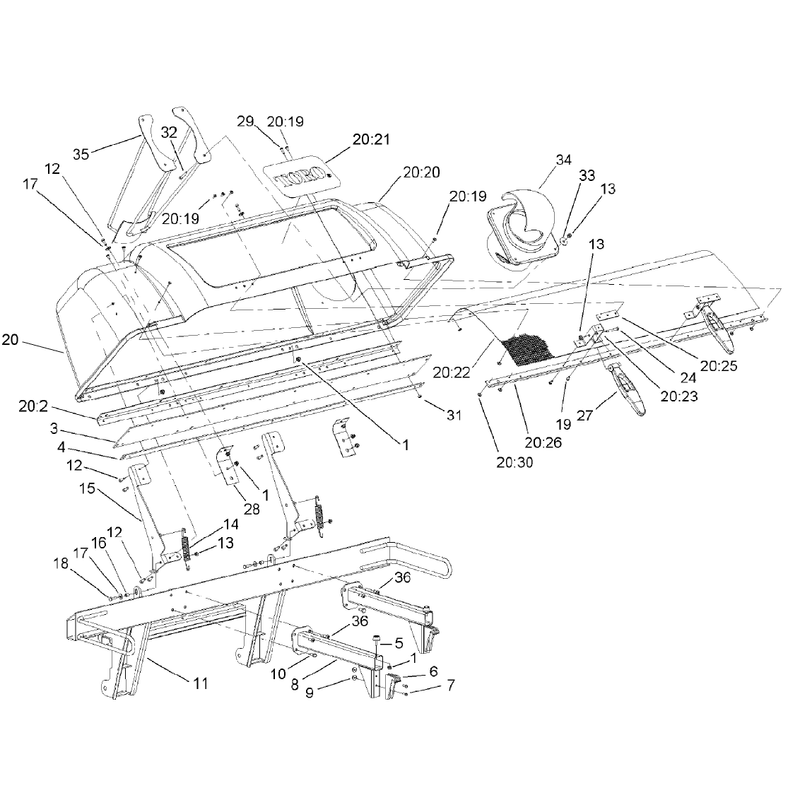

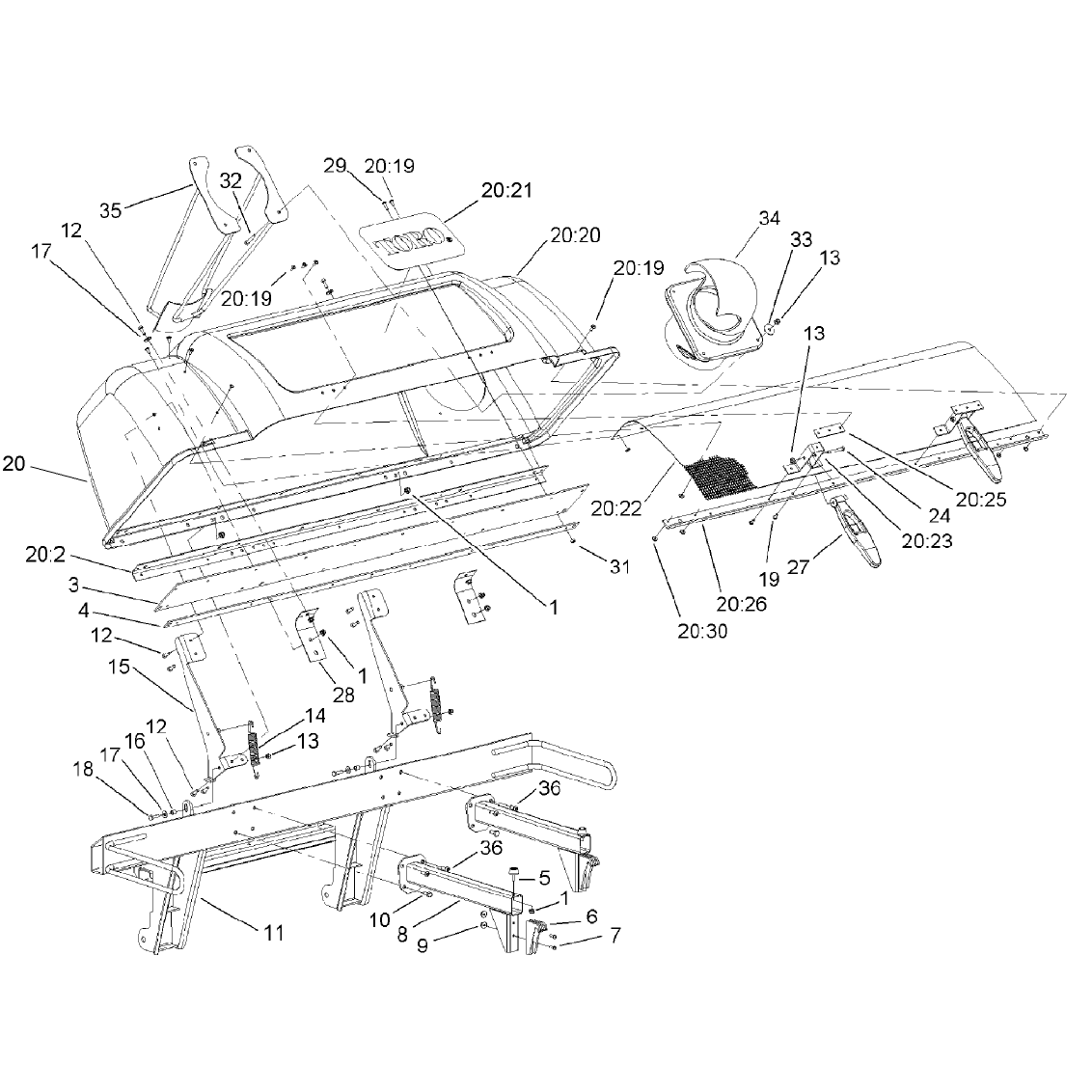

Bagger Hood Assembly
Bagger Hood Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
32128-33
32128-33
|
|||
|
|
103-0451
103-0451
|
|||
|
|
103-0452-03
103-0452-03
|
|||
|
|
1-523420
1-523420
|
|||
|
|
1-653404
1-653404
|
|||
|
|
3290-500
3290-500
|
|||
|
|
103-5124-03
103-5124-03
|
|||
|
|
3290-148
3290-148
|
|||
|
|
322-3
322-3
|
|||
|
|
103-4735-03
103-4735-03
|
|||
|
|
321-4
321-4
|
|||
|
|
3296-42
3296-42
|
|||
|
|
106-3424
106-3424
|
|||
|
|
103-0430-03
103-0430-03
|
|||
|
|
1-633545
1-633545
|
|||
|
|
3256-2
3256-2
|
|||
|
|
321-6
321-6
|
|||
|
|
114439
114439
|
|||
|
|
106-9742
106-9742
|
|||
|
|
103-0382-03
103-0382-03
|
|||
|
|
114439
114439
|
|||
|
|
106-8024
106-8024
|
|||
|
|
67-7310
67-7310
|
|||
|
|
103-0440
103-0440
|
|||
|
|
103-0379
103-0379
|
|||
|
|
103-0376
103-0376
|
|||
|
|
103-0380-03
103-0380-03
|
|||
|
|
3256-14
3256-14
|
|||
|
|
321-11
321-11
|
|||
|
|
1-653403
1-653403
|
|||
|
|
103-0391
103-0391
|
|||
|
|
1-803075
1-803075
|
|||
|
|
32153-1
32153-1
|
|||
|
|
321-9
321-9
|
|||
|
|
3256-55
3256-55
|
|||
|
|
105-5873
105-5873
|
|||
|
|
106-0793-03
106-0793-03
|
|||
|
|
3274-55
3274-55
|

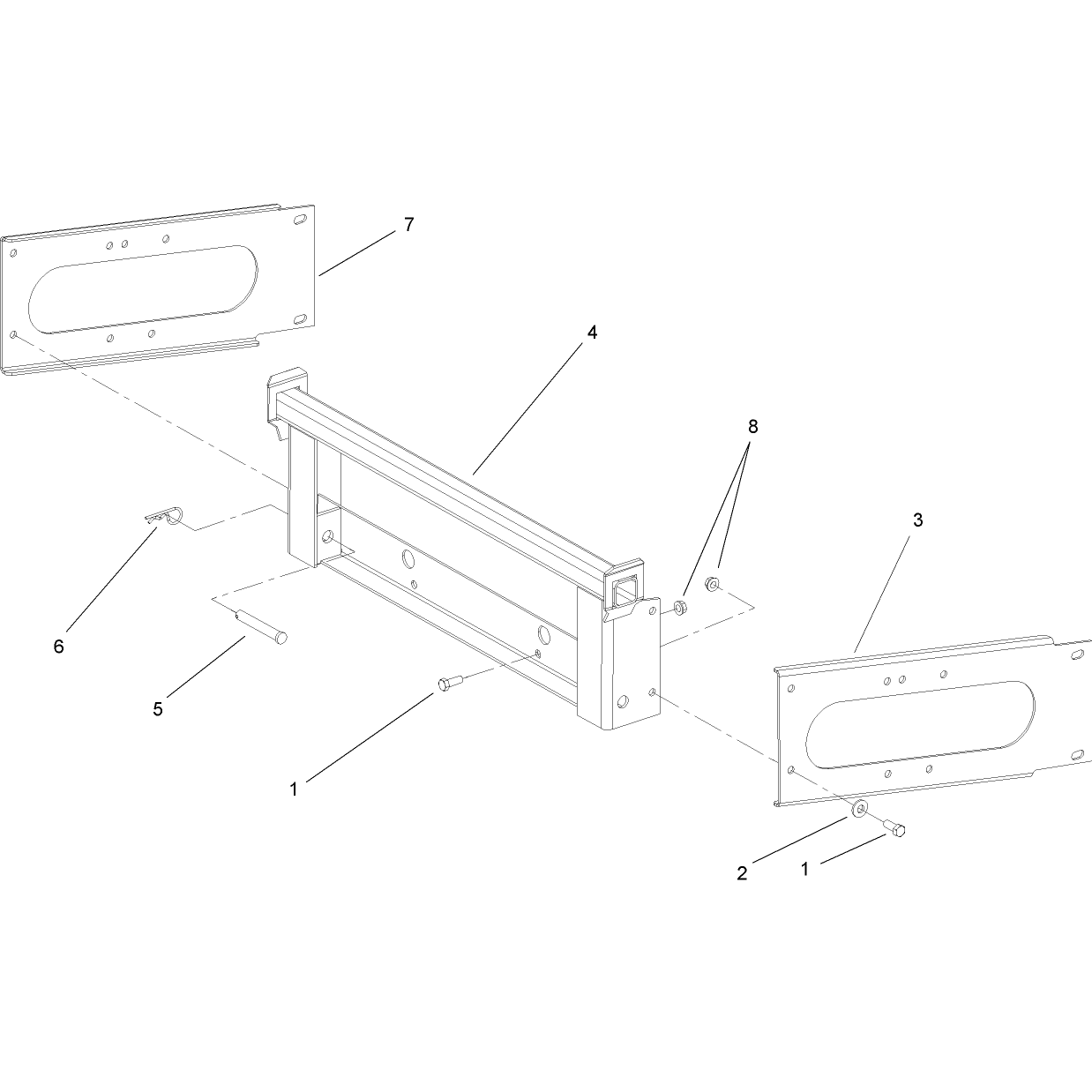

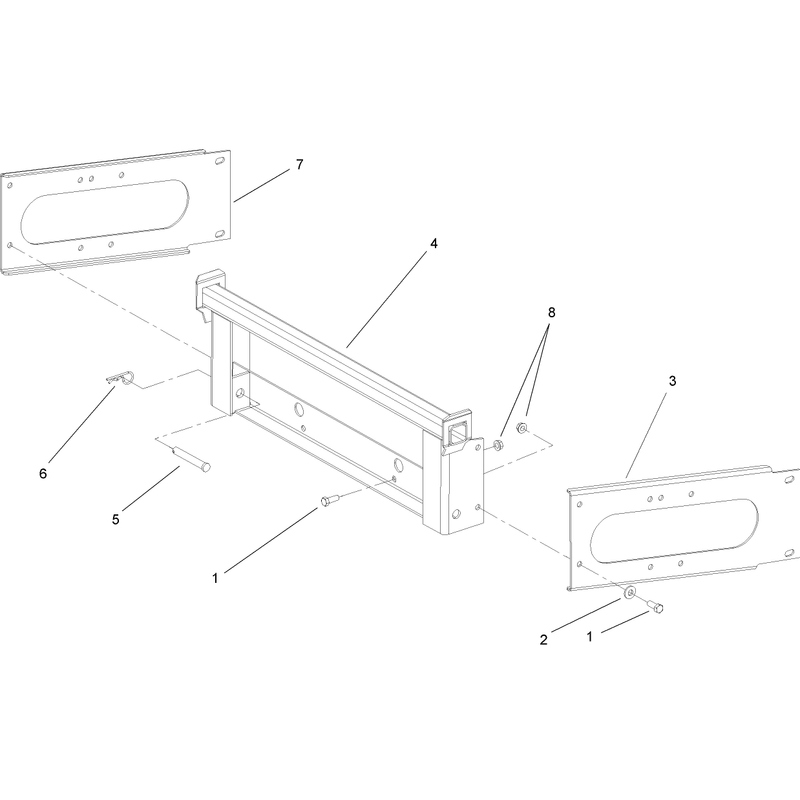

Bagger Mount Assembly
Bagger Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
323-6
323-6
|
|||
|
|
98-5975
98-5975
|
|||
|
|
103-0399-03
103-0399-03
|
|||
|
|
103-0429-03
103-0429-03
|
|||
|
|
283-69
283-69
|
|||
|
|
1-806005
1-806005
|
|||
|
|
103-5612-03
103-5612-03
|
|||
|
|
3290-357
3290-357
|

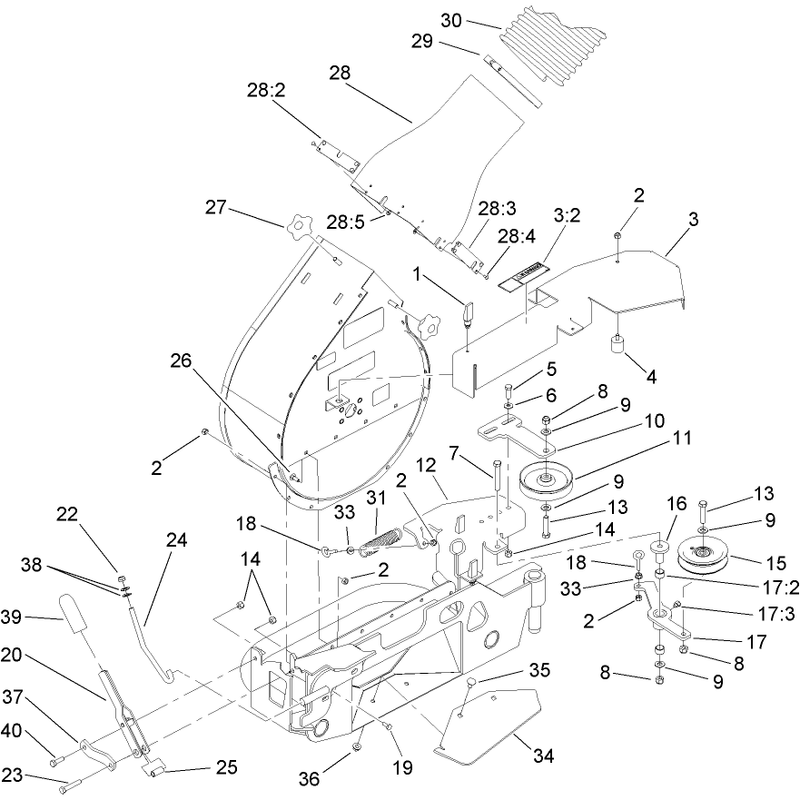

Blower and Idler Pulley Assembly
Blower and Idler Pulley Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
74-5950
74-5950
|
|||
|
|
3296-42
3296-42
|
|||
|
|
105-5990
105-5990
|
|||
|
|
80-8040
80-8040
|
|||
|
|
106-5891
106-5891
|
|||
|
|
322-6
322-6
|
|||
|
|
3256-23
3256-23
|
|||
|
|
323-12
323-12
|
|||
|
|
3296-39
3296-39
|
|||
|
|
3256-24
3256-24
|
|||
|
|
105-5986-03
105-5986-03
|
|||
|
|
92-7099
92-7099
|
|||
|
|
106-3390-03
106-3390-03
|
|||
|
|
323-9
323-9
|
|||
|
|
3296-29
3296-29
|
|||
|
|
92-7084
92-7084
|
|||
|
|
106-2057
106-2057
|
|||
|
|
106-2056
106-2056
|
|||
|
|
1-653600
1-653600
|
|||
|
|
302-11
302-11
|
|||
|
|
71-2870
71-2870
|
|||
|
|
321-3
321-3
|
|||
|
|
108-7245-01
108-7245-01
|
|||
|
|
121-4600
121-4600
|
|||
|
|
322-21
322-21
|
|||
|
|
108-7224
108-7224
|
|||
|
|
95-5807
95-5807
|
|||
|
|
3229-1
3229-1
|
|||
|
|
106-4161
106-4161
|
|||
|
|
106-8021
106-8021
|
|||
|
|
105-9102
105-9102
|
|||
|
|
105-9103
105-9103
|
|||
|
|
106-8000
106-8000
|
|||
|
|
3256-53
3256-53
|
|||
|
|
102528
102528
|
|||
|
|
106-9748
106-9748
|
|||
|
|
115-4712
115-4712
|
|||
|
|
32128-33
32128-33
|
|||
|
|
106-3420-03
106-3420-03
|
|||
|
|
3230-18
3230-18
|
|||
|
|
32128-25
32128-25
|
|||
|
|
108-7225
108-7225
|
|||
|
|
3290-414
3290-414
|
|||
|
|
108-7255
108-7255
|
|||
|
|
322-5
322-5
|
Counterbalance Weight Assembly
Counterbalance Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
325-12
325-12
|
|||
|
|
106-5543
106-5543
|
|||
|
|
106-0872
106-0872
|
|||
|
|
106-0871
106-0871
|
|||
|
|
105-9672-01
105-9672-01
|
|||
|
|
3253-27
3253-27
|
|||
|
|
3217-9
3217-9
|
|||
|
|
106-0870
106-0870
|

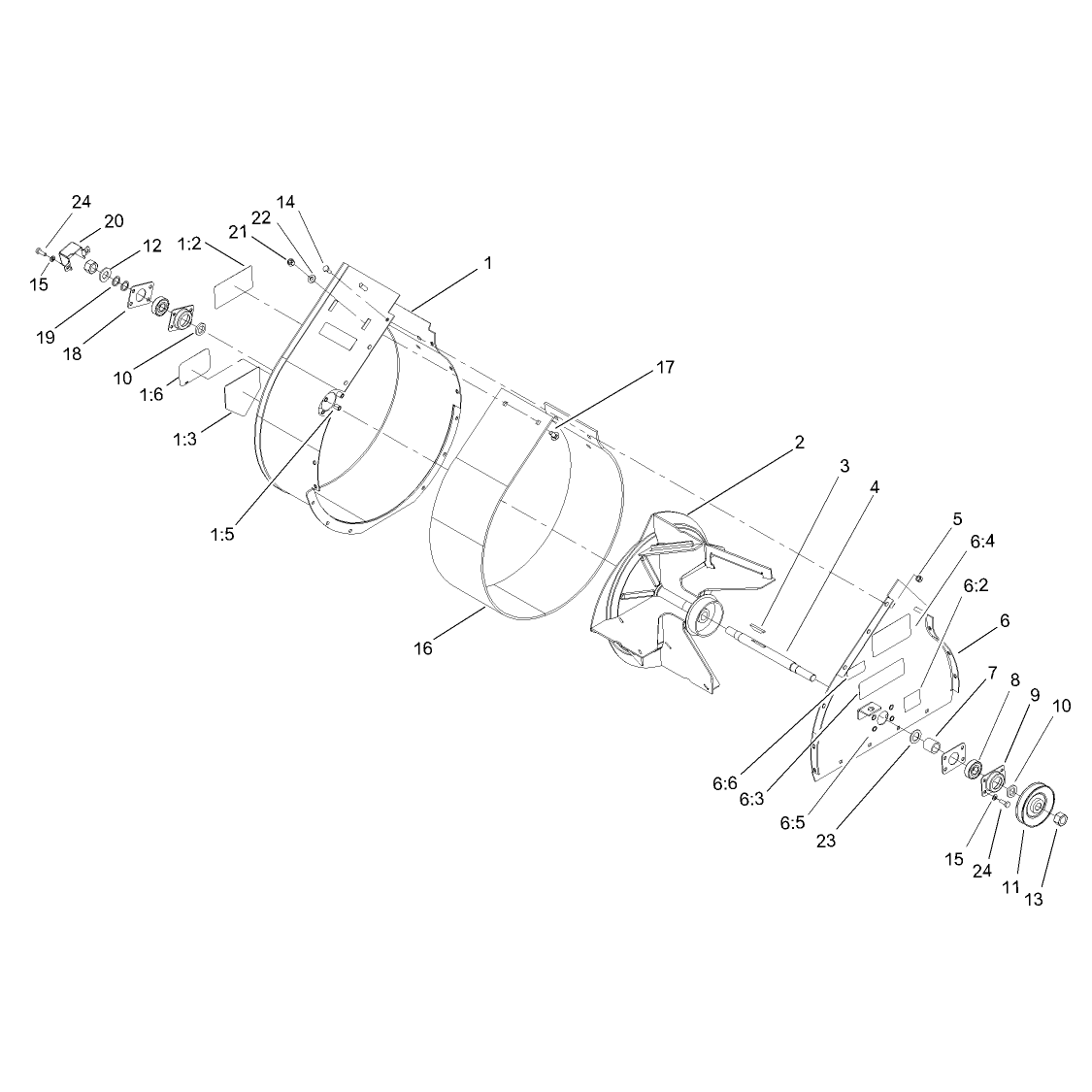

Impeller Assembly
Impeller Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
106-3385
106-3385
|
|||
|
|
79-0360
79-0360
|
|||
|
|
93-1122
93-1122
|
|||
|
|
32148-6
32148-6
|
|||
|
|
99-2385
99-2385
|
|||
|
|
106-3115-03
106-3115-03
|
|||
|
|
3257-40
3257-40
|
|||
|
|
106-3009
106-3009
|
|||
|
|
3296-42
3296-42
|
|||
|
|
106-8019
106-8019
|
|||
|
|
88-8950
88-8950
|
|||
|
|
79-0350
79-0350
|
|||
|
|
79-0360
79-0360
|
|||
|
|
32148-6
32148-6
|
|||
|
|
98-4387
98-4387
|
|||
|
|
106-2097
106-2097
|
|||
|
|
38-7820
38-7820
|
|||
|
|
37-6730
37-6730
|
|||
|
|
63-9710
63-9710
|
|||
|
|
105-5992
105-5992
|
|||
|
|
9202604
9202604
|
|||
|
|
3217-11
3217-11
|
|||
|
|
321-3
321-3
|
|||
|
|
3253-3
3253-3
|
|||
|
|
130-0286-03
130-0286-03
|
|||
|
|
3230-1
3230-1
|
|||
|
|
63-9700-03
63-9700-03
|
|||
|
|
9202154
9202154
|
|||
|
|
106-3076-03
106-3076-03
|
|||
|
|
3296-29
3296-29
|
|||
|
|
3256-23
3256-23
|
|||
|
|
1535
1535
|
|||
|
|
321-4
321-4
|
