Toro 78489 Bagger Kit, Z Master 4000 Series Riding Mower (Serial #: 400000000 - 416999999) Parts Diagram
Diagrams:
Diagram:
Bag Assembly No. 116-0754
Bag Assembly No. 116-0754
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1-653529-03
1-653529-03
|
|||
|
|
114973-03
114973-03
|
|||
|
|
114974-03
114974-03
|
|||
|
|
3230-1
3230-1
|
|||
|
|
3296-29
3296-29
|
|||
|
|
161-6778
161-6778
|
|||
|
|
1-653566
1-653566
|
|||
|
|
3229-1
3229-1
|
|||
|
|
1-653036
1-653036
|
|||
|
|
3296-42
3296-42
|

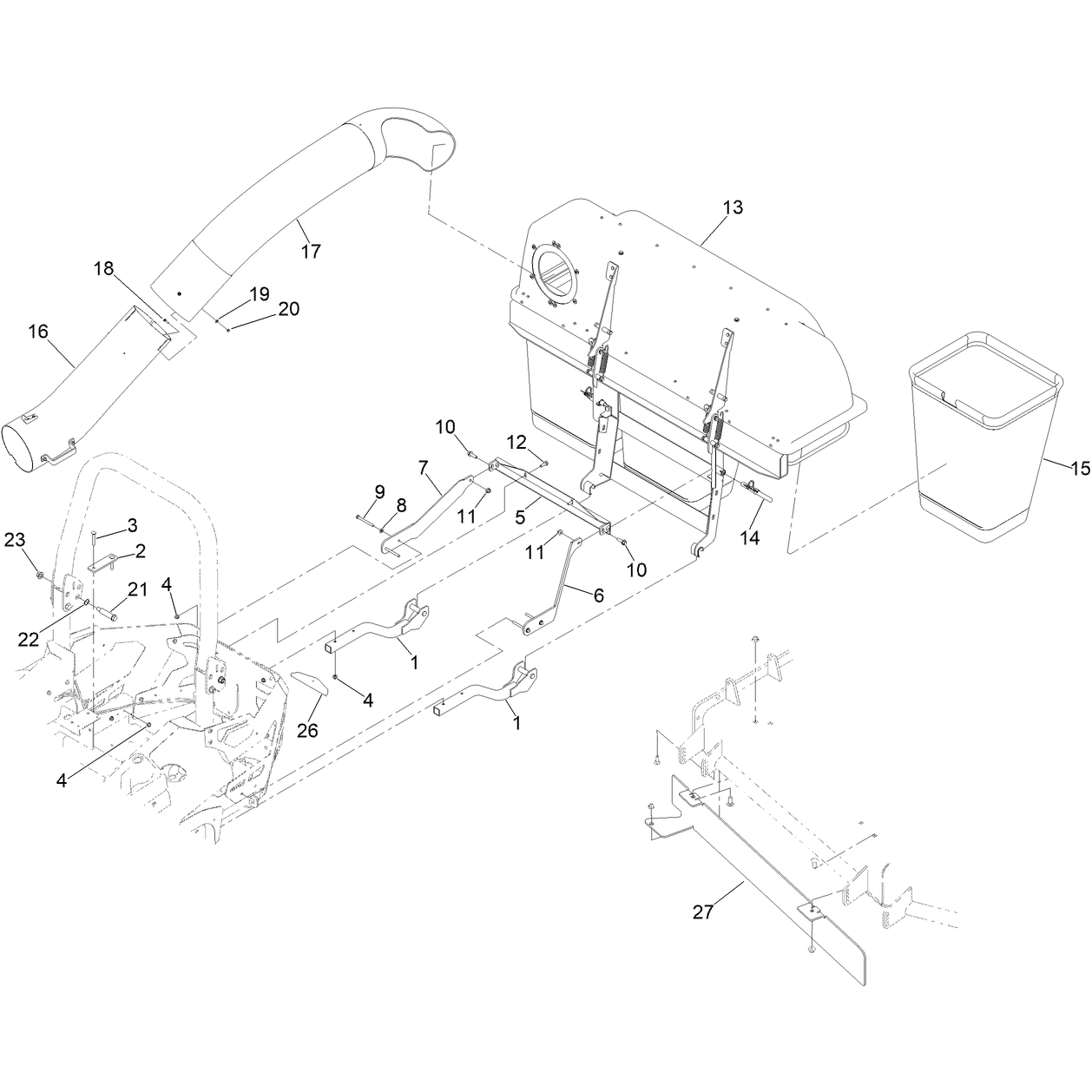

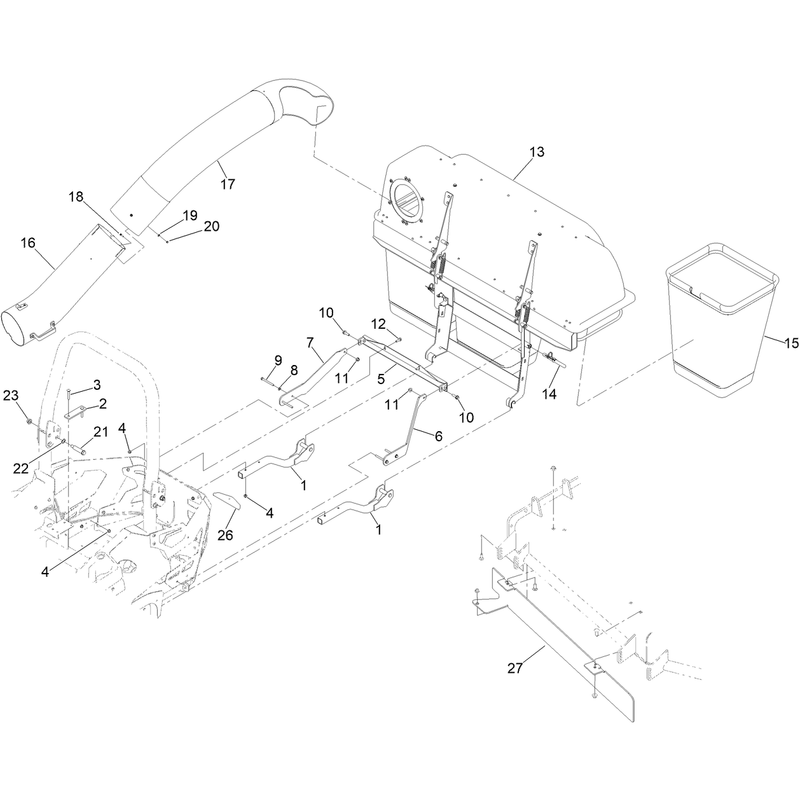

Bagger and Tube Mount Assembly
Bagger and Tube Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
144-0427-03
144-0427-03
|
|||
|
|
144-0426-01
144-0426-01
|
|||
|
|
3230-7
3230-7
|
|||
|
|
104-8300
104-8300
|
|||
|
|
126-9262-03
126-9262-03
|
|||
|
|
144-0425-01
144-0425-01
|
|||
|
|
144-0423-01
144-0423-01
|
|||
|
|
3256-23
3256-23
|
|||
|
|
126-8742
126-8742
|
|||
|
|
119-4061
119-4061
|
|||
|
|
104-8301
104-8301
|
|||
|
|
3234-29
3234-29
|
|||
|
|
145-6974
145-6974
|
|||
|
|
116-0458
116-0458
|
|||
|
|
161-6779
161-6779
|
|||
|
|
109-1973
109-1973
|
|||
|
|
109-1968
109-1968
|
|||
|
|
32105-13
32105-13
|
|||
|
|
3256-14
3256-14
|
|||
|
|
3296-2
3296-2
|
|||
|
|
126-9209
126-9209
|
|||
|
|
119-4164
119-4164
|
|||
|
|
99-5107
99-5107
|
|||
|
|
126-8299
126-8299
|
|||
|
|
145-6998-01
145-6998-01
|

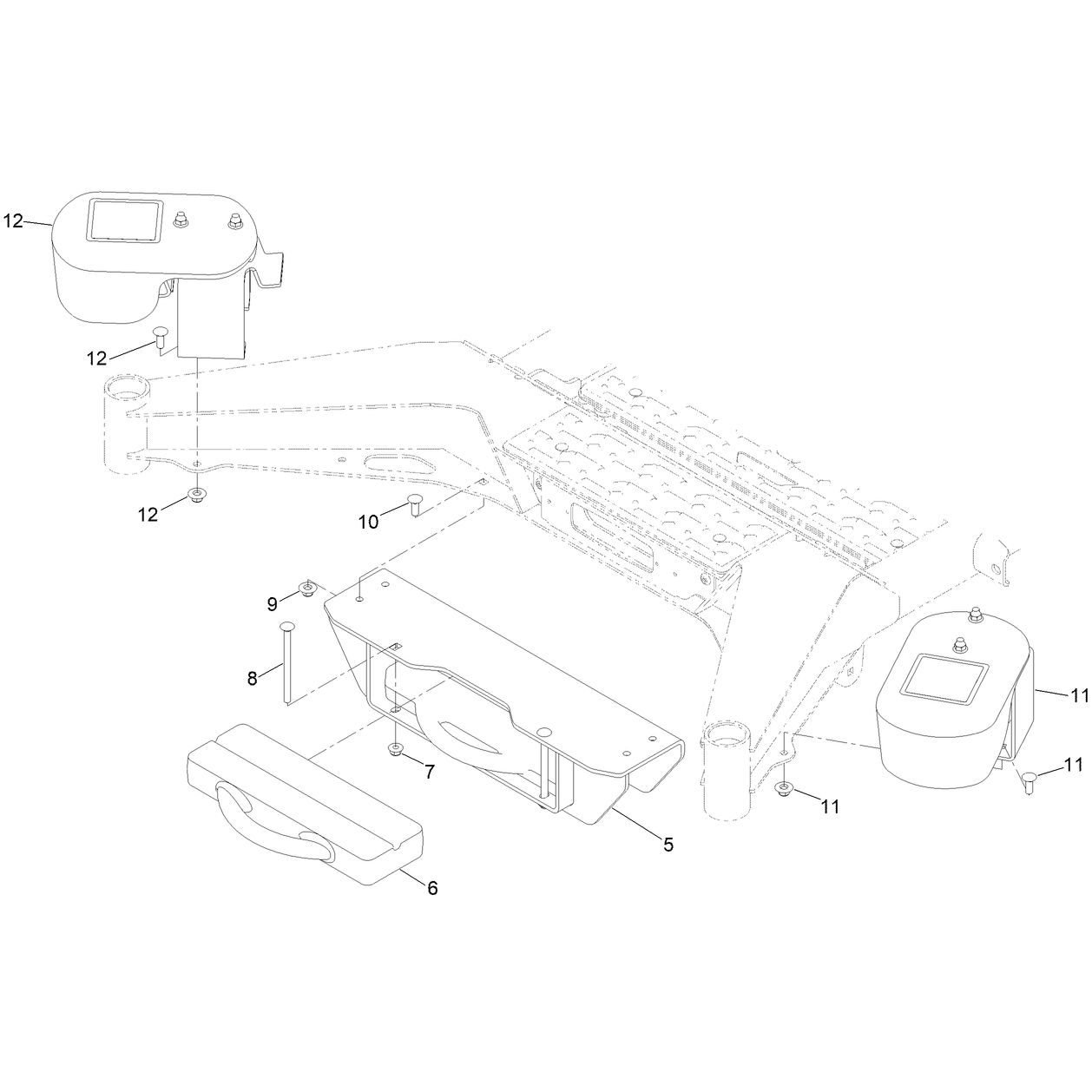

LH Weight Assembly
LH Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
145-7001-01
145-7001-01
|
|||
|
|
126-7639
126-7639
|
|||
|
|
126-4662
126-4662
|
|||
|
|
3231-44
3231-44
|
|||
|
|
104-8301
104-8301
|
|||
|
|
3231-22
3231-22
|
|||
|
|
109-6658
109-6658
|
|||
|
|
130-0733
130-0733
|
Lower Tube Assembly No. 109-1973
Lower Tube Assembly No. 109-1973
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1-353005-03
1-353005-03
|
|||
|
|
103-2897
103-2897
|
|||
|
|
103-3079
103-3079
|
|||
|
|
109-1974
109-1974
|
|||
|
|
321-6
321-6
|
|||
|
|
3256-55
3256-55
|
|||
|
|
3296-2
3296-2
|
|||
|
|
3296-42
3296-42
|
|||
|
|
32105-13
32105-13
|
RH Weight Assembly
RH Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
145-7002-01
145-7002-01
|
|||
|
|
126-7639
126-7639
|
|||
|
|
126-4662
126-4662
|
|||
|
|
3231-44
3231-44
|
|||
|
|
104-8301
104-8301
|
|||
|
|
3231-22
3231-22
|
|||
|
|
109-6658
109-6658
|
|||
|
|
130-0733
130-0733
|
Triple Bagger Assembly No. 145-6974
Triple Bagger Assembly No. 145-6974
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
109-8706-03
109-8706-03
|
|||
|
|
103-5166
103-5166
|
|||
|
|
1-523420
1-523420
|
|||
|
|
103-5124-03
103-5124-03
|
|||
|
|
1-653404
1-653404
|
|||
|
|
3290-148
3290-148
|
|||
|
|
32128-33
32128-33
|
|||
|
|
3290-500
3290-500
|
|||
|
|
109-8351-03
109-8351-03
|
|||
|
|
112-1760
112-1760
|
|||
|
|
103-0382-03
103-0382-03
|
|||
|
|
103-0451
103-0451
|
|||
|
|
103-0452-03
103-0452-03
|
|||
|
|
114439
114439
|
|||
|
|
1-803075
1-803075
|
|||
|
|
3296-2
3296-2
|
|||
|
|
321-4
321-4
|
|||
|
|
32128-33
32128-33
|
|||
|
|
103-0391
103-0391
|
|||
|
|
3256-2
3256-2
|
|||
|
|
1-633545
1-633545
|
|||
|
|
321-6
321-6
|
|||
|
|
3296-42
3296-42
|
|||
|
|
112-1760
112-1760
|
|||
|
|
103-0380-03
103-0380-03
|
|||
|
|
103-0379
103-0379
|
|||
|
|
103-0376
103-0376
|
|||
|
|
1-653403
1-653403
|
|||
|
|
321-11
321-11
|
|||
|
|
3274-55
3274-55
|
|||
|
|
103-0439
103-0439
|
|||
|
|
103-0378
103-0378
|
|||
|
|
3256-61
3256-61
|
|||
|
|
3250-27
3250-27
|
|||
|
|
1-513658
1-513658
|
|||
|
|
1-653544
1-653544
|
|||
|
|
67-7310
67-7310
|
Weight Assembly
Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
144-6640-01
144-6640-01
|
|||
|
|
109-9742-05
109-9742-05
|
|||
|
|
104-8301
104-8301
|
|||
|
|
109-6795
109-6795
|
|||
|
|
109-6658
109-6658
|
|||
|
|
3231-22
3231-22
|
|||
|
|
|
|||
|
|
|
