Toro 78566 48in and 52in E-Z Vac DFS Collection System, Z Master G3 Mower (Serial #: 411400000 - 999999999) Parts Diagram
Diagrams:
Diagram:
Bagger Mount Assembly
Bagger Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3274-1
3274-1
|
|||
|
|
103-8839
103-8839
|
|||
|
|
109-8701-03
109-8701-03
|
|||
|
|
1-323385
1-323385
|
|||
|
|
322-12
322-12
|
|||
|
|
3256-23
3256-23
|
|||
|
|
103-5114-03
103-5114-03
|
|||
|
|
103-3202
103-3202
|
|||
|
|
3296-29
3296-29
|
|||
|
|
146-3891
146-3891
|
|||
|
|
109-6658
109-6658
|
|||
|
|
3230-31
3230-31
|
|||
|
|
117-6164-03
117-6164-03
|
|||
|
|
103-7115
103-7115
|
|||
|
|
3231-28
3231-28
|
|||
|
|
3233-34
3233-34
|
|||
|
|
1-513658
1-513658
|
|||
|
|
103-4402
103-4402
|
|||
|
|
103-4433
103-4433
|
|||
|
|
116-0473-03
116-0473-03
|
|||
|
|
109-9248
109-9248
|
|||
|
|
116-0458
116-0458
|
|||
|
|
3230-5
3230-5
|
|||
|
|
116-0057-03
116-0057-03
|
|||
|
|
116-0180
116-0180
|
|||
|
|
106-5517
106-5517
|
|||
|
|
99-5107
99-5107
|
Bagger Mount Assembly
Bagger Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
103-4819-03
103-4819-03
|
|||
|
|
103-7829
103-7829
|
|||
|
|
114439
114439
|
|||
|
|
103-5102
103-5102
|
|||
|
|
103-4828
103-4828
|
|||
|
|
3256-2
3256-2
|
|||
|
|
321-4
321-4
|
|||
|
|
103-4406-03
103-4406-03
|
|||
|
|
3296-29
3296-29
|
|||
|
|
3256-23
3256-23
|
|||
|
|
103-4820-03
103-4820-03
|
|||
|
|
103-6294
103-6294
|
|||
|
|
103-6295
103-6295
|
|||
|
|
3256-4
3256-4
|
|||
|
|
121-4600
121-4600
|
|||
|
|
3230-22
3230-22
|
|||
|
|
94-8196
94-8196
|
|||
|
|
103-4424
103-4424
|
|||
|
|
32151-61
32151-61
|
|||
|
|
103-4431
103-4431
|
|||
|
|
3219-5
3219-5
|
|||
|
|
103-4835
103-4835
|
|||
|
|
103-4848
103-4848
|
|||
|
|
103-4822
103-4822
|
|||
|
|
103-4813
103-4813
|
|||
|
|
323-7
323-7
|
|||
|
|
103-4415
103-4415
|
|||
|
|
32128-33
32128-33
|
|||
|
|
322-5
322-5
|
|||
|
|
3231-4
3231-4
|
|||
|
|
3256-22
3256-22
|
|||
|
|
103-4437-03
103-4437-03
|
|||
|
|
103-5112
103-5112
|
|||
|
|
107069
107069
|
|||
|
|
103-4408-03
103-4408-03
|
|||
|
|
3296-39
3296-39
|
|||
|
|
3230-2
3230-2
|
|||
|
|
103-5111
103-5111
|
|||
|
|
3256-26
3256-26
|
|||
|
|
1-806003
1-806003
|
|||
|
|
103-7828
103-7828
|

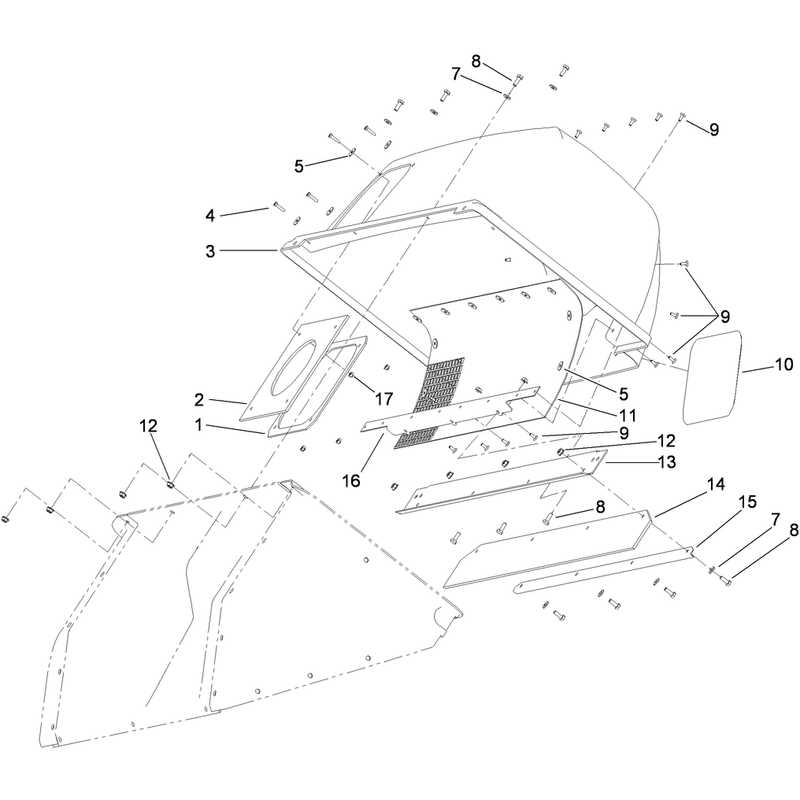

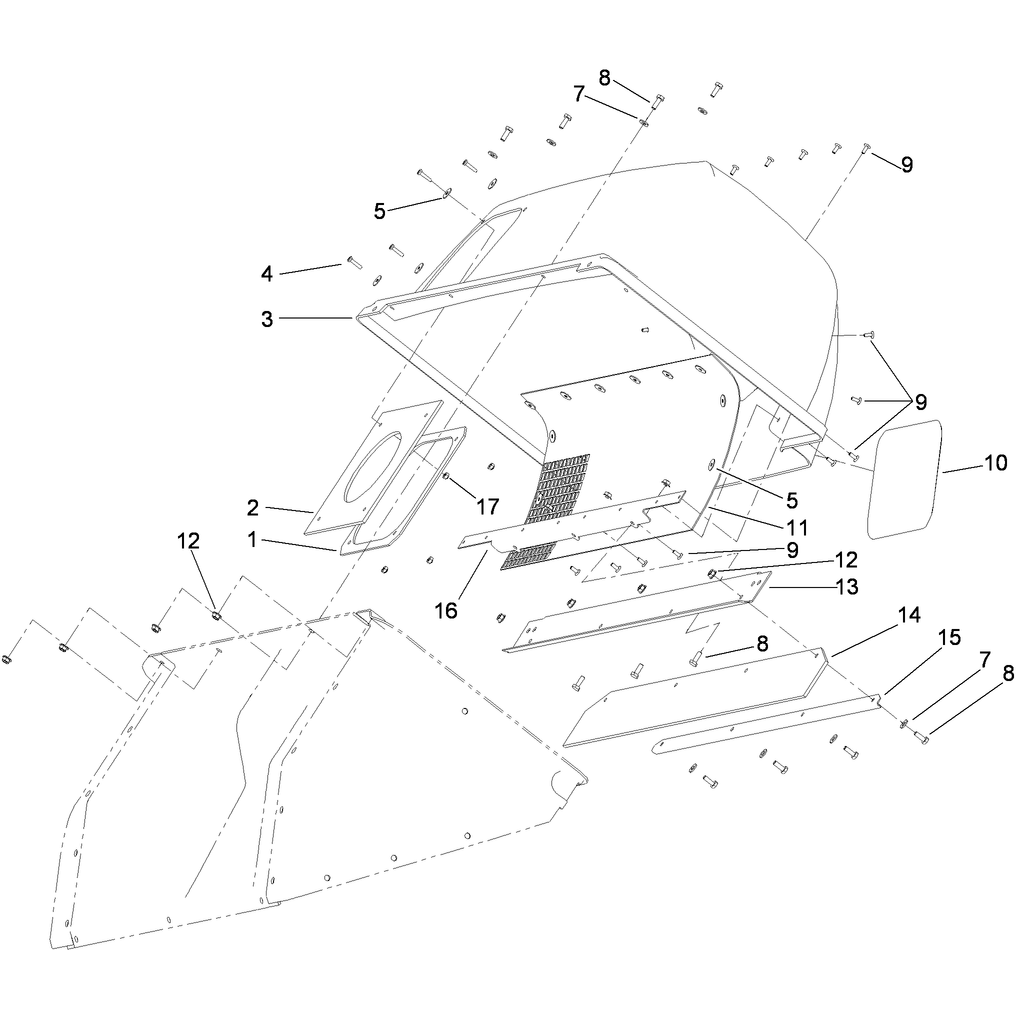

Hood and Frame Assembly
Hood and Frame Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
1-653598-03
1-653598-03
|
|||
|
|
1-653561
1-653561
|
|||
|
|
114-8249
114-8249
|
|||
|
|
3250-27
3250-27
|
|||
|
|
3256-61
3256-61
|
|||
|
|
3256-22
3256-22
|
|||
|
|
321-4
321-4
|
|||
|
|
114439
114439
|
|||
|
|
99-4693
99-4693
|
|||
|
|
114967
114967
|
|||
|
|
32128-33
32128-33
|
|||
|
|
103-4412-03
103-4412-03
|
|||
|
|
103-4832
103-4832
|
|||
|
|
103-4834-03
103-4834-03
|
|||
|
|
103-5101-03
103-5101-03
|
|||
|
|
3296-2
3296-2
|

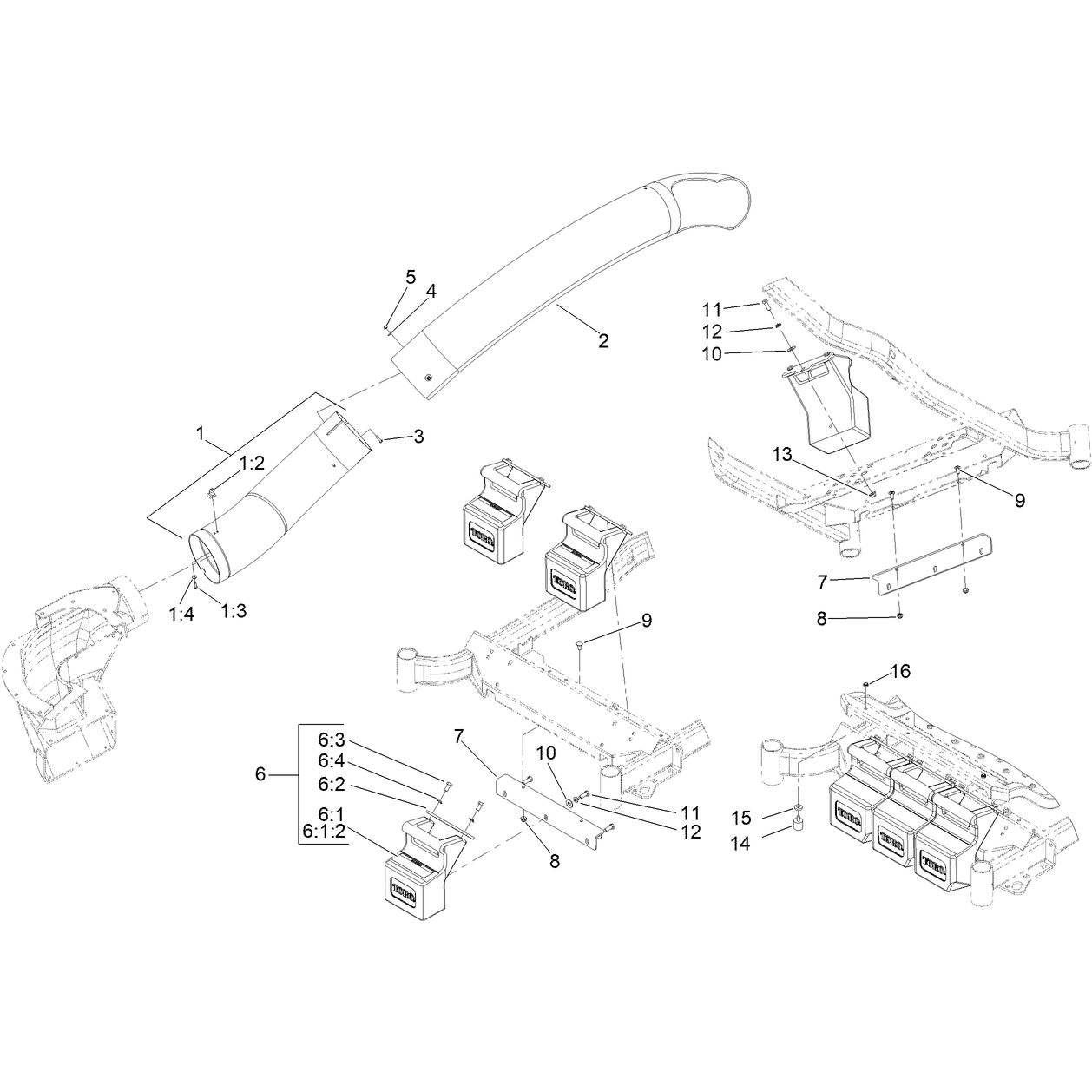

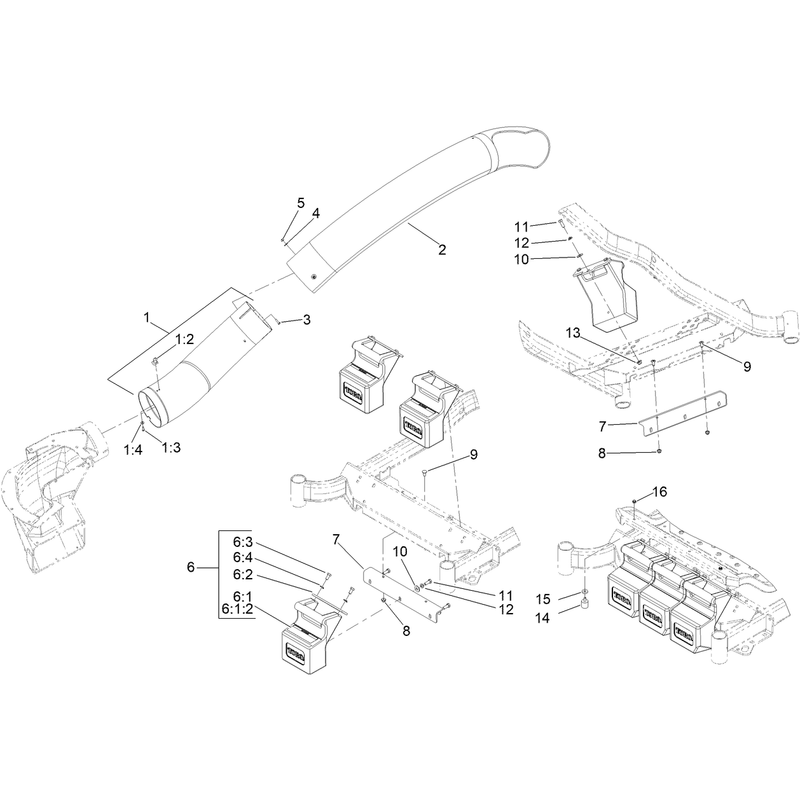

Tube and Weight Assembly
Tube and Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
109-2043
109-2043
|
|||
|
|
103-4081
103-4081
|
|||
|
|
3290-500
3290-500
|
|||
|
|
3256-14
3256-14
|
|||
|
|
109-2036
109-2036
|
|||
|
|
32105-13
32105-13
|
|||
|
|
3256-61
3256-61
|
|||
|
|
3296-2
3296-2
|
|||
|
|
147-2356
147-2356
|
|||
|
|
147-2357
147-2357
|
|||
|
|
136-4053
136-4053
|
|||
|
|
115-3616-01
115-3616-01
|
|||
|
|
323-4
323-4
|
|||
|
|
3253-5
3253-5
|
|||
|
|
115-3615-01
115-3615-01
|
|||
|
|
104-8300
104-8300
|
|||
|
|
3230-23
3230-23
|
|||
|
|
3256-4
3256-4
|
|||
|
|
323-6
323-6
|
|||
|
|
3253-5
3253-5
|
|||
|
|
104-8301
104-8301
|
|||
|
|
104-2442
104-2442
|
|||
|
|
104-7658
104-7658
|
|||
|
|
3296-47
3296-47
|
